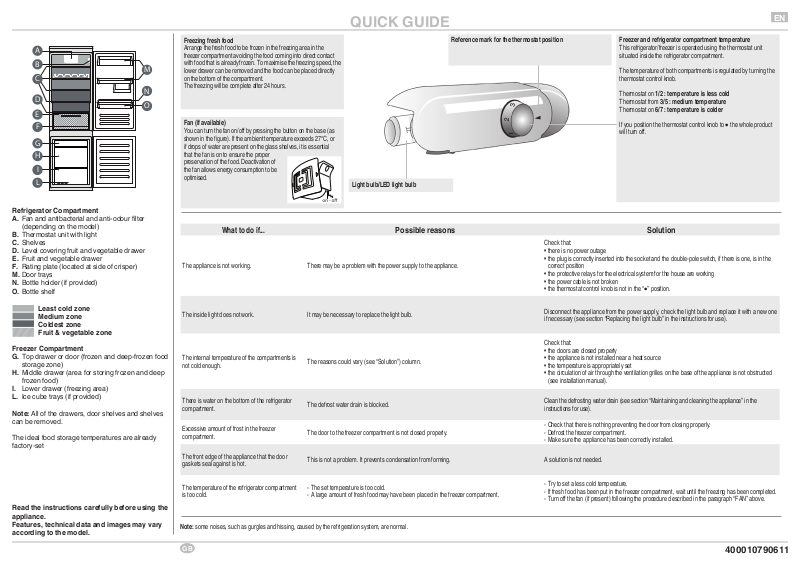

Indesit IB5050A1DUK QUICK GUIDE
QUICK GUIDE
B
E
F
A
G
H
I
O
M
D
L
N
C
B
E
F
A
G
H
I
O
M
D
L
B
E
F
A
G
H
I
O
M
D
L
N
N
C
C
Image 1
Comparto Frigorifero
A. Ventola e ltro antibatterico e antiodore (a seconda del modello)
B. Gruppo termostato con luce
C. Ripiani
D. Piano di copertura cassetto frutta e verdura
E. Cassetto frutta e verdura
F. Targhetta matricola (posta a lato del cassetto frutta e verdura)
M. Balconcini
N. Fermabottiglie (se in dotazione)
O. Balconcino bottiglie
Zona meno fredda
Zona intermedia
Zona più fredda
Zona frutta e verdura
Image 4
Comparto Frigorifero
A. Ventola e ltro antibatterico e antiodore (a seconda del modello)
B. Pannello comandi con luce LED
C. Ripiani
D. Piano di copertura cassetto frutta e verdura
E. Cassetto frutta e verdura
F. Targhetta matricola (posta a lato del cassetto frutta e verdura)
M. Balconcini
N. Fermabottiglie (se in dotazione)
O. Balconcino bottiglie
Zona meno fredda
Zona intermedia
Zona più fredda
Zona frutta e verdura
EN
Freezing fresh food
A
B
M
C
N
D
O
Arrange the fresh food to be frozen in the freezing area in the
freezer compartment avoiding the food coming into direct contact
with food that is already frozen. To maximise the freezing speed, the
lower drawer can be removed and the food can be placed directly
on the bottom of the compartment.
The freezing will be complete after 24 hours.
E
F
G
H
I
L
Refrigerator Compartment
A. Fan and antibacterial and anti-odour filter
(depending on the model)
B. Thermostat unit with light
C. Shelves
D. Level covering fruit and vegetable drawer
E. Fruit and vegetable drawer
F. Rating plate (located at side of crisper)
M. Door trays
N. Bottle holder (if provided)
O. Bottle shelf
Least cold zone
Medium zone
Coldest zone
Fruit & vegetable zone
Fan (if available)
You can turn the fan on/off by pressing the button on the base (as
shown in the figure). If the ambient temperature exceeds 27°C, or
if drops of water are present on the glass shelves, it is essential
that the fan is on to ensure the proper
preservation of the food. Deactivation of
the fan allows energy consumption to be
optimised.
The appliance is not working. There may be a problem with the power supply to the appliance.
The inside light does not work. It may be necessary to replace the light bulb.
Freezer Compartment
G. Top drawer or door (frozen and deep-frozen food
storage zone)
H. Middle drawer (area for storing frozen and deep
frozen food)
I. Lower drawer (freezing area)
L. Ice cube trays (if provided)
Note: All of the drawers, door shelves and shelves
can be removed.
The ideal food storage temperatures are already
factory-set
Read the instructions carefully before using the
appliance.
Features, technical data and images may vary
according to the model.
The internal temperature of the compartments is
not cold enough.
There is water on the bottom of the refrigerator
compartment.
Excessive amount of frost in the freezer
compartment.
The front edge of the appliance that the door
gaskets seal against is hot.
The temperature of the refrigerator compartment
is too cold.
Note: some noises, such as gurgles and hissing, caused by the refrigeration system, are normal.
GB
Reference mark for the thermostat position
Light bulb/LED light bulb
What to do if...
The reasons could vary (see “Solution”) column.
The defrost water drain is blocked.
The door to the freezer compartment is not closed properly.
This is not a problem. It prevents condensation from forming. A solution is not needed.
- The set temperature is too cold.
- A large amount of fresh food may have been placed in the freezer compartment.
Possible reasons Solution
Check that:
• there is no power outage
• the plug is correctly inserted into the socket and the double-pole switch, if there is one, is in the
correct position
• the protective relays for the electrical system for the house are working
• the power cable is not broken
• the thermostat control knob is not in the “
Disconnect the appliance from the power supply, check the light bulb and replace it with a new one
if necessary (see section “Replacing the light bulb” in the instructions for use).
Check that:
• the doors are closed properly
• the appliance is not installed near a heat source
• the temperature is appropriately set
• the circulation of air through the ventilation grilles on the base of the appliance is not obstructed
(see installation manual).
Clean the defrosting water drain (see section “Maintaining and cleaning the appliance” in the
instructions for use).
- Check that there is nothing preventing the door from closing properly.
- Defrost the freezer compartment.
- Make sure the appliance has been correctly installed.
- Try to set a less cold temperature.
- If fresh food has been put in the freezer compartment, wait until the freezing has been completed.
- Turn off the fan (if present) following the procedure described in the paragraph “FAN” above.
Freezer and refrigerator compartment temperature
This refrigerator/freezer is operated using the thermostat unit
situated inside the refrigerator compartment.
The temperature of both compartments is regulated by turning the
thermostat control knob.
Thermostat on 1/2 : temperature is less cold
Thermostat from 3/5 : medium temperature
Thermostat on 6/7 : temperature is colder
If you position the thermostat control knob to
will turn off.
” position.
•
the whole product
•
400010790611
