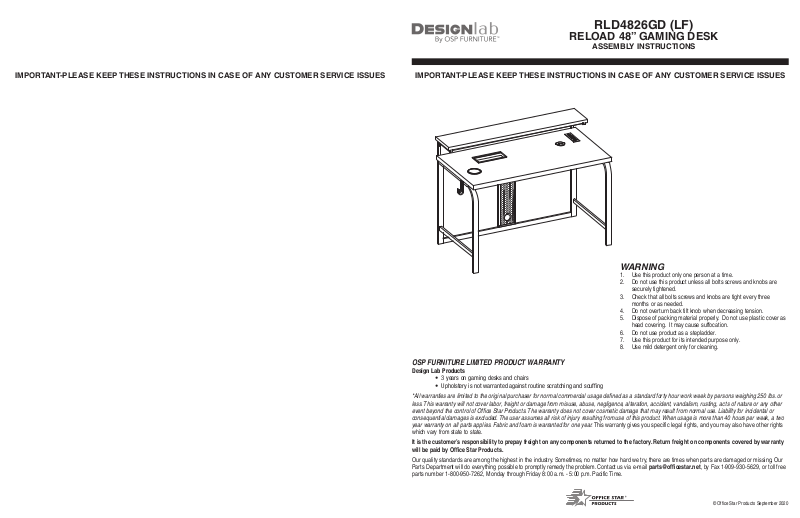

RLD4826GD (LF)
RELOAD 48” GAMING DESK
ASSEMBLY INSTRUCTIONS
IMPORTANT-PLEASE KEEP THESE INSTRUCTIONS IN CASE OF ANY CUSTOMER SERVICE ISSUESIMPORTANT-PLEASE KEEP THESE INSTRUCTIONS IN CASE OF ANY CUSTOMER SERVICE ISSUES
WARNING
1. Use this product only one person at a time.
2. Do not use this product unless all bolts screws and knobs are
securely tightened.
3. Check that all bolts screws and knobs are tight every three
months or as needed.
4. Do not overturn back tilt knob when decreasing tension.
5. Dispose of packing material properly. Do not use plastic cover as
head covering. It may cause suffocation.
6. Do not use product as a stepladder.
7. Use this product for its intended purpose only.
8. Use mild detergent only for cleaning.
OSP FURNITURE LIMITED PRODUCT WARRANTY
Design Lab Products
• 3 years on gaming desks and chairs
• Upholstery is not warranted against routine scratching and scuffing
*All warranties are limited to the original purchaser for normal commercial usage defined as a standard forty hour work week by persons weighing 250 lbs. or
less. This warranty will not cover labor, freight or damage from misuse, abuse, negligence, alteration, accident, vandalism, rusting, acts of nature or any other
event beyond the control of Office Star Products. The warranty does not cover cosmetic damage that may result from normal use. Liability for incidental or
consequential damages is excluded. The user assumes all risk of injury resulting from use of this product. When usage is more than 40 hours per week, a two
year warranty on all parts applies. Fabric and foam is warranted for one year. This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.
It is the customer’s responsibility to prepay freight on any components returned to the factory. Return freight on components covered by warranty
will be paid by Office Star Products.
Our quality standards are among the highest in the industry. Sometimes, no matter how hard we try, there are times when parts are damaged or missing. Our
Parts Department will do everything possible to promptly remedy the problem. Contact us via e-mail parts@officestar.net, by Fax 1-909-930-5629, or toll free
parts number 1-800-950-7262, Monday through Friday 8:00 a.m. - 5:00 p.m. Pacific Time.
© Office Star Products September 2020
CAM LOCK INSTALLATION
HARDWARE LIST
NO DRAWING DESCRIPTION SIZE QUANTITY
Screw Cam Screw in. Fully Tighten.
A Allen Bolt 8 PCS
B
C
D
E
F
Allen Bolt
Allen Bolt
Flat Head Allen Bolt
Flat Head Allen Bolt
Allen Wrench
6 x 12 x 10mm
6 x 32 x 10mm
6 x 45 x 10mm
6 x 25 x 10mm
6 x 32 x 10mm
Ø
16 PCS
2 PCS
2 PCS
7 PCS
1 PC
2 PCSMachine Screw 4 x 10 x 8mmG
2 PCSWood Screw 3.5 x 12 x 6mmH
180°
Align hole in panel with Cam Screw.
Screw Cam Nut in. Turn clock-wise until
you feel Cam Nut securely fasten to
Cam Screw. Fully tighten Cam Nut.
Phillips Screwdriver also needed for assembly (not provided).
PARTS
PART
(1) Top Shelf (1 PC) (2) Desktop (1 PC)
(3) Left Side Frame (1 PC) (4) Right Side Frame (1 PC)
FRONT
(5) Rear Frame (1 PC) (6) Middle Front Crossbar (1 PC)
FRONT
TOP
TOP
(13) Cup Holder (1 PC)
(15) Power Outlet (1 PC)
(14) Wireless Charger (1 PC)
(16) Remote (1 PC)
(17) LED Power Supply (1 PC) (18) Storage Tray (1 PC)
(7) Rear Lower Crossbar (1 PC)
TOP
(9) Rear Upper Crossbar (1 PC)
(8) Upper Cross Bar (1 PC)
(10) Left Upper Frame (1 PC)
(11) Right Upper Frame (1 PC) (12) Accessory Hook (1 PC)
RLD4826GD (LF)
RELOAD 48” GAMING DESK
ASSEMBLY INSTRUCTIONS
RLD4826GD (LF)
RELOAD 48” GAMING DESK
ASSEMBLY INSTRUCTIONS
STEP 1
STEP 3
STEP 2 STEP 4
Remove all the parts from carton, separate them into part numbers indicated on the list and make sure part quantities are correct.
STEP 1 Attach Rear Lower Crossbar (7) and Rear Upper Crossbar (9) to Rear Frame (5) using two Allen Bolts (C) and two Flat Head Allen Bolts (D).
FULLY TIGHTEN ALL BOLTS.
STEP 2 Attach Left Side Frame (3) and Right Side Frame (4) to Middle Front Cross Bar (6), Rear Lower Crossbar (7) and Rear Upper Crossbar (9) using
three Allen Bolts (A) for each side frame. FULLY TIGHTEN ALL ALLEN BOLTS (A).
STEP 3 Attach Desktop (2) to assembly and secure using twelve Allen Bolts (B). FULLY TIGHTEN ALL ALL ALLEN BOLTS (B).
STEP 4 Attach Cup Holder (13), Wireless Charger (14) and Storage Tray (18) to desktop. Secure Power Outlet (15) to desktop using two Wood Screws (H).
Secure Accessory Hook (12) to side of desk using two Machine Screws (G). FULLY TIGHTEN ALL SCREWS.
RLD4826GD (LF)
RELOAD 48” GAMING DESK
ASSEMBLY INSTRUCTIONS
RLD4826GD (LF)
RELOAD 48” GAMING DESK
ASSEMBLY INSTRUCTIONS
STEP 5
1 2 3
1st Postion 2nd Postion 3rd Postion
NOTE: There are THREE different positions for the Add-On Shelves as show in Figure 1.
Please decide your preferred height at this time
STEP 6
STEP 7
STEP 5 Secure Left Upper Frame (10) and Right Upper Frame (11) to rear of assembly using two Allen Bolts (B) for each frame.
FULLY TIGHTEN ALL ALLEN BOLTS (B).
STEP 6 Secure Upper Crossbar (8) between Left Upper Frame (10) and Right Upper Frame (11) using two Allen Bolts (A). FULLY TIGHTEN
ALLEN BOLTS (A).
STEP 7 Secure Top Shelf (1) to assembly using seven Flat Head Allen Bolts (E). FULLY TIGHTEN ALL FLAT HEAD ALLEN BOLTS (E).
STEP 8
RLD4826GD (LF)
RELOAD 48” GAMING DESK
ASSEMBLY INSTRUCTIONS
SAFETY WARNINGS - PLEASE READ FIRST
STEP 8 Connect cord of Top Shelf (1) to LED Power Supply (17).
RGBW
QUICK
SLOW
DIY 1
DIY 2DIY 3
AUTO
FLASHDIY 4DIY 5DIY 6
FADE7JUMP3JUMP7 FADE3
