USERÕS MANUAL

Patent Pending

QUESTIONS?

As a manufacturer, we are com­mitted to providing complete
customer satisfaction. If you
have questions, or find that there
are missing or damaged parts,
we will guarantee complete satis­faction through direct assistance
from our factory.

TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained techni­cians on our customer hot line
will provide immediate assis­tance, free of charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.ÐFri., 6 a.m.Ð6 p.m. MST

Model No. IMHS40090
Serial No.

Write the serial number in the space
above for reference. The serial number
decal is on the frame behind the
access cover.

CAUTION

Read all precautions and instruc­tions in this manual before using
this equipment. Save this manual
for future reference.

Serial Number Decal

¨

2

IMAGE¨is a registered trademark of ICON Health & Fitness, Inc.

Posting the Warning Sign . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Choosing a Location for the Hydrotherapy Spa . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

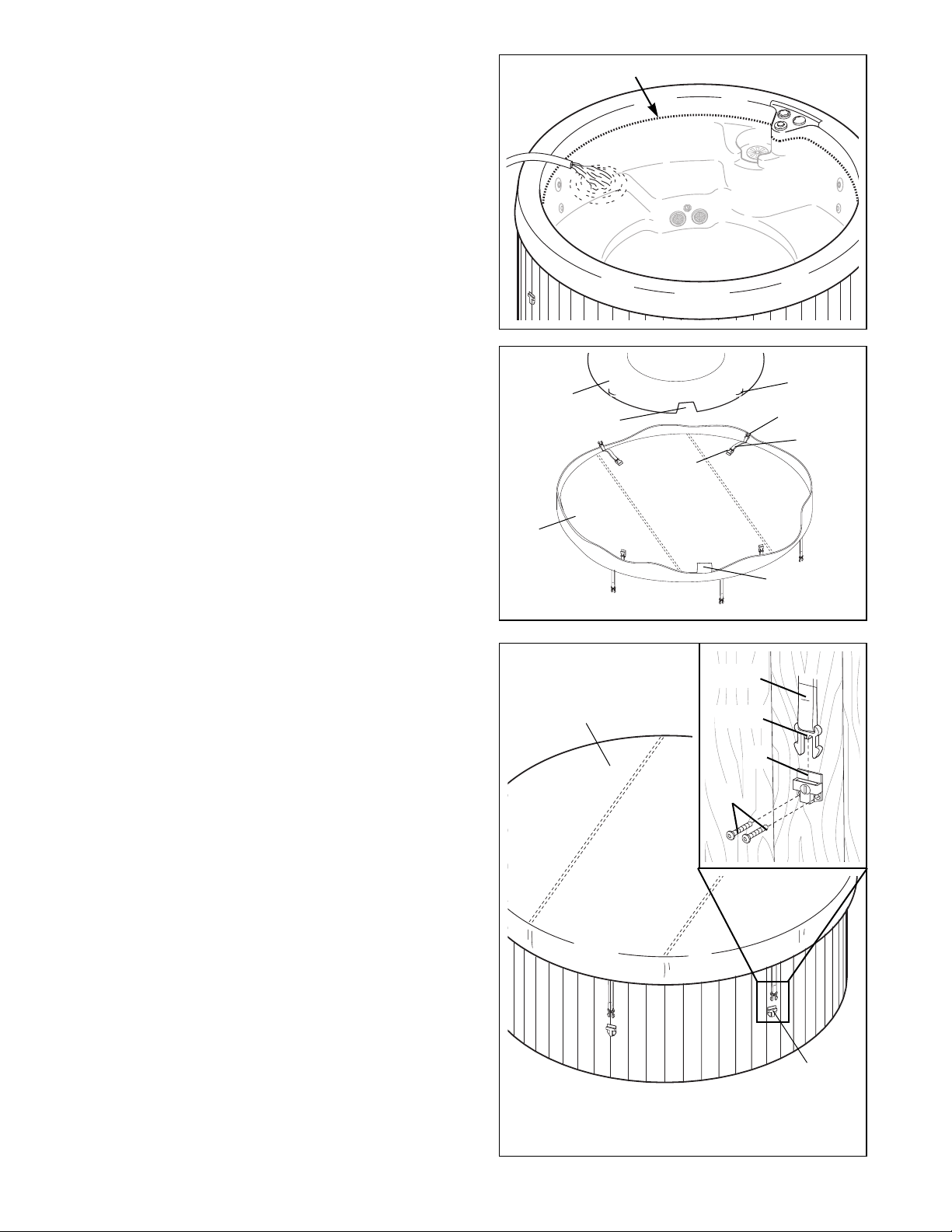

Set-up and Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Using the Hydrotherapy Spa . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

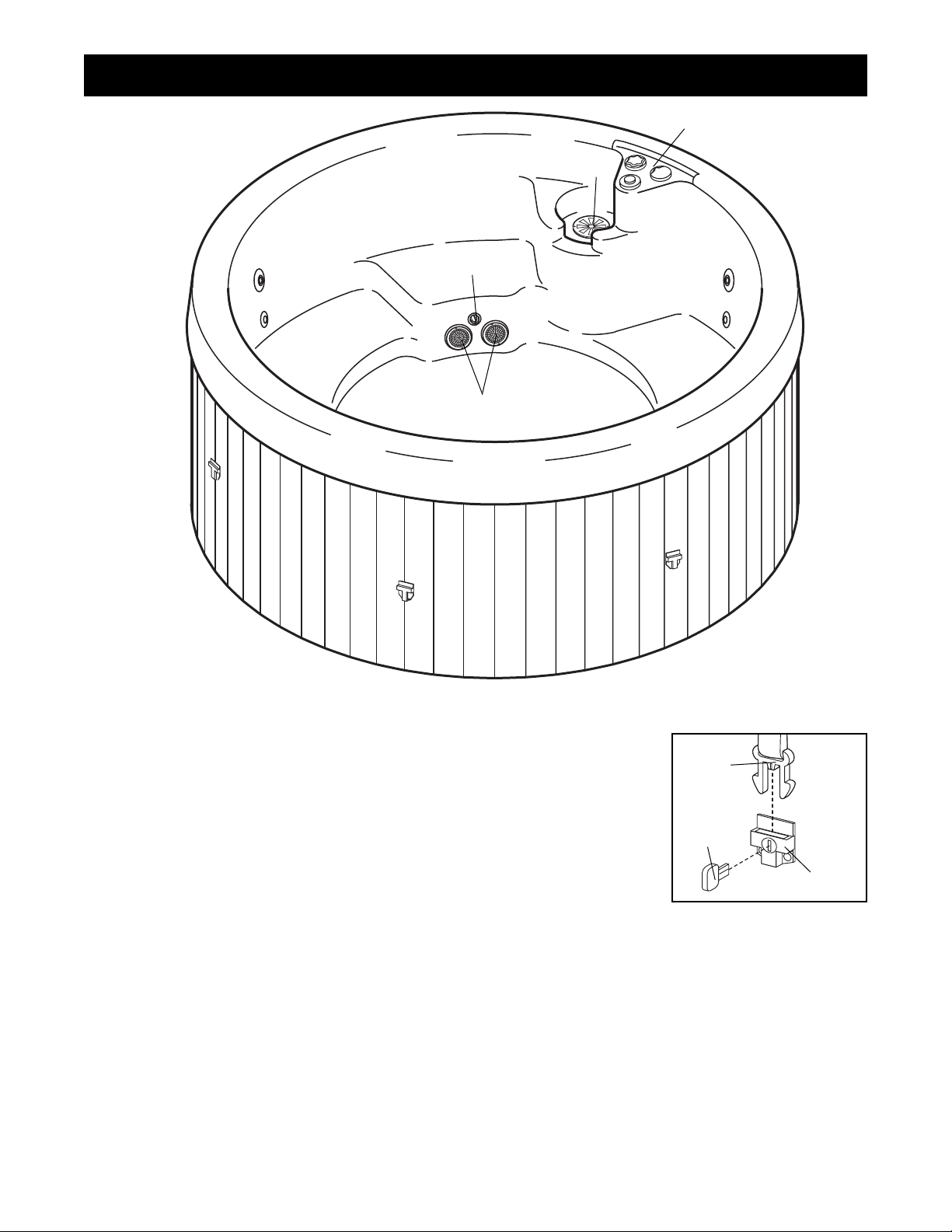

Spa Shell Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Console Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Maintenance Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Trouble-shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Part List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Exploded Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Ordering Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

The warning sign, shown below, must be posted on a wall or fence where all users of the hydrotherapy spa will
be able to see it. Whenever the spa is moved, the sign must also be moved and reposted near the spa. If the
sign becomes illegible, or if it is lost, call our toll-free Customer Hot Line at 1-800-999-3756 to obtain a replace­ment. Post the sign as described above.

Posting the Warning Sign

Table of Contents

3

WARNING: To reduce the risk of drowning, electric shock, or serious injury, read the following
important precautions before using the hydrotherapy spa.

READ AND FOLLOW ALL INSTRUCTIONS

1. It is the responsibility of the owner to ensure
that all users of the hydrotherapy spa are
adequately informed of all precautions.

2. Use the hydrotherapy spa only as described
in this manual.

3. The hydrotherapy spa is intended for home
use only. Do not use this product in any
commercial, rental or institutional setting.

4. Use the hydrotherapy spa only on a level
surface. Do not use the hydrotherapy spa on
carpet or other materials that could be dam­aged by moisture. Do not use the hydrother­apy spa on rough or sharp surfaces such as
gravel or wood chips.

5. The hydrotherapy spa will weigh approxi­mately 1800 pounds when it is filled with
water. Make sure the location you select for
the hydrotherapy spa will support this
weight, plus the weight of the occupants.

6. Inspect and tighten all parts regularly.
Replace any worn parts immediately.

7. DANGERÑRisk of injury: Do not remove or
alter the covers on the suction fittings. Never
operate the hydrotherapy spa if the suction
guard is missing or broken. If you need to
replace a suction fitting or pump, make sure
the flow rate of the replacement is compati­ble. Keep hair and body parts away from the
suction guard. Do not allow long hair to float
freely in the water; long hair should be
restrained with a bathing cap.

8. IMPORTANT: Do not allow the hydrotherapy
spa to be exposed to direct sunlight when it
is empty. The surface of the spa shell can
reach temperatures as high as 150ûF in a
matter of minutes if exposed to the sun while
it is empty. These high temperatures can
cause significant damage, such as blistering
of the shell surface and warping of the spa
shell. Any damage caused by sun exposure
is not covered under the warranty.

9. Do not bring any object into the hydrothera­py spa that could damage the spa shell.

10. Never insert any object into any opening.

11. Do not use breakable containers in or near
the hydrotherapy spa.

12. Do not sit on the spa cover or place objects
on it. It is not designed to support weight.

13. Remove any water or debris which may col­lect on the spa cover.

14. Keep children under the age 12 and pets
away from the hydrotherapy spa when it is
not in use.

15. Keep all chemicals away from children and
pets.

16. The pH and chemical balance of the water
must be maintained as explained in this man­ual (see pages 10 and 14). Failure to do so
may cause injury to users or damage to the
spa, and it will void the warranty.

17. Individuals with infections and open sores or
wounds should not use the hydrotherapy
spa. Bacteria thrive in warm and hot water.
Always keep your spa disinfected and main­tain the proper chemical balance.

18. Shower before and after using the hydrother­apy spa. This will remove any deodorant,
perspiration or body oils which could conta­minate the water. Showering after will
remove any residual chemicals and will also
remove any bacteria which may have been in
the spa.

19. DANGERÑWhen connecting the power cord
(see PLUGGING IN THE HYDROTHERAPY
SPA on page 10), plug the power cord direct­ly into a grounded circuit capable of carrying
15 or more amps. No other appliance should
be on the same circuit. Replace the power
cord immediately if damaged.

20. Do not use an extension cord with the
hydrotherapy spa. This could damage the
motor and will void the warranty.

21. DANGERÑIf you will be using the hydrother­apy spa outside, do not bury the power cord;

Important Safety Instructions

4

you should also keep the power cord away
from lawn mowers, hedge trimmers, and
other similar equipment.

22. WARNINGÑThe power cord is equipped with
a Ground Fault Circuit Interrupter (GFCI),
located at the end of the power cord. The
GFCI must be tested before each use. To test
the GFCI, press the ÒtestÓ button while the
spa is running. The spa should shut off.
Press the ÒresetÓ button. The spa should
resume normal operation. If the spa contin­ues to run after the ÒtestÓ button is pressed,
then the GFCI is damaged. Do not use the
hydrotherapy spa until the GFCI has been
repaired or replaced by a qualified electri­cian.

23. DANGERÑRisk of electric shock. Keep all
electrical appliances such as radios, tele­phones, televisions and lights at least five
feet away from the water.

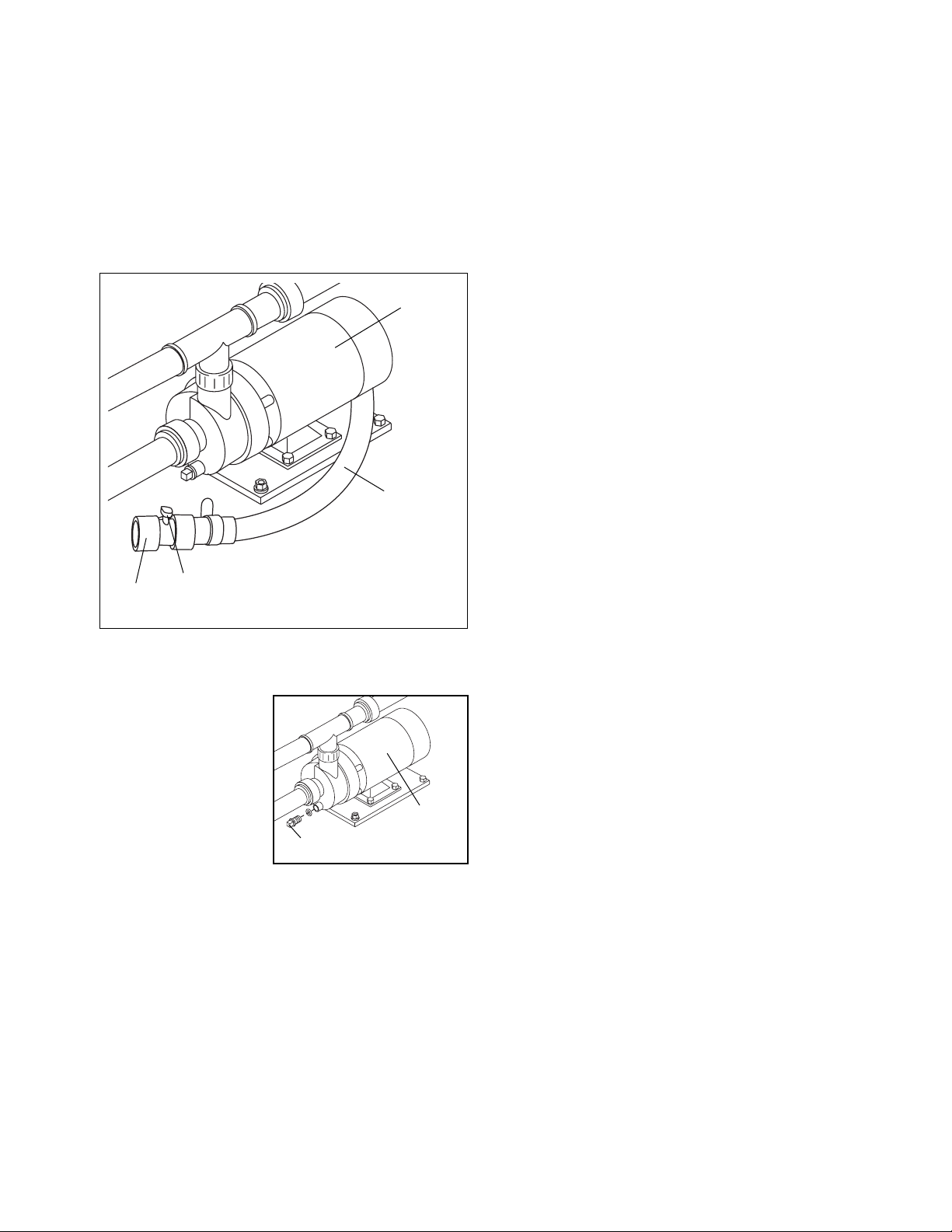

24. A wire connector is provided on the pump
motor of this unit to connect a minimum No.
8 AWG (804 mm2) solid copper conductor
between this unit and any metal equipment,
electrical enclosure made of metal, metal
water pipes, or conduit within five feet of the
unit.

25. DANGERÑRisk of electric shock: Do not set
up the hydrotherapy spa within five feet of
any metal objects or surfaces. As an alterna­tive, you may use the hydrotherapy spa with­in five feet of metal objects if each metal
object is permanently connected to the wire
connector on the pump motor of this unit by
a minimum No. 8 AWG (804 mm2) solid cop­per conductor (see instruction 24).

26. Do not operate the pump motor when the spa
is empty. The pump motor may be seriously
damaged if it is operated without water circu­lating.

27. DANGERÑRisk of drowning: Exercise
extreme caution to prevent unauthorized and
unsupervised use of the hydrotherapy spa by
children. Children must always be super­vised.

28. DANGERÑTo reduce the risk of drowning:
¥ Never use the hydrotherapy spa alone.
¥ Children should not use the hydrotherapy

spa unless they are supervised by an
adult.

¥ Keep pets away from the hydrotherapy spa

at all times.

¥ Always replace and lock the spa cover

when the hydrotherapy spa is not in use.

29. WARNINGÑTo reduce the risk of injury: The
water temperature should never exceed
104¡F. Temperatures between 100¡F and
104¡F are considered to be safe for healthy
adults. However, if you plan to remain in the
hydrotherapy spa for more than 10 to 15 min­utes, a lower temperature is recommended.
Lower temperatures are also recommended
for children. Children should not be allowed
to swim under the surface of the water in the
spa.

30. WARNINGÑTo reduce the risk of injury:
Always use an accurate thermometer to
determine the water temperature before
using the hydrotherapy spa.

31. WARNINGÑTo reduce the risk of injury:
Pregnant women should consult with their
physician before using the hydrotherapy spa.
Pregnant women should not use the
hydrotherapy spa if the water temperature is
above 100¡F; the unborn child could be seri­ously harmed. This is especially important
during the first 90 days of the pregnancy.

32. DANGERÑTo reduce the risk of drowning:
Prolonged immersion in the hydrotherapy
spa may cause hyperthermia, a dangerous
condition which occurs when the internal
body temperature rises several degrees
above the normal body temperature of 98.6¡F.
The symptoms of hyperthermia are nausea,
dizziness, drowsiness and fainting. Effects
include: a lack of awareness, inability to per­ceive heat or danger and a greater risk of
drowning due to a loss of consciousness.

Special note: Individuals suffering from
hyperthermia may be unable to realize that
they must exit the hydrotherapy spa, and
they also may be physically unable to do so.

33. WARNINGÑTo reduce the risk of drowning:
Do not use the hydrotherapy spa if you are
under the influence of alcohol or drugs. Heat
from the water, in conjunction with alcohol or
drugs can cause loss of consciousness.

34. WARNINGÑTo reduce the risk of injury or
drowning: Consult your physician about pos­sible side-effects of any medications you
may be taking before using the hydrotherapy
spa. Heat from the water, in conjunction with
some medications may cause drowsiness
and increase the risk of drowning. Other
medications can effect blood pressure, heart

5

WARNING: Read all instructions before using the hydrotherapy spa. ICON assumes no responsibility
for personal injury or property damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

rate and circulation.

35. Do not use the hydrotherapy spa immediate­ly after strenuous exercise.

36. If you feel pain or dizziness at any time while
using the hydrotherapy spa, discontinue use
and contact a physician.

37. WARNINGÑTo reduce the risk of injury: It is
especially important for persons over the age
of 35 or persons with pre-existing health
problems, such as obesity, heart disease,
high or low blood pressure, circulatory prob­lems or diabetes to consult their physician
before using this product.

38. WARNING: The spa jets produce a stream of
water with relatively high pressure.
Prolonged exposure of a localized area of the
body may cause bruises to the skin.

39. The included warning sign must be posted
where all users of the spa can see and read
it. (See POSTING THE WARNING SIGN on
page 2.)

40. Before entering a spa, the user should mea-

sure the water temperature with an accurate
thermometer since the tolerance of water­regulating devices varies.

41. The causes, symptoms and effects of hyper­thermia may be described as follows:
Hyperthermia occurs when the internal tem­perature of the body reaches a level of sever­al degrees above the normal body tempera­ture of 98.6ûF. The symptoms of hyperthermia
include an increase in the internal tempera­ture of the body, dizziness, lethargy, drowsi­ness and fainting. The effects of hyperther­mia include failure to perceive heat; failure to
recognize the need to exit the spa or hot tub;
unawareness of impending hazard; fetal
damage in pregnant women; physical inabili­ty to exit the spa or hot tub and uncon­sciousness resulting in danger of drowning.
WARNING: The use of alcohol, drugs or med­ication can greatly increase the risk of fatal
hyperthermia.

42. WARNING DECAL PLACEMENT: Locate the
decals shown below and familiarize yourself
with this information.

6

Thank you for selecting the innovative RENEW 400 by
IMAGE¨. The RENEW 400 hydrotherapy spa offers the
features and quality of a traditional hot tub at an
affordable price. Best of all, the RENEW 400 provides
the benefit of hydrotherapy in the comfort and privacy
of your own home. Hydrotherapy is a proven method
for soothing tired muscles after exercise or for reliev­ing the stress of a busy life. The warm environment
stimulates blood flow which is essential in the healing
process. The powerful massage action created by the
jets further eases tension and stress throughout the
body. The RENEW 400 hydrotherapy spa gives you
the specialized treatment you need to feel your best.

For your benefit, read this manual carefully before
using the RENEW 400. If you have additional ques-

tions, please call our Customer Service Department
toll-free at 1-800-999-3756, Monday through Friday, 6
a.m. until 6 p.m. Mountain Time (excluding holidays).
To help us assist you, please note the product model
number and serial number before calling. The model
number is IMHS40090. The serial number can be
found on a decal attached to the frame inside the spa
(see the front cover of this manual).

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.

Wood Panels

Suction Vents

Locking

Buckle

Access Cover

Console

Power Cord with

Ground Fault

Circuit Interrupter

(GFCI)

Spa Shell

Filter

Jets

Before You Begin
