Image IMBE53991 User Manual

QUESTIONS?
As a manufacturer, we are com­mitted to providing complete customer satisfaction. If you have questions, or find that there are missing or damaged parts, we will guarantee you complete satisfaction through direct assis­tance from our factory.
TO AVOID UNNECESSARY DELAYS, PLEASE CALL DIRECT TO OUR TOLL-FREE CUSTOMER HOT LINE. The trained techni­cians on our customer hot line will provide immediate assis­tance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
Model No. IMBE53991 Serial No.
Write the serial number in the space above for reference.
CAUTION
Read all precautions and instruc­tions in this manual before using this equipment. Save this manual for future reference.
Serial Number Decal (under seat)
USER’S MANUAL
Visit our website at
www.imagefitness.com
new products, prizes,
fitness tips, and much more!
®
2
Important Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Part Identification Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Adjusting the Weight Bench . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Ordering Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

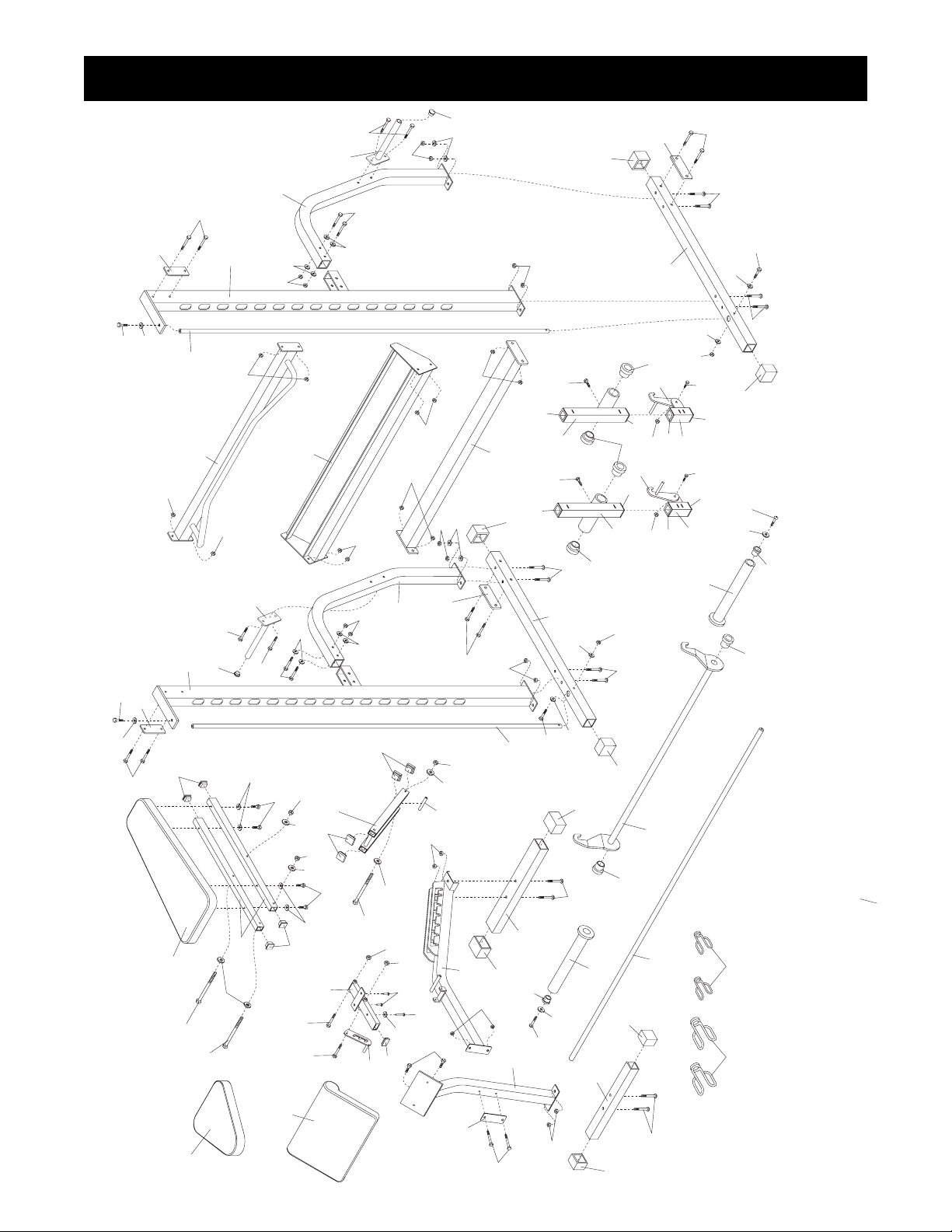

Note: A Part List/Exploded Drawing is attached in the center of this manual. Remove the Part List/Exploded Drawing before beginning assembly.
Table of Contents
IMAGE is a registered trademark of ICON Health & Fitness, Inc.
3
1. Read all instructions in this manual before using the weight bench. Use the weight bench only as described in this manual.
2. It is the responsibility of the owner to ensure that all users of the weight bench are ade­quately informed of all precautions.
3. The weight bench is intended for home use only. Do not use the weight bench in a com­mercial, rental or institutional setting.
4. Use the weight bench only on a level surface. Cover the floor beneath the weight bench for protection of the floor.
5. Inspect and tighten all parts each time you use the weight bench. Replace any worn parts immediately.
6. Keep children under 12 and pets away from the weight bench at all times.
7. The weight bench is designed to support a maximum of 560 pounds, including the user, a barbell and weights (not included). Do not place more than 310 pounds, including the barbell, on the weight gliders and safety spotters.
8. Always wear athletic shoes for foot protec­tion while exercising.
9. Always make sure there is an equal amount of weight (not included) on each side of the barbell.
10. If you feel pain or dizziness at any time while exercising, stop immediately and begin cool­ing down.
11. Keep hands and feet away from moving parts.
12. Always set both safety spotters at the same height.
13. Always secure your weights (not included) with weight clips when they are mounted on the barbell.
14. Always move the bench out of the way when performing an exercise that does not use the bench.
15. The decal shown below has been placed on the weight bench. If the decal is missing or illegible, please call our Customer Service Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time, to order a free replacement decal. Apply the decal in the location shown.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the weight bench.
Important Precautions
4
Weight
Storage
Tube
Dumbbell
Storage
Rack
Seat
Pull-up Bar
Upright
Weight Guide
Weight Glider
Barbell
Safety Spotter
Curl Pad
Right Side
Left Side
Note: The terms “right side” and “left side” are determined relative to a person sitting on the bench; they do not refer to right and left on the drawings in this manual.
Adjustment
Bracket
Backrest
Thank you for selecting the versatile IMAGE®4.8 weight bench. The IMAGE®4.8 is designed to help you develop every major muscle group of the body. Whether your goal is a shapely figure, dramatic mus­cle size and strength, or a healthier cardiovascular system, the IMAGE
®
4.8 will help you achieve the spe-
cific results you want.
For your benefit, read this manual carefully before using the weight bench. If you have additional ques-
tions, please call our Customer Service Department
toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please note the product model number and serial number before calling. The model number is IMBE53991. The serial number can be found on a decal attached to the weight bench (see the front cover of this manual).
Before reading further, please review the drawing below and familiarize yourself with the parts that are labeled.
Before You Begin
5
Part Identification Chart—Model No. IMBE53991
R1200A
M6 x 38mm Bolt (60)—1
M6 Washer (30)—5
M8 Washer (52)—10
M8 x 70mm Bolt (41)—4
M6 x 55mm Bolt (4)—4
M6 x 16mm Screw (3)—4
M10 Washer (6)—14
M8 x 80mm Bolt (63)—1
M8 Nylon Locknut (54)—11
M10 Nylon Locknut (11)—28
M10 x 25mm Button Head Bolt (43)—2
M8 x 65mm Carriage Bolt (59)—4
M8 x 60mm Bolt (39)—2
M8 x 30mm Bolt (38)—2
M10 x 25mm Bolt (53)—2
M10 x 65mm Carriage Bolt (40)—8
M10 x 180mm Bolt (22)—2
M10 x 65mm Bolt (42)—4
M10 x 70mm Bolt (46)—10
M10 x 80mm Bolt (56)—1
M8 x 20mm Bolt (50)—2
M10 x 115mm Bolt (55)—1
6
1. Before beginning, make sure that you understand the information in the box above. Note: Some parts described in the assembly steps may be pre-assembled.
Press a 50mm Square Outer Cap (17) onto each end of a Base (7). Turn the Base so the large hole is in the position shown. Insert two M8 x 65mm Carriage Bolts (59) and two M10 x 65mm Carriage Bolts (40) up into the indicated holes in the Base. Place the Base flat on the floor.
Turn the Base Crossbar (20) so the warning decal is on top. Attach the Base (7) to the Base Crossbar with two M8 x 70mm Bolts (41), a Large Support Plate (12), and two M8 Nylon Locknuts (54). Do not tight-
en the Nylon Locknuts yet.
2. Press a 50mm Square Outer Cap (17) onto each end of the other Base (7). Turn the Base so the large hole is in the position shown. Insert two M8 x 65mm Carriage Bolts (59) and two M10 x 65mm Carriage Bolts (40) up into the indicated holes in the Base. Place the Base flat on the floor.
Attach the Base (7) to the Base Crossbar (20) with two M8 x 70mm Bolts (41), a Large Support Plate (12), and two M8 Nylon Locknuts (54). Do not tight-
en the Nylon Locknuts yet.
1
2
Before beginning assembly, carefully read the following information and instructions:
Assembly requires two people.
Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
Tighten all parts as you assemble them, unless
instructed to do otherwise.
As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.
For help identifying small parts, use the PART IDENTIFICATION CHART on page 5. Note:
Some small parts may be pre-assembled.
In addition to the included allen wrench , assembly requires the following tools (not included):
• Two (2) adjustable wrenches
• One (1) rubber mallet
• One (1) standard screwdriver
• One (1) phillips screwdriver
• Lubricant, such as grease or petroleum jelly, and soapy water.
Assembly will be more convenient if you have the following tools: A socket set, a set of open-end or closed-end wrenches or a set of ratchet wrenches.
Assembly
Make Things Easier for Yourself!
This manual is designed to ensure that the weight bench can be assembled successfully by anyone. By setting aside plenty of time, and by deciding to make the task enjoyable, assembly will go smoothly.
17
59
20
54
54
Decal
17
17
Large Hole
Large Hole
7
12
41
59
40
12
54
7
41
20
17
54
40

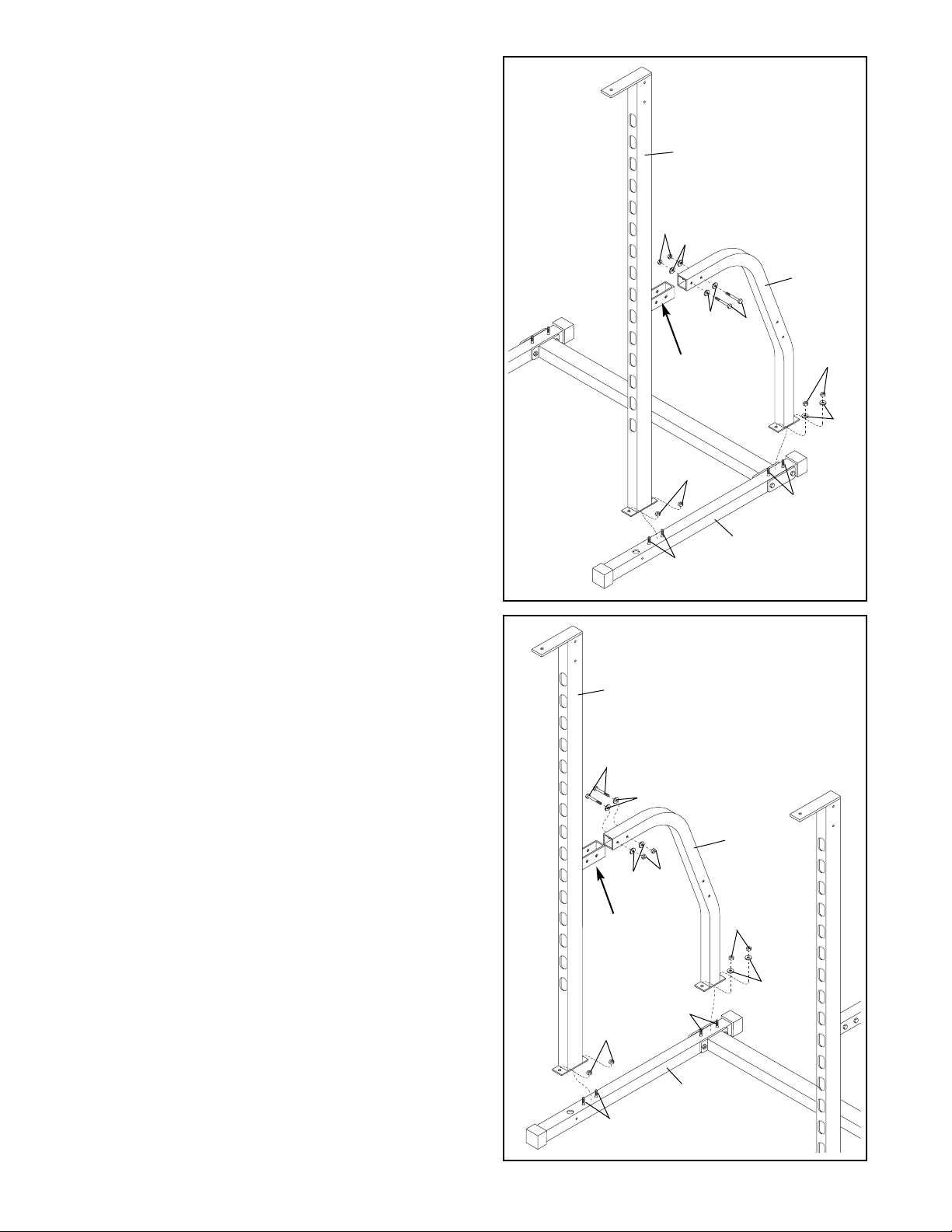

4. Slide the remaining Brace (2) onto the bracket on the other Upright (1). Attach the Brace to the Upright with two M10 x 65mm Bolts (42), four M10 Washers (6), and two M10 Nylon Locknuts (11). Do not tighten
the Nylon Locknuts yet.
Slide the Upright (1) and the Brace (2) onto the M10 x 65mm Carriage Bolts (40) and the M8 x 65mm Carriage Bolts (59) in the right Base (7). Attach the Upright with two M10 Nylon Locknuts (11). Attach the Brace with two M8 Washers (52) and two M8 Nylon Locknuts (54). Do not tighten the Nylon Locknuts
yet.
4
7
3. Slide a Brace (2) onto the bracket on one of the Uprights (1). Attach the Brace to the Upright with two M10 x 65mm Bolts (42), four M10 Washers (6), and two M10 Nylon Locknuts (11). Do not tighten the
Nylon Locknuts yet.
Slide the Upright (1) and the Brace (2) onto the M10 x 65mm Carriage Bolts (40) and the M8 x 65mm Carriage Bolts (59) in the left Base (7). Attach the Upright with two M10 Nylon Locknuts (11). Attach the Brace with two M8 Washers (52) and two M8 Nylon Locknuts (54). Do not tighten the Nylon Locknuts
yet.
3
1
11
6
6
Bracket
40
59
11
42
2
7
54
52
1
42
11
6
7
59
2
40
6
11
54
52
Bracket
8
5. Press a 25mm Round Inner Cap (51) into the end of a Weight Storage Tube (21).
While a second person holds the Middle Crossbar (8) in the position shown, insert two M10 x 70mm Bolts (46) through the bracket on the Weight Storage Tube (21), the left Brace (2), and the bracket on the Middle Crossbar. Thread an M10 Nylon Locknut (11) onto each Bolt. Do not tighten the Nylon Locknuts yet.
5
8
2
11
21
46
46
51
6. Press a 25mm Round Inner Cap (51) into the end of the other Weight Storage Tube (21).
While a second person continues to hold the Middle Crossbar (8), insert two M10 x 70mm Bolts (46) through the bracket on the Weight Storage Tube (21), the right Brace (2), and the bracket on the Middle Crossbar. Thread an M10 Nylon Locknut (11) onto each Bolt. Do not tighten the Nylon Locknuts yet.
6
46
51
46
2
21
8
11
7. Have a second person hold the Top Crossbar (9) in the position shown.
Attach the Top Crossbar (9) to the left Upright (1) with two M10 x 70mm Bolts (46), a Small Support Plate (16), and two M10 Nylon Locknuts (11). Do not tight-
en the Nylon Locknuts yet.
Attach the Top Crossbar (9) to the right Upright (1) with two M10 x 70mm Bolts (46), a Small Support Plate (16), and two M10 Nylon Locknuts (11). Do not
tighten the Nylon Locknuts yet.
7
46
16
46
11
11
11
9
11
Pull-up
Bar
16
46
46
1
1

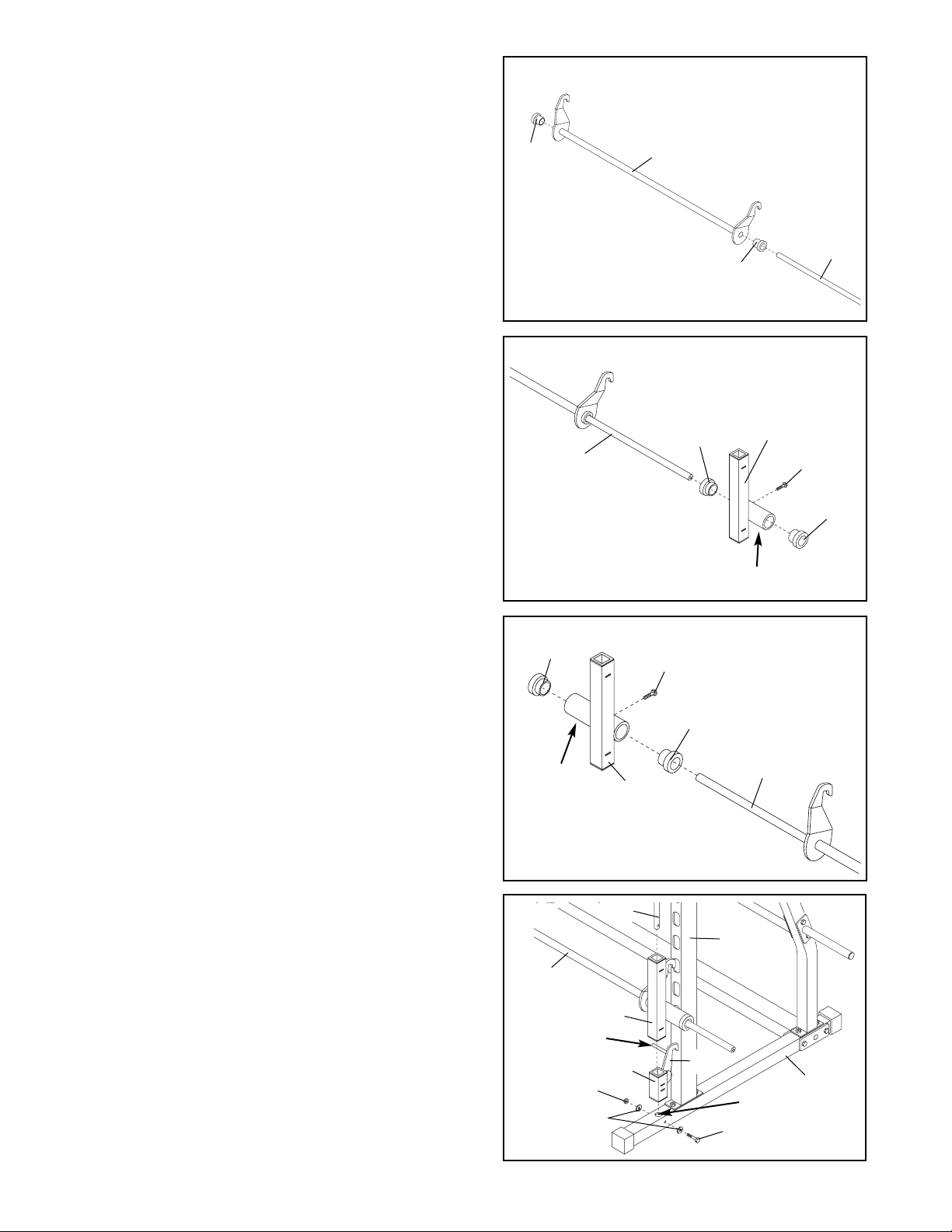

8. Press a 25mm Bushing (48) into each end of the Locking Bar (34).
Insert the Barbell (35) through the Locking Bar (34) until the Barbell is centered in the Locking Bar.
35
48
34
48
8
9. Identify the Left Weight Glider (32) by looking at the position of the round tube.
Press a 38mm Bushing (29) into each end of the round tube on the Left Weight Glider (32).
Slide the Left Weight Glider (32) onto the left end of the Barbell (35). Secure the Weight Glider to the Barbell with a hand-tightened M8 x 20mm Screw (50).
Look at the drawing on page 4 to make sure that you have correctly identified the left end. The Left Weight Glider must be turned as shown in the drawing.
50
32
29
35
Round tube
29
9
10. Identify the Right Weight Glider (31) by looking at the position of the round tube.
Press a 38mm Bushing (29) into each end of the welded tube on the Right Weight Glider (31).
Slide the Right Weight Glider (31) onto the right end of the Barbell (35). Secure the Weight Glider to the Barbell with a hand-tightened M8 x 20mm Screw (50).
Make sure that the Weight Glider is turned as shown in the drawing.
35
29
31
29
50
10
Round
tube
11. Identify the Left Safety Spotter (24) by the position of the handle and the Left Spotter Hook (65). Place the Left Safety Spotter on the left Base (7) so it is cen­tered over the indicated hole.
Have a second person hold the Locking Bar (34) so that the Left Weight Glider (32) rests on top of the Left Safety Spotter (24). Insert a Weight Guide (18) into the Left Weight Glider, the Left Safety Spotter, and the hole in the Base (7). Note: Tilt the Weight
Guide away from the Upright (1) as you insert it.
Attach the Weight Guide (18) to the Base (7) with an M8 x 60mm Bolt (39), two M8 Washers (52), and an M8 Nylon Locknut (54). Do not tighten the Nylon
Locknut yet.
9
1
32
34
24
65
54
52
39
7
Hole
Handle
18
11
10
13. Note: If you are not planning to use Olympic weights with the weight bench, you do not need to perform this step. Keep the two Weight Adapters (33) in a safe place in case you need them in the future.
Fully engage the indicated hook on both sides of the weight bench before beginning this step.
Insert a 50mm Bushing (47) into the end of a Weight Adapter (33). With a second person holding the Barbell (35) so that it cannot turn, use the allen wrench to secure the Weight Adapter to the Barbell with a Large Washer (44) and an M10 x 25mm Button Head Bolt (43). Note: The Large Washer must fit
into the indentation in the 50mm Bushing in the Weight Adapter.
Pull the remaining length of the Barbell (35) in the direction shown. Next, tighten the M8 x 20mm Screws used in steps 9 and 10. Attach the other Weight Adapter (33) to the other end of the Barbell (35) in the same manner.
14. Attach the upper end of one of the Weight Guides (18) to the bracket on the Upright (1) with an M8 x 30mm Bolt (38) and an M8 Washer (52).
Attach the other Weight Guide (18) to the other Upright (1) in the same manner.
Tighten all of the Nylon Locknuts used in steps 1 to 14.
18
1
31
23
39
52
54
34
7
12
Hole
Handle
38
18
52
1
14
12. Place the Right Safety Spotter (23) on the right Base (7) and center it over the indicated hole. Note: The
handle must point toward the center of the bench.
Have a second person hold the Locking Bar (34) so that the Right Weight Glider (31) rests on top of the Right Safety Spotter (23). Insert a Weight Guide (18) into the Right Weight Glider, the Right Safety Spotter, and the hole in the Base (7). Note: Tilt the Weight
Guide away from the Upright (1) as you insert it.
Attach the Weight Guide (18) to the Base (7) with an M8 x 60mm Bolt (39), two M8 Washers (52), and an M8 Nylon Locknut (54). Do not tighten the Nylon
Locknut yet.
33
35
Hook
44
47
43
13
11
15. Press a 50mm Square Outer Cap (17) onto each end of the Small Stabilizer (25).
Attach the Small Stabilizer (25) to the Front Leg (19) with two M10 x 65mm Carriage Bolts (40) and two M10 Nylon Locknuts (11). Note: There is an inden-
tation around the holes on one side of the Small Stabilizer. This side must be facing the floor.
15
40
11
19
17
17
25
16. Press a 50mm x 70mm Outer Cap (10) onto each end of the Large Stabilizer (26).
Turn the Large Stabilizer (26) so the warning decal is in the position shown. Attach the Large Stabilizer to the Bench Frame (5) with two M10 x 65mm Carriage Bolts (40) and two M10 Nylon Locknuts (11).
16
40
5
10
11
10
26
17. Attach the Front Leg (19) to the Bench Frame (5) with two M10 x 70mm Bolts (46), a Small Support Plate (16), and two M10 Nylon Locknuts (11).
17
19
11
11
5
16
46
18. Press two 20mm x 40mm Inner Caps (28) into each Backrest Tube (27). Press four 20mm x 40mm Inner Caps into the Backrest Adjustment Bracket (36).
Lubricate an M10 x 180mm Bolt (22). Attach the Backrest Tubes (27) to the welded tube on the Backrest Adjustment Bracket (36) with the Bolt, two M10 Washers (6), and an M10 Nylon Locknut (11).
Make sure that the Backrest Tubes are turned as shown. The indicated holes are not centered in the Backrest Tubes but are closer to one side. Turn the Backrest Tubes so the holes are closer to the floor. Do not over tighten the Nylon Locknut; the Backrest Tubes must pivot easily.
18
28
28
6
11
36
Lubricate
6
Holes
Welded
Tube
28
28
22
27
12
19. Lubricate an M10 x 115mm Bolt (55). Slide an M10 Washer (6) onto the Bolt.
Attach the Backrest Adjustment Bracket (36) to the bracket on the Bench Frame (5) by guiding the M10 x 115mm Bolt (55) through the indicated side of the Backrest Adjustment Bracket (36), the bracket on the Bench Frame, and the 15mm x 10.5mm x 56mm Spacer (57). Next, slide the Bolt through the other side of the bracket on the Bench Frame, and the other side of the Backrest Adjustment Bracket. Secure the Bolt with an M10 Washer (6) and an M10 Nylon Locknut (11). Do not over tighten the Nylon
Locknut.
19
6
36
57
5
11
6
55
27
20. Lubricate an M10 x 180mm Bolt (22). Attach the Backrest Tubes (27) to the indicated tube on the Bench Frame (5) with the Bolt, two M10 Washers (6), and an M10 Nylon Locknut (11). Note: Do not over
tighten the Nylon Locknut; the Backrest Tubes must pivot easily.
20
6
27
11
6
5
22
21. Using four M6 x 55mm Bolts (4) and four M6 Washers (30), attach the Backrest (15) to the Backrest Tubes (27).
21
30
30
4
15
30
27
4
22. Press a 25mm x 50mm Inner Cap (58) into the open end of the Seat Support Tube (37).
Lubricate an M8 x 80mm Bolt (63). Attach the Seat Adjustment Bracket (45) to the indicated side of the Seat Support Tube (37) with the Bolt and an M8 Nylon Locknut (54). Note: Do not over tighten the
Nylon Locknut; the Seat Adjustment Bracket must pivot easily.
22
58
54
63
37
45
Lubricate
Bracket
Lubricate
Tube
Lubricate
13
23. Place the Seat Support Tube (37) on the Bench Frame (5) so that the Seat Adjustment Bracket (45) fits over the welded pin (not visible in the drawing) on the side of the Bench Frame.
Lubricate an M10 x 80mm Bolt (56). Attach the Seat Support Tube (37) to the indicated bracket on the Bench Frame (5) with the Bolt and an M10 Nylon Locknut (11). Note: Do not over tighten the Nylon
Locknut; the Seat Support Tube must pivot easily.
23
5
11
45
37
56
24. Turn the Seat (14) as shown. Attach the wide end of the Seat to the bracket on the Seat Support Tube (37) with two M6 x 16mm Screws (3).
Tilt the Seat Support Tube (37) upwards and attach the narrow end of the Seat (14) to the Seat Support Tube with an M6 x 38mm Bolt (60) and an M6 Washer (30).
24
60
30
3
37
14
25. Attach the Curl Pad (13) to the bracket on the Front Leg (19) with two M6 x 16mm Screws (3).
25
3
19
13
26. Make sure all parts are properly tightened before you use the weight bench. The use of all remaining parts will be explained in ADJUSTING THE WEIGHT BENCH starting on the following page.
Welded
Pin
Lubricate
14

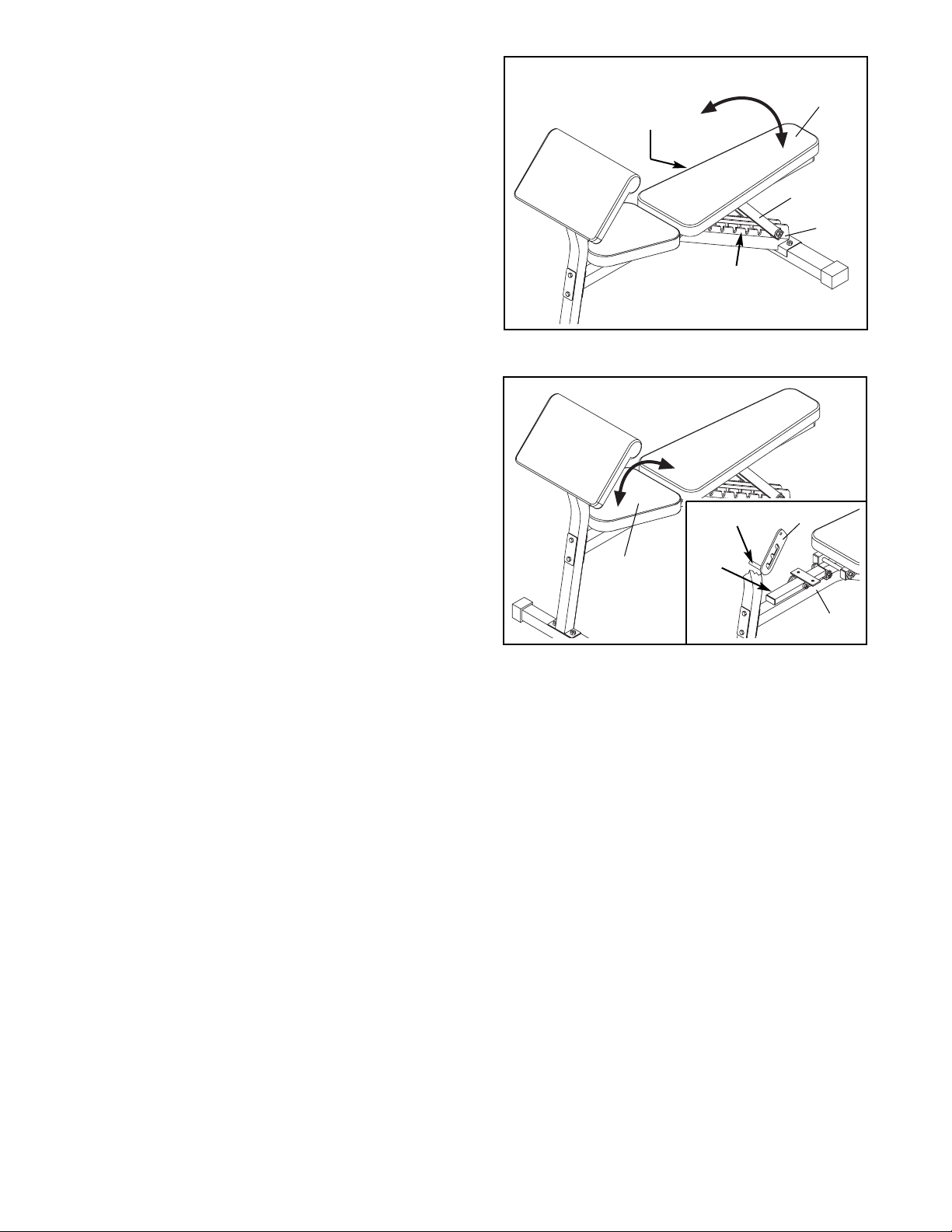

This section explains how the weight bench is adjusted. See the included exercise guide for important informa­tion about how to perform a variety of exercises and how to get the greatest benefit from your exercise program.
Inspect and tighten all parts each time you use the weight bench. Replace any worn parts immediately. The weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.
Adjusting the Weight Bench
USING THE SAFETY SPOTTERS
To move a Safety Spotter (23, 24) to a new position, grip the handle on one side of the Spotter Hook (64, 65 [not shown]) and pull the Spotter Hook out of the slot in the Upright (1). Raise or lower the Safety Spotter to a new position and turn the Spotter Hook until it engages one of the slots in the Upright.
23
64
1
Handle
USING THE LOCKING BAR AND SAFETY SPOTTERS
Before starting an exercise, position the Barbell (35) and the Safety Spotters (23, 24) in the correct position for that exercise.
To do this, stand in front of the cage and grip the Locking Bar (34) with both hands. Turn the Locking Bar until the two hooks disengage the slots in the Uprights (1). Move the Locking Bar to a new position and turn the Locking Bar until the hooks engage the slots in the Uprights.
Note: Always start an exercise with the Barbell posi­tioned at the lowest point to which it will move during the exercise.
Position both Safety Spotters (23, 24) directly under the Weight Gliders (31, 32).
24
32
31
23
34
35
1
1
ATTACHING WEIGHTS TO THE BARBELL
To use the Barbell (35), slide the desired amount of weight (not included) onto each end of the Barbell. Secure the weights with the Large Weight Clips (61). Note: To use standard weights, the Weight Adapters (33) should be removed from the Barbell. Attach weights to the Barbell with the Small Weight Clips (not shown).
35
33
61
WARNING:
Always set both safety
spotters at the same height.
WARNING: Do not place more than
260 pounds on the barbell. Always secure the weights with weight clips when they are on the bar­bell. Always place the same amount of weight on each side of the barbell.
15
ADJUSTING THE BACKREST
To raise the Backrest (15), grip the end of the Backrest with one hand and pull it upward. The Backrest Adjustment Frame (36) will automatically lock into one of the tabs on the bracket on the Bench Frame (5).
To lower the Backrest (15), grip the end of the Backrest with one hand and pull it slightly upwards. Grip the handle (not shown) on the right side of the Backrest Adjustment Frame (36) with your other hand and pull the Backrest Adjustment Frame free of the tabs on the bracket on the Bench Frame (5). Lower the Backrest to the desired posi­tion and lock the Backrest Adjustment Frame into the desired tab on the bracket on the Bench Frame.
15
36
5
Handle
Adjustment
Bracket
ADJUSTING THE SEAT
To raise the Seat (14), lift the narrow end of the Seat until the appropriate tab on the Seat Adjustment Bracket (45) engages the welded pin (not shown) on the right side of the Bench Frame (5).
To lower the Seat (14), use the handle on the Seat Adjustment Bracket (45) to disengage the Seat Adjustment Bracket from the pin. Lower the Seat to the desired position and engage the appropriate tab on the Seat Adjustment Bracket to the pin.
14
Pin
Handle
5
45
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of the user’s manual for information about ordering replacement parts.
Key No. Qty. Description Key No. Qty. Description
Part List—Model No. IMBE53991
R1200A
1 2 Upright 2 2 Brace 3 4 M6 x 16mm Screw 4 4 M6 x 55mm Bolt 5 1 Bench Frame 6 14 M10 Washer 7 2 Base 8 1 Middle Crossbar
9 1 Top Crossbar 10 2 50mm x 70mm Outer Cap 11 28 M10 Nylon Locknut 12 2 Large Support Plate 13 1 Curl Pad 14 1 Seat 15 1 Backrest 16 3 Small Support Plate 17 6 50mm Square Outer Cap 18 2 Weight Guide 19 1 Front Leg 20 1 Base Crossbar 21 2 Weight Storage Tube 22 2 M10 x 180mm Bolt 23 1 Right Safety Spotter 24 1 Left Safety Spotter 25 1 Small Stabilizer 26 1 Large Stabilizer 27 2 Backrest Tube 28 8 20mm x 40mm Inner Cap 29 4 38mm Bushing 30 5 M6 Washer 31 1 Right Weight Glider 32 1 Left Weight Glider 33 2 Weight Adapter 34 1 Locking Bar
35 1 Barbell 36 1 Backrest Adjustment Bracket 37 1 Seat Support Tube 38 2 M8 x 30mm Bolt 39 2 M8 x 60mm Bolt 40 8 M10 x 65mm Carriage Bolt 41 4 M8 x 70mm Bolt 42 4 M10 x 65mm Bolt 43 2 M10 x 25mm Button Head Bolt 44 2 Large Washer 45 1 Seat Adjustment Bracket 46 10 M10 x 70mm Bolt 47 2 50mm Bushing 48 2 25mm Bushing 49 8 45mm x 45mm Bushing 50 2 M8 x 20mm Bolt 51 2 25mm Round Inner Cap 52 10 M8 Washer 53 2 M10 x 25mm Bolt 54 11 M8 Nylon Locknut 55 1 M10 x 115mm Bolt 56 1 M10 x 80mm Bolt 57 1 15mm x 10.5 mm x 56mm Spacer 58 1 25mm x 50mm Inner Cap 59 4 M8 x 65mm Carriage Bolt 60 1 M6 x 38mm Bolt 61 2 Large Weight Clip 62 2 Small Weight Clip 63 1 M8 x 80mm Bolt 64 1 Right Spotter Hook 65 1 Left Spotter Hook
# 1 User’s Manual # 1 Exercise Guide # 1 6mm Allen Wrench
Exploded Drawing—Model No. IMBE53991
R1200A
46
21
2
46
16
52
38
11
38
16
1
18
11
9
11
46
51
1
6
11
21
6
46
42
6
8
11
54
42
2
11
6
51
52
17
11
54
11
20
54
52
54
12
17
41
11
50
49
32
50
49
29
59
7
52
12
29
65
49
29
11
64
49
31
11
54
40
41
59
39
7
49
24
49
52
52
54
53
53
49
23
33
40
17
49
43
44
47
48
52
52
28
46
15
22
14
30
4
11
6
28
11
6
4
27
6
22
30
28
37
56
63
13
28
11
6
36
6
55
11
58
45
54
3
30
57
11
5
10
60
11
3
16
46
39
18
17
10
34
48
40
26
33
47
44
43
19
25
11
17
35
17
40
6261
Part No. 172417 R1200A Printed in China © 2000 ICON Health & Fitness, Inc.
To order replacement parts, simply call our Customer Service Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be pre­pared to give the following information when calling:
• The MODEL NUMBER of the product (IMBE53991)
• The NAME of the product (IMAGE
®
4.8 weight bench)
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST and the EXPLODED DRAWING at the center of this manual).
Ordering Replacement Parts
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and mate­rial, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product at one of its authorized service centers. All products for which war­ranty claim is made must be received by ICON at one of its authorized service centers with all freight and other transportation charges prepaid, accompanied by sufficient proof of purchase. All returns must be pre-autho­rized by ICON. This warranty does not extend to any product or damage to a product caused by or attribut­able to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center, products used for commercial or rental purposes, or products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential dam­ages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequen­tial damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of mer­chantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Limited Warranty
Loading...
