QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, we will guarantee
complete satisfaction through
direct assistance from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained technicians on our customer hot line
will provide immediate assistance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
Model No. IMBE39401
Serial No.
Write the serial number in the
space above for reference.
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
Serial Number Decal
USER’S MANUAL
Visit our website at
www.imagefitness.com
new products, prizes,
fitness tips, and much more!
Patent Pending
2
Warning Decal Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Important Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Part Identification Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Adjusting the Weight Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Exercise Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Ordering Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
Note: A Part List/Exploded Drawing is attached in the center of this manual. Remove the Part List/Exploded
Drawing before beginning assembly.
Table of Contents
Warning Decal Placement
IMAGE is a registered trademark of ICON Health & Fitness, Inc.
The decals shown at right have
been placed on the weight rack
and on the bench. If a decal is
missing or illegible, call our
Customer Service Department
toll-free at 1-800-999-3756,
Monday through Friday, 6 a.m.
until 6 p.m. Mountain Time, to
order a free replacement decal.
Apply the replacement decal in
the location shown.
This warning decal has
been placed in the indicated position on both
sides of the bench.
!
WARNING
• Misuse of this
product may result in
serious injury.
• Read user’s manual
and follow all warnings
and operating instructions prior to use.
• Do not allow children
on or around machine.
• Replace label if
damaged, illegible,
or removed.
Keep hands and
fingers clear of
this area.
3
1. Read all instructions in this manual before
using the weight rack. Use the weight rack
only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the weight rack are adequately informed of all precautions.
3. The weight rack is intended for home use
only. Do not use the weight rack in any commercial, rental, or institutional setting.
4. Use the weight rack only on a level surface.
Cover the floor beneath the weight rack to
protect the floor or carpet.
5. Inspect and tighten all parts each time you
use the weight rack. Replace any worn parts
immediately.
6. Keep children under 12 and pets away from
the weight rack at all times.
7. Keep hands and feet away from moving parts.
8. Always secure weights (not included) with
the weight clips when they are mounted on
the weight carriage.
9. Always make sure there is an equal amount
of weight on each end of the barbell (not
included).
10. Always set both weight rests and both safety
spotters at the same height.
11. The weight bench is designed to support a
maximum of 550 pounds, including the user,
a barbell, and weights (not included). Do not
place more than 300 pounds, including the
barbell, on the weight rests. Do not place
more than 150 pounds on the weight carriage
or the leg lever.
12. Make sure that the cables remain on the pulleys at all times. If the cables bind as you are
exercising, stop immediately and make sure
that the cables are on the pulleys.
13. Always wear athletic shoes for foot protection while exercising.
14. Always exercise with a partner. When you
are performing squat exercises, your partner
should stand behind you to catch the barbell
if you cannot complete a repetition.
15. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cooling down.
16. Always disconnect the lat bar from the
weight rack when performing an exercise
that does not require the lat bar.
Important Precautions
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the weight rack.
4
Weight
Carriage
High Pulley Station
Lat Bar
Weight Rest
Safety Spotter
Leg Lever
Weight Tube
Backrest
Seat
Right Side
Left Side
Note: The terms “right side” and “left side” are determined
relative to a person using the rack; they do not correspond
to right and left on the drawings in the manual.
Low Pulley
Station
Weight Tube
Thank you for selecting the versatile IMAGE®5.5
weight rack. The IMAGE
®
5.5 is designed to help you
develop every major muscle group of the body.
Whether your goal is a shapely figure, dramatic
increase in muscle size and strength, or a healthier
cardiovascular system, the IMAGE®5.5 will help you
achieve the specific results you want.
For your benefit, read this manual carefully before
using the weight rack. If you have additional ques-
tions, please call our Customer Service Department
toll-free at 1-800-999-3756, Monday through Friday, 6
a.m. until 6 p.m. Mountain Time (excluding holidays).
To help us assist you, please note the product model
number and serial number before calling. The model
number is IMBE39401. The serial number can be
found on a decal attached to the weight rack (see the
front cover of this manual).
Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
Before You Begin
Chin-up Bar
5
Part Identification Chart—Model No. IMBE39401
M6 x 16mm Screw (50)
51mm Spacer (39)
M6 x 35mm Bolt (78)
28mm Spacer (40)
M10 x 45mm Bolt (32)
24mm Spacer (38)
18mm Spacer (85)
M10 Washer (37)
M8 Washer (36)
M10 x 50mm Bolt (86)
M6 x 52mm Screw (51)
M10 x 58mm Carriage Bolt (57)
M10 x 66mm Bolt (35)
M10 x 192mm Bolt (66)
M10 x 68.5mm Bolt (75)
M6 Washer (74)
M10 Nylon Locknut (29)
M8 Nylon Locknut (30)
M8 x 72mm Bolt (33)
M10 x 72mm Bolt (34)
M10 x 78mm Bolt (31)
6
Before beginning assembly, carefully read the
following information and instructions:
• Assembly requires two people.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• As you assemble the weight rack, make sure all
parts are oriented as shown in the drawings.
• For help identifying small parts, use the Part
Identification Chart on page 5.
The following tools (not included) are required
for assembly:
• Two adjustable wrenches
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
• Lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
Assembly
Make Things Easier for Yourself!
Everything in this manual is designed to ensure
that the weight rack can be assembled successfully by anyone. However, it is important to realize that the versatile weight rack has many parts
and that the assembly process will take time.
Most people find that by setting aside plenty of
time, assembly will go smoothly.
1
1
27
27
27
27
31
31
29
29
3
2
1. Press 60mm Square Outer Caps (27) onto the ends
of the Right and Left Bases (1, 3).
Attach the Right and Left Bases (1, 3) to the Center
Base (2) using four M10 x 78mm Bolts (31) and
four M10 Nylon Locknuts (29). Do not tighten the
Nylon Locknuts yet.
2
1
2
5
31
31
29
29
29
4
3
27
8
Adjustment
Holes
8
2. Identify the two Rear Uprights (8), which are slightly
shorter than the Front Uprights (not shown).
Attach the Rear Uprights (8) to the Left and Right
Bases (1, 3) using four M10 x 78mm Bolts (31) and
four M10 Nylon Locknuts (29). Do not tighten the
Nylon Locknuts yet. Make sure the Uprights are
oriented exactly as shown, with the adjustment
holes on the indicated side near the bottom.
Press a 60mm Square Outer Cap (27) onto the end
of the Weight Guide Base (4).
Orient the Foot Plate (5) and the Weight Guide Base
(4) as shown. Attach the Foot Plate and the Weight
Guide Base to the Center Base (2) using two M10 x
78mm Bolts (31) and two M10 Nylon Locknuts (29).
Do not tighten the Nylon Locknuts yet.
7
3
4a
4b
4. This step will require two people.
Refer to drawing 4a. Have one person hold out the
Adjustment Knobs (22) on a Safety Spotter (20),
while the other person slides the Safety Spotter
down over the right Uprights (7, 8), as shown. Hold
the Adjustment Knob out on the Weight Rest (19),
and slide the Weight Rest onto the Front Upright
(7). To avoid breaking the Square Bushings (21)
inside the top and bottom of the Safety Spotter
and Weight Rest, be careful not to catch the
Square Bushings on the edges of the Uprights
as they slide on.
Refer to drawing 4b. Secure the Safety Spotter (20)
and the Weight Rest (19) to the right Uprights (7, 8)
by snapping the three Adjustment Knobs (22) into
adjustment holes in the Uprights and turning them
clockwise until tight.
Assemble the other Safety Spotter (20) and Weight
Rest (19) to the left Uprights (7, 8) in the same
manner. Make sure both Safety Spotters and
both Weight Rests are at the same height.
3
1
31
29
29
22
7
7
8
8
22
22
20
21
21
21
20
19
19
6
6
7
8
28
3. Tap a 60mm Square Inner Cap (28) into the top of
each of the Front Uprights (7).
Attach one of the Front Uprights (7) and two Rack
Joint Plates (6) to the Left Base (3) using four M10
x 78mm Bolts (31) and four M10 Nylon Locknuts
(29). Make sure the Front Upright is oriented so
that the holes on the bottom of the Front
Upright and the holes in the Joint Plates line up.
If they do not line up, turn the Front Upright
upside-down. Do not tighten the Nylon
Locknuts yet. Make sure the Front Upright is
turned so the adjustment holes are facing the
Rear Upright (8).
Attach the other Front Upright (7, not shown) and
two Rack Joint Plates (6, not shown) to the Right
Base (1) in the same manner.
5. Attach the Chin-up Bar (13) and two Rack Joint
Plates (6) to the Front Uprights (7) using four M10 x
78mm Bolts (31) and four M10 Nylon Locknuts (29).
Do not tighten the Nylon Locknuts yet.
6
29
29
31
31
6
7
13
7
5
Adjustment
Holes
8

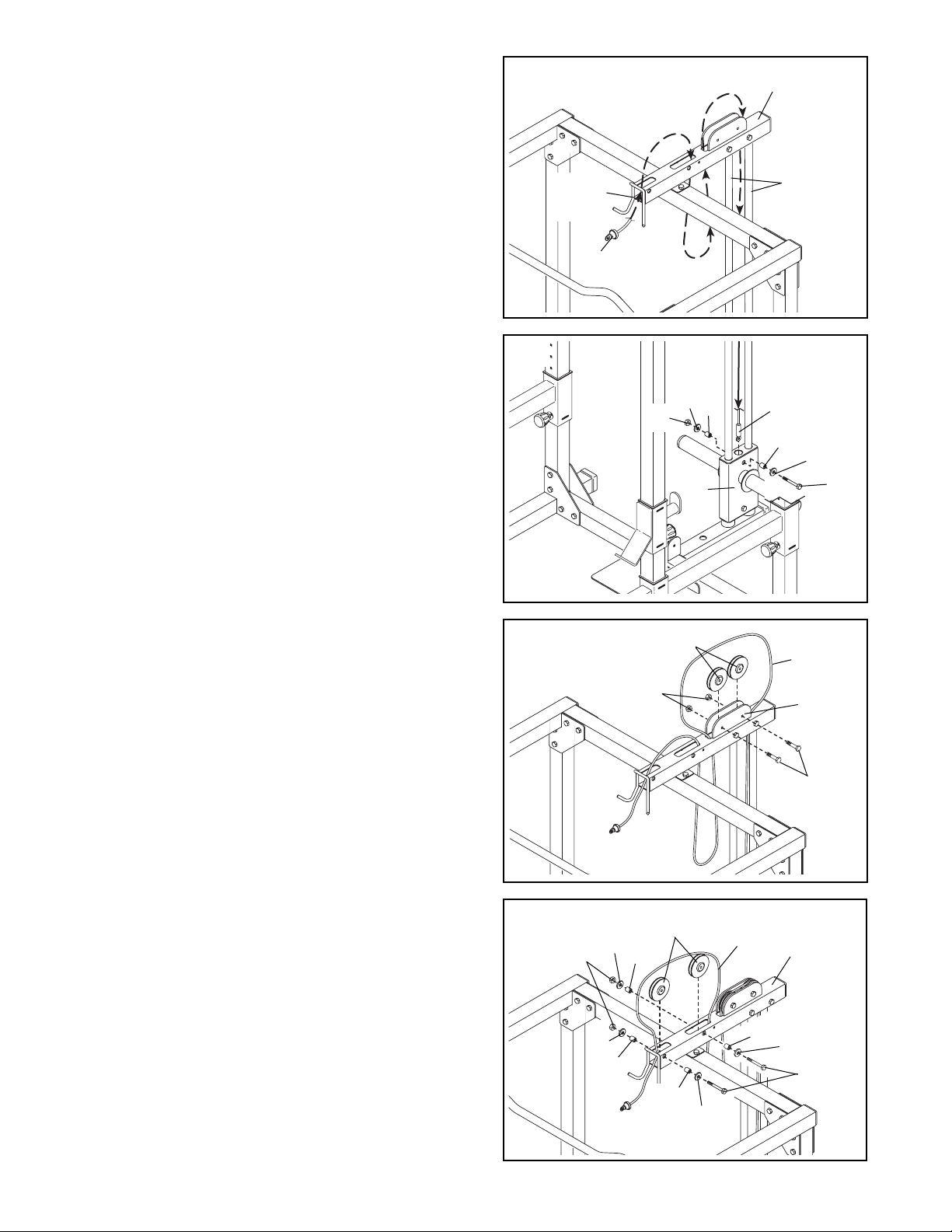

8. Insert the two Weight Guides (9) into the Weight
Guide Base (4). Attach the Weight Guides using
two M8 x 72mm Bolts (33), four M8 Washers (36),
and two M8 Nylon Locknuts (30).
Slide the two Weight Bumpers (18) and the Weight
Carriage (15) over the Weight Guides (9). Be sure
the Weight Bumpers are on the bottom.
7. Press the two 51mm Round Inner Caps (42) into
the weight tubes on the Weight Carriage (15).
Make sure the Weight Carriage is turned so the
weight tubes are near the top, as shown. Attach
the lower Carriage Bushing (16) to the Weight
Carriage (15) using a M10 x 66mm Bolt (35), two
M10 Washers (37), the 51mm Spacer (39), and a
M10 Nylon Locknut (29).
42
42
15
Weight Tube
35
37
39
37
16
29
6. Press a 60mm Square Inner Cap (28) into the Left
Frame (12). Attach the Left Frame to the left
Uprights (7, 8) using four M10 x 78mm Bolts (31)
and four M10 Nylon Locknuts (29). Do not tighten
the Nylon Locknuts yet.
Assemble the Right Frame (10) on the right
Uprights (7, 8) in the same manner.
Attach the Center Frame (11) to the Left Frame (12)
and the Right Frame (10) using four M10 x 78mm
Bolts (31) and four M10 Nylon Locknuts (29).
Tighten all Nylon Locknuts used in steps 1–6.
29
28
29
31
31
31
31
10
11
12
29
29
6
7
8
7
8
8
7
15
18
4
36
30
9
33
9
9. Press a 60mm Square Inner Cap (28) into the end
of the Weight Guide Frame (14).
Hold the Weight Guide Frame (14) on top of the
Center Frame (11) and the Weight Guides (9).
Attach the Weight Guides to the Weight Guide
Frame using two M8 x 72mm Bolts (33), four M8
Washers (36), and two M8 Nylon Locknuts (30).
Attach the Weight Guide Frame (14) to the Center
Frame (11) using two M10 x 78mm Bolts (31), two
M10 Washers (37), and two M10 Nylon Locknuts
(29).
31
37
11
14
29
9
33
36
28
36
30
9
10
10. Locate the High Cable (84), which is slightly longer
than the Low Cable (not shown), and notice that
there is a ball on one end of the Cable and a metal
sleeve on the other end.
Route the metal-sleeve end of the High Cable (84)
up under the lat bar rest on the Weight Guide
Frame (14), down through the indicated hole, back
up through the next hole, and then down between
the Weight Guides (9) as shown.
11. Insert the end of the High Cable (84) into the hole
in the center of the Weight Carriage (15). Attach the
Cable using a M10 x 66mm Bolt (35), two M10
Washers (37), two 24mm Spacers (38), and an M10
Nylon Locknut (29).
12 Lift the High Cable (84) in the location shown.
Attach two Pulleys (24) inside the bracket on the
Weight Guide Frame (14) using two M10 x 50mm
Bolts (86) and two M10 Nylon Locknuts (29).
84
11
15
12
29
86
24
84
14
35
37
37
29
9
14
Lat Bar
Rest
84
38
38
13
84
14
34
29
37
85
24
13. Lift the High Cable (84) in the location shown.
Attach two Pulleys (24) inside the Weight Guide
Frame (14) using two M10 x 72mm Bolts (34), four
M10 Washers (37), four 18mm Spacers (85), and
two M10 Nylon Locknuts (29).
37
37
37
85
85
85
10
24
2
29
15
29
17
17
32
24
23
84
25
23
14. Pull the High Cable (84) down in the indicated location, so there is no slack at the ends of the Cable.
Locate the Low Cable (25), which has two balls on
one end. Insert the metal-sleeve end of the Cable
into the indicated hole in the Weight Guide Base
(4). Attach the Cable using an M10 x 72mm Bolt
(34), two M10 Washers (37), two 28mm Spacers
(40), and a M10 Nylon Locknut (29).
Route the ball-end of the Low Cable (25) through
the bracket on the Center Base (2). Attach a Pulley
(24) inside the bracket using a M10 x 45mm Bolt
(32) and a M10 Nylon Locknut (29).
15. Wrap the High Cable (84) around a Pulley (24) as
shown. Attach the Pulley and a Cable Trap (23) to
the two Pulley Plates (17) using a M10 x 45mm Bolt
(32) and a M10 Nylon Locknut (29).
Wrap the Low Cable (25) around a Pulley (24) as
shown. Attach the Pulley and a Cable Trap (23) to
the Pulley Plates (17) using a M10 x 45mm Bolt
(32) and a M10 Nylon Locknut (29).
Make sure the Bolts (32) are inserted through
the highest and lowest holes in the Pulley Plates
(17), and that the Cables (25, 84) are between
the Cable Traps (23) and the Pulleys (24).
32
34
37
37
40
4
40
25
84
14
16
45
47
47
16. Wet the ends of the Lat Bar (45) with a small
amount of lubricant. Slide the Handgrips (47) onto
the ends of the Lat Bar.
Make sure that all parts of the weight rack are
properly tightened. In addition, pull each cable a
few times to make sure the cables move
smoothly over the pulleys. If the cables do not
move smoothly, locate and correct the problem.
When weights are used, the cables may be damaged if they are incorrectly routed.
11
17. Press a 51mm x 76mm Outer Cap (56) onto each
end of the Stabilizer (58).
Attach the Stabilizer (58) to the Bench Frame (52)
with two M10 x 58mm Carriage Bolts (57) and two
M10 Nylon Locknuts (29). Attach the Stabilizer so
that the warning decal is in the position shown.
Note: Do not tighten the Nylon Locknuts yet.
17
57
56
29
52
Decal
58
56
18. Press a 50mm Square Outer Cap (65) onto each end
of the Bench Base (53).
Attach the Bench Base Joint Plate (64) to the Bench
Base (53) with two M10 x 68.5mm Bolts (75), two
M10 Washers (37), and two M10 Nylon Locknuts
(29).
Attach the Bench Leg (48) to the Bench Base Joint
Plate (64) with two M10 x 68.5mm Bolt (75), two M10
Washers (37), and two M10 Nylon Locknuts (29). Be
sure the welded nut is in the position shown.
Note: Do not tighten the Nylon Locknuts yet.
18
75
37
37
75
37
37
48
29
64
65
65
53
19. Attach the Bench Leg (48) to the Bench Frame (52)
with two Bench Joint Plates (63), four M10 x 72mm
Bolts (34), and four M10 Nylon Locknuts (29).
Note: Tighten all the M10 Nylon Locknuts (29)
used in steps 17-19.
19
48
29
63
52
34
63
20. Press two 25mm x 38mm Inner Caps (72) into each
Backrest Tube (71). Press two 25mm x 38mm Inner
Caps into the Backrest Adjustment Bracket (79).
Lubricate a M10 x 192mm Bolt (66). Attach the
Backrest Tubes (71) to the welded tube on the
Backrest Adjustment Bracket (79) with the Bolt, two
M10 Washers (37) and a M10 Nylon Locknut (29).
Make sure that the Backrest Tubes are turned as
shown. The indicated holes are closer to one
side. Turn the Backrest Tubes so the holes are
closer to the floor. Do not over tighten the Nylon
Locknut; the Backrest Tubes must pivot easily.
20
72
29
37
37
79
Lubricate
Holes
Welded
Tube
72
72
66
71
Welded Nut
12
21. Lubricate a M10 x 192mm Bolt (66). Attach the
Backrest Tubes (71) to the welded tube on the Bench
Frame (52) with the Bolt, two M10 Washers (37), and
a M10 Nylon Locknut (29). Note: Do not over tight-
en the Nylon Locknut; the Backrest Tubes must
pivot easily.
21
71
29
37
37
52
66
Lubricate
Welded Tube
22. Attach the Backrest (60) to the Backrest Tubes (71)
with four M6 x 52mm Screws (51) and four M6
Washers (74).
22
74
51
60
71
23. See the inset drawing. Press the 20mm x 40mm Inner
Cap (77) into the open end of the Seat Mounting
Bracket (67).
See the inset drawing. Lubricate a M10 x 68.5mm
Bolt (75). Attach the Seat Adjustment Bracket (80) to
the indicated side of the Seat Mounting Bracket (67)
with the Bolt and a M10 Nylon Locknut (29). Note: Do
not over tighten the Nylon Locknut; the Seat
Adjustment Bracket must pivot easily.
Place the Seat Mounting Bracket (67) on the Bench
Frame (52) so that the Seat Adjustment Bracket (80)
fits over the welded pin on the side of the Bench
Frame.
Lubricate a M10 x 72mm Bolt (34). Attach the Seat
Mounting Bracket (67) to the indicated bracket on the
Bench Frame (52) with the Bolt and a M10 Nylon
Locknut (29). Note: Do not over tighten the Nylon
Locknut; the Seat Mounting Bracket must pivot
easily.
23
52
29
80
67
34
Welded
Pin
Lubricate
Lubricate
75
77
80
29
67
24. Turn the Seat (59) as shown. Attach the wide end of
the Seat to the bracket on the Seat Mounting Bracket
(67) with two M6 x 16mm Screws (50).
Tilt the Seat Mounting Bracket (67) upwards and
attach the narrow end of the Seat (59) to the Seat
Mounting Bracket with a M6 x 35mm Screw (78) and
an M6 Washer (74).
24
50
78
74
67
59
Bracket
13
25. Attach the Adjustable Bench Leg (49) to the Bench
Leg (48) with the Small Adjustment Knob (81).
Insert a 45mm Square Inner Cap (26) into the top of
the Adjustable Bench Leg (49).
26. Insert three 45mm Square Inner Caps (26) into the
ends of the Leg Lever (62). Insert a 25mm Round
Inner Cap (83) into the weight tube on the Leg Lever.
Press a 25mm Angled Outer Cap (82) onto the other
end of the weight tube.
Attach the Leg Lever (62) to the Adjustable Bench
Leg (49) with an M10 x 72mm Bolt (34) and an M10
Nylon Locknut (29).
27. Insert 19mm Round Inner Caps (70) into the ends of
the three Pad Tubes (61).
Insert two Pad Tubes (61) through the holes in the
Leg Lever (62). Slide a Foam Pad (69) onto each
side of the Pad Tubes.
Insert a Pad Tube (61) through the upper tube on the
Adjustable Bench Leg (49). Slide a Foam Pad (69)
onto each side of the Pad Tube.
25
48
49
26
81
26
Weight
Tube
83
26
26
34
29
82
26
62
49
27
62
70
69
69
49
70
69
61
69
69
70
29. Make sure all parts are properly tightened before
you use the weight bench. The use of the remaining parts will be explained in Adjusting the Weight
Rack, on page 14.
28. Attach the Curl Pad (54) to the Curl Upright (55) with
two M6 x 16mm Screws (50).
28
50
55
54
14
This section explains how the weight rack and bench can be adjusted. See the Exercise Guidelines on page 17 for
information about how to get the most benefit from your exercise program. See the included exercise poster for information about how to perform a variety of exercises.
Inspect and tighten all parts each time you use the weight rack. Replace any worn parts immediately. The weight
rack can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.
Adjusting the Weight Rack
ADJUSTING THE BACKREST
To raise the Backrest (60), grip the end of the Backrest
with one hand and pull it upward until the Backrest
Adjustment Bracket (79) locks into the appropriate tab on
the bracket on the Bench Frame (5).
To lower the Backrest (60), grip the end of the Backrest
with one hand and lift it slightly. Grip the handle (not
shown) on the right side of the Backrest Adjustment
Bracket (79) with your other hand and pull the Backrest
Adjustment Bracket free of the tabs on the bracket on the
Bench Frame (52). Lower the Backrest to the desired
position and lock the Backrest Adjustment Bracket into
the desired tab on the Bench Frame bracket.
60
79
52
Handle
Bracket
ADJUSTING THE SEAT
To raise the Seat (59), lift the narrow end of the Seat until
the appropriate tab on the Seat Adjustment Bracket (80)
engages the welded pin (not shown) on the right side of
the Bench Frame (52).
To lower the Seat (59), use the handle on the Seat
Adjustment Bracket (80) to disengage the Seat
Adjustment Bracket from the pin on the right side of the
Bench Frame (52). Lower the Seat to the desired position
and engage the appropriate tab on the Seat Adjustment
Bracket to the pin.
59
Pin
Handle
52
80
WARNING: Make sure the Backrest
Adjustment Bracket (79) is securely locked to the
Bench Frame (52) before using the weight bench.
62
81
48
54
USING THE CURL PAD
To use the Curl Pad (54), unscrew the Small Adjustment
Knob (81) and lift the Leg Lever (62) out of the Bench
Leg (48). Insert the Curl Pad into the Bench Leg, and
secure it with the Small Adjustment Knob.
Note: When not using the Curl Pad (54), store it
away from the weight bench.
15
USING THE WEIGHT RESTS AND SAFETY
SPOTTERS
Before beginning an exercise, move the Weight Rests
(19) and the Safety Spotters (20) to sets of holes in the
Uprights (7, 8) that are best suited for that exercise. Do
this by turning the Adjustment Knobs (22) counterclockwise until loose. Pull the Knobs out and slide the
Weight Rests or the Safety Spotters to the desired
height. Snap the Knobs into the adjustment holes in the
Uprights and turn the Knobs clockwise until tight.
The selected holes for the Safety Spotters (20) should
represent the lowest point to which you want the barbell
to go during the exercise. The selected holes for the
Weight Rests (19) should be at a comfortable height for
lifting and replacing the barbell. Perform the exercise as
shown on the accompanying exercise chart. Note: Make
sure the Adjustment Knobs (22) are fully tightened.

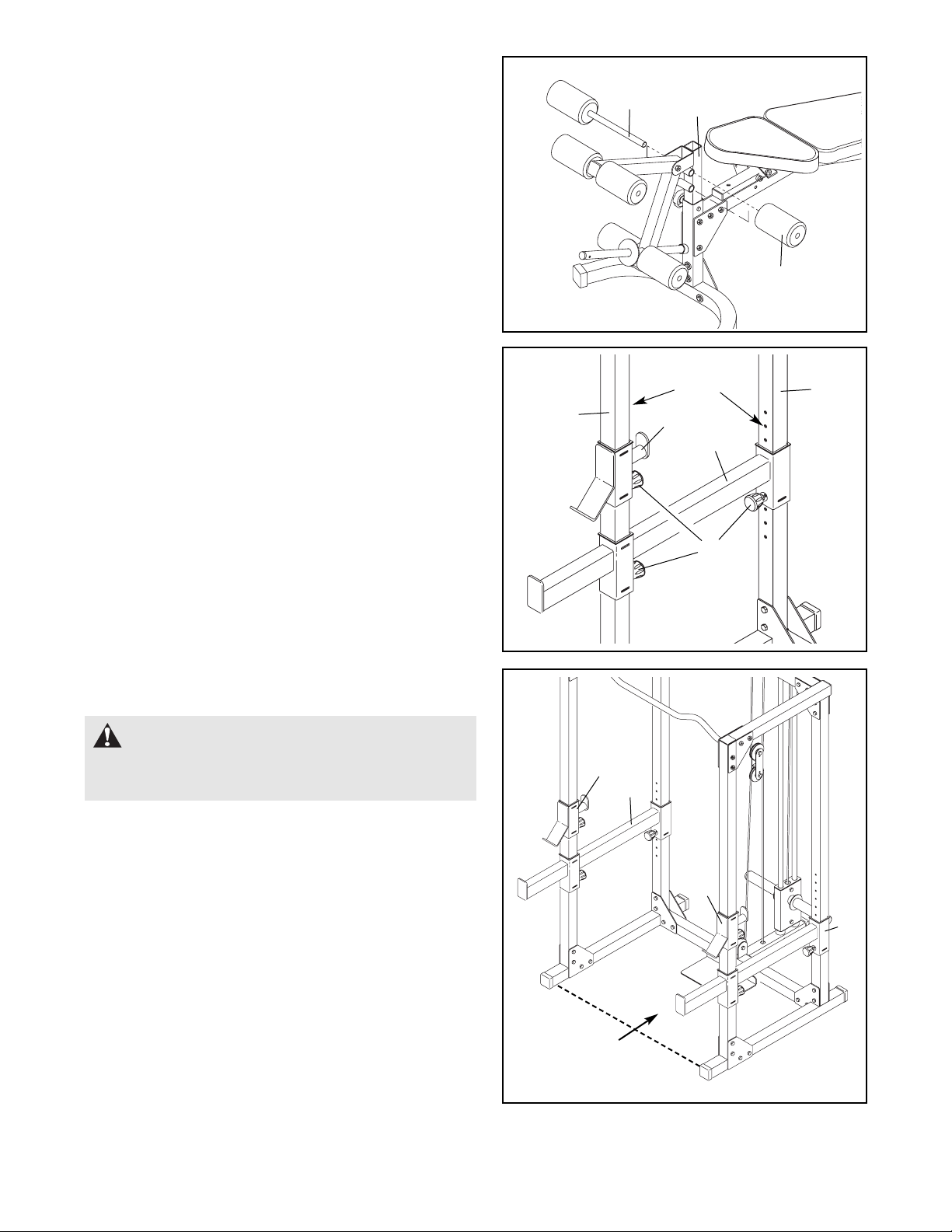

ADJUSTING THE PAD TUBES
For some exercises, it may be necessary to move the
Pad Tube (61) in the Adjustable Bench Leg (49). To do
this, remove a Foam Pad (69) from one side of the Pad
Tube. Slide the Pad Tube out of the Adjustable Bench
Leg. Reinsert the Pad Tube into the lower welded tube
on the Adjustable Bench Leg. Replace the Foam Pad
on the Pad Tube.
To do leg raise exercises, the Pad Tube (61) must be
moved to the lower welded tube, the narrow end of the
seat must be raised, and the backrest must be declined
as shown.
WARNING: Always set both Weight
Rests (19) at the same height and both Safety
Spotters (20) at the same height.
19
7
69
61
49
8
Adjustment
Holes
19
19
20
20
22
SETTING UP FOR SQUAT EXERCISES
Squat exercises should be performed inside the rack
(behind the dotted line in the picture). When performing
squat exercises, set the Weight Rests (19) and the
Safety Spotters (20) at a comfortable height in the manner describe in USING THE WEIGHT RESTS AND
SAFETY SPOTTERS above.
Squat
Area
20
16
ATTACHING WEIGHTS TO THE WEIGHT CARRIAGE
To use the high or low pulley station, slide the desired
amount of weight onto the weight tubes on the Weight
Carriage (15). Secure the weights with Weight Clips (43).
43
15
Weight
Tube
WARNING: Do not place more than
150 pounds on the Weight Carriage (15). Always
place the same amount of weight on each side of
the Weight Carriage, and secure the weights on
the Weight Carriage with the Weight Clips (43).
ATTACHING THE LAT BAR TO THE HIGH PULLEY
STATION OR THE LOW PULLEY STATION
To use the high pulley station or the low pulley station,
first place the desired weights on the weight carriage
(see ATTACHING WEIGHTS TO THE WEIGHT CARRIAGE above). Next, attach the Lat Bar (45) to either
Cable (25) with a Cable Clip (46).
45
46
25
WARNING:
Always disconnect the
Lat Bar (45) when performing an exercise that
does not require using the Lat Bar.
29
17
17
32
24
23
23
TIGHTENING THE CABLES
Woven cable, the type of cable used on the weight rack,
can stretch slightly after it is first used. If there is slack
in the cables, tighten them as described below.
Remove the M10 x 45mm Bolt (32) and the M10 Nylon
Locknut (29) attaching the lower Pulley (24) and Cable
Trap (23) to the two Pulley Plates (17). Reattach the
lower Pulley and Cable Trap to the higher holes in the
Pulley Plates using the Bolt and Nylon Locknut.
If moving just the lower Pulley (24) does not sufficiently
tighten the cables, you can also move the upper Pulley
down one set of holes in the Pulley Plates (17).
62
73
68
76
USING OLYMPIC WEIGHTS ON THE LEG LEVER
To use Olympic weights on the Leg Lever (62), insert
the Weight Adapter Bushings (68) into the ends of the
Weight Adapter (76). Slide the Weight Adapter over the
weight tube on the Leg Lever. Insert the Weight Adapter
Pin (73) into the weight tube.
Weight
Tube
17
THE FOUR BASIC TYPES OF WORKOUTS
Muscle Building
The only way to increase the size and strength of
your muscles is to push them close to their maximum
capacity. When you progressively increase the intensity of your exercise, your muscles will continually
adapt and grow. You can tailor the individual exercise
to the proper intensity level in two ways:
• by changing the amount of weight used
• by changing the number of repetitions or sets performed (A “repetition” is one complete cycle of an
exercise, such as one sit-up. A “set” is a series of
repetitions).
The proper amount of weight for each exercise obviously depends upon the individual user. You must
gauge your limits and select the amount of weight that
is right for you. Begin with 3 sets of 8 repetitions for
each exercise you perform. Rest for 3 minutes after
each set. When you can complete 3 sets of 12 repetitions without difficulty, increase the amount of weight.
Toning
You can tone your muscles by pushing them to a
moderate percentage of their capacity. Select a moderate amount of weight and increase the number of
repetitions in each set. Complete as many sets of 15
to 20 repetitions as possible without discomfort. Rest
for 1 minute after each set. Work your muscles by
completing more sets rather than by using high
amounts of weight.
Weight Loss
To lose weight, use a low amount of weight and
increase the number of repetitions in each set.
Exercise for 20 to 30 minutes, resting for a maximum
of 30 seconds between sets.
Cross Training
Many people desire a complete and balanced fitness
program. Cross training is an efficient way to accomplish this. One example of a balanced program is:
• Plan weight training workouts on Monday,
Wednesday, and Friday.
• Plan 20 to 30 minutes of aerobic exercise, such as
cycling, running, or swimming on Tuesday and
Thursday.
• Rest from both weight training and aerobic exercise
for at least one full day each week to give your body
time to regenerate.
The combination of weight training and aerobic exercise will reshape and strengthen your body and develop your heart and lungs.
PERSONALIZING YOUR EXERCISE PROGRAM
Specifying the exact length of time for each workout,
as well as the number of repetitions or sets for each
exercise, is a highly individual matter. It is very important to avoid overdoing it during the first few months
of your exercise program. You should progress at
your own pace and be sensitive to your body’s signals. If you experience pain or dizziness at any time
while exercising, stop immediately and begin cooling
down. Find out what is wrong before continuing.
Remember that adequate rest and a proper diet are
important factors in any exercise program.
WARMING UP
Begin each workout with 5 to 10 minutes of stretching
and light exercise to warm up. Warming up prepares
your body for more strenuous exercise by increasing
circulation, raising your body temperature and delivering more oxygen to your muscles.
WORKING OUT
Each workout should include 6 to 10 different exercises. Select exercises for every major muscle group
with emphasis on the areas that you want to develop
the most. To give balance and variety to your workouts, vary the exercises from session to session.
Schedule your workouts for the time of day when your
energy level is the highest. Each workout should be
followed by at least one day of rest. Once you find the
schedule that is right for you, stick with it.
EXERCISE FORM
You will gain the greatest benefits from exercising by
maintaining proper form. This requires moving
through the full range of motion for each exercise and
moving only the appropriate parts of the body.
Exercising in an uncontrolled manner will leave you
feeling exhausted. On the exercise poster accompanying this manual, you will find photographs showing
the correct form for several exercises. A description of
each exercise is also provided, along with a list of the
muscles affected. Refer to the muscle chart on page
18 to find the locations of the muscles.
The repetitions in each set should be performed
smoothly and without pausing. The exertion stage of
each repetition should last about half as long as the
return stage. Proper breathing is important. Exhale
during the exertion stage of each repetition and inhale
during the return stroke. Never hold your breath.
Exercise Guidelines
18
Make sure to rest for a short period of time after each
set. The ideal resting periods are:
• Rest for three minutes after each set for a muscle
building workout.
• Rest for one minute after each set for a toning workout.
• Rest for 30 seconds after each set for a weight loss
workout.
Plan to spend the first couple of weeks familiarizing
yourself with the equipment and learning the proper
form for each exercise.
COOLING DOWN
End each workout with 5 to 10 minutes of stretching.
Include stretches for both your arms and legs. Move
slowly as you stretch and do not bounce. Ease into
each stretch gradually and go only as far as you can
without strain. Stretching at the end of each workout
is very effective for increasing flexibility.
STAYING MOTIVATED
For motivation, keep a record of each workout. The
chart on page 19 of this manual can be photocopied
and used to schedule and record your workouts. List
the date, the exercises performed, the weight, and the
numbers of sets and repetitions completed. Record
your weight and key body measurements at the end
of every month.
Remember, the key to achieving the greatest results
is to make exercise a regular and enjoyable part of
your everyday life.
Pectoralis
Major
Biceps
Obliques
Brachioradials
Brachioradials
Hip Flexors
Abductor
Quadriceps
Soleus
Rectus
Abdominus
Adductor
Trapezius
Trapezius
Rhomboideus
Deltoid
Deltoid
Triceps
Latissimus Dorsi
Spinae Erectors
Gluteus
Medius
Gluteus
Maximus
Hamstring
Abductors
Gastrocnemius
MUSCLE CHART
19
MONDAY
Date:
/ /
EXERCISE WEIGHT SETS REPS
EXERCISE WEIGHT SETS REPS
EXERCISE WEIGHT SETS REPS
AEROBIC EXERCISE
AEROBIC EXERCISE
TUESDAY
Date:
/ /
WEDNESDAY
Date:
/ /
THURSDAY
Date:
/ /
FRIDAY
Date:
/ /
Make photocopies of this page for scheduling and recording your workouts.
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of the user’s manual for information about ordering replacement parts.
Key No. Qty. Description Key No. Qty. Description
Part List—Model No. IMBE39401
R0201A
1 1 Right Base
2 1 Center Base
3 1 Left Base
4 1 Weight Guide Base
5 1 Foot Plate
6 6 Rack Joint Plate
7 2 Front Upright
8 2 Rear Upright
9 2 Weight Guide
10 1 Right Frame
11 1 Center Frame
12 1 Left Frame
13 1 Chin-up Bar
14 1 Weight Guide Frame
15 1 Weight Carriage
16 2 Carriage Bushing
17 2 Pulley Plate
18 2 Weight Bumper
19 2 Weight Rest
20 2 Safety Spotter
21 12 Square Bushing
22 6 Adjustment Knob
23 2 Cable Trap
24 7 Pulley
25 1 Low Cable
26 4 45mm Square Inner Cap
27 5 60mm Square Outer Cap
28 5 60mm Square Inner Cap
29 61 M10 Nylon Locknut
30 4 M8 Nylon Locknut
31 36 M10 x 78mm Bolt
32 3 M10 x 45mm Bolt
33 4 M8 x 72mm Bolt
34 9 M10 x 72mm Bolt
35 2 M10 x 66mm Bolt
36 8 M8 Washer
37 20 M10 Washer
38 2 24mm Spacer
39 1 51mm Spacer
40 2 28mm Spacer
41 4 Weight Clip Sleeve
42 2 51mm Round Inner Cap
43 2 Weight Clip
44 1 Strap
45 1 Lat Bar
46 1 Cable Clip
47 2 Handgrip
48 1 Bench Leg
49 1 Adjustable Bench Leg
50 4 M6 x 16mm Screw
51 4 M6 x 52mm Screw
52 1 Bench Frame
53 1 Bench Base
54 1 Curl Pad
55 1 Curl Upright
56 2 51mm x 76mm Outer Cap
57 2 M10 x 58mm Carriage Bolt
58 1 Stabilizer
59 1 Seat
60 1 Backrest
61 3 Pad Tube
62 1 Leg Lever
63 2 Bench Joint Plate
64 1 Bench Base Joint Plate
65 2 50mm Square Outer Cap
66 2 M10 x 192mm Bolt
67 1 Seat Mounting Bracket
68 2 Weight Adapter Bushing
69 6 Foam Pad
70 6 19mm Round Inner Cap
71 2 Backrest Tube
72 6 25mm x 38mm Inner Cap
73 1 Weight Adapter Pin
74 5 M6 Washer
75 5 M10 x 68.5mm Bolt
76 1 Weight Adapter
77 1 20mm x 40mm Inner Cap
78 1 M6 x 35mm Screw
79 1 Backrest Adjustment Bracket
80 1 Seat Adjustment Bracket
81 1 Small Adjustment Knob
82 1 25mm Angled Outer Cap
83 1 25mm Round Inner Cap
84 1 High Cable
85 4 18mm Spacer
86 2 M10 x 50mm Bolt
# 1 Allen Wrench
# 1 User’s Manual
# 1 Exercise Poster
Exploded Drawing—Model No. IMBE39401
R0201A
35
33
36
36
30
14
28
24
24
46
47
29
28
10
86
85
29
85
37
29
45
44
29
11
31
31
9
29
34
37
29
28
84
47
28
37
31
31
29
31
28
31
29
31
13
31
7
31
29
12
29
6
21
22
19
21
8
8
7
19
21
20
21
37
16
84
38
38
37
29
42
21
20
22
21
21
22
42
35
37
39
16
15
18
37
29
29
21
29
29
24
31
29
27
31
31
29
21
22
21
69
70
4
27
36
25
30
31
25
1
29
26
26
33
34
37
40
29
37
29
27
29
32
2
31
31
6
6
27
69
61
82
62
73
69
70
3
31
5
6
31
31
17
23
24
17
29
70
69
61
43
26
83
56
43
29
6
27
32
23
24
41
41
6
29
51
72
60
74
71
66
37
37
29
72
72
29
79
59
51
74
54
50
70
29
67
50
78
34
75
69
74
70
77
80
55
69
26
61
34
81
49
56
52
29
63
34
57
58
29
29
63
37
48
37
75
68
76
68
64
53
37
65
37
75
65
Part No. 171513 R0201A Printed in China © 2000 ICON Health & Fitness, Inc.
To order replacement parts, simply call our Customer Service Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give the following information when calling:
• The MODEL NUMBER of the product (IMBE39401)
• The NAME of the product (IMAGE
®
5.5 weight rack)
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST and the EXPLODED
DRAWING at the center of this manual).
Ordering Replacement Parts
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This
warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing
or repairing, at ICON's option, the product at one of its authorized service centers. All products for which warranty claim is made must be received by ICON at one of its authorized service centers with all freight and other
transportation charges prepaid, accompanied by sufficient proof of purchase. All returns must be pre-authorized by ICON. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON
authorized service center, products used for commercial or rental purposes, or products used as store display
models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection
with the use or performance of the product or damages with respect to any economic loss, loss of property,
loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein.
Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation
may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Limited Warranty
Loading...
