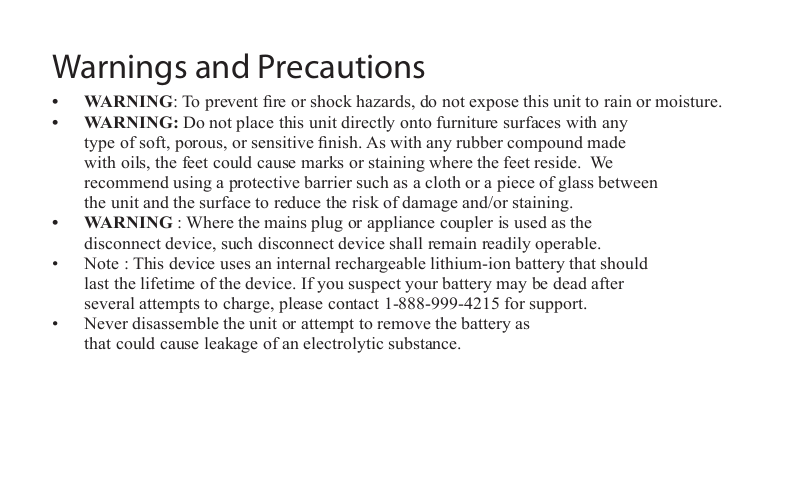

Warnings and Precautions
• WARNING: To prevent re or shock hazards, do not expose this unit to rain or moisture.
• WARNING:Do not place this unit directly onto furniture surfaces with any
type of soft, porous, or sensitive nish. As with any rubber compound made
with oils, the feet could cause marks or staining where the feet reside. We
recommend using a protective barrier such as a cloth or a piece of glass between
the unit and the surface to reduce the risk of damage and/or staining.
• WARNING : Where the mains plug or appliance coupler is used as the
disconnect device, such disconnect device shall remain readily operable.
• Note : This device uses an internal rechargeable lithium-ion battery that should
last the lifetime of the device. If you suspect your battery may be dead after
several attempts to charge, please contact 1-888-999-4215 for support.
• Never disassemble the unit or attempt to remove the battery as
that could cause leakage of an electrolytic substance.
Pairing a Bluetooth Device
1. Turn on the unit using the Power switch. The
Pairing/Line In Indicator will ash blue quickly,
and the unit will enter pairing mode.
When pairing, remain within 3 feet of the unit.
2. Using the native controls on your Bluetooth device,
select the “ISB23” in your Bluetooth settings to pair.
If your device requests a password, enter the default password “ 0 0 0 0
”. Refer to the user’s manual for your specic device for instructions on
pairing and connecting Bluetooth devices.
3. When successfully paired and connected, the
Pairing/Line In Indicator will display a solid blue
light and a beep will sound from the unit.
After initial pairing, the unit will stay paired unless unpaired manually by the user.
If problems arise with pairing, press the Pair button to begin pairing again.
Playing Audio Wirelessly
1. Follow the instructions for Pairing a Bluetooth Device.
2. Use the native controls on the connected
Bluetooth device to select a track.
3. To play, pause or skip the selected track, use the native
controls on the connected Bluetooth device.
4. Audio played through the connected Bluetooth
device will now be heard through the speakers.
Using the 3.5mm Audio Input
1. Plug one end of a 3.5 mm audio input cable (not
included) into the 3.5 mm Audio Input on the unit.
2. Plug the other end of the cable into the audio output/
headphone output on an MP3 Player or other audio source.
3. Turn on the unit using the Power switch.
4. Audio played through the connected device
will now be heard through the speakers.
Features
• Supports Bluetooth v2.0
• Supports prole A2DP
(Advanced Audio
Distribution Prole)
• Wireless range: 33 feet
• Supports automatic
device pairing
• 3.5mm audio input
• Built-in speaker
• Micro-USB port for
battery recharge
• LED pairing indicator
• Pairing button
• On/o switch
• DC battery power:
built-in rechargeable
lithium ion battery
• Battery life: ~2 hours
Includes
• Micro USB to USB
charging cable
Power
USB Power
Requires a Micro USB to USB cable (included).
Note: PC must not be in sleep mode.
DC IN

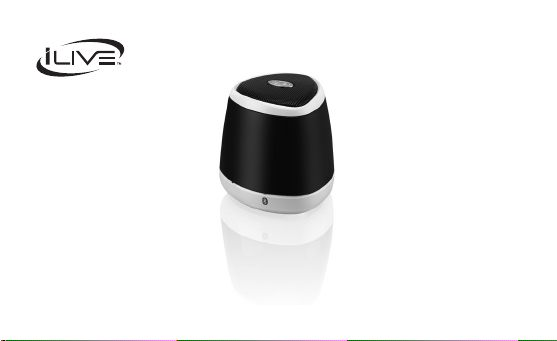

ISB23
Bluetooth Wireless Speaker
For the most up-to-date version of this User’s Guide,
go to www.iLiveElectronics.com
USER’S GUIDE
V: 909-01
Power
Status Indicator
Power O No light
Charging Red light
Fully Charged No light
Line In Green light
Low battery Red Flashing Light
Introduction
Battery Indicator
Pairing/Line In
Indicator
Introduction
Adjust the switch to
turn the unit on or o.
Always be sure to
switch to the OFF
position when
not in use.
Press to begin
connecting a
Bluetooth device.
Power
Pair
POWER
ON OFF
PAIR
Introduction
Line Input
Micro USB
Charging Port
LINE IN
Warranty
For Warranty Information and the most up-to-date version of this
User’s Guide, go to: www.iLiveElectronics.com
International Support
To download this User’s Guide in English, Spanish, or French, or to get answers to
frequently asked questions, visit the support section at www.iLiveElectronics.com
Para descargar este Manual del Usuario en inglés, español y francés, o para
obtener respuestas a preguntas frecuentes, visite la sección de apoyo en www.
iLiveElectronics.com
Pour télécharger ce guide de l’utilisateur en anglais, espagnol ou français, ou pour
obtenir des réponses à des questions fréquemment posées, consultez la rubrique
d’assistance sur www.iLiveElectronics.com
Contact Information
EmailSupport:prodinfo@dpiinc.com
EmailParts:partsinfo@dpiinc.com
PhoneSupport: 1-888-999-4215
Website:www.iLiveElectronics.com
