iLive ISB223B User Manual
CHARGER BATTERY
POWER
LINE IN
LIGHT
PAIR
Warning: Changes or modications to this unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
• The apparatus shall not be exposed to dripping or splashing and that no objects lled with
liquids, such as vases, shall be placed on apparatus.
L’appareil ne doit pas être exposé aux écoulements ou aux éclaboussures et aucun objet ne
contenant de liquide, tel qu’un vase, ne doit être placé sur l’objet.
• Main plug is used as disconnect device and it should remain readily operable during intended
use. In order to disconnect the apparatus from the mains completely, the mains plug should
be disconnected form the mains socket outlet completely.
La prise du secteur ne doit pas être obstruée ou doit être facilement accessible pendant son
utilisation. Pour être complètement déconnecté de l’alimentation d’entrée, la prise doit être
débranchée du secteur.
• Battery shall not be exposed to excessive heat such as sunshine, re or the like.
Les piles ne doivent pas être exposées à de forte chaleur, tel qu’à la lumière du soleil, au feu
ou autres choses de semblable.
• Caution marking is located at the rear or bottom of the apparatus.
Attention marquage est situé sur le paneau arrière ou inférieur de l’unité.
• The marking information is located at the rear or bottom of apparatus.
Le marquage est situé sur le paneau arrière ou inférieur de l’unité.
1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding - type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The
wide blade or the third prong are provided for your
safety. When the provided plug does not t into your
outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the
manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table
specied by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury
from tip-over. Unplug this apparatus during lightning
storms or when unused for long periods of time.
13. Refer all servicing to qualied
service personnel. Servicing is
required when the apparatus has
been damaged in any way, such
as power-supply cord or plug is
damaged, liquid has been spilled
or objects have fallen into the
apparatus, the apparatus has
been exposed to rain or moisture,
does not operate normally, or has
been dropped.
• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE
SLOT, FULLY INSERT.
• WARNING:To reduce the risk of re or electric shock, do not expose this apparatus to rain or
moisture.
• AVERTISSEMENT: Pour réduire le risque d’incendie ou de choc électrique, ne pas exposer cet
appareil sous la pluie et l’humidité.
• CAUTION: Use of controls or adjustments or performance of procedures other than those specied
may result in hazardous radiation exposure.
• WARNING: Changes or modications to this unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
• WARNING: Do not place this unit directly onto furniture surfaces with any type of soft, porous, or
sensitive nish. As with any rubber compound made with oils, the feet could cause marks or staining
where the feet reside. We recommend using a protective barrier such as a cloth or a piece of glass
between the unit and the surface to reduce the risk of damage and/or staining.
• WARNING: Use of this unit near uorescent lighting may cause interference regarding use of
the remote. If the unit is displaying erratic behavior move away from any uorescent lighting, as
it may be the cause.
• CAUTION:Danger of explosion if battery is incorrectly replaced. Replace only with the same
or equivalent type.
• PRÉCAUTION: Danger d’explosion si les piles sont remplacées de façon incorrect. Remplacer les
piles seulement par le même type de pile ou l’équivalent.
• WARNING: There is a danger of explosion if you attempt to charge standard Alkaline batteries in
the unit. Only use rechargeable NiMH batteries.
• WARNING: The remote control’s button cell battery contains mercury. Do not put in the trash,
instead recycle or dispose of as hazardous waste
• WARNING:Lithium batteries, like all rechargeable batteries are recyclable and should be recycled
or disposed of in normal household waste. Contact your local government for disposal or recycling
practices in your area. They should never be incinerated since they might explode.
• WARNING: Shock hazard - Do Not Open.
• AVIS: RISQUE DE CHOC ÉLECTRIQUE - NE PAS OUVRIR
Mains plug is used as disconnect device and it should remain readily operable during intended
use. In order to disconnect the apparatus from the mains completely, the mains plug should be
disconnected form the mains socket outlet completely.
La prise du secteur est utilisé pour déconnecter le système.
La prise du secteur ne doit pas être obstruée ou doit être facilement accessible pendant son
utilisation. Pour être complètement déconnecté de l’alimentation d’entrée, la prise doit être
débranchée du secteur.
Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc), or rechargeable (ni-cad, ni-mh, etc) batteries.
No mezcle baterías viejas y nuevas.
No mezcle baterías alcalinas, estándar (carbono-zinc) o recargables (ni-cad, ni-mh, etc.).
WARNING: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL.
ATTENTION
RISQUE D' ÉLECTROCUTION
NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
This symbol indicates that this product
incorporates double insulation between hazardous
mains voltage and user accessible parts.
The lightning ash with arrowhead symbol,
within an equilateral triangle, is intended to alert
the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may
be of sufcient magnitude to constitute a risk of
electric shock to persons.
IMPORTANT SAFETY INSTRUCTIONS
Introduction
FCC Warnings
Additional Warnings
WARNINGS AND PRECAUTIONS
For Warranty Information and the most up-to-date version of this User’s Guide, go to www.iLiveElectronics.com Customer Service: 1-888-999-4215
Email Support: prodinfo@dpiinc.com, Email Parts: partsinfo@dpiinc.com
Copyright © 2012 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property of their respective owners. Specications are subject to change without notice.

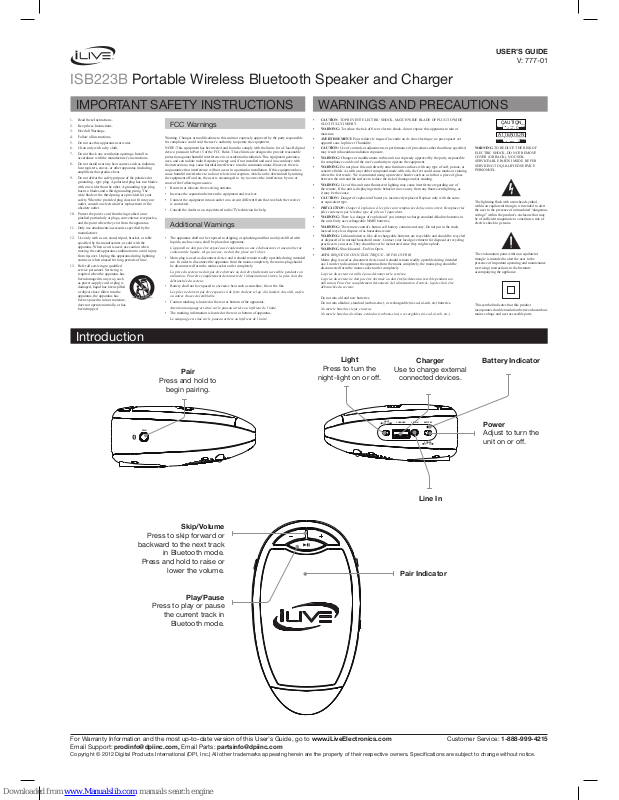

USER’S GUIDE
V: 777-01
ISB223B Portable Wireless Bluetooth Speaker and Charger
Line In
Charger
Use to charge external
connected devices.
Battery Indicator
Light
Press to turn the
night-light on or off.
Power
Adjust to turn the
unit on or off.
Pair Indicator
Skip/Volume
Press to skip forward or
backward to the next track
in Bluetooth mode.
Press and hold to raise or
lower the volume.
Play/Pause
Press to play or pause
the current track in
Bluetooth mode.
Pair
Press and hold to
begin pairing.
To download this User’s Guide in English,
Spanish, or French, or to get answers to
frequently asked questions, visit the support
section at: www.iLiveElectronics.com
Para descargar este Manual del Usuario en
inglés, español y francés, o para obtener
respuestas a preguntas frecuentes, visite la
sección de apoyo en www.iLiveElectronics.
com
Pour télécharger ce guide de l’utilisateur en
anglais, espagnol ou français, ou pour obtenir
des réponses à des questions fréquemment
posées, consultez la rubrique d’assistance
sur www.iLiveElectronics.com
International Support
For Warranty Information and the most up-to-date version of this User’s Guide, go to www.iLiveElectronics.com Customer Service: 1-888-999-4215
Email Support: prodinfo@dpiinc.com, Email Parts: partsinfo@dpiinc.com
Copyright © 2012 Digital Products International (DPI, Inc.) All other trademarks appearing herein are the property of their respective owners. Specications are subject to change without notice.
Bluetooth SetupSetup
Charging
Pairing a Bluetooth Device for the First Time
Charging a Device
Charging the unit
Requires a 3.5mm audio cable (not included)
1. Connect a 3.5mm audio cable to the
Line In on the unit and an audio output
on an MP3 player or other audio source.
2. Use the native controls on the
connected MP3 player or other audio
source to play and control audio
played through the clock radio.
Line In
Using the Line In
1. Make sure the unit is plugged into the
wall.
2. Using the appropriate USB charging
cable (not included), connect one end to
the device and the other to the Charger
on the unit.
Refer to the user’s manual for your
specic device for manufacturers
required charging amperage as well as
determining the appropriate cable for
your device before charging.
Note: This device uses a USB charging
port with a 500mA maximum charging
capacity, making it unsuitable for
charging iPads.
3. The device will now charge.
1. Connect the unit to an AC wall outlet.
Initial charge time ~4 hrs.
Charge fully before use.
2. The Battery Indicator will display a red
light when the unit is charging, and turn
off when the unit is fully charged.
Note: Charge the unit at least once a
month to maintain battery integrity even
when not in use.
1. Power on the unit by adjusting the Power
to ON.
2. Press and hold the Pair button to begin
pairing.
The Pairing Indicator will ash blue
quickly.
When pairing, remain within 3 feet of the
unit.
3. Using the native controls on your
Bluetooth device, select the “ISB223” in
your Bluetooth settings to pair.
If your device requests a password, enter
the default password “ 0 0 0 0 ”.
Refer to the user’s manual for your specic
device for instructions on pairing and
connecting Bluetooth devices.
4. When successfully paired and connected,
the Pairing Indicator will display a solid
blue light.
After initial pairing, the unit will stay paired
unless unpaired manually by the user or
erased due to a reset of the device.
If your device should become unpaired
or you nd it is unable to connect, repeat
the above steps or press and hold the Pair
button to start the pairing process pairing
again.
1. Follow the instructions for Pairing a
Bluetooth Device.
2. Use the native controls on the
connected Bluetooth Device to select a
track.
3. To play or pause the selected track, use
the native controls on the connected
Bluetooth Device.
4. Audio played through the connected
Bluetooth device will now be heard
through the speakers.
Using Bluetooth
Playing Audio Wirelessly
Status Battery Indicator
Fully Charged No light
Charging Red light
Low Battery Flashing red light
Status Pairing Indicator
Power Off No light
Power On Flashing blue light
Ready to Pair Quickly ashing blue light
Bluetooth Connected Solid blue light
Line In Mode Red light
Battery Indicator Light
Pairing Indicator Light
1. Open the ap on the back of the unit and
pull out the plug prongs until they are
perpendicular to the unit.
2. Plug the unit into an AC power outlet to
power the unit.
Power
Loading...
