IKEA RENODLAD User Manual [nl]

RENODLAD
GB
DE
ENGLISH
Please refer to the last page of this manual for the full list of IKEA appointed After Sales Service Provider and relative national phone numbers.
DEUTSCH
ENGLISH 4 DEUTSCH 29
ENGLISH

Contents

4
Safety information 4 Safety instructions 5 Product description 7 Control panel 8 Programmes 8 Options 10 Settings 11 Before first use 14
Subject to change without notice.
Daily use 16 Hints and tips 18 Care and cleaning 20 Troubleshooting 22 Technical information 26 ENVIRONMENTAL CONCERNS 26 IKEA GUARANTEE 26

Safety information

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Children and vulnerable people safety

This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
Do not let children play with the appliance.
Keep detergents away from children.
Keep children and pets away from the appliance when the
door is open.
Children shall not carry out cleaning and user maintenance of
the appliance without supervision.
ENGLISH 5

General Safety

This appliance is intended to be used in household and
similar applications such as:
farm houses; staff kitchen areas in shops, offices and other
working environments;
by clients in hotels, motels, bed & breakfast and other
residential type environments.
Do not change the specification of this appliance.
The operating water pressure (minimum and maximum) must
be between 0.5 (0.05) / 8 (0.8) bar (MPa)
Obey the maximum number of 13 place settings.
If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.
Put the cutlery in the cutlery basket with the sharp ends
pointing down or put them in the cutlery drawer in a horizontal position with the sharp edges down.
Do not leave the appliance with the open door unattended to
avoid stepping accidentally onto it.
Before any maintenance operation, deactivate the appliance
and disconnect the mains plug from the socket.
Do not use high pressure water sprays and/or steam to clean
the appliance.
If the appliance has ventilation openings in the base, they
must not be covered e.g. by a carpet.
The appliance is to be connected to the water mains using
the new supplied hose-sets. Old hose sets must not be reused.

Safety instructions

Installation

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Do not install or use the appliance where the temperature is less than 0 °C.
• Follow the installation instruction supplied with the appliance.
ENGLISH
6
• Make sure that the appliance is installed below and adjacent to safe structures.

Electrical connection

Warning! Risk of fire and
electrical shock.
• The appliance must be earthed.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• This appliance complies with the E.E.C. Directives.
• Only for UK and Ireland. The appliance has a 13 amp mains plug. If it is necessary to change the fuse in the mains plug, use fuse: 13 amp ASTA (BS
1362).

Water connection

• Do not cause damage to the water hoses.
• Before connection to new pipes, pipes not used for a long time, where repair work has been carried out or new devices fitted (water meters, etc.), let the water flow until it is clean and clear.
• Ensure that there are no visible water leaks during and after the first use of the appliance.

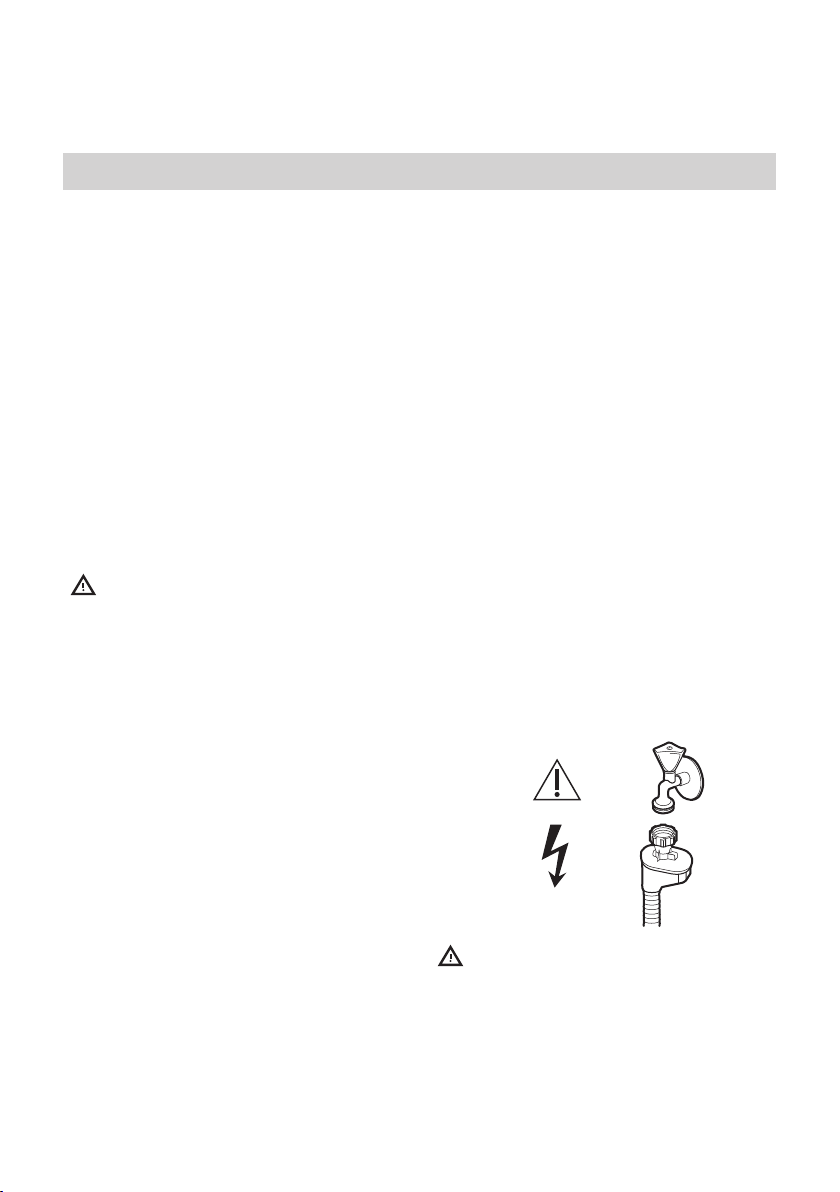

• The water inlet hose has a safety valve and a sheath with an inner mains cable.
Warning! Dangerous voltage.
• If the water inlet hose is damaged, immediately close the water tap and disconnect the mains plug from the mains socket. Contact the Authorised Service Centre to replace the water inlet hose.
Use
• Do not sit or stand on the open door.
• Dishwasher detergents are dangerous. Obey the safety instructions on the detergent packaging.
• Do not drink and play with the water in the appliance.
• Do not remove the dishes from the appliance until the programme is complete. Some detergent may remain on the dishes.
• The appliance can release hot steam if you open the door while a programme operates.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

Internal light

Warning! Risk of injury.
• This appliance has an internal lamp that comes on when you open the door and goes off when the door is closed.
• The lamp in this appliance is not suitable for household room illumination.
• To replace the lamp, contact the Service.
5
4
67
9
8
12
2
3
1
11 10
ENGLISH 7

Service

• Contact the Authorised Service Centre to repair the appliance. We recommend only the use of original spare parts.
• When you contact the Authorised Service Centre, ensure that you have the following information that is available on the rating plate. Model : PNC : Serial Number :

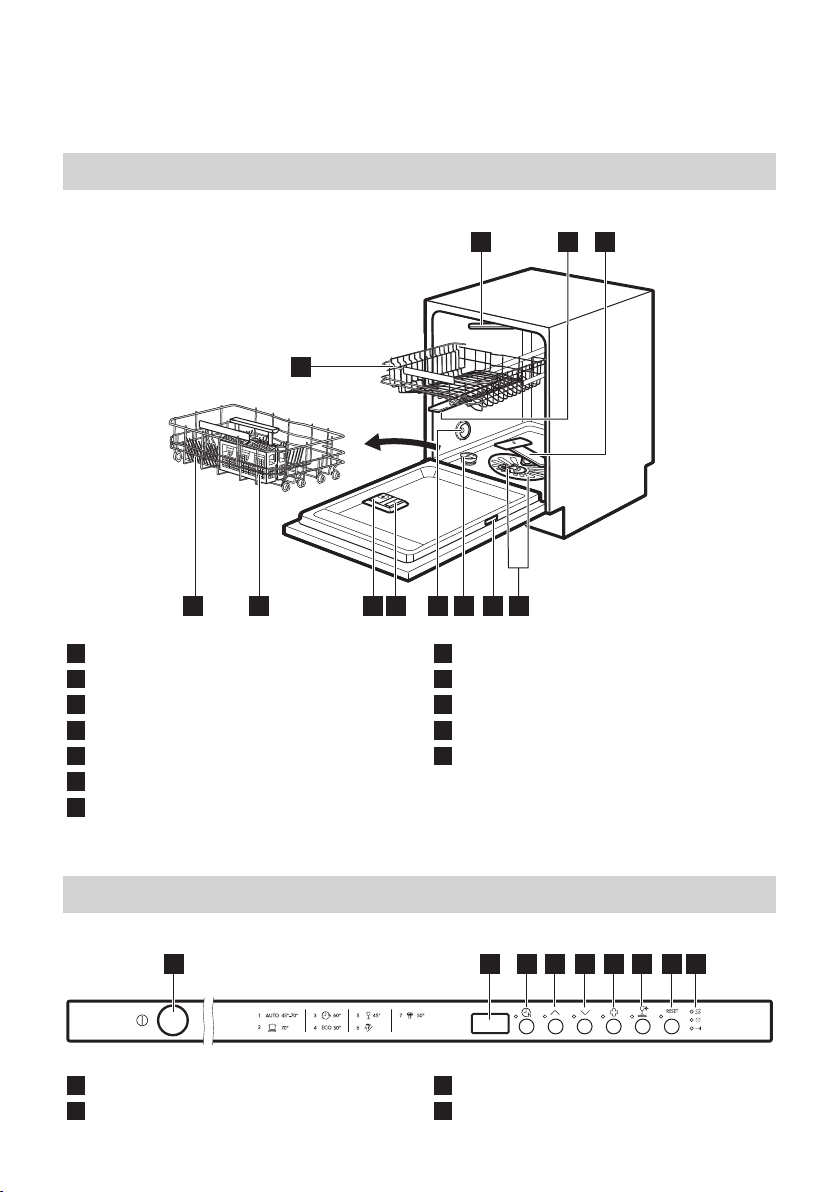

Product description

Disposal

Warning! Risk of injury or
suffocation.
• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children and pets to get closed in the appliance.
Top spray arm
1
Upper spray arm
2
Lower spray arm
3
Filters
4
Rating plate
5
Salt container
6
Air vent
7
Rinse aid dispenser
8
Detergent dispenser
9
Cutlery basket
10
Lower basket
11
Upper basket
12
1
2 3 4 5 6 7 8 9
ENGLISH 8

Control panel

On/off button
1
Display
2
Delay button
3
Programme button (up)
4
Programme button (down)
5

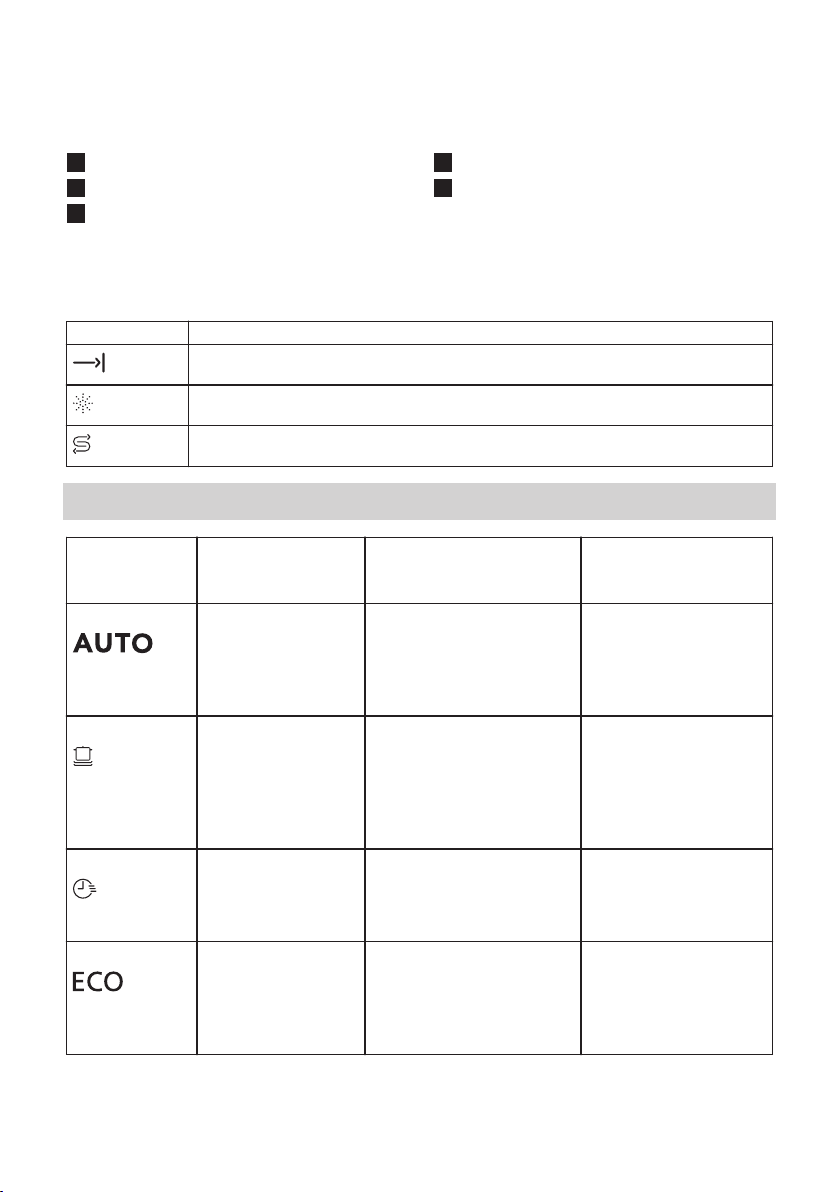

Indicators

Indicator Description
End indicator.
Rinse aid indicator. It is always off while the programme operates.
Salt indicator. It is always off while the programme operates.
6 7 8 9

Programmes

Programme Degree of soil
Type of load
P1
P2
• All
• Crockery, cutlery,
1)
pots and pans
• Heavy soil
• Crockery, cutlery, pots and pans
Programme phases Options
• Prewash
• Wash from 45 °C to 70 °C
• Rinse
• Dry
• Prewash
• Wash 70 °C
• Rinse
• Dry
ExtraHygiene button DryPlus button RESET button
Indicators
• ExtraHygiene
• DryPlus
• ExtraHygiene
• DryPlus
ENGLISH 9
Programme Degree of soil
Programme phases Options
Type of load
P3
P4
• Fresh soil
2)
• Crockery and cutlery
• Normal soil
3)
• Crockery and cutlery
• Wash 60 °C
• Rinse
• Prewash
• Wash 50 °C
• Rinse
• ExtraHygiene
• DryPlus
• ExtraHygiene
• DryPlus
• Dry
P5
P6
P7
• Light soil
• Delicate crockery and glassware
• All • Prewash
4)
• Normal soil
5)
• Crockery and cutlery
• Wash 45 °C
• Rinses
• Dry
• Prewash
• Wash 50 °C
• Rinse
• DryPlus
• DryPlus
• Dry
1)
The appliance senses the degree of soil and the quantity of items in the baskets . It automatically adjusts the tem-
perature and the quantity of water, the energy consumption and the programme duration.
2)
With this programme you can wash a load with fresh soil. It gives good washing results in a short time.
3)
With this programme you have the most efficient use of water and energy consumption for crockery and cutlery with
normal soil. (This is the standard programme for test institutes).
4)
With this programme you can quickly rinse dishes to prevent remains of food to bond on dishes and odours to form
in the appliance. Do not use detergent with this programme.
5)
This is the most silent programme. The pump works at a very low speed to decrease the level of noise. Because of
the low speed, the programme duration is long.

Consumption values

Programme
1)
Water
(l)
Energy
(kWh)
Duration
(min)
P1 7 - 14 0.6 - 1.6 40 - 170
P2 12.5-14.5 1.4-1.7 170-190
P3 10 0.9 41
ENGLISH 10
Programme
1)
Water
(l)
Energy
(kWh)
Duration
(min)
P4 10.5 0.83 232
P5 12 - 14 0.7 - 0.9 82-92
P6 4 0.1 14
P7 9 - 10 1.1 - 1.3 230 - 250
1)
The pressure and the temperature of the water, the variations of the mains supply, the options and the quantity of
dishes can change the values.

Information for test institutes

For all the necessary information for test
Write down the product number (PNC) that is on the rating plate.
performance, send an email to:
info.test@dishwasher-production.com

Options

Desired options must be activated every time before you start a programme. It is not possible to activate or deactivate options while a programme is running.
Not all options are compatible with each other. If you have selected non compatible options, the appliance will automatically deactivate one or more of them. Only the indicators of the options still active will stay on.

DryPlus

Activate this option when you want to boost the drying performance. With use of this option, the duration of some programmes,
water consumption and the last rinse temperature can be affected.
The combination of DryPlus and rinse aid gives you even better drying result.
The DryPlus option is a permanent option for all programmes other than P4 (ECO) and need not to be selected at every cycle.
Every time P4 (ECO) is activated, DryPlus option is off and needs to be chosen manually. In other programmes, the setting of DryPlus is permanent and is automatically used in the next cycles. The setting can be changed at any time before programme starts.

How to activate DryPlus

Press .
ENGLISH 11
The related indicator comes on. If the option is not applicable to the programme, the related indicator does not come on or it flashes quickly for a few seconds and then goes off. The display shows the updated programme duration.

ExtraHygiene

This option provides better hygiene results by keeping the temperature at 70 °C for at least 10 minutes during last rinsing phase.

How to activate ExtraHygiene

Press , the related indicator comes on.

Settings

Programme selection mode and user mode

When the appliance is in programme selection mode it is possible to set a programme and to enter the user mode.
In user mode, the following settings can be changed:
• The level of the water softener according to the water hardness.
• The activation or the deactivation of the acoustic signal for end of programme.
• The activation or deactivation of the rinse aid empty notification.
• The level of rinse aid according to the required dosage.
• The activation or the deactivation of AutoOpen.
These settings will be saved until you change them again.

How to set the programme selection mode

The appliance is in programme selection mode when the display shows the programme number P4.
If the option is not applicable to the selected programme, the indicator stays off. The display shows the updated programme duration. The ExtraHygiene option is not applicable to the following programmes:
P5 (Glass)
P6 (Rinse & Hold)
P7 (Extra Silent)
AutoOpen is deactivated when the programme P3 (Quick) is combined with ExtraHygiene option due to the high temperature.
When you activate the appliance, usually it is in programme selection mode. However, if this does not happen, you can set the programme selection mode in the following way:
Press and hold RESET until the appliance is in programme selection mode.

The water softener

The water softener removes minerals from the water supply, which would have a detrimental effect on the washing results and on the appliance.
The higher the content of these minerals, the harder your water is. Water hardness is measured in equivalent scales.
The water softener should be adjusted according to the hardness of the water in your area. Your local water authority can advise you on the hardness of the water in your area. It is important to set the right level of the water softener to assure good washing results.
ENGLISH 12

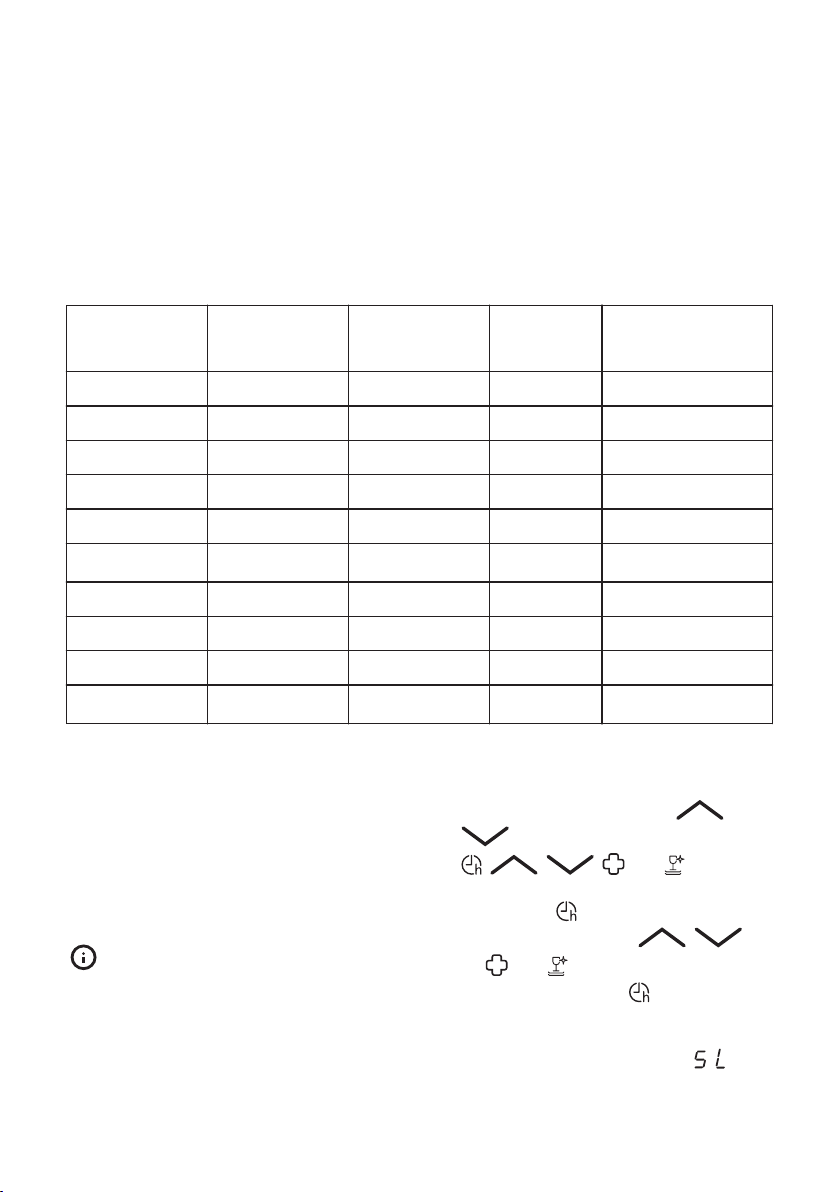

Water hardness
German degrees
(°dH)
47 - 50 84 - 90 8.4 - 9.0 58 - 63 10
43 - 46 76 - 83 7.6 - 8.3 53 - 57 9
37 - 42 65 - 75 6.5 - 7.5 46 - 52 8
29 - 36 51 - 64 5.1 - 6.4 36 - 45 7
23 - 28 40 - 50 4.0 - 5.0 28 - 35 6
19 - 22 33 - 39 3.3 - 3.9 23 - 27
15 - 18 26 - 32 2.6 - 3.2 18 - 22 4
11 - 14 19 - 25 1.9 - 2.5 13 - 17 3
4 - 10 7 - 18 0.7 - 1.8 5 - 12 2
<4 <7 <0.7 < 5
1)
Factory setting.
2)
Do not use salt at this level.
French degrees
(°fH)
mmol/l Clarke de-
grees
Water softener level
1)
5
2)
1
Whether you use a standard detergent or multi-tabs (with or without salt), set the proper water hardness level to keep the salt refill indicator active.
Multi-tabs containing salt are not effective enough to soften hard water.

How to set the water softener level

The appliance must be in programme selection mode.
1. To enter the user mode, press and hold
simultaneously and until the indicators , , , and
flash and the display is blank.
2. Press .
• The indicators , , and are off.
• The indicator still flashes.
• The display shows the current setting: e.g. = level 5.
3. Press
repeatedly to change the
setting.
4. Press the on/off button to confirm the setting.

The rinse aid dispenser

The rinse aid helps to dry the dishes without streaks and stains.
The rinse aid is automatically released during the hot rinse phase.
You can set the released quantity of rinse aid between level 1 (minimum quantity) and level 6 (maximum quantity). Level 0 will deactivate the rinse aid dispenser and no rinse aid will be released.
Factory setting: level 4.
ENGLISH
13

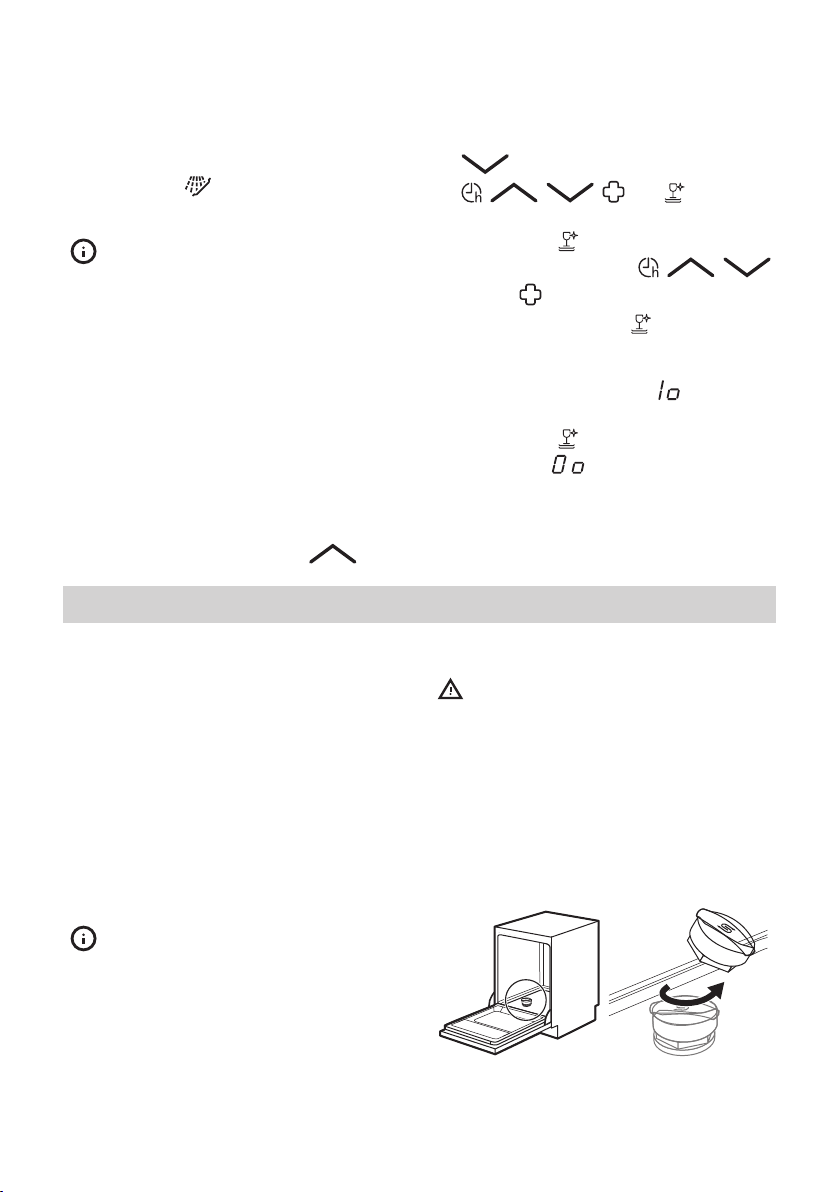

How to set the rinse aid level

The appliance must be in programme selection mode.
1. To enter the user mode, press and hold simultaneously and until the indicators , , , and
start flashing and the display is
blank.
2. Press
• The indicators , , and are off.
• The indicator continues to flash.
• The display shows the current setting: e.g. = level 4.
3. Press setting.
4. Press on/off to confirm the setting.

The rinse aid empty notification

The rinse aid helps to dry the dishes without streaks and stains.
The rinse aid is automatically released during the hot rinse phase.
When rinse aid chamber is empty, the rinse aid indicator is turned on notifying to refill rinse aid. If you are using multi-tabs containing rinse aid and you are satisfied with the drying result, you can deactivate the notification for refilling rinse aid. However, we recommend that you always use rinse aid for best drying performance.
If you use standard detergent or multi­tablets without rinse aid, activate the notification to keep the rinse aid refill indicator active.
.
– The levels of rinse aid range from
0A to 6A where level 0A means rinse aid is not used.
repeatedly to change the

How to deactivate the rinse aid empty notification

The appliance must be in programme selection mode.
1. To enter the user mode, press and hold simultaneously and until the indicators
start flashing and the display is
blank.
2. Press
• The indicators , , and are off.
• The indicator still flashes.
• The display shows the current setting:
= the rinse aid empty notification
is activated (factory setting).
3. Press to change the setting. = the rinse aid empty notification is
deactivated.
4. Press on/off to confirm the setting.

Acoustic signals

Acoustic signals sound when a malfunction of the appliance occurs. It is not possible to deactivate these acoustic signals.
There is also an acoustic signal that sounds when the programme is completed. By default, this acoustic signal is activated and it is possible to deactivate it.
In addition, an acoustic signal will sound before the AutoOpen will open the door. This acoustic signal stops only if AutoOpen is deactivated.

How to deactivate the acoustic signal for the end of programme

The appliance must be in programme selection mode.
1. To enter the user mode, press and hold
simultaneously
, , , and
.
and until
ENGLISH 14
the indicators , , and start to flash and the display is blank.
2. Press
• The indicators , and go off.
• The indicator continues to flash.
• The display shows the current setting:
= Acoustic signal on.
3. Press = Acoustic signal off.
4. Press the on/off button to confirm the
setting.

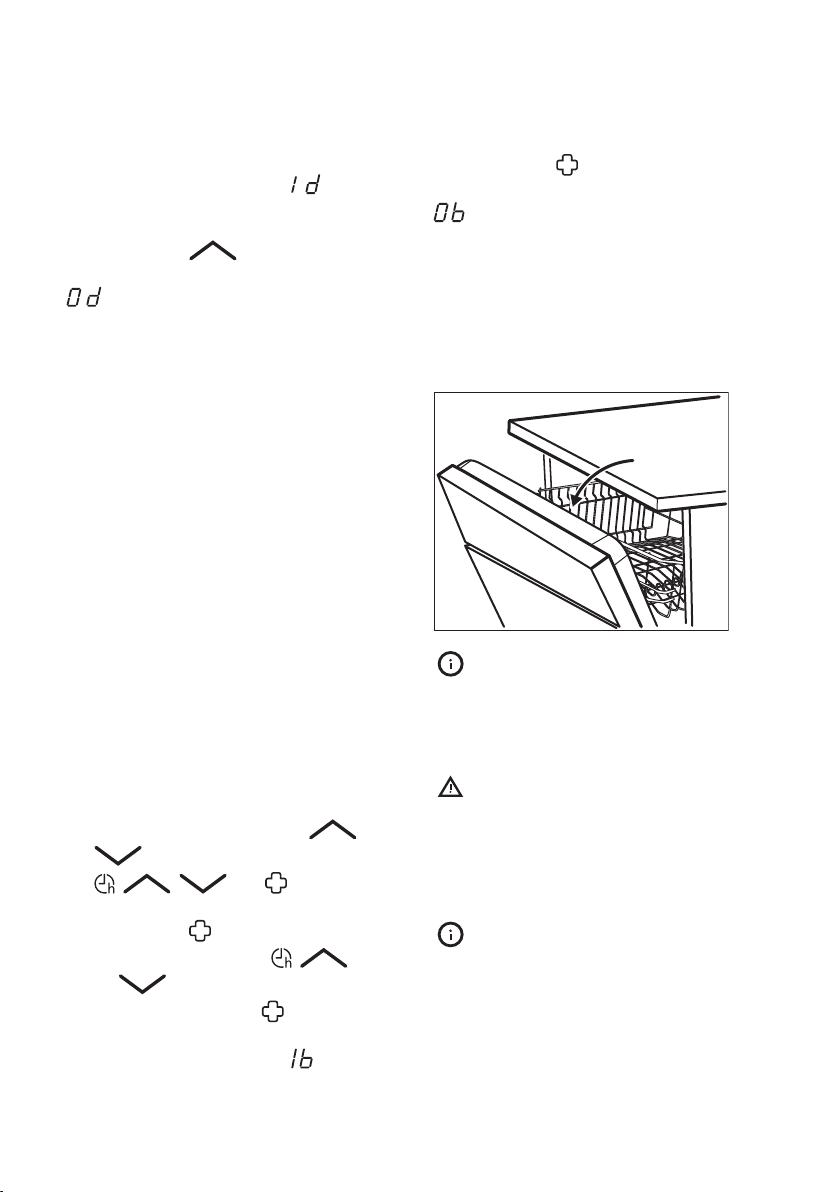

AutoOpen

AutoOpen improves the drying results with less energy consumption.
to change the setting.
While the drying phase operates, a device opens the appliance door. The door is then kept ajar.
Caution! Do not try to close the appliance door within 2 minutes after automatic opening. This can cause damage to the appliance.
To avoid possible hazards inside the appliance (such as knives, sharp objects or chemicals) for children, pets or people with disabilities, deactivate the function.
AutoOpen is automatically activated with all programmes excluding .
AutoOpen is deactivated when the programme P3 (Quick) is combined with ExtraHygiene option due to the high temperature.
To improve the drying performance refer to the DryPlus option or activate AutoOpen.

How to deactivate AutoOpen

The appliance must be in programme selection mode.
1. To enter the user mode, press and hold simultaneously and until the indicators , , , and
start flashing and the display is
blank.
2. Press .
• The indicators are off.
• The indicator
• The display shows the current setting: = AutoOpen activated.
3. Press to change the setting: = AutoOpen deactivated.
4. Press on/off to confirm the setting.
, , and
still flashes.

Before first use

1. Make sure that the current level of the water softener agrees with the
hardness of the water supply. If not, adjust the level of the water softener.
2. Fill the salt container.
ENGLISH 15
3. Fill the rinse aid dispenser.
4. Open the water tap.
5. Start a programme to remove any processing residuals that can still be inside the appliance. Do not use detergent and do not load the baskets.
When you start a programme, the appliance can take up to 5 minutes to recharge the resin in the water softener. It seems that the appliance is not working. The washing phase starts only after this procedure is completed. The procedure will be repeated periodically.

The salt container

Caution! Only use salt
specifically designed for dishwashers.
The salt is used to recharge the resin in the water softener and to assure good washing results in the daily use.

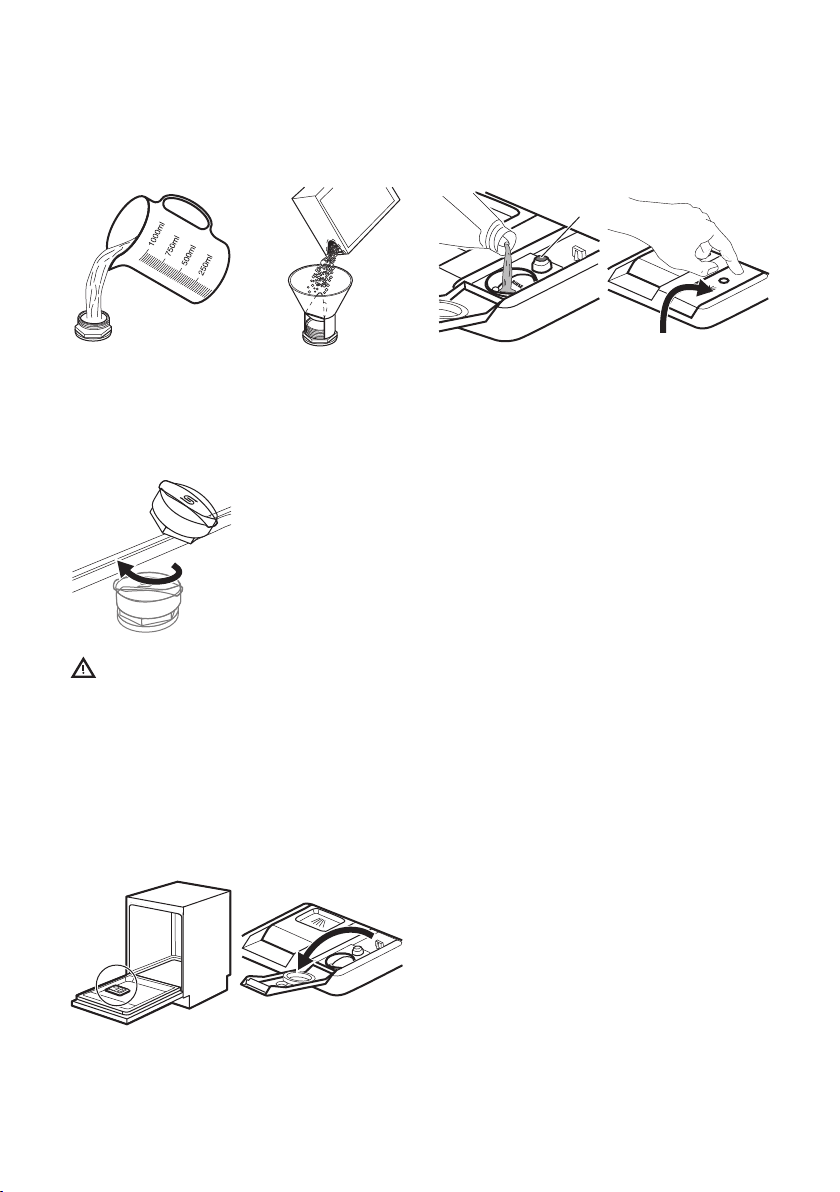

Filling the salt container

1 2
3
Put 1 litre of water in the salt container (only for the first time).
5
Caution! Water and salt can
come out from the salt container when you fill it. Risk of corrosion. To prevent this, after the replenishment, start a programme.
4
Put 1 kg of salt in the salt container.

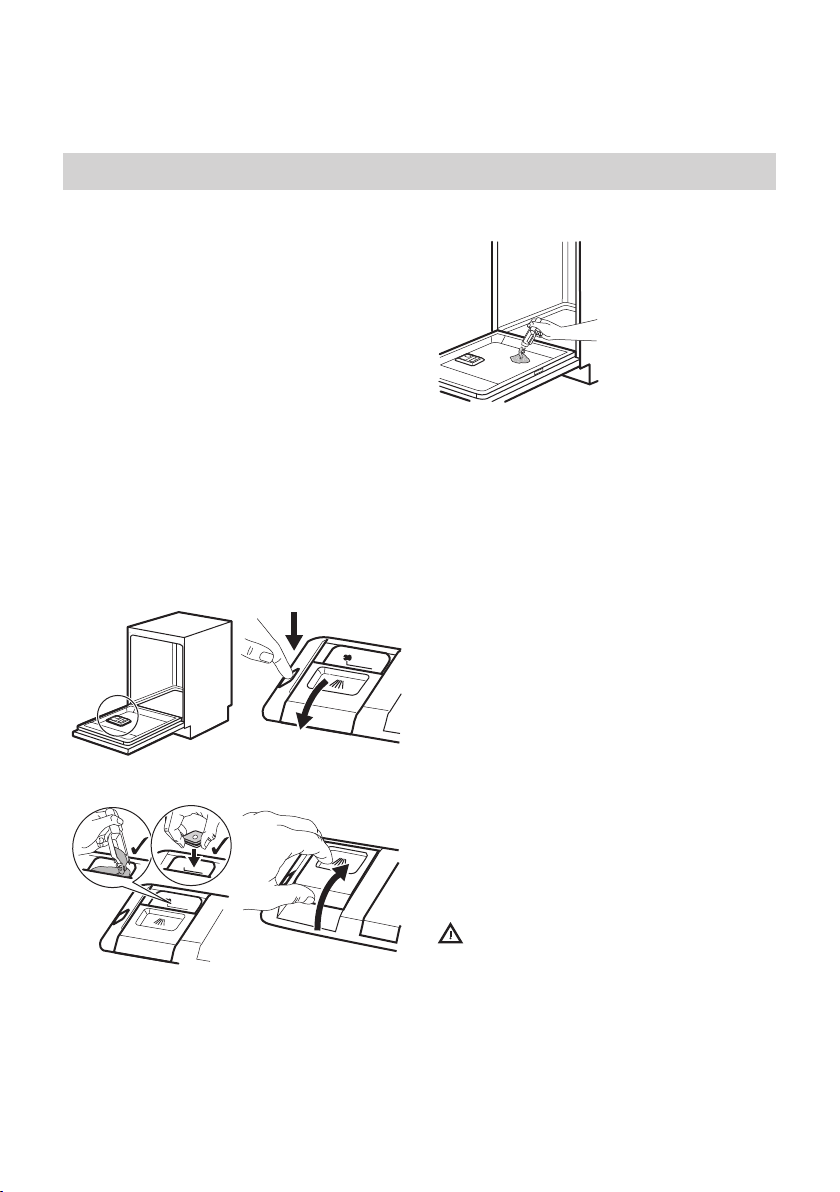

Filling the rinse aid dispenser

1 2
A
2
1
ENGLISH 16
3
Fill the rinse aid dispenser until the rinse aid reaches the marking "MAX". Remove the spilled rinse aid with an absorbent cloth to prevent too much foam. Fill the rinse aid dispenser when the indicator (A) becomes clear and the rinse aid indicator on the control panel is on.

Daily use

4
1. Open the water tap.
2. Press the on/off button to activate the appliance.
Make sure that the appliance is in programme selection mode.
• If the salt indicator is on, fill the salt container.
• If the rinse aid indicator is on, fill the rinse aid dispenser.
3. Load the baskets.
4. Add the detergent.
5. Set and start the correct programme for the type of load and the degree of soil.

Using the detergent

1 2
30
30
ENGLISH
17
3
4
5
If the programme has a prewash phase, put a small quantity of detergent on the inner part of the appliance door.

Setting and starting a programme

The Auto Off function

This function decreases energy consumption by automatically deactivating the appliance when it is not operating.
The function comes into operation:
• 5 minutes after the completion of the
programme.
• After 5 minutes if the programme has not
started.
1. Keep the appliance door ajar.
2. Press the on/off button to activate the appliance. Make sure that the appliance is in programme selection mode.
3. Press or repeatedly until the display shows the number of the programme you want to start. The display will show the programme number for approximately 3 seconds and next the programme duration.
4. Set the applicable options.
5. Close the appliance door to start the programme.

Starting a programme with delay start

1. Set a programme.
2. Press
repeatedly until the display shows the delay time you want to set (from 1 to 24 hours).
The delay indicator comes on.
3. Close the appliance door to start the countdown.
While a countdown is running it is possible to increase the delay time but not to change the selection of the programme and options. When the countdown is completed, the programme starts.

Opening the door while the appliance operates

If you open the door while a programme is running, the appliance stops. It may affect the energy consumption and the programme duration. When you close the door, the appliance continues from the point of interruption.

Starting a programme

Caution! Do not remove the
baskets from the dishwasher before a wash cycle.
ENGLISH 18
If the door is opened for more than 30 seconds during the drying phase, the running programme will end. This will not happen if the door is opened by AutoOpen.
Caution! Do not try to close the appliance door within 2 minutes after AutoOpen automatically opens it, as this may cause damage to the appliance. If, afterwards, the door is closed for another 3 minutes, the running programme ends.

Cancelling the delay start while the countdown operates

When you cancel the delay start you have to set the programme and options again.

Hints and tips

General

The following hints will ensure optimal cleaning and drying results in daily use and also help to protect the environment.
• Remove larger residues of food from the dishes into the waste bin.
• Do not pre-rinse dishes by hand. When needed, use the prewash programme (if available) or select a programme with a prewash phase.
• Always use the whole space of the baskets.
• When loading the appliance, make sure that the dishes can be completely reached and washed by the water released from the spray arm nozzles. Make sure that items do not touch or cover each other.
• You can use dishwasher detergent, rinse aid and salt separately or you can use the multi-tablets (e.g. ''3in1'', ''4in1'', ''All
Press and hold RESET until the appliance is in programme selection mode.

Cancelling the programme

Press and hold RESET until the appliance is in programme selection mode. Make sure that there is detergent in the detergent dispenser before you start a new programme.

End of programme

When the programme is completed and you open the door, the appliance is automatically deactivated.
Close the water tap.
in 1''). Follow the instructions written on the packaging.
• Select the programme according to the type of load and degree of soil. With the ECO programme you have the most efficient use of water and energy consumption for crockery and cutlery with normal soil.

Using salt, rinse aid and detergent

• Only use salt, rinse aid and detergent for dishwasher. Other products can cause damage to the appliance.
• In areas with hard and very hard water we recommend to use plain dishwasher detergent (powder, gel, tablets containing no additional agents), rinse aid and salt separately for optimal cleaning and drying results.
• At least once a month run the appliance with the use of appliance cleaner which is particularly suitable for this purpose.
Loading...
+ 42 hidden pages
