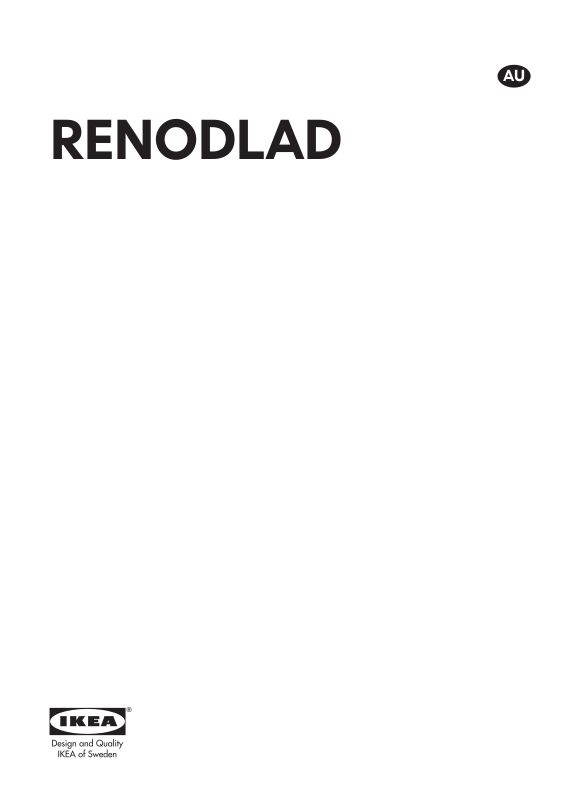

Page 1
RENODLAD
AU
Page 2
ENGLISH
Please refer to the chapter IKEA GUARANTEE for contact details of
the after sales customer service centre.
Page 3
ENGLISH
4
Page 4
ENGLISH
Contents
4
Safety information 4
Safety instructions 6
Product description 7
Control panel 8
Before first use 9
Programmes 9
Options 11
Settings 12
Subject to change without notice.
Daily use 14
Hints and tips 16
Care and cleaning 17
Troubleshooting 19
Technical information 23
Environmental concerns 23
IKEA guarantee 23
Safety information
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
for any injuries or damages that are the result of incorrect
installation or usage. Always keep the instructions in a safe and
accessible location for future reference.
Children and vulnerable people safety
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved.
• Children between 3 and 8 years of age and persons with
very extensive and complex disabilities shall be kept away
unless continuously supervised.
• Children of less than 3 years of age should be kept away
unless continuously supervised.
• Do not let children play with the appliance.
• Keep detergents away from children.
• Keep children and pets away from the appliance when the
door is open.
Page 5
ENGLISH
• Children shall not carry out cleaning and user maintenance of
5
the appliance without supervision.
General Safety
• This appliance is intended to be used in household and
similar applications such as:
– farm houses; staff kitchen areas in shops, offices and other
working environments;
– by clients in hotels, motels, bed & breakfast and other
residential type environments.
• Do not change the specification of this appliance.
• The operating water pressure (minimum and maximum) must
be between 0.5 (0.05) / 8 (0.8) bar (MPa)
• Obey the maximum number of 14 place settings.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its Authorised Service Centre or similarly
qualified persons in order to avoid a hazard.
• Put the cutlery in the cutlery basket with the sharp ends
pointing down or put them in the cutlery drawer in a
horizontal position with the sharp edges down.
• Do not leave the appliance with the open door unattended to
avoid stepping accidentally onto it.
• Before any maintenance operation, deactivate the appliance
and disconnect the mains plug from the socket.
• Do not use high pressure water sprays and/or steam to clean
the appliance.
• If the appliance has ventilation openings in the base, they
must not be covered e.g. by a carpet.
• The appliance is to be connected to the water mains using
the new supplied hose-sets. Old hose sets must not be
reused.
Page 6
ENGLISH
6
Safety instructions
Installation
Warning! Only a qualified
person must install this
appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not install or use the appliance where
the temperature is less than 0 °C.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Make sure that the appliance is installed
below and adjacent to safe structures.
Electrical connection
Warning! Risk of fire and electric
shock.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the mains cable need to be
replaced, this must be carried out by our
Authorised Service Centre.
• Connect the mains plug to the mains
socket only at the end of the installation.
Make sure that there is access to the
mains plug after the installation.
• Do not pull the mains cable to disconnect
the appliance. Always pull the mains
plug.
• This appliance complies with the E.E.C.
Directives.
• UK and Ireland only. This appliance is
fitted with a 13 A mains plug. If it is
necessary to change the mains plug fuse,
use only a 13 A ASTA (BS 1362) fuse.
Water connection
• Do not cause damage to the water
hoses.
• Before connection to new pipes, pipes
not used for a long time, where repair
work has been carried out or new
devices fitted (water meters, etc.), let the
water flow until it is clean and clear.
• Ensure that there are no visible water
leaks during and after the first use of the
appliance.
• The water inlet hose has a safety valve
and a sheath with an inner mains cable.
Warning! Dangerous voltage.
• If the water inlet hose is damaged,
immediately close the water tap and
disconnect the mains plug from the mains
socket. Contact the Authorised Service
Centre to replace the water inlet hose.
Use
• Do not sit or stand on the open door.
• Dishwasher detergents are dangerous.
Obey the safety instructions on the
detergent packaging.
• Do not drink and play with the water in
the appliance.
Page 7
5
4
6
8
7
11
2
3
1
10 9
ENGLISH 7
• Do not remove the dishes from the
appliance until the programme is
complete. Some detergent may remain
on the dishes.
• The appliance can release hot steam if
you open the door while a programme
operates.
• Do not put flammable products or items
that are wet with flammable products in,
near or on the appliance.
Internal lighting
Warning! Risk of injury.
• This appliance has an internal lamp that
comes on when you open the door and
goes off when the door is closed.
• The type of lamp used for this appliance
is for household appliances only. Do not
use it for house lighting.
Product description
• To replace the internal lighting, contact
the Authorised Service Centre.
Service
• To repair the appliance contact an
Authorised Service Centre.
• Use original spare parts only.
Disposal
Warning! Risk of injury or
suffocation.
• Disconnect the appliance from the mains
supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent
children and pets to get closed in the
appliance.
Top spray arm
1
Upper spray arm
2
Lower spray arm
3
Filters
4
Page 8
1 2 3 4 5 6 7 8 9
ENGLISH 8
Rating plate
5
Air vent
6
Rinse aid dispenser
7
Detergent dispenser
8
Beam-on-Floor
Beam-on-Floor is a light that is displayed
on the floor below the appliance door.
• When a programme starts, a white light
is on and stays on for the duration of the
programme.
• When the programme is completed, the
white light is off.
• When the appliance has a malfunction,
the white light flashes.
Control panel
Cutlery basket
9
Lower basket
10
Upper basket
11
Beam-on-Floor is off when the
appliance is deactivated.
When AutoOpen is activated
during the drying phase, the
projection on the floor may not
be completely visible. To see if
the cycle has ended, check the
control panel.
On/off button
1
Display
2
Delay button
3
Programme button (up)
4
Programme button (down)
5
Indicators
Indicator Description
End indicator.
Rinse aid indicator. It is always off while the programme operates.
Door indicator. It comes on when the appliance door is open or is not correctly closed.
ExtraHygiene button
6
DryPlus button
7
RESET button
8
Indicators
9
Page 9
A
ENGLISH 9
Before first use
Caution! Remove the protection
film from the control panel.
1. Fill the rinse aid dispenser.
2. Open the water tap.
3. Start the programme (P3) to remove
any residuals from the manufacturing
process. Do not use detergent and do
not put dishes in the baskets.
Filling the rinse aid dispenser
1 2
Programmes
3
Fill the rinse aid
dispenser until the
rinse aid reaches
the marking "MAX".
Remove the spilled
rinse aid with an
absorbent cloth to
prevent too much
foam.
Fill the rinse aid
dispenser when the
indicator (A)
becomes clear and
the rinse aid
indicator on the
control panel is on.
4
Once you switch the appliance on, the
display shows the programme number P4
by default.
Programme Degree of soil
Type of load
P1
• All
• Crockery, cutlery,
1)
pots and pans
Use and to change the
programme selection.
Programme phases Options
• Prewash
• Wash from 45 °C to 70
°C
• Rinse
• Dry
• ExtraHygiene
• DryPlus
Page 10
ENGLISH 10
Programme Degree of soil
Programme phases Options
Type of load
P2
• Heavy soil
• Crockery, cutlery,
pots and pans
• Prewash
• Wash 70 °C
• Rinse
• ExtraHygiene
• DryPlus
• Dry
P3
P4
• Fresh soil
2)
• Crockery and
cutlery
• Normal soil
3)
• Crockery and
cutlery
• Wash 60 °C
• Rinse
• Prewash
• Wash 50 °C
• Rinse
• ExtraHygiene
• DryPlus
• ExtraHygiene
• DryPlus
• Dry
P5
P6
P7
• Light soil
• Delicate crockery
and glassware
• All • Prewash
4)
• Normal soil
5)
• Crockery and
cutlery
• Wash 45 °C
• Rinses
• Dry
• Prewash
• Wash 50 °C
• Rinse
• DryPlus
• DryPlus
• Dry
1)
The appliance senses the degree of soil and the quantity of items in the baskets. It automatically adjusts the tem-
perature and the quantity of water, the energy consumption and the programme duration.
2)
This programme is suitable for washing a load or a half load with fresh or light soil in a short time.
3)
This programme offers the most efficient use of water and energy consumption for crockery and cutlery with normal
soil. This is the standard programme for test institutes.
4)
With this programme, you can quickly rinse off food remains from dishes and prevent odours forming in the appli-
ance. Do not use detergent with this programme.
5)
This is the most silent programme. The wash pump works at a very low speed to reduce the noise generated by the
appliance. Due to the low speed, the programme duration is long.
Consumption values
Programme
1)
Water
(l)
Energy
(kWh)
Duration
(min)
P1 7.0 - 14.0 0.9 - 1.6 90 - 160
P2 12.5 - 14.5 1.4 - 1.7 170 - 190
Page 11
ENGLISH 11
Programme
1)
Water
(l)
Energy
(kWh)
Duration
(min)
P3 10.5 0.7 38
P4 11.4 0.76 138
P5 12 - 14 0.7 - 0.9 82 - 92
P6 4 0.01 14
P7 9.0 - 10.0 1.1 - 1.3 230 - 250
1)
The pressure and the temperature of the water, the variations of the mains supply, the options and the quantity of
dishes can change the values.
Information for test institutes
To receive the necessary information for
conducting performance tests (e.g.
For any other questions regarding your
dishwasher please refer to the service book
provided with your appliance.
according to EN60436), send an email to:
info.test@dishwasher-production.com
In your request please include the product
number code (PNC) found on the rating
plate.
Options
Desired options must be
activated every time before you
start a programme.
It is not possible to activate or
deactivate options while a
programme is running.
Not all options are compatible
with each other. If you select non
compatible options, the
appliance automatically
deactivates one or more of them.
Only the indicators of the still
active options are on.
If an option is not applicable to a
programme, the related indicator
is off or it flashes quickly for a
few seconds and then goes out.
Page 12
ENGLISH 12
Activating options can affect the
water and energy consumption
as well as the programme
duration.
DryPlus
Activate this option to boost the drying
performance.
The combination of DryPlus and rinse aid
ensures even better drying results.
DryPlus is a permanent option for all
programmes other than P4 (ECO). It is
automatically activated in next cycles. This
configuration can be changed at any time.
Every time P4 (ECO) is activated,
DryPlus is off and needs to be
chosen manually.
How to activate DryPlus
Press .
Settings
Programme selection mode and user mode
When the appliance is in programme
selection mode it is possible to set a
programme and to enter the user mode.
Settings available in the user mode:
• The activation or deactivation of the
rinse aid empty notification.
• The level of rinse aid according to the
required dosage.
• Activation or deactivation of the acoustic
signal for the end of a programme.
• The activation or the deactivation of the
optionAutoOpen.
As the appliance stores the saved
settings, there is no need to configure it
before every cycle.
The related indicator is on.
The display shows the updated programme
duration.
ExtraHygiene
This option provides better hygiene results
by keeping the temperature at 70 °C for at
least 10 minutes during last rinsing phase.
How to activate ExtraHygiene
Press .
The related indicator is on.
The display shows the updated programme
duration.
The ExtraHygiene option is not applicable
to the following programmes:
• P5 (Glass)
• P6 (Rinse & Hold)
• P7 (Extra Silent)
How to set the programme selection mode
The appliance is in programme selection
mode when the display shows the
programme number P4.
After activation, the appliance is in
programme selection mode by default. If
not, set the programme selection mode the
following way:
Press and hold RESET until the appliance is
in programme selection mode.
How to enter user mode
Make sure the appliance is in programme
selection mode.
To enter the user mode, press and hold
simultaneously
and until the
Page 13
ENGLISH
13
indicators , , and flash
and the display is blank.
The rinse aid empty notification
The rinse aid helps to dry the dishes without
streaks and stains.
The rinse aid is automatically released
during the hot rinse phase.
When rinse aid chamber is empty, the rinse
aid indicator is turned on notifying to refill
rinse aid. If the drying results are
satisfactory while using multi-tablets only, it
is possible to deactivate the notification for
refilling rinse aid. However, for best drying
performance, always use rinse aid.
If standard detergent or multi-tablets
without rinse aid are used, activate the
notification to keep the rinse aid refill
indicator active.
How to deactivate the rinse aid empty notification
Make sure the appliance is in user mode.
1. Press
• The indicators , and
• The indicator still flashes.
• The display shows the current setting.
2. Press to change the setting.
3. Press the on/off button to confirm the
setting.
The rinse aid level
It is possible to set the released quantity of
rinse aid between level 1 (minimum
quantity) and level 6 (maximum quantity).
.
are off.
– = the rinse aid empty
notification is deactivated.
– = the rinse aid empty
notification is activated.
Level 0 deactivates the rinse aid dispenser
and no rinse aid is released.
Factory setting: level 4.
How to set the rinse aid level
Make sure the appliance is in user mode.
1. Press .
• The indicators , and are
off.
• The indicator still flashes.
• The display shows the current setting:
e.g. = level 4.
– The levels of rinse aid are from
0A to 6A
where level 0A means rinse aid is
not used.
2. Press
setting.
3. Press the on/off button to confirm the
setting.
Acoustic signals
Acoustic signals sound when a malfunction
of the appliance occurs. It is not possible to
deactivate these acoustic signals.
There is also an acoustic signal that sounds
when the programme is complete. This
acoustic signal is activated by default and
you can deactivate it.
In addition, an acoustic signal sounds
before the AutoOpen opens the door. This
acoustic signal stops only if AutoOpen is
deactivated.
How to deactivate the acoustic signal for the end of a programme
Make sure the appliance is in user mode.
1. Press .
• The indicators , and are
off.
repeatedly to change the
Page 14
ENGLISH 14
• The indicator still flashes.
• The display shows the current setting.
– = the acoustic signal is
deactivated.
= the acoustic signal is
–
activated.
2. Press to change the setting.
3. Press the on/off button to confirm the
setting.
AutoOpen
AutoOpen improves the drying results with
less energy consumption. During the drying
phase, the door opens automatically and
remains ajar.
AutoOpen is automatically activated with
all programmes excluding (if
applicable).
To improve the drying performance refer to
the DryPlus option or activate AutoOpen.
Do not try to close the appliance
door within 2 minutes after
automatic opening. This can
cause damage to the appliance.
If children, pets or people with
disabilities have access to the
appliance, deactivate AutoOpen.
The automatic opening of the
door may pose a danger and
expose possible hazards inside
the appliance (such as knives,
sharp objects, chemicals).
How to deactivate AutoOpen
Make sure the appliance is in user mode.
1. Press .
• The indicators
are off.
• The indicator
• The display shows the current setting.
= AutoOpen is deactivated.
–
– = AutoOpen is activated.
2. Press
3. Press on/off to confirm the setting.
to change the setting.
, and
still flashes.
Daily use
1. Open the water tap.
2. Press the on/off button to activate the
appliance.
Make sure that the appliance is in
programme selection mode.
• If the rinse aid indicator is on, fill the
rinse aid dispenser.
3. Load the baskets.
4. Add the detergent.
5. Set and start the correct programme for
the type of load and the degree of soil.
Page 15
2
1
30
30
ENGLISH
15
Using the detergent
1 2
3
4
5
If the programme
has a prewash
phase, put a small
quantity of
detergent on the
inner part of the
appliance door.
Setting and starting a programme
The Auto Off function
This function decreases energy consumption
by automatically deactivating the
appliance when it is not operating.
The function comes into operation:
• 5 minutes after the completion of the
programme.
• After 5 minutes if the programme has not
started.
Starting a programme
Caution! Do not remove the
baskets from the dishwasher
before a wash cycle.
1. Keep the appliance door ajar.
2. Press the on/off button to activate the
appliance. Make sure that the
appliance is in programme selection
mode.
3. Press
or repeatedly until
the display shows the number of the
programme you want to start. The
display will show the programme
number for approximately 3 seconds
and next the programme duration.
4. Set the applicable options.
5. Close the appliance door to start the
programme.
Starting a programme with delay start
1. Set a programme.
2. Press repeatedly until the display
shows the delay time you want to set
(from 1 to 24 hours).
The delay indicator comes on.
3. Close the appliance door to start the
countdown.
While a countdown is running it is possible
to increase the delay time but not to change
the selection of the programme and
options.
When the countdown is completed, the
programme starts.
Page 16
ENGLISH 16
Opening the door while the appliance operates
Opening the door while a programme is
running stops the appliance. It may affect
the energy consumption and the
programme duration. After closing the door,
the appliance continues from the point of
interruption.
If the door is opened for more
than 30 seconds during the
drying phase, the running
programme ends. It does not
happen if the door is opened by
AutoOpen function.
Cancelling the delay start while the countdown operates
When you cancel the delay start you have
to set the programme and options again.
Press and hold RESET until the appliance is
in programme selection mode.
Hints and tips
General
The following hints will ensure optimal
cleaning and drying results in daily use and
also help to protect the environment.
• Remove larger residues of food from the
dishes into the waste bin.
• Do not pre-rinse dishes by hand. When
needed, use the prewash programme (if
available) or select a programme with a
prewash phase.
• Always use the whole space of the
baskets.
• When loading the appliance, make sure
that the dishes can be completely
reached and washed by the water
released from the spray arm nozzles.
Make sure that items do not touch or
cover each other.
Cancelling the programme
Press and hold RESET until the appliance is
in programme selection mode.
Make sure that there is detergent in the
detergent dispenser before you start a new
programme.
End of the programme
When the programme is completed the
display shows 0:00 and the indicator is
on.
All buttons are inactive except for the
on/off button.
1. Press the on/off button or wait for the
Auto Off function to automatically
deactivate the appliance.
If you open the door before the
activation of Auto Off, the appliance is
automatically deactivated.
2. Close the water tap.
• You can use dishwasher detergent and
rinse aid separately or you can use the
multi-tablets. Follow the instructions
written on the packaging.
• Select the programme according to the
type of load and degree of soil. With the
ECO programme you have the most
efficient use of water and energy
consumption for crockery and cutlery
with normal soil.
Using rinse aid and detergent
• Only use rinse aid and detergent for
dishwasher. Other products can cause
damage to the appliance.
• The rinse aid helps, during the last
rinsing phase, to dry the dishes without
streaks and stains.
• Detergent tablets do not fully dissolve
with short programmes. To prevent
Page 17
ENGLISH 17
detergent residues on the tableware, we
recommend that you use the tablets with
long programmes.
• Do not use more than the correct
quantity of detergent. Refer to the
instructions on the detergent packaging.
Loading the baskets
Refer to the supplied leaflet with
examples of the load of the
baskets.
• Only use the appliance to wash items
that are dishwasher-safe.
• Do not put in the appliance items made
of wood, horn, aluminium, pewter and
copper.
• Do not put in the appliance items that
can absorb water (sponges, household
cloths).
• Remove remaining food from the items.
• Soak items with remaining burned food
in water.
• Put hollow items (cups, glasses and pans)
with the opening down.
• Make sure that cutlery and dishes do not
bond together. Mix spoons with other
cutlery.
• Make sure that glasses do not touch
other glasses.
• Put small items in the cutlery basket.
• Put light items in the upper basket. Make
sure that the items do not move.
• Make sure that the spray arm can move
freely before you start a programme.
Before starting a programme
Make sure that:
• The filters are clean and correctly
installed.
• The spray arms are not clogged.
• There is dishwasher rinse aid .
• The position of the items in the baskets is
correct.
• The programme is applicable for the
type of load and for the degree of soil.
• The correct quantity of detergent is used.
Unloading the baskets
For better drying results keep the
appliance door ajar for some
minutes before you remove the
dishes.
1. Let the dishes cool down before you
remove them from the appliance. Hot
dishes are easily damaged.
2. First remove items from the lower basket
then the upper basket.
At the end of the program water
can still remain on the sides and
on the door of the appliance.
Care and cleaning
Warning! Before maintenance,
deactivate the appliance and
disconnect the mains plug from
the main socket.
Dirty filters and clogged spray
arms decrease the washing
results. Make a check regularly
and, if necessary, clean them.
Page 18
C
B
A
D
A
ENGLISH 18
Cleaning the filters
1
Make sure that
there are no
residues of food or
soil in or around the
edge of the sump.
3
To remove filters (B)
and (C) turn the
handle
counterclockwise
and remove. Pull
apart filter (B) and
(C). Wash the filters
with water.
2
4
Remove filter (A).
Wash the filter with
water.
5
Put the flat filter (A)
back in place. Make
sure that it is
correctly positioned
under the 2 guides
(D).
An incorrect position of the filters
can cause bad washing results
and damage to the appliance
Cleaning the filter of the inlet hose
1
Close the water tap.
3
6
Assemble filters (B)
and (C). Put them
into position in filter
(A). Turn the handle
clockwise until it
locks.
2
Disconnect the hose.
Turn the fastener A
clockwise.
4
Clean the filter of
the inlet hose.
Page 19
ENGLISH 19
Cleaning the upper spray arm
We recommend to clean the upper spray
arm regularly to prevent soil from clogging
the holes.
Clogged holes can cause unsatisfactory
washing results.
1. Pull out the upper basket.
2. To detach the spray arm from the
basket, press the spray arm upwards
and simultaneously turn it clockwise.
3. Wash the spray arm under running
water. Use a thin pointed tool, e.g. a
toothpick, to remove particles of soil
from the holes.
4. To install the spray arm back, press the
spray arm upwards and simultaneously
turn it counterclockwise until it locks into
place.
External cleaning
• Clean the appliance with a moist soft
cloth.
• Only use neutral detergents.
• Do not use abrasive products, abrasive
cleaning pads or solvents.
Internal cleaning
• Carefully clean the appliance, including
the rubber gasket of the door, with a soft
damp cloth.
• To maintain the performance of your
appliance, use a cleaning product
designed specifically for dishwashers at
least once a month. Carefully follow the
instructions on the packaging of the
product.
• Do not use abrasive products, abrasive
cleaning pads, sharp tools, strong
chemicals, scourer or solvents.
• Using short-duration programmes
regularly can cause grease and
limescale buildup inside the appliance.
Run long-duration programmes at least
twice a month to prevent the buildup.
Troubleshooting
If the appliance does not start or it stops
during operation. Before you contact an
Page 20
ENGLISH 20
Authorised Service Centre, check if you can
solve the problem by yourself with the help
of the information in the table.
Warning! Repairs not properly
done may result in serious risk to
the safety of the user. Any
repairs must be performed by
qualified personnel.
Problem and alarm code Possible solution
You cannot activate the appliance.
The programme does not
start.
The appliance does not fill
with water.
The display shows
.
The appliance does not
drain the water.
The display shows .
The anti-flood device is on.
The display shows .
The appliance stops and
starts more times during operation.
The program lasts too long.
The remaining time in the
display increases and skips
nearly to the end of program time.
• Make sure that the mains plug is connected to the mains
socket.
• Make sure that there is no damaged fuse in the fuse box.
• Make sure that the appliance door is closed.
• If the delay start is set, cancel the setting or wait for the
end of the countdown.
• Make sure that the water tap is open.
• Make sure that the pressure of the water supply is not
or
too low. For this information, contact your local water
authority.
• Make sure that the water tap is not clogged.
• Make sure that the filter in the inlet hose is not clogged.
• Make sure that the inlet hose has no kinks or bends.
• Make sure that the sink spigot is not clogged.
• Make sure that the drain hose has no kinks or bends.
• Close the water tap and contact an Authorised Service
Centre.
• It is normal. It provides optimal cleaning results and energy savings.
• If the delayed start option is set, cancel the delay setting
or wait for the end of the countdown.
• This is not a defect. The appliance is working correctly.
With some problems, the display shows
an alarm code.
The majority of problems that can occur
can be solved without the need to contact
an Authorised Service Centre.
Page 21
ENGLISH 21
Problem and alarm code Possible solution
Small leak from the appliance door.
The appliance door is difficult to close.
Rattling/knocking sounds
from inside the appliance.
The appliance trips the circuit-beaker.
• The appliance is not levelled. Loosen or tighten the adjustable feet (if applicable).
• The appliance door is not centred on the tub. Adjust the
rear foot (if applicable).
• The appliance is not levelled. Loosen or tighten the adjustable feet (if applicable).
• Parts of the tableware are protruding from the baskets.
• The tableware is not properly arranged in the baskets.
Refer to basket loading leaflet.
• Make sure that the spray arms can rotate freely.
• The amperage is insufficient to supply simultaneously all
the appliances in use. Check the socket amperage and
the capacity of the meter or turn off one of the appliances in use.
• Internal electrical fault of the appliance. Contact an Authorised Service Centre.
Refer to "Before first use",
"Daily use", or "Hints and tips"
for other possible causes.
Once you have checked the appliance,
deactivate and activate the appliance. If
The washing and drying results are not satisfactory
Problem Possible cause and solution
Poor washing results.
Poor drying results.
• Refer to "Daily use", "Hints and tips" and basket
loading leaflet.
• Use more intensive washing programmes.
• Clean spray arm jets and filter. Refer to "Care and
Cleaning".
• Tableware has been left for too long inside a closed
appliance.
• There is no rinse aid or the dosage of rinse aid is not
enough. Set the rinse aid dispenser to a higher level.
• Plastic items may need to be towel dried.
• For the best drying performance activate the option
DryPlus and set AutoOpen.
• We recommend to always use rinse aid, even in combination with multi-tablets.
the problem occurs again, contact an
Authorised Service Centre.
For alarm codes not described in the table,
contact an Authorised Service Centre.
Page 22
ENGLISH 22
Problem Possible cause and solution
There are whitish streaks or
bluish layers on glasses and
dishes.
There are stains and dry water drops on glasses and
dishes.
The dishes are wet.
The interior of the appliance is
wet.
Unusual foam during washing.
Traces of rust on cutlery.
There are residues of detergent in the dispenser at the
end of the programme.
Odours inside the appliance.
Dull, discoloured or chipped
tableware.
• The release quantity of rinse aid is too much. Adjust
the rinse aid level to a lower level.
• The quantity of detergent is too much.
• The released quantity of rinse aid is not sufficient. Adjust the rinse aid level to a higher level.
• The quality of the rinse aid can be the cause.
• For the best drying performance activate the option
DryPlus and set AutoOpen .
• The programme does not have a drying phase or has
a drying phase with low temperature.
• The rinse aid dispenser is empty.
• The quality of the rinse aid can be the cause.
• The quality of the multi-tablets can be the cause. Try a
different brand or activate the rinse aid dispenser and
use rinse aid and multi-tablets together.
• This is not a defect of the appliance. it is caused by the
humidity in the air that condenses on the walls.
• Use the detergent for dishwashers only.
• There is a leak in the rinse aid dispenser. Contact an
Authorised Service Centre.
• Silver and stainless steel cutlery were placed together.
Avoid to put silver and stainless steel items close together.
• The detergent tablet got stuck in the dispenser and
therefore was not completely washed away by water.
• Water cannot wash away the detergent from the dispenser. Make sure that the spray arm is not blocked or
clogged.
• Make sure that items in the baskets do not impede the
lid of the detergent dispenser from opening.
• Refer to "Internal cleaning".
• Make sure that only dishwasher-safe items are washed in the appliance.
• Load and unload the basket carefully. Refer to basket
loading leaflet.
• Place delicate items in the upper basket.
Page 23
ENGLISH 23
Refer to "Before first use",
"Daily use" or "Hints and tips"
for other possible causes.
Technical information
Dimensions Width / height / depth
(mm)
Electrical connection
Water supply pressure Min. / max. bar (MPa) 0.5 (0.05) / 8 (0.8)
Water supply
Capacity Place settings 14
Power consumption Left-on mode (W) 5.0
1)
Refer to the rating plate for other values.
2)
Cold water connection is recommended for best washing performance.
1)
Voltage (V) 200 - 240
Frequency (Hz) 50 / 60
Cold water
Off-mode (W) 0.10
2)
596 / 818 - 898 / 550
min 5 °C
Environmental concerns
Recycle materials with the symbol . Put
the packaging in relevant containers to
recycle it. Help protect the environment and
human health by recycling waste of
electrical and electronic appliances. Do not
dispose of appliances marked with the
symbol
the product to your local recycling facility or
contact your municipal office.
with the household waste. Return
IKEA guarantee
How long is the IKEA guarantee valid?
This guarantee is valid for 5 years from the
original date of purchase of Your appliance
at IKEA Pty Ltd, ABN 84006270757 or at
Cebas Pty Ltd, ABN 15 009 156 003 (Both
Trading as IKEA). The original sales receipt
is required as proof of purchase. If service
work is carried out under guarantee, this
will not extend the guarantee period for the
appliance.
Who will execute the service?
IKEA service provider will provide the service through its own service operations or
authorized service partner network. Contact
IKEA for further information.
Page 24
ENGLISH
24
If you encounter any trouble with the
appliance and wish to register a service call
or make a claim, please refer to
www.ikea.com.au for your local store after
sales customer service center phone
number, online email and opening times.
The principal address and contact details in
Australia are:
For Queensland, New South Wales, and
Victorian customers please contact:
IKEA Pty Ltd
IKEA Pty Ltd
IKEA Service Office
L1 Clock Tower, 630 Princes Highway
Tempe, NSW 2044
Contact - IKEA Customer Service at
www.IKEA.com.au
For Western Australian and South
Australian customers please contact:
Cebas Pty Ltd
8c Sunray Drive, Innaloo WA 6018
Australia
Contact - IKEA Customer Service at
www.IKEA.com.au
What does this guarantee cover?
The guarantee covers faults of the appliance, which have been caused by faulty
construction or material faults from the date
of purchase from IKEA. This guarantee applies to domestic use only. The products
have been designed and tested for
domestic purposes only and this guarantee
does not cover damage arising from use of
the Product in a commercial environment.
The exceptions are specified under the
headline "What is not covered under this
guarantee?" Within the guarantee period,
the costs to remedy the fault e.g. repairs,
parts, labour and travel will be covered,
provided that the appliance is accessible
for repair without special expenditure.
Replaced parts become the property of
IKEA.
The guarantee exists only if the appliance
complies and is installed in accordance
with:
• The technical specifications.
• The Assembly Instructions and user
manual Safety Information.
IKEA's guarantee is subject to Australian
Consumer Law - see Schedule 2 to
Competition and Consumer Act, 2010. This
guarantee is in addition to (and does not
exclude, restrict or modify in any way) any
non-excludable statutory warranties in
Australia.
What will IKEA do to correct the problem?
IKEA appointed service provider will examine the product and decide, at its sole discretion, if it is covered under this guarantee.
They will notify you as to whether your
claim is covered under this guarantee. If
your claim is approved, the IKEA service
provider or its authorized service partner,
will then, at its sole discretion, either repair
the defective product or replace it with the
same or a comparable product.
What is not covered under this
guarantee?
• Normal wear and tear.
• Deliberate or negligent damage, damage caused by failure to observe operating instructions, incorrect installation or
by connection to the wrong voltage, damage caused by chemical or electro-chemical reaction, rust, corrosion or water
damage including but not limited to damage caused by excessive lime in the water supply, damage caused by abnormal
environmental conditions.
Page 25
ENGLISH
25
• Consumable parts including batteries
and lamps.
• Non-functional and decorative parts
which do not affect normal use of the appliance, including any scratches and possible colour differences.
• Accidental damage caused by foreign
objects including insect or vermin
infestation or substances and cleaning or
unblocking of filters, drainage systems or
soap drawers.
• Damage to the following parts: ceramic
glass, accessories, crockery and cutlery
baskets, feed and drainage pipes, seals,
lamps and lamp covers, screens, knobs,
casings and parts of casings. Unless such
damages can be proved to have been
caused by production faults.
• Cases where no fault could be found during a technician's visit.
• Repairs not carried out by our appointed
service providers and/or an authorized
service contractual partner or where
non-original parts have been used.
• Repairs caused by installation which is
faulty or not according to specification.
• The use of the appliance in a non-domestic environment i.e. professional use.
• Transportation damages. If a customer
transports the product to their home or
other address, IKEA is not liable for any
damage that may occur during transport.
However, if IKEA delivers the product to
the customer's delivery address, then
damage to the product that occurs
during this delivery will be covered by
this guarantee.
• Cost for carrying out the initial
installation of the IKEA appliance.
However, if an IKEA service provider or
its authorized service partner repairs or
replaces the appliance under the terms
of this guarantee, the service provider or
its authorized service partner will reinstall the repaired appliance or install
the replacement, if necessary.
• The appliance's serial number or
warranty seal has been removed or
defaced.
How country law applies
Our goods come with guarantees that
cannot be excluded under the Australian
Consumer Law (ACL). You are entitled to a
replacement or refund for a major failure
and compensation for any other reasonably
foreseeable loss or damage.
You are also entitled to have the goods
repaired or replaced if the goods fail to be
of acceptable quality and the failure does
not amount to a major failure.
This guarantee is not intended in any way
to limit or exclude such rights and remedies
that you may have under law.
You can find out more information about
the Australian Consumer Law on the ACCC
website: www.accc.gov.au
Area of validity
This IKEA guarantee applies only to
products purchased and installed in
AUSTRALIA .
What you must do to make a claim under
the guarantee:
To make a claim under the guarantee
contact IKEA after sales customer service
center at the above address, the IKEA
catalogue or refer to
your local store customer service phone
number, online email and opening times.
Please describe the problem that you are
facing with the appliance in detail along
with your product article number (8 digit
code) and date of purchase at the time of
call registration.
Please do not hesitate to contact the
dedicated after sales customer service
center for IKEA appliances to:
www.ikea.com.au for
Page 26
ENGLISH 26
1. Make a service request under this guarantee;
2. Ask for clarification on installation of the
IKEA appliance in the dedicated IKEA
kitchen furniture.
3. Ask for clarification on user manual contents and specifications of the IKEA appliance.
To ensure that we provide you with the best
assistance, please read carefully the Assembly Instructions and/or the User Manual
section of this booklet before contacting us.
How to reach us if you need our service
The IKEA after sales customer service centre
will assist you on the phone with basic
trouble shooting for your appliance at the
time of service call request. Please refer to
the IKEA catalogue or
www.ikea.com.au
and select your local store for local store
phone numbers and opening times.
Please describe the problem that
you are facing with the
appliance in detail along
with your product article number
( 8 digit code ) and date of
purchase at the time of call
registration .
SAVE THE SALES RECEIPT!
Kindly keep all these details and
original invoice of purchase
handy during the service
technician's visit to enable him to
carry out the job.
It is your proof of purchase and
required for the guarantee to
apply. Note that the receipt
reports also the IKEA article
name and number (8 digit code)
for each of the appliances you
have purchased.
*
Page 27
ENGLISH 27
Page 28
117876111-A-202018
21552
© Inter IKEA Systems B.V. 2018
AA-2096916-2
Loading...
