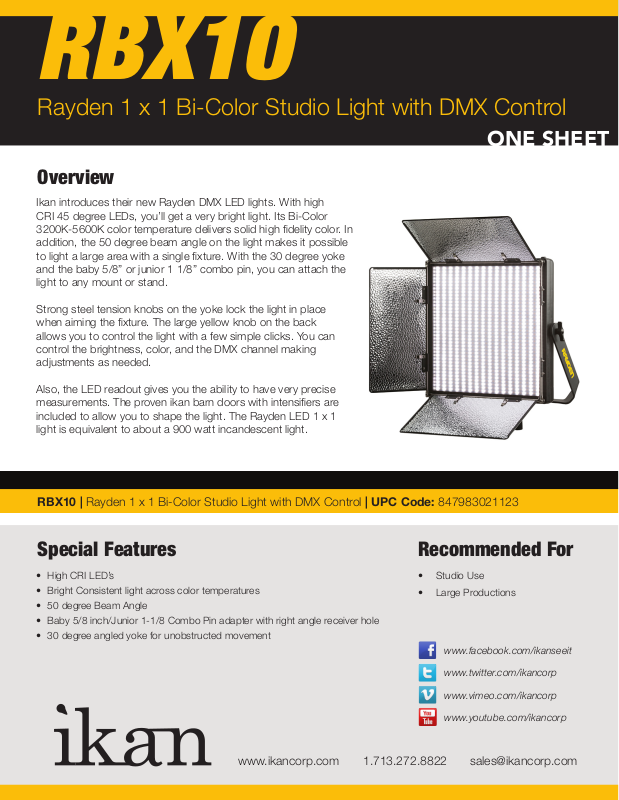

RBX10

Rayden 1 x 1 Bi-Color Studio Light with DMX Control

ONE SHEET

Overview

Ikan introduces their new Rayden DMX LED lights. With high
CRI 45 degree LEDs, you’ll get a very bright light. Its Bi-Color
3200K-5600K color temperature delivers solid high fidelity color. In
addition, the 50 degree beam angle on the light makes it possible
to light a large area with a single fixture. With the 30 degree yoke
and the baby 5/8” or junior 1 1/8” combo pin, you can attach the
light to any mount or stand.

Strong steel tension knobs on the yoke lock the light in place
when aiming the fixture. The large yellow knob on the back
allows you to control the light with a few simple clicks. You can
control the brightness, color, and the DMX channel making
adjustments as needed.

Also, the LED readout gives you the ability to have very precise
measurements. The proven ikan barn doors with intensifiers are
included to allow you to shape the light. The Rayden LED 1 x 1
light is equivalent to about a 900 watt incandescent light.

RBX10 | Rayden 1 x 1 Bi-Color Studio Light with DMX Control | UPC Code: 847983021123

Special Features

• High CRI LED’s

• Bright Consistent light across color temperatures

• 50 degree Beam Angle

• Baby 5/8 inch/Junior 1-1/8 Combo Pin adapter with right angle receiver hole

• 30 degree angled yoke for unobstructed movement

Recommended For

• Studio Use

• Large Productions

www.facebook.com/ikanseeit

www.twitter.com/ikancorp

www.ikancorp.com

1.713.272.8822

www.vimeo.com/ikancorp

www.youtube.com/ikancorp

[e-mail]

RBX10

Features you need, Prices you want.

High CRI LEDs

The high CRI LEDs give you a strong output, allowing
for very bright light.

Solid 3200K-5600K Color Temperature

The 3200K-5600K color temperature stays consistent
throughout its brightness.

Bright Consistent Light

The Rayden Bi-Color LED is ideal for those quick
interviews allowing you to not overheat your talent.

50° Beam Angle

A wide beam angle gives you lots of light.

Combo Pin

The combo pin Baby 5/8 inch/Junior 1-1/8 Combo Pin
adapter with right angle receiver hole allows for the use
of any grip stand.

30° Angled Yoke

The 30 degree yoke allows for unobstructed movement
of the light.

Steel Tension Knobs

The new stronger steel knobs allow you to lock the light
at any angle.

Single Knob Control

A single control knob allows the user to adjust on the
fly. Whether it’s brightness or DMX, it can be controlled
with the touch of a button.

New LED Readout

The new bright LED readout gives you a quick reference
of the light’s output.

Specications

Light Source 1184 0.06 Watt LEDs

Head Type Bi-Color 3200K-5600K

Lens 45°

Beam Angle 50°

Control / Dimming DMX512 & Local Control

Build Material Heavy Duty Resin Plastic

Cooling System Passive Cooling

Yoke Baby 5/8" - Junior 1 1/8" Combo Pin

Fixture Size 14 x 14 x 3 in.

Fixture Weight 6 lbs

Power Supply Input: 110-220VAC

Output: 15VDC

Power Consumption 71W; 14-18VDC

Shipping Specications

Shipping Dimensions 21 x 18 x 6 in.

Shipping Weight 13 lbs

What’s Included

1 x 1 x 1 DMX Light Fixture
1 x Power Supply with Cable
1 Yoke Mount

Optional Accessories

IDX-096

CP-STND-V3

KCP-703

ROLLR-STND-10

SW-04

96 Channel DMX Console

Compact Light Stand Version 3

Stage Clamp with 16mm Stud

2-Stage Roller Stand 10 ft 6 in.

Safety Wire

Barn Doors Included

The barn doors with intensifiers give you the ability to
shape the light.

Equivalent to 900 Watt Incandescent

The Rayden LED light is equivalent to a 900 Watt
incandescent soft light.
