ikan RB5 Quick Start Guide
8812-B Frey Road, Houston, TX. P: 832-360-1966, F: 713-943-2818
Fixture Model Number:
ikan international
11500 S. SAM HOUSTON PKWY, HOUSTON, TX
Test:
Description of Sample (Test results are applicable only to the following configuration): IKAN RAYDEN
BI-COLOR HALF FOOT X ONE FOOT LED LIGHT FIXTURE.
The sample(s) was (were) tested in accordance with the following applied standards/regulations:
Test Report shall not be reproduced except in full, without written approval of ATAL
Test Report Prepared by:
Test Report Approved By:
Jim Rice
Adrianne Lattimore, Deputy
Jim Rice, Lab Manager
LM-79 Photometric Test Report
RB5
Report Prepared For:
Electrical and Photometric tests as required by the IESNA test
standards
• IESNA LM79: 2008 Approved for Electrical and Photometric Measurements of Solid-State Lighting Products
• ANSI NEMA ANSLG C78.377: 2008 Specification of the Chromaticity of Solid State Lighting Products
• ATAL Goniophotometer Test Procedure
• ATAL Sphere Test Procedure
ATAL Test Number: ATAL019075
Sample Arrival Date: 6/15/2017
Date of Tests: 6/20/2017
ATAL LM-79 Photometric Test Report Template
Page 1 of 13
8812-B Frey Road, Houston, TX. P: 832-360-1966, F: 713-943-2818
Calibration
Date
Calibration
due date
Integrating 76 inch Sphere
LMS760
1230110011
4/26/2017
10/26/2017
Voltech Power Analyzer
PM1000+
100008202596
9/14/2016
9/14/2017
Onset Thermometer
U14-002
10408869
9/21/2016
9/21/2017
Agilent DC Power Supply
E3634A
MY53240055
9/14/2016
9/14/2017
Calibration
Date
Calibration
due date
ITL Type C Gonio System
ITL GCC1
C114-0512
1/6/2017
7/6/2017
Yokogawa Digital Power Meter
WT210
91MB22428
9/13/2016
9/13/2017
Agilent DC Power Supply
N5770A
US13A0157J
9/14/2016
9/14/2017
Onset Data Logger
U14-002
10408835
9/20/2016
9/20/2017
ATAL Test Number: ATAL019075
Sample Picture
Sphere Equipment Used
Description Model # Serial #
Goniophotometer Equipment Used
Description Model # Serial #
ATAL LM-79 Photometric Test Report Template
Page 2 of 13
8812-B Frey Road, Houston, TX. P: 832-360-1966, F: 713-943-2818
Manufacturer:
ikan international
Model Number:
RB5
Driver Model Number:
DC POWER SUPPLY
Lamp :
3200K 0.06 WATT LEDS
Pre-Burn Time (hours):
24
Input Voltage:
15.06 VDC
Continuous Voltage Monitoring
Input Current:
1.170 A
Input Power:
17.62 W
Lumens:
1218 Lm
Efficacy:
69.2 Lm/W
Color Rendering Index (CRI):
Ra: 96.92 R9: 98.38
Correlated Color Temperature (K):
3167
Chromaticity Coordinate x:
0.4189
Chromaticity Coordinate y:
0.3850
Ambient Temperature (⁰C):
25.6
Stabilization Time (Mins):
30
Total Operating Time (Hours):
24
u/u’: 1 v:
0.3406
Duv:
-0.0052
ATAL Test Number: ATAL019075
LM-79 Test Summary
Electrical Measurement
Light Output:
v’: 0.5109
ATAL LM-79 Photometric Test Report Template
Page 3 of 13
8812-B Frey Road, Houston, TX. P: 832-360-1966, F: 713-943-2818
ATAL Test Number: ATAL019075
Test Methods

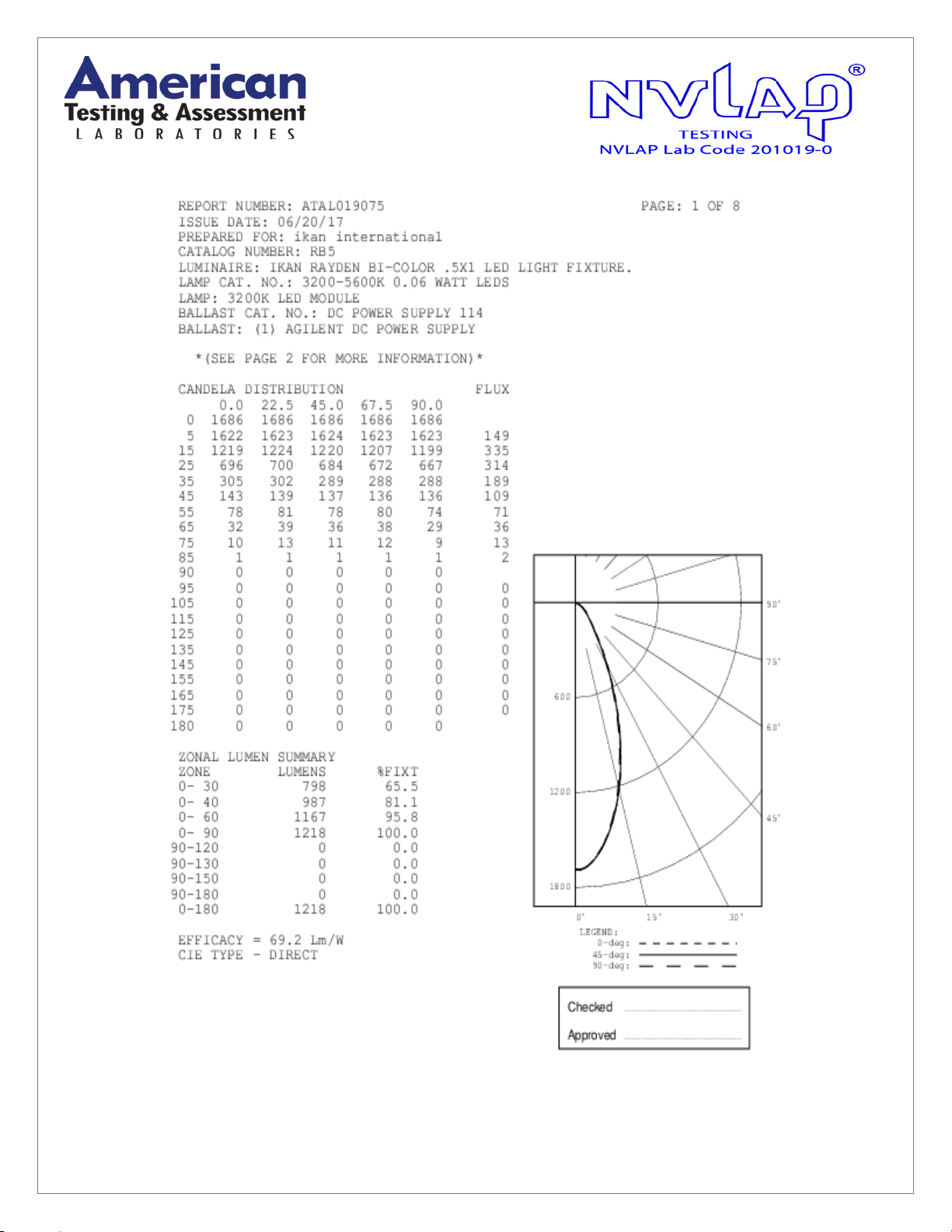

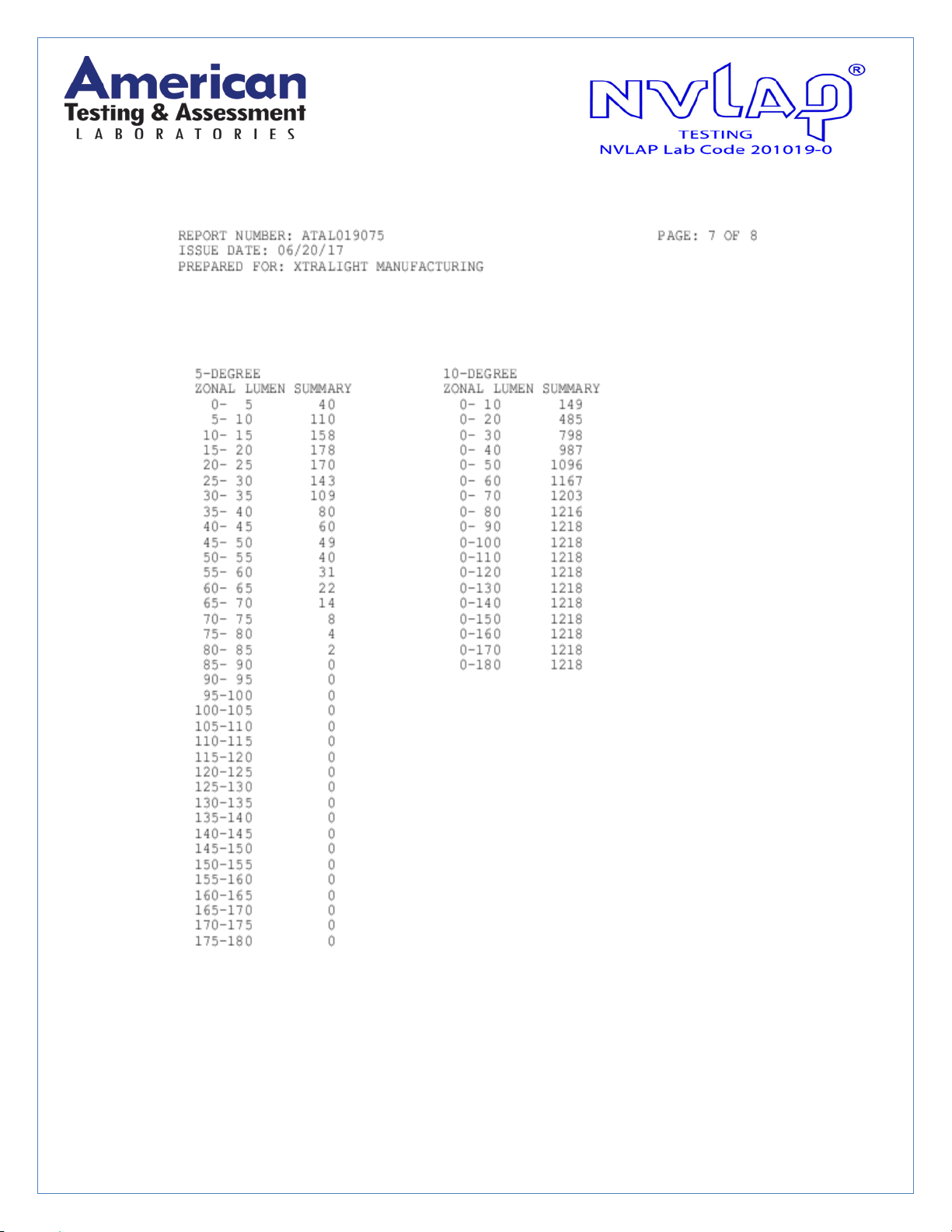

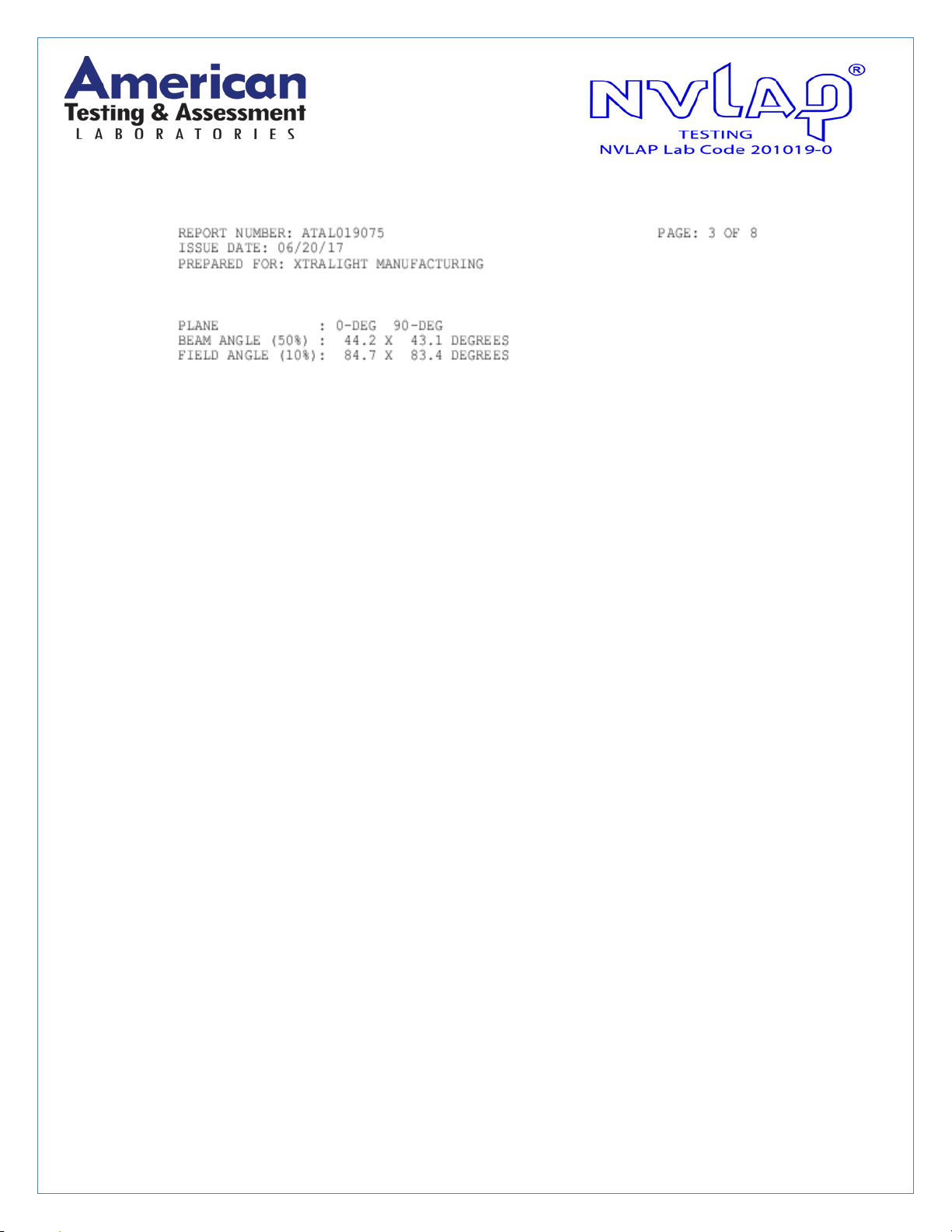

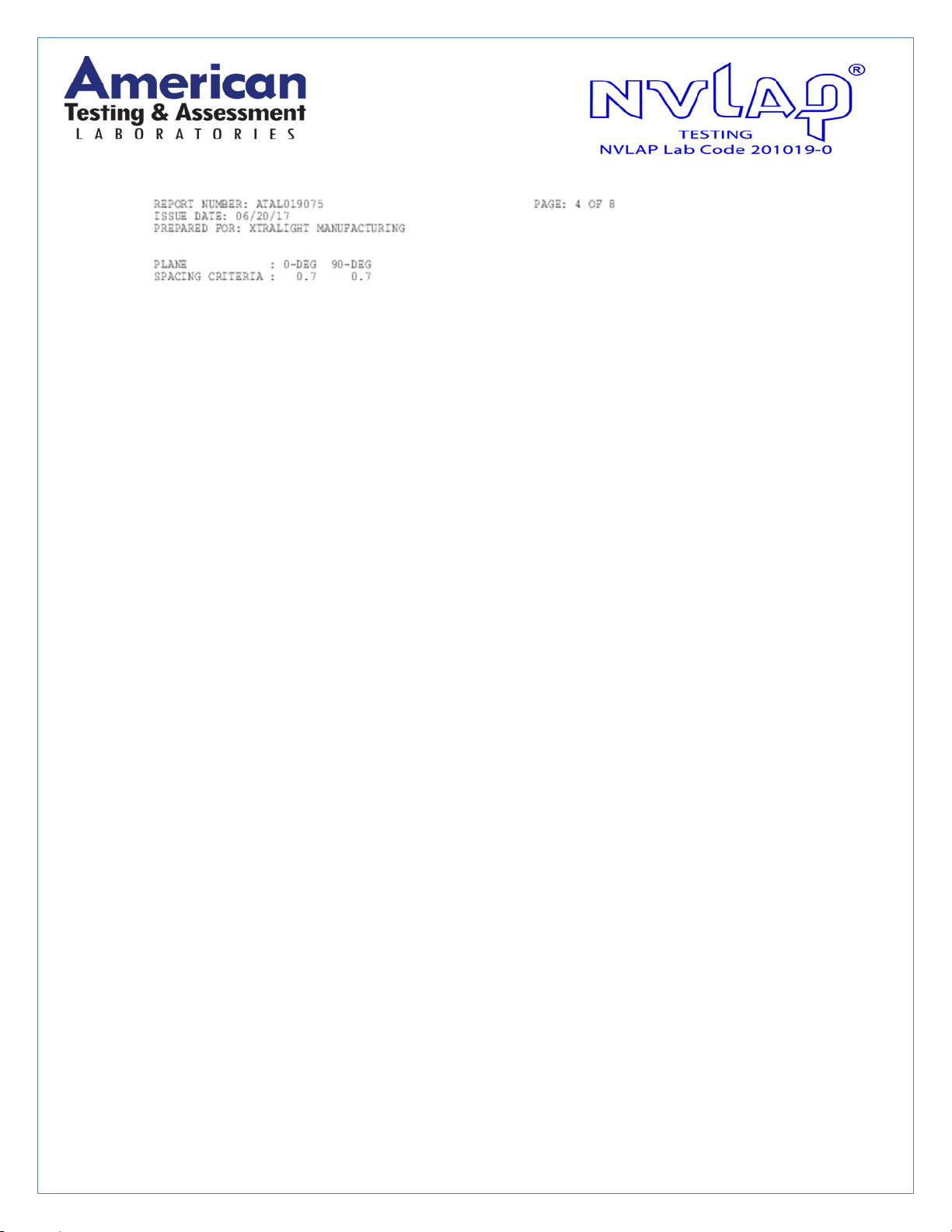

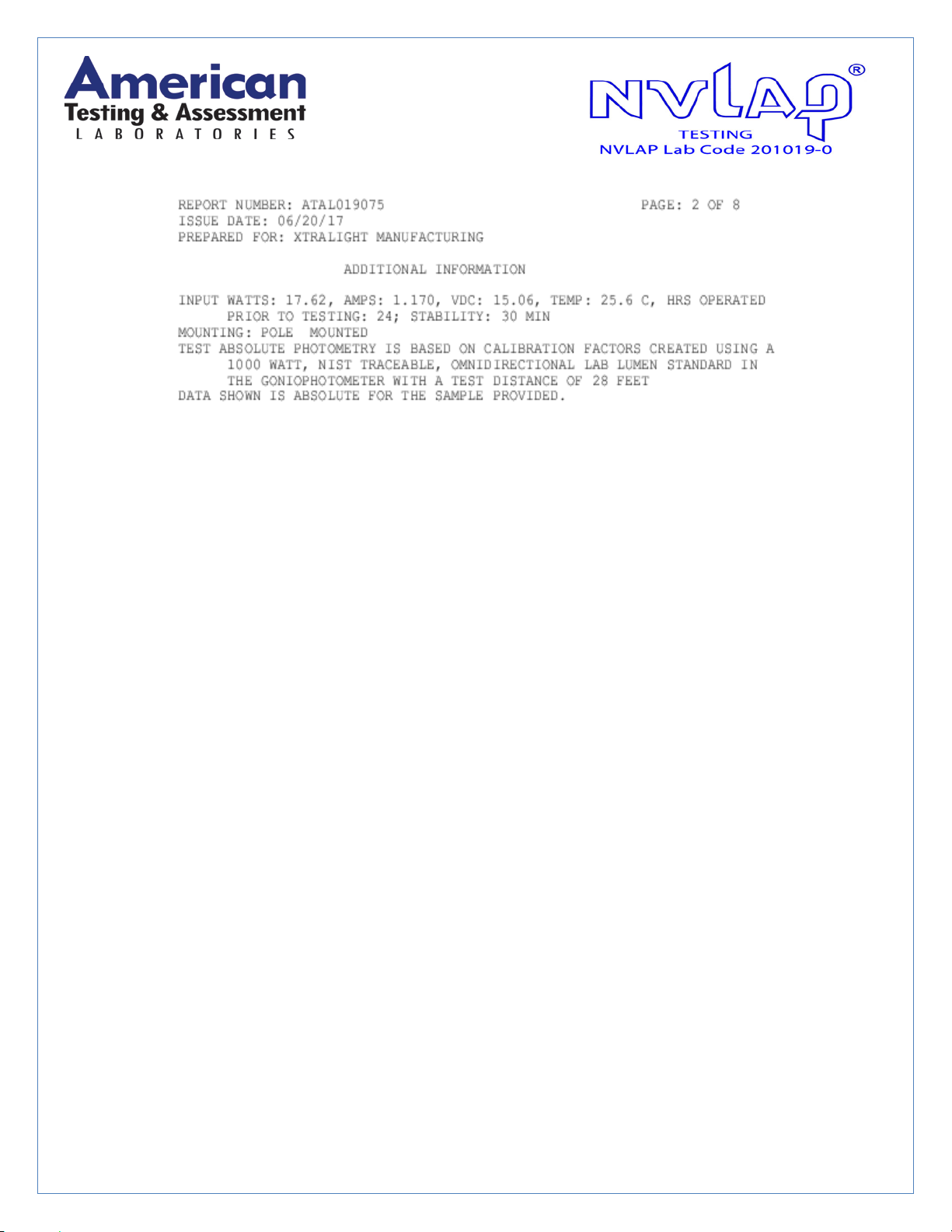

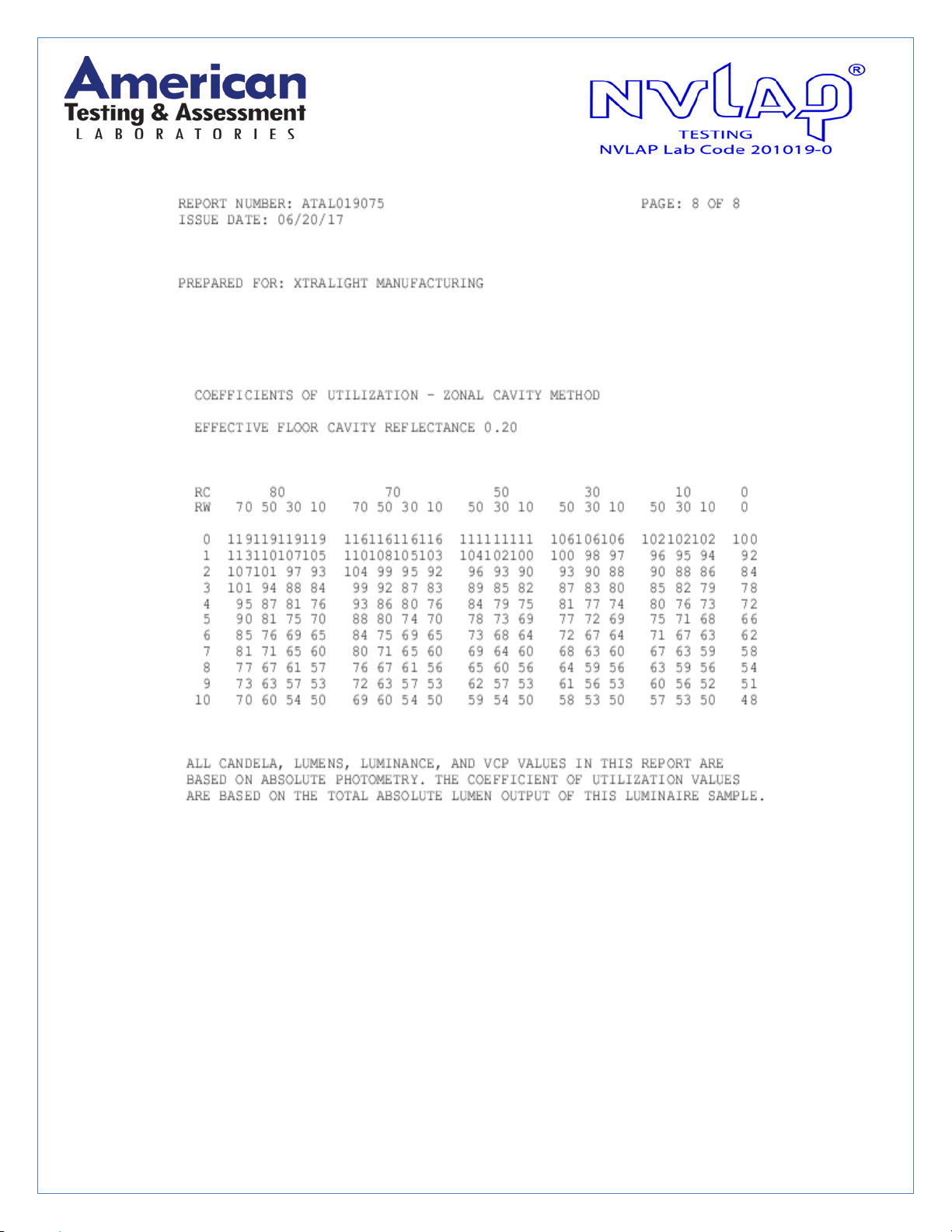

Photometric Measurements – Goniophotometer

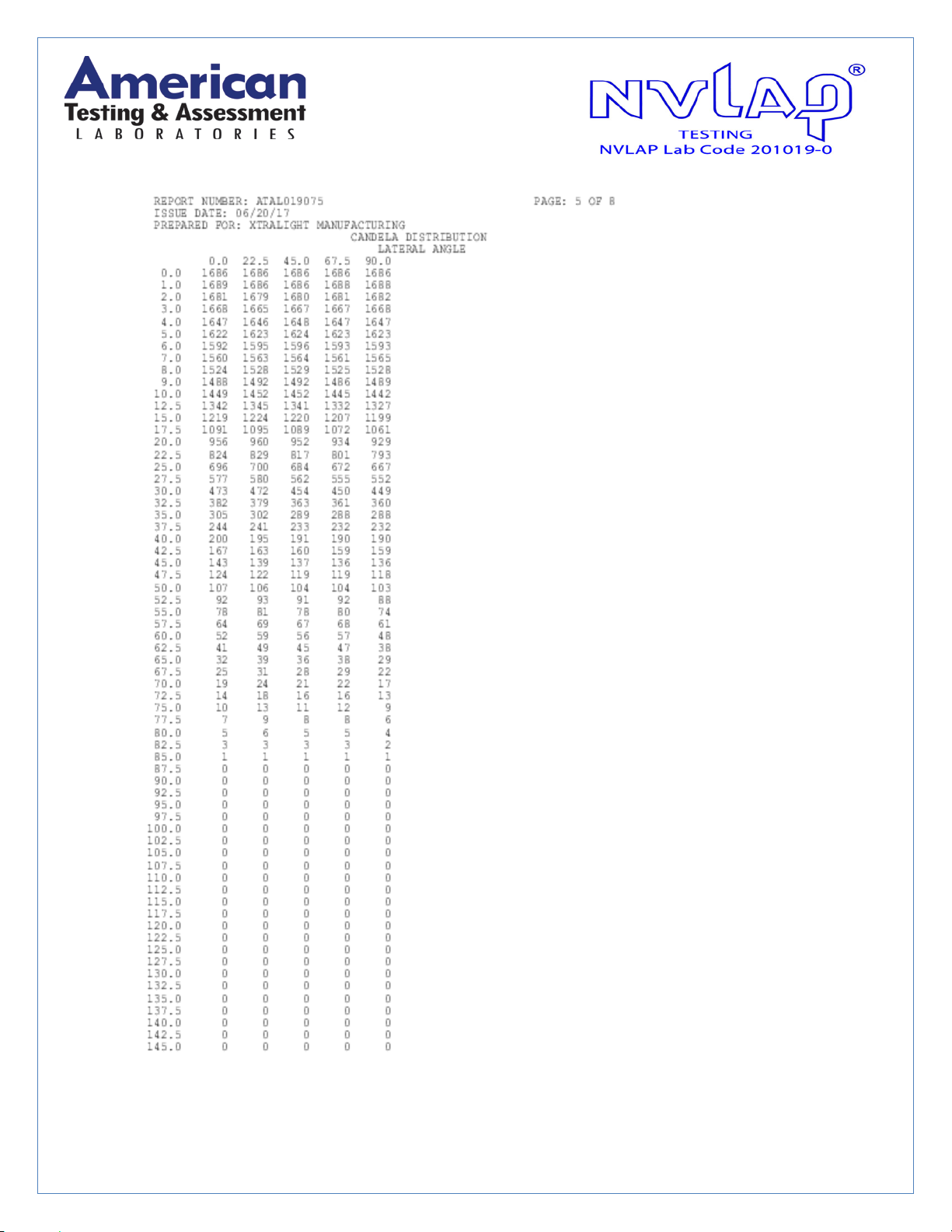

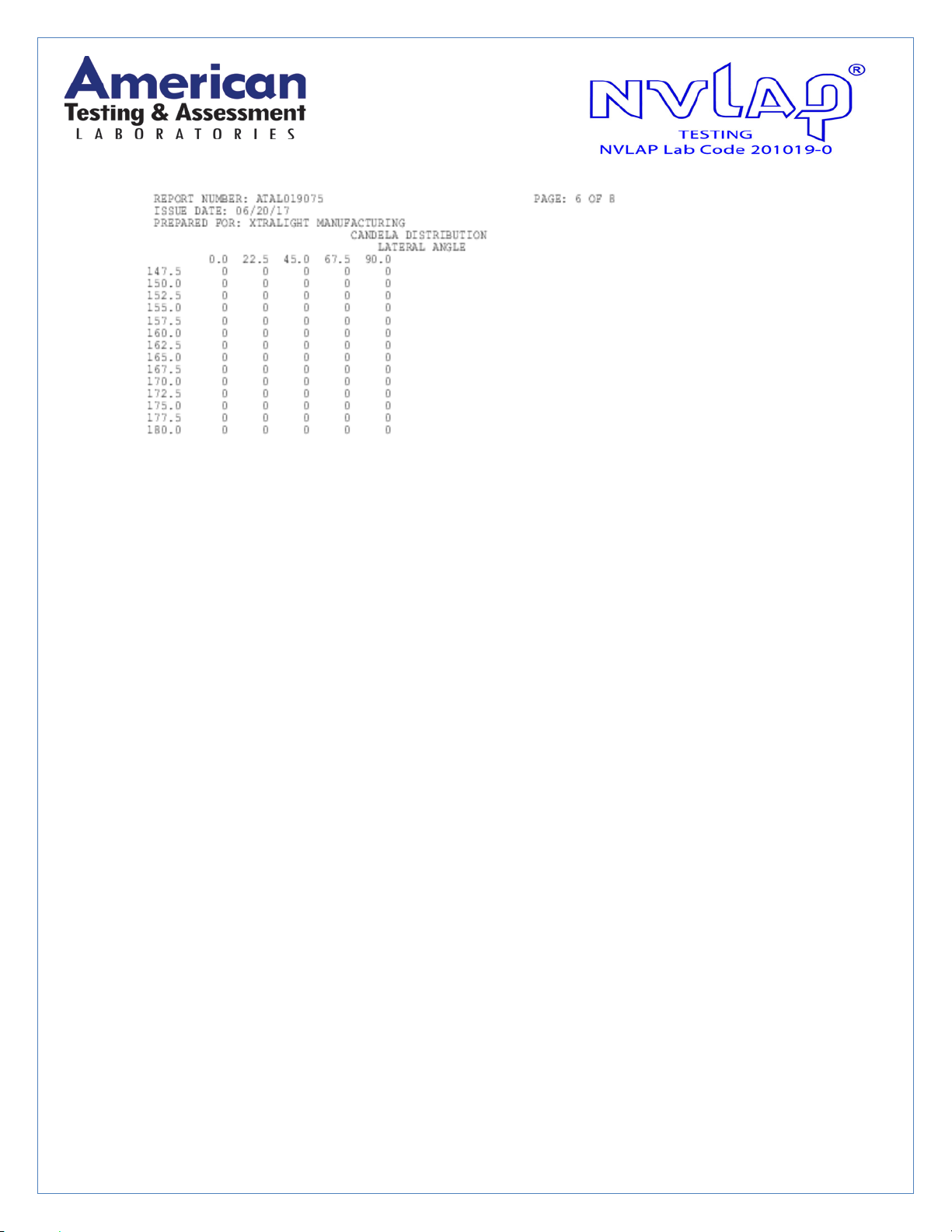

An ITL Type C Rotating Mirror Goniophotometer was used to measure candelas (intensity) at each angle of
distribution as defined by IESNA for the appropriate fixture type.
Ambient temperature is set to 25⁰C ±1° and is measured from the center of the fixture, within 1 meter from the
outside of the fixture. Temperature is maintained at 25⁰C ±1° throughout the testing process and the sample is
stabilized for at least 30 minutes and longer as necessary for the sample to achieve stabilization.
Electrical measurements are measured using the listed equipment.

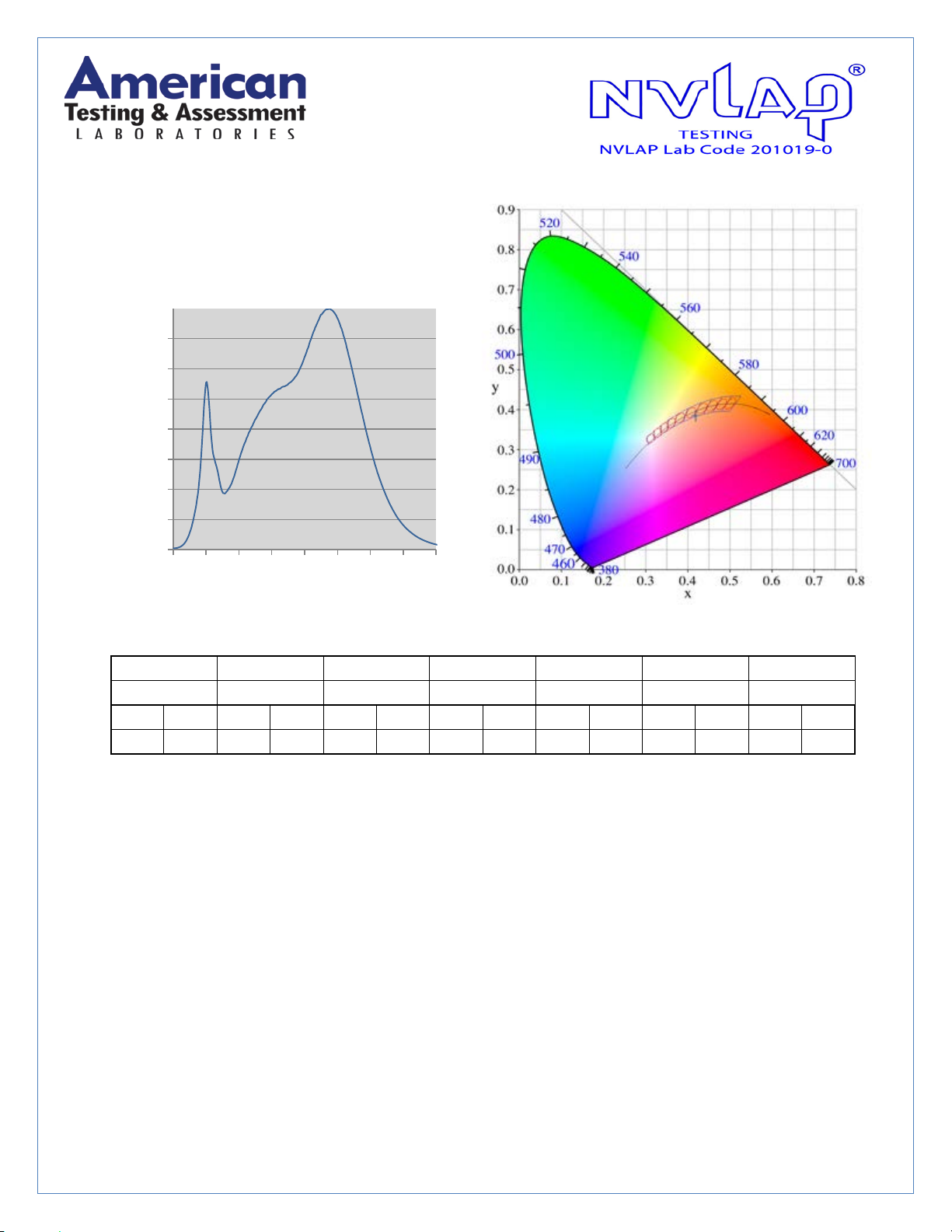

Spectral Measurements – Integrating Sphere
A sensing Spectrometer CDS-2100, in conjunction with Labsphere 2 meter integrating sphere was used to measure
chromaticity coordinates, correlated color temperature (CCT) and the color rendering index (CRI) for each sample.
Ambient temperature is set to 25⁰C ±1° and is measured from the center of the fixture, within 1 meter from the
outside of the fixture. Temperature is maintained at 25⁰C ±1° throughout the testing process and the sample is
stabilized for at least 30 minutes and longer as necessary for the sample to achieve stabilization.
Electrical measurements are measured using the listed equipment.
This report must not be used to claim product certification, approval, or endorsement by
NVLAP, NIST, or any agency of the Federal Government.
ATAL LM-79 Photometric Test Report Template
Page 4 of 13
