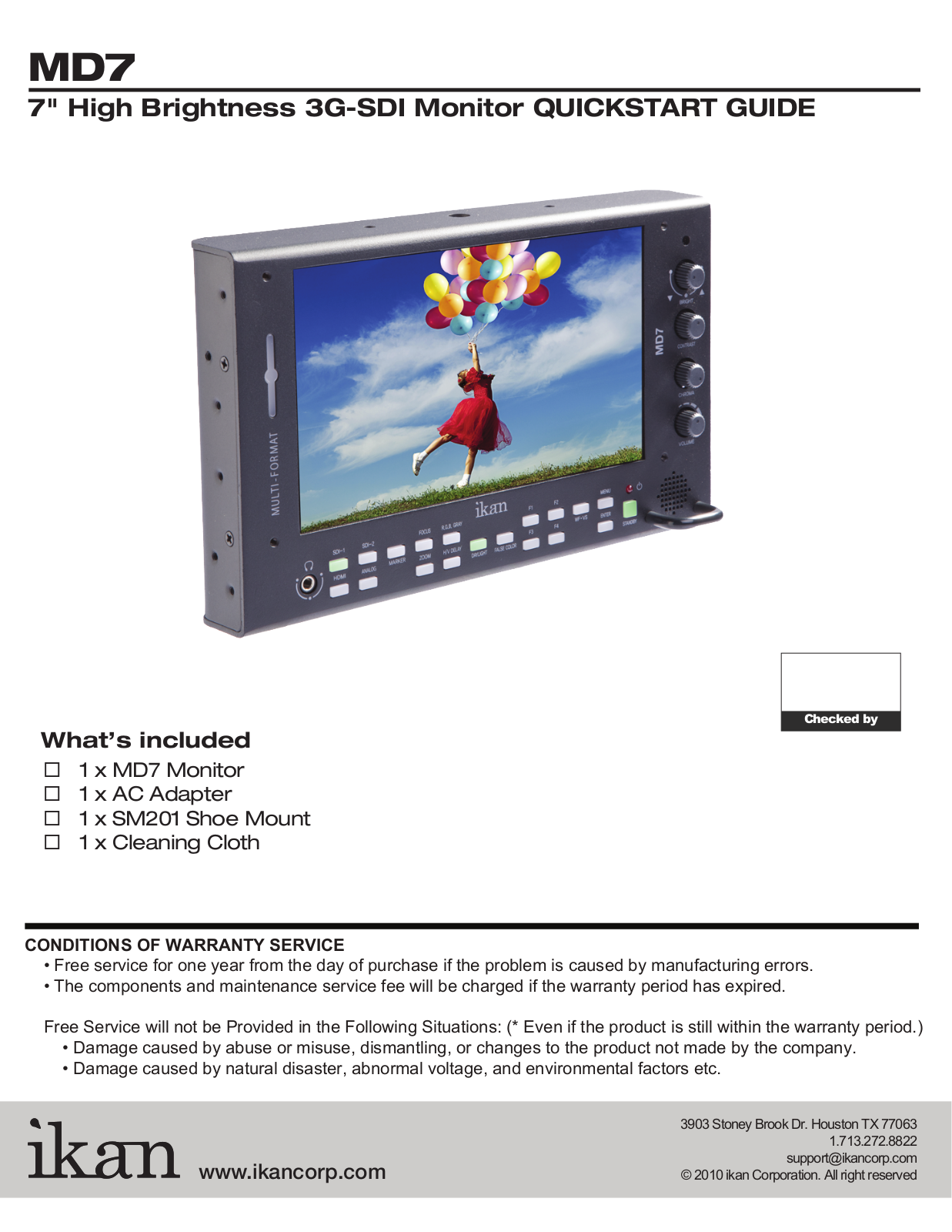

ikan MD7 Quick Start
MD7
7" High Brightness 3G-SDI Monitor QUICKSTART GUIDE
Checked by
What’s included
1 x MD7 Monitor
1 x AC Adapter
1 x SM201 Shoe Mount
1 x Cleaning Cloth
CONDITIONS OF WARRANTY SERVICE
• Free service for one year from the day of purchase if the problem is caused by manufacturing errors.
• The components and maintenance service fee will be charged if the warranty period has expired.
Free Service will not be Provided in the Following Situations: (* Even if the product is still within the warranty period.)
• Damage caused by abuse or misuse, dismantling, or changes to the product not made by the company.
• Damage caused by natural disaster, abnormal voltage, and environmental factors etc.
3903 Stoney Brook Dr. Houston TX 77063
1.713.272.8822
support@ikancorp.com
www.ikancorp.com
© 2010 ikan Corporation. All right reserved
MD7
7" High Brightness 3G-SDI Monitor QUICKSTART GUIDE

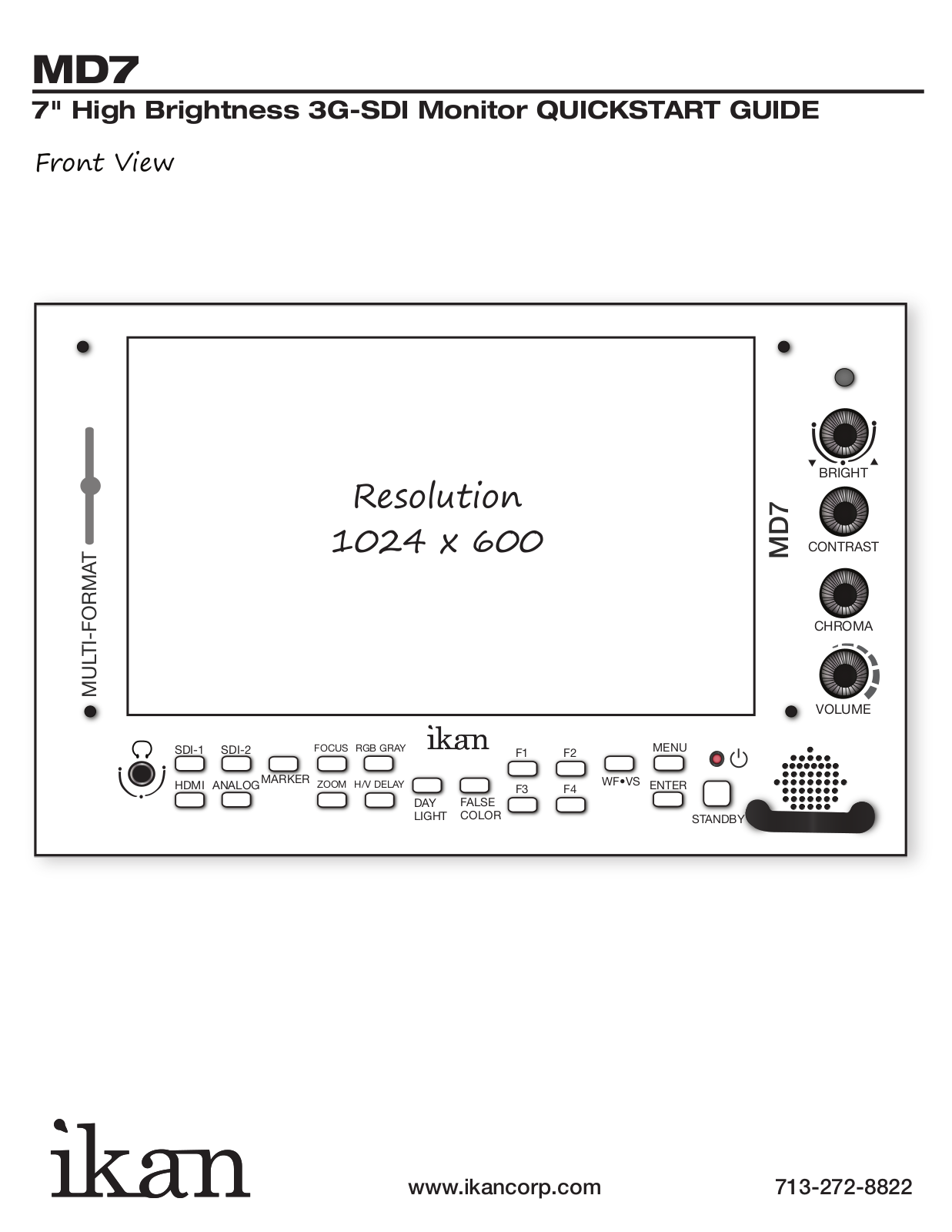

Front View
Resolution
BRIGHT
1024 x 600
CONTRAST
MD7
CHROMA
MULTI-FORMAT
VOLUME
RGB GRAY
SDI-1 SDI-2
HDMI ANALOG
MARKER
FOCUS
ZOOM
H/V DELAY
DAY
LIGHT
FALSE
COLOR
F1
F3 F4
F2
WF•VS
MENU
ENTER
STANDBY
www.ikancorp.com 713-272-8822
