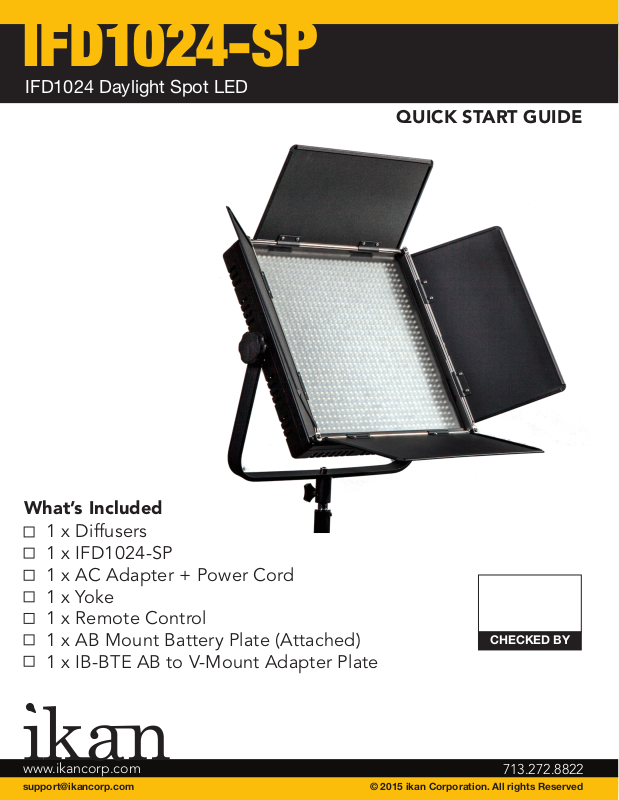

ikan IFD1024-SP User Manual
IFD1024-SP
IFD1024 Daylight Spot LED
QUICK START GUIDE
What’s Included
1 x Diffusers
1 x IFD1024-SP
1 x AC Adapter + Power Cord
1 x Yoke
1 x Remote Control
1 x AB Mount Battery Plate (Attached)
1 x IB-BTE AB to V-Mount Adapter Plate
www.ikancorp.com
support@ikancorp.com © 2015 ikan Corporation. All rights Reserved
CHECKED BY
713.272.8822
713.272.8822
IFD1024-SP
Getting Started
1. Connect the included AC Adapter to power the IFD1024-SP light.
2. Turn the light on/off with the power switch.
3. Control the amount of light with the dimmer knob. Adjust the intensity of the
light by turning the dimmer knob clock-wise to increase the intensity, and counter
clock-wise to reduce it.
4. The IFD1024-SP can also be powered by pro battery.
Diffuser Lock
Pro Battery Plate for
AB-Mount or V-Mount
Yoke
www.ikancorp.com
MADE IN CHINA
IFD1024-SP
Model: LED1024ASL
Operating Volts: DC 12V - 14.8 V
Pin numberS ignal
4
1
1
GND
2
3
-
2,3
4
+12V
Do not block the vents or look directly
at the LED lights while its on.
10
% 100%
Adjustment
Knob for Yoke
LCD Touch
Screen
Power Switch
OFF
ON
POW
~
ER
DC
12V
DC Power
Connection
Brightness
www.ikancorp.com
