ICOM IC-FR5000, IC-FR5100 Service manual

VHF FM REPEATER

S-14425XZ-C1 Jun. 2008

INTRODUCTION CAUTION

This service manual describes the latest service information for the IC-FR5000 IC-FR5100 VHF FM REPEATER at the time of publication.

MODEL VERSION

IC-FR5000

IC-FR5100 EUR-01 12.5/20.0/25.0 25 W

USA-01 7.5/15/30

CH. SPACING

(kHz)

TX

POWER

50 W

FREQUENCY

RANGE

136–174 MHzEXP-01 12.5/25.0

UNIT ABBREVIATIONS:

F=FRONT UNIT M=MAIN UNIT CN=CONNECT UNIT

NEVER connect the repeater to an AC outlet or to a DC power supply that uses more than specifed. This will ruin the repeater.

DO NOT expose the repeater to rain, snow or any liquids. DO NOT reverse the polarities of the power supply when

connecting the repeater. DO NOT apply an RF signal of more than 20 dBm (100 mW)

to the antenna connector. This could damage the repeater’s front-end.

To upgrade quality, any electrical or mechanical parts and internal circuits are subject to change without notice or obligation.

ORDERING PARTS

Be sure to include the following four points when ordering replacement parts:

1. 10-digit Icom parts numbers

2. Component name

3. Equipment model name and unit name

4. Quantity required

1110003491 S.IC TA31136FNG IC-FR5000 MAIN UNIT 5 pieces 8820001210 Screw 2438 screw IC-FR5000 Top cover 10 pieces

Addresses are provided on the inside back cover for your convenience.

REPAIR NOTES

1. Make sure the problem is internal before disassembling the repeater.

2. DO NOT open the repeater until the repeater is disconnected from its power source.

3. DO NOT force any of the variable components. Turn them slowly and smoothly.

4. DO NOT short any circuits or electronic parts. An insulated tuning tool MUST be used for all adjustments.

5. DO NOT keep power ON for a long time when the repeater is defective.

6. DO NOT transmit power into a Standard Signal Generator or a Sweep Generator.

7. ALWAYS connect a 50 dB to 60 dB attenuator between the repeater and a Deviation Meter or Spectrum Analyzer when using such test equipment.

8. READ the instructions of test equipment throughly before connecting a test equipment to the repeater.

Icom, Icom Inc. and

logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United

Kingdom, Germany, France, Spain, Russia and/or other countries.

SECTION 1 SPECIFICATIONS

M GENERAL

• Frequency coverage 136–174 MHz

• Conventional channels max. 32 ch

• Type of emission Wide Middle – 14K0F3E Narrow

Digital 4K00F1E/4K00F1D/4K00F3E

• Antenna impedance 50 Ω (Nominal)

• Operating temperature range –22˚F to +140˚F (–30˚C to +60˚C) –25˚C to +55˚C

• Power supply requirement

(nominal)

• Current drain (Approx.) Receiving 500 mA (stand-by), 1900 mA (max. audio) Transmitting 15 A (at 50 W) 8.0 A (at 25 W)

• Dimensions

(Projections not included)

• Weight (Approx.) 12 Ib 5

16K0F3E

11K0F3E/11K0F7E/11K0F7D/11K0F7W 8K50F3E ([EXP-01] only)

13.6 V DC (Negative ground) 13.2 V DC (Negative ground)

19 (W)×3

17

M TRANSMITTER

• Output power 50 W 25 W

• Modulation Variable reactance frequency modulation

• Max. frequency deviation Wide ±5.0 kHz Middle – ±4.0 kHz Narrow ±2.5 kHz

• Frequency stability ±0.5 ppm ±0.2 kHz

• Spurious emissions 80 dB typ. 0.25 μW (≤1 GHz), 1.00 μW (>1 GHz)

• Adjacent channel power Wide 76 dB typ. 76 dB typ. Middle – 76 dB typ. Narrow 69 dB typ. 70 dB typ. Digital 65 dB typ. 66 dB typ.

• Audio harmonic distortion 1% typ. (at AF 1 kHz 40% deviation)

• Intermodulation attenuation – 40 dB min.

• Audio frequency response +2 dB to –8 dB of 6 dB/oct. Wide/Middle from 300 Hz to 3000 Hz

• FM Hum and noise

(300 Hz–3000 Hz, 750 µs)

• Audio input impedance (Microphone) 600

Wide 52 dB typ. Narrow 49 dB typ.

Ω

[FR5000] [FR5100]

/

8K50F3E

15

⁄32 (H)×10 1⁄4 (D) in. 483 (W)×88 (H)×260 (D) mm

/32 oz. 5.6 kg

[FR5000] [FR5100]

Narrow from 300 Hz to 2550 Hz

–

1 - 1

M RECEIVER

[FR5000] [FR5100]

• Receive system Double-conversion superheterodyne system

• Intermediate frequencies 1st IF: 46.35 MHz, 2nd IF: 450 kHz

• Sensitivity Wide/Narrow 0.3 μV typ. at 12 dB SINAD –10 dBμV max. at 12 dB SINAD

Wide/Middle/Narrow – –10 dBμV max. at 12 dB SINAD Digital 0.25 μV typ. at 5% BER 0 dBμV emf max. at 1% BER (PN9)

• Squelch sensitivity (at threshold) 0.25 μV typ.

• Adjacent channel selectivity Wide 80 dB typ. (TIA-603-B)

86 dB typ.

85 dB typ. (TIA-603) Middle – 83 dB typ. Narrow 56 dB typ. (TIA-603-B)

77 dB typ.

77 dB typ. (TIA-603) Digital 66 dB typ. (EN 301 166, 400 Hz @1%)

67 dB typ.

63 dB typ. (EN 301 166, PN15 @5%)

• Spurious response Analog 90 dB 80 dB typ. Digital 90 dBµV emf 90 dBµ Vemf typ.

• Intermodulation Wide 78 dB typ. 72 dB typ. Middle – 72 dB typ. Narrow 78 dB typ. 71 dB typ. Digital 75 dBµV emf typ. 76 dBµV emf typ.

• Hum and noise Wide 52 dB typ. – Middle – – Narrow 50 dB typ. – Digital 66 dB typ. –

• Audio output power

(at 5% distortion with a 4 Ω load)

• Audio output impedance 4

Specifications are measured in accordance with TIA–603–B (for Wide and Narrow) or EN 300 166 (Digital) for FR5000. Specifications are measured in accordance with EN 300 086 (for Wide, Middle and Narrow) or EN 301 166 (Digital) for FR5100.

All stated specifications are subject to change without notice or obligation.

4.0 W typ. 3.5 W min.

Ω

1 - 2

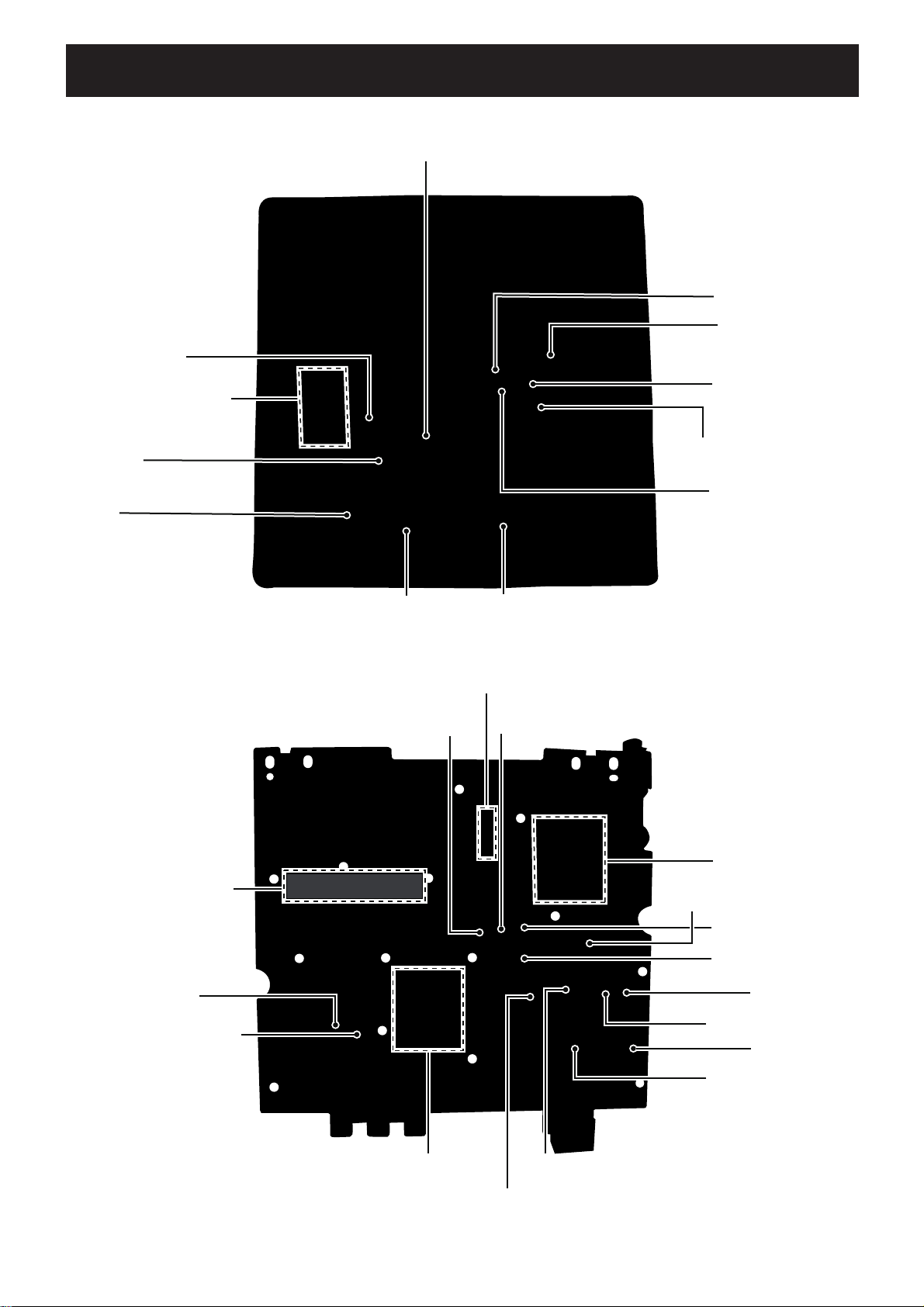

SECTION 2 INSIDE VIEWS

D/A converter (IC20)

• MAIN UNIT (TOP VIEW)

Level converter (IC26)

Optional digital unit slot

CPU clock (X5)

CPU (IC20)

5V regulator (CPU5V) (IC30)

Power SW (VCC line) (Q57)

8V regulator (8V line) (IC27)

8V regulator (T8V line) (Q45)

5V regulator (+5V line) (Q41)

TX power AMP (IC22)

Ref. OSC (X1)

PLL IC (TX lopp) (IC3)

• MAIN UNIT (BOTTOM VIEW)

EEPROM (IC21)

1st mixer (DBM) (D62, L27, 32)

IF IC (IC5)

5V regulator (DSP5V line) (IC39)

Discriminator (X3)

RX VCOs

PLL IC (RX loop) (IC4)

2nd IF filter (Wide) (FI1) 2nd IF filter (Narrow) (FI2)

FUNCTION

(Ref.No.) AF SW (IC35)

AF AMP

(IC34) DSP (IC12)

TX VCOs

Liner codec (IC8)

FUNCTION (IC40)

2 - 1

AF POWER AMP. (IC509)

SPEAKER SW (Q508)

• FRONT UNIT

ANALOG SW (IC506)

LCD DRIVER (IC500)

FRONT CPU (IC503)

CLOCK OSC (X501)

2 - 2

SECTION 3 DISASSEMBLY INSTRUCTION

1. Removing the front panel

q Unscrew 11 screws from the top cover.

P

0

P

1

P

2

P

3

P

4

e Disconnect the cable from the MAIN UNIT assembly, and remove the front panel.

w Unscrew 7 screws from the front panel.

P

0

P

1

P

2

P

3

P

4

P

0

P

1

P

2

P

3

P

4

2. Removing the MAIN UNIT assembly

q Uscrew 5 screws which settles the MAIN UNIT assembly.

w Turn the MAIN UNIT assembly upside down.

3. Removing the MAIN UNIT

q Unscrew 9 screws, and remove the cover. (If you are going to install an optional unit, see page 4-1 for the installation.)

PWR TX RX

TX RX

PWR

PWR TX RX

(To be continued to next page)

3 - 1

MAIN

J4

Black

Red

w Unsolder 2 points at the ANT cases. e Unscrew 4 screws from the ANT cases,

and remove them.

r Disconnect the flat cabe from J4 and the

speaker cable from J9.

Flat cable

J4

Disconnect

MAIN

Unsolder

ANT case

Unscrew

ANT case

t Unsolder 2 points at the bottom of ANT connectors. y Unsolder 4 points at the PA module leads. u Unscrew 2 screws from W4.

J9J9J9

Disconnect

i Remove the clip from the side of chassis. o Unscrew 15 screws from the MAIN UNIT, then take off

the MAIN UNIT PCB from the chassis.

Unsolder 2 points

Black

Red

W4

Unscrew

W4

Unsolder 4 points

Clip

15 screws

3 - 2

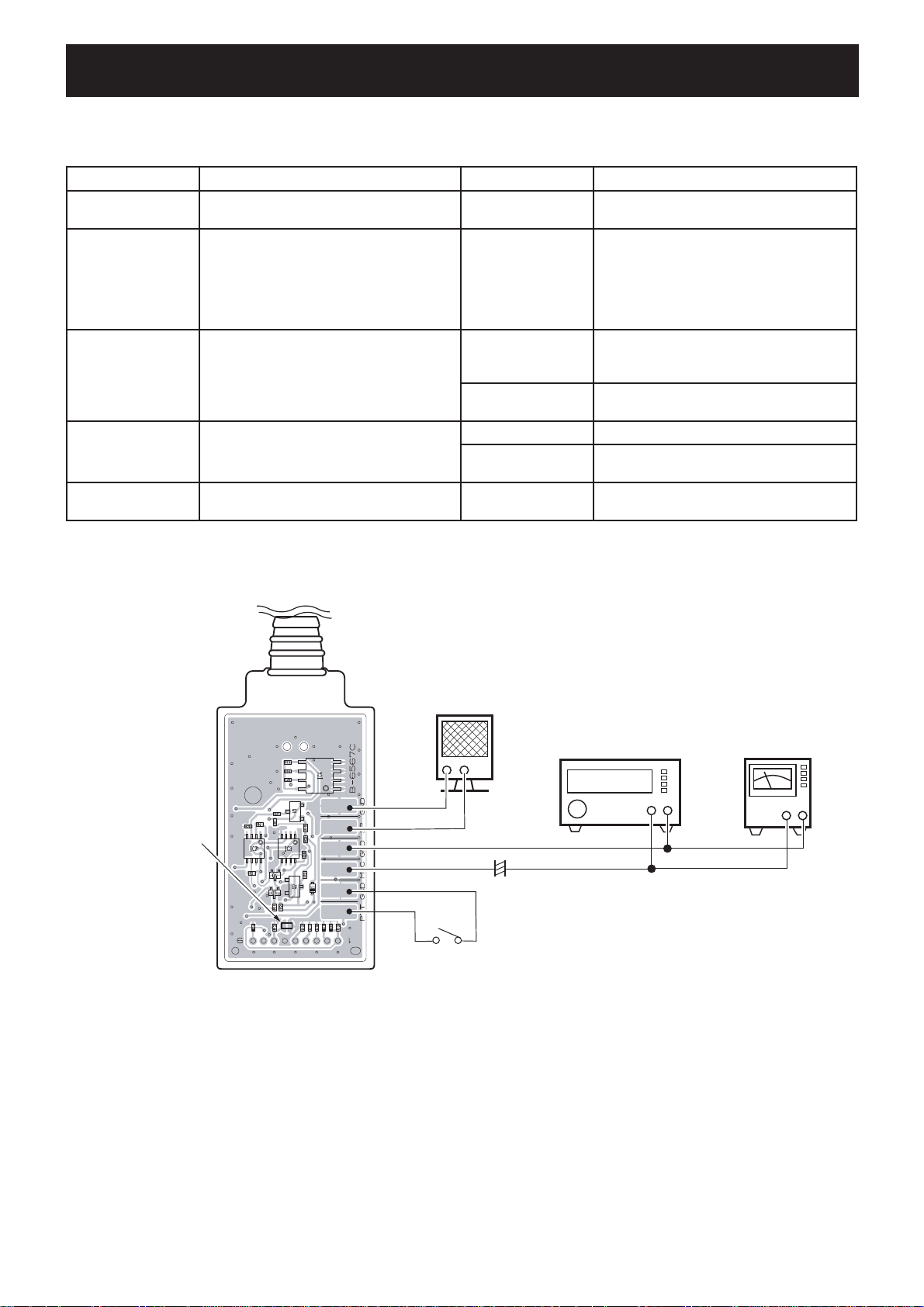

SECTION 4 OPTIONAL UNIT INSTALLATION

Install UT-109R or UT-110R as follows.

q Disassembly the repeater until the MAIN UNIT is exposed. (See the page 3-1) w Modify the patterns on the MAIN UNIT as below.

A and F; Cut the pattern

e Remove the protective paper of optional unit, and install it to the J1 as below.

r Replace the cover, screws, etc. to recover the whole assembly.

B; Short the pattern

PWR TX RX

NOTE: When uninstalling the scrambler unit

Be sure to recover the disconnected or connected points, otherwise no TX modulation or AF output is available.

4 - 1

SECTION 5 CIRCUIT DESCRIPTION

5-1 RECEIVER CIRCUITS

RF BPF CIRCUITS

RX signals from the RX antenna connector (J11) are passed through the 1st stage of BPF (D28, 29, 31, 32, L44, 47) then amplified by the RF AMP (Q36). The amplified RX signals are passed through the 2nd stage of BPF (D28, 29, 31, 32, L44, 47) to remove unwanted signals for good image response then applied to the 1st mixer (L27, 32, D62).

Being mixed with 1st LO signals from the RX VCO, the RX signals are converted into the 46.35 MHz 1st IF signal.

The 1st and 2nd stage of the BPFs are tuned to the pass band frequency by tracking voltage “T1” and “T2” from the DAC (IC17). The gain of low noise RF AMP (Q36) is controlled by the AGC circuit (Q39, D27) according to the RX signal strength.

IF FILTER/IF AMP CIRCUITS

The 1st IF signal from the 1st mixer (L27, 32, D62) is ampliﬁ ed by the buffer AMP (Q63, 64, 71) and 1st stage of IF AMP (Q19) then ﬁ ltered by crystal ﬁ lter (FI3 or FI4), and then applied to the IF IC (IC5).

The crystal ﬁ lters (FI3 or FI4) are switched by the “NWC1” signal from the CPU (IC20) according to the RX mode; Wide (Middle), Narrow or Digital.

Being mixed with the 2nd LO, the 1st IF signal is converted into the 450 kHz 2nd IF signal. The 2nd IF signal is passed through the external ceramic filter (FI1 or FI2), then FMdemodulated by the internal quadrature detector with discriminator (X3). The demodulated AF signals are ampliﬁ ed by the AF AMP (IC36), and applied to the LINER CODEC (IC8). The AF signals are converted into the digital audio signal then processed by the DSP (IC12) then recovered to the analog audio signals.

The ceramic filter (FI1 or FI2) is switched by the “NWC2” signal from the CPU (IC20) according to the RX mode; Wide (Middle), Narrow or Digital.

5-2 TRANSMITTER CIRCUITS

MODULATION CIRCUITS

The demodulated signals are applied to the MIC AMP (IC25). The amplified Demodulated signals are passed through the SW IC (IC35) which selects the source of Demodulated signals from J5 (from MIC) and from D-SUB connector (DEXM).

The Demodulated signals from the SW IC are ampliﬁ ed by an AMP (IC1) then applied to the LINEAR CODEC IC (IC8) where the Demodulated signals are converted in to the digital audio signals.

The converted digital audio signals are processed (preemphasis, limit, etc.) by the DSP (IC12), then recovered to the analog audio signals by LINER CODEC IC (IC8). The AF signals are ampliﬁ ed by IC1 and level-adjusted by Electronic VR (IC2), then applied to the TX VCO and TCXO (X1) as the modulation signals.

SIGNALING (ENCODE)

The Continious Tone (CTCSS/DTCS), Single Tone (5-Tone/ DTMF/CW_ID) signals are encoded, and mixed with Demodulated signals in the DSP (IC12).

YGR/PA CIRCUITS

The output signals from TX VCOs are amplified to the level required for the PA module by pre-AMPs (Q37, 38), then ampliﬁ ed b y the PA module (IC22) to obtain TX output pow er. The power-ampliﬁ ed TX signal is passed through the ANT SW (D44) and LPF (for harmonics removal) then applied to the TX antenna.

APC CIRCUIT

D45, D48 and D49 detect the TX power, and the detected voltage is applied to the IC23 in APC circuit. Comparing the detected voltage which is in proportion to the TX power and power setting voltage as the reference voltage, IC23 adjusts the bias voltage of PA module (pin 2: VGG terminal) and preAMP (Q38) to control the TX pow er.

The 450 kHz 2nd IF signal is ampliﬁ ed by IC7 then applied to the DSP (IC12) via ADC (IC9), and digital-demodulated. The processed digital signal is converted into the analog audio signal by the LINEAR CODEC (IC8).

AF AMPLIFIER CIRCUITS

The AF signals from the LINEAR CODEC are ampliﬁ ed by the AF AMP (IC36) and level-adjusted by DAC (IC2), then applied to IC28 via IC29 to be power-ampliﬁ ed.

SIGNALING (DECODE)

The Continious Tone (CTCSS/DTCS), Single Tone (5-Tone/ DTMF/CW_ID) signals in the demodulated AF signals are decoded in the DSP (IC8).

5 - 1

5-3 FREQUENCY SYNTHESIZER CIRCUITS

RX PLL CIRCUIT

The RX PLL IC (IC4) outputs resulting signal; phase-comparison of reference signal (15.3 MHz) from the TCXO (X2) and fedback OSC signal from the RX VCO. The phase-difference signal is passed through the active loop ﬁ lter (Q11, 14) and applied to the RX VCO as the lock voltage. The voltage of RX LV (lock voltage) is adjusted to appropriate one by “RX LVA” signal.

A portion of reference frequency signal (15.3 MHz) from the TCXO (X2) is passed through the tripler (Q2) to extract 3rd harmonic, then applied to the IF IC (IC5).

RX VCO

There are 2 VCOs; VCO for lower band (Q21, D8, 16, L17) and higher band (Q20, D7, 15, L20), and these VCOs (=OSC freq.) are switched by the VCO SW (Q26, 30). The OSC frequencies of these VCOs are adjusted (=Locked) to desired one by the RX LV signal (Lock Voltage). The output signals of these VCOs are applied to the 1st mixer (L27, 32, D62) via buffer (Q25).

A portion of output signal from the buffer (Q25) is applied to the doubler (Q32) to extract 2nd harmonic, then applied to the PLL IC (IC4) via the LPF.

TX PLL CIRCUIT

TX PLL IC (IC3) outputs resulting signal; phase-comparison of reference signal (15.3 MHz) from the TCXO (X1) and fedback OSC signal from the TX VCO. The phase-difference signal from the PLL IC (IC3) is passed through the active loop ﬁ lter (Q10, 13) and applied to the TX VCO as the lock voltage. The rock voltage “TX LV” is adjusted to appropriate one by the LVA signal. The OSC signal of TCXO (X1) is FMmodulated by applied modulation signals.

5-4 OTHER CIRCUITS

POWER SUPPLY

The power supply is switched by Q57 (ON/OFF). 5V (REF5) from the regulator (IC30) is passed through L58 to supply to CPU. The 5V also supplies to other sections of the repeater via Q41 as “+5V.”

8V from the regulator (IC27) are supplies to various circuits, and also supplies to TX circuits as “T8V” and RX circuits as “8V.”

5V from the regulator (IC39) supplies DSP as “DSP5” and supplies logic circuits; CPU, DSP, etc. via regulators (IC13, 14, 15).

The regulator “F8V” (IC41) provides the supply for FRONT UNIT.

COMPANDER

The compander in the DSP (IC12) compresses the amplitude of Demodulated signals in TX, and expands in RX to provide high quality, high S/N ratio recovered sounds.

LEDs

DS1 (BUSY), DS2(PWR) and DS3 (TX) indicate the repeater’s status: Power ON, T/RX and Cloning.

TX VCO CIRCUITS

There are 2 VCOs; VCO for lower band (Q23, D10, 14, L62) and higher band (Q22, D9, 13, L14), and these VCOs (=OSC frequencies) are switched by the VCO SW (Q27, 28). The OSC frequencies of these VCO are adjusted (=Locked) to desired one by the TX LV signal (Lock Voltage).

The modulation signals applied to the Var iable Capacitor (VD; D18 or D30) vary the capacitor reactance of it for FM modulation. The output signals of these VCOs are applied to the YGR/PA circuits via buffers (Q24, 35).

A portion of these output signal is passed through the doubler (Q33) to extract 2nd harmonic, then applied to the PLL IC (IC3) via the LPF.

5 - 2

5-5 CPU (M: IC20) PORT ALLOCATION

Pin No.

1–11 D5–D15 DSP data bus line. I/O –

15–28 A1–A14 DSP data bus line. I/O –

29 HRW DSP data line. I/O – 32 FANS Cooling fan (CH: MF1) rotation detect. I "H"=While the cooling fan is rotating. 33 TLED TX indicator LED control signal. O "H"=TX 34 LEDR RX indicator LED control signal. O "H"=Squelch open. 35 PLSCK PLL (M: IC4) serial clock. O – 36 PLSSO PLL (M:IC4) serial data. O – 41 PWON Power line "VCC" control signal. O "H"=Power ON. 42 AFON2 AF power AMP. (M: IC28) control signal. O "H"=AF power AMP ON.

43 AFON AF output select signal. O 44 ESCL Serial clock to the EEPROM (M: IC21). O –

45 ESDA Serial data to the EEPROM (M: IC21). O – 46 TXC TX power line "T8V" control signal. O "H"=TX 47 RXC RX power line "R8V" control signal. O "H"=RX 48 RPLST RX PLL (M: IC4) strobe. O – 49 TPLST TX PLL (M: IC3) strobe. O – 50 RUNLK RX PLL (M: IC4) unlock signal. I "L"=Unlocked 51 TUNLK TX PLL (M: IC3) unlock signal. I "L"=Unlocked 52 XCTS Serial data from the RS-232 line driver (M: IC26). I – 53 XRTS Serial data to the RS-232 line driver (M: IC26). O – 55 EXDA External D/A port. O – 56 BEEP Beep sounds (square waves). O –

57–59 OPV3–OPV1 Optional unit detect. I –

60 MMUT MIC mute signal to the installed optional unit. O "H"=MIC mute 61 HANG Microphone hang-up detect. I "L"=Hang-up 62 PTT [PTT] key input. (pull up) I – 63 RMUT RX mute signal to the installed optional unit. O "H"=RX mute 64 EXAD External A/D port. I – 65 TEMP Temperature detect. I – 68 RLVIN RX PLL lock voltage. I – 69 BATV Voltage monitor (divided voltage of "VCC"). I – 70 TLVIN TX PLL lock voltage. I – 71 RSSI RSSI signal from the IF IC (M: 5). I – 74 XTXD External data to the RS-232 driver (M: IC26). O – 75 XRXD External data from the RS-232 driver (M: IC26). I – 76 TMUT TX mute signal. O "H"=TX mute 77 HINT DSP IC control signal. O – 78 INT1 DSP IC control signal. O – 79 HRDY DSP IC control signal. O – 81 HDS1 DSP IC control signal. O – 82 HDS2 DSP IC control signal. O –

100 RES CPU reset signal from the reset IC (F: IC501). O –

101–108 EXIO1–EXIO8 External data bus line. I/O +5 V pull-up

112 POSW [PWR] key input. (pull-up) I – 113 NOIS Noise detect. I "H"=RX signal is absent (squelch close). 114 CSFT Clock frequency shift signal. O – 119 SSO Serial data to the seri-para converter (M: IC31). O – 120 SCK Clock signal to the seri-para converter (M: IC31). O – 121 EXIO9 External data bus line. I/O +5 V pull-up 122 DSDA Serial data to the DAC (M: IC17). O –

LINE NAME DESCRIPTION

IN/

OUT

"H= AF signals are output from the

[ACCESSORY CONNECTOR].

CONDITION

5 - 3

5-5 CPU (M: IC20) PORT ALLOCATION (continued)

Pin No.

123 DAST Strobe to the DAC (M: IC2). O – 125 FMDA Data from the FRONT CPU (F: IC502). I – 126 MFDA Data to the FRONT CPU (F: IC502). O – 127 OPT2 Port for optional unit. O – 128 OPT1 Port for optional unit. I – 129 OPT3 Port for optional unit. I – 131 CSO Port for optional unit. O – 132 CSI Port for optional unit. I – 133 EXOE Output enable signal to the seri-para converter (M: IC31). O – 134 EXST Strobe to the seri-para converter (M: IC31). O – 135 DRES Reset signal to the DSP IC (M: IC12). O – 136 HCS DSP data line. I/O – 138 GPIO2 DSP data line. I/O – 139 GPIO1 DSP data line. I/O –

140–144 D0–D4 DSP data bus line. I/O –

LINE NAME DESCRIPTION

IN/

OUT

CONDITION

5 - 4

SECTION 6 ADJUSTMENT PROCEDURE

6-1 PREPARATION

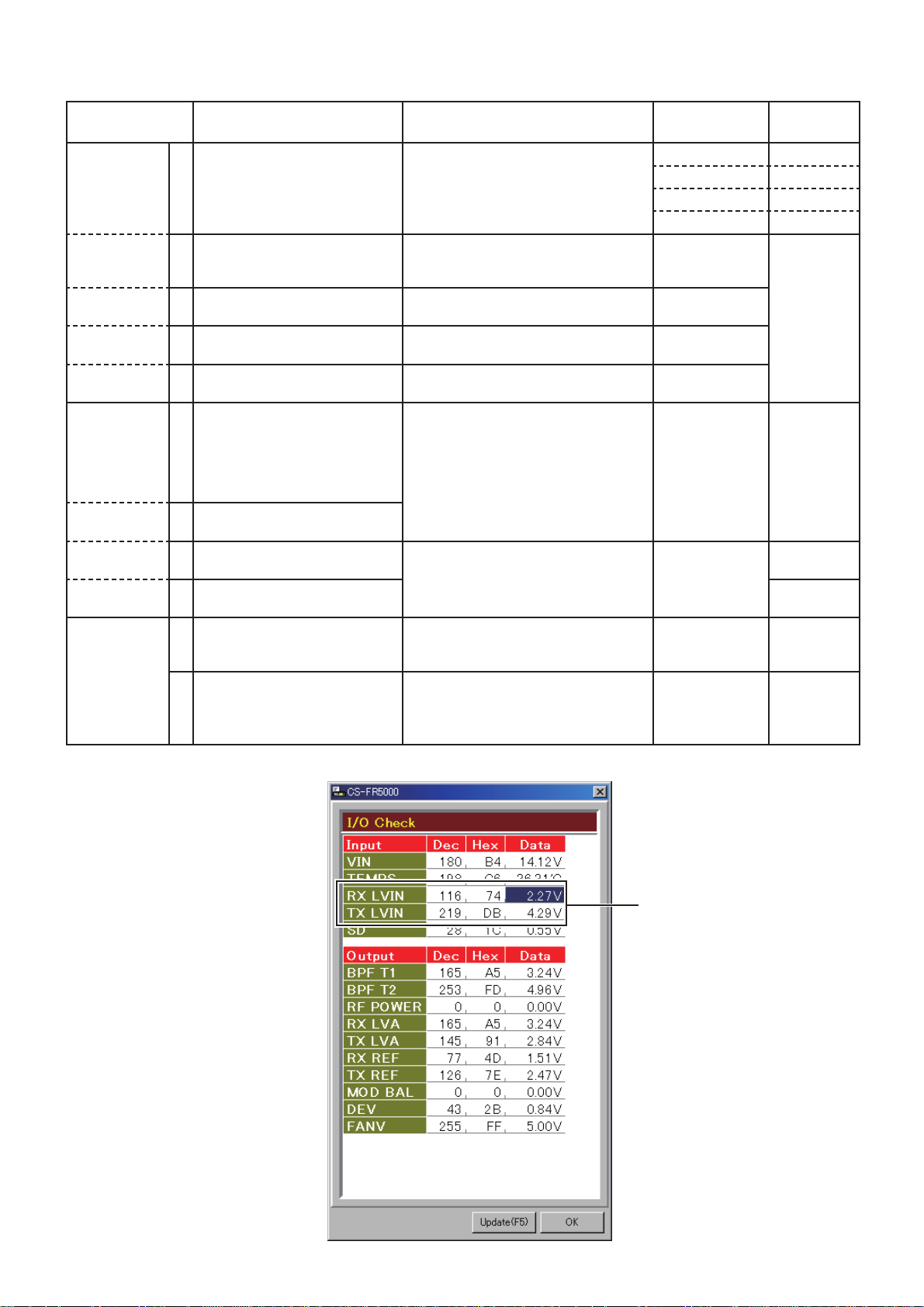

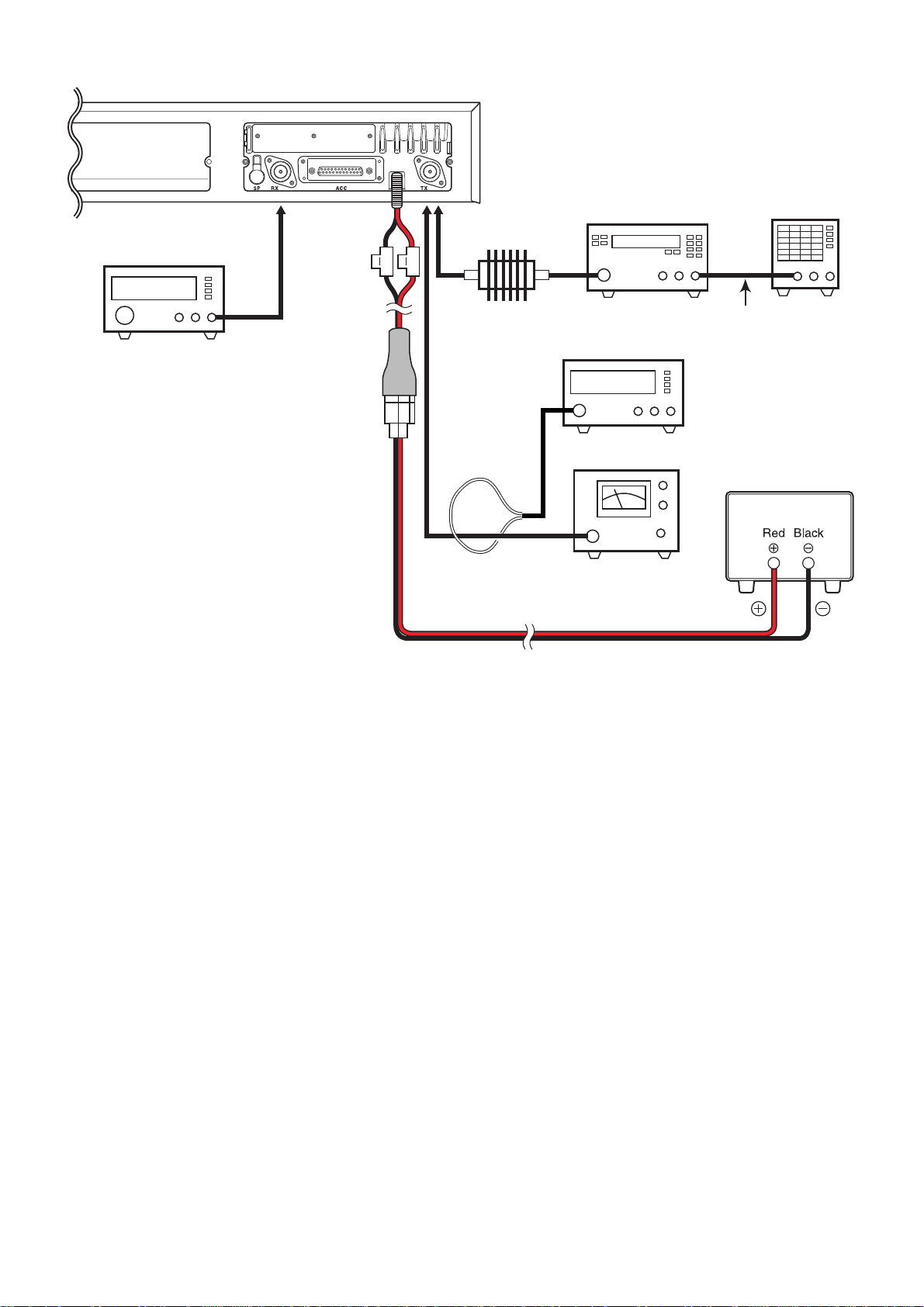

¤ REQUIRED EQUIPMENTS

EQUIPMENT

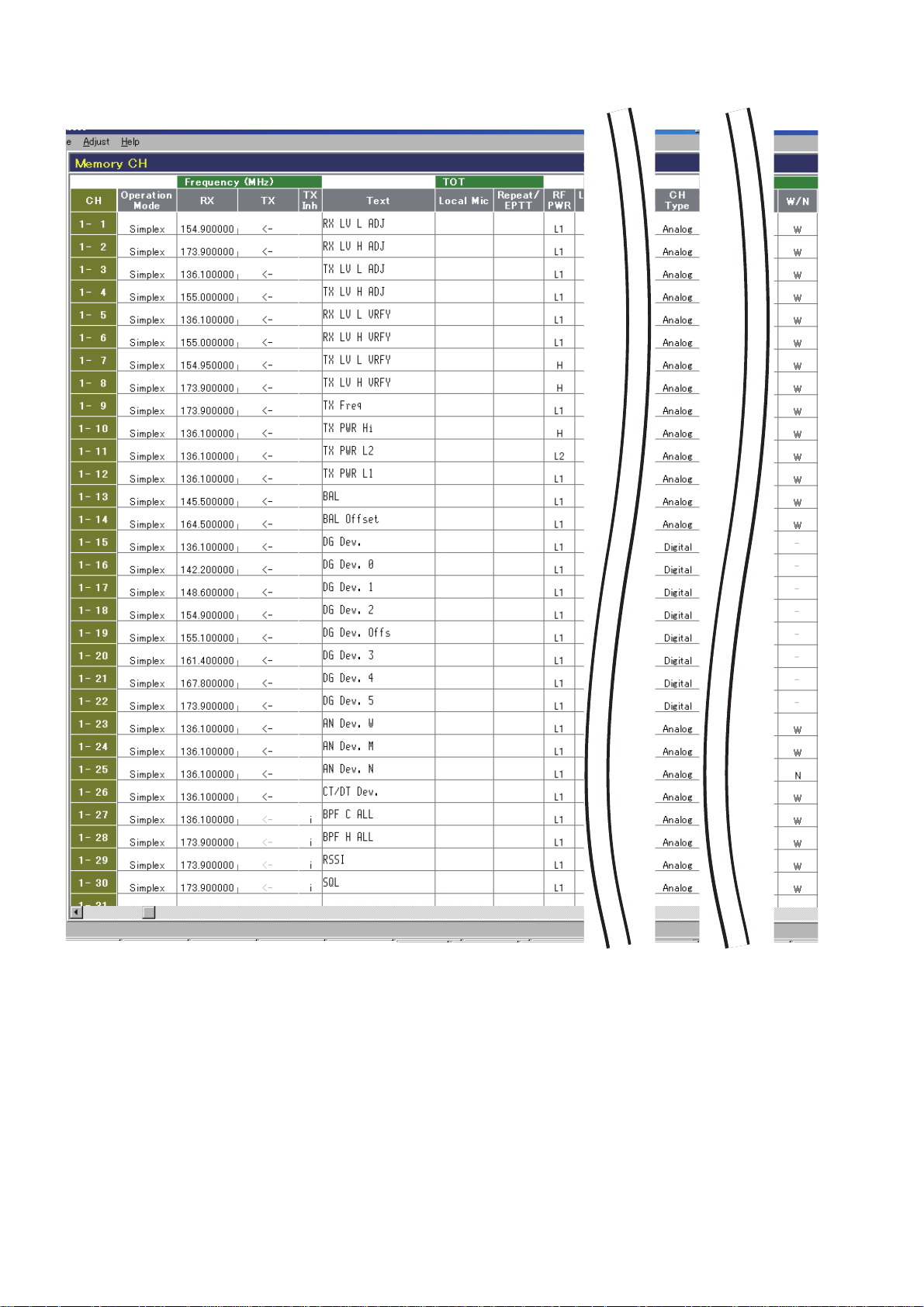

Adjustment Software

Power Supply

RF Power Meter (terminated type)

Frequency Counter

Modulation Analyzer

"CS-FR5000" (Revision 1.0 or later) JIG cable Output voltage : Current capacity : More than 20 A

[FR5000] More than 10 A [FR5100]

Measuring range : Frequency range : 100–300 MHz

Impedance : 50 SWR : Less than 1.2 : 1

Frequency range : 0.1–300 MHz Frequency accuracy Input level : Less than 1 mW

Frequency range : 30–300 MHz Measuring range : 0 to ±10 kHz

SPECIFICATION

13.6 V DC

13.2 V DC

1–60 W 1–30 W

Ω

: ±1 ppm or better

[FR5000] [FR5100]

EQUIPMENT SPECIFICATION

Modiﬁ ed OPC-1122U (USB type) (see the illust below)

Power attenuation : 40 dB Capacity : More than 60 W

Attenuator

[FR5000] More than 30 W [FR5100]

Standard Signal Generator (SSG)

Audio Generator

Frequency range : 0.1–300 MHz Output level : 0.1 mV to 32 mV (–127 to –17 dBm)

Frequency range : 300–3000 Hz Output level : 1–500 mV

AC Millivoltmeter Measuring range : 10 mV to 10 V Oscilloscope

External Speaker

Frequency range : DC–20 MHz Measuring range : 0.01–20 V

Input impedance : 4 Capacity : More than 5 W

Ω

¤ JIG CABLE

OPC-1122U

(USB type Cloning cable)

Add a jumper wire here

EXT. SPEAKER

GND

SP

GND

MIC

GND

PTT

(5 W/4 Ω)

+−

AUDIO GENERATOR

(300–3000 Hz/1–100 mV)

+

4.7 µF

+−

AC MILLIVOLT METER

(10 mV to 10 V)

+−

6 - 1

¤ CONNECTION

STANDARD SIGNAL GENERATOR

(0.1–300 MHz)

20 A fuses

ATTENUATOR

(30 dB/60 W)

(Loose Coupling)

DC power cable

MODULATION ANALYZER

(0.1–300 MHz)

FREQUENCY COUNTER

(0.1–300 MHz)

RF POWER METER

OSCILLOSCOPE

(DC to 10 kHz)

(Detect output)

DC power supply

Red

Black

6 - 2

¤ ADJUSTMENT CHANNEL LISTS

Clone the adjust channels into the repeater before starting adjustment. Each channel must be assigned [Frequency], [RF PWR], [CH Type], [TX C. Tone] and [W/N] as below.

• Channel list

6 - 3

¤ WHOLE PROCEDURE OF THE ADJUSTMENT

q Connect the repeater and PC with the JIG cable (see the page 6-2).

Tur n the repeater power ON.

w

Boot up 'CS-FR5000.'

e

Set the [Digital Function] to "Enable."

r

Click or [Read <– TR] in the [Adjust] menu, then the "Adjust Utility" window (see the page 6-5) appears.

t

y Set or modify adjustment values as speciﬁ ed in the guidances on the pages 6-6 to 6-9.

*For [FR5100]:

Set the [Wide Band Width] to "Middle" when adjust "ANALOG DEVIATION" in Middle mode.

6 - 4

¤ ADJUST UTILITY WINDOW

Mode setting

TX output power

Analog deviation

CTCSS/DTCS deviation

Squelch

TX frequency

Lock volatge

(Preset)

Lock volatge

(Adjustment)

S-meter

Modulation balance

Modulation balance (High)

Digital deviation

Receive sensitivity (Band center)

Receive sensitivity (Band high)

6 - 5

6-2 FREQUENCY ADJUSTMENT

1) Select an adjustment item using cursor or [↑] / [↓] keys of the PC’s keyboard.

2) Set or modify the adjustment value as speciﬁ ed using [←] / [→] keys of the PC’s keyboard, then push the [ENTER] ke y.

ADJUSTMENT ADJUSTMENT CONDITION OPERATION

PLL LOCK VOLTAGE

-Preparation-

-AdjustRX (Band center)

RX (Band high)

TX (Band low)

TX (Band center)

LOCK VOLTAGE VERIFY

RX (Band low)

RX (Band center)

TX (Band center)

TX (Band high)

TX FREQUENCY

1

–

2 • CH. : 1-1

• Receiving

3 • CH. : 1-2

• Receiving

4 • CH. : 1-3

• T r ansmitting

5 • CH. : 1-4

• T r ansmitting

1 • CH. : 1-5

• Receiving

2 • CH. : 1-6

• Receiving

3 • CH. : 1-7

• T r ansmitting

4 • CH. : 1-8

• T r ansmitting

1

–

2 • CH. : 1-9

• T r ansmitting

1) Connect an RF power meter to the TX antenna.

2) Set the preset adjustment value on the adjustment utility window.

• Select the item [RX LVA L], then

push the [ENTER] key. [RX LVA L]

•

Select the item [RX LVA H], then push the [ENTER] key.

• Select the item [TX LVA L], then push

the [ENTER] key.

• Select the item [TX LVA H], then

push the [ENTER] key.

• Verify the lock voltage at each

channels on the [RX LIVIN] item on the "I/O Check window" as below.

• Verify the lock voltage at each

channels on the [TX LIVIN] item on the "I/O Check window" as below.

1) Set the item [TX Mode] to "1."

2) Connect an RF power meter to the TX antenna.

1) Adjust the frequency using [←] / [→] keys of the PC’s keyboard.

2) Push the [ENTER] key to store the adjust value.

ADJUSTMENT

ITEM

[LV (RX L)] 161 [3.15V]

[LV (RX H)] 153 [3.00V]

[LV (TX L)] 51 [1.0V] [LV (TX H)] 36 [0.7V]

[RX LVA H]

[TX LVA L]

[TX LVA H]

[RX LIVIN] (I/O Check

window)

[TX LIVIN]

(I/O Check

window)

[TX Mode]

[TX REF]

(Automatic

adjustment)

173.9000 MHz

VALUE

0.5–1.5 V (Verify)

3.0–4.5 V (Verify)

2.0–3.5 V (Verify)

"1"

• I/O CHECK WINDOW

Lock voltage verify

*The above voltages are just an example.

6 - 6

6-3 TRANSMIT ADJUSTMENT

1) Select an adjustment item using cursor or [↑] / [↓] keys of the PC’s keyboard.

2) Set or modify the adjustment value as speciﬁ ed using [←] / [→] keys of the PC’s keyboard, then push the [ENTER] ke y.

ADJUSTMENT ADJUSTMENT CONDITION OPERATION

TX Output Power

-Preparation-

1

–

• Connect an RF power meter to the TX antenna connector.

ADJUSTMENT

ITEM

––

VALUE

-Adjust(Hi Power)

(L2 Power) 3 • CH. : 1-11

(L1 Power) 4 • CH. : 1-12

MODULATION BALANCE

-Preparation-

-Adjust(TX VCO 1)

(TX VCO 2) 4 • CH. : 1-14

DIGITAL DEVIATION

-Preparation-

-Adjust(Band 1)

(Band 2) 4 • CH. : 1-16

(Band 3) 5 • CH. : 1-17

(Band 4) 6 • CH. : 1-18

(Band 5) 7 • CH. : 1-19

(Band 6) 8 • CH. : 1-20

(Band 7) 9 • CH. : 1-21

(Band 8) 10 • CH. : 1-22

2 • CH. : 1-10

• T r ansmitting

1• Connect a Modulation Analyzer

to the TX antenna connector through an attenuator.

2 – • Set the item [TX Mode] to "2." [TX Mode] 3 • CH. : 1-13

• T r ansmitting

1 – • Set the item [TX Mode] to "16." [TX Mode] 2• Connect a Modulation Analyzer

to the TX antenna connector through an attenuator.

3 • CH. : 1-15

• T r ansmitting

Adjust the TX output power using [←]

1)

/ [→] keys of the PC’s keyboard.

2) Push the [ENTER] key to store the

adjust value.

• Set the Modulation Analyzer as;

HPF : OFF LPF : 20 kHz De-emphasis : OFF Detector : (P-P)/2

1) Adjust the wave form using [←] / [→]

keys of the PC’s keyboard.

2) Push the [ENTER] key to store the

adjust value.

• Set the Modulation Analyzer as;

HPF : OFF LPF : 20 kHz De-emphasis : OFF Detector : (P-P)/2

1) Adjust the deviation using [←] / [→]

keys of the PC’s keyboard.

2) Push the [ENTER] key to store the

adjust value.

50 W

[Power(Hi)]

[Power(L2)]

[Power(L1)]

––

[BAL]

[BAL Offset

(High]

––

[MOD (Digital)]

[MOD Slant

Band 0]

[MOD Slant

Band 1]

[MOD Slant

Band 2]

[MOD Offset

(High)]

[MOD Slant

Band 3]

[MOD Slant

Band 4]

[MOD Slant

Band 5]

[FR5000]

25 W

[FR5100]

25 W

[FR5000]

10 W

[FR5100]

5 W

[FR5000]

2.5 W

[FR5100]

"2"

(square wave

form)

"16"

±1.39–1.43

kHz

6 - 7

6-3 TRANSMIT ADJUSTMENT (continued)

1) Select an adjustment item using cursor or [↑] / [↓] keys of the PC’s keyboard.

2) Set or modify the adjustment value as speciﬁ ed using [←] / [→] keys of the PC’s keyboard, then push the [ENTER] ke y.

ADJUSTMENT ADJUSTMENT CONDITION OPERATION

ANALOG DEVIATION

-Preparation-

-Adjust(Wide)

(Middle) <[FR5100] only>

(Narrow) 6 • CH. : 1-25

CTCSS/DTCS DEVIATION

-Preparation-

-Adjust- 2 • CH. : 1-26

1 – • Set the item [TX Mode] to "1." [TX Mode] 2• Connect a Modulation Analyzer

to the TX antenna connector through an attenuator.

3• Connect an Audio Generator

to the MIC line through the JIG cable.

4 • CH. : 1-23

• T r ansmitting

5 • CH. : 1-24

• [Wide Band Width] : "Middle" (see the page 6-4)

• T r ansmitting

1

–

• T r ansmitting

• Set the Modulation Analyzer as;

HPF : OFF LPF : 20 kHz De-emphasis : OFF Detector : (P-P)/2

• Set the Audio Generator as;

Modulation : 1050 Hz Level : 40 mVrms Waveform : Sine wave

1) Adjust the deviation using [←] / [→]

keys of the PC’s keyboard.

2) Push the [ENTER] key to store the

adjust value.

• Set the item [TX Mode] to "3."

1) Adjust the deviation using [←] / [→]

keys of the PC’s keyboard.

2) Push the [ENTER] key to store the

adjust value.

ADJUSTMENT

ITEM

––

[MOD (Wide)]

[MOD (Middle)]

[MOD (Narrow)]

[TX Mode]

[CTCSS]

±4.05–4.15

±3.15–3.25

±2.05–2.15

±0.68–0.72

VALUE

"1"

kHz

"3"

kHz

6-4 RECEIVE ADJUSTMENT

1) Select an adjustment item using cursor or [↑] / [↓] keys of the PC’s keyboard.

2) Set or modify the adjustment value as speciﬁ ed using [←] / [→] keys of the PC’s keyboard, then push the [ENTER] ke y.

ADJUSTMENT ADJUSTMENT CONDITION OPERATION

RECEIVE SENSITIVITY

-Preparation-

-Adjust(Band center)

(Band high) <[FR5000] only>

1 – • Set the item [RX Mode] to "1." [RX Mode] 2• Connect an SSG to the RX

antenna connector.

3 • CH. : 1-27

• Receiving

4 • CH. : 1-28

• Receiving

• Set the SSG as;

Level : +20 dB Modulation : 1 kHz Deviation : 3.5 kHz

1) Set the SSG as;

Frequency : 136.100 MHz

2) Select the item [BPF C ALL], then

push the [ENTER] key.

1) Set the SSG as;

Frequency : 173.900 MHz

2) Select the item [BPF H ALL], then

push the [ENTER] key.

μ

ADJUSTMENT

ITEM/POINT

––

[BPF C ALL]

(Automatic

adjustment)

[BPF H ALL]

VALUE

"1"

6 - 8

6-4 RECEIVE ADJUSTMENT (continued)

1) Select an adjustment item using cursor or [↑] / [↓] keys of the PC’s keyboard.

2) Set or modify the adjustment value as speciﬁ ed using [←] / [→] keys of the PC’s keyboard, then push the [ENTER] ke y.

ADJUSTMENT ADJUSTMENT CONDITION OPERATION

S-METER

-Preparation-

-Adjust(S3 level)

(S1 level) 3 • CH. : 1-29

SQUELCH

-Preparation-

-Adjust- 3 • CH. : 1-30

NOTE: "RECEIVE SENSITIVITY" MUST be adjusted before "S-METER." When "RECEIVE SENSITIVITY" is re-

adjusted, "S-METER" MUST be re-adjusted too.

1• Connect an SSG to the RX

antenna connector.

2 • CH. : 1-29

• Receiving

1 2• Connect an SSG to the RX

antenna connector.

• Receiving

–

• Set the SSG as;

Frequency : 173.900 MHz Modulation : 1 kHz Deviation : 3.5 kHz

1) Set the SSG as;

Level : +23 dB

2) Select the item [RSSI S3 Level],

then push the [ENTER] key to store the adjust value.

1) Set the SSG as;

Level : –7 dB

2) Select the item [RSSI S1 Level],

then push the [ENTER] key, to store the adjust value.

• Set the item [SQL Level] to "2." [SQL Level] "2"

• Set the SSG as;

Frequency : 173.900 MHz Modulation : 1 kHz Deviation : 3.5 kHz Level : –14 dB

1)

Decrease the adjustment value [SQL] to close the squelch once, then increase the value to open the squelch.

2) Select the item [SQL], then push

the [ENTER] key to store the adjust value.

μ

ADJUSTMENT

ITEM/POINT

––

[RSSI S3 Level]

[RSSI S1 Level]

––

[SQL]

(Automatic

adjustment)

(Automatic

adjustment)

(Automatic

adjustment)

VALUE

6 - 9

SECTION 7 PARTS LIST

[FRONT UNIT]

REF ORDER NO. NO.

IC500 1130009121 S.IC S1D15206F00A200 B 69.4/35.9 IC501 1110005771 S.IC S-80942CNMC-G9CT2G B 105.3/24 IC502 1140014580 S.IC uPD78F1153GK-GAK-AX B 101.3/38.7 IC503 1110005350 S.IC NJM2870F05-TE1-#FZZB B 47.2/30.5 IC506 1140013200 S.IC CD4053BPWR B 39.1/31.7 IC508 1110002751 S.IC TA75S01F (TE85R,F) B 143/18 IC509 1110006770 S.IC TDA8547TS/N B 28.4/55.8

Q500 1590001050 S.TR DTC114TUA T106 B 148.4/41.4 Q501 1590001050 S.TR DTC114TUA T106 B 161.8/34.6 Q502 1590001050 S.TR DTC114TUA T106 B 161.8/41.4 Q503 1590001050 S.TR DTC114TUA T106 B 148.4/34.6 Q504 1590001050 S.TR DTC114TUA T106 B 91.4/45.6 Q506 1590001190 S.TR XP6501-(TX) .AB B 32.9/48.1 Q508 1520000460 S.TR 2SB1132 T100 R B 36.9/52.6 Q510 1590001050 S.TR DTC114TUA T106 B 152.8/53.2 Q511 1590001050 S.TR DTC114TUA T106 B 166.2/53 Q513 1590001060 S.TR DTA114TUA T106 B 168.7/53 Q514 1590001060 S.TR DTA114TUA T106 B 160.1/49.6 Q515 1590001060 S.TR DTA114TUA T106 B 155.3/53.2 Q516 1590001060 S.TR DTA114TUA T106 B 145.3/49.9 Q517 1590001050 S.TR DTC114TUA T106 B 160.1/46.9 Q518 1590001050 S.TR DTC114TUA T106 B 145.3/47

D503 1790001260 S.DIO MA2S077-(TX) B 112.3/33.9 D504 1790001250 S.DIO MA2S111-(TX) B 95/45.8 D505 1790001450 S.DIO RB160L-40 TE-25 B 41.8/26.6 D506 1790001450 S.DIO RB160L-40 TE-25 B 63.2/6.6 D507 1790000950 S.ZEN MA8056-M (TX) B 160.8/29.9 D508 1750000370 S.DIO DA221 TL B 153.2/27.7 D509 1750000370 S.DIO DA221 TL B 166.4/28.1 D510 1790001250 S.DIO MA2S111-(TX) B 43.2/51.5 D511 1790001250 S.DIO MA2S111-(TX) B 115.8/44.9 D512 1790001250 S.DIO MA2S111-(TX) B 65.3/10.2 D513 1790001250 S.DIO MA2S111-(TX) B 36.3/24.4

X501 6050012680 S.XTL CR-858 (SMD-49/18.432MHZ) B 113.1/28.2

L500 6200002861 S.COL NLV25T-4R7J B 106/17.9 L501 6200003640 S.COL MLF1608E 100K-T B 161.5/17.9 L502 6200002861 S.COL NLV25T-4R7J B 85.9/39.3

R500 7030003810 S.RES ERJ3GEYJ 125 V (1.2 M) B 83.5/43.7 R501 7030003810 S.RES ERJ3GEYJ 125 V (1.2 M) B 87.4/47.5 R506 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) B 157.7/36.3 R507 7030007300 S.RES ERJ2GEJ 332 X (3.3 k) B 167.9/44.3 R508 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) B 167.9/37.7 R509 7030007300 S.RES ERJ2GEJ 332 X (3.3 k) B 155.4/44.5 R510 7030005530 S.RES ERJ2GEJ 100 X (10) B 106.8/30.5 R511 7030005160 S.RES ERJ2GEJ 105 X (1 M) B 105.8/30.5 R512 7510001730 S.TMR ERTJOEP 473J B 103.1/48.9 R513 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 102.2/49.8 R514 7030008010 S.RES ERJ2GEJ 123 X (12 k) B 113.1/32.2 R515 7030008010 S.RES ERJ2GEJ 123 X (12 k) B 112.3/35.9 R516 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 103.2/26.4 R517 7030008010 S.RES ERJ2GEJ 123 X (12 k) B 110.3/33 R518 7410001140 S.ARY EXB28V104JX B 106.9/47.1 R519 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 105.4/48.4 R520 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 96.1/30.7 R523 7030005710 S.RES ERJ2GEJ 121 X (120) B 114.1/37.6 R524 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 104.4/48.4 R525 7030005710 S.RES ERJ2GEJ 121 X (120) B 113.2/37.6 R526 7030005710 S.RES ERJ2GEJ 121 X (120) B 112.3/37.6 R532 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 33.2/45.5 R533 7030009140 S.RES ERJ2GEJ 272 X (2.7 k) B 31.2/47.7 R534 7030008290 S.RES ERJ2GEJ 183 X (18 k) B 32.2/45.7 R536 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 158.7/30.8 R538 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 155.7/29.3 R539 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) B 27.6/51.1 R540 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) B 26.6/49.9 R541 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 139.1/31.9 R542 7030005080 S.RES ERJ2GEJ 823 X (82 k) B 26.1/51.1 R543 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 137.3/31.5 R544 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 164.9/29.3 R545 7030004980 S.RES ERJ2GEJ 101 X (100) B 140.3/19.9 R546 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 164.8/27.7 R547 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 155.7/27.7 R548 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 159.8/28 R549 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) B 32/51.3 R551 7210003050 VAR EVU-F2KFK3 B14 (10KB) R552 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 142.3/20.3 R553 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 144.6/20.1 R554 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 32.6/53.4 R556 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 161.1/19 R557 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) B 29.2/51.3 R558 7030008370 S.RES ERJ2GEJ 561 X (560) B 169.1/51.1 R559 7030008370 S.RES ERJ2GEJ 561 X (560) B 155.7/51 R560 7030010040 S.RES ERJ2GEJ-JPW B 139.4/17.1 R562 7030003720 S.RES ERJ3GEYJ 224 V (220 k) B 86.2/43.7 R563 7030003720 S.RES ERJ3GEYJ 224 V (220 k) B 88.2/44.9 R564 7030009320 S.RES ERJ2GEJ 4R7 X (4.7) B 153/19.8 R566 7030008370 S.RES ERJ2GEJ 561 X (560) B 161.9/49.1 R567 7030008370 S.RES ERJ2GEJ 561 X (560) B 148.3/49.9

DESCRIPTION

M.

H/V

LOCATION

[FRONT UNIT]

REF ORDER NO. NO.

R568 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 87.4/16.9 R570 7030005220 S.RES ERJ2GEJ 223 X (22 k) B 103/24.8 R571 7030005070 S.RES ERJ2GEJ 683 X (68 k) B 45.8/51.5 R572 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 46.2/50.3 R573 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 108.3/33 R574 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 108.3/32.1 R575 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 34.7/24.6 R576 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 62.6/12.8

C500 4030016930 S.CER ECJ0EB1A104K B 79.3/47.9 C501 4030016930 S.CER ECJ0EB1A104K B 80.8/47.4 C502 4030016930 S.CER ECJ0EB1A104K B 80.8/46.5 C503 4030016930 S.CER ECJ0EB1A104K B 80.4/45.3 C504 4030016930 S.CER ECJ0EB1A104K B 81.3/45.3 C505 4030017490 S.CER C1608 JB 1A 105K-T B 80.9/41 C506 4030017460 S.CER ECJ0EB1E102K B 83.9/39.8 C507 4030017490 S.CER C1608 JB 1A 105K-T B 80.9/39.5 C508 4030017730 S.CER ECJ0EB1E471K B 146.4/41.2 C509 4030017730 S.CER ECJ0EB1E471K B 159.8/34.4 C510 4030017730 S.CER ECJ0EB1E471K B 159.9/41.2 C511 4030017730 S.CER ECJ0EB1E471K B 146.4/34.4 C512 4030017030 S.CER ECJ0EB1A273K B 104.7/21.7 C513 4030017630 S.CER ECJ0EC1H120J B 106.4/29.3 C514 4030017420 S.CER ECJ0EC1H470J B 157.7/44.5 C515 4030016790 S.CER ECJ0EB1C103K B 103.5/50.2 C516 4030017580 S.CER ECJ0EC1H060C B 113.1/31.3 C517 4030016930 S.CER ECJ0EB1A104K B 102.2/50.7 C518 4030016790 S.CER ECJ0EB1C103K B 113.3/35.1 C519 4030017640 S.CER ECJ0EC1H150J B 111.3/31.8 C520 4030016930 S.CER ECJ0EB1A104K B 105.1/27.1 C521 4030018900 S.CER ECJ0EB0J474K B 104.9/30 C522 4550006480 S.TAN TEESVA 1C 475M8R B 46.7/33.2 C523 4030017330 S.CER ECJ0EF1C104Z B 44.9/31 C524 4030016790 S.CER ECJ0EB1C103K B 49.9/29.5 C525 4550006250 S.TAN TEESVA 1A 106M8R B 49/27.7 C526 4030016930 S.CER ECJ0EB1A104K B 48.9/26.1 C527 4030016930 S.CER ECJ0EB1A104K B 34.3/30 C530 4030017460 S.CER ECJ0EB1E102K B 34.5/55.4 C531 4550006250 S.TAN TEESVA 1A 106M8R B 106.6/20.2 C532 4030017460 S.CER ECJ0EB1E102K B 31.3/45.7 C533 4030017460 S.CER ECJ0EB1E102K B 45.3/27 C534 4030016930 S.CER ECJ0EB1A104K B 62.1/14.2 C535 4030016930 S.CER ECJ0EB1A104K B 30.7/49 C536 4030017460 S.CER ECJ0EB1E102K B 161/28.5 C537 4030017460 S.CER ECJ0EB1E102K B 33.6/53.4 C538 4030018860 S.CER ECJ0EB0J105K B 26.6/49 C539 4030017420 S.CER ECJ0EC1H470J B 154.8/27.7 C540 4510008590 S.ELE EEE1AA101SP B 36.9/59.4 C541 4030017330 S.CER ECJ0EF1C104Z B 150.1/20 C542 4030017460 S.CER ECJ0EB1E102K B 139.3/19.9 C544 4550006250 S.TAN TEESVA 1A 106M8R B 29.7/60.8 C545 4030017420 S.CER ECJ0EC1H470J B 168.1/28.1 C546 4030017420 S.CER ECJ0EC1H470J B 137.3/32.4 C547 4030017420 S.CER ECJ0EC1H470J B 134.2/32.4 C548 4030017460 S.CER ECJ0EB1E102K B 161/27.5 C549 4030017460 S.CER ECJ0EB1E102K B 44.1/47.4 C551 4030017420 S.CER ECJ0EC1H470J B 158.1/19.3 C553 4030017420 S.CER ECJ0EC1H470J B 140.6/17.6 C555 4030018860 S.CER ECJ0EB0J105K B 148.5/17.9 C556 4030016790 S.CER ECJ0EB1C103K B 143.1/23.6 C558 4550006480 S.TAN TEESVA 1C 475M8R B 143.5/22 C559 4030017730 S.CER ECJ0EB1E471K B 166.3/51.1 C560 4030017730 S.CER ECJ0EB1E471K B 153.1/51.1 C561 4030017730 S.CER ECJ0EB1E471K B 161.9/46.9 C562 4030017730 S.CER ECJ0EB1E471K B 147.4/46.6 C563 4030016930 S.CER ECJ0EB1A104K B 105.1/28 C564 4030016930 S.CER ECJ0EB1A104K B 103.2/28 C565 4030016930 S.CER ECJ0EB1A104K B 44/29.9 C566 4030017460 S.CER ECJ0EB1E102K B 42.8/49.5 C567 4030016930 S.CER ECJ0EB1A104K B 42.8/50.4 C568 4030017460 S.CER ECJ0EB1E102K B 67.3/6.6 C569 4550006250 S.TAN TEESVA 1A 106M8R B 89.6/40.7 C573 4030016930 S.CER ECJ0EB1A104K B 34.7/23.7 C574 4030016930 S.CER ECJ0EB1A104K B 62.6/11.9 C575 4510009020 S.ELE EEE0JA331P B 106/11.4

J501 6510019121 S.CNR S8B-PH-SM4-TB (LF) (SN) B 26.9/27.5 J502 6510019121 S.CNR S8B-PH-SM4-TB (LF) (SN) B 52.9/15.1 J503 6450002210 CNR 3017-8821 <KIN> J504 6510014961 S.CNR B2B-ZR-SM4-TF (LF) (SN) B 18.4/57

DS500 5030002811 LCD L4-0013TVY-2 DS501 5040002710 LED EMPG3338S DS502 5040002720 LED EMVR3338S DS503 5040002710 LED EMPG3338S DS504 5040002720 LED EMVR3338S DS505 5040002310 S.LED SML-311YTT86 T 111.2/43.2 DS506 5040002310 S.LED SML-311YTT86 T 101.3/43.2 DS507 5040002310 S.LED SML-311YTT86 T 91.3/43.2 DS508 5040002310 S.LED SML-311YTT86 T 81.2/43.1 DS509 5040002310 S.LED SML-311YTT86 T 71.3/43.2 DS510 5040002310 S.LED SML-311YTT86 T 61.3/43.2 DS511 5040002150 LED VRPG3349S-734 DS512 5040002150 LED VRPG3349S-734

DESCRIPTION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

7 - 1

M.

S.=Surface mount

H/V

LOCATION

[FRONT UNIT]

REF ORDER NO. NO.

S506 2250000511 ECR RH70N1037E20-13F-2781

SP501 2510001221 SP C052SB500-14

W501 8900011800 CBL OPC-1199 W502 8900017540 CBL OPC-1785

EP501 8930065150 LCT SRCN-2781-SP-N-W (SHJ) EP503 6910019600 SCR LM-5 EP504 6910019610 SCR LM-7 (SPACER)

DESCRIPTION

M.

H/V

LOCATION

[MAIN UNIT]

REF ORDER NO. NO.

IC1 1110005330 S.IC NJM12904V-TE1-#ZZZB T 58.1/71.4 IC2 1110007290 S.IC AK2330P-L T 58.7/56.1 IC3 1130010100 S.IC LMX2352TMX/NOPB B 120.2/43.9 IC4 1130010100 S.IC LMX2352TMX/NOPB B 28/78.8 IC5 1110003491 S.IC TA31136FNG (D,EL) B 70.4/82.5 IC7 1110007280 S.IC NJM2716F-TE1-#ZZZB B 56.8/46.4 IC8 1130012910 S.IC AK4554VTP-E2/P B 36.2/59.9 IC9 1190002080 S.IC AD7476ARTZ-500RL7 B 49.6/46.4 IC10 1130013040 S.IC TC7WBD125AFK (T5L,F) B 46.6/49.2 IC11 1110006230 S.IC NJM2711F-TE1-#ZZZB B 53.1/35 IC12 1140013290 S.IC TMS320VC5509AZHH B 33.3/37.8 IC13 1180002590 S.REG XC6204B332MR T 80.9/21.3 IC14 1180003270 S.REG R1114Q161D-TR-F T 84.4/21.4 IC15 1180002590 S.REG XC6204B332MR T 87.8/21.3 IC17 1190001340 S.IC M62334FP 600C T 67.3/61.7 IC18 1110005771 S.IC S-80942CNMC-G9CT2G T 41.2/52.8 IC19 1180003210 S.REG NJM2831F10 B 111/26.2 IC20 1140014550 S.IC HD64F2506RFC26DV T 33.5/37.6 IC21 1140012950 S.IC 24LC512T-I/SM T 59.1/21.8 IC22 1150002042 IC RA30H1317M-121 [EUR-01] 1150002073 IC RA60H1317M-125 [USA-01], [EXP-01] IC23 1110002751 S.IC TA75S01F (TE85R,F) T 141.7/125.1 IC25 1130008561 S.IC TC75S51F (TE85L,F) B 29/16.3 IC26 1120003070 S.IC MAX3232EIPWR T 42.7/70 IC27 1180001251 S.IC TA7808F (TE16L,Q) T 114.4/85 IC28 1110003091 IC LA4425A-E IC29 1110002751 S.IC TA75S01F (TE85R,F) T 12/123.1 IC30 1110003390 S.IC AN8005M-(E1) T 98.3/91.4 IC31 1130011760 S.IC CD4094BPWR T 8.1/45.2 IC32 1130013360 S.IC AT25F2048N-10SU-2.7SL383 B 8.9/36.1 IC34 1110005340 S.IC NJM12902V-TE1-#ZZZB B 12.2/58.2 IC35 1140013200 S.IC CD4053BPWR B 20.6/58.2 IC36 1110005330 S.IC NJM12904V-TE1-#ZZZB B 27.8/55.4 IC37 1120002830 S.IC NJM2125F-TE1-#FZZB T 56.6/66.7 IC38 1110006380 S.IC LM2904PWR T 114.1/23.8 IC39 1180001071 S.IC TA7805F (TE16L,Q) T 101.2/24.3 IC40 1110005330 S.IC NJM12904V-TE1-#ZZZB B 50.6/57.2 IC41 1180001251 S.IC TA7808F (TE16L,Q) B 132/16.7

Q1 1590003230 S.TR UNR9113J-(TX) B 53.4/79.7 Q2 1530002851 S.TR 2SC4116-BL (TE85R,F) B 34.9/77.7 Q3 1560001360 S.FET 2SK3019 TL B 66.4/76.3 Q5 1560000541 S.FET 2SK880-Y (T5RICOM,F) B 35.7/107.1 Q7 1530002601 S.TR 2SC4215-O (TE85R,F) B 73/92.9 Q8 1560000541 S.FET 2SK880-Y (T5RICOM,F) B 89.5/46 Q9 1560001360 S.FET 2SK3019 TL B 39.6/103.6 Q10 1530002851 S.TR 2SC4116-BL (TE85R,F) B 89.5/43.5 Q11 1530002851 S.TR 2SC4116-BL (TE85R,F) B 30.6/104.2 Q12 1590003230 S.TR UNR9113J-(TX) B 66.1/100.3 Q13 1530002851 S.TR 2SC4116-BL (TE85R,F) B 84.7/43.5 Q14 1530002851 S.TR 2SC4116-BL (TE85R,F) B 30.6/107.1 Q15 1530002851 S.TR 2SC4116-BL (TE85R,F) B 96.9/44.4 Q16 1530002851 S.TR 2SC4116-BL (TE85R,F) T 35.2/108.3 Q19 1530002601 S.TR 2SC4215-O (TE85R,F) B 63.2/106.8 Q20 1530002920 S.TR 2SC4226-T1 R25 B 39.9/123.1 Q21 1530002920 S.TR 2SC4226-T1 R25 B 39.6/114.5 Q22 1530002920 S.TR 2SC4226-T1 R25 B 95.2/64.3 Q23 1530002920 S.TR 2SC4226-T1 R25 B 95.2/54.5 Q24 1530003311 S.TR 2SC5107-O (TE85R,F) B 100.6/58.6 Q25 1530003311 S.TR 2SC5107-O (TE85R,F) B 44.9/117.4 Q26 1590001400 S.TR XP1214 (TX) B 40.5/117.8 Q27 1590001400 S.TR XP1214 (TX) B 96/59.6 Q28 1590003290 S.TR UNR9213J-(TX) B 93.3/59.6 Q29 1590003290 S.TR UNR9213J-(TX) T 57.2/41.9 Q30 1590003290 S.TR UNR9213J-(TX) B 37.8/117.8 Q31 1590003230 S.TR UNR9113J-(TX) T 57.2/39.8 Q32 1530003311 S.TR 2SC5107-O (TE85R,F) B 46.2/111.7 Q33 1530003311 S.TR 2SC5107-O (TE85R,F) B 101.9/53 Q34 1530003311 S.TR 2SC5107-O (TE85R,F) B 46.2/123.1 Q35 1530003311 S.TR 2SC5107-O (TE85R,F) B 101.9/64.4 Q36 1580000731 S.FET 3SK293 (TE85L,F) B 48.3/136.6 Q37 1530003311 S.TR 2SC5107-O (TE85R,F) B 132.4/84.5 Q38 1530002680 S.TR 2SC3357-T1 B 139.5/86 Q39 1560000841 S.FET 2SK1829 (TE85R,F) B 54.2/142.5 Q40 1590001190 S.TR XP6501-(TX) .AB T 101.6/87.4 Q41 1520000460 S.TR 2SB1132 T100 R T 101.6/82.8 Q42 1590003290 S.TR UNR9213J-(TX) T 13.3/67.6 Q43 1590003290 S.TR UNR9213J-(TX) T 137.3/125 Q44 1590003290 S.TR UNR9213J-(TX) T 114.3/80.1 Q45 1540000550 S.TR 2SD1664 T100Q T 118.4/75.2 Q46 1530002851 S.TR 2SC4116-BL (TE85R,F) T 137.3/120.2 Q48 1510000920 S.TR 2SA1577 T106 Q T 101.5/77.8 Q49 1590003290 S.TR UNR9213J-(TX) T 102.2/73.7 Q52 1590003290 S.TR UNR9213J-(TX) T 10.9/131.6 Q53 1590003290 S.TR UNR9213J-(TX) T 10.9/129.6 Q56 1590003321 S.FET TPC6103 (TE85L,F) T 7.6/132.6 Q57 1550000100 S.FET 2SJ377 (TE16L1,NQ) T 123.3/99.6 Q58 1590003290 S.TR UNR9213J-(TX) T 129.4/102.2 Q59 1590000990 S.TR DTC363EK T146 T 7.6/127.6 Q61 1530002851 S.TR 2SC4116-BL (TE85R,F) T 6.8/118.4 Q62 1540000441 S.TR 2SD1619T-TD-E T 118.4/18.6 Q63 1560000990 S.FET PMBFJ310 B 66.3/110 Q64 1560000990 S.FET PMBFJ310 B 63.4/110 Q65 1530003311 S.TR 2SC5107-O (TE85R,F) B 59.6/123.7 Q66 1590003290 S.TR UNR9213J-(TX) B 94.9/4.7 Q67 1590003290 S.TR UNR9213J-(TX) B 124.9/4.7 Q68 1590003290 S.TR UNR9213J-(TX) B 109.9/4.7 Q69 1590003290 S.TR UNR9213J-(TX) T 9.5/53.3 Q70 1590003230 S.TR UNR9113J-(TX) T 9.5/51 Q71 1560000990 S.FET PMBFJ310 B 60.5/110 Q72 1530002851 S.TR 2SC4116-BL (TE85R,F) B 107/26.3

DESCRIPTION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

6 - 2

M.

S.=Surface mount

H/V

LOCATION

[MAIN UNIT]

REF ORDER NO. NO.

D1 1750001070 S.DIO DAN235ETL B 57.3/78.6 D2 1750001070 S.DIO DAN235ETL B 50/79.7 D3 1790001621 S.DIO 1SV308 (TPL3,F) B 69.3/94.8 D4 1790001621 S.DIO 1SV308 (TPL3,F) B 69.3/92.2 D5 1720000641 S.VCP 1SV284 (TPH3,F) B 29.9/120.1 D7 1720000791 S.VCP HVC321B1TRF-E B 28.6/125.1 D8 1720000791 S.VCP HVC321B1TRF-E B 26.5/113.3 D9 1720000791 S.VCP HVC321B1TRF-E B 84.7/59.8 D10 1720000791 S.VCP HVC321B1TRF-E B 86.4/51.2 D11 1790001621 S.DIO 1SV308 (TPL3,F) B 63.5/103.1 D12 1790001621 S.DIO 1SV308 (TPL3,F) B 62.4/101.1 D13 1720000791 S.VCP HVC321B1TRF-E B 84.9/61.8 D14 1720000791 S.VCP HVC321B1TRF-E B 84.4/52 D15 1720000791 S.VCP HVC321B1TRF-E B 28.6/122.6 D16 1720000791 S.VCP HVC321B1TRF-E B 26.5/114.6 D17 1720000641 S.VCP 1SV284 (TPH3,F) B 83.5/63.5 D18 1720000471 S.VCP 1SV239 (TPH3,F) B 96.3/66.7 D19 1750000520 S.DIO DAN222TL T 59.6/39.8 D20 1790001260 S.DIO MA2S077-(TX) T 39.5/57.9 D21 1750001610 S.VCP HVC365TRF-E B 63/139.4 D22 1750001610 S.VCP HVC365TRF-E B 59.8/136.7 D23 1750001610 S.VCP HVC365TRF-E B 63/136.7 D24 1750001610 S.VCP HVC365TRF-E B 59.8/139.4 D25 1750000370 S.DIO DA221 TL B 46.5/142.5 D26 1790001250 S.DIO MA2S111-(TX) B 48.3/142.5 D27 1790001250 S.DIO MA2S111-(TX) B 58.3/142.5 D28 1750001610 S.VCP HVC365TRF-E [USA-01], [EXP-01] B 37.6/138.4 D29 1750001610 S.VCP HVC365TRF-E [USA-01], [EXP-01] B 37.6/135.7 D30 1720000471 S.VCP 1SV239 (TPH3,F) B 95.6/56.8 D31 1750001610 S.VCP HVC365TRF-E B 34.4/135.7 D32 1750001610 S.VCP HVC365TRF-E B 34.4/138.4 D35 1750000351 S.DIO 1SV252 (TE85L,F) B 143.7/92.9 D36 1750001080 S.DIO RB886G T2R T 144.4/120.2 D37 1750001080 S.DIO RB886G T2R T 145.6/120.2 D38 1750001360 S.DIO L709CER (9401) B 84.7/134 D39 1750000581 S.DIO 1SV307 (TPH3,F) B 36/144.8 D40 1750000370 S.DIO DA221 TL T 114.3/77.8 D42 1720000641 S.VCP 1SV284 (TPH3,F) B 26.5/112 D44 1710001061 DIO L407CDB D45 1790001211 S.DIO 1SS375-TL-E B 83.8/128 D46 1750000520 S.DIO DAN222TL T 13.3/131.1 D47 1750000520 S.DIO DAN222TL T 13.2/129.1 D48 1790001211 S.DIO 1SS375-TL-E B 119.6/144.5 D49 1790001211 S.DIO 1SS375-TL-E B 139.5/133.2 D51 1790001250 S.DIO MA2S111-(TX) T 10.5/127.1 D53 1790001810 S.VSR AVR-M1005C080MTABB T 32.5/11.7 D55 1790001810 S.VSR AVR-M1005C080MTABB T 30.5/11.7 D56 1790001810 S.VSR AVR-M1005C080MTABB T 36.6/11.7 D59 1790000700 DIO DSA3A1 D61 1750000520 S.DIO DAN222TL T 118.4/14.7 D62 1750000431 S.DIO HSB88WSTR-E B 68.3/123.3 D63 1790001250 S.DIO MA2S111-(TX) B 34.2/20.8 D64 1750000370 S.DIO DA221 TL T 63.2/93.9 D65 1750000370 S.DIO DA221 TL T 65.2/93.9 D66 1750000370 S.DIO DA221 TL T 67.2/93.9 D67 1750000370 S.DIO DA221 TL T 61.9/105.9 D68 1750000370 S.DIO DA221 TL T 59.9/105.5 D69 1750000370 S.DIO DA221 TL T 69.2/93.9 D70 1750000370 S.DIO DA221 TL T 71.2/93.9 D71 1750000370 S.DIO DA221 TL T 69.1/109.5 D72 1750000370 S.DIO DA221 TL T 71.2/109.5 D73 1750000370 S.DIO DA221 TL T 73.3/109.5 D74 1750000370 S.DIO DA221 TL T 75.3/109.5 D75 1790001250 S.DIO MA2S111-(TX) B 41/38.6 D76 1790001250 S.DIO MA2S111-(TX) B 26.4/41.3 D77 1790001250 S.DIO MA2S111-(TX) B 49.2/29.9 D78 1730002360 S.ZEN MA8062-M (TX) B 52.3/29.9 D79 1720000641 S.VCP 1SV284 (TPH3,F) B 83.1/52

FI1 2020001520 CER CFWLA450KFFA-B0 FI2 2020001460 CER CFWLA450KHFA-B0 FI3 2030000500 S.MLH FL-401 (46.35 MHz) B 72/101 FI4 2030000670 S.MLH FL-420 (46.35 MHz) B 63.4/91.1 FI5 2040001440 S.LC NFE31PT152Z1E9L T 116.5/108.3 FI6 2040001440 S.LC NFE31PT152Z1E9L T 116.5/111.5 FI7 2040001440 S.LC NFE31PT152Z1E9L T 116.5/114.6

X1 6050012380 S.XTL CR-826 (15.3 MHz) B 128.6/45.3 X2 6050012380 S.XTL CR-826 (15.3 MHz) B 35.6/72.3 X3 6070000300 S.DCR JTBM450CX24 <JJE> B 63.5/83.5 X4 6050012350 S.XTL CR-817 (12.288 MHz) B 52.8/38.2 X5 6050012680 S.XTL CR-858 (SMD-49/18.432MHZ) T 46.9/52.7

L1 6200004660 S.COL MLF1608A 1R8K-T B 115.5/39.2 L2 6200004660 S.COL MLF1608A 1R8K-T B 23.6/82.4 L3 6200004480 S.COL MLF1608D R82K-T B 39.4/79.3 L4 6200003540 S.COL MLF1608D R22K-T B 36.9/76.9 L5 6200005691 S.COL ELJRE 18NGFA B 102.7/45.6 L6 6200005691 S.COL ELJRE 18NGFA B 47.3/101.1 L7 6200005661 S.COL ELJRE 10NGFA B 44/99.1 L8 6200007120 S.COL ELJND 1R0J B 27/124.1 L9 6200007120 S.COL ELJND 1R0J B 27/120.8 L10 6200007120 S.COL ELJND 1R0J B 25.9/116.8 L11 6200007120 S.COL ELJND 1R0J B 82.5/61.4 L12 6200007120 S.COL ELJND 1R0J B 83.1/49.9 L13 6200007120 S.COL ELJND 1R0J B 28.7/111.6 L14 6200007120 S.COL ELJND 1R0J B 85.3/66.4 L15 6200013220 S.COL C6342A-R13G-A B 88.6/54.6 L16 6200010600 S.COL C6342A-67NG-A B 33.8/122.7

DESCRIPTION

M.

H/V

LOCATION

[MAIN UNIT]

REF ORDER NO. NO.

L17 6200007120 S.COL ELJND 1R0J B 28.7/116.8 L18 6200009910 S.COL C6342A-88NG-A B 88.8/63.9 L19 6200007120 S.COL ELJND 1R0J B 83.5/66.4 L20 6200007120 S.COL ELJND 1R0J B 30.2/124.7 L21 6200009910 S.COL C6342A-88NG-A B 33.1/114.4 L22 6200003550 S.COL MLF1608A 4R7K-T B 73.4/109.9 L23 6200005011 S.COL NLV25T-100J B 60.5/113.3 L24 6200010740 S.COL C2520C-R27G-A B 70/109.1 L25 6200007120 S.COL ELJND 1R0J B 97.4/62.5 L26 6200007120 S.COL ELJND 1R0J B 98/56.1 L27 6130002961 S.COL #617DB-1327=P3 B 68.3/117 L28 6200007001 S.COL ELJRE 82NGFA B 62.3/123.6 L29 6200006981 S.COL ELJRE R10GFA B 102.6/58.6 L30 6200006981 S.COL ELJRE R10GFA B 46.9/117.4 L31 6200002861 S.COL NLV25T-4R7J T 91.2/20 L32 6130002961 S.COL #617DB-1327=P3 B 68.3/128.7 L33 6200005691 S.COL ELJRE 18NGFA B 47.3/109.2 L34 6200005721 S.COL ELJRE 33NGFA B 61.1/117.5 L35 6200005691 S.COL ELJRE 18NGFA B 102.7/50.5 L36 6200007001 S.COL ELJRE 82NGFA B 44.3/123.1 L37 6200005721 S.COL ELJRE 33NGFA B 61.1/120.1 L38 6200007001 S.COL ELJRE 82NGFA B 100/64.4 L39 6200010610 S.COL C6342A-50NG-A B 67.4/138.5 L41 6200010610 S.COL C6342A-50NG-A B 53.7/136.7 L42 6200006981 S.COL ELJRE R10GFA B 134.5/84.5 L43 6200006671 S.COL ELJRE 68NGFA B 138.9/90.1 L44 6200010610 S.COL C6342A-50NG-A [USA-01], [EXP-01] B 41.9/137.3 L45 6200005741 S.COL ELJRE 47NGFA B 142.8/87.4 L46 6200005741 S.COL ELJRE 47NGFA B 142.8/90.1 L47 6200010610 S.COL C6342A-50NG-A B 29.9/136.7 L48 6200007750 S.COL LQW2BHN56NJ03L [USA-01], [EXP-01] B 33.3/141.2 6200010000 S.COL C2012C-56NG-A [EUR-01] B 33.3/141.2 L49 6200010050 S.COL AS080547-47N B 97.2/119.2 L50 6200007750 S.COL LQW2BHN56NJ03L B 85.5/137.4 L51 6200007750 S.COL LQW2BHN56NJ03L [USA-01], [EXP-01] B 25.1/142.9 6200010000 S.COL C2012C-56NG-A [EUR-01] B 25.1/142.9 L52 6200010420 S.COL FHW1210HC 1R0JGT <JJE> B 86.6/122.3 L53 6200010050 S.COL AS080547-47N B 90.1/135.3 L55 6200010050 S.COL AS080547-47N B 107.6/135 L56 6200010050 S.COL AS080547-47N B 115.2/138.8 L57 6200010050 S.COL AS080547-47N B 143.7/140.9 L58 6200002861 S.COL NLV25T-4R7J T 55.4/37.5 L59 6200010420 S.COL FHW1210HC 1R0JGT <JJE> B 147.1/146.2 L60 6200010420 S.COL FHW1210HC 1R0JGT <JJE> B 24.5/147 L61 6200002961 S.COL NLV32T-4R7J T 118.4/23.8 L62 6200013530 S.COL MLF2012E 100K-T B 83.7/56.6 L63 6200010000 S.COL C2012C-56NG-A B 72.3/137.8 L64 6200007120 S.COL ELJND 1R0J B 81.8/54.9 L65 6200007120 S.COL ELJND 1R0J B 41.7/120.7 L66 6200007120 S.COL ELJND 1R0J B 42.4/115.2 L68 6200003960 S.COL MLF1608A 1R0K-T B 140.7/94.7 L69 6200005661 S.COL ELJRE 10NGFA B 102.7/42.3

R1 7030005310 S.RES ERJ2GEJ 124 X (120 k) T 54.9/64.1 R2 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 58.7/61.7 R3 7030005240 S.RES ERJ2GEJ 473 X (47 k) T 62.4/69.6 R4 7030007340 S.RES ERJ2GEJ 153 X (15 k) B 57.3/80.1 R6 7030007300 S.RES ERJ2GEJ 332 X (3.3 k) T 9.5/57.1 R7 7030010040 S.RES ERJ2GEJ-JPW T 61.6/66.3 R8 7030005160 S.RES ERJ2GEJ 105 X (1 M) T 24.9/70.4 R9 7030005160 S.RES ERJ2GEJ 105 X (1 M) T 25.8/70.4 R10 7030005160 S.RES ERJ2GEJ 105 X (1 M) T 26.7/70.4 R12 7510001730 S.TMR ERTJOEP 473J B 129.1/49.3 R13 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 130.8/49.3 R15 7030007340 S.RES ERJ2GEJ 153 X (15 k) B 54.5/78.3 R17 7030004980 S.RES ERJ2GEJ 101 X (100) T 19.8/68.8 R18 7030007340 S.RES ERJ2GEJ 153 X (15 k) B 55.3/79.2 R20 7030009150 S.RES ERJ2GEJ 824 X (820 k) T 56.1/63.5 R22 7410001130 S.ARY EXB28V102JX B 122.6/39 R23 7410001130 S.ARY EXB28V102JX B 23.1/76.3 R24 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 115.5/42.2 R25 7030004970 S.RES ERJ2GEJ 470 X (47) B 65.3/79.4 R26 7030010040 S.RES ERJ2GEJ-JPW T 57.7/64.5 R27 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 57.8/51 R29 7030007570 S.RES ERJ2GEJ 122 X (1.2 k) B 38.5/75.9 R30 7030007340 S.RES ERJ2GEJ 153 X (15 k) B 52.8/81.1 R32 7030007340 S.RES ERJ2GEJ 153 X (15 k) B 51.2/78.3 R33 7030007340 S.RES ERJ2GEJ 153 X (15 k) B 48.4/78.2 R34 7030005240 S.RES ERJ2GEJ 473 X (47 k) T 27.1/68.1 R35 7030005240 S.RES ERJ2GEJ 473 X (47 k) T 28/68.1 R36 7030005240 S.RES ERJ2GEJ 473 X (47 k) T 28.9/68.1 R38 7030005230 S.RES ERJ2GEJ 334 X (330 k) T 27.6/70.4 R39 7030005230 S.RES ERJ2GEJ 334 X (330 k) T 28.6/70.4 R40 7030005230 S.RES ERJ2GEJ 334 X (330 k) T 29.5/70.4 R41 7030005110 S.RES ERJ2GEJ 224 X (220 k) B 68.2/78.2 R42 7030006610 S.RES ERJ2GEJ 394 X (390 k) B 34.4/75.5 R43 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) B 62.8/77.3 R44 7030005030 S.RES ERJ2GEJ 152 X (1.5 k) B 71.4/78.2 R45 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) B 64.6/75.5 R46 7030005000 S.RES ERJ2GEJ 471 X (470) T 52.7/57.1 R47 7030005720 S.RES ERJ2GEJ 563 X (56 k) B 64.6/76.4 R48 7030005030 S.RES ERJ2GEJ 152 X (1.5 k) B 62.8/76.4 R49 7030010040 S.RES ERJ2GEJ-JPW T 55.6/57.3 R52 7030004980 S.RES ERJ2GEJ 101 X (100) B 34.1/56.4 R53 7030005210 S.RES ERJ2GEJ 822 X (8.2 k) B 16.8/57.6 R54 7030005000 S.RES ERJ2GEJ 471 X (470) B 19.4/64.3 R56 7030004970 S.RES ERJ2GEJ 470 X (47) B 121.9/50.4 R57 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) B 62.8/75.5 R58 7030008290 S.RES ERJ2GEJ 183 X (18 k) B 56.5/49 R59 7030008290 S.RES ERJ2GEJ 183 X (18 k) B 57.4/49

DESCRIPTION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

6 - 3

M.

S.=Surface mount

H/V

LOCATION

[MAIN UNIT]

REF ORDER NO. NO.

R60 7030005000 S.RES ERJ2GEJ 471 X (470) B 32.3/74.3 R62 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 18.5/62.5 R63 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 55.6/60.5 R65 7030005000 S.RES ERJ2GEJ 471 X (470) B 125.1/47.3 R66 7030004980 S.RES ERJ2GEJ 101 X (100) B 56.5/50.6 R68 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) B 67.5/86.7 R69 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 32.7/83 R70 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 69.8/71.9 R71 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 31/62.6 R72 7030004980 S.RES ERJ2GEJ 101 X (100) B 57.6/44.2 R73 7030010040 S.RES ERJ2GEJ-JPW B 28.3/100.4 R74 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 25.8/83.5 R75 7030005110 S.RES ERJ2GEJ 224 X (220 k) B 39.9/71.1 R76 7030010040 S.RES ERJ2GEJ-JPW B 93.7/41.6 R77 7030005580 S.RES ERJ2GEJ 560 X (56) B 119.7/48.8 R78 7030010040 S.RES ERJ2GEJ-JPW B 29.9/99.3 R79 7030005580 S.RES ERJ2GEJ 560 X (56) B 32.7/79.5 R80 7030004970 S.RES ERJ2GEJ 470 X (47) B 23.5/41.1 R81 7030007250 S.RES ERJ2GEJ 220 X (22) B 49.9/50.5 R82 7030008400 S.RES ERJ2GEJ 182 X (1.8 k) B 56/44.2 R83 7030010040 S.RES ERJ2GEJ-JPW B 32.4/106.5 R84 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) B 93.7/47.1 R85 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) B 37.8/107.1 R86 7030010040 S.RES ERJ2GEJ-JPW B 33.2/105.2 R87 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 73.7/81.1 R88 7030005530 S.RES ERJ2GEJ 100 X (10) B 39/71.1 R89 7030008400 S.RES ERJ2GEJ 182 X (1.8 k) B 67.1/83.2 R90 7030008010 S.RES ERJ2GEJ 123 X (12 k) T 54.5/73.3 R91 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) B 92.1/47.1 R92 7030009140 S.RES ERJ2GEJ 272 X (2.7 k) B 92.1/41.6 R93 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) B 37.8/106.1 R94 7030009140 S.RES ERJ2GEJ 272 X (2.7 k) B 28.3/98.3 R97 7410001170 S.ARY EXB28V470JX B 42.9/49.9 R98 7030005530 S.RES ERJ2GEJ 100 X (10) B 71/95.7 R99 7030005110 S.RES ERJ2GEJ 224 X (220 k) B 71/92.9 R100 7030005600 S.RES ERJ2GEJ 273 X (27 k) B 67.9/93.8 R101 7030004980 S.RES ERJ2GEJ 101 X (100) B 92.1/42.6 R102 7030004980 S.RES ERJ2GEJ 101 X (100) B 34.8/105.2 R103 7030004980 S.RES ERJ2GEJ 101 X (100) B 28.3/101.3 R105 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 33.7/107.9 R107 7030004980 S.RES ERJ2GEJ 101 X (100) B 87.1/47.1 R109 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 64.8/98.2 R111 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 37.8/104.4 R112 7030005070 S.RES ERJ2GEJ 683 X (68 k) B 84.7/45.3 R113 7030005070 S.RES ERJ2GEJ 683 X (68 k) B 32.4/108.1 R114 7030007300 S.RES ERJ2GEJ 332 X (3.3 k) B 67.4/96.2 R115 7030007300 S.RES ERJ2GEJ 332 X (3.3 k) B 67.9/91.3 R116 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 87.1/45.3 R117 7030005810 S.RES RR0510P-152-D (1.5 k) B 87.1/46.2 R118 7030007280 S.RES ERJ2GEJ 331 X (330) B 72.8/94.8 R119 7030007270 S.RES ERJ2GEJ 151 X (150) B 68.1/89 R120 7030005810 S.RES RR0510P-152-D (1.5 k) B 33.7/107 R121 7030008280 S.RES ERJ2GEJ 271 X (270) B 27.3/108.7 R122 7030004970 S.RES ERJ2GEJ 470 X (47) B 56.6/33.9 R123 7030004970 S.RES ERJ2GEJ 470 X (47) B 49.5/38.5 R124 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 55.3/38.3 R125 7030008280 S.RES ERJ2GEJ 271 X (270) B 84.7/46.2 R126 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) B 96.5/42.6 R127 7030005720 S.RES ERJ2GEJ 563 X (56 k) T 88.4/58.4 R128 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) T 33.4/108.3 R129 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 55.3/35.1 R130 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 56.2/36.7 R131 7030004980 S.RES ERJ2GEJ 101 X (100) B 54.2/32.4 R132 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) B 50.8/34.9 R133 7030007280 S.RES ERJ2GEJ 331 X (330) B 67.5/104.4 R134 7030007270 S.RES ERJ2GEJ 151 X (150) B 62.4/97.1 R136 7030005110 S.RES ERJ2GEJ 224 X (220 k) B 81.8/65.5 R137 7030005110 S.RES ERJ2GEJ 224 X (220 k) B 81.8/57 R138 7030005240 S.RES ERJ2GEJ 473 X (47 k) T 95.3/65.8 R139 7030005060 S.RES ERJ2GEJ 333 X (33 k) T 95.3/64.9 R140 7030007300 S.RES ERJ2GEJ 332 X (3.3 k) B 63.9/100.3 R141 7030005060 S.RES ERJ2GEJ 333 X (33 k) T 95.3/64 R142 7030007300 S.RES ERJ2GEJ 332 X (3.3 k) B 65.4/102.5 R143 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 48.6/38.5 R144 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 48.6/36.8 R145 7030010040 S.RES ERJ2GEJ-JPW B 47.3/37.3 R146 7030005060 S.RES ERJ2GEJ 333 X (33 k) T 93.1/54.8 R148 7030004980 S.RES ERJ2GEJ 101 X (100) B 59.6/107.1 R151 7030005310 S.RES ERJ2GEJ 124 X (120 k) B 93.1/57.7 R152 7030005070 S.RES ERJ2GEJ 683 X (68 k) B 65.2/107 R153 7030005000 S.RES ERJ2GEJ 471 X (470) B 61.4/104.4 R154 7030008340 S.RES RR0510P-182-D (1.8 k) B 37.9/122.2 R155 7030011000 S.RES RR0510P-392-D (3.9 k) B 36.7/120.7 R156 7030011000 S.RES RR0510P-392-D (3.9 k) B 37.6/112 R157 7030005310 S.RES ERJ2GEJ 124 X (120 k) B 93/67.3 R158 7030005240 S.RES ERJ2GEJ 473 X (47 k) T 93.1/56.7 R159 7030005530 S.RES ERJ2GEJ 100 X (10) B 65.2/106.1 R160 7030010040 S.RES ERJ2GEJ-JPW B 37.9/124 R161 7030008340 S.RES RR0510P-182-D (1.8 k) B 37.6/112.9 R162 7030010040 S.RES ERJ2GEJ-JPW B 37.6/114.7 R163 7030011000 S.RES RR0510P-392-D (3.9 k) B 91.7/62 R164 7030011000 S.RES RR0510P-392-D (3.9 k) B 93.1/52.3 R165 7030010040 S.RES ERJ2GEJ-JPW B 93/64.6 R166 7030010040 S.RES ERJ2GEJ-JPW B 93.1/55 R167 7030005530 S.RES ERJ2GEJ 100 X (10) B 62.5/112.2 R168 7030008340 S.RES RR0510P-182-D (1.8 k) B 93/62.8 R169 7030008340 S.RES RR0510P-182-D (1.8 k) B 93.1/53.2 R171 7030011920 S.RES RR0510P-561-D (560) B 41.7/123.2 R172 7030009820 S.RES RR0510P-681-D (680) B 97.4/65 R173 7030009820 S.RES RR0510P-681-D (680) B 97.2/53.7 R174 7030009820 S.RES RR0510P-681-D (680) B 42.1/113.8 R175 7030005530 S.RES ERJ2GEJ 100 X (10) B 73.6/111 R176 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 100.6/56.8 R177 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 44.9/115.6

DESCRIPTION

M.

H/V

LOCATION

[MAIN UNIT]

REF ORDER NO. NO.

R178 7030004980 S.RES ERJ2GEJ 101 X (100) B 100.6/55.9 R179 7030004980 S.RES ERJ2GEJ 101 X (100) B 44.9/114.7 R180 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 37/108.3 R181 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 96.4/49 R182 7030007300 S.RES ERJ2GEJ 332 X (3.3 k) [USA-01], [EXP-01] B 68.5/107 R184 7030008280 S.RES ERJ2GEJ 271 X (270) B 63.2/119.1 R185 7030010090 S.RES ERJ2GEJ 180 X (18) B 62.3/117.5 R186 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 39.2/50.7 R187 7030008010 S.RES ERJ2GEJ 123 X (12 k) T 41.5/55.9 R188 7410001150 S.ARY EXB28V471JX T 48.5/41.1 R189 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 55.6/39.5 R190 7030008010 S.RES ERJ2GEJ 123 X (12 k) T 43.1/55.9 R191 7030005000 S.RES ERJ2GEJ 471 X (470) B 43.5/112.2 R192 7030005110 S.RES ERJ2GEJ 224 X (220 k) B 44.4/112.2 R193 7030008280 S.RES ERJ2GEJ 271 X (270) B 59.6/116.8 R194 7030004980 S.RES ERJ2GEJ 101 X (100) B 99.2/53 R195 7030005110 S.RES ERJ2GEJ 224 X (220 k) B 100.1/53 R196 7030009320 S.RES ERJ2GEJ 4R7 X (4.7) B 48/120.7 R197 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 40.5/50.6 R198 7030009320 S.RES ERJ2GEJ 4R7 X (4.7) B 103.7/62 R199 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 67.6/57.5 R200 7030004980 S.RES ERJ2GEJ 101 X (100) B 43.1/123.1 R201 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 48/122.6 R202 7030005160 S.RES ERJ2GEJ 105 X (1 M) T 41.4/48.6 R204 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 54.7/39.5 R205 7030008010 S.RES ERJ2GEJ 123 X (12 k) T 36.5/57.9 R207 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 103.7/64 R208 7030010040 S.RES ERJ2GEJ-JPW B 46.2/120.7 R209 7030005000 S.RES ERJ2GEJ 471 X (470) T 67.6/56.5 R212 7410001140 S.ARY EXB28V104JX T 52.3/41.1 R213 7030005530 S.RES ERJ2GEJ 100 X (10) T 41.4/47.7 R214 7030004980 S.RES ERJ2GEJ 101 X (100) B 98.9/64 R215 7030010040 S.RES ERJ2GEJ-JPW B 100.9/62 R216 7410001140 S.ARY EXB28V104JX T 17.3/52.4 R217 7410001140 S.ARY EXB28V104JX T 38.6/56 R218 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 61.4/138.5 R220 7410001140 S.ARY EXB28V104JX T 15.2/50.7 R222 7410001140 S.ARY EXB28V104JX T 36.1/56 R223 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 61.4/137.6 R224 7410001150 S.ARY EXB28V471JX T 30.4/53.1 R225 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 61.4/139.4 R226 7030005110 S.RES ERJ2GEJ 224 X (220 k) B 39.9/72.7 R227 7410001150 S.ARY EXB28V471JX T 42.9/28.9 R230 7410001150 S.ARY EXB28V471JX T 28.6/50.9 R231 7030007270 S.RES ERJ2GEJ 151 X (150) [USA-01], [EXP-01] B 58.2/139.4 7030009280 S.RES ERJ2GEJ 391 X [EUR-01] B 58.2/139.4 R232 7410001150 S.ARY EXB28V471JX T 25.9/49.4 R233 7030004980 S.RES ERJ2GEJ 101 X (100) B 58.2/135.8 R234 7410001150 S.ARY EXB28V471JX T 42.5/25.7 R235 7410001150 S.ARY EXB28V471JX T 24.2/47.6 R236 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 132.4/82.7 R237 7030005530 S.RES ERJ2GEJ 100 X (10) B 49.4/138.8 R238 7410001150 S.ARY EXB28V471JX T 45.7/28.9 R239 7410001150 S.ARY EXB28V471JX T 22.4/45.8 R240 7030004980 S.RES ERJ2GEJ 101 X (100) B 134.7/86.7 R241 7030007270 S.RES ERJ2GEJ 151 X (150) B 49.4/134.3 R242 7030009320 S.RES ERJ2GEJ 4R7 X (4.7) B 48.4/138.8 R243 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 47.4/138.8 R244 7410001150 S.ARY EXB28V471JX T 39.7/25.8 R245 7410001150 S.ARY EXB28V471JX T 20.2/42.4 R246 7030005310 S.RES ERJ2GEJ 124 X (120 k) B 45.6/136.6 R247 7030005720 S.RES ERJ2GEJ 563 X (56 k) B 48.4/140.4 R249 7030008010 S.RES ERJ2GEJ 123 X (12 k) B 135.6/88.4 R250 7030004980 S.RES ERJ2GEJ 101 X (100) B 133.8/90.1 R251 7030006610 S.RES ERJ2GEJ 394 X (390 k) B 49.4/142.5 R252 7030010040 S.RES ERJ2GEJ-JPW B 132/86.7 R253 7030004970 S.RES ERJ2GEJ 470 X (47) B 136.5/90.1 R255 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) B 52.4/142.5 R256 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) B 137.7/90.1 R257 7410001140 S.ARY EXB28V104JX T 14.5/45.7 R259 7030005170 S.RES ERJ2GEJ 474 X (470 k) B 57.1/142.5 R260 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) B 108.8/25.3 R261 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 52.5/25.2 R262 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 51.9/22.8 R263 7410001140 S.ARY EXB28V104JX T 46.2/20 R264 7410001140 S.ARY EXB28V104JX T 50.2/24 R265 7030010040 S.RES ERJ2GEJ-JPW B 87.1/43.5 R266 7030005090 S.RES ERJ2GEJ 104 X (100 k) [USA-01], [EXP-01] only B 36/138.4 R267 7410001140 S.ARY EXB28V104JX T 15/42.5 R268 7410001150 S.ARY EXB28V471JX T 45.7/31.8 R269 7030004980 S.RES ERJ2GEJ 101 X (100) B 143.2/94.7 R270 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 36/136.6 R271 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 23.8/26.7 R272 7410001150 S.ARY EXB28V471JX T 17.9/32.3 R273 7410001150 S.ARY EXB28V471JX T 17.9/35.1 R274 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 36/137.5 R275 7030005060 S.RES ERJ2GEJ 333 X (33 k) T 93.1/55.7 R276 7030010040 S.RES ERJ2GEJ-JPW B 87.1/44.4 R277 7030004980 S.RES ERJ2GEJ 101 X (100) T 145/126 R278 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 13.9/65.6 R279 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) T 102.4/90.1 R280 7030004990 S.RES ERJ2GEJ 221 X (220) T 141.3/127.7 R281 7410001150 S.ARY EXB28V471JX T 21.3/31.8 R282 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 37.8/20.3 R283 7030005100 S.RES ERJ2GEJ 154 X (150 k) T 144/124.4 R285 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 101.6/79.5 R286 7030005080 S.RES ERJ2GEJ 823 X (82 k) B 40.8/72.7 R287 7410001140 S.ARY EXB28V104JX T 49.7/27.7 R288 7030007340 S.RES ERJ2GEJ 153 X (15 k) T 139.5/122.5 R289 7030006070 S.RES ERJ12YJ101U (100) B 86.9/117.5 R290 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 138.6/122.5

DESCRIPTION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

7 - 4

M.

S.=Surface mount

H/V

LOCATION

[MAIN UNIT]

REF ORDER NO. NO.

R291 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) T 137.6/127.7 R292 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 144/126 R293 7030004980 S.RES ERJ2GEJ 101 X (100) B 136.5/83.3 R294 7030004980 S.RES ERJ2GEJ 101 X (100) B 136.5/85 R295 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 137.6/122.5 R296 7030000440 S.RES MCR10EZHJ 3.3 k T 118.4/79.6 R297 7030000440 S.RES MCR10EZHJ 3.3 k T 120.2/79.6 R298 7030000440 S.RES MCR10EZHJ 3.3 k T 116.6/79.6 R299 7030004980 S.RES ERJ2GEJ 101 X (100) B 29.1/19.4 R300 7030005530 S.RES ERJ2GEJ 100 X (10) T 47.6/73.1 R301 7030008300 S.RES ERJ2GEJ 184 X (180 k) B 85.6/105.6 R302 7030005590 S.RES ERJ2GEJ 680 X (68) B 135.6/85 R303 7410001150 S.ARY EXB28V471JX T 47.7/68.4 R304 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 84.3/130 R306 7520000260 S.POS PRF18BB471QB1RB B 84.4/104.4 R308 7030005060 S.RES ERJ2GEJ 333 X (33 k) [USA-01], [EXP-01] T 144/127.7 7030005070 S.RES ERJ2GEJ 683 X (68 k) [EUR-01] T 144/127.7 R309 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) T 102.2/75.7 R310 7030005030 S.RES ERJ2GEJ 152 X (1.5 k) T 143.3/120.2 R311 7030008410 S.RES ERJ2GEJ 392 X (3.9 k) T 145/122.5 R312 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 146.8/120.2 R313 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 103.5/77.8 R314 7030007280 S.RES ERJ2GEJ 331 X (330) T 146/124.4 R315 7030005700 S.RES ERJ2GEJ 274 X (270 k) B 86/128.9 R316 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 11.2/128.2 R317 7030005010 S.RES ERJ2GEJ 681 X (680) B 138.5/94.7 R318 7030003260 S.RES ERJ3GEYJ 330 V (33) B 140.2/90.1 R320 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 15/124.1 R321 7030003370 S.RES ERJ3GEYJ 271 V (270) B 119.6/141.7 R322 7030005600 S.RES ERJ2GEJ 273 X (27 k) B 121.5/143.4 R324 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 31.3/12 R325 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 32.3/12 R326 7030005240 S.RES ERJ2GEJ 473 X (47 k) T 13.2/125.7 R327 7030000260 S.RES MCR10EZHJ 100 (101) B 119.7/132.8 R328 7030000280 S.RES MCR10EZHJ 150 (151) B 139.3/144.3 R331 7030004980 S.RES ERJ2GEJ 101 X (100) T 12/120 R332 7030003370 S.RES ERJ3GEYJ 271 V (270) B 139.5/136 R333 7030005600 S.RES ERJ2GEJ 273 X (27 k) B 137.7/131.9 R334 7030005651 S.RES ERA3YKD 304V (300 k) T 57.8/30.5 R335 7030005871 S.RES ERA3YKD 104V (100 k) T 55.9/29.7 R336 7030005110 S.RES ERJ2GEJ 224 X (220 k) T 12/120.9 R337 7030005110 S.RES ERJ2GEJ 224 X (220 k) T 13.2/120.6 R339 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 12/125.3 R341 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 33.3/12 R342 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 45.3/56.9 R346 7410001150 S.ARY EXB28V471JX T 43.5/73.8 R347 7030005000 S.RES ERJ2GEJ 471 X (470) T 9.8/132.9 R348 7030000620 S.RES MCR10EZHJ 100 k B 147.2/150.9 R349 7030000620 S.RES MCR10EZHJ 100 k B 26/149.7 R350 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 6.4/131 R352 7030005040 S.RES ERJ2GEJ 472 X (4.7 k) T 10.2/125.3 R353 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 55.8/56.9 R354 7030005700 S.RES ERJ2GEJ 274 X (270 k) T 123.3/103 R355 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 127.4/102.2 R356 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 9.8/134.5 R357 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 10.1/150.2 R362 7540000290 ABS ERZV10D220 R364 7030005110 S.RES ERJ2GEJ 224 X (220 k) T 65.1/71.2 R365 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 7.4/120.7 R366 7030007290 S.RES ERJ2GEJ 222 X (2.2 k) T 7/123.5 R367 7030004980 S.RES ERJ2GEJ 101 X (100) T 9.7/117.3 R368 7030008300 S.RES ERJ2GEJ 184 X (180 k) T 8.5/117.8 R369 7030005230 S.RES ERJ2GEJ 334 X (330 k) T 9.7/118.2 R370 7030008280 S.RES ERJ2GEJ 271 X (270) T 6.1/120.7 R371 7030010040 S.RES ERJ2GEJ-JPW T 5/117.3 R372 7030005000 S.RES ERJ2GEJ 471 X (470) T 115.3/15.8 R373 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 115.3/14 R374 7030000140 S.RES MCR10EZHJ 10 (100) T 111.2/12.3 R375 7030010040 S.RES ERJ2GEJ-JPW T 100.1/16.3 R376 7030004980 S.RES ERJ2GEJ 101 X (100) B 62.3/122.2 R378 7030005210 S.RES ERJ2GEJ 822 X (8.2 k) B 63.2/126.1 R379 7030005210 S.RES ERJ2GEJ 822 X (8.2 k) B 59.6/126.1 R380 7030007260 S.RES ERJ2GEJ 330 X (33) B 57.8/123.7 R381 7030005570 S.RES ERJ2GEJ 820 X (82) B 61.4/126.1 R424 7410001150 S.ARY EXB28V471JX T 46.3/42.9 R425 7410001150 S.ARY EXB28V471JX T 36.8/23 R426 7410001150 S.ARY EXB28V471JX T 47.8/33.9 R427 7030005000 S.RES ERJ2GEJ 471 X (470) T 25.5/26.7 R428 7410001140 S.ARY EXB28V104JX T 48/22.7 R429 7410001140 S.ARY EXB28V104JX T 49.7/30.2 R430 7410001140 S.ARY EXB28V104JX T 52.3/43.6 R431 7410001150 S.ARY EXB28V471JX T 17.9/40.3 R432 7410001140 S.ARY EXB28V104JX T 15.2/48.2 R433 7410001150 S.ARY EXB28V471JX T 39.6/23 R435 7410001140 S.ARY EXB28V104JX B 39.1/47.8 R436 7410001140 S.ARY EXB28V104JX B 44.3/41.2 R438 7410001140 S.ARY EXB28V104JX B 34.4/47.7 R439 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 37.3/47.8 R440 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 36.4/47.8 R443 7030005000 S.RES ERJ2GEJ 471 X (470) T 60.4/59.2 R444 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 13.5/33.6 R445 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 13.5/36.1 R446 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 13.5/37.4 R447 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 50.2/19.2 R448 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 49.3/19.2 R449 7030005170 S.RES ERJ2GEJ 474 X (470 k) T 39.5/19.2 R450 7030005050 S.RES ERJ2GEJ 103 X (10 k) T 50.2/16.5 R453 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 52.1/14.9 R454 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 94.9/2.7 R455 7030005010 S.RES ERJ2GEJ 681 X (680) B 124.9/2.7 R456 7030005120 S.RES ERJ2GEJ 102 X (1 k) B 109.9/2.7 R467 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 38/44.6 R468 7410001140 S.ARY EXB28V104JX B 31.8/48.5

DESCRIPTION

M.

H/V

LOCATION

[MAIN UNIT]

REF ORDER NO. NO.

R469 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 32.6/44.6 R470 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 10.9/20.2 R471 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 47.7/44.2 R472 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 4.8/36.1 R473 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 46.2/44.6 R474 7030005530 S.RES ERJ2GEJ 100 X (10) B 15.5/55.3 R475 7030005000 S.RES ERJ2GEJ 471 X (470) B 9/56.2 R476 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 15/53.5 R477 7030005080 S.RES ERJ2GEJ 823 X (82 k) B 15/52.6 R478 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 9.1/54.7 R479 7030005110 S.RES ERJ2GEJ 224 X (220 k) T 64.2/69.6 R480 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 15.6/61.5 R481 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 16.5/59.9 R482 7410001150 S.ARY EXB28V471JX T 19.6/45.1 R483 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 31.2/56.5 R484 7030005090 S.RES ERJ2GEJ 104 X (100 k) B 28.8/50.9 R485 7410001150 S.ARY EXB28V471JX T 67.3/96.9 R486 7410001150 S.ARY EXB28V471JX T 63.9/107 R487 7410001150 S.ARY EXB28V471JX T 73/106.9 R488 7030005000 S.RES ERJ2GEJ 471 X (470) T 9.5/54.9 R489 7030004980 S.RES ERJ2GEJ 101 X (100) B 24.1/58.7 R490 7030008290 S.RES ERJ2GEJ 183 X (18 k) B 28.2/58.4 R491 7030004980 S.RES ERJ2GEJ 101 X (100) B 26.1/51.2 R492 7030005240 S.RES ERJ2GEJ 473 X (47 k) B 29.8/58.8 R493 7030010040 S.RES ERJ2GEJ-JPW T 11.3/19 R494 7030005000 S.RES ERJ2GEJ 471 X (470) T 73.3/99 R495 7030008270 S.RES RR0510P-104-D (100 k) T 54.9/55.3 R496 7030006020 S.RES RR0510P-682-D (6.8 k) T 52.7/56.2 R497 7030008250 S.RES RR0510P-562-D (5.6 k) T 52.7/55.3 R498 7030005600 S.RES ERJ2GEJ 273 X (27 k) B 61.4/103.1 R499 7030004980 S.RES ERJ2GEJ 101 X (100) T 24.4/57 R500 7030005600 S.RES ERJ2GEJ 273 X (27 k) T 21.2/57.5 R501 7030005220 S.RES ERJ2GEJ 223 X (22 k) T 22.8/53.8 R502 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 28/55 R503 7030007350 S.RES ERJ2GEJ 393 X (39 k) T 55.6/58.9 R504 7030011920 S.RES RR0510P-561-D (560) T 52.7/54.4 R505 7030010040 S.RES ERJ2GEJ-JPW T 113.4/18.3 R506 7030005110 S.RES ERJ2GEJ 224 X (220 k) T 113.4/19.3 R507 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 115/19.3 R508 7030010040 S.RES ERJ2GEJ-JPW B 93.7/42.6 R509 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 33.3/15.2 R510 7030007350 S.RES ERJ2GEJ 393 X (39 k) B 29/14.1 R511 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 29.1/18.5 R512 7030005050 S.RES ERJ2GEJ 103 X (10 k) B 30.8/18.5 R513 7030007280 S.RES ERJ2GEJ 331 X (330) B 72.6/91 R530 7030005240 S.RES ERJ2GEJ 473 X (47 k) T 62.5/66.3 R532 7030005000 S.RES ERJ2GEJ 471 X (470) B 45.1/37.1 R533 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 57.2/18.4 R534 7030005600 S.RES ERJ2GEJ 273 X (27 k) B 45.3/58.6 R535 7030004980 S.RES ERJ2GEJ 101 X (100) B 56.7/56.9 R536 7030005600 S.RES ERJ2GEJ 273 X (27 k) B 55.8/58.6 R537 7030010040 S.RES ERJ2GEJ-JPW B 41.6/41.2 R539 7030005110 S.RES ERJ2GEJ 224 X (220 k) T 64.2/71.2 R540 7030005090 S.RES ERJ2GEJ 104 X (100 k) T 90.6/17.9 R541 7030005220 S.RES ERJ2GEJ 223 X (22 k) T 28.9/55 R542 7030005120 S.RES ERJ2GEJ 102 X (1 k) T 70.4/65.1 R545 7030010040 S.RES ERJ2GEJ-JPW T 61.2/98.7 R546 7030010040 S.RES ERJ2GEJ-JPW T 61.2/99.6 R547 7030010040 S.RES ERJ2GEJ-JPW T 69.7/99.1

C1 4030017420 S.CER ECJ0EC1H470J B 120.7/39 C2 4030017420 S.CER ECJ0EC1H470J B 22.9/78.1 C3 4030016930 S.CER ECJ0EB1A104K B 130.8/50.2 C4 4030017420 S.CER ECJ0EC1H470J B 121.9/37.1 C5 4030017420 S.CER ECJ0EC1H470J B 21.7/77.1 C6 4030016930 S.CER ECJ0EB1A104K B 52.4/77.9 C7 4030017420 S.CER ECJ0EC1H470J B 122.8/37.1 C8 4030017420 S.CER ECJ0EC1H470J B 21.7/75.5 C9 4030017460 S.CER ECJ0EB1E102K T 17.6/59 C10 4030016930 S.CER ECJ0EB1A104K B 55.7/77.9 C11 4030016930 S.CER ECJ0EB1A104K B 123.7/37.1 C12 4030016930 S.CER ECJ0EB1A104K B 22.1/74.3 C13 4030016930 S.CER ECJ0EB1A104K B 55.6/80.7 C14 4030017460 S.CER ECJ0EB1E102K T 16.1/59.9 C15 4030016930 S.CER ECJ0EB1A104K T 62.4/67.5 C16 4030017620 S.CER ECJ0EC1H100C T 56.1/64.5 C17 4030016930 S.CER ECJ0EB1A104K B 115.5/40.6 C18 4030017430 S.CER ECJ0EC1H101J T 62.4/71.2 C19 4030016930 S.CER ECJ0EB1A104K B 22.9/80.3 C20 4550006250 S.TAN TEESVA 1A 106M8R B 115.3/37.5 C21 4550006250 S.TAN TEESVA 1A 106M8R B 21.3/80.5 C22 4030016930 S.CER ECJ0EB1A104K B 50/77.9 C23 4030016930 S.CER ECJ0EB1A104K T 57.8/52.6 C24 4030016930 S.CER ECJ0EB1A104K B 50.3/81.1 C25 4030016930 S.CER ECJ0EB1A104K B 54.4/81.1 C26 4030017460 S.CER ECJ0EB1E102K B 117.8/39.2 C27 4030017460 S.CER ECJ0EB1E102K B 23.8/80.3 C28 4030016930 S.CER ECJ0EB1A104K B 53.3/77.9 C30 4030017460 S.CER ECJ0EB1E102K T 59.8/67 C31 4030016930 S.CER ECJ0EB1A104K T 60.5/53 C32 4030017590 S.CER ECJ0EC1H070C B 38.4/79.1 C33 4030016930 S.CER ECJ0EB1A104K T 58.9/67 C34 4030017570 S.CER ECJ0EC1H040B B 37.2/78.7 C35 4030016930 S.CER ECJ0EB1A104K B 35.8/75.7 C36 4030017500 S.CER ECJ0EC1H560J B 37.2/79.6 C37 4030016930 S.CER ECJ0EB1A104K B 48.4/79.8 C38 4030016930 S.CER ECJ0EB1A104K B 69.8/78.2 C39 4030017360 S.CER ECJ0EC1H030B B 71.4/77.3 C40 4030017690 S.CER ECJ0EC1H121J B 68.2/76.4 C41 4030018860 S.CER ECJ0EB0J105K B 31/58.2 C42 4030017690 S.CER ECJ0EC1H121J B 66.4/78.2 C43 4030016930 S.CER ECJ0EB1A104K B 55.6/49 C44 4030018860 S.CER ECJ0EB0J105K B 35.7/56.4

DESCRIPTION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

7 - 5

M.

S.=Surface mount

H/V

LOCATION

[MAIN UNIT]

REF ORDER NO. NO.

C45 4030016950 S.CER ECJ0EB1A473K B 34.5/55.2 C47 4030017460 S.CER ECJ0EB1E102K B 64.6/77.3 C48 4030016930 S.CER ECJ0EB1A104K T 54.3/54.4 C49 4030018860 S.CER ECJ0EB0J105K B 15.6/58.3 C50 4030016930 S.CER ECJ0EB1A104K B 130.8/48.4 C51 4030017620 S.CER ECJ0EC1H100C B 125.1/45.6 C52 4030017420 S.CER ECJ0EC1H470J B 120.6/48.8 C53 4030017420 S.CER ECJ0EC1H470J B 32.7/78.4 C54 4030017660 S.CER ECJ0EC1H330J B 32.7/77.3 C56 4030016950 S.CER ECJ0EB1A473K B 31.9/59.1 C59 4030017430 S.CER ECJ0EC1H101J B 32.7/75.5 C60 4030017620 S.CER ECJ0EC1H100C B 32.3/72.7 C61 4030018900 S.CER ECJ0EB0J474K B 18/63.8 C62 4030016930 S.CER ECJ0EB1A104K B 33.6/55.2 C63 4030016930 S.CER ECJ0EB1A104K T 55.6/62.1 C64 4030017460 S.CER ECJ0EB1E102K B 33.2/104.3 C66 4030017430 S.CER ECJ0EC1H101J B 123.5/48.4 C67 4030017460 S.CER ECJ0EB1E102K B 67.5/87.7 C69 4030016930 S.CER ECJ0EB1A104K B 29.8/63 C70 4030017460 S.CER ECJ0EB1E102K B 64.3/79.4 C71 4030016930 S.CER ECJ0EB1A104K B 57.6/43.3 C72 4030018910 S.CER C1608 JB 0J 475K-T B 29.3/61.9 C73 4030017460 S.CER ECJ0EB1E102K B 93.7/46.2 C74 4030017780 S.CER ECJ0EB1E472K B 93.7/40.7 C75 4030017460 S.CER ECJ0EB1E102K B 39.6/106.1 C76 4030017780 S.CER ECJ0EB1E472K B 29.9/98.3 C77 4030016930 S.CER ECJ0EB1A104K T 53.9/57.7 C78 4030017460 S.CER ECJ0EB1E102K B 118.7/48.8 C79 4030017460 S.CER ECJ0EB1E102K B 34.3/79.5 C80 4030017380 S.CER ECJ0EC1H050B B 102.4/44.5 C81 4030017380 S.CER ECJ0EC1H050B B 44/101.1 C82 4550006250 S.TAN TEESVA 1A 106M8R B 61.1/79.2 C83 4030017460 S.CER ECJ0EB1E102K B 71.7/86.7 C84 4030017420 S.CER ECJ0EC1H470J B 74.7/81.1 C85 4030017590 S.CER ECJ0EC1H070C B 56/43.3 C86 4030016930 S.CER ECJ0EB1A104K B 51.7/47.1 C87 4030018910 S.CER C1608 JB 0J 475K-T B 54.3/48.4 C88 4030017780 S.CER ECJ0EB1E472K B 92.1/40.7 C89 4030017780 S.CER ECJ0EB1E472K B 28.3/99.3 C90 4030017680 S.CER ECJ0EC1H820J B 69.1/86.7 C91 4030016930 S.CER ECJ0EB1A104K T 60.7/66.3 C92 4030016790 S.CER ECJ0EB1C103K B 72.7/88 C93 4030017460 S.CER ECJ0EB1E102K B 70.5/87.2 C94 4030017350 S.CER ECJ0EC1H020B B 103.2/47.6 C96 4030018910 S.CER C1608 JB 0J 475K-T B 49.2/48.9 C97 4030016930 S.CER ECJ0EB1A104K B 57.4/50.6 C98 4030017460 S.CER ECJ0EB1E102K B 36.4/105.2 C99 4030017460 S.CER ECJ0EB1E102K B 40.8/71.1 C100 4030017460 S.CER ECJ0EB1E102K B 84.7/48 C101 4030017620 S.CER ECJ0EC1H100C B 37.7/63.2 C102 4550007650 S.TAN F931V105MAABMA B 88.7/41 C103 4550007650 S.TAN F931V105MAABMA B 26.2/100.3 C104 4030016930 S.CER ECJ0EB1A104K B 39.9/74.3 C105 4030017580 S.CER ECJ0EC1H060C B 103.2/46.7 C106 4030017350 S.CER ECJ0EC1H020B B 47/102.2 C107 4030017590 S.CER ECJ0EC1H070C B 72.3/90 C108 4030017460 S.CER ECJ0EB1E102K B 87.1/48 C109 4030017380 S.CER ECJ0EC1H050B B 101.9/47.2 C110 4030017360 S.CER ECJ0EC1H030B B 46.5/103.5 C111 4030016790 S.CER ECJ0EB1C103K B 71/93.8 C112 4550007650 S.TAN F931V105MAABMA B 83.6/41 C113 4550007650 S.TAN F931V105MAABMA B 28.3/105.6 C114 4030017580 S.CER ECJ0EC1H060C B 103.2/48.5 C115 4030017350 S.CER ECJ0EC1H020B B 47/104.9 C116 4030017460 S.CER ECJ0EB1E102K B 71/91 C117 4030016790 S.CER ECJ0EB1C103K B 73.5/95.7 C118 4030016790 S.CER ECJ0EB1C103K B 71/92 C119 4030017350 S.CER ECJ0EC1H020B B 103.2/49.4 C121 4030016790 S.CER ECJ0EB1C103K B 71/94.8 C122 4030016790 S.CER ECJ0EB1C103K B 69.1/90.1 C123 4030016930 S.CER ECJ0EB1A104K B 67.4/98.3 C124 4030016930 S.CER ECJ0EB1A104K B 48.5/50.5 C125 4030016790 S.CER ECJ0EB1C103K B 98.1/42.6 C126 4030016790 S.CER ECJ0EB1C103K B 57.2/35.1 C127 4030016790 S.CER ECJ0EB1C103K T 32.4/108.3 C133 4030017590 S.CER ECJ0EC1H070C B 59.6/92 C134 4550003250 S.TAN TEESVA 1V 474M8R B 26.2/105.6 C135 4030016930 S.CER ECJ0EB1A104K B 30.8/110.6 C136 4030016930 S.CER ECJ0EB1A104K B 50.4/36.8 C137 4030017620 S.CER ECJ0EC1H100C B 56.2/38.3 C138 4030017640 S.CER ECJ0EC1H150J B 75.8/101.1 C139 4030017650 S.CER ECJ0EC1H270J B 59.6/90.3 C140 4030016930 S.CER ECJ0EB1A104K B 55.3/36.7 C141 4550003250 S.TAN TEESVA 1V 474M8R B 81.9/44.6 C144 4550006250 S.TAN TEESVA 1A 106M8R B 98.3/41 C145 4030017420 S.CER ECJ0EC1H470J B 50.4/38.5 C146 4030017460 S.CER ECJ0EB1E102K B 56.2/35.1 C147 4550006250 S.TAN TEESVA 1A 106M8R T 34.6/105.9 C149 4030016790 S.CER ECJ0EB1C103K B 67.4/97.3 C150 4030016790 S.CER ECJ0EB1C103K B 67.9/92.9 C151 4030017610 S.CER ECJ0EC1H090C B 63.3/97.1 C152 4030016930 S.CER ECJ0EB1A104K B 55.3/32.4 C153 4030017380 S.CER ECJ0EC1H050B B 49.8/34.9 C154 4030017420 S.CER ECJ0EC1H470J B 25.6/124.3 C155 4030017460 S.CER ECJ0EB1E102K B 25.6/119.8 C156 4030017420 S.CER ECJ0EC1H470J B 27.3/117.4 C157 4030017460 S.CER ECJ0EB1E102K B 30.8/111.5 C158 4030017420 S.CER ECJ0EC1H470J B 81.8/59.8 C159 4030017420 S.CER ECJ0EC1H470J B 82.3/47.6 C160 4030016790 S.CER ECJ0EB1C103K B 65.7/104.4 C161 4030016790 S.CER ECJ0EB1C103K B 62.4/98.9 C162 4030018860 S.CER ECJ0EB0J105K T 95.3/66.7 C163 4030016930 S.CER ECJ0EB1A104K B 81.3/58.2 C164 4030016930 S.CER ECJ0EB1A104K B 49.5/36.8

DESCRIPTION

M.

H/V

LOCATION

[MAIN UNIT]

REF ORDER NO. NO.

C165 4030016930 S.CER ECJ0EB1A104K B 81.8/66.4 C166 4030017460 S.CER ECJ0EB1E102K B 82.3/58.2 C167 4030017460 S.CER ECJ0EB1E102K B 81.8/67.3 C168 4030017400 S.CER ECJ0EC1H220J B 29.9/122.2 C169 4030018070 S.CER ECJ0EC1H300J B 30.8/122.2 C170 4030018070 S.CER ECJ0EC1H300J B 28.7/114.6 C171 4030017390 S.CER ECJ0EC1H180J B 28.7/113.7 C172 4030017510 S.CER ECJ0EC1H680J B 85.8/63.9 C173 4030017550 S.CER ECJ0EC1H1R5B B 93/66.4 C174 4030017420 S.CER ECJ0EC1H470J B 84.4/54.1 C175 4030017460 S.CER ECJ0EB1E102K T 93.1/53.9 C176 4030018860 S.CER ECJ0EB0J105K B 90.9/57.7 C177 4030017600 S.CER ECJ0EC1H080C B 36.7/123.3 C178 4030017600 S.CER ECJ0EC1H080C B 37.6/111.1 C179 4030017420 S.CER ECJ0EC1H470J T 14.9/129.1 C180 4030017640 S.CER ECJ0EC1H150J B 91.7/65 C181 4030017400 S.CER ECJ0EC1H220J B 83.4/54.1 C182 4030016790 S.CER ECJ0EB1C103K B 63.1/104.4 C183 4030017420 S.CER ECJ0EC1H470J T 14.9/131.3 C184 4030017670 S.CER ECJ0EC1H390J B 37.9/124.9 C185 4030018010 S.CER ECJ0EC1H360J B 37.6/115.6 C186 4030017420 S.CER ECJ0EC1H470J T 93.1/57.7 C187 4030017420 S.CER ECJ0EC1H470J T 95.3/67.6 C188 4030017650 S.CER ECJ0EC1H270J B 84.9/63.9 C189 4030017620 S.CER ECJ0EC1H100C B 93.1/51.4 C190 4030017550 S.CER ECJ0EC1H1R5B B 93.1/56.8 C191 4030017660 S.CER ECJ0EC1H330J B 93/65.5 C192 4030017670 S.CER ECJ0EC1H390J B 93.1/55.9 C193 4030017460 S.CER ECJ0EB1E102K B 61.4/107.1 C194 4030017660 S.CER ECJ0EC1H330J B 37.9/123.1 C195 4030017670 S.CER ECJ0EC1H390J B 40.3/120.7 C196 4030018010 S.CER ECJ0EC1H360J B 37.6/113.8 C197 4030017670 S.CER ECJ0EC1H390J B 41.7/112.2 C198 4030016790 S.CER ECJ0EB1C103K B 60.5/107.1 C199 4030017460 S.CER ECJ0EB1E102K T 95.3/63.1 C200 4030017650 S.CER ECJ0EC1H270J B 93/63.7 C201 4030017660 S.CER ECJ0EC1H330J B 96/62 C202 4030017670 S.CER ECJ0EC1H390J B 93.1/54.1 C203 4030017420 S.CER ECJ0EC1H470J B 97.2/52 C204 4550006250 S.TAN TEESVA 1A 106M8R T 81.6/17 C205 4550006250 S.TAN TEESVA 1A 106M8R T 85.1/17 C206 4550006250 S.TAN TEESVA 1A 106M8R T 88.5/17 C208 4030018860 S.CER ECJ0EB0J105K T 80/17 C209 4030018860 S.CER ECJ0EB0J105K T 83.5/17 C210 4030018860 S.CER ECJ0EB0J105K T 86.9/17 C211 4030016930 S.CER ECJ0EB1A104K B 38.5/120.7 C212 4030016790 S.CER ECJ0EB1C103K B 39.9/112.2 C213 4030017650 S.CER ECJ0EC1H270J B 68.5/106.1 C214 4030017460 S.CER ECJ0EB1E102K B 66.8/107 C215 4030017540 S.CER ECJ0EC1HR75B B 42.8/118.5 C216 4030017540 S.CER ECJ0EC1HR75B B 42.8/116.9 C217 4030017460 S.CER ECJ0EB1E102K B 39.4/120.7 C218 4030017460 S.CER ECJ0EB1E102K B 40.8/112.2 C219 4030016790 S.CER ECJ0EB1C103K B 94.2/62 C220 4030017530 S.CER ECJ0EC1H0R5B B 98.5/59.6 C221 4030016790 S.CER ECJ0EB1C103K B 95.4/52 C222 4030017530 S.CER ECJ0EC1H0R5B B 99.4/56.6 C224 4030017460 S.CER ECJ0EB1E102K B 95.1/62 C225 4030017460 S.CER ECJ0EB1E102K B 96.3/52 C228 4030018860 S.CER ECJ0EB0J105K T 79.9/24 C229 4030018860 S.CER ECJ0EB0J105K T 83.5/24 C230 4030018860 S.CER ECJ0EB0J105K T 86.8/24 C231 4550005980 S.TAN TEESVA 1A 475M8R T 81.6/25.6 C232 4550005980 S.TAN TEESVA 1A 475M8R T 85.1/25.6 C233 4550005980 S.TAN TEESVA 1A 475M8R T 88.5/25.6 C235 4030017030 S.CER ECJ0EB1A273K T 41/55 C236 4030017730 S.CER ECJ0EB1E471K B 100.6/55 C237 4030017460 S.CER ECJ0EB1E102K B 100.6/60.4 C238 4030017730 S.CER ECJ0EB1E471K B 44.9/113.8 C239 4030017460 S.CER ECJ0EB1E102K B 44.9/119.2 C240 4510009550 S.ELE EEEFK1C100R T 95.1/22.3 C241 4030017350 S.CER ECJ0EC1H020B B 68.3/120.9 C242 4030016790 S.CER ECJ0EB1C103K B 68.7/111.2 C243 4030017460 S.CER ECJ0EB1E102K B 70.3/106.1 C244 4030016790 S.CER ECJ0EB1C103K B 70.3/107 C245 4030017460 S.CER ECJ0EB1E102K T 94.8/60.2 C246 4030017620 S.CER ECJ0EC1H100C B 46.9/114.7 C247 4030017460 S.CER ECJ0EB1E102K B 42.6/112.2 C248 4030017460 S.CER ECJ0EB1E102K B 36/117.8 C249 4030017420 S.CER ECJ0EC1H470J B 48/112.2 C250 4030017590 S.CER ECJ0EC1H070C B 103.7/58.7 C251 4030017620 S.CER ECJ0EC1H100C B 102.6/55.9 C252 4030017460 S.CER ECJ0EB1E102K B 99.2/51.3 C253 4030017590 S.CER ECJ0EC1H070C B 48/117.4 C254 4030017460 S.CER ECJ0EB1E102K B 103.7/53 C255 4030016930 S.CER ECJ0EB1A104K T 42.1/50.6 C256 4030017640 S.CER ECJ0EC1H150J T 43.1/55 C257 4030016790 S.CER ECJ0EB1C103K T 36.5/58.8 C258 4030017390 S.CER ECJ0EC1H180J B 59.6/117.8 C259 4030017580 S.CER ECJ0EC1H060C T 48.5/46.4 C260 4030017460 S.CER ECJ0EB1E102K B 46.5/107.5 C261 4030017460 S.CER ECJ0EB1E102K B 47.7/110.3 C262 4030016930 S.CER ECJ0EB1A104K T 69.2/57.5 C263 4030017460 S.CER ECJ0EB1E102K B 60.5/126.1 C264 4030017460 S.CER ECJ0EB1E102K B 101.9/48.9 C265 4030017460 S.CER ECJ0EB1E102K B 43.5/120.7 C266 4030018900 S.CER ECJ0EB0J474K T 43.7/45.6 C267 4030017660 S.CER ECJ0EC1H330J B 59.6/119.3 C268 4030017460 S.CER ECJ0EB1E102K B 62.3/126.1 C269 4550006780 S.TAN TEESVB2 0J 476M8R T 72.2/60.8 C270 4030016930 S.CER ECJ0EB1A104K T 40.5/49.7 C271 4030017610 S.CER ECJ0EC1H090C [EUR-01] B 70.7/137.8 4030017620 S.CER ECJ0EC1H100C [USA-01], [EXP-01] B 70.7/137.8

DESCRIPTION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

7 - 6

M.

S.=Surface mount

H/V

LOCATION

[MAIN UNIT]

REF ORDER NO. NO.

C272 4030017630 S.CER ECJ0EC1H120J T 47.3/60.1 C274 4030017460 S.CER ECJ0EB1E102K B 44.4/120.7 C275 4030017620 S.CER ECJ0EC1H100C B 48/124.4 C276 4030017600 S.CER ECJ0EC1H080C B 71.9/139.9 C277 4030016790 S.CER ECJ0EB1C103K T 48.6/36.7 C279 4030017390 S.CER ECJ0EC1H180J B 59.6/120.9 C280 4030017460 S.CER ECJ0EB1E102K B 98.9/66.3 C281 4030017460 S.CER ECJ0EB1E102K B 100/62 C282 4030017630 S.CER ECJ0EC1H120J B 61.4/122.2 C283 4030017620 S.CER ECJ0EC1H100C B 103.7/65.9 C286 4030017370 S.CER ECJ0EC1H3R5B B 61.4/140.3 C287 4030017350 S.CER ECJ0EC1H020B B 58.2/138.5 C288 4030017570 S.CER ECJ0EC1H040B B 64.1/139.8 C289 4030017570 S.CER ECJ0EC1H040B [USA-01], [EXP-01] B 71.9/135.7 4030017600 S.CER ECJ0EC1H080C [EUR-01] B 71.9/135.7 C290 4030017600 S.CER ECJ0EC1H080C B 70.7/139.5 C291 4030017340 S.CER ECJ0EC1H010B B 102.4/66.6 C292 4030017460 S.CER ECJ0EB1E102K B 61.4/136.7 C293 4030017570 S.CER ECJ0EC1H040B B 44/100.2 C294 4030017360 S.CER ECJ0EC1H030B B 47.7/108.1 C295 4030017460 S.CER ECJ0EB1E102K B 61.4/135.8 C296 4030017200 S.CER GRM31BR32J102KY01L B 98.7/132.7 C297 4030017580 S.CER ECJ0EC1H060C B 88.8/138.9 C298 4030017460 S.CER ECJ0EB1E102K B 132.9/86.7 C299 4030017460 S.CER ECJ0EB1E102K B 58.2/137.6 C300 4030017460 S.CER ECJ0EB1E102K B 58.2/134.9 C301 4030016790 S.CER ECJ0EB1C103K B 58.2/136.7 C302 4030017460 S.CER ECJ0EB1E102K B 54.2/139.8 C303 4030017400 S.CER ECJ0EC1H220J B 131.1/82.4 C304 4030017420 S.CER ECJ0EC1H470J B 133.8/86.7 C305 4030017420 S.CER ECJ0EC1H470J B 47.4/134.3 C306 4030017460 S.CER ECJ0EB1E102K B 48.4/134.3 C307 4030017460 S.CER ECJ0EB1E102K B 46.5/138.8 C309 4030016790 S.CER ECJ0EB1C103K B 134.7/88.4 C310 4030017630 S.CER ECJ0EC1H120J B 136.5/86.7 C311 4030016930 S.CER ECJ0EB1A104K B 46.5/140.4 C312 4030016930 S.CER ECJ0EB1A104K B 51.4/142.5 C313 4030016930 S.CER ECJ0EB1A104K B 47.4/140.4 C314 4030017460 S.CER ECJ0EB1E102K B 50.4/142.5 C315 4030017730 S.CER ECJ0EB1E471K B 136.5/92.3 C318 4030017460 S.CER ECJ0EB1E102K [EUR-01] only T 117.8/106.3 C319 4030017460 S.CER ECJ0EB1E102K [EUR-01] only T 117.8/105.4 C320 4030017460 S.CER ECJ0EB1E102K [EUR-01] only T 115.2/106.3 C321 4030017420 S.CER ECJ0EC1H470J T 66/57.5 C322 4030017420 S.CER ECJ0EC1H470J T 62.3/52.9 C323 4030017390 S.CER ECJ0EC1H180J [USA-01], [EXP-01] B 45.6/138.8 4030017550 S.CER ECJ0EC1H1R5B [EUR-01] B 45.6/138.8 C324 4030017630 S.CER ECJ0EC1H120J B 135.6/83.3 C325 4030017460 S.CER ECJ0EB1E102K B 134.7/90.1 C326 4030017590 S.CER ECJ0EC1H070C [USA-01], [EXP-01] B 38.7/139 C327 4030017640 S.CER ECJ0EC1H150J B 142.8/85 C328 4030017420 S.CER ECJ0EC1H470J B 137.8/92.3 C329 4030017620 S.CER ECJ0EC1H100C B 36/142.3 C330 4030017460 S.CER ECJ0EB1E102K B 138.9/92.3 C331 4030017460 S.CER ECJ0EB1E102K B 60.4/142.5 C332 4030017460 S.CER ECJ0EB1E102K B 56/142.5 C333 4030016930 S.CER ECJ0EB1A104K T 23.1/29.4 C334 4510009810 S.ELE EEEFK1E220R T 137.5/89.8 C335 4030017390 S.CER ECJ0EC1H180J B 144.3/89.3 C336 4030017420 S.CER ECJ0EC1H470J B 61.3/142.5 C337 4030017400 S.CER ECJ0EC1H220J B 144.3/88.2 C338 4030017340 S.CER ECJ0EC1H010B [USA-01], [EXP-01] B 36/139.4 4030017460 S.CER ECJ0EB1E102K [EUR-01] B 36/139.4 C339 4030017460 S.CER ECJ0EB1E102K B 36/135.7 C340 4030016930 S.CER ECJ0EB1A104K T 54/20.3 C341 4030017420 S.CER ECJ0EC1H470J B 132.9/90.1 C342 4030017730 S.CER ECJ0EB1E471K T 138.8/108 C343 4550002890 S.TAN TEESVA 1A 225M8R T 148.3/126 C345 4030017460 S.CER ECJ0EB1E102K B 36/134.8 C346 4030017420 S.CER ECJ0EC1H470J T 63.2/56.9 C347 4030017460 S.CER ECJ0EB1E102K T 145/127.7 C348 4030017420 S.CER ECJ0EC1H470J T 64.2/55.5 C349 4030017400 S.CER ECJ0EC1H220J B 144.2/91 C350 4030017420 S.CER ECJ0EC1H470J T 138.7/112.3 C351 4030017460 S.CER ECJ0EB1E102K T 138.7/113.2 C353 4030017460 S.CER ECJ0EB1E102K T 140.4/127.7 C354 4030017420 S.CER ECJ0EC1H470J T 113/117 C355 4030017340 S.CER ECJ0EC1H010B [EUR-01] B 34.4/134 4030017360 S.CER ECJ0EC1H030B [USA-01], [EXP-01] B 34.4/134 C357 4030017640 S.CER ECJ0EC1H150J B 36/140.7 C358 4030016790 S.CER ECJ0EB1C103K T 142.2/127.7 C359 4510009550 S.ELE EEEFK1C100R T 105.3/87.6 C360 4030017460 S.CER ECJ0EB1E102K T 113.9/117 C362 4030017380 S.CER ECJ0EC1H050B [USA-01], [EXP-01] B 30.7/141.2 4030017580 S.CER ECJ0EC1H060C [EUR-01] B 30.7/141.2 C364 4030011040 S.CER GRM31M4C2H2R0CY21L [USA-01], [EXP-01] B 93.3/119.2 C365 4030017730 S.CER ECJ0EB1E471K T 114.8/117 C366 4030016930 S.CER ECJ0EB1A104K [EUR-01] T 145/124.4 4030018900 S.CER ECJ0EB0J474K [USA-01], [EXP-01] T 145/124.4 C367 4510009810 S.ELE EEEFK1E220R T 110.3/113.1 C368 4030006860 S.CER C1608 JB 1H 102K-T T 87.7/142 C370 4030011120 S.CER GRM31M2C2H100JV01L B 97.4/123.5 C371 4030006860 S.CER C1608 JB 1H 102K-T T 35.5/142.5 C372 4030011050 S.CER GRM31M3C2H3R0CY21L [USA-01], [EXP-01] B 101/122 C373 4030016930 S.CER ECJ0EB1A104K T 140.4/122.5

DESCRIPTION

M.

H/V

LOCATION

[MAIN UNIT]

REF ORDER NO. NO.

C374 4030017460 S.CER ECJ0EB1E102K B 89.6/115.1 C375 4030017460 S.CER ECJ0EB1E102K T 110.7/108.7 C376 4030017600 S.CER ECJ0EC1H080C B 85/138.9 C377 4030017730 S.CER ECJ0EB1E471K B 84.2/119.4 C378 4030017420 S.CER ECJ0EC1H470J T 110.7/109.6 C379 4030017380 S.CER ECJ0EC1H050B [USA-01], [EXP-01] B 25.1/144.5 4030017580 S.CER ECJ0EC1H060C [EUR-01] B 25.1/144.5 C380 4030017380 S.CER ECJ0EC1H050B B 87.2/138.9 C381 4030017400 S.CER ECJ0EC1H220J T 112.1/117 C382 4030017580 S.CER ECJ0EC1H060C B 24.1/141 C383 4030017460 S.CER ECJ0EB1E102K T 115.3/75.6 C384 4030018860 S.CER ECJ0EB0J105K T 138.6/127.7 C385 4030017460 S.CER ECJ0EB1E102K B 23.2/144.4 C386 4030017460 S.CER ECJ0EB1E102K T 136.6/127.7 C387 4030017390 S.CER ECJ0EC1H180J B 86/135.9 C388 4510009550 S.ELE EEEFK1C100R T 123.3/76.8 C389 4030017200 S.CER GRM31BR32J102KY01L B 94.2/132.5 C390 4030011170 S.CER GRM31M2C2H180JV01L B 84.7/131.6 C391 4030017460 S.CER ECJ0EB1E102K T 115.3/74 C392 4030017520 S.CER ECJ0EC1H0R3B B 86/130 C394 4550006250 S.TAN TEESVA 1A 106M8R B 26.3/15.3 C396 4510009550 S.ELE EEEFK1C100R T 97/77.8 C397 4030017460 S.CER ECJ0EB1E102K T 136.6/122.5 C398 4550006250 S.TAN TEESVA 1A 106M8R B 31.7/15.5 C399 4030017460 S.CER ECJ0EB1E102K T 100/76.1 C400 4030017460 S.CER ECJ0EB1E102K B 85.6/103.9 C401 4030011170 S.CER GRM31M2C2H180JV01L B 103.4/131.2 C402 4030016930 S.CER ECJ0EB1A104K T 47.2/71.6 C404 4030017460 S.CER ECJ0EB1E102K T 143.1/127.7 C405 4030017420 S.CER ECJ0EC1H470J B 57.6/56.9 C406 4030016790 S.CER ECJ0EB1C103K T 103.5/76.2 C408 4030017460 S.CER ECJ0EB1E102K B 85.6/127.6 C409 4030011170 S.CER GRM31M2C2H180JV01L B 112.4/131.2 C410 4030011170 S.CER GRM31M2C2H180JV01L B 114.6/131.2 C411 4550007650 S.TAN F931V105MAABMA T 37.5/68.6 C412 4030017460 S.CER ECJ0EB1E102K T 104.5/77.8 C413 4030016930 S.CER ECJ0EB1A104K T 38.5/71.9 C414 4030017420 S.CER ECJ0EC1H470J B 37.6/134 C415 4550007650 S.TAN F931V105MAABMA T 37.5/63.4 C416 4550006250 S.TAN TEESVA 1A 106M8R T 106.9/81.6 C417 4030016930 S.CER ECJ0EB1A104K T 15/125.7 C418 4550007650 S.TAN F931V105MAABMA T 39.4/73.9 C419 4030011170 S.CER GRM31M2C2H180JV01L B 117.3/131.2 C420 4030016930 S.CER ECJ0EB1A104K B 27.4/18.5 C421 4030017460 S.CER ECJ0EB1E102K B 86.5/127.6 C422 4030017730 S.CER ECJ0EB1E471K B 119.6/139.5 C423 4030017460 S.CER ECJ0EB1E102K B 121.5/145.1 C424 4030016930 S.CER ECJ0EB1A104K T 14.1/125.7 C426 4030017640 S.CER ECJ0EC1H150J B 120.9/139.5 C428 4030017390 S.CER ECJ0EC1H180J B 144.3/86.6 C429 4030017460 S.CER ECJ0EB1E102K B 122.4/143.4 C431 4030018860 S.CER ECJ0EB0J105K B 33.3/13.6 C432 4030016930 S.CER ECJ0EB1A104K T 10.8/120.6 C433 4030017730 S.CER ECJ0EB1E471K B 139.5/138.1 C434 4030017460 S.CER ECJ0EB1E102K B 137.7/133.5 C435 4030017460 S.CER ECJ0EB1E102K T 54.8/29.8 C436 4030011170 S.CER GRM31M2C2H180JV01L B 143.7/137 C437 4030016930 S.CER ECJ0EB1A104K B 34.4/12 C438 4030016790 S.CER ECJ0EB1C103K T 109.7/89 C439 4510009810 S.ELE EEEFK1E220R T 129.9/96.8 C440 4030018900 S.CER ECJ0EB0J474K T 7.9/129.6 C441 4030017440 S.CER ECJ0EC1H221J T 12/126.2 C442 4510009680 S.ELE EEEFK1E471P B 9.6/119.8 C443 4030017460 S.CER ECJ0EB1E102K T 108.8/89 C444 4030011170 S.CER GRM31M2C2H180JV01L B 147/148.9 C445 4030017600 S.CER ECJ0EC1H080C B 26.1/141 C446 4030017460 S.CER ECJ0EB1E102K T 6.6/130.1 C448 4030017460 S.CER ECJ0EB1E102K T 126.9/103.4 C449 4510008870 S.ELE EEE1AA471UP B 8.9/139.2 C450 4030016930 S.CER ECJ0EB1A104K T 7/125.3 C451 4030018860 S.CER ECJ0EB0J105K T 8.6/125.3 C452 4030018860 S.CER ECJ0EB0J105K T 71.5/98.2 C453 4030017460 S.CER ECJ0EB1E102K T 127.9/103.4 C454 4030017430 S.CER ECJ0EC1H101J B 46.3/56.9 C458 4030017460 S.CER ECJ0EB1E102K T 129.6/113.3 C459 4030017460 S.CER ECJ0EB1E102K T 117.8/117.7 C460 4030017460 S.CER ECJ0EB1E102K B 9.6/147.3 C461 4030017420 S.CER ECJ0EC1H470J T 130.5/113.3 C462 4030017420 S.CER ECJ0EC1H470J T 117.8/116.7 C463 4030017420 S.CER ECJ0EC1H470J B 9.6/146.4 C464 4510009680 S.ELE EEEFK1E471P B 144.4/121.1 C465 4550006250 S.TAN TEESVA 1A 106M8R T 96.1/87.8 C466 4030017420 S.CER ECJ0EC1H470J T 99.9/88 C467 4030016930 S.CER ECJ0EB1A104K T 62.3/58.5 C468 4030016930 S.CER ECJ0EB1A104K T 61.7/56.9 C469 4030017460 S.CER ECJ0EB1E102K B 141.3/90.1 C470 4030018860 S.CER ECJ0EB0J105K T 7.4/122.3 C471 4030016790 S.CER ECJ0EB1C103K T 7/124.4 C472 4030018860 S.CER ECJ0EB0J105K T 10.9/117.7 C473 4030018860 S.CER ECJ0EB0J105K T 5/118.9 C474 4030017780 S.CER ECJ0EB1E472K T 115.3/17.6 C475 4510008120 S.ELE 16 CE 100 BS T 125.1/12.1 C476 4510008120 S.ELE 16 CE 100 BS T 125.1/19.3 C477 4030017780 S.CER ECJ0EB1E472K T 118.9/12.2 C478 4030017780 S.CER ECJ0EB1E472K T 115.3/12.2 C479 4510008120 S.ELE 16 CE 100 BS T 104.8/14.3 C481 4030017460 S.CER ECJ0EB1E102K B 63.2/122.2 C491 4030016930 S.CER ECJ0EB1A104K T 60.4/60.1 C492 4030016930 S.CER ECJ0EB1A104K B 13.5/32.6 C493 4510008870 S.ELE EEE1AA471UP B 66.3/45.3 C494 4030016930 S.CER ECJ0EB1A104K T 101.5/92.4 C495 4030016930 S.CER ECJ0EB1A104K T 101.5/90.1 C496 4030016930 S.CER ECJ0EB1A104K T 123.3/92.9

DESCRIPTION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

7 - 7

M.

S.=Surface mount

H/V

LOCATION

[MAIN UNIT]

REF ORDER NO. NO.

C497 4030016930 S.CER ECJ0EB1A104K T 109.9/81.2 C498 4030016930 S.CER ECJ0EB1A104K T 11.4/43.2 C501 4030017420 S.CER ECJ0EC1H470J T 11.7/31.2 C502 4030017460 S.CER ECJ0EB1E102K T 29.5/2.8 C503 4030017420 S.CER ECJ0EC1H470J T 48/99.4 C506 4030016930 S.CER ECJ0EB1A104K B 26.3/43.3 C507 4030016930 S.CER ECJ0EB1A104K B 32.9/31 C508 4030016930 S.CER ECJ0EB1A104K B 40.1/42.7 C509 4030016930 S.CER ECJ0EB1A104K B 26.2/39 C510 4030016930 S.CER ECJ0EB1A104K B 26.6/33 C511 4030016930 S.CER ECJ0EB1A104K B 40.1/34.2 C512 4030017420 S.CER ECJ0EC1H470J T 92/14.7 C513 4550006250 S.TAN TEESVA 1A 106M8R B 8.4/59.8 C514 4030016930 S.CER ECJ0EB1A104K B 11.7/53.5 C515 4030016930 S.CER ECJ0EB1A104K B 15.5/54.4 C516 4030016930 S.CER ECJ0EB1A104K T 65.1/69.6 C517 4030016930 S.CER ECJ0EB1A104K B 15.6/63.1 C518 4030016930 S.CER ECJ0EB1A104K B 12.4/62.4 C519 4030017460 S.CER ECJ0EB1E102K B 15.6/59.9 C521 4030016930 S.CER ECJ0EB1A104K B 18.1/53.6 C522 4030016930 S.CER ECJ0EB1A104K T 51.2/31.8 C523 4030016930 S.CER ECJ0EB1A104K T 51.2/33 C524 4030018910 S.CER C1608 JB 0J 475K-T T 9.5/56 C525 4030018910 S.CER C1608 JB 0J 475K-T B 25.8/58.3 C526 4030017730 S.CER ECJ0EB1E471K B 29.8/57.9 C527 4030016790 S.CER ECJ0EB1C103K B 26.1/50.3 C528 4030017670 S.CER ECJ0EC1H390J B 37.6/120.7 C529 4030017630 S.CER ECJ0EC1H120J B 39/112.2 C530 4030017420 S.CER ECJ0EC1H470J T 58.7/62.6 C531 4030017670 S.CER ECJ0EC1H390J B 93/61.9 C532 4030017670 S.CER ECJ0EC1H390J B 94.5/52 C533 4510008120 S.ELE 16 CE 100 BS T 125.1/26.4 C534 4030016790 S.CER ECJ0EB1C103K T 118.4/26.7 C535 4030016790 S.CER ECJ0EB1C103K B 66.4/102.5 C536 4030016790 S.CER ECJ0EB1C103K B 64.8/99.1 C538 4030006860 S.CER C1608 JB 1H 102K-T T 36.2/145.1 C539 4030017790 S.CER ECJ0EB1E682K T 22.8/57 C540 4030017730 S.CER ECJ0EB1E471K T 21.2/56.6 C541 4030016930 S.CER ECJ0EB1A104K T 22.8/55.4 C542 4030017440 S.CER ECJ0EC1H221J T 27.1/55 C543 4030016930 S.CER ECJ0EB1A104K T 56.3/68.9 C544 4030017460 S.CER ECJ0EB1E102K T 62.4/72.9 C545 4030011100 S.CER GRM31M2C2H8R0DV01L [EUR-01] T 97.6/106.8 4030011120 S.CER GRM31M2C2H100JV01L [USA-01], [EXP-01] T 97.6/106.8 C546 4030018910 S.CER C1608 JB 0J 475K-T B 40.4/56.7 C547 4030017760 S.CER ECJ0EB1H222K T 53.7/72.1 C548 4030016930 S.CER ECJ0EB1A104K T 14.1/120.6 C549 4030017420 S.CER ECJ0EC1H470J T 22/85.7 C550 4030017420 S.CER ECJ0EC1H470J T 71.5/85.1 C551 4030017330 S.CER ECJ0EF1C104Z T 114.1/28.1 C552 4030016790 S.CER ECJ0EB1C103K B 121.9/48.8 C553 4030016930 S.CER ECJ0EB1A104K B 30.8/19.4 C555 4030016930 S.CER ECJ0EB1A104K B 69.8/75.5 C556 4030016930 S.CER ECJ0EB1A104K T 105.2/28.6 C557 4030016930 S.CER ECJ0EB1A104K T 97/28.6 C558 4550006250 S.TAN TEESVA 1A 106M8R T 95.1/27.9 C559 4550007080 S.TAN TEESVA 1C 106M8R T 45.9/75.5 C562 4030017420 S.CER ECJ0EC1H470J T 34.7/79.6 C563 4030016930 S.CER ECJ0EB1A104K B 25.6/122 C564 4030017570 S.CER ECJ0EC1H040B [USA-01], [EXP-01] B 68.3/131.3 C566 4030018860 S.CER ECJ0EB0J105K B 39/72.7 C570 4030017460 S.CER ECJ0EB1E102K B 70.7/136.1 C571 4030017580 S.CER ECJ0EC1H060C T 64/99.1 C572 4030017580 S.CER ECJ0EC1H060C T 64.9/99.1 C573 4030017580 S.CER ECJ0EC1H060C T 64.7/97.8 C574 4030017580 S.CER ECJ0EC1H060C B 61.4/134.9 C575 4030017420 S.CER ECJ0EC1H470J B 61.4/134 C576 4030017460 S.CER ECJ0EB1E102K T 67.3/105.8 C577 4030017460 S.CER ECJ0EB1E102K T 67.3/104.9 C578 4030017200 S.CER GRM31BR32J102KY01L T 90.8/126 C579 4550006250 S.TAN TEESVA 1A 106M8R B 98.3/46.9 C580 4030017420 S.CER ECJ0EC1H470J T 100.7/73.5 C581 4030018910 S.CER C1608 JB 0J 475K-T B 46.3/60.9 C582 4030018910 S.CER C1608 JB 0J 475K-T B 65.2/61.3 C583 4030016930 S.CER ECJ0EB1A104K B 46.3/58.6 C584 4030016790 S.CER ECJ0EB1C103K B 56.7/55.3 C585 4030016930 S.CER ECJ0EB1A104K B 54.9/58.6 C586 4030017730 S.CER ECJ0EB1E471K B 54.9/56.9 C587 4030016790 S.CER ECJ0EB1C103K B 52.3/59.8 C588 4030018910 S.CER C1608 JB 0J 475K-T B 65.2/62.5 C589 4030017360 S.CER ECJ0EC1H030B B 103.2/51.6 C590 4030017570 S.CER ECJ0EC1H040B B 102.4/43.5 C601 4030011100 S.CER GRM31M2C2H8R0DV01L [USA-01], [EXP-01] T 97.6/111.3 C610 4030018080 S.CER ECJ0EB1H182K T 63.3/69.6 C612 4030017460 S.CER ECJ0EB1E102K B 55.7/29.9 C614 4030017730 S.CER ECJ0EB1E471K B 29/13.2 C616 4030017460 S.CER ECJ0EB1E102K T 95.3/62.2 C617 4030017420 S.CER ECJ0EC1H470J T 59.8/65 C618 4030017420 S.CER ECJ0EC1H470J T 64.2/53.8 C619 4030017420 S.CER ECJ0EC1H470J T 76.8/109.5 C620 4030017420 S.CER ECJ0EC1H470J T 73.8/97.8 C621 4030017420 S.CER ECJ0EC1H470J T 31.5/2.8 C622 4030018910 S.CER C1608 JB 0J 475K-T T 64.3/73.2 C623 4030017330 S.CER ECJ0EF1C104Z B 126.8/16 C624 4030017330 S.CER ECJ0EF1C104Z B 126.3/20.3 C625 4030017460 S.CER ECJ0EB1E102K B 126.8/17.2 C626 4510009810 S.ELE EEEFK1E220R B 129.4/23 C629 4030016790 S.CER ECJ0EB1C103K B 113.2/27.1 C630 4030016930 S.CER ECJ0EB1A104K B 108.8/27.1 C631 4550007080 S.TAN TEESVA 1C 106M8R B 104.6/26.8

DESCRIPTION

M.

H/V

LOCATION

[MAIN UNIT]

REF ORDER NO. NO.

C632 4550007080 S.TAN TEESVA 1C 106M8R B 111/23.3 C633 4550007080 S.TAN TEESVA 1C 106M8R B 105.8/23.3 C634 4030017460 S.CER ECJ0EB1E102K B 108.4/22.1 C648 4510009680 S.ELE EEEFK1E471P B 85.7/23.3 C649 4030018860 S.CER ECJ0EB0J105K T 71.2/64.2

J1 6510025220 S.CNR AXK540145J T 23.1/63.7 J2 6510023091 S.CNR 20FLT-SM2-TB (LF) (SN) T 14.8/15.6 J4 6510023511 S.CNR 28FLT-SM2-TB (LF) (SN) T 70.8/102 J5 6510023110 CNR 3008L-8P8C <KIN> J6 6450000140 CNR HSJ0807-01-010 J8 6510023091 S.CNR 20FLT-SM2-TB (LF) (SN) T 59.1/15.6 J9 6510019371 S.CNR B3B-ZR-SM4-TF (LF) (SN) T 94.6/14.3 J10 6510004910 CNR NR-DS-E 01 J11 6510004910 CNR NR-DS-E 01

DS1 5040002961 S.LED SML-A12MT T86J B 96/1.1 DS2 5040002961 S.LED SML-A12MT T86J B 126/1.1 DS3 5040003000 S.LED SML-A12UT-T86 B 111/1.1

MF1 2710000870 FAN AFB0512HB-7X22 <USE>HK

W1 7120000470 JMP ERDS2T0 W2 7120000470 JMP ERDS2T0 W4 8900017520 CBL OPC-1783

EP1 6910015370 S.BEA ACZ1005Y-102-T B 129.1/48.4 EP2 6910015370 S.BEA ACZ1005Y-102-T B 115.5/45.6 EP3 6910015370 S.BEA ACZ1005Y-102-T B 32.4/81.6 EP4 6910016330 S.BEA MMZ1005S 601CT-S B 30.4/60.5 EP5 6910015370 S.BEA ACZ1005Y-102-T B 39/74.3 EP6 6910015370 S.BEA ACZ1005Y-102-T T 38.5/108.3 EP7 6910016330 S.BEA MMZ1005S 601CT-S B 40.7/36.7 EP8 6910015370 S.BEA ACZ1005Y-102-T B 95.4/49 EP9 6910016330 S.BEA MMZ1005S 601CT-S T 48.8/39.3 EP10 6910011560 BEA HF70BB4.5X5X1.6 EP13 6910011330 TER OT-009 M3 EP14 6910011330 TER OT-009 M3 EP16 6910018460 S.BEA MMZ1005Y102C-T T 64.1/105 EP17 6910018460 S.BEA MMZ1005Y102C-T T 65.1/105 EP18 6910018460 S.BEA MMZ1005Y102C-T T 66.1/105 EP19 6910018460 S.BEA MMZ1005Y102C-T T 66.1/106.8 EP20 6910018460 S.BEA MMZ1005Y102C-T T 62.8/98.7 EP21 6910018460 S.BEA MMZ1005Y102C-T T 62.8/99.6 EP22 6910018460 S.BEA MMZ1005Y102C-T T 74.1/105 EP23 6910018460 S.BEA MMZ1005Y102C-T T 73.2/105 EP24 6910018460 S.BEA MMZ1005Y102C-T T 72.3/105 EP25 6910018460 S.BEA MMZ1005Y102C-T T 71.1/105 EP26 6910018460 S.BEA MMZ1005Y102C-T T 72.4/99 EP27 6910018460 S.BEA MMZ1005Y102C-T T 68.2/99.1 EP28 6910018460 S.BEA MMZ1005Y102C-T T 67.3/99.1 EP29 6910018460 S.BEA MMZ1005Y102C-T T 65.8/99.1 EP30 6910018460 S.BEA MMZ1005Y102C-T T 74.3/99 EP31 6910018460 S.BEA MMZ1005Y102C-T T 70.6/98.2

DESCRIPTION

M.

H/V

LOCATION

[CONNECT UNIT]

REF ORDER NO. NO.

C601 4030017420 S.CER ECJ0EC1H470J T 13.8/12.4 C602 4030017400 S.CER ECJ0EC1H220J T 12.2/12.4 C603 4030017420 S.CER ECJ0EC1H470J T 16.5/12.4 C604 4030017400 S.CER ECJ0EC1H220J T 15/14.2 C605 4030017420 S.CER ECJ0EC1H470J T 17.8/13.9 C606 4030017420 S.CER ECJ0EC1H470J T 19.4/12.4 C607 4030017420 S.CER ECJ0EC1H470J T 20.5/13.9 C608 4030017420 S.CER ECJ0EC1H470J T 22.6/12.4 C609 4030017420 S.CER ECJ0EC1H470J T 25.5/12.4 C610 4030017420 S.CER ECJ0EC1H470J T 29.7/12.8 C611 4030017420 S.CER ECJ0EC1H470J T 31/14.1 C612 4030017420 S.CER ECJ0EC1H470J T 32.4/12.8 C613 4030017420 S.CER ECJ0EC1H470J T 33.5/14.1 C614 4030017420 S.CER ECJ0EC1H470J T 35.2/14.1 C615 4030017420 S.CER ECJ0EC1H470J T 35.7/12.8 C616 4030017420 S.CER ECJ0EC1H470J B 35.2/15.6 C617 4030017420 S.CER ECJ0EC1H470J T 37.5/13.5 C618 4030017420 S.CER ECJ0EC1H470J T 39.3/12.2 C619 4030017420 S.CER ECJ0EC1H470J T 39.9/13.4 C620 4030017420 S.CER ECJ0EC1H470J T 41.3/12.6 C621 4030017420 S.CER ECJ0EC1H470J T 27.4/13.9

J601 6510026290 S.CNR IMSA-9631S-28Y921 B 22.8/16.2 J602 6510023210 CNR CD6125SA1J0 <CVI>

S1 2260003070 S.SW MINISMDC150F/24-2 B 38.9/18

W601 8900017500 CBL OPC-1852 (P0.5,N28,L90)

DESCRIPTION

M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

S.=Surface mount

M.

H/V

LOCATION

7 - 8

SECTION 8 MECHANICAL PARTS

[CHASSIS PARTS]

REF ORDER NO. NO.

MP1 8810003361 SETSCREW (C) 3X6 ZC3 4 MP2 8810003361 SETSCREW (C) 3X6 ZC3 1 MP3 8110009330 3063 U-COVER 1 MP4 8110009340 3063 BOTTOM COVER 1 MP5 8930073980 3063 ANGLE 2 MP6 8930073990 3063 CENTER ANGLE 1 MP7 8810005771 SCREW BiH M3X8 ZK3 11 MP9 8810009061 SCREW M3X6 ZK3 7 MP10 8810008661 SCREW BT B0 3X8 NI-ZC3 (BT) 2

DESCRIPTION

QTY.

[FRONT UNIT]

REF ORDER NO. NO.

J501* 6510019121 S8B-PH-SM4-TB (LF) (SN) 1 J502* 6510019121 S8B-PH-SM4-TB (LF) (SN) 1 J503* 6450002210 3017-8821 1 J504* 6510014961 B2B-ZR-SM4-TF (LF) (SN) 1

DS500 5030002811 L4-0013TVY-2 1 DS501 5040002710 EMPG3338S 1 DS502 5040002720 EMVR3338S 1 DS503 5040002710 EMPG3338S 1 DS504 5040002720 EMVR3338S 1 DS511 5040002150 VRPG3349S-734 1 DS512 5040002150 VRPG3349S-734 1

S506 2250000511 RH70N1037E20-13F-2781 1 SP501 2510001221 C052SB500-14 1 W501 8900011800 OPC-1199 1

W502 8900017540 OPC-1785 (Incl. MP521, MP522) 1 EP501 8930065150 SRCN-2781-SP-N-W 2

EP503 6910019600 LM-5 2 EP504 6910019610 LM-7 (SPACER) 4

MP501 8930064260 2781 LCD HOLDER 1 MP502 8210021190 2781 REFLECTOR 1 MP503 8610012160 KNOB N-324 (Incl. MP505) 1 MP504 8610012150 KNOB N-325 (Incl. MP506) 1 MP505 8610007420 KNOB SPRING NO.6601 1 MP506 8610007510 KNOB SPRING NO.7800 1 MP507 8930064220 2781 KNOB RUBBER 1 MP508 8930075200 HIMELON SHEET (CY) 2 MP510 8930059000 2601 SP NET 1 MP511 8210024400 3063 FRONT PANEL 1 MP512 8930074161 3063 FRONT PLATE-1 1 MP513 8310070870 3063 WINDOW PLATE 1 MP514 8210024431 3063 M-PANEL-1 1 MP515 8930074000 3063 SP ANGLE 1 MP516 8110009350 3063 FRONT COVER 1 MP517 8930073820 3063 FRONT KEY 1 MP518 8930073911 3063 M-COVER-1 1 MP519 8930074020 3063 KNOB RUBBER 1 MP520 8930075010 3063 A-PACKING 1 MP521 8930074010 3063 CODE RUBBER 1 MP522 8110009090 2854 A-MODULER COVER 1 MP529 8810008661 SCREW BT B0 3X8 NI-ZC3 (BT) 6 MP530 8810008661 SCREW BT B0 3X8 NI-ZC3 (BT) 2 MP531 8810008661 SCREW BT B0 3X8 NI-ZC3 (BT) 4 MP532 8810008661 SCREW BT B0 3X8 NI-ZC3 (BT) 6 MP533 8810008661 SCREW BT B0 3X8 NI-ZC3 (BT) 5

DESCRIPTION

QTY.

[MAIN UNIT]

REF ORDER NO. NO.

J1* 6510025220 AXK540145J 1 J2* 6510023091 20FLT-SM2-TB (LF) (SN) 1 J4* 6510023511 28FLT-SM2-TB (LF) (SN) 1 J5* 6510023110 3008L-8P8C 1 J6* 6450000140 HSJ0807-01-010 1 J8* 6510023091 20FLT-SM2-TB (LF) (SN) 1 J9* 6510019371 B3B-ZR-SM4-TF (LF) (SN) 1 J10 6510004910 NR-DSE-01 1 J11 6510004910 NR-DSE-01 1

MF1 2710000870 AFB0512HB-F00 1 W1* 7120000470 ERDS2T0 1

W2* 7120000470 ERDS2T0 1 W4 8900017520 OPC-1783 1

MP1 8510018070 2979 VCO CASE 1 MP2* 8510018060 2979 VCO COVER 1 MP3 8510018070 2979 VCO CASE 1 MP4* 8510018060 2979 VCO COVER 1 MP5 8210024440 3063 SUB M-PANEL 1 MP6 8310070880 3063 S-LED PLATE 1 MP7 8930073920 3063 SP COVER 1 MP8 8010020980 3063 CHASSIS 1 MP9 8110009360 3063 SU-COVER 1 MP10 8110009370 3063 SL-COVER 1 MP11 8930074300 3063 PC PLATE 1 MP12 8930074180 O-RING (BR) 1 MP13 8930075020 3063 B-PACKING 1 MP14 8930075030 3063 C-PACKING 1 MP15 8930073930 3063 SP RUBBER 1 MP17 8930062160 HIMELON SHEET (CL) 1 MP18 8930070921 2979 D-SUB PLATE-1 1 MP19 8930058990 SHIELD SPONGE (V) 1 MP20* 8510015660 2681 F-SHIELD PLATE 1 MP21 8930048550 2177 CLIP 1 MP22 8810008451 SCREW BiH M4X8 ZK3 4 MP23 8930075080 DUST CAP HR25F 1 MP24 8810009611 SCREW M2.6X6 ZK3 8 MP25 8810009611 SCREW M2.6X6 ZK3 9 MP26 8810010780 SCREW BT B0 3X20NI-ZK3 (BT) 4 MP27 8810008661 SCREW BT B0 3X8 NI-ZC3 (BT) 19 MP28 8810008661 SCREW BT B0 3X8 NI-ZC3 (BT) 2 MP29 8810008661 SCREW BT B0 3X8 NI-ZC3 (BT) 1 MP30 8810008661 SCREW BT B0 3X8 NI-ZC3 (BT) 2 MP31 8810008661 SCREW BT B0 3X8 NI-ZC3 (BT) 3 MP32 8810008661 SCREW BT B0 3X8 NI-ZC3 (BT) 4 MP33* 8510018780 3063 ANT CASE 2 MP35 8810003361 SETSCREW (C) 3X6 ZC3 2 MP37 8510018790 3063 VCO SHIELD 1 MP38* 8510018820 3063 SHIELD PLATE 1 MP40* 8930050472 SHIELD SPONGE (A)-2 1 MP41* 8930050472 SHIELD SPONGE (A)-2 1 MP42* 8930050472 SHIELD SPONGE (A)-2 1

DESCRIPTION

QTY.

[ACCESSORIES]

REF ORDER NO. NO.

W1 8900017530 OPC-1784 1 MP1 8930074310 3063 HANDLE 2

MP2 8930074320 3063 H-SPACER 4 MP3 8810010740 SETSCREW (C) 4X12 ZK3 4 MP4 8310071490 3063 KEY SEAL 1

DESCRIPTION

QTY.

[CONNECT UNIT]

REF ORDER NO. NO.

J601* 6510026290 IMSA-9631S-28Y921 1 J602* 6510023210 CD6125SA1J0 1

S1* 2260003070 MINISMDC150F/24 1 W601 8900017500 OPC-1852 1

DESCRIPTION

*: Refer to “BOARD LAYOUTS” for the location. Screw abbreviations A, B0, BT: Self-tapping PH: Pan head ZK: Black NI-ZU: Nickel-Zinc SUS: Stainless

QTY.

8 - 1

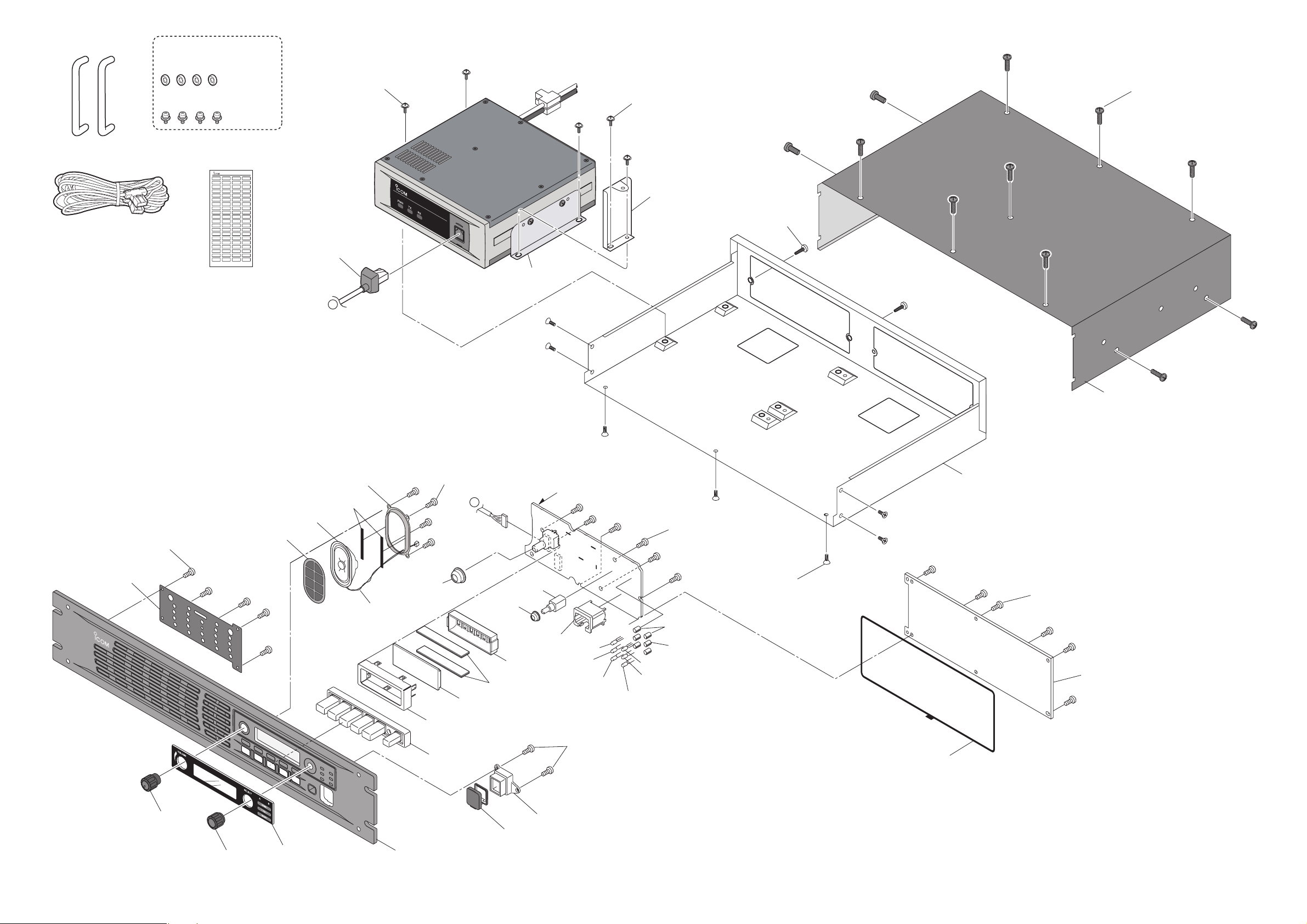

MP1 For handles attachment

MP2

MP3

W1 MP4

MP1(C)x4

MP7(F)x11

MP2(C)

KEY SEAL

MP6(C)

MP10(C)x2

W502(F)

MP5(C)x2

A

MP3(C)

MP512(F)

MP533(F)x5

MP510(F)

SP501(F)

MP515(F)

MP508(F)

W501(F)

MP531(F)x4

MP507(F)

MP501(F)

MP517(F)

A

MP519(F)

EP501(F)

DS500(F)

S506(F)

J503(F)

MP502(F)

FRONTUNIT

DS512(F)

DS504(F)

DS501(F)

MP530(F)

DS511(F)

DS502(F)

DS503(F)

MP4(C)

MP529(F)x6

MP9(C)x7

MP532(F)x6

EP503(F)

EP504(F)x4

MP516(F)

MP520(F)

MP503(F)

MP504(F)

MP513(F)

MP511(F)

MP518(F)

MP514(F)

Unit abbreviations;

(C) : CHASSIS PARTS (F) : FRONT UNIT (M) : MAIN UNIT

(CN): CONNECTOR UNIT

8 - 2

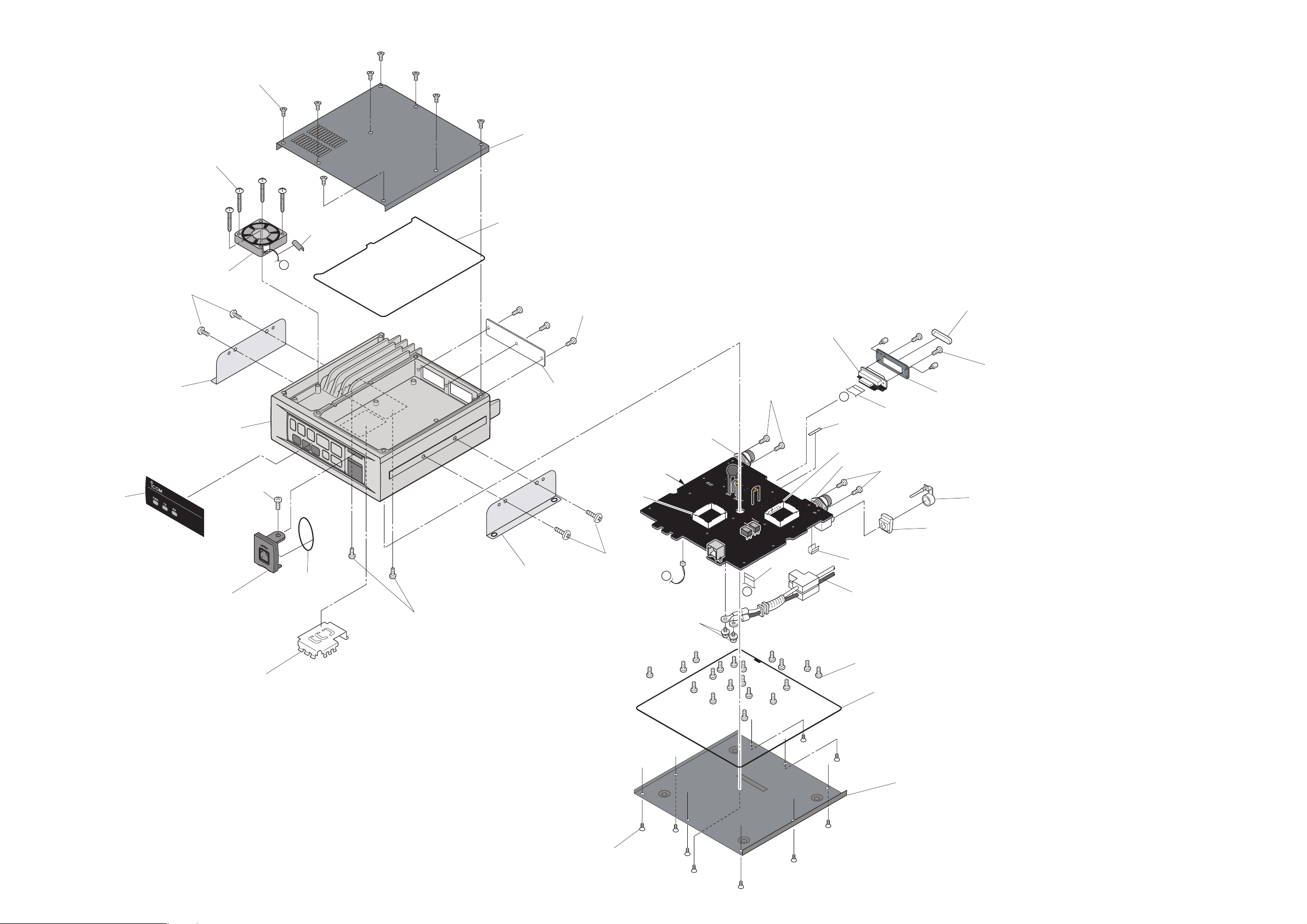

MP26(M)x4

MP24(M)x8

MP9(M)

MP6(M)

MP22(M)

MP5(C)

MF1(M)

MP8(M)

MP29(M)

C

MP17(M)

MP14(M)

MP31(M)x3

MP11(M)

MAIN UNIT

MP1(M)

J11(M)

MP32(M)

J602(CN)

B

MP19(M)

MP3(M)

J10(M)

MP23(M)

MP30(M)x2

MP18(M)

W601(CN)

MP32(M)

MP7(M)

MP15(M)

MP5(M)

MP37(M)

MP12(M)

MP28(M)

MP5(C)

MP22(M)

MP25(M)x9

C

MP35(M)

B

W601(CN)

MP21(M)

W4(M)

MP27(M)x19

MP13(M)

MP10(M)

Unit abbreviations;

(C) : CHASSIS PARTS (F) : FRONT UNIT (M) : MAIN UNIT

(CN): CONNECTOR UNIT

8 - 3

SECTION 9 BOARD LAYOUTS

TX ANT

J10

HV

GND

RX ANT

J11

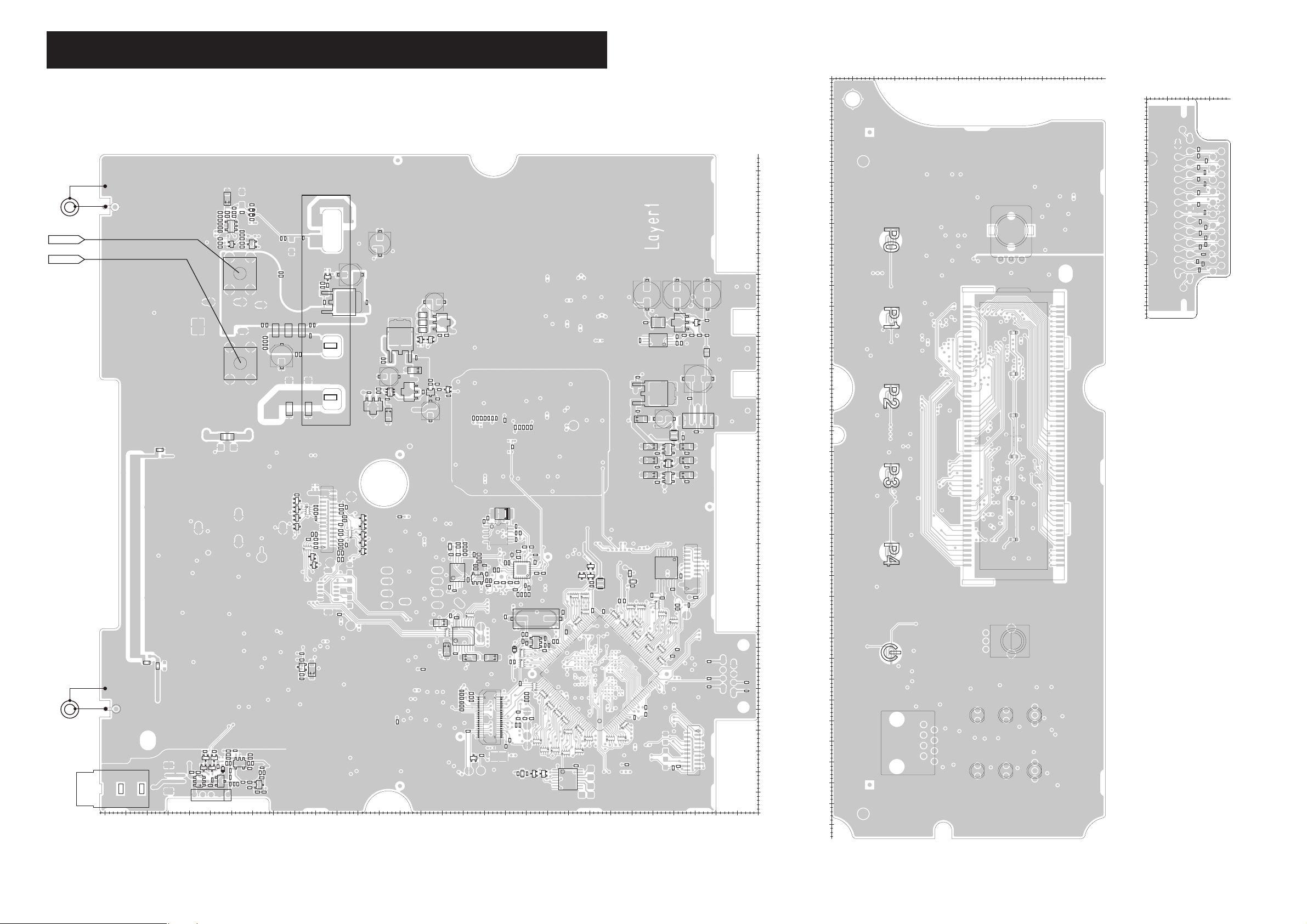

• MAIN UNIT (TOP VIEW)

19

W1

18

Simplex

C538

17

Duplex

W2

16

-PDET

Duplex

C368

Simplex

-RSSI

C371

Duplex

J6

Simplex

-R8V

V0 V5 V10 V15 V20 V25 V30 V35 V40 V45 V50 V55 V60

• FRONT UNIT

H0H5H10H15H20H25H30H35H40H45H50H55H60H65H70H75H80H85H90H95H100H105H110H115H120H125H130H135H140H145H150H155H160H165H170H175H180

(TOP VIEW)

B6973C

L61

IC38

C240

L31

IC15

C230

IC14

C229

IC13

C228

IC21

C340

R262

R264

R428

R263

R433

R282

R425

-DSP3

R470

9

VHF

C476

Q62

R372R373

C474

R506 R507

R505

R375

FAN

R540

C206

C210

C205

C209

C204

C208

PC BOARD

GND

TXDJ

DTSCK

RXDJ

CTSJ

J8

RTSJ

N/C

SVCC

N/C

R533

HV HV HV

R447

R450

R448

CP12

R449

-CLKOUT

TRST GND TDO EMU0

3.3VD

J2

BDX0

BFSX0

BCLK0 BDR0

R493

GND GPI09

2

C475

C477

D61

C478

R374

C479

J9

C512

3.3VD3.3VA

1.6VC

J8

HV HV HV

R453

Simplex

D56

1.6VC

FMDA

MCIN

D53

PTT

D55

MFDA

J2

DSP FLASH

TMS TDI

DSP3

TCK

EMU1

GND

N/C FCS

GPI10

-LEDT

J9

-LEDR

R551

PWR

DS510

DS509

DS508

DS507

P32P1PP0 P4

DS506

DS505

S506

POSW

C621

C502

F8V AFO GND GND

J503

H0H5H10H15H20H25H30H35H40H45H50H55H60H65H70H75H80H85H90H95H100H105H110H115H120H125H130H135H140H145H150H155

V0 V5 V10 V15 V20 V25 V30 V35 V40 V45 V50 V55 V60 V65 V70 V75 V80 V85 V90 V95 V100 V105 V110 V115 V120 V125 V130 V135 V140 V145 V150 V155

DS501

DS503

GREEN

EP504

RED

DS504

DS502

GREEN

EP503

RED

DS511DS512

13

C343

R312

R314

D37

C347

C366

R277

R311

D36

R283

R308

R292

R310

C404 C358 R280

IC23

C353

C373

-RFPO

R288 C384

R291

C386

RED

BLACK

Duplex

C578

R290

R295

Q43

Q46

C397

EP13

C459

C462

C365 C360 C354 C381

EP14

C342

C350

C351

C461 C458

FI6

FI7

Q58

C453

14

C448

R355

R354

Q57

C318

C319

FI5

C320

EP10

C375

C378

C367

EP10

C545

C601

15

C334

C439

VCC

C496

C494C495

REF5

IC27

C438 C443

C359

R279

Q40

C466

IC30

+5V

C465

C388

R297

R296

R298

D40

Q44

C497

8V

C416

C412

R313

Q48

R285

Q41

C396

R8V

-T8V

Simplex

1

-T2

-R8V

RXLO

GND

DSUB

VCC

C619

VCC

N/C

DATAIN

EP30

EP22

EXIO9

EXAD

R494

C620

EP23

EXIO8

EP26

EXIO7

EP24

R487

EXDA

C452

EXAFO

GND

EP31

EP25

J4

DISC

EXIO6

R547

EXMOD

GND

D71 D72 D73 D74

J4

EXIO5

GND

EXIO4

CTSJ

C576

C577

EXIO3

EP18 EP19

RTSJ

RXD

EP17

EXIO2

TXD

EP16

R486

EXIO1

D67

D68

D69 D70

EP27 EP28

R485

EP29 C572

C573

C571

D64 D65 D66

EP20

EP21

R546

R545

-DET

C550

-NOIS

-SQL

-RFPO

5

+5V

CPU FLASH

C503

8V

-RLVA

-RLVA SW

-RVCO8V

EP6

-T1

-RVCO SW

R180

Q16

C147

R128

C127

RXLV

+10V

-RVCO LV

-AFON

-AFON2

OPTION UNIT

R320

C417

C179 C183

C424

D46

D47

Q52Q53

R316

R347

R356

C440

Q56

C446

C548 R337

R326

IC29

C441

R331

R336

R339

D51

R352

Q59

C450 C451

C472

C432

R369

R367

R368

C470

R365

C471

R366

Q61

R370

R371

C473

IC28

4

-EXMOD

-NWC1

DATAIN-

6

C562

-3.3VA

-RPLST

-FMDA

C549

MFDA-

Q45

C383

C406

R309

C399

-NWC2

C559

-PLSCK

12

-TEMP

+5V

C391

T8V

11

Q49

C580

RXC

-TXVCO SW

R138

C187

C162

C616

R139

R141

C199

C245

-TLVA

-TVCO LV

7

C269

C649

R542

T1 T2 TLVA

IC17

RLVA

C516

R364

R479

R539

C622

C610

R530

C18

C544

R3

C15

R7 C91

C491

C30

C617

C33

IC26

C543

R17

R303

C411

R36 R35

OPV1

R34

OPV2 OPV3

GND OPT3 OPT2 OPT1

SIGO

BUSY

N/C

MIC

N/C

RUNLK

MCOT PTTO

PTTI

GND

N/C

R2

C530

R26

IC37

R20

C16

C63

R1

-EXDISC

C272

QR

C415

J1

N/C

CCK

CSI

CSO

N/C

CIRQ

CCS

N/C N/C

AFOUT

J1

DISC RMUT BEPO

AFONO

MMUT

N/C VCC +5V GND

N/C

C14

R278

Q42

P

IC1

R90

C547

C402

R300

R346

C418

C413

-SIGO

R40 R39

R38

R10 R9 R8

-PLSSO

+5V

C

R127

-MOD

C467

R443

R503

-DAFO

C257

C9

8V

-TVCO8V

R158

C186

R275

C175

R146

C262

R209

R199

C321

-DET

C618

C348

C346

C322

C468

C31

IC2

R27

C23

R49 R63

R495

C77

C48

R46

R496

R497

R504

+5V

X5

C256

R190

C255

R187

C235

IC18

R197

R186

D20

R217

R205

R222

R483

R224

R541 R502

R230

C542

R499

C539

C541

R501

DF

C540

R500

B

R216

A

R220

R6

R488

Q69

Q70

C524

3

-TMUT

PWR-

-TUNLK

-PLSSO

PLSCK-

-TPLST

C533

C534

C551

10

C556

IC39

C557

DSP5V

C558

TX LV

+10V

C233

C232

C231

8

-REF5

-CPU5V

GPIO2

GPIO0

CLKOUT

CP11

CP15

CP20

CP21

CP22

CP23

CP24

XF

R426

R273

GPIO1

BATV

C522

C523

R268

R281

R272

-AFO

GND

GPIO8

R334

R335

C435

R261

R429

R287

-3.3VD

R238

R227

R234

R244

R427

R271

C333

CPU3V-

C501

DRES-

D19

GPIO3

Q29Q31

R189

L58

R204

R430

R212

R188

EP9

C259

C277

R424

C266

R202

R213

C270

IC20

R232

R235

R239

R482

R245

R431

R432

R267

R257

C498

148 2

IC31

CODE

SCRM

• CONNECT UNIT (TOP VIEW)

V0 V5 V10 V15

H0H5H10H15H20H25H30H35H40H45H50

1

4152

TXD

C601C602 C603

IO1

C604

RXD

IO2

C605

RTS

C606

IO3

C607

CTS

C608 C609

IO4

GND

IO5

GND

C621

DATAIN

C610

MODIN

C611

IO6

C612

DISC

C613 C614

AFOUT

EXDA

C615

IO7

C617

VCC

C618

IO8

C619

EXAD

C620

IO9

N/C

B6845A

13

9 - 1

SP1

• CONNECT UNIT (BOTTOM VIEW)

• FRONT UNIT (BOTTOM VIEW)

V0V5V10V15V20V25V30V35V40V45V50V55V60

H0 H5 H10 H15 H20 H25 H30 H35 H40 H45 H50 H55 H60 H65 H70 H75 H80 H85 H90 H95 H100 H105 H110 H115 H120 H125 H130 H135 H140 H145 H150 H155 H160 H165 H170 H175 H180

V0V5V10V15

H0 H5 H10 H15 H20 H25 H30 H35 H40 H45 H50

SP+

SP-

TXD

IO1

RXD

IO2

RTS

IO3

CTS

IO4

J601

GND

IO5

GND

DATAIN

MODIN

IO6

DISC

AFOUT

EXDA

C616

IO7

VCC

S1

J602

IO8

EXAD

IO9

N/C

SP+

J504

C544

C540

D-SUB 25 pin

IC509

SP-

J501

MICE

R542

2

C538

R540

R539

R557

AFO

C535

R533

C532 R534

R549

R554

C537

C530

R532

Q506

Q508

C566

C567

D510

C549

R571

R572

CPU5V

AFON

MCIN

J501

AFMDA

C527

IC506

C565

C523

8V

C522

IC503

C524

1

R575

C573

APTT

AMFDA

D513

D505

C533

C525

8V

5V

C526

J502

3

H155

H150

H145

H140

H135

H125 H130

1

MCIN

MICE

BPTT

C534

FLASH

R568

TOOL1

L500L501

R560

BMFDA

R576

C574

D512

8V

RES

TOOL0

5V

FLMDO

GND

C575

MICE

5

MCIN

D506

C568

4

B6844C

H110 H115 H120

H105

H100

DS13SD2SD

H90 H95

H80 H85

H70 H75

H65

H55 H60

H45 H50

H35 H40

H30

H20 H25

H5 H10 H15

BFMDA

IC500

C500

C503

C501

C502

C504

C507

C505

R500

C506

5V

L502

R562

CONTRAST

R501

R563

C569

Q504

D504

C517

R513

R512

C515

R524

R519

R518

D511

CPU5V

1

Q516

Q518

C508

C562

8V

C560

Q510

Q515

R559

Q514

C559

Q511Q513

R558

Q500

R567

R509

C514

C510

Q517

Q502

C561

R566

R507

IC502

R520

R516

C564

C521

C520

C563

R511

C513

R510

R573

R574

R517

C519

D503

R526

R515

R525

C518

C516

R514

R523

X501

C547

C546

R543

R541

C511

Q503

D508

C539 R547

R538

R506

R536

CLO

R548

C509

PTT

C548

C536

D507

Q501

R546

R544

D509

R508

C545

CLI

R570

CPU5V

1

IC501

J505

C512

C531

5V

C542

R545

C553

R552

IC508

C556

C558

R553

C555

MICE

C541

R564

8V

C551

R556

MIC

• MAIN UNIT (BOTTOM VIEW)

R455

R456

86Q76Q

Q66

R454

-FANS

FMDA

GND

C437

MICIN

C431

R341

MICE

R325

PTT

R324

AFO

MFDA

R510

C614

F8V

J5

C623

1.6VC

-VCC

R509

C398

C394

IC41

C625

3.3VA

IC25

-HV

-F8V

R511R512

C420

C624

-PWON

C553

R299

IC22

C337

C428

C335

C349

D35

R269

L45L46

C327

C469

L68

R318

Q38

L43

C330

R317

C328

R256

R253

C310

R302

L42

Q37

-NOIS

C83

C90

R68

FI1

R240 C304

C298 R252

-REF5

C93

C67

-VCC

C92

C315 R249 C309

C325 R250

C341

-PWR

MP20

EP10

-HV

EP10

C400

R301

R306

MP41

MP38

C138

C117

Q7

R118

R513

C107

C116

C118

R99

C122

C150

R115

R119

FI4

C139

C133

FI3

C111

C121

R98

D3 D4

R100

C123

C149

R114

Q12

R109

C536

R140

C151

D12

C161

R134

MP4

L6

C106

C293

L7

C81

R78

C76

R103

R73

R94

C89

C103

MP40

R175

L22

C243

C244

L24

C242

C213

R182

R133

C214

C535

Q63

C160

R159

R152

R142

D11

Q19

Q64

C182

R498

R153

MP38

C110

R111

C64

Q11

R167

C193

L23

Q71

C198 R148

C261

C294

C249

L33

C115

Q32

C260

C238

R192 R191 C247

R174

C197 C218 C212

C75

C529

R85

R93

C178

C196

R156

R161

C98

RX VCO1

Q5

R102

R120

R105

R86

R83

R113

C135

C157

Q14

C171

L13

C113

R121

D42

D8

C134

R293R294 C324

R236

C50

R24

C125

R126

R508

R101

IC3

C590

R265

Q13

C71

R72

C85

R82

R471

C508

C506

-CPU3V

C3

R12R13

EP1

X1

C51

R65

C66

C552

R56

C52 R77

C78

EP2

C250

C80

C109

C579

Q15

C73

R84

R91

Q8Q9Q10

C108

R107

R116

R117

R276

C100

R125

R112

C159

C141

C264

R181

EP8

TX VCO1

L12

C251

Q33

R176

R178

C236

R195

C222

C252

R194

L26

R173

C203 C225

D30

Q23

C221 C532

C190

R151

R164

C189

C192

C202

R166

R169

C176

L15

D10

D14

C174

L62

C181

D79

R137

L64

C254

C105

C114

C119

C589

C94

L35

L5

C493

-DET

-DAST

-SCKSSO-

R59

IC7

R58 C43

C87

C86

IC9

C96

IC10

R473

R435

R467

R439 R440

R438

R469

R468

-DSP3

-CPU5V

C405

C97

R535

C584

R66

R353

IC40

R81

C124

C454

R342

R97

C546

C44

C45

R52

C62

C526

R484

R490

IC36

R491

C527

C525

IC35

C521

R53

C515

R474

R476

R477

IC34

C514

R478

R475

-BUSY

-NWC1

-NWC2

L29

C237

Q24

C220

Q27

Q28

TX VCO2

D9

C166

C158

C163

-VREF

R536 C585 C586

C587

C583

R534

IC8

C56

C41

R492

R489

R481

C49

C519

-MOD

EP4

C513

C283

R198

R207

C291

Q35

R215 C281

L25

C201 C224 C219

C531

R168

R163

-RXC

L38

C280

R214

R172

D18

Q22

R157

C200

C191

C173

R165

C180

L18

C172

L14

D13

C188

D17

L19

L11

C165

C167

R136

R70

C582

C588

-VCC

OPV2

FI2

C99

R286

C104

R75

R226 C566

R88

EP5

X2

C60

R60

C581

C101

R71

C69

C72

-OPV3OPV1-

+5V

C12

-RUNLK

-PLSSO

R54

R62

C61

C517

R480

C518

C626

FANV-

C634

-TPLST

C632 C633

CPU3V

-TXC

-VCC

C629

IC19

R260

C630

Q72

C631

TUNLK-

C11 C7 C4

C20

-TLVIN

R22

C1

C26

L1

MP2

C17

L69

C144

C74

R76

C88

R92

C102

C648

C112

REF5

-MD2

C126

R122

C137

C146

R130

C612

C140

R124

R129

C152

R131

IC11

X4

R132

C136

-BATV

C492

C145

C153

R123

C164

R143 R144

R145

R532

R436

R537

D75

EP7

C511

IC12

C509

C510

R444

D76

R80

R445

R446

IC32

R472

MMUT

D77D78

-PTT

-RMUT

-3.3VD

-BEEP

-HUNG

D63

C507

C303

T8V

TXC

8V

+5V

R8V

MP42

C84

R87

R44

C39

IC5

C555

C38

C40

R41

R89

C42

Q3

R25

R45

C47

R47 R48

C70

R57

R29

R42

C59

C8

X3

R43

C82

R4

D1

C10

C13

R18

R15

Q1

C28

R30

C6

R32

C24C25

D2

C22

C37

R33

L3

C32

C34

C36

L4

C35

Q2

C79

C53

R79

C54

R69

EP3

IC4

R74

C27

L2

R23

C2

C19

C5

C21

C464

D59

R362

C436

L57

D49

R332

C433

C434

R333

C426

R327

C419

C410

R321

C422

L56

C409

L55

C401

C372

C370

L49

C364

C374

R289

L52

C377

D62

L27

C241

R184

C481

L28

R185

R376 C282

L37

L34

Q65

C279

C258

C267

R193

R380

MP19

C253

R196

R201

L30

C246

Q34

R208

R177

R179

C239

Q25

C274

L36

C265

R200

C215 C216

L66

L65

R171

Q26

Q20

C195

Q21

C217 C211

C194

R160

R154

C185

R162

Q30

C528

C177

R155

C248

RX VCO2

L17

C156

L10

C169

D5

C168

C563

551C451C

L16

D15

L8 L9

L21

C170

D16

C442

C296

D44

C389

L53

C297

C421

R315

C392

C408

R304

D45

L32

R378 C268 R381 C263 R379

C275

C380

C387

L50

C376

C390

D38

L63

C276

C289

C570

C271

C564

C290

L39

RSSI

C288

D21

D23

C286

C574

C575

R218

R223

R225

C292

C295

-T2

D22

D24

C301

C287

C299

C300

R231

R233

Q39

C302

L41

R237

R241

Q36

R242

R247

C306

R243

C305

C313

D25

C307

C311

R246

C323

L44

C184

L20

D7

C326

C414

D28 D29

T1

C345

R266

R270

R274

C339

C338

C357

D31D32

L47

C329

L48

C362

C445

L51

C382

C355

C449

R350

R348

C444

L59

R328

C429

C423

R322

D48

C336 C331

D27

R259

C332

R255

C312

C314

R251

D26

D39

R349

C379

L60

C385

GND

AFOUT

[EXT. S

R357

C460

C463

H0

6

V0V5V10V15V20V25V30V35V40V45V50V55V60V65V70V75V80V85V90V95V100V105V110V115V120V125V130V135V140V145V150V155

9 - 2

SECTION 10 BLOCK DIAGRAM

J4:28FLT-SM2-TB

EXIO1-9

JACK

EXMOD DATAIN

KEY

POSW

KYP0

KYP1 KYP2 KYP3 KYP4

Front

CPU

IC502 UPD78F1153GK

CSFT OSC1

OSC

VCC

EXAD EXDA

IC26

CTSRXD

MAX3232EIPWR

RTSTXD

POWER

SW

PWR

RS-

AFVI

AFON

ABSW

DIUD DICK

CLI CLO

HANG

AMFDA AFMDA

BMFDA BFMDA

HV

IC14 R1114Q161D

1.6VC REG

IC13

XC6204B332M

3.3VA REG

IC15 XC6204B332M

3.3VD REG

GND

VCC

EXAFO DISC

OSC2

Q57 2SJ377 Q58 UNR9213J

1.6VC

3.3VA

XRXD

XCTS

XTXD

XRTS

232C

BAL

TREF

AFON

IC506

CD4053B

AAFO

BAFO

R551

EVU-F2KFK3B14

VOL

CTRL

S506

RH70N1037E20

CH SW

BAFO AAFO

BPTT APTT MCIN MCIN MICE MICE

GND GND

JACK JACK

J502

S8B-PH-SM4-TB

SW Z

ABSW

POSW

AFO

APTT

BPTT

MCIN MICE

B (OPT) A (MAIN)

From Front

DSP5V

HV

DSP5V

IC39 TA7805F

DSP5V

DSP5V REG

IC30

AN8005M

REF5 REG

HV

CONNECT UNIT

DATAIN EXAD

GND

D-SUB25

J602 CD9125SA1J0 IMSA-9631S-28Y921

CTS RTS RXD VCC TXD

D-SUB JACK

EXDA IO1-9 DISC AFOUT MODIN

To MAIN UNIT

J601

FRONT UNIT

LED

Q513-516: DTA114TU Q510,Q511, Q517,Q518: DTC114TU

LED

SW

ALEDPR ALEDPG BLEDPR BLEDPG

R512:ERTJ0EP472J

LED

DS505-510 SML-311YT

TEMP TEMP

DS501,DS503: EMPG3338S DS502,DS504: EMVR3338S

T/R PWR BACK

LED

SW

Q500-503 DTC114TU

ALEDT ALEDR BLEDT BLEDR

DS511,DS512 VRPG3349S

LCD

DS500

L4-0013TVY

LCD

R8V

8V

TVCO8V

RVCO8V

+5V

CPU5V

5V

8V

CPU5V

COM0-16 SEG0-77

L500

4.7U

Q48

Q49

R8V REG

Q15 2SC4116

RIPPLE FIL

Q16 2SC4116

RIPPLE FIL

Q41 Q40

+5V

S-80942CNMC

2SA1577 UNR9213J

RXC

2SB1132

XP6501

L58

4.7U

IC500 S1D15206F00A200

RES

IC501

IC503 NJ2870

8V

REF5REG

REF5

LCD DRIVER

5V REG

RSTIN

T8V

F8V

LIGHT

Q504 DTC114TU

LED

SW

LIGHT

LRES LMR LAO LRD LD0-7

RES

8V

Q44 Q45

D40

T8V REG

IC27 TA7808F

8V

REG

IC41 TA7808F

F8V

REG

IC19:NJM2831F10

10V VCC+10V

REG

3.3VD

MMZ1005S601CT

DSP3V

CPU3V

S501-S505

UNR9213J 2SD1664

DA221

TXC

EP7

L31

4.7U

ABSW

BUFF

X1:CR-826

15.3MHz

REF

SP+ SP-

SP JACK

J504

B2B-ZR-SM4-TF

3017-8821

GND 8V

MIC MICE

CLI CLO

JACK

IC37 NJM2125F

AMP

D510:MA2S111 Q506:XP6501 Q508:2SB1132

SP/ESP SW

AF IC

IC509 TDA8547TS

IC506 CD4053B

SW Y PTT

IC508

TC75S51F

EXT MIC

F8VF8V

AMFDA AFMDA

J501

S8B-PH-SM4-TB

J5 3008L-8P8C

HV

AFO

OPTION UNIT

+5VJ1

MCOT SIGO

AFOUT BEPO AFONO

GND VCC

DISC

MIC

CSO

AXK540145J

J503

GNDF8V

MCINMICE

MMUTCCK PTTI PTTO

TLVIN

RMUT CIRQCSI BUSY

Q8 2SK880

IC3

LMX2352TM

TX PLL IC

TPLST

PLSCK PLSSO TUNLK

RREF

EXIO1-9 XCTS XRXD XRTS

PTT

FMDA MFDA

PWR

CCS OPT1-3 OPV1-3

BUFF

TVCO_SW

REF

X2:CR-826

15.3MHz

CERAMIC

XTXD

RPLST RUNLK

EXDA

PLSCK

EXAD

X5:CR-858 D20:MA2S077

XTAL

D19:DAN222 Q29:UNR9213J Q31:UNR9113J

PWR

IC21

24LC512T

EEPROM

TLVA

MOD

Q1:UNR9113J D1:DAN235E

N,D/W

CFWS450F

FI1 CFWS450F

BPF

N,D/W

Q1:UNR9113J D2:DAN235E

TUNLKTPLST

PLSSO

CSFT XTAL EXTAL

PWON RES MD2ON

ESCL ESDA

D17,D79

1SV284

LV ADJ

Q10:2SC4116 Q13:2SC4116

LOOP

FIL

D30,D18

1SV239

MOD

Q27:XP1214 Q28:UNR9213J

TX VCO SW

RLVIN

RPLST PLSCK PLSSO RUNLK

15.3MHz

X3

BPF

SW

CERAMIC

SW

BEEP

Q5 2SK880

IC4 LMX2352TM

RX PLL IC

Q2 2SC4116

45.9MHz

450KHzNWC2

FI2 CFWS450HT

BPF

RSSI NOIS

CPU

IC20 HD64F2506FC26

TX VCO

TXVCO1

Q22:2SC4226 D9 :HVC321B D13:NVC321B

TXVCO2

Q23:2SC4226 D10:HVC321B D14:HVC321B

RLVA

BUFF

RVCO_SW

IF IC

IC5:TA31136FNG

D_IF

FANS

BATV

AFON AFON2

EDMUTTMUT

INT1 DPDN HRW

D5,D42 1SV284

LV ADJ

Q11:2SC4116 Q14:24C4116

LOOP

FIL

Q26:XP1214 Q30:UNR9213J

RX VCO SW

SQL SQL

FIL

Q3

2SK3019

N,D/W

SW

IC7 NJM2716F

IF

AMP

VOLT

DET

HINT

HRDY HDS1 HDS2

Q24 2SC5107

BUFF

RX VCO

RXVCO1

RXVCO2

X3 JTBM450CX24

IC40

NJM12904V

EXDISC

DET

IC2 AK2330

D/A 0

NWC2

A/D

IC9:AD7476ARTZ

IC10:TC7WBD125AFK

D0-15HCS A1-14 GPIO11-12

2SC5107

Q33

X2

LPF

Q21:2SC4226 D7:HVC321B D15:HVC321B

Q20:2SC4226 D8:HVC321B D16:HVC321B

DISC

N/W

SW

IC36

NJM12904V

AMP

Q35 2SC5107

BUFF

Q7

2SC4215

To CONNECT UnitHPF

NWC2

BDRO BCLKRO

DRES

IF AMP

CDISC

Q37 2SC5107

YGR AMP

Q25 2SC5107

BUFF

D3,D4:1SV308 Q12:UNR9113J

A/D SW

LINEAR CODEC

IC8

AK4554VT

GPIO6

BDX1

GPIO7

BDR1

BFSX1

BCLKX1

DSP

IC12 TMS320VC5509AZHH

Q38

2SC3357

DRIVE AMP

Q34 2SC5107

BUFF

2SC5107 Q32

X2

LPF

FI3 FL-401

XTAL

FI4 FL-420

XTAL

To Option Unit

DISC

F

DAFO

IC1:NJM12904V

DMI

FINAL AMP

#01,#03,#41,#43:RA60H1317M-125

#22,#62:RA30H1317M-121

LPF LPF

Q65 2SC5107

AMP

BPF

AFOUT

D11,D12:1SV308 Q12:UNR9113J

B

D

MODI

AMP

DATAIN

AMP

IC11:NJM2711F

A/D SW

NWC1

SW Y

PTTI EXMOD

DMO

IC34 NJM12902V

BUFF

X4 CR-817

CLOCK

MF1 AFB0512HB-F00

FAN

PWR AMP

LPF

NJM12904V

HPF EXAFO

IC36

AMP

IC35

CD4D53B

IC22

AMP

Q19 2SC4215

IC40

NJM12904V

AF

To Option Unit

MCOT

MIC

A

DEXM

IC35 CD4D53B

DATA

EDMUT

FAN

J9 B3B-2R-SM4-TP

JACK

FANS

IC23

TA75S01F

182.35MHz-220.35MHz

PMBFJ310

AMP

46.35MHz

1st IF MIX

to Connect Unit

AK2330

D/A 5

IC25

TC75S51F

ALC AMP

IC34

NJM12902V

AMP

From Option Unit

SIGO

SW X

Q52:2SD1619 IC38:NM2904PWR D61:DAN222

D38:L709CE D44:L407CD

ANT

SW

APC AMP

D62:HSB88WS L27,L32:617DB

Q53:UNR9213J Q59:DTC363EK

IC2

SIGNAL

BEEPM

BEEP

MCIN

AMP

IC1:NJM12904V

FAN

FANV

CTRL

D45,D48,D49:1SS375

LPF

Q43:UNR9213J

MUTE

RFPO

SW

D/A 4

IC2

AK2330

RSSI

D21,D22 D23,D24Q63,Q64,Q71 HVC365

BPF BPF

T2

AFONO

AFON AFONO AFON2

MUTE

AMP

IC29

TA75S01F

D/A 1

AK2330

SW

IC2

D47:DAN222

D51:MA2S111

BEPO

IC2 AK2330

D/A 2

DET

PWR

TMUT

D27:MA2S111 Q39:2SK1829

AGC

D28,D29 D31,D32 HVC365

RF

AMP Q36 3SK293

MUTE

SW

AF

AMP

IC28

LA4425A

AF

AMP

Q61

2SC4116

POSW

MOD

D/A 3

AK2330

IC2

Explanatory Notes

CONTROL LINE

COMMON LINE

TX LINE

RX LINE

DATA LINE

LPF

T1

Q56:TPC6103 Q52:UNR9213J D46:DAN222

J6

HSJO807-01-010

AFO

BAL

TX

136-174MHz

RX

136-174MHz

SP JACK

to Front Unit

to TX VCO

to TCXO

10 - 1

SECTION 11 VOLTAGE DIAGRAM

RX TX

LED ON LED OFF

FRONT UNIT

COM1

COM0

COM3

COM2

SEG1

SEG0

SEG72

123456789101112131415161718192021222324252627282930313233343536373839404142434445464748495051525354

100

101

102

103

104

105

106

SEG3

SEG2

COM1 2

COM8

COM9

COM10

COM1 1

103

SEG54

104

SEG55

105

SEG56

106

SEG57

107

SEG58

108

SEG59

109

SEG60

110

SEG61

111

SEG62

112

SEG63

113

SEG64

114

SEG65

115

SEG66

116

SEG67

117

SEG68

118

SEG69

119

SEG70

120

SEG71

121

SEG72

122

SEG73

123

SEG74

124

SEG75

125

SEG76

126

SEG77

127 128

CP500

CP15S

0.1

C502

C504

C503

C501

C500

SEG9

SEG8

SEG7

SEG6

SEG75

SEG74

SEG73

SEG13

SEG12

SEG11

SEG10

SEG5

SEG4

SEG72

SEG 52

SEG 51

SEG 50

SEG 49

SEG 48

SEG 53

100

101

102

123456789

1.2M 220K

R500

0.1 R562

R563

220K

1.2M

R501

LCD

SEG77

SEG26

SEG25

SEG24

SEG23

SEG77

SEG18

SEG17

SEG16

SEG15

SEG76

SEG14

SEG19

SEG21

SEG20

SEG73

SEG28

SEG27

SEG22

SEG 46

SEG 45

SEG 44

SEG 43

SEG 42

SEG 47

C505

SEG 40

SEG 41

1011121314151617181920212223242526272829303132333435363738

1

C507

1

L502

4.7U

C569

C506

0.001

SEG29

SEG30

SEG 39

SEG 38

LRES

SEG32

SEG36

SEG31

SEG 37

SEG 36

LWR

LRD

10 MSVA

SEG33

SEG37

SEG 35

SEG35

SEG34

SEG42

SEG41

SEG40

SEG76

798081828384858687888990919293949596979899

78

SEG45

SEG74

SEG43

SEG44

SEG38

SEG39

SEG34

SEG33

SEG32

SEG31

SEG30

SEG29

IC500

S1D15206F00A200

LD0

LA0

LD1

SEG47

SEG75

SEG50

SEG46

SEG28

SEG27

LD3

LD2

SEG49

SEG48

SEG51

SEG75

SEG26

SEG25

LD5

LD4

SEG54

SEG74

SEG52

SEG53

SEG24

SEG23

LD6

LD7

SEG56

SEG55

SEG58

SEG57

SEG22

SEG21

COM0

COM1

SEG62

SEG73

SEG60

SEG59

SEG20

SEG19

COM2

COM3

SEG64

SEG63

SEG61

SEG65

SEG18

SEG17

COM4

COM5

5V

SEG69

SEG72

SEG76

SEG66

SEG16

6566676869707172737475767778798081828384858687888990919293949596979899

COM6

SEG71

SEG70

SEG68

SEG67

COM4

COM1 6

COM5

COM1 5

COM6

5556575859606162636465666768697071727374757677

COM1 4

COM7

DS500

L4-0013TVY

COM1 3

64

SEG15

63

SEG14

62

SEG13

61

SEG12

60

SEG11

59

SEG10 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39

SEG9 SEG8 SEG7 SEG6 SEG5 SEG4 SEG3 SEG2 SEG1 SEG0

COM1 6 COM1 5 COM1 4 COM1 3 COM1 2 COM1 1

COM1 0 COM9 COM8 COM7

EMPG3338S

EMVR3338S

EMPG3338S

EMVR3338S

DTC114TU

0.1C526

DS501

DS502

DS503

DS504

DTC114TU

Q500

Q501

Q502

Q503

CPU5V

C525

R506

R507

R508

R509

C508

C509

C510

C511

C515

R518

5

0.027C512 4

8V

10 MSVA

C522

2.2K

3.3K

2.2K

3.3K

470P

R512

0.01 R513

100k

R519

IC 5 0 1

CD

NC

S-80942CNMC

R573 100K

5V

VOUT

4

VIN

5

4.7 MSVA

VRPG3349S

47P

C514

VRPG3349S

ALEDR

BLEDT

BLEDR

ERTJ0EP473J

TEMP

1k

0.1

C517

100KR524

100K

1

OUT

2

VDD

3

VSS

NJM2870

NB

GND

CTRL

IC503

GR

DS511

G

DS512

ALEDT

R516

R574 100K

3 2 1

POSW

D511

C564

C523

KYP0

MA2S111

10K

0.1

R

KYP1

R570

KYP2

C524

560R566

560R559

KYP3

22K

0.01

560R558

560R567

KYP4

AFMDA

BFMDA

AMFDA

BMFDA

DTA114TU

Q515

DTA114TU

Q516

DTA114TU

AFVI

CPU5V

R517

61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

R568 10K

8V

Q513

DTA114TU

Q514

DTC114TU

12K

C520

0.01

Q510

Q518

Q517

0.1

RES

C518

MA2S077

Q511

DTC114TU

C562

R515

12K

D503

470P

ALEDPR

12K

ALEDPG

60

1

CSFT

C519

15P

R514

C560

59

2

ALEDR

6P

470P

BLEDPR

57

58

3

4

BLEDT

BLEDR

56

5

ALEDT

C516

C561

R511

1M

X501

55

6

470P

CLI

54

7

BLEDPG

53

8

TOOL1

12P

KYP0

KEY

S501

S500

470P

C559

CLO

AFON

51

52

49

50

C502 I

UPD78F1153GK

9

12

11

10

TOOL0

R510

10

18.432MHZ

C513

KYP1

KEY

LIGHT

48

13

FLMDO

ABSW

47

14

OSC2

KYP2

KEY

S502

BLEDPR

BLEDPG

45

46

16

15

C521

OSC1

KEY

S503

ALEDPR

ALEDPG

43

44

18

17

KYP3

DIUD

42

19

DICK

41

2

20

0.47

1

KEY

S504

C563

KYP4

0.1

POSW

KEY

S505

D504

MA2S111

120

R523

DS505

DS506

DTC114TU

Q504

LIGHT

RES

HANG

40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21

CPU5V

CIN

BFMDA

M

47P

GND

7

8

J502

S8B-PH-SM4-TB

8V

R525

SML-311YT

DS507

DS508

SML-311YT

BPTT

BAFO

C534

M ICE

3

4

5

6

120

AFON

TOOL0

FLMDO

TOOL1

CPU5VCPU5V

BMFDA

D506

0.1

F8V

2

LCD

1

910

120

R526

DS509

SML-311YT

DS510

SML-311YT

MA2S111

0.001

C568

R576

RB160L

0.001

C530

5V

SML-311YT

RES

TOOL0

CP06S

CP503

CP502

CP501

FLASH WRITE

C531

0.1

HANG

LD0 LD1 LD2 LD3 LD4 LD5 LD6 LD7

LRES

LWR LRD

LA0

ESDA

ESCL

100K

R520

D512

1

10K

0.

C574

FLMDO

W

MA2S111

POS

2SB1132

TOOL1

CP06S

CP504

C575

10 MSVA

M ICE

D513

C573

Q508

Q506

R532

5V

CP06S

CP505

330

0.1

L500

4.7U

CPU5V

5

6

123

1k

8V

CP06S

CP506

MCIN

8V8V

10K

R575

R533

4

2.7K

XP6501

18K

R534

0.001

C532

D510

R571

DIUD

CP06S

DICK

AFVI

100K

CLI

8V

CLO

PTT

CPU5V

BPTT APTT BAFO

AFO

AAFO

5V

AAFO

APTT

AFMDA

MCIN

C527

M ICE

GND

7

8

3

4

5

6

S8B-PH-SM4-TB

C535

C566

C567

MA2S111

68K

R572

R536

0.001

D505

AMFDA

0.1

F8V

1

2

910

0.1

C537

0.001

0.1

R540

C538

100K

CPU5V

R538

C536

MA8056

1 2 3 4 5 6 7 8

0.001

RB160L

J501

100

0.001

R542

R539

4.7K

1

AFO

10K

R541

100K

47P

C539

C541

D507

IC506

Y1 Y0 Z1 Z Z0 INH VEE VSS9C

CD4053B

C533

A(MAIN)B(OPT)

C540

82K

C544

10 MSVA

10K

R543

D508

R547

R548

0.1

VDD

Y

X X1 X0

A

B

C542

16 15 14 13 12 11 10

M ICE

20 19 18 17 16 15 14 13 12 11

C546

R544

DA221

1k

PTT

R545

100

0.001

VCC1 NC OUT1IN1IN1+ IN2+ IN2OUT2NC VCC2

R549

4.7K

47P

C547

47K

47P

C545

C548

0.001

ABSW

TDA8547TS

47P

C549

0.001

D509

1k

R546

C551

0.1

C565

MICE

10K

R552

C555

TA75S01F

10K

R553

IC509

GND1

NC

OUT1+

MODE

SVRR

SELECT

NC

OUT2+

NC

GND2

1k

R554

B

3

COM

1

A

2

S506

RH70N1037E20

R551

EVU-F2KFK3B14

DA221

47P

M ICE

R556

47K

1

IC508

5

3

1

2

B2B-ZR-SM4-TF

1 2 3 4 5 6 7 8 9 10

R557

AFVR

CP509

CF20OPEN

4.7

R564

CLO

PTT MICE MIC GND CLI

EXT MIC

10U

L501

0.01

C556

4

R560

0

J504

1 2

CP15S

CP507

CP15S

CP508

4.7K

J503

8V

1 2 3 4 5 6 7 8

3017-8821

C558

4.7 MSVA

C553

M

ICE

34

SP-

SP+

47P

11 - 1

*; Refer to “PARTS LIST.”

POWER SUPPLY

RX TX

RX

TX

RX TX

RX

TX

RX

TX

RX TX

RX

TX

RX TX

TEMP

+10V

3.3VA

+5V

8V

R8V

HV

VCC

DSP5V

REF5

PLL IC

TPLST

PLSSO

PLSCK

TUNLK

CONTROL

TEMP

TMUT

TXC

RXC

TLVA

BATV

PWR

TLVI

TLVIN

TREF

BAL

MOD

RFPO

RXIN

FANV

FAN S

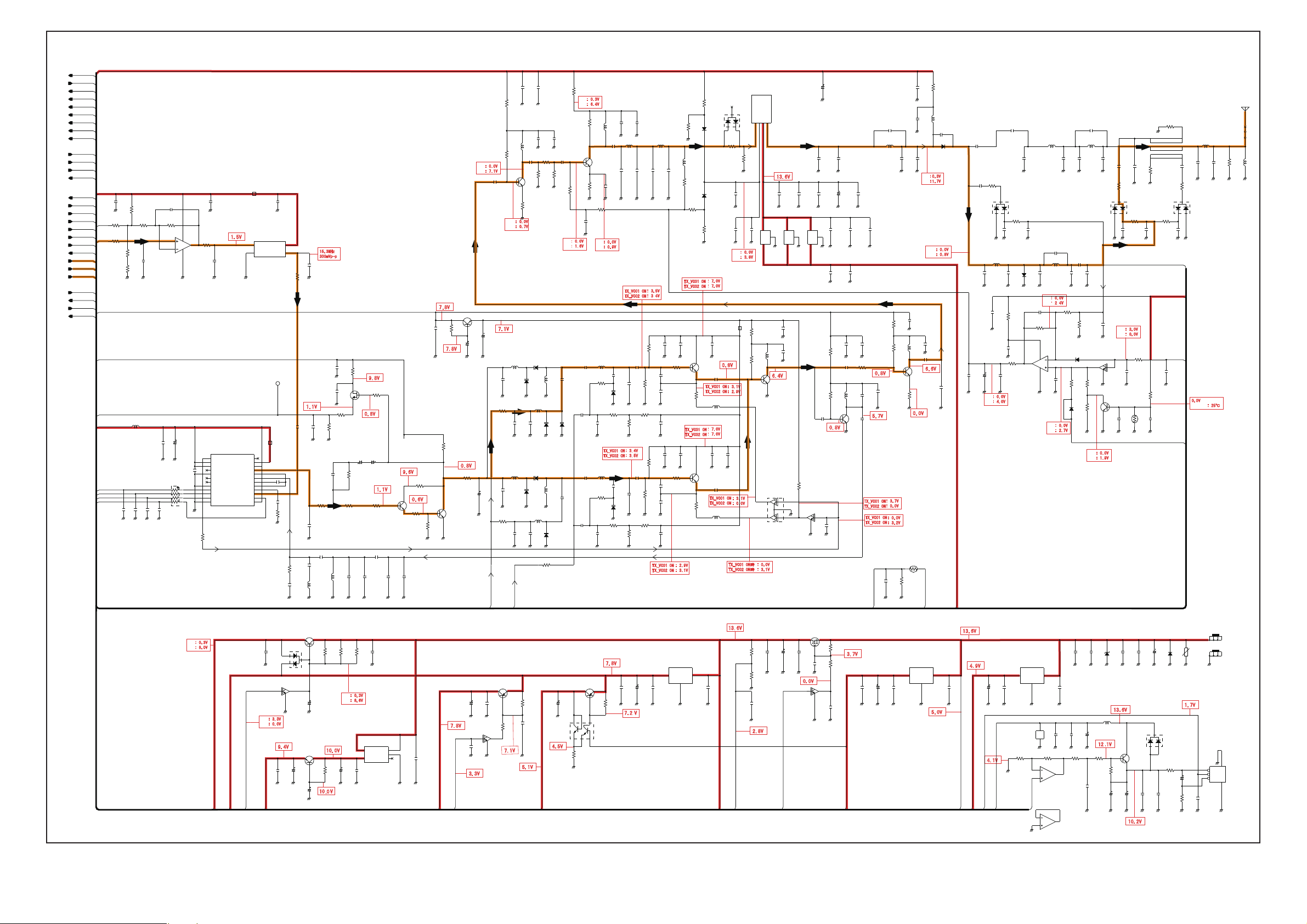

MAIN UNIT (1/3)

T8V

+10V

3.3VA

+5V

8V

R8V

HV

VCC

DSP5V

REF5

TPLST

PLSCK

TX REF(15.3MHz)

+5V

TEMP

TMUT

TXC

RXC

TLVA

BATV

PWR

TREF

BAL

MOD

RFPO

RXIN

FANV

FANS

0.1

C543

6.8K

R496

R495

TREF

BAL

N

8V

+10V

TLVI

3.3VA

TPLST PLSSO PLSCK TUNLK

100K

R2

N

10K

5.6K

R497

560

R504

L1

1.8U

47P

C1

120KR1820K

C530

47P

C4

T8V

22

0.001

C365

3

FI7

12

NFM60R20T152

10P

2

SC510

10K

R181

UNR9213J

Q28

C601

C251

C334

C364 2P

L49

AS080547

10P

8P

C545

22

C367

470P

C375

3

C318

R194

R195

7

C245

0.001

100

220K

Q33

0.001

C250 7P

C562

L35

C378

C319

47P

18N

C320

47P

0.001

R198

4.

C264

0.001

C252

7

C589

0.001

C381

0.001

3P

22P

C254

TEMP

0.001

TX_VCO BUFF

C3

470P

C315

0.01

C309

100

R240

0.001

C298

0.1U

L42

C324

R302

100K

R236

12P

C165

C163

68

100

R293

Q37 2SC5107

0

R252

D13

HVC321B

L14

HVC321B

D9

L19

1U

0.1

0.001

C167

D17

HVC321B

D14

L62

HVC321B

D10

L64

1U

0.1

0.001

C166

D79

R127

MOD

C303

R125

270

C144

TXVCO_SW

C579

10 MSVA

0.47 MSVA

C141

22P

10 MSVA

TLVA

220K

R136

R137

C158

C159

L11

1U

47P

L12

1U

47P

ACZ1005Y

C16 10P

R20

5

1

3

2

47P

C20

10 MSVA

0.1

C17

R22

1k

47P

0.1

C7

C11

C26

0.001

C544

IC37 NJM2125F

0

4

R26

24 23 22 21 20 19 18 17 16 15 14 13

1k

R24

0.001

C617

TX PLL

OUT1 VCCI

VPIF

CPOI

GND FINI FINRF

GND LE DATA CLOCK

F_EN

I

EP1

47P

3

IC

CUTO

F

VCCRF

VPRF

F

CPORF

GND

FINRF

F

FINRF

GND

OSCX

OSCIN

FO/LD

RF_EN

LMX2352TM

1

2

X1 VCON

GND

15.3MHZ

1 2 3 4 5 6 7 8 9 10 11 12

EP2

TLV

C52 47P

0.1

C50

VCC

OUT

CP06S

CP10

ACZ1005Y

0.01

C552

47

R56

R77

4

3

C78

R65

C66

56

0.001

10P

C51

470

100P

0.001

C73

R760R508

0

0.0047

C74

C80 5P

4P

C590

10N

L69

Q15

2SC4116

2.2K

R126

0.01

C125

0.001

C100

100

R107

R116

0.001

C108

Q8

10K

2SK880

2.2K

R91

2.2K

R84

1.5K

1

C112

C102

1

2.7K

R92

0.0047

C88

Q10

2SC4116

R101

100

C109

5P

18N

L5

2P

C94

C105

6P

C119

C114

R117

R265

0

Q13

2SC4116

R276

0

68K

R112

2P

47

R253

47P

C304

12P

C310

100

R294

12K

R249

YGR

TX_VCO2 155-174MHz

C172 68P

1U

27P

C188

C162

1

1SV284

HD34

C174 47P

10U

22P

C181

C176

1

1SV284

56K

C325

R256

R318

R250

0.001

4.7K

Q38 2SC3357

33

100

L18

C6342A R157

120K

C187

L15

135N

R151

120K

C186

L43

C469

47P

C327 15P

R138

47K

R158

47K

68N

0.001

C173

D18

D30

C190

C328

C428

1.5P

1SV239

1.5P

1SV239

1.5K

R310

D35

1SV252

47P

0.001

C330

L46

L45

47N

22P

18P

R139

R275

C180

C189

C191 33P

C192 39P

C349

C337

C335

C531

1.8K

R168

27P

C200

3.9k

R163

15P

33P

C201

R141

33K

C199

0.001

33K

C532

1.8K

R169

39P

C202

3.9k

R164

10P

47P

C203

R146

33K

C175

33K

0.001

D36

3.9K

R311

RB886G

1U

L68

22P

680

R317

D37

RB886G

330

R314

10K

R312

8V

TVCO8V

0.01

39P

R165

0

39P

R166

0

C219

C221

0.01

R172

R173

Q22 2SC4226

680

Q23 2SC4226

680

C224

C220

0.5P

L25

1U

C225

C222

0.5P

L26

1U

TX_VCO1 136-155MHz

0.001

HR206

0.001

1k

C351

C342

EP8

C616

RF OUTOPUT

RF INPUT2GATE BIAS3DRAIN BIAS

RA60H1317M

IC22

4

1

100

R269

C350

R178

ACZ1005Y

R176

47P

C354

3

FI5

12

NFM60R20T152

C236

100

C237

0.1U

L29

100K

Q24

2SC5107

Q27

5

XP1214

0.001

470P

TX_VCO SW

PA

C360

47P

FI6

12

NFM60R20T152

470P

0.001

34

2

1

R214

R207

0.1

10P

C370

HV

100

L38

100K

R215

ERTJ0EP473J

100K

R13

C280

0

0.001

C377

C372

0.001

82N

Q35

2SC510

R12

C283 10P

C374

470P

3P

C281

7

+5V

R289

L52

0.001

100

1U

C578

0.001 D44

L407CD

C291

ANT SW

C389

0.001

C341

1P

HV

C392

0.3P

47P

C390

C343

R304

10K

D45

L53

AS080547

18P

C353

2.2 SVA

0.001

C347

C408

C296

0.001

C387

R280

C358

R277

0.001

1SS375

R315

270K

18P

220

0.01

100

C401

C429

D38

L709CE

4

IC23

TA75S01F

APC

18P

0.001

C297

C366

0.47 R283

150K

L55

AS080547

6P

5

3

1

2

C380

5P L50

56N

C373

TX

LPF

HC407

1.5P

L56

AS080547

18P

C419

C410

C409

HC520

0.001

8P

C376

C368

R292

10K

33K

R308

MA2S728

HD50

15K

R288

0.1 10K

R295

MA2S728

HD41

0.001

Q43

R290

100K

0.001

C404

UNR9213J

Q46

2SC4116

470P

C422

270

R321

D48

0.001

C423

C384

R306

0.001

C397

C426

1SS375

R322

27K

R291

4.7K

1

15P

C421

PRF18

R301

R327

C400

FWD

0.001

100

180K

0.001

R333

27K

R328

150

C386

REV

D49

RXIN

TMUT

0.001

RFPO

C433

R332

C434

T8V

_AS080547-47N

L

C436

470P

270

1SS375

0.001

7

L5

AS080547

18P

C444

ERDS2T0

W1

1U

L59

100K

R348

18P

C479

R375

R362

100

0

HVVCC

ERZV10D220

47P

C512

EP1 3 OT-009

EP1 4 OT-009

45

1 2 3

J9

B3B-ZR-SM4-TF

C439

PWR

22

UNR9213

C443

0.001

Q58

Q57 2SJ377

J

C448

0.001

R354

R355

C453

270K

100K

0.001

REF5

C466

REF5

47P

C461

C458

C556

0.1

C551

1 IC38 LM2904PWR

7 IC38 LM2904PWR

0.001

HD57

0.001

C459

1.5SMC18AT3G

0.1

L61

4.7U

100

C533

0.01

C534

R505

0

C474

R372

470

0.0047

R373

C475

Q62 2SD1619

10K

100

C476

100

IC30

AN8005M

IO

G

C465

10 MSVA

C495

0.1 C494

47P

DSP5VREF5

C558

0.1

HV

DSP5V

FANS

10 MSVA

VCC

C557

0.1

LM2904PWR

R507

100K

TA7805F

IC38

IC39

IO

G

8

V+

GND

4

R506

220K

2

3

FANV

6

5

C462

C477

47P

D61

C464

0.0047

C478

470

D59

DAN222

R374

10

0.0047

FAN

DSA3A1

Q45

2SD1664

T8V

D40

DA221

Q44

C633

C388

2SC4116

Q72

10

C632

R296

10

+10V

R260

10

0.001

C383

UNR9213J

0.001

C634

T8V

8V

TXC

+10V

3.3K

2.2K

R297

C631

3.3K

10

R298

C630

VCC

3.3K

5

VI

NJM2831F10

0.1

C391

0.01

C438

300K

0.001

8V

Q48

R8V

C396

C580

2SA1577

10K

R313

0.001

C399

10

0.01

C406

R309

4.7K

Q49

UNR9213J

47P

+5V

R8V

VCC

IC19

1

N

CTRL

2

GND

3

NC4VOUT

C629

0.01

RXC

R8V

+5V

C359

10

123

R279

2SB1132

2.2K

Q41

456

Q40 XP6501

REF5

R285

C416

0.001

C412

10K

8V

10 MSVA

C497

IC27

TA7808F

VCC

IO

G

0.1 C496

0.1

R334

100K

R335

0.001

C435

BATV

VCC

*; Refer to “PARTS LIST.”

11 - 2

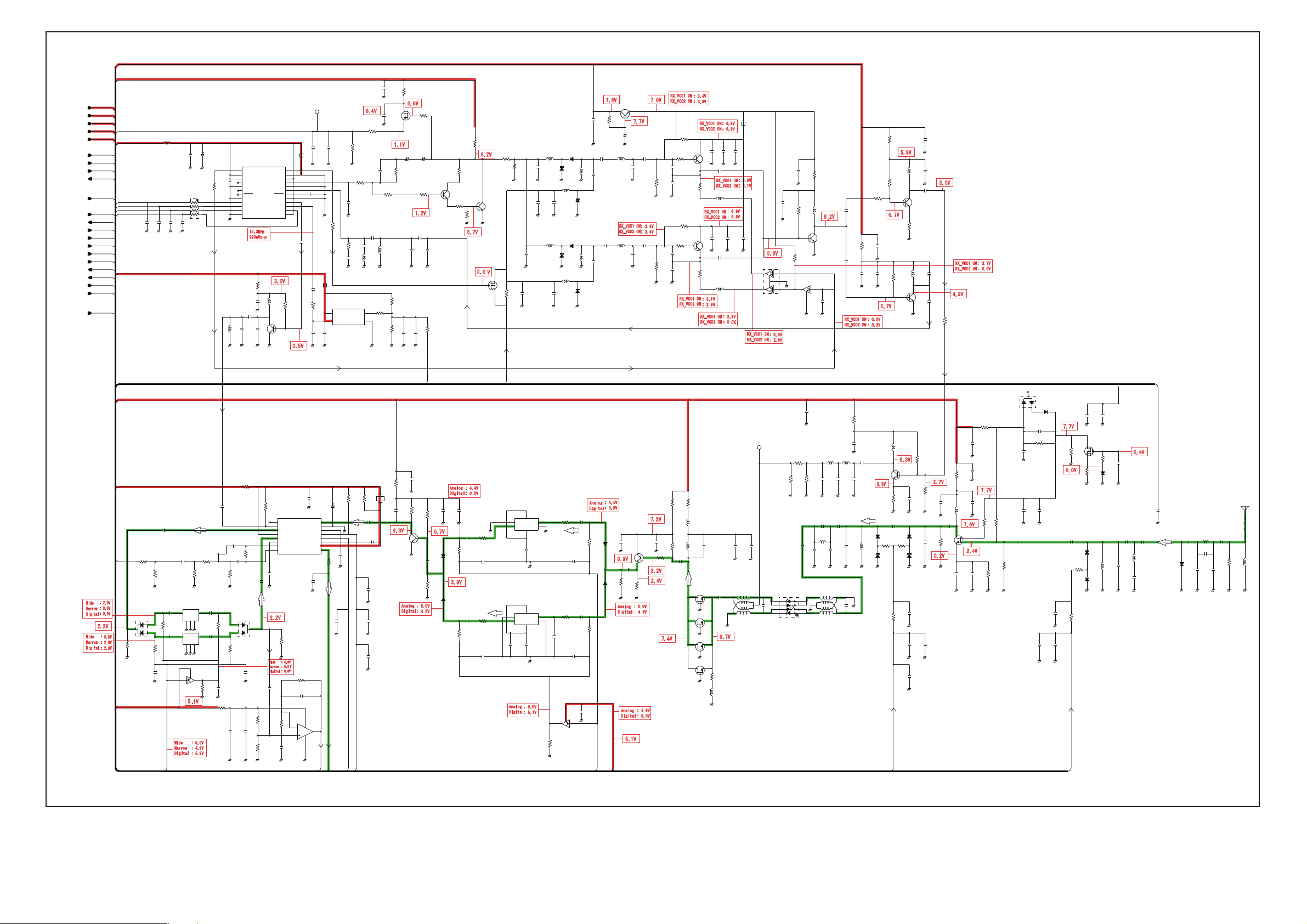

MAIN UNIT (2/3)

8V

NWC1

NWC2

3.3VA

RPLST

PLSSO

PLSCK

RUNLK

RLVIN

RSSI

NOIS

+10V

+5V

RLVI N

8V

R8V

3.3VA

RREF

RPLST PLSSO PLSCK RUNLK

RLVA

T1

T2

DET

D_IF

SQL

RXIN

POWER SUPPLY

+10V

3.3VA

+5V

8V

R8V

PLL IC

RPLST

PLSSO

PLSCK

RUNLK

CONTROL

RREF

RLVA

RLVIN

T1

T2

DET

D_IF

SQL

RSSI

NOIS

NWC1

NWC2

RXIN

100

R102

0.001

C64

RXLV

CP9

CP06S

L2

1.8U

47P

C2

C5

+5V

C21

0.1

C19

10 MSVA

R74

R23

1k

0.1

47P

C12

C8

0.001 C27

1k

45.9MHz

L3

RX PLL

24

OUT1

23

VCCIF

22

VPIF

21

CPOIF

20

GND

19

FINI

18

FINRF

17

GND

16

LE

15

DATA

14

CLOCK

13

IF_EN

0.82U

7P

C32

IC4

CUTO

VCCRF

VPRF

CPORF

GND

FINRF

F

FINRF

GND

OSCX

OSCIN

FO/LD RF_EN

LMX2352TM

R29

1.2K

L4

0.22U

0.1

C35

R42

C34

4P

Q2

56P

C36

2SC4116

47P

C503

ACZ1005Y

EP3

1 2 3 4 5 6

C53

7

47P 8 9 10 11 12

33P

C54

EP5

100P

C59

470

R60

390K

C104

10P

C60

C75

R69

ACZ1005Y

4

3

0.1

0.001

VCC

OUT

2.2K

R85

R78

0

0.0047

C76

1k

C293

56

R79

L7

0.001

C79

VCON

GND

15.3MHZX2

RX REF(15.3MHz)

Q5

R105

1

C103 1

2.7K

R94

220K

82K

0.001

2SK880

C99

10K

1.5K

R120

Q14

68K

RLVA_SW

2SK3019

R121

270

0.47 MSVA

Q9

100K

R111

C113

0

R86

6

2SC411

Q11

R103

100

3P

C110

2P

C115

C106

1

C566

R75

2SC4116

R83

0

10K

R113

2P

220K

C134

C135

RVCO_SW

L8

1U

47P

C154

0.1

C563

C155

L10

1U

47P

C156

0.1

C157

0.1 SVA

D7

L9

1U

0.001

D8

L13

1U

0.001

HVC321B

D16

HVC321B

D15

HVC321B

C127

1U

L20

C168

D5

1SV284

C171

1U

L17

D42

1SV284

C98

0.001

2.2K

R93

0.0047

C89

R73

0

C81

4P

5P

18N

L6

10N

R226

10

1

R88

2

R286

Q16 2SC4116

2.2K

R128

0.01

C147

10 MSVA

L16

C169

30P

67N

C177

22P

RX_VCO2 155-174MHz

L21

C170 30P

C6342A

18P

C178

RX_VCO1 136-155MHz

RVCO8V

EP6

0.1

C211

0.75P C215

L65

1U

12P

C529

0.75P C216

L66

1U

ACZ1005Y

0.001

39P

C217

C528

0.01

C212

C218

RX_VCO SW

0.001

100

R200

470P

C238

100

R179

0.001

C239

Q26

34

2

1

5

XP1214

10K

R177

R180

100K

Q25 2SC5107

UNR9213J

Q30

0.1U

L30

7P

C253

R191

10P

C246

C261

0.001

C248

R201

R196

7

4.

RX_VCO BUFF

470

0.001

C247

0.001

47P

C249

R192

100K

Q32 2SC5107

0.001

C265

82N

L36

0.001

C274

C275 10P

Q34 2SC5107

0

R208

18N

L33

3P

C294

220K

0.001

C260

33

R380

R154

1.8K Q20

2SC4226

C184 39P

8P

C185 36P

8P

R160

0

33P

C194

560

3.9k

R155

C195

C196

3.9k

R156

C197

R171

39P

R161

1.8K

R162

0

Q21

2SC4226

36P

680

R174

39P

RX_PLL BUFF

RREF

R8V

TBM450CX24

J

R87

C82

10 MSVA

16 15 14 13 12 11 10

C83

0.001

4.7K

R68

C93

0.001

RSSI

DET

D_IF

X3

R98

R89

1.8K

100K

NOIS

C107

C92

0.01

C90

82P

47P

C549

47P

C84

47P

C550

C40

4.7K

DAN235E

D2

15K

4.7

IF IC

47R25

C70

1.5K

R44

IC5

1

OSCIN

2

OSCOUT

3

MIXOUT

4

VCC

5

IFIN

6

DEC

7

FILOUT

8

FILIN9AFOUT

220K

R41

C28

C97

TA31136FNG

0.1

C38

0.1

C37

R33

0.1

C43

18K

R58

R72

0.1

18K

R59

C71

0.001

MIXIN

GND

N-REC

N-DET

RSSI

IFOUT

QUAD

0.001

C67

15K

R82

1.8K

C85

7P

IC7

NJM2716F

5

4

100

1

3

2

1

0.

+5V

3P

C39

C555

120P

1.5K

SQL

R48

R43

2.2K

C13

DAN235E

D1

15K

R18

C10

R4

+5V

0.1

15K

12.5K

15K

R15

6.25K

0.1

C6

NWC2

R47

C47

0.001

R57

2SK3019

1

FI CFWS450F

IO

0.1

25K

IO

CFWS450HT

Q1

UNR9113J

C42 120P

56K

4.7K

R45

C24

0.1

15K

R30

C22

0.1

2

FI

R32

0.1C25

10K

R70

R66

100

C87

R8V R8V

0.01

C117

10

330

2SC421

R513

7P

R99

Q7

5

C111

R100

0.01

C118

C116

0.001

220K

C121

0.01

D3

3.3K

R114

1SV308

0.01

27K

D4

1SV308

C122

0.01

R115

3.3K

RLVA

RSSI

D26

D25

0.001

C481

RX LO

CP80

CP06S

FI

3

FL-401

56

R133

4

1

GND

IN

2

R118

330

C149

0.01

OUT3GND

C138

15P

C160

330

0.01

C535

0.01

25K/12.5K

FI

4

56

FL-420

R134

1

R119

150

4

IN

GND

2

OUT3GND

7P

27P

C133

0.01

C150

C139

6.25K

C161

0.01

150

9P

C151

C536

0.01

C123

Q12

UNR9113J

100K

R109

IF AMP

D11

1SV308

3.3K

R142

R140

0.1

0.01

C198

R498

D12

1SV308

3.3K

NWC1

+5V

C193

Q19

R159

10

2SC4215

C182

0.01

27K

470

R153

0.001

10

100

R148

R175

4.7U

L22

68K

R152

L24

0.27U

C213

Q63

PMBFJ310 Q64

PMBFJ310 Q71

PMBFJ310

HQ73

PMBFJ310

27P

C242

0.01

10

R167

10U

L23

C214

0.001

C243

0.01

C244

L27

C241

#617DB

2P

HSB88WS

MIX

R185

18

270

R184

R193

C271 9P

C2012C

0.001

C570

8P

C289

L32

D62

#617DB

100

R376

0.001

C268

L34

L37

C282 12P

33N

18P

C258

L63

18P

33P

C279

C267

C290

8P

L39

4P

C288

8P

C276

50N

HVC365

82N

L28

R378

8.2K

Q65

2SC5107

R379

8.2K

82

R381

0.001

C263

C301

C286

3.5P

D24

D21

R218

R225

100K

D23

D22

HVC365

C302

0.001

R231

2P

C287

BPF

4P

C564

10K

R223

0.001

C292

0.001

6P

C295

C574

47P

C575

T2

R242

4.7

0.001

C307

0.001

C300

100

R233

0.01

0.001

C299

50N

L41

390

C305

Q36

3SK293

47P

10

100K

R243

R237

2P

R246

150

R241

0.001

C306

RF AMP

DA221

M A2S111

C313

0.1 R247

56K

0.1

C311

47P

C336

0.001

C331

Q39

2SK1829

390K

R251

470K

R259

0.001

C332

4.7K

R255

D27

M A2S111

AGC

0.1

C312

0.001

C314

HVC365

C357 15P

50N

L47

1P

C355

C323

1.5P

120K

C338

0.001

D32

R274

100K

D31

BPF

R270

10K

0.001

C339

47P

0.001

C414

C345

T1

RXIN

0.001

C538

10P

C329

C2012C

L48

6P

C362

L51

C371

0.001

C2012C

6P

C379

D39

1SV307

8P

C445

RX

W2

C385

0.001

C382

ERDS2T0

L60

1U

100K

R349

6P

11 - 3

*; Refer to “PARTS LIST.”

LED ON LED OFF

POWER SUPPLY

3.3VA

3.3VA +5V

+5V

HV

VCC

DSP5V

REF5

PLL IC

TPLST

RPLST

PLSSO

PLSCK

TUNLK

RUNLK

CONTRO

L

TEMP

TMUT

TXC

RXC

TLVA

BATV

PWR

TLVI

TLVIN

TREF

BAL

MOD

RFPO

FANV

FANS

RREF

RLVA

RLVIN

T1

T2

DET

D_IF

SQL

RSSI

NOIS

NWC1

NWC2

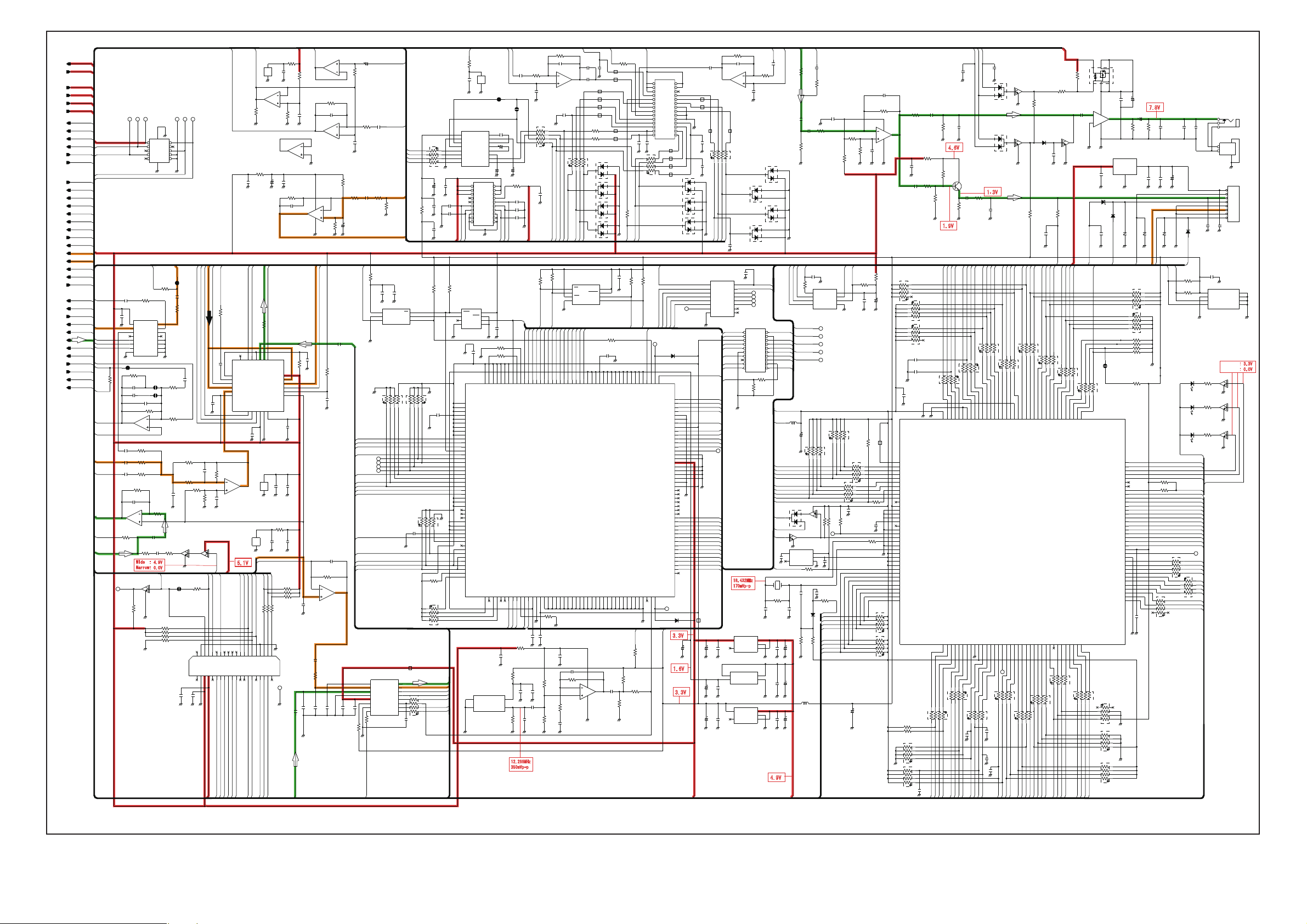

MAIN UNIT (3/3)

CPU

CP52

CP06S

FLASH

CP51

CP49

CP06S

MD2

FMDA

100

CP53

CP06S

C49

C521

CF20

C622

4.7

R489

100

52365-1071

1

0.1

16 15 14 13 12 11 10

F

CP76

27K

C540

C539470P

0.0068

IC36

7

C546

4.7 C516

0.1

R492

C526 470P

IC36

1

NJM12904V

P

R278

+5V

8.2K

R53

IC35

VDD Y X X1 X0 A B

CD4053B

R500

C542

R502

100K

NJM12904V

R364

220K

R530 47K

R479 220K

47K

2

3

R6

3.3K

Q42

100K

12 34 56 78 910

MCOT

Y1 Y0 Z1

Z

Z0 INH VEE VSS9C

CP79

B

CP78

D

B

E

220P

6

5

R490

18K

C525

4.7

C524

4.7

UNR9213J

100K

1 2 3 4 5 6 7 8

PTTI

R54

R488

470

UNR9213J

+5V FMDA

MD2

RES MFDA

N

+5V

DEXM

MODI

DATA EDM UT PTTI

AFOUT DAFO

R499

DISC

AF

VREF

DMO

SIGO

CDISC

EXDISC

DET

CP06S

CP62

CP06S

CP60

CP59

CP06S

RES

GND

MFDA

HJ3

SCK

SSO

MIC

DAST

A

MIC

470

CP8

C61

0.47

1k

R62

0.1

C541

R501

22K

R541

22K

R539

220K

100P

C18

R3

47K

R7

0

C610

0.0018

HR19

100K

Q69

Q70

UNR9113J

CP3

R17

100

CF20

1MR8 1MR9 1MR10

HR11

12345678910111213141516171819

J1

0.001

C9

C14

+5V

SQL

MOD

C31

HR21

C15

NWC2

PTTO

MCOT

VCCCAFON

DET

R27

0.1

MIC

1k

0.1

C23

180K

6

5

0.1

DEXM

1

VIN7

2

VIN0

3

VOUT0

4

VOUT1

5

VIN1

6

RSTN

IC

NJM12904V

+5V

25

1

VREF

BUSY

C553

RREF

CSN8SCLK9SDATA10DVDD11VSS

7

NJM12904V

SIGO

OPT1

VREF

7

NJM12902V

10K

R478

R299

100

0.1 10 MSVA

TREF

R49

21

23

VIN522VIN6

VOUT624VOUT7

2

IC AK2330

0.1

C468

NJM12904V

IC1

8

V+ GND 4

IC36

8 V+

GND

4

VREF MODI

OPT2

OPT3

CIRQ

NJM12902V

IC34

4 V+

GND

11

IC34

C394

RFPO

SIGNAL

0

19

VOUT420VOUT5

VOUT3 VOUT2

VREF

AVDD

12

R491

C527

OPV2

OPV1

OPV3

2021

22232425262728293031323334353637383940

VIN4 VIN3

VIN2

+5V

C30

100

R38 R39 R40

C515

6

5

8

NJM12902V

C420

0.1

R510

+5V

0.001

0.01

C405

R34

47KR35

47K

AXK540145J

CP06S

R474

10

R477

C614 470P

18 17 16 15 14 13

C467

C33

HCP6

IC34

0.1

330K 330K 330K

47K R36

+5V

R476

0.1

82K

39K

TC75S51F

470

R46

0.1

47P

DISCIN

C41

R342

NJM12902V

IC34

DATA

1

100K

VREF

R481

C519

C514

0.001 IC34

14

NJM12902V

9

10

5

3

IC25

4

1

2

BAL

FANV

C48

0.1

R443

C491

VREF

C547

0.0022

R90

12K

IC

2

3

NJM12904V

C91

0.1

1

C44

100

R52

DMI

C45

0.047

C62

C56

1

3

2

10K

13

12

R511

10K

C398

R512

C77

0.1

470

0.1

1

0.1

C69

C513

10 MSVA

470

R475

R480

C517

0.1

10K

0.1

C518

10K R509

R325

C431 1

10K

1k

10 MSVA

D_IF

AF

R435 100k

CP06S CP06S

CP21

CP22

CP23 CP24

CP06S CP06S

DRES

BDR1

BDX1

BCLKX1

BFSX1

LINEAR CODEC

IC8

1

VCOM

2

AINR

3

AINL

4

VSS

5

VDD

6

DEM0

7

DEM1

C72

8

SDTO

0.1

4.7 AK4554VT

R80

47K

47

R71

R81

22

C86

IC9 1 2 3

AD7476ARTZ

VDD GND VIN

AOUTL

DATAIN

R324 10K

0.1

OUTR

PWDAN PWADN SCLK MCL LRCK SDTI

EXMOD

R303 XCTS XRTS XTXD XRXD

470

MCIN

MIC

C96

SDATA

10

C402

10

R300

HC665

+5V

CPU3V CPU3V

R473

4.7

6

BFSR0

CS

5

BDR05V

4

BCLKR0_1

SCLK

A/D

R436 100k

C507

0.1

BDX0 EMU0 EMU1

BFSX0 GPIO0 GPIO1 GPIO2

GPIO3

FCS

DV0 GPIO6 GPIO7

DPDN INT1

R438 100k

C506

1

0.

R469

100K

R468

100k

EP4

MMZ1005S601CT

C101

DAF DMO GPIO6

GPIO7

R97

BCLKX1

47 10P

16 15 14 13 12 11

K

10 9

C559

0.1

100K

BFSX1

BDX1

O

HC651

HC656

47P

HC657 47P

0.001

R471

+5V

100

C584

16

VCC

15

GND

14

DOUT1

13

RIN1

12

ROUT1

11

DIN1

10

DIN2

9

ROUT2

MAX3232EIPWR

CTSJ

DTSCK

HV

20FLT-SM2-TB

100K

IC10

1

OE1

2

A1

3

B2

4

GND5A2

TC7WBD125AFK

DSP3

1.6VC

H2

J2 K10 M12 N13

N6 P13 P14

P8

E7 K11 K12

A5

B6

F3

E1

E2

B3

A3

D5

C4

D1 G14 G13 G10 F14 F12

C3 E10

C1 C12 A13 A14 B13 H12 A12 B12

D7

D8

A7

E9

C8

E8

A9 A10

1

2

3.3VA

R535

8

V+

GND

0.01

NJM12904V

4

IC26

C1+

V+

C1-

C2+

C2-

V-

DOUT2

RIN2

J8

SVCC 12

34 56 78 910 11 12 13 14 15 16 17 18 19 20

8

VCC

7

OE2

6

B1

0.1

C510

CLOCK

X4

NC

GND3OUT

12.288MHZ

IC40

VREF

EXDISC

R534

C581

4.7

CP66

Q

CF20

CP67

0.1C413

1 2 3 4 5 6

C411

7

1

8

C418

1

C415

1k

R453 HC653 47P

HC654

47P

HC655

47P

RTSJ

RXDJ

TXDJ

BDR0

C124

0.1

R439

100K

R440

100K

F13

E3

E6

H10

A4

A8

D6

D9

C9

K13

K14

J13

H13

H14

D10

B10

A11

TDO

TDI

TCK

R122

47

0.01

C126

47

R123

C136

4

VCC

47K

R124

3.3VD

R

D4

C137

27K

CF20

RXD TXD CTS

RTS

PC BOARD

VCC

D14

D15

L13

D3

B4

J14

TRST

TMS

C508

0.1

C145

C140

0.1

10P

2

3

0.1

C583

470

R346

2

0.001

HC65

RTSJ

R472

47K

R444

FCS

BDR0

D8

D10

D11

D12

D13

L10

L11

L12

P12

N12

M14

B1

A2

D2

G12

G11

J12

R467

47K

C509

0.1

47K

R129

47P

47K

R130

100K

C454 100P

IC40

1

NJM12904V

C573

6P

4

RXDJ

CTSJ

TXDJ

EXIO3

EXIO

IC32

47K

1

CS

2

SO

3

WP

4

VSS5SI AT25F2048N

P10

P11

L9

N11

M10

M9

TMS320VC5509AZHH

IC12

C7

C5

C2

B9

C11

B11

0.001

C146

C153

5P

R132

2.2K 4

3

100

R131

0.1

C152

DATAIN

C582

4.7 C588

4.7

EP26

MMZ1005Y102CT

EP29

R546

0

R485 470

DA221

EXIO5

EXIO7

VCC

HOLD

SCK

D0D1D2D3D4D5D6D7D9

L8

P9

K8

N8

E5

E4

E13

D11

5

IC11

2

NJM2711F

EXMOD

C620

47P

MMZ1005Y102CT

MMZ1005Y102CTEP27

EP28

0R545

EP20

MMZ1005Y102CT

EP21

MMZ1005Y102CT

D6

9

4

D6

D65

D66

DA221

8 7 6

R537

0

L14

L1

N7

M11

M4

K5

K4

F4

F11

M13

C164

1

0.1

EP30

C492

J5

M3

R144

To D-SUB25

28FLT-SM2-TB

2728

6PC571

47K

DISC

2

EXIO

B7

N9

R446

BDX0

100K

EXAFO

R486 470

B2

P1

6PC572

MMZ1005Y102CT

EP1

MMZ1005Y102CT

EP1 9

MMZ1005Y102CT

EXST

47K

SSO

BCLKX0

CP20

F5

B5

C6

A6

F2

F1

P2

E14

2526 2324 2122 1920 1718

GND

1516 1314

GND

1112

GND

910 78 56 34 12

J4

EP16

EP17

MMZ1005Y102CT

8

DA221

NWC2

NWC1

BUSY

SCK

CP06S

D75

M

A2S111

1.6VC

L2

M2

L3 K3

M1

K2

J4 J3

J1 H5 H4 H1 G4 G2 G5 C13 B14 C14

E11 D12 D13 D14

E12

F10 G3 H3 K1 P5 P7

M8

K9 N3 P3 L4 N4 P4 L5 N5 L6

M6

P6 K6 K7

M7

L7 H11

CP06S

CP11

D76

MA2S111

3.3VD

CTSJ1 RTSJ1

DSP3

470

DA221

DSP3

D67

CP30

D68

D70

C648

EP23

EP24

C576

SCRM

3.3VA

0.001

GPIO8

DSP3

EP31

RXDJ1 TXDJ1

470

R494

1

EXAD

EXIO

+5V +5V

0.1 R445

BCLKX0

BCLKR0

0.1C511

J10

J11

C10

B8

G1

N1

M5

N2

N14

N10

FANS

R540

47K

R143

R145

0

47K

VCC

0R547

C452

EP22

0.001

C577

1 2 3 4 5 6 7 8

CD4094BPWR

HDS2

DPDN

HDS1

HCS

GPIO12

GPIO11

GPI10 GPI09 HRDY

HRW HINT

MMZ1005S601CT

EP7

3.3VA

C204

1.6VC

C205

3.3VD

C206

1

7

NJM12904V

MMZ1005Y102CT

EP25

MMZ1005Y102CT

EXIO9

EXIO8

EXDA

EXIO6

C619

IC31

STR

V+

D

OE

CLK

Q5

Q1

Q6

Q2

Q7

Q3

Q8

Q4

Q’S

GND9QS

TMS TDI DSP3 TCK EMU1

BFSX0

FCS GPI10

DRES

CP06SCP1 5

A14 A13 A12 A11 A10

A9 A8 A7 A6 A5 A4 A3 A2 A1

1

C208

10 MSVA

4 3

1

C209

10 MSVA

1

C210

10 MSVA

R353

47K

C586 470P

IC40

MMZ1005Y102CT

R487 470

47P

C498 16 15

CP26

14

CP27

13

CP28

12

CP29

11 10

20FLT-SM2-TB

5

VOUT

XC6204B332M

VDD VOUT

R1114Q161D

5

VOUT

XC6204B332M

R536

6

27K

5

0.01

C587

D72

DA221

D74

DA221

0.1 CPU5V

EXOE CODE1 CODE2

CODE4 CODE8

J2 12

34 56 78 910 11 12 13 14 15 16 17 18 19 20

R493

0

100K

R470

C259

IC13

1

VIN

2

VSS

3

CE4NC

IC14

1

CE

2

GND

IC15

1

VIN

2

VSS

3

CE4NC

D71

DA221

D73

DA221

+5V CPU3V

X5

18.432MHZ R202

1M 6P

DSP5V

AF

C585

C228

0.1

3.3VD

BCLKX0

GPI09

CPU5V

REF5

XTXD XRXD

TMUT

HINT

INT1

HRDY

HDS HDS

DTSCK

PWR

PWON

MD2

0.027

C235

RES

C229

C230

EMU0

BDX0

BDR0

TRST

TDO

C231 1

C232 1

C233 1

VREF

1 2

C272

5

4

4.7U

RLVA

DAN222

SIGNAL

R503

0.1

R320

T2

TLVA

DRES

FCS

BCLKX0

BDR0

BDX0

DSP FLASH

L58

470

D1

9

UNR9113J

Q29 UNR9213J S-80942CNMC

IC18

CD

NC

R186

C256

12P

R190

4.7 MSVA

L31

4.7U

4.7 MSVA

C424

0.1

R542

Q31

MA2S111

10KR316

TPLST

132

470

D51

R244

133

0

RPLST

134

VCC

4

5

6

10K

R356

R347

470

C450

0.1

DTC363EK

Q59

0.47

C440

10K

R341

0.1

C437

POSW

VCC

TXC

RXC

ESCL

ESDA

AFON

PWON

AFON2

470

R433

3738394041424344454647484950515253545556575859606162636465666768697071

135

136

137

138

139

140

141

142

143

144

470

R245

R431

470

TPC6103

IC28

1

2

MD2

DPDN

R257

5

3

C623

D78

MA8062

C612

R425 470

470

R267

100k

LA4425A

V2 V1 V0

Q56

123

C446

4

IC41 TA7808F

IO

0.1

MA2S111

D77

0.001

CPU3V

CP12

+3V

100k

R432

R263

R428

R447 R448 R449 R282

G

D53

0.001

36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

CPU3V

C442

R350

AVR-M1005C080MT

R450

C449

MFDA

C333

470

10K

0.001

R357

HC455

C624

C62522C626

0.1

0.001

AVR-M1005C080MT

D55

D56

AVR-M1005C080MT

MCIN

FMDA

ESDA

ESCL

100k

100K 100K 470K 100K

PWR

10K

TX

BUSY

CPU3V

R271

100K

R427

470

R281

470

R273

470

0.1

C460

D63

R261

10K R262

100K

DS2

SML-A12MT

DS3

SML-A12UT

DS1

SML-A12MT

PC0

R272

470

0.001

HANG

PLSSO PLSCK

CP43

CP06S

F8V MFDA AFO PTT MICE MCIN GND FMDA

FAN S

SP JACK

HSJ0807-01-010

47P

C463

B2B-ZR-SM4-TF

From FRONT

47P

C502

C621

MA2S111

C340

0.1

8

VCC

7

WP

6

SCL

5

SDA

EEPROM

UNR9213J Q67

R455

680

Q68

R456

1k

Q66

R454

1k

UNR9213J

+5V

LEDR

PWR

HRW

A14 A13 A12 A11 A10

A9 A8 A7 A6 A5 A4 A3 A2 A1

D15 D14 D13 D12

D11 D10

D9 D8

D7 D6 D5

J6

HJ7

1 2

J5

3008L-8P8C

0.001

IC21

24LC512T

UNR9213J

LEDT

34

1 2 3 4 5 6 7 8

1

A0

2

A1

3

A2

4

VSS

BEEP

1

0.

C63

39K

100K

R63

C432

C417

0.1

R326

47K

100K

R331

T1

C649

1k 1 2 3 4

C493

OUT

VDD

VSS

15P

12K

1

IC17

AO1 AO2 AO3 AO45GND

M62334FP

CP71

CP72

CP73

CP74

CP75

1 2 3

1k

C257

D20

R187

CP06S CP06S

CP06S

R430 100k

R189

C255

0.01 R205

12K

EXIO7 EXIO6

MA2S077

EXIO

12K

EXIO3 EXIO EXIO1

VCC

SCL

SDA

100K

CSFT EXIO8

R197

CP18

CP06S

1

0.

CPU5V

470

R424

10K

5

4

2

8 7 6

R204

SCK

R336

220K

C270

10K

CPU3V

100

C240

R212 100k

C441 220P

R339

R352

CPU3V

100 101 102 103 104 105 106 107 108

R483 R484

R220

C451 1

4.7K

C470 1

C522

0.1 C523

0.1

C472

100K 100K

100k

R366

100

R367

1

R368

R365

10K

330K

R369

R287

100k

R429

R426

DGND

AGND

R224

4

100k

R264

0.01

C277

73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99

R217

R216

100K

IC29

5

3

1

2

TA75S01F

220K

R337

0.1

C548

DSDA

R199

470

R209

10K

0.1

C262

C269

47 MSVB2

CPU3V

EP9

100K

R533

MMZ1005S601CT

470

R188

R532

1

470

0.

0.47

C266

R213

10

R222 100k

100k

10

RSSI

72

109

TLVI

R230

AFON

AFON2

AFONO

C183

47P

C179

2.2K

0.01

C471

180K

Q61

2SC4116

C473

0

1

270

R370

N

PTT

BATV

TEMP

EXAD

RLVI

RMUT

R268

470

110

111

112

113

114

115

116

117

470

47P

C346

R238

118

R371

UNR9213J

D46

Q52

DAN222

D47

DAN222

47P

C501

OPV2

OPV1

HANG

MMUT

470

119

120

121

122

R235

R232 470

C348

47P

C321

47P

C

322

47P

R227

123

OPV3

470

124

SCKO

CP19

UNR9213J

Q53

BEEP

XRTS

EXDA

IC20

125

126

CP06S

R239

HR329

CPU3V

XCTS

TUNLK

RUNLK

R234

470

HD64F2506RFC26DV

127

128

129

130

131

R482

470

CCK

CSI

CSO

VCC

+5V

CCS

RMUT

AFONO

BEPO

MMUT

AFOUT

DISC

CIRQ

CDISC

BDR1

+5V

3.3VA

DSP5V

100k

C618

47P

CCS

POSW

CIRQ

CSFT

SSO

PTTI

PTTO

NOIS

DSDA

EXIO9

CCK

SCK

OPT1

FMDA

DAST

MFDA

OPT2

OPT3

GPIO12

GPIO11

D0

HCS

DRES

EXST

EXOE

CSI

EDMUT

CSO

D1

D2D3D4

*; Refer to “PARTS LIST.”

11 - 4

SpecificationDescriptionPin NamePin No.

NC

TXD

RXD

RTS

CTS

NC

GND

MOD IN

DISC OUT

EXT. D/A

VCC

EXT. A/D

NC

GND

EXT.I/O 15

EXT.I/O 16

EXT.I/O 17

EXT.I/O 18

EXT.I/O 19

DATA I N

EXT.I/O 21

AF OUT

EXT.I/O 23

EXT.I/O 24

EXT.I/O 25

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

No connection

Output terminal for serial communication data.

Input terminal for serial communication data.

Output terminal for request-to-send data.

Input terminal for clear-to-send data.

No connection

Serial/digital signal ground

Modulator input from an external terminal unit.

Output terminal for AF signals from the AF detector circuit.

Output level is fixed, regardless of [AF] control.
