Icom IC-F61, IC-F51 User Manual

VHF AND UHF TRANSCEIVERS

(

VHF Transceiver

)

(

UHF Transceiver

)

1m depth for 30 minutes

Photo includes optional speaker-microphone, HM-138.

VHF Transceiver

UHF Transceiver

JIS Grade 7 Waterproof protection

The gasket sealed waterproof housing
provides superior waterproof protection,
equivalent to JIS
Grade 7*. Reliable
and dependable
use in harsh condi­tions such as rain,
snow, sudden
change in temper­ature, make the
IC-F51/F61 the
radio for all situa­tions.

* Equivalent to IPX7 of the corresponding inter-

national standard IEC 529 (1989). 1m depth
for 30 minutes.

Built-in Tone signaling

Use the built-in CTCSS, DTCS, 2-Tone
and 5-Tone capability to set up your own
talk groups and quiet stand-by when other
groups are talking. You can also set up
selective calls to individuals or control a
repeater.

Multiple 5-Tone

Up to 8 5-Tone codes can be decoded on
a single memory channel. This is perfect
for professionals who require multiple dis­trict paging on one channel. When a
matched tone is received, the following
items are programmable for each code.

• Bell icon • Answer back • Stun

• Beep sound • Auto transmit • Scan

• ID decode • Emergency cancel

Superior Wat
Supports Dem

▼ IC-F51 ▼ IC-F61

Firefighters, Police, Securi
unique challenges, but all ha
nications. Icom’s IC-F51/F61
easy to use. Rain or shine,
ment.

Li-Ion battery pack

The large capacity 1700mAh Lithium-Ion

(Li-Ion) battery pack, BP-227 provides a

practical 10 hours* of operating time. Li­Ion batteries allow flexible charging and
have almost no memory effect.

* Typical operation Tx:Rx:Stand-by=5:5:90

Up to 7 programmable buttons

The [P0]–[P3], [Red] and [Up], [Down]
buttons are programmable to meet spe­cific needs. The [Red] button on the top
panel can be assigned as an emergency
trigger.

Alphanumeric display

The 8-character alphanumeric display
shows channel, bank, tone code and
scanning channel names on the display. 7
operational icons on the sub-line show
various status at a glance.

Wide range coverage and
large channel capacity

The IC-F51 covers 136–174MHz and the
IC-F61 covers 400–470MHz in one ver­sion. The 128 memory channels with 8
memory banks allow you to divide and
store a variety of channels from local to
wide area network channels. Wide, mid­dle and narrow* channel bandwidth is pro­grammable to each channel.

(* Programmable 25/12.5kHz or 20/12.5kHz Ch.)

Compact body

56(W)×97(H)×36.4(D) mm compact body
with durable, dependable construction,
meets MIL standard specifications. The
compact design fits comfortably in your
palm, and is easy to carry around.

Built-in voice scrambler

The IC-F51/F61 has a built-in inversion
type voice scrambler in all versions. When
a more secure system is required, ver­sions with a rolling type voice scrambler*
equivalent to the UT-110 are available.

* Built-in, optional unit not required.

BIIS 1200 Compatible

The following selective calling and data
features are available with the BIIS system.

• 32 abbreviated call memories

• 7 group IDs • 24-status Messages

• 8-character SDM

(Short Data Message)

• RS-232C interface

• Position data transmission with a GPS

Waterproof microphone

An optional waterproof* speaker-micro­phone, HM-138 provides reliable operation,
even with the radio securely on your belt.

* Equivalent to JIS Grade 7 or IPX7 of the cor-

responding international standard IEC 529
(1989). 1m depth for 30 minutes.

Other features

• Built-in compander, compatible with the
IC-F31G and IC-F510 series • 8 DTMF
autodial memories • Powerful 5W output
for

IC-F51, 4W output for IC-F61

• Normal

and priority scans • 2 step power saver

•

Optional AA alkaline battery case, BP-226

• Busy, repeater lockout functions • Power
ON password, and more...

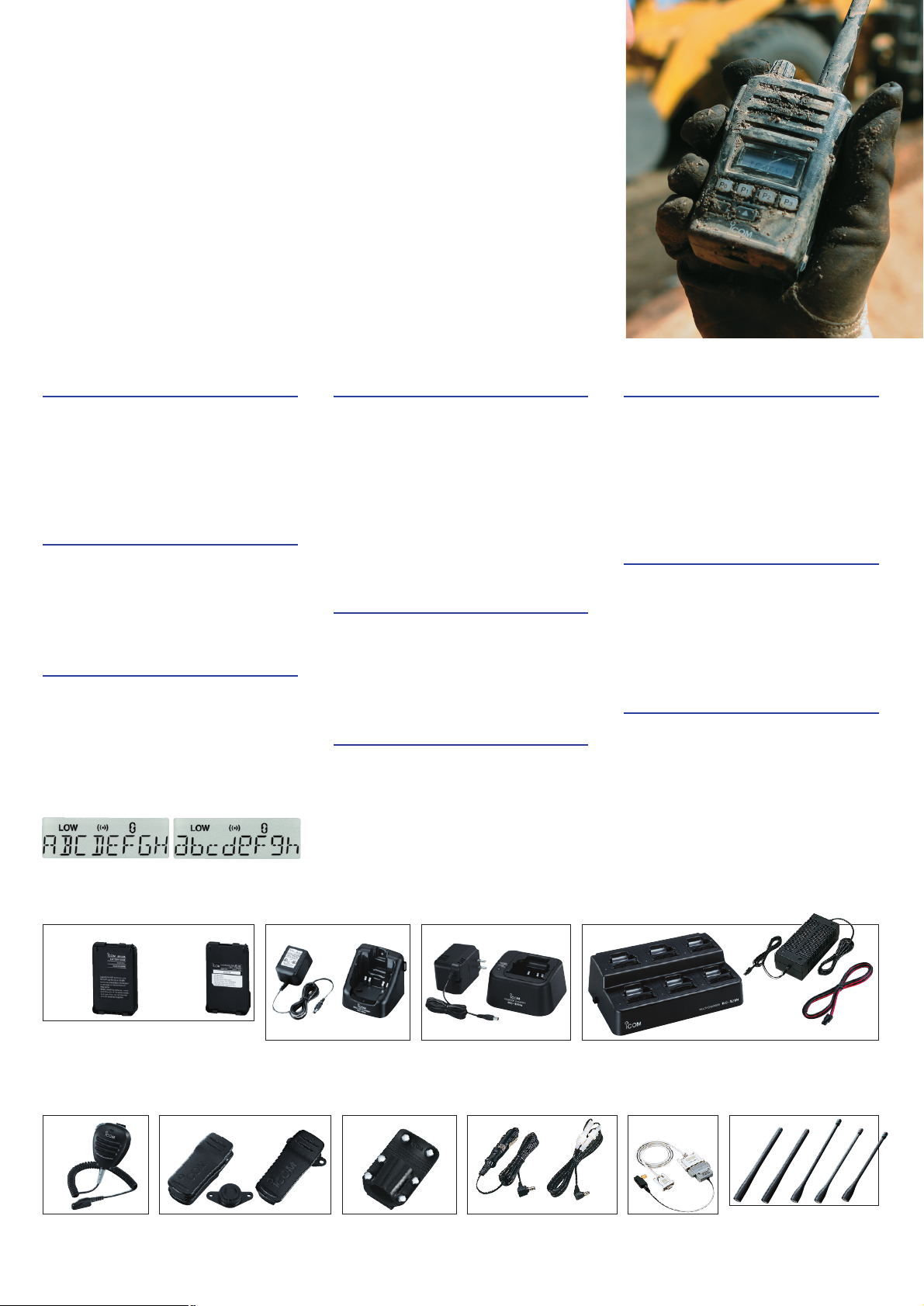

OPTIONS

BP-226

AA (R6)
batteries × 5

BP-227

Li-Ion

7.2V/1700mAh

BP-226 BATTERY CASE: AA (R6)×5 alkaline cells.
BP-226 is water-resistant, equivalent to JIS Grade 4.
BP-227 Li-Ion BATTERY PACK, 7.2V/1700mAh
Provides 10 hours operating time* (approx.).
Operating temp. range: –20°C to +60°C; –4°F to +140°F.
*

Tx: Rx: standby=5:5:90.

BC-147A/E BC-152

BC-152 DESKTOP CHARGER
+ BC-147A/E AC ADAPTER
Regularly charges the BP-227 in 9–10
hours.

BC-119N DESKTOP CHARGER
+ AD-100 CHARGER ADAPTER
+ BC-145A/E/V AC ADAPTER
Rapidly charges the BP-227 in 2.5–3
hours.

BC-119N+AD-100

▲ BC-121N+AD-100 (6 pcs.)

▲ OPC-656

SPEAKER­MICRO­PHONE

HM-138: Full sized, water-

proof construction corre­sponds to JIS Grade 7 and
IPX 7. (1 m depth /30 min.).

MB-86 : Swivel type. Prevents accidental

dropping from your belt.

MB-98 : Alligator type. Same as supplied.

CP-17L : CIGARETTE LIGHTER CABLE
OPC-515L : DC POWER CABLE

For use with the BC-152 or BC-119N.
(12–16V DC required)

▲ OPC-515L

q FA-S24V: 136–150MHz (Blue ring)
w FA-S59V: 150–174MHz (Red ring)
e FA-S27U: 400–470MHz (Green ring)
r FA-S56U: 450–520MHz (Red ring)
t FA-S74U: 490–520MHz (Blue ring)

▲ MB-98

LEATHER BELT HANGER

BELT CLIPS

Upper and lower case characters available.

MB-96F :
Leather belt hanger. For use
with MB-98.

BATTERY CHARGER RAPID CHARGER MULTI-CHARGER

BC-145

▼ MB-86

▲ BC-124

qwert

ANTENNAS

OPC-966:

RS-232C interface
cable for connecting
with a PC.

INTERFACE
CABLE

▲ CP-17L

BC-121N MULTI-CHARGER + AD-100 CHARGER ADAPTER
+ BC-124 AC ADAPTER
Rapid charges up to 6 battery packs

(Six AD-100s are required) in 2.5–3 hours.

OPC-656 DC POWER CABLE; For use with the BC-121.

(12–20V DC required)

.

ty and Public utilities. Each profession has its own

this radio keeps you in contact in nearly any environ-

VHF AND UHF TRANSCEIVERS

• Frequency range :
IC-F51 136–174MHz
IC-F61 400–470MHz

• Number of Channels : Max. 128 channels/ 8 banks

• Channel spacing : 12.5/20/25kHz

• Antenna impedance : 50Ω

(SMA Type)

• PLL channel step :
IC-F51 2.5/3.125kHz
IC-F61 5/6.25kHz

• Power supply requirement : 7.2V DC

• Current drain

(approx.) :

Transmit at 5W 1.5A (IC-F51)

at 4W 1.5A

(IC-F61)

at 1W 0.7A

(IC-F51)

at 1W 0.8A

(IC-F61)

Receive AF max. 300mA

Stand-by 85mA

• Operating temperature range: –25˚C to +55˚C

• Dimensions

(W × H × D) : 56 × 97 × 36.4mm

(projections not included)

• Weight

(approx.; With BP-227) : 280g

• Output power : IC-F51 5.0W

IC-F61 4.0W

• Modulation system :

Variable reactance frequency modulation

• Max. frequency deviation : ±5kHz (wide)

±4kHz (middle)
±2.5kHz

(narrow)

• Frequency error : ±2.5ppm

• Spurious emissions : 0.25µW

(and below 1GHz)

1.0µW (above 1GHz)

• Modulation limiting : 60–100% of Max. deviation

• Audio harmonic distortion : 3%

typ. (AF 1kHz, 40% deviation)

• Adjacent channel power : 70dB Min. (wide, middle)

60dB Min. (narrow)

• Residual modulation : 55dB typ. (wide)

(With CCITT filter)

53dB typ. (middle)
50dB

typ. (narrow)

• External MIC impedance :

9-pin multi connector/2.2kΩ

• Sensitivity : –4dBµV typ. (emf, at 20dB SINAD)

•

Squelch sensitivity

: –4dBµV typ.

(emf, at threshold)

•

Adjacent channel selectivity

: 75dB typ. (wide)

73dB typ. (middle)
65dB typ. (narrow)

• Spurious response : 70dB

• Intermodulation : 67dB

typ.

• Hum and noise : 55dB typ. (wide)

(With CCITT filter)

53dB typ. (middle)
50dB typ. (narrow)

• Audio output power : 0.5W

typ. at 5% distortion with an 8Ω load

• External SP connector : 9-pin multi connector/8Ω

SPECIFICATIONS

GENERAL

TRANSMITTER

RECEIVER

Measurements made in accordance with ETS 300-086.
All stated specifications are subject to change without notice or obligation.

Applicable U.S. Military Specifications

Icom makes rugged products that meet MIL-STD requirements and strict environ­mental standards as follows.

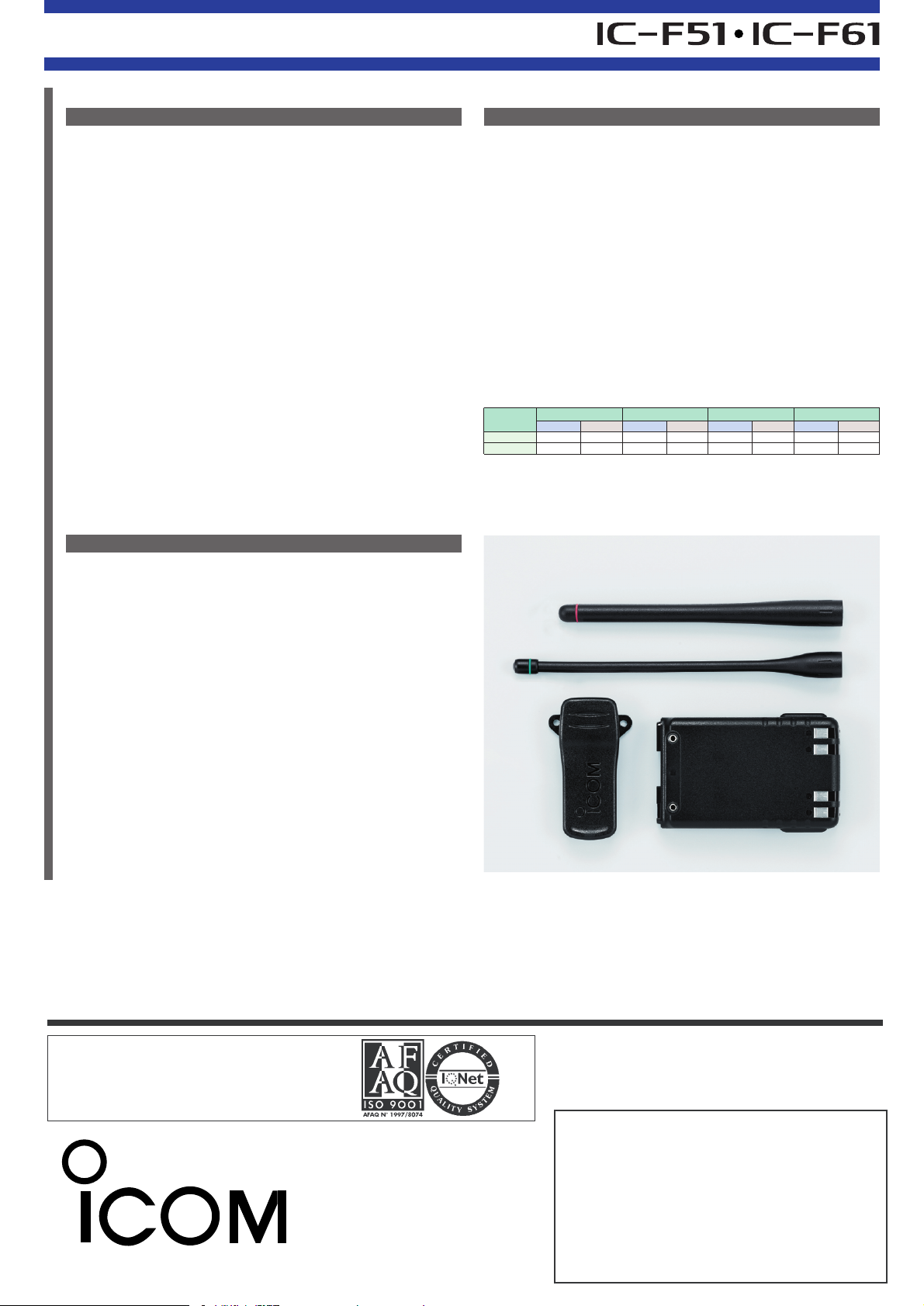

Supplied accessories:

• Battery pack, BP-227

• Alligator-type belt clip, MB-98

• Antenna

(Length may differ according to version)

▲ UHF antenna

▲ VHF antenna

Standard

MIL 810C MIL 810D MIL 810E MIL 810F

Method Proc. Method Proc. Method Proc. Method Proc.

Vibration 514.2

X 514.3 I 514.4 I 514.5 I

Shock 516.2 I, II, IV 516.3 I, IV 516.4 I, IV 516.5 I, IV
