Icom IC-F12S, IC-F12, IC-F11BR, IC-F11S, IC-F11 Service Manual

SERVICE MANUAL

VHF TRANSCEIVERS

INTRODUCTION

DANGER

ORDERING PARTS

REPAIR NOTES

This service manual describes the latest service information for the

IC-F11/IC-F11S/IC-F11BR/IC-F12/IC-F12S

at the

time of publication.

NEVER connect the transceiver to an AC outlet or to a DC power supply that uses more than 16 V. Such a connection could cause a fire hazard and/or electric shock.

DO NOT expose the transceiver to rain, snow or any liquids. DO NOT reverse the polarities of the power supply when con-

necting the transceiver. DO NOT apply an RF signal of more than 20 dBm (100mW)

to the antenna connector. This could damage the transceiver’s front end.

Be sure to include the following four points when ordering replacement parts:

1. 10-digit order numbers

2. Component part number and name

3. Equipment model name and unit name

4. Quantity required <SAMPLE ORDER>

1130007020 S.IC TC7S66FU IC-F11 MAIN UNIT 1 piece 8810009510 Screw BO M 2 x 4 NI-ZU IC-F11 Chassis 10 pieces

Addresses are provided on the inside back cover for your convenience.

1. Make sure a problem is internal before disassembling the transceiver.

2. DO NOT open the transceiver until the transceiver is disconnected from its power source.

3. DO NOT force any of the variable components. Turn them slowly and smoothly.

4. DO NOT short any circuits or electronic parts. An insulated turning tool MUST be used for all adjustments.

5. DO NOT keep power ON for a long time when the transceiver is defective.

6. DO NOT transmit power into a signal generator or a sweep generator.

7. ALWAYS connect a 40 dB to 50 dB attenuator between the transceiver and a deviation meter or spectrum analyzer when using such test equipment.

8. READ the instructions of test equipment thoroughly before connecting equipment to the transceiver.

To upgrade quality, all electrical or mechanical parts and internal circuits are subject to change without notice or obligation.

IC-F11/IC-F12 IC-F11BR/IC-F11S/

IC-F12S

SECTION 1 SPECIFICATIONS

1 - 1

All stated specifications are subject to change without notice or obligation.

Frequency coverage

Type of emission Number of channels Power supply requirement Antenna impedance Input impedance (Mic) Output impedance (Audio) Intermediate frequency Operating temperature range

High power Low power stand-by Rated audio

Dimensions (Projections not included)

Weight RF output power (at 7.2 V DC) Modulation system Max. permissible deviation External mic.connector Frequency error Spurious emissions Adjacent channel power Audio harmonics distortion FM Hum and noise Residual modulation Limiting charact of modulator Receive system Intermediate frequencies

Sensitivity

Audio output power (at 7.2 V) Adjacent channel selectivity Spurious response Intermodulation FM Hum and noise (Typical) Squelch sensitivity

EIA-152-C/204D or TIA-603 ETS 300 086

RECEIVER TRANSMITTER GENERAL

151.505 MHz–158.4075 MHz [F11BR] only

146.000 MHz–174.000 MHz

146.000 MHz–174.000 MHz 16K0F3E (at 25 kHz / 30 kHz), 8K50F3E (at 12.5 kHz)

2 channel (IC-F11BR / F11S / F12S), 16 channel (IC-F11 / F12)

7.2 V (negative ground) 50 Ω normal

2.2 kΩ normal 8 Ω normal

1st: 31.050 MHz, 2nd: 450 kHz

–30 ˚C to +60 ˚C (–22˚F to +140˚F) –25 ˚C to +55 ˚C (–13˚F to +131˚F)

1.6 A(5 W) except [F11BR], 1.1 A (2 W) [F11BR] only

0.7 A (1 W)

70 mA

250 mA

54(W)

× 128(H) × 37(D) mm; 2

1

⁄8(W) × 51⁄25(H) × 115⁄32(D) inch

310 g; 10.1 oz (with BP-209), 300 g; 10.6 oz (with BP-222)

High: 5.0 W ([F11BR]: 2.0 W), Low1: 2.0 W (except [F11BR]), low2: 1.0 W

Variable reactance frequency modulation ± 5.0 kHz (25 kHz), ± 2.5 kHz (12.5 kHz)

3-conductor 2.5 mm (

1

⁄10 in) (2 kΩ)

±5.0 ppm ±2.0 kHz (25 kHz), ± 1.5 kHz (12.5 kHz)

73 dBc (typical) 0.25 µW @ < 1 GHz, 1.00 µW > 1 GHz

70 dB*

1

(25 kHz), 60 dB*1(12.5 kHz)

3 % typical at 1 kHz, 40 % deviation 5 % typical at 1 kHz 60 % deviation

46 dB typ. (25 kHz), 40 dB typ. (12.5 kHz) –

– 45 dB typ. (25 kHz), 43 dB typ. (12.5 kHz)

70 % – 100 % of max. deviation

Double-conversion super heterodyne

1st: 31.050 MHz, 2nd 450 kHz

0.25 µV (typical) for 12 dB SINAD

0.63 µV EMF (typical) for 20 dB SINAD

0.5 W at 5 % distortion with an 8 Ω load, 0.6 W at 5 % distortion with 6 Ω load

70 dB typ. (25 kHz), 65 dB typ. (12.5 kHz) 70 dB typ (25 kHz), 60 dB typ. (12.5 kHz)

70 dB*

1

70 dB 65 dB

46 dB*

2

(25 kHz), 40 dB*2(12.5 kHz) 45 dB*3(25 kHz), 43 dB*3(12.5 kHz)

0.3 µV typical at threshold

Current drain

(at 7.2 V)

Tx

Rx

*1EIA-152-C/204D or TIA-603 is typical value, *2EIA-152-C/204D only, *3With CCITT filter

2 - 1

SECTION 2 INSIDE VIEWS

• MAIN UNIT

Power amplifier

(Q1: 2SK2974)

Antenna switching circuit D1: 1SV307 D9: ISV307 D10: MA77

TOP VIEW BOTT OM VIEW

RF amplifier (Q15: 3SK294)

VCO circuit

FM IF IC (IC3: TA31136FN)

Low-pass filter circuit

(IC12,16: NJM12904V)

Expander IC

(IC15: BU4094BCFV)

TX/RX switch

(D3, D4: MA77)

Analog switch (IC6: BU4066BCFV)

APC (IC2: TA75S01F)

AF amplifier (IC4: TA7368F)

1st mixer (Q16: 3SK272)

CPU (IC7: HD6433664A24FP)

EEPROM (IC11: BR24C16FV-E2)

D/A converter (IC9: M62363FP-650C)

PLL reference oscillator

(X1: CR-664A)

Crystal filter (FI1: FL-311)

PLL IC (IC1: MB15A02PFV-1)

YGR amplifier

(Q4: 2SC5110 O)

Pre-drive

(Q2 : 2SK2973)

()

3 - 1

SECTION 3 DISASSEMBLY INSTRUCTIONS

• REMOVING THE CHASSIS

¡ Unscrew 1 nut, A, and remove 2 knobs, B, C. ™ Unscrew 2 screws, D. £ Unscrew 2 screws, H, to separate the Jack panel and the

Front panel.

¢ Take off the chassis in the direction of the arrow. ∞ Unplug J6 to separate the front panel and the chassis.

• REMOVING THE MAIN UNIT

¡ Remove the searing rubber. ™ Unsolder 2 points, E, and unscrew 2 nuts, F. £ Unscrew 9 screws, G, (silver, 2mm) to separate the chassis and the MAIN unit. ¢ Take off the MAIN unit in the direction of the arrow.

Front panel

J6 (Speaker connector)

Jack panel

Chassis

C

B

(Black, 2mm) x 2

D

A

(Black, 2mm) x 2

H

Guide holes

MAIN unit

Sealing rubber

Chassis

E

F

Side plate

([F11BR], [F11S], [F12S] only)

G

SECTION 4 CIRCUIT DESCRIPTION

4 - 1

4-1 RECEIVER CIRCUITS

4-1-1 ANTENNA SWITCHING CIRCUIT

The antenna switching circuit functions as a low-pass filter while receiving. However, its impedance becomes very high while D9 and D10 are turned ON. Thus transmit signals are blocked from entering the receiver circuits. The antenna switching circuit employs a

λ

⁄4 type diode switching system.

Received signals are passed through the low-pass filter (L1, L2, C1–C5). The filtered signals are applied to the

λ

⁄4 type

antenna switching circuit (D9, D10). The passed signals are then applied to the RF amplifier circuit.

4-1-2 RF CIRCUIT

The RF circuit amplifies signals within the range of frequency coverage and filters out-of-band signals.

The signals from the antenna switching circuit are amplified at the RF amplifier (Q15) after passing through the 2 stages tunable bandpass filter (D12, L21, C104, C105, D13, L54, C106, C111, C113). The amplified signals are applied to the 1st mixer circuit (Q16) after out-of-band signals are suppressed at the 2 stages tunable bandpass filter (D14, C116, C117, D15, L24, C120, C122).

Varactor diodes are employed at the bandpass filters that track the filters and are controlled by the CPU (IC7) via the D/A convertor (IC9) using T1–T4 signals. These diodes tune the centre frequency of an RF passband for wide bandwidth receiving and good image response rejection.

4-1-3 1ST MIXER AND 1ST IF CIRCUITS

The 1st mixer circuit converts the received signal into a fixed frequency of the 1st IF signal with a PLL output frequency. By changing the PLL frequency, only the desired frequency will pass through a crystal filter at the next stage of the 1st mixer.

The signals from the RF circuit are mixed at the 1st mixer (Q16) with a 1st LO signal (114.95–142.95 MHz) coming from the VCO circuit to produce a 31.05 MHz 1st IF signal.

The 1st IF signal is applied to a crystal filter (FI1) to suppress out-of-band signals. The filtered 1st IF signal is applied to the IF amplifier (Q17), then applied to the 2nd mixer circuit (IC3, pin 16).

4-1-4 2ND IF AND DEMODULATOR CIRCUITS

The 2nd mixer circuit converts the 1st IF signal into a 2nd IF signal. Adouble conversion superheterodyne system (which converts receive signals twice) improves the image rejection ratio and obtains stable receiver gain.

The 1st IF signal from the IF amplifier is applied to the 2nd mixer section of the FM IF IC (IC3, pin 16), and is mixed with the 2nd LO signal to be converted into a 450 kHz 2nd IF signal.

The FM IF IC contains the 2nd mixer, limiter amplifier, quadrature detector and active filter circuits. A 2nd LO signal (30.6 MHz) is produced at the PLL circuit by tripling it’s reference frequency.

The 2nd IF signal from the 2nd mixer (IC3, pin 3) passes through a ceramic filter (FI2) to remove unwanted heterodyned frequencies. It is then amplified at the limiter amplifier (IC3, pin 5) and applied to the quadrature detector (IC3, pins 10, 11) to demodulate the 2nd IF signal into AF signals.

4-1-5 AF CIRCUIT

AF signals from the FM IF IC (IC3, pin 9) are applied to the analog switch (IC6, pin 1) after being passed through the high-pass filter (IC5B, pins 5, 7) via the “DET” signal. The signals pass through the low-pass filter (IC5D, pins 13, 14), and then applied to the analog switch (IC6, pins 9, 10) again. The output signals from the analog swtich (IC6, pin 11) are applied to the AF power amplifier (IC4, pin 4) after being passed through the [VOL] control (SW-A/SW-B unit; R143) via the “VOLIN” and “VOLOUT” signals.

2ND IF AND DEMODULATOR CIRCUITS

Mixer

16

Limiter amp.

2nd IF filter 450 kHz

PLL IC

IC1

X1

15.3 MHz

IC3 TA31136F

12

1st IF from the IF amplifier (Q17)

"RSSI" signal to the CPU pin 59

11109

87 5 3

AF signal "DET"

R5V

X2

R98

C155

C154

R100R99

R93

"SQLIN" signal to the D/A convertor (IC9, pin 23)

R92

C138 C139

C140

2

21

Active filter

FI2

Noise

detector

FM

detector

13

"NOIS" signal to the CPU pin 53

RSSI

Noise comp.

×2

R94

Q18

4 - 2

The applied AF signals are amplified at the AF power amplifier circuit (IC4, pin 4) to obtain the specified audio level. The amplified AF signals output from pin 10 as “AFOUT”signal are applied to the internal speaker (SP1) as the “SP” signal via the [SP] jack when no plug is connected to the jack.

4-1-6 SQUELCH CIRCUIT

Asquelch circuit cuts out AF signals when no RF signals are received. By detecting noise components in the AF signals, the squelch switches the AF mute switch.

A portion of the AF signals from the FM IF IC (IC3, pin 9) as “DET” signal are applied to the D/A convertor IC (IC9, pin

24). The signals from the D/A convertor (IC9, pin 23) as “SQLIN” signals are applied to the active filter section (IC3, pin 8) where noise components are amplified and detected with an internal noise detector.

The active filter section amplifies noise components. The filtered signals are rectified at the noise detector section and converted into “NOIS” (pulse type) signals at the noise comparator section. The “NOIS” signal output from IC3, pin 13, and is applied to the CPU (IC7, pin 53).

The CPU detects the receiving signal strength from the number of the pulses, and outputs “EXST”, “SO”, “SCK” signals. The signals are applied to the expander IC (IC15, pins 1, 2, 3), and then outputs “RMUT” signal from pin 4. This signal controls the analog switch (IC6, pin 13) to cut the AF signal line.

4-2 TRANSMITTER CIRCUITS

4-2-1 MICROPHONE AMPLIFIER CIRCUIT

The microphone amplifier circuit amplifies audio signals with +6 dB/octave pre-emphasis characteristics from the microphone to a level needed for the modulation circuit.

The AF signals from the microphone are applied to the microphone amplifier circuit (IC5c, pin 10) after being pass through the high-pass filter (C186, C187). The amplified AF signals are passed through the low-pass filter circuit (IC5d, pins 13, 14) via the mute switch (IC6, pins 2, 3, 4). The filtered AF signals are applied to the modulator circuit after being passed through the mute switch (IC6, pins 8, 9, 10).

4-2-2 MODULATION CIRCUIT

The modulation circuit modulates the VCO oscillating signal (RF signal) using the microphone audio signal.

The audio signals change the reactance of a diode (D6) to modulate an oscillated signal at the VCO circuit (Q10, Q11). The oscillated signal is amplified at the buffer-amplifiers (Q5, Q7), then applied to the T/R switching circuit (D3, D4).

4-2-3 DRIVE/POWER AMPLIFIER CIRCUITS

The signal from the VCO circuit passes through the T/R switching circuit (D3) and is amplified at the YGR (Q4), predrive (Q2) and power amplifier (Q1) to obtain 5 W ([F11BR] is 2 W) of RF power (at 7.2 V DC). The amplified signal passes through the antenna switching circuit (D1) via the power detector (D2), and low-pass filter and is then applied to the antenna connector.

The bias current of the YGR amplifier (Q4), pre-drive (Q2) and the power amplifier (Q1) is controlled by the APC circuit.

4-2-5 APC CIRCUIT

The APC circuit (IC2) protects the drive and the power amplifiers from excessive current drive, and selects HIGH or LOW output power.

The signal output from the power detector circuit (D2) is applied to the differential amplifier (IC2, pin 3), and the “T4” signal from the expander (IC9, pin 11), controlled by the CPU (IC7), is applied to the other input for reference.

When the driving current is increased, input voltage of the differential amplifier (pin 3) will be increased. In such cases, the differential amplifier output voltage (pin 4) is decreased to reduce the driving current.

APC CIRCUIT

Q1 Power amp.

Q2 Pre-driver amp.

IC2

+

—

Q4 YGR amp.

VCC

T5V

RF signal from PLL

to antenna

T4

TXC

Q14

S5V

APC control circuit

Power detector circuit (D2)

D2

LPF

D1, D9, D10

ANT

SW

AF

amp.

LPF

HPF

"DET" signal from IC3, pin 9

"NWC" signal from IC15, pin 14

Q21

Analog

switch

IC6

IC5B

IC5D

AF VOL.

R1

SW-A/SW-B

unit

IC4

SP

111 9, 102, 3

AF CIRCUIT

4 - 3

4-3 PLL CIRCUIT

4-3-1 GENERAL

A PLL circuit provides stable oscillation of the transmit frequency and receive 1st LO frequency. The PLL output compares the phase of the divided VCO frequency to the reference frequency. The PLL output frequency is controlled by a crystal oscillator and the divided ratio (N-data) of a programmable divider.

The PLL circuit, using a one chip PLL IC (IC1), directly generates the transmit frequency and divided ratio based on serial data from the CPU and compares the phases of VCO signals with the reference oscillator frequency. The PLL IC detects the out-of-step phase and output from pin 5. The reference frequency (15.3 MHz) is oscillated by X1.

4-3-2 TX LOOP

The generated signal at the VCO (Q10, Q11, D5, D7) enters the PLL IC (IC1, pin 8) and is divided at the programmable divider section and is then applied to the phase detector section.

The phase detector compares the input signal with a reference frequency, and then outputs the out-of-phase signal (pulse-type signal) from pin 5.

The pulse-type signal is converted into DC voltage (lock voltage) at the loop filter (R40–R42, C75, C76), and then applied to varactor diodes (D5, D7) of the VCO to stabilize the oscillated frequency.

4-3-3 RX LOOP

The generated signal at the VCO (Q10, Q11, D5, D7) enters the PLL IC (IC1, pin 8) and is divided at the programmable divider section and is then applied to the phase detector section.

The phase detector compares the input signal with a reference frequency, and then outputs the out-of-phase signal (pulse-type signal) from pin 5.

The pulse-type signal is converted into DC voltage (lock voltage) at the loop filter (R40–R42, C75, C76), and then applied to varactor diode (D5) of the VCO to stabilize the oscillated frequency. The lock voltage is also used for the receiver circuit for the bandpass filter center frequency. The lock voltage from the loop filter is amplified at the buffer amplifier (Q13) and then applied to the CPU (IC7, pin 60). The signal is analyzed at the CPU, and then applied to the D/A convertor (IC9). The D/A convertor outputs “T1”, “T2”, “T3”, “T4” signals to RF bandpass filters D12–D15 to suppress harmonic components.

4-3-4 VCO CIRCUIT

The VCO outputs from Q11 and Q10 are buffer amplified at Q7 and Q5, and are then sent to the T/R switch (D3, D4). The receive LO signal is applied to the 1st mixer circuit (Q16) through an attenuator, and the tramsmit signal is applied to the YGR amplifier (Q4). Aportion of the VCO output is reapplied to the PLL IC (IC1, pin 8) via the buffer amplifier (Q6) and low-pass filter (L18, R53, C89–C91).

Shift register

Prescaler

Phase detector

Loop

filter

Programmable counter

Programmable divider

X1

15.3 MHz

30.6 MHz signal to the FM IF IC

Buffer

Q5

Q6

Q7

9 10 11

SCK

IC1 (PLL IC)

SO PLST

to transmitter circuit to 1st mixer circuit

D3

D4

2

1

5

8

Q10, Q11, D5, D7

VCO

Crystal oscillator

×2

Q18

LPF

PLL CIRCUIT

MOD

D6

"DEV" signal from the D/A convertor (IC9, pin 22)

4 - 4

4-4 POWER SUPPLY CIRCUITS

VOLTAGE LINE

LINE

HV

VCC

CPU5V

T5V

R5V

S5V

+5V

VCO5V

DESCRIPTION

The voltage from the attached battery pack. The same voltage as the HV line (battery volt-

age) which is controlled by the power swtich ([VOL] control).

Common 5 V converted from the VCC line by the +5 regulator circuit (IC10). The output voltage is applied to the CPU (IC7), reset circuit (IC8) and etc.

5 V for transmitter circuits regulated by the T5 regulator circuit (Q27).

5 V for receiver circuits regulated by the R5 regulator circuit (Q26).

Common 5 V converted from the VCC line by the S5 regulator circuit (Q24, Q19).

The same voltage as the CPU5V line for the analog swtich (IC6), buffer amplifier (Q13), etc.

The same voltage as the +5V line for the VCO (Q10, Q11) and buffer amplifiers (Q5–Q7).

4-5 PORT ALLOCATIONS

4-5-1 CPU (IC7)

number

7

13 14 19 20

23 24 25

28

29 30

36

37

38

39

40

41

42

43

44 45

46 51

52

53

54

55 57

58 59

60

Port

name

RES

SENC0 SENC1 SENC2 SENC3

CENC0 CENC1 CENC2

SCK

SO

BEEP

PLST

DAST

EXST

PTT

TXC

RLED

TLED

AFON

ESDA

CLI

CLO

F1 F2

NOIS

UNLK

TEMP CDEC

SDEC

RSSI

LVIN

Description

Input port for RESET signal.

Outputs single tone encode signal.

Outputs CTCSS/DTCS data signal.

Outputs serial clock signal to the PLL IC (IC1), EEPROM (IC11), etc.

Outputs data signal to the PLL IC (IC1) and D/A convertor (IC9).

Outputs beep audio signal. I/O port for strobe signal from/to PLL

IC (IC9).

• Outputs strobe signal to the D/A convertor (IC9).

• Input port for the initial version signal.

Outputs strobe signal for the expander IC (IC15).

Input port for [PTT] swtich signal.

High:While [PTT] switch is pushed.

Outputs TX mute control signal.

High:While transmitting

Outputs BUSY LED control signal.

High:While receiving.

Outputs TX LED control signal.

high: While transmitting.

Outputs control signal for the regulator circuit of AF power amplifier.

High:While squelch is open, etc.

I/O port for data signal from/to the EEPROM (IC11).

Input port for cloning signal. Outputs the cloning signal. Input ports for the customization key

signals. Input port for the noise pulse signal for

the squelch function. Input port for PLL unlock signal.

High:PLL is locked.

Input port for the transceiver’s internal tempereture detection.

Input port for CTCSS/DTCS signals. Input port for single tone decode sig-

nal. Input port for the RSSI voltage. Input port for the PLL lock voltage.

4 - 5

number

61 62

Port

name

BDET BATV

Description

Input port for the battery’s type detection.

Input port for battely voltage detection.

4-5-3 D/A CONVERTOR IC (IC9)

number

2, 3,

10, 11

14 15

22

Port

name

T1–T4

REF BAL

DEV

Description

Output tunable bandpass filters control signals.

Outputs differential voltage for the reference oscillator (Q31, D19, X1).

Outputs DTCS balance control signal. Outputs modulating signal for the

modulator circuit (D6).

CPU (IC7)–continued

4-5-2 OUTPUT EXPANDER IC (IC15)

number

4 5

6

7

11

12

13

14

Port

name

CSFT

RMUT MMUT

DUSE

T5C

R5C

S5C

NWC

Description

Outputs clock shift control signal for CPU.

Outputs RX mute control signal. Outputs TX mute control signal. Outputs low-pass filter cut-off frequen-

cy control signal when DTCS is activated.

Outputs T5 regulator control signal.

Low: While transmitting.

Outputs R5 regulator control signal.

Low: While receiving.

Outputs S5 regulator control signal.

Low: While power is ON.

Outputs Narrow/Wide of channel spacing control signal.

Low: While Narrow is selected.

5 - 1

5-1 PREPARATION

When you adjust the contents on page 5-5 or 5-6, SOFTWARE ADJUSTMENT, the optional CS-F1 1 ADJ ADJUSTMENT SOFTWARE (Rev. 1.0 or later), OPC-478 CLONING CABLE and a JIG CABLE (see illustration at page 5-2) are required.

■ REQUIRED TEST EQUIPMENT

SECTION 5 ADJUSTMENT PROCEDURES

EQUIPMENT

DC power supply

RF power meter (terminated type)

Frequency counter

FM deviation meter

Digital multimeter

GRADE AND RANGE

Output voltage : 7.2 V DC Current capacity : 5 Aor more

Measuring range : 1–10 W Frequency range : 300–600 MHz Impedance : 50 Ω SWR : Less than 1.2 : 1

Frequency range : 0.1–600 MHz Frequency accuracy : ±1 ppm or better Sensitivity : 100 mV or better

Frequency range : DC–600 MHz Measuring range : 0 to ±5 kHz

Input impedance : 10 MΩ/V DC or better

EQUIPMENT

Audio generator

Attenuator

Standard signal generator (SSG)

DC voltmeter

Oscilloscope

AC millivoltmeter

GRADE AND RANGE

Frequency range : 300–3000 Hz Output level : 1–500 mV

Power attenuation : 40 or 50 dB Capacity : 10 W or more

Frequency range : 120–600 MHz Output level : 0.1 µV–32 mV

(–127 to –17 dBm) Input impedance : 50 kΩ/V DC or better Frequency range : DC–20 MHz

Measuring range : 0.01–20 V Measuring range : 10 mV–10 V

■ SYSTEM REQUIREMENTS

• IBM PC compatible computer with an RS -232C serial port (38400 bps or faster)

• Microsoft Windows 95 or Windows 98

• Intel i486DX processor or faster (Pentium 100 MHz or

faster recommended)

• At least 16 MB RAM and 10 MB of hard disk space

• 640

×480 pixel display (800×600 pixel display recommend-

ed)

■ ADJUSTMENT SOFTWARE INSTALLATION

q Boot up Windows.

- Quit all applications when Windows is running.

w Insert the cloning software CD-ROM into the appropriate

CD-ROM drive.

e Select ‘Run’ from the [Start] menu. r Type the setup program name using the full path name,

then push the [Enter] key. (For example; D:\ setup)

t Follow the prompts. y Program group ‘CS-F11’appears in the ‘Programs’ folder

of the [Start] menu.

■ STARTING SOFTWARE ADJUSTMENT

q Connect transceiver and PC with the optional OPC-478

and the JIG cable.

w Boot up Windows, and turn the transceiver power ON. e Click the program group ‘CS-F11 ADJ’ in the ‘Programs’

folder of the [Start] menu, then CS-F11 ADJ’s window is appeared.

r Click ‘Connect’ on the CS-F11’s window, then appears

transceiver’s up-to-date condition.

t Set or modify adjustment data as desired.

IBM is a registered trademark of International Bussiness Machines Corporation in the U.S.A. and other countries. Microsoft and Windows are registered trademarks of Microsoft Corporation in the U.S.A. and other countries. Screen shots produced with permission from Microsoft Corporation. All other products or brands are registered trademarks or trademarks of their respective holders.

5 - 2

JIG CABLE

+

( CLONE)

( GND)

+

( SP) ( SPE)

3-conductor 3.5(d) mm plug

OPC-478

JIG cable

to IC-F4GT/GS [SP] jack

CS-F11 ADJ Rev .1.0

File

COM 1: OPEN

Option

Connect

Reload (F5) Disp para

[A / D] VIN : 197 : C5h : 7.73 V TEMPS : 190 : BEh : 32.23 ’C LVIN : 98 : 62h : 1.92 V SD : 0 : 00h : 0.00 V REMOT : 14 : 0Eh : 0.27 V BDET : 255 : FFh : 5.00 V

Power (Hi) : 98 [ # # # # # # # # ] Power (L2) : 54 [ # # # # ] Power (L1) : 255 [ # # # # # # # # # # # # # # # # # # # ] DTCS BAL : 132 [ # # # # # # # # # # ]

MOD W : 92 [ # # # # # # # ]

MOD N : 50 [ # # # # ]

SQL : 85 [ # # # # # # # ]

BPF ALL : [Enter] to sweep

BPF T1 : 23 [ # # # # # # # # # # # # ] [Enter] to sweep BPF T2 : 22 [ # # # # # # # # ] [Enter] to sweep BPF T3 : 9 [ # # # # # # # # # # # ] [Enter] to sweep BPF T4 : 7 [ # # # # # # # # # ] [Enter] to sweep

TXF : [Enter] to start

[D / A] BPF T1 : 90 : 5Ah : 1.76 V BPF T2 : 45 : 2Dh : 0.88 V BPF T3 : 76 : 4Ch : 1.49 V T4/POW : 60 : 3Ch : 1.18 V REF : 112 : 70h : 2.20 V DTCS BL.: 141 : 8Dh : 55.29 Dev : 45 : 2Dh : 0.88 V SQL Lev : 150 : 96h : 58.96

CH No. : 01 (RX Freq = 216.050, TX Freq = < ) RF Power: High

: Transceiver’s connection state : Reload adjustment data : Receive sensitivity measurement : Connected DC voltage : PLL lock voltage : Operating channel select : RF output power

NOTE:

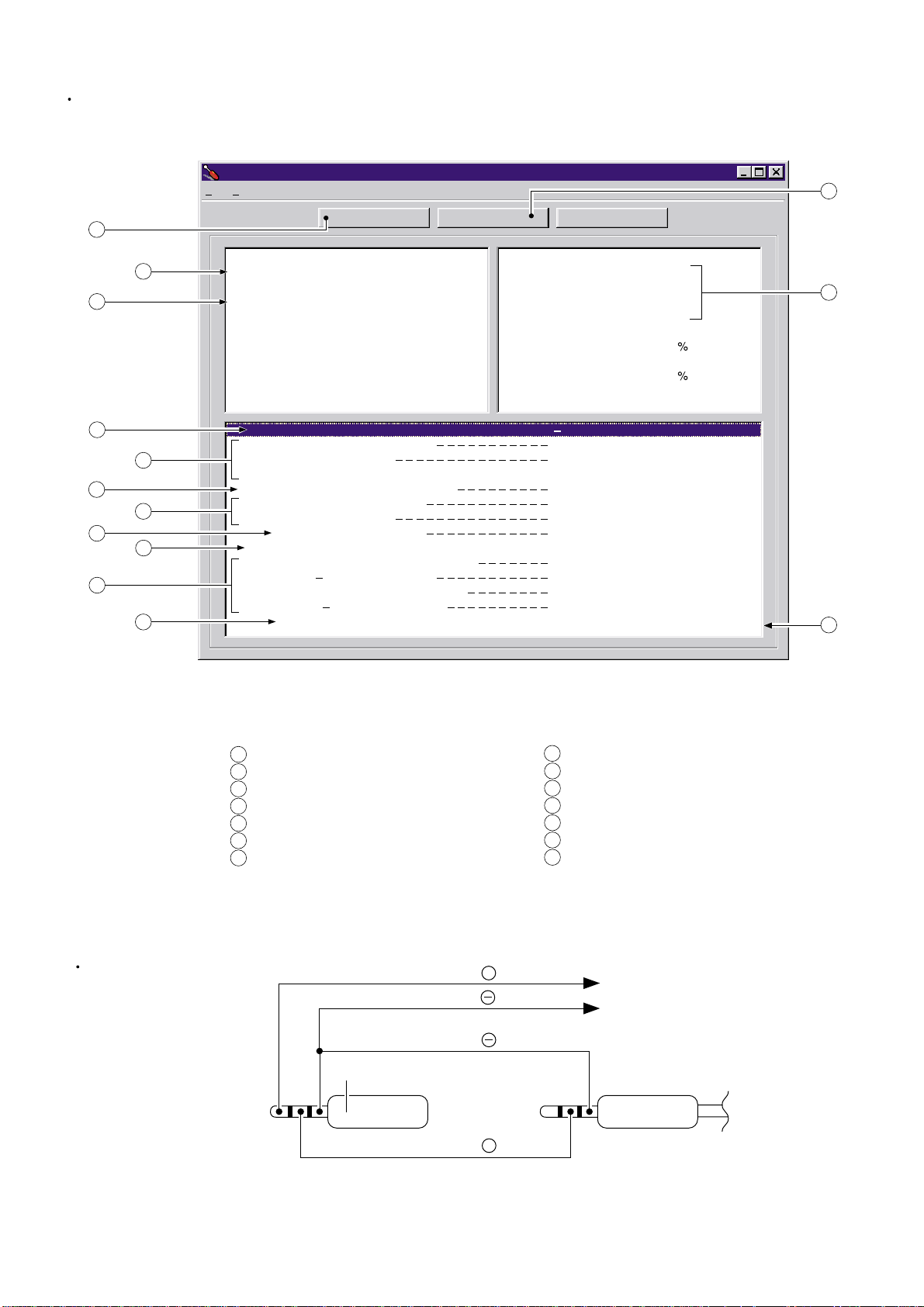

SCREEN DISPLAY EXAMPLE

1

5

11

1 2 3 4 5 6 7

8

9 10 11 12 13 14

: DTCS wave balance : FM deviation : Squelch level : Receive sensitivity (automatically) : Receive sensitivity (manually) : Reference frequency : Adjustment items

The above values for settings are example only. Each transceiver has its own specific values for each setting.

4

2

8

3

6

7

9

12

10

13

14

5 - 3

to an RS-232C port

Personal computer

to [MIC]

to [SP]

JIG cable

DB9 female plug

(incl. level converter circuit)

CONNECTION

to the antenna connector

RF power meter

0.1 10 W/50 Frequency

counter

Attenuator

40 dB or 50 dB

FM

deviation meter

Standard signal generator

0.1 V to 32 mV

( 127 dBm to 17 dBm)

SINAD meter

Speaker (8 )

Audio generator

OPC-478

CAUTION:

DO NOT transmit while

an SSG is connected to the antenna connector.

DC POWER

SUPPLY

GND

+

Battery type detectorBattery type detector

DC POWER CABLE CONNECTIONS

NOTE: When you adjust the output power (high

power), the battery type detector must be connected to GND (see illustration at above). Ohterwise the transceiver does not transmit high power, the output power will be low.

5 - 4

L16

PLL lock voltage adjustment

TOP VIEW

RF power meter

LV

PLL lock voltage check point

5-2 PLL ADJUSTMENT

PLL LOCK VOLTAGE

1

2

3

• Operating frequency:

174.000 MHz

• Transmitting

• Operating frequency:

146.000 MHz

• Receiving

• Transmitting

MAIN Connect a digital multi

meter to check point LV.

4.0 V

0.8–1.8 V

MAIN L16

Verify

ADJUSTMENT ADJUSTMENT CONDITIONS

UNIT LOCATION

VALUE

UNIT ADJUST

MEASUREMENT ADJUSTMENT

5 - 5

1

2

3

1

2

1

• Operating frequency:

174.000 MHz*

1

158.4075 MHz*

2

• High/Low switch : Low

• Connect the RF power meter or 50 Ω dummy load to the antenna connector.

• Transmitting

• Operating frequency:

146.000 MHz*

1

151.505 MHz*

2

• High/Low switch : High

• Transmitting

• High/Low switch : Low2

• Transmitting

• High/Low switch : Low1

• Transmitting

• Operating frequency:

146.000 MHz*

1

151.505 MHz*

2

• High/Low switch : Low1

• Channel spacing : Wide

• Connect the audio generator to the [MIC] jack and set as:

1.0 kHz/150 mVrms

• Set the FM deviation meter as:

HPF : OFF LPF : 20 kHz De-emphasis : OFF Detector : (P–P)/2

• Transmitting

• Channel spacing : Narrow

• Transmitting

• Operating frequency:

174.000 MHz*

1

158.4075 MHz*

2

• High/Low switch : Low1

• No audio applied to the [MIC] jack.

• DTCS code : 007

• Transmitting

REFERENCE FREQUENCY [TXF]

OUTPUT POWER [POWER(Hi)]

[POWER(L2)]

[POWER(L1)]

FM DEVIATION (Wide) [MOD W]

(Narrow) [MOD N]

DTCS WAVE FORM [DTCS BAL]

Top

panel

Top

panel

Top

panel

Top

panel

Loosely couple a frequnecy counter to the antenna connector.

Connect an RF power meter to the antenna connector.

Connect an FM deviation meter to the antenna connector through the attenuator.

Connect an FM deviation meter with an oscilloscope to the antenna connector through an attenuator.

174.0000 MHz*

1

158.4075 MHz*

2

5.0 W*

1

2.0 W*

2

2.0 W

1.0 W

Between ±4.05 kHz

and ±4.15 kHz

Between ±2.05 kHz

and ±2.15 kHz

ADJUSTMENT ADJUSTMENT CONDITION

MEASUREMENT

VALUE

UNIT

LOCATION

5-3 SOFTWARE ADJUSTMENT

Select an operation using [↑] / [↓] keys, then set specified value using [←] / [→] keys on the connected computer keyboard.

Set to flat wave form

*1IC-F11, F11S, F12 and F12S. *2IC-F11BR only.

5 - 6

Minimum distortion

level

12 dB SINAD

At the point where

the audio signals

just appears.

1

• Operating frequency:

146.000 MHz*

1

151.505 MHz*

2

• Channel spacing :Narrow

• Connect a standard signal generator to the antenna connector and set as:

Frequency : 146.000 MHz*

1

151.505 MHz*

2

Level : 10 µV* (–87 dBm) Modulation : OFF Deviation : ±1.75 kHz

• Receiving

• Operating frequency:

160.000 MHz*

1

156.956 MHz*

2

• Channel spacing : Wide

• Connect a standard signal generator to the antenna connector and set as:

Frequency : 160.000 MHz*

1

156.956 MHz*

2

Level :

0.2 µV* (–121 dBm) Modulation : 1 kHz Deviation :

±3.5 kHz

• Receiving

RX SENSITIVITY [BPF T1]–[BPF T4]

SQUELCH LEVEL [SQL]

Top

panel

Top

panel

Connect a SINAD meter with an 8 Ω load to the [SP] jack.

Connect a SINAD meter with an 8Ω load to the [SP] jack.

ADJUSTMENT ADJUSTMENT CONDITION

MEASUREMENT

VALUE

UNIT

LOCATION

*The output level of the standard signal generator (SSG) is indicated as the SSG’s open circuit.

SOFTWARE ADJUSTMENT – continued

Select an operation using [↑] / [↓] keys, then set specified value using [←] / [→] keys on the connected computer keyboard.

CONVENIENT: The BPF T1–BPF T4 can be adjusted automatically.

q-1: Set the cursol to “BPF ALL” on the adjustment program and then push [ENTER]

key.

q-2: The connected PC tunes BPF T1–BPF T4 to peak levels.

or

w-1: Set the cursol to one of BPF T1, T2, T3, or T4 as desired. w-2: Push [ENTER] key to start tuning. w-3: Repeat w-1 and w-2 to perform additional BPF tuning.

1

2

*1IC-F11, F11S, F12 and F12S. *2IC-F11BR only.

[MAIN UNIT][SW-A UNIT] ([F11] AND [F12] ONLY)

Q1 1590003020 S.TRANSISTOR XP4216-(TX)

R1 7210003060 VARIABLE TP76N00N-15F-10KA-2251 R2 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R3 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω)

F1 5210000710 S.FUSE KAB 2402 322 NA29

DS1 5040002070 S.LED LNJ107W5PRW

S1 2250000450 ENCODER TP70QF4161-16F-2458A

EP1 0910054463 PCB B 5603C

Q1 1590003020 S.TRANSISTOR XP4216-(TX)

R1 7210003060 VARIABLE TP76N00N-15F-10KA-2251 R2 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R3 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω)

F1 5210000710 S.FUSE KAB 2402 322 NA29

DS1 5040002070 S.LED LNJ107W5PRW

W1 7120000470 JUMPER ERDS2T0 W2 7120000470 JUMPER ERDS2T0

EP1 0910054473 PCB B 5604C

IC1 1140005990 S.IC MB15A02PFV1-G-BND-ER IC2 1110002750 S.IC TA75S01F (TE85R) IC3 1110003490 S.IC TA31136FN (D,EL) IC4 1110001810 S.IC TA7368F (TP1) IC5 1110005320 S.IC NJM13403V-TE1 IC6 1130008090 S.IC BU4066BCFV-E1 IC7 1140009850 S.IC HD6433664A24FP IC8 1130009110 S.IC S-80942ANMP-DD6-T2 IC9 1190000350 S.IC M62363FP-650C IC10 1110005350 S.IC NJM2870F05-TE1 IC11 1130010490 S.IC BR24C16FV-E2 IC12 1110005330 S.IC NJM12904V-TE1 IC13 1130007020 S.IC TC7S66FU (TE85R) IC15 1130007570 S.IC BU4094BCFV-E2 IC16 1110005330 S.IC NJM12904V-TE1

S.=Surface mount

Q1 1560001050 S.FET 2SK2974 Q2 1560001020 S.FET 2SK2973 (MTS101P) Q4 1530003420 S.TRANSISTOR 2SC5110-O (TE85R) Q5 1530003310 S.TRANSISTOR 2SC5107-O (TE85R) Q6 1530003310 S.TRANSISTOR 2SC5107-O (TE85R) Q7 1530003310 S.TRANSISTOR 2SC5107-O (TE85R) Q8 1590000430 S.TRANSISTOR DTC144EUA T106 Q10 1530003230 S.TRANSISTOR 2SC5085-Y (TE85R) Q11 1530003230 S.TRANSISTOR 2SC5085-Y (TE85R) Q12 1590001190 S.TRANSISTOR XP6501-(TX) .AB Q13 1560000540 S.FET 2SK880-Y (TE85R) Q14 1590000720 S.TRANSISTOR DTA144EUA T106 Q15 1580000750 S.FET 3SK294 (TE85L) Q16 1580000660 S.FET 3SK272-(TX) Q17 1530002600 S.TRANSISTOR 2SC4215-O (TE85R) Q18 1530002690 S.TRANSISTOR 2SC4116-GR (TE85R) Q19 1520000460 S.TRANSISTOR 2SB1132 T100 R Q20 1590001190 S.TRANSISTOR XP6501-(TX) .AB Q21 1590000430 S.TRANSISTOR DTC144EUA T106 Q22 1590002530 S.TRANSISTOR UN911H (TX) Q23 1590000720 S.TRANSISTOR DTA144EUA T106 Q24 1520000460 S.TRANSISTOR 2SB1132 T100 R Q25 1590001190 S.TRANSISTOR XP6501-(TX) .AB Q26 1510000920 S.TRANSISTOR 2SA1577 T107 Q Q27 1510000920 S.TRANSISTOR 2SA1577 T107 Q Q28 1590000430 S.TRANSISTOR DTC144EUA T106 Q29 1530002690 S.TRANSISTOR 2SC4116-GR (TE85R) Q30 1590001770 S.TRANSISTOR XP1213 (TX) Q31 1530002600 S.TRANSISTOR 2SC4215-O (TE85R) Q32 1590000660 S.TRANSISTOR DTC144TU T107

Q33 1560000840 S.FET 2SK1829 (TE85R)

A only

Q35 1590000430 S.TRANSISTOR DTC144EUA T106 Q36 1560000840 S.FET 2SK1829 (TE85R)

D1 1750000580 S.DIODE 1SV307 (TPH3) D2 1790001670 S.DIODE RB706F-40T106 D3 1790000620 S.DIODE MA77 (TX) D4 1790000620 S.DIODE MA77 (TX) D5 1720000780 S.VARICAP HVU350B TRF D6 1790001260 S.DIODE MA2S077-(TX) D7 1720000780 S.VARICAP HVU350B TRF D9 1750000580 S.DIODE 1SV307 (TPH3) D10 1790000620 S.DIODE MA77 (TX) D12 1720000780 S.VARICAP HVU350B TRF D13 1720000780 S.VARICAP HVU350B TRF D14 1720000780 S.VARICAP HVU350B TRF D15 1720000780 S.VARICAP HVU350B TRF D16 1790000620 S.DIODE MA77 (TX) D17 1790001670 S.DIODE RB706F-40T106

D18 1790001250 S.DIODE MA2S111-(TX)

A only

D19 1750000830 S.VARICAP HVC362TRF D20 1790001250 S.DIODE MA2S111-(TX) D21 1790001250 S.DIODE MA2S111-(TX) D22 1790000620 S.DIODE MA77 (TX) D23 1790001250 S.DIODE MA2S111-(TX) D24 1720000360 S.DIODE HSU88TRF D25 1790001250 S.DIODE MA2S111-(TX)

FI1 2030000130 S.XTAL FL-333 (31.05 MHz) FI2 2020001840 CERAMIC ALFYM450F=K

X1 6050011070 S.XTAL CR-664A (15.300 MHz) X2 6070000210

S.DISCRIMINATOR

CDBCA450CX24

X3 6050011180 S.XTAL CR-702 (14.7456 MHz)

L1 6200008580 S.COIL 0.30-1.4-6TL32N L2 6200009800 S.COIL 0.26-1.1-7TR 30N L3 6200002860 S.COIL NL252018T-4R7J L4 6200008280 S.COIL 0.30-1.7-7TL50N L5 6200008230 S.COIL 0.30-1.3-5TL22N L6 6200003590 S.COIL EXCCL3225U1

6 - 1

SECTION 6 PARTS LIST

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

A: [F12] and [F12S] B: [F11], [F11BR] and [F11S] C: [F11]and [F12] D: [F11BR], [F11S] and [F12S]

[SW-B UNIT] ([F11BR], [F11S] AND [F12S] ONLY)

REF ORDER

DESCRIPTION

NO. NO.

[MAIN UNIT]

REF ORDER

DESCRIPTION

NO. NO.

[MAIN UNIT][MAIN UNIT]

S.=Surface mount

L9 6200005710 S.COIL ELJRE 27NG-F L10 6200006980 S.COIL ELJRE R10G-F L11 6200006980 S.COIL ELJRE R10G-F L15 6200004920 S.COIL MLF1608A2R2K-T L16 6200008190 S.COIL 0.25-1.9-8TL80N L17 6200002860 S.COIL NL252018T-4R7J L18 6200005720 S.COIL ELJRE 33NG-F L19 6200008280 S.COIL 0.30-1.7-7TL50N L20 6200008280 S.COIL 0.30-1.7-7TL50N L21 6200007750 S.COIL LQN21A56NJ04 L22 6200007750 S.COIL LQN21A56NJ04 L24 6200007750 S.COIL LQN21A56NJ04 L25 6200009180 S.COIL ELJRE R10J-F3 L26 6200005540 S.COIL ELJNC R47K-F L27 6200001980 S.COIL NL252018T-1R0J L28 6200001980 S.COIL NL252018T-1R0J L29 6200009210 S.COIL NL252018T-390J L50 6200009180 S.COIL ELJRE R10J-F3 L51 6200007690 S.COIL LQN21A18NJ04 L52 6200008260 S.COIL 0.30-1.7-8TL60N L53 6200008510 S.COIL 0.30-0.9-4TR 10.5N L54 6200007750 S.COIL LQN21A56NJ04 L56 6200002690 S.COIL MLF1608A1R0M-T

R1 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ) R2 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω) R3 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) R4 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R5 7030003240 S.RESISTOR ERJ3GEYJ 220 V (22 Ω) R6 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R7 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R8 7030003300 S.RESISTOR ERJ3GEYJ 680 V (68 Ω) R9 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R10 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R13 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) R16 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R17 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R18 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R19 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R20 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R21 7030004040 S.RESISTOR ERJ3GEYJ 4R7 V (4.7 Ω) R22 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R23 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) R24 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R26 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) R27 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R28 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R29 7030003430 S.RESISTOR ERJ3GEYJ 821 V (820 Ω) R31 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R32 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R34 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R35 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R36 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R37 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R38 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ) R39 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R40 7030003360 S.RESISTOR ERJ3GEYJ 221 V (220 Ω) R41 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R42 7030004050 S.RESISTOR ERJ3GEYJ 1R0 V (1 Ω) R43 7030003550 S.RESISTOR ERJ3GEYJ 822 V (8.2 kΩ) R44 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R45 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R46 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ) R47 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R48 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ) R49 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R50 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R51 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R52 7410000950 S.ARRAY EXB-V8V 102JV R53 7030003290 S.RESISTOR ERJ3GEYJ 560 V (56 Ω) R54 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R55 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R56 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R57 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) R58 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ) R59 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ) R60 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R61 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R62 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R63 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)

R64 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) A

7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) B

R65 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ) A

7030003730 S.RESISTOR ERJ3GEYJ 274 V (270 kΩ) B R66 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R68 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R70 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R71 7030005050 S.RESISTOR ERJ2GEJ 103 X (10 kΩ) R72 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R73 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R74 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R75 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R76 7030003430 S.RESISTOR ERJ3GEYJ 821 V (820 Ω) R77 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R78 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R79 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R80 7030003210 S.RESISTOR ERJ3GEYJ 120 V (12 Ω) R81 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R83 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω) R85 7030003410 S.RESISTOR ERJ3GEYJ 561 V (560 Ω) R86 7030003330 S.RESISTOR ERJ3GEYJ 121 V (120 Ω) R88 7030003430 S.RESISTOR ERJ3GEYJ 821 V (820 Ω) R89 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R90 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ) R91 7030003420 S.RESISTOR ERJ3GEYJ 681 V (680 Ω) R92 7030003470 S.RESISTOR ERJ3GEYJ 182 V (1.8 kΩ) R93 7030003380 S.RESISTOR ERJ3GEYJ 331 V (330 Ω) R94 7030003280 S.RESISTOR ERJ3GEYJ 470 V (47 Ω) R95 7030003340 S.RESISTOR ERJ3GEYJ 151 V (150 Ω) R96 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ) R97 7030003780 S.RESISTOR ERJ3GEYJ 684 V (680 kΩ) R98 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R99 7030003450 S.RESISTOR ERJ3GEYJ 122 V (1.2 kΩ) R100 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R102 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) R103 7030003260 S.RESISTOR ERJ3GEYJ 330 V (33 Ω) R104 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R105 7030003490 S.RESISTOR ERJ3GEYJ 272 V (2.7 kΩ) R106 7030003500 S.RESISTOR ERJ3GEYJ 332 V (3.3 kΩ) R107 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R109 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) R110 7030004910 S.RESISTOR ERJ3GEYF 332 V (3.3 kΩ) R111 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ) R112 7030004730 S.RESISTOR ERJ3GEYF 222 V (2.2 kΩ) R113 7030003430 S.RESISTOR ERJ3GEYJ 821 V (820 Ω) R114 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R115 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ) R116 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R117 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R118 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R119 7030003730 S.RESISTOR ERJ3GEYJ 274 V (270 kΩ) R120 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ) R121 7030010320 S.RESISTOR ERJ3GEYF 153 V (15 kΩ) R122 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R123 7030008090 S.RESISTOR ERJ3EKF 1503 V (150 kΩ) R124 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ) R125 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R126 7030003710 S.RESISTOR ERJ3GEYJ 184 V (180 kΩ) R127 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R128 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R129 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R130 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ) R131 7030003530 S.RESISTOR ERJ3GEYJ 562 V (5.6 kΩ) R132 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R133 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ) R134 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R136 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R137 7030005270 S.RESISTOR ERJ3GEYJ 204 V (200 kΩ) R138 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R139 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ)

R140 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ)

B only

R141 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R142 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R143 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R146 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R147 7410000950 S.ARRAY EXB-V8V 102JV R148 7410000950 S.ARRAY EXB-V8V 102JV R149 7410000950 S.ARRAY EXB-V8V 102JV R151 7510001280 S.THERMISTOR NTCCM20124AG473J-T R152 7030003940 S.RESISTOR ERJ3GEYF 104 V (100 kΩ) R153 7030003940 S.RESISTOR ERJ3GEYF 104 V (100 kΩ)

6 - 2

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

A: [F12] and [F12S] B: [F11], [F11BR] and [F11S] C: [F11]and [F12] D: [F11BR], [F11S] and [F12S]

S.=Surface mount

[MAIN UNIT][MAIN UNIT]

R154 7030003940 S.RESISTOR ERJ3GEYF 104 V (100 kΩ) R155 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) R156 7030003800 S.RESISTOR ERJ3GEYJ 105 V (1 MΩ) R157 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ) R158 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ) R159 7030003570 S.RESISTOR ERJ3GEYJ 123 V (12 kΩ) R160 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R161 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R163 7410000950 S.ARRAY EXB-V8V 102JV R164 7410000950 S.ARRAY EXB-V8V 102JV R165 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R166 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) R167 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) R168 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) R169 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R170 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R171 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R172 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R173 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R174 7030003520 S.RESISTOR ERJ3GEYJ 472 V (4.7 kΩ) R175 7030003620 S.RESISTOR ERJ3GEYJ 333 V (33 kΩ) R176 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R177 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R178 7030003650 S.RESISTOR ERJ3GEYJ 563 V (56 kΩ) R179 7030003710 S.RESISTOR ERJ3GEYJ 184 V (180 kΩ) R180 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ) R181 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R182 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R183 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R184 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R185 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) R187 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R188 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) R189 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R190 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R191 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R192 7030003590 S.RESISTOR ERJ3GEYJ 183 V (18 kΩ) R193 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R194 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) R195 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ) R196 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R197 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R198 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R199 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R200 7410000770 S.ARRAY EXB-V4V 102JV (1 kΩ) R201 7410000950 S.ARRAY EXB-V8V 102JV R202 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R203 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ) R204 7030003750 S.RESISTOR ERJ3GEYJ 394 V (390 kΩ) R205 7030003710 S.RESISTOR ERJ3GEYJ 184 V (180 kΩ) R206 7030003670 S.RESISTOR ERJ3GEYJ 823 V (82 kΩ) R207 7030003630 S.RESISTOR ERJ3GEYJ 393 V (39 kΩ) R208 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R209 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R210 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ) R211 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R212 7030003580 S.RESISTOR ERJ3GEYJ 153 V (15 kΩ) R213 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω) R214 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R215 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R216 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R217 7030003640 S.RESISTOR ERJ3GEYJ 473 V (47 kΩ) R218 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R219 7030003720 S.RESISTOR ERJ3GEYJ 224 V (220 kΩ) R220 7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) R221 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R222 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) R223 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) R224 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) R225 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ) R226 7030003660 S.RESISTOR ERJ3GEYJ 683 V (68 kΩ)

R227 7030003560 S.RESISTOR ERJ3GEYJ 103 V (10 kΩ)

A only

R228 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ)

A only

R229 7030003530 S.RESISTOR ERJ3GEYJ 562 V (5.6 kΩ)

A only

R230 7030003610 S.RESISTOR ERJ3GEYJ 273 V (27 kΩ) R232 7030003700 S.RESISTOR ERJ3GEYJ 154 V (150 kΩ) R233 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R234 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R238 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R239 7030003680 S.RESISTOR ERJ3GEYJ 104 V (100 kΩ) R240 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ)

R241 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R242 7030003600 S.RESISTOR ERJ3GEYJ 223 V (22 kΩ) R243 7030003460 S.RESISTOR ERJ3GEYJ 152 V (1.5 kΩ) R244 7030003320 S.RESISTOR ERJ3GEYJ 101 V (100 Ω)

R245 7030003430 S.RESISTOR ERJ3GEYJ 821 V (820 Ω) B

7030003480 S.RESISTOR ERJ3GEYJ 222 V (2.2 kΩ) A

R246 7030003240 S.RESISTOR ERJ3GEYJ 220 V (22 Ω) R247 7030003440 S.RESISTOR ERJ3GEYJ 102 V (1 kΩ) R248 7030004050 S.RESISTOR ERJ3GEYJ 1R0 V (1 Ω) R249 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) R250 7030003760 S.RESISTOR ERJ3GEYJ 474 V (470 kΩ) R251 7030003690 S.RESISTOR ERJ3GEYJ 124 V (120 kΩ) R252 7030003200 S.RESISTOR ERJ3GEYJ 100 V (10 Ω) R253 7030003400 S.RESISTOR ERJ3GEYJ 471 V (470 Ω)

C1 4030007000 S.CERAMIC C1608 CH 1H 090D-T-A C2 4030006980 S.CERAMIC C1608 CH 1H 070D-T-A C3 4030009650 S.CERAMIC C1608 CH 1H 240J-T-A C4 4030011530 S.CERAMIC C1608 CH 1H 110J-T-A C5 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A C6 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C7 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C8 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C9 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C10 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A C11 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A C12 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C13 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A C14 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A C15 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C17 4030007110 S.CERAMIC C1608 CH 1H 680J-T-A C18 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C20 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C21 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C23 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C24 4030017430 S.CERAMIC ECJ0EC1H101J C25 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C26 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C27 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C33 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C34 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C35 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C36 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A C37 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C38 4030007000 S.CERAMIC C1608 CH 1H 090D-T-A C39 4030007020 S.CERAMIC C1608 CH 1H 120J-T-A C40 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C41 4030006980 S.CERAMIC C1608 CH 1H 070D-T-A C42 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A C43 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C44 4030009520 S.CERAMIC C1608 CH 1H 020B-T-A C45 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C46 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C48 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C49 4030009500 S.CERAMIC C1608 CH 1H 0R5B-T-A C51 4030009520 S.CERAMIC C1608 CH 1H 020B-T-A C56 4550006450 S.TANTALUM ECST1EY105R C57 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C58 4510004630

S.ELECTROLYTIC

ECEV1CA100SR C59 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C60 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C61 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C62 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C63 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C64 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C65 4030009520 S.CERAMIC C1608 CH 1H 020B-T-A C66 4030008750 S.CERAMIC C1608 CH 1H 360J-T-A C67 4030006870 S.CERAMIC C1608 JB 1H 222K-T-A C69 4030007120 S.CERAMIC C1608 CH 1H 820J-T-A C70 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C71 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C72 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C73 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C75 4550006450 S.TANTALUM ECST1EY105R C76 4550006600 S.TANTALUM ECST0JY335R C78 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C80 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C81 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C82 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C83 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A

6 - 3

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

A: [F12] and [F12S] B: [F11], [F11BR] and [F11S] C: [F11]and [F12] D: [F11BR], [F11S] and [F12S]

[MAIN UNIT][MAIN UNIT]

S.=Surface mount

C84 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C85 4510005860

S.ELECTROLYTIC

ECEV1HA2R2SR C86 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C87 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C88 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C89 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C90 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A C91 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A C92 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A C93 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C94 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C95 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C96 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C97 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C98 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C99 4030011530 S.CERAMIC C1608 CH 1H 110J-T-A

C100 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A

A

4030007050 S.CERAMIC C1608 CH 1H 220J-T-A B

C101 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A A

4030009910 S.CERAMIC C1608 CH 1H 040B-T-A B

C102 4030009910 S.CERAMIC C1608 CH 1H 040B-T-A A

4030011770 S.CERAMIC C1608 CH 1H 060B-T-A B

C103 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C104 4030007060 S.CERAMIC C1608 CH 1H 270J-T-A B

4030007090 S.CERAMIC C1608 CH 1H 470J-T-A A

C105 4030009530 S.CERAMIC C1608 CH 1H 030B-T-A A

4030009550 S.CERAMIC C1608 CH 1H 2R5B-T-A B C106 4030009510 S.CERAMIC C1608 CH 1H 010B-T-A C107 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C108 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C109 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C110 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A

C111 4030009530 S.CERAMIC C1608 CH 1H 030B-T-A

A

4030009910 S.CERAMIC C1608 CH 1H 040B-T-A B C112 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C113 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A C114 4030017460 S.CERAMIC ECJ0EB1E102K C115 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C116 4030009550 S.CERAMIC C1608 CH 1H 2R5B-T-A C117 4030007120 S.CERAMIC C1608 CH 1H 820J-T-A C118 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C119 4030009540 S.CERAMIC C1608 CH 1H 1R5B-T-A

C120 4030007070 S.CERAMIC C1608 CH 1H 330J-T-A

B

4030007110 S.CERAMIC C1608 CH 1H 680J-T-A A C121 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A

C122 4030009350 S.CERAMIC C1608 CH 1H 3R5B-T-A A

4030011770 S.CERAMIC C1608 CH 1H 060B-T-A B C123 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A C124 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C125 4030007060 S.CERAMIC C1608 CH 1H 270J-T-A C126 4030007070 S.CERAMIC C1608 CH 1H 330J-T-A C127 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C128 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C129 4030007100 S.CERAMIC C1608 CH 1H 560J-T-A C130 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C132 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C133 4030009510 S.CERAMIC C1608 CH 1H 010B-T-A C134 4030007000 S.CERAMIC C1608 CH 1H 090D-T-A C136 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C137 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C138 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C139 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C140 4030007140 S.CERAMIC C1608 CH 1H 121J-T-A C142 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C143 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C144 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C145 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A C146 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C147 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C148 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C149 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A C150 4030009520 S.CERAMIC C1608 CH 1H 020B-T-A C151 4030007040 S.CERAMIC C1608 CH 1H 180J-T-A C152 4030007010 S.CERAMIC C1608 CH 1H 100D-T-A C153 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C154 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A C155 4030007170 S.CERAMIC C1608 CH 1H 221J-T-A C156 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C157 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A

C158 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C159 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C160 4510004640

S.ELECTROLYTIC

ECEV1CA470SP C161 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C162 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C163 4510006940

S.ELECTROLYTIC

EEVFC0J101P C164 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C165 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C166 4550006700 S.TANTALUM ECST1AY106R C167 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C168 4030009660 S.CERAMIC C1608 JF 1C 224Z-T-A C169 4550006650 S.TANTALUM ECST1CY685R C170 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A C171 4030009660 S.CERAMIC C1608 JF 1C 224Z-T-A C172 4510006090

S.ELECTROLYTIC

ECEV0GA470SR C173 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C174 4030007150 S.CERAMIC C1608 CH 1H 151J-T-A C175 4030008770 S.CERAMIC C1608 JB 1H 562K-T-A C176 4030009970 S.CERAMIC C1608 JB 1H 182K-T-A C177 4550006170 S.TANTALUM ECST1AY225R C178 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C179 4030008680 S.CERAMIC C2012 JF 1C 105Z-T-A C181 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C182 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C183 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C184 4030007160 S.CERAMIC C1608 CH 1H 181J-T-A C185 4030011600 S.CERAMIC C1608 JB 1C 104KT-N

C186 4030008770 S.CERAMIC C1608 JB 1H 562K-T-A

B

4030006870 S.CERAMIC C1608 JB 1H 222K-T-A A

C187 4030008880 S.CERAMIC C1608 JB 1C 223K-T-A B only C188 4510004630

S.ELECTROLYTIC

ECEV1CA100SR C189 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C190 4030008920 S.CERAMIC C1608 JB 1C 473K-T-A C191 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A C192 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A C193 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A C194 4030007030 S.CERAMIC C1608 CH 1H 150J-T-A C195 4030007110 S.CERAMIC C1608 CH 1H 680J-T-A C196 4030006850 S.CERAMIC C1608 JB 1H 471K-T-A C197 4510005430

S.ELECTROLYTIC

ECEV0JA220SR C198 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A C199 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C200 4030008890 S.CERAMIC C1608 JB 1C 273K-T-A C201 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C202 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C203 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C204 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C205 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A C206 4550006200 S.TANTALUM ECST0JY106R C207 4510004630

S.ELECTROLYTIC

ECEV1CA100SR C208 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C209 4030008630 S.CERAMIC C1608 JF 1C 104Z-T-A C210 4510005430

S.ELECTROLYTIC

ECEV0JA220SR C211 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C212 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C213 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C214 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C215 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C216 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C217 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C218 4030008910 S.CERAMIC C1608 JB 1C 393K-T-A C219 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C220 4030009490 S.CERAMIC C1608 JB 1H 821K-T-A C221 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C222 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C223 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C224 4030008900 S.CERAMIC C1608 JB 1C 333K-T-A C225 4510004650

S.ELECTROLYTIC

ECEV1EA4R7SR C226 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C227 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C228 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C229 4030009880 S.CERAMIC C1608 JB 1H 682K-T-A C230 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C231 4030008910 S.CERAMIC C1608 JB 1C 393K-T-A C232 4030010020 S.CERAMIC C1608 JB 1H 122K-T-A C233 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C234 4030009490 S.CERAMIC C1608 JB 1H 821K-T-A C235 4030009490 S.CERAMIC C1608 JB 1H 821K-T-A C236 4030008880 S.CERAMIC C1608 JB 1C 223K-T-A C237 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C238 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A

6 - 4

REF ORDER

DESCRIPTION

NO. NO.

REF ORDER

DESCRIPTION

NO. NO.

A: [F12] and [F12S] B: [F11], [F11BR] and [F11S] C: [F11]and [F12] D: [F11BR], [F11S] and [F12S]

S.=Surface mount

[MAIN UNIT]

C239 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C240 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C242 4030008470 S.CERAMIC C1608 JB 1H 272K-T-A C243 4030008770 S.CERAMIC C1608 JB 1H 562K-T-A C244 4030007160 S.CERAMIC C1608 CH 1H 181J-T-A C245 4030009630 S.CERAMIC C1608 JB 1H 822K-T-A C246 4030007110 S.CERAMIC C1608 CH 1H 680J-T-A C247 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C248 4030011600 S.CERAMIC C1608 JB 1C 104KT-N

C249 4030017480 S.CRAMIC C1608 JB 1A 474K-T-N

A only

C252 4030007130 S.CERAMIC C1608 CH 1H 101J-T-A C253 4030007000 S.CERAMIC C1608 CH 1H 090D-T-A C255 4030007050 S.CERAMIC C1608 CH 1H 220J-T-A C257 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C258 4030007090 S.CERAMIC C1608 CH 1H 470J-T-A C259 4030006900 S.CERAMIC C1608 JB 1E 103K-T-A C260 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C261 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C262 4030011600 S.CERAMIC C1608 JB 1C 104KT-N C265 4030006980 S.CERAMIC C1608 CH 1H 070D-T-A C266 4550000530 S.TANTALUM TESVA 1V 104M1-8L C267 4030011770 S.CERAMIC C1608 CH 1H 060B-T-A C268 4030009550 S.CERAMIC C1608 CH 1H 2R5B-T-A C269 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A C270 4030006860 S.CERAMIC C1608 JB 1H 102K-T-A

J1 6910013720 CONNECTOR IMSA-9230B-04Z120-T

C only

J2 6910013730 CONNECTOR IMSA-9230B-07Z120-T J3 6510021900 S.CONNECTOR BM02B-ASRS-TF J4 6450001680 CONNECTOR HSJ1122-010010 J5 6450001690 CONNECTOR HSJ1456-01-220

MC1 7700002540 MICROPHON SKP-4538

S1 2230001060 S.SWITCH EVQ-PUL 02K S2 2230001060 S.SWITCH EVQ-PUL 02K S3 2230001060 S.SWITCH EVQ-PUL 02K

W8 7030003860 S.JUMPER ERJ3GE JPW V W11 7030003860 S.JUMPER ERJ3GE JPW V

D only

W12 7030003860 S.JUMPER ERJ3GE JPW V

D only

W13 7030003860 S.JUMPER ERJ3GE JPW V

D only

EP1 0910054482 PCB B 5680B EP4 6910013370 S.BEAD BLM11B221SB EP5 6910013370 S.BEAD BLM11B221SB EP6 6910013370 S.BEAD BLM11B221SB

EP7 6910013370 S.BEAD BLM11B221SB A only

6 - 5

REF ORDER

DESCRIPTION

NO. NO.

A: [F12] and [F12S] B: [F11], [F11BR] and [F11S] C: [F11]and [F12] D: [F11BR], [F11S] and [F12S]

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY

7 - 1

REF. NO. ODER NO. DESCRIPTION QTY.

SP1 2510001100 Speaker 036D0601 1

MP1 8210017710 2458 front panel 1 MP4 8930054680 2458 release button 1 MP6 8930054690 2458 lens 1 MP7 8210017730 2458 jack panel 1 MP8 8930054881 2458 plus terminal-1 1 MP9 8010018501 2458 chassis-1 1 MP10 8930054710 2458 A-main seal A 1

8930054720 2458 B-main seal B 1 MP11 8930042350 1922 mic sheet 1 MP12 8930050840 2251 minus terminal 1 MP13 8830001550 Nut (J) 1 MP14 8830001570 Nut (K) B 1

8830001550 Nut (J) A 1 MP15 8950005320 2337 contact 1 MP18 8610010910 Knob N-281 1 MP19 8610010920 Knob N-282 A only 1 MP20 8810004860 Screw PH M 2 x 6 ZK 2 MP21 8810000100 Screw PH M 2 x 4 ZK 2 MP22 8810009560 Screw B0 M 2 x 6 ZK 2 MP26 8930053680 Spring (AG) 1 MP27 8210017090 2337 terminal holder 1 MP28 8930052840 2337 T-rubber 1 MP29 8810009510 B0 M02 x 4 NI-ZU (BT) 10 MP30 8930043760 1923 Mic seal 1 MP32 8950004671 ANT connector 101A 1 MP33 8830001250 ANT connector 101 nut 1 MP34 8930055110 2458 side plate 1 MP35 8810009510 Screw B0 M 2 x 4 NI-ZU (BT) B only 1 MP39 8810009180 Screw B0 M 2 x 5 NI-ZU (BT) 1

[CHASSIS PARTS]

REF. NO. ODER NO . DESCRIPTION QTY.

MP1 8510013000 2336 VCO case 1 MP2 8510011101 1922 VCO cover-1 1 MP6 8510013800 2458 main shield 1

[MAIN UNIT]

Screw abbreviations B0, BT: Self-tapping

PH: Pan head NI: Nickel ZK: Black NI-ZU: Nickel-zinc

REF. NO. ODER NO. DESCRIPTION QTY.

EP1

Optional product

Antenna FA-SC55U 1

EP2

Optional product

Battery BP-222 [F11BR] 1

Optional product

Battery BP-209 [OTHER] 1

EP4

Optional product

BC-147A C only 1

EP5

Optional product

BC-146 ACC C only 1

MP1

Optional product

1922 Belt clip 1

[ACCESSORIES]

EP1

EP2

EP4

MP1

EP5

A: [F11], [F12] B: [F11BR], [F11S], [F12S] C: [F11BR], [F11S]*

1

*

1: For [USA] only.

7 - 2

UNIT abbreviation (C): CHASSIS PARTS, (M): MAIN UNIT

MAIN unit

MP28 (C)

MP15 (C)

MP10 (C)

MP21 (C)

MP32 (C)

MP8 (C)

MP29 (C)

MP12 (C)

MP9 (C)

MP22 (C)

IC-F11BR, F11S, F12S

MP34 (C)

MP27 (C)

MP14 (C)

MP13 (C)

MP39 (C)

MP29 (C)

MP35 (C)([F11BR, F11S, F12S] only)

MP29 (C)

MP7 (C)

MP20 (C)

MP11 (C)

MP30 (C)

MP29 (C)

MP2 (M)

MP1 (M)

MP1 (C)

MP6 (M)

MP6 (C)

MP4 (C)

MP26 (C)

MP33 (C)

MP19 (C)([F11, F12] only)

MP18 (C)

SP1 (C)

SECTION 8 SEMI-CONDUCTOR INFORMATION

8 - 1

2SC5085 Y

(Symbol: MCY)

2SK1829

(Symbol: K1)

2SC5107 O

(Symbol: MFO)

2SC5110 O

(Symbol: MGO)

2SK880 Y

(Symbol: XY)

2SK2974

(Symbol: K2974)

2SC4116 GR

(Symbol: LG)

2SA1577 Q

(Symbol: HQ)

2SB1132 R

(Symbol: BARB)

3SK272

(Symbol: K)

2SC4215 O

(Symbol: QO)

2SK2973

(Symbol: K1)

DTC144 TU

(Symbol: 06)

DTC144 EU

(Symbol: 26)

UN911 H

(Symbol: 6P)

XP1213

(Symbol: 9L)

3SK294

(Symbol: UV)

DTA144 EU

(Symbol: 16)

•

TRANSISTOR AND FET’S

B

E

C

B

E

C

B

E

C

G S D

S

D

G

(top view)

S

B

E

C

B

E

C

B

E

C

B

E

C

B

E

C

B C E

E1

B1

B2

C1

C2

E

C

B

E

B

E

C

S

D

G

G1

G2

S

D

XP6501 AB

(Symbol: 5N)

XP4216 TX

(Symbol: 8U)

E1 E2 B2

C1 B1 C2

B

E

C

G1

G2

S

D

E1

C2

B1

C1

E2

B2

•

DIODES

MA77

(Symbol: 4B)

HVU350 B

(Symbol: 4)

MA2S077

(Symbol: S)

HSU88 TRF

(Symbol: 9)

MA2S111

(Symbol: A)

MA368

(Symbol: 6L)

1SV307

(Symbol: TX)

RB706F-40

(Symbol: 3J)

A

C

A

C

HVC362

(Symbol: V2)

A

C

SECTION 9 BOARD LAYOUTS

9 - 1

9-1 MAIN UNIT

• TOP VIEW

C196 R159 C194

R156C193

X3

C242

R222 R223 C244

R224

C243

R215

C246

R155

R225

R226

C245

R122

C223

R143

R146

IC16

C191

R151

R163

R50

C258

R248

R51

D19

R230

C84

IC15

R164

C253

C252

X1

C86

R250

C87

C197

C210

C201

L29

C208

Q23

R246

C88

Q24

C209

R170

Q25

C206

R169

R153

C192

C71

R34

R35

R39

D6

C67

C66

C259

IC10

C205

C207

C73

C69

R249

Q36

R251

C85

C43

R22

C62

C63

Q8

D22

R32

Q11

R24

R23

L11

Q6

C46

R26

L50

C44

C225

C58

W11

R194

R195

R193

C226

C269

R187

C224

R191

R188

R190

IC12

C229

R189

IC13

R192

C230

Q30

R196 C228

R197

C94

C188

C231 R198

FI2

C40

C41

Q7

R19

R20

C267

L10

Q5

R21

C61

C60

R31

R29

C48

C38

L15

C65 C51

Q10

L17

L16

C268

D5

D7

R214

C163

C166

R238

R102C164

J3

C213

X2

C140

R221

R78

C124

R77

D4

R18

R92

C145

C143

C34

C125

R80

R81

R13

R79 C37

R16

D3

R17

C36

R243

R253

R244

C260

S2

C172

R166

R167

C204

R168

R111

R110

R112 R123

R94

C177

R121

R114

R120

C185

R138

R115

C214

R136

C184

R137

C175 R116

C174

R113

IC5

S3

R128

R129

R117

R139

C270

C234

R204 R205

R208

R206

R207

C235 R203

C233

C232

C35

C261

Q4

L9

C33

C21

L51

EP6

C20

C18

Q2

R9

C262

R8

C26

R10

C27

R7

C255

R6

C25

R252

C24

R5

C23

R56

R54

C17

Q1

R55

Q14

C95

D24

C237

R4

D2

C15

R3

L53

R1

C8

C9

L3

L52

C114

C103

R71

R63

C159 C158 C157 C156

R2

L6

C236

R209

C160

R104

C93

S1

X3

X1

MC1

X2

J3

J5

J4

VHF

B5680B

J1

J2

A

J2 to the SW-A/B units

1

7

GND TLED RLED VCC VOLIN VOLOUT CBI0

J1 to the SW-A unit

1

4

CBI3 CBI2 CBI1 CBI0

J3 to the speaker

1

2

GND

SP

9 - 2

• BOTTOM VIEW

R134

D18

C161 C162

C182

R133

R228

C183

C181

R130

Q21

R229

Q33

R131

R132

R126

R227

C257

C107

R65

C102

C105

L21

D12

D10

C101

R62

L20

C106

C104

R70

D13

L54

C111

C113

R66

C249

C265

C108

C100

D9

L19

C99

D1

C5 C6

L1

C4

L2

C7

C14

C13

L4

C12

L5

C1

C2

C3

C10

C11

EP4

EP5

W8

IC2

C97

R58

R59 C96 R57

R213

D25

Q32

D17

C238

C165

C239

C240

C98

R60 R61

R68

C110

C109

C115

R125

C173

R242

C119

Q15

R64

L22

C116

R245

D14

D15

L24

C122

C112

L56

R73

C118

R72

C117

C120

R74

C121

R75

R124

C176

R127 R118

R119

C179

C178

IC6

IC9

R165 C203

C186

R140 C187 R141 C189

C190

R142

R100

C202

C138

R99

C154

R93

C123

R76

Q16

C126

L25

C139C144

C127

L26

R85

C128

R86

C137

R89

C136

IC3

R91

Q17

R90

R95

C39

R88

C129

C132

R83

C133

C130

C167

R109

D23

R103

R247

C171

R107

Q20

FI1

C134

Q19

IC4

R106

C170

C168

C169

R105

C215

R175

R211

C75

R40

C266

R41

C76

R28

C45

L27

C56

C149

C151

C57

C49

R36

C155 R98

C147

L28

R185

R97

C146

C148

C150

Q18

C153

C142 C152

R220

Q12

Q22

Q28

Q35

Q29

C222

R184

C219

R183

C227

C218

C220

C221

R96

R181 R182

W12

C217 R180 R177 R176 R233 R234 W13

R178

R179

R201

R200

R216

R217

R199

C248

R241

IC7

R148

R239

R147

C42

C59

C91

L18

R202

R161

C90

R53

R38

C72

R45

Q13

R37

C70 C64

R43

C78

R44

R240

R27

R42

D20

IC1

C89

C216

C92 C80

R232

R52

C211 R172

Q26

R171

R173

Q27

R174 C212

C83 R46 C81

Q31

C82

D21

R49R48

R47

IC11

R149

R152

R212

R210

R154

C198

R218

R219

C195 R158

C247

R157

C200

D16

IC8

R160

C199

MP5

9 - 5

9-2 SW-A AND SW-B UNITS

• TOP VIEW SW-A UNIT

F1

Q1

DS1

B5603C

SW-B UNIT

F1

Q1

DS1

9 - 6

• BOTTOM VIEW

SW-A UNIT

SW-B UNIT

R2

R3

R1S1

J2 to the MAIN unit J2

17

CBI0

VOLOUT

VOLIN

VCC

RLED

TLED

GND

J1 to the MAIN unit J1

14

CBI0

CBI1

CBI2

CBI3

S1

W1

R2

R3

W2 R1

B5604C

J2 to the MAIN unit J2

17

CBI0

VOLOUT

VOLIN

VCC

RLED

TLED

GND

10 - 1

SECTION 10

BC-146 OPTIONAL DESKTOP CHARGER INFORMATION

REF. NO. ODER NO . DESCRIPTION QTY.

MP1 8010018620 2447 case (A) 1 MP2 8110007450 2447 cover 1 MP3 8930039620 Leg cushion (A) 4 MP4 8930055020 2480 spacer 1 MP5 8930055030 2480 BC-spacer 1 MP6 8810008660 Screw B0 M 3 x 8 NI-ZU (BT) 1

[CHASSIS UNIT]

10-1 PARTS LIST

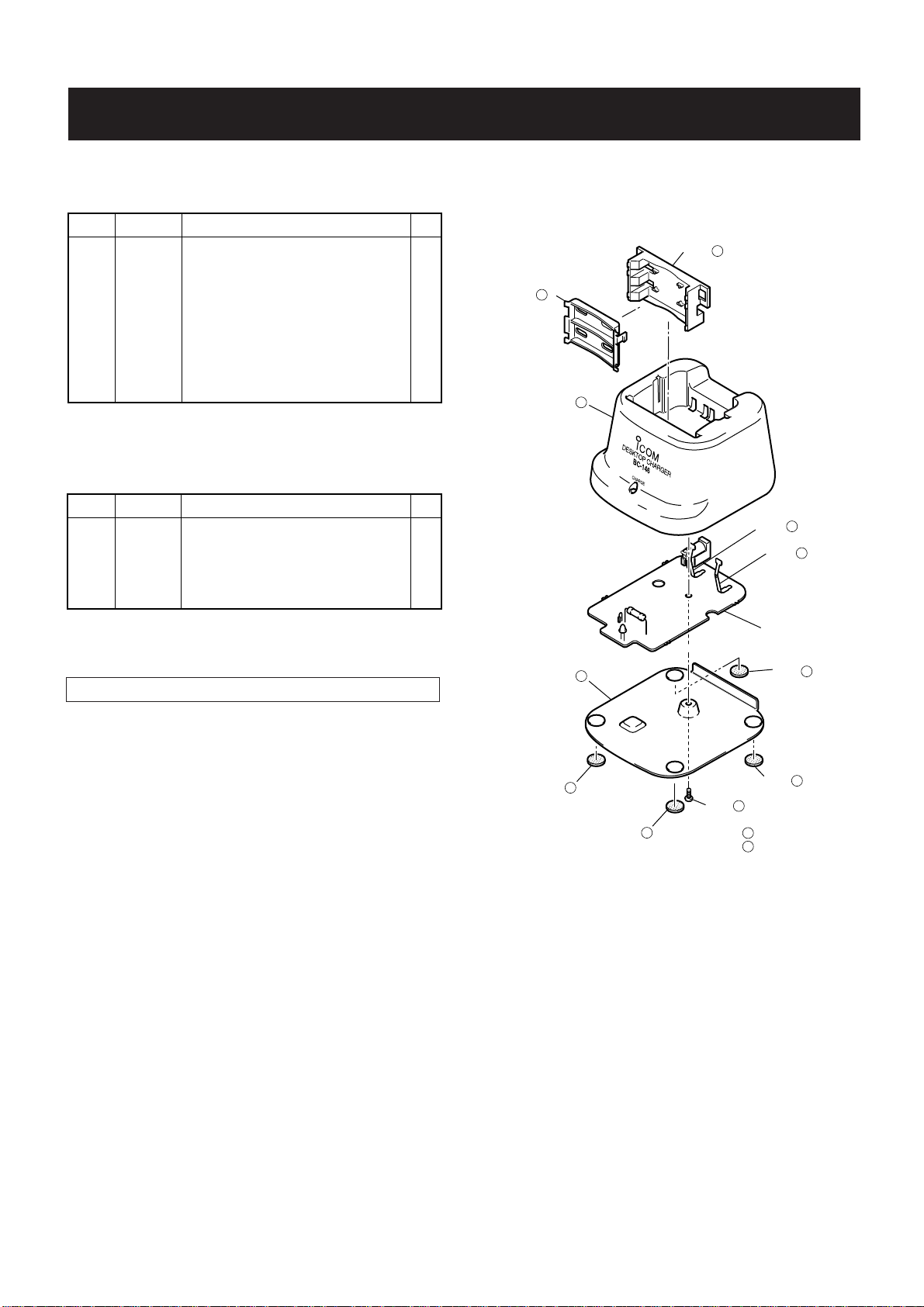

10-2 DISASSEMBLY INFORMATION

MP1

MP2

MP6

MP3

MP4

MP5

MP3

CHARGE unit

MP3

NOTE:

B

A

:CHASSIS UNIT :CHARGE UNIT

A

MP1

B

MP2

B

A

REF. NO. ODER NO . DESCRIPTION QTY.

[CHARGE UNIT]

R1 7010007550 RESISTOR ERG3SJ680H 1 R2 7010007100 RESISTOR PSD1/4V 1 kΩ 1

J1 6510021470 CONNECTOR HEC0470-01-230 1

DS1 5040001390 LED TLG124A 1

EP1 0910053820 PCB B 5650 1

MP1 8930051340 2338 TERMINAL 1 MP2 8930051340 2338 TERMINAL 1

Screw abbreviations B0, BT:Self-tapping

NI-ZU :Nickel-Zinc

NOTE: BC-146 is included with IC-F11BR and IC-F11S (For USA).

10 - 2

10-3 VOLTAGE DIAGRAM

10-4 BOARD LAYOUT

MP1

R1 68

J1

HEC0470-01-230

R2 1k

DS1

TLG124A

MP2

C : 13.8V N : 13.8V

C : 7.2V N : 13.8V

C : 9.2V N : 13.8V

J1

MP1

MP2

B5650

R1

R2

DS1

11 - 1

SECTION 11 BLOCK DIAGRAM

ANT 440–470MHz

Q1

2SK2974

D1 1SV307 D9,D10 MA77

D2 RB706F-40

Q2 2SK2973

Q3 2SC3585

Q4 2SC5107

VCO SW

D3,D4 MA77

Q7 2SC5107

Q5 2SC5107

Q8 DTC144EU Q9 XP1214

R5V

S5V

RX VCO

Q12 XP6501

Q10 2SC5085 D5 HVU350

Q11 2SC5085 D7 HVU350

LVIN

BUFF

Q13 2SK880

IC1 MB15A02PFV1

X1 CR-671A

REF BAL

DEV

15.3MHz

Q18 2SC4116

REF

Q31 2SC4215 D19 HVC362

393.65–470MHz

DET

PLST SO SCK UNLK

2nd MIXER IF AMP SQL AMP DETECTOR

MOD

TX VCO

2ndLO

45.9 MHz

D6 MA368

IC3 TA31136FN

IF IC

NOIS

Q6 2SC5107

Q17 2SC4215

FI1 FL-313

46.35MHz

Q19 3SK272

1stLO

393.65–423.65 MHz

D15 HVU350

D14 HVU350

D13 HVU350

AGC CONT

RSSI

Q33 3SK1829

PWR DET

T4

IC2 TA75S01F

D12 HVU350

MUTE SW

LPF

ANT

SW

PWR

AMP

YGR AMP

PRE DRIVE

APC

AMP

Q14 DTA144EU

TXC

EXT.MIC

T1

MC1 KUC3523

+5V

PTT SW

Q22 UN911H

J4

HSJ1122 010010

T2

Q15 3SK293

PTT

T4

T3

1st MIXER

FI2

RSSI

450kHz

X2 CDBCA450CX24

ALFYM450F=K

SQLIN

MICDET

DEV

DET

D/A

T1 T2 T3 T4

Q21 DTC144EU

IC5C NJM13403V

IC5B NJM13403V

IC9 M62363FP

IC6 BU4066BCFV

IC5D NJM13403V

IC6 BU4066BCFV

ANALOG SW

R1 AF VR

VOLIN

2ch VERSION S1 AS-244-A13

VCC

CH SELECT /EMERGENCY

S1 SW-A TP70QF4161 SW-B (EMER) SKHHLP014A

VOLOUT

CBI0

AF AMP REG

AFON

SP+ SP–

Q19 2SB1132 Q20 XP6501

AFOUT

S3

J5

HSJ1456-01-220A

INT.SP

PTT

INT.MIC

F1 F2

EXT.SP

IC4 TA7368F

CLI,CLO

CLONE

CLONE BUFF

Q32 DTC144TU

F1 F2 PTT TXC

D17 RB706F-40

BATT

FUSE

F1

LED SW

Q1 XP4216

HV

CBI0 CBI1 CBI2

CBI3 RLED TLED

TX LED

BUSY LED

DS1 LNJ107W5PRW

IC16 NJM12904V

SW

W/NNWC

DAST SCK SO

Q29 2SC4116

CTCSS/DTCS

REF

BAL

IC12A NJM12904V

RESTORATION

FIL SW

CDEC

IC12B NJM12904V

Q30 XP1213

Q28 DTC144EU

ANALOG

SW

IC13 TC7S66FU

DUSE

CENC0 CENC1 CENC2

SENC0 SENC1 SENC2 SENC3

+5 REG

S5 REG

VCC

+5V

S5V

IC10 NJM2870

Q24 2SB1132

S5 CONT

Q23

DTA144EU Q25 XP6501

EEPROM

RESET

CPU5V

RES

IC8 S-8094ANMP

RMUT MMUT DUSE

SO SCK EXST

IC15

SCK ESDA

CPU IC7 HD6433664

IC11 HN58X2416TI

X3 CR-702

BEEP NOIS RSSI LVIN BDET TEMP BATV

D16 MA77

SHIFT SW

EXPANDER

NWC

CSFT

S5C R5C

T5C

BU4094BCFV

R5 REG

T5 REG

R5V

T5V

Q26 2SA1577

Q27 2SA1577

SDEC

IC5A NJM13403V

Explanatory notes

COMMON LINE TX LINE RX LINE

CONTROL LINE

BPFBPFBPFBPF

RF

AMP

TX / RX

SW

BUFFBUFF

BUFF

ATT

XTRL

BPF

AMP

RIPPLE

FIL

LOOP

FIL

PLL

IC

BPF

LPF

x 3

CERAMIC

BPF

MIC

AF AMP

LPF

AMP

HPF

LPF

BEEP

TONE

RMUT

MMUT

CTCSS

R5C

LPF

DET

LPF

MAIN UNIT

SW-A/SW-B UNIT

1

0

SECTION 12 VOLTAGE DIAGRAM

NOTE: A: [F12] and [F12S] B: [F11], [F11BR] and [F11S]

C: [F11] and [F12] D: [F11BR], [F11S] and [F12S]

SPEAKER

SP1

MC1

MIC

PTT

EXT.MIC

EXT.SP

From SW-A UNIT

From/to SW-A and SW-B UNITS

CHASSIS UNIT

W1

1 2

OPC-963

J4

J5

J1 C only

BDET

LV

C73 47 P

R92

1.8 k

RSSI

2.1 V

R136 10 k

C206 10

5/2 tonecode transmitting 3 V P-P

5 6

IC16B NJM12904V

VCC T5V

S5V

Q12 XP6501 AB

C59 47 P

R41

2.2 k C76

3.3

C205

0.1

7

61 5 4

R220

2.2 k

R40 220

R93 330

C139

0.001

C183

0.1

VOLIN VOLOUT

AFOUT

TONE

C56

R38 82 k

R89 470

0 V

2.9 V

R90 120 k

R88 820

IC5B NJM13403V

R131

5.6 k

R167

R168

470 k

R208 100 k

R209 100 k

C228

0.1 R196

22 k

C230

0.01

1

D6 MA2S077

C67

0.0022

R37

C70

220 k

0.001

C136

0.01

5

7

6

R129 10 k

Q21 DTC144EU

C257

0.1

NWC

R166 470 k

R207 39 k

C227

0.01

3 2

C229

0.0068

C69 82 P

C66 36 P

C64

0.1

R127 10 k

R130 12 k

R128 47 k

C235 820 P

R206 82 k

8

1

4

0 V

0.7 V

IC12A NJM12904V

L16 80 nH

R39 1 k

C63

0.001

R27 10 k

FI1 FL-311

2.1 V

R34 47 k

R240 1 k

R195 120 k

R194 68 k

C268

2.5 P

C134 9 P

D22 MA77

C234 820P

C226

0.1

T1 T2

DAST SCK SO

D5 HVU350B

C71

0.001

Q8 DTC144EU

R36 1 k

C132

0.001

C133 1 P

R126 180 k

MMUT

R165 470

C204

0.01 C203

0.01

R205 180 k

C233

0.1

R192 18 k

R193 220 k

C225

4.7

D7 HVU350B

C62

0.1

R5C

R204 390 k

C51 2 P

C65 2 P

IC6 BU4066BCFV

4.8 V

T1 T2

DAST SCK SO

T3 T4

4

2 3

11

C224

0.033

R31

4.7 k

C61

0.001

R32

4.7 k

C130

0.01 R85

560

R86 120

1

I/O

2

O/I

3

O/I

4

I/O

5

CONT.B

6

CONT.C

7

VEE

IC9 M62363FP-650C

1

VIN1

2

VOUT1

3

VOUT2

4

VIN2

5

VDD

6

LD

7

CLK

8

DI

9

VIN3

10

VOUT3

11

VOUT4

12

VIN4

1

IC5A NJM13403V

R189 100 k

R190 47k

R191 47k

4

2 3

C58 10

C75 1

C182

0.047

R134

4.7 k

R5V

C138

0.001

C72

0.001

L17

4.7 H

C137 100P

DET

R198 22 k

C231

0.039

C57 47 P

R197 22 k

C181

0.047

T1 T2 T3 T4 DAST SCK SO

R35 33 k

R91 680

Q17 2SC4215 O

R133 12 k

R132 10 k

WIDE 4.8 V NAR 0 V

C236

0.022

VCC T5V

S5V +5V

+5V +5V

C269

0.001

VOLOUT

AFOUT

C238

0.001

CBI0 CBI1 CBI2 CBI3

CBI0

VCC RLED TLED

VOLIN

MIC

C93 47 P

C94 47 P

REF

F1

BAL

LVIN

F2

R232 150 k

PLST SO SCK UNLK

DEV

C92

0.1

VCC

+5V

T5V

PTT

VOLIN

VOLOUT

VCC

+5V

T5V

+5V

R213 470

D17 RB706F-40

C85

2.2

R246 22

R5V S5V

C153

0.01

R5V

S5V

SQLIN

VCC S5V +5V

+5V +5V

SQLIN

R5V

S5V

MIC MIC VOLIN VOLOUT

AFOUT

SQLIN VCC

+5V S5V R5V

T5V

R5V

S5V

R5V

R248 1

Q32

D24

DTC144TU

HSU88

S1

S2

W13

W12

C159

0.001

C213

0.001

C162 470 P

C240 47 P

D only

C158

0.001

C215

0.001

OPT MIC

C161

0.001

W11 D only

C157

0.001

C160 47

C237

0.001

C239

0.001

MIC

R175 33 k

C214 47 P

C156

0.001

D only

1 2 3 4

J2

1 2 3 4 5 6 7

J3

S3

SP 1 2

EP4

EP5

AFOUT SP CLONE

R50 10 k

R230 27 k

C152 10 P

R47 47

C84

0.01

Q36 2SK1829

R251 120 k

R52 1k

R97 680 k

PTT ON 4.8V PTT OFF 0V

4.9 V 0 V

Q27 2SA1577 Q

R174

4.7 k

T5C

CLI

CLO

C258 47 P

R51 47 k

R249 470 k R250 470 k

IC1 MB15A02PFV-1

16

R

15

P

14

FOUT

13

NC

12

FC

11

LE

10

DATA

9

LOCK 4.5 V UNLOCK 0.5 V

R96

0 V

1.2 k

3.5 V

L28

1.0 H

Q18 2SC4116 GR

R100 47 k

C189

C190

470 P

0.047

R173 10 k

C212

0.01

BDET

R211 100 k

R210 120 k

R214 1 k

OSCIN

OSCOUT

D20 MA2S111

C252 100 P

D19 HVC362

1 2 3

VP

4

VCC

5

DO

6

GND

7

LD

8

FINCLOCK

C151 18 P

R99

1.2 k

C188 10

0 V

4.9 V

Q26 2SA1577 Q

R172

4.7 k

R5C

R215 22 k

C150 2 P

R142 100 k

SENC3

R216 22 k

R222 68 k

C242

0.0027

X1

C82

CR-664A

0.1

C253 9 P

C149 18 P

C154 220 P

C155 220 P

R141 470

Q22 UN911H

C211

0.01

SENC2

R217 47 k

R223 68 k

C86

0.001

R171 10 k

4.8 V

R48 82 k

D21 MA2S111

C88

0.1

L27

1.0 H

R98 47 k

SENC1

R218 100 k

R49 47 k

C87 47 P

C148 10 P

Q24 2SB1132 R

6

132

R170

C210

2.2 k

22

SENC0

R219 220 k

R224 68 k

C81 100 P

C83 100 P

15.3 MHz

0.75 V P-P

R5V S5V

FI2 ALFYM450F=k

OI

4

5

C243

0.0056

4.9 V

Q31 2SC4215 O

C80 47 P

R46

1.2 k

R53 56

C89

0.001

R95 150

C147

0.1

EP7 A only

C187

0.022 B only

R169 10k

Q25 XP6501 AB

C209

0.1

C244 180 P

3 2

C90 56 P

0 V

R94

4.7 V

47

C146

0.001

C186

0.0056 B

0.0022 A

R140 15 k B only

8

1

4

IC16A NJM12904V

L18 33 nH

IC3 TA31136FN

1

OSCIN

2

OSCOUT

3

MIXOUT

4

VCC

5

IFIN

6

DEC

7

FILOUT

8

FILIN AFOUT

C145 1

R139 100 k

Q23 DTA144 EU

C208

0.01

C223 47 P

S5C

R225 68 k

C91 56 P

C185

0.1

DEV R5V

S5V

MIXIN

GND

N-REC

N-DET

RSSI

IFOUT

QUAD

R138 470

16 15 14 13 12 11 10 9

Q13 2SK880 Y

R45 10 k

C144

0.001

10 9

R137 200 k

C207 10

R226 68 k

+5V

R44 1 k

C78

0.001

R43

8.2 k

R42 1

R221

X2

100 k

CDBCA450CX24

C143

0.001

C140 120 P

C142

0.001

NOIS

VCC S5V +5V

IC5C NJM13403V

8

C184 180 P

SQLIN VCC

+5V

IC10 NJM2870

5

4

VIN

VOUT

CTRL

GND

VB

1

2

3

C259

0.01

S5V S5V R5V

C245

0.0082

C246 68 P

R28 47

C48

R29

0.001

820

C49

0.5 P

Q10 2SC5085 Y

L15

2.2 H

Q11

Q11 2SC5085 Y

2SC5085 Y

R5V S5V

RSSI

C129 56 P

Q16 3SK272

C128

0.001

VCC S5V +5V

VDD CONT.A CONT.D

I/O O/I O/I I/O

VOLIN VOLOUT

AFOUT

SQLIN VCC

VIN8 VOUT8 VOUT7

VIN7

GND RESET

VDAREF

DO

VIN6 VOUT6 VOUT5

VIN5

C270

0.001

2.5 V

IC13 TC7S66FU

1

5

3

4

2

Q30 XP1213

3 2 1 5

VCC T5V VCO5V

C60

0.001

14 13 12 11 10 9 8

24 23 22 21 20 19 18 17 16 15 14 13

R203 56 k

R83 100

L26

0.47 H

0 V

1.0 V

C127 47 P

R242 22 k

DET SQLIN DEV

+5V

BAL REF

SDEC

6 5

IC12B NJM12904V

C232

0.0012

7

R188 470 k

0 V

4.5 V

CTCSS code

3.1 V P-P

DUSE

REF

BAL

CDEC

12 - 1

6

5 VU350B

Q8 DTC144EU

R36 1 k

71

.001

R126 180 k

D7 HVU350B

C132

0.001

C133 1 P

MMUT

C62

0.1

R5C

C51 2 P

R31

4.7 k

C61

0.001

C65 2 P

R32

4.7 k

C130

0.01 R85

560

IC6 BU4066BCFV

1

I/O

2

O/I

3

O/I

4

I/O

5

CONT.B

6

CONT.C

7

VEE

R28 47

R29 820

Q10 2SC5085 Y

L15

2.2 H

Q11

Q11 2SC5085 Y

2SC5085 Y

R86 120

CONT.A CONT.D

C48

0.001

C49

0.5 P

R5V S5V

RSSI

C129 56 P

Q16 3SK272

C128

0.001

VCC S5V +5V

VDD

I/O O/I O/I I/O

VOLIN VOLOUT

AFOUT

VCC T5V VCO5V

14 13 12 11 10 9 8

C60

0.001

R83 100

L26

0.47 H

C127 47 P

R242 22 k

0 V

1.0 V

0 V

4.5 V

C46

0.001

C45 47 P

RMUT

L25

0.1 H

4.1 V

3.7 V

R26 68 k

C179 1

R24 100

L50

0.1 H

Q7 2SC5107 O

C126 33 P

C123 18 P

R76 820

R125 1 M

L24 56 nH

C43

0.001

R81 470

R124 27 k

C178

0.01

C44 2 P

3.3 V

R23 68 k

Q6 2SC5107 O

R80 12

C122

3.5 P A 6 P B

TONE

T4

R22 220

L11

0.1 H

R79 470

R75 10 k

R123 150 k

C248 0.1

C42 22 P

C125 27 P

D15 HVU350B

C120 33 P B 68 P A

BEEP

C41 7 P

R122 10 k

R74 220 k

C121

0.001

1LO

C119

1.5 P

R121 15 k

C40

0.001

R21

4.7

R78 10 k

R72 220 k

C118

0.001

C176

0.0018 C177

2.2

VCO5V

3.5 V

R20 47 k

Q5 2SC5107 O

D14 HVU350B

C117 82 P

R73 10 k

R119 270 k

R120 82 k

C34

R13

0.001

3.7 V 0 V

14

C109

0.01

R115 120 k

10

L9 27 nH

Q4 2SC5110 O

R244 100

R66 10 k

C108 47 P

0 V

3.1 V

R68 470

R114 10 k

C35 47 P

C261

0.001

C260

0.001

C249 0.47 A only

C107

R64

0.001

18 k A 100 k B

R65 120 k A 270 k B

R113 820

C37

0.001

2.1 V 0 V

C112

0.01

0 V

2.0 V

R117 100 k

R16 100

R17 10 k

C36 18 P

R243

1.5 k

L22 56 nH

Q15 3SK294

C110 47 P

VCC S5V

C174 150 P

13 12

IC5D NJM13403V

R19 100

L10

C267

0.1 H

6 P

1.3 V

C39

1.2 V

12 P

D4 MA77

R5V S5V

RSSI RSSI

R77 1 k

C124

0.001

C116

2.5 P

T3

R118 220 k

0 V

2.0 V

0 V

4.6 V

R245 820 B

2.2 k A

C175

0.0056

R18 1 k

L56 1 H

R116 33 k

D3 MA77

C115

0.001

2.1 V

C38 9 P

VCC VCC T5V

C21

0.001 C255

R8 68

R9 33 k

R228 470 k A only

D18 MA2S111 A only

L21 56 nH

R109 68 k

AFON

22 P

C173

0.1

C33 100 P

C265 7 P

R253 470

T2

0 V

4.6 V

L54 56 nH

R71 10 k

S5V

Q33 2SK1829 A only

R229

5.6 k A only C111

3 P A 4 P B

R70 220 k

C114

0.001

S5V

R111 27 k

R112

2.2 k

VOLOUT AFOUT

C262

0.1

R110

3.3 k

C172 47

AF ON

4.8 V

R10

4.7 k

C106 1 P

D13 HVU350B

C113 56 P

T1

R238 100 k

C27

0.001

C105 3 P A

2.5 P B

VCC

D23 MA2S111

C26

0.001

R227 10 k A only

D12 HVU350B

C104 27 P B 47 P A

L6 EXCCL3225U

EP6

L51 18 nH

C24 100 P

Q2 2SK2973

0 V

0.6 V

R63 10 k

Q19 2SB1132 R

12

R107

C171

1 k

0.22

R7

4.7 k

C20

0.001

R252 10

C18 47 P

R6 100 k

C102 4 P A 6 P B

R62 220 k

C103

0.001

Q20 XP6501 AB

456

3

C170

0.1

R5 22

C25

0.001

C101 10 P A 4 P B

L20 50 nH

D10 MA77

C23

0.1

C100 18 P A 22 P B

R105

2.7 k

R106

3.3 k

L52 60 nH

L53

10.5 nH

Q1 2SK2974

MP5

L19 50 nH

D9 ISV307

C169

6.8

AF ON

7.5 V

VOLOUT

C99 11 P

C168

0.22

C17 68 P

2.4 V 0 V

C98

0.01

R61 1 k

L5 22 nH

R60 100

R104 10 k

C14 15 P

W8

IC2 TA75S01F

C12

0.001

C13 15 P

C15

0.001

R247 1 k

C167

0.047

T5V

R2

C11 15 P

C8 47P

L4 50 nH

C96

0.1

PREGND

150

L3

4.7 H

C7

0.001

C10 18 P

D25 MA2S111

POUT

PWGND

PHASE

D1 1SV307

S5V

R55

2.2 k

1.6 V

4.4 V

R56 10 k

R57 68 k

T4

10 9 8 7 6

NF

R103 33

C166 10

C9

0.001

R3 15 k

D2 RB706F-40

R4

4.7 k

C97

0.1

R58 150 k

2

3

4

1

5

R59 120 k

IC4 TA7368F

1

NC

2

VCC

3

NC

4

VIN

5

RIPPLE

C6

0.001

Q14 DTA144EV

TXC

AF ON

3.4 V

C165 47 P

C5 22 P

L2 30 nH

C4 11 P

R239 100 k

C95

0.001

R102 10

C164

0.047

AFOUT

C3 24 P

L1 32 nH

C2 7 P

C1 9 P

R54 10 k

C163 100

R1 82 k

ANT

SQLIN VCC

IC9 M62363FP-650C

4.8 V

R165 470

ST K

C204

0.01 C203

0.01

R204 390 k

R205 180 k

C233

0.1

R192 18 k

R193

C224

220 k

0.033

C225

4.7

T1 T2

DAST SCK SO

T3 T4

2 3

1 2 3 4 5 6 7 8

9 10 11 12

4

1

IC5A

11

NJM13403V

R189 100 k

VIN1 VOUT1 VOUT2 VIN2 VDD LD CLK DI VIN3 VOUT3 VOUT4 VIN4

R190 47k

R191 47k

Q30 XP1213

4

VIN8 VOUT8 VOUT7

VIN7

GND RESET

VDAREF

DO

VIN6 VOUT6 VOUT5

VIN5

C270

0.001

2.5 V

IC13 TC7S66FU

1

5

3

4

2

3 2 1 5

24

DET

23

SQLIN DEV

22 21 20 19

+5V

18 17 16

BAL

15

REF

14 13

REF

BAL

R203 56 k

SDEC

6 5

C232

0.0012

7

IC12B NJM12904V

CDEC

R188 470 k

R187 470

0 V

1.8 V

CTCSS code transmitting

3.1 V P-P

DUSE

R185 15 k

DEV

C202

0.001

C221

0.01

DET

S5V

R183 1 k

Q29 2SC4116 GR

R184 47 k

C222

0.1

4.9 V

L29 39 H

C201 47 P

IC8 S-80942ANMP-DD6

5

OUT

CD

VDD

4

C200

NC

R182 47 k

VSS

0.027

C220 820 P

1 2 3

C219

0.1

Q28 DTC144EU

R181 47 k

R176 22 k

R180 10 k

C218

0.039

R160 10 k

R177 22 k

R178 56 k

R179 180 k

C217

0.1

Q35 DTC144EU

C199

0.001

CENC2

CENC1

CENC0

RMUT MMUT

NWC S5C R5C T5C

DUSE

DTCS

4.5 V

C197 22

C196 470 P

CSFT

D16 MA77

R159 12 k

R163 1 k

R164 1 k

R157 12 k

R158 12 k

ESDA

SCK

R202 100 k

C195 68 P

R161 10 k

C194 15 P

C216

0.01

4 5 6

7 14 13 12 11

9 10

X3 CR-702

R156 1 M

16

Q1 Q2 Q3 Q4 Q5 Q6 Q7 Q8

QS QS

8

1

STR

2

D

3

CLK

15

OE

IC15 BU4094BCFV

8

VCC

7

WP

6

SCL

5

SDA

R151 NTCCM20124AG473JCT

R152 100 k

R155 10

C193 22 P

IC11 BR24C16FV-E2

C191

0.1

14.7456 MHz

1.1 V P-P

EXST SO SCK

1

A0

2

A1

3

A2

4

VSS

RES

C198

0.1

TEMP

OSC1 OSC2

CPU5V

4.9 V

C247

0.1

CPU5V

R234 100 k

R153 100 k

R233 100 k

R154 100 k

CPU5V X1

VCL RES TEST VSS OSC2 OSC1 VCC

C192

0.1

SENC1

SENC0

CBI0

CBI1

BATV

10 11 12 13 14 15 16

1

NC

2

NC

3

AVCC

4

X2

5

X1

6

VCL

7

RES

8

TEST

9

VSS OSC2 OSC1 VCC P50/WKP0 P51/WKP1 NC NC

R200 1 k

64

17

BDET

LVIN

RSSI

SDEC

CDES

UNLK

63

6261605958575655535251

NC

PB0/AN0

PB1/AN1

IC7 HD6433664A24FP

NCNCP52/WKP2

P53/WKP3

1819202122232425272829

SENC3

SENC2

PB2/AN2

PB3/AN3

PB7/AN7

PB6/AN6

PB5/AN5

P54/WKP4

P55/WKP5/ADTRG

P10/TMOW

P11

P12

263230

CBI2

CENC2

CENC1

CENC0

54

PB4/AN4

P56/SDA

CBI3

NOISF2F1

R149 1 k

50

49

NC

P16/IRQ2

P15/IRQ1

P14/IRQ0

P22/TXD P21/RXD

P20/SCK3

P17/IRQ3/TRGV

P84/FTIOD P83/FTIOC P82/FTIOB P81/FTIOA

P80/FTCI

P57/SCL

P74/TMRIV

P75/TMCIV

P76/TMOVNCNC

31

R201 1 k

SO

SCK

R212

R146 100 k

R143 100 k

15k

R147 1 k

R148 1 k

CLO CLI ESDA AFON TLED RLED TXC

PTT EXST DAST PLST

R241

REMO

NC

48

NC

47

NC

46 45 44 43

P87

42

P86

41

P85

40 39 38 37 36 35

NMI

34

NC

33

NC

R199 47 k

BEEP

1 k

SECTION 12 VOLTAGE DIAGRAM

NOTE: A: [F12] and [F12S] B: [F11], [F11BR] and [F11S]

C: [F11] and [F12] D: [F11BR], [F11S] and [F12S]

SPEAKER

SP1

MC1

MIC

PTT

EXT.MIC

EXT.SP

From SW-A UNIT

From/to SW-A and SW-B UNITS

CHASSIS UNIT

W1

1 2

OPC-963

J4

J5

J1 C only

BDET

LV

C73 47 P

R92

1.8 k

RSSI

2.1 V

R136 10 k

C206 10

5/2 tonecode transmitting 3 V P-P

5 6

IC16B NJM12904V

VCC T5V

S5V

Q12 XP6501 AB

C59 47 P

R41

2.2 k C76

3.3

C205

0.1

7

61

2

5

3

4

R220

2.2 k

R40 220

R93 330

C139

0.001

C183

0.1

VOLIN VOLOUT

AFOUT

TONE

C58 10

C75 1

R134

4.7 k

C182

0.047

R5V

C138

0.001

C72

0.001

L17

4.7 H

C137 100P

DET

R198 22 k

C231

0.039

C57 47 P

R197 22 k

C181

0.047

T1 T2 T3 T4 DAST SCK SO

R35 33 k

R91 680

Q17 2SC4215 O

R133 12 k

R132 10 k

WIDE 4.8 V NAR 0 V

C236

0.022

R38 82 k

R89 470

0 V

2.9 V

R90 120 k

IC5B NJM13403V

R131

5.6 k

R167

R168

470 k

R208 100 k

R209 100 k

C228

0.1 R196

22 k

C230

0.01

C56 1

D6 MA2S077

C67

0.0022

R37

C70

220 k

0.001

C136

0.01

R88 820

5

7

6

R129 10 k

Q21 DTC144EU

C257

0.1

NWC

R166 470 k

R207 39 k

C227

0.01

C229

0.0068

C69 82 P

C66 36 P

C64

0.1

8

3

1

2

4

IC12A NJM12904V

R128 47 k

R127 10 k

R130 12 k

C235 820 P

R206 82 k

0 V

0.7 V

L16 80 nH

R39 1 k

C63

0.001

R27 10 k

FI1 FL-311

2.1 V

R34 47 k

R240 1 k

R195 120 k

R194 68 k

C268

2.5 P

C134 9 P

C234 820P

D22 MA77

C226

0.1

T1 T2

DAST SCK SO

D5 HVU350B

Q8 DTC144EU

C71

0.001

R126 180 k

C204

0.01

R205 180 k

C233

0.1

R193 220 k

C225

4.7

R36 1 k

D7 HVU350B

C132

0.001

C133 1 P

MMUT

R165 470

C203

0.01

R192 18 k

C62

0.1

R204 390 k

R5C

C224

0.033

4.8 V

C51 2 P

R31

4.7 k

C61

0.001

C65 2 P

R32

4.7 k

C130

0.01 R85

560

IC6 BU4066BCFV

1

I/O

2

O/I

3

O/I

4

I/O

5

CONT.B

6

CONT.C

7

VEE

IC9 M62363FP-650C

1

VIN1

T1

2

VOUT1

3

T2

VOUT2

4

VIN2

5

VDD

6

DAST

LD

7

SCK

CLK

8

SO

DI

9

VIN3

10

T3

VOUT3

T4

11

VOUT4

12

VIN4

4

2

1

3

IC5A

11

NJM13403V

R189 100 k

R190 47k

R191 47k

R86 120

4

VCC T5V

S5V +5V

+5V +5V

C269

0.001

VOLOUT

AFOUT

C238

0.001

CBI0 CBI1 CBI2 CBI3

CBI0

VCC

RLED

TLED

VOLIN

MIC

C93 47 P

C94 47 P

REF

F1

BAL

LVIN

F2

R232 150 k

PLST SO SCK UNLK

DEV

C92

0.1

VCC

+5V

T5V

PTT

VOLIN

VOLOUT

VCC

+5V

T5V

+5V

R213 470

D17 RB706F-40

C85

2.2

R246 22

R5V S5V

C153

0.01

R5V

S5V

SQLIN

VCC S5V +5V

+5V +5V

SQLIN

R5V

S5V

MIC MIC VOLIN VOLOUT

AFOUT

SQLIN VCC

+5V S5V R5V

T5V

R5V

S5V

R5V

R248 1

Q32

D24

DTC144TU

HSU88

S1

S2

W13

W12

C159

0.001

C213

0.001

C162 470 P

C240 47 P

D only

C158

0.001

C215

0.001

OPT MIC

C161

0.001

W11 D only

C157

0.001

C160 47

C237

0.001

C239

0.001

MIC

R175 33 k

C214 47 P

C156

0.001

D only

1 2 3 4

J2

1 2 3 4 5 6 7

J3

S3

SP 1 2

EP4

EP5

AFOUT SP CLONE

R50 10 k

R230 27 k

C152 10 P

R47 47

C84

0.01

Q36 2SK1829

R251 120 k

R52 1k

R97 680 k

PTT ON 4.8V PTT OFF 0V

4.9 V 0 V

Q27 2SA1577 Q

R174

4.7 k

T5C

CLI

CLO

C258 47 P

R51 47 k

R249 470 k R250 470 k

IC1 MB15A02PFV-1

16

R

15

P

14

FOUT

13

NC

12

FC

11

LE

10

DATA

9

LOCK 4.5 V UNLOCK 0.5 V

R96

0 V

1.2 k

3.5 V

L28

1.0 H

Q18 2SC4116 GR

R100 47 k

C190

0.047

C212

0.01

BDET

R211 100 k

D20 MA2S111

C189 470 P

R173 10 k

R210 120 k

R214 1 k

D19 HVC362

OSCIN

OSCOUT

VCC GND

C252 100 P

1 2 3

VP

4 5

DO

6 7

LD

8

FINCLOCK

C151 18 P

R99

1.2 k

C188 10

0 V

4.9 V

Q26 2SA1577 Q

R172

4.7 k

R5C

R215 22 k

C150 2 P

R142 100 k

SENC3

R216 22 k

R222 68 k

C242

0.0027

X1

C82

CR-664A

0.1

C253 9 P

C149 18 P

C154 220 P

C155 220 P

R141 470

Q22 UN911H

C211

0.01

SENC2

R217 47 k

R223 68 k

C86

0.001

R171 10 k

4.8 V

R48 82 k

D21 MA2S111

C88

0.1

L27

1.0 H

R98 47 k

SENC1

R218 100 k

R49 47 k

C87 47 P

C148 10 P

Q24 2SB1132 R

6

132

R170

C210

2.2 k

22

SENC0

R224 68 k

C81 100 P

C83 100 P

15.3 MHz

0.75 V P-P

FI2 ALFYM450F=k

OI

5

R219 220 k

C243

0.0056

Q31 2SC4215 O

R46

1.2 k

R5V S5V

EP7 A only

C187

0.022 B only

4

C209

0.1

C244 180 P

4.9 V

C80 47 P

R53 56

C89

0.001

R95 150

C147

0.1

R169 10k

Q25 XP6501 AB

3 2

C90 56 P

0 V

R94

4.7 V

47

C146

0.001

C186

0.0056 B

0.0022 A

R140 15 k B only

8

1

4

IC16A NJM12904V

L18 33 nH

IC3 TA31136FN

1

OSCIN

2

OSCOUT

3

MIXOUT

4

VCC

5

IFIN

6

DEC

7

FILOUT

8

FILIN AFOUT

C145 1

R139 100 k

Q23 DTA144 EU

C208

0.01

C223 47 P

S5C

R225 68 k

C91 56 P

C185

0.1

DEV R5V

S5V

MIXIN

GND

N-REC

N-DET

RSSI

IFOUT

QUAD

R138 470

16 15 14 13 12 11 10 9

Q13 2SK880 Y

R45 10 k

C144

0.001

10 9

R137 200 k

C207 10

R226 68 k

+5V

R44 1 k

C78

0.001

R43

8.2 k

R42 1

R221

X2

100 k

CDBCA450CX24

C143

0.001

C140 120 P

C142

0.001

NOIS

VCC S5V +5V

IC5C NJM13403V

8

C184 180 P

SQLIN VCC

+5V

IC10 NJM2870

5

4

VIN

VOUT

CTRL

GND

VB

1

2

3

C259

0.01

S5V S5V R5V

C245

0.0082

C246 68 P

R28 47

C48

R29

0.001

820

C49

0.5 P

Q10 2SC5085 Y

L15

2.2 H

Q11

Q11 2SC5085 Y

2SC5085 Y

R5V S5V

RSSI

C129 56 P

Q16 3SK272

C128

0.001

VCC S5V +5V

VDD

CONT.A

CONT.D

I/O O/I O/I I/O

VOLIN VOLOUT

AFOUT

SQLIN VCC

VIN8 VOUT8 VOUT7

VIN7

GND RESET

VDAREF

DO

VIN6 VOUT6 VOUT5

VIN5

C270

0.001

2.5 V

IC13 TC7S66FU

1

5

3

4

2

Q30 XP1213

3 2 1 5

VCC T5V VCO5V

C60

0.001

14 13 12 11 10 9 8

24 23 22 21 20 19 18 17 16 15 14 13

R203 56 k

R83 100

L26

0.47 H

0 V

1.0 V

C127 47 P

R242 22 k

DET SQLIN DEV

+5V

BAL REF

SDEC

6 5

IC12B NJM12904V

C232

0.0012

0 V

4.5 V

BAL

REF

CDEC

R188 470 k

7

0 V

1.8 V

CTCSS code transmitting

3.1 V P-P

DUSE

R187 470

C46

0.001

C45 47 P

RMUT

L25

0.1 H

DEV

R185 15 k

4.1 V

3.7 V

R26 68 k

C179 1

C202

0.001

C221

0.01

R24 100

L50

0.1 H

Q7 2SC5107 O

C126 33 P

R76 820

R125 1 M

DET

S5V

R183 1 k

Q29 2SC4116 GR

R184 47 k

C222

0.1

C43

0.001

C44 2 P

R81 470

C123 18 P

L24 56 nH

R124 27 k

C178

0.01

C201 47 P

IC8 S-80942ANMP-DD6

5

CD

4

C200

NC

0.027

4.9 V

C220 820 P

3.3 V

R23 68 k

Q6 2SC5107 O

R80 12

C122

3.5 P A 6 P B

TONE

L29 39 H

1

OUT

2

VDD

3

VSS

R182 47 k

R22 220

L11

0.1 H

C42 22 P

R79 470

D15 HVU350B

C120 33 P B

68 P A R75 10 k

T4

R123 150 k

C248 0.1

C219

0.1

Q28 DTC144EU

R181 47 k

C125 27 P

BEEP

C41 7 P

R122 10 k

R74 220 k

C121

0.001

R176 22 k

R180 10 k

C218

0.039

1LO

C119

1.5 P

R121 15 k

C40

0.001

R21

4.7

R78 10 k

R72 220 k

C118

0.001

3.5 V

R20 47 k

R73 10 k

C176

0.0018 C177

2.2

R160 10 k

R177 22 k

R178 56 k

R179 180 k

C217

0.1

Q35 DTC144EU

VCO5V

R19 100

L10

0.1 H

Q5 2SC5107 O

R77 1 k

C124

0.001

D14 HVU350B

C117 82 P

T3

R118 220 k

R119 270 k

R120 82 k

C199

0.001

CENC2

CENC1

CENC0

VCC VCC T5V

C34

R13

0.001

R16 100

3.7 V

R17 10 k

C36 18 P

R243

1.5 k

L22 56 nH

Q15 3SK294

C110 47 P

VCC S5V

C174 150 P

13 12

IC5D NJM13403V

R157 12 k

C195 68 P

R158 12 k

R161

SCK

10 k

R202 100 k

0 V

C37

0 V

4.6 V

R18 1 k

L56 1 H

R116 33 k

D3 MA77

C115

0.001

2.1 V

CSFT

C38 9 P

D16 MA77

R159 12 k

0.001

2.1 V 0 V

C112

0.01

R163 1 k

R164 1 k

0 V

2.0 V

R117 100 k

ESDA

C267 6 P

1.3 V

C39

1.2 V

12 P

D4 MA77

0 V

2.0 V

R5V S5V

RSSI RSSI

R245

C116

820 B

2.5 P

2.2 k A

C175

0.0056

C197 22

C196 470 P

RMUT MMUT

NWC S5C R5C T5C

DUSE

DTCS

4.5 V

10

C35 47 P

C261

0.001 L9 27 nH

Q4 2SC5110 O

R244 100

C249 0.47 A only

R66 10 k

C107

C108

0.001

47 P

0 V

3.1 V

R68

C109

470

0.01

R115 120 k

14

R114 10 k

X3 CR-702

R156 1 M

C194 15 P

16

4

STR

Q1

5

Q2

6

CLK

Q3

7

Q4

14

Q5

13

Q6

12

Q7

11

Q8

9

QS

10

QS

8

C216

0.01

C260

0.001

R64 18 k A 100 k B

R65 120 k A 270 k B

R113 820

1 2

D

3 15

OE

IC15 BU4094BCFV

8

VCC

7

WP

6

SCL

5

SDA

IC11 BR24C16FV-E2

C33 100 P

R253 470

C265 7 P

T2

C173

0.1

R151 NTCCM20124AG473JCT

R152 100 k

R155 10

C193 22 P

0 V

4.6 V

S5V

Q33 2SK1829 A only

R229

5.6 k A only C111

L54

3 P A

56 nH

4 P B

R71 10 k

S5V

R111 27 k

R112

2.2 k

VOLOUT AFOUT

C191

0.1

14.7456 MHz

1.1 V P-P

RES

EXST SO SCK

1

A0

2

A1

3

A2

4

VSS

R70 220 k

C114

0.001

C198

0.1

C262

0.1

R110

3.3 k

AF ON

4.8 V

C172 47

D13 HVU350B

C113 56 P

TEMP

OSC1 OSC2

CPU5V

C106 1 P

R238 100 k

T1

R10

4.7 k

C21

0.001

R8 68

R9 33 k

R228 470 k A only

D18 MA2S111 A only

L21 56 nH

R109 68 k

AFON

4.9 V

C255 22 P

C27

0.001

C105 3 P A

2.5 P B

D23 MA2S111

C247

0.1

VCC

C26

0.001

CPU5V

R227 10 k A only

R234 100 k

L6 EXCCL3225U

EP6

L51 18 nH

Q2 2SK2973

D12 HVU350B

C104 27 P B 47 P A

Q19 2SB1132 R

12

C171

0.22

R153 100 k

R233 100 k

C24 100 P

0 V

0.6 V

R63 10 k

R107 1 k

R7

4.7 k

R154 100 k

C20

0.001

R252 10

R6 100 k

C102 4 P A 6 P B

R62 220 k

C103

0.001

Q20 XP6501 AB

456

3

CPU5V X1

VCL RES TEST VSS OSC2 OSC1 VCC

C18 47 P

C170

0.1

C192

0.1

SENC1

SENC0

R5 22

C25

0.001

C101 10 P A 4 P B

CBI0

L20 50 nH

D10 MA77

BATV

10 11 12 13 14 15 16

CBI1

1

NC

2

NC

3

AVCC

4

X2

5

X1

6

VCL

7

RES

8

TEST

9

VSS OSC2 OSC1 VCC P50/WKP0 P51/WKP1 NC NC

R200 1 k

C23

0.1

C100 18 P A 22 P B

R105

2.7 k

R106

3.3 k

64

17

L52 60 nH

L53

10.5 nH

Q1 2SK2974

MP5

63

6261605958575655535251

NC

PB0/AN0

IC7 HD6433664A24FP

NCNCP52/WKP2

1819202122232425272829

SENC2

L19 50 nH

D9 ISV307

AF ON

7.5 V

C169

6.8

VOLOUT

BDET

LVIN

RSSI

PB1/AN1

PB2/AN2

PB3/AN3

P53/WKP3

P54/WKP4

P55/WKP5/ADTRG

SENC3

C17 68 P

C99 11 P

C168

0.22

SDEC

CDES

PB7/AN7

PB6/AN6

PB5/AN5

P10/TMOW

P11

P12

CENC2

CENC1

CENC0

2.4 V 0 V

C98

0.01

R61 1 k

UNLK

54

PB4/AN4

P56/SDA

263230

CBI3

CBI2

L5 22 nH

C14 15 P

W8

R60 100

IC2 TA75S01F

R104 10 k

NOISF2F1

R149 1 k

50

49

NC

P16/IRQ2

P15/IRQ1

P14/IRQ0

P22/TXD P21/RXD

P20/SCK3

P17/IRQ3/TRGV

P84/FTIOD P83/FTIOC P82/FTIOB P81/FTIOA

P80/FTCI

P57/SCL

P74/TMRIV

P75/TMCIV

P76/TMOVNCNC

31

R201 1 k

SO

SCK

P87 P86 P85

NMI

C167

0.047

NC NC

C12

0.001

C13 15 P

C15

0.001

4

R247 1 k

BEEP

REMO

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

R199 47 k

2

5

C9

0.001

3 1

R4

4.7 k

C11

R3

15 P

15 k

D2 RB706F-40

C97

0.1

R58 150 k

R59 120 k

IC4 TA7368F

1

NC

2

VCC

3

NC

4

VIN

5

RIPPLE

R241 1 k

C8 47P

L4 50 nH

T5V

C96

0.1

PREGND

R146 100 k

R2 150

L3

4.7 H

C7

0.001

C10 18 P

D25 MA2S111

POUT

PWGND

PHASE

NF

R55

2.2 k

1.6 V

4.4 V

R57 68 k

R143 100 k

D1 1SV307

R56 10 k

10 9 8 7 6

S5V

T4

R103 33

C166 10

R212 15k

C6

0.001

Q14 DTA144EV

TXC

AF ON

3.4 V

C165 47 P

R147 1 k

R148 1 k

C5 22 P

L2 30 nH

C4 11 P

R239 100 k

C95

0.001

R102 10

C164

0.047

AFOUT

CLO CLI ESDA AFON TLED RLED TXC

PTT EXST DAST PLST

C3 24 P

L1 32 nH

C2 7 P

C1 9 P

R54 10 k

C163 100

R1 82 k

ANT

12 - 1

12 - 2

12-2 SW-A AND SW-B UNITS

• SW-A UNIT

TP76N00N-15F-10KA-2251 R1

Q1 XP4216

R3 560

R2 330

DS1 LNJ107W5PRW

C

1

2

3

4

8

5

S1

CP10 CP11

CP12

CBI0 CBI1

CP13

CBI2 CBI3

CP8

HV

F1

6 5 4

3

2

1

CP3 CP4

CP5 CP6

CP2

CP9

CBI0

VOLIN

VOLOUT

VCC RLED TLED GND

CP1

G

R

RX (SQL OPEN) 4.1 V

RX (SQL OPEN) 0 V

RX (SQL OPEN) 2.1 V

RX (SQL OPEN) 4.8 V TX 4.8 V

RX (SQL OPEN) 0 V TX 2.4 V

TX 0 V

TX 4.1 V

TX 0 V

RX (SQL OPEN) 0 V

• SW-B UNIT

CHASSIS UNIT

2CH VERSION

S1

W1

W2

EMERGENCY VERSION

S1

CP8

HV

TP76N00N-15F-10KA-2251 R1

F1

CP3 CP4

CP5 CP6

CP9 CP1 CP2

6 5 4 3

2

1

Q1 XP4216

CBI0 VOLOUT VOLIN VCC RLED TLED GND

R3 560

R2 330

DS1 LNJ107W5PRW

G

R

RX (SQL OPEN) 4.1 V

RX (SQL OPEN) 0 V

RX (SQL OPEN) 2.1 V

RX (SQL OPEN) 4.8 V

TX 4.8 V

RX (SQL OPEN) 2.1 V

TX 0 V

TX 4.1 V

RX (SQL OPEN) 0 V

TX 0 V

SERVICE MANUAL

1-1-32, Kamiminami, Hirano-ku, Osaka, 547-0003, Japan

S-13806IZ-C1V

Icom IC-F12S, IC-F12, IC-F11BR, IC-F11S, IC-F11 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

INTRODUCTION

TABLE OF CONTENTS

SECTION 1 SPECIFICATIONS

SECTION 2 INSIDE VIEWS

SECTION 3 DISASSEMBLY INSTRUCTIONS

SECTION 4 CIRCUIT DESCRIPTION

SECTION 5 ADJUSTMENT PROCEDURES

SECTION 6 PARTS LIST

SECTION 7 MECHANICAL PARTS AND DISASSEMBLY

SECTION 8 SEMI-CONDUCTOR INFORMATION

SECTION 9 BOARD LAYOUTS

SECTION 11 BLOCK DIAGRAM

SECTION 12 VOLTAGE DIAGRAM
