ICES IWC-660 User Manual [de]

Model number:

IWC-660

Instruction Manual

Please read carefully and follow all safety rules and operating instructions.

Index

. Important safety instructions ………….......................1

II, Technical data …………………………………..…….1

III. Illustrated Structure……………………......... ............2

IV. Electric Diagram……………………………………… 2

V. Installation instruction………………………………… 3

VI. Electric connection……………………………………..3

VII. Operate your wine cooler…………………………….4

VIII. Care and maintenance………………………………4

IX. Problems Disposal………………………………………..5

X. Safety and notice……………………………………………5

XI. Disposal ……………………………………………………6

.

Important Safety Instructions

To reduce the risk of fire, electrical shock, or injury when using your appliance, follows these basic precautions;

 Read all instructions before using the wine refrigerator. 

DANGER or WARNING:

 Junked or abandoned appliances are dangerous …even if they “just sit in the garage a few days.”



Before you throw away your old wine refrigerator:

in place so that children may not easily climb inside.

 Never allow children to operate, play with, or crawl inside the appliance.  Never clean appliance parts with flammable fluids. The fumes can create a fire hazard or

explosion.

 Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or

any other appliance. The fumes can create a fire hazard or explosion.

 Does not store food in wine refrigerator, as interior temperature may not get cool enough to

prevent spoilage

 This appliance is not intended for use by persons(including children) with reduced physical

sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

 Children should be supervised to ensure that they do not play with the appliance.

risk of child entrapment.

take of the door .leave the shelves



.Technical Data

Model no. IWC-660 Capacity 16L Voltage 230V/50Hz Current Protection class Climate class SN;N Input power 70W Power Consumption(KW.h/24h)

Max working temperature Max Temperature Difference

Temperature Control Range Net weight 9.35 kgs Gross weight 10.40 kgs Shape size W254×D510×H365 MM

1A(2

5℃/77℉)

Ⅰ

0.25(15℃/59°F)

32℃/90°F

18℃(57°F)

7-18 ℃ （44-64°F）

Packing size W295×D555×H415 MM

III

III.

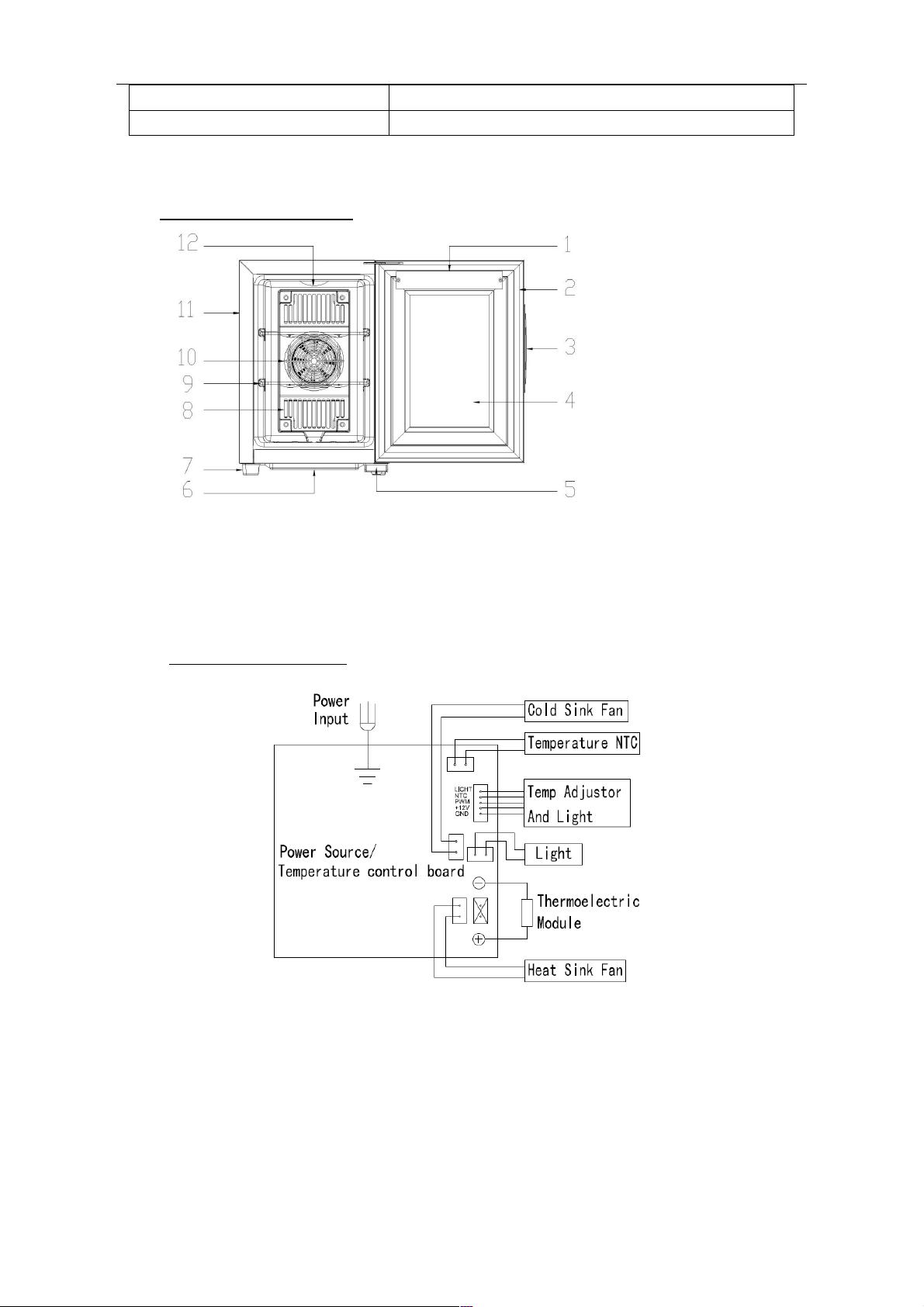

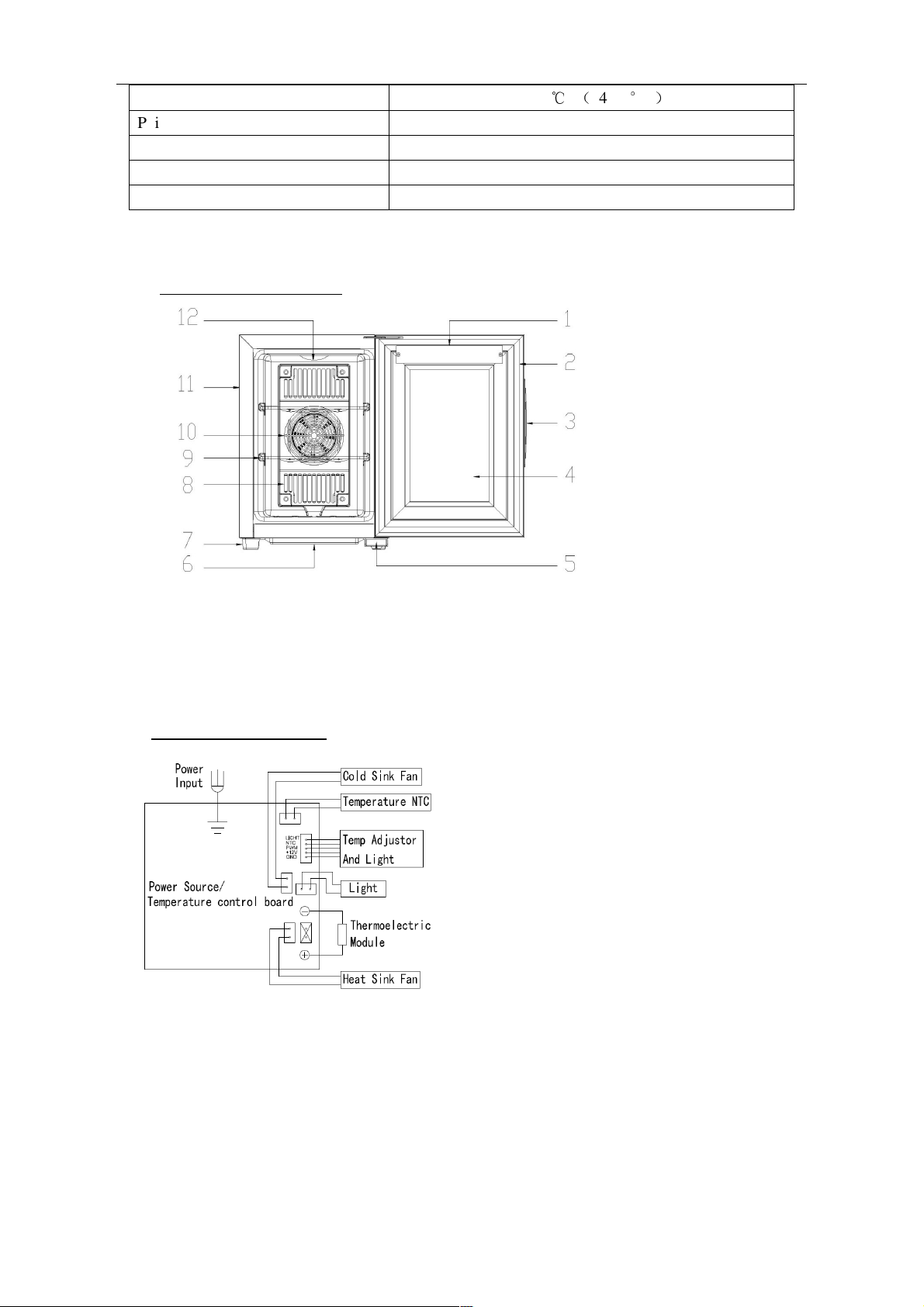

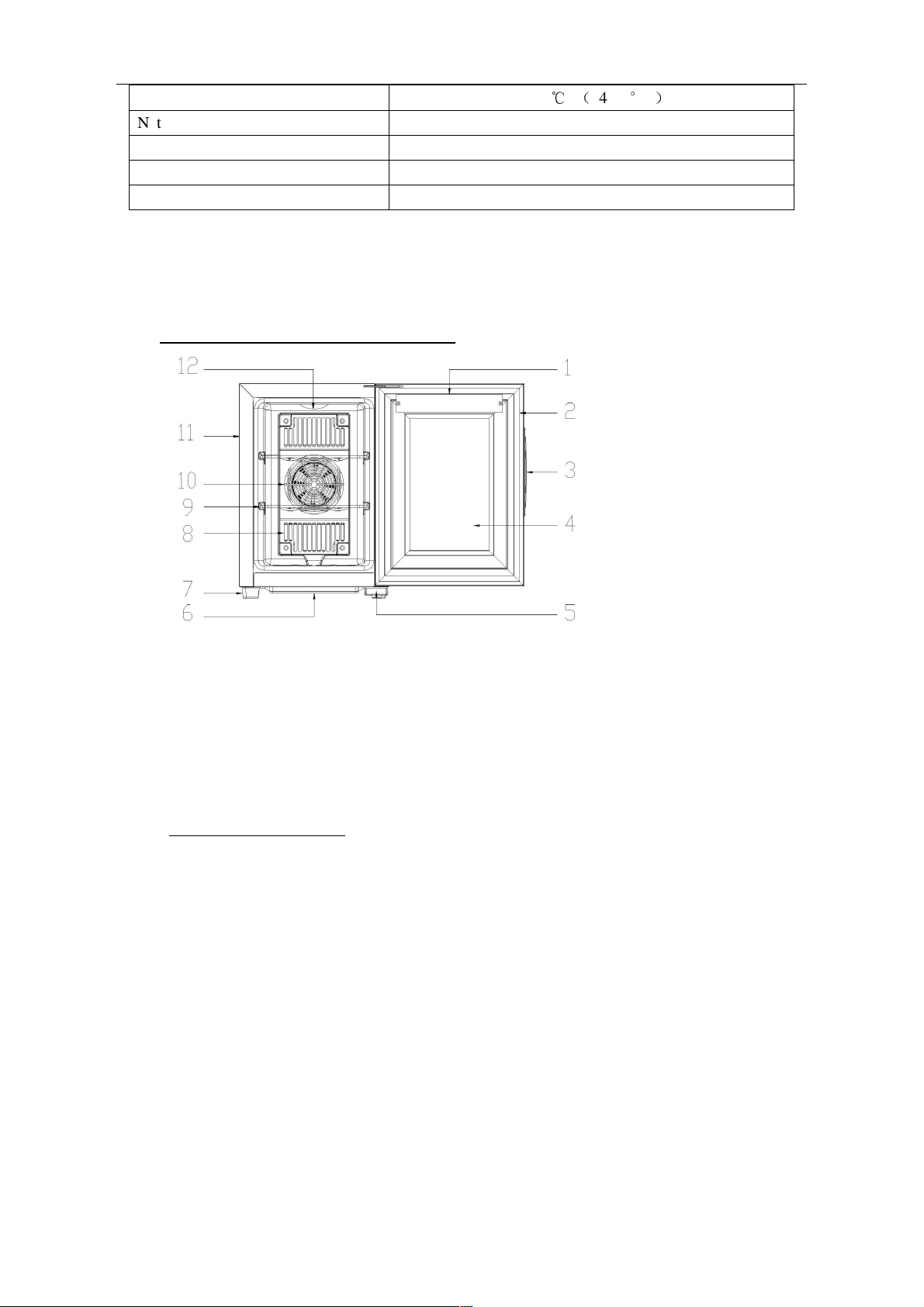

Illustrated structure

IIIIII

1. PCB BRACKET 2.DOOR SEAL 3.HANDLE 4. GLASS

5. LOWER HINGE COVER 6. WATER TRAY 7.FOOT

8. INTERIOR 9. FAN MASK 10. COLD FAN

11. CABINET 12. LIGHT

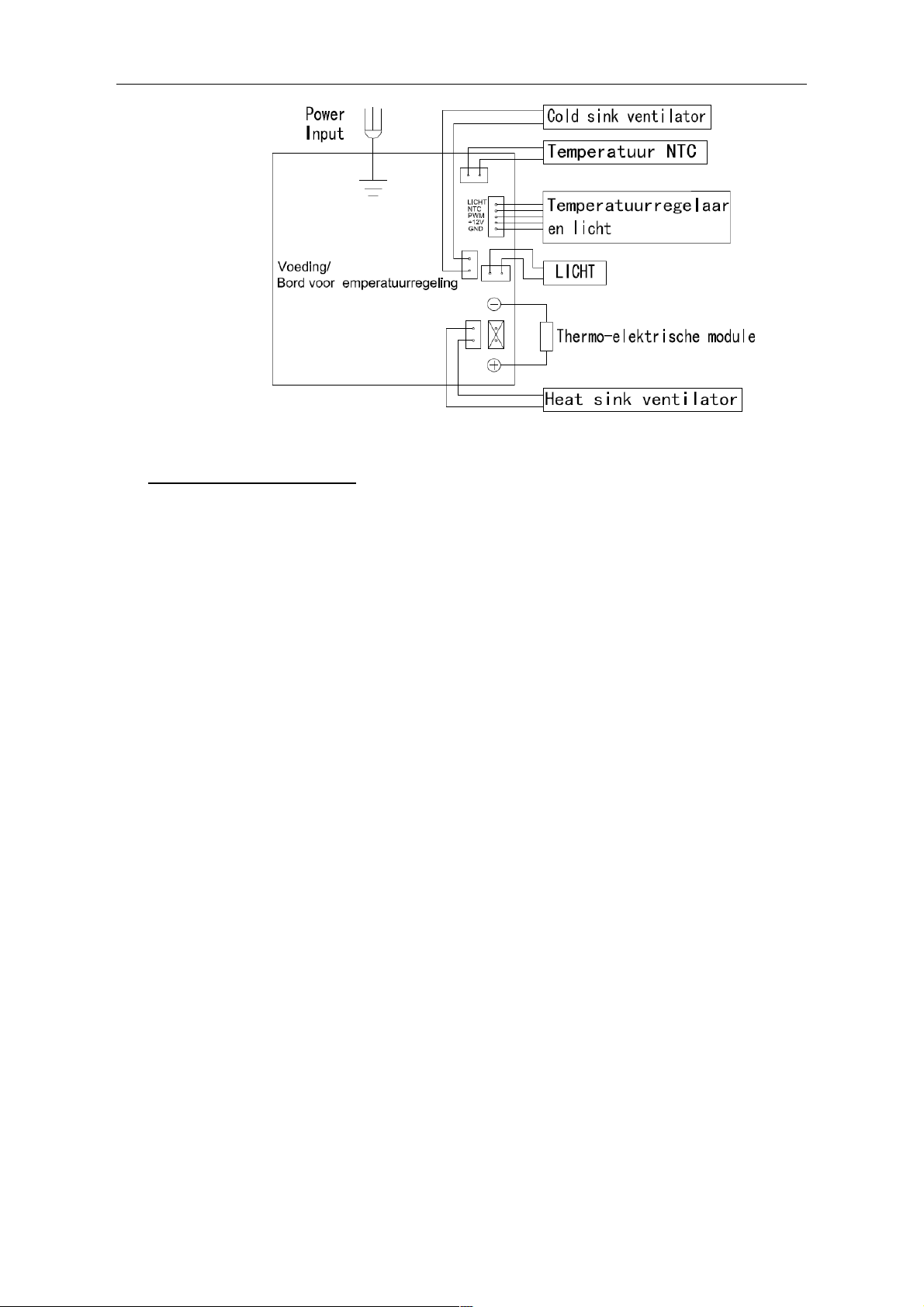

IV. Electric Diagram

Installation Instructions

Before using your wine refrigerator

 Remove the exterior and interior packing  Check to be sure the following parts are included:

 2 Slide out shelves.  1 Instruction manual.

 Before connecting the appliance to the power source, let it stand upright for approximately 2 hours.

This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

 Clean the interior surface with lukewarm water using a soft cloth.  Place your appliance on a floor that is strong enough to support the appliance when it is fully

loaded. To level your appliance, adjust the front legs at the bottom of the appliance.

 Foe recedes installation away from direct sunlight and sources of heat (stove, heater, radiator,

etc.).Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold or hot ambient temperatures may also cause the appliances not to perform properly.

 Not designed for placement in adage or basement.  The appliance is for indoor use only.

aution:

Please keep the appliance away from substance, which can cause ignition.

VI.

Electrical Connection

VIVI

Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized Products service center.

This unit should be properly grounded for your safety. The power cord of this unit is equipped with a 2-pin plug which mates with 2-pin wall outlets to minimize the possibility of electrical shock. Do not under any circumstances cut or remove the ground wine from the power cord supplied. Use of extension cords is not recommended. This unit requires a standard 220V-50HZ electrical outlet with 2-pin plug. The cord should be secured behind the wine refrigerator and not let exposed or dangling to prevent accidental injury.

Warning

VII

VII.

Operating Your Wine Refrigerator

VIIVII

It is recommended that you installed the wine refrigerator in a place where the ambient temperature is between 10-26℃(50- 80°F) .If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected. For example, placing in extreme cold or hot conditions may cause interior temperature to fluctuate. The range of 7-18℃(44-64°F) may not be reached. The temperature may fluctuate depending on whether or not the interior light is on or off or whether the bottles are located on the upper, middle or lower section.

How to set temperature:

There are three touch-buttons on the control panel:

• “ ” and “ ” increases or decreases the set temperature by 1°C (temp range is 7-18°C).

• “ ” button turns on or off the interior light.

Note:

• This product is designed for maximum cooling of 18℃ below ambient temperature.

• When the ambient temperature around 25°C or less, unit can maintain a temperature range

between 7-18°C.

VIII

VIII.

VIIIVIII

Care And Maintenance

Cleaning your wine refrigerator

 Unplug the wine refrigerator and remove the bottles.  Wash the inside with a warm water and baking soda solution. The solution should be about 2

tablespoons of baking soda to a quart of water.

 The outside of wine refrigerator should be cleaned with mild detergent and warm water.  Draw out the water box at the bottom, and wash.

Moving your wine refrigerator

 Remove all the bottles.  Securely tape down all loose items inside your wine refrigerator.  Turn the leveling legs up to the base to avoid damage.  Tape the door.  Be sure the wine refrigerates stays in the upright position during transportation.

IX.

Problems Disposal

You can solve many common wine refrigerator problems easily, saving you the cost of a possible service call. Try the suggestion below to see if you can solve the problem before calling service center.

PROBLEM POSSIBLE CAUSE

Wine refrigerator do not operate. Not plugged in using different voltage. The circuit

breaker tripped or a blown fuse.

Wine refrigerator is not cold enough. Check the temperature control setting.

External environment may require a higher setting. The door is open too often. The door is not closed completely. The door seal does not seal properly. The wine refrigerator does not have the correct

clearance. The light does not work. Check the service center. Vibrations. Check to assure that the wine refrigerator is level. The wine refrigerator seems to make too much noise The door will not close properly. The wine refrigerator is not level.

LED could not display. Main control board does not work.

LED display error. Weak quality of display.

Bottoms are not functional. Temperature controller panel is damaged.

The wine refrigerator is not level.

Check the fan.

The doors were reversed and not properly installed.

The seal is weak.

The shaves out of position.

PCB Problem.

There is some problem with the plug.

Temperature point is out off.

SERVICE & IMPORTANT NOTICE

1, This machine is designed to be only used in “N” and “SN” climate. 2, Upon receipt and inspection of the unit, if supply cord is damaged, If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. It must be replaced. For any additional information or questions, please contact the service center.

WARNING: please do not uses where children can touch the unit, nor let children use the unit by themselves.

Service and support

For information: http://www.ices-electronics.com/ For support: http://icessupport.zendesk.com

ICES helpdesk:

Germany 0900-1520530 (Local charges) The Netherlands 0900-23553626 (Local charges + 1ct P/min) Belgium 02-6200115 (Local charges) France 0170480005 (Local charges)

The helpdesk is accessible from Monday to Friday from 9 AM till 6 PM. In case your device needs repair, our helpdesk will redirect you to your local dealer.

ICES offers service and warranty in accordance to European law, which means that in case of repair (both during and after the warranty period), you should contact your local dealer.

Please note: It is not possible to send products directly to ICES for repair.

Important note: If this unit will be opened, or accessed in any way by a non-official service center, the

warranty expires immediately.

XI. DISPOSAL

If at any time in the future you should need to dispose of this product please note that:

Waste electrical products should not be disposed of with household waste. Please recycle

where facilities exist. Check with your local authority or retailer for recycling advice. (Waste

Electrical and Electronic Equipment Directive)
