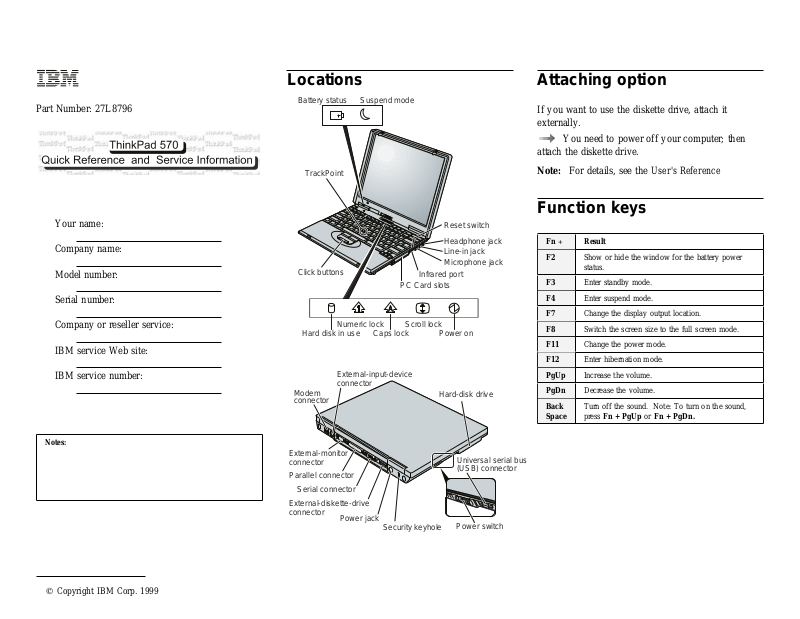

Ibm THINKPAD 570E, THINKPAD 570 User Manual

Part Number: 27L8796

Your name:

Company name:

Model number:

Serial number:

Company or reseller service:

IBM service Web site:

IBM service number:

Locations

Battery status

TrackPoint

Click buttons

Hard disk in use

Modem connector

Numeric lock Scroll lock

External-input-device connector

Suspend mode

PC Card slots

Caps lock

Reset switch Headphone jack

Line-in jack Microphone jack

Infrared port

Power on

Hard-disk drive

Attaching option

If you want to use the diskette drive, attach it externally.

You need to power off your computer; then

attach the diskette drive. Note: For details, see the User's Reference

Function keys

Fn + Result F2 Show or hide the window for the battery power

status.

F3 Enter standby mode. F4 Enter suspend mode. F7 Change the display output location. F8 Switch the screen size to the full screen mode. F11 Change the power mode. F12 Enter hibernation mode. PgUp Increase the volume. PgDn Decrease the volume. Back

Space

Turn off the sound. Note: To turn on the sound, press Fn + PgUp or Fn + PgDn.

Notes:

 Copyright IBM Corp. 1999

External-monitor connector

Parallel connector

Serial connector

External-diskette-drive connector

Power jack

Security keyhole

Universal serial bus (USB) connector

Power switch

Getting service

Always read the “Solving computer problems” chapter of your User's Reference before calling IBM.

During the warranty period, you can get help and information from International Warranty Service (IWS) in your country. Before you call, fill out the front of this card. Also have:

 The exact wording of any error messages  Hardware and software configuration information  A description of the problem  Information and serial numbers of any options

installed on your system

International Warranty Service information

This IBM product is eligible for IWS wherever your machine type is sold by IBM. Your computer must be registered to receive international service. To register, call one of the following IWS offices:

Southeast Asia, Australia, New Zealand, and Hong Kong: Canada, Latin America, and the U.S.: 1-800-497-7426 Europe, Middle East, and Africa: 44-1475-893638 Japan, Korea, China (except Hong Kong), and Taiwan:

Help through a ThinkPad Web site

 The latest information about ThinkPad

computers:

http://www.pc.ibm.com/thinkpad

 Technical support information:

http://www.pc.ibm.com/support

61-2-9354-4171

81-462-73-7598

ThinkPad Configuration program

You can customize your hardware system settings with the ThinkPad Configuration program. To start the ThinkPad Configuration program, click Start, move the cursor to Settings, and click Control

Panel; then double-click the ThinkPad Configuration icon.

For more information, click the Help button

( ).

Battery status

You can monitor the battery status with the FuelGauge program. To start the Fuel-Gauge program, click Start and move the cursor to Programs and ThinkPad; then click Fuel-Gauge.

If you are using the secondary battery, you can also see its status with the Fuel-Gauge program.

For further information

You can find the following information in your ThinkPad user's manuals.

User's Reference

 Basic information on your computer  Using your computer and extending its fea-

tures

 Protecting your computer  Solving computer problems  Features and specifications

Online User's Guide

 Using your computer outside your home

country

 Using the features of your computer  Protecting your computer  Using your computer with a battery pack  Using your computer with a PC Card  Resolving system resource conflicts  Frequently asked questions

 Installing software

 Using system management  Using PS2 commands  Using modem commands

 Handling tips  Getting service

Note: To start the Online User's Guide, click Start and move the cursor to Programs and ThinkPad 570; then click ThinkPad 570 User's

Guide.
