IBM E52 User Manual

6633 - 4LE

E52 Color Monitor

User Guide

ENGLISH

First Edition (May / 2002)

This publication could contain technical inaccuracies or typographical errors. Changes are
made periodically to the information herein; these changes will be made in later editions.
IBM may make improvements and/or changes in the product(s) and/or program(s) at any
time.

It is possible that this publication may contain reference to, or information about, IBM
products (machines and programs), programming, or services that are not announced in
your country.

Requests for copies of this publication and for technical information about IBM products
should be made to your IBM Authorized Dealer or IBM Retailer.

No part of this publication may be reproduced or distributed in any form or by any means
without prior permission in writing from the International Business Machines Corporation.

© Copyright International Business Machines Corporation 2002. All rights reserved.

Note to U.S. Government Users -- Documentation related to restricted rights -- Use,
duplication or disclosure is subject to restrictions set forth in GSA ADP Schedule Contract
with IBM Corp.

Notices

References in this publication to IBM products, programs, or services do not imply that IBM
intends to make these available in all countries in which IBM operates. Any reference to an
IBM product, program or service is not intended to state or imply that only IBM’s product,
program, or service may be used. Any functionally equivalent product, program, or service
that does not infringe any of IBM’s intellectual property rights or other legally protectable
rights may be used instead of the IBM product, program, or service. Evaluation and
verification of operation in conjunction with other products, programs, or services, except
those expressly designated by IBM, are the user’s responsibility.

IBM may have patents or pending patent applications covering subject matter in this
document. The furnishing of this document does not give you any license to these patents.

Trademarks

The following terms, used in this publication, are trademarks or service marks of the IBM
Corporation in the United States, other countries, or both:

HelpCenter

IBM

ENERGY STAR is a U.S. Govt. registered trademark.
Microsoft, Windows, and Windows NT are trademarks of Microsoft Corporation in the United
States, other countries, or both.
Other company, product, and service names may be trademarks or service marks of others.

Note : For important information, refer to the Monitor Safety and Warranty manual that
comes with this monitor.

Precautions.......................................................................................A2

Workplace Preparation .................................................................A2

Working Practices.........................................................................A2

Monitor Driver Installation............................................................A4

Driver installation for Windows 95 or Windows 98 ......................A4

Driver installation for Windows 2000 or Windows Me .................A5

Driver installation for Windows XP...............................................A6

Control Panel Function...................................................................A7

Front Panel Controls......................................................................A7

On Screen Display (OSD) Control Adjustment........................A8

On Screen Display (OSD) Selection and Adjustment...............A9

Troubleshooting.....................................................................A13

Specifications.........................................................................A15

Specifications..............................................................................A15

Preset Modes (Resolution)...........................................................A16

Service Information.....................................................................A16

A1

Table of Contents

A2

Workplace Preparation

Positioning the Monitor

Choose a suitable place to position the monitor where it is not near
fluorescent desk lighting or any equipment that produces magnetic fields
that could cause interference. Ensure that the furniture or equipment can
support the weight of the monitor. Allow at least 50mm (2 in.) ventilation
space around the monitor.

Height

Position the monitor so that the top of the screen is slightly below your
eye level when you sit at your workstation.

Orientation

- Choose a position that gives the least reflection from lights and
windows, usually at a right angle to any windows.

- Position the monitor directly in front of you so that you do not have to
twist your body.

- Tilt the monitor to a comfortable viewing angle.

Working Practices

Rest

Take regular breaks. Vary your posture, and stand up and stretch
occasionally as prolonged use of computer workstations can be tiring.

Back

Sit back in the chair and use the back rest.

Hands

Use a light touch on the keyboard, keeping your hands and fingers
relaxed. Allow a space in front of the keyboard to rest your wrists when
not typing. Consider using a wristpad.

Eyesight

Working with monitors, in common with any prolonged close work, can
be visually demanding. Look away from the screen periodically and have
your eyesight checked regularly.

Precautions

A3

Precautions

Screen settings

Set the screen brightness and contrast to a comfortable level. You may
have to adjust this as the lighting changes during the day. Many
application programs let you select color combinations which can help
you to view in comfort.

Power Cord

For safe operation, use the power cord supplied with the unit.

Notes

Do not install the monitor in a location near heat sources such as

radiators or air ducts, or in a place subject to direct sunlight, or
excessive dust or mechanical vibration or shock.

Save the original shipping carton and packing materials, as they will

come in handy if you ever have to ship your monitor.

To keep the monitor looking new, periodically clean it with a soft cloth.

Stubborn stains may be removed with a cloth lightly dampened with a
mild detergent solution. Never use strong solvents such as thinner,
benzene, or abrasive cleaners, since these will damage the cabinet. As
a safety precaution, always unplug the monitor before cleaning it.

A4

Monitor Driver Installation

Driver installation for Windows 95 or Windows 98

To use the Plug and Play feature in

Microsoft®Windows®95 or

Windows 98, files should be loaded from the IBM Monitor CD.

1.

Turn off the computer and all attached devices.

2. Ensure that the monitor is connected correctly.

3. Turn on the monitor and then the system unit. Allow the system to

boot into Windows 95 or Windows 98.
Your computer’s Plug and Play code may warn you that your system

hardware has changed. This means that it has detected your new
monitor for the first time.

4. Open the DISPLAY PROPERTIES window by clicking START, SETTINGS,

CONTROL PANEL and then double - clicking on the DISPLAY icon.

5. Click the SETTINGS tab.

• In case of Windows 95 :

6 - 1.Click the CHANGE DISPLAY TYPE button.

2.Click the CHANGE MONITOR TYPE button.

• In case of Windows 98 :

6 - 1.Click the ADVANCED button.

2.Click the MONITOR tab.

3.Open the UPGRADE DEVICE DRIVER WIZARD window by clicking on

CHANGE button and then select the NEXT button.

4.Click the “Display a list of the known drivers for this device so that

I can choose a specific driver” and then select the NEXT button.

7. Insert the IBM Monitor CD into the CD drive: and click the HAVE DISK

button.

8. Click OK.

9. Ensure that the CD drive letter is selected.

10.Choose IBM E52 monitor and Click OK. The files will be copied from

the CD to your hard disk drive.

11. Close all open windows and remove the CD.

12.Restart the system.

The system will automatically select the maximum refresh rate and
corresponding Color Matching Profiles.

A5

Monitor Driver Installation

Driver installation for Windows 2000 or Windows Me

To use the Plug and Play feature in

Microsoft Windows 2000 or
Microsoft Windows Millennium Edition(Me) files should be loaded
from the IBM Monitor CD.

1.

Turn off the computer and all attached devices.

2. Ensure that the monitor is connected correctly.

3. Turn on the monitor and then the system unit. Allow the system to

boot into Windows 2000 or Windows Me.

4. Open the DISPLAY PROPERTIES window by clicking START, SETTINGS,

CONTROL PANEL and then double - clicking on the DISPLAY icon.

5. Click the SETTINGS tab.

6. Click the ADVANCED button.

7. Click the MONITOR tab.

8. Click the PROPERTIES button.

9. Click the DRIVER tab.

10.Open the UPGRADE DEVICE DRIVER WIZARD window by clicking on UPDATE

DRIVER and then Click the NEXT button.

11. Select the “Display a list of the known drivers for this device so that I

can choose a specific driver” and then Click the NEXT button.

12.Insert the IBM Monitor CD into the CD drive: and click the HAVE DISK

button.

13.Click OK.

14.Ensure that the CD drive letter is selected.

15.Choose IBM E52 monitor and Click OK. The files will be copied from

the CD to your hard disk drive.

16.Close all open windows and remove the CD.

17.Restart the system.

The system will automatically select the maximum refresh rate and
corresponding Color Matching Profiles.

Monitor Driver Installation

Driver installation for Windows XP

To use the Plug and Play feature in

Microsoft Windows XP files should

be loaded from the IBM Monitor CD.

1.

Turn off the computer and all attached devices.

2. Ensure that the monitor is connected correctly.

3. Turn on the monitor and then the system unit. Allow the system to

boot into Windows XP.

4. Open the DISPLAY PROPERTIES window by clicking START, SETTINGS,

CONTROL PANEL and then double - clicking on the DISPLAY icon.

5. Click the SETTINGS tab.

6. Click the ADVANCED button.

7. Click the MONITOR tab.

8. Click the PROPERTIES button.

9. Click the DRIVER tab.

10.Open the HARDWARE UPDATE WIZARD window by clicking on UPDATE

DRIVER and then Click the NEXT button.

11. Select the “Install from a list or Specific location(Advanced)” and then

Click the NEXT button.

12.Insert the IBM Monitor CD into the CD drive: and click the HAVE DISK

button.

13.Click OK.

14.Ensure that the CD drive letter is selected.

15.Choose IBM E52 monitor and Click OK. The files will be copied from

the CD to your hard disk drive.

16.Close all open windows and remove the CD.

17.Restart the system.

The system will automatically select the maximum refresh rate and
corresponding Color Matching Profiles.

A6

A7

Control Panel Functions

MENU

SELECT

Front Panel Controls

Buttons

Use these buttons to choose or adjust items in
the on screen display.

MENU Button

Use this button to enter or exit the on screen
display.

This Indicator lights up green when the monitor
operates normally. If the monitor is in power saving
mode, this indicator color changes to amber.

Power Indicator

Use this button to turn the monitor on or off.

Power Button

Use this button to enter a selection in the on
screen display.

SELECT Button

Control Function

A8

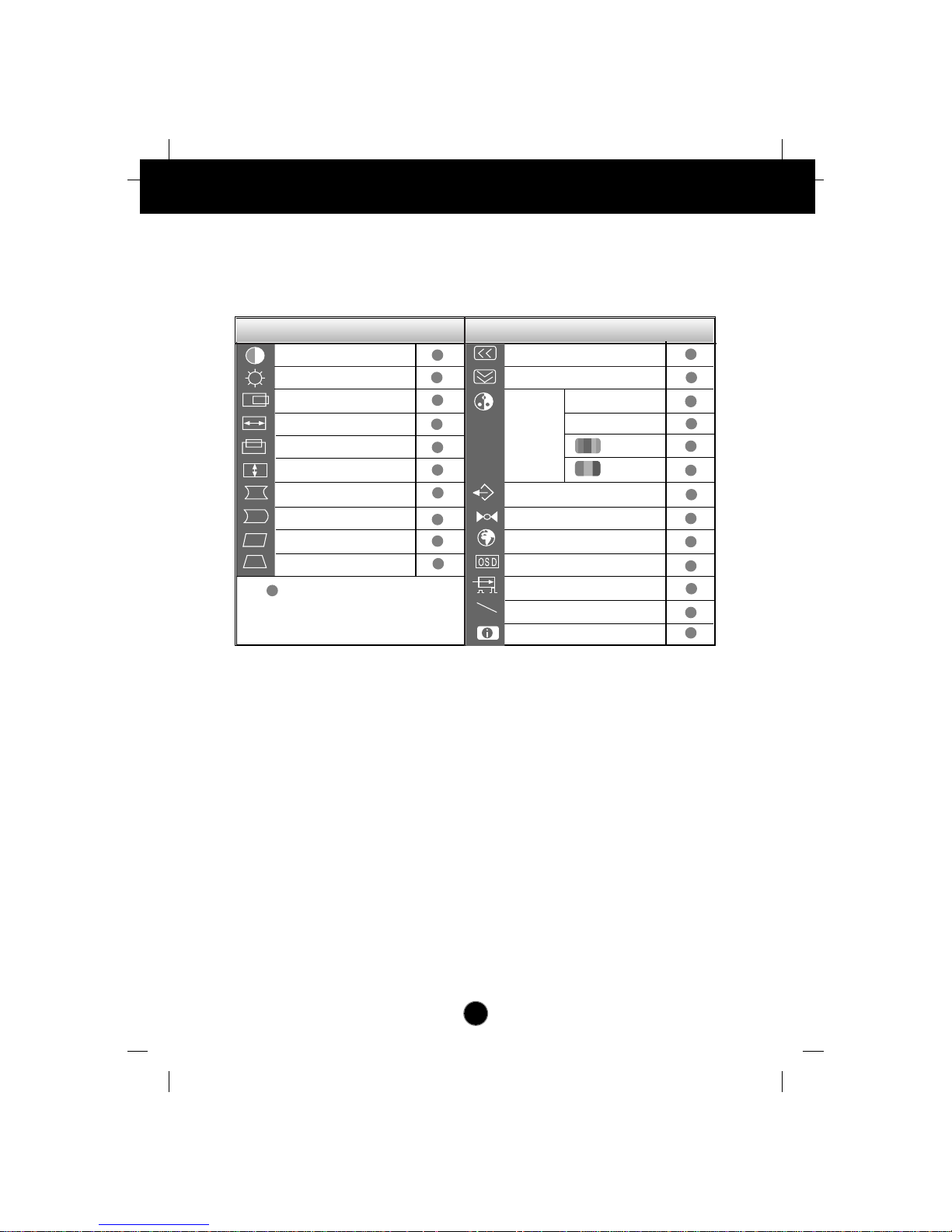

On Screen Display (OSD) Control Adjustment

Screen Adjustment

To make adjustments in the On Screen Display, follow these steps:

NOTE

Allow the monitor to stabilize for at least 30 minutes before making image adjustments.

Press the MENU Button, then the main menu of the OSD appears.

To access a control, use the or Buttons. When the icon you want
becomes highlighted, press the SELECT Button.

Use the Buttons to adjust the item to the desired level.

Accept the changes by pressing the SELECT Button.

Exit the OSD by pressing the MENU Button.

A9

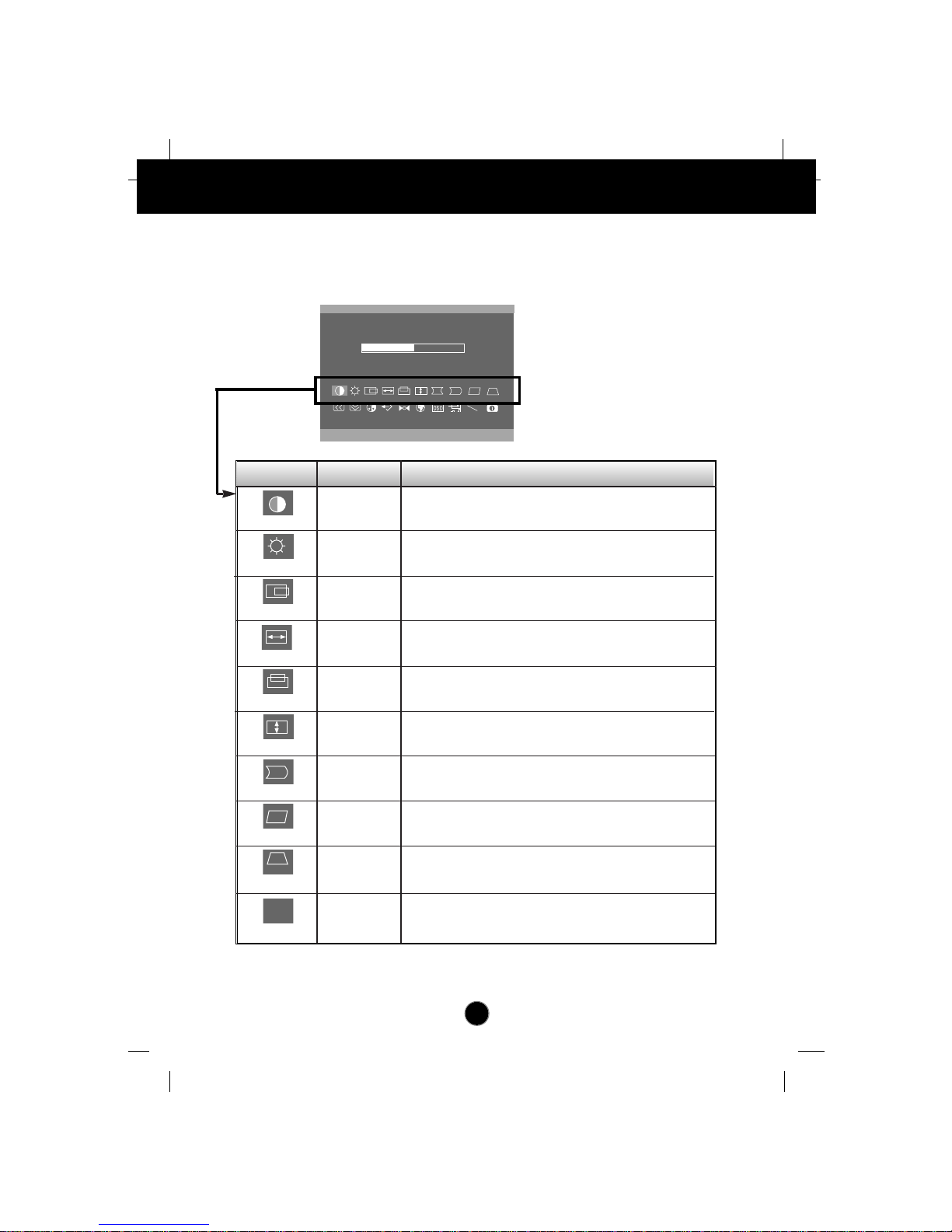

On Screen Display(OSD) Selection and Adjustment

Contrast
Brightness
H Position
H Size
V Position
V Size
Pincushion
Pin Balance
Parallelogram
Trapezoid

Icon Main menu Icon Main menu

The following table indicates all the On Screen Display control, adjustment,
and setting menus.

: Adjustable

H Moire
V Moire
COLOR 9300

6500

Recall
Reset
Language
OSD Time
Video Level
Degauss
Information

U

K

R G B

A10

On Screen Display(OSD) Selection and Adjustment

You were introduced to the procedure of selecting and adjusting an item
using the OSD system. Listed below are the icons, icon names, and icon
descriptions of the all items shown on the Menu.

1024X768/75Hz

CONTRAST

50

U

Icon Sub menu Description

CONTRAST

To adjust the contrast of the screen.

BRIGHTNESS

H POSITION

H SIZE

V POSITION

V SIZE

PINCUSHION

PIN BALANCE

PARALLELOGRAM

TRAPEZOID

To adjust the brightness of the screen.

To move image left and right.

To adjust image width.

To move image up and down.

To adjust image height.

To correct a concave or convex bowing of the
image.

To correct the balance of both sides bowing.

To correctly adjust the skew of the image.

To correct geometric distortion.

A11

1024X768/75Hz

50

H MOIRE

U

On Screen Display(OSD) Selection and Adjustment

Icon Sub menu Description

H MOIRE

V MOIRE

This item allows you to reduce the degree of moire.
(Moire is caused by interference Horizontal Scan
Line with the periodical dot screen). It is normally
OFF(H:0/V:0).
The moire adjustments may affect the focus of the
screen.
Moire adjustments may shake slightly while the
moire reduction function is on.

COLOR

9300
6500

Slightly bluish white.
Slightly reddish white.

K

Select the screen temperature which you prefer
among reddish or bluish or any color in between.

R G B

Set your own color levels.

RECALL

You can use this function to reload the modified parameters
for screen display operation, as specified by the user after
purchase:

Position, Size, Side Pincushion, Side Pincushion
Balance, Parallelogram, Trapezoid (These recalled options
may differ depending on the mode selected: Preset, User,
or New).

If you don’t want to recall the monitor to these
modified settings, use the button to select
CANCEL and then press the SELECT button.

•

OK

•

CANCEL

A12

1024X768/75Hz

50

H MOIRE

U

On Screen Display(OSD) Selection and Adjustment

Icon Sub menu Description

RESET

Return to all factory default settings except "LANGUAGE":

Brightness, Contrast, Color 9300, Video Level, OSD Time,
Moire (These reset options may differ depending on the
mode selected: Preset, User, or New).

If you don’t want to reset the monitor, use the

button to select CANCEL and then press

the SELECT button.

OSD TIME

• 5

• 10

• 20

• 30

• 60

Set the OSD time, i.e. the length of time a menu
will remain on-screen before it shuts off
automatically. Adjust the time to 5, 10, 20, 30 or 60
seconds.

LANGUAGE

To choose the language in which the control names
are displayed.
OSD Menus are available in 11 languages: English,
German, French, Spanish, Italian, Swedish,
Finnish, Portuguese, Korean, Chinese and
Russian.

This item is used to select the monitor's input signal
level. The normal level used for most PCs is 0.7V.
If the screen becomes suddenly washed-out or
blurred, please select 1.0V and try again.

To manually demagnetize the screen to avoid
showing incorrect images or colors.

To inform users of preset and user mode data.

VIDEO LEVEL

U

DEGAUSS

INFORMATION

•

OK

•

CANCEL

•

0.7V

•

1.0V

• PRESET MODE

• USER MODE

A13

Troubleshooting

No image appears

Is the power cord of the
monitor connected?

Is the power indicator light

on?
Is the power on and the

power indicator green?

Is the power indicator

amber?

Do you see an "OUT OF

FREQUENCY" message
on the screen?

Do you see a "SELF

DIAGNOSITICS" message
on the screen?

Check and see if the power cord is connected properly to

the power outlet.

Press the Power button.

Adjust the brightness and the contrast.

If the monitor is in power saving mode, try moving the

mouse or pressing any key on the keyboard to bring up
the screen.

This message appears when the signal from the PC

(video card) is out of horizontal or vertical frequency
range of the monitor. See the 'Specifications' section of
this manual and configure your monitor again.

This message appears when the signal cable between

your PC and your monitor is not connected. Check the
signal cable and try again.

Is the vertical frequency
less than 70Hz or is your
monitor set to the
interlaced mode?

Do you have any
magnetic material such
as adapter, or high­voltage line near to your
monitor?

Do you hear a "~ding"
sound while the monitor
is flickering?

Set the vertical frequency to 72Hz or higher, and
consult the video card user manual for instructions on
converting to a non-interlaced mode.
(You can set this option under the Display icon of the
Control Panel.)

Remove magnetic sources, such as power
adapters, speakers, or high-voltage lines, away from
the monitor.

Use the normal degaussing function. This function
clears the screen and reduces any screen blur that
may occur due to the surrounding magnetic field. The
screen may flicker for about 5 seconds, accompanied
by a "~ding" sound.

The screen is flickering.

A14

Troubleshooting

Do you see basic

discoloration (16 colors)?

Is the screen color unstable
or monochrome?

Do you see a partial

blurring on the screen?

Set the color depth to 256 colors or higher: use 'Control

Panel' 'Display' 'Settings' 'Color Palette'

Check the connection of the signal cable.

This happens due to interference from surrounding

magnetic fields, as created when speakers, steel
structures, or high-voltage lines are placed near the
monitor. Remove any such materials from the
immediate vicinity and use the DEGAUSS icon on the
screen adjustment menu to fix the screen.

Do you see the after-image

even when you turn off
the monitor?

A premature aging of the monitor pixels may cause the
prolonged display of a single image on the screen. Be
sure to use a screen saver to maximize the service life of
the monitor.

The screen color is not normal.

I see an after-image on the screen.

Do you see the wave

directly on the screen?

This occurs in inverse proportion to the screen focus,
which can be caused by a particular frequency or video
card. Brighten the screen and use the 'MOIRE' icon on
the screen adjustment menu to adjust the screen.

I see waves on the screen.

Have you installed the
monitor driver?

Be sure to install the monitor driver from the IBMMonitor

CD that comes with your monitor.

Have you installed the monitor driver?

A15

Specifications

15 inches (13.7 inches viewable)
90 degree deflection

0.28mm diagonal, 0.25mm horizontal dot pitch
AGAS(Anti-Glare Anti-Static) coating

Horizontal Freq. 30 - 61kHz (Automatic)
Vertical Freq. 50 - 120Hz (Automatic)

Input Form Separate TTL, Positive/Negative
Signal Input 15 pin D-Sub Connector

Input Form

Separate, RGB Analog, 0.7Vp-p/75 ohm, Positive

Resolution(max) 1024 x 768@75Hz
DDC 2B

Normal

≤ 75 W

Active Off

≤ 5 W

Power Off ≤ 5 W
Width 35.6 cm / 14.0 inches

Height 37.1 cm / 14.6 inches
Depth 39.5 cm / 15.6 inches

Net 11.7 kg (25.79 lbs)

AC 100-240V 50/60Hz 1.5A

Operating Conditions

Temperature 0˚C to 40 ˚C
Humidity 10 % to 90 % non-Condensing

Storage Conditions

Temperature -20˚C to 60 ˚C
Humidity 5 % to 90 % non-Condensing

Detached
Attached
Detached
MPR-II

Picture Tube

Sync Input

Video Input

Plug & Play
Power

Consumption

Dimensions

&Weight
(with tilt/ swivel

stand)

Power Input
Environmental

Conditions

Tilt/Swivel Stand
Signal cable
Power cord
Regulations

A16

Specifications

Preset Modes (Resolution)

Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz)

1
2
3
4
5
6
7

640 x 480
640 x 480
640 x 480
720 x 400
800 x 600
800 x 600

1024 x 768

31.47

37.50

43.27

31.47

46.88

53.68

60.02

60
75
85
70
75
85
75

VESA
VESA
VESA
VESA
VESA
VESA
VESA

Service Information

The following parts are for use by IBM services, or IBM authorized
dealers, to support customer warranty. Parts are for service use only.

31P8133
31P8134

PART

NUMBER

DESCRIPTION MODEL COLOR

MACHINE

TYPE

E52 FRU MONITOR
E52 FRU - Tilt/Swivel

6633

4LE

Stealth Black
Stealth Black
