EM78M611E

Universal Serial Bus Series Microcontroller

1 General Description

The EM78611E is a series of 8-bit Universal Serial Bus RISC architecture microcontroller, Multi-Time Programming (MTP) microcontrollers. It is specifically designed for USB low speed device application and to support standard devices such as PS/2 keyboard. The EM78611E also supports one device address and three endpoints. With no firmware involved, these series of microcontrollers can automatically identify and decode Standard USB Command to Endpoint Zero.

The EM78611E has eight-level stacks and six interrupt sources. It has 144 bytes of general purpose SRAM, 6K bytes of program ROM, and an embedded 4 bytes of E2PROM.

These series of ICs have many powerful features, including:

Dual clock mode which allows the device to run on low power saving frequency.

Pattern Detect Application function which is used in a serial transmission to count waveform width.

Pause Width Modulation that can generate a duty-cycle-programmable signal.

24-channel AD converter with up to 10 bits resolution.

2Features

Operating voltage: 4.4V ~ 5.5V

Low-cost solution for low-speed USB devices, such as keyboard, joystick, and Gamepad

USB Specification Compliance

Universal Serial Bus Specification Version 1.1

USB Device Class Definition for Human Interface Device (HID), Firmware Specification Version 1.1

Supports one device address and three endpoints

USB Application

P75 (D-) has an internal pull-high resistor (1.5 KΩ)

USB protocol handling

USB device state handling

Identifying and decoding of Standard USB commands to EndPoint Zero

PS/2 Application Support

Built-in PS/2 port interface for keyboard and mouse

Product Specification (V1.11) 04.20.2007

1

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

Built-in 8-bit RISC MCU

8-level stacks for subroutine nesting and interrupt

8-bit real time clock/counter (TCC) with overflow interrupt

Six available interrupts

Built-in RC oscillator free running for Watchdog Timer and Dual clock mode

Two independent programmable prescalers for WDT and TCC

Two power saving methods:

1.Power-down mode (Sleep mode)

2.Dual clock mode

Two clocks per instruction cycle

Multi-time programmable

I/O Ports

Up to 11 LED sink pins

Each GPIO pin of Ports 5, 6, 8, P90~P93, P95 and P96; has an internal programmable pull-high resistor (25KΩ)

Each GPIO pin of Port 6, P74 ~ P77 and Port 9 can wake up the MCU from sleep mode by input state change

Internal Memory

Built-in 6K×13 bits Program ROM

Built-in 144 bytes general purpose registers (SRAM)

Built-in USB Application FIFOs

Built-in 4 bytes EEPROM with a minimum of 4K write/erase cycles

Operation Frequency

Normal Mode: MCU runs with an external oscillator frequency of 6 MHz or 12 MHz

Dual Clock Mode: MCU runs at a frequency of 256kHz (or 32 kHz, 4kHz, 500Hz), emitted by the internal oscillator with the external ceramic resonator turned off to save power.

Built-in Pattern Detect Application for serial signal transmission

Built-in Pulse Width Modulation (PWM)

Up to 2 channels PWM function on P92 (PWM1) and P93 (PWM2)

Up to 8-bit resolution PWM output

Up to 8 selections of duty cycles

2

Product Specification (V1.1) 11.22.2006

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

Built-in 24-Channel Analog-to-Digital Converter (ADC)

Up to 24 channels

Up to 10 bits resolution

4 ADC conversion rates: 256K/128K/64K/32K

Built-in 3.3V Voltage Regulator

For MCU power supply

Pull-up source for the external USB resistor on D-pin

Package Type:

40-pin PDIP (600mil) (EM78M611EXAP)

44-pin QFP (10×10mm, footprint=3.2mm) (EM78M611EXAQ)

20-pin PDIP (300mil)/SOP (300mil) (EM78M611EXBP/BM)

20-pin SSOP (209mil) (EM78M611EXDM)

24-pin PDIP (600mil)/SOP (300mil) (EM78M611EXCP/CM)

24-pin SSOP (150mil) (EM78M611EXEM)

3 Type Definition

The EM78M611E series has six types of packaging. Each type is divided into two modules, namely; original, and with both E2PROM and A/D Converter. Hence, packaging configuration for each series is defined. Table 3.1 below summarizes which series of the EM78M611E belong to which module.

Table 3-1 Packaging Summary of EM78M611E Series IC

Original

With Both





EM78M611EA**

EM78M611ED**





4Application

USB Keyboard only

USB and PS/2 both compatible with Keyboard

USB Keyboard with USB Mouse

USB Joystick

Product Specification (V1.11) 04.20.2007

3

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

5 Pin Assignment









VSS





1





















40





OSCO









































V3.3





2





















39





OSCI





































D+/CLK.P74





3





















38





VDD



































D-/DATA/P75





4





















37





P70









































P90





5





















36





P71









































P91





6





















35





P72

































P92/SE1/PWM1





7





















34





P67/AD23































P93/SE2/PWM2





8





















33





P66/AD22



































P94/VPP





9





















32





P65/AD21









































VNN





10

















31





P64/AD20

































P50/AD0





11

















30





P63/AD19

































P51/AD1





12

















29





P62/AD18

































P52/AD2





13

















28





P61/AD17

































P53/AD3





14

















27





P60/AD16

































P54/AD4





15

















26





P87/AD15

































P55/AD5





16

















25





P86/AD14

































P56/AD6





17

















24





P85/AD13

































P57/AD7





18

















23





P84/AD12

































P80/AD8





19

















22





P83/AD11

































P81/AD9





20

















21





P82/AD10































































































Fig. 3-1 EM78M611EXAP (40-Pin DIP)









P90



D-/DATA/P75



D+/CLK/P74



V3.3

VSS



OSCO



OSCI



VDD



P76

P77



P70































































































































44

43

42



41

40

39

38

37

36



35

34































































P91



1













































33



P71

















































P92/SE1/PWM1



2













































32



P72

















































P93/SE2/PWM2



3













































31



P67/AD23

















































P94/VPP



4













































30



P66/AD22

















































P95



5













































29



P65/AD21

















































P96



6













































28



P64/AD20

















































VNN



7













































27



P63/AD19

















































P50/AD0



8













































26



P62/AD18

















































P51/AD1



9













































25



P61/AD17

















































P52/AD2



10













































24



P60/AD16

















































P53/AD3



11













































23



P87/AD15





















































12

13

14



15

16

17

18

19

20



21

22































































































































P54/AD4

P55/AD5

P56/AD6

P57/AD7

P80/AD8

P81/AD9

P82/AD10

P83/AD11

P84/AD12

P85/AD13

P86/AD14







Fig. 3-2 EM78M611EXAQ (44-Pin QFP)































































4





















































Product Specification (V1.1) 11.22.2006

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

P56/AD6



1

20



P55/AD5





P57/AD7



2

19



P54/AD4





P60/AD16



3

18



VNN





P61/AD17



4

17



P94/VPP





P62/AD18



5

16



P93/SE2/PWM2





P77



6

15



P92/SE1/PWM1





P76



7

14



D- / DATA /P75





VDD



8

13



D+ / CLK /P74





OSCI



9

12



V3.3





OSCO



10

11



VSS

















Fig. 3-3 EM78M611EXBP/BM/DM (20-Pin DIP/SOP/SSOP)

OSCO



1

24



OSCI





VSS



2

23



VDD





V3.3



3

22



P76





D+ / CLK / P74



4

21



P77





D- / DATA /P75



5

20



P66/AD22





P92/SE1/PWM1



6

19



P65/AD21





P93/SE2/PWM2



7

18



P64/AD20





P94/VPP



8

17



P63/AD19





VNN



9

16



P62/AD18





P54/AD4



10

15



P61/AD17





P55/AD5



11

14



P60/AD16





P56/AD6



12

13



P57/AD7

















Fig. 3-4 EM78M611EXCP/CM/EM (24-Pin DIP/SOP/SSOP)

Product Specification (V1.11) 04.20.2007

5

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

6

Pin Description





Symbol

I/O

Function



















P50 ~ P57

I/O

General 8-bit bidirectional input/output port. All pins on this port can be







internally pulled-high by software control.





























P60 ~ P67

I/O

General 8-bit bidirectional input/output port. All pins on this port can be







internally pulled-high by software control.





























P70 ~ P72



LED sink pins







I/O

P76 ~ P77 will have an internally pulled-high resistor when the EM78M611E is







P76 ~ P77









running in PS/2 mode.





























P80 ~ P87

I/O

General 8-bit bidirectional input/output port. All pins on this port can be







internally pulled-high by software control.





























P90 ~ P93

I/O

General 6-bit bidirectional input/output port. All pins on this port can be







P95 ~ P96

internally pulled-high by software control or LED sink pins.



























P94 / Vpp

I

Input only. MTP program pin.



















PWM1

O

PWM output pins.







PWM2

































USB plus data line interface or CLK for PS/2 keyboard.





D+/CLK/P74

I/O

When the EM78M611E is running in PS/2 mode, this pin will have an internal











pulled-high resistor (2.2KΩ), with VDD=5.0V.























USB minus data line interface or DATA for PS/2 keyboard.











When the EM78M611E is running in PS/2 mode, this pin will have an internal





D-/DATA/P75

I/O

pulled-high resistor (2.2KΩ), with V3.3=3.3V.











When the EM78M611E is running in USB mode, this pin will have an internal











pulled-high resistor (1.5KΩ), with VDD=3.3V.



















OSCI

I

6MHz / 12MHz ceramic resonator input.



















OSCO

O

Return path for 6MHz / 12MHz ceramic resonator.



















VNN

MTP program pin. Used in programming the on-chip ROM. During normal







operation, this pin is connected to Ground.





























V3.3

PWR

3.3V regulator output



















VDD

PWR

Power supply pin



















GND

PWR

Ground pin















6

Product Specification (V1.1) 11.22.2006

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

7 Block Diagram



OSCI

OSCO

VDD

V3.3

D+

D-

R2

Stack 1





























(PC)

Stack 2

















Stack 3

Built-in

Oscillator

3.3V

Transceiver

ROM

Stack 4

Timing

Regulator

Stack 5

RC





Control











Stack 6





























Stack 7











USB





Stack 8











Device

Instruction

R3











Controller

Register











(Status)



Prescaler

Prescaler

























Reset,

WDT



TCC



RAM















































































Interrupt











ALU



Sleep &



































Wake-up























Control



Instruction



























Control

WDT



R1



















Decoder















Timer



(TCC)



R4



























































(RSR)

















ACC



























































































































































































DATA & CONTROL BUS



P74/D+/Clk



P90



P80



P60



P50





P91



P81



P61



P51



P75/D-/Data











I/O

P92

I/O

P82

I/O

P62

I/O

P52

I/O

P70

P93

P83

P63

P53

Port 7

P72

Port 9

P95

Port 8

P85

Port 6

P65

Port 5

P55



P71



P94



P84



P64



P54



P76



P96



P86



P66



P56





P97



P87



P67



P57



P77



























Product Specification (V1.11) 04.20.2007

7

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

8 Function Description

The EM78M611E memory is organized into three spaces, namely; User Program memory in 6K×13 bits ROM space, Data Memory in 144 bytes SRAM space, EEPROM space and USB Application FIFOs for EndPoint0, EndPoint1, and EndPoint2. Furthermore, several registers are used for special purposes.

8.1 Program Memory

The program space of the EM78M611E is 6K words, and is divided into six pages. Each page is 1K words long. After a reset, the 13-bit Program Counter (PC) points to location zero of the program space.

The Interrupt Vector is at 0x0001 and accommodates TCC interrupt, RF1 (SE1) timing counter interrupt, RF2 (SE2) timing counter interrupt, P74~P77 State Changed interrupt, EndPoint0 interrupt, USB Suspend interrupt, USB Reset interrupt, and USB Host Resume interrupt.

After an interrupt, the MCU will fetch the next instruction from the corresponding address as illustrated in the following diagram.



After Reset



Address





PC



0X0000

Reset Vector













0X0001









Interrupt Vector

















0X03FF

Page 0









0X0400

Page 1









0X07FF



















0X0800

Page 2









0X0BFF



















0X0C00

Page 3









0X0FFF



















0X1000

Page 4









0X13FF



















0X1400

Page 5









0X17FF

























8

Product Specification (V1.1) 11.22.2006

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

8.2 Data Memory

The Data Memory has 144 bytes SRAM space. It has also an on-chip USB Application FIFO space for USB Application. Figure 8-1 (next page) shows the organization of the Data Memory Space.

8.2.1 Special Purpose Register

When the microcontroller executes instructions, specific registers are implemented to ensure proper operation of essential functions such as Status Register which records the calculation status, Port I/O Control Registers which control the I/O pins’ direction, etc. Lots of other special purpose registers are provided for various functions.

Note that Special Control Registers can only be read or written to by two instructions: IOR and IOW.



















3234



















! " #

'5637 635#

















-.* *





$%









$%







-.* *





$%







-.*





$% &







-.* 0





$%







-.*

' ) ) =B ) 0A 635



' ( (







-.*



) )



(: ? @$<:

-.0 *

) 0A C1 =



* +,



-.0

* ) 0A DE =



' /- .0 )



(: ?$



-.*

' ) ! 63



1 /- .0

>

3? ?&%6 #



-.*

1 FGDHA =I' (



/-



( A ! "/#



-.0



!















( A # " #









1 6x8 C o m m on









>

R eg is ter

! >



















































































































































































!























































































































/

8 9

: 4

8 9



: 4 8 ,



: 4 8 9

: 4

>





63; <# 6 %=

: 463; <# 6 %=



: 4 ! 6&; <# 6 %=



: 4 63; <# 6 %= = 3: 4





















































































































Fig. 8-1 Data RAM Organization of EM78M611E

Product Specification (V1.11) 04.20.2007

9

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

8.2.2 Operation Registers

The following subsections describe each of the Operation Registers of the Special Purpose Registers. The Operation Registers are arranged according to the order of the registers’ address. Note that some registers are read only, while others are both readable and writable.

8.2.2.1R0 (Indirect Addressing Register) Default Value: (0B_0000_0000)

R0 is not a physically implemented register. Its major function is as an indirect addressing pointer. Any instruction using R0 as a pointer actually accesses data pointed by the RAM Select Register (R4).

8.2.2.2R1 (Timer / Clock Counter) Default Value: (0B_0000_0000)

The TCC register is an 8-bit timer or counter. It is readable and writable as any other register. The Timer module will be incremented after execution of every instruction cycles. User can work around this by writing an adjusted value. The Timer interrupt is generated when the R1 register overflows from FFh to 00h. This overflow sets bit TCIF (RF[0]). The interrupt can be masked by clearing bit TCIE (IOCF[0]). After Power-on reset and Watchdog reset, the initial value of this register is 0x00.

8.2.2.3R2 (Program Counter & Stack) Default Value: (0B_0000_0000)

The EM78M611E Program Counter is a 13-bit register that allows accessing of the 6k words of the Program Memory with 8 level stacks. The eight LSB bits, A0~A7, are located at R2, while the three MSB bits, A12~A10, are located at R3. The Program Counter is cleared after Power-on reset or Watchdog reset. The first instruction that is executed after a reset is located at address 00h.

10

Product Specification (V1.1) 11.22.2006

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller













Call















Interrupt



A12 A11 A10

A9 A8



A7~A0



Stack 1













RET















Stack 2













RETL















Stack 3













RETI



























Stack 4













































Stack 5





0000









Stack 6







Page 0





Stack 7





03FF









Stack 8

































0400

















Page 1









07FF















0800

















Page 2









0BFF







0000 : Reset Vector





1000

















0001 : Interrupt Vector



















Page 0









13FF















1400

















Page 0









17FF



























8.2.2.4R3 (Status Register) Default Value:(0B_0001_1XXX)

Bit 7

Bit 6

Bit 5

Bit 4

Bit 3

Bit 2

Bit 1

Bit 0

PS2

PS1

PS0

T

P

Z

DC

C

R3 [0] Carry/Borrow Flag

0 = No carry-out from the result’s Most Significant bit

1 = A carry-out from the result’s Most Significant bit occurred

NOTE

For Borrow, the polarity is reversed. For rotate (RRC, RLC) instructions, this bit is loaded with either high or low-order bit of the source register.

R3 [1] Auxiliary Carry/Borrow Flag. For ADD, SUB Instructions

0 = No carry-out from the 4th low-order bit of the result

1 = A carry-out from the 4th low-order bit of the result occurred

NOTE

For Borrow, the polarity is reversed.

Product Specification (V1.11) 04.20.2007

11

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

R3 [2] Zero flag. It will be set to 1 when the result of an arithmetic or logic operation is zero.

R3 [3] Power down flag. It will be set to 1 during Power-on phase or by “WDTC” command and cleared when the MCU enters into Power down mode. It remains in its previous state after a Watchdog Reset.

0: Power down

1: Power-on

R3 [4] Time-out flag. It will be set to 1 during Power-on phase or by “WDTC” command. It is reset to 0 by WDT time-out.

0: Watchdog timer overflow occurs

1: No Watchdog timer overflow

The various states of Power down flag and Time-out flag at different conditions are shown below:



T

P

Condition











1

1

Power-on reset



1

1

WDTC instruction

0*P WDT time-out

10 Power down mode

1

0

Wake up caused by port change during Power down mode

*P: Previous status before WDT reset

R3 [5-7] Page selection bits. These three bits are used to select the program memory page.

PS2

PS1

PS0

Program Memory Page [Address]









0

0

0

Page 0 [0000-03FF]









0

0

1

Page 1 [0400-07FF]









0

1

0

Page 2 [0800-0BFF]









0

1

1

Page 3 [0C00-0FFF]









1

0

0

Page 4 [1000-13FF]









1

0

1

Page 5 [1400-17FF]









12

Product Specification (V1.1) 11.22.2006

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

8.2.2.5R4 (RAM Select Register) Default Value: (0B_00XX_XXXX)

Bit 7



Bit 6



Bit 5



Bit 4



Bit 3



Bit 2



Bit 1



Bit 0

BK1



BK0



Ad5



Ad4



Ad3



Ad2



Ad1



Ad0































R4 (RAM select register) contains the address of the registers.

R4 [0~5] used to select registers in 0x00h~0x3Fh. The address 0x00~0x1F is common space. After 0x1Fh, SRAM is divided into four banks, using Bank Select Register.

R4 [6, 7] used to select the registers bank (refer to the table below). The following are two examples:

(1)R4=00001100 and R4=10001100 point to the same register 0x0Ch. Since 0x0Ch is in the common space, Bit 6 and Bit 7 are meaningless.

(2)R4=10111100 points to the register 0x3C in Bank 2.

R4[7]Bk1

R4[6]Bk0

RAM Bank #







0

0

Bank 0

0

1

Bank 1

1

0

Bank 2

1

1

Bank 3

8.2.2.6





R5

(Port 5 I/O Register)

Default Value: (0B_0000_0000)

























































































Bit 7









Bit 6



Bit 5











Bit 4







Bit 3









Bit 2











Bit 1

Bit 0























































































P57









P56



P55











P54







P53









P52











P51

P50

















































































8.2.2.7





R6

(Port 6 I/O Register)

Default Value: (0B_0000_0000)

























































































Bit 7









Bit 6



Bit 5











Bit 4







Bit 3









Bit 2











Bit 1

Bit 0





















































































P67









P66



P65











P64







P63









P62











P61

P60



8.2.2.8





R7

(Port 7 I/O Register)

Default Value: (0B_0000_X000)



















































































Bit 7





Bit 6









Bit 5







Bit 4





Bit 3





Bit 2





Bit 1





Bit 0























































































P77





P76







D- / P75 / DATA





D+ / P74 / CLK













P72





P71





P70







































































8.2.2.9





R8

(Port 8 I/O Register)

Default Value: (0B_0000_0000)































































Bit 7









Bit 6



Bit 5







Bit 4







Bit 3









Bit 2







Bit 1

Bit 0























































































P87









P86



P85





P84





P83









P82





P81

P80











































8.2.2.10

R9

(Port 9 I/O Register) Default Value: (0B_X00X_0000)

















































Bit 7









Bit 6



Bit 5







Bit 4







Bit 3









Bit 2







Bit 1

Bit 0































































































P96



P95









P93









P92





P91

P90



































































































































































Product Specification (V1.11) 04.20.2007











































13

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

8.2.2.11 RA (EEPROM Control Register) Default Value: (0B_1111_1111)

RA is a command register for EEPROM control. For detailed usage of this register, refer to Section 8.2.3 which describes the EEPROM embedded in the EM78M611E.

8.2.2.12RB (Pattern Detect Application Control Register)

Default Value: (0B_0000_0000)

RB is a control register for controlling the Pattern Detect Application function. For detailed description of this register, refer to Section 8.7.2 which describes the PDA function.

8.2.2.13

RC (USB Application Status Register) Default Value: (0B_0000_0000)































Bit 7



Bit 6



Bit 5



Bit 4



Bit 3



Bit 2



Bit 1



Bit 0































EP0_W



EP0_R



EP1_R

EP2_R



EP2_W



Host_Suspend



EP0_Busy

Stall































RC [0] Stall flag. While the MCU receives an unsupported command or invalid parameters from host, this bit will be set to 1 by the firmware to notify the UDC to return a STALL handshake. When a successful Setup transaction is received, this bit is cleared automatically. T his bit is readable and writable.

RC [1] EP0_Busy flag. When this bit is equal to “1,” it indicates that the UDC is writing data into the EP0’FIFO or reading data from it. During this time, the firmware will avoid accessing the FIFO until UDC finishes writing or reading. This bit is only readable.

RC [2] Host Suspend flag. If this bit is equal to 1, it indicates that USB bus has no traffic for a specified period of 3.0 ms. This bit will also be cleared automatically when there is bus activity. This bit is only readable.

RC [3] EP2_W flag. This bit is set when the UDC receives a successful data from USB Host to EP2. Upon detecting that this bit is equal to one, the firmware will execute a read sequence to the EP2’s FIFO, after which this bit is cleared. Otherwise, the subsequent data from USB Host won’t be accepted by the UDC.

RC [4, 5, 6] EP0_R / EP1_R / EP2_R flag. These three bits inform the UDC to read the data from the FIFO. Then the UDC will send the data to the Host automatically. After UDC finishes reading the data from the FIFO, this bit will be cleared automatically.

Therefore, before writing data into FIFO’s, the firmware will first check this bit to avoid overwriting the data. These three bits can only be set by firmware and cleared by hardware.

RC [7] EP0_W flag. After the UDC completes writing data to the FIFO, this bit will be set automatically. The firmware will clear it as soon as it gets the data from EP0’s FIFO. Only when this bit is cleared that the UDC will be able to write a new data into the FIFO.

Therefore, before the firmware can write data into the FIFO, this bit must first be set by the firmware to prevent the UDC from writing data at the same time. This bit is both readable and writable.

14

Product Specification (V1.1) 11.22.2006

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

8.2.2.12RD (USB Application FIFO Address Register)

Default Value: (0B_0000_0000)

Bit 7



Bit 6



Bit 5



Bit 4



Bit 3



Bit 2



Bit 1



Bit 0

































0





0



0



UAD4



UAD3



UAD2



UAD1



UAD0

































RD [0~4]

USB Application FIFO address registers. These five bits are the address







pointers of USB Application FIFO.













RD [5~7]

Undefined registers. The default value is zero.









8.2.2.13RE (USB Application FIFO Data Register)

Default Value: (0B_0000_0000)

Bit 7

Bit 6



Bit 5



Bit 4



Bit 3



Bit 2



Bit 1

Bit 0



























UD7

UD6



UD5



UD4



UD3



UD2



UD1

UD0



























RE (USB Application FIFO data register) contains the data in the register of which address is pointed by RD.

NOTE

For example, if user wants to read the fourth byte of EndPoint Zero, user has to use the address of EP0 (0x00) and Data Byte Pointer of EP0 (0x10) to access it.

//Read the 4th byte of the EP0 FIFO

//First, assign the data byte pointer of EP0 register (0X10) with 0X03. MOVA, @0X10

MOVRD, a // Move data in A to RD register MOVA, @0X03

MOVRE , A // Move data in A to RE register

//Then read the content from EP0 FIFO (0x00) 4th byte

MOVA, @0X00

MOVRD, A // Assign address point to EP0 FIFO

MOVA, RE // Read the fourth byte data (Byte 3) of the EP0 FIFO

MOV A, 0X0E// Read the fifth byte data (Byte 4) of the EP0 FIFO

8.2.2.14 RF (Interrupt Status Register)

Default Value: (0B_0000_0000)

































Bit 7

Bit 6



Bit 5



Bit 4





Bit 3



Bit 2



Bit 1



Bit 0































USB Host

SE2_IF



SE1_IF



Port7 state





USB



USB



EP0_IF



TCC_IF

Resume_IF





change_1F





Reset_IF



Suspend_IF



































RF [0] TCC Overflow interrupt flag. It will be set while TCC overflows, and is cleared by firmware.

RF [1] EndPoint Zero interrupt flag. It will be set when the EM78M611E receives Vendor/Customer Command to EndPoint Zero. This bit is cleared by firmware.

Product Specification (V1.11) 04.20.2007

15

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

RF [2] USB Suspend interrupt flag. It will be set when the EM78M611E finds the USB Suspend Signal on USB bus. This bit is cleared by the firmware.

RF [3] USB Reset interrupt flag. It will be set when the host issues the USB Reset signal.

RF [4] P74/P75/P76/P77 Port state change interrupt flag.

In PS2 Mode, only pins configured as inputs can cause this interrupt to occur. These pins (P74, P75, P76 and P77) are compared with the value latched on the last read of Port 7.

In USB Mode, P76 and P77 have this function.

NOTE

R F[4]: Port State Change Interrupt Flag,

EM78M611

USB Mode –P76 and P77 DO NOT have interrupt function.

PS2 Mode – P74/P75/P76/P77 have interrupt function.

EM78M611E

P74/P75/P76/P77 all have interrupt function (in USB & PS2 mode)

RF [5, 6] SE1 / SE2 Pattern Detect Interrupt flag. These two flags are used for Pattern detect application.

RF [7] USB Host Resume interrupt flag. It will be set only in Dual clock mode when the USB suspend signal becomes low.

NOTE

RF [7]: USB Host Resume_IF

In EM78M611, this bit is always ‘1’. It is not for use.

In EM78M611E, this bit is O.K. for use.

8.2.3 Control Registers

Some special purpose registers are available for special control purposes. Except for the Accumulator (ACC), these registers must be read and written with special instructions. One of these registers, CONT, can only be read by the instruction "CONTR" and written by "CONTW" instruction. The other special control registers can be read by the instruction "IOR" and written by the instruction "IOW".

The following paragraphs describe only the general functions of the control registers.

8.2.3.1A (Accumulator)

The accumulator is an 8-bit register that holds operands and results of arithmetic calculations. It is not addressable. After an interrupt occurs, the Accumulator is auto-saved by hardware.

16

Product Specification (V1.1) 11.22.2006

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

8.2.3.2CONT (Control Register) Default Value: (0B_0011_1111)

Bit 7



Bit 6



Bit 5



Bit 4



Bit 3



Bit 2



Bit 1



Bit 0































LED



INT

TSR2



TSR1

TSR0

PSR2



PSR1



PSR0































Except for Bit 6 (Interrupt enable control bit), the CONT register can be read by the instruction "CONTR" and written by the instruction “CONTW".

CONT [0~2] Watchdog Timer prescaler bits. These three bits are used as the Watchdog Timer prescaler.

CONT [3~5] TCC Timer prescaler bits.

The relationship between the prescaler value and these bits are shown below:

PSR2/TSR2



PSR1/TSR1



PSR0/TSR0



TCC Rate



WDT Rate



















0



0



0



1: 2



1: 1



















0



0



1



1: 4



1: 2



















0



1



0



1: 8



1: 4



















0



1



1



1: 16



1: 8



















1



0



0



1: 32



1: 16



















1



0



1



1: 64



1: 32



















1



1



0



1: 128



1: 64



















1



1



1



1: 256



1: 128



















NOTE

WDT Timing base is “Power-on time”. Set by the code option [2, 1.]

Ex. Code option [2 ,1] = 01 (2ms), and Prescaler = 1:128.

WDT overflow time is: 2mS * 2^7 = 256 mS

CONT [6] Interrupt enable control bit. This bit toggles Interrupt function between enable and disable. It is set to 1 by the interrupt disable instruction "DISI" and reset by the interrupt enable instructions "ENI" or "RETI."

0 : Disable the Interrupt function

1 : Enable the Interrupt function

CONT [7] LED bit. This bit is used to enable the LED sink capacity of P76 and P77.

0 : Disable the LED sink capacity of P76, P77

1 : Enable the LED sink capacity of P76, P77

Product Specification (V1.11) 04.20.2007

17

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

8.2.3.3IOC5 ~IOC9 I/O (Port Direction Control Registers)

Default Value: (0B_1111_1111)

These are I/O port (Port 5 ~ Port 7) direction control registers. Each bit controls the I/O direction of three I/O ports respectively. When these bits are set to 1, the relative I/O pins become input pins. Similarly, the I/O pins becomes outputs when the relative control bits are cleared.

0 : Output direction

1 : Input direction

8.2.3.4IOCA (Operation Mode Control Register) Default Value: (0B_1110_0000)

Bit 7

Bit 6

Bit 5

Bit 4

Bit 3

Bit 2

Bit 1

Bit 0

Dual_Frq.1

Dual_Frq.0

-

Remote_Wake up

ExReg_Sel

PDA

PS/2

USB

IOCA [0, 1] These two bits are used to select the operation mode.

IOCA[1]

IOCA[0]



Operation Mode











0

0



Detect Mode









0

1



USB Mode









1

0



PS/2 Mode









1

1



USB Test Mode

IOCA[2]

Pattern Detect Application function enable bit. This bit is used to enable the



Pattern Detect Application (PDA) function. For details about this function



refer to Section 8.11.



0 : Disable PDA function



1 : Enable PDA function

IOCA[3]

Extra control register select bit. The five extra control registers (REA, REB,



REC, RED, and REE) are located in 0xA~0xE. To access these five



registers, set the bit as follows:



0 : Select RA~RE



1 : Select Extra Control register ERA~ERE

IOCA[4]

Indicate whether the device is currently requested to support remote wake



up or not. The Remote Wake-up field can be modified by SetFeature () and



ClearFeature () requests.

0 : Do Not support remote wake up

1 : Supports remote wake up

NOTE

IOCA[4]: Remote_Wake up bit

EM78M611 do NOT support this function. Only EM78M611E does.

18

Product Specification (V1.1) 11.22.2006

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

IOCA [6, 7] Select the operation frequency in Dual Clock Mode. Four frequencies are available and can be chosen as Dual Clock Mode in running the MCU program.

Dual_Frq.1

Dual_Frq.0

Frequency







0

0

500Hz







0

1

4kHz







1

0

32kHz







1

1

256kHz







8.2.3.5IOCB (Port 9 Wake-up Pin Select Register)

Default Value: (0B_X111_1111)

Bit 7



Bit 6



Bit 5



Bit 4



Bit 3



Bit 2

Bit 1



Bit 0































/P96



/P95



/P94



/P93



/P92

/P91

/P90





























IOCB [0~6] These bits are used to select which of the Port 9 pins is to be assigned to wake up the MCU while in Power down mode.

0 : Enable the function

1 : Disable the function

IOCB[7]

Reserved bit

8.2.3.6IOCC (Port 9 LED Sink Capacity Control Register)

Default Value: (0B_X00X_0000)

Bit

7



Bit 6



Bit 5



Bit

4



Bit 3



Bit 2

Bit 1



Bit 0





































P96



P95







P93



P92

P91

P90

IOCC [0~3, 5, 6] LED sink control bit. These bits are used to enable the LED sink capacity of P90 ~ P97

0 : Disable the LED sink capacity of respective pin 1 : Enable the LED sink capacity of respective pin

IOCC [4, 7] Reserved bits

8.2.3.7IOCD (Port 9 Pull High Control Register) Default Value: (0B_X11X_1111)

Bit 7

Bit 6



Bit 5



Bit 4



Bit 3



Bit 2



Bit 1

Bit 0



























/PH96



/PH95





/PH93



/PH92



/PH91

/PH90



























IOCD [0~3, 5, 6] These bits control the 25KΩ pull-high resistor of individual pins in Port 9.

0 : Enable the pull-high function

1 : Disable the pull-high function

IOCD [4, 7] Reserved bits

Product Specification (V1.11) 04.20.2007

19

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

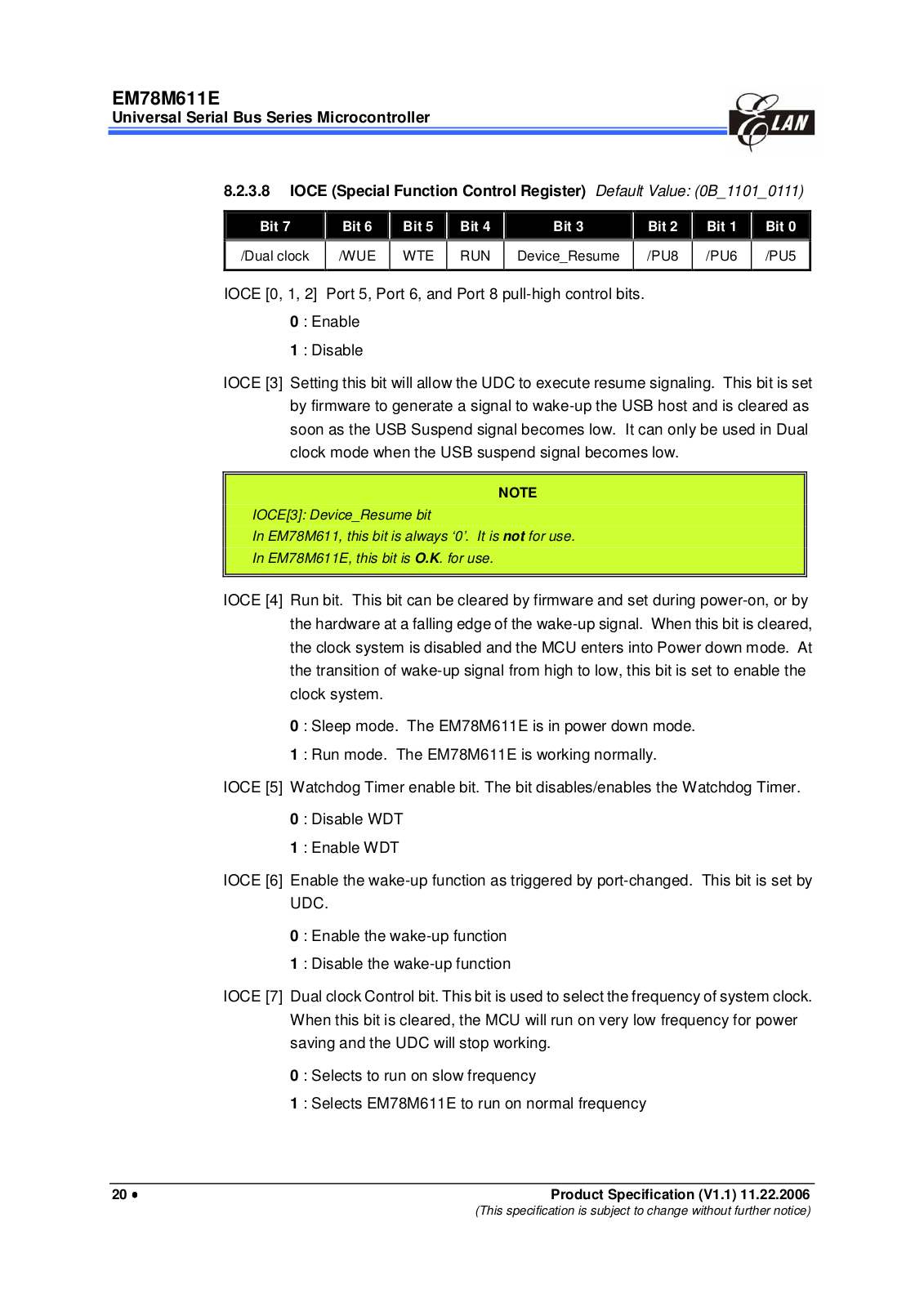

8.2.3.8IOCE (Special Function Control Register) Default Value: (0B_1101_0111)

Bit 7

Bit 6

Bit 5

Bit 4

Bit 3

Bit 2

Bit 1

Bit 0

/Dual clock

/WUE

WTE

RUN

Device_Resume

/PU8

/PU6

/PU5

IOCE [0, 1, 2] Port 5, Port 6, and Port 8 pull-high control bits. 0 : Enable

1 : Disable

IOCE [3] Setting this bit will allow the UDC to execute resume signaling. This bit is set by firmware to generate a signal to wake-up the USB host and is cleared as soon as the USB Suspend signal becomes low. It can only be used in Dual clock mode when the USB suspend signal becomes low.

NOTE

IOCE[3]: Device_Resume bit

In EM78M611, this bit is always ‘0’. It is not for use.

In EM78M611E, this bit is O.K. for use.

IOCE [4] Run bit. This bit can be cleared by firmware and set during power-on, or by the hardware at a falling edge of the wake-up signal. When this bit is cleared, the clock system is disabled and the MCU enters into Power down mode. At the transition of wake-up signal from high to low, this bit is set to enable the clock system.

0 : Sleep mode. The EM78M611E is in power down mode. 1 : Run mode. The EM78M611E is working normally.

IOCE [5] Watchdog Timer enable bit. The bit disables/enables the Watchdog Timer.

0 : Disable WDT

1 : Enable WDT

IOCE [6] Enable the wake-up function as triggered by port-changed. This bit is set by UDC.

0 : Enable the wake-up function

1 : Disable the wake-up function

IOCE [7] Dual clock Control bit. This bit is used to select the frequency of system clock. When this bit is cleared, the MCU will run on very low frequency for power saving and the UDC will stop working.

0 : Selects to run on slow frequency

1 : Selects EM78M611E to run on normal frequency

20

Product Specification (V1.1) 11.22.2006

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

8.2.3.9IOCF (Interrupt Mask Register) Default Value J(0B_0000_0000)

Bit 7



Bit 6



Bit 5



Bit 4



Bit 3



Bit 2



Bit 1



Bit 0































USB Host









Port7 state



USB



USB









Resume_I

SE2_IE



SE1_IE









EP0_IE



TCC_IE





change_1E



Reset_IE



Suspend_IE





E











































































IOCF [0~7]

TCC / EP0 / USB Suspend / USB Reset / Port 7 State Change / SE1_IE /





SE2_IE / USB Host Resume interrupt enable bits. These eight bits control





the TCC interrupt function, EP0 interrupt, USB Suspend interrupt, USB





Reset interrupt, Port 7 State Change interrupt and USB Host Resume





interrupt respectively. Individual interrupt is enabled by setting its





associated control bit in the IOCF to "1."













0 : Disable Interrupt

1 : Enable Interrupt

Only when the global interrupt is enabled by the ENI instruction will the individual interrupt work. After DISI instruction, any interrupt will not work even if the respective control bits of IOCF are set to 1.

The USB Host Resume Interrupt works only in Dual clock mode. This is because when the MCU is in sleep mode, it will be automatically woken up by the UDC Resume signal.

8.3 Extra Control Register

Five extra control registers are available to control some special functions. The five registers are ERA (AD Control register), ERB (AD_LSB), ERC (AD_MSB), ERD (AD_Rate), and ERE (PWM Control register)

Remember to set IOCA[3] before accessing these five registers. The operating method is the same as with other control registers.

8.4 USB Application FIFOs

For USB Application, EM78M611E provides an 8-byte First-In-First-Out (FIFO) buffer for each endpoint. The buffer cannot be accessed directly. However, a corresponding Data Byte Pointer register for each endpoint is made available to address the individual byte of the FIFO buffer. The content of the individual byte will map to a special register.

Product Specification (V1.11) 04.20.2007

21

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller























Address





















(RD)











































0X10

Data Byte Pointer of EP0



















0X11

Data Byte Pointer of EP1



















0X12

Data Byte Pointer of EP2















































Counter

Pointer



Counter

Pointer



Counter

Pointer











































0X00

EP0's FIFO



















0X01

EP1's FIFO



















0X02

EP1's FIFO















































0



0



0



























1



1



1



























2



2



2



























3



3



3



























4



4



4



























5



5



5



























6



6



6



























7



7



7



























Bi-directional



Uni-directional



Bi-directional























8.5 USB Application

EM78M611E is designed specially for USB device application and has many powerful functions that support the firmware to free itself from complex situation in various aspects of USB application.

8.5.1 USB Device Controller

The EM78M611E built-in USB Device Controller (UDC) can interpret the USB Standard Command and respond automatically without involving firmware. The embedded Series Interface Engine (SIE) handles the serialization and de-serialization of actual USB transmission. Thus, a developer can concentrate his efforts more in perfecting the device actual functions and spend less energy in dealing with USB transaction.

The UDC handles and decodes most Standard USB commands defined in the USB Specification Rev1.1. If the UDC receives an unsupported command, it will set a flag to notify the MCU of the receipt of such command. The Standard Commands that the EM78M611E supports includes; Clear Feature, Get Configuration, Get Interface, Get Status, Set Address, Set Configuration, Set Feature, and Set Interface.

Each time the UDC receives a USB command, it writes the command into the EP0’s FIFO. Only when it receives unsupported command will the UDC notify the MCU through interrupt.

Hence, the EM78M611E is very flexible under USB application since the developer can freely choose the method of decoding the USB command as dictated by different situation.

22

Product Specification (V1.1) 11.22.2006

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

8.5.2 Device Address and Endpoints

EM78M611E supports one device address and three endpoints, EP0 for control endpoint, EP1 and EP2 for interrupt endpoint. Sending data to USB host in EM78M611E is very easy. Just write data into EP’s FIFO, then set flag, and the UDC will handle the rest. It will then confirm that the USB host has received the correct data from EM78M611E.

8.6 Reset

The EM78M611E provides three types of reset: (1) Power-on Reset, (2) Watchdog Reset, and (3) USB Reset.

8.6.1 Power-on Reset

Power-on Reset occurs when the device is attached to power and a reset signal is initiated. The signal will last until the MCU becomes stable. After a Power-on Reset, the MCU enters into the following predetermined states (see below), and then, it is ready to execute the program.

a.The program counter is cleared.

b.The TCC timer and Watchdog timer are cleared.

c.Special registers and Special Control registers are all set to their initial values.

8.6.2 Watchdog Reset

When the Watchdog timer overflows, it causes the Watchdog to reset. After it resets, the program is executed from the beginning and some registers will be reset. The UDC however, remains unaffected.

8.6.3 USB Reset

When the UDC detects a USB Reset signal on the USB Bus, an MCU interrupt occurs, after which it proceeds to perform the specified process that follows. After a USB device is attached to the USB port, it cannot respond to any bus transactions until it receives a USB Reset signal from the bus.

8.7 Saving Power Mode

The EM78M611E provides two options of power-saving modes for energy conservation, i.e., Power Down mode and Dual clock mode.

8.7.1 Power Down Mode

The EM78M611E enters into Power Down mode by clearing the RUN register (IOCE[4]). During this mode, the oscillator is turned off and the MCU goes to sleep. It will wake up when signal from USB host is resumed, or when a Watchdog reset occurs or when an input port state changes.

If the MCU wakes up when I/O port status changes, the direction of the I/O port should be set at input direction, and then read the state of port. For example:

Product Specification (V1.11) 04.20.2007

23

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

:

// Set the Port 6 to input port

MOV

A, @0xFF

IOW PORT6

// Read the state of Port 6

MOV

PORT6, PORT6

// Clear the RUN bit

IOR

0xE

AND

A, 0B11101111

IOW

0xE

:



:



8.7.2

Dual Clock Mode

The EM78M611E has one internal oscillator for power saving application. Clearing the Bit IOCE [7] will enable the low frequency oscillator. At the same time, the external oscillator will be turned off. Then the MCU will run under very low frequency to conserve power. Four types of frequency are available for selection in setting bits IOCA [6, 7].

The USB Host Resume Interrupt can only be used in this mode. If this interrupt is enabled, the MCU will be interrupted when the USB Host Resume signal is detected on USB Bus.

8.8 Interrupt

The EM78M611E has one interrupt vector in 0x0001. When an interrupt occurs during an MCU program run, it will jump to the interrupt vector (0x0001) and execute the instructions sequentially from the interrupt vector. RF is the interrupt status register, which records the interrupt status in the relative flags/bits.

The interrupt condition could be one of the following:

TCC Overflow: When the Timer Clock / Counter Register (R1) overflows, the status flag RF[0] will be set to 1. Its interrupt vector is 0X0001.

Port 7 State Change: When the input signals in Port 7 changes, the status flag RF[4] will be set to 1. Its interrupt vector is 0X0001.

SE1 Pattern Detection Interrupt Conditions: If the Pattern Detection Application function is enabled, there will be four conditions with which interrupt is generated, and the status flag RF[5] is set to 1 (interrupt vector is 0X0001).

a)Signal from P.92 changes to low and the Pattern Counter value is bigger than R11 register value.

24

Product Specification (V1.1) 11.22.2006

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

b)Signal from P.92 changes to high, and Pattern Counter value bigger than R10 register value.

c)P.92 remains high, and the Pattern Counter value is equal to 0XFF.

d)P.92 remains low, and the Pattern Counter value is equal to 0XFF.

SE2 Pattern Counter Interrupt Conditions: If the Pattern Detection Application function is enabled, there will be three conditions with which interrupt is generated and the status flag RF[6] is set to 1(interrupt vector is 0X0001).

a)Signal from P.93 changes to low and the Pattern Counter value is bigger than R13 register value.

b)Signal from P.93 changes to high and the Pattern Counter value is bigger than R12 register value.

c)P.93 remains high, and the Pattern Counter value is equal to 0XFF.

d)P.93 remains low, and the Pattern Counter value is equal to 0XFF.

EP0 interrupt: When the UDC successfully accepts a setup transaction from host to EndPoint0, the status flag RF[1] is set to 1. Its interrupt vector is 0X0001.

USB suspend: When UDC detects a USB Suspend signal on the USB bus, the status flag RF[2] is set to 1. Its interrupt vector is 0X0001.

USB Reset: When the UDC detects a USB Reset signal on the USB bus, the status flag R[3] is set to 1. Its interrupt vector is 0X0001.

USB Host Resume: When the UDC detects that the USB bus is no longer in Suspend condition and without Device Resume signal, the status flag R[7] is set to 1. Its interrupt vector is 0X0001.

IOCF is an interrupt mask register which can be set bit by bit. While their respective bit is written to 0, the hardware interrupt will inhibit, that is, the EM78M611E will not jump to the interrupt vector to execute instructions. But the interrupt status flags still records the conditions no matter whether the interrupt is masked or not. The interrupt status flags must be cleared by firmware before leaving the interrupt service routine and enabling other interrupt.

The global interrupt is enabled by the ENI (RETI) instruction and is disabled by the DISI instruction.

8.9 Pattern Detect Application (PDA)

8.9.1 Function Description

This function is designed for the serial signal transmission, e.g., the transmission between a wireless device and its receiver box. The EM78M611 has two sets of built-in Pattern Detect Application block that ensures the EM78M611 is equipped with a compound device, such as the receiver box controller for a wireless keyboard paired with a wireless mouse.

Product Specification (V1.11) 04.20.2007

25

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

Pattern Detect Application (PDA) can calculate the length of one pattern and interrupt the MCU while the serial signal is transiting from high to low (or vise-versa). Then the MCU reads the length value from a specified register.

8.9.2 Control Register

The PDA includes an enable control bit, one control register and 4-length counter registers in 0x10 ~0x13.

IOCA [2] PDA Enable Control Bit

When this bit is set, the PDA function starts and the P92 and P93 become input pin automatically to sample the serial signal.

0 : disable PDA function

1 : enable PDA function

RB (PDA Control Register) Default Value: (0B_0000_0000)

Bit 7



Bit 6



Bit 5



Bit 4



Bit 3



Bit 2



Bit 1



Bit 0













































SE2.F

SE1.F

SR.2

SR.1

SR.0

DB2

DB1

DB0































This register is used to define two parameters of PDA function; signal sampling rate and debounce length. When a pattern ends, the value in the counter is loaded into its respective register and the RB[6] or RB[7] is set to indicate which type of pattern (high or low) is at its end or which type of pattern counter is on overflow.

0: low pattern

1: high pattern

R10 (P.92 Low Pattern Counter)

This register records the length of P.92 in low status.

R11 (P.92 High Pattern Counter)

This register records the length of P.92 in high status.

R12 (P.93 Low Pattern Counter)

This register record the length of P.93 in low status.

R13 (P.93 High Pattern Counter)

This register records the length of P.93 in high status.

R10~R13 function as general registers if this function is not enabled. Once the enabled bit is set, these four registers will be loaded with the value of the pattern counter.

8.9.3 Sampling Rate and Debounce Length

Although the two-pattern detect pins are separate, and each pin has its own pattern counter, both pins use the same Sampling Rate and Debounce Length parameters.

The PDA samples the serial signal every fixed interval. The pattern counter will be incremented by one at sampling time if the signal remains unchanged. If the signal is at

26

Product Specification (V1.1) 11.22.2006

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

high state, then the “high pattern counter“ will increase; otherwise the “low pattern counter” increases. As long as the signal state changes, the PDA will debounce signal and load the value of pattern counter into the respectively register for the firmware to read. For example, if the signal in P.92 is in “low” state, the low counter of P.92 will count continuously until the state of the input signal in P.92 changes. When a state change occurs (in this case, the signal changes from “low” to “high” state), the PDA will take a time break (which is equal to the result of sampling interval multiplied by the debounce length), to avoid possible noise. After the debounce length time, if the signal remains in high state, the high pattern counter will start to count and load the low pattern counter’s value into R10. At the same time, RB[6] is cleared to indicate that low pattern is over.

The correlation between the control register value and debounce time are as follows:

DB.2



DB.1



DB.0

Debounce Time

0



0



0

0













0



0



1

Sampling clock













0



1



0

Sampling clock × 2













0



1



1

Sampling clock × 3













1



0



0

Sampling clock × 4













1



0



1

Sampling clock × 5













1



1



0

Sampling clock × 6













1



1



1

Sampling clock × 7













On the other hand, when the signal of P92 always remains “low”, the low pattern counter of P92 will eventually overflow. Once the counter overflows, the content of the counter will also be loaded into R10, that is, the register is written to 0xFF, and the counter is reset to count from zero again.

If the hardware interrupt of PDA function is enabled, (IOCF[5] is equal to “1”), then the program will go to 0x0001 to execute interrupt routine while the content of a pattern counter is loaded into the register.

The correlation between the value of control register and actual sampling rate are as shown below:



SR.2



SR.1



SR.0

Sampling Rate

Sampling Rate







(External oscillator frequency = 6MHz)

(External oscillator frequency = 12MHz)































0



0



0

N.A.

N.A.



















0



0



1

N.A.

N.A.



















0



1



0

1500 (Count / mSec)

N.A.



















0



1



1

750 (Count / mSec)

1500 (Count/ mSec)



















1



0



0

375 (Count / mSec)

750 (Count / mSec)



















1



0



1

188 (Count / mSec)

375 (Count / mSec)



















1



1



0

94 (Count / mSec)

188 (Count / mSec)



















1



1



1

47 (Count / mSec)

94 (Count / mSec)



































Product Specification (V1.11) 04.20.2007

27

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

After the PDA function is enabled (by setting IOCA[2] to 1), user can write a default value to the High Pattern counter register and Low Pattern counter register. Then set the corresponding interrupt enable bit (IOCF[5]). When the counting value of one “H” pattern is bigger than the default value of R11, the Pattern Detecting interrupt will be generated. Similarly, if the counting value of one “L” pattern is bigger than the default value of R10, Low Pattern Detecting interrupt will occur. Thus, the EM78M611 is notified and aware that one effective pattern is received from P.92.

If user does not need these two interrupts, they can be masked. The new value of counting a pattern will still be loaded to the R10 and R11. The firmware must poll and determine whether the value of these two registers has changed or not.

8.10 Pulse Width Modulation (PWM)

8.10.1 Function Description

In PWM mode, both PWM1 (P.92) and PWM2 (P.93) produce plus programmable signal of up to 8 bits resolution.

The PWM Period is defined as 0xFF × Timer Counter Clock. The Timer Counter clock source is controlled by an extra control register, ERE. For example; if the Clock source is 1MHz, then the Period will be 255 µseconds.

Period = 255 × (1/Timer Counter Clock)

Period

(0xFF * Clock)

Duty Cycle



Fig. 8-2 The PWM Output Timing

8.10.2 Duty Cycle

The PWM duty cycle is defined by writing to the R10/R11 Register for PWM1/PWM2.

Duty Cycle = ( R10 / 255 ) × 100% for PWM1 ( R11 / 255 ) × 100% for PWM2

8.10.3 Control Register

R10 (PWM1 Duty Cycle Register)

A specified value keeps the output of PWM1 to remain at high for a Period.

R11 (PWM2 Duty Cycle Register)

A specified value keeps the output of PWM2 to remain at high for a Period.

ERE(PWM Control Register) Default Value: (0B_0000_0001)



Bit 7

Bit 6

Bit 5

Bit 4

Bit 3

Bit 2

Bit 1

Bit 0

























PEN2

PEN1

-

-

-

PS2

PS1

PS0











































28







Product Specification (V1.1) 11.22.2006

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

ERE [0~2] PWM Clock Prescaler

PS2



PS1



PS0

Clock (Hz)



Period/255 (s)

















0



0



0

Fosc/3



0.5µ

















0



0



1

Fosc/6



















0



1



0

Fosc/12



















0



1



1

Fosc/24



















1



0



0

Fosc/48



















1



0



1

Fosc/96



16µ

















1



1



0

Fosc/192



32µ

















1



1



1

Fosc/384



64µ

















ERE [6, 7] PWM1/PWM2 Enable Bit

0 : Disable

1 : Enable

8.11 Analog-To-Digital Converter (ADC)

8.11.1 Function Description

The Analog to Digital converter consists of a 5-bit analog multiplexer, one Control Register (ERA), and two data registers (RBS & RCS) for 10-bit resolution.

The ADC module utilizes successive approximation to convert the unknown analog signal to a digital value. The result is fed to the ADDATA. Input channels are selected by the analog input multiplexer via the ADCS/RAS bits AD0~AD4.

10-bit resolution: 0x00-00~0xC0-FF (0b11000000-11111111)

Start (0x00-00): 0 Vref~(1/1024) × Vref

Full (0xC0-FF): (1023/1024) × Vref~Vref

Conversion Time: 12 clock time of internal clock source

8.11.2 Control Register

ERA (AD Channel Select Register) Default Value: (0B_0001_1111)

Bit 7



Bit 6



Bit 5



Bit 4



Bit 3

Bit 2



Bit 1

Bit 0





































ADC

0



0



AD4

AD3

AD2

AD1

AD0



























Product Specification (V1.11) 04.20.2007

29

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

ERA [0~4]: AD Channel Selector

AD4



AD3



AD2



AD1



AD0



Channel

I/O Port

0



0



0



0



0



0

P50

























0



0



0



0



1



1

P51

























0



0



0



1



0



2

P52

























0



0



0



1



1



3

P53

























0



0



1



0



0



4

P54

























0



0



1



0



1



5

P55

























0



0



1



1



0



6

P56

























0



0



1



1



1



7

P57

























0



1



0



0



0



8

P80

























0



1



0



0



1



9

P81

























0



1



0



1



0



10

P82

























0



1



0



1



1



11

P83

























0



1



1



0



0



12

P84

























0



1



1



0



1



13

P85

























0



1



1



1



0



14

P86

























0



1



1



1



1



15

P87

























1



0



0



0



0



16

P60

























1



0



0



0



1



17

P61

























1



0



0



1



0



18

P62

























1



0



0



1



1



19

P63

























1



0



1



0



0



20

P64

























1



0



1



0



1



21

P65

























1



0



1



1



0



22

P66

























1



0



1



1



1



23

P67

























ERA [7] AD Converter ready flag

0 1: Start AD Conversion (set by firmware).

1 0: When AD conversion is finished and has moved digital data into the AD Data Register, this bit will be set by hardware.

NOTE

Hardware can enable this function only at AD Channel Select of the functional I/O port. After a power-on reset, the initial value of this register is 0b0001_1111.

ERB (AD LSB Data Register) Default Value: (0B_0000_0000)



Bit 7



Bit 6



Bit 5



Bit 4



Bit 3



Bit 2



Bit 1



Bit 0

























































Bit 1

Bit 0

0



0



0



0



0



0





8 bits AD LSB Digital Data























































30













Product Specification (V1.1) 11.22.2006

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

ERC (AD MSB Data Register) Default Value: (0B_0000_0000)

Bit 7



Bit 6



Bit 5



Bit 4



Bit 3



Bit 2



Bit 1



Bit 0













































Bit 9

Bit 8

Bit 7

Bit 6

Bit 5

Bit 4

Bit 3

Bit 2































2 bits AD MSB Digital Data.

ERD (AD Control Register) Default Value: (0B_0000_0000)

Bit 7

Bit 6

Bit 5

Bit 4

Bit 3

Bit 2

Bit 1

Bit 0

















0

0

0

0

0

-

ADPS1

ADPS0

















ERD [0 1]: The clock source of AD converting time.

00: 256kHz

01: 128kHz

10:64kHz

11:32kHz

8.12EEPROM

Four bytes of EEPROM are located in the R2C~R2F of Bank 3. The stored data of EEPROM are not erased when the power is off and can be read and re-written by firmware. In some special case of application, for example, cordless keyboard controller, it can store important data, such as the cordless keyboard’s device identical number.

A control register, ERA controls the EEPROM, that is, to read, write, or to erase the data from EEPROM. Writing a command into this register will execute an action to the EEPROM. The command value is defined in the following tale. Note that there is an execution time laps for each command. Before writing the next command into the control register, allow enough time for the EEPROM to finish the previous command.

Command Value

Action

Execution Time







0B_0000_0000

Read

1 ms







0B_0000_0001

Write

9 ms







0B_0000_0010

Erase

128 ms







0B_0000_0011

Disable

N.A.







Product Specification (V1.11) 04.20.2007

31

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

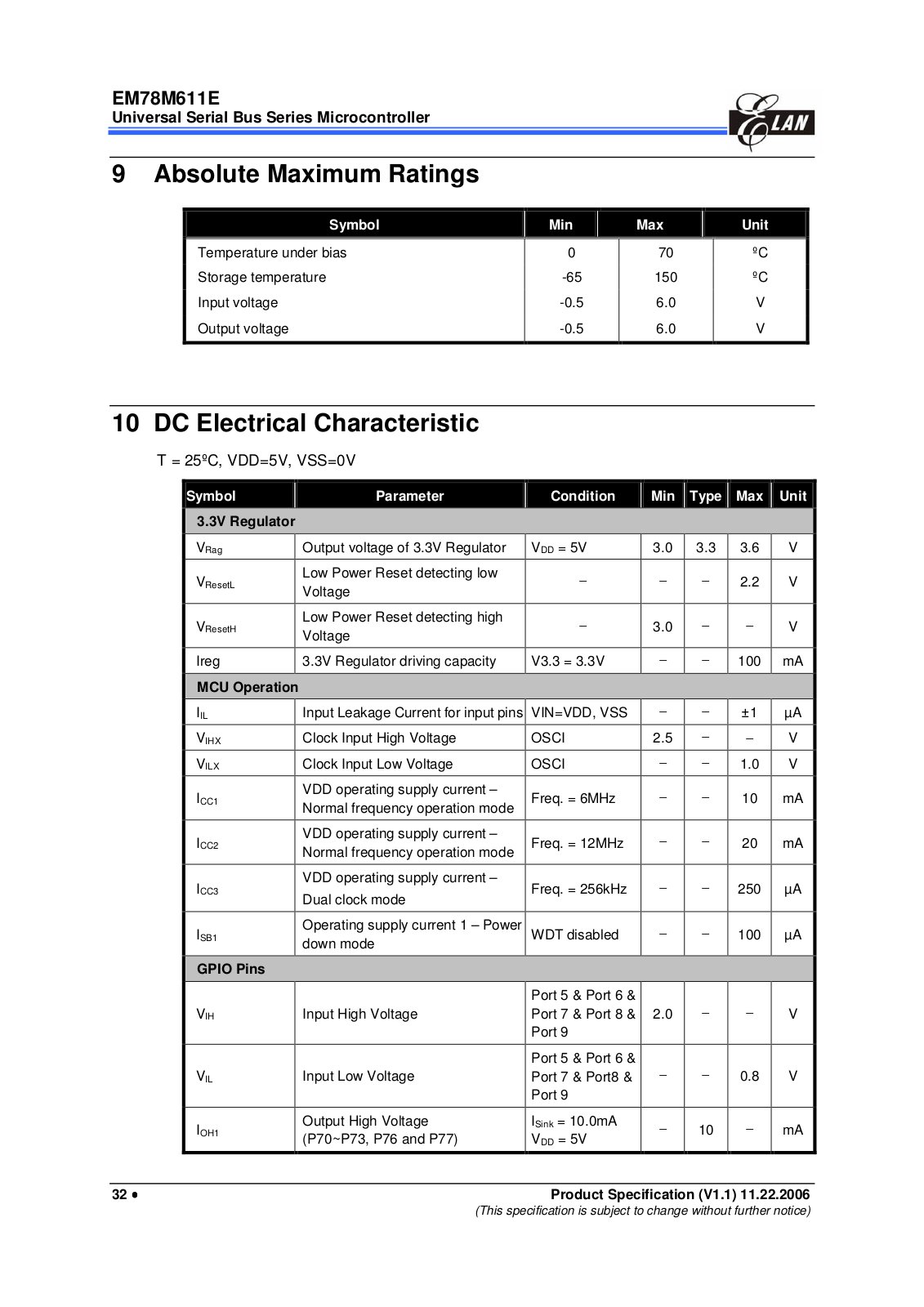

9 Absolute Maximum Ratings

Symbol



Min



Max



Unit















Temperature under bias



0



70



ëC

Storage temperature



-65



150



ëC

Input voltage



-0.5



6.0



V

Output voltage



-0.5



6.0



V















10 DC Electrical Characteristic

T = 25ëC, VDD=5V, VSS=0V



Symbol





Parameter



Condition



Min



Type



Max



Unit

































3.3V Regulator

























VRag





Output voltage of 3.3V Regulator



VDD = 5V



3.0



3.3

3.6



V

































VResetL





Low Power Reset detecting low







2.2



V







Voltage





































































VResetH





Low Power Reset detecting high





3.0







V







Voltage





































































Ireg





3.3V Regulator driving capacity



V3.3 = 3.3V





100



mA

































MCU Operation

























IIL





Input Leakage Current for input pins



VIN=VDD, VSS







K1



µA

































VIHX





Clock Input High Voltage



OSCI



2.5







V































VILX





Clock Input Low Voltage



OSCI





1.0



V

































ICC1





VDD operating supply current –



Freq. = 6MHz





10



mA







Normal frequency operation mode





































































ICC2





VDD operating supply current –



Freq. = 12MHz





20



mA







Normal frequency operation mode





































































ICC3





VDD operating supply current –



Freq. = 256kHz





250



µA







Dual clock mode



































































ISB1





Operating supply current 1 – Power



WDT disabled





100



µA









down mode























GPIO Pins



































Port 5 & Port 6 &















VIH





Input High Voltage



Port 7 & Port 8 &



2.0







V













Port 9



























































Port 5 & Port 6 &















VIL





Input Low Voltage



Port 7 & Port8 &





0.8



V













Port 9

















































IOH1





Output High Voltage



ISink = 10.0mA





10





mA







(P70~P73, P76 and P77)



VDD = 5V

































































32





Product Specification (V1.1) 11.22.2006

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

Symbol



Parameter



Condition



Min



Type



Max



Unit



























IOH2



Output High Voltage



ISink = 5.0mA





5





mA



(P74, P75)



VDD = 5V





























































Output High Voltage



ISink = 10.0mA













IOH3



(Port 5 & Port 6 & Port 8 and







10





mA





VREG = 3.3V













P90~P93, P95, P96)





































































IOL1



Output Low Voltage



ISink = 10.0mA





10





mA



(P76 and P77 normal mode)



VDD = 5V

























































IOL2



Output Low Voltage



ISink = 10.0mA





5





mA



(P74, P75)



VDD = 5V

























































IOL3



Output Low Voltage



ISink = 10.0mA





10





mA



(P70~P73, P76 and P77 sink LED)



VDD = 5V





























































Output Low Voltage



ISink = 10.0mA













IOL4



(P90 ~ P93, P95, P96 normal







10





mA





VREG = 3.3V













mode)





































































IOL5



Output Low Voltage



ISink = 10.0mA





10





mA



(P90 ~ P93, P95, P96 sink LED)



VREG = 3.3V





























































Pull-high resistor



Input pin with

















RPH1





pull-high





25





KΩ



(Port 5, 6, 8, 9)



resistor ,







































VREG = 3.3V















































Pull-high resistor(P.74 ~ P.77)



Input pin with

















RPH2





pull-high





2.2





KΩ



(P74/P75) PS2 mode



resistor ,







































VDD = 5V











































USB Interface

























VOH



Static Output High







2.8



3.6



V

























VOL



Static Output Low









0.3



V

























VDI



Differential Input Sensitivity







0.2





V



























VCM



Differential Input Command Mode



USB operation



0.8



2.5



V



Range















Mode









































VSE



Single Ended Receiver Threshold





0.8



2.0



V





































CIN



Transceiver Capacitance









20



pF

























VRG



Output Voltage of Internal Regulator







3.0



3.6



V



























RPH3



Pull-high resistor (P.75 / D-)









1.5





KΩ



























Product Specification (V1.11) 04.20.2007

33

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

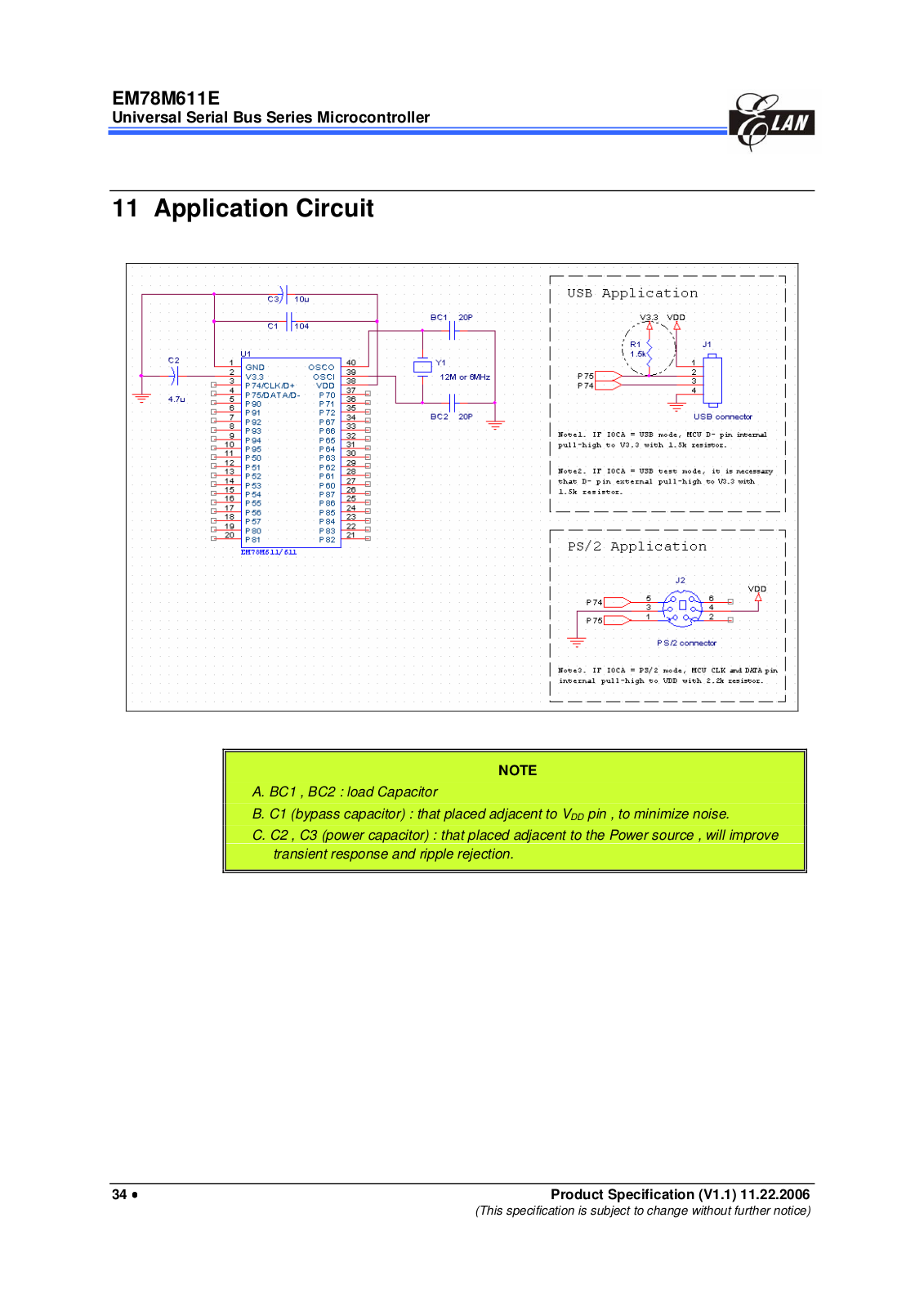

11 Application Circuit

NOTE

A.BC1 , BC2 : load Capacitor

B.C1 (bypass capacitor) : that placed adjacent to VDD pin , to minimize noise.

C.C2 , C3 (power capacitor) : that placed adjacent to the Power source , will improve transient response and ripple rejection.

34

Product Specification (V1.1) 11.22.2006

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

APPENDIX

A Special Register Map

Operation Registers

Address





Name

Bit 7



Bit 6



Bit 5



Bit 4



Bit 3



Bit 2



Bit1



Bit 0



Default Value











































0x00



R0















Indirect Addressing Register









0B_0000_0000











































0x01



R1

(TCC)













Timer/Clock Counter















0B_0000_0000











































0x02



R2

(PC)













Program Counter















0B_0000_0000









































0x03



R3

(STATUS)

PS2



PS1



PS0



T



P



Z



DC



C



0B_0001_1xxx











































0x04



R4

(RSR)

BK1



BK0



Select the register( Address: 00~3F) in indirect addressing mode













































0x05



R5

(Port 5)

P57



P56



P55



P54



P53



P52



P51



P50



0B_0000_0000









































0x06



R 6 (Port 6)

P67



P66



P65



P64



P63



P62



P61



P60



0B_0000_0000











































0x07



R 7 (Port 7)

P77



P76



P75/D-



P74/D+



-



P72



P71



P70



0B_0000_u000







/DATA



/CLK



























































































0x08



R8

(Port 8)

P87



P86



P85



P84



P83



P82



P81



P80



0B_0000_0000











































0x09



R9

(Port 9)

-



P96



P95



-



P93



P92



P91



P90



0B_u00u_0000











































0x0A



RA



-



-



-



-



-



EE_OK



EE_C1



EE_C0



0B_1111_1111











































0x0B



RB



SE2.F



SE1.F



SR.2



SR.1



SR.0



DB2



DB1



DB0



0B_1111_1111











































0x0C



RC



EP0_W



EP0_R



EP1_



EP2_R



EP2_W



UDC



UDC



STALL



0B_0000_0000









R







_SUSPEND



_Writing



















































































0x0D



RD











USB Application FIFO Address Register









0B_0000_0000





























0x0E



RE











USB Application FIFO Data Register









0B_0000_0000

















































USB

































0x0F



RF



Host



SE1_IF



SE1_IF



Port 7 state



USB



USB



EP0_IF



TCC_IF









Resume







change_1F



Reset_IF



Suspend_IF







0B_0000_0000









































_IF











































































Product Specification (V1.11) 04.20.2007

35

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

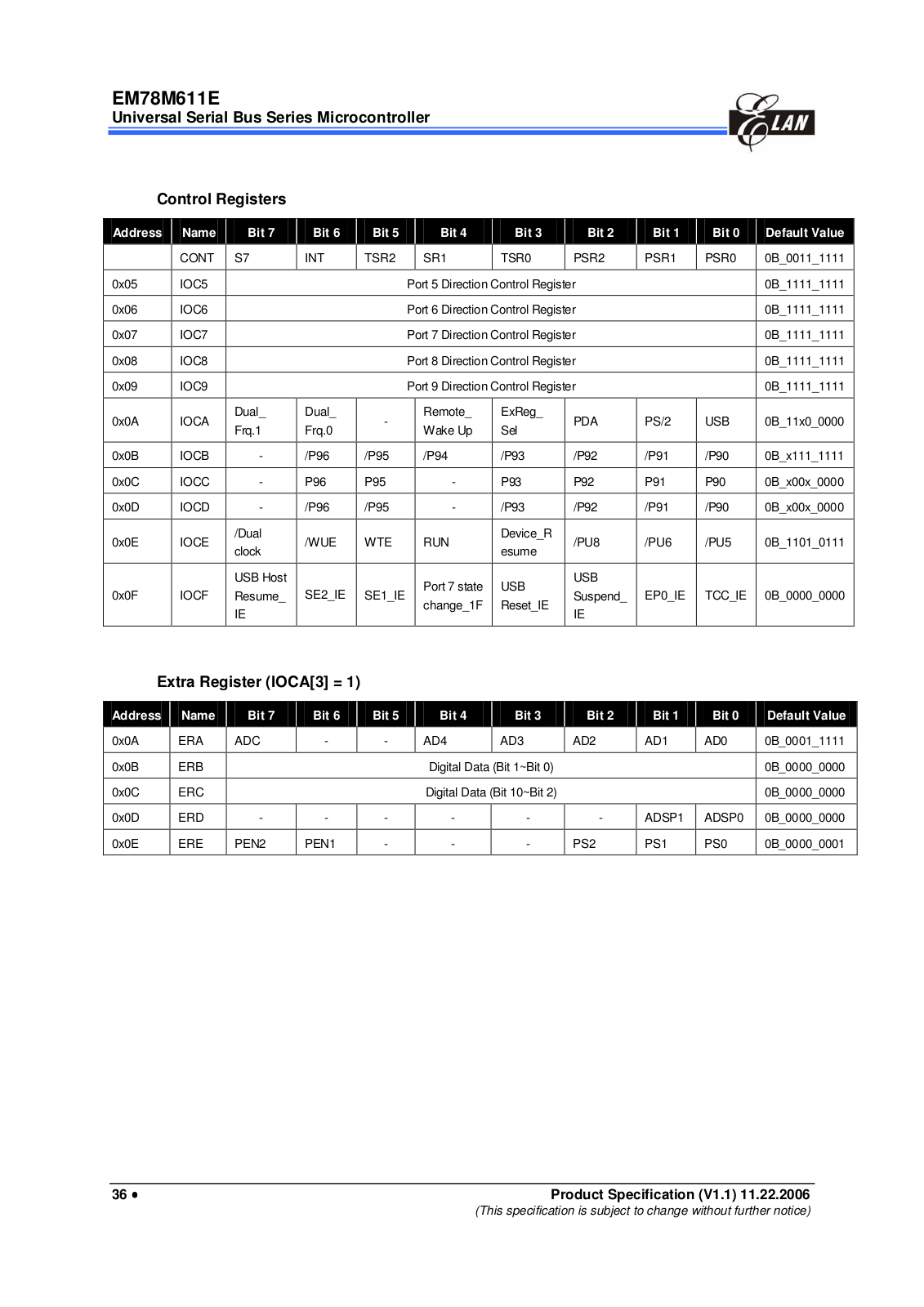

Control Registers

Address



Name



Bit 7



Bit 6



Bit 5





Bit 4



Bit 3



Bit 2



Bit 1



Bit 0



Default Value

















































CONT



S7



INT



TSR2





SR1



TSR0



PSR2



PSR1



PSR0



0B_0011_1111













































0x05



IOC5













Port 5 Direction Control Register











0B_1111_1111



































0x06



IOC6













Port 6 Direction Control Register











0B_1111_1111



































0x07



IOC7













Port 7 Direction Control Register











0B_1111_1111



































0x08



IOC8













Port 8 Direction Control Register











0B_1111_1111



































0x09



IOC9













Port 9 Direction Control Register











0B_1111_1111













































0x0A



IOCA



Dual_



Dual_



-





Remote_



ExReg_



PDA



PS/2



USB



0B_11x0_0000





Frq.1



Frq.0







Wake Up



Sel

























































































0x0B



IOCB



-



/P96



/P95





/P94



/P93



/P92



/P91



/P90



0B_x111_1111













































0x0C



IOCC



-



P96



P95





-



P93



P92



P91



P90



0B_x00x_0000













































0x0D



IOCD



-



/P96



/P95





-



/P93



/P92



/P91



/P90



0B_x00x_0000













































0x0E



IOCE



/Dual



/WUE



WTE





RUN



Device_R



/PU8



/PU6



/PU5



0B_1101_0111





clock











esume





































































































USB Host













Port 7 state



USB



USB













0x0F



IOCF



Resume_



SE2_IE



SE1_IE









Suspend_



EP0_IE



TCC_IE



0B_0000_0000













change_1F



Reset_IE

















IE

















IE

































































































Extra Register (IOCA[3] = 1)

Address



Name



Bit 7



Bit 6



Bit 5



Bit 4



Bit 3



Bit 2



Bit 1



Bit 0



Default Value











































0x0A



ERA



ADC



-



-



AD4



AD3



AD2



AD1



AD0



0B_0001_1111











































0x0B



ERB















Digital Data (Bit 1~Bit 0)















0B_0000_0000









































0x0C



ERC















Digital Data (Bit 10~Bit 2)















0B_0000_0000

































0x0D



ERD



-



-



-



-

-



-



ADSP1



ADSP0



0B_0000_0000









































0x0E



ERE



PEN2



PEN1



-



-

-



PS2



PS1



PS0



0B_0000_0001











































36

Product Specification (V1.1) 11.22.2006

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

B Instruction Set

Each instruction in the instruction set is a 13-bit word divided into an OP code and one or more operands. All instructions are executed within one single instruction cycle (consisting of two oscillator periods), unless the program counter is changed by-

(a)Executing the instruction "MOV R2, A", "ADD R2,A", "TBL", or any other instructions that write to R2 (e.g. "SUB R2,A", "BS R2,6", "CLR R2", ××××).

(b)Execute CALL, RET, RETI, RETL, JMP, Conditional skip (JBS, JBC, JZ, JZA, DJZ, DJZA) which were tested to be true.

Under these cases, the execution takes two instruction cycles. In addition, the instruction set has the following features:

(1). Every bit of any register can be set, cleared, or tested directly.

(2). The I/O register can be regarded as general register. That is, the same instruction can operate on I/O register.

Legend:

R = Register designator that specifies which one of the 64 registers (including operation and general purpose registers) is to be utilized by the instruction.

Bits 6 and 7 in R4 determine the selected register bank.

b = Bit field designator that selects the value for the bit located in the register R and which affects the operation.

k = 8 or 10-bit constant or literal value





Binary Instruction



Hex



Mnemonic



Operation



Status Affected





0

0000

0000

0000



0000



NOP



No Operation



None

































0

0000

0000

0001



0001



DAA



Decimal Adjust A



C

































0

0000

0000

0010



0002



CONTW



A CONT



None

































0

0000

0000

0011



0003



SLEP



0 WDT, Stop oscillator



T, P

































0

0000

0000

0100



0004



WDTC



0 WDT



T, P































0

0000

0000

rrrr



000r

IOW R



A IOCR



None1





0

0000

0001

0000



0010



ENI



Enable Interrupt



None

































0

0000

0001

0001



0011



DISI



Disable Interrupt



None





0

0000

0001

0010



0012



RET



[Top of Stack] PC



None

































0

0000

0001

0011



0013



RETI



[Top of Stack] PC,



None











Enable Interrupt

































0

0000

0001

0100



0014



CONTR



CONT A



None































0

0000

0001

rrrr



001r

IOR R



IOCR A



None1





0

0000

0010

0000



0020



TBL



R2+A R2,



Z, C, DC











Bits 8~9 of R2 unchanged

































0

0000

01rr

rrrr



00rr

MOV R,A



A R



None

































0

0000

1000

0000



0080



CLRA



0 A



Z































0

0000

11rr

rrrr



00rr

CLR R



0 R



Z































0

0001

00rr

rrrr



01rr

SUB A,R



R-A A



Z, C, DC































0

0001

01rr

rrrr



01rr

SUB R,A



R-A R



Z, C, DC





















































Product Specification (V1.11) 04.20.2007







37

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller



Binary Instruction



Hex



Mnemonic



Operation



Status Affected

























0

0001

10rr

rrrr



01rr

DECA R



R-1 ® A



Z

0

0001

11rr

rrrr



01rr

DEC R



R-1 ® R



Z























0

0010

00rr

rrrr



02rr

OR A,R



A Ú VR ® A



Z























0

0010

01rr

rrrr



02rr

OR R,A



A Ú VR ® R



Z

0

0010

10rr

rrrr



02rr

AND A,R



A & R ® A



Z























0

0010

11rr

rrrr



02rr

AND R,A



A & R ® R



Z























0

0011

00rr

rrrr



03rr

XOR A,R



A Å R ® A



Z























0

0011

01rr

rrrr



03rr

XOR R,A



A Å R ® R



Z























0

0011

10rr

rrrr



03rr

ADD A,R



A + R ® A



Z, C, DC























0

0011

11rr

rrrr



03rr

ADD R,A



A + R ® R



Z, C, DC























0

0100

00rr

rrrr



04rr

MOV A,R



R ® A



Z























0

0100

01rr

rrrr



04rr

MOV R,R



R ® R



Z























0

0100

10rr

rrrr



04rr

COMA R



/R ® A



Z

0

0100

11rr

rrrr



04rr

COM R



/R ® R



Z























0

0101

00rr

rrrr



05rr

INCA R



R+1 ® A



Z























0

0101

01rr

rrrr



05rr

INC R



R+1 ® R



Z

0

0101

10rr

rrrr



05rr

DJZA R



R-1 ® A, skip if zero



None























0

0101

11rr

rrrr



05rr

DJZ R



R-1 ® R, skip if zero



None

























0

0110

00rr

rrrr



06rr

RRCA R



R(n) ® A(n-1),



C





R(0) ® C, C ® A(7)

























0

0110

01rr

rrrr



06rr

RRC R



R(n) ® R(n-1),



C





R(0) ® C, C ® R(7)

























0

0110

10rr

rrrr



06rr

RLCA R



R(n) ® A(n+1),



C





R(7) ® C, C ® A(0)

























0

0110

11rr

rrrr



06rr

RLC R



R(n) ® R(n+1),



C





R(7) ® C, C ® R(0)

























0

0111

00rr

rrrr



07rr

SWAPA R



R(0-3) ® A(4-7),



None





R(4-7) ® A(0-3)

























0

0111

01rr

rrrr



07rr

SWAP R



R(0-3) « R(4-7)



None























0

0111

10rr

rrrr



07rr

JZA R



R+1 ® A, skip if zero



None

0

0111

11rr

rrrr



07rr

JZ R



R+1 ® R, skip if zero



None























0

100b

bbrr

rrrr



0xxx

BC R,b



0 ® R(b)



None2

0

101b

bbrr

rrrr



0xxx

BS R,b



1 ® R(b)



None

0

110b

bbrr

rrrr



0xxx

JBC R,b



if R(b)=0, skip



None























0

111b

bbrr

rrrr



0xxx

JBS R,b



if R(b)=1, skip



None

























1

00kk kkkk kkkk



1kkk

CALL k



PC+1 ® [SP],



None





(Page, k) ® PC

























1

01kk kkkk kkkk



1kkk

JMP k



(Page, k) ® PC



None





















1

1000

kkkk kkkk



18kk

MOV A,k



k ® A



None





















1

1001

kkkk kkkk



19kk

OR A,k



A Ú k ® A



Z





















1

1010

kkkk kkkk



1Akk

AND A,k



A & k ® A



Z





















1

1011

kkkk kkkk



1Bkk

XOR A,k



A Å k ® A



Z





















1

1100

kkkk kkkk



1Ckk

RETL k



k ® A, [Top of Stack] ® PC



None

1

1101

kkkk kkkk



1Dkk

SUB A,k



k-A ® A



Z, C, DC





















1

1111

kkkk kkkk



1Fkk

ADD A,k



k+A ® A



Z, C, DC

























Note: 1 This instruction is applicable to IOCx only.

2 This instruction is not recommended for RE, RF operation.

38

Product Specification (V1.1) 11.22.2006

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

C Code Option Register

EM78M611E has two Code option registers, which are not part of the normal program memory. The option bits cannot be accessed during normal program execution.

Address 000:

Bit

12

11

10

9

8

7

6

5

4

3

2

1

0





























Mnemonic

ID_8

ID_7

ID_6

ID_5

ID_4

ID_3

ID_2

ID_1

ID_0

OST_1

OST_0

Frequency

/Protect





























Address 001:

Bit



5

4



3



2



1



0



































Mnemonic

/AD_Hold

/R.S.

Package_1

Package_0

























Bit

12

11

10

9

8

7

6

Mnemonic

QTP_Code1

QTP_Code0

EP2_

EP2_

EP2_

EP2_

EP2_

Maxsize_2

Maxsize_1

Maxsize_0

DIR

Enable























Address 000:

Bit 1 (Frequency) : Frequency Selection

0 : MCU run on 12 MHz

1 : MCU run on 6 MHz

Bits 3~2 (OST_1 ~ OST_0) : Oscillator start-up time.

00 : 500µs

01 : 2ms

10 : 8ms

11 : 16ms

Bits 4~12 : User ID

Address 001:

Bits 1~0 (Package_1 ~ Package_0) : Package type selection

00 : Not defined

01 : 40 pins

10 : Not defined

11 : 44 pins

Bits 3~2 : Reserved bits

Product Specification (V1.11) 04.20.2007

39

(This specification is subject to change without further notice)

EM78M611E

Universal Serial Bus Series Microcontroller

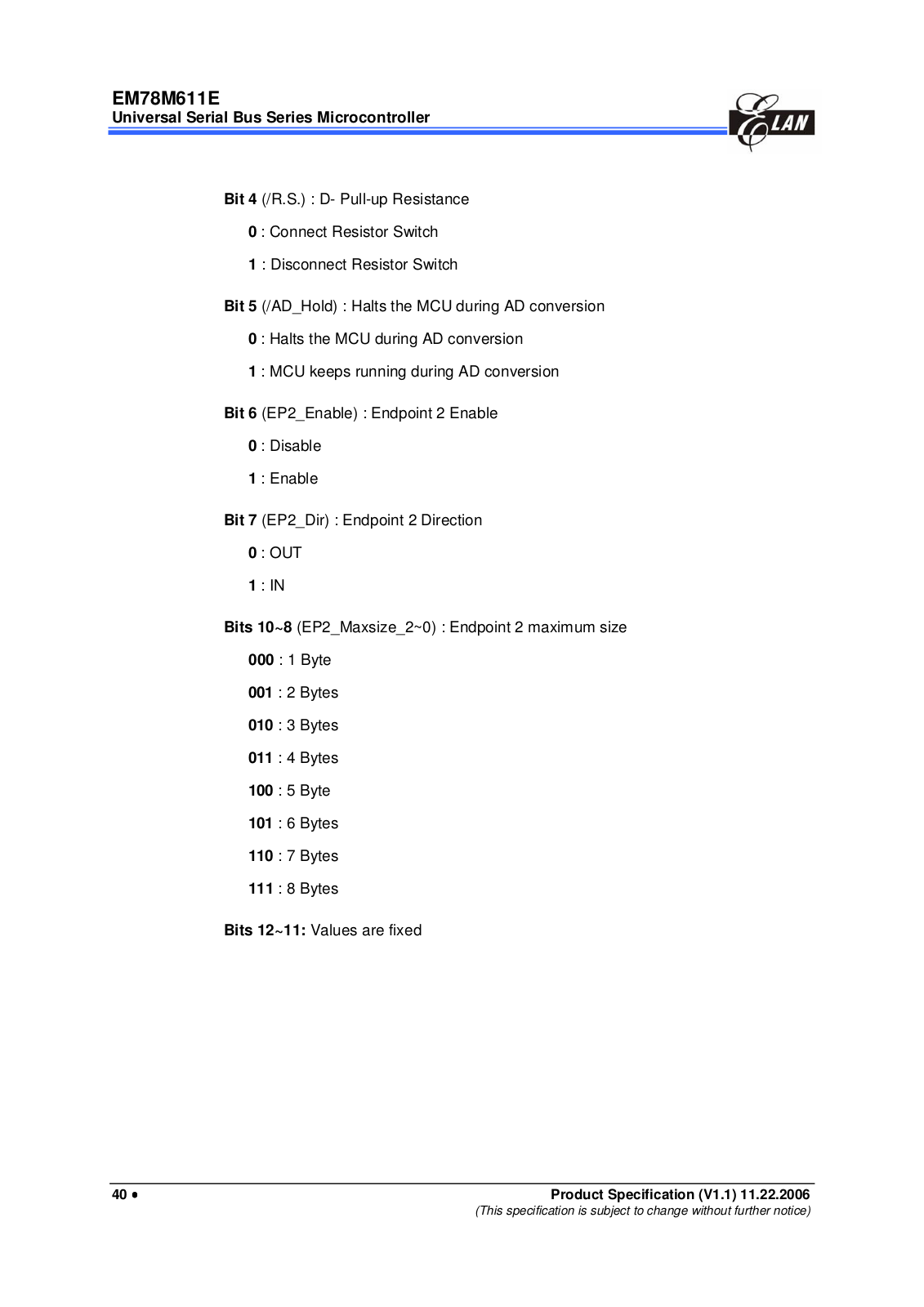

Bit 4 (/R.S.) : D- Pull-up Resistance

0 : Connect Resistor Switch

1 : Disconnect Resistor Switch

Bit 5 (/AD_Hold) : Halts the MCU during AD conversion

0 : Halts the MCU during AD conversion

1 : MCU keeps running during AD conversion

Bit 6 (EP2_Enable) : Endpoint 2 Enable

0 : Disable

1 : Enable

Bit 7 (EP2_Dir) : Endpoint 2 Direction

0 : OUT

1 : IN

Bits 10~8 (EP2_Maxsize_2~0) : Endpoint 2 maximum size

000 : 1 Byte

001 : 2 Bytes

010 : 3 Bytes

011 : 4 Bytes

100 : 5 Byte

101 : 6 Bytes

110 : 7 Bytes

111 : 8 Bytes

Bits 12~11: Values are fixed

40

Product Specification (V1.1) 11.22.2006

(This specification is subject to change without further notice)
