E500 Projector

User’ s Guid e

E500 Projector

User’ s Guid e

Note: Before using this information and the product it supports, read the information in Appendix D, “Service and Support,” on page D-1 and Appendix E, “Lenovo Statement of Limited Warranty,” on page E-1

First Edition (June 2005) © Copyright Lenovo 2005.

U.S. GOVERNMENT USERS – RESTRICTED RIGHTS: Our products and/or services are provided with RESTRICTED RIGHTS. Use, duplication or disclosure by the Government is subject to the GSA ADP Schedule contract with Lenovo Group Limited, if any, or the standard terms of this commercial license, or if the agency is unable to accept this Program under these terms, then we provide this Program under the provisions set forth in Commercial Computer Software–Restricted Rights at FAR 52.227-19, when applicable, or under Rights in Data-General, FAR 52.227.14 (Alternate III).

Safety information . . . . . . . . . .v

General safety guidelines . . . . . . . vii

Service . . . . . . . . . . . . . . . . vii

Power cords and power adapters . . . . . . . vii

Extension cords and related devices . . . . . . viii

Plugs and outlets . . . . . . . . . . . . viii

Batteries . . . . . . . . . . . . . . . viii

Heat and product ventilation . . . . . . . .ix

CD and DVD drive safety . . . . . . . . . .ix

Registering your option . . . . . . . .xi

Preface . . . . . . . . . . . . . . xiii

Chapter 1. Introduction . . . . . . . 1-1

Chapter 2. Setting up the projector . . 2-1

Starting and shutting down the projector . . . . 2-1

Adjusting the projector height . . . . . . . . 2-2

Positioning the projector . . . . . . . . . . 2-3

Adjusting the zoom, focus and keystone . . . . 2-4

Adjusting the volume . . . . . . . . . . . 2-5

Chapter 3. Connecting devices to the

projector . . . . . . . . . . . . . 3-1

Connecting devices . . . . . . . . . . . 3-1

Connecting to a USB device . . . . . . . . . 3-1

Chapter 4. Using the projector features 4-1

Using the remote control . . . . . . . . . . 4-1

Inserting the remote control batteries . . . . . 4-2

Operating range . . . . . . . . . . . . 4-3

Projector and remote control buttons . . . . . . 4-3

Chapter 5. On-Screen Display menu

controls . . . . . . . . . . . . . . 5-1

Navigating the OSD . . . . . . . . . . . 5-1

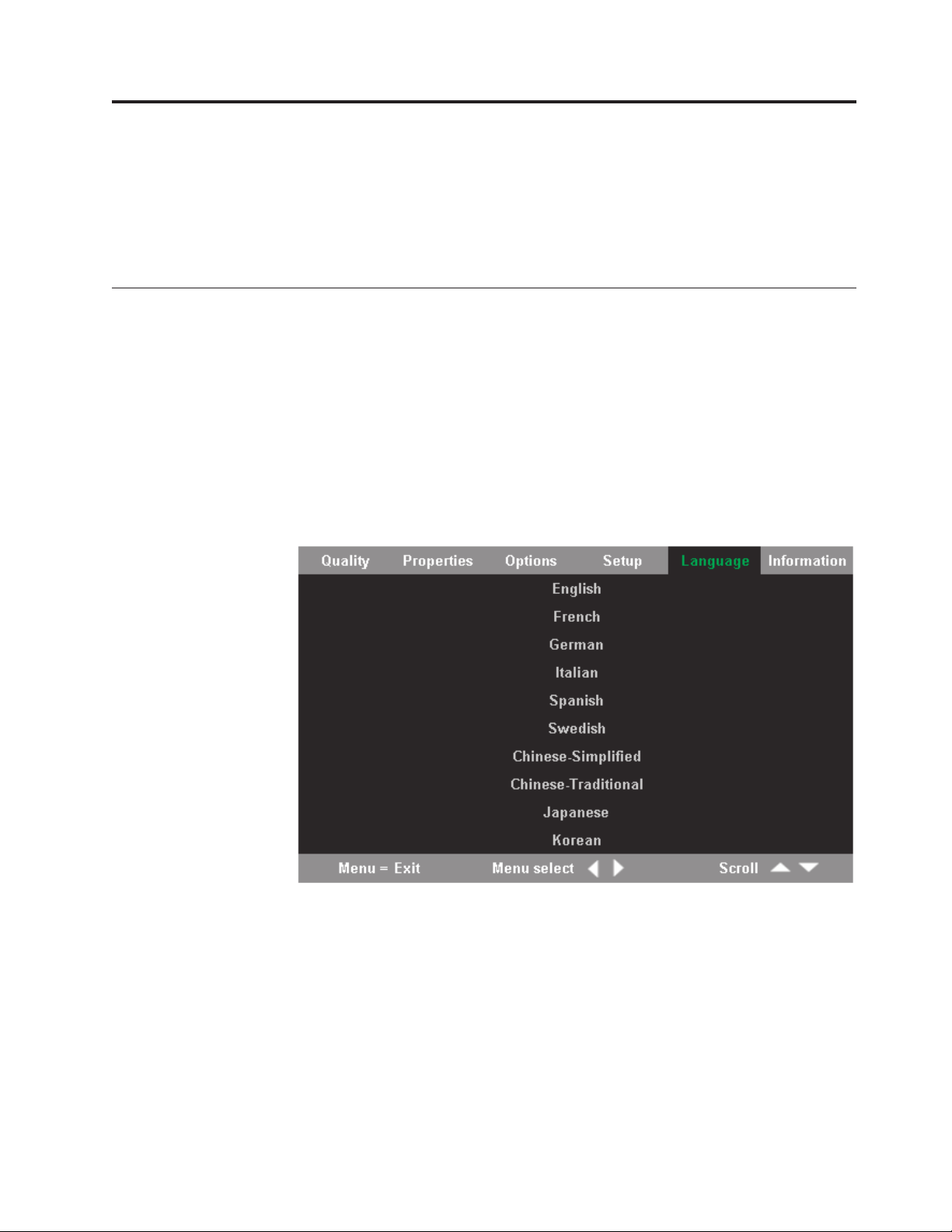

Setting the OSD language . . . . . . . . 5-1

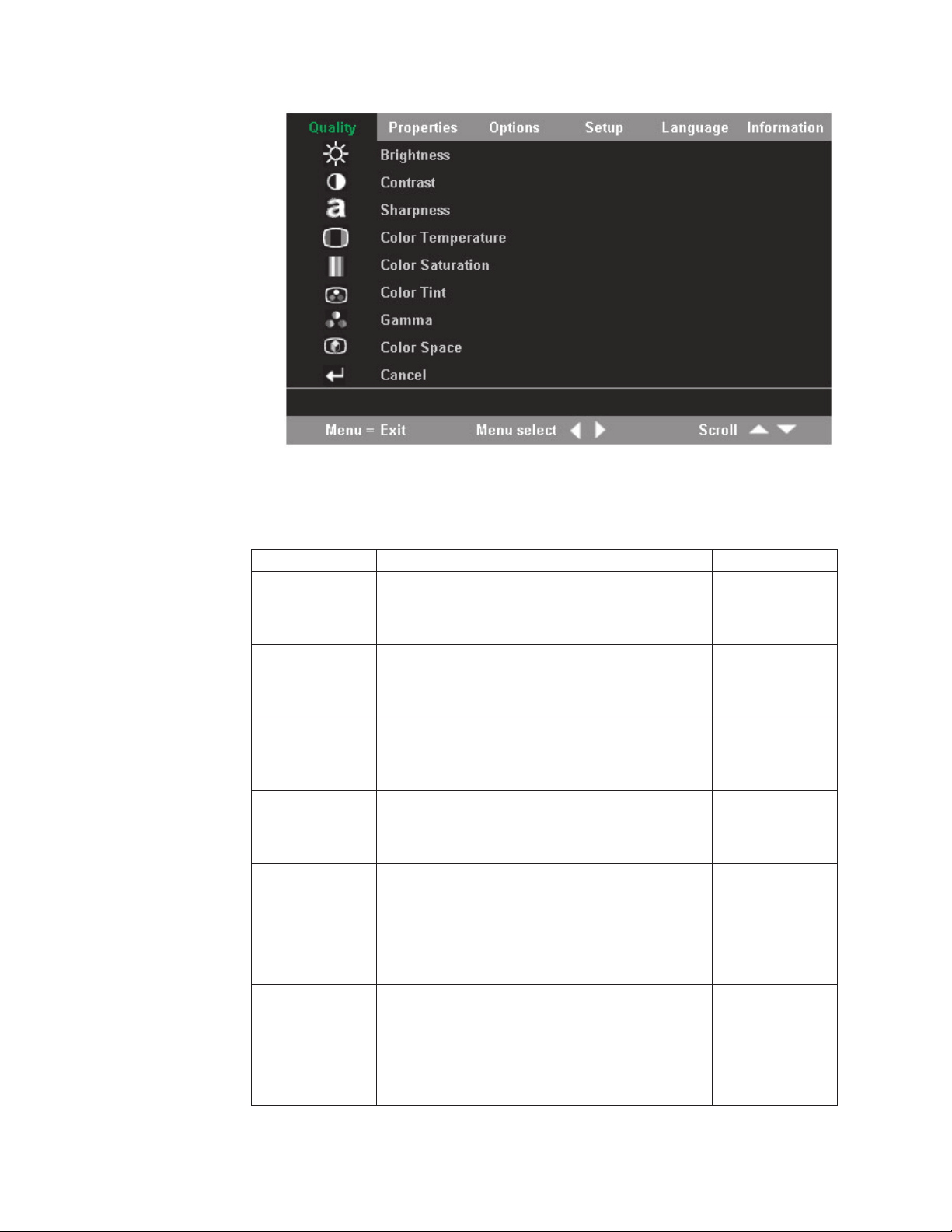

Quality menu . . . . . . . . . . . . 5-1

Properties menu . . . . . . . . . . . 5-4

Advanced Feature menu . . . . . . . . . 5-5

Options menu . . . . . . . . . . . . 5-5

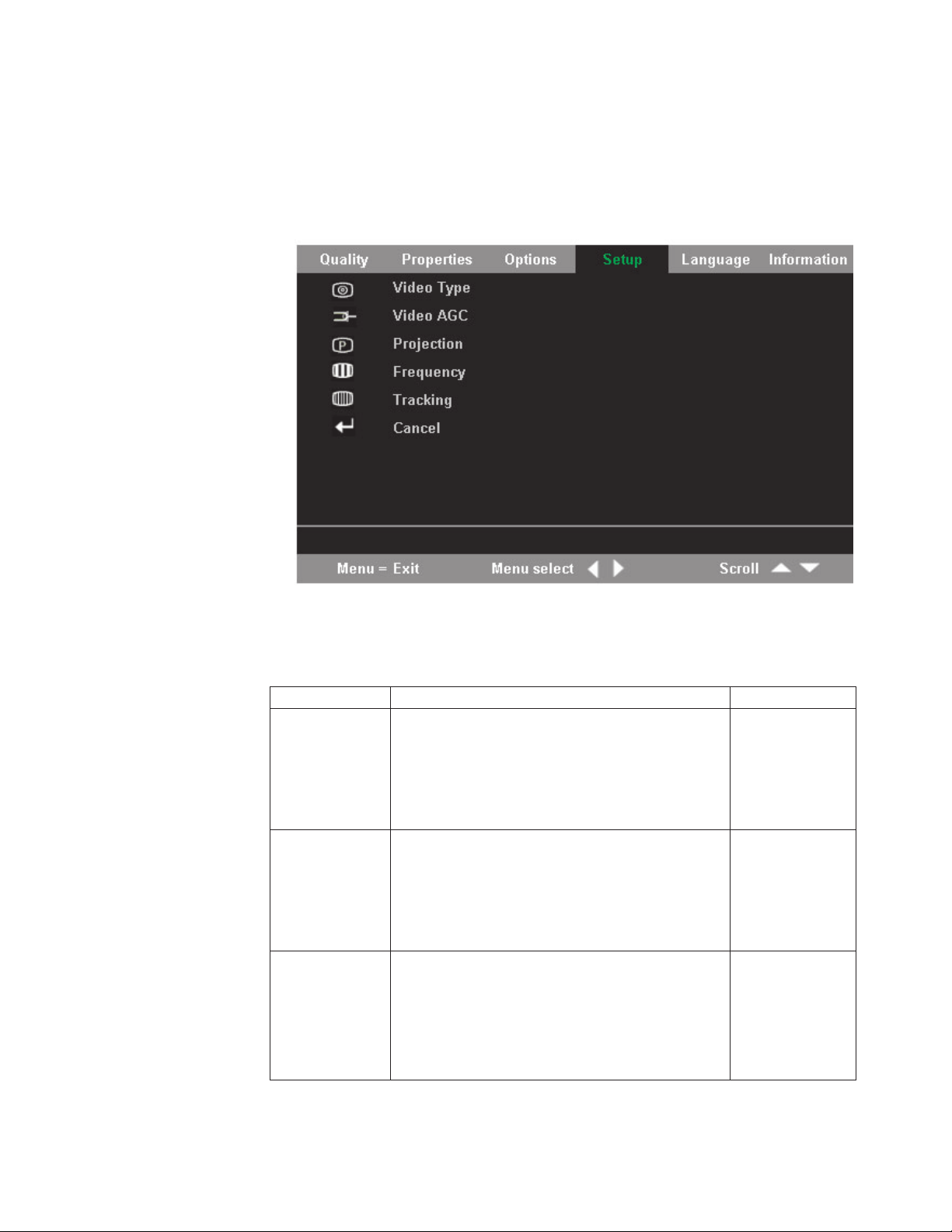

Setup menu . . . . . . . . . . . . . 5-7

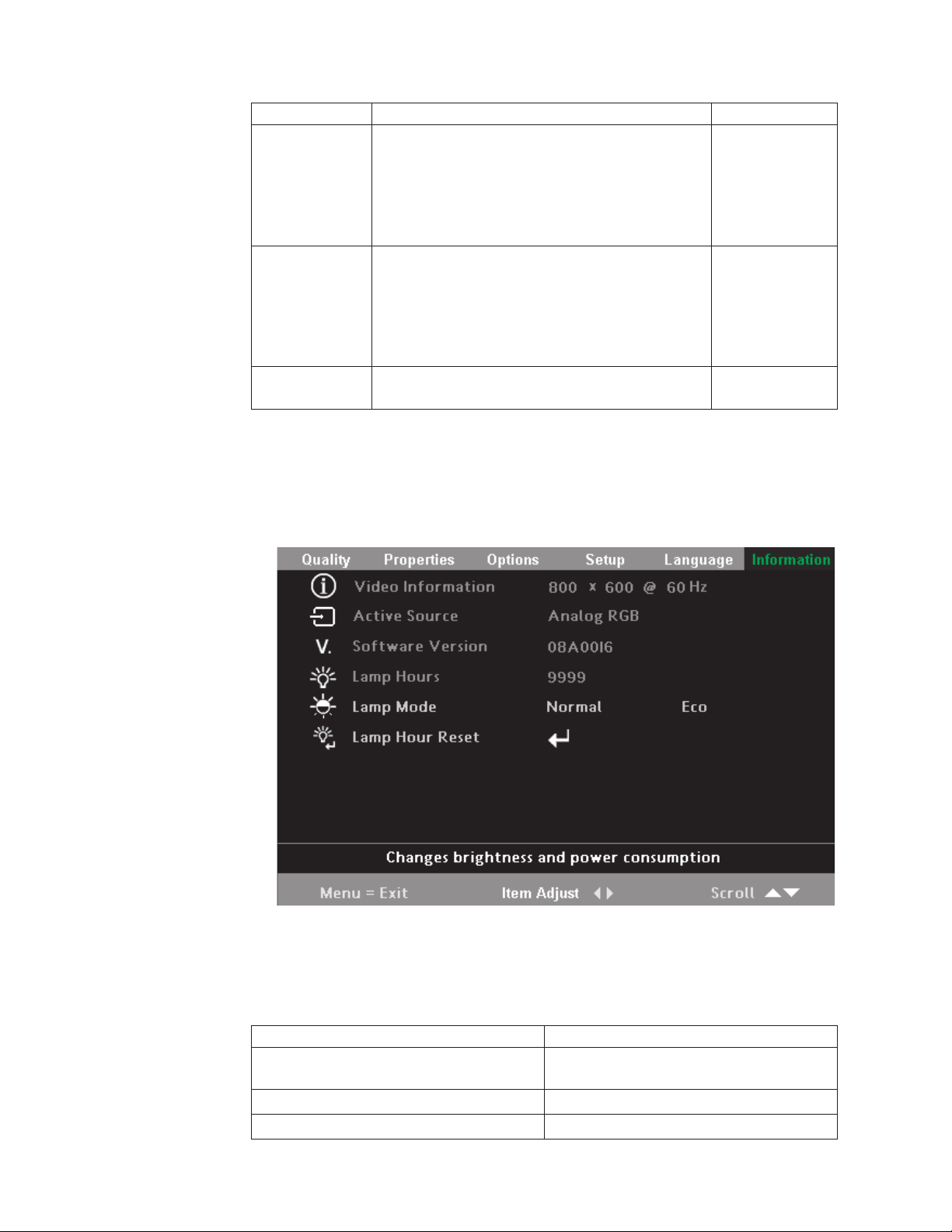

Information menu . . . . . . . . . . . 5-8

Appendix A. Maintenance . . . . . . A-1

Cleaning the lens . . . . . . . . . . . . A-1

Replacing the projection lamp . . . . . . . . A-1

Resetting the lamp timer . . . . . . . . . A-3

Using the security slot . . . . . . . . . . A-3

Appendix B. Troubleshooting . . . . B-1

Projector LEDs . . . . . . . . . . . . . B-2

Appendix C. Specifications . . . . . C-1

Appendix D. Service and Support . . . D-1

Online technical support . . . . . . . . . D-1

Telephone technical support . . . . . . . . D-1

Appendix E. Lenovo Statement of

Limited Warranty . . . . . . . . . . E-1

Part 1 - General Terms . . . . . . . . . . E-1

Part 2 - Country-unique Terms . . . . . . . E-4

Part 3 - Warranty Information . . . . . . . E-15

Warranty Period . . . . . . . . . . . E-15

Worldwide telephone list . . . . . . . . E-16

Guarantee supplement for Mexico . . . . . . E-19

Appendix F. Notices . . . . . . . . . F-1

Trademarks . . . . . . . . . . . . . . F-2

Appendix G. Electronic emissions

notices . . . . . . . . . . . . . . G-1

Federal Communications Commission (FCC)

Declaration of Conformity . . . . . . . . . G-1

iv E500 Projector: User’s Guide

Safety information

Before installing this product, read the Safety Information.

Antes de instalar este produto, leia as Informações de Segurança.

Pred instalací tohoto produktu si prectete prírucku bezpecnostních instrukcí.

Læs sikkerhedsforskrifterne, før du installerer dette produkt.

Ennen kuin asennat tämän tuotteen, lue turvaohjeet kohdasta Safety Information.

Avant d’installer ce produit, lisez les consignes de sécurité.

Vor der Installation dieses Produkts die Sicherheitshinweise lesen.

Prima di installare questo prodotto, leggere le Informazioni sulla Sicurezza.

Lees voordat u dit product installeert eerst de veiligheidsvoorschriften.

Les sikkerhetsinformasjonen (Safety Information) før du installerer dette produktet.

Antes de instalar este produto, leia as Informações sobre Segurança.

Antes de instalar este producto lea la información de seguridad.

Läs säkerhetsinformationen innan du installerar den här produkten.

vi E500 Projector: User’s Guide

General safety guidelines

Always observe the following precautions to reduce the risk of injury and property damage.

Service

Do not attempt to service a product yourself unless instructed to do so by the Customer Support Center. Use only a service provider who is approved to repair your particular product.

Note: Some parts can be upgraded or replaced by the customer. These parts are

referred to as Customer Replaceable Units, or CRUs. Lenovo expressly identifies CRUs as such, and provides documentation with instructions when it is appropriate for customers to replace those parts. Yo u must closely follow all instructions when performing such replacements. Always make sure that the power is turned off and that the product is unplugged from any power source before you attempt the replacement. If you have any questions or concerns, contact the Customer Support Center.

Power cords and power adapters

Use only the power cords and power adapters supplied by the product manufacturer.

Never wrap a power cord around the power adapter or other object. Doing so can stress the cord in ways that can cause the cord to fray, crack or crimp. This can present a safety hazard.

Always route power cords so that they will not be walked on, tripped over, or pinched by objects.

Protect the cord and power adapters from liquids. For instance, do not leave your cord or power adapter near sinks, tubs, toilets, or on floors that are cleaned with liquid cleansers. Liquids can cause a short circuit, particularly if the cord or power adapter has been stressed by misuse. Liquids can also cause gradual corrosion of the power cord terminals and/or the connector terminals on the adapter which can eventually result in overheating.

Always connect power cords and signal cables in the correct order and ensure that all power cord connectors are securely and completely plugged into receptacles.

Do not use any power adapter that shows corrosion at the ac input pins and/or shows signs of overheating (such as deformed plastic) at the ac input or anywhere on the power adapter.

Do not use any power cords where the electrical contacts on either end show signs of corrosion or overheating or where the power cord appears to have been damaged in any way.

Extension cords and related devices

Ensure that extension cords, surge protectors, uninterruptible power supplies, and power strips that you use are rated to handle the electrical requirements of the product. Never overload these devices. If power strips are used, the load should not exceed the power strip input rating. Consult an electrician for more information if you have questions about power loads, power requirements, and input ratings.

Plugs and outlets

If a receptacle (power outlet) that you intend to use with your computer equipment appears to be damaged or corroded, do not use the outlet until it is replaced by a qualified electrician.

Do not bend or modify the plug. If the plug is damaged, contact the manufacturer to obtain a replacement.

Some products are equipped with a three-pronged plug. This plug fits only into a grounded electrical outlet. This is a safety feature. Do not defeat this safety feature by trying to insert it into a non-grounded outlet. If you cannot insert the plug into the outlet, contact an electrician for an approved outlet adapter or to replace the outlet with one that enables this safety feature. Never overload an electrical outlet. The overall system load should not exceed 80 percent of the branch circuit rating. Consult an electrician for more information if you have questions about power loads and branch circuit ratings.

Batteries

Be sure that the power outlet you are using is properly wired, easily accessible, and located close to the equipment. Do not fully extend power cords in a way that will stress the cords.

Connect and disconnect the equipment from the electrical outlet carefully

All personal computers manufactured by Lenovo contain a non-rechargeable coin cell battery to provide power to the system clock. In addition many mobile products such as ThinkPad notebook PCs utilize a rechargeable battery pack to provide system power when in portable mode. Batteries supplied by Lenovo for use with your product have been tested for compatibility and should only be replaced with Lenovo approved parts.

Never attempt to open or service any battery. Do not crush, puncture, or incinerate batteries or short circuit the metal contacts. Do not expose the battery to water or other liquids. Only recharge the battery pack strictly according to instructions included in the product documentation.

Battery abuse or mishandling can cause the battery to overheat, which can cause gasses or flame to “vent” from the battery pack or coin cell. If your battery is damaged, or if you notice any discharge from your battery or the buildup of foreign materials on the battery leads, stop using the battery and obtain a replacement from the battery manufacturer.

Batteries can degrade when they are left unused for long periods of time. For some rechargeable batteries (particularly Lithium Ion batteries), leaving a battery unused in a discharged state could increase the risk of a battery short circuit, which could

viii E500 Projector: User’s Guide

shorten the life of the battery and can also pose a safety hazard. Do not let rechargeable Lithium-Ion batteries completely discharge or store these batteries in a discharged state.

Heat and product ventilation

Computers generate heat when turned on and when batteries are charging. Notebook PCs can generate a significant amount of heat due to their compact size. Always follow these basic precautions:

v Do not leave the base of your computer in contact with your lap or any part of

your body for an extended period when the computer is functioning or when the battery is charging. Your computer produces some heat during normal operation. Extended contact with the body could cause discomfort or, potentially, a skin burn.

v Do not operate your computer or charge the battery near flammable materials or

in explosive environments.

v Ventilation slots, fans and/or heat sinks are provided with the product for safety,

comfort, and reliable operation. These features might inadvertently become blocked by placing the product on a bed, sofa, carpet, or other flexible surface. Never block, cover or disable these features.

CD and DVD drive safety

CD and DVD drives spin discs at a high speed. If a CD or DVD is cracked or otherwise physically damaged, it is possible for the disc to break apart or even shatter when the CD drive is in use. To protect against possible injury due to this situation, and to reduce the risk of damage to your machine, do the following:

v Always store CD/DVD discs in their original packaging v Always store CD/DVD discs out of direct sunlight and away from direct heat

sources

v Remove CD/DVD discs from the computer when not in use v Do not bend or flex CD/DVD discs, or force them into the computer or their

packaging

v Check CD/DVD discs for cracks before each use. Do not use cracked or

damaged discs

General safety guidelines ix

x E500 Projector: User’s Guide

Registering your option

Thank you for purchasing this Lenovo register your product and provide us with information that will help Lenovo to better serve you in the future. Your feedback is valuable to us in developing products and services that are important to you, as well as in developing better ways to communicate with you. Register your option on the following Web site:

http://www.lenovo.com/register

Lenovo will send you information and updates on your registered product unless you indicate on the Web site questionnaire that you do not want to receive further information.

™

product. Please take a few moments to

xii E500 Projector: User’s Guide

Preface

The ThinkVision

E500 Projector can be used for both business presentations and

home entertainment and is easy to connect, use, and maintain.

In addition to this User’s Guide, your option package contains the following:

1 Projector with lamp housing and lens cap included 2 Remote control 3 Two AAA batteries 4 USB cable 5 S-video cable 6 Video cable (DVI-DB15) to VGA 7 Audio cable (Mini Jack-to-RCA) 8 Power cord 9 Composite video cable 10 User’s Guide (and installation) CD 11 Multi-language Quick Start guide 12 Carrying case

If any of the items listed above are missing or damaged, contact your place of purchase.

Note: Be sure to retain your proof of purchase; it will be required to receive

warranty service.

For information on optional accessories for your projector, please go to http://www.lenovo.com.

Attention

v Avoid using the projector in dusty environments. v Do not obstruct the vent openings of the projector. v Leave the power cable plugged in (for 2-5 minutes) until the projector

returns to room temperature before placing the projector inside the soft case. Placing the projector into the case too soon after switching off the power could cause the projector to overheat and will shorten lamp life.

v Be sure to attach the lens cap and place the projector into the soft case to

avoid damaging the lens.

xiv E500 Projector: User’s Guide

Chapter 1. Introduction

The figures below show the features of the E500 projector.

Figure 1-1. Front right view of projector

1 Lens/focus 2 IR receiver 3Connectors 4Power cord connector 5 Leveling foot 6 Elevator foot 7 Elevator foot adjuster button

Figure 1-2. Top view of projector

1 Zoom 2 Focus 3 Power 4 System status LEDs 5 Control buttons 6 Source button 7 Menu button 8 Auto button 9 Speaker

1-2 E500 Projector: User’s Guide

Figure 1-3. Top view of the control buttons and LEDs on the projector.

1 Power (LED) 2 Ready (LED) 3 Keystone/Up cursor 4 Volume/ Right cursor 5 Enter button 6 Keystone/ Down cursor 7 Volume/ Left cursor

Figure 1-4. Connectors

Chapter 1. Introduction 1-3

1 Audio-in 2 RS-232 3 Video cable 4 AC socket 5 Composite video 6 S-video 7 USB 8 Security slot

Figure 1-5. Bottom view of the projector

1 Projection lamp cover 2 Elevator foot 3 Leveling foot 4 Ceiling support holes

1-4 E500 Projector: User’s Guide

Chapter 2. Setting up the projector

This chapter provides information on starting and shutting down the projector, adjusting the projector height and level, adjusting the zoom, focus, and keystone, and adjusting the volume.

Attention

Before moving the projector, be sure to power down the projector normally and disconnect the projector from the main power source.

Starting and shutting down the projector

Please follow the steps below to start the projector and to shut down the projector.

1. Connect the power cord to the projector as shown below. Connect the other end to a wall outlet. The Power LED and Lamp-ready LED turn on.

2. Remove the lens cover.

3. Connect to an input device.

4. Turn on the connected devices.

5. Ensure that the Lamp-ready LED is on a steady amber, then press the Power

button to turn on the projector. The projector splash screen displays and connected devices are detected. If the

connected device is a ThinkPad, press Fn + F7 on the computer keyboard to switch the display output to the projector. Check the user’s manual of nonLenovo PCs to determine the appropriate Fn hot keys to change display output.

Attention

Do not look directly into the projection lens when the lamp is turned on. The bright light may harm your eyes

6. If more than one input devices is connected, press the Source button repeatedly

to switch among devices.

7. To turn off the projector, press the Power button. The projector prepares for

shutdown, and a ″Wait a moment please...″ message appears.

8. When the ″Power off?/Press Power again″ message appears, press the Power

button. The projector turns off.

Note: The projector will enter a cool down mode, and the fans will continue to

run for approximately 90 seconds. Do not remove power to the projector until the fans have stopped.

9. Turn off the room light and leave.

Leave the power cable plugged in for at least 2-5 minutes until the projector

Note:

returns to room temperature before placing the projector inside the soft case. Placing the projector into the case too soon after switching off the power could cause the projector to over heat.

Attention

Before moving the projector, be sure to power down the projector normally and disconnect the projector from the main power source.

Adjusting the projector height

To adjust the projector height, complete the following procedure:

1. To raise the height of the projector, lift the projector as shown in 1 and press the elevator-foot buttons as shown in 2. The elevator foot drops down as shown in 3.

2. To lower the height of the projector, press the elevator-foot button as shown in 2 and push down on the top of the projector.

3. To make adjustments to the level, rotate the leveling foot as shown in 4.

2-2 E500 Projector: User’s Guide

Positioning the projector

To determine where to position the projector, consider the size and shape of your screen, the location of your power outlets, and the distance between the projector and the rest of your equipment. Following are some general guidelines:

v Position the projector on a flat surface at a right angle to the screen. The

projector must be at least 1.5 m (4.9 ft) from the projection screen.

v Position the projector within 2.7 m (9 ft) of your power source and within 1.8 m

(6 ft) of your video device (unless you purchase extension cables). To ensure adequate cable access, do not place the projector within .15 m (6 in.) of a wall or other object.

v Position the projector the desired distance from the screen. The distance from the

lens of the projector to the screen, the zoom setting, and the video format determine the size of the projected image.

Chapter 2. Setting up the projector 2-3

Figure 2-1.

Table 2-1.

Diagonal screen size

Image Width

Image height

Distance from center of lens to bottom of image

(m/in.)

(m/ft)

1 1.10/43.3 .88/2.88 .66/2.16 1.5/4.92

2 1.47/57.8 1.17/3.83 .88/2.88 2/6.56

3 1.76/69.3 1.4/4.59 1.1/3.6 2.4/7.87

4 2.06/81.1 1.64/5.38 1.23/4.03 2.8/9.18

5 2.35/92.5 1.87/6.13 1.41/4.62 3.2/10.5

6 2.65/104.3 2.11/6.92 1.58/5.18 3.6/11.81

7 2.94/115.7 2.34/7.67 1.76/5.77 4/13.12

8 3.23/127.2 2.57/8.43 1.94/6.36 4.4/14.4

Adjusting the zoom, focus and keystone

To adjust the image, follow these steps.

1. Use the Image-focus control on the projector to sharpen the projected image as shown in 1.

2. Use the Image-zoom control on the projector to resize the projected image and screen size as shown in 2.

(m/ft)

2-4 E500 Projector: User’s Guide

3. Use the Keystone buttons (shown below) to correct image-trapezoid effect.

The keystone control appears on the display.

Adjusting the volume

To adjust the volume, follow the steps below.

1. Press the Volume +/- buttons on the projector or the remote control. The volume control appears on the OSD.

2. Use the Volume +/- buttons to adjust the level. The volume buttons on the projector and remote control are shown below.

3. Press the Mute button (on the remote control only) to turn off the volume. See 3 in the figure above.

4. Press the Volume +/- buttons on the projector or the remote control to turn off the mute.

Chapter 2. Setting up the projector 2-5

+ 57 hidden pages

IBM E500 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Safety information

General safety guidelines

Service

Power cords and power adapters

Extension cords and related devices

Plugs and outlets

Batteries

Heat and product ventilation

CD and DVD drive safety

Registering your option

Preface

Chapter 1. Introduction

Chapter 2. Setting up the projector

Starting and shutting down the projector

Adjusting the projector height

Positioning the projector

Adjusting the zoom, focus and keystone

Adjusting the volume
