IBM TotalStorage Product Guide
IBM Systems and Technology Group
2
Strategic storage imperatives
Information technology is the lifeblood of any business, especially today when organizational performance depends on
information on demand. Business accountability hinges on it,
laws and regulations mandate it, customers demand it and
effective business processes rely on it. With information
on demand, businesses can respond quickly with the flexibility
to meet customer requirements, market opportunities or external threats. But as utterly valuable as information on demand
has become, it also has become more costly to store, maintain
and protect.
A comprehensive approach to the challenges of providing
information on demand
To meet these challenges, IBM®has taken a holistic approach
to the problem, looking well beyond storage products alone to
help you share, manage and protect your data. To provide
complete solutions for businesses using the on demand
model, IBM has addressed three areas of IT.
Infrastructure simplification
Few would question the statement that IT infrastructures have
grown more complex in recent years. The dramatic growth in
the use of IT, combined with distributed computing architectures, is part of the reason. But business processes have also
become more complex and integrated too, driving a greater
need for complex interconnections among systems.
The added complexity that accompanies growth can stand in
the way of fully realizing the benefits of IT. Infrastructure simpli-
fication is a way to look at the entire IT operation and help
eliminate the complexity that can raise costs, reduce reliability
and create dependencies on specialized skills—factors making
it harder to operate as an on demand business.
Three proven methods for simplifying an IT infrastructure are
consolidation, virtualization and automated management. Each
technique can be applied to all areas that compose an IT
operation—servers, storage and networks.
Within the storage arena, consolidation can include reducing
the number of data centers and sharing fewer large-capacity
storage systems among a greater number of application
servers. Consolidated resources can cost less and can be
easier to share and protect.
Storage virtualization involves a shift in thinking from physical
to logical—treating storage as a logical pool of resources, not
individual devices. Not only can this help simplify the storage
environment, but it also can help increase utilization and
availability.
The storage arena is ripe with opportunities to lower administrative costs through automation, particularly through workflows. Once tasks are automated, administrators can deal with
more strategic issues. In addition, automation can help reduce
errors and contribute to higher system performance.
Business continuity
On demand businesses rely on their IT systems to conduct
business. Everything must be working all the time. Nothing
less is acceptable. A sound and comprehensive business con-
tinuity strategy encompasses high availability, near continuous
operations and disaster recovery. For each of these areas, the
IBM TotalStorage®Resiliency Family includes a comprehensive
set of products that are compatible with multiple platforms.
Information lifecycle management
The primary goal of information lifecycle management (ILM)
techniques is to optimize the storage and management of
information based on its value to your business. An ILM
process can help a business maximize the value of information, from the moment of its creation to the moment of its
disposal. Corporate governance policies, business processes
and compliance guidelines all influence ILM policies.
The primary capabilities from IBM that support ILM include
optimized storage environments with tiered storage platforms,
policy-based retention management software, content and
records management applications, and non-erasable, nonrewritable media. The potential benefits to your business
include improved risk management, optimum storage utilization, better handling of compliance issues and lower costs.
Storage Area Network (SAN) Products
3
Entry SAN switches for easy-to-use SMB solutions
IBM TotalStorage SAN16B-2 switch (2005-B16)
IBM TotalStorage SAN16B-2 Express Model switch
(2005-16B)
●
Provides high performance, scalable and simple-to-use fabric switch with 8, 12 or
16 port operating at 1, 2 and 4 Gigabits per second (Gbps) fabric for servers running
Microsoft® Windows®, UNIX®, Linux®, NetWare® and OS/400® operating systems, server clustering, infrastructure simplification and business continuity solutions.
The SAN16B-2 includes Advanced Web Tools, an easy-to-use configuration wizard
designed to simplify setup and ongoing maintenance for novice users.
IBM TotalStorage Storage Switch L10 (2006-L10)
●
Provides storage switching for IBM _` xSeries and IBM _`
BladeCenter®. Entry 4 to 10-port, 1 or 2 Gbps storage switch for Windows and Linux,
includes zoning and integrated Web server
IBM TotalStorage SAN16M-2 switch (2026-416)
●
Provides high performance, scalable and simple-to-use fabric with 8, 12 or 16 port
operating at 1, 2 and 4 Gigabits per second (Gbps) fabric for servers running
Microsoft Windows, UNIX®, Linux, NetWare® and OS/400® operating systems,
server clustering, infrastructure simplification and business continuity solutions. The
base switch includes dual power, zoning, EFCM Basic management and an easy-touse installation wizard designed to simplify setup and ongoing maintenance for
novice users.
IBM TotalStorage SAN12M-1 (2026-E12)
IBM TotalStorage SAN16M-2 Express Model switch
(2026-16E)
●
Provides SAN switching for Intel® processor-based servers, IBM _` iSeries
and pSeries. Entry 4, 8, 12-port,1 and 2 Gbps fabric switch for Windows and UNIX,
includes zoning, SANpilot and 4-port FlexPort upgrades
Midrange SAN switches for scalable SMB and enterprise solutions
IBM TotalStorage SAN32B-2 switch (2005-B32)
IBM TotalStorage SAN32B-2 Express Model switch
(2005-32B)
●
Provides high performance, scalable and simple-to-use fabric switch with 16, 24 or
32 port operating at 1, 2 and 4 Gigabits per second (Gbps) fabric for servers running
Microsoft Windows, UNIX, Linux, NetWare and OS/400 operating systems, server clustering, infrastructure simplification and business continuity solutions. The SAN16B-2
includes dual replaceable power supplies, Advanced Zoning, Fabric Watch and
Webtools.
IBM TotalStorage SAN32M-2 switch (2026-432)
IBM TotalStorage SAN32M-2 Express Model switch
(2026-32E)
●
Provides high performance, scalable and simple-to-use fabric with 16, 24 or 32 port
operating at 1, 2 and 4 Gigabits per second (Gbps) fabric for servers running
Microsoft Windows, UNIX, Linux, NetWare and OS/400 operating systems, server clustering, infrastructure simplification and business continuity solutions. The base switch
includes dual power, zoning, EFCM Basic management and an easy-to-use installation wizard designed to simplify setup and ongoing maintenance for novice users.
IBM TotalStorage SAN24M-1 switch (2026-224)
●
Provides SAN switching for Intel processor-based servers, IBM _` iSeries
and pSeries. Entry 8, 16, 24-port,1 and 2 Gbps fabric switch for Windows and UNIX,
includes zoning, SANpilot and 8-port FlexPort upgrades
IBM TotalStorage SAN32M-1 switch (2026-232)
●
Provides SAN switching for Intel processor-based servers, IBM _` iSeries,
pSeries and System z9. Midrange 8 to 32-port, 1 and 2 Gbps fabric and FICON®
switch for Windows and UNIX and z/OS, includes zoning, SANpilot
Cisco MDS 9120 Fabric Switch (2061-020)
●
Provides SAN switching for Intel processor-based servers, IBM _` iSeries
and pSeries. Midrange 4 to 20-port, 1 and 2 Gbps fabric switch for Windows and
UNIX, includes Virtual SAN and Cisco Fabric Manager
Cisco MDS 9140 Fabric Switch (2061-040)
●
Provides SAN switching for Intel processor-based servers, IBM _` iSeries
and pSeries. Midrange 4 to 40-port, 1 and 2 Gbps fabric switch for Windows and
UNIX, includes Virtual SAN and Cisco Fabric Manager
Cisco 9216A and Cisco 9216i Multilayer Fabric
Switch (2062-D1A and 2062-D1H)
●
Provides SAN switching for Intel processor-based servers, IBM _` iSeries,
pSeries and System z9. Midrange 16-port, 1 and 2 Gbps fabric and FICON switch for
Windows, Linux, UNIX and z/OS server, includes one module slot,Virtual SAN and
Cisco Fabric Manager. 9216i provides 14 Fibre Channel and 2 Gigabit Ethernet ports
Enterprise SAN directors for high availability and scalability enterprise solutions
IBM TotalStorage SAN256B director (2109-M48)
●
High performance, high density and high availability SAN director designed to be the
foundation for large enterprise-class infrastructure simplification and business continuity solutions. The SAN256B director provides from 16 to 256 ports and contains two
control processors for high availability and from one to eight blades, each of which
contains either 16 or 32 ports. Each port can support 4, 2 or 1 Gigabits per second
(Gbps) link speeds. Standard features including Advanced Inter-Switch Link (ISL)
Trunking,Web Tools, Advanced Zoning, Fabric Watch, Performance Monitoring and
Fabric Access Layer (API).
IBM TotalStorage SAN Director M14 (2109-M14)
●
High availability enterprise SAN director for Intel processor-based servers,
IBM _` iSeries, pSeries and System z9. Provides 16 to 128 port, 1 and
2 Gbps Fibre Channel and FICON switch for Windows, Linux, UNIX and z/OS servers
IBM TotalStorage SAN140M director (2027-140)
●
High availability enterprise SAN director for Intel processor-based servers,
IBM _` iSeries, pSeries and System z9. Provides 16 to 140 port, 1 and
2 Gbps Fibre Channel and FICON switch for Windows, Linux, UNIX and z/OS servers
IBM TotalStorage SAN256M director (2027-256)
●
High availability enterprise SAN director for Intel processor-based servers,
IBM _` iSeries, pSeries and System z9. Provides 64 to 256 port, 1 and
2 Gbps Fibre Channel and FICON director with 10 Gbps backbone links for Windows,
Linux, UNIX and z/OS servers. Includes Director FlexPar capability for up to four logical
partitions with separate fabric services
Cisco MDS 9506 Director (2062-D04)
●
High availability enterprise SAN director for Intel processor-based servers,
IBM _` iSeries, pSeries and System z9. Provides 16 to 64 port (16-port modules) and 32 to 128 port (32-port modules) 1 and 2 Gbps Fibre Channel and FICON
switch for Windows, Linux, UNIX and z/OS servers
Cisco MDS 9509 Director (2062-D07)
●
High availability enterprise SAN director for Intel processor-based servers,
IBM _` iSeries, pSeries and System z9. Provides 16 to 112 port (16-port
modules) and 32 to 224 port (32-port modules) 1 and 2 Gbps Fibre Channel and
FICON switch for Windows, Linux, UNIX and z/OS servers
IBM TotalStorage SAN16B-R SAN router
(2109-R16)
●
Provides multiprotocol SAN routing for IBM _` xSeries, iSeries and pSeries.
Router includes 8, 16 1 and 2 Gbps Fibre Channel and Gigabit Ethernet ports and
iSCSI server connectivity. FC-FC Routing for SAN island consolidation and FCIP
Tunneling Service for SAN extension of IP WAN infrastructures features
IBM TotalStorage SAN04M-R SAN router
(2027-R04)
●
Provides two Fibre Channel ports for attachment to existing SANs and two Gigabit
Ethernet ports with Internet SCSI, iSCSI server connectivity for cost-effective infrastructure simplification solutions. Internet Fibre Channel Protocol, iFCP features are
offered for cost-effective high performance metro and global business continuity
solutions.
IBM TotalStorage SAN16M-R SAN router
(2027-R16)
●
Provides multiprotocol SAN routing with twelve 2 Gbps Fibre Channel ports for attachment to existing SANs and four Gigabit Ethernet ports with iSCSI server connectivity
for enterprise infrastructure simplification solutions. SAN Routing features for SAN
island consolidation and iFCP features for SAN extension over IP WAN infrastructures
for enterprise business continuity solutions are offered.
Entry-level Tape Products
Tape Storage Systems
4
F/W = Fast/Wide, Diff = Differential, N/A = Not Applicable, FC = Fibre Channel, X = Extended length cartridge, IOE = IBM Onsite Exchange, CRU = Customer Replaceable Unit
NOTES 1: Compressed data rates are estimates and are data-, application- and processor-dependent. User results may vary. 2: Max number of cartridges decreases as tape drives are added. 3: AIX 4.1.5 or later. 4: Load and search only. 5: Server platforms with SAN-ready attachability, model- and feature-dependent. 6: Depends on
virtual cartridge configuration. 7: The latest ISV support can be found in the connectivity section at ibm.com/storage/tape/conntrix. A = IBM Tivoli Storage Manager, B = Symantec VERITAS NetBackup, C = Symantec VERITAS Backup Exec, D = EMC Legato NetWorker, E = CA BrightStor ARCserve Backup, F = HP OpenView Storage
Data Protector, G = CommVault Galaxy, H = BakBone NetVault, I = LSC, J = IBM BRMS, K = IBM OnDemand, L = Help/Systems Robot/Save, M = LXI Media Management, N = Dantz.
* 7212-102 also offers DVD-ROM and DVD-RAM optical drives
For most current information, visit: ibm.com/servers/storage/tape/compatibility/index.html
Tape Drives Desktop Tape Libraries Optical
7205 7206 7206-VX2 7207 7212-102* 7212-312 3580 3581 7210
Product SDLT Drive
Tape Drive
4mm DDS-4
4mm Gen 5 (DAT72)
8mm VXA-2 Tape Drive SLR (QIC) Compatible
External Tape Drive
Storage Device Enclosure VXA-2 Autoloader Tape drive Tape autoloader External DVD-RAM
Machine
model
7205
550
7206
336-DDS Gen 5
7206
VX2
7207
330
7212
102
7212
312
3580
LTO Gen 2
LTO Gen 3
L33 Ultrium 3
L23 Ultrium 2
H23 Ultrium 2
3581
LTO Gen 2
LTO Gen 3
L28 Ultrium 2
F28 Ultrium 2
L23 Ultrium 2
H23 Ultrium 2
7210
025-9.4GB
030-9.4GB
Product
strengths
Cost-effective
save/restore/archive solution
Cost-effective
streaming tape drive
Low-cost, highcapacity VXA-2
technology
Backward read/write compatible with iSeries internal
Rack-mountable 2-drive
enclosure utilizes only 1U
(1.75") of space
Rack-mountable
Only 1 EIA rack unit high
Open systems attach, high
capacity, fast data transfer
rate, desktop footprint
Open systems attach, multiplatform, high capacity,
optional barcode reader
External deskside
Optical storage
Number of
heads/tracks
8/536 Rotating Drum Rotating Drum 1/1 4mm/VXA: Rotating Drum Rotating Drum Ultrium 3: 16/704
Ultrium 2: 8/512
Ultrium 3 Technology is now
available
Ultrium 2: 8/512
025-enclosed media
030-back media
Number of
drives
11111–211 1 1
Max number of
cartridges
11112101 8 - L28, F28
7 - L23, H23
1
Cartridge
capacity
native/compressed
160/320GB 336: 36/72GB 36/72GB
80/160GB
330: 30/60GB DAT72: 36/72GB
SLR: 60/100GB
VXA-2: 80/160GB
Ultrium HH: 200/400GB
80 GB/160GB Ultrium 3: 400GB Native
Ultrium 2: 200/400GB
Ultrium 3 Technology is now
available
Ultrium 2: 200/400GB
2.6GB-7.4GB
Max system
capacity
compressed
1
320GB 336: 72GB 160GB 330: 30/60GB 160GB with two VXA-2
drives
18.8GB with two DVD-RAM
drives
1600 GB Ultrium 3: 800GB
Ultrium 2: 400GB
L23, H23: 2.8TB
L28, F28: 3.2TB
L38; F38: 6.4TB
N/A
Max drive data
rate
1
native/
compressed
16/32 MBps 336: 3/6 MBps 6/12 MBps 330: 4/8 MBps DDS/DAT72: 3/6 MBps
VXA: 6/12 MBps
6/12 MBps
VXA-2
Ultrium 3: 80 MBps*
Ultrium 2: 35/70 MBps
Ultrium 3: 80/160 MBps
Ultrium 2: 35/70 MBps
N/A
Time to data
4
70 seconds 50 seconds 50 seconds 330: 50 seconds VXA-2: 40 seconds
SLR: 50 seconds
DAT72: 50 seconds
50 seconds Ultrium 3: 47 seconds
Ultrium 2: 49 seconds
Ultrium 3: 47 seconds
Ultrium 2: 49 seconds
5 seconds
Interface SCSI-2 F/W, Diff PCI, Ultra2
SCSI LVD
SCSI-2 F/W SE, LVD/SE SCSI-3 ULTRA, LVD/SE,
160/320
SCSI-2 SE, ULTRA, LVD/SE,
160/320
SCSI-3 ULTRA,LVS/SE,
160/320
SCSI-3 Ultra, LVD-SE,
160/320
L33, L23, LVD
H23, HVD
L28, F28-FC fabric
L23, LVD
H23, HVD
L38, LVD; F38, FC fabric
SCSI-3 ULTRA,LVD-SE,
160/320
Supported
platforms
5
p5, pSeries, RS/6000
3
p5, pSeries, RS/6000 p5, pSeries, RS/6000, i5,
iSeries, AS/400
i5, iSeries, AS/400, p5,
pSeries, RS/6000
p5, pSeries, RS/6000, i5,
iSeries, AS/400
p5, pSeries/RS6000 pSeries, RS/6000, Windows
NT,Sun
xSeries, Netfinity, iSeries,
AS/400, pSeries, RS/6000,
Windows 2000, Windows
Server 2003, Sun, HP, Linux
p5, pSeries, RS/6000, i5,
iSeries, AS/400
Media
part number
1-888-IBM-Media
Refer to Tape Media, page 8 Refer to Tape Media, page 8 Refer to Tape Media, page 8 Refer to Tape Media, page 8 Refer to Tape Media, page 8 Refer to Tape Media, page 8 xSeries, Netfinity®, iSeries,
AS/400, pSeries, RS/6000,
Windows 2000, Windows
Server 2003, Sun, HP, Linux
Refer to Tape Media, page 8 Refer to Tape Media, page 8
Warranty IBM Onsite Repair 1 Year,
24x7
IBM Onsite Repair 1 year,
24x7
IBM Onsite Repair 1 year,
24x7
IBM Onsite Repair 1 Year,
24x7
IBM Onsite Repair 1 Year,
24x7
CRU, IBM Onsite Repair 1
year, 24x7
A C D E F G H
8
F28, L28: 3 years, CRU IBM Onsite Repair 1 year,
24x7
Tape Storage Systems (continued)
Midrange Tape Products
Native only
In most countries
*
**
F/W = Fast/Wide, Diff = Differential, N/A = Not Applicable, FC = Fibre Channel, X = Extended length cartridge, IOE = IBM Onsite Exchange, CRU = Customer Replaceable Unit
NOTES 1: Compressed data rates are estimates and are data-, application- and processor-dependent. User results may vary. 2: Max number of cartridges decreases as tape drives are added.
3: AIX 4.1.5 or later. 4: Load and search only. 5: Server platforms with SAN-ready attachability, model- and feature-dependent. 6: Depends on virtual cartridge configuration. 7: The latest ISV support
can be found in the connectivity section at ibm.com/storage/tape/conntrix. 8: The following vendors provide application support to the platforms defined above: A = IBM Tivoli Storage Manager,
B = Symantec VERITAS NetBackup, C = Symantec VERITAS Backup Exec, D = EMC Legato NetWorker, E = CA BrightStor ARCserve Backup, F = HP OpenView Storage Data Protector, G = CommVault
Galaxy, H = BakBone NetVault, I = LSC, J = IBM BRMS, K = IBM OnDemand, L = Help/Systems Robot/Save, M = LXI Media Management, N = Dantz.
5

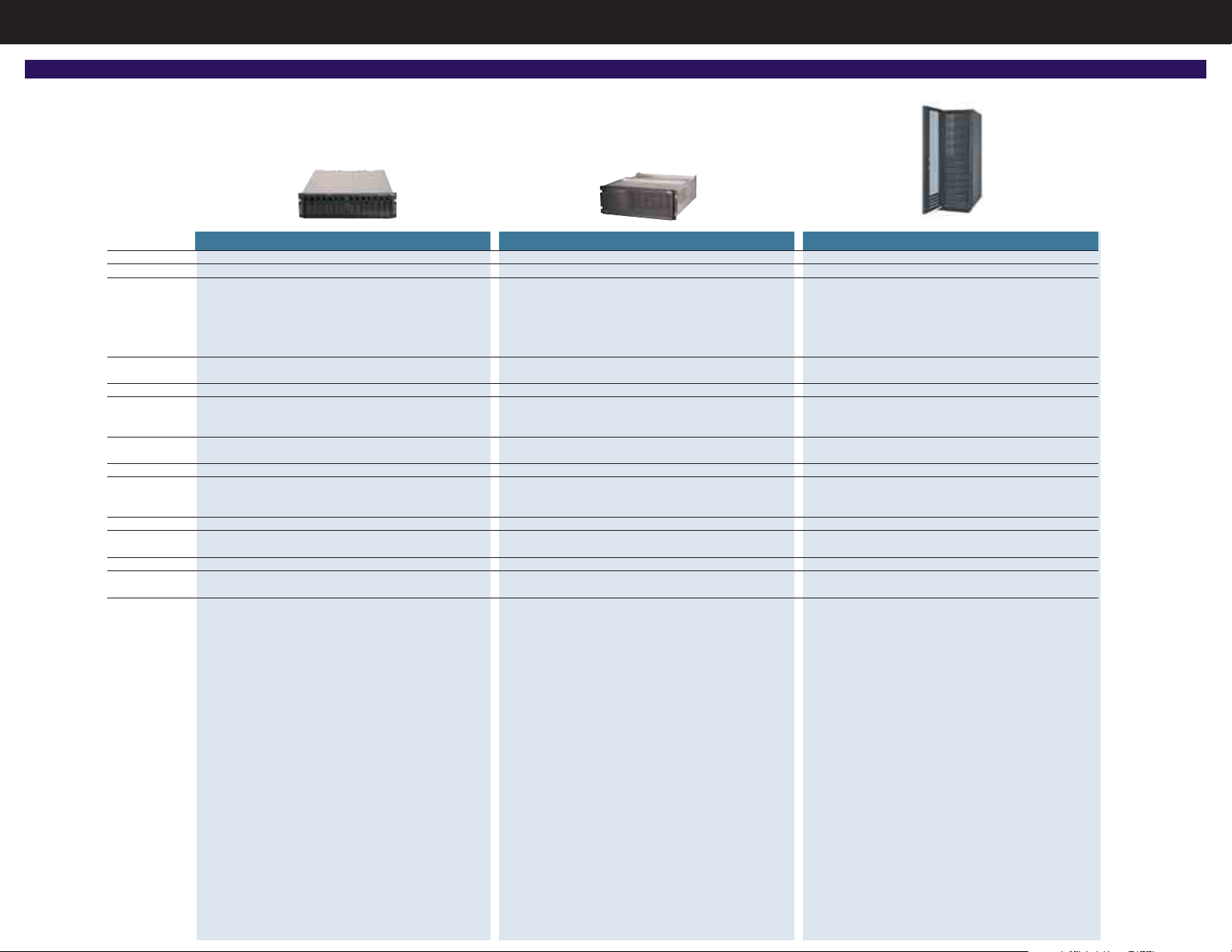

Tape Libraries
3582 3583 3584
Product Tape library Tape library Tape library
Machine
model
3582
L23 Ultrium 2
F23 Ultrium 2
3583
L18-18 Carts
L36-36 Carts
L72-72 Carts
3584
L22-base frame for 3592,
D22-expansion frame for 3592, up to 15 frames may be added
Product
strengths
Open systems attach, multiplatform, scalable, high capacity, direct-to-SAN
attach
Open systems attach, multiplatform, scalable, high capacity, direct-to-SAN
attach
Open Systems attach, Multiplatform, Advanced Library Management
System, Ultra-Scalable, High Capacity, Enterprise Tape Drive 3592 support,
WORM support, Dual robotic accessors
Number of
heads/tracks
Ultrium 3 Technology is now available
Ultrium 2: 8/512
Ultrium 3 Technology is now available
Ultrium 2: 8/512
3592: 8/512
Ultrium 3 Technology is now available
Ultrium 2: 8/512
Number of
drives
1–2 1–6 1–192
Max number of
cartridges
24 72 6,887
2
Cartridge
capacity
native/compressed
Ultrium 3 Technology is now available
Ultrium 2: 200/400GB
Ultrium 3 Technology is now available
Ultrium 2: 200/400GB
3592: 300/900GB
3592: 300/900 WORM
Ultrium 3 Technology is now available
Ultrium 2: 200/400GB
Max system
capacity
compressed
1
Ultrium 3: 19.2TB
Ultrium 2: 9.6TB
Ultrium 3: 57.6TB
Ultrium 2: 28.8TB
3592: 5.63PB
Ultrium 3: 5.63PB
Ultrium 2: 2.75PB
Max drive data
rate
1
native/
compressed
Ultrium 3: 80/160 MBps
Ultrium 2: 35/70 MBps
Ultrium 3: 80/160 MBps
Ultrium 2: 35/70 MBps
3592: 40/120 MBps
Ultrium 3: 80/160 MBps
Ultrium 2: 35/70 MBps
Time to data
4
Ultrium 3: 47 seconds
Ultrium 2: 49 seconds
Ultrium 3: 47 seconds
Ultrium 2: 49 seconds
3592: Cartridge Dependent
Ultrium 3: 47 seconds
Ultrium 2: 49 seconds
Interface LVD, HVD, FC fabric LVD, HVD, FC fabric 3592: FC fabric
Ultrium 3: FC fabric
Ultrium 2: FC Fabric
SAN-ready
5
pSeries, RS/6000, Windows NT,Sun pSeries, RS/6000, Windows NT,Sun
Supported
platforms
5
xSeries, Netfinity,iSeries, AS/400, pSeries, RS/6000,Windows 2000,
Windows Server 2003, Sun, HP, Linux
xSeries, Netfinity,iSeries, AS/400, pSeries, RS/6000,Windows 2000,
Windows Server 2003, Sun, HP, Linux
xSeries, Netfinity,iSeries, AS/400, pSeries, RS/6000,Windows 2000,
Windows Server 2003, Sun, HP, Linux
ISV
(Independent
Software
Vendor)
5
A C D E F G H
8
A C D E F G H
8
Media
part number
1-888-IBM-Media
Refer to Tape Media, page 8 Refer to Tape Media, page 8 Refer to Tape Media, page 8
Warranty 3 years, CRU IBM Onsite Repair 1 year, 24x7 IBM Onsite Repair 1 year, 24x7
Tape Storage Systems
Enterprise Tape Products
F/W = Fast/Wide, Diff = Differential, N/A = Not Applicable, FC = Fibre Channel, X = Extended length cartridge, IOE = IBM Onsite Exchange, CRU = Customer Replaceable Unit
NOTES 1: Compressed data rates are estimates and are data-, application- and processor-dependent. User results may vary. 2: Max number of cartridges decreases as tape drives are added.
3: AIX
®
4.1.5 or later. 4: Load and search only. 5: Server platforms with SAN-ready attachability, model- and feature-dependent. 6: Depends on virtual cartridge configuration. 7: The latest ISV support
can be found in the connectivity section at ibm.com/storage/tape/conntrix. 8: The following vendors provide application support to the platforms defined above: A = IBM Tivoli Storage Manager,
B = Symantec VERITAS NetBackup, C = Symantec VERITAS Backup Exec, D = EMC Legato NetWorker, E = CA BrightStor ARCserve Backup, F = HP OpenView Storage Data Protector, G = CommVault
Galaxy, H = BakBone NetVault, I = LSC, J = IBM BRMS, K = IBM OnDemand, L = Help/Systems Robot/Save, M = LXI Media Management, N = Dantz.
6

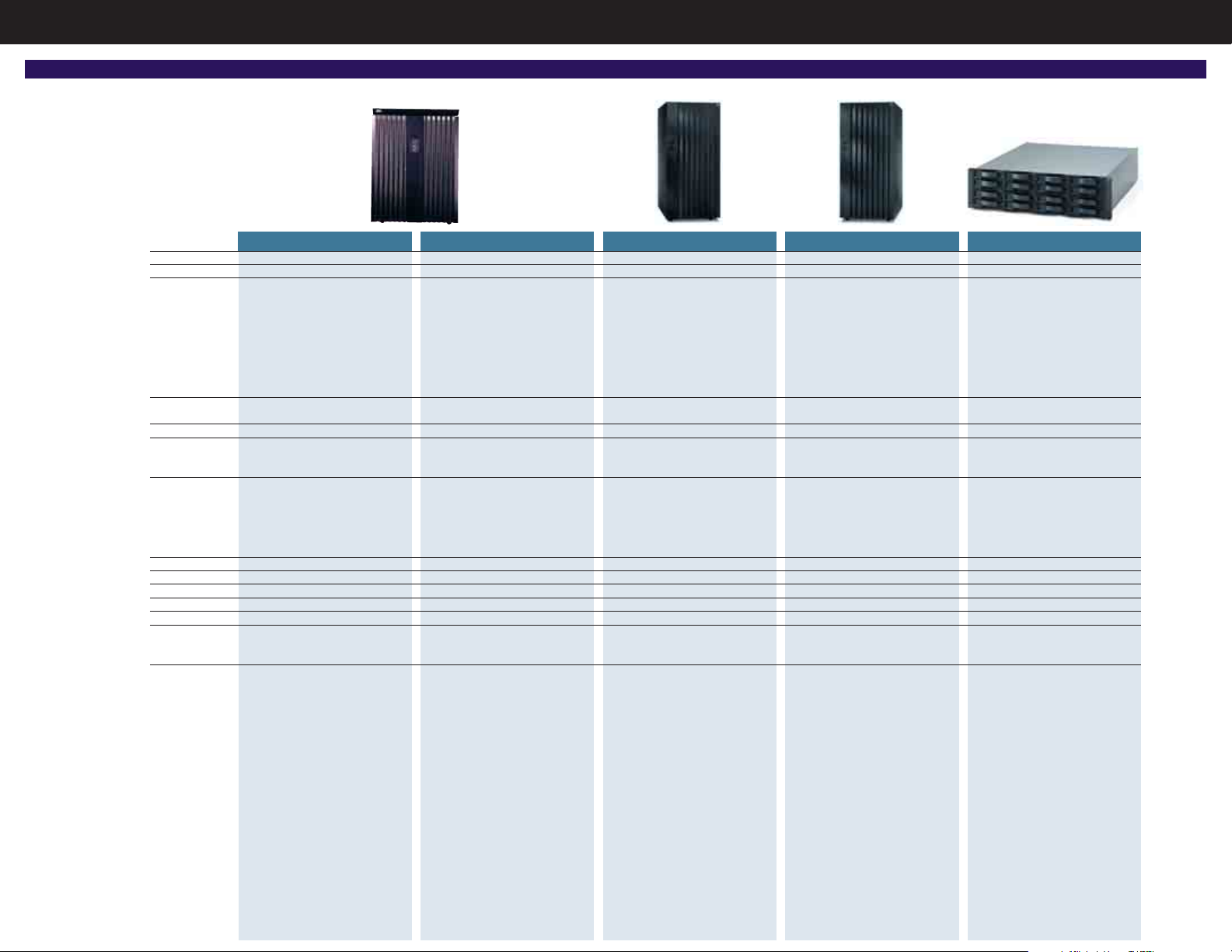

Tape Drives Tape Libraries
3588 3590 3592 3584 3494 3494-VTS
Product LTO Gen 3 Tape Drive 1/2" Tape Drive 1/2" Tape Drive Tape library 1/2" Cartridge Tape Library Virtual Tape Server
Machine
model
3588
F3A
3590
E11 / E1A
H11 / H1A
3592
J1A
3584
L52-base frame for LTO,
D52-expansion frame for LTO,up to
15 frames may be added
3494 (Frames)
L12, L14, L22-Library
D12,D14,D22,D24-Library (Frame)
S10-Storage
HA1-High Availability
3494
B10, B20
Product
strengths
Open systems attach, high capacity,
fast data transfer rate
Capacity, performance, reliability Multipurpose drive, capacity, per-
formance, Write Once Read Many
(WORM) support
Open Systems attach,
Multiplatform, Advanced Library
Management System, UltraScalable, High Capacity, Enterprise
Tape Drive 3592 support,WORM
support, Dual robotic accessors
Modular, reliable automation for
high-volume storage
Virtual Tape, fastaccess Peer-toPeer copy
Number of
heads/tracks
Ultrium 3: 16/704 H: 16/384
E: 16/256
8/512 3592: 8/512
Ultrium 3 Technology is now available
Ultrium 2: 8/512
Drive Dependent N/A
Number of
drives
111 1–192 N/A B10 VTS 64 Virtual Drives
B20 VTS 128/256 Virtual Drives
PtP VTS 128/256 Virtual Drives
Max number of
cartridges
N/A N/A N/A 6,887
2
6,240
2
500,000 (virtual volumes)
Cartridge
capacity
native/compressed
400/800GB
400/800GB WORM
E: 20/60GB
EX: 40/120GB
H: 30/90GB
HX: 60/180GB
300/900GB
300/900GB WORM
60/180GB
60/180GB WORM
3592: 300/900GB
3592: 300/900 WORM
Ultrium 3 Technology is now available
Ultrium 2: 200/400GB
N/A N/A
Max system
capacity
compressed
1
800GB EX: 120GB
HX: 180GB
900GB 3592: 5.63PB
Ultrium 3: 5.63PB
Ultrium 2: 2.75PB
H: 0.5 PB
HX: 1.1 PB
J1A: 5.6 PB
Disk: up to 5.2TB
Tape: 5616TB
Max drive data
rate
1
native/
compressed
80/160 MBps E: 14/42 MBps
H: 14/42 MBps
40/120 MBps
3592: 40/120 MBps
Ultrium 3: 80/160 MBps
Ultrium 2: 35/70 MBps
Drive Dependent
xxx GB/hour with 3590
xxx GB/hour with 3592
VTS: Drive Dependent
Time to data
4
Ultrium 3: 47 seconds Model Dependent Cartridge Dependent
32 sec average for JJ/JX cartridge
60 sec average for JA/JW cartridge
xx sec average for 3590
xx sec average for 3592
3592: Cartridge Dependent
Ultrium 3: 47 seconds
Ultrium 2: 49 seconds
Drive Dependent VTS: 1–3 seconds if data in VTS
Cache
Interface 2 Gbps FC, SCSI-LVD SCSI-2. 2 Gbps FC, Diff PCI, Ultra
SCSI, FC, ESCON®, FICON, 2Gb
FICON
2 Gbps FC, FICON 3592: FC fabric
Ultrium 3: FC fabric
Ultrium 2: FC Fabric
SCSI-2 F/W, Diff PCI, Ultra SCSI, FC,
ESCON, FICON, 2Gb FICON
N/A
SAN-ready
5
pSeries, iSeries, RS/6000, Sun, HP,
Windows NT, Linux, Windows 2000,
Tru64 UNIX
pSeries, iSeries, RS/6000®, Sun,
HP, Windows NT®, Linux, Windows
2000
pSeries, RS/6000, Windows NT,Sun pSeries, iSeries, RS/6000, Sun, HP,
Windows NT, Linux, Windows 2000,
Tru64 UNIX
pSeries, RS/6000, Windows NT,
Windows 2000, Sun
Supported
platforms
5
xSeries, Netfinity®, iSeries, AS/400,
pSeries, RS/6000, Windows 2000,
Windows Server 2003, Sun, HP,
Linux
iSeries, AS/400, pSeries, RS/6000,
System z9, S/390, Tru64 UNIX,
Linux, Windows 2000, Sun, HP
iSeries, AS/400®, pSeries,
RS/6000, System z9, S/390®,
Linux, Windows 2000, Sun, HP
xSeries, Netfinity, iSeries,AS/400,
pSeries, RS/6000, Windows 2000,
Windows Server 2003, Sun, HP,
Linux
iSeries, AS/400, pSeries, RS/6000,
System z9, S/390, Linux,Windows
2000, Sun, HP
pSeries, RS/6000, System z9,
S/390, Windows 2000,
Sun, HP
ISV
(Independent
Software
Vendor)
5
A B D E F G H
8
A B D E F G H
8
A B D E F G H
8
A C D E F G H
8
A B D E G H
8
A B D E G H
8
Media
part number
1-888-IBM-Media
Refer to Tape Media, page 8 Refer to Tape Media, page 8 Refer to Tape Media, page 8
Refer to Tape Media, page 8 Refer to Tape Media, page 8 Refer to Tape Media, page 8
Warranty IBM Onsite Repair 1 year, 24x7 IBM Onsite Repair 1 year, 24x7 IBM Onsite Repair 1 year, 24x7 IBM Onsite Repair 1 year, 24x7 IBM Onsite Repair 1 year, 24x7 IBM Onsite Repair 1 year, 24x7
Tape Storage Systems (continued)
Compressed; see ibm.com/totalstorage for specific capacities.
Available on i5 through AIX/Linux partitioning
See ibm.com/totalstorage for specific open systems connectivity.
*
**
***
Yes No
7
IBM Systems and IBM TotalStorage
Customer demand for lightning-fast communication and transactions has driven the need for
universal commitment to e-business. No matter what industry, or what size company, success
today hinges on building a high-performance, responsive infrastructure that embraces open
standards—exactly what you will find in the IBM _` product portfolio. Investments in
servers often result in demands on disk and tape storage systems. IBM has a family of storage
offerings that complements the IBM Systems product portfolio. There is no better storage offering for IBM _` systems than an IBM TotalStorage product. These offerings are tested
and supported by IBM and are backed by outstanding IBM service and support.
IBM TotalStorage Proven Program Helps Simplify
Interoperability
Overview
The IBM TotalStorage Proven program has been designed on a simple premise: give customers
the ability to select the best combination of interoperable storage technologies to help minimize
their investment risk, increase business efficiency and expedite their infrastructure
implementation.
The IBM TotalStorage Proven program is all about leveraging IBM storage with business applications, ISV and Business Partner software, and market leading hardware components which
together deliver solutions that address today’s client needs.
Customer Benefits
Pre-qualified configurations
Customers will be better able to identify a variety of pre-qualified, interoperable storage elements. By taking pre-qualified applications and hardware and combining them with IBM storage
technology a client can have an easier time identifying solutions that address their storage
needs.
IBM Business Partner Benefits
Potential for reduced sales cycle and integration issues
For IBM Business Partners, the IBM TotalStorage Proven program is intended to help reduce the
sales cycle and integration issues, allowing more time for higher margin customization. Another
added value for IBM Business Partners is the interoperability qualification program where companies work together with IBM, which can help supports their ability to develop and deliver products or solutions that interoperate with the broad portfolio of IBM TotalStorage products.
Please visit the Storage Proven Web site at ibm.com/totalstorage/proven to view more than
two hundred available products and solutions to meet your storage needs.
IBM TotalStorage Solution Centers
More than 140 worldwide IBM TotalStorage Solution Centers can deliver one-stop shopping for
storage hardware, software and consulting services. The Solution Centers offer you both a local
venue for hands-on testing of IBM storage solutions and a platform for proof-of-concept and
benchmarking activities. These centers also work with the leading storage software providers to
support a wide variety of choices for interoperability. IBM Business Partners will help you select
and implement a solution to help your business succeed in today’s dynamic marketplace. Visit:
ibm.com/storage/tssc
Selecting a Solution
Model Technology Typical Capacity (GB)* System z9 p5/pSeries i5/iSeries**
xSeries
Netfinity
Open
Systems***
Entry Tape
Products
7204-536 HDD 36
7204-573 HDD 73
7204-646 HDD 146
7205-550 SDLT 320
7206-336 DAT72 72
7206-VX2 8mm VXA-2 160
7207-330 SLR 60
7212-102 DVD, SLR,VXA-2 320
7212-312 VXA-2 1600
Midrange
Tape
Products
3580-L23, H23 3580-L13,
H13, L11, H11
Gen 3
400
200
3581-L13, H13, L17, H17 Gen 2 1400
3581-L23, H23 LT O 2800
3582-L23, H23, F23 LT O 9600
3583-L18, L36, L72 LTO 28800
3584-L32, D32 LT O 5.6PB
Enterprise
Tape
Products
3588
3592-J1A 1/2" Enterprise 900
3590, E1A, H1A, E11, H11 1/2" Enterprise 180
3494, L12, L14, L22, D12,
D14, D22, D24, S10, HA1
1/2" Enterprise Up to 5.6PB
3494-B10, B20 Virtual
Tape Server
Virtual Tape
1/2" Enterprise
Up to 5.6PB
8
Media Guide
Capacity
Media Tape
Highlights Technology
Length
(m/feet)
native
Compressed
(typical)
Part
number Related products
Part
number
Enterprise tape
●
Custom labeling and initialization services are available
●
Server tracks help improve data integrity
●
Cartridge intermix within libraries supports smooth migration, legacy systems
●
Write Once Read Many (WORM) functionality
3592 Tape Cartridge 610/2001
610/2001
246/810
246/810
300GB
300GB WORM
60GB
60GB WORM
900GB
900GB WORM
180GB
180GB WORM
18P7534
18P7538
24R0316
24R0317
3590 Tape Cartridge
3590E Tape Cartridge
320/1050
634/2070
10/20/30GB
20/40/60GB
30/60/90GB
60/120/180GB
05H4434
05H3188
05H3302-J-less
08L6091-K-less
3590 Conductive Abrasive Cleaning
Cartridge
3480/3490 Conductive Cleaner
3480/3490 Cleaning Cartridge
3592 Cleaning Cartridge
05H4435
05H3917
4780527
18P7535
3490E Enhanced Capacity Tape
Cartridge (36-track)
335/1100 800MB 2.4GB 09G4494
3480 Tape Cartridge (18-track) 165/541 200MB 4479753
.31" MP Tape
●
Unique midpoint load mechanism enables the system to locate data fast
●
Durable cartridge case helps protect the tape
●
Self-contained tape path helps improve reliability and extend tape life
●
Almost instantaneous head/tape contact at load time speeds processing
Magstar® MP Fast Access Linear
Tape Cartridge
167/54 5GB 15GB 05H2462—B
08L6187—C
Cleaning Cartridge 05H2463
Magstar MP Fast Access Linear Tape
Cartridge—XL
227/745 7GB 21GB 08L6663-C-XL
LTO® Tape
●
Media uses industry-leading, interchangeable LTO format
●
Cartridge is highest-capacity open standard tape cartridge available
●
Custom labeling is available
●
IBM-exclusive Statistical Analysis and Reporting System (SARS) statistics are stored in
cartridge memory
●
High durability helps support automation environments
Ultrium® 3
Ultrium 2
Ultrium 1
680/2231
609/1997
609/1997
400GB
200GB
100GB
(up to) 800GB
400GB
200GB
24R1922
08L9870
08L9120
Ultrium Cleaning Cartridge (all)
Leader Pin Attachment Kit
LTO 6-Cartridge Magazine
35L2086
08L9129
19P4529
SDLTtape
●
Optical servo and backcoating technologies help support precision positioning and highcapacity recording
●
New leader buckle helps accurate loading and new durable cartridge design
SDLT-1 SDLT220
SDLT-1 SDLT320
557/1800
557/1800
110GB
160GB
220GB
320GB
35L1119
35L1119
Cleaning Cartridge 19P4357
DLTtape
●
Two visible reel-lock indicators show open or damaged locks to protect drives
●
Cartridge labeling area and labels are included
●
DLTtape IV is backward-compatible with earlier DLT 4000 and 7000 drives
●
VS1 Data Cartridge
DLT 4000
DLT 7000
DLT 8000
VS1
548/1800
548/1800
548/1800
563/1850
20GB
35GB
40GB
80GB
40GB
70GB
80GB
160GB
59H3040
59H3040
59H3040
18P8923
Cleaning Cartridge - DLT
Cleaning Cartridge - VS160
59H3092
18P8924
VXA-2
●
Durable coating can resist oxidation and moisture
●
Advanced archival and capacity properties are included
●
Wide selection of compatible cartridge capacities support daily or full backups
●
Media enclosure shutter locks out dirt and debris
●
V-MEDIA and X-MEDIA are interchangeable on VXA-2 Drive
VXA 8mm—V6
VXA 8mm—V17
VXA 8mm—V23
VXA 8mm—X6
VXA 8mm—X10
VXA 8mm—X23
62/203
170/558
230/754
62/203
124/406
230/754
20GB
59GB
80GB
20GB
40GB
80GB
40GB
118GB
160GB
40GB
80GB
160GB
19P4878
19P4877
19P4876
24R2134
24R2136
24R2137
Cleaning Cartridge—V-MEDIA
Cleaning Cartridge—X-MEDIA
19P4880
24R2138
AIT-2
AIT-3
●
Advanced Metal Evaporated media format provides highly durable tape
●
Built-in memory chip stores critical information and helps provide fast access to data
●
High native recording capacity with 50GB or 100GB can store more information in less
space
AIT 230/754
230/754
50GB
100GB
100GB
260GB
18P6482
18P6483
Cleaning Cartridge 18P7057
9
Media Guide (continued)
4mm Tape
●
Precision-matched tape reels and reel heights help support reliable operation
●
Proprietary hub lock helps reduce positioning errors to improve data integrity
●
Improved media coating helps reduce head friction and provide cleaner operation
DDS-1 90/295 2GB 4GB 21F8754 Cleaning Cartridge—4mm 21F8763
DDS-2 120/393 4GB 8GB 8191151
DDS-3 125/410 12GB 24GB 59H3465
DDS-4 150/492 20GB 40GB 59H4456
DAT72 170/557 36GB 72GB 18P7912
8mm Tape
●
Special media formulation can help reduce drop-out to improve reliability
●
Rigid magnetic stability specification helps increase coercivity to prolong shelf life and
improve read reliability
●
100 percent media enclosure can help lock out dirt and debris to protect the cartridge
●
Built-in electrostatic discharge shield helps reduce risks to data and hardware
Metal particle 112/367 2.5GB 5.0GB 21F8575 Cleaning Cartridge—AME 35L1409
160/524 3.5GB 7GB 87G1603 Cleaning Cartridge—Metal Particle 16G8467
AME 22/73 2.5GB 5GB 59H2671
170/557 20GB 40GB 59H2678
Mammoth-2 (w/ SmartClean) 225/738 60GB 150GB 18P6485
150/492 40GB 100GB 09L5323
75/246 20GB 50GB 35L1044
SLR (QIC)
Cartridges
●
Sophisticated mirror optics support BOT and EOT recognition
●
Advanced media-binder process provides ultra-clean operation
●
Stringent wheel-pin perpendicularity specification enables smoother operation and
fewer re-reads
●
Proprietary belt design provides steady tension
●
Special stippled base-plate design helps provide rigidity and a stable tape path
●
Cartridge cover shields against static discharge and airborne debris
●
Durastat on drive rollers dissipates static
5.25" DC9120/QIC-1000 290/950 1.2GB NA 21F8730 QIC 5.25" Wet Process Cleaning
Cartridge
16G8572
5.25" DC9250/QIC-2GB-DC 366/1200 2.5GB 5GB 16G8436 QIC 5.25" MLR/SLR Cleaning
Cartridge (50 uses)
35L0844
5.25" SLR5/QIC-4GB-DC 458/1500 4GB 8GB 59H3660
5.25" MLR1/QIC-5010-DC 458/1500
60/200
16GB
2GB
32GB
4GB
59H4175
35L0589
5.25" MLR3/QIC-5120-DC 462/1515 25GB 50GB 59H4128
5.25" SLR60/SLR100 47/156
274/900
5GB
30GB
10GB
60GB
35L0661
19P4209
155' Data Cartridge
900' Data Cartridge
5.25" SLR60 366/1200 37.5GB 75GB 24R0146
5.25" SLR100 457/1500 50GB 100GB 35L0968 1500' Data Cartridge
NS20 226/740 10GB 20GB 59H4364
1-888-IBM-MEDIA ibm.com/storage/media Travan 40 228.7/750 20GB 40GB 19P4882 Travan Cleaning Cartridge 19P4881
Capacity
Media Tape
Highlights Technology
Length
(m/feet)
native
Compressed
(typical)
Part
number Related products
Part
number

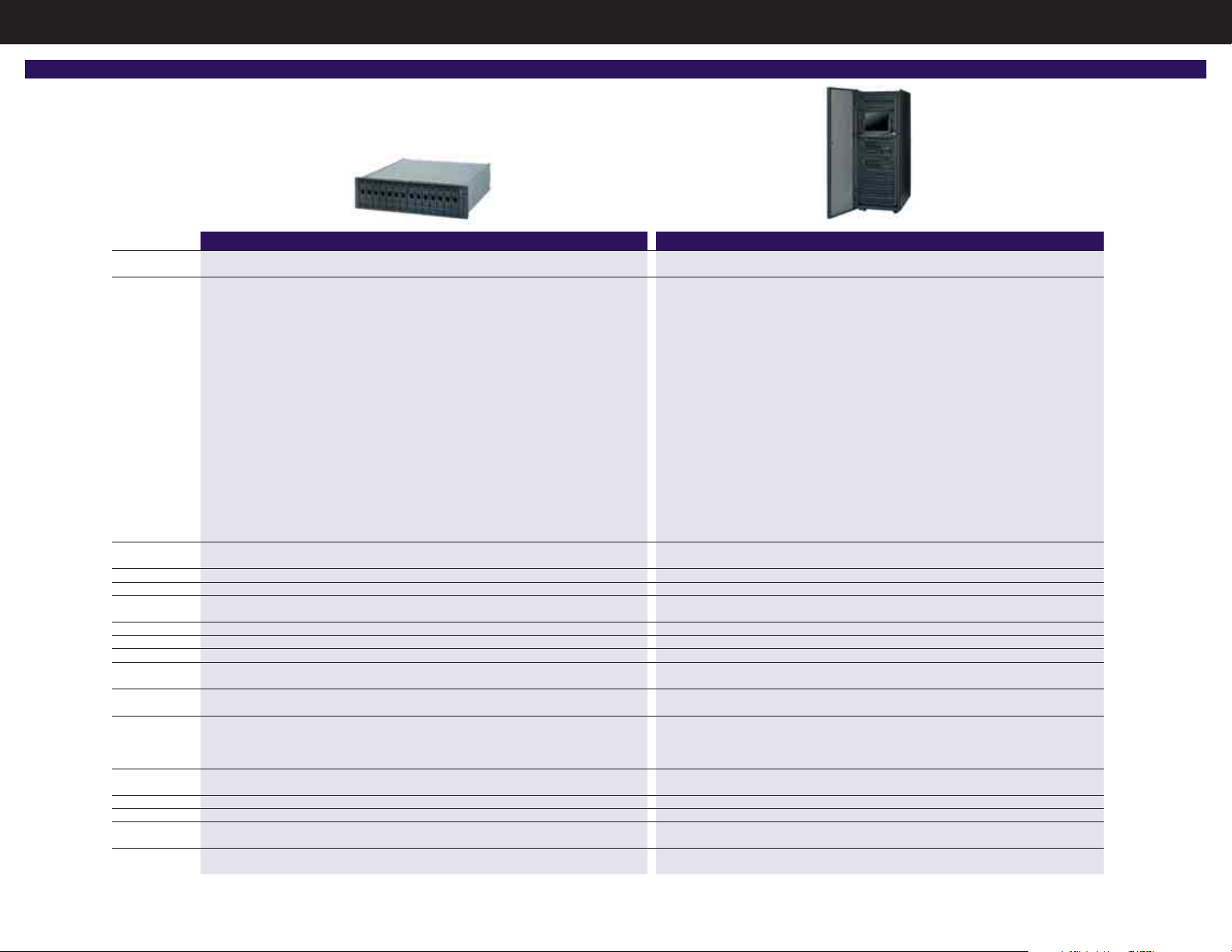

xSeries Only SAN Solutions pSeries Only Direct Attach Solutions SATA SAN Solutions pSeries Only Direct Attach Solutions
DS300 DS400 EXP Plus 320 DS4100 7204
Product DS300 DS400 EXP Plus 320 DS4100 (formerly FAStT100 Storage Server) External Disk Drive
Machine/model 1701-1RL, 1701-1RS, 1701-2RD 1700-1RS, 1700-2RD 2104/DS4, TS4 1724-100/1SC 7204-573, 7204-646
Platform support
1
Windows 2000, Windows 2003, RedHat 3, RedHat 4,
SuSE 8, SuSE 9, SteeleEye
Windows 2000, Windows 2003, RedHat 3, RedHat 4,
SuSE 8, SuSE 9, SteeleEye
pSeries, select RS/6000 servers, AIX Windows Server™ 2003,Windows 2000 Server
w/SP4 & Adv.Server, Novell NetWare 6.0 w/SP4,
NetWare 6.5 w/SP2, Red Hat Enterprise Linux 3.0,
4.0, SUSE LINUX Enterprise Server 8, 9,VMware ESX
2.5.1, AIX 5.1/5.2, 5.3, HP UX 11/11i, Solaris 7/8/9
pSeries, select RS/6000 servers, AIX
7204 646 – also supports LINUX® version SLES 9
Host connectivity
iSCSI Fibre Channel Ultra 320 SCSI Fibre Channel Ultra SCSI - LVD
SAN support Switched Ethernet Direct, Switched Fabric N/A Direct, FC-AL, Switched Fabric N/A
Copy services FlashCopy FlashCopy N/A FlashCopy option, Enhanced Remote Mirroring N/A
Availability
features
Fault Tolerant, RAID, Redundant Hotswap Power,
Hotswap drives, Dual controller,dual pathing drivers
Fault Tolerant, RAID, Redundant Hotswap Power,
Hotswap drives, Dual controller,dual pathing drivers
RAID with server adapters, redundant power/cooling,
hot-swap drives, enclosure services
Fault-tolerant, RAID, redundant power/cooling, hotswap drives, dual controllers, concurrent microcode
update capability, dual-pathing driver
Controller Dual active 1GB iSCSI RAID Controllers Dual Active 2GB FC RAID Controllers Adapters in server Single/dual 2GB RAID controller
Cache (min, max) 256MB Battery Back-up 256MB Battery Back-up N/A 256MB, 512MB N/A
RAID support 0, 1, 5, 10, 50 0, 1, 5, 10, 50 0, 1, 5 (using server-based adapters) 0, 1, 3, 5, 10 N/A
Capacity (min,
max)
36GB, 4.2TB 36GB, 12TB with 2 EXP400 Expansion Units 32GB, 2TB 250GB, Dual controller supports 28TB with seven
Expansion Units
Single controller supports 3.5TB
7204-573; 73GB
7204-646; 146GB
Drive interface Ultra320 SCSI Ultra320 SCSI Ultra 320 SCSI 2Gb FC-AL Ultra SCSI
Drive support 73GB, 146GB, 300GB 10,000 rpm disk drives; 36GB,
73GB, 146GB 15,000 rpm disk drives
73GB, 146GB, 300GB 10,000 rpm disk drives; 36GB,
73GB, 146GB 15,000 rpm disk drives
18.2GB, 36.4GB, 73.4GB and 146.8GB 10,000 rpm
disk drives; 36.4GB and 73.4GB 15,000 rpm disk
drives
250GB 7,200 rpm SATA disk drives Single Drive
7204-573; 73GB
7204-646; 146GB
Clustering
Support
Microsoft Windows MSCS Microsoft Windows MSCS HACMP Microsoft Clustering Services, IBM SAN Volume
Controller 2.1.0
N/A
10
Disk Storage Systems
Entry-level Disk Systems
Midrange Disk Systems
Disk Storage Systems (continued)
11
DS4300 DS4500 DS4800
Product DS4300 (formerly FAStT600 Storage Server) DS4500 (formerly FAStT900 Storage Server) DS4800
Machine/model 1722-60U/6LU 1742-90U 1815-82A/84A
Platform support
1
pSeries, xSeries, Windows 2000 Server w/SP4 & Adv. Server, Novell
NetWare 6.0 w/SP4, NetWare 6.5 w/SP2, Red Hat Enterprise Linux 3.0,
4.0, SUSE LINUX Enterprise Server 8, 9,VMware ESX 2.5.1, AIX 5.1/5.2,
5.3, HP UX 11/11i, Solaris 7/8/9
pSeries, select RS/6000 servers, xSeries, select Netfinity servers, select
Sun and HP UNIX servers and other Intel processor-based servers,
Windows 2000 Server w/SP4 & Adv. Server, Novell NetWare 6.0 w/SP4,
NetWare 6.5 w/SP2, Red Hat Enterprise Linux 3.0, 4.0, SUSE LINUX
Enterprise Server 8, 9, VMware ESX 2.5.1,AIX 5.1/5.2, 5.3, HP UX 11/11i,
Solaris 7/8/9
pSeries, xSeries, Windows Server™ 2003, Windows 2000 Server &
Adv.Server, Novell NetWare 6.0 w/SP4 and 6.5 w/SP2, Red Hat Enterprise
Linux 3.0, SUSE LINUX Enterprise Server 8/9, VMware ESX 2.5.1,AIX
5.1/5.2/5.3, HP UX 11/11i, Solaris 7/8/9
Host connectivity
Fibre Channel Fibre Channel Fibre Channel
SAN support Direct, FC-AL, Switched Fabric Direct, FC-AL, Switched Fabric Direct,FC-AL, Switched Fabric
Copy services Single: FlashCopy
Dual base: FlashCopy,VolumeCopy
Turbo option: FlashCopy,VolumeCopy, Enhanced Remote Mirroring
Enhanced Remote Mirroring, FlashCopy,VolumeCopy Enhanced Remote Mirroring, FlashCopy,VolumeCopy
Availability
features
Fault-tolerant, RAID, redundant power/cooling, hot-swap drives, single/dual
controllers, concurrent microcode update capability, dual-pathing driver
Fault-tolerant, RAID, redundant power/cooling, hot-swap drives, dual controllers, concurrent microcode update capability, dual-pathing driver
Fault-tolerant, RAID, redundant power/cooling, hot-swap drives, dual controllers, concurrent microcode update capability, dual-pathing driver
Controller Single/dual active 2GB RAID controllers; optional turbo feature Dual active 2GB RAID controllers Dual active 4Gb RAID controllers
Cache (min, max) 256, 256 (single), 512MB, 512MB (base) 2GB, 2GB (turbo option) 2GB, 2GB 4GB, 4GB (82A)
8GB, 8GB (84A)
16GB, 16GB (88A)
RAID support 0, 1, 3, 5, 10 0, 1, 3, 5, 10 0,1, 3, 5, 10
Capacity (min,
max)
36.4GB, 33.6TB via EXP700/EXP710 (FC) 250GB, 56TB via EXP100 (Serial
ATA)
36.4GB, 67.2TB via EXP700/EXP710 (FC) 250GB, 56TB via EXP100 (Serial
ATA)
36.4GB, 67.2TB via EXP700/EXP710 (FC) 250GB, 56TB via EXP100 (Serial
ATA)
Drive interface 2Gb FC-AL 2Gb FC-AL 4Gb Switched
Drive support 36.4GB, 73.4GB,146.8GB and 300GB 10,000 rpm; 18.2GB, 36.4GB,
73.4GB and 146.8GB 15,000 rpm
36.4GB, 73.4GB,146.8GB and 300GB 10,000 rpm; 18.2GB, 36.4GB,
73.4GB and 146.8GB 15,000 rpm
36.4GB, 73.4GB,146.8GB and 300GB 10,000 rpm; 18.2GB, 36.4GB,
73.4GB and 146.8GB 15,000 rpm
Certifications Microsoft RAID, Cluster and Data Center, HACMP, VERITAS Clustering Microsoft RAID, Cluster, NetWare Cluster, HACMP, VERITAS Clustering
4
Microsoft RAID, Cluster, NetWare Cluster, HACMP,VERITAS Clustering
4
Enterprise Disk Systems
Disk Storage Systems (continued)
12
1: Consult product information for details. 2: RedHat, SUSE LINUX and TurboLinux. Please verify specific product information for details. 3: Via IBM TotalStorage SAN Controller 160; no cluster or HACMP
support. 4: Also, verification will be completed for HP Service Guard. 5: Metro Mirror is synchronous replication; Global Mirror is asynchronous replication; Metro/Global Mirror is two- or three-site
cascading asynchronous replication; Global Copy is extended distance copying.
DS6800 DS8100 DS8300 ESS 750 ESS 800
Product IBM TotalStorage DS6800 IBM TotalStorage DS8000 Series IBM TotalStorage DS8000 Series Enterprise Storage Server Enterprise Storage Server®
Machine/model 1750/511 2107/921 2107/922/9A2 2105/750 2105/750
Platform support1xSeries, iSeries, pSeries, RS6000, System
z9, S/390, i5/OS, OS/400, AIX, Solaris, HPUX, Windows 2000,Windows Server
2003, Linux for S/390, z/OS, z/VM,
VSE/ESA, TPF, Linux for iSeries, Linux for
pSeries, Linux for Intel systems,
OpenVMS, TRU64, NetWare,VMWare,
Apple Macintosh OS X, Fujitsu
Primepower, SGI IRIX
xSeries, iSeries, pSeries, RS6000, System
z9, S/390, i5/OS, OS/400, AIX, Solaris, HPUX, Windows 2000,Windows Server
2003, Linux for S/390, z/OS, z/VM,
VSE/ESA, TPF, Linux for iSeries, Linux for
pSeries, Linux for Intel systems,
OpenVMS, TRU64, NetWare,VMWare,
Apple Macintosh OS X, Fujitsu
Primepower, SGI IRIX
xSeries, iSeries, pSeries, RS6000, System
z9, S/390, i5/OS, OS/400, AIX, Solaris, HPUX, Windows 2000,Windows Server
2003, Linux for S/390, z/OS, z/VM,
VSE/ESA, TPF, Linux for iSeries, Linux for
pSeries, Linux for Intel systems,
OpenVMS, TRU64, NetWare,VMWare,
Apple Macintosh OS X, Fujitsu
Primepower, SGI IRIX
xSeries, iSeries, AS/400, pSeries,
RS/6000, System z9, S/390, i5/OS,
OS/400, AIX, Solaris, HP-UX, Dynix,
OpenVMS, Tru64, Windows NT,Windows
2000, Windows Server 2003, NetWare,
VMWare, Linux for S/390, z/OS,z/VM,
OS/390, VM/ESA, VSE/ESA™, TPF, Linux
for Intel systems, Fujitsu Primepower, SGI
Origin IRIX
xSeries, iSeries, AS/400, pSeries,
RS/6000, System z9, S/390, i5/OS,
OS/400®, AIX, Solaris, HP-UX, Dynix,
OpenVMS, Tru64, Windows NT,Windows
2000, Windows Server 2003, NetWare,
VMWare, Linux for S/390, z/OS,z/VM®,
OS/390®, VM/ESA®, VSE/ESA™, TPF,
Linux for Intel systems, Fujitsu
Primepower, SGI Origin IRIX
Host connectivity 1Gb and 2Gb Fibre Channel/FICON 1Gb and 2Gb Fibre Channel, FICON,
ESCON
1Gb and 2Gb Fibre Channel, FICON,
ESCON
1Gb and 2Gb Fibre Channel/FICON,
ESCON
1Gb and 2Gb Fibre Channel/FICON,
ESCON, SCSI
SAN support Direct, FC-AL, Switched Fabric Direct, FC-AL, Switched Fabric Direct, FC-AL, Switched Fabric Direct, FC-AL, Switched Fabric Direct, FC-AL, Switched Fabric
Copy services FlashCopy, Metro Mirror, Global Mirror,
Global Copy, as target for z/OS Global
Mirror
FlashCopy, Metro Mirror, Global Mirror,
Global Copy, z/OS Global Mirror
FlashCopy, Metro Mirror, Global Mirror,
Global Copy, z/OS Global Mirror
FlashCopy, Metro Mirror, Global Mirror,
Global Copy
FlashCopy®, Metro Mirror, Global Mirror,
Global Copy, z/OS Global Mirror
Availability
features
Fault Tolerant, dual redundant and hotswap RAID Controller Cards, Battery
Backup Units, Fibre Channel switch controllers, power supplies, non-disruptive
hardware and software code load
updates, multi-pathing device driver
Fault Tolerant, dual redundant and hotswap RAID Controller Cards, Battery
Backup Units, Fibre Channel switch controllers, power supplies, non-disruptive
hardware and software code load
updates, multi-pathing device driver
Fault Tolerant, dual redundant and hotswap RAID Controller Cards, Battery
Backup Units, Fibre Channel switch controllers, power supplies, non-disruptive
hardware and software code load
updates, multi-pathing device driver
Fault-tolerant, RAID, redundant
power/cooling, hot-swap drives, dual controllers, concurrent microcode update
capability, dual-pathing driver
Fault-tolerant, RAID, redundant
power/cooling, hot-swap drives, dual controllers, concurrent microcode update
capability, dual-pathing driver
Controller Dual active/active Dual active/active Dual active/active SMB dual active SMB dual active; optional turbo feature
Cache (min, max) 4GB 16/128GB 32/256GB 8GB, 16GB 8GB, 64GB
RAID support 5, 10 5, 10 5, 10 5, 10 5, 10
Capacity (min, max) 292GB, 38.4TB 1.1TB, 115TB 1.1TB, 192TB 1.1TB, 4.6TB 582GB, 55.9TB (physical capacity)
Drive interface 2Gb Fibre Channel 2Gb Fibre Channel 2Gb Fibre Channel SSA SSA
Drive support 73GB 15K, 146GB 10K, 300GB 10K,
146GB 15K
73GB 15K, 146GB 10K, 300GB 10K 73GB 15K, 146GB10K, 300GB 10K 72.8GB, 145.6GB (10,000rpm) 18.2GB, 36.4GB, 72.8GB and 145.6GB
10,000 rpm disk drives 18.2GB, 36.4GB
and 72.8GB 15,000 rpm disk drives
Certifications Microsoft RAID, Cluster and Data Center,
GDPS, HACMP, NetWare, Linux
Microsoft™ RAID, Cluster and Data
Center, GDPS, HACMP™, NetWare, Linux
Disk Storage Systems (continued)
* Remote Copy (>10 km) is via TotalStorage Proven vendors (CNT, Legato, NSI)
Yes No
* Remote Copy (>10 km) is via TotalStorage Proven vendors (Legato, CNT, NSI)
Yes No
Additional information on these IBM Disk Storage products is available on the Web at
ibm.com/totalstorage/disk
13
Product
Highlights
Enterprise
Storage Server
800
●
Provides enterprise strength reliability and function, SAN-ready disk system
●
Designed to provide high availability, performance, manageability and scalability
●
Host connectivity via SCSI, FC/FICON, or ESCON interfaces to a wide variety of UNIX,Windows, iSeries, and System z9
servers
●
Features state-of-the-art copy services for rapid backup and disaster recovery
Enterprise
Storage Server
750
●
ESS 800 reliability and function at an attractive entry capacity enterprise storage price point .
●
Includes ESS 800 comprehensive server support and support for state of the art copy services
●
Design supports non-disruptive upgrade to the ESS 800
DS8300
●
A new standard in enterprise class functionality with extraordinary performance and up to 192TB of physical capacity
●
Host connectivity via FC/FICON or ESCON interfaces to a wide variety of UNIX, Windows, iSeries, and System z9 servers
●
Top notch storage consolidation system with Storage System LPAR capability
●
Offers FlashCopy and Global and Metro Mirroring functions
●
Call home and remote support as well as a 4-year warranty
DS8100
●
A new standard in enterprise class functionality and performance with up to 115TB of physical capacity
●
Host connectivity via FC/FICON or ESCON interfaces to wide variety of UNIX, Windows, iSeries and System z9 servers.
●
Offers FlashCopy and Global and Metro Mirroring functions
●
Call home and remote support as well as a 4-year warranty
DS6800
●
Provides enterprise-class disk offering in a modular package at an affordable price
●
Designed to provide host connectivity via FC/FICON to a wide variety of UNIX, Windows, iSeries, and System z9 servers
●
Features FlashCopy as well as Global and Metro Mirroring functions
●
Designed for easy installation and serviceability and includes a 4-year warranty
DS4800
●
Provides SAN-ready flexible disk storage system for UNIX and Intel processor-based environments
●
Offers high-performance, full fiber solution with 4Gb Fibre Channel Connectivity
●
Supports business continuance with its optional high-availability software and advanced Enhanced Remote Mirroring
function
●
Helps protect customer data with its multi-RAID capability and hot-swappable redundant components
DS4500
●
Provides SAN-ready flexible disk storage system for UNIX and Intel processor-based environments
●
Offers high-performance, full fiber solution with 2Gb Fibre Channel Connectivity
●
Supports business continuance with its optional high-availability software and advanced Enhanced Remote Mirroring
function
●
Helps protect customer data with its multi-RAID capability and hot-swappable redundant components
DS4300
●
Provides four 2Gb FC host ports to support multipath failover for directly attached UNIX and Intel processor-based
servers
●
Designed to deliver high performance of up to 768 MBps throughput with turbo option
●
Supports up to 112 fibre disk drives or 33.6TB capacity with Turbo option, 112 SATA disk drives or 28TB capacity with
dual base or Turbo option
●
Can help improve service response time with automated alerts from the optional DS4000 Service Alert feature
DS4100
●
Features SAN ready, Fibre Channel attach, single or dual controller models, entry-level SATA solution to support general
use, data archiving, reference data, and near-line storage applications
●
Provides a low cost, entry level solution for UNIX and Intel servers
●
Designed to provide scalability for easy growth (250GB to 28TB)
●
Offers powerful, intuitive storage management tools
DS400
●
Designed to provide cost-effective, entry-level Fibre Channel storage
●
Designed to support heterogeneous operating environments including Windows and Linux
●
Features easy-to-use IBM ServeRAID manager
●
Feature reliable Ultra320 SCSI drives
●
Dual model designed to scale to 12TB physical capacity with EXP400 SCSI Enclosures
DS300
●
Designed to provide iSCSI host connectivity that leverages standard Ethernet Infrastructure
●
Designed to support heterogeneous operating environments including Windows and Linux
●
Features easy-to-use IBM ServeRAID manager and reliable Ultra320 SCSI drives
●
Designed to scale to 4.2TB physical capacity
EXP Plus 320
●
Provides flexible, scalable and cost-effective SCSI-attach disk storage for RS/6000 and pSeries servers
●
Supports Internet-centric service providers
Selecting a solution
DS4800 DS6800 DS8100 DS8300 ESS
Local copy within controller
Remote Copy (>10 km)
Centralized management
Storage area network
Concurrent heterogeneous
servers (UNIX and Intel)
Concurrent microcode
install
Intermix disk capacities
Multiple RAID options
Controller-based call-home
Through DS Storage
Manager Server
Through DS Storage
Manager Server
Through DS Storage
Manager Server
Rack mount
Virtualization
Virtualization through SAN
Volume Controller
Selecting a solution (continued)
DS300 DS400 DS4100 DS4300 DS4500 EXP Plus 320
Local copy within controller
Remote Copy (>10 km)
Turbo option only *
Centralized management
Storage area network
iSCSI
Concurrent heterogeneous
servers (UNIX and Intel)
Intel only Intel only
Concurrent microcode
install
Intermix disk capacities
Multiple RAID options
requires adapter
Controller-based call-home
Rack mount
Virtualization
Virtualization through SAN
Volume Controller
Disk Storage Systems (continued)
Request via RPQ process
Linux distribution support varies per product. Refer to product-specific information for current support. This chart reflects IBM’s current intentions. Changes may occur
without notice. Consult the appropriate Web pages for support details.
*
1:
Yes No
14
Operating Systems and Copy Services Platform Coverage
DS4800 DS6800 DS8100 DS8300 ESS 750/800
Windows NT
FlashCopy,VolumeCopy, Metro Mirror, Global Copy and
Global Mirror
FlashCopy, Metro Mirror, Global Mirror, Global Copy, Metro/
Global Mirror
Windows 2000
FlashCopy,VolumeCopy, Metro Mirror, Global Copy and
Global Mirror
FlashCopy, Metro Mirror, Global Mirror, Global Copy FlashCopy, Metro Mirror, Global Mirror,Global Copy FlashCopy, Metro Mirror, Global Mirror,Global Copy
FlashCopy, Metro Mirror, Global Mirror, Global Copy, Metro/
Global Mirror
Windows Server 2003
FlashCopy,VolumeCopy, Metro Mirror, Global Copy and
Global Mirror
FlashCopy, Metro Mirror, Global Mirror, Global Copy FlashCopy, Metro Mirror, Global Mirror,Global Copy FlashCopy, Metro Mirror, Global Mirror,Global Copy
FlashCopy, Metro Mirror, Global Mirror, Global Copy, Metro/
Global Mirror
NetWare
FlashCopy,VolumeCopy, Metro Mirror, Global Copy and
Global Mirror
FlashCopy, Metro Mirror, Global Mirror, Global Copy FlashCopy, Metro Mirror, Global Mirror,Global Copy FlashCopy, Metro Mirror, Global Mirror,Global Copy
FlashCopy, Metro Mirror, Global Mirror, Global Copy, Metro/
Global Mirror
Linux
1
FlashCopy,VolumeCopy, Metro Mirror, Global Copy and
Global Mirror
FlashCopy, Metro Mirror, Global Mirror, Global Copy FlashCopy, Metro Mirror, Global Mirror,Global Copy FlashCopy, Metro Mirror, Global Mirror,Global Copy
FlashCopy, Metro Mirror, Global Mirror, Global Copy, Metro/
Global Mirror
AIX
FlashCopy,VolumeCopy, Metro Mirror, Global Copy and
Global Mirror
FlashCopy, Metro Mirror, Global Mirror, Global Copy FlashCopy, Metro Mirror, Global Mirror,Global Copy FlashCopy, Metro Mirror, Global Mirror,Global Copy
FlashCopy, Metro Mirror, Global Mirror, Global Copy, Metro/
Global Mirror
VMWare
FlashCopy,VolumeCopy, Metro Mirror, Global Copy and
Global Mirror
FlashCopy, Metro Mirror, Global Mirror, Global Copy FlashCopy, Metro Mirror, Global Mirror,Global Copy FlashCopy, Metro Mirror, Global Mirror,Global Copy
FlashCopy, Metro Mirror, Global Mirror, Global Copy, Metro/
Global Mirror
Dynix
FlashCopy, Metro Mirror, Global Mirror, Global Copy, Metro/
Global Mirror
HP-UX
FlashCopy,VolumeCopy, Metro Mirror, Global Copy and
Global Mirror
FlashCopy, Metro Mirror, Global Mirror, Global Copy FlashCopy, Metro Mirror, Global Mirror,Global Copy FlashCopy, Metro Mirror, Global Mirror,Global Copy
FlashCopy, Metro Mirror, Global Mirror, Global Copy, Metro/
Global Mirror
Solaris
FlashCopy,VolumeCopy, Metro Mirror, Global Copy and
Global Mirror
FlashCopy, Metro Mirror, Global Mirror, Global Copy FlashCopy, Metro Mirror, Global Mirror,Global Copy FlashCopy, Metro Mirror, Global Mirror,Global Copy
FlashCopy, Metro Mirror, Global Mirror, Global Copy, Metro/
Global Mirror
IRIX
*
FlashCopy, Metro Mirror, Global Mirror, Global Copy, Metro/
Global Mirror
Tru64 UNIX
* FlashCopy, Metro Mirror, Global Mirror, Global Copy FlashCopy, Metro Mirror,Global Mirror, Global Copy FlashCopy, Metro Mirror,Global Mirror, Global Copy
FlashCopy, Metro Mirror, Global Mirror, Global Copy, Metro/
Global Mirror
OpenVMS
FlashCopy, Metro Mirror, Global Mirror, Global Copy FlashCopy, Metro Mirror, Global Mirror,Global Copy FlashCopy, Metro Mirror, Global Mirror,Global Copy
FlashCopy, Metro Mirror, Global Mirror, Global Copy, Metro/
Global Mirror
z/OS, OS/390
FlashCopy, Metro Mirror, Global Mirror, Global Copy,
as target for z/OS Global Mirror
FlashCopy, Metro Mirror, Global Mirror, Global Copy,
z/OS Global Mirror
FlashCopy, Metro Mirror, Global Mirror, Global Copy,
z/OS Global Mirror
FlashCopy, Metro Mirror, Global Mirror, Global Copy, Metro/
Global Mirror z/OS Global Mirror (XRC)
i5/OS
FlashCopy, Metro Mirror, Global Mirror, Global Copy FlashCopy, Metro Mirror, Global Mirror,Global Copy FlashCopy, Metro Mirror, Global Mirror,Global Copy
FlashCopy, Metro Mirror, Global Mirror, Global Copy, Metro/
Global Mirror
15
Disk Storage Systems (continued)
Yes No
Operating Systems and Copy Services Platform Coverage (continued)
DS300/DS400 DS4100 DS4300
3
DS4500
Windows NT
FlashCopy, FlashCopy, VolumeCopy, Metro Mirror,
Global Copy and Global Mirror
FlashCopy,VolumeCopy, Metro Mirror,
Global Copy and Global Mirror
FlashCopy,VolumeCopy, Metro Mirror,
Global Copy and Global Mirror
Windows 2000
FlashCopy
FlashCopy, FlashCopy, VolumeCopy, Metro Mirror,
Global Copy and Global Mirror
FlashCopy,VolumeCopy, Metro Mirror,
Global Copy and Global Mirror
FlashCopy,VolumeCopy, Metro Mirror,
Global Copy and Global Mirror
Windows Server 2003
FlashCopy
FlashCopy, FlashCopy, VolumeCopy, Metro Mirror,
Global Copy and Global Mirror
FlashCopy,VolumeCopy, Metro Mirror,
Global Copy and Global Mirror
FlashCopy,VolumeCopy, Metro Mirror,
Global Copy and Global Mirror
NetWare
FlashCopy, FlashCopy, VolumeCopy, Metro Mirror,
Global Copy and Global Mirror
FlashCopy,VolumeCopy, Metro Mirror,
Global Copy and Global Mirror
FlashCopy,VolumeCopy, Metro Mirror,
Global Copy and Global Mirror
Linux
1
FlashCopy
FlashCopy, FlashCopy, Metro Mirror,
Global Copy and Global Mirror
FlashCopy,VolumeCopy, Metro Mirror,
Global Copy and Global Mirror
FlashCopy,VolumeCopy, Metro Mirror,
Global Copy and Global Mirror
AIX
FlashCopy, FlashCopy, Metro Mirror,
Global Copy and Global Mirror
FlashCopy,VolumeCopy, Metro Mirror,
Global Copy and Global Mirror
FlashCopy,VolumeCopy, Metro Mirror,
Global Copy and Global Mirror
VMWare
Dynix
HP-UX
FlashCopy, Metro Mirror, Global Copy and Global Mirror
FlashCopy,VolumeCopy, Metro Mirror,
Global Copy and Global Mirror
FlashCopy,VolumeCopy, Metro Mirror,
Global Copy and Global Mirror
Solaris
FlashCopy, Metro Mirror, Global Copy and Global Mirror
FlashCopy,VolumeCopy, Metro Mirror,
Global Copy and Global Mirror
FlashCopy,VolumeCopy, Metro Mirror,
Global Copy and Global Mirror
IRIX
* *
Tru64 UNIX
* *
OpenVMS
z/OS, OS/390
i5/OS
DG/UX
Request via RPQ process
Linux distribution support varies per product. Refer to product-specific information for current support. This chart reflects IBM’s current intentions. Changes may occur
without notice. Consult the appropriate Web pages for support details.
Metro Mirror is synchronous replication; Global Mirror is asynchronous replication; Metro/Global Mirror is two- or three-site cascading asynchronous replication;
Global Copy is extended distance copying.
VolumeCopy, Metro Mirror, Global Copy and Global Mirror requires turbo option
*
1:
2:
3:
16
IP Attached Storage Products
Disk Storage Systems (continued)
Please visit ibm.com/totalstorage/nas for additional N3700 performance information.
Please visit ibm.com/totalstorage/dr550 for current DR550 performance results.
For more information on third-party product support, please refer to “IBM NAS Interoperability” at ibm.com/totalstorage/nas.
*
**
†
IBM TotalStorage N3700 IBM TotalStorage DR550
Model 2863-A10 – Single Controller
2863-A20 – Dual Controller
Highlights
●
Installation—Offers installation tools designed to help simplify installation and setup
●
Increased access—Allows heterogeneous access to IP attached storage
●
Flexibility—Enables cross-platform file sharing for Microsoft Windows, UNIX and Linux environments that can
help reduce network complexity and expense, and allow data to be shared across the organization
●
IP SAN – Supports iSCSI protocols for IP SAN attachment to a multitude of host servers including Microsoft
Windows, UNIX and Linux systems
●
Scalability—Supports nondisruptive capacity increases up to 16TB of physical storage
●
Manageability—Includes integrated system diagnostics and management tools, which are designed to help
minimize downtime
●
Redundancy—Offers redundant fans, power supplies, disk drive, and clustered controllers
●
Copy services—Provides extensive on-board and out-board disaster recovery data protection features
●
Operational Efficiency—Designed to help businesses meet the growing challenge of managing and securing
retention managed data and other critical information assets over extended periods of time
●
Integrated offering—Designed as a preconfigured, integrated offering to help store, retrieve, manage, share
and secure regulated and nonregulated data in non-erasable and non-rewritable format
●
Automation—Designed to offer automatic provisioning, migration, expiration and archiving capabilities
●
Scalability—Supports nondisruptive enterprise scalability of up to 56TB physical capacity and supports
petabytes of storage with attached tape
●
Policy-based—Offers a comprehensive suite of software tools for policy- and event-based data management
●
High Availability—Option designed to avoid single points of failure
●
Native support for LTO Gen 3 WORM Tape
●
Flexibility—Application program interface (API) client program makes it easy to integrate ISV Content
Management applications
●
Synchronous Replication—Supports Metro Mirroring allowing two real-time synchronized copies of the data to
be maintained on DR550s in separate locations.
●
Disaster Recovery support—DR550 protects customer data during disasters. The DR550 solution allows businesses to use tape libraries with advanced LTO Gen 3 tape drives with WORM capabilities to provide efficient
and cost effective replication of data objects.
●
Operating in conjunction with an enterprise content-management product like IBM DB2 Content Manager for
Message Monitoring and Retention (CM MMR) helps enable centralized management through a single interface to support storage allocation and address application demands.
Scalability Up to 16TB of physical storage Single engine: 3.5 and 7TB, Dual engine: 3.5, 7, 14, 28 and 56TB of physical storage, up to petabytes with
attached tape storage
Nodes Single- or dual-storage controller configurations Dual-controller configuration offers active/active clustering Single- or dual-engine configurations Dual-engine configuration offers failover protection
Processors Based On Broadcom® MIPS-based architecture One 1.5GHz POWER5™ processor per server
Network protocol
support
NFS v2, v3, v4 (UNIX and Linux), CIFS (Windows), iSCSI, HTTP, FTP, NDMP, SNMP IBM System Storage Archive Manager application programming interface (API)
Operating system Data ONTAP™ 7.1 AIX 5.2 ML4
Performance 13,620 I/Os per sec NFS v3 Performance testing results: www-03.ibm.com/servers/storage/disk/dr/performance.html
PCI slots available N/A N/A
Network
connectivity
Two (10/100/1000) Ethernet ports per controller
Two Fibre Channel ports for attachment to tape backup and expansion unit
2 port Gigabit Copper or Fibre Ethernet (upgrades available)
ECC SDRAM
memory (max)
1GB single controller
2GB dual controller
1GB per node
Data protection RAID-4, RAID-DP (double disk failure protection)
On-board data protection using Snapshot™ to create copies and SnapRestore® to restore backup copies of
snapped data.Out-board remote mirroring over IP networks to provide copies of data at remote disaster recovery
sites*
Mirrored OS, RAID-5 for user data
Data Encryption for enhanced security for disk and tape via 128-bit AES or 56-bit DES encryption technology.
Encryption keys can be managed by the application or by the DR550
Redundancy/high
availability
Redundant, hot swappable disk bays, power supplies, fans and controllers HACMP, redundant DS4100 controllers, RDAC driver to provide path failover, RAID
Backup External tape (SCSI or FC) External tape (recommended IBM 3592 WORM tape)
RAID levels RAID-4, RAID-DP (double disk failure protection) RAID-5
Systems
management
FilerView™, SecureAdmin™, SNMP SMIT,DS4000 Storage Manager GUI, SNMP
Storage
management
Industry standard NDMP protocols IBM Tivoli Storage Manager client and storage agent
17
IBM TotalStorage Open Software Family
SAN Virtualization
Create a tiered storage environment and increase the flexibility within your storage infrastructure by introducing solutions based on IBM TotalStorage virtualization software. Offerings include the IBM TotalStorage SAN File System, the IBM TotalStorage SAN Volume Controller and the IBM TotalStorage SAN
Volume Controller for Cisco MDS 9000.
Product Function and Value Highlights
IBM TotalStorage SAN File
System (SFS)
SAN File System is designed to virtualize and consolidate file systems
across Windows, UNIX, and Linux servers and provide a common pool of
storage that can be shared across servers. It supports multiple tiers of
storage and provides policy based allocation of space at a file level and
policy based migration of files between storage pools.
●
Simplify data management: SFS provides policy-based data management that can help improve file and database management as well as administrator productivity.
●
Improve data access: SFS is designed to enable secure data sharing between Windows, UNIX, and Linux servers with ease and efficiency, resulting in reduced storage costs and optimized
storage resources.
●
Flexible, on demand operating environment: SFS enables customers to maintain flexibility in their IT environments by virtualizing the relationship between applications and their data.
This provides the flexibility to take advantage of technology as it advances, rather than being locked into one specific vendor. Contributes to automation, integration, and support for open
standards.
●
Reduce storage needs: SFS is designed to provide a common pool of file space that can be accessed and used by any server on the SAN File System. SFS supports multiple tiers of
storage allowing customers to match the type of storage being used to the business value of the data.
●
Improve application availability: SFS enables you to move, add, or change the file system capacity without requiring application outages. It also provides a file-based FlashCopy function
that can reduce maintenance windows used for taking backups.
IBM TotalStorage SAN Volume
Controller (SVC)
Based on Virtualization technology, the IBM TotalStorage SAN Volume
Controller is designed to manage all disk storage as a single resource
from a single point to simplify the operation of the environment. It is
designed to allow a tiered storage environment to be deployed better than
relying on physical disk arrays alone.
●
Manage storage volumes from a central point: The SVC is designed to enhance the flexibility of your storage environment. It can combine the storage capacity from multiple disk arrays
from different suppliers into a single pool of storage which can be managed from a central point.
●
Create a tiered storage environment: Utilizing virtualization technology, the SVC enables customers to match the cost of the storage to the value of their data. Mission-critical data can be
stored on high-performance, highly available Fibre-Channel disks while non-mission-critical data can be stored on serial-ATA disks.
●
Virtually eliminate downtime related to storage: The SVC enables data migrations, storage software upgrades and changes to the physical storage without impacting host applications.
●
Improve storage resource utilization: By combining the storage capacity from multiple disk arrays into a single pool, SVC uses existing storage capacity more efficiently, which can defer
additional storage purchases to save costs.
●
A single, cost-effective set of advanced copy services: The SVC can apply copy services across all the managed storage, regardless of the disk array supplier. This capability helps
simplify the environment, reduce the costs of implementing disaster recovery solutions and increases the productivity of the personnel.
IBM TotalStorage SAN Volume
Controller for Cisco MDS 9000
Solution
IBM and Cisco combine the SAN Volume Controller storage software with
the Caching Services Module from the Cisco MDS 9000 Family of
switches and directors to deliver the benefits of the SAN Volume Controller
in a switch-based implementation, aiding with both data integration and
consolidation of the storage network.
●
Manage storage volumes from a central point: The SVC storage software can combine the storage capacity from multiple disk arrays from different suppliers into a single pool of storage
which can be managed from a central point in the Cisco switched-fabric environment.
●
Create a tiered storage environment: Utilizing virtualization technology, the SVC for Cisco MDS 9000 solution enables customers to match the cost of the storage to the value of their data.
Mission-critical data can be stored on high-performance, highly available Fibre-Channel disks while non-mission-critical data can be stored on serial-ATA disks.
●
Virtually eliminate downtime related to storage: The SVC storage software enables data migrations, storage software upgrades and changes to the physical storage without impacting
host applications.
●
Improve storage resource utilization: By combining the storage capacity from multiple disk arrays into a single pool, the SVC storage software uses existing storage capacity more efficiently, which can defer additional storage purchases to save costs.And integrating the software into a Cisco switched fabric saves costs even more by reducing the space requirements
within the data center.
●
A single, cost-effective set of advanced copy services: The SVC storage software can apply copy services across all the managed storage, regardless of the disk array supplier. This
helps simplify the environment, reduce the costs of implementing disaster recovery solutions and increases the productivity of the personnel.
18
IBM TotalStorage Expert Family
Adds value to the storage subsystem solution by providing information for better management.
Product Function and Value
IBM TotalStorage
ESS Expert
Provides storage administrators with the capability to manage the performance of the IBM Enterprise Storage Server; this innovative tool furnishes storage asset and capacity management capabilities to centrally
manage Enterprise Storage Servers located across the enterprise
IBM TotalStorage
ETL Expert
Provides a high-performance monitoring tool to help simplify the management of IBM tape subsystems that include the IBM TotalStorage
Enterprise Tape Library, Virtual Tape Server and Peer-to-Peer Virtual
Tape Server
IBM TotalStorage
Management
Toolkit
Offers a collection of products designed to provide a comprehensive
menu of solutions to meet the storage management requirements of
z/OS customers
IBM TotalStorage
XRC Performance
Monitor
Provides the ability to monitor and evaluate the performance of a running XRC configuration; the monitor function provides information at the
real-time, historic and summary levels
DFSMS Family
Provides automated and central storage management in the z/OS environment
Product Function and Value
DFSMSdfp™ Provides data access, program and device management functions that
furnish effective management of active data
DFSMSdss™ Provides data movement, copy, backup and space management
functions
DFSMShsm™ Provides backup, recovery, migration and space management functions
that furnish effective management of inactive data
DFSMSrmm™ Provides a policy-driven solution for the management of removable
media, such as tape cartridges and reels
DFSORT™ Provides a solution for faster and easier data sorting, reporting and
analysis
DFSMStvs Enables batch jobs and CICS® (Customer Information Control Systems)
online transactions to update shared VSAM data sets concurrently
IBM Tivoli Storage Manager
Function and Value Highlights
IBM Tivoli Storage Manager is designed to provide protection of
your 24x7 applications and key data in the event of hardware,
software or network failures. It offers move-and-store techniques and policy-based automation, which are designed to
work together to help increase data and application protection,
decrease disaster recovery time and lower storage administration costs. It manages inactive data, helping you match the
value of the data to the most cost-effective storage management practices. Tivoli Storage Manager is designed to scale
easily to protect hundreds of computers running a dozen operating systems ranging from laptops to mainframes and connected together via the Internet, WANs,LANs or SANs. Tivoli
Storage Manager also offers open, easy-to-use APIs designed
to enable ISVs to more easily adapt their solutions to IBM software, helping to allow joint customers to customize, better
secure and extend the functionality of their storage
environment.
●
Designed to protect valuable data in the most costeffective manner
●
Designed to archive inactive data to help reduce
costs
●
Designed to help ensure
continuity and recovery
IBM TotalStorage Productivity Center
Product Function and Value Highlights
TotalStorage
Productivity
Center for
Disk
In a pooled or virtualized SAN environment, multiple devices work
together to create a storage solution.
IBM TotalStorage Productivity Center
for Disk is designed to provide integrated administration, optimization
and replication features for these virtualization solutions.
●
Designed to help reduce the complexity and cost of storage management while improving data
availability
●
Offers centralized, open standards–based management of storage devices
●
Designed to help enhance storage
administrator productivity
●
Offers proactive management of
storage devices
●
Designed to monitor and automate
replication operations across storage devices
TotalStorage
Productivity
Center for
Replication
TotalStorage Productivity Center For
Replication is designed to simplify
and automate the configuration of
your replication environment allowing
for more effective Peer-to-Peer
Remote Copy (PPRC) and
IBM FlashCopy management. It is also
designed to monitor copy operations
across devices to support a replication environment.
●
Automates the configuration of
your ESS advanced copy services
(FlashCopy and PPRC)
●
Monitors and manages the ESS
copy operations to ensure successful completion from your source
volumes to your disaster recovery
volumes bsystems
IBM TotalSto
rage
Productivity
Center for
Data
IBM TotalStorage Productivity Center
for Data is an intelligent console for
storage environments that provide a
set of policy-driven automated tools
for managing storage capacity, availability, events,performance and
assets, including DAS, NAS and SAN
technologies.
●
Designed to help leverage and optimize existing storage resources
and perform storage management
with a high level of control
●
Designed to help maximize storage
utilization
●
Designed to be able to manage
more storage with the same staff
IBM TotalSto
rage
Productivity
Center for
Fabric
IBM TotalStorage Productivity Center
for Fabric is designed to help automate the management of heterogeneous storage networks and works
with a broad range of devices, so
businesses can leverage and better
use existing technology investments.
It is designed to provide comprehensive management of physical and
logical configurations for multi-vendor
SANs with automatic resource discovery, event monitoring and alerting,
zone control and SAN error-prediction
capabilities.
●
Designed to help predict storage
network failures before they happen, enabling preventative
maintenance
●
Designed to help accelerate problem isolation when failures occur
●
Designed to create a single point of
control, administration and security
for the management of heterogeneous storage networks
19
Storage services
IBM Global Services for Storage and Storage Networking
Data Storage Services from IBM can help companies achieve their business objectives by
creating cost-effective data storage solutions that address the requirements of key business
applications. These solutions can support multiple platforms and product vendors, helping to
provide enhanced protection for critical business data, increased asset utilization, availability
and reliability levels with reduced management costs.
IBM Global Services, as the leading data storage services provider, brings best practices
from its thousands of customer engagements to work with your employees to integrate new
solutions and technology with your business and IT needs. IBM offers a comprehensive
portfolio of data storage services including:
●
Analysis of enterprise information needs and environment
●
Defined enterprise-wide storage strategies
●
Quantified business benefits
●
Backup/restore and business continuity planning
●
Performance and capacity planning
●
Enterprise security architecture
●
Storage migration and consolidation
●
Networked storage architecture design
●
SAN configuration and integration services
●
Proof of concept, validation and certification
●
Implementation, testing and migration services
●
Education and training
●
Installation, relocation, cabling and site preparation
●
Business and application recovery services
●
Systems monitoring and management
●
Managed Storage Services
IBM Global Services has a track record in offering services for open and mainframe storage,
data migration, installation and support services for IBM and non-IBM environments. Some
examples are:
●
IBM Storage Strategy Assessment assists with the vision and strategy, assessment, architecture and conceptual designs to help customers optimize their storage infrastructure to
new architectures.
●
IBM Planning Services for 3494 Automated Tape Library and Virtual Tape Server can help
improve tape storage management and gain control of an often expanding library of
tapes.
●
IBM Operational Support Services for Tivoli® Storage Manager assists customers in the
planning and implementation of storage management software.
●
IBM Managed Storage Services offer scalable, cost-effective storage capacity, management and backup/restore services on a usage basis.
More information about IBM storage services can be found at ibm.com/services/storage.
IBM Global Financing
IBM Global Financing offers competitive financing to credit-qualified customers and
IBM Business Partners to assist them in acquiring IT solutions. Our offerings include financing for IT acquisition—including hardware, software and services, both from IBM and other
manufacturers or vendors—as well as commercial financing (revolving lines of credit, term
loans, acquisition facilities and inventory-financing credit lines) for IBM Business Partners.
Offerings (for all customer segments: small, medium and large enterprise), rates, terms and
availability may vary by country. Contact your local IBM Global Financing organization or visit
the Web at ibm.com/financing.
ibm.com/totalstorage
© Copyright IBM Corporation 2005
IBM Systems and Technology Group
Route 100
Somers, NY 10589
U.S.A
Produced in the United States
October 2005
All Rights Reserved
IBM, the IBM logo, the e-business logo, AIX, AIX 5L, AS/400, CICS, DB2, DB2
Universal Database, DFSMSdfp, DFSMSdss, DFSMShsm, DFSMSrmm, DFSORT,
Enterprise Storage Server, ESCON, _`, FICON, FlashCopy, HACMP,
iSeries, Lotus, Magstar, MVS/ESA, Netfinity, OS/390, OS/400, POWER4+,
POWER5, pSeries, RS/6000, S/390, SysBack, System z9, Tivoli, TotalStorage,
TotalStorage Proven, VM/ESA, VSE/ESA, xSeries, z/OS and z/VM are trademarks
or registered trademarks of International Business Machines Corporation in the
United States, other countries or both.
LTO and Ultrium are registered trademarks of International Business Machines
Corporation, Hewlett-Packard and Certance.
Microsoft, Windows and Windows NT are trademarks of Microsoft Corporation in
the United States, other countries or both.
Intel is a registered trademark of Intel Corporation in the United States, other
countries or both.
Linux is a trademark of Linus Torvalds in the United States, other countries, or
both.
UNIX is a registered trademark of The Open Group in the United States and other
countries.
HotCAT is a trademark of McDATA Corporation.
The following are trademarks or registered trademarks of Network Appliance, Inc.:
Snapshot, SnapRestore, FilerView, SecureAdmin and Data ONTAP.
Other company, product and service names may be trademarks or service marks
of others.
IBM Global Financing offerings are provided through IBM Credit Corporation in the
United States and IBM Canada Ltd. in Canada to qualified commercial and
government customers. Rates are based on a customer’s credit rating, financing
terms, offering type, equipment type and options, and may vary by country. Other
restrictions may apply. Rates and offerings are subject to change, extension or
withdrawal without notice.
IBM hardware products are manufactured from new parts, or new and used parts.
In some cases, the hardware product may not be new and may have been
previously installed. Regardless, IBM warranty terms apply.
This document could include technical inaccuracies or typographical errors.
IBM may make changes, improvements, or alterations to the products, programs
and services described in this document, including termination of such products,
programs and services, at any time and without notice. Any statements regarding
IBM’s future direction and intent are subject to change or withdrawal without
notice, and represent goals and objectives only. The information contained in this
document is current as of the initial date of publication only and is subject to
change without notice. IBM shall have no responsibility to update such
information.
TSO00364-USEN-16
G325-3369-16
IBM is not responsible for the performance or interoperability of any
non-IBM products discussed herein. Performance data for IBM and nonIBM products and services contained in this document was derived under specific
operating and environmental conditions. The actual results obtained by any party
implementing such products or services will depend on a large number of factors
specific to such party’s operating environment and may vary significantly.
IBM makes no representation that these results can be expected or obtained in
any implementation of any such products or services.
MB, GB and TB equal 1,000,000, 1,000,000,000 and 1,000,000,000,000 bytes,
respectively, where referring to storage capacity. Actual storage capacity will vary
based upon many factors and may be less than stated. Some numbers given for
storage capacities give capacity in native mode followed by capacity using data
compression technology.
THE INFORMATION IN THIS DOCUMENT IS PROVIDED “AS-IS” WITHOUT ANY
WARRANTY, EITHER EXPRESSED OR IMPLIED. IBM EXPRESSLY DISCLAIMS
ANY WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE OR INFRINGEMENT. IBM products are warranted according to the
terms and conditions of the agreements (e.g., IBM Customer Agreement,
Statement of Limited Warranty, International Program License Agreement, etc.)
under which they are provided.
References in this document to IBM products, programs or services does not
imply that IBM intends to make such products, programs or services available in
all countries in which IBM operates or does business. Any reference to an
IBM program or product in this document is not intended to state or imply that
only that program may be used. Any functionally equivalent program or product,
that does not infringe IBM’s intellectual property rights, may be used instead. It is
the user’s responsibility to evaluate and verify the operation of any nonIBM product, program or service.
Each IBM customer is responsible for ensuring its own compliance with legal
requirements. It is the customer’s sole responsibility to obtain advice of competent
legal counsel as to the identification and interpretation of any relevant laws and
regulatory requirements that may affect the customer’s business and any actions
the customer may need to take to comply with such laws. IBM does not provide
legal advice or represent or warrant that its services or products will ensure that
the customer is in compliance with any law.
Loading...
