Hyundai Santa Fe 2004 User Manual

2004

A000A01A-AAT

This Owner's Manual should be considered a part of the car and remain with it when it is sold for the use of the next owner.

OWNER'S I.D.

ORIGINAL OWNER

ADDRESS

CITY STATE ZIP CODE

DELIVERY DATE

(Date Sold to Original Retail purchaser)

DEALER NAME DEALER NO.

ADDRESS

CITY STATE ZIP CODE

OWNER'S MANUAL

A030A02O-AAT

Operation
Maintenance
Specifications

HSM002

All information in this Owner's Manual is current at the time of publication. However, Hyundai reserves the right to make changes at any
time so that our policy of continual product improvement may be carried out.

This manual applies to all Hyundai models and includes descriptions and explanations of optional as well as standard equipment.
As a result, you may find material in this manual that does not apply to your specific vehicle.

A010A02A-AAT

WARRANTIES FOR YOUR HYUNDAI VEHICLE

o New Vehicle 60 Months/60,000 Miles Limited Warranty
o New Vehicle 120 Months/100,000 Miles Limited Powertrain Warranty (original owner only)
o Anti-Perforation Limited Warranty
o Emission Defect Warranty - Federal Vehicle
o California Emission Control System Warranty (if applicable)
o Emission Performance Warranty - Federal Vehicle
o Replacement Parts and Accessories Limited Warranty

NOTE:

Detailed warranty information is provided in your Hyundai Owner's Handbook.

A020A01A-AAT

RESPONSIBILITY FOR MAINTENANCE

The maintenance requirements for your new Hyundai are found in Section 5. As the owner, it is your responsibility
to see that all maintenance operations specified by the manufacturer are carried out at the appropriate intervals.
When the vehicle is used in severe driving conditions, more frequent maintenance is required for some operations.
Maintenance requirements for severe operating conditions are also included in Section 5.

A040A01A-AAT

FOREWORD

Thank you for choosing Hyundai. We are pleased to welcome you to the growing number of discriminating people who
drive Hyundais. The advanced engineering and high-quality construction of each Hyundai we build is something of which
we're very proud.

Your Owner's Manual will introduce you to the features and operation of your new Hyundai. It is suggested that you read
it carefully because the information it contains can contribute greatly to the satisfaction you receive from your new car.

The manufacturer also recommends that all service and maintenance on your car be performed by an authorized Hyundai
dealer. Hyundai dealers are prepared to provide high-quality service, maintenance and any other assistance that may
be required.

A050A04A-AAT

HYUNDAI MOTOR COMPANY

Note : Because future owners will also need the information included in this manual, if you sell this Hyundai, please leave

the manual in the vehicle for their use. Thank you.

!

Severe engine and transaxle damage may result from the use of poor quality fuels and lubricants that do not
meet Hyundai specifications. You must always use high quality fuels and lubricants that meet the specifica­tions listed on Page 9-4 in the Vehicle Specifications section of the Owner's Manual and which also appear
in the Service Station Information on the back cover of the Owner's Manual.

Copyright 2004 Hyundai Motor Company. All rights reserved. No part of this publication may be reproduced, stored in
any retrieval system or transmitted in any form or by any means without the prior written permission of Hyundai Motor
Company.

CAUTION:

A070A01A-AAT

Your Hyundai should not be modified in any way. Such modifications may adversely affect the performance, safety
or durability of your Hyundai and may, in addition, violate conditions of the limited warranties covering the vehicle.
Certain modifications may also be in violation of regulations established by the U.S. Department of Transportation
and other federal or state agencies.

CAUTION: MODIFICATIONS TO YOUR HYUNDAI

!

A080A01S-AAT

TWO-WAY RADIO OR CELLULAR TELEPHONE INSTALLATION

Your vehicle is equipped with electronic fuel injection and other electronic components. It is possible for an
improperly installed/adjusted two-way radio or cellular telephone to adversely affect electronic systems. For this
reason, we recommend that you carefully follow the radio manufacturer's instructions or consult your Hyundai
dealer for precautionary measures or special instructions if you choose to install one of these devices.

A090A01A-AAT

SAFETY AND VEHICLE DAMAGE WARNING

This manual includes information titled as WARNING, CAUTION and NOTE.
These titles indicate the following:

!

!

WARNING:

CAUTION:

This indicates that a condition may result in harm, serious injury or death to you or other persons if
the warning is not heeded. Follow the advice provided with the warning.

This indicates that a condition may result in damage to your vehicle or its equipment if the caution is
not heeded. Follow the advice provided with the caution.

NOTE:

This indicates that interesting or helpful information is being provided.

A100A03A-AAT

Guide to Hyundai Genuine Parts

1. What are Hyundai Genuine Parts?

Hyundai Genuine Parts are the same parts
used by Hyundai Motor Company to manu­facture vehicles. They are designed and
tested for the optimum safety, performance,
and reliability to our customers.

2. Why should you use genuine parts?

Hyundai Genuine Parts are engineered and
built to meet rigid manufacturing require­ments. Using imitation, counterfeit or used
salvage parts is not covered under the
Hyundai New Vehicle Limited Warranty or
any other Hyundai warranty. In addition, any
damage to or failure of Genuine Hyundai
Parts caused by the installation or failure of

an imitation, counterfeit or used salvage part
is not covered by any Hyundai Warranty.

3. How can you tell if you are purchasing
Hyundai Genuine Parts?

Look for the Hyundai Genuine Parts Logo on
the package (see below).

Hyundai Genuine Parts exported to the United
States are packaged with labels written only
in English.

Hyundai Genuine Parts are only sold through
authorized Hyundai Dealerships.

To find the closest authorized dealer call
1-800-826-CARS

A100A03L

A100A01L A100A02L A100A04L

TABLE OF CONTENTS

SECTION

FEATURES OF YOUR HYUNDAI

DRIVING YOUR HYUNDAI

WHAT TO DO IN AN EMERGENCY

CORROSION PREVENTION & APPEARANCE CARE

VEHICLE MAINTENANCE REQUIREMENTS

DO-IT-YOURSELF MAINTENANCE

EMISSION CONTROL SYSTEMS

CONSUMER INFORMATION & REPORTING SAFETY DEFECTS

VEHICLE SPECIFICATIONS

INDEX

1

2

3

4

5

6

7

8

9

10

B250A03O-AAT

INSTRUMENTS AND CONTROLS

B250A01O-1

1. Multi-Function Light Switch

2. Instrument Cluster

3. Horn and Driver's Airbag

4. Ignition Switch

5. Windshield Wiper/Washer Switch

6. Front Fog Light Switch (If installed)

7. Hazard Warning Light Switch

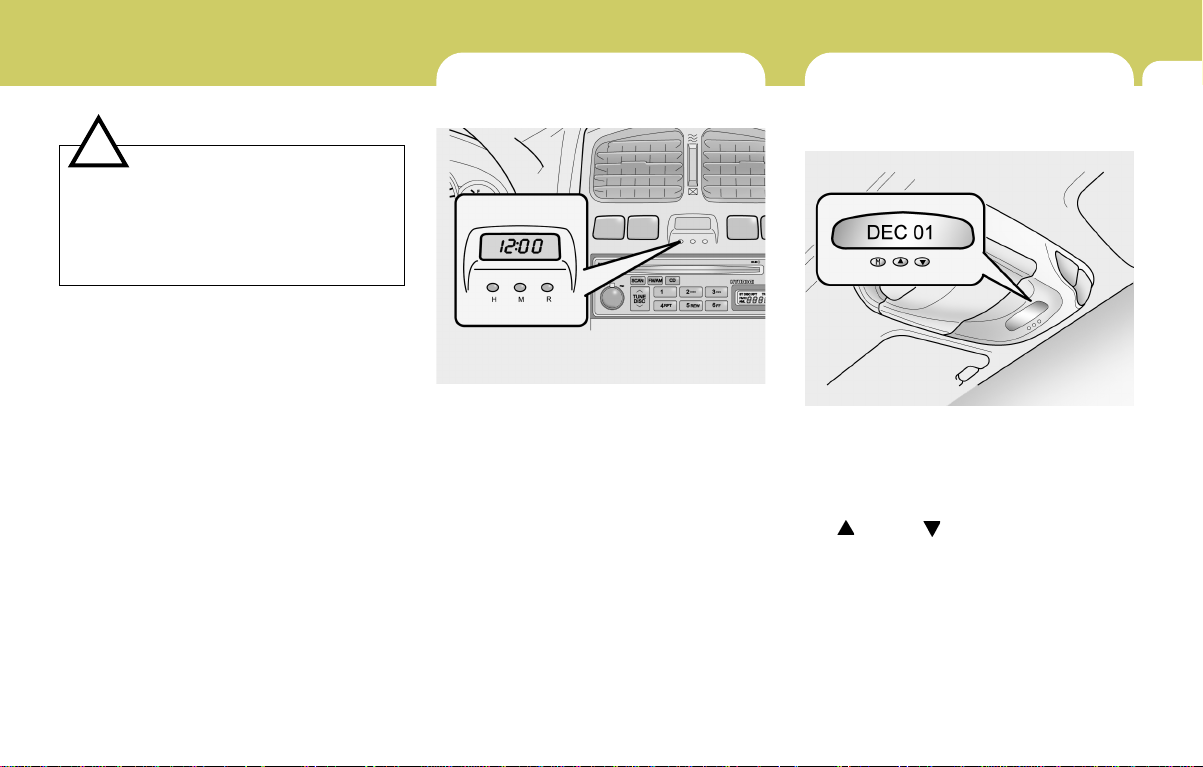

8. Digital Clock

9. Rear Window Defroster Switch

10.Audio System (If installed)

11.Passenger's Airbag

12.Hood Release Lever

!

When installing a container of liquid air freshener inside the vehicle, do not place it near the instrument cluster nor
on the instrument panel surface. If there is any leakage from the air freshener onto these areas (Instrument cluster,
instrument panel or air ventilator), it may damage these parts. If the liquid from the air freshener does leak onto these
areas, wash them with water immediately.

CAUTION:

13.Panel Brightness Control Knob (Rheostat Switch)

14.Traction Control System Switch (If installed)

15.Cruise Control Switch (If installed)

16.Steering Wheel Tilt Lever

17.Ashtray

18.Parking Brake Lever

19.Shift Lever (If installed)

20.Power Outlet

21.Cigarette Lighter

22.Heating/Air Conditioning Control Panel

23.Glove Box

YOUR VEHICLE AT A GLANCE

B255A03O-AAT

INDICATOR SYMBOLS ON THE INSTRUMENT PANEL

SRS (Airbag) Service Reminder Indicator

Turn Signal Indicator Lights

High Beam Indicator Light

Low Oil Pressure Warning Light

Parking Brake/Low Brake Fluid Level
Warning Light

Charging System Warning Light

Tail Gate Open Warning Light

* More detailed explanations of these items will be found beginning on page 1-42.

Door Ajar Warning Light and Chime

Low Fuel Level Warning Light

Malfunction Indicator LightSeat Belt Reminder Light and Chime

ABS Service Reminder Indicator (If installed)

Traction Control Indicator Light (If installed)

Traction Control Off Indicator Light (If installed)

Cruise Indicator (If installed)

4WD System Warning Light (If installed)

FEATURES OF YOUR HYUNDAI

Fuel Recommendations ................................................ 1-2

Breaking in Your New Hyundai..................................... 1-3

Keys.............................................................................. 1-3

Door .............................................................................. 1-4

Power Windows .......................................................... 1-10

Seats........................................................................... 1-11

Seat Belts.................................................................... 1-18

Child Restraint System ............................................... 1-24

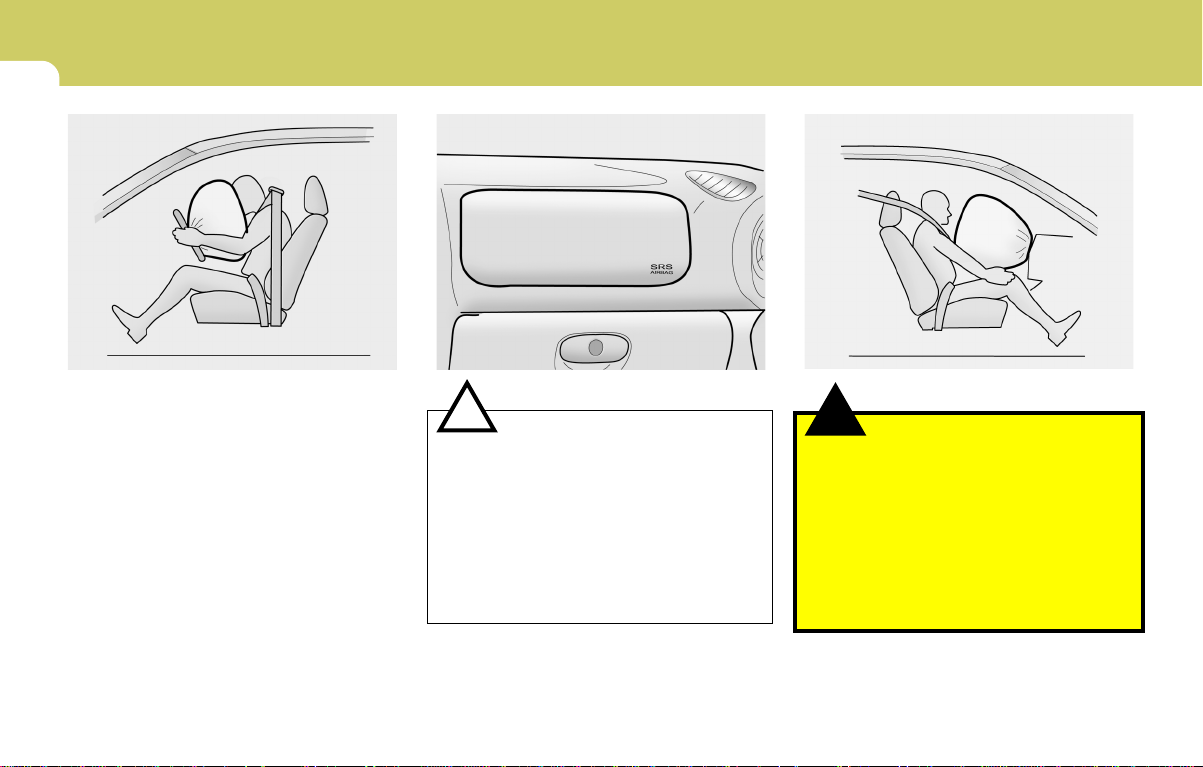

Supplemental Restraint (AIRBAG) system................. 1-31

Instrument Cluster and Indicator Lights ...................... 1-38

Warning and Indicator Lights ...................................... 1-42

Multi-Function Light Switch ......................................... 1-48

Windshield Wiper/Washer Switch............................... 1-50

Sunroof .......................................................................1-56

Mirror........................................................................... 1-61

Hood Release ............................................................. 1-72

Cruise Control............................................................. 1-75

Heating and Cooling Control ....................................... 1-78

Stereo Sound System................................................. 1-94

Audio System.............................................................. 1-96

Antenna..................................................................... 1-123

1

1

FEATURES OF YOUR HYUNDAI

1

FUEL RECOMMENDATIONS

2

B010A02A-AAT

Use Unleaded Gasoline

UNLEADED

FUEL ONLY

B010A01O

Unleaded gasoline with a Pump Octane
Rating of 87 (Research Octane Number 91)
or higher must be used in your Hyundai.

If leaded gasoline is used, it will cause the
catalytic converter to become ineffective and
the emission control system to malfunction.
This can also result in increased maintenance
expense.

To avoid accidental use of leaded fuel, the larger
nozzle used with leaded gasoline at service
stations cannot be inserted into the fuel tank
opening of your Hyundai.

!

o Do not "TOP-OFF" after the first nozzle
o The fuel cap must be tightened at least

B010B01A-AAT

CAUTION:

shut off when refueling.
3 clicks, otherwise " " light may

illuminate.

What About Gasohol?

Gasohol (a mixture of 90% unleaded gasoline
and 10% ethanol or grain alcohol) may be used
in your Hyundai. However, if your engine devel­ops driveability problems, the use of 100%
unleaded gasoline is recommended. Fuels with
unspecified quantities of alcohol, or alcohols
other than ethanol, should not be used.

B010C01A-AAT

Use of MTBE

Hyundai recommends that fuels containing
MTBE (Methyl Tertiary Butyl Ether) over 15.0%
vol. (Oxygen Content 2.7% weight) should not
be used in your Hyundai.
Fuel containing MTBE over 15.0% vol. (Oxygen
Content 2.7% weight) may reduce vehicle per­formance and produce vapor lock or hard
starting.

B010D01A-AAT

Do Not Use Methanol

Fuels containing methanol (wood alcohol) should
not be used in your Hyundai. This type of fuel
can reduce vehicle performance and damage
components of the fuel system.

!

Your Hyundai's New Vehicle Limited War­ranty may not cover damage to the fuel
system and any performance problems that
are caused by the use of fuels containing
methanol or fuels containing MTBE (Methyl
Tertiary Butyl Ether) over 15.0% vol. (Oxy­gen Content 2.7% weight.)

CAUTION:

FEATURES OF YOUR HYUNDAI

KEYSBREAKING IN YOUR NEW HYUNDAI

1

3

B010E01A-AAT

Gasolines for Cleaner Air

To help contribute to cleaner air, Hyundai rec­ommends that you use gasolines treated with
detergent additives, which help prevent deposit
formation in the engine. These gasolines will
help the engine run cleaner and enhance per­formance of the Emission Control System.

B010F01A-AAT

Operation in Foreign Countries

If you are going to drive your Hyundai in another
country, be sure to:

o Observe all regulations regarding registra-

tion and insurance.

o Determine that acceptable fuel is available.

B020A01S-AAT

During the First 1,200 Miles (2,000 Km)

No formal "break-in" procedure is required with
your new Hyundai. However, you can contrib­ute to the economical operation and durability of
your Hyundai by observing the following recom­mendations during the first 1,200 miles (2,000
km).

o Don't drive faster than 55 MPH (88 km/h).
o While driving, keep your engine speed (rpm,

or revolutions per minute) between 2,000
rpm and 4,000 rpm.

o Use moderate acceleration. Don't start

quickly or depress the accelerator pedal
fully.

o For the first 200 miles (300 km), try to avoid

hard stops.

o Don't lug the engine (in other words, don't

drive so slowly in too high a gear that the
engine "bucks"-shift to a lower gear).

o Whether going fast or slow, vary your speed

from time to time.

o Don't let the engine idle longer than 3 minutes

at one time.

o Don't tow a trailer during the first 1,200 miles

(2,000 km) of operation.

B030A01A-AAT

B030A01B

For greater convenience, the same key oper­ates all the locks in your Hyundai. However,
because the doors can be locked without a key,
carrying a spare key is recommended in case
you accidentally lock one key inside the car.

FEATURES OF YOUR HYUNDAI

1

4

DOOR LOCKS

B030B01A-AAT

Record Your Key Number

B030B01B

A code number is stamped on the number plate
that came with the keys to your Hyundai. This
key number plate should not be left with the keys
but kept in a safe place, not in the vehicle. The
key number should also be recorded in a place
where it can be found in an emergency.
If you need additional keys, or if you should lose
your keys, your authorized Hyundai dealer can
make new keys if you can supply the key
number.

ILLUMINATED IGNITION SWITCH
(If installed)

B030C01L

Whenever a door is opened, the ignition switch
will be illuminated for your convenience, pro­vided the ignition switch is not in the "ON"
position.
The light will go off approximately 10 seconds
after closing the door or when the ignition switch
is turned on.

B040A01A-AATB030C01Y-AAT

!

o Unlocked doors can be dangerous. Be-

o Before opening the door, always look for

WARNING:

fore you drive away (especially if there
are children in the car), be sure that all the
doors are securely closed and locked so
that the doors cannot be opened from
the inside. This helps ensure that the
doors will not be opened accidentally.
Also, when combined with the proper
use of seat belts, locking the doors helps
keep occupants from being ejected from
the car in case of an accident.

and avoid oncoming traffic.

FEATURES OF YOUR HYUNDAI

1

5

B040B01O-AAT

Locking, unlocking front doors with a
key

LOCK

o The door can be locked or unlocked with a

key.

o Lock the door by turning the key toward the

front of the vehicle and unlock it by turning the
key toward the rear.

UNLOCK

B040B01O

NOTE:

The driver's door can be unlocked by turn­ing the key once toward the rear. If you wish
to unlock all doors, turn the key again
toward the rear within 4 seconds.

B040C02O-AAT

Locking From the Outside
(Driver's side)

B040C01O

The doors can be locked without a key. To lock
the doors, first push the inside lock switch to the
"LOCK" position so that the red mark on the
switch is not visible, then close the door.

NOTE:

o When pushing the lock switch of the

driver's door to the "LOCK" position,
only the driver's door can be locked.

o If your vehicle is equipped with central

door locking system, the door will not
lock if the key is left in the ignition switch
when the front doors are closed.

o When locking the door this way, be care-

ful not to lock the door with the ignition
key left in the vehicle.

o To reduce the chances of theft, always

remove the ignition key, close all win­dows, and lock all doors and tail gate
when leaving your vehicle unattended.

FEATURES OF YOUR HYUNDAI

1

6

B040D01O-AAT

Locking From the Inside
(Driver's side)

LOCK

UNLOCK

HSM362

To lock the doors from the inside, simply close
the door and push the lock switch to the "LOCK"
position.

NOTE:

o When pushing the lock switch of the

driver's door to the "LOCK" position,
only the driver's door can be locked.

o When the door is locked, the red mark on

the switch is not visible.

o The driver's door can be opened by

pulling the inside door handle even if the
lock switch is depressed.

B045C02O-AAT

Locking From the Outside
(Passenger's side)

B040C01O-D

The doors can be locked without a key. To lock
the doors, first push the inside lock switch to the
"LOCK" position so that the red mark on the
switch is not visible, then close the door.

NOTE:

o When pushing the lock switch of the

passenger's door to the "LOCK" posi­tion, all doors can be locked.

o If your vehicle is equipped with central

door locking system, the door will not
lock if the key is left in the ignition switch
when the front doors are closed.

o When locking the door this way, be care-

ful not to lock the door with the ignition
key left in the vehicle.

o To reduce the chances of theft, always

remove the ignition key, close all win­dows, and lock all doors and tail gate
when leaving your vehicle unattended.

FEATURES OF YOUR HYUNDAI

1

7

B045D01O-AAT

Locking From the Inside
(Passenger's side)

LOCK

UNLOCK

HSM362-D

To lock the doors from the inside, simply close
the door and push the lock switch to the "LOCK"
position. When this is done, neither the outside
nor the passenger's inside door handles can be
used.

NOTE:

o When pushing the lock switch of the

passenger's door to the "LOCK" posi­tion, all doors can be locked.

o When the door is locked, the red mark on

the switch is not visible.

B040E03A-AAT

Child-Protector Rear Door Lock

HSM170-1

Your Hyundai is equipped with a "child-protec­tor" rear door lock assembly. When the lock
mechanism is engaged, the rear door cannot be
opened from the inside. Its use is recommended
whenever there are small children in the rear
seat.

To engage the child-protector feature so that
the door cannot be opened from the inside,
move the child-protector lever to the " "
position and close the door. Move the lever to
the opposite direction of " " position when
normal door operation is desired.

If you wish to be able to open the door from the
outside, pull the outside door handle to its up
position.

B040G02O-AAT

Central Door Locks (If installed)

B040G01O-A

The central door locking switch is located on the
driver's arm rest. It is operated by depressing
either the "LOCK" or "UNLOCK" of the door lock
switch.

NOTE:

o When pushing the "LOCK" of the driver's

door lock switch, all vehicle doors will
lock. If any door is open when the switch
is depressed, the door will remain locked
when closed.

o When pushing the "UNLOCK" of the

switch, all vehicle doors will unlock.

FEATURES OF YOUR HYUNDAI

1

8

THEFT-ALARM SYSTEM

B070F01O-AAT

KEYLESS ENTRY SYSTEM (If installed)
Locking doors

1. Close all doors.

2. Push the "LOCK" button on the transmitter.

3. At the same time all doors lock, the turn signal
lights will blink once to indicate that the
system is armed.

Unlocking doors

1. Push the "UNLOCK" button on the transmit­ter.

2. At the same time the driver's door unlocks,
the turn signal lights will blink twice to indicate
that the system is disarmed.

NOTE:

If you wish to unlock all doors, press the
"UNLOCK" button on the transmitter again
within 4 seconds.

B070A01A-AAT

(If installed)

This system is designed to provide protection
from unauthorized entry into the car. This sys­tem is operated in three stages : the first is the
"Armed" stage, the second is the "Alarm" stage
and the third is the "Disarmed" stage. If trig­gered, the system provides an audible alarm
with blinking of the turn signal litghts.

B075B01O-AAT

Armed Stage

UNLOCK

LOCK

PANIC

HSM326

Park the car and stop the engine. Arm the
system as described below.

1) Remove the ignition key from the ignition
switch.

2) Make sure that the engine hood and tail gate
are closed and latched.

3) Lock the doors using the transmitter of the
keyless entry system.

After completion of the steps above, the turn
signal lights will blink once to indicate that the
system is armed.

FEATURES OF YOUR HYUNDAI

1

9

NOTE:

o If any door, tail gate or engine hood

remains open, the system will not be
armed. If this happens, rearm the system
as described above.

o If the "LOCK" button is pressed once

more within 4 seconds after pushing the
"LOCK" button on the transmitter, the
siren will sound once to indicate that the
system is armed.

!

Do not arm the system until all passengers
have left the car. If the system is armed while
a passenger(s) remains in the car, the alarm
may be activated when the remaining
passenger(s) leaves the car.

CAUTION:

B075C01O-AAT

Alarm Stage

The alarm will be activated if any of the following
occurs while the car is parked and the system
is armed.

1) A front or rear door is opened without using
the transmitter or the ignition key.

2) The tail gate is opened without using the
transmitter or the ignition key.

3) The engine hood is opened.

The siren will sound and the turn signal lights will
blink continuously for 27 seconds (This hap­pens 3 times). To turn off the system, unlock the
door or tail gate using the transmitter or the
ignition key.

!

Avoid trying to start the engine while the
system is armed.

CAUTION:

B075D01O-AAT

Disarmed Stage

The system will be disarmed by using the
transmitter or the ignition key.

The driver's door is unlocked by depressing
once the "UNLOCK" button on the transmitter.
If you wish to unlock all doors, press the "UN­LOCK" button on the transmitter again within 4
seconds.

Whenever the step above is completed, the turn
signal lights will blink twice to indicate that the
system is disarmed.

If any door, tail gate or engine hood is not opened
within 30 seconds, the system will be rearmed.

B075E01O-AAT

Panic Warning

1. Push the "PANIC" button on the transmitter.

2. At the same time, the siren will sound and the
turn signal lights will blink for 30 seconds.

3. To turn off the system, push the "PANIC"
button again on the transmitter.

FEATURES OF YOUR HYUNDAI

1

10

POWER WINDOWS

B070E02HP-AAT

Replacing the battery

When the transmitter's battery begins to get
weak, it may take several pushes on the button
to lock or unlock the doors, and the LED will not
light. Replace the battery as soon as possible.

Battery type : CR2032
Replacement instructions:

Screwdriver

HSM327

1. Carefully separate the case with a blade
screwdriver as shown in the illustration.

Case

Battery

B070E02A-1

2. Remove the old battery from the case and
note the polarity. Make sure the polarity of
the new battery is the same(+side facing
down), then insert it in the transmitter.

B060A03Y-AAT

Close

Open

(1)

HSM048

The power windows operate when the ignition
key is in the "ON" position. The main switches
are located on the driver's armrest and control
the front and rear windows on both sides of the
vehicle. The windows may be opened by de­pressing the appropriate window switch and
closed by pulling up the switch. To open the
window on the driver's side, press the switch(1)
halfway down. The window moves as long as
the switch is operated. To fully open the driver's
window automatically, press the switch fully
down. In automatic operation, the window will
fully open even if you let go of the switch. To stop
at the desired opening, pull up and release the
switch.

(2)

Close

Open

FEATURES OF YOUR HYUNDAI

SEATS

B080A01A-AAT

ADJUSTABLE FRONT SEATS

!

Never attempt to adjust the seat while the
vehicle is moving. This could result in loss
of control or an accident which may cause
death, serious injury, or property damage.

WARNING:

1

11

HSM441-A

In order to prevent operation of the passenger
front and rear windows, a window lock switch(2)
is provided on the armrest of the driver's door.
To disable the power windows, press the win­dow lock switch. To revert to normal operation,
press the window lock switch a second time.

NOTE:

The power windows can be operated for 30
seconds after the ignition key is turned to
the "ACC" or "LOCK" positions, or removed
from the ignition switch.
If the front doors are opened during this 30
second period, the power windows can no
longer be operated without the ignition key
turned to the "ON" position.

HSM050

!

(1 )Be careful that someone's head, hands

(2 )Never try to operate the main switch on

(3 )Do not leave children alone in the car.

WARNING:

and body are not trapped by a closing
window.

the driver's door and the individual door
window switch in opposing directions
at the same time. If this is done, the
window will stop and cannot be opened
or closed.

Always remove the ignition key for their
safety.

FEATURES OF YOUR HYUNDAI

1

12

B080B02A-AAT

Adjusting Seat Forward and Rearward

B080B01O

To move the seat toward the front or rear, pull
the lock release lever upward. This will release
the seat on its track so you can move it forward
or rearward to the desired position. When you
find the position you want, release the lever and
slide the seat forward or rearward on its track
until it locks into the desired position and cannot
be moved further.

!

To ensure the seat is locked securely, at­tempt to move the seat forward or rearward
without using the lock release lever.

WARNING:

B080C01A-AAT

Adjusting Seatback Angle

B080C01O

To recline the seatback, lean forward to take
your weight off it, then pull up on the recliner
control lever at the outside edge of the seat. Now
lean back until the desired seatback angle is
achieved. To lock the seatback into position,
release the recliner control lever.

!

To minimize risk of severe injury in the
event of a collision or a sudden stop, both
the driver and passenger seatbacks should
always be in an upright position while the
vehicle is in motion. The protection pro­vided by the seat belts and airbags in a
frontal collision may be reduced signifi­cantly when the seatbacks are reclined.
There is greater risk that the driver and
passenger will slide under the seat belt
which may result in serious injury if a crash
occurs when the seatbacks are reclined.
The seat belt cannot provide full protection
to an occupant if the seat back is reclined.

WARNING:

FEATURES OF YOUR HYUNDAI

1

13

B080D02A-AAT

Adjustable Headrests

Lock knob

HSM365

Headrests are designed to help reduce the risk
of neck injuries.
To raise the headrest, pull it up. To lower it, push
it down while pressing the lock knob.

!

o For maximum effectiveness in case of an

o Do not operate the vehicle with the head-

WARNING:

accident, the headrest should be ad­justed so the top of the headrest is at the
same height as the top of the occupant's
ears. The use of a cushion that holds the
body away from the seatback is not
recommended.

rests removed as severe injury to an
occupant may occur in the event of an
accident. Headrests may provide pro­tection against severe neck injuries when
properly adjusted.

B080E01O-AAT

Lumbar Support Control
(Driver's seat only) (If installed)

1

To adjust the lumbar support, turn the handle on
the inboard side of the seat. To increase the
amount of lumbar support, pull the lever for­ward. To decrease it, push the lever toward the
rear.

1. Minimum support

2. Maximum support

2

B080E01O

FEATURES OF YOUR HYUNDAI

1

14

B080F01A-AAT

Seat Cushion Height Adjustment
(Driver's Seat Only) (If Installed)

B080F01O

To raise or lower the front part of the seat
cushion, turn the front knob forward or rear­ward. To raise or lower the rear part of the seat
cushion, turn the rear knob forward or rear­ward.

B090A01Y-AAT

POWER DRIVER'S SEAT (If installed)

The driver's seat can be adjusted appropriately
by using the control knobs on the left side of the
seat. Before driving, adjust the seat to the
proper position so as to easily control the
steering wheel, pedals and switches on the
instrument panel.

!

Do not operate two knobs at the same time.

o Never attempt to adjust the seat while

o Do not sit or lean unnecessarily close to

CAUTION:

!

WARNING:

the vehicle is moving. This could result
in loss of control or an accident causing
death, serious injury, or property dam­age.

the airbag.

B090B01Y-AAT

Adjusting Seat Forward and Rearward

1

2

B090B01O

Pull the control knob forward or backward to
move the seat forward or backward to the
desired position. Release the knob and the seat
will remain at that position.

1. Seat Back Reclining Control Knob

2. Seat Cushion Forward, Rearward and Height
Adjusting Control Knob

FEATURES OF YOUR HYUNDAI

1

15

B090C01Y-AAT

Seat Cushion Height Adjustment

B090C01O

Move the front portion of the control knob up or
down to raise or lower the front part of the seat
cushion. Move the rear portion of the control
knob up or down to raise or lower the rear part
of the seat cushion.

B090D01Y-AAT

Adjusting Seatback Angle

B090D01O

Rotate the upper portion of the control knob
forward or backward to recline the seatback to
the desired position. Release the control knob
and the seatback will remain in that position.

!

To minimize the risk of personal injury in
the event of a collision or a sudden stop,
both the driver's and passenger's seatback
should remain in an upright position while
the car is in motion. The protection pro­vided by the seat belts and airbags may be
reduced significantly when the seatbacks
are reclined. There is a greater risk that the
seat occupants will slide under the belt
resulting in serious injury if a crash occurs
when the seatbacks are reclined. The seat
belt cannot provide full protection to an
occupant if the seat back is reclined.

WARNING:

FEATURES OF YOUR HYUNDAI

1

16

B080G01FC-AAT

UNDER TRAY (If installed)

HSM189

The tray is located under the front passenger's
seat. It is opened by up and pulling forward.

!

To avoid the possibility of injury in case of
an accident or a sudden stop, the tray
should be kept closed when the car is in
motion.

WARNING:

B100A02Y-AAT

SEAT WARMER (If Installed)

B340G01O

The seat warmer is provided to warm the front
seats during cold weather. With the ignition key in
the "ON" position, push either of the switches to
warm the driver's seat or the passenger's seat.
During mild weather or under conditions where
the operation of the seat warmer is not needed,
keep the switches in the "OFF" position.

NOTE:

o The seat warmer will not operate if am-

bient temperature is higher than

82.4°F(28°C) ± 3.5°F(3.5°C).

o If the seat warmer doesn't works when

ambient temperature is lower than

75.2°F(24°C), it must be checked at au­thorized dealer.

B085A01O-BAT

REAR SEAT
Adjusting Seatback Angle

Seatback
folding lever

To recline the seatback, push the seatback
folding lever toward the headrest, and release
it after the desired seatback angle is achieved.
When you recline the seatback to desired po­sition, always be sure it has locked into position.

!

When reclining the seatback, you should
adjust the seatback folding lever while
standing.

CAUTION:

HSM288-A

FEATURES OF YOUR HYUNDAI

1

17

B085B01O-AAT

Folding Rear Seatback and Seat
Cushion

For greater convenience, the entire seatback
and seat cushion may be folded down and up.

(1)

Strap

B080D01O

1. Remove the headrests.

2. Pull strap to fold up the seat cushion.

3. Push and hold the seatback folding lever (1)
inward, then push down the seatback.

Buckle clips

HSM293-A

NOTE:

o Before folding the seatback, place the

rear seat belt buckles in the buckle clips
on the seatback. This will prevent the
seat belt buckles from becoming cov­ered by the seat cushion when it is
returned to the seating position.

o The rear seat belt buckles must be re-

moved from the buckle clips by pressing
release button when in use.

Hanger

Securing loop

B080D02O

4. Hook the securing loop under the seat cush­ion to the hanger on the backside of the
seatback.

5. Insert the headrests between the seatback
and the seat cushion.

6. To return the seatback to its normal position,
push the seatback folding lever and reverse
the above procedure.

o When you return the seatback to its upright

position, always be sure it is locked into
position by pulling and pushing on the top of
the seatback.

FEATURES OF YOUR HYUNDAI

1

18

!

o The purpose of the fold-up rear seat

o Make sure that the headrests are prop-

o When you return the rear seatback to its

WARNING:

cushion and the fold-down rear seat
back is to allow you to carry more objects
than could otherwise be accommodated.
Never allow passengers to sit on the
cargo area while the car is moving. This
is not a proper seating position and no
seat belts are available for use when the
seat back is folded down.
This could result in serious injury or
death in case of an accident or a sudden
stop. Objects should not extend higher
than the top of the front seatbacks.
This could allow cargo to slide forward
and cause injury or damage during sud­den stops.

erly fixed in place to minimize the risk of
severe injury in case of an accident.

upright position after being folded down,
be careful not to damage the seatbelt
webbing or buckle. In addition, do not
allow the seatbelt webbing or buckle to
get caught or pinched in the rear seat.

!

B140A01B-AAT

REAR SEAT WARNING

B080P01O

For the safety of all passengers, luggage or
other cargo should not be piled higher than the
top of the seatback.

SEAT BELTS

B150A01S-AAT

SEAT BELT PRECAUTIONS

!

All occupants of the vehicle must wear their
seat belts at all times. Note that this vehicle
is equipped with a Supplemental Restraint
(Airbag) System as discussed beginning
on page 1-31. The seat belts must be used
in conjunction with the supplemental
airbag system. State laws require that some
or all occupants of the vehicle use seat
belts. The possibility of increased injury or
severity of injury in an accident will be
increased if this elementary safety precau­tion is not observed. In addition, follow the
other instructions provided in this section.

B150B03Y-AAT

WARNING:

Infant or Small Child

All 50 states have child restraint laws. You
should be aware of the specific requirements in
your state. Child and/or infant safety seats must
be properly placed and installed in the rear seat.
Information about the use of these restraints
begins on page 1-24.

FEATURES OF YOUR HYUNDAI

1

19

!

Every person in your vehicle needs to be
properly restrained at all times, including
infants and children. In a collision, an unre­strained child can become a "missile" in­side the car. The force required to hold a
child on your lap could be so great that you
could not hold the child. Any child riding in
the vehicle should always be in a proper
restraint in the rear seat of the vehicle.

WARNING:

NOTE:

Small children are best protected from in­jury in an accident when properly restrained
in the rear seat by a child restraint system
that meets the requirements of the Federal
Motor Vehicle Safety Standards. Before
buying any child restraint system, make
sure that it has a label certifying that it
meets Motor Vehicle Safety Standard 213.
The restraint must be appropriate for your
child's height and weight. Check the label
on the child restraint for this information.
See page 1-24.

B150C02A-AAT

Larger Children

Children who are too large for child restraint
systems should always occupy the rear seat
and use the available lap/shoulder belts. The lap
portion should be fastened snug on the hips and
as low as possible. Check belt fit periodically. A
child's squirming could put the belt out of posi­tion. Children are afforded the most safety in the
event of an accident when they are restrained
by a proper restraint system in the rear seat. If
a larger child (over age 13) must be seated in
the front seat, the child should be securely
restrained by the available lap/shoulder belt and
the seat should be placed in the rearmost
position. Children under the age of 13 should be
restrained securely in the rear seat. NEVER
place a child under the age of 13 in the front seat.
NEVER place a rear facing child seat in the front
seat of a vehicle.

B150D01A-AAT

Pregnant Women

The use of a seat belt is recommended for
pregnant women to lessen the chance of injury
in an accident. When a seat belt is used, the lap
belt portion should be placed as low and snugly
as possible on the hips, not across the abdo­men. For specific recommendations, consult a
physician.

B150E01A-AAT

Injured Person

A seat belt should be used when an injured
person is being transported. When this is nec­essary, you should consult a physician for
recommendations.

B150F01A-AAT

One Person Per Belt

Two people (including children) should never
attempt to use a single seat belt. This could
increase the severity of injuries in case of an
accident.

B150G01A-AAT

Do Not Lie Down

To reduce the chance of injuries in the event of
an accident and to achieve maximum effective­ness of the restraint system, all passengers
should be sitting up and the front seats should
be in an upright position when the car is moving.
A seat belt cannot provide proper protection if
the person is lying down in the rear seat or if the
front seat is in a reclined position.

FEATURES OF YOUR HYUNDAI

1

20

!

Sitting in a reclined position or lying down
when your vehicle is in motion can be
dangerous. Even if you buckle up, your seat
belts can't do their job when you're re­clined.
The shoulder belt can't do its job because
it won't be against your body.
Instead, it will be in front of you. In a crash
you could go into it with great force, receiv­ing serious neck or other injuries.
The lap belt can't do its job either. In a crash
the belt could go up over your abdomen.
The belt forces would be applied there, not
at your strong pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright.
Then sit back in the seat and wear your seat
belt properly. See page 1-21.

WARNING:

B160A01A-AAT

CARE OF SEAT BELTS

Seat belt systems should never be disassembled
or modified. In addition, care should be taken to
assure that seat belts and belt hardware are not
damaged by seat hinges, doors or other abuse.

!

When you return the rear seatback to its
upright position after the rear seatback was
folded down, be careful not to damage the
seat belt webbing or buckle. Be sure that
the webbing or buckle does not get caught
or pinched in the rear seat.

B160B01A-AAT

WARNING:

Periodic Inspection

It is recommended that all seat belts be in­spected periodically for wear or damage of any
kind. Parts of the system that are damaged
should be replaced as soon as possible.

B160C01A-AAT

Keep Belts Clean and Dry

Seat belts should be kept clean and dry. If belts
become dirty, they can be cleaned by using a
mild soap solution and warm water. Bleach, dye,
strong detergents or abrasives should not be
used because they may damage and weaken
the fabric.

B160D01A-AAT

When to Replace Seat Belts

Entire in-use seat belt assembly or assemblies
should be replaced if the vehicle has been
involved in an accident. This should be done
even if no damage is visible. Additional ques­tions concerning seat belt operation should be
directed to your Hyundai Dealer.

FEATURES OF YOUR HYUNDAI

1

21

B170A04Y-AAT

HEIGHT ADJUSTABLE FRONT SEAT
SHOULDER BELT

B170A01E

You can adjust the height of the shoulder belt
anchor to one of the 4 positions for maximum
comfort and safety.
If the height of the adjusting seat belt is too near
your neck, you will not be getting the most
effective protection. The shoulder portion should
be adjusted so that it lies across your chest and
midway over your shoulder nearest the door
and not your neck.
To adjust the height of the seat belt anchor,
lower or raise the height adjuster into an appro­priate position. To raise the height adjuster, pull
it up. To lower it, push it down while pressing the
height adjuster button.

Release the button to lock the anchor into
position. Try sliding the height adjuster to make
sure that it has locked into the position.

!

o The height adjuster must be in the locked
o The misadjustment of height of the

B180A01A-AAT

WARNING:

position when the vehicle is moving.
shoulder belt could reduce the effective-

ness of the seat belt in a crash.

SEAT BELT-Driver's 3-Point System with
Emergency Locking Retractor
To Fasten Your Belt

B180A01L

To fasten your seat belt, pull it out of the retractor
and insert the metal tab into the buckle. There
will be an audible "click" when the tab locks into
the buckle.
The seat belt automatically adjusts to the proper
length only after the lap belt portion is adjusted
manually so that it fits snugly around your hips.
If you lean forward in a slow, easy motion, the
belt will extend and let you move around. If there
is a sudden stop or impact, however, the belt will
lock into position. It will also lock if you try to lean
forward too quickly.

NOTE:

If the driver's seat belt is not fastened when
the ignition key is in the "ON" position, the
seat belt warning light will flash and the
warning chime will sound for approximately
six seconds.

FEATURES OF YOUR HYUNDAI

1

22

B190A01Y-AAT

SEAT BELTS-Front Passenger and Rear
Seat 3-Point System with Combination
Locking Retractor
To Fasten Your Belt

Combination retractor type seat belts are in­stalled in the rear seat positions to help accom­modate the installation of child restraint systems.
Although a combination retractor is also installed
in the front passenger seat position, Hyundai
strongly recommends that children always be
seated in the rear seat. NEVER place any infant
restraint system in the front seat of the vehicle.
This type of seat belt combines the features of
both an emergency locking retractor seat belt
and an automatic locking retractor seat belt. To
fasten your seat belt, pull it out of the retractor
and insert the metal tab into the buckle. There
will be an audible "click" when the tab locks into
the buckle. When not securing a child restraint,
the seat belt operates in the same way as the
driver's seat belt (Emergency Locking Retrac­tor Type). It automatically adjusts to the proper
length only after the lap belt portion of the seat
belt is adjusted manually so that it fits snugly
around your hips. When the seat belt is fully
extended from the retractor to allow the instal­lation of a child restraint system, the seat belt
operation changes to allow the belt to retract, but
not to extend (Automatic Locking Retractor
Type). See page 1-29.

NOTE:

Although the combination retractor pro­vides the same level of protection for seated
passengers in either emergency or auto­matic locking modes, it is recommended
that seated passengers use the emergency
locking feature for improved convenience.
The automatic locking function is intended
to facilitate child restraint installation. To
convert from the automatic locking feature
to the emergency locking operation mode,
allow the unbuckled seat belt to fully re­tract.

!

o For maximum restraint system protec-

o Seat belts are most effective when
o Children must always be seatbelted in

o The shoulder belt should be positioned

WARNING:

tion, the seat belts must always be used
whenever the car is moving.

seatbacks are in the upright position.
the rear seats. Never allow children to

ride in the front passanger seat.
midway over the shoulder nearest the

door for the most effective protection.
Never wear the seat belt under the arm
nearest the door. Wearing the belt under
the arm nearest the door could cause
serious or fatal injuries in an accident.

!

o Avoid wearing twisted seat belts. A

o Be careful not to damage the belt web-

WARNING:

twisted belt can't do its job as well. In a
collision, it could even cut into you. Be
sure the belt webbing is straight and not
twisted.

bing or hardware. If the belt webbing or
hardware is damaged, replace it.

FEATURES OF YOUR HYUNDAI

1

23

B200A01A-AAT

Adjusting Your Seat Belt

B200A01L

!

You should place the lap belt portion as low
as possible and snugly across your hips,
not on your waist. If the lap belt is located
too high on your waist, it may increase the
chance of injury in the event of a collision.
Both arms should not be under or over the
belt. Rather, one should be over and the
other under, as shown in the illustration.
Never wear the seat belt under the arm
nearest the door.

WARNING:

B210A01A-AAT

To Release the Seat Belt

B210A01L

The seat belt is released by pressing the re­lease button in the locking buckle. When it is
released, the belt should automatically draw
back into the retractor.
If this does not happen, check the belt to be sure
it is not twisted, then try again.

B220A01A-AAT

SEAT BELTS (2-Point Static Type)
(Center Rear Seat)
To Fasten Your Seat Belt

HTB225

To fasten a 2-point static type belt, insert the
metal tab into the locking buckle. There will be
an audible "click" when the tab locks into the
buckle. Check to make sure the belt is properly
locked and that the belt is not twisted.

FEATURES OF YOUR HYUNDAI

1

24

CHILD RESTRAINT SYSTEM

B220B01A-AAT

Adjusting Your Seat Belt

Too high

Correct

Shorten

HTB226

With a 2-point static type seat belt, the length
must be adjusted manually so it fits snugly
around your body. Fasten the belt and pull on the
loose end to tighten. The belt should be placed
as low as possible on your hips, not on your
waist. If the belt is too high, it could increase the
possibility of your being injured in an accident.

B220C01A-AAT

To Release the Seat Belt

HSM372-A

When you want to release the seat belt, press
the button in the locking buckle.

!

The center lap belt latching mechanism is
different from those for the rear seat shoul­der belts. When fastening the rear seat
shoulder belts or the center lap belt, make
sure they are inserted into the correct buck­les to obtain maximum protection from the
seat belt system and assure proper opera­tion.

WARNING:

B230A02O-AAT

Children riding in the car should sit in the rear
seat and must always be properly restrained to
minimize the risk of injury in an accident, sudden
stop or sudden maneuver. According to acci­dent statistics provided by the National High­way Traffic Safety Administration (NHTSA),
children are safer when properly restrained in
the rear seats than in the front seat. Larger
children not in a child restraint should use one
of the seat belts provided.
All 50 states have child restraint laws. You
should be aware of the specific requirements in
your state. Child and/or infant safety seats must
be properly placed and installed in the rear seat.
You must use a commercially available child
restraint system that meets the requirements of
the Federal Motor Vehicle Safety Standards
(FMVSS).
Children could be injured or killed in a crash if
their restraints are not properly secured. For
small children and babies, a child seat or infant
seat must be used. Before buying a particular
child restraint system, make sure it fits your car
seat and seat belts, and fits your child. Follow
all the instructions provided by the manufac­turer when installing the child restraint system.

FEATURES OF YOUR HYUNDAI

1

25

o A child restraint system must be placed

WARNING:

in the rear seat. Never install a child or
infant seat on the front passenger's seat.
Should an accident occur and cause the
passenger side airbag to deploy, it could
severely injure or kill an infant or child
seated in an infant or child seat. Thus
only use a child restraint in the rear seat
of your vehicle.

o Since a safety belt or child restraint sys-

tem can become very hot if it is left in a
closed vehicle, be sure and check the
seat cover and buckles before placing a
child there.

o When the child restraint system is not in

use, store it in the luggage compartment
or fasten it with a safety belt so that it will
not be thrown forward in the case of a
sudden stop or an accident.

o Children who are too large to be in a child

restraint should sit in the rear seat and be
restrained with the available lap/shoul­der belts. Never allow children to ride in
the front passanger seat.

!!

o Always make sure that the shoulder belt

o If the seat belt will not properly fit the

o Never allow a child to stand up or kneel
o Never use an infant carrier or a child

WARNING:

portion of the lap/shoulder belt is posi­tioned midway over the shoulder and
never across the neck or behind the
back. Moving the child closer to the
center of the vehicle may help provide a
good shoulder belt fit. The lap belt por­tion of the lap/shoulder belt must always
be positioned as low as possible on the
child's hips, and as snug as possible.

child, Hyundai recommends the use of
an approved booster seat in the rear seat
in order to raise the child's seating height
so that the seat belt will properly fit the
child.
Before purchasing a booster seat, make
sure that it meets applicable Federal
Motor Vehicle Safety Standards and that
it is satisfactory for use with this vehicle.

on the seat.
safety seat that "hooks" over a seatback;

it may not provide adequate security in
an accident.

!

o Never allow a child to be held in a person's

WARNING:

arms while they are in a moving vehicle,
as this could result in serious injury to
the child in the event of an accident or a
sudden stop. Holding a child in a moving
vehicle does not provide the child with
any means of protection during an acci­dent, even if the person holding the child
is wearing a seat belt.

FEATURES OF YOUR HYUNDAI

1

26

B230B01E-AAT

Using a Child Restraint System

For small children and babies, the use of a child
seat or infant seat is required. This child seat or
infant seat should be of appropriate size for the
child and should be installed in accordance with
the manufacturer's instructions. It is further
required that the seat be placed in the vehicle's
rear seat since this can make an important
contribution to safety. Your vehicle is provided
with three child restraint hook holders for install­ing the child seat or infant seat.

B230C04O-AAT

Installing a Child Restraint Seat with the
"Tether Anchorage" System

Three child restraint hook holders are located
on the rear luggage compartment floor.

B230B02O

This symbol indicates the location of each user
ready tether anchorage.

To install the child restraint seat

Tether
anchor cover

1. Open the tether anchor cover on the rear

luggage compartment floor.

Child Restraint
Hook Holder

HSM445

FEATURES OF YOUR HYUNDAI

1

27

Rear luggage compartment floor

Child
Restraint
Hook
Holders

Tether Strap
Hook

Front of Vehicle

2. Route the child restraint seat strap over the
seatback.

B230B01O-1

For vehicles with adjustable headrests, route
the tether strap under the headrest and
between the headrest posts, otherwise route
the tether strap over the top of the seatback.

3. Connect the tether strap hook to the child
restraint hook holder and tighten to secure
the seat.

!

o To install the Child Restraint Seat, for

o Do not mount more than one child re-

WARNING:

safety reasons the Seat should be posi­tioned rearmost with the seatback in a
vertical position, not reclined.

straint to a single tether or to a child
restraint lower anchorage point. The im­proper increased load may cause the
anchorage points or tether anchor to
break, causing serious injury or death.

B230D03E-AAT

Securing the Child Restraint Seat with
the "ISOFIX" system

B230F01O

Some child seat manufacturers make safety
seats that are labeled as ISOFIX or ISOFIX­compatible child seats. These seats include two
rigid or webbing mounted attachments that
connect to two ISOFIX anchors at specific
seating positions in your vehicle. This type of
child seat eliminates the need to use seat belts
to attach the child seat for forward-facing child
seats.
ISOFIX anchors have been provided in your
vehicle. The ISOFIX anchors are located in the
left and right outboard rear seating positions.
Their locations are shown in the illustration.
There is no ISOFIX anchor provided for the
center rear seating position.

FEATURES OF YOUR HYUNDAI

1

28

!

o Do not install a child restraint seat at the

o Do not mount more than one child re-

o Attach the ISOFIX or ISOFIX-compatible

o Always follow the installation and use

WARNING:

center of the rear seat using the vehicle's
ISOFIX anchors. The ISOFIX anchors are
only provided for the left and right out­board rear seating positions. Do not
misuse the ISOFIX anchors by attempt­ing to attach a child sefety seat in the
middle of the rear seat position to the
ISOFIX anchors. In a crash, the child seat
ISOFIX attachments may not be strong
enough to secure the child restraint seat
properly in the center of the rear seat and
may break, causing serious injury or
death.

straint to a single tether or to a child
restraint lower anchorage point. The
improper increased load may cause the
anchorage points or tether anchor to
break, causing serious injury or death.

child seat only to the appropriate loca­tions shown.

instructions provided by the manufac­turer of the child restraint.

ISOFIX Anchor

ISOFIX
Anchor

The ISOFIX anchors are located between the
seatback and the seat cushion of the rear seat
left and right outboard seating positions.

Position Indicator

B230D02O-A

Follow the child seat manufacturer's instruc­tions to properly install safety seats with ISOFIX
or ISOFIX-compatible attachments.

Once you have installed the ISOFIX child re­straint seat, assure that the seat is properly
attached to the ISOFIX and tether anchors.
Also, test the safety seat before you place the
child in it. Tilt the seat from side to side. Also try
to tug the seat forward. Check to see if the
anchors hold the seat in place.

!

If the child restraint seat is not anchored
properly, the risk of a child being seriously
injured or killed in a collision greatly in­creases.

WARNING:

HSM418-A

FEATURES OF YOUR HYUNDAI

1

29

B230F01A-AAT

Installation on Rear Seat Center Posi­tion

B230F01A

Use the center seat belt for the rear seat to
secure the child restraint system as illustrated.
After installation of the child restraint system,
rock the child seat back and forth, and side to
side to ensure that it is properly secured by the
seat belt.
If the child seat moves, readjust the length of the
seat belt. Then, if equipped, insert the child
restraint tether strap hook into the child restraint
hook holder and tighten to secure the seat.
Always refer to the child restraint system
manufacturer's recommendation before install­ing the child restraint system in your vehicle.

B230G01O-AAT

Installation on Outboard Rear Seats

B230G01L

To install a child restraint system in the outboard
rear seats, extend the shoulder/lap belt entirely
from its retractor until a "click" is felt. This will
engage the seat belt retractor automatic locking
feature, which allows the seat belt to retract but
not extend. Install the child restraint system,
buckle the seat belt and allow the seat belt to
take up any slack. Make sure that the lap portion
of the belt is tight around the child restraint
system and the shoulder portion of the belt is
positioned so that it can not interfere with the
child's head or neck. Also, double check to be
sure that the retractor has engaged the Auto­matic Locking feature by trying to extend web­bing out of the retractor. If the retractor is in the
Automatic Locking mode, the belt will be locked.

After installation of the child restraint system, try
to move it in all directions to be sure the child
restraint system is securely installed. If you need
to tighten the belt, pull more webbing toward the
retractor. When you unbuckle the seat belt and
allow it to retract, the retractor will automatically
revert back to its normal seated passenger
Emergency Locking usage condition.

NOTE:

o Before installing the child restraint sys-

tem in any seating position, read the
instructions supplied by the child re­straint system manufacturer.

o If the seat belt does not operate as de-

scribed, have the system checked imme­diately by your authorized Hyundai dealer.

!

o If the retractor is not in the Automatic

o Do not install any child restraint system

WARNING:

Locking mode, the child restraint sys­tem can move when your vehicle turns or
stops abruptly.

in the front passenger seat. Should an
accident occur and cause the passenger
side airbag to deploy, it could severely
injure or kill an infant or child seated in
an infant or child seat. Therefore, only
use a child restraint system in the rear
seat of your vehicle.

FEATURES OF YOUR HYUNDAI

1

30

B180B02A-AAT

Pre-tensioner Seat Belt

Your Hyundai vehicle is equipped with driver's
and front passenger's pre-tensioner seat belts.
The purpose of the pre-tensioner is to make
sure that the seat belts fit tightly against the
occupant's body in certain frontal collisions.
The pre-tensioner seat belts can be activated
with the airbags.

HXG229

When the vehicle stops suddenly, or if the
occupant tries to lean forward too quickly, the
seat belt retractor will lock into position. In
certain frontal collisions, the pre-tensioner will
activate and pull the seat belt into tighter contact
against the occupant's body.

Driver's airbag

2

The seat belt pre-tensioner system consists
mainly of the following components. Their loca­tions are shown in the illustration.

1. SRS airbag warning light

2. Seat belt pre-tensioner assembly

3. SRS control module

!

To obtain maximum benefit from a pre­tensioner seat belt:

1. The seat belt must be worn correctly.

2. The seat belt must be adjusted to the

WARNING:

correct position.

1

3

Passenger's
airbag

B180B01O

NOTE:

o Both the driver's and front passenger's

pre-tensioner seat belts will be activated
in certain frontal collisions. The pre­tensioner seat belts can be activated
with the airbags. The pre-tensioners will
be activated even if the seat belts are not
being worn at the time of the collision.

o When the pre-tensioner seat belts are

activated, a loud noise may be heard and
fine dust, which may appear to be smoke,
may be visible in the passenger com­partment. These are normal operating
conditions and are not hazardous.

o Although it is harmless, the fine dust

may cause skin irritation and should not
be breathed for prolonged periods. Wash
your hands and face thoroughly after an
accident in which the pre-tensioner seat
belts were activated.

!

o Because the sensor that activates the

o If the pre-tensioner seat belt is not work-

CAUTION:

SRS airbag is connected with pre­tensioner seat belt, the SRS airbag warn­ing light on the instrument panel will
blink for approximately 6 seconds after
the ignition key has been turned to the
"ON" position, and then it should turn
off.

ing properly, this warning light will illu­minate even if there is no malfunction of
SRS airbag system. If the SRS airbag
warning light does not illuminate when
the ignition key is turned to "ON" or if it
remains illuminated after blinking for
approximately 6 seconds, or if it illumi­nates while the vehicle is being driven,
please have an authorized Hyundai dealer
inspect the pre-tensioner seat belts and
SRS airbag system as soon as possible.

BAG

AIR

!

o Pre-tensioners are designed to operate

o The pre-tensioner seat belt assembly

o Do not attempt to inspect or replace the

o Do not strike the pre-tensioner seat belt
o Do not attempt to service or repair the

o Improper handling of the pre-tensioner

o Always wear seat belts when driving or

WARNING:

only one time. After activation, pre­tensioner seat belts must be replaced.
All seat belts, of any type, should always
be replaced after they have been worn
during a collision.

mechanisms become hot during activa­tion. Do not touch the pre-tensioner seat
belt assemblies for several minutes after
they have been activated.

pre-tensioner seat belts yourself. This
must be done by an authorized Hyundai
dealer.

assemblies.
pre-tensioner seat belt system in any

manner.
seat belt assemblies, and failure to heed

the warnings to not strike, modify, in­spect, replace, service or repair the pre­tensioner seat belt assemblies may lead
to improper operation or inadvertent
activation and serious injury.

riding in a motor vehicle.

FEATURES OF YOUR HYUNDAI

SUPPLEMENTAL RESTRAINT
(AIRBAG) SYSTEM (SRS)

B240A03F-AAT

Driver's Airbag

B240A01O

Your Hyundai is equipped with a Supplemental
Restraint (Airbag) System. The indications of
the system's presence are the letters "SRS
AIRBAG" embossed on the airbag pad cover in
the steering wheel and the passenger's side
front panel pad above the glove box.

The Hyundai SRS consists of airbags installed
under the pad covers in the center of the
steering wheel and the passenger's side front
panel above the glove box. The purpose of the
SRS is to provide the vehicle's driver and the
front passenger with additional protection when
used together with the seat belt, in case of a
frontal impact.

1

31

FEATURES OF YOUR HYUNDAI

1

32

NOTE:

Be sure to read information about the SRS
on the labels provided on the backside of
the sun visor and in the glove box.

!

o As its name implies, the SRS is designed

o The SRS is designed to deploy the

WARNING:

to work with, and be supplemental to,
the driver's and the passenger's three
point seat belt systems and is not a
substitute for them. Therefore, your seat
belts must be worn at all times while the
vehicle is in motion. The airbags deploy
only in certain frontal impact conditions
severe enough to likely cause signifi­cant injury to the vehicle occupants.

airbags only when an impact is suffi­ciently severe and when the impact angle
is less than 30° from the forward longi­tudinal axis of the vehicle and will not
deploy in side, rear or rollover impacts.
Additionally, the airbags will only de­ploy once. Thus, seat belts must be worn
at all times.

!

WARNING:

Rear impact

Side impact

o Front airbags are not intended to deploy

in side-impact, rear-impact or rollover
crashes. In addition, airbags will not
deploy in frontal crashes below the de­ployment threshold speed.

o The driver should sit back as far as

possible while still maintaining control
of the vehicle. If you are sitting too close
to the airbag, it can cause death or seri­ous injury when it inflates.

Rollover

B240D01O

!

o No objects should be placed over or near

o If the airbags deploy, they must be re­o Do not tamper with or disconnect SRS

o Do not install a child restraint system in

o Do not allow children to ride in the front

WARNING:

the airbag modules on the steering wheel,
instrument panel, and the front
passenger's panel above the glove box,
because any such object could cause
harm if the vehicle is in a crash severe
enough to cause the airbags to deploy.

placed by an authorized Hyundai dealer.
wiring, or other components of the SRS

system. Doing so could result in injury,
due to accidental firing of the airbags or
by rendering the SRS inoperative.

the front passenger seat position. A
child restraint system must never be
placed in the front seat. The infant or
child could be severely injured or killed
by an airbag deployment in case of an
accident.

passanger seat. If older children (teen­agers and older) must ride in the front
seat, make sure they are always propely
belted and that the seat is moved back as
far as possible.

FEATURES OF YOUR HYUNDAI

1

33

!

o For maximum safety protection in all

o The SRS airbag system must deploy very

WARNING:

types of crashes, all occupants includ­ing the driver should always wear their
seat belts whether or not an airbag is
also provided at their seating position to
minimize the risk of severe injury or
death in the event of a crash. Do not sit
or lean unnecessarily close to the airbag
while the vehicle is in motion.

rapidly to provide protection in a crash.
If an occupant is out of position because
of not wearing a seat belt, the airbag may
forcefully contact the occupant causing
serious or fatal injuries.

B240B02A-AAT

SRS Components and Functions

B240B01L

The SRS consists of the following components:

- Driver's Airbag Module

- Passenger's Airbag Module

- Knee Bolster

- SRS Service Reminder Indicator (SRI)

- SRS Control Module (SRSCM)

The SRSCM continually monitors all elements
while the ignition is "ON" to determine if a frontal
or near-frontal impact is severe enough to
require airbag deployment.

The SRS service reminder indicator (SRI) on
the instrument panel will blink for about 6 sec­onds after the ignition key is turned to the "ON"
position or after the engine is started, after which
the SRI should go out.

The airbag modules are located both in the
center of the steering wheel and in the front
passenger's panel above the glove box.
When the SRSCM detects a considerable im­pact to the front of the vehicle, it will automatically
deploy the airbags.

B240B02L

Upon deployment, tear seams molded directly
into the pad covers will separate under pres­sure from the expansion of the airbags. Further
opening of the covers then allows full inflation of
the airbags.

FEATURES OF YOUR HYUNDAI

1

34

B240B03L

A fully inflated airbag in combination with a
properly worn seat belt slows the driver's or the
passenger's forward motion, thus reducing the
risk of head or chest injury.

After complete inflation, the airbag immediately
starts deflating, enabling the driver to maintain
forward visibility.

Passenger's Airbag

B240B01O

!

When installing a container of liquid air
freshener inside the vehicle, do not place it
near the instrument cluster nor on the in­strument panel surface. If there is any leak­age from the air freshener onto these areas
(Instrument cluster, instrument panel or air
ventilator), it may damage these parts. If the
liquid from the air freshener does leak onto
these areas, wash them with water immedi­ately.

CAUTION:

Passenger's Airbag

B240B05L

!

o When the SRS is activated, there may be

WARNING:

a loud noise and fine dust will be re­leased throughout the vehicle. These
conditions are normal and are not haz­ardous. However, the fine dust gener­ated during airbag deployment may
cause skin irritation. Wash your hands
and face thoroughly with lukewarm water
and a mild soap after an accident in
which the airbags were deployed.

!

o The SRS can function only when the

o Before you replace a fuse or disconnect

WARNING:

ignition key is in the "ON" position. If the
SRS SRI does not come on, or continu­ously remains on after flashing for about
6 seconds when the ignition key is
turned to the "ON" position, or after the
engine is started, comes on while driv­ing, the SRS is not working properly. If
this occurs, have your vehicle immedi­ately inspected by your Hyundai dealer.

a battery terminal, turn the ignition key
to the "LOCK" position or remove the
ignition key. Never remove or replace the
air bag related fuse(s) when the ignition
key is in the "ON" position. Failure to
heed this warning will cause the SRS SRI
to illuminate.

B990B04Y-AAT

Side Impact Airbag (If installed)

B990B02Y

Your Hyundai is equipped with a side impact
airbag in each front seat. The purpose of the
airbag is to provide the vehicle's driver and/or
the front passenger with additional protection
than that offered by the seat belt alone. The side
impact airbags are designed to deploy only
during certain side-impact collisions, depend­ing on the crash severity, angle, speed and point
of impact. The side impact airbags are not
designed to deploy in all side impact situations.

FEATURES OF YOUR HYUNDAI

Side airbag
sensor

HTB072

!

o The side impact airbag is supplemental

WARNING:

to the driver's and the passenger's seat
belt systems and is not a substitute for
them. Therefore your seat belts must be
worn at all times while the vehicle is in
motion. The airbags deploy only in cer­tain side impact conditions severe
enough to cause significant injury to the
vehicle occupants.

1

35

FEATURES OF YOUR HYUNDAI

1

36

!

o For best protection from the side impact

o Do not use any accessory seat covers.
o Use of seat covers could reduce or pre-

o Do not install any accessories on the
o Do not use excessive force on the side of
o Do not place any objects over the airbag
o Do not place any objects (an umbrella,

o To prevent unexpected deployment of

WARNING:

airbag system and to avoid being injured
by the deploying side impact airbag,
both front seat occupants should sit in
an upright position with the seat belt
properly fastened. The driver's hands
should be placed on the steering wheel
at the 9:00 and 3:00 o'clock positions.
The passenger's arms and hands should
be placed on their laps.

vent the effectiveness of the system.
side or near the side impact airbag.
the seat.
or between the airbag and yourself.
bag, etc.) between the front door and the

front seat. Such objects may become
dangerous projectiles and cause injury
if the supplemental side impact air bag
inflates.

the side impact air bag that may result in
personal injury,avoid impact to the side
airbag sensor when the ignition key is on.

B240C01O-AAT

SRS Care

o The SRS is virtually maintenance free and

there are no parts you can safely service by
yourself. The entire SRS system must be
inspected by an authorized Hyundai dealer
in 10 years after the date that the vehicle was
manufactured.

o Any work on the SRS system, such as

removing, installing, repairing, or any work
on the steering wheel must be performed by
a qualified Hyundai technician. Improper
handling of the airbag system may result in
serious personal injury.

HSM393

!

o Do not install a child restraint system in

o Modification to SRS components or wir-

o For cleaning the airbag pad covers, use

o No objects should be placed over or near

o If the airbags inflate, they must be re-

WARNING:

the front passenger seat position.
A child restraint system must never be
placed in the front seat. The infant or
baby could be severely injured or killed
by an airbag deployment in case of an
accident.

ing, including the addition of any kind of
badges to the pad covers or modifica­tions to the body structure, can ad­versely affect SRS performance and lead
to possible injury.

only a soft, dry cloth or one which has
been moistened with plain water. Sol­vents or cleaners could adversely affect
the airbag covers and proper deploy­ment of the system.

the airbag modules on the steering
wheel, instrument panel, and the front
passenger's panel above the glove box,
because any such object could cause
harm if the vehicle is in a crash severe
enough to cause the airbags to inflate.

placed by an authorized Hyundai dealer.

!

o Do not tamper with or disconnect SRS

o If components of the airbag system must

o If you sell your vehicle, make certain that

o If your car was flooded and has soaked

o Do not replace the bumper or the bumper

WARNING:

wiring, or other components of the SRS
system. Doing so could result in injury,
due to accidental firing of the airbags or
by rendering the SRS inoperative.

be discarded, or if the vehicle must be
scrapped, certain safety precautions
must be observed. Your Hyundai dealer
knows these precautions and can give
you the necessary information. Failure
to follow these precautions and proce­dures could increase the risk of personal
injury.

this manual is transferred to the new
owner.

carpeting or water on the floor, you
shouldn't try to start the engine; have
the car towed to an authorized Hyundai
dealer.

guard with the one other than the Hyundai
genuine parts. Otherwise, it can ad­versely affect SRS performance and lead
to unexpected injury.

FEATURES OF YOUR HYUNDAI

1

37

FEATURES OF YOUR HYUNDAI

1

INSTRUMENT CLUSTER AND INDICATOR LIGHTS

38

B260A03O-AAT

(2.4L, 2.7L)

B260A01O

FEATURES OF YOUR HYUNDAI

1

39

1. Coolant Temperature Gauge

2. Tachometer

3. Turn Signal Indicator Light

4. High Beam Indicator Light

5. Speedometer

6. Odometer / Trip Odometer

7. Fuel Gauge

8. Malfunction Indicator Light (MIL)

9. Cruise Indicator (If installed)

10.4WD System Warning Light (If installed)

11.Low Oil Pressure Warning Light

12. Supplemental Restraint System (Airbag)
Service Reminder Indicator (SRI)

13.Seat Belt Warning Light

14.Tail Gate Open Warning Light

15.Door Ajar Warning Light

16.Charging System Warning Light

17.Automatic Transaxle Position Indicator Light (If installed)

18.Parking Brake/Low Brake Fluid Level Warning Light

19.ABS Service Reminder Indicator (If installed)

20.Low Fuel Warning Light

21.Traction Control Indicator Light (If installed)

FEATURES OF YOUR HYUNDAI

1

40

B265A03O-AAT

(3.5L)

B260A01O-A

FEATURES OF YOUR HYUNDAI

1

41

1. Coolant Temperature Gauge

2. Tachometer

3. Turn Signal Indicator Light

4. High Beam Indicator Light

5. Speedometer

6. Odometer / Trip Odometer

7. Fuel Gauge

8. Malfunction Indicator Light (MIL)

9. Cruise Indicator (If installed)

10. 4WD System Warning Light (If installed)

11. Low Oil Pressure Warning Light

12. Supplemental Restraint System (Airbag)
Service Reminder Indicator (SRI)

13. Seat Belt Warning Light

14. Tail Gate Open Warning Light

15. Automatic Transaxle Position Indicator Light (If installed)

16. Door Ajar Warning Light

17. Charging System Warning Light

18. Parking Brake/Low Brake Fluid Level Warning Light

19. ABS Service Reminder Indicator (If installed)

20. Traction Control Off indicator Light (If installed)

21. Low Fuel Warning Light

22. Traction Control Indicator Light (If installed)

FEATURES OF YOUR HYUNDAI

1

WARNING AND INDICATOR LIGHTS

42

B260B01A-AAT

SRS (Airbag) Service
Reminder Indicator (SRI)

The SRS service reminder indicator (SRI) comes
on and flashes for about 6 seconds after the
ignition key is turned to the "ON" position or after
the engine is started, after which it will go out.

This light also comes on when the SRS is not
working properly. If the SRI does not come on,
or continuously remains on after flashing for
about 6 seconds when you turned the ignition
key to the "ON" position or started the engine,
or if it comes on while driving, have the SRS
inspected by an authorized Hyundai Dealer.

B260D01A-AAT

Turn Signal Indicator Lights

The blinking green arrows on the instrument
panel show the direction indicated by the turn
signals. If the arrow comes on but does not blink,
blinks more rapidly than normal, or does not
illuminate at all, a malfunction in the turn signal
system is indicated. Your dealer should be
consulted for repairs.

B260E02O-AAT

Seat Belt Reminder Light
and Chime

The seat belt reminder light blinks until your seat
belt is fastened when the ignition key is turned
from the "OFF" position to "ON" or "START" and
the warning chime will sound for 6 seconds.

B260F01A-AAT

High Beam Indicator Light

The high beam indicator light comes on when­ever the headlights are switched to the high
beam or flash position.

B260G01A-AAT

Low Oil Pressure Warning Light

!

If the low oil pressure warning light stays on
while the engine is running, serious engine
damage may result. The oil pressure warn­ing light comes on whenever there is insuf­ficient oil pressure. In normal operation, it
should come on when the ignition switch
is turned on, then go out when the engine
is started. If the oil pressure warning light
stays on while the engine is running, there
is a serious malfunction.
If this happens, stop the car as soon as it is
safe to do so, turn off the engine and check
the oil level. If the oil level is low, fill the
engine oil to the proper level and start the
engine again. If the light stays on with the
engine running, turn the engine off imme­diately. In any instance where the oil light
stays on when the engine is running, the
engine should be checked by a Hyundai
dealer before the car is driven again.

CAUTION:

FEATURES OF YOUR HYUNDAI

1

43

B260H02A-AAT

Parking Brake/Low Brake Fluid
Level Warning Light

!

If you suspect brake trouble, have your
brakes checked by a Hyundai dealer as
soon as possible. Driving your car with a
problem in either the brake electrical sys­tem or brake hydraulic system is danger­ous, and could result in a serious injury or
death.

WARNING:

Warning Light Operation

The parking brake/brake fluid level warning light
should come on when the parking brake is
applied and the ignition switch is turned to "ON"
or "START". After the engine is started, the light
should go out when the parking brake is re­leased.
If the parking brake is not applied, the warning
light should come on when the ignition switch is
turned to "ON" or "START", then go out when
the engine starts. If the light comes on at any
other time, you should slow the vehicle and bring
it to a complete stop in a safe location off the
roadway.

The brake fluid level warning light indicates that
the brake fluid level in the brake master cylinder
is low and hydraulic brake fluid conforming to
DOT 3 or DOT 4 specifications should be
added. After adding fluid, if no other trouble is
found, the car should be immediately and care­fully driven to a Hyundai dealer for inspection.
If further trouble is experienced, the vehicle
should not be driven at all but taken to a dealer
by a professional towing service or some other
safe method.
Your Hyundai is equipped with dual-diagonal
braking systems. This means you still have
braking on two wheels even if one of the dual
systems should fail. With only one of the dual
systems working, more than normal pedal travel
and greater pedal pressure are required to stop
the car. Also, the car will not stop in as short a
distance with only half of the brake system
working. If the brakes fail while you are driving,
shift to a lower gear for additional engine braking
and stop the car as soon as it is safe to do so.

B260J01A-AAT

Charging System Warning Light

The charging system warning light should come
on when the ignition is turned on, then go out
when the engine is running. If the light stays on
while the engine is running, there is a malfunc­tion in the electrical charging system. If the light
comes on while you are driving, stop, turn off the
engine and check under the hood. First, make
certain the generator drive belt is in place. If it is,
check the tension of the belt. Do this as shown
on page 6-21 by pushing down on the center of
the belt. And then have the system checked by
your Hyundai dealer.

B260B01B-AAT

Tail Gate Open Warning Light

This light remains on unless the tail gate is
completely closed and latched.

FEATURES OF YOUR HYUNDAI

1

44

B260L01Y-AAT

Door Ajar Warning Light
and Chime

The door ajar warning light warns you that a door
is not completely closed and the chime warns
you that the driver's side front door is not
completely closed.

NOTE:

To remind you not to lock the key inside the
car, the warning light comes on whenever
the key is in the "LOCK" position and a door
is open. The warning chime only sounds
whenever the key is in the "LOCK" position
and driver's side front door is open. The
chime sounds and the light remains on
until the key is removed from the ignition.

B260M01A-AAT

Low Fuel Level Warning Light

The low fuel level warning light comes on when
the fuel tank is approaching empty. When it
comes on, you should add fuel as soon as
possible. Driving with the fuel level warning light
on or with the fuel level below "E" can cause the
engine to misfire and damage the catalytic
converter.

B260N01A-AAT

Malfunction Indicator Light

This light illuminates when there is a malfunction
of an exhaust gas related component, and the
system is not functioning properly so that the
exhaust gas regulation values are not satisfied.
This light will also illuminate when the ignition key
is turned to the "ON" position, and will go out in
a few seconds. If it illuminates while driving, or
does not illuminate when the ignition key is
turned to the "ON" position, take your car to your
nearest authorized Hyundai dealer and have
the system checked.

B260P02Y-GAT

ABS Service Reminder
Indicator (If installed)

When the key is turned to the "ON" position, the
Anti-Lock Brake System indicator will come on
and then go off in a few seconds. If the ABS SRI
remains on, comes on while driving, or does not
come on when the key is turned to the "ON"
position, this indicates that there may be a
problem with the ABS.
If this occurs, have your vehicle checked by
your Hyundai dealer as soon as possible. The
normal braking system will still be operational,
but without the assistance of the anti-lock brake
system.

!

If both the ABS SRI and Parking Brake/
Brake fluid level warning lights remain "ON"
or come on while driving, there may be a
problem with E.B.D. (Electronic Brake Force
Distribution).
If this occurs, avoid sudden stops and have
your vehicle checked by your Hyundai dealer
as soon as possible.

B260C02O-GAT

WARNING:

Traction Control Indicator
Light (If installed)

The traction control indicator changes opera­tion according to the ignition switch position and
whether or not the system is in operation.
It will also illuminate when the ignition key is
turned to the "ON" position, but should go out
after the engine starts. If the TCS indicator stays
on, take your car to your authorized Hyundai
dealer and have the system checked. See
section 2 for more information about the TCS.

FEATURES OF YOUR HYUNDAI

1

45

B265C01O-AAT

Traction Control Indicator
Lights (3.5 L only) (If installed)

The traction control indicators change opera­tion according to the ignition switch position and
whether the system is in operation or not.
They will illuminate when the ignition key is
turned to the "ON" position, but should go out
after three seconds. If the TCS or TCS-OFF
indicator stays on, take your car to your autho­rized Hyundai dealer and have the system
checked. See section 2 for more information
about the TCS.

B260Q03O-DAT

Cruise Indicator
(If installed)

The cruise indicator light in the instrument clus­ter is illuminated when the cruise control
ON´OFF switch is pushed on the steering
wheel.
The indicator light does not illuminate when the
cruise control ON´OFF switch is pushed again.
Information about the use of cruise control is
beginning on page 1-75.

B260T01O-GAT

4WD System Warning Light
(If installed)

When the key is turned to the "ON" position, the
4WD(Four Wheel Drive) system warning light
will come on and then go off in a few seconds.

!

If the 4WD system warning light ( ) blinks
while driving, this indicates that there is a
malfunction in the 4WD system. If this oc­curs, have your vehicle checked by an au­thorized Hyundai dealer as soon as pos­sible.

CAUTION:

B270A01O-AAT

BRAKE PAD WEAR WARNING SOUND

The front and rear disc brake pads have wear
indicators that should make a high-pitched
squealing or scraping noise when new pads are
needed. The sound may come and go or be
heard all the time when the vehicle is moving. It
may also be heard when the brake pedal is
pushed down firmly. Excessive rotor damage
will result if the worn pads are not replaced. See
your Hyundai dealer immediately.

B270B01O-AAT

PARKING START WARNING SOUND

If the vehicle driven at over 2mph(3km/h) more
2~3 seconds, the warning chime will sound
continuously when the parking brake engaged.

FEATURES OF YOUR HYUNDAI

1

INSTRNMENT CLUSTER

46

B280A01A-AAT

FUEL GAUGE

B280A01O

The needle on the gauge indicates the approxi­mate fuel level in the fuel tank. The fuel capacity
is given in Section 9.

B290A02A-AAT

ENGINE COOLANT TEMPERATURE
GAUGE

B290A01O

!

Never remove the radiator cap when the
engine is hot. The engine coolant is under
pressure and could erupt and cause severe
burns. Wait until the engine is cool before
adding coolant to the reservoir.

WARNING:

The needle on the engine coolant temperature
gauge should stay in the normal range. If it moves
across the dial to "H" (HOT), pull over and stop as
soon as possible and turn off the engine. Then
open the hood and, after the engine has cooled,
check the coolant level and the water pump drive
belt. If you suspect cooling system trouble, have
your cooling system checked by a Hyundai dealer
as soon as possible.

FEATURES OF YOUR HYUNDAI

1

47

B330A03A-AAT

TACHOMETER

B330A01O

The tachometer registers the speed of your
engine in revolutions per minute (rpm).

!

The engine should not be raced to such a
speed that the needle enters the red zone
on the tachometer face. This can cause
severe engine damage and may void your
warranty.

CAUTION:

B300A01A-AAT

SPEEDOMETER

B300A01O

Your Hyundai's speedometer is calibrated in
miles per hour (on the outer scale) and kilome­ters per hour (on the inner scale).

B310B04E-AAT

ODOMETER/TRIP ODOMETER

B300A05O

Odometer

Records the total distance the vehicle has been
driven.
It is normal for a new vehicle to have the
odometer indicating less than 30 miles.

NOTE:

Federal law forbids alteration of the odom­eter of any vehicle with the intent to change
the number of the odometer. The alteration
may void your warranty coverage.

FEATURES OF YOUR HYUNDAI

1

48

MULTI-FUNCTION LIGHT SWITCH

Function of Digital Odometer/
Trip Odometer

Pushing in the reset switch under the right side
of the speedometer when the ignition switch is
turned "ON" displays the following sequence:

B300A03O

Reset switch

B300A04O

1. Odometer

The odometer records the total driving distance
in miles or kilometers.

2,3 Trip odometer

Records the distance of 2 trips in miles or
kilometers.
TRIP A: first distance you have traveled from
your origination point to a first destination.
TRIP B: Second distance from the first destina­tion to the final destination.

To shift from TRIP A to TRIP B, press the reset
switch. When pressed for 1 second, it will reset
to 0.

B340A01A-AAT

COMBINATION TURN SIGNAL,
HEADLIGHT AND HIGH-BEAM
SWITCH
Turn Signal Operation

Pulling down on the lever causes the turn
signals on the left side of the car to blink. Pushing
upwards on the lever causes the turn signals on
the right side of the car to blink. As the turn is
completed, the lever will automatically return to
the center position and turn off the turn signals
at the same time. If either turn signal indicator
light blinks more rapidly than usual, goes on but
does not blink, or does not go on at all, there is
a malfunction in the system. Check for a burned­out fuse or bulb or see your Hyundai dealer.

FEATURES OF YOUR HYUNDAI

1

49

B340B01A-AAT

Lane Change Signal

RIGHT

LEFT

HSM039

To indicate a lane change, move the lever up or
down to a point where it begins flashing.
The lever will automatically return to the center
position when released.

B340C03A-AAT

Headlight Switch

HSM037

To operate the headlights, turn the barrel on the
end of the multi-function switch. The first posi­tion turns on the parking lights, sidelights, tail
lights and instrument panel lights. The second
position turns on the headlights.

NOTE:

The ignition must be in the "ON" position
to turn on the headlights.

Parking Light Auto Off

If you do not turn the parking lights "OFF" after
driving, the parking lights will automatically shut
"OFF" when the driver's door is opened.
To turn them "ON" again, you must simply turn
the ignition key to the "ON" position.

B340D01A-AAT

High-beam Switch

To turn on the headlight high beams, push the
lever forward (away from you). The High Beam
Indicator Light will come on at the same time. For
low beams, pull the lever back toward you.

B340E01A-AAT

Headlight Flasher

B340E01O

To flash the headlights, pull the switch lever
toward you, then release it. The headlights can
be flashed even though the headlight switch is
in the "OFF" position.

FEATURES OF YOUR HYUNDAI

1

50

B340G01L-GAT

Auto Light (If installed)

To operate the automatic light feature, turn the
barrel on the end of the multi-function switch. If
you set the multi-function switch to "AUTO", the
tail lights and headlights will be turned automati­cally on or off according to external illumination.

HSM294

WINDSHIELD WIPER AND WASHER
SWITCH

B350A01A-AAT

(1)

(2)
(3)

B350A01O-A

The windshield wiper switch has three posi­tions:

1. Intermittent wiper operation

2. Low-speed operation

3. High-speed operation

NOTE:

To prevent damage to the wiper system, do
not attempt to wipe away heavy accumula­tions of snow or ice. Accumulated snow
and ice should be removed manually. If
there is only a light layer of snow or ice,
operate the heater in the defrost mode to
melt the snow or ice before using the wiper.

B350B01O-GAT

Windshield Washer Operation

B350B01O-A

To use the windshield washer, pull the wiper/
washer lever toward the steering wheel. When
the washer lever is operated, the wipers auto­matically make two passes across the wind­shield. The washer continues to operate until
the lever is released.

NOTE:

o Do not operate the washer more than 15

seconds at a time or when the fluid
reservoir is empty.

o In icy or freezing weather, be sure the

wiper blades are not frozen to the glass
prior to operating the wipers.

o In areas where water freezes in winter,

use windshield washer antifreeze.

FEATURES OF YOUR HYUNDAI

1

51

Mist Wiper Operation

B350B02O-A

If a single wipe is desired in mist, push the
windshield wiper and washer control lever up­wards.

B350C01O-AAT

Adjustable Intermittent Wiper Operation

B350C01O-A

To use the intermittent wiper feature, place the
wiper switch in the "INT" position. With the
switch in this position, the interval between
wipes can be varied from approximately 1 to 18
seconds by turning the interval adjuster barrel.
It also can be varied by vehicle speeds within
same time.

B390A01O-GAT

Tail Gate Wiper And Washer Switch

B350D01O-A

1. : The washer fluid will be sprayed onto
the rear window and the wiper operates
while the rear window wiper barrel is
placed in this position.

2.OFF

3.INT : To use the intermittent wiper feature,
place the rear window wiper barrel in the
"INT" position.

4.ON :When the point indicate "ON", the rear
window wiper operates continuously.

FEATURES OF YOUR HYUNDAI

1

52

B360A04A-AAT

(If installed)

HAZARD WARNING SYSTEMFRONT FOG LIGHT SWITCH

B370A01A-AAT

REAR WINDOW DEFROSTER
SWITCH

B380A01Y-AAT

HSM289

To turn on the front fog lights, push the switch.
They will light when the headlight switch is in the
second position and the ignition key is in the
"ON" position.

NOTE:

If you turn on the headlight high beams, the
front fog lights will be turned off.

HSM034

The hazard warning system should be used
whenever you find it necessary to stop the car
in a hazardous location. When you must make
such an emergency stop, always pull off the
road as far as possible.
The hazard warning lights are turned on by
pushing in the hazard switch. This causes all
turn signal lights to blink. The hazard warning
lights will operate even though the key is not in
the ignition.
To turn the hazard warning lights off, push the
switch a second time.

HSM035

The rear window defroster and heated outside
rearview mirrors are turned on by pushing in the
switch. To turn the defroster off, push the switch
a second time. The rear window defroster
automatically turns itself off after about 15 min­utes. To restart the defroster cycle, push in the
switch again after it has turned itself off.

FEATURES OF YOUR HYUNDAI

DIGITAL CALENDARDIGITAL CLOCK

1

53

!

Do not clean the inner side of the rear
window glass with an abrasive type of glass
cleaner or use a scraper to remove foreign
deposits from the inner surface of the glass
as this may cause damage to the defroster
elements.

CAUTION:

NOTE:

The ignition must be in the "ON" position
for the rear window defroster to operate.

B400A01A-AAT

HSM100

There are three control buttons for the digital
clock. Their functions are:

HOUR - Push "H" to advance the hour indi­cated.

MIN - Push "M" to advance the minute indicated.
RESET - Push "R" to reset minutes to ":00" to

facilitate resetting the clock to the correct time.
When this is done:

Pressing "R" between 10 : 30 and 11 : 29
changes the readout to 11 : 00.
Pressing "R" between 11 : 30 and 12 : 29
changes the readout to 12 : 00.

B400B02O-GAT

(If installed)

HSM292

How to adjust the date & the time

1. Whenever "M" button is pushed, the "YEAR",

"MONTH", "DAY", "HOUR" and "MINUTE"
blinks in order.

2. Adjust the date & the time by pushing

" (UP)", " (DOWN)" button when the
year/month/day/hour/minute each blinks.

3. After adjusting the date & the time, push "M"

button once more and the adjustment is
completed.

NOTE:

When the battery has been reconnected or
charged, set the date and time as described
above. However, the first display mode is
set on DEC 01.

FEATURES OF YOUR HYUNDAI

1

54

CONTROL (RHEOSTAT)

B410A01A-AAT

CIGARETTE LIGHTERINSTRUMENT PANEL LIGHT

B420A01A-AAT

POWER OUTLET

B500D08O-AAT

(If installed)

B410A01O

The instrument panel lights can be made brighter
or dimmer by turning the instrument panel light
control knob.

B420A01O

For the cigarette lighter to work, the key must
be in the "ACC" position or the "ON" position.
To use the cigarette lighter, push it all the way
into its socket. When the element has heated,
the lighter will pop out to the "ready" position.
Do not hold the cigarette lighter pressed in. This
can damage the heating element and create a
fire hazard.
If it is necessary to replace the cigarette lighter,
use only a genuine Hyundai replacement or its
approved equivalent.

B500D01O

These are located in the quarter trim and on the
center facia panel.
These supply 12V electric power to operate
electric accessories or equipment only when
the key is in the "ON" or "ACC" position.

!

Do not use the power outlet to connect
electric accessories or equipment other
than those designed to operate on 12 volts.

CAUTION:

ASHTRAY

DRINK HOLDER

FEATURES OF YOUR HYUNDAI

1

55

B430A01A-GAT

Front Ashtray

B430A01O

The front ashtray may be opened by pulling it out
by its grip. To remove the ashtray to empty or
clean it, press down on the spring-loaded tab
inside the ashtray and pull it all the way out. The
ashtray light will only illuminate when the exter­nal lights are on.

B440A01E-AAT

Rear Ashtray

B440A01O

The rear ashtray may be opened by pulling it out
by its top edge. To remove the ashtray to empty
or clean it, press down on the spring-loaded tab
inside the ashtray and lift the ashtray upward
and pull it all the way out.

B450A02O-AAT

Front Drink Holder

B450A01O

The front drink holder is located on the main
console and may be used for holding cups or
cans.

!

o Use caution when using the drink hold-

o Do not place objects other than cups or

WARNING:

ers. A spilled beverage that is very hot
can injure you or your passengers. Spilled
liquids can damage interior trim and
electrical components.

cans in the drink holder. The objects can
be thrown out in the event of a sudden
stop or an accident, possibly injuring
the passengers in the vehicle.

FEATURES OF YOUR HYUNDAI

1

56

SUNROOF

B450B02O-AAT

Rear Drink Holder (If installed)

B450B01O

The rear drink holder is located on the rear main
console and may be used for holding cups. The
rear drink holder can be used by pushing and
pulling it at its top edge.

!

Place the drink holder in its closed position
when not in use.

CAUTION:

!

Do not place objects other than cups or
cans in the drink holder. The objects can be
thrown out in the event of a sudden stop or
an accident, possibly injuring the passen­gers in the vehicle.

WARNING:

B460A01Y-AAT

(If installed)
Sun Shade

B460A01O

Your HYUNDAI is equipped with a sliding sun­shade which you can manually adjust to let in
light with the sunroof closed, or to block sunlight.

!

Never adjust the sunshade while driving.

WARNING:

FEATURES OF YOUR HYUNDAI

1

57

B460B01GK-GAT

Opening the Sunroof System

B460B01O

The sunroof can be electrically opened or closed
with the ignition key in the "ON" position. The
sunroof is moved to its fully open position by
pushing the "OPEN" switch, and to stop at the
desired position, push in any switches (OPEN,
CLOSE, UP, DOWN).
To close, press and hold the "CLOSE" button.
Release the button when the sunroof reaches
the desired position.

!

o Do not close a sunroof if anyone's hands,

o Do not place your head or arms out of the

o Do not open the sunroof in severely cold

o Periodically remove any dirt that may

WARNING:

arms or body are between the sliding
glass and the sunroof sash, as this could
result in injury.

sunroof opening at any time.

!

CAUTION:

temperature or when it is covered with
ice or snow.

have accumulated on the guide rails.

B460C01S-AAT

Tilting the Sunroof System

B460C01O

The sunroof can be tilted by pushing the "UP"
button with sunroof closed. Release the button
when the sunroof reaches the desired position.
To close the sunroof, press the "DOWN" but­ton.

NOTE:

After washing the car or after there is rain,
be sure to wipe off any water that is on the
sunroof before operating it.

FEATURES OF YOUR HYUNDAI

1

58

B460D01O-GAT

Manual Operation of Sunroof

If the sunroof does not electrically operate:

1. Open the spectacle case.

B460D01O

B460D02O

2. Turn the hexagonal bolts counterclockwise
to remove the overhead console with a
socket wrench.

B460D03O

3. Insert the hexagonal head wrench provided
with the vehicle into the socket. This wrench
can be found in the vehicle's glove box.

4. Turn the wrench clockwise to open or coun­terclockwise to close.

INTERIOR LIGHT

FEATURES OF YOUR HYUNDAI

1

59

B480B01O-AAT

Map Light

With Sunroof Without Sunroof

HSM046

Push in the map light switch to turn the light on
or off. This light produces a spot beam for
convenient use as a map light at night or as a
personal light for the driver and the passenger.

B490A03Y-AAT

Interior Light

B490A01O

The interior courtesy light has three buttons.
The three buttons are:

o DOOR

In the " DOOR " position, the interior courtesy
light comes on when any door is opened regard­less of the ignition key position. The light goes
out gradually 6 seconds after the door is closed.

o ON

In the "ON" position, the light stays on at all
times.

!

Do not leave this button pressed for an
extended period of time when the vehicle is
not running.

CAUTION

o OFF

In the "OFF" position, the light stays off at all
times even though a door is open.

FEATURES OF YOUR HYUNDAI

1

60

GLOVE BOXSPECTACLE CASE

B491A02O-GAT

(If Installed)

With Sunroof Without Sunroof

HSM170

The spectacle case is located on the front
overhead console.
Push the end of the cover to open the spectacle
case.

!

Do not keep objects such as sharp or un­suitable things inside the spectacle case.
Such objects can be thrown out in the event
of a sudden stop or an accident, possibly
injuring the passengers in the vehicle.

WARNING:

B500A01S-AAT

UNLOCK

!

To avoid the possibility of injury in case of
an accident or a sudden stop, the glove box
door should be kept closed when the car is
in motion.

o To open the glove box, pull on the glove box
o The glove box door can be locked (and

WARNING:

release lever.
unlocked) with the key.

LOCK

B500A01O

B500B01O-AAT

Illuminated Glove Box

Opening the glove box will automatically turn on
the light when the multi-function switch is turned
to the first/second position.

OUTSIDE REARVIEW MIRROR

FEATURES OF YOUR HYUNDAI

1

61

B510A01A-AAT

Manual Type

B510A01O

The outside rearview mirrors are equipped with
a remote control for your convenience. It is
operated by the control lever in the bottom front
corner of the window.
Before driving away, always check that your
mirrors are positioned so you can see behind
you, both to the left and right sides, as well as
directly behind your vehicle. When using the
mirror, always exercise caution when attempt­ing to judge the distance of vehicles behind or
along side of you.

!

If the mirror control is jammed with ice, do
not attempt to break it free using the control
handle or by manipulating the face of the
mirror. Use an approved spray de-icer (not
radiator antifreeze) to release the frozen
mechanism or move the vehicle to a warm
place and allow the ice to melt.

CAUTION:

B510B01Y-AAT

Electric Type (If installed)

B510B01O-A

The outside rearview mirrors can be adjusted
to your preferred rear vision, both directly be­hind the vehicle, and to the rear of the left and
right sides.
The remote control outside rearview mirror
switch controls the adjustments for both right
and left outside mirrors.

FEATURES OF YOUR HYUNDAI

1

62

To adjust the position of either mirror:

1. Move the selecting switch to the right or left
to activate the adjustable mechanism for the
corresponding door mirror.

2. Adjust mirror angle by depressing the appro­priate perimeter switch as illustrated.

B510B02O

!

o Do not operate the switch continuously
o Scraping ice from the mirror face could

Be careful when judging the size or dis­tance of any object seen in the passenger
side rear view mirror. It is a convex mirror
with a curved surface. Any objects seen in
this mirror are closer than they appear.

CAUTION:

for an unnecessary length of time.
cause permanent damage. To remove

any ice, use a sponge, soft cloth or
approved de-icer.

!

WARNING:

B510D01Y-AAT

OUTSIDE REARVIEW MIRROR HEATER
(If installed)

HSM035

The outside rearview mirror heater is actuated
in connection with the rear window defroster. To
heat the outside rearview mirror glass, push in
the switch for the rear window defroster. The
rearview mirror glass will be heated for defrost­ing or defogging and will give you improved rear
vision in inclement weather conditions. Push the
switch again to turn the heater off. The outside
rearview mirror heater automatically turns itself
off after 15 minutes.

B510C01A-AAT

FOLDING THE OUTSIDE REARVIEW
MIRRORS

DAY/NIGHT INSIDE REARVIEW
MIRROR

B520A01A-AAT

Manual Type

FEATURES OF YOUR HYUNDAI

B520B01O-GAT

Electric Type (If installed)

1

63

B510C01O

To fold the outside rearview mirrors, push them
toward the rear.
The outside rearview mirrors can be folded
rearward for parking in narrow areas.

!

Do not adjust or fold the outside rearview
mirrors while the vehicle is moving. This
could result in loss of control, and an acci­dent which could cause death, serious in­jury or property damage.

WARNING:

B520A01O

Your Hyundai is equipped with a day/night inside
rearview mirror. The "night" position is selected
by flipping the tab at the bottom of the mirror
toward you. In the "night" position, the glare of
headlights of cars behind you is reduced.

B520B01O

The electric type day/night inside rearview mir­ror controls automatically the glare of headlights
of the car behind you. Adjust the rearview mirror
to the desired position.

FEATURES OF YOUR HYUNDAI

1

HOMELINK MIRROR

64

B520C01L-GAT

(If installed)

Indicator Light

Glare Detection

Homelink buttons

B520C01L

Your new vehicle may be equipped with an
automatic night vision mirror. During nighttime
driving, this feature will automatically detect and
reduce dangerous rearview mirror glare.

Your new mirror also comes with an integrated
HomeLink Universal Transceiver, which allows
you to program up to 3 buttons on the mirror to
activate your garage door(s), estate gate, home
lighting, etc. The mirror actually learns the
codes from your various existing transmitters.

Automatic-Dimming Function

Automatic-dimming mirror
function buttons

To assist you during nighttime driving, your
mirror will automatically dim upon detecting
glare from the vehicles behind you.

Press the button to turn the automatic­dimming function off. The mirror indicator light
will turn off.

Press the button to turn the automatic­dimming function on. The mirror indicator light
will illuminate.

B520C01L

NOTE:

The mirror defaults to the "on" position
each time the vehicle is started.

HOMELINK PROGRAMMING

!

o Make sure people and/or objects are out

o Keep original transmitters for potential

o In the event you do sell your vehicle, it's

Do not use HomeLink with any garage door
opener that lacks the safety stop and re­verse feature as required by federal safety
standards (includes garage doors manu­factured before April 1, 1982), as these
doors can increase the risk of serious injury
or death. Call 1-800-355-3515 or visit
www.homelink.com for more information.

CAUTION:

of the way of any garage doors or gates
you may be operating during the pro­gramming procedures.

future programming needs, or in case
you sell the vehicle.

recommended you erase your pro­grammed HomeLink mirror buttons.

!

WARNING:

FEATURES OF YOUR HYUNDAI

1

65

NOTE:

If programming a garage door opener or
gate, it is advised to unplug the device
during the "cycling" process to prevent
possible motor burnout.

Programming

Ensure the ignition switch is turned to the "ACC"
position to program and/or operate HomeLink
system. It is also recommended that a new
battery be placed in the handheld transmitter of
the device being programmed to HomeLink for
quicker programming and accurate transmis­sion of the radio-frequency.
Follow these steps to program your HomeLink
mirror:

Flashing

B520C02L

1. When programming the buttons for the first
time, press and hold the two outside
HomeLink buttons ( , ), releasing when
the indicator light begins to flash (approxi­mately 20 seconds). This procedure erases
the factory-set default codes. Do not per­form this step when programming additional
transmitters.

Flashing

1 ~ 3 inches

Transmitter

B520C03L

2. Hold the transmitter of the device you want
to program 1 to 3 inches away from the
bottom of the mirror. Simultaneously press
the handheld transmitter button and the
HomeLink button you wish to program. The
indicator light will flash slowly at first, then
rapidly, indicating successful programming.

3. If the garage door opener or other device you
wish to program is rolling-code equipped,
proceed to the "Rolling Code Programming"
section.

4. Repeat step 2 to program the remaining
HomeLink buttons.

Additional Programming for Rolling Code
Devices

For any rolling-code-equipped device; follow
the steps additional below after completing the
"Programming" section. A second person may
make the following steps easier.

1. Locate the "learn" or "smart" button on the
device's motor head unit. The exact location
and color of the button varies by product
brand, but is usually referenced in the device's
owner's manual. Contact HomeLink at 1­800-355-3515 or www.homelink.com for
help.

2. Press and release the "learn" or "smart"
button on the device's motor head unit.

NOTE:

You now have 30 seconds to initiate step 3.

FEATURES OF YOUR HYUNDAI

1

66

3. Return to the vehicle and firmly press and
release the programmed HomeLink button.
Press and release the same HomeLink but­ton a second time to complete the program­ming process. (Some devices may require
you to press and release a third time to
complete the programming.)

4. Now HomeLink mirror and rolling-code­equipped device should be synchronized.
The remaining HomeLink buttons may now
be programmed if this has not been done
previously.

Operating HomeLink

Simply press the appropriate HomeLink button
to activate the trained product (garage door,
security system, entry door lock, estate gate,
lighting, etc.). The original handheld transmit­ters may also be used at any time.

Erasing Programmed Buttons

Flashing

B520C02L

To erase the three HomeLink buttons, press
and hold the two outside buttons until the indica­tor light begins to flash (after 20 seconds).
Release both buttons.

Individual buttons cannot be erased, but can be
reprogrammed.

Reprogramming a Single HomeLink
Button

To program a device to HomeLink using a
HomeLink button previously trained, follow these
steps:

1. Press and hold the desired HomeLink but­ton. Do not release until step 4 has been
completed.

2. When the indicator light begins to flash slowly
(after 20 seconds), hold the handheld trans­mitter 1 to 3 inches away from the bottom of
the mirror.

3. Press and hold the transmitter button (or, if
necessary, press and "cycle," as described
in the '"Gate Operator & Canadian Program­ming" portion of this text).

4. The HomeLink indicator light will flash slowly
at first, then rapidly, indicating successful
programming. Release both buttons.

PARKING BRAKE

TAIL GATE

FEATURES OF YOUR HYUNDAI

1

67

Gate Operator Programming & Cana­dian Programming

During programming, your handheld transmit­ter may automatically stop transmitting.
Continue to press and hold the HomeLink button
while you press and repress ("cycle") your
handheld transmitter every two seconds until
the frequency signal has been learned. The
indicator light will flash slowly at first and then
rapidly upon successful programming.

Accessories

For more information on HomeLink and
HomeLink-compatible products, or to purchase
HomeLink accessories, call 1-800-355-3515
or visit www.homeink.com.

B530A01A-AAT

B530A01O

Always engage the parking brake before leav­ing the car. This also turns on the parking brake
indicator light when the key is in the "ON" or
"START" position. Before driving away, be sure
that the parking brake is fully released and the
indicator light is off.

o To engage the parking brake, pull the lever

up as far as possible.

o To release the parking brake, pull up and

press the thumb button. Then, while holding
the button in, lower the brake lever.

B540A01FC-AAT

B540A01O

!

The tail gate should always be kept com­pletely closed while the vehicle is in motion.
If it is left open or ajar, poisonous exhaust
gases may enter the car resulting in serious
illness or death to the occupants. See addi­tional warnings concerning exhaust gases
on page 2-2.

o The tail gate can be locked or unlocked with

WARNING:

a key.

FEATURES OF YOUR HYUNDAI

1

68

LUGGAGE COMPARTMENT

o The tail gate is opened by pulling the outside

handle up, raising the tail gate manually.

o To close, lower the tail gate, then press down

on it until it is closed. To be sure the tail gate
is fully closed, always try to pull it up again
without using the outside handle.

B540B02O-AAT

Tail gate Window

B540B01O

o When you push the tail gate window release

button to open the tail gate window, it will
spring up slightly.
Raise the tail gate window. The window will
raise completly by itself after it has been
raised halfway.

o To close the tail gate window, lower the tail

gate window, and it will close by itself.
To be sure the tail gate window is securely
fastened, always try to pull it up again.

NOTE:

The tail gate window lock is operated is in
connection with the tail gate lock. To open
the tail gate window make sure the tail gate
is unlocked with a key or the central door
locking switch.

B540C01HP-GAT

LUGGAGE COMPARTMENT LIGHT

B540C01O

Luggage compartment light has a 3-position
switch. The three positions are:

o In the "MIDDLE" position, the luggage com-

partment light comes on when the tail gate is
opened, then goes out when it is closed.

o In the "ON" position, the light stays on at all

times.

o In the "OFF" position, the light stays off at all

times.

FEATURES OF YOUR HYUNDAI

1

69

B640A01S-AAT

CARGO SECURITY SCREEN
(If installed)

B640A01O

To use the security screen, pull it out of the
retractor and hook it to the anchors as illus­trated.

!

B650A01S-AAT

Stowage Precautions

1. Do not place objects on the cargo security
screen. Such objects may be thrown about
inside the vehicle and possibly injure vehicle
occupants during an accident or when brak­ing.

2. For better fuel economy, do not carry unnec­essary weight.

3. Never allow anyone to ride in the luggage
compartment. It is designed for luggage
only.

4. Try to maintain the balance of the vehicle and
locate the weight as far forward as possible.

B540D02O-AAT

LUGGAGE NET

HSM233

When loading the objects in the luggage com­partment, use the four rings located in the
luggage compartment to attach the luggage net
as shown illustration. This will help prevent the
objects from sliding.

FEATURES OF YOUR HYUNDAI

1

70

CAUTION:

To prevent damage to the goods or the
vehicle, care should be taken when carrying
fragile or bulky objects in the luggage com­partment.

ROOF RACK

B630A02B-AAT

(If installed)

!!

o In case the sunroof is equipped, do not

o The following specifications are recom-

CAUTION:

position roof rack loads that could inter­fere with opening of the sunroof.

mended when loading cargo or luggage.

!

Avoid eye injury. DO NOT overstretch. The
luggage net ALWAYS keep your face and
body out of its recoil path. DO NOT use
when the strap has visible signs of wear or
damage.

WARNING:

B630A01O

If your Hyundai has a roof rack, you can load
things on top of your vehicle. Crossrails and
fixing components to adapt the roof rack on your
vehicle may be obtained from an authorized
Hyundai dealer.

ROOF RACK

o Loading cargo or luggage above 75 lbs

(34 kg) on the roof rack may damage your
vehicle.
When you carry large objects, never let
them hang over the rear or the sides of
your vehicle.

o To prevent damage or loss of cargo as

you are driving, check frequently to make
sure the luggage carrier and cargo are
still securely fastened.

o Always drive your vehicle at a moderate

speed.

o To use the roof rails as a roof rack, you

must fit the roof rails with two or more
crossrails or equivalent before carrying
cargo or luggage on the roof.

o Loading cargo or luggage over specifi-

cation on the roof rack may damage
stability of your vehicle.

75 lbs (34 kg) Evenly
Distributed

FEATURES OF YOUR HYUNDAI

REMOTE FUEL-FILLER LID RELEASEAUTO FUEL CUT SWITCHHIGH-MOUNTED REAR STOP LIGHT

1

71

B550A01A-AAT

(If installed)

B550A01O

In addition to the lower-mounted rear stoplights
on either side of the car, the high mounted rear
stoplight in the center of the rear window also
lights when the brakes are applied.

B560B01O-AAT

B560B01O

The auto fuel cut switch is located on the driver's
side of the engine compartment.
In the event of a collision or sudden impact, the
auto fuel cut device cuts off the fuel supply. If this
device is activated, it must be reset by pressing
in on the top of the switch before the engine can
be restarted.

!

Before resetting the auto fuel cut switch,
the fuel line should be checked for fuel
leaks.

WARNING:

B560A02S-AAT

B560A01O

The fuel-filler lid may be opened from inside the
vehicle by pulling up on the fuel-filler lid opener
located on the front floor area on the left side of
the car.

NOTE:

If the fuel-filler lid will not open because ice
has formed around it, tap lightly or push on
the lid to break the ice and release the lid. Do
not pry on the lid. If necessary, spray around
the lid with an approved de-icer fluid (do
not use radiator anti-freeze) or move the
vehicle to a warm place and allow the ice to
melt.

FEATURES OF YOUR HYUNDAI

1

72

!

o The fuel cap must be tightened at least

o Gasoline vapors are dangerous. Before

WARNING:

3 clicks, otherwise " " light will
illuminate.

refueling, always stop the engine and
never allow sparks or open flames near
the filler area. If you need to replace the
filler cap, use a genuine Hyundai re­placement part.

B560A02O-1

!

o If you open the fuel filler cap during high

o Make sure the fuel filler cap is replaced

o Do not "TOP-OFF" after the first nozzle

WARNING:

ambient temperatures, a slight "pres­sure sound" may be heard. This is nor­mal and not a cause for concern.
Whenever you open the fuel filler cap,
turn it slowly.

and securely seated after fueling. Failure
to replace or fully seat the fuel filler cap
will result in fuel vapors escaping into
the atmosphere and the check engine
"MIL" indicator illuminating.

shut off when refueling.

HOOD RELEASE

B570A01L-GAT

B570A01O

1. Pull the release knob to unlatch the hood.

B570A02O

FEATURES OF YOUR HYUNDAI

SUN VISORFLOOR MAT ANCHOR

1

73

2. Push the secondary latch lever up and lift the
hood.

3. Raise the hood by hand.

When closing the hood, slowly close the hood
and make sure it locks into place.

!

o Always double check to be sure that the

o Do not move the vehicle with the hood

WARNING:

hood is firmly latched before driving
away. If it is not latched, the hood could
open while the vehicle is being driven,
causing a total loss of visibility, which
might result in an accident.

in the raised position, as vision is ob­structed and the hood could fall or be
damaged.

B571A03Y-AAT

HXGS263

When using a floor mat on the front floor carpet,
make sure it attaches to the floor mat anchor in
your vehicle. This keeps the floor mat from
sliding forward.

!

o Make sure the floor mat is properly placed

o Don't put an additional floor mat on the

WARNING:

on the floor carpet. If the floor mat slips
and interferes with the movement of the
pedals during driving, It may cause an
accident.

top of the fixed mat, otherwise the addi­tional mat may slide forward and inter­fere with the movement of the pedals.

B580A01L-AAT

Vanity mirror

B580A01O

Your Hyundai is equipped with sun visors to give
the driver and front passenger either frontal or
sideward shade. To reduce glare or to shut out
direct rays of the sun, turn the sun visor down.
A vanity mirrors are provided on the back of the
sun visor for the driver and front passenger.

NOTE:

The Supplemental Restraint System (SRS)
label containing useful information can be
found on the back of each sun visor.

FEATURES OF YOUR HYUNDAI

1

74

!

Do not place the sun visor in such a manner
that it obscures visibility of the roadway,
traffic or other objects.

B580B01O-AAT

WARNING:

Illuminated Vanity Mirror (If installed)

Opening the lid of the vanity mirror will automati­cally turn on the mirror light when the multi­function switch is turned to the first/second
position.

STEERING WHEEL TILT LEVER

B600A02Y-AAT

B600A01O

To adjust the steering wheel:

1. Pull the lever upward and hold it to unlock.

2. Raise or lower the steering wheel to the
desired position.

3. After adjustment, release the lever.

!

Do not attempt to adjust the steering wheel
while driving as this may result in loss of
control of the vehicle and serious injury or
death.

WARNING:

FRONT DOOR EDGE WARNING
LIGHT

B620A01S-AAT

B620A01O

A red light comes on when the front door is
opened. The purpose of this light is to assist
when you get in or out and also to warn passing
vehicles.

FEATURES OF YOUR HYUNDAI

CRUISE CONTROLREAR SEAT ARM RESTHORN

1

75

B610A01L-GAT

B610A01O

Press the pad on the steering wheel to sound the
horn.

B611A01Y-AAT

B611A01O-A

This arm rest is located in the center of the rear
seat back.

B660A01S-AAT

(If installed)

B660A01O

The cruise control system provides automatic
speed control for your comfort when driving on
freeways, tollroads, or other noncongested
highways. This system is designed to function
above approximately 25 mph (40 km/h).

FEATURES OF YOUR HYUNDAI

1

76

B660B03O-AAT

To Set the Cruise Speed

B660B01O

1. Push the cruise control ON´OFF button.
The "CRUISE" indicator light in the instru­ment cluster will illuminate. This turns the
system on.

2. Accelerate to desired cruising speed above
25 mph (40 km/h).

3. Push the "SET" (COAST) button after you
have set the vehicle speed at the desired
speed.

4. Remove your foot from the accelerator pedal
and the desired speed will automatically be
maintained.

5. To increase speed, temporarily depress the
accelerator pedal enough for the vehicle to
exceed the preset speed. When you remove
your foot from the accelerator pedal, the
vehicle will return to the speed you have set.

NOTE:

If the vehicle speed decreases more than 12
mph (20 km/h) below the set speed or
decreases below 25 mph (40 km/h), the
cruise control system will automatically
cancel the set speed.

B660C02O-AAT

To cancel the cruise speed

B660C01O

To disengage the cruise control system, push
the "CANCEL" button.
Additionally, the following actions will disengage
the system:

o Depress the brake pedal.
o Depress the clutch pedal (Manual transaxle).
o Shift the selector lever to "N" position

(Automatic transaxle).

o Decrease the vehicle speed lower than the

memory speed by 12 mph (20 km/h).

o Decrease the vehicle speed to less than 25

mph (40 km/h).

o Release the "MAIN" button.

FEATURES OF YOUR HYUNDAI

1

77

B660D01O-AAT

To Resume the Preset Speed

B660D01O

The vehicle will automatically resume the speed
set prior to cancellation when you push the
"RESUME (ACCEL)" button, providing the ve­hicle speed is above 25 mph (40 km/h).

B660E01Y-AAT

To Reset at a Faster Speed

1. Push the "RESUME (ACCEL)" button and
hold it.

2. Accelerate to desired speed and release the
"RESUME (ACCEL)" switch. While the con­trol switch is held, the vehicle will gradually
gain speed.

B660F02O-AAT

To Reset at a Slower Speed

B660B01O

1. Push the "SET (COAST)" button and hold it.
While the control button is pushed, the ve­hicle speed will gradually decrease.

2. When the desired speed is obtained, release
the control button.

!

o Keep the main switch off when not using
o Use the cruise control system only when

o Do not use the cruise control when it

o Pay particular attention to the driving

o During cruise-control driving with a

o During normal cruise control operation,

WARNING:

the cruise control.
traveling on open highways in good

weather.
may not be safe to keep the car at a

constant speed, for instance, driving in
heavy or varying traffic, or on slippery
(rainy, icy or snow-covered) or winding
roads or over 6% up-hill or down-hill
roads.

conditions whenever using the cruise
control system.

manual transaxle vehicle, do not shift
into neutral without depressing the
clutch pedal, or the engine will be
overrevved. If this happens, depress the
clutch pedal or release the main switch.

when the "SET" button is activated or
reactivated after applying the brakes,
the cruise control will energize after
approximately 3 seconds. This delay is
normal.

FEATURES OF YOUR HYUNDAI

1

HEATING AND COOLING CONTROL

78

B710A01O-GAT

(If installed)

12 3 4 12

1. Side Ventilator

2. Side Defroster Nozzle

3. Windshield Defroster Nozzle

4. Center Ventilator

B710B02O-AAT

Center Ventilator

The center ventilators are located in the middle
of the dashboard. To change the direction of the
air flow, move the knob in the center of the vent
up-and-down and side-to-side. The vents are
opened when the vent knob is moved to " "
position. The vents are closed when the vent
knob is moved to " ". Keep these vents clear
of any obstructions.

B710C02O-AAT

Side Ventilator

The side ventilators are located on each side of
the front door. To change the direction of the air
flow, move the knob in the center of the vent up­and-down and side-to-side. The vents are
opened when the vent knob is moved to " "
position. The vents are closed when the vent
knob is moved to " ". Keep these vents clear
of any obstructions.

HSM417

HEATING AND VENTILATION

FEATURES OF YOUR HYUNDAI

1

79

B670A03O-AAT

(If installed)

1 2

3

There are three controls and two switches for
the heating and cooling system. They are:

1. Air intake control switch

2. Air conditioning switch

3. Air flow control

4. Fan speed control

5. Temperature control

45

B690A01O-1

B670B01O-AAT

Fan Speed Control (Blower Control)

B670B01O-1

This is used to select the blower fan speed.
The blower fan speed, and therefore the volume
of air delivered from the system, may be con­trolled manually by setting the blower control
between the "1" and "4" position.

B670C02O-AAT

Air Intake Control Switch

B670C02O

This is used to select fresh outside air or
recirculating inside air.

Fresh
Recirculation

With the " " mode selected, air enters the
vehicle from outside and is heated or cooled
according to the other functions selected.
With the " " mode selected, air from within
the passenger compartment is drawn through
the heating system and heated or cooled ac­cording to the other functions selected.

FEATURES OF YOUR HYUNDAI

1

80

NOTE:

o It should be noted that prolonged opera-

tion of the heating system in " " mode
will give rise to fogging of the wind­shield and side windows and the air
within the passenger compartment will
become stale. In addition prolonged use
of the air conditioning with the " "
mode selected may result in the air within
the passenger compartment becoming
excessively dry.

o When the ignition switch is turned "ON"

the air intake control switch will change
to " " mode in floor, floor-defrost and
defrost position. This is normal opera­tion. But, the air intake control switch
will change to " " mode when the
ignition switch is turned "ON" with the
MAX A/C mode selected.

B670D03O-AAT

Air Flow Control

B670D01O-1

This is used to turn the blower fan on/off and to
direct the flow of air. Air can be directed to the
floor, dashboard outlets, or windshield. Five
symbols are used to represent Face, Bi-Level,
Floor, Floor-Defrost and Defrost air position.
The MAX A/C mode is used to cool the inside of
the vehicle faster. The "OFF" mode is used to
turn the blower fan off.

B670D02O

Face-Level

Selecting the "Face" mode will cause air to be
discharged through the face level vents.

FEATURES OF YOUR HYUNDAI

1

81

B670D03O

Bi-Level

Air is discharged through the face vents and the
floor vents. This makes it possible to have
cooler air from the dashboard vents and warmer
air from the floor outlets at the same time.

HSM118 HSM119

Floor-Level

Air is discharged through the floor vents, wind­shield defroster nozzle, side defroster nozzle
and side ventilator.
If the "Floor" mode is selected, the "Fresh"
mode will be activated.

Floor-Defrost Level

Air is discharged through the windshield de­froster nozzle, the floor vents, side defroster
nozzle and side ventilator.
If the "Floor-Defrost" mode is selected, the A/C
will turn on automatically and "Fresh" mode will
be activated.

FEATURES OF YOUR HYUNDAI

1

82

HSM120

Defrost-Level

Air is discharged through the windshield de­froster nozzle, side defroster nozzle and side
ventilator.
If the "Defrost" mode is selected, the A/C will turn
on automatically and "Fresh" mode will be ac­tivated to improve windshield defrosting.

NOTE:

If the "Floor-Defrost" or "Defrost" mode is
selected, the air conditioning will not turn
off by pushing the A/C button.
If the air flow control is set to the defrost or
the floor-defrost mode, the A/C will be on
automatically and the A/C will not off until
the air flow control is set to the another

mode except the defrost mode and the
floor-defrost mode. Although the A/C
switch indicator is turned off, this is normal
operation.

HSM428

MAX

MAX A/C-Level

A/C

Air is discharged through the face level vents.
If the "MAX A/C" mode is selected, the A/C will
turn on automatically and "Recirculation" mode
will be activated.

NOTE:

o The air intake control switch will change

to " " mode when the ignition switch
is turned "ON" with the MAX A/C mode
selected.

o When you change to another mode from

MAX A/C, the A/C and the air intake
control switch are set to the following
chart.

A/C

ON

ON or OFF *

OFF

* The A/C or the air intake control switch

returns to its former setting.

OFF

ON or OFF *

ON
ON

Air Intake

Control Switch

or *

FEATURES OF YOUR HYUNDAI

HEATING CONTROLS

1

83

B670D07O

OFF

Off-Level

Air is discharged through the windshield de­froster nozzle, side defroster nozzle and side
ventilator.

NOTE:

If the air flow control is off, the air intake
control is set to the fresh mode automati­cally.

B670E02A-AAT

Temperature Control

Cool Warm

B670E01O

This control is used to adjust the degree of
heating or cooling desired.

B690A01O-AAT

B690A01O-1

For normal heating operation, set the air flow
control to the floor ( ) position. (The "Fresh"
mode will be activated.)

For faster heating, the air intake control switch
should be set in the recirculate ( ) position.

If the windows fog up, set the air flow control to
the defrost ( ) position (The A/C will turn on
automatically and "Fresh" mode will be acti­vated.)

For maximum heat, move the temperature con­trol to "Warm".

FEATURES OF YOUR HYUNDAI

1

84

AIR CONDITIONING SYSTEMVENTILATIONBI-LEVEL HEATING

B700A01O-1

Your Hyundai is equipped with bi-level heating
controls. This makes it possible to have cooler
air from the dashboard vents and warmer air
from the floor outlets at the same time. To use
this feature:

o Set the air intake control switch to the fresh

air ( ) position.

o Set the air flow control at the bi-level ( )

position.

o Set the temperature control between "Cool"

and "Warm".

B710A01O-AATB700A01O-AAT

B710A01O-1

To operate the ventilation system:
o Set the air intake control switch to the fresh

air ( ) position.

o To direct all intake air to the dashboard

vents, set the airflow control to the face ( )
position.

o Adjust the fan speed control to the desired

speed.

o Set the temperature control between "Cool"

and "Warm".

B740A01S-AAT

(If installed)
Air Conditioning Switch

B740A01O

The air conditioning is turned on or off by
pushing the A/C button on the heating/air con­ditioning control panel.

FEATURES OF YOUR HYUNDAI

1

85

B740B03O-AAT

Air Conditioning Operation
Cooling

B740B01O-1

To use the air conditioning to cool the interior:
o Set the air flow control to the face ( ) position.

o Turn on the air conditioning switch by push-

ing in on the switch. The air conditioning
indicator light should come on at the same
time.

o Set the air intake control switch to the fresh

air ( ) position.

o Set the temperature control to "Cool". ("Cool"

provides maximum cooling. The tempera­ture may be moderated by moving the con­trol toward "Warm".)

o Adjust the fan control to the desired speed.

For greater cooling, turn the fan control to
one of the higher speeds or temporarily
select the recirculate ( ) position on the
air intake control switch.

B740C02O-AAT

De-Humidified Heating

B740C01O-1

For dehumidified heating:
o Set the air flow control to the face ( ) position.

o Turn on the air conditioning switch. The air

conditioning indicator light should come on at
the same time.

o Set the air intake control switch to the fresh

air ( ) position.
o Adjust the fan control to the desired speed.
o For more rapid action, set the fan at one of

the higher speeds.
o Adjust the temperature control to provide the

desired amount of warmth.

FEATURES OF YOUR HYUNDAI

1

86

B730A01L-AAT

Operation Tips

o To keep dust or unpleasant fumes from

entering the car through the ventilation sys­tem, temporarily set the air intake control
switch to the position.
Be sure to return the control switch to
the position when the irritation has
passed to keep fresh air in the vehicle. This
will help keep the driver alert and comfort­able.

o Air for the heating/cooling system is drawn

in through the grilles just ahead of the wind­shield. Care should be taken that these are
not blocked by leaves, snow, ice or other
obstructions.

o To prevent interior fog on the windshield, set

the air intake control switch to the fresh air
( ) position, fan speed to the desired
position, turn on the air conditioning system,
and adjust temperature control to desired
temperature.

FEATURES OF YOUR HYUNDAI

B720A02E-AAT

DEFROSTING/DEFOGGING

Manual A/C Full automatic A/C Manual A/C Full automatic A/C

1

87

B720A02O-1

Use the heating/ventilation system to defrost or defog the
windshield:

To remove frost or exterior fog on the windshield;

o Set the air flow control to the defrost ( ) position. (The

B720B02O-1

A/C will turn on automatically and the "Fresh" mode will be

To remove interior fog on the windshield;

o Set the air flow control to the defrost ( ) position. (The

A/C will turn on automatically and the "Fresh" mode will be

activated.)
o Set the temperature control to warm.
o Set the fan speed control to position "3" or "4".

activated.)
o Set the temperature control to the desired position.
o Set the fan speed control between "1" and "4" position.

NOTE:
When the A/C is operated continuously on the floor-defrost level ( ) or defrost level ( ), it may cause fog to form
on the exterior windshield. If this occurs, set the air flow control to the face level position ( ) and fan speed control
to the low position.
