H8MS4-DA000

H8EEH07 (영어 | 유럽) 디오디오2

CAR MULTIMEDIA SYSTEM

USER'S MANUAL

Thank you for purchasing this multimedia

system.

This user’s manual explains how to use

the Kia Motors multimedia system.

Before using the product, read the con-

tents of this user’s manual carefully and

use this product safely.

•

The screens shown in this manual may differ with the actual screens of the product.

•

The design and specification of this product may change without prior notification for product improvement.

•

When transferring the vehicle to another individual, include this user’s manual so that the next driver can continue its use.

Precaution for safe usage

•

Driving while distracted can result in a loss of vehicle control, that may lead to an accident, severe personal injury, and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment, or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle.

•

Do not operate the while driving.

•

Do not disassemble, assemble, or modify the

multimedia system

•

Do not watch the screen for prolonged periods of time while driving.

•

Set the volume to a level which allows the driver to be aware of external conditions.

multimedia system

•

Do not operate the

multimedia system

prolonged periods of time with the vehicle ignition in ACC. Such operations may lead to battery discharge.

•

Be cautious not to spill water or introduce foreign objects into the device.

•

Do not cause severe shock to the device. Direct pressure onto the front side of the monitor may cause damage to the LCD or touch panel.

•

In case of product malfunction, please contact your place of purchase or service centre.

•

When cleaning the touch screen, make sure to turn off the device and use a dry and smooth cloth. Never use tough materials, chemical cloths, or solvents (alcohol, ammonia, benzene, thinners, etc.) as such materials may damage the device panel or cause color and quality deterioration.

for

WARNING

• Driving while distracted can result in a

loss of vehicle control that may lead to an accident, severe personal injury, and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment, or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle.

•

The Rear-Camera display is not a substitute for proper and safe backing-up procedures. The Rear-Camera display may not display every object behind the vehicle. Always drive safely and use caution when backing up.

Read the following safety precautions for your safety

Notations used within this User's Manual

Before using the product, read the contents of this user's manual

carefully and use this product safely.

※

The design and speciﬁcations of this product may change without prior

notiﬁcation for product and service improvement.

The actual images in the vehicle may differ from the illustrations.

For more accurate information about the vehicle, please refer to the

catalogue.

※

This Multimedia system contains open source software, including

without limitation, software distributed and/or modiﬁed under the GNU

General Public license, Version 2, June 1991, and the GNU lesser

General Public License, Version 2.1, February 1999.

For additional information and to obtain related materials including

without limitation, the previous referred to licenses and software,

please contact us at MOBIS_OSSrequest@mobis.co.kr

WARNING

• A WARNING indicates a situation in which harm, serious bodily injury or

death could result if the warning is ignored.

CAUTION

• A CAUTION indicates a situation in which damage to your vehicle could

result if the caution is ignored.

Information

• Information and tips that provide additional user convenience in using the

product.

NOTICE

• Information on specific features that facilitate proper product use and

functional understanding.

• Information on terminology used within this manual.

Table of Contents

1. Basic

Warnings and Cautions .............. 1-2

Component Names and Functions

Head Unit ………………………… 1-4

Steering Wheel Control

Starting the System for the First

Time ................................................ 1-8

Turning the System On/Off ……… 1-8

System Reset

Battery Warning Message

Restrictions on Features for Safety Measures

Home Screen

On-Screen Touch Controls

....................................... 1-4

…………… 1-6

……………………… 1-8

……… 1-9

………………………… 1-9

………………………1-10

……… 1-11

2. Radio/Media

FM/AM ............................................ 2-2

DAB(if equipped)/FM, AM

.................................................. 2-5

USB

Before Playing a USB MP3 ……… 2-5

Supported USB music specifications

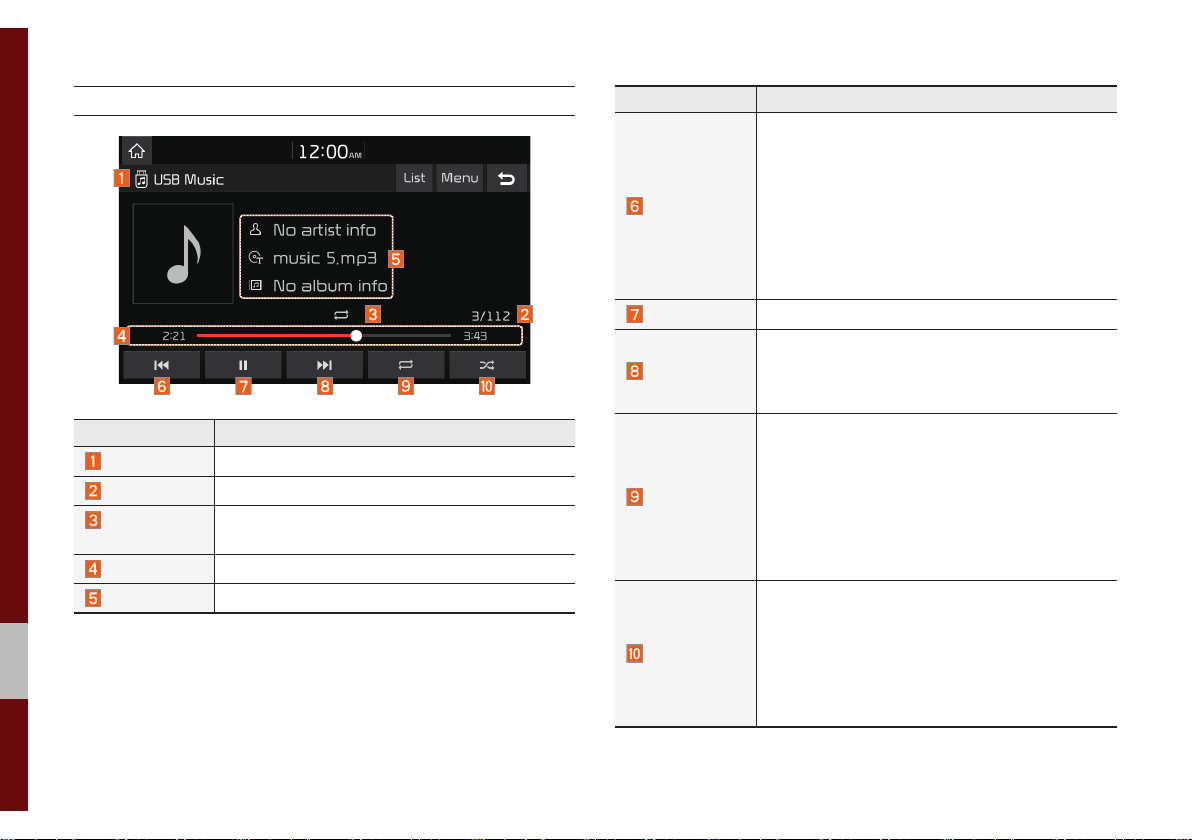

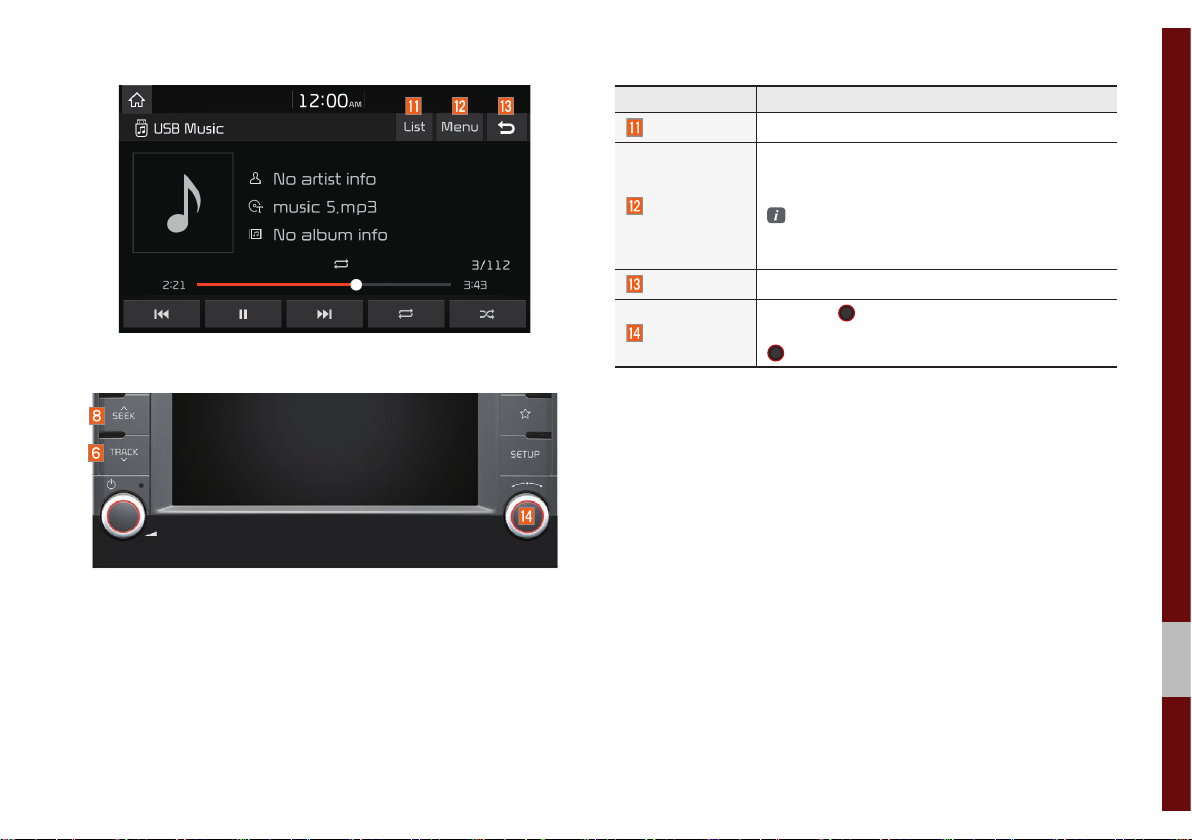

USB Music

iPod .............................................. 2-11

Using iPod Devices ……………… 2-11

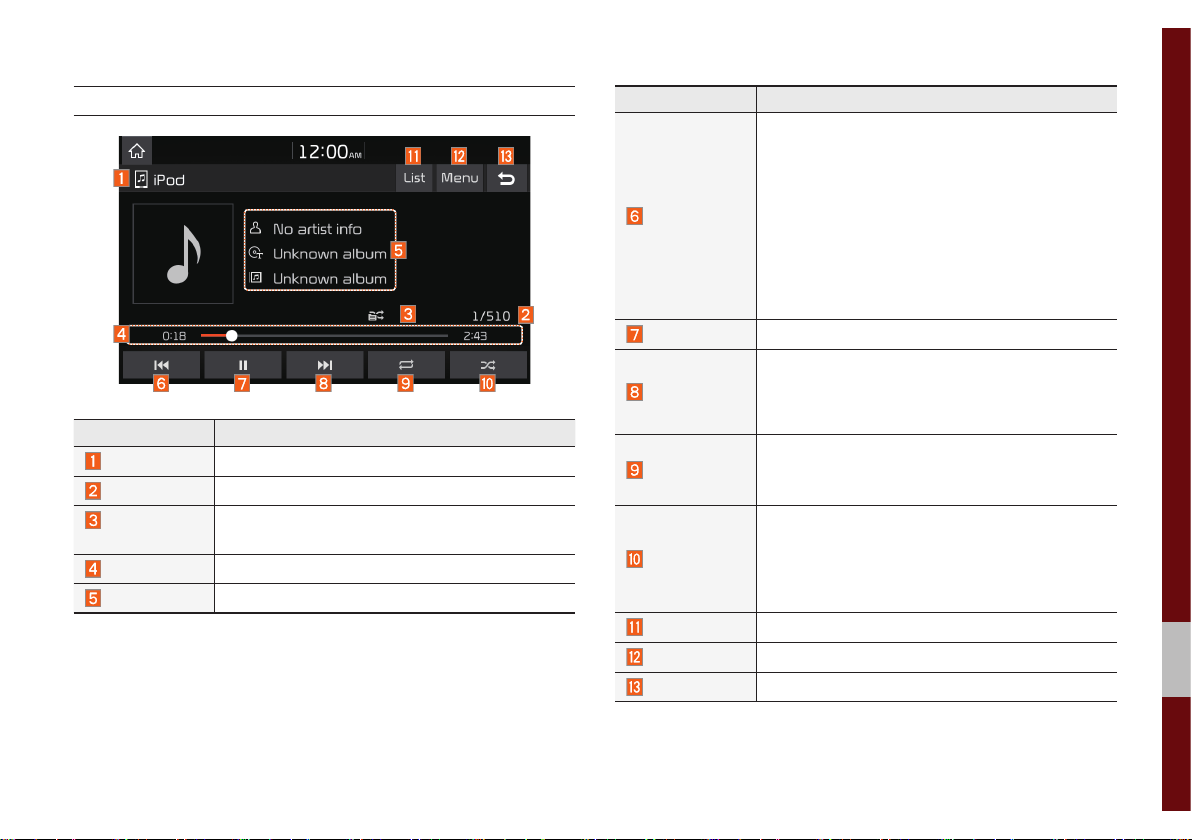

iPod

………………………………… 2-15

AUX ............................................... 2-18

Connecting an External Device …2-18

Bluetooth® Audio ........................ 2-19

Bluetooth connections ……………2-20

……………………… 2-7

………………………… 2-8

.......... 2-3

3. Bluetooth

Before Using the Bluetooth® Handsfree

What is Technology? ……………………… 3-2

Precautions for Safe Driving

CAUTIONS upon Connecting Bluetooth

Bluetooth Connection ................. 3-4

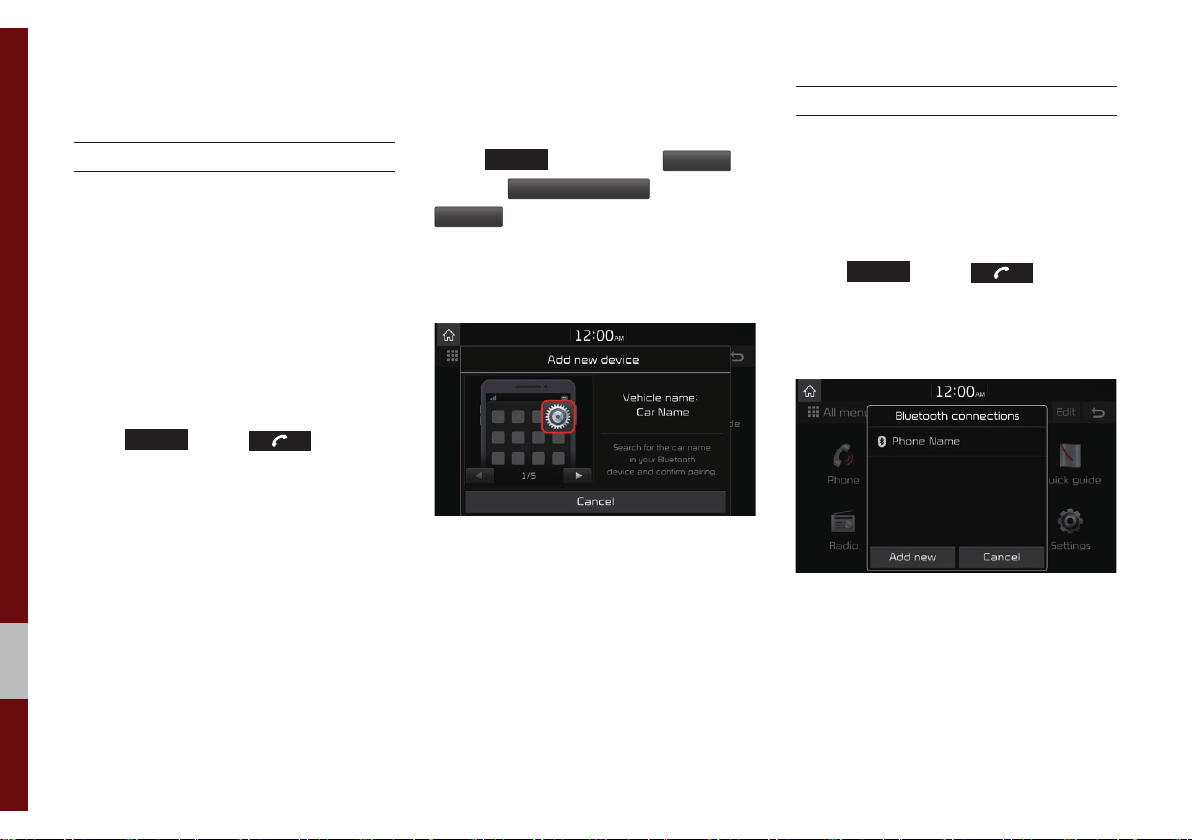

Pairing a New Device …………… 3-4

Connecting Bluetooth Devices…… 3-4

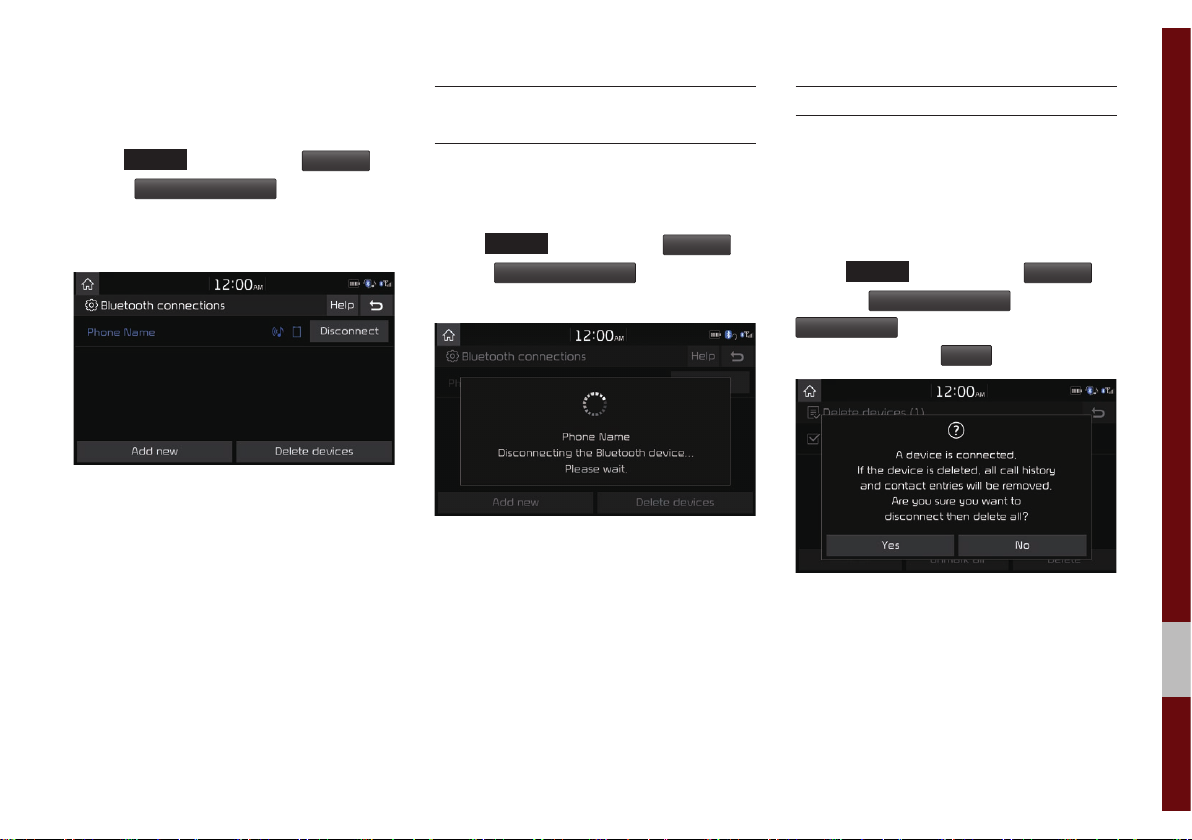

Disconnecting Bluetooth Devices

Deleting Bluetooth Devices

Bluetooth Phone .......................... 3-6

Phone Status Icons ……………… 3-6

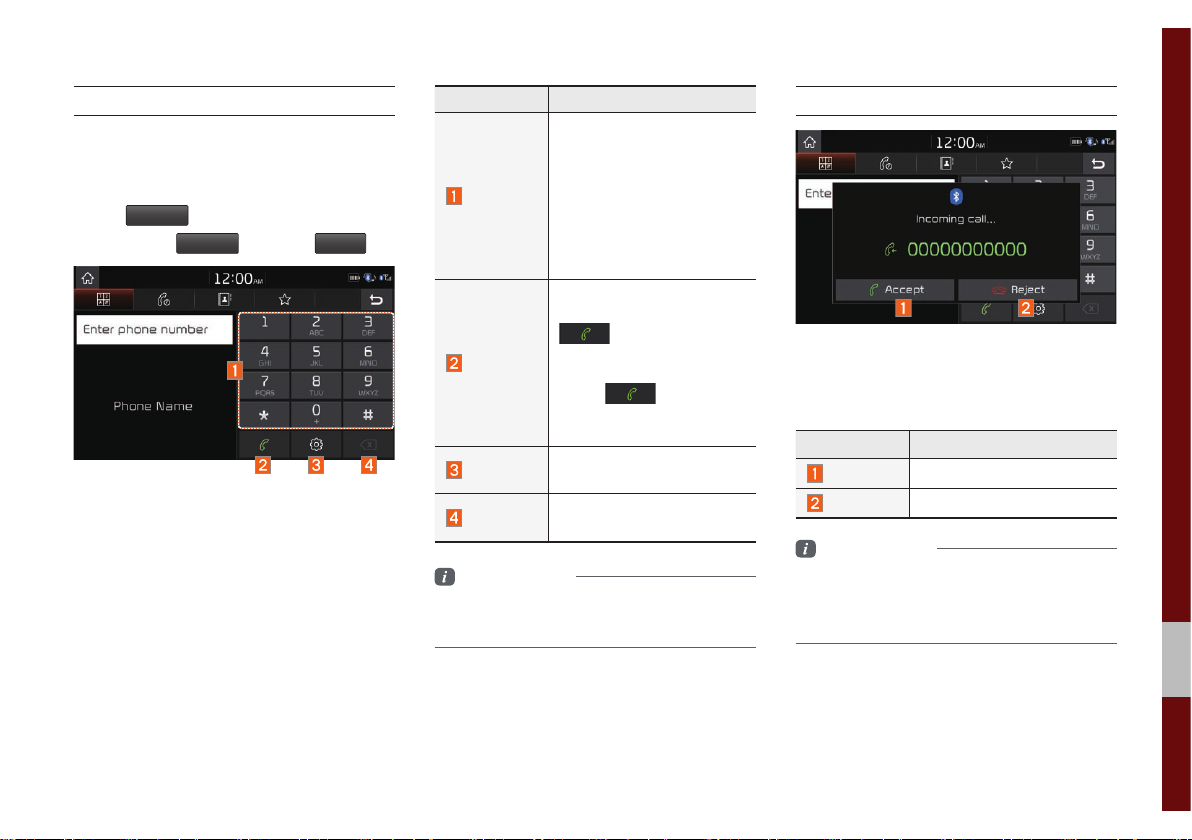

Dial

Accept/Reject Call

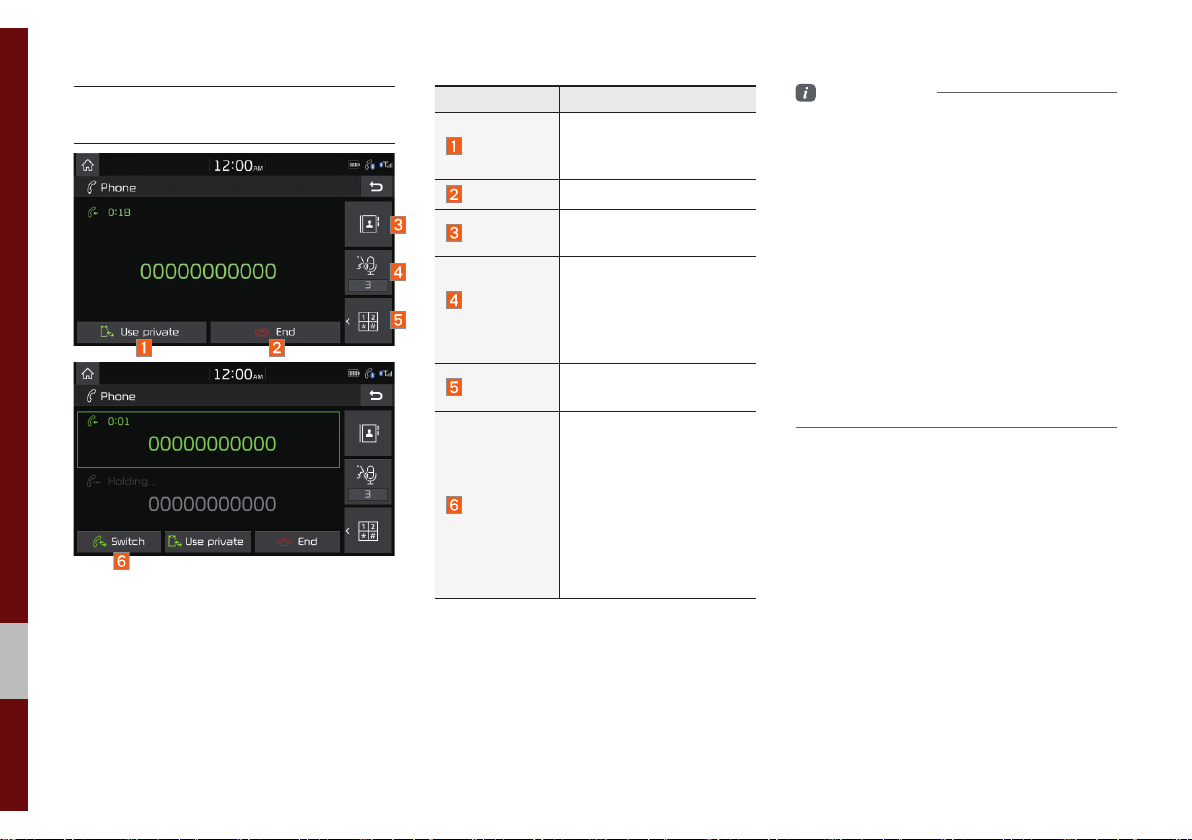

Using the Menu During a Phone Call

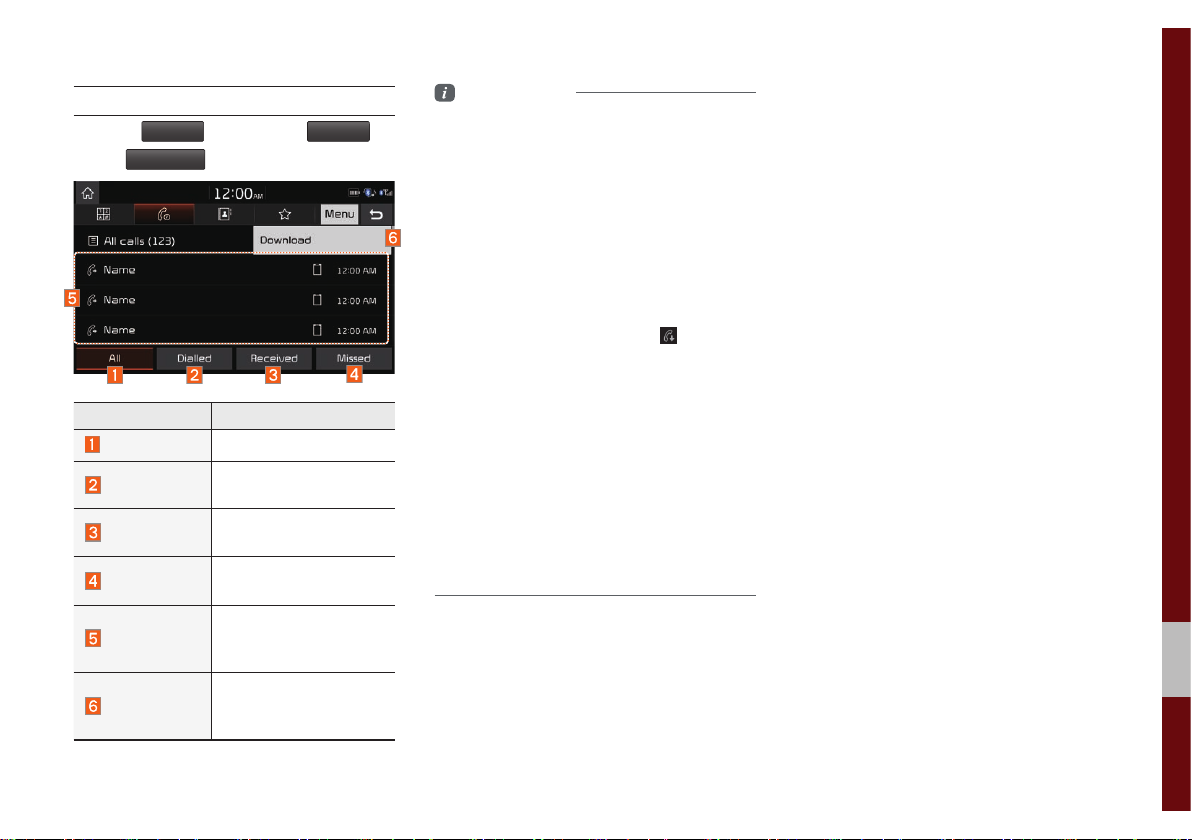

Call History

Contacts

Favourites

...................................... 3-2

Bluetooth®

Phone ………………… 3-3

…………………………… 3-5

………………………………… 3-7

…………………………… 3-10

………………………… 3-11

Wireless

…… 3-2

……… 3-5

………………… 3-7

……………………… 3-8

………………………… 3-9

2 I Table of Contents

4. Other Features

Camera.......................................... 4-2

Steering-linked camera …………… 4-3

5. Settings

Settings ........................................... 5-2

Sound settings

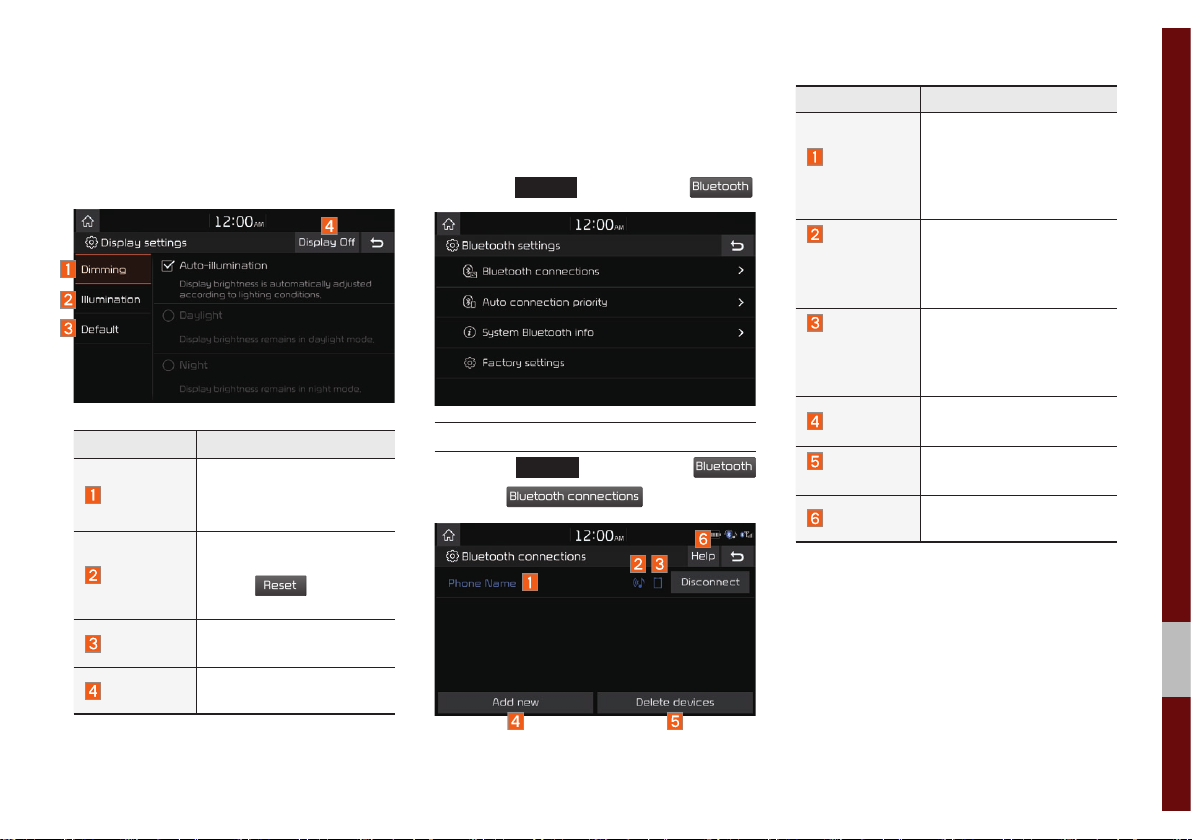

Display settings

Bluetooth settings

Bluetooth connections …………… 5-3

Auto connection priority

System Bluetooth info

.............................. 5-2

............................. 5-3

......................... 5-3

………… 5-4

…………… 5-4

Phone projection settings........... 5-5

Custom button settings

Home screen settings

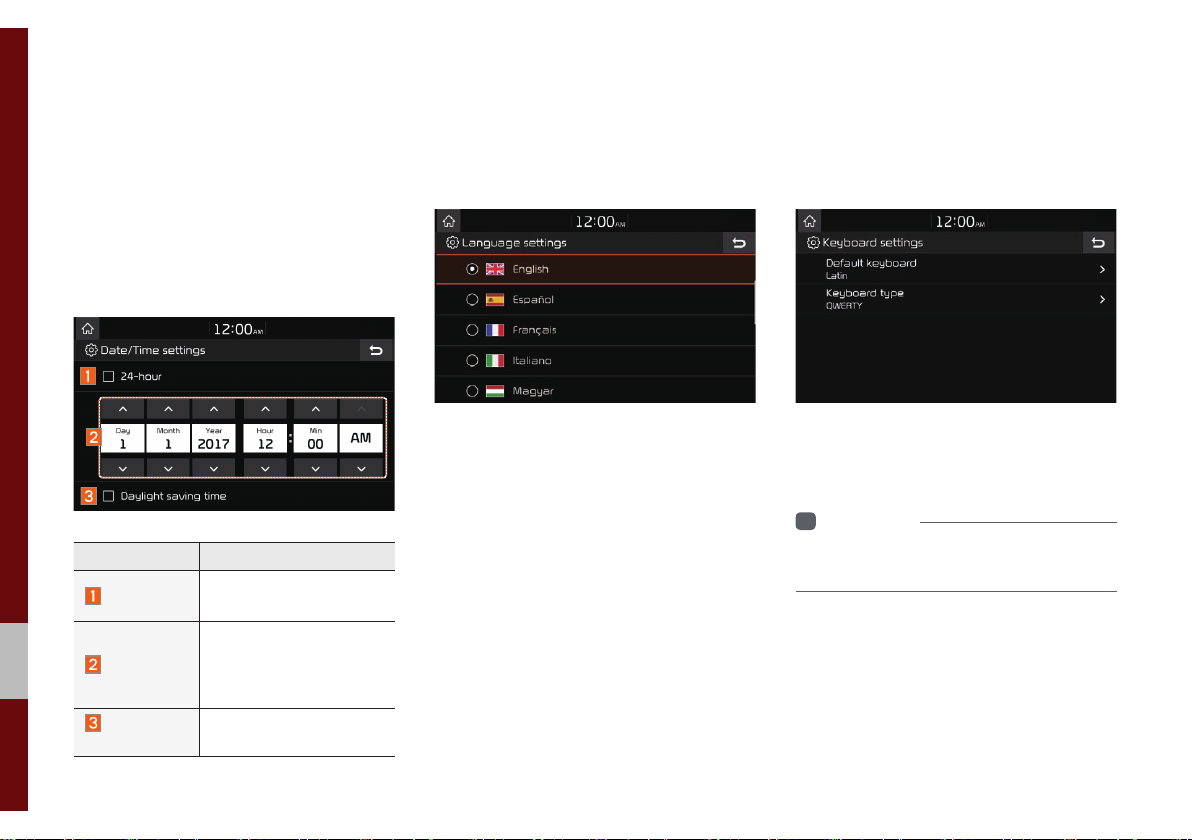

Date/Time settings

Language settings

Keyboard settings

Screensaver settings

Advanced settings

System info

System Update …………………… 5-8

.................................... 5-7

............... 5-5

................. 5-5

...................... 5-6

........................ 5-6

................... 5-7

...................... 5-7

6. Appendix

Product Specification.................. 6-2

Troubleshooting

................................................. 6-6

FAQ

About Pairing Mobile Phones …… 6-6

About Making/Answering Phone Calls

About

Bluetooth

Technology/Multimedia System Use Environment ……………………… 6-7

Important Safety Information ..... 6-8

........................... 6-3

……………………… 6-7

Wireless

Table of Contents I 3

iPod

iPod® is a registered trademark of Apple Inc.

Bluetooth®

The

Bluetooth

Wireless Technology

word mark and logos are registered trademarks owned

by Bluetooth SIG, Inc. and any use of such marks by Kia is under license.

Other trademarks and trade names are those of their respective owners.

Bluetooth

Wireless Technology enabled cell phone is required to use

Wireless Technology.

part.1

Component Names and Functions

Starting the System for the First Time

Basic

Warnings and Cautions

Basic

Warnings and Cautions

Safety Warnings

• Do not stare at the screen while driv-

ing. Staring at the screen for prolonged

periods of time could lead to traffic acci-

dents.

• Do not disassemble, assemble, or mod-

ify the Multimedia system. Such acts

could result in accidents, fire, or electric

shock.

• Heed caution not to spill water or intro-

duce foreign objects into the device.

Such acts could lead to smoke, fire, or

product malfunction.

• If you use phone related functions while

driving, you will find it difficult to concen-

trate on operating the vehicle and the

current traffic conditions, so the possibil-

ity of an accident may increase. Please

use phone related functions only when

parked.

• Please refrain from use if the screen

is blank or no sound can be heard as

these signs may indicate product mal-

function. Continued use in such con-

ditions could lead to accidents (fires,

electric shock) or product malfunctions.

• Do not touch the antenna during thun-

der or lightening as such acts may lead

to lightning induced electric shock.

• Do not stop or park in parking-restricted

areas to operate the product. Such acts

could lead to traffic accidents.

• For most Audio and multimedia modes,

the display will not operate when the

vehicle is in motion. For your safety, first

park the vehicle to watch or view the

screen.(The screen will only operate

when the parking brake is ON for man-

ual transmission vehicles and when the

parking brake is ON or the gearshift is in

the P (PARK) position for automatic.)

• Some functions other than the one

mentioned above cannot be used while

driving. These functions operate only

when the vehicle is parked.

1-2 I Basic

Safety Cautions

Pay attention to traffic conditions while

driving.

• Operating the device while driving could

lead to accidents due to a lack of atten-

tion to external surroundings. First park

the vehicle before operating the device.

In addition, the touch screen may not

work for some functions when the vehi-

cle is in motion. The touch screen fea-

ture will be supported once the vehicle

has stopped.

• Adjust the volume to levels that allow

the driver to hear sounds from outside

of the vehicle. Driving in a state where

external sounds cannot be heard may

lead to accidents.

• Pay attention to the volume setting when

turning the device on. A sudden output

of extreme volume upon turning the

device on could lead to hearing impair-

ment. (Adjust the volume to a suitable

levels before turning off the device.)

• Turn on the car ignition before using this

device. Do not operate the Multimedia

system for long periods of time with the

ignition turned off as such operations

may lead to battery discharge.

• Upon using the Multimedia system

for more than 10 minutes with the car

engine turned off, the following warning

will be displayed. After 10 minutes, the

warning will be displayed for 5 seconds

every 1 minute.

• Do not subject the device to severe

shock or impact. Direct pressure onto

the front side of the monitor may cause

damage to the LCD or touch screen.

• When cleaning the device, make sure

to turn off the device and use a dry and

smooth cloth. Never use tough materi-

als, chemical cloths, or solvents(alcohol,

benzene, thinners, etc.) as such mate-

rials may damage the device panel or

cause color/quality deterioration. When

experiencing product concerns, inquire

with your place of purchase or service

maintenance centre.

• Prevent caustic solutions such as per-

fume and cosmetic oil from contacting

the dashboard because they may cause

damage or discoloration.

• If the air freshener gets on to audio

system or plastics, then it could cause

the crack due to its chemical reac-

tion. Please be careful when you use

air fresheners near those products.

Especially be careful when you have

attached air freshener on the air vents.

The liquid can be flow down.

Warnings and Cautions I 1-3

Component Names and Functions

Head Unit

Name Description

Moves to DAB(if equipped)/FM or AM mode.

RADIO

MEDIA

SEEK

TRACK

POWER/

VOLUME

• Each time the key is pressed, the mode is changed in the following order: DAB(if equipped)/FM → AM → DAB(if equipped)/FM.

Moves to MEDIA mode.

• If the media is not connected MEDIA mode will not be activated.

When the key is pressed shortly (for less than 0.8 seconds),

• DAB(if equipped)/FM or AM mode: Plays the previous/next frequency.

• MEDIA mode: Changes the track, file or title (except for AUX).

When the key is pressed and held down (for over

0.8 seconds),

• DAB(if equipped)/FM or AM mode: Moves quickly through all of the frequencies. The moment that you release the button, the system seeks the next available frequency.

• MEDIA mode: Rewinds or fast forwards the track or file (except for Bluetooth Audio, and AUX).

• When power is off, press to turn power on.

• When power is on, press and hold for over 0.8 seconds to turn the power off.

• When power is on, press shortly for less than

0.8 seconds to turn Audio off.

• Turn left/right to adjust the volume.

1-4 I Basic

Name Description

HOME

PHONE

SETUP

Displays the HOME screen.

Displays the Bluetooth phone mode.

Displays the function set by the user.

Moves to the Setup screen.

• DAB(if equipped)/FM or AM mode: changes

TUNE

the frequency.

• MEDIA mode: changes the track, file or title (except for Bluetooth Audio and AUX).

RESET

※

The actual image in the vehicle may differ from the illustration.

Resets the system settings. (Preset radio channels and other data will not be deleted)

Component Names and Functions I 1-5

Steering Wheel Control

Name Description

For more details, refer to Phone Projection guide.

• Each time this key is pressed, mode is changed in the following order: DAB(if equipped)/FM → AM → USB or iPod → AUX → Bluetooth Audio → DAB(if equipped)/FM

You can select which mode to use in Advanced

settings.

• If the media is not connected, the corresponding modes will be disabled.

• Press and hold the key (more than 0.8 seconds) to turn the Multimedia system on/off.

• When power is off, press the key to turn power back on.

VOL +

VOL -

Use to adjust the volume of audio or call.

Mutes the audio. (It will be paused in some media modes.) Mutes the microphone during a call.

When keys are pressed quickly. (less than 0.8 seconds)

• DAB(if equipped)/FM or AM mode: searches broadcast frequencies saved to Presets.

• MEDIA mode: changes the track, file or title (except for AUX).

When keys are pressed and held. (more than 0.8 seconds).

• DAB(if equipped)/FM or AM mode: automatically searches broadcast frequencies.

• MEDIA mode: quickly looks up songs (except for AUX and Bluetooth audio files).

1-6 I Basic

Name Description

When pressed quickly. (less than 0.8 seconds)

• When pressed in the dial screen, makes a call

• When pressed in the incoming call screen, answers the call

• When pressed during call waiting, switches to waiting call (Call Waiting)

When pressed and held. (more than 0.8 seconds)

• When pressed in Bluetooth® Hands-free, redials the last dialled call

• When pressed during a Bluetooth® Hands-free call, switches call back to mobile phone (Private)

• When pressed while calling on the mobile phone, switches call back to Bluetooth ates only when Bluetooth

Hands-free (oper-

Hands-free is connected)

• When pressed during a call, ends the phone call

• When pressed in the incoming call screen, rejects the call

※

The actual image in the vehicle may differ from the illustration.

Component Names and Functions I 1-7

Starting the System for the First Time

NOTICE

• Cannot operate the system while it is

booting up.

System Reset

Turning the System On/Off

Press the engine start button or set the

ignition key to On or ACC. Each time you

turn on the system, a boot logo and safety

warning will appear.

Pressing the power key on the head unit

will display the safety guide.

Pressing and holding the power key on the

head unit will turn off the system.

Information

• If you turn off the system during a phone call

using the Hands-free feature, then the call will automatically switch to your mobile phone.

NOTICE

• Check the volume when turning on the

system. Before turning on the system, adjust the volume to a reasonable level.

The System Reset function restores the system when it is not operating correctly. Press and hold the ond or longer. (It is recommended that you press the a pin or a clip.)

RESET

key for a sec-

key using a tool, such as

1-8 I Basic

Battery Warning Message

Always use the system while the car

engine is running. If you turn on the sys-

tem while the engine is off, a battery warn-

ing message will appear. When the engine

starts, the message will disappear.

CAUTION

• If you use the system for a long time with

the engine off, the battery may become completely discharged.

Restrictions on Features for Safety Measures

Several features are limited while driving.

The restriction screen will disappear when

shifting gears into P or putting the parking

brake on.

Starting the System for the First Time I 1-9

Home Screen

Controls Menu Conﬁguration for the Home Screen

Tap the icon on any screen to display the Home Screen below.

Features Description

• Shows brief information on the radio or

Radio/

Media Widget

Phone projection

Widget

All menus

My Menu

Apps/Info

Settings

media that is now playing.

• Tap the area to move to the mode that you are listening to.

Shows any connected devices such as iPod and Bluetooth.

Shows all of the items in the system menu.

Add your favourite menus to have quick and easy access to them.

Moves to the Apps/Info screen.

Moves to the Settings screen.

Information Display on the Status Bar

Displays the date and time, along with the system status shown by

the various icons to the right of the clock.

The icons in the following table indicate the various types of sys-

tem status details and events.

Icon Description

Displayed when the audio is muted.

Displays the remaining battery of the Bluetooth phone.

Displayed when connected to Bluetooth for hands-free.

Displayed when connected to Bluetooth for streaming audio.

Displayed when connected to Bluetooth for streaming audio and hands-free.

Displayed when downloading contacts or recent calls from the Bluetooth phone.

Displayed while on a call with the Bluetooth phone.

Displayed when the microphone of the Bluetooth phone is muted.

Displays the signal strength of the Bluetooth phone.

1-10 I Basic

Adding a Feature to My Menu

Select

add the most frequently used menus,

change the menu order, or delete menus.

My Menu

Information

• Up to 24 menus can be added to My Menu.

on the Home Screen to

On-Screen Touch Controls

Learn how to touch the screen to operate

the system.

Select

Tap lightly on a menu or an item to select it.

NOTICE

• The system will not recognise your touch if

you wear a glove or other non-conductive material. Touch the screen using your ﬁnger, an electrostatic touch-screen glove, or a stylus pen.

Drag & Drop

Select a menu or item you want, then drag

and drop it to where you want to place it.

Drag or touch the slider along the play bar

in the music screens to jump to the point

that you want to play from.

Starting the System for the First Time I 1-11

Flick (Quick Scrolling)

Quickly moves up and down in the list.

NOTICE

• Moving the list when there are many items

will display a handler on the right of the display. You can easily move many items at a time with the handler.

Select and Hold

Selecting and holding the or

buttons in the music player will

rewind or fast forward the music.

1-12 I Basic

part.2

Radio/Media

FM/AM

DAB(if equipped)/FM, AM

USB

iPod

AUX

Bluetooth

Audio

Radio/Media

FM/AM

You can access the radio player either by pressing the

key or by selecting the Radio menu from All menus on the Home

screen.

RADIO

Features Description

• Displays currently operating mode.

Mode Display

Frequency

Favourites

List

Scan

• Tap the desired mode to change to it in Radio.

Displays the current frequency.

Show the stored Favourites for user selection.

Moves to the list screen.

Shortly plays the broadcasts for the frequencies with superior reception for 5 seconds per item.

Sound settings : moves to the sound settings.

2-2 I Radio/Media

DAB(if equipped)/FM, AM

You can access the radio player either by pressing the

key or by selecting the Radio menu from All menus on the Home

screen.

RADIO

Features Description

• Displays currently operating mode.

Mode Display

Frequency

Favourites

List

Scan

• Tap the desired mode to change to it in Radio.

Displays the current frequency.

Show the stored Favourites for user selection.

Takes you to the FM station list.

Shortly plays the broadcasts for the frequencies with superior reception for 5 seconds per item.

TA function allows the system to switch to traffic announcement (TA) from the current source. Traffic programmes and announcements can be automatically received by using TA features.

• Sound settings : moves to the sound settings.

DAB

• Manual tune FM : moves to the Manual tune FM.

• Regional : Regional auto On/Off.

DAB(if equipped)/FM, AM I 2-3

Features Description

• Pressing this button briefly (less than 0.8 seconds): seeks the previous/next frequency.

• Pressing and holding this button (for over than

SEEK/TRACK

0.8 seconds): moves quickly through all of the frequencies. The moment that you release the button, the system seeks the next available frequency.

TUNE

Turn the able frequencies.

TUNE

knob to manually seek avail-

2-4 I Radio/Media

USB

Before Playing a USB MP3

Connect the USB device after turning on the engine. The USB

device may become damaged if it is already connected when the

ignition is turned on.

• Files that are not standard format music files will not be played.

• For MP3/WMA/OGG files, only music files with compression

rates between 8Kbps to 320Kbps can be played.

• Heed caution to static electricity when connecting/disconnecting

external USB devices.

• Encoded MP3 Players will not be recognised when connected

as an external device.

• When connecting an external USB device, the device may not

properly recognise the USB is in some states.

• Only products formatted with byte/sectors under 64Kbyte will be

recognised.

• USB devices, formatted to the FAT12, FAT16, or FAT32 file sys-

tem are recommended. File systems other than FAT12, FAT16,

FAT32, exFAT, and NTFS are not supported.

• Some USB devices may not be supported due to compatibility

issues.

• Take caution so that the USB connector does not come in con-

tact with body parts or objects.

• Repeated connecting/disconnecting of USB devices within short

periods of time may result in product malfunction.

• Make sure to connect/disconnect external USB devices with the

audio power turned off.

• The amount of time required to recognise the external USB

device may differ depending on the type, size, or file formats

stored on the USB.

• The use of USB devices for purposes other than playing music

files is prohibited.

• Do not use the USB I/F to charge batteries or USB accessories

that generate heat. Such acts may lead to worsened perfor-

mance or damage to the device.

• The device may not recognise the USB device if separately

purchased USB hubs and extension cables are being used.

Connect the USB directly with the multimedia terminal of the

vehicle.

• When using mass storage USB devices with separate logical

drives, only files saved to the root drive can be played.

• When application programs are installed to specific USBs, files

may not properly play.

USB I 2-5

• The device may not operate normally if MP3 Players, cellu-

lar phones, digital cameras, or other electronic devices (USB

devices not recognised as portable disk drives) are connected

with the device.

• Charging through the USB may not work for some mobile

devices.

• The device may not support normal operation when using a USB

memory type besides Metal Cover Type USB Memory.

• The device may not support normal operation when using for-

mats such as HDD Type, CF, or SD Memory.

• Upon playing iPods, please use a dedicated iPod car cable.

• Normal operations cannot be guaranteed when other cables are

being used.

• The device will not support files locked by DRM(Digital Rights

Management).

• USB memory sticks used by connecting an Adaptor (SD Type or

CF Type) may not be properly recognised.

• Only use Plug type connector products, as shown in the figure

below.

• To play USB MP3, the USB device must be connected to the

USB port in the front multibox. The USB port in the centre con-

sole storage (if equipped) is for charging only.

Plug Type Connector

Product Name Manufacturer

XTICK LG

BMK BMK Technology

SKY-DRV Sky Digital

TRANSCEND JetFlash Transcend

Sandisk Cruzer SanDisk

Micro ZyRUS ZyRUS

NEXTIK Digiworks

Information

• Problems that occur through use of USB devices not listed within the

above table are not covered by the product warranty.

2-6 I Radio/Media

Supported USB music speciﬁcations

Name Description

Audio File Specification

Recommended Bit Rates and Sampling Frequency

Detailed Specifications

MPEG-1/2 layer3, OGG (Vorbis), FLAC, WMA (Standard/Professional)

MPEG-1/2 layer3

• 8 kbps to 320 kbps (CBR or VBR), to 48 kHz

• ID3 Tag: Suppor ts ID3v1.0 and ID3v1.1, ID3v2.3, ID3v2.4 ID3 tags

OGG (Vorbis): From Q-1 to Q10, to 48 kHz

FLAC: 8 bit/16 bit/24 bit, to 48 kHz

WMA

• Standard (0x161): to support L3 Profile: to 385 kbps, to 48 kHz

• Professional (0x162): to support M0b: to 192 kbps, to 48 kHz

Maximum directory layers: 20 layers Maximum length of folder name/file name: 255 bytes Supported characters for folder name/file name: Alphanumeric characters, Korean standard character set 2,350 characters, Simplified Chinese 4888 characters Maximum number of folders which can be stored onto one USB: 2000 folders (including ROOT) Maximum number of files which can be stored onto one USB: 8000

Information

• The sound quality of audio files that use bitrates exceeding 192 kbps

cannot be guaranteed. When using files without fixed bit rates, some features (FF/REW features) may not operate properly.

USB I 2-7

USB Music

Features Description

Mode

File Index

Repeat/

Shuffle

Play Time

Song Info

Displays current operating mode

Shows the current file/total files within the USB

From Repeat/Shuffle, displays the current operating function

Displays the current play time/total play time

Displays the artist/title/album info

Features Description

• If button is pressed (less than 0.8 seconds): moves to the previous file or play the current file from the beginning (Depends on the play time)

- If play time is less than 3 seconds, moves to

Previous File

Play/Pause

Next File

Repeat

Shuffle

previous file

- If play time is over 3 seconds, play the current file from the beginning

• If button is pressed (over 0.8 seconds): it rewinds the track

Plays/pauses the current file

• If button is pressed (less than 0.8 seconds): moves to the next file

• If button is pressed (over 0.8 seconds): it fast-forwards the track

Repeats the current file.

• If select the file in the file tab on the list screen: select this button to switch between repeating the current file, repeating folder, and repeating all files.

• If select the file in the other tabs on the list screen: select this button to switch between repeating the current file and repeating all files.

Plays files in random order.

• If select the files in the file tab on the list screen: select this button to switch between shuffle folder, shuffle all, and turning off.

• If select the track in the other tabs on the list screen: select this button to switch between shuffle category and turning shuffle off.

2-8 I Radio/Media

Features Description

List

Back Button

TUNE

Moves to the list screen

• Delete current file: a selected file can be deleted. Deleted file can be found in the ‘to_ delete’ folder.

This function is only supported when USB

format is compatible with FAT16 or FAT32.

• Sound settings: moves to the sound settings.

Converts to basic mode screen

Turn the track. If the desired track is displayed, press the

TUNE

knob to search a desired

knob to play the track.

USB I 2-9

Features Description

Folder/

Category

Displays folder/category name in the list

Name

Current Song

Back Button

Upper Folder/

Category

Displays current playing file name

Converts to basic mode screen

Moves to upper Folder/Category

Show current track: when moving to a different

list screen, moves to the list page where the current file is located (Becomes disabled when the current list includes the current file)

Search Menu

Search songs by the list type

• If button is pressed (less than 0.8 seconds): plays previous/next track.

SEEK/TRACK

• If button is pressed (over 0.8 seconds): moves to play screen, and then it will rewind or fast-forward the track.

TUNE

knob to move the focus to the

TUNE

knob to play the track.

TUNE

Turn the previous/next list. If the desired track is displayed, press

2-10 I Radio/Media

iPod

Using iPod Devices

• iPod is a registered trademark of Apple

Inc.

• iPod mode will not operate if the con-

nected iPod cannot be recognised due

to operation of unsupported versions

that do not support related protocols,

iPod abnormalities, or iPod device

defects. Some iPods with unsupported

communication protocols may not prop-

erly operate with the Multimedia system.

• For fifth generation iPod Nano devices,

the iPod may not be recognised when

the battery level is low. Please charge

the iPod for use.

• Search/play orders shown within the

iPod device may differ with the orders

shown within the Multimedia system.

• If the iPod malfunctions due to an iPod

device defect, reset the iPod and try

again. (To learn more, refer to your iPod

manual)

• If repeatedly connect and disconnect

iPod/iPhone to the Multimedia system

with USB cable in short time, it may

cause abnormal operation.

• The time for recognition of iPod/iPhone

may vary depending on device type,

firmware version and iOS version.

• For some iPod Touch and iPhone

devices, connecting Bluetooth

while the

iPod is operating may result in discon-

tinued iPod sound. When such devices

with Bluetooth

support are connected,

this problem occurs as the sound source

is changed from the Dock Connector

(USB connector cable) to Bluetooth.

• To prevent this symptom, Bluetooth

Audio function in the Multimedia system

is limited if iPod/iPhone is connected

to the system through both cable and

Bluetooth. To listen to the iPod sound,

use either iPod menu with USB connec-

tion or Bluetooth Audio with Bluetooth

connection.

• To listen to the iPod sound, reconnect

the USB cable or change the audio out-

put settings in iPod/iPhone to Dock.

• In order to use the iPod while operating

the keys, you must use a dedicated iPod

cable. (the cable that is supplied when

purchasing iPod/iPhone products)

※

During ACC ON state, connecting the

iPod through the iPod cable (The cable

that is supplied when purchasing iPod/

iPhone product.) will charge the iPod

through the head unit.

※

The use of genuine iPod cables sup-

plied by Apple is recommended. (The

use of other products may result in

noise or abnormal operation.)

※

To play iPod music through cable con-

nection, the iPod/USB cable must be

connected to the USB port in the front

multibox. The USB port in the centre

console storage (if equipped) is for

charging only.

iPod I 2-11

• When connecting with the iPod cable,

make sure to fully insert the jack to pre-

vent communication interference. If the

iPod is connected to the vehicle while it

is playing, a high pitch tone may sound

for about 1 to 2 seconds immediately

after connection. If possible, connect

the iPod to the vehicle with the iPod

stopped/paused.

• Within iPhones, streaming audio and

iPod control may occasionally conflict.

If problems persist, remove the iPhone

and connect again.

• When connecting to iPod Nano/Classic,

the Kia Motors logo appears on the

Apple device. For the iPod Nano 6 gen-

eration, however, the logo image does

not appear since it is not supported.

Also, all iPhone and iPod Touch prod-

ucts do not support this function.

• In Apple’s iOS 6.0 version or later,

Podcast and Audiobook media files

are designed to be played with the

Podcasts and iBooks applications spe-

cifically designed for Apple products. If

the Apple device does not provide the

Podcast and Audiobook lists, the playlist

may not be displayed and played in the

iPod mode.

• If the Apple Podcasts and iBooks apps

are not installed on the Apple device, but

the Apple device provides the Podcast

and Audiobook lists, you can play files in

other categories in iPod mode.

• The screen of multimedia system can

be different when you run other music

players (e.g. iHeartRadio) on your con-

nected device.

2-12 I Radio/Media

• While using a connected iPhone/iPod

Touch device, it may not operate nor-

mally if the user changed some func-

tions in the device.

• When calling with an iPhone connec-

tion, song may stop playing due to an

Apple device feature. If sound does

not resume after the call is terminated,

check the device status.

• If lots of songs have the same informa-

tion, skipping may occur when previous/

next song is executed due to an Apple

device feature. Also problems may

occur depending on device type or iOS

version.

• If lots of songs have the same informa-

tion, it may occur difference of playing

songs between the Multimedia system

and Apple device. Reset the device or

delete the same songs in the Apple

device using iTunes.

• If you control pause, repeat, shuffle,

or seek songs when the play time is

less than 3s before finished playing, it

may occur difference of playing song

between the Multimedia system and

Apple device. Access to iPod music from

another mode or pause a song and then

play a song again in Apple device.

• If the iPhone/iPod Touch supports

Bluetooth, it is unable to use Bluetooth

Audio if the Apple device that is con-

nected to the Multimedia system

through both USB connection and

Bluetooth. Disconnect the USB connec-

tion then use Bluetooth Audio.

• If iPod/iPhone connected to the

Multimedia system through both USB

and AUX. iPod/iPhone keeps output

sound via AUX, thus it may occur sound

will not output in iPod mode.

• If AUX cable connected to iPod/iPhone

but not connect to the Multimedia sys-

tem, it may occur sound will not output

in iPod mode due to iPod/iPhone’s fea-

ture. Especially, if you use AUX cable

like pictures, this problem may occur.

• Disconnect AUX cable from iPod/iPhone

first, then connect to the Multimedia

system via USB. Or change settings to

“Dock” in iPod/iPhone.

• If connect to the Multimedia system

while podcast or iTunes music down-

loading to iPod/iPhone, it may occur

some problems when you select song

in the list. Reconnect iPod/iPhone to the

Multimedia system when downloading

is finished or the file deleted.

• If connect to the Multimedia system

while sync, it may occur some problems.

Try to use iPod/iPhone connection after

sync complete. (To learn more, refer to

your iPod manual)

iPod I 2-13

• iPhone and iPod Touch devices are

guaranteed to work normally on iOS

9.3.2 or below. However, they may not

work normally on future iOS versions

as their operations have not yet been

• We recommend that your Apple device

uses the latest firmware since some

problems may occur due to an outdated

firmware or other software related

issues.

tested.

Type 1G 2G 3G 4G 5G 6G 6.5G 7G

iPod Mini

iPod Shuffle

iPod Nano

○ ○ ○ ○ ○ ○

Not Supported

Not released

○

iPod Touch

Type 1G 2G 3G 4G 5G 6G 6.5G 7G

iPad

iPad Mini

iPod Classic Not Supported

Type 3G 3GS 4 4S 5 5C 5S 6 6+ 6S 6S+ SE 7 7+

iPhone

2-14 I Radio/Media

(iOS 1.1 not supported)

Not verified,

Normal operation

not guaranteed

○

○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○

○ ○ ○ ○ ○

(Unable to charge, Not verified, Normal operation not guaranteed)

○

(iPod with Video)○(iPod Classic)○(iPod Classic)

Not released

iPod

Features Description

Mode

Song Index

Repeat/

Shuffle

Play Time

Song Info

Displays current operating mode

Shows the current song/total songs

From Repeat/Shuffle, displays the current operating function

Displays the current play time/total play time

Displays the artist/title/album info

Features Description

• If button is pressed (less than 0.8 seconds): moves to the previous file or play the current file from the beginning (Depends on the play time)

Previous File

Play/Pause

Next File

Repeat

Shuffle

List

Back Button

- If play time is less than 3 seconds, moves to previous file

- If play time is over 3 seconds, play the current file from the beginning

• If button is pressed (over 0.8 seconds): it rewinds the track

Plays/pauses the current file

• If button is pressed (less than 0.8 seconds): moves to the next file

• If button is pressed (over 0.8 seconds): it fast-forwards the track

Repeats the current song. Select this button to switch between repeating the current song and repeating all songs.

Plays songs in random order. Select this button to switch between shuffle category and turning shuffle off.

• Shuffle Category: shuffle song in the current category

Moves to the list screen

Sound settings: moves to the Sound settings.

Move to home/previous mode screen

iPod I 2-15

Features Description

Turn the

TUNE

knob to search a desired

track. If the desired track is displayed, press the

TUNE

knob to play the track.

If you do not anything with the

knob for 5 seconds of searching tracks, the track info for the current track is restored.

TUNE

2-16 I Radio/Media

Features Description

Category

Name

Category List

Back Button

Upper

Category

Search Menu

SEEK/TRACK

TUNE

Displays the category name

Displays the contents of selected category

If there are many items in the list, items are

added in order and the scroll bar on the right is adjusted accordingly.

Converts to basic mode screen

Moves to upper category

Search songs by the list type

• If button is pressed (less than 0.8 seconds): plays previous/next track.

• If button is pressed (over 0.8 seconds): moves to play screen, and then it will rewind or fast-forward the track.

TUNE

Turn the If the desired track is displayed,

TUNE

knob to play the track.

If you do not anything with the knob for 5 sec-

onds, the nated.

knob to search a desired track.

TUNE

knob search will be termi-

press the

iPod I 2-17

AUX

Connecting an External Device

Connect an external device cable to the

AUX input to automatically switch to AUX

mode. Unplug the cable to automatically

switch back to the previous mode.

AUX mode is available only when an

external device (laptop, MP3 player etc.) is

connected.

The AUX input volume can be adjusted

separately from other AV modes.

NOTICE

• If only a cable is connected to the AUX

without an external device, the mode will be changed to AUX, but noise may occur. When an external device is not being used, remove the connector jack.

• When the external device power is

connected to the power jack, playing the external device may output noise. In such cases, disconnect the power connection before use.

※

The actual image in the vehicle may differ from the illustration.

2-18 I Radio/Media

Bluetooth® Audio

Features Description

Mode

Phone Name

Displays current operating mode

Displays name of connected phone

Features Description

Artist Info

Title

Previous File

Play/Pause

Next File

Repeat

Shuffle

SEEK/TRACK

TUNE

Information

• Artist info and Title may not be supported by mobile phone.

• While in use of other functions after connecting your mobile phone

through a USB cable, the Bluetooth audio is disabled.

Name of current artist

Name of current song

• If play time is less than 3 seconds, moves to the previous file

• If play time is over 3 seconds, plays the current file from the beginning

This function may differ depending on the

model of mobile phone

Plays/Pauses Bluetooth Audio

Moves to the next file

Repeats the current file.

This function may differ depending on the

model of mobile phone.

Plays files in random order.

This function may differ depending on the

model of mobile phone.

• Connection settings: moves to the Bluetooth Settings. You can pair a new device or change/ delete paired device(s).

• Sound settings: moves to the sound settings.

Plays the previous/next file

TUNE

is not supported.

Bluetooth® Audio I 2-19

Bluetooth connections

Settings for pairing, connection and dis-

connection of a Bluetooth device.

• In Bluetooth Audio play screen, select

and then

Information

• If the music in the mobile phone is not played

after changing to audio streaming mode, press the play button. Thus check if the music is playing in the Bluetooth device after changing to audio streaming mode. Audio streaming may not be supported for some mobile phones.

Connection settings

2-20 I Radio/Media

part.3

Bluetooth

Before Using the Bluetooth® Handsfree

Bluetooth Connection

Bluetooth Phone

Bluetooth

Before Using the Bluetooth

What is Wireless Technology?

•

Bluetooth

to a short-distance wireless networking

technology which uses a 2.45GHz fre-

quency to connect various devices within

a certain distance.

• Supported within PCs, external devices,

Bluetooth

tronic devices, and automotive environ-

ments,

to be transmitted at high speeds without

having to use a connector cable.

• Bluetooth® Handsfree refers to a device

which allows the user to conveniently

make phone calls with Bluetooth

mobile phones through the Multimedia

system.

Handsfree

Bluetooth®

Wireless Technology refers

phones, PDAs, various elec-

Bluetooth

Wireless Technology

• The Bluetooth® Handsfree feature

may not be supported in some mobile

phones.

Precautions for Safe Driving

• Bluetooth® is a feature that enables driv-

ers to practice safe driving. Connecting

the head unit with a Bluetooth

allows the user to conveniently make

calls, receive calls, and manage the

phonebook. Before using

Wireless Technology, carefully read the

contents of this user’s manual.

• Excessive use or operations while driv-

ing may lead to negligent driving prac-

tices and be the cause of accidents. Do

not operate the device excessively while

driving.

• Viewing the screen for prolonged peri-

ods of time is dangerous and may lead

to accidents. When driving, view the

screen only for short periods of time.

phone

Bluetooth

3-2 I Bluetooth

CAUTIONS upon Connecting

Bluetooth

• Before connecting the head unit with the

mobile phone, check to see that the mobile

phone supports Bluetooth

• Even if the phone supports

Wireless Technology, the phone will

not be found during device searches if

the phone has been set to hidden state

or the Bluetooth

Disable the hidden state or turn on the

Bluetooth

connecting with the head unit.

• If Auto Connection is used, the Bluetooth

phone is automatically connected when

the ignition is turned on, making it unnec-

essary to have to connect the phone with

the head unit every time.

Phone

features.

Bluetooth

power is turned off.

power prior to searching/

• If you do not want automatic connection

with your Bluetooth

Bluetooth

feature off of the Bluetooth

device, turn the

device.

• Park the vehicle when connecting the

head unit with the mobile phone.

• Bluetooth® connection may become

intermittently disconnected in some

mobile phones. Follow these steps to try

again.

1. Turn the Bluetooth® function within the

mobile phone OFF/ON and try again.

2. Turn the mobile phone power OFF/

ON and try again.

3. Completely remove the mobile phone

battery, reboot, and then again.

4. Reboot the Multimedia System and

try again.

5. Delete all paired devices from both of

Phone and Head Unit sides and then

try again.

• The Handsfree call volume and quality

may differ depending on the mobile

phone.

• Pairing Bluetooth® devices and use of

other Bluetooth

features are not sup-

ported when the vehicle is in motion. For

safety, please first park your vehicle.

• If you continue having issues with

downloading contacts, please check the

mobile phone status or inquire of the

mobile phone manufacturer.

Before Using the Bluetooth® Handsfree I 3-3

Bluetooth Connection

Pairing a New Device

Before you can use the Bluetooth feature,

you must first pair/connect your mobile

phone to your car.

Up to 5 Bluetooth devices can be paired.

Only one Bluetooth device can be con-

nected at a time.

Pairing a New Device by Selecting Phone/Call

Press

steering wheel control. ▶ Pair your car

after your mobile phone detects the

Bluetooth device. ▶ Enter the passkey or

accept the authorisation popup. ▶

Connect Bluetooth.

PHONE

key or key in the

Pairing a New Device Through the Phone Settings

Add new

SETUP

key. ▶ Select

Bluetooth connections

▶

Pair your car after your mobile

Press

Select

phone detects the Bluetooth device. ▶

Enter the passkey or accept the authorisa-

tion popup. ▶ Connect Bluetooth.

The default passkey is 0000.

The vehicle name above is an example.

Check the actual information on the product.

Bluetooth

▶

Select

Connecting Bluetooth Devices

Connects the Bluetooth devices that you

add.

Connecting Devices by Selecting Phone/Call

Press

steering wheel control. ▶ Select the name

of the device to connect. ▶ Connect

Bluetooth.

PHONE

key or key in the

3-4 I Bluetooth

Connecting Devices Through the Phone Settings

Press

Select

SETUP

key. ▶ Select

Bluetooth connections

name of the device to connect. ▶ Connect

Bluetooth.

Bluetooth

▶

Select the

▶

Disconnecting Bluetooth Devices

Disconnects Bluetooth devices that are

connected.

Press

Select

name of the device to disconnect.

SETUP

key. ▶ Select

Bluetooth connections

▶

Select the

Bluetooth

Deleting Bluetooth Devices

Deletes the Bluetooth devices that you

added. Note that deleting a Bluetooth

device will delete all Call History and

Contact Info downloaded along with it.

▶

Press

Select

SETUP

Bluetooth connections

Delete devices

key. ▶ Select

. ▶ Select the device name

to delete. ▶ Select

Delete

Bluetooth

▶

Select

Bluetooth Connection I 3-5

Bluetooth Phone

Phone Status Icons

Shows the current phone status in the

right top of the display.

Icons Description

You can use Bluetooth phones when a Bluetooth Hands-free connection is established.

You can use Bluetooth audio features when a Bluetooth audio connection is established.

You can use Bluetooth phones and audio features when both Bluetooth Hands-free and audio connections are established.

Call signal strength indicator

Battery level of the Bluetooth devices connected

Downloading Call History list

Downloading Contacts

In a Bluetooth phone call

Microphone muted

Information

• The battery level icon and the call signal

strength indicator may not be supported in some Bluetooth devices.

• The battery level may differ from the actual

level remaining.

3-6 I Bluetooth

Dial

Dials a call after the Bluetooth devices

are connected.

All menus

Select

play ▶Select

from the Home screen dis-

Phone

▶

Select

Dial

Name Description

Use the keypad to enter the phone number that you want to call. Select

Keypad

Call

Settings

Delete

and hold the last number of a speed dial to dial a number that you added to the Speed Dial list in the phone.

Makes a call after you dial a number and select

. If the number is listed in Dialled Calls, you can select the number and select cally dial that number again.

Moves to a screen of Bluetooth Settings.

Deletes the numbers that you entered.

to automati-

Information

• Some types of mobile phones may not

support the Speed Dial function.

Accept/Reject Call

If there is an incoming call after you made

a Bluetooth connection, a popup message

will appear.

Name Description

Reject

Information

• In some mobile phones, the caller's number

may not be displayed, and the Reject feature may not be supported.

Answers the call.

Ignores the call.

Bluetooth Phone I 3-7

Using the Menu During a Phone Call

When making a call, you can use the following menu items.

Name Description

Switches a voice call

Use private

End

Contacts

Outgoing

Volume

Keypad

Switch

from the car Hands-free to the mobile phone.

Ends a call.

Displays the Contacts list.

Displays the Mic Volume settings. You can adjust the in-call volume that the other party hears (level 1 to 5).

Moves to a screen for entering ARS numbers.

Switches to a call on hold, if any. You can also switch calls by selecting the number in the Information Display. The Switch function switches the current call to a waiting call in order to answer a new incoming call.

Information

• If the caller's number is listed in Contacts, the

caller's name will be displayed. Otherwise, only the number will be displayed. In some mobile phones, the phone number may not be displayed.

• In some Bluetooth devices, the Use Private

feature may not be supported.

• In some Bluetooth devices, the Switch feature

may not be supported.

• Depending on handset types, the in-call

volume the other party hears may differ. If the other party hears your voice too low or too loud, adjust the mic volume.

3-8 I Bluetooth

Call History

Select

All menus

Call History

Name Description

All

Dialled

Received

Missed

Call History

Download

▶

Select

Lists the all call history.

Lists the calls that you made.

Lists the calls that you have received.

Lists the calls you missed.

Displays all of your call history. Select from the list to dial the number.

Downloads the call history information from your mobile phone.

Phone

Information

▶

• In some mobile phones, call records may not

be added to your Call History.

• Calls from restricted ID's are not added to

your Call History Information.

• Up to 50 calls can be added in each Dialled

Calls/Received Calls/Missed Calls list.

• The durations of each dialled/received call are

not displayed in your car's Call History list.

• While the call history download is in progress,

the status bar displays an icon ( ).

• If the call history download is turned off on the

Bluetooth device, the call history download will fail.

• Some devices require a device authentication

for downloading your call history. If download fails, check if the Bluetooth settings or display status are normal.

• Some devices do not support call history

download. Check if your Bluetooth device supports download feature.

Bluetooth Phone I 3-9

Contacts

Select

All menus

Contacts

Name Description

Contacts List

Download

▶

Select

The list of Contacts. Select from the list to dial the number.

Downloads contacts from your mobile phone.

Searches Contacts.

Phone

Information

▶

• Up to 5000 phone numbers can be

downloaded from a single, paired Bluetooth device.

• You cannot edit or delete downloaded phone

numbers from your car.

• Contacts can be viewed only when the

Bluetooth device is connected.

• Even if the Bluetooth device is disconnected,

the downloaded data will remain. (Note that deleting a paired phone will also delete all downloaded Contacts and Call History data)

• Downloaded phone numbers may be lost

depending on the condition of the Multimedia system. Keep your important data in a safe place.

• Contacts from both the SIM card and your

mobile phone are downloaded at the same time by default.

• Only supported contacts format can be

downloaded and displayed from the Bluetooth device, contacts from some applications will not be included.

• The status bar displays a ( ) while

downloading contacts.

• The download will not be available if the

contacts download function is turned off on your Bluetooth device.

• Some devices require a device authentication

for downloading your contacts. If download fails, check your phone screen and confirm the download if necessary.

• Some devices do not support contacts

download feature. Check if your Bluetooth device supports contacts download.

3-10 I Bluetooth

Favourites

Select

All menus

Favourites

Name Description

Favourites

Edit

Delete

▶

Select

Lists the phone numbers saved as Favourites. Select from the list to dial the number.

Add or delete numbers from favorites.

Deletes numbers that you select from Favourites.

Phone

▶

Bluetooth Phone I 3-11

MEMO

part.4

Other Features

Camera

Other Features

Camera

WARNING

- Backing Up & Using Camera

• Never rely solely on the rear view camera

when backing up. Prior to entering your vehicle always do a visual check of the area behind your vehicle, and before backing up be aware of your surroundings and supplement the rear view camera by looking over your shoulders and checking your rear view mirrors. Due to the difﬁculty of ensuring that the area behind you remains clear, always back up slowly and stop immediately if you even suspect that a person, and especially a child, might be behind you.

NOTICE

• The camera screen shown while the

system boots up does not display any text or buttons.

• A wide-angle lens is installed as the rear

detection camera to get a wider view, so there may be some difference between the actual distance and the distance that appears. on-screen. For safety, make sure to view the back, right, and left sides of the car for yourself.

• The color of the parking guidelines

displayed in the picture may differ from the actual screen.

• When booted up, blinking may occur when

you switch to a UI screen.

Back-up warning priority

• If

Settings, the audio volume is lowered when your car is driving backward.

is set in the Sound

4-2 I Other Features

Steering-linked camera

• This device is connected to a rear

detection camera to see behind the car

for safe reversing.

• The Rear View Camera turns on auto-

matically if you shift the gear to R when

the power is on or the engine has

started.

• While the device boots up, shift the gear to

"R" to activate the rear detection cameras.

Shift the gear to another position to deactivate

the rear detection camera.

CAUTION

• Because the cameras use wide-angle lenses

to provide a wide view, the distance in the view may appear different to the actual distance. Always check the left and right views for safety.

Name Description

Red Line

Yellow Line 1

Yellow Line 2

Yellow Line 3

Yellow Line 4

Blue Line

About 0.5 m from the rear bumper

About 1 m from the rear bumper

About 3 m from the rear bumper

Trajectory of the wheel on the driver’s side

Trajectory of the wheel on the passenger side

Neutral steering trajectory

As you reverse your car and monitor the

area behind your car, the steering-linked

driving trajectory and the neutral driving

trajectory are both displayed.

Camera I 4-3

MEMO

part.5

Settings

Sound settings

Display settings

Bluetooth settings

Phone projection settings

Custom button settings

Home screen settings

Date/Time settings

Language settings

Keyboard settings

Screensaver settings

Advanced settings

System info

Settings

Centre

Settings

Settings is the screen to control

Multimedia system settings. To enter the screen, press the

key or the

icon in All menus.

SETUP

Sound settings

Adjusts the sound effects for the whole

system.

Features Description

Select the Up/Down/Left/ Right button to control

Position

sound positioning. Select trate the sound on the centre of vehicle.

to concen-

Features Description

Volume ratio

Equaliser

Loudness

Advanced

Default

Beep

Information

• Advanced sound settings may differ according

to selected AMP option.

• The seat shape may differ according to

vehicle model.

Sets the volume of broadcast, media, ringtone, etc., respectively.

Drag the slide bar to control BASS/MID/TREBLE settings. Select the settings.

Sets the volume ratio when reversing the car, turning on the car’s ignition, etc.

Select additional audio options such as “Speed dependent volume control” that automatically controls Audio volume according to vehicle speed.

Resets the sound to factory default settings.

Select to activate a beep when pressing buttons.

to initialise

5-2 I Settings

Display settings

Reset

Bluetooth

Bluetooth connections

Adjusts the level of illumination for the

entire system.

Features Description

Sets the display bright-

Dimming

Illumination

Default

Display Off

ness according to mode changes.

Set the levels of illumination for day and night. Select the settings.

Resets the display to factory default settings

Provides the Display Off (touch activation) function.

to initialise

Bluetooth settings

Changes Bluetooth phone settings. Press the

Bluetooth connections

Press the

▶

Select

SETUP

key ▶ Select

SETUP

key

▶

Select

Features Description

Displays the paired

Paired

Device List

Bluetooth

Audio Connection Status

Bluetooth

Hands-Free Connection Status

Add new

Delete

devices

Help

Bluetooth device list. When selecting from the list, the device is connected or disconnected.

An icon appears when you make a Bluetooth Audio connection.

An icon appears when you make a Bluetooth Hands-free connection.

Select and delete a paired device.

Switches to the Bluetooth Connection Help screen.

Display settings I 5-3

Information

Bluetooth

Factory settings

Bluetooth

Auto connection priority

Bluetooth

System Bluetooth info

• Up to 5 Bluetooth devices can be paired.

• Only one Bluetooth device can be connected

at a time.

• During a Bluetooth device connection, another

device cannot be paired.

• When you delete a paired device, the Call

History and Contacts stored in the head unit are also deleted.

• Bluetooth Hands-free and Bluetooth Audio

functions are supported.

• Hands-free and audio-supported devices,

such as a Bluetooth smartphone or audio, will function normally.

• When a Bluetooth device is connected, if

the Bluetooth connection is unexpectedly disconnected, due to being out of communication range, the device powering off, or a Bluetooth communication error, the Bluetooth device automatically searches for and connects to nearby Bluetooth devices.

• If the system is not stable, due to a

vehicle-Bluetooth device communication error, restore the Factory settings.

• For Factory settings, the Bluetooth settings

are reset to factory settings.

• Press the

▶

Select

SETUP

key ▶ Select

Auto connection priority

Press the

▶

Select

When the engine is running, the selected

Bluetooth device is automatically con-

nected. If you fail to connect the selected

device, the previously-connected device is

automatically connected, and if it also fails,

then it tries to connect all paired devices

sequentially.

Depending on auto connection priority,

connection to a device may take time.

SETUP

key

▶

Select

System Bluetooth info

Press the

▶

Select

Features Description

Vehicle

name

Passkey

Information

• The vehicle name above is an example.

Check the actual information on the product.

SETUP

key

▶

Select

You can change the Bluetooth device name of the vehicle.

You can change the passkey used for Bluetooth device authentication. The initial passkey is 0000.

5-4 I Settings

Phone projection

Default

settings

For more details, refer to the Phone pro-

jection guide.

Custom button settings

You can choose the feature to be accessed when the

Setting it to a feature that you frequently

use will allow you to access the feature

quickly and conveniently anytime.

For example, setting it to

enable you to access the My Menu screen by pressing the

key is pressed.

My Menu

key.

will

Home screen settings

You can customise the three menu items

at the bottom right of the Home Screen

into the ones you want.

On the Home Screen Settings screen,

drag the menu items on the right to the

area marked in red in the screen below.

Information

• You can select the

the factory default settings.

button to reset to

Phone projection settings I 5-5

Date/Time settings

Language settings

Keyboard settings

Configure the settings for time and date.

Using the arrow buttons, you can change

the values. Date/Time settings do not

automatically change when crossing into

different time zones. The time must be

changed manually on this screen.

Features Description

24-hour

Direct entry

Daylight

saving time

The time display is set in 24-hour format.

If you tap any value, you can directly enter the number in the following screen.

The daylight saving time (DST) is applied.

You can configure the displayed system

language.

When the language is changed, the sys-

tem language is automatically changed.

Unique data including MP3 file name is

not changed.

You can configure the keyboard layout for

each language.

You can configure ABCD or QWERTY

keyboards for the system.

Information

• Configured keyboard layouts are applied

to all input modes.

5-6 I Settings

Screensaver settings

Update

Default

Advanced settings

System info

You can select any of the following screen

formats to be displayed when the screen

or power is turned off (press and hold the

Power button).

• Digital clock and date

• Analogue clock and date

• None

Sets alerts per function if desired by the

user.

Features Description

Sets the media to be



Steering whl mode button

Media

change notifications

played when the steering wheel or rear seat (if provided) ton is pressed.

Sets whether to display media information at the top of the screen as the next item is played when not on the media screen.

MODE

but-

System version information and update

details are available.

Features Description

Version info

Default

Select the to update the system.

When the settings are changed to factory defaults.

button

is selected,

Screensaver settings I 5-7

System Update

Update

Default

At the System Info screen, insert the USB

memory with the latest file downloaded,

and then select the

updating. The system will then reboot

automatically.

Information

• This product needs supplemented software

updates and additional functions, which collectively may take some time to complete, depending on the amount of data.

NOTICE

• If the power is disconnected or the USB is

removed during an update, the data might be damaged. Please do not turn off the vehicle while an update is in progress.

• When

the data and settings so be cautious of your action.

is selected, it may delete all of

button to begin

5-8 I Settings

part.6

Appendix

Product Specification

Troubleshooting

FAQ

Appendix

Product Specification

TFT-LCD

Screen Size 7 inch(152.4 X 91.44 mm)

Resolution 384,000 pixels (Resolution: 800 x 480)

Operating Method

Viewing Angle Left/Right, Top/Bottom: ALL 89°

Internal Lighting LED

Radio

Channels Country3(A3)

Sensitivity FM: Under 10dBuV/AM: Under 35dBu EMF

Distortion Factor

TFT(Thin Film Transistor) Active Matrix

FM : 87.50 to 108.00 MHz (Step: 50 kHz)

AM : 522 to 1620 kHz (Step: 9 kHz)

Within 2 %

Common

Power Supply DC 14.4 V

Current Consumption

Operating Temperature

Dimensions 234 X 147 X 201 mm

Weight 1.8 (DAB) / 1.7 kg

Bluetooth

Frequency Range

Supported Profile

Number of Channels

2.5 A

-20 to +70 °C (-4 to +158 °F)

Wireless Technology

2402 to 2480 MHz

Handsfree(1.6), A2DP(1.2), AVRCP(1.4), PBAP(1.0)

79 channels

Operating Powe r

Sleep Current

Storage Temperature

Supported Bluetooth Specification

Maximum Output Power

DC 9 V to DC 16 V

1 mA (Head Unit Only)

-40 to +85 °C (-104 to +185 °F)

0 dBm

6-2 I Appendix

Troubleshooting

1. Errors which occur during the operation or installation of the

device may be mistaken as a malfunction of the actual device.

2. If you are having problems with the device, try the suggestions

listed below.

3. If the problems persist, contact your Kia dealer.

Problem Possible Cause

There are small red, blue, or green dots on the screen

The sound or image is not working

The screen is being displayed but sound is not working

When the power is turned on, the corners of the screen are dark

Sound is working from only one speaker

• Because the LCD is manufactured with technology requiring high point density, a pixel or lighting deficiency may occur within 0.01% of total pixels

• Has the Switch for the vehicle been turned to [ACC] or [ON]?

• Has the SYSTEM been turned OFF?

• Has the volume been set to a low level?

• Has the volume been muted?

• The display appearing somewhat dark after prolonged periods of use is normal with LCD panels. It is not a malfunction

• If the screen is very dark, contact your nearest Kia dealer for assistance

• Are the positions of Fader or Balance sound controls adjusted to only one side?

Problem Possible Cause

Sound does not work in AUX mode

The external device is not working

Upon turning power on, the most recent mode screen is not displayed

• Are the audio connector jacks fully inserted into the AUX terminal?

• Is the external device connected with a standard connector cable?

Within modes that play files by reading external sources, such as USB, iPod, or Bluetooth recently played mode screen prior to turning off power may not properly load.

• If the corresponding device is not con-

• If the previous mode still cannot be

streaming mode, the most

nected, the mode operated prior to the most recent mode will operate

properly played, the mode operated prior to that will operate

Troubleshooting I 6-3

Problem Possible Cause Countermeasure

• The fuse is disconnected

• Replace with a suitable fuse

• If the fuse is disconnected

The power does not turn on

• Device is not properly connected

again, please contact your point of purchase or Kia dealer

• Check to see that the device has been properly connected

The system does not play

The image colour/tone quality is low

• The vehicle battery is low

• The brightness, saturation, hue, and contrast levels are not set properly

• Charge the battery. If the problem persists, contact your point of purchase or Kia dealer

• Properly adjust the brightness, saturation, hue, and contrast levels through Display Setup

Problem Possible Cause Countermeasure

• The volume level

• Adjust the volume level is set to the lowest level

Sound does not work

The sound or image quality is low

• The connection is not proper

• The device is currently fast-forwarding, rewinding, scanning, or playing in slow mode

• Vibration is occurring from where the conversion switch has been installed

• Image colour/tone quality is low

• Check to see that the device has been properly connected

• The sound will not work when the device is fast-forwarding, rewinding, scanning, or playing in slow mode

• The sound may be short-circuited and the image distorted if the device vibrates

• The device will return to normal once vibrations stop

6-4 I Appendix

Problem Possible Cause Countermeasure

The USB does not work

• USB memory is damaged

• USB memory has been contaminated

• A separately purchased USB HUB is being used

• A USB extension cable is being used

• A USB which is not a Metal Cover Type USB Memory is being used

• An HDD type, CF, SD Memory is being used

• There are no music files which can be played

• Please use the USB after formatting it.

• Remove any foreign substances on the contact surface of the USB memory and multimedia terminal

• Directly connect the USB memory with the multimedia terminal on the vehicle

• Use standard USB Memory

• Only MP3, WMA file formats are supported. Please use only the supported music file formats

Problem Possible Cause Countermeasure

• There are no titles which can be

The iPod is not recognised even though it has been connected

Bluetooth does not work or its limited functions are available

Information

• While operating the device, if an abnormality occurs that cannot be

corrected with the above described measures, press the reset the system.

• Press and hold the

off and the system will reset.

played

• The iPod firmware version has not been properly updated

• The iPod device does not recognise downloads

• Bluetooth on your mobile phone is set to OFF

• The Bluetooth connection is not made

RESET

key (over 1 second). The device power will turn

• Use iTunes to download and save MP3 files into the iPod

• Use iTunes to update the firmware version and reconnect the iPod with the device

• Reset the iPod and reconnect with the device

• Set it to ON

• Make the connection active

RESET

key to

Troubleshooting I 6-5

FAQ

Bluetooth

System Bluetooth info

Passkey

About Pairing Mobile Phones

Q I cannot pair my mobile phone. What is the cause?

A Check to see that the mobile phone supports Bluetooth

func-

tion. Verify if Bluetooth on the cell phone is set to OFF. If so, set

it to ON. If the cell phone still can’t be registered, try again after

turning Bluetooth off and on, or delete the device registration on

the multimedia system and cell phone and then register the cell

phone again.

Q What is the difference between pairing a mobile phone and con-

necting a mobile phone?

A Pairing occurs through authenticating the head unit and mobile

phone. Mobile phones paired to the head unit can be connected

and disconnected until the paired mobile phone is deleted from

the system. Bluetooth

Handsfree features, such as making/

answering calls or managing contacts, are supported only in

mobile phones connected with the head unit.

Q What is a Passkey?

A A passkey is the password used to authenticate the connection

between the head unit and mobile phone. The passkey only

needs to be entered once when pairing the mobile phone for

the first time.

The initial passkey is 0000. You can change it with

▶

menu options.

SETUP

▶

6-6 I Appendix

About Making/Answering Phone Calls

Reject

Use private

Q How can I answer a call?

A When there is an incoming call, a notification pop-up will

become displayed. To answer the incoming call, press the

button on the screen or the

ing remote controller.

To reject the call, press the

press the

Q What should I do if I am talking on the Handsfree but want to

switch the call to the mobile phone?

A While on a call, press and hold (over 0.8 seconds) the

key on the steering remote controller or press the

button at the bottom of the Phone screen to switch the call to

your mobile phone.

key on the steering wheel control.

key on the steer-

button on the screen or

About

Bluetooth

Wireless Technology/

Multimedia System Use Environment

Q What is the range of my wireless connection?

A The wireless connection can be used within 15 yards.

Q How many mobile phones can be paired?

A It is possible to pair up to five mobile phones.

Q Why is call quality sometimes poor?

Check the reception sensitivity of the mobile phone when call

quality becomes worsened. The call quality may deteriorate when

the signal strength is low. Call quality may also worsen if metal

objects, such as beverage cans, are placed near the mobile

phone. Check to see if there are metal objects in the vicinity of

the mobile phone. The call sound and quality may differ depend-

ing on the type of mobile phone.

FAQ I 6-7

Important Safety Information

Before using your Multimedia system, read and follow all instructions and safety information provided in this end user manual ("User's

Guide"). Not following precautions found in this User's Guide can lead to an accident or other serious consequences.

Keep User's Guide in Vehicle

When kept in the vehicle, the User's Guide will be a ready reference for you and other users unfamiliar with the Multimedia system. Please

make certain that before using the system for the first time, all persons have access to the User's Guide and read its instructions and

safety information carefully.

Warning

Operating certain parts of this system while driving can distract your attention away from the road, and possibly cause an accident or other

serious consequences. Do not change system settings or enter data non-verbally (using your hands) while driving. Stop the vehicle in a

safe and legal manner before attempting these operations. This is important since while setting up or changing some functions as you may

to distract your attention away from the road and remove your hands from the wheel.

Prolonged Views of Screen

Do not access any function requiring a prolonged view of the screen while you are driving. Pull over in a safe and legal manner before

attempting to access a function of the system requiring prolonged attention. Even occasional short scans to the screen may be hazardous

if your attention has been diverted away from your driving task at a critical time.

Volume Setting

Do not raise the volume excessively. Keep the volume at a level where you can still hear outside traffic and emergency signals while

driving. Driving while unable to hear these sounds could cause an accident.

FCC

FCC Part 15.19 Statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC Part 15.21 statement

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to

operate this equipment.

RF Exposure Statement (MPE) The antenna(s) must be installed such that a minimum separation distance of at least 20 cm is maintained between the radiator (antenna) and all persons at all times. This device must not be co-located or operating in conjunction with any other antenna or transm

FCC Part 15.105 statement This

equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

,&:DUQLQJ

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This

device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired

operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est

autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout

brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

RF Exposure

The antenna (or antennas) must be installed so as to maintain at all times a distance minimum of at least 20 cm between the radiation

source (antenna) and any individual. This device may not be installed or used in conjunction with any other antenna or transmitter.

l’exposition aux RF

L’antenne (ou les antennes) doit tre install e de fa on maintenir tout instant une distance minimum de au moins 20 cm entre la source de

radiation (l’antenne) et toute personne physique.

Hyundai ADB10H9AN Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
