Ride Mower
YTH2548 A
954571984
Illustrated
Parts List
2003-11
I0302028
Repair Parts Manual
www.mymowerparts.com
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

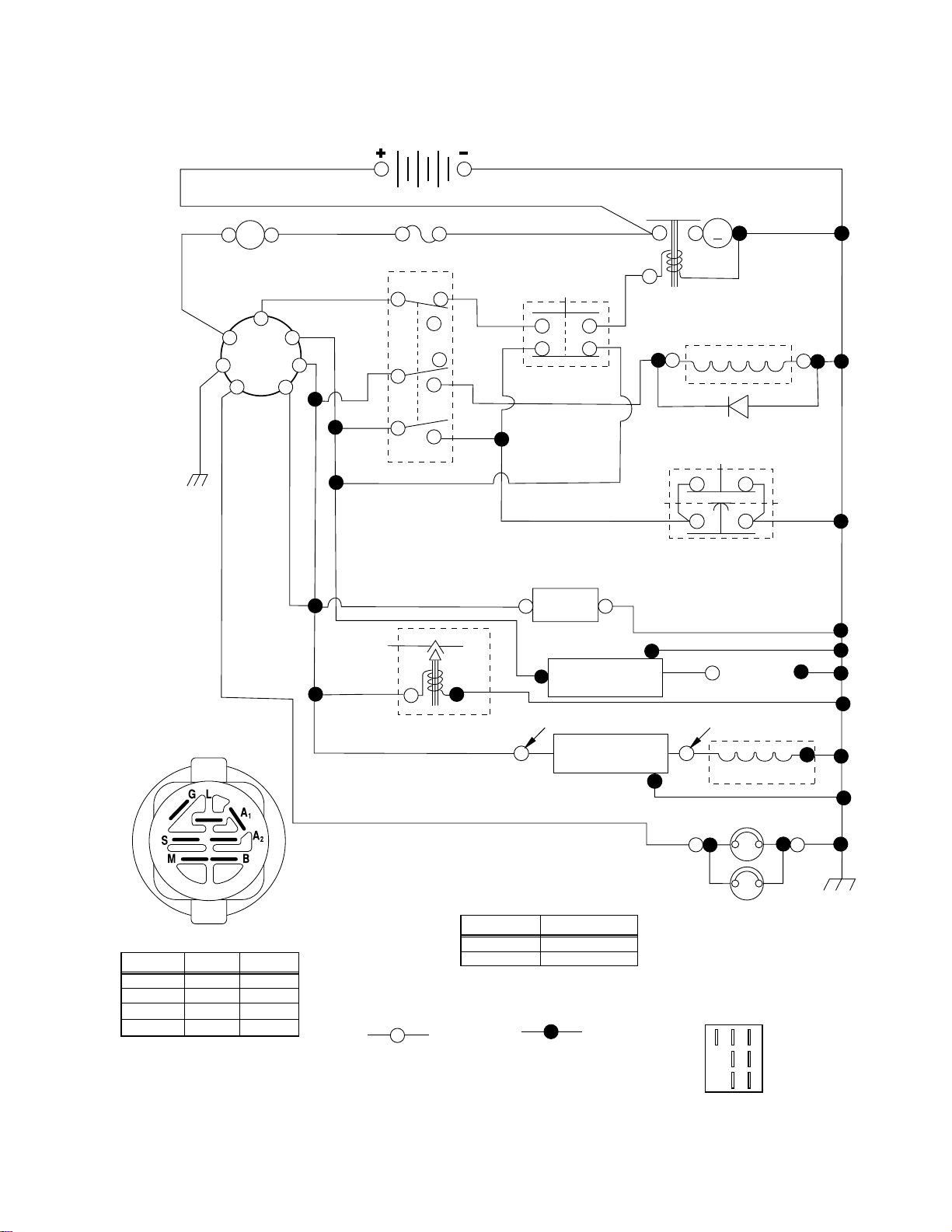

TRACTOR - MODEL NO. YTH2548 (YTH2548A), PRODUCT NO. 954 57 19-84
SCHEMATIC
AMMETER
(OPTIONAL)
RED
G
IGNITION
SWITCH
BLACK
BROWN
RED
BLACK
BATTERY
A
RED
RED
M
FUSE
WHITE
WHITE
S
B
BLACK
M
A1
A2L
ORANGE
RED
CG
F
H
B
RED
E
A
BLACK
D
PTO (DISENGAGED)
FUEL SHUT-OFF
SOLENOID
FUEL
LINE
WHITE
BLACK
BLUE
RED
CLUTCH / BRAKE
(PEDAL UP)
RED
BLACK
HOUR
METER
(OPTIONAL)
IGNITION
UNIT
CHARGING SYSTEM OUTPUT
15 AMP DC @ 3600 RPM
REGULATOR
STARTER MOTOR
ELECTRIC CLUTCH
SEAT SWITCH
(NOT OCCUPIED)
GROUNDING
CONNECTOR
BLACK
SPARK PLUGS
GAP
(2 PLUGS
ON TWIN CYL. ENGINES)
28 VOLTS AC @ 3600 RPM
(REGULATOR DISCONNECTED)
DIODE
ALTERNATOR
IGNITION SWITCH
OFF
CIRCUITPOSITION
M+G+A1
B+A1ON + LIGHTS
B+A1ON
B+S+A1START
“MAKE”
NONE
L+A2
NONE
NONE
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR
WIRING.
BROWN
PTO SWITCH
CIRCUITPOSITION
C+G,B+H
C+F,B+E,A+DON
REMOVABLE
CONNECTIONS
OFF
NON-REMOVABLE
CONNECTIONS
31
www.mymowerparts.com
HEADLIGHTS
FC
G
E
H
D
BLACK
B
A
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2548 (YTH2548A), PRODUCT NO. 954 57 19-84

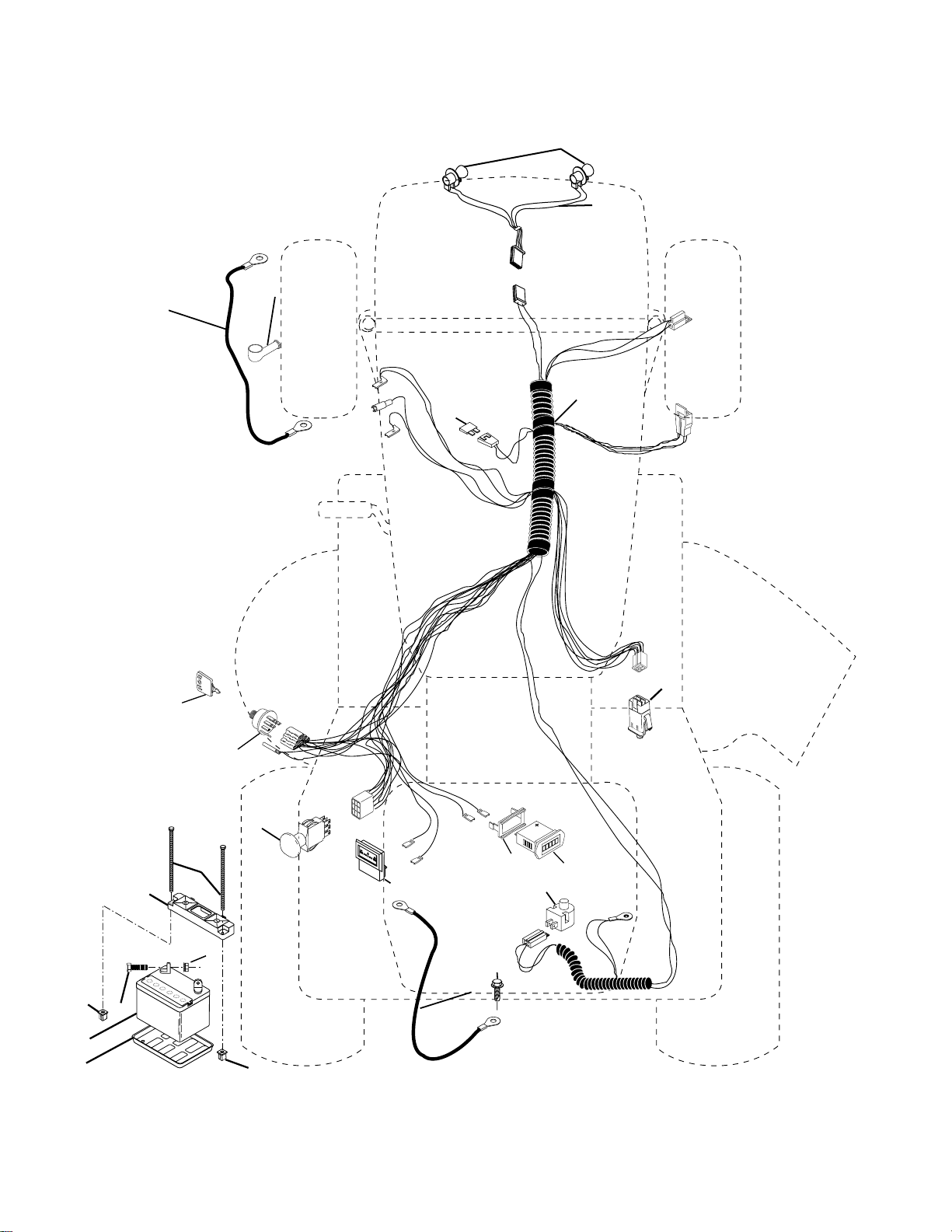

ELECTRICAL
22
21
42
24
40
26
12
16
33
30
50
D
.C
. A
M
P
E
R
E
10
11
27
2
1
8
12
S
45
28
55
89
46
29
32
www.mymowerparts.com
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2548 (YTH2548A), PRODUCT NO. 954 57 19-84
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 14 49-27 Battery 12 Volt 35 AMP
2 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4
8 532 12 48-86 Tray Battery
10 532 14 52-11 Bolt Brt Frt 1/4-20 x 75 Ainc
11 532 15 01-09 Holddown Battery Front Mount
12 532 14 57-69 Nut Push Nylon 1/4" Battery Frt
16 532 17 61-38 Switch Interlock
21 532 18 37-59 Harness Asm Light W/4152j
22 532 00 41-52 Bulb Light #1156
24 532 17 89-09 Cable Battery
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 14 54-91 Cable Ground 6 Ga 21" black
29 532 12 13-05 Switch Plunger Nc Gray
30 532 17 55-66 Switch Ign
33 532 14 04-01 Key Ign Molded Generic
40 532 18 80-27 Harness Ign.
42 532 15 43-36 Cover Terminal Red
45 532 12 28-22 Ammeter Rectangular 15 Amp
46 532 16 96-35 Meter Hour
50 532 17 46-51 Switch PTO
55 817 49 05-08 Screw Thdrol 5/16-18 x 1-1/2 Tyt
89 532 16 96-39 Bracket Snap-In Hourmeter
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
33
www.mymowerparts.com
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2548 (YTH2548A), PRODUCT NO. 954 57 19-84

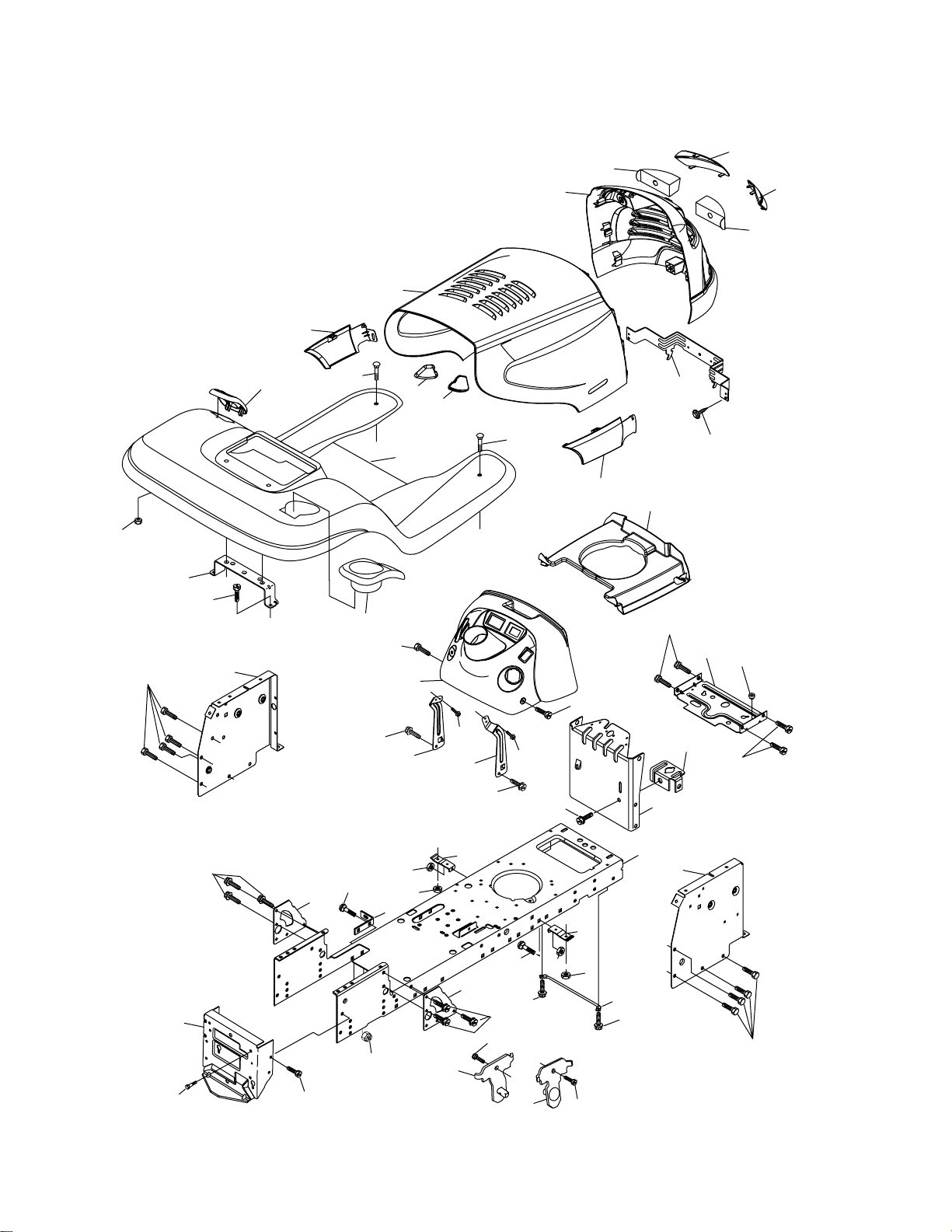

CHASSIS AND ENCLOSURES
259
212
28
212
17
213
258
90
208
31
209
11
217
10
159
166
280
30
55
277
9
276
209
53
166
10
209
209
280
214
58
64
219
39
158
20
278
23
219
206
209
60
142
2
26
26
143
74
209
144
38
142
14
209
60
37
144
26
26
38
14
1
13
145
37
208
chassis_elite husqy_1
34
www.mymowerparts.com
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2548 (YTH2548A), PRODUCT NO. 954 57 19-84
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
1 532 17 46-19 Chassis Stamping
2 532 17 65-54 Drawbar
9 532 19 02-51 Dash
10 872 14 06-08 Bolt Rdhd Sqnk 3/8-16 unc x 1
11 532 17 49-96 Panel Dash Lh
13 532 17 21-06 Panel Dash Rh
14 817 49 06-08 Screw Thdrol 3/8-16 x 1/2
17 532 18 99-77 Hood
20 532 18 06-79 Plate Mtg Battery/Fuel Tank
23 532 12 40-28 Bushing
26 873 80 06-00 Nut Lock w/Insert 3/8-16 unc
28 532 18 82-69 Grille Lens Asm (Includes Keys. 212, 258 & 259)
30 532 18 54-32 Fender
31 532 13 99-76 Bracket
37 817 49 05-08 Screw Thdrol 5/16-18 x 1/2
38 532 17 57-10 Bracket Asm Pivot Mower Rear
39 532 17 47-14 Bracket Pivot
53 532 18 83-72 Bracket Dash RH
55 532 18 83-73 Bracket Dash LH
58 532 18 44-63 Duct Air
60 872 14 06-06 Bolt RDHD SQNK 3/8-16 x 3/4
64 532 17 49-97 Dash Lower
74 873 68 06-00 Nut Crownlock 3/8-16
90 532 12 43-46 Nut 1/4
142 532 17 57-02 Plate Reinforcement
143 532 18 66-89 Bracket Swaybar Chassis
144 532 17 55-82 Bracket Ft Rest
145 532 15 65-24 Rod Pivot Chassis Hood
158 532 16 20-37 Bracket Parking Brake
159 532 18 54-34 Cupholder
166 532 17 18-75 Screw HwHd Hi-Lo #13-16 x 3/4
208 817 67 06-08 Screw Thdrol 3/8-16 x 1/2 Ty-TT
209 817 00 06-12 Screw 3/8-16 x 3/4
212 532 18 82-67 Lens Insert Refl ect
213 532 18 99-79 Skirt Side LH
214 532 18 99-78 Skirt Side RH
217 532 18 54-36 Console Fuel Window
219 817 00 05-12 Screw 5/16-18 x 3/4
258 532 18 99-81 Lens RH
259 532 18 99-82 Lens LH
276 532 18 92-74 Bumper Hood RH
277 532 18 92-75 Bumper Hood LH
278 532 18 95-85 Screw Quadx WSHD #10-14 x 1
280 817 06 06-16 Screw 3/8-16 x 1
NOTE: All component dimensions given in U. S. inches.
1 inch = 25.4 mm
35
www.mymowerparts.com
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2548 (YTH2548A), PRODUCT NO. 954 57 19-84

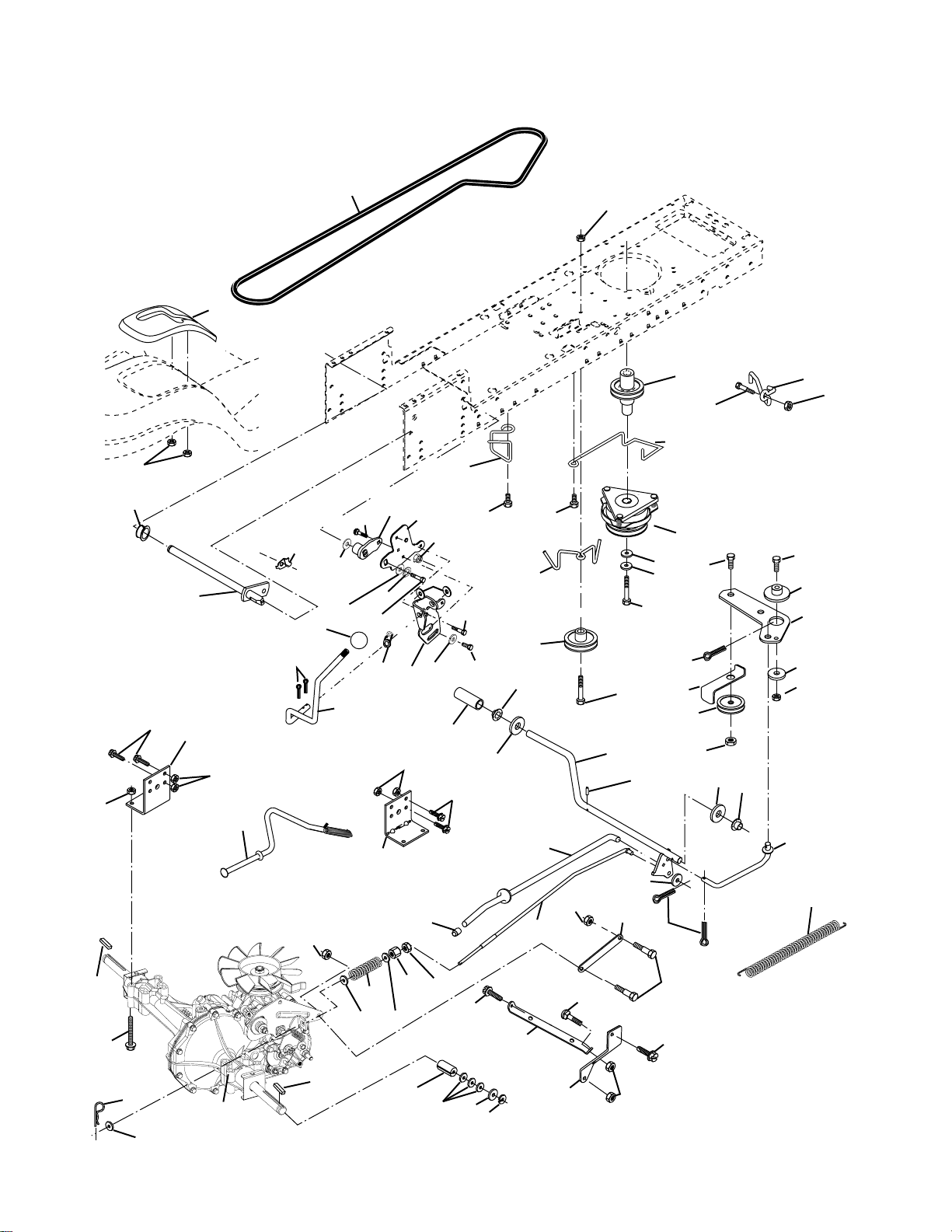

DRIVE
57
120
89
16
90
197
32
81
30
52
95
169
10
21
198
112
8
161
14
163
82
30
159
165
52
158
162
83
156
62
59
32
168
166
61
36
35
41
38
28
56
34
39
37
20
65
17
66
27
49
63
9
47
120
116
50
36
23
212
202
150
48
151
51
35
53
77
15
96
26
26
16
26
19
74
29
75
24
263
78
76
16
25
26
77
1
22
200
71
73
84
27
199
263
16
drive-fender.stlt_58
55
36
www.mymowerparts.com
Page 9
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2548 (YTH2548A), PRODUCT NO. 954 57 19-84
DRIVE
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - - - Transaxle, Hydro 314-0510
(Order Parts From Transaxle Manu-
facturer)
8 532 16 58-66 Rod Shift Fender Adjust STLT
9 532 17 93-34 Clutch Elecric
10 876 02 04-16 Pin Cotter 1/8 x 1 CAD
14 810 04 04-00 Washer Lock Hvy Helical
15 874 49 05-44 Bolt Hex 5/16-18 Unc Flghd
16 873 80 05-00 Nut Lock Hex W/Ins. 5/16-18 unc P
17 532 12 61-97 Washer
19 873 80 06-00 Nut Lock Hex W/Ins 3/8-16 unc
20 532 17 39-37 Bolt, Hex 7/16-20 x 4-1/4 Ga. 5
21 532 14 08-45 Knob Deluxe 1/2-13 unc BLK/BLK
22 532 16 94-98 Rod, Brake Hydro
23 532 17 82-89 Bracket Asm Mtg CL
24 873 35 06-00 Nut Hex Jam 3/8-16 unc
25 532 10 68-88 Spring, Brake Rod
26 819 13 13-16 Washer
27 876 02 04-12 Pin Cotter 1/8 x 3/4 CAD.
28 532 17 57-65 Rod, Parking Brake
29 532 07 16-73 Cap,Parking Brake
30 532 16 95-92 Bracket, Transaxle
32 874 76 05-12 Bolt Hex Hd 5/16-18 unc x 3/4
34 532 17 55-78 Shaft, Foot Pedal
35 532 12 01-83 Bearing, Nylon
36 819 21 16-16 Washer
37 532 12 49-63 Pin, Roll
38 532 17 91-14 Pulley, Composite
39 872 11 06-22 Bolt, RDHD 3/8-16 unc x 2-3/4 Gr. 5
41 532 17 55-56 Keeper, Belt Idler
47 532 12 77-83 Pulley, Idler, V-Groove Plastic
48 532 15 44-07 Bellcrank Clutch Grnd Drv STL
49 532 12 32-05 Retainer, Belt Style Spring
50 872 11 06-12 Bolt 3/8-16 x 1-1/2 Gr. 5
51 873 68 06-00 Nut
52 873 68 05-00 Nut Crownlock 5/16-18
53 532 10 57-10 Link, Clutch
55 532 10 57-09 Spring, Return, Clutch
56 817 06 06-20 Screw 3/8-16 x 1-1/4
57 532 14 02-94 V-Belt, Ground Drive
59 532 16 96-91 Keeper, Center Span
61 817 12 06-14 Screw 3/8-16 x .875
62 532 12 48-72 Cover, Pedal
KEY PART
NO. NO. DESCRIPTION
63 532 17 46-07 Pulley, Engine
65 810 04 07-00 Washer Lock Hvy HLCL Spr 7/16
66 532 15 47-78 Keeper Belt Engine
71 532 16 91-83 Strap Torque Lh Hydro
73 532 16 91-82 Strap Torque Rh Hydro
74 532 13 70-57 Spacer, Axle
75 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
76 812 00 00-01 E-Ring
77 532 12 35-83 Key, Square
78 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
81 532 16 55-96 Shaft Asm Cross Tapered
82 532 16 57-11 Spring Torsion T/A
83 819 17 12-16 Washer 17/32 x 3/4 x 16 Ga.
84 532 16 95-94 Link Transaxle
89 532 16 65-10 Console, Shift
90 532 12 43-46 Nut Self Thd 1/4
95 532 17 02-01 Control Asm. Bypass Hydro
96 532 12 47-88 Retainer Spring 1" Zinc/Cad
112 819 09 12-10 Washer 9/32 x 3/4 x 10 Ga.
116 872 14 06-08 Bolt Rdhd Sqnk 3/8-16 unc x 1
120 873 90 06-00 Nut Lock Flg 3/8-16
150 532 17 54-56 Spacer Retainer
151 819 13 32-10 Washer 13/32 x 2 x 10 Ga.
156 532 16 60-02 Washer Srrted 5/16ID x 1.125
158 532 16 55-89 Bracket Shift Mount
159 532 18 39-00 Hub Shift
161 872 14 04-06 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5
162 873 68 04-00 Nut Crownlock 1/4-20 unc
163 874 78 04-16 Bolt Hex Fin 1/4-20 unc x 1 Gr. 5
165 532 16 56-23 Bracket Pivot Lever
166 817 49 05-10 Screw 5/16-18 x 5/8
168 532 16 54-92 Bolt Shoulder 5/16-18 x .561
169 532 16 55-80 Plate Fastening STLT/CRD
197 532 16 96-13 Nyliner Snap 5/8" ID
198 532 16 95-93 Washer Nyl 7/8 ID x .105 Hyd
199 532 16 96-12 Bolt Shoulder 5/16-18 unc
200 872 14 05-08 Bolt Rdhd Sqnk 5/16-18 unc x 1
202 872 11 06-14 Bolt 3/8-16 x 1-3/4 Gr. 5
212 532 14 52-12 Nut Hex Flange Lock
263 817 00 06-12 Screw 3/8-16 x 3/4
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
37
www.mymowerparts.com
Page 10
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2548 (YTH2548A), PRODUCT NO. 954 57 19-84

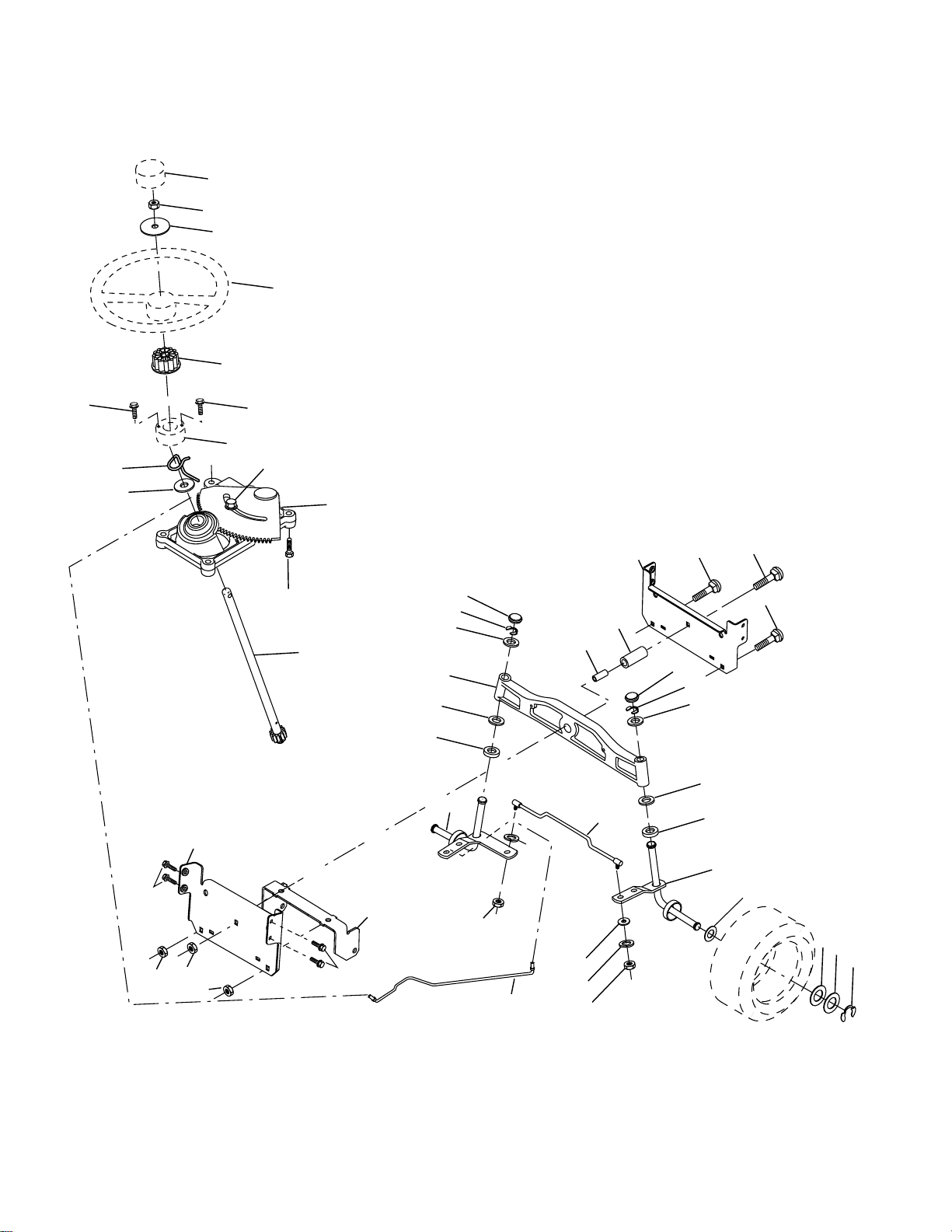

STEERING ASSEMBLY
38
12
39
1
41
37
91
43
29
15
steering_pl.lt_54
37
36
88
71
68
29
17
68
82
15
15
29
46
8
6
2
87
5
3
11
40
10
13
65
32
94
11
40
67
46
8
6
87
67
67
5
4
43
43
95
8
38
www.mymowerparts.com
Page 11
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2548 (YTH2548A), PRODUCT NO. 954 57 19-84
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 532 16 66-27 Wheel Steering
2 532 18 47-06 Axle Asm
3 532 16 98-40 Spindle Asm LH
4 532 16 98-39 Spindle Asm RH
5 532 12 49-31 Bearing Race Thrust Harden
6 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
8 812 00 00-29 Ring Klip #t5304-75
10 532 17 51-21 Link Drag
11 810 04 06-00 Washer Lock Hvy Hlcl Spr 3/8
12 873 94 08-00 Nut Hex Jam Toplock 1/2-20 unf
13 532 13 65-18 Spacer Brg Axle Front
15 532 14 52-12 Nut Hex Flange Lock
17 532 17 78-83 Shaft Asm Strg
29 817 00 06-12 Screw 3/8-16 x 3/4
32 532 18 05-80 Rod Tie Ball J
36 532 15 51-05 Bushing Strg
37 532 15 29-27 Screw
38 532 16 66-26 Insert Cap Strg Wh
39 819 18 38-12 Washer 9/16 x 2-3/8
40 873 54 06-00 Nut Crownlock 3/8-24
41 532 15 99-45 Adaptor Wheel Strg
43 532 12 17-49 Washer 25/32 x 1 1/4 x 16 Ga.
46 532 12 12-32 Cap Spindle Fr Top Blk
65 532 16 03-67 Spacer Brace Axle
67 872 11 06-18 Bolt RDHD SQNK 3/8-16 x 2-1/4
68 532 16 98-27 Axle, Brace
71 532 17 51-46 Steering Asm
82 532 16 98-35 Bracket Susp Chassis Front
87 532 17 39-66 Washer Flat .781 x 1-1/2 x .14
88 532 17 51-18 Bolt Shoulder 7/16-20
91 532 17 55-53 Clip Steering
94 819 12 14-14 Washer 3/8 x 7/8 x 14 Ga.
95 532 18 89-67 Washer Hardened
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
39
www.mymowerparts.com
Page 12
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2548 (YTH2548A), PRODUCT NO. 954 57 19-84

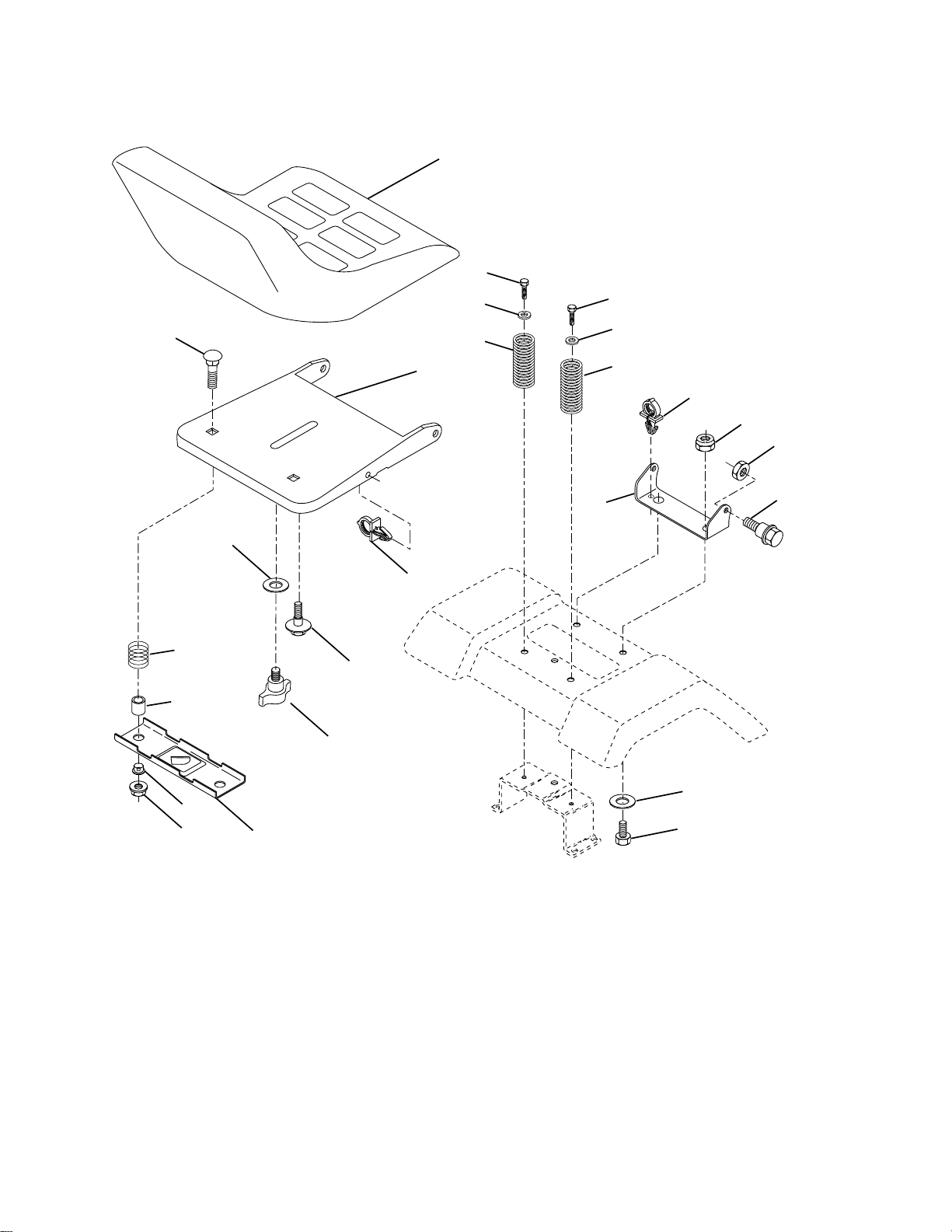

SEAT ASSEMBLY
1
8
8
9
7
5
6
14
9
7
10
22
24
5
16
25
15
11
13
17
seat_lt.knob_1
KEY PART
NO. NO. DESCRIPTION
1 532 18 87-15 Seat
2 532 14 05-51 Bracket Pivot Seat 8 720
3 871 11 06-16 Bolt Fin Hex 3/8-16 x 1
4 819 13 16-10 Washer Flat 13/32 x 1.0 x 10 Ga.
5 532 14 50-06 Clip Push-In
6 873 80 06-00 Nut Hex w/Ins. 3/8-16 unc
7 532 12 41-81 Spring Seat Cprsn 2 250 Blk Zi
8 817 00 06-16 Screw 3/8-16 x 1
9 819 13 16-14 Washer 13/32 x 1.0 x 14 Ga.
10 532 18 24-93 Pan Seat
11 532 16 63-69 Knob Seat
12 532 12 12-46 Bracket Mounting Switch
12
2
4
3
KEY PART
NO. NO. DESCRIPTION
13 532 12 12-48 Bushing Snap Blk Nyl 50 Id
14 872 05 04-12 Bolt Rdhd Sqnk 1/4-20 x 1-1/2
15 532 12 12-49 Spacer Split 28 x .88 Zinc
16 532 12 37-40 Spring Cprsn Plate
17 532 12 39-76 Nut Lock 1/4 Lge Flg Gr. 5 Zinc
21 532 17 18-52 Bolt Shoulder 5/16-18 unc
22 873 80 05-00 Nut Hex Lock W/ins 5/16-18
24 819 17 19-12 Washer 17/32 x 1-3/16 x 12 Ga.
25 532 12 70-18 Bolt Shoulder 5/16-18 x .62
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
21
40
www.mymowerparts.com
Page 13
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2548 (YTH2548A), PRODUCT NO. 954 57 19-84

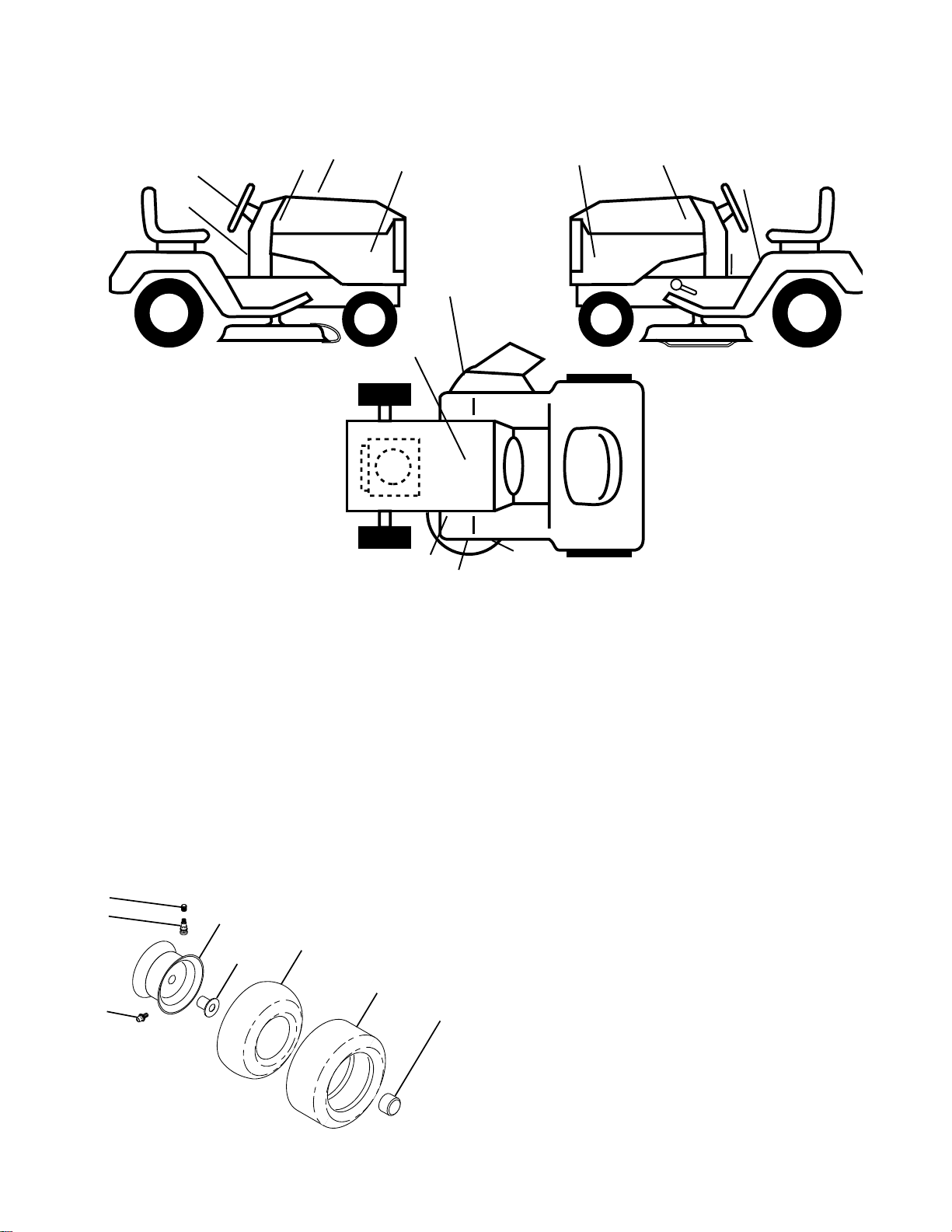

DECALS
7,13
2
5
KEY PART
NO. NO. DESCRIPTION
1 532 15 70-32 Decal Oper Inst Hyd E/F
2 532 18 89-25 Decal Strg Wheel Logo
3 532 18 89-18 Decal Hood RH
4 532 18 89-19 Decal Hood LH
5 532 18 92-43 Decal Dash
7 532 17 97-06 Decal Repl. Parts
8 532 17 05-63 Decal Warning
10 532 15 71-40 Decal Fender Danger E/F
11 532 18 94-50 Decal Hood Sides
3
11
20
12
11
8
14
17
KEY PART
NO. NO. DESCRIPTION
13 532 18 09-41 Decal Cust. Responsibilities
14 532 17 52-91 Decal V-Belt Schematic
17 532 17 84-82 Decal, Mower
20 532 14 50-05 Decal Bat Dan/Psn
- - 532 16 69-60 Decal By Pass
- - 532 18 82-52 Pad Footrest LH
- - 532 18 82-53 Pad Footrest RH
- - 532 13 83-11 Decal Handle Lft Height Adjust
- - 532 18 99-11 Manual Owner's (English)
4
10
1
WHEELS & TIRES
1
2
6
5,8
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 10 62-22 Tire F Ts 15 x 6 0 - 6 Service
4,10
7
3,9
11
wheel_1
4 532 05 99-04 Tube Front (Service Item Only)
5 532 13 83-36 Rim Asm 6" front Silver Service
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 13 83-37 Rim Asm 8" rear Silver Service
9 532 12 20-82 Tire R Ts 20 x 10-8 C Service
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 17 50-39 Cap Axle Blk 1 50 x 1 00
- - 532 14 43-34 Sealant, Tire ( 10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
41
www.mymowerparts.com
Page 14
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2548 (YTH2548A), PRODUCT NO. 954 57 19-84

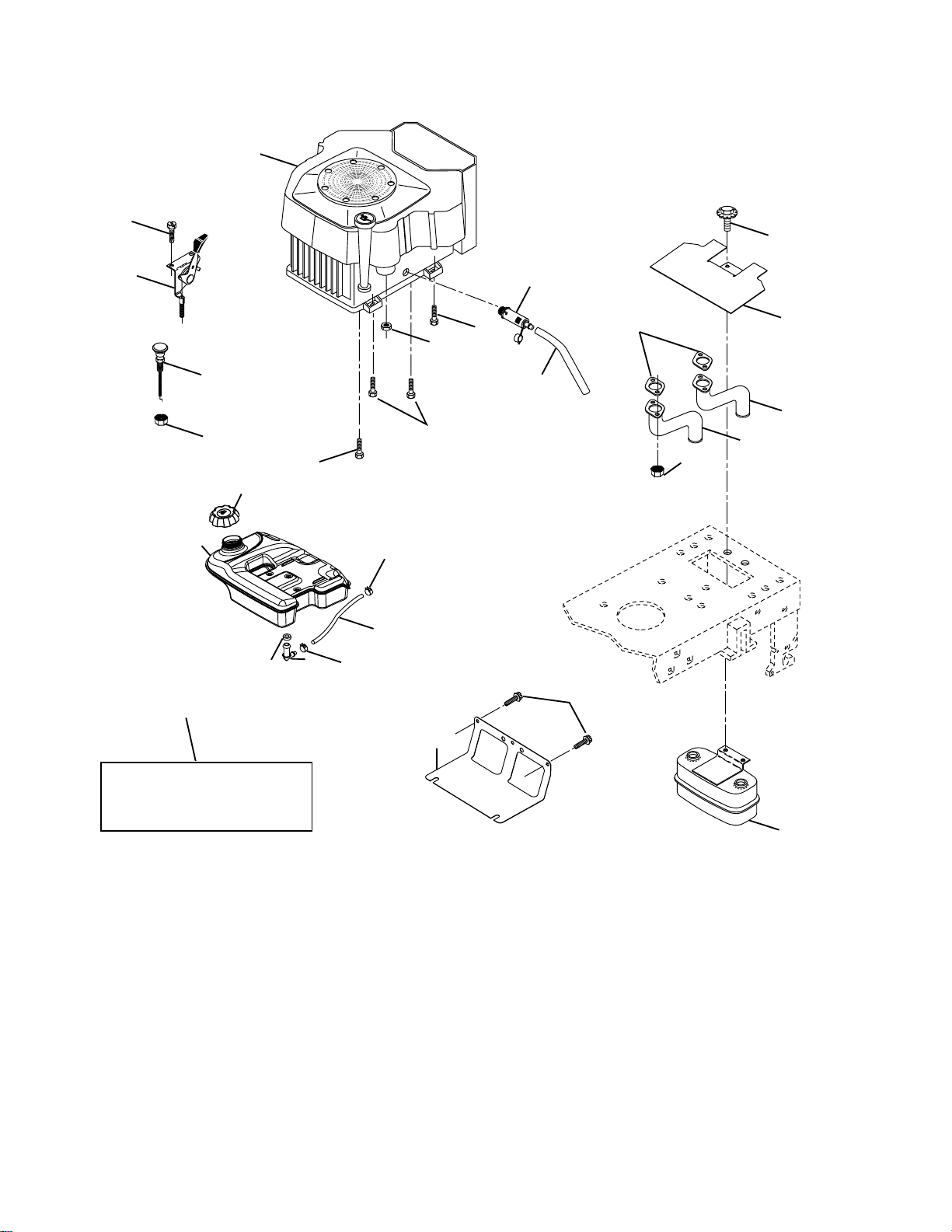

ENGINE
3
2
8
1
101
25
26
17
32
31
37
41
112
29
33
17
33
38
17
14
45
13
116
10
6
5
OPTIONAL EQUIPMENT
Spark Arrester
KEY PART
NO. NO. DESCRIPTION
1 532 19 02-59 Control Throttle
2 817 72 04-08 Screw Hex Thd Cut 1/4-20 x 1/2
3 - - - - - - - - Engine Kohler CV730 (Order Parts
from Engine Manufacturer)
4 532 14 97-23 Muffl er Asm Twin Lo-Tone
5 532 14 66-99 Exhaust Tube LH
6 532 14 67-00 Exhaust Tube RH
8 532 17 18-77 Bolt 5/16-18 Unc x 3/4 W/Sems
10 532 14 66-29 Shield Browning
13 - - - - - - - - Gasket Muffl er
(Order from Engine Manufacturer)
14 532 14 84-56 Tube Drain Oil Easy
17 817 06 06-24 Screw 3/8-16 x 1-1/2
23 532 16 98-37 Shield Browning
25 532 19 02-60 Choke Control
23
4
KEY PART
NO. NO. DESCRIPTION
26 873 92 06-00 Nut, Keps 3/8-24 unf
29 532 13 71-80 Kit Spark Arrestor (Flat Scrn)
31 532 17 90-22 Tank Fuel
32 532 18 18-03 Cap Asm Fuel
33 532 12 34-87 Clamp Hose Blk
37 532 14 21-58 Line Fuel
38 532 18 16-54 Plug Drain Oil
41 532 13 92-77 Stem Tank Fuel
45 817 00 06-12 Screw Hexwsh Thdr 3/8-16 x 3/4
101 532 16 33-05 Nut Flange M8-1.25
112 532 12 49-52 Bushing
116 532 18 43-62 Nut Hex Flange Toplock M8-1.25
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
42
www.mymowerparts.com
Page 15
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2548 (YTH2548A), PRODUCT NO. 954 57 19-84

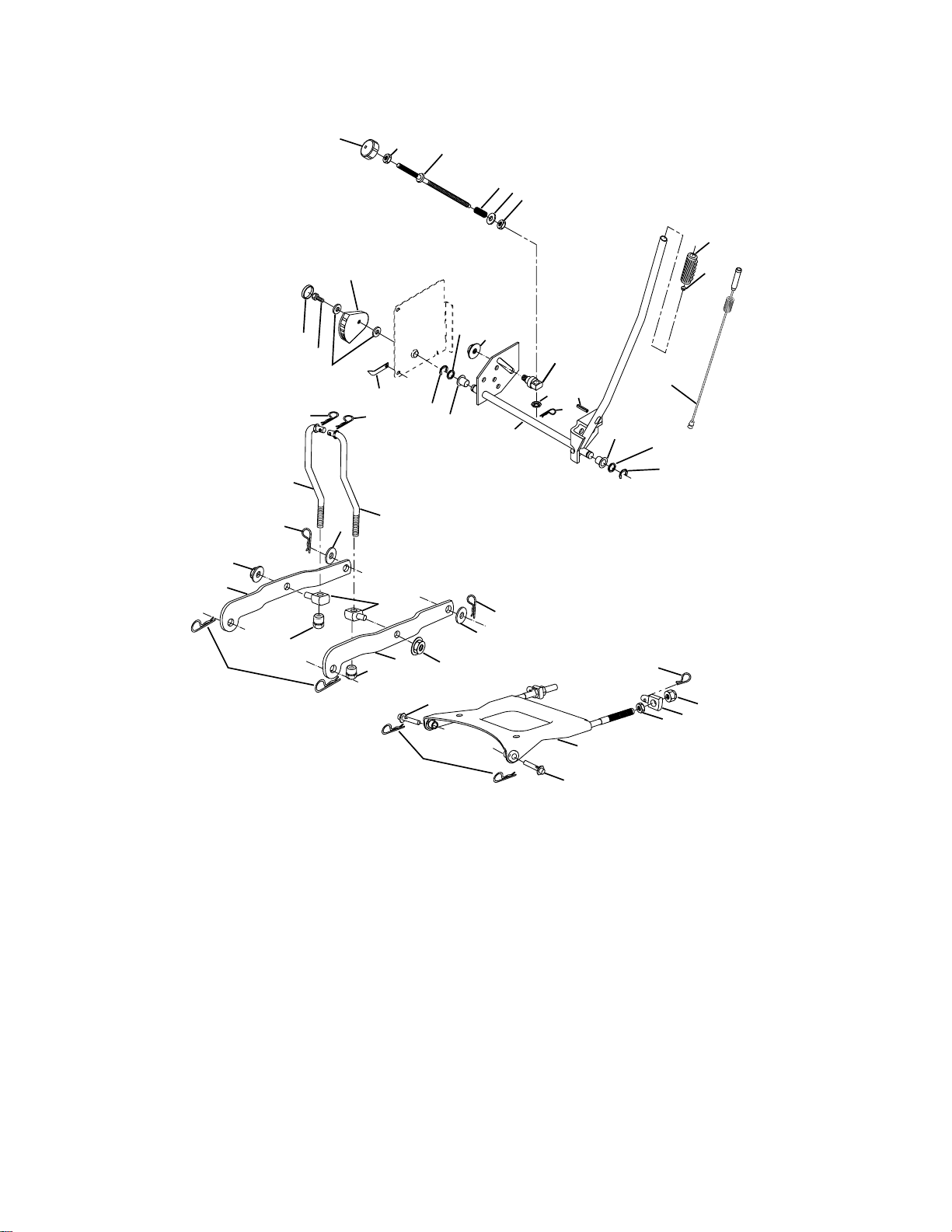

MOWER LIFT
29
28
27
25
24
23
7
41
5
37
38
40
36
13
11
13
49
52
32
13
13
51
31
32
4
12
53
54
49
30
3
50
6
49
2
13
51
26
6
5
20
8
1
4
18
17
16
lift-rh.1pc.stlt_2
13
KEY PART
NO. NO. DESCRIPTION
1 532 15 94-60 Wire Asm Inner/Spring W/Plunger LT
2 532 15 94-71 Shaft Asm Lift RH w/Inf
3 532 10 57-67 Pin Groove 1 500 Zinc
4 812 00 00-02 E Ring #5133-62
5 819 21 16-21 Washer 21/32 x 1 x 21 Ga
6 532 12 01-83 Bearing Nylon Blk 629 Id
7 532 12 56-31 Grip Handle Fluted Blk
8 532 12 45-26 Button Plunger Black
11 532 17 53-70 Link Lift LH
12 532 17 53-71 Link Lift RH
13 532 12 46-70 Retainer Spring
15 532 17 55-62 Plate Asm Susp Front
16 873 35 08-00 Nut Jam Hex 1/2-13 unc
17 532 17 56-89 Trunnion
18 873 80 08-00 Nut Lock w/Wsh 1/2-13 unc
20 532 16 35-52 Retainer Spring
23 532 11 08-07 Nut Special
24 819 13 10-16 Washer 13/32 x 5/8 x 16 Ga.
25 532 12 48-74 Spring 2-1/8"
26 532 16 94-84 Retainer Clip
15
54
KEY PART
NO. NO. DESCRIPTION
27 532 12 69-71 Rod Adj Lift Zinc 7.49 Wrk Lg
28 873 35 06-00 Nut Hex Jam 3/8-16 unc
29 532 13 80-57 Knob Inf 3/8-16 Unc Blk W/sym
30 532 15 02-33 Trunnion Infi n Height
31 532 17 62-05 Trunnion
32 532 17 59-94 Nut Lift Link 7/16-20
36 532 15 50-97 Indicator Height STLT
37 532 12 39-35 Plug Hole Blk 1.485/1.515 Dia.
38 817 06 05-16 Screw 5/16-18 x 1
40 819 11 24-10 Washer 11/32 x 1-1/2 10 Ga.
41 532 15 50-98 Scale Ind. Height Blk.
49 532 14 52-12 Nut Hex Flange Lock
50 532 11 04-52 Nut, Push Phos & Oil
51 819 17 14-16 Washer 17/32 x 7/8 x 16 Ga.
52 532 17 53-78 Arm Susp. Rear Lh
53 532 17 58-02 Arm Susp. Rear Rh
54 532 17 55-60 Pin Flange
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
43
www.mymowerparts.com
Page 16
132
91
94
182
95
183
132
48_nose_roller
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2548 (YTH2548A), PRODUCT NO. 954 57 19-84

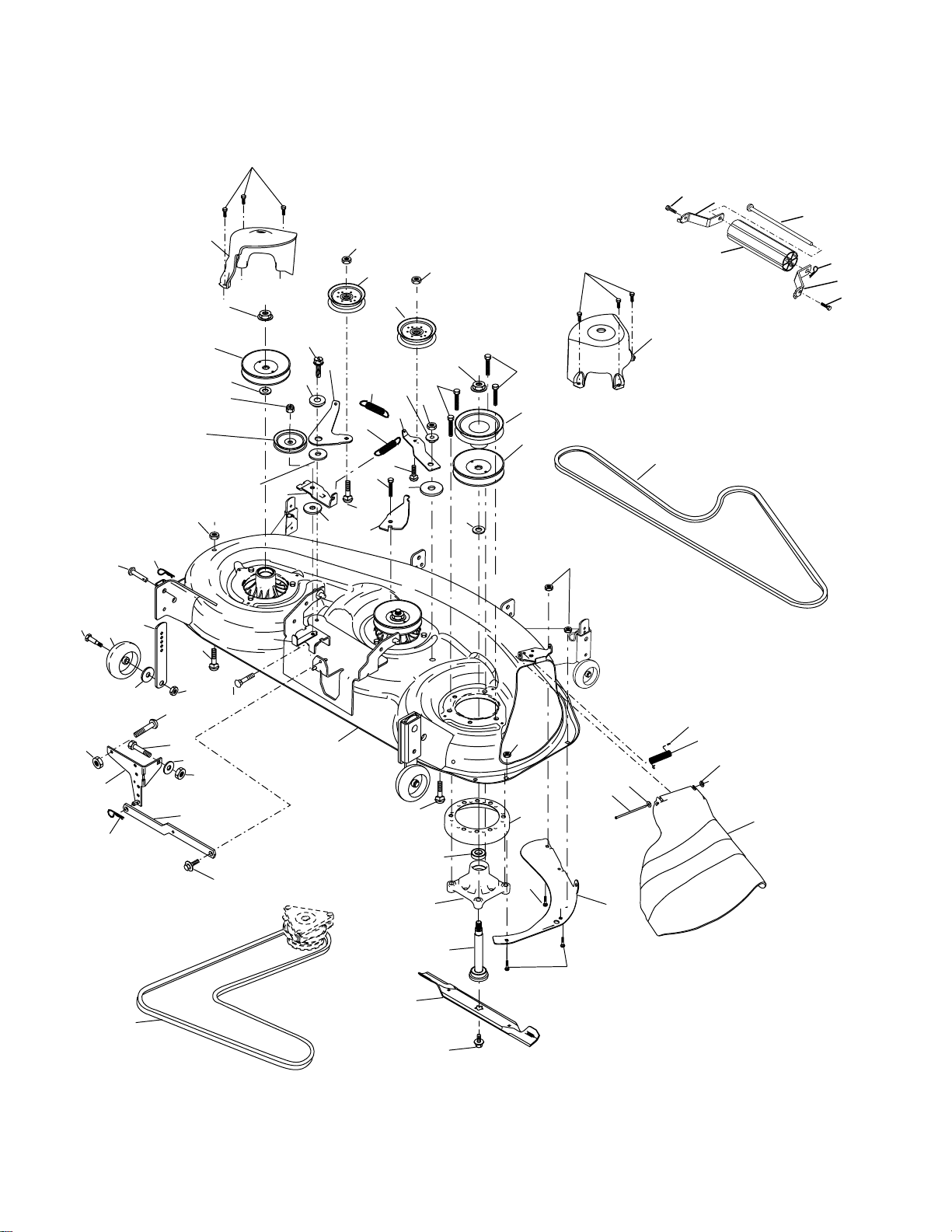

MOWER DECK
46
116
57
117
56
45
33
32
31
49
99
97
21
5
113
130
42
111
184
43
131
110
49
50
52
121
98
30
50
37
126
97
42
49
30
49
33
46
45
30
39
32
47
31
21
119
92
3
5
48
mower_deck.48_standard_1
55
54
118
72
6
92
19
100
24
1
17
15
14
13
11
8
21
18
16
18
29
28
20
25
26
27
www.mymowerparts.com
44
Page 17
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2548 (YTH2548A), PRODUCT NO. 954 57 19-84
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
1 532 18 18-48 Deck Weldment Mower 48
3 532 13 80-17 Bracket Asm., Sway Bar
5 532 12 46-70 Retainer Spring
6 532 17 80-24 Bar Sway Deck
8 532 17 43-65 Bolt, 7/16 Asm. Blade
11 532 18 00-54 Blade
13 532 17 43-60 Shaft Asm. Mandrel Sealed
14 532 17 43-58 Housing Mandrel 48"
15 532 11 04-85 Bearing, Ball, Mandrel
16 532 17 44-93 Stripper, Mower
17 872 11 06-10 Bolt Rdhd Sq Neck 3/8-16 x 1.25
18 872 14 05-05 Bolt, Carriage 5/16-18 x 5/8
19 532 13 28-27 Bolt, Hex Head, Shoulder 5/16-18
20 532 17 43-78 Baffl e, Vortex Mower
21 873 68 05-00 Nut, Crownlock 5/16-18 unc
24 532 10 53-04 Cap, Sleeve
25 532 17 81-02 Spring, Torsion
26 532 11 04-52 Nut, Push
27 532 18 17-07 Shield, Defl ector Mower
28 819 11 10-16 Washer 11/32 x 5/8 x 16 Ga.
29 532 13 14-91 Rod, Hinge
30 532 17 39-84 Screw, Thdroll, Washer Head
31 532 18 76-90 Washer, Spacer Mower Vented
32 532 17 78-65 Pulley, Mandrel
33 532 17 83-42 Nut, Flg. Top Lock Cntr. 9/16
37 532 17 79-68 Pulley, Idler, Flat
39 532 17 43-75 Pulley, Idler, Driven
42 532 12 20-52 Spacer, Retainer
43 532 17 43-73 Arm, Idler Secondary
45 532 18 08-06 Cover, Mandrel Deck
46 532 13 77-29 Screw, Thdroll. 1/4-20 x 5/8
47 532 18 08-08 V-Belt, Mower, Secondary
48 532 17 43-68 V-Belt, Mower, Primary
49 873 90 06-00 Nut, Lock Flg. 3/8-16 unc
50 872 11 06-12 Bolt, Carriage 3/8-16 x 1-1/2 Gr. 5
52 532 17 58-20 Pulley Idler Flat 46 Pri. Drive
KEY PART
NO. NO. DESCRIPTION
54 874 78 06-16 Bolt Fin Hex 3/8-16 x 1
55 872 14 06-08 Bolt Rdhd Sqnk 3/8-16 x 1
56 532 15 59-86 Bar Pnt Adjusting Wheel Gauge
57 532 15 69-41 Pin Head Rivet
72 819 13 13-12 Washer 13/32 x 13/16 x 12
91 532 18 05-35 Bracket, Asm Noseroller, RH 48
92 873 80 06-00 Nut Lock Hex w/Ins 3/8-16
94 532 17 60-66 Roller, Nose 48"
95 532 18 05-34 Bracket, Asm Noseroller LH 48
97 532 17 85-15 Washer Hardened
98 532 17 94-79 Spring Primary Drive
99 532 18 40-58 Pulley Idler "V"
100 872 11 06-16 Bolt RDHD Sqnk 3/8-16 unc x 2
110 532 17 50-16 Arm Spring Secondary
111 532 17 46-10 Arm Spring Fixed Tension
113 872 11 05-06 Bolt RdhdSqnk 5/16-18 unc x 3/4
116 532 18 42-19 Bolt, Shoulder
117 532 13 39-57 Gauge Wheel
118 873 93 06-00 Nut, Centerlock 3/8-16 unc
119 819 12 14-14 Washer 3/8 x 7/8 x 14 Ga.
121 532 17 43-71 Spring Secondary Drive
126 532 17 43-72 Arm, Idler, Primary Deck
130 817 00 06-16 Screw 3/8-16 x 1.0
131 819 13 16-06 Washer 13/32 x 1 x 6 Ga.
132 817 00 06-12 Screw Hexwsh Thdr. 3/8-16 x 3/4
182 532 17 91-27 Rod Roller Nose
183 532 16 35-52 Retainer Spring
184 532 17 39-79 Keeper Belt Idler
- - 532 17 43-57 Mandrel Assembly (Includes Housing, Shaft and Shaft Hardware
Only-Pulley Not Included)
- - 532 18 63-53 Replacement Mower, Complete
(Std. Deck-Order separately nose
roller components key nos. 91, 94,
95, 132, 182, 183)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
45
www.mymowerparts.com
Loading...
