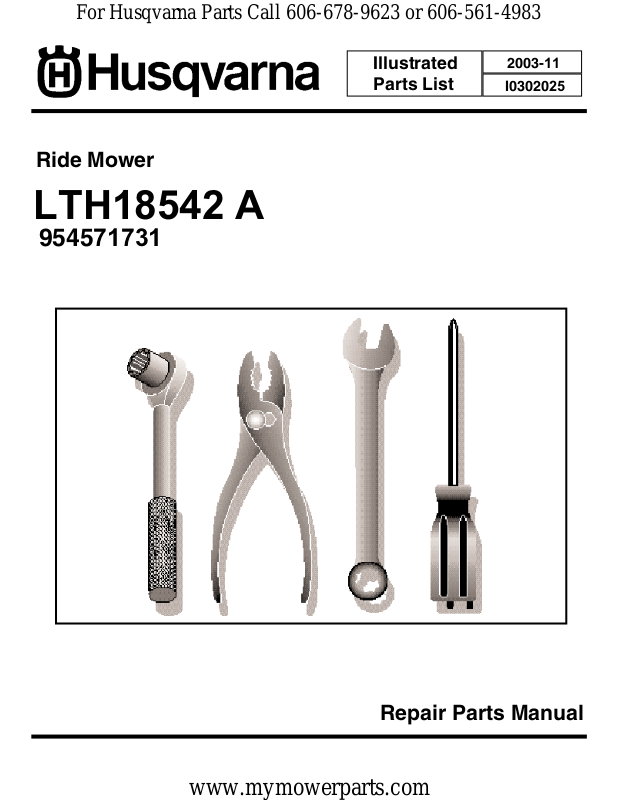

Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Ride Mower
LTH18542 A
954571731
Illustrated
Parts List
2003-11
I0302025
Repair Parts Manual
www.mymowerparts.com
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
www.mymowerparts.com
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
TRACTOR - - MODEL NO. LTH18542 (LTH18542A), PRODUCT NO. 954 57 17-31
SCHEMATIC
A
AMMETER
(OPTIONAL)
RED
B
G
L
IGNITION
SWITCH
BLACK
RED
BLACK
BATTERY
RED
FUSE
WHITE
RED
M
STARTER
BLACK
SOLENOID
S
M
A1
CLUTCH / BRAKE
(PEDAL UP)
WHITE
A2
SEAT SWITCH
(NOT OCCUPIED)
WHITE
BLACK
BLACK
HOUR
ATT'MENT CLUTCH
(CLUTCH OFF)
BLACK
BLACK
BLACK
GROUNDING
CONNECTOR
METER
BLUE
(OPTIONAL)
FUEL
LINE
BLACK
IGNITION
UNIT
SPARK
PLUG
GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
IGNITION SWITCH
CIRCUITPOSITION
OFF
M+G+A1
B+A1RUN/LIGHT
B+A1RUN
B + S + A1START
“MAKE”
NONE
A2+L
NONE
NONE
28 VOLTS AC MIN. @ 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
DIODE
14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)
FUEL SHUT-OFF SOLENOID
(IF SO EQUIPPED)
ORANGE
CHARGING SYSTEM OUTPUT
3 AMP DC @ 3600 RPM
RED
LIGHTING SYSTEM OUTPUT
5 AMP AC @ 3600 RPM
NOTE
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
BROWN
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
NON-REMOVABLE
CONNECTIONS
WILL BECOME THEIR BRIGHTEST.
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
ALTERNATOR
BLACK
HEADLIGHTS
27
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LTH18542 (LTH18542A), PRODUCT NO. 954 57 17-31
ELECTRICAL
22
21
42
24
41
33
30
27
43
27
25
27
27
26
40
16
16
D
.
C
.
A
M
P
E
R
E
S
8
45
52
29
28
27
2
90
1
28
www.mymowerparts.com
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LTH18542 (LTH18542A), PRODUCT NO. 954 57 17-31
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 16 34-65 Battery
2 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4
8 532 17 66-89 Box Battery
16 532 17 61-37 Switch Interlock
21 532 17 56-88 Harness Asm Light W/4152j
22 532 00 41-52 Bulb Light #1156
24 532 12 47-80 Cable Battery 6 Ga. 11" red
25 532 14 61-47 Cable Battery 6 Ga. 44" red w/16 wire
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 12 47-73 Cable Ground 6 Ga 12" black
29 532 12 13-05 Switch Plunger Olive
30 532 17 55-66 Switch Ign Delta
33 532 14 04-01 Key Ign Molded Generic
40 532 17 97-20 Harness Ign.
41 871 11 04-08 Bolt Blk Fin Hex 1/4 - 20 x 1/2
42 532 13 15-63 Cover Terminal Red
43 532 17 88-61 Solenoid
45 532 12 14-33 Ammeter Rectangular
52 532 14 19-40 Protection Wire Loop
90 532 18 04-49 Cover Terminal Battery
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
29
www.mymowerparts.com
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LTH18542 (LTH18542A), PRODUCT NO. 954 57 17-31
CHASSIS AND ENCLOSURES
212
28
17
261
259
260
258
208
31
209
11
209
10
39
18
10
30
166
159
5
5
9
209
208
207
64
206
209
60
142
2
209
26
26
143
74
144
209
38
142
144
26
60
37
14
38
26
14
1
13
145
37
208
chassis-Laser -lt.stlt_33
30
www.mymowerparts.com
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LTH18542 (LTH18542A), PRODUCT NO. 954 57 17-31
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
1 532 17 46-19 Chassis Stamping
2 532 17 65-54 Drawbar, 12 Ga.
5 532 15 52-72 Bumper Hood/Dash
9 532 17 17-08 Dash Slkscr
10 872 14 06-08 Bolt Carriage 3/8-16 x 1
11 532 17 49-96 Panel Dash Lh
13 532 18 17-19 Panel Dash Rh
14 817 49 06-08 Screw Thdrol 3/8-16 x 1/2
17 532 18 73-48 Hood
18 532 18 49-21 Bumper Hood
26 873 80 06-00 Nut Lock Hex W/Ins 3/8-16 unc
28 532 18 52-92 Grille/Lens Asm (Includes Key Nos. 212, 258-261)
30 532 18 10-01 Fender Footrest
31 532 13 99-76 Bracket Fender
37 817 49 05-08 Screw Thdrol 6/16-18 x 1/2 TYT
38 532 17 57-10 Bracket Asm Pivot Mower Rear
39 532 17 47-14 Bracket Pivot
60 872 14 06-06 Bolt RdHd Sqnk 3/8-16 Unc x 3/4
64 532 15 47-98 Dash Lower STLT
74 873 68 06-00 Nut Crownlock 3/8-16 Unc
142 532 17 57-02 Plate Reinforcement STLT
143 532 18 66-89 Bracket Swaybar Chassis
144 532 17 55-82 Bracket Footrest
145 532 15 65-24 Rod Pivot Chassis/Hood
159 532 16 65-08 Cupholder
166 532 17 18-75 Screw HwHd Hi-Lo #13-16 x 3/4
206 532 17 01-65 Bolt Shoulder 5/16-18 TT
207 817 67 05-08 Screw Thdrol 5/16-18 x 1/2
208 817 67 06-08 Screw Thdrol 3/8-16x1/2 Ty-tt
209 817 00 06-12 Screw Hex Wsh Thdr. 3/8-16 x 3/4
212 532 18 35-48 Insert Lens Refl ective
258 532 18 52-14 Lens Husq Laser LT Clear RH
259 532 18 52-13 Lens Husq Laser LT Clear LH
260 532 18 54-29 Cover Lens
261 532 18 54-33 Insert Grille
- - 532 00 54-79 Plug Button
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
31
www.mymowerparts.com
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LTH18542 (LTH18542A), PRODUCT NO. 954 57 17-31

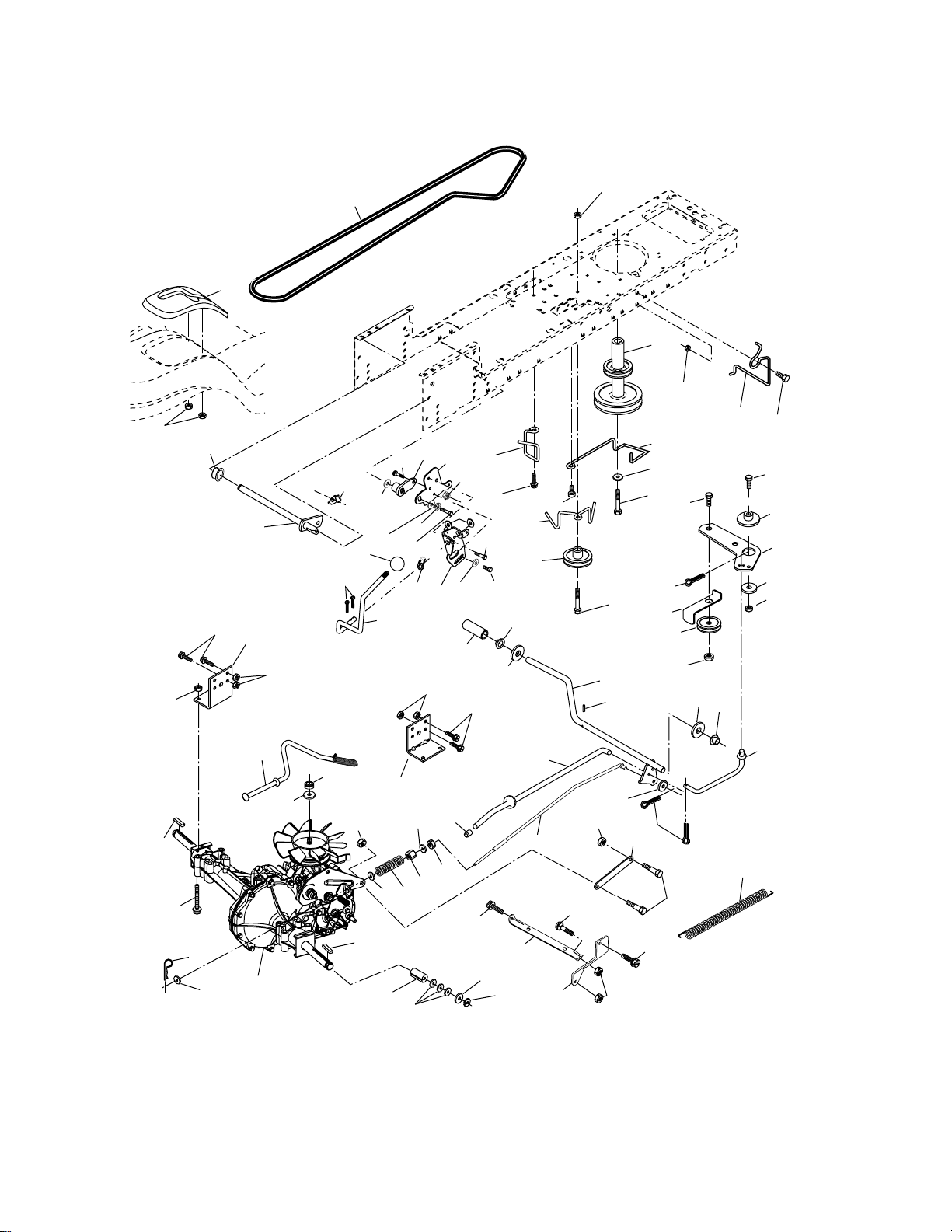

DRIVE
57
89
90
197
169
198
81
21
10
32
30
52
16
112
8
161
163
82
159
14
165
52
158
162
83
156
62
59
61
168
166
36
32
56
41
38
35
120
34
63
212
70
116
66
65
64
50
27
39
37
49
47
120
36
35
202
150
48
151
51
95
103
205
77
15
96
26
1
30
29
16
77
26
24
19
25
26
263
78
74
75
28
26
16
22
200
71
76
73
27
84
199
263
16
drive-hydro.stlt_37
53
55
32
www.mymowerparts.com
Page 9
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LTH18542 (LTH18542A), PRODUCT NO. 954 57 17-31
DRIVE
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - - - Transaxle Hydro Gr Model 322-0510
(Order parts from transaxle mfg.)
8 532 16 58-66 Rod Shift Fender
10 876 02 04-16 Pin Cotter 1/8 x 1 CAD
14 810 04 04-00 Washer Lock Hvy Helical 1/4
15 874 49 05-44 Bolt Hex Flg Hd 5/16-18 X Gr.5
16 873 80 05-00 Nut Lock Hex W/Ins. 5/16-18 unc P
19 873 80 06-00 Nut Lock Hex W/Wsh 3/8-16 unc
21 532 14 08-45 Knob, Deluxe
22 532 16 94-98 Rod, Brake Hydro
24 873 35 06-00 Nut
25 532 10 68-88 Spring, Brake Rod
26 819 13 13-16 Washer
27 876 02 04-12 Pin Cotter 1/8 x 3/4 CAD.
28 532 17 57-65 Rod, Parking Brake
29 532 07 16-73 Cap, Parking Brake
30 532 17 49-73 Bracket, Transaxle
32 874 76 05-12 Bolt Hex Hd 5/16-18 unc x 3/4
34 532 17 55-78 Shaft, Foot Pedal
35 532 12 01-83 Bearing, Nylon
36 819 21 16-16 Washer
37 532 12 49-63 Pin, Roll
38 532 17 91-14 Pulley, Composite
39 872 11 06-22 Bolt 3/8-16 x 2 3/4 Gr. 5
41 532 17 55-56 Keeper, Belt Idler
47 532 12 77-83 Pulley, Idler, V-Groove
48 532 15 44-07 Bellcrank Clutch Grnd Drv Stl
49 532 12 32-05 Retainer, Belt
50 872 11 06-12 Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5
51 873 68 06-00 Nut
52 873 68 05-00 Nut Crownlock 5/16-18
53 532 10 57-10 Link, Clutch
55 532 10 57-09 Spring, Return, Clutch
56 817 06 06-20 Screw 3/8-16 x 1-1/4
57 532 14 02-94 V-Belt, Ground Drive
59 532 16 96-91 Keeper, Center Span
61 817 12 06-14 Screw 3/8-16 x .875
62 532 12 48-72 Cover, Pedal
63 532 17 54-10 Pulley, Clutch Eng
64 532 17 39-37 Bolt Hex 7/16-20 x 4 x Gr. 5-1.5
THR
65 810 04 07-00 Washer
66 532 15 47-78 Keeper Belt Engine
70 532 13 46-83 Guide Belt Mower Drive RH
KEY PART
NO. NO. DESCRIPTION
71 532 16 91-83 Strap Torque Lh Hydro
73 532 16 91-82 Strap Torque Rh Hydro
74 532 13 70-57 Spacer, Axle
75 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Gauge
76 812 00 00-01 E-Ring
77 532 12 35-83 Key, Square
78 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Gauge
81 532 16 55-96 Shaft Asm. Cross Hydro
82 532 16 57-11 Spring Torsion T/A
83 819 17 12-16 Washer 17/32 x 3/4 x 16 Ga.
84 532 16 98-43 Link Transaxle
89 532 16 65-10 Console, Shift
90 532 12 43-46 Nut Self Thd Wsh Hd 1/4 Zinc
95 532 17 02-01 Control Asm Bypass Hydro
96 532 12 47-88 Retainer Spring 1" Zinc/Cad
103 873 94 08-00 Nut Hex Jam Toplock 1/2-20 Unf
112 819 09 12-10 Washer 9/32 x 3/4 x 10 Ga.
116 872 14 06-08 Boulon 3/8-16 x 1
120 873 90 06-00 Nut Lock Flg 3/8-16
150 532 17 54-56 Spacer Retainer
151 819 13 32-10 Washer 13/32 x 2 x 10 Ga.
156 532 16 60-02 Washer Srrtd 5/16 ID x 1.0 x .125
Tk
158 532 16 55-89 Bracket Shift Mount
159 532 18 39-00 Hub Tapered Flange Shift LT
161 872 14 04-06 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5
162 873 68 04-00 Nut Crownlock 1/4-20 Unc
163 874 78 04-16 Bolt Hex Fin 1/4-20 unc x 1 Gr. 5
165 532 16 56-23 Bracket Pivot Lever
166 817 49 05-10 Screw 5/16-18 x 5/8 TT Yellow
168 532 16 54-92 Bolt Shoulder 5/16-18 x .561 TT
169 532 16 55-80 Plate Fastening Cross Shf. STLT/
CRD
197 532 16 96-13 Nyliner Snap-In 5/8" ID
198 532 16 95-93 Washer Nyl. 7/8 ID x .105"
199 532 16 96-12 Bolt Shoulder 5/16-18 Unc
200 872 14 05-08 Bolt Rdhd Sq Neck 5/16-18unc x 1
202 872 11 06-14 Bolt Carr Sh 3/8-16 x 1-3/4 Gr. 5
205 819 17 16-16 Washer 17/32 x 1 x 16 Ga.
212 532 14 52-12 Nut Hex Flg Lock
263 817 00 06-12 Screw 3/8-16 x 3/4
NOTE: All component dimensions give in U.S. inches.
1 inch = 25.4 mm.
33
www.mymowerparts.com
Page 10
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LTH18542 (LTH18542A), PRODUCT NO. 954 57 17-31

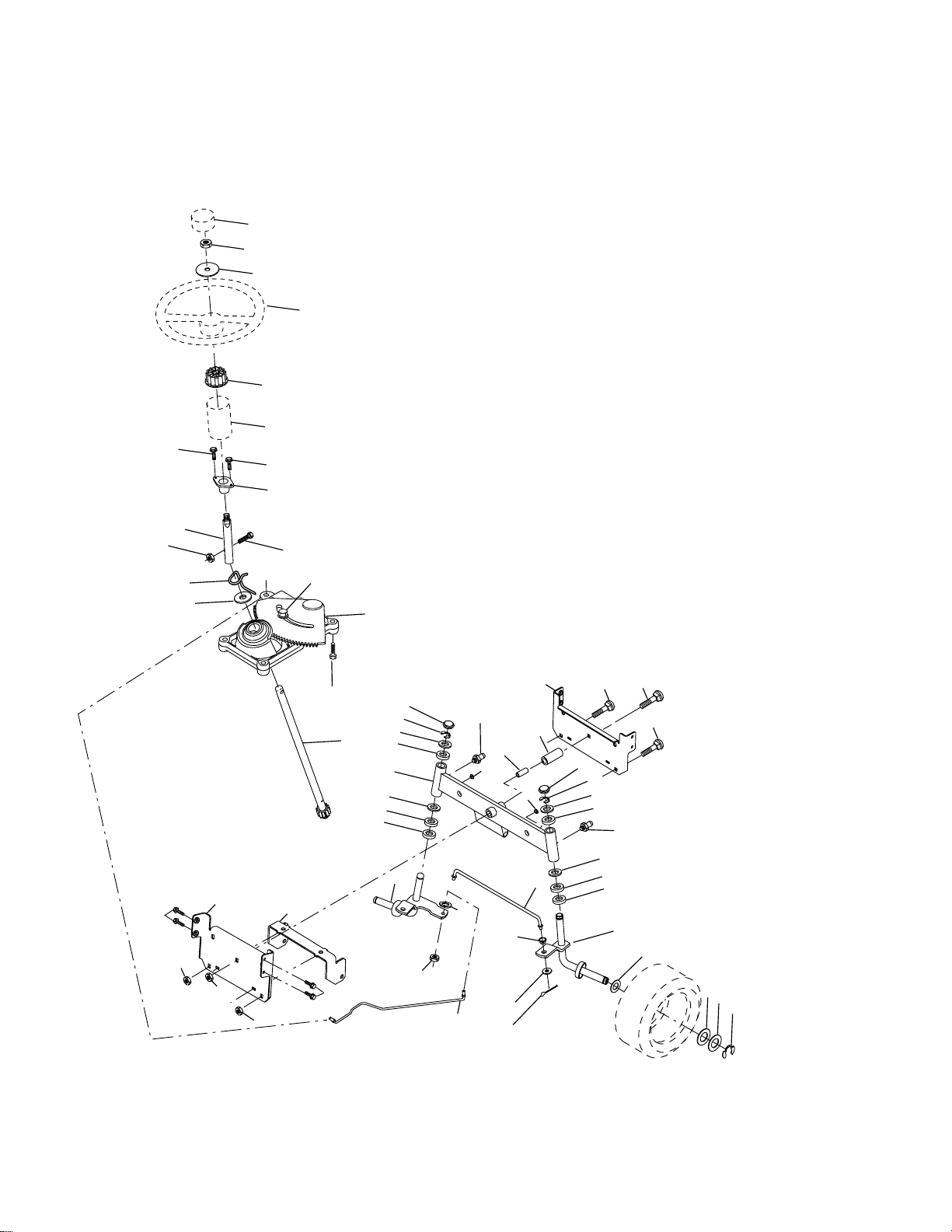

STEERING ASSEMBLY
38
12
39
1
41
42
37
37
36
steering_pl.lt_46
44
51
91
43
68
29
15
15
54
88
71
29
17
82
29
15
46
8
6
9
2
7
9
5
3
40
47
85
11
10
68
13
65
46
8
85
32
26
28
30
67
67
67
6
9
47
7
9
5
4
43
43
95
8
34
www.mymowerparts.com
Page 11
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LTH18542 (LTH18542A), PRODUCT NO. 954 57 17-31
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 532 16 66-27 Wheel Steering
2 532 17 51-31 Axle Asm
3 532 16 98-40 Spindle Asm LH
4 532 16 98-39 Spindle Asm RH
5 532 12 49-31 Bearing Race Thrust Harden
6 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
7 819 27 20-16 Washer 27/32 x 1-1/4 x 16 Ga.
8 812 00 00-29 Ring Klip #t5304-75
9 532 12 49-37 Bearing Col Strg Blk
10 532 17 51-21 Link Drag
11 810 04 06-00 Washer Lock Hvy Hlcl Spr 3/8
12 873 94 08-00 Nut Hex Jam Toplock 1/2-20 unf
13 532 13 65-18 Spacer Brg Axle Front
15 532 14 52-12 Nut Hex Flange Lock
17 532 18 06-41 Shaft Asm Strg
26 532 12 68-47 Bushing Link Drag Blk LR
28 819 13 14-16 Washer 13/32 x 7/8 x 16 Ga.
29 817 00 06-12 Screw 3/8-16 x 3/4
30 876 02 04-12 Pin Cotter 1/8 x 3/4 Cad
32 532 13 04-65 Rod Tie Wire Form 19 75 Mech
36 532 15 50-99 Bushing Strg
37 532 15 29-27 Screw
38 532 16 66-26 Cap Wheel Steering
39 819 18 24-11 Washer 9/16 ID x 1-1/2 OD 11 G. Zin
40 873 54 06-00 Nut Crownlock 3/8-24
41 532 15 99-45 Adaptor Wheel Strg
42 532 16 96-34 Boot Steering Shaft
43 532 12 17-49 Washer 25/32 x 1 1/4 x 16 Ga.
44 532 18 06-40 Extension Steering Shaft LR/LT
46 532 12 12-32 Cap Spindle Fr Top Blk
47 532 18 32-26 Fitting Grease
51 873 54 04-00 Nut Crownlock 1/4-28
54 871 13 04-20 Bolt Hex 1/4-28unf x 1-1/4 Ga. 8
65 532 16 03-67 Spacer Brace Axle
67 872 11 06-18 Bolt Rdhd SQ 3/8-16 unc x 2-1/4
68 532 16 98-27 Axle, Brace
71 532 17 51-46 Steering Asm
82 532 16 98-35 Bracket Susp Chassis Front
85 532 13 38-35 Fastner Christmas Tree
88 532 17 51-18 Bolt Shoulder 7/16-20
91 532 17 55-53 Clip Steering
95 532 18 89-67 Washer Harden .793 x 1.637 x 060
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
35
www.mymowerparts.com
Page 12
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LTH18542 (LTH18542A), PRODUCT NO. 954 57 17-31

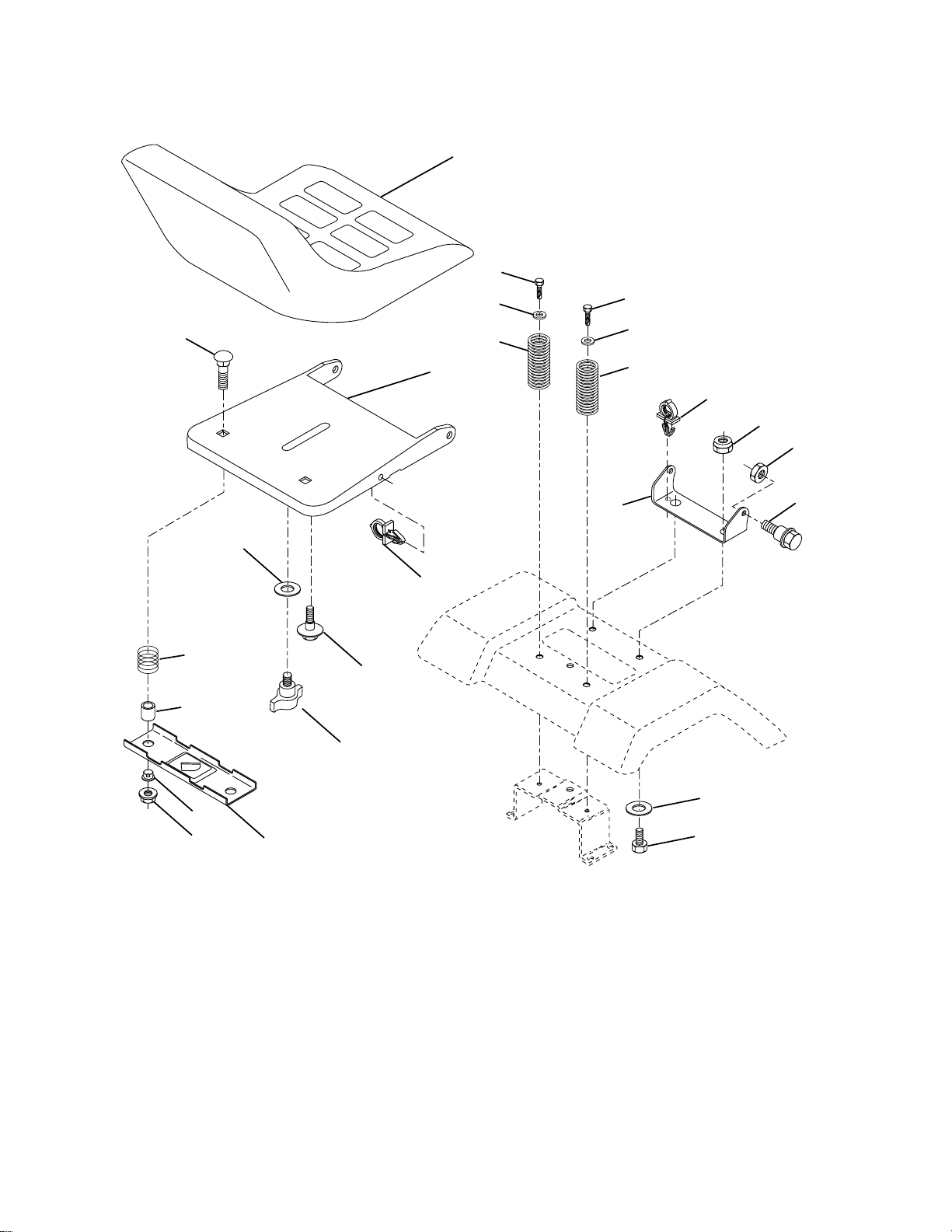

SEAT ASSEMBLY
1
8
8
9
7
5
6
22
14
9
7
10
24
16
15
13
17
KEY PART
NO. NO. DESCRIPTION
12
11
25
2
5
4
3
KEY PART
NO. NO. DESCRIPTION
21
1 532 18 49-91 Seat
2 532 14 05-51 Bracket Pivot Seat 8 720
3 871 11 06-16 Bolt Fin Hex 3/8-16 unc X 1
4 819 13 16-10 Washer 13/32 X 1 X 10 Ga
5 532 14 50-06 Clip Push-In
6 873 80 06-00 Nut Hex w/Ins. 3/8-16 Unc
7 532 12 41-81 Spring Seat Cprsn 2 250 Blk Zi
8 817 00 06-16 Screw 3/8-16 X 1
9 819 13 16-14 Washer 13/32 X 1 X 14 Ga.
10 532 18 24-93 Pan Seat
11 532 16 63-69 Knob Seat
12 532 12 12-46 Bracket Mounting Switch
www.mymowerparts.com
13 532 12 12-48 Bushing Snap Blk Nyl 50 Id
14 872 05 04-12 Bolt Rdhd Sqnk 1/4-20x1-1/2
15 532 13 43-00 Spacer Split 28x 96 Yel Zinc
16 532 12 12-50 Spring Cprsn 1 27 Blk Pnt
17 532 12 39-76 Nut Lock 1/4 Lge Flg Gr 5 Zinc
21 532 17 18-52 Bolt Shoulder 5/16-18 Unc-2A
22 873 80 05-00 Nut Hex Lock W/Ins 5/16-18
24 819 17 19-12 Washer 17/32 X 1-3/16 X 12 Ga.
25 532 12 70-18 Bolt Shoulder 5/16-18 X 62
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
36
Page 13
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LTH18542 (LTH18542A), PRODUCT NO. 954 57 17-31

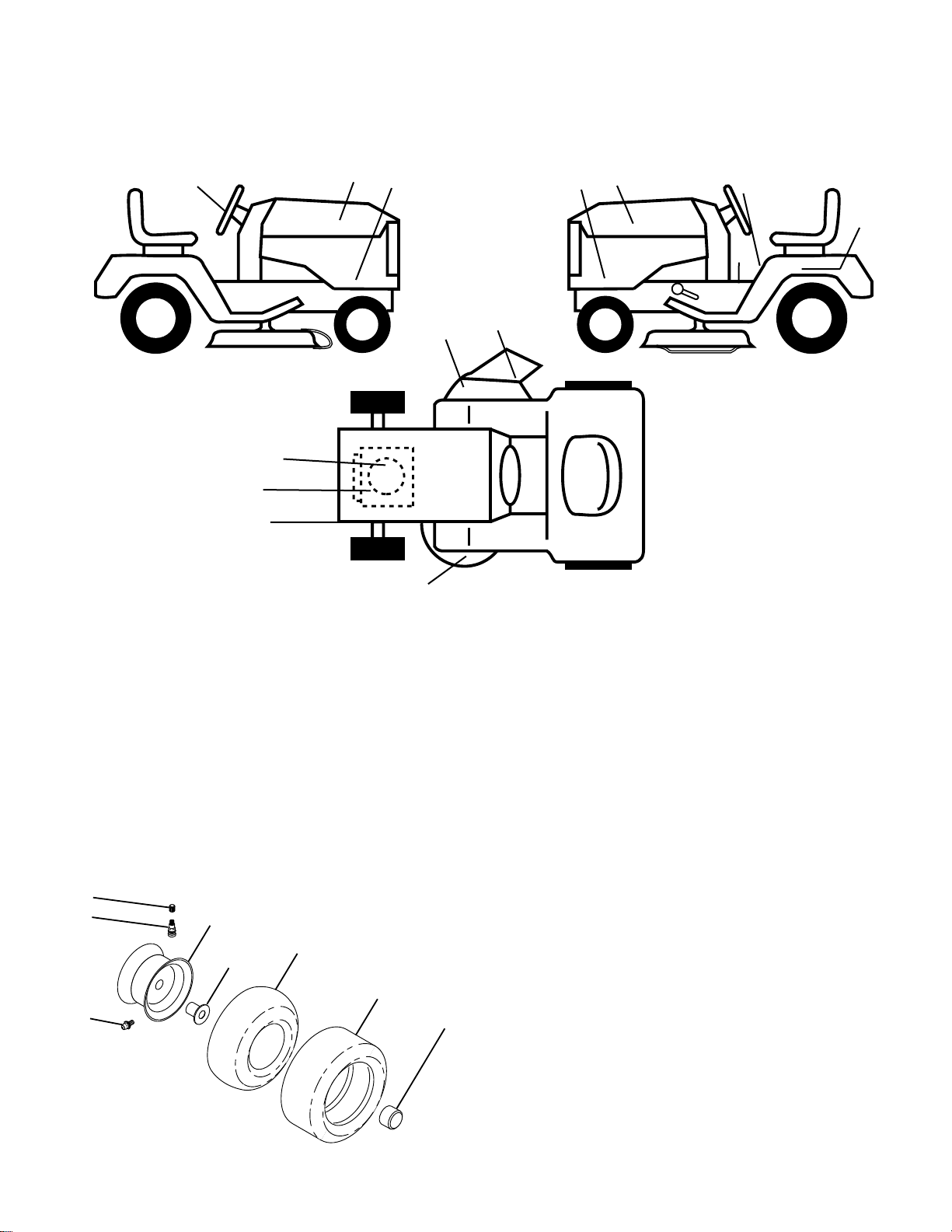

DECALS
11
5
6
14
KEY PART
NO. NO. DESCRIPTION
1 532 15 70-32 Decal Oper. Step Thru Eng/Fr
2 532 18 97-00 Decal Side Panel
3 532 18 89-16 Decal Hood RH
4 532 18 89-17 Decal Hood LH
5 532 18 09-41 Decal Hood Cust.
6 532 18 91-23 Decal Engine
7 532 17 91-28 Decal Deck B 42
8 532 17 05-63 Decal Warning
10 532 15 71-40 Decal Fender Danger Eng/Fr
3
2
12
4
2
8
7
KEY PART
NO. NO. DESCRIPTION
11 532 18 89-25 Decal SW Husq Inter
12 532 17 23-31 Decal deck Sears heavyduty
14 532 16 03-96 Decal V-Belt Schematic
20 532 14 50-05 Decal Bat Dan/Psn
- - 532 13 83-11 Decal Handle Lft Height Adjust
- - 532 16 69-60 Decal Bypass Lt Hydro
- - 532 18 96-68 Decal Replc Part
- - 532 18 82-52 Pad Footrest LH
- - 532 18 82-53 Pad Footrest RH
- - 532 18 98-98 Manual Owner's (English)
10
20
1
WHEELS & TIRES
1
2
6
5,8
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
4,10
7
3,9
11
2 532 06 51-39 Stem Valve
3 532 10 62-22 Tire F Ts 15 X 6 0 - 6 Service
4 532 05 99-04 Tube Front (Service Item Only)
5 532 13 83-36 Rim Asm 6"front Silver Service
6 532 12 49-57 Fit ting Grease (Front Wheel Only)
7 532 12 49-59 Bear ing Flange (Front Wheel Only)
8 532 13 83-37 Rim Asm 8"rear Silver Service
9 532 10 62-68 Tire R Ts 18x9 5-8 C Service
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 17 50-39 Cap Axle Blk 1 50 X 1 00
- - 532 14 43-34 Sealant, Tire ( 10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
37
www.mymowerparts.com
Page 14
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LTH18542 (LTH18542A), PRODUCT NO. 954 57 17-31

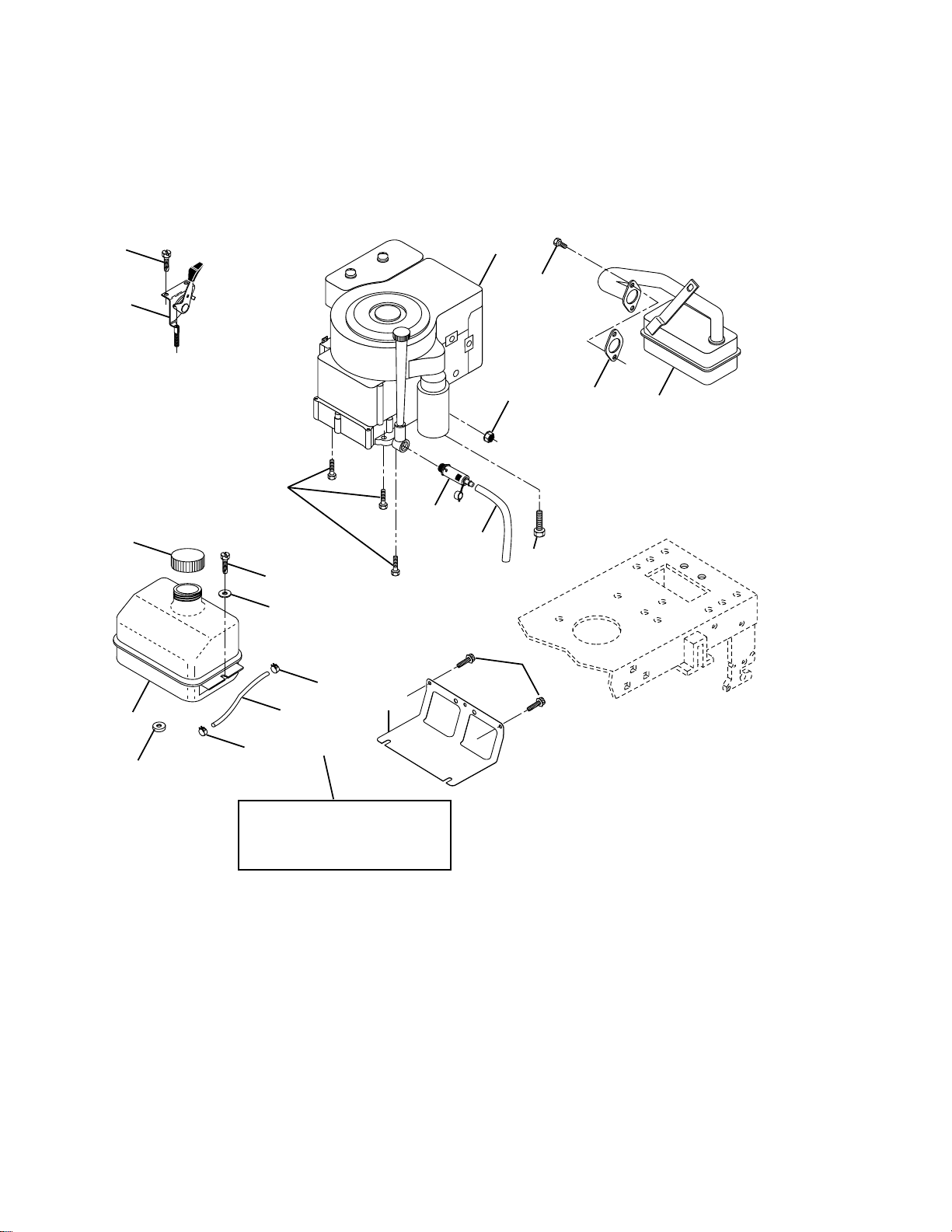

ENGINE
2
1
32
31
40
33
78
44
46
37
29
33
23
38
14
3
72
81
78
45
13
4
OPTIONAL EQUIPMENT
Spark Arrester
38
www.mymowerparts.com
engine-bs.1cyl_49
Page 15
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LTH18542 (LTH18542A), PRODUCT NO. 954 57 17-31
ENGINE
KEY PART
NO. NO. DESCRIPTION
1 532 17 05-51 Control Th/ch Flag
2 817 72 04-08 Screw Hex Thd Cut 1/4-20 x 1/2
3 - - - - - - - - Engine, B&S 31Q777
(Order parts from engine manufacturer)
4 532 13 73-52 Muffl er
13 532 16 52-91 Gasket Eng
14 532 14 84-56 Tube Drain Oil Easy
23 532 16 98-37 Shield Brn/Dbr Guard
29 532 13 71-80 Kit Spark Arrestor (Flat Scrn)
31 532 18 55-34 Tank Fuel Front
32 532 14 05-27 Cap Asm Fuel W/sym Vented
33 532 12 34-87 Clamp Hose Black
37 532 13 70-40 Line Fuel 20"
38 532 18 16-54 Plug Drain Oil Easy
40 532 12 40-28 Bush ing Snap Nyl Blk Fuel Line
44 817 67 04-12 Screw Hexwsh Thdrol 1/4-20 x 3/4
45 817 00 06-12 Screw Hexwsh Thdr 3/8-16 x 3/4
46 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.
72 532 18 39-06 Screw Socket Head 5/16-18 x 1
78 817 06 06-20 Screw 3/8-16 x 1-1/4
81 873 51 04-00 Nut Keps Hex 1/4-20 unc
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
For engine service and replacement parts, call the toll free
number for your engine manufacturer listed below:
Briggs & Stratton 1-800-233-3723
Kohler Co. 1-800-544-2444
Tecumseh Products 1-800-558-5402
Honda Engines 1-800-426-7701
Kawasaki 1-949-460-5688
39
www.mymowerparts.com
Page 16
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LTH18542 (LTH18542A), PRODUCT NO. 954 57 17-31

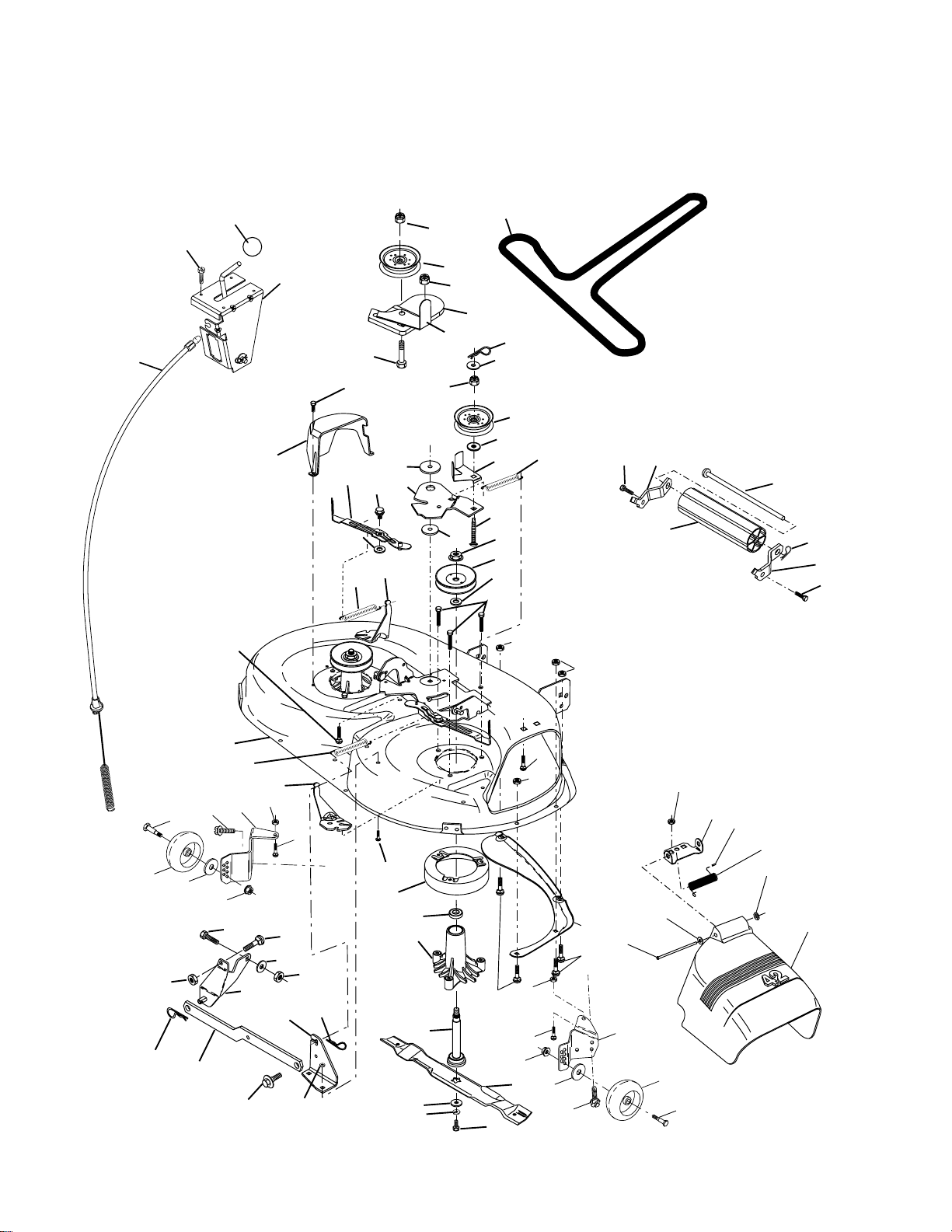

MOWER DECK
152
158
42_clutch_mod_7
67
34
185
44
53
147
159
46
48
52
142
56
55
40
144
40
36
54
40
143
59
146
31
30
68
150
184
33
32
45
145
21
148
132
95
94
182
183
91
132
113
116
117
119
118
130
92
5
6
42_D_man-t-path_stlt_3
1
147
111
19
21
2
18
8
118
21
11
2
21
119
113
20
18
29
112
142
21
2
2
16
15
131
129
92
3
149
4
21
14
13
10
9
28
117
21
116
23
24
25
26
27
40
www.mymowerparts.com
Page 17
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LTH18542 (LTH18542A), PRODUCT NO. 954 57 17-31
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
1 532 16 58-92 Deck Asm MWR 42"weldment
2 872 14 05-06 Bolt Rdhd Sqnk 5/16-18unc X3/4
3 532 13 80-17 Bracket Asm Fr Sway Bar 38/42
4 532 16 54-60 Bracket Asm Deck 42"sway Bar
5 532 12 46-70 Retainer Spring
6 532 17 80-24 Deck Sway Bar
8 532 85 08-57 Bolt 3/8 - 24 X 1.25 Gr 8
9 810 03 06-00 Washer Lock Hvy 3/8
10 532 14 02-96 Washer Hard Blade Mower
Vented
(The following blades are avail-
able)
11 532 13 41-49 Blade, 42" Mulching Std (For
mulching mowers only)
- - 532 13 97-75 Blade, 42" Mulching Premium (For
better wear when mulching
- - 532 13 89-71 Blade, 42" Hi-Lift (For bagging or
discharging)
13 532 13 76-45 Shaft Asm W/lower Bearing
14 532 12 87-74 Housing Mandrel Vented
15 532 11 04-85 Bearing Ball Man drel
16 532 17 44-93 Stripper Mower
18 872 14 05-05 Bolt Rdhd Sqnk 5/16-18 X 5/8
19 532 13 28-27 Bolt Shoulder
20 532 15 97-70 Baffl e Vortex 42
21 873 68 05-00 Nut Crownlock 5/16-18 UNC
23 532 17 75-63 Bracket Defl ector Mower 42"
24 532 10 53-04 Cap Sleeve 80x 112 Blk Mower
25 532 12 37-13 Spring Torsion Defl ector 2 52
26 532 11 04-52 Nut Push Phos & Oil
27 532 17 18-59 Shield Defl ector Mower 42" Blk
28 819 11 10-16 Washer 11/32 X 5/8 X 16 Ga
29 532 13 14-91 Rod Hinge 42"6 75 Wlg
30 532 17 39-84 Screw Thd Rolling
31 532 18 76-90 Washer Spacer
32 532 15 35-35 Pulley Mandrel 42"
33 532 17 83-42 Nut Toplock Flng
34 872 11 06-12 Bolt Carr SH 3/8-16 x 1-1/2 Gr. 5
36 532 13 14-94 Pulley Idler Flat 3 060
40 873 90 06-00 Nut Lock FLg 3/8-16 unc
44 532 14 00-88 Guard Mandrel LH Black
45 532 12 47-88 Spring Retainer 1" Zinc/cad
46 532 13 77-29 Screw Hex Thd Cut 1/4-20 x 5/8 T
48 532 13 39-44 Washer Hardened Smaller
52 532 13 98-88 Bolt Shoulder 5/16-18 Unc Blkz
53 532 18 49-07 Arm Asm Pad Brake
54 532 17 85-15 Washer Hardened
55 532 15 50-46 Arm Idler 42"mower LT/YT
KEY PART
NO. NO. DESCRIPTION
56 532 16 57-23 Spacer Retainer Mower
59 532 14 10-43 Guard TUV Idler
67 532 10 69-32 Knob Rd 3/8-16 Plstc Thds Blk
68 532 14 49-59 V-Belt Mower 42"
91 532 18 05-32 Bracket Roller Nose LH
92 873 80 06-00 Nut Lock Hex w/Ins. 3/8-16 Unc
94 532 13 22-64 Roller Nose
95 532 18 05-33 Bracket Roller Nose RH
111 532 17 92-92 Bracket Wheel Gauge LH 42"
Deck
112 532 17 92-93 Bracket Gauge Wheel RH 42"
Deck
113 817 00 05-10 Bolt 5/16-18
116 532 12 48-42 Bolt Shoulder
117 532 16 57-46 Wheel Gauge
118 873 93 06-00 Nut Centerlock 3/8-16 UNC
119 819 12 14-14 Washer 3/8 x 7/8 x 14 Ga.
129 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga.
130 872 14 06-08 Bolt RdHd Sqnk 3/8-16 Unc x 1
131 874 78 06-16 Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5
132 817 00 06-12 Screw Hex Wsh Thdr. 3/8-16 x 3/4
142 532 16 58-90 Arm Spring Brake Mower
143 532 15 71-09 Bracket Arm Idler 42"
144 532 15 86-34 Keeper Belt 42" Clutch
145 532 16 58-88 Pulley Idler Flat
146 532 17 19-77 Bolt Carriage Idler
147 532 13 13-35 Spring Extension
148 532 16 90-22 Spring Return Idler
149 532 16 58-98 Retainer Spring Yellow
150 819 09 12-10 Washer 9/32 x 3/4 x 16 Ga.
152 532 16 96-76 Clutch Cable 42"
158 817 72 04-08 Screw Hex Thd Cut 1/4-20 x 1/2
159 872 14 06-14 Bolt Rdhd Sqn 3/8-16 Unc x 1-3/4
182 532 17 91-26 Rod Roller Nose
183 532 16 35-52 Retainer Spring
184 819 13 14-10 Washer 13/32 x 7/8 x 10 Ga.
185 532 18 82-34 Head Asm Cable Clutch
- - 532 13 07-94 Mandrel Assembly(Includes Hous-
ing, Shaft and Shaft Hardware
Only-Pulley not Included)
- - 532 17 14-91 Replacement Mower, Complete
(Std Deck-order separately nose
roller and gauge wheel compo-
nents key nos. 91, 94, 95, 132,
182, 183, 116-119)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
41
www.mymowerparts.com
Page 18
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LTH18542 (LTH18542A), PRODUCT NO. 954 57 17-31

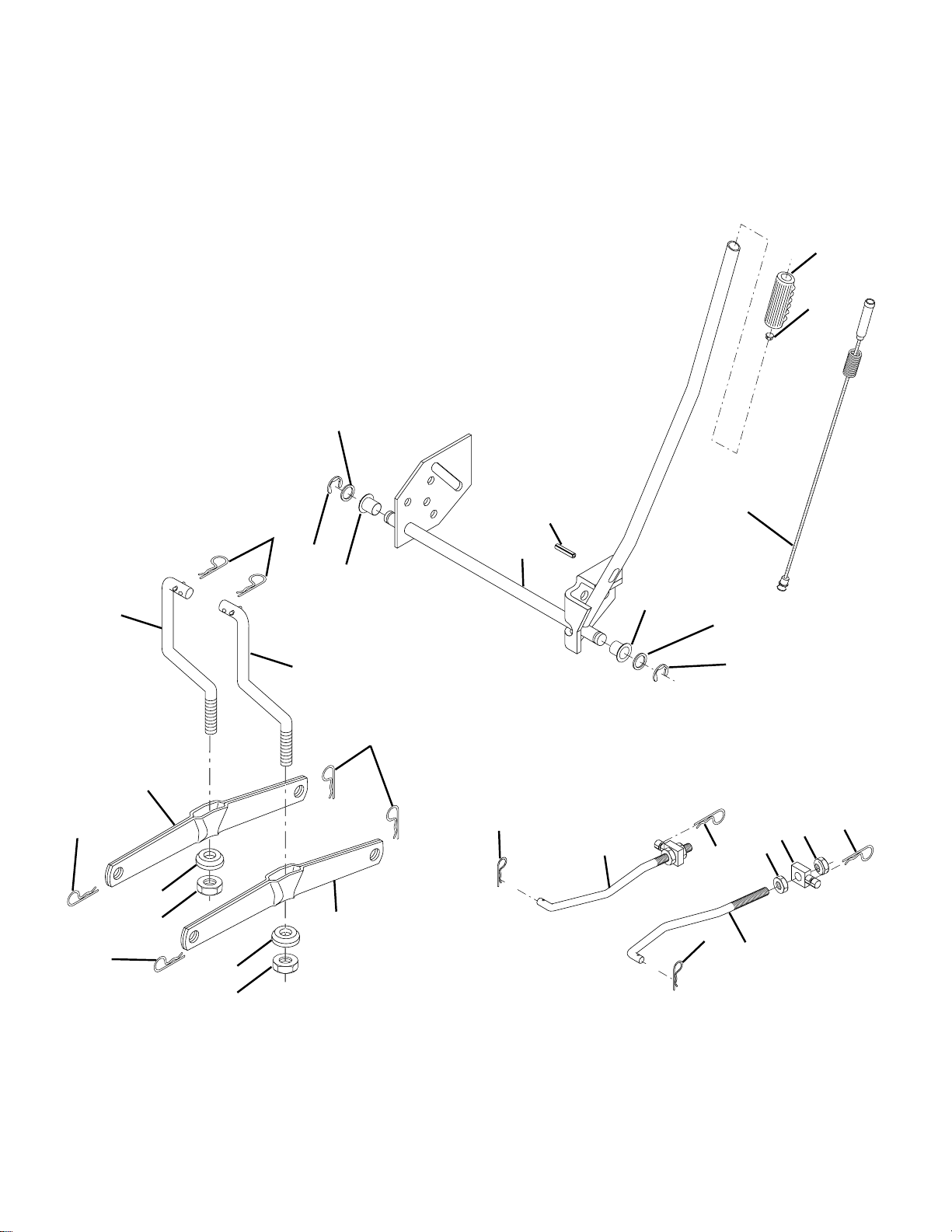

MOWER LIFT
7
8
5
13
13
11
19
31
32
31
13
4
12
19
20
5
20
1
4
20
18
17
16
15
3
2
6
6
13
20
15
32
42
www.mymowerparts.com
Page 19
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. LTH18542 (LTH18542A), PRODUCT NO. 954 57 17-31
MOWER LIFT
KEY PART
NO. NO. DESCRIPTION
1 532 15 94-60 Wire Asm Inner W/plunger LT
2 532 15 94-71 Shaft Asm Lift
3 532 10 57-67 Pin Groove
4 812 00 00-02 E Ring #5133-62
5 819 21 16-21 Washer PLTD 21/32 X 1 X 21Ga.
6 532 12 01-83 Bearing Nylon Blk 629 Id
7 532 12 56-31 Grip Handle Bi cy cle
8 532 12 45-26 Button Plunger Black
11 532 13 98-65 Link Lift LH
12 532 13 98-66 Link Lift RH
13 532 12 46-70 Retainer Spring
15 532 17 32-88 Link Front
16 873 35 08-00 Nut Jam Hex 1/2-13 unc
17 532 17 56-89 Trunnion
18 873 80 08-00 Nut Lock W/Wsh 1/2-13 unc
19 532 13 98-68 Arm Suspension Rear
20 532 16 35-52 Spring, Retainer
31 532 16 98-65 Bearing Pvt. Lift
32 873 54 06-00 Nut Crownlock 3/8-24
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
43
www.mymowerparts.com
Loading...
