I0302019
Parts Manuals
13 pgs851.26 Kb0

Husqvarna I0302019 Parts Manuals

Download

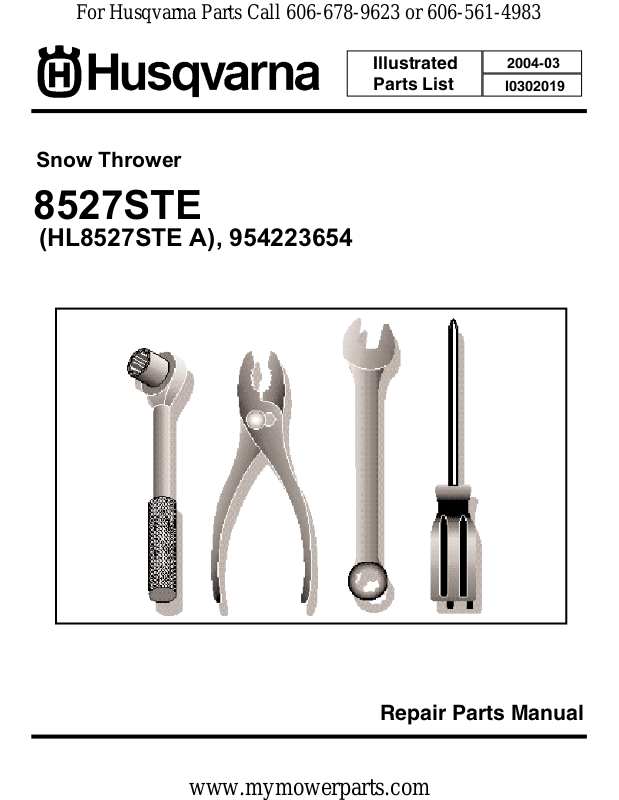

Page 1
Snow Thrower
8527STE
(HL8527STE A), 954223654
Illustrated Parts List
2004-03
I0302019
Repair Parts Manual
www.mymowerparts.com
Page 2

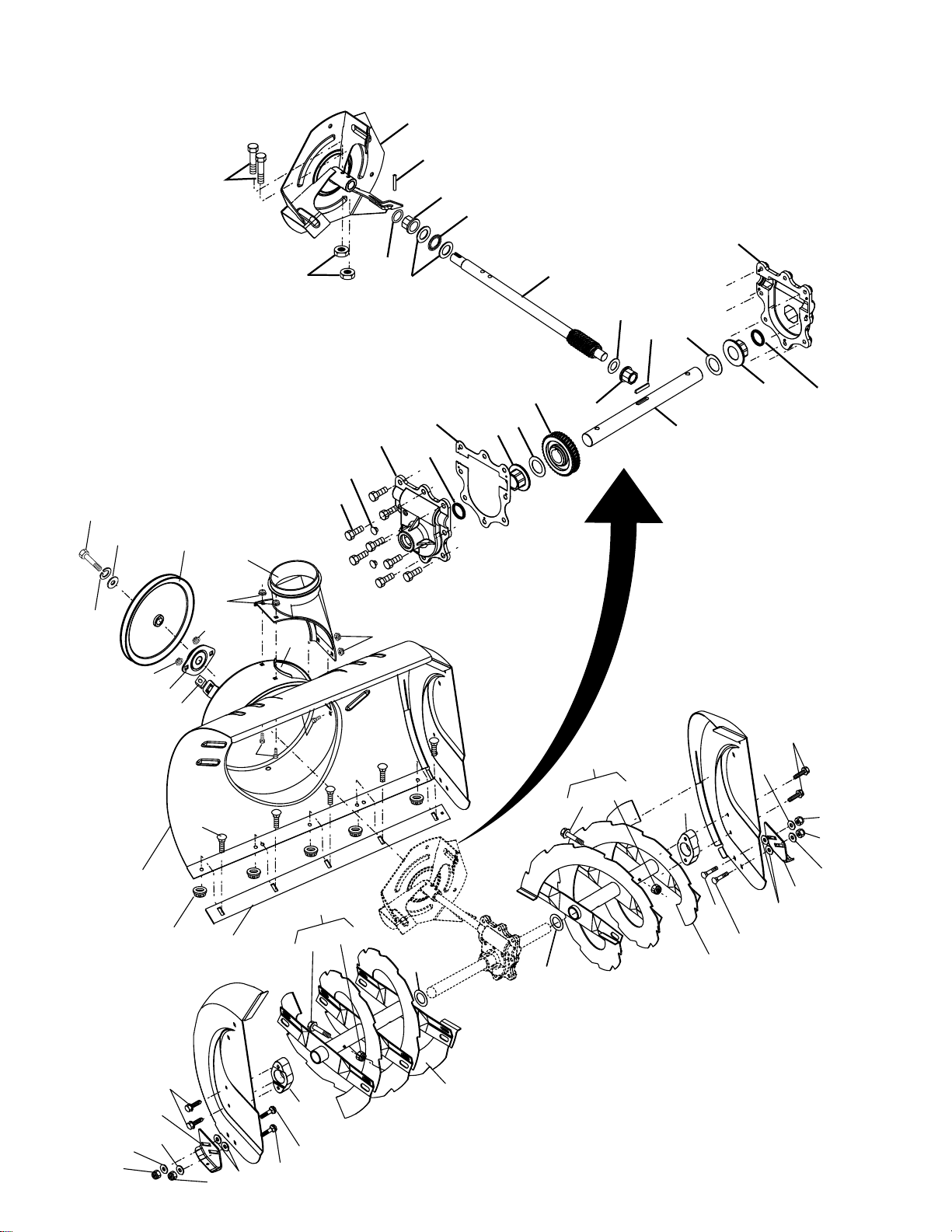

REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY
SNOW THROWER - - MODEL NO. 8527STE (HL8527STEA), PRODUCT NO. 954 22 36-54
48
51
49
33
35
47
16
15
14
40
41
6
32
34
50
42
43
27
19
39
4
13
6
6
6
5
9
8
12
7
7
45
36
38
55
28
37
19
44
27
46
26
2
43
42
18
19 20
19
10
2
22
21
18
21
55
6
20
11
23
24
28
26
25
19
27
27
30
20
25
24
31
29
23
www.mymowerparts.com
Page 3
REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY
SNOW THROWER - - MODEL NO. 8527STE (HL8527STEA), PRODUCT NO. 954 22 36-54
KEY PART NO. NO. DESCRIPTION
2 532 05 38-47 Washer, Flat 4 532 18 10-83 Pulley, Impeller 5 532 18 89-10 Bearing Assembly, Flange 6 532 15 53-77 Nut, Hex Flange 5/16-18 7 532 18 03-55 Bolt, Flat Head, Carriage 5/16-18 x 5/8 8 872 27 05-05 Bolt, Carriage 5/16-1 8 x 5/8 9 532 17 88-20 Nut, Cage 3/8-16
10 532 18 40-91 Housing, Auger 11 532 18 40-97 Bar, Scraper 12 532 18 40-95 Bracket, Corner Discharge 13 532 17 53-22 Base, Discharge Chute 14 819 11 15-07 Washer, Flat 15 810 04 05-00 Washer, Lock 5/16 16 874 95 05-12 Screw, Hex Head 5/16-18 x 3/4 18 532 17 95-82 Screw, Hex Head 5/16 x 1 19 873 80 04-00 Nut, Hex Lock 1/4-20 20 873 80 05-00 Nut, Hex Lock 5/16-18 21 532 15 54-15 Washer, Flat 22 532 18 40-94 Skid Plate, RH 23 532 17 92-46 Washer, Nylon, Friction 24 872 27 05-06 Bolt, Carriage 5/16-18 x 3/4 25 532 18 56-00 Bolt, Shoulder 26 532 17 46-58 Bearing, Auger 27 532 17 46-97 Washer, Thrust, 1" 28 532 18 74-94 Bolt, Shear 29 532 18 40-93 Skid Plate, LH 30 532 18 41-03 Auger Assembly, RH 31 532 18 41-00 Auger Assembly, LH 32 532 17 46-99 O-Ring 33 532 17 47-00 Bushing, Flange 3/4 34 532 17 46-81 Washer, Thrust 3/4 35 532 17 46-84 Bearing, Thrust 3/4 36 532 17 46-60 Shaft, Impeller 37 532 17 46-83 Washer, Thrust 5/8 38 532 17 46-86 Bushing, Flange 5/8 39 532 15 00-78 Screw, Hex Head 5/16-18 x 3/4 40 532 08 64-47 Plug, Case 41 532 17 46-88 Housing, Gearbox, RH 42 532 17 46-98 Seal, Oil 43 532 17 47-01 Bushing, Flange, 1" 44 532 17 88-79 Key, Square 1/4 x 1/4 x 7/8 45 532 17 46-59 Gear, Worm 46 532 17 46-57 Shaft, Auger 47 532 17 46-87 Housing, Gearbox, LH 48 532 18 41-05 Impeller Assembly 49 874 78 04-26 Screw, Hex Head 1/4-20 x 1-5/8 50 532 17 53-11 Gasket, Gearbox 51 532 18 42-05 Pin, Roll 3/16 x 1-1/8 55 532 18 82-43 Kit, Shear (Contains 6 each of Key Numbers 19 and 28)
NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm
21
www.mymowerparts.com
Page 4

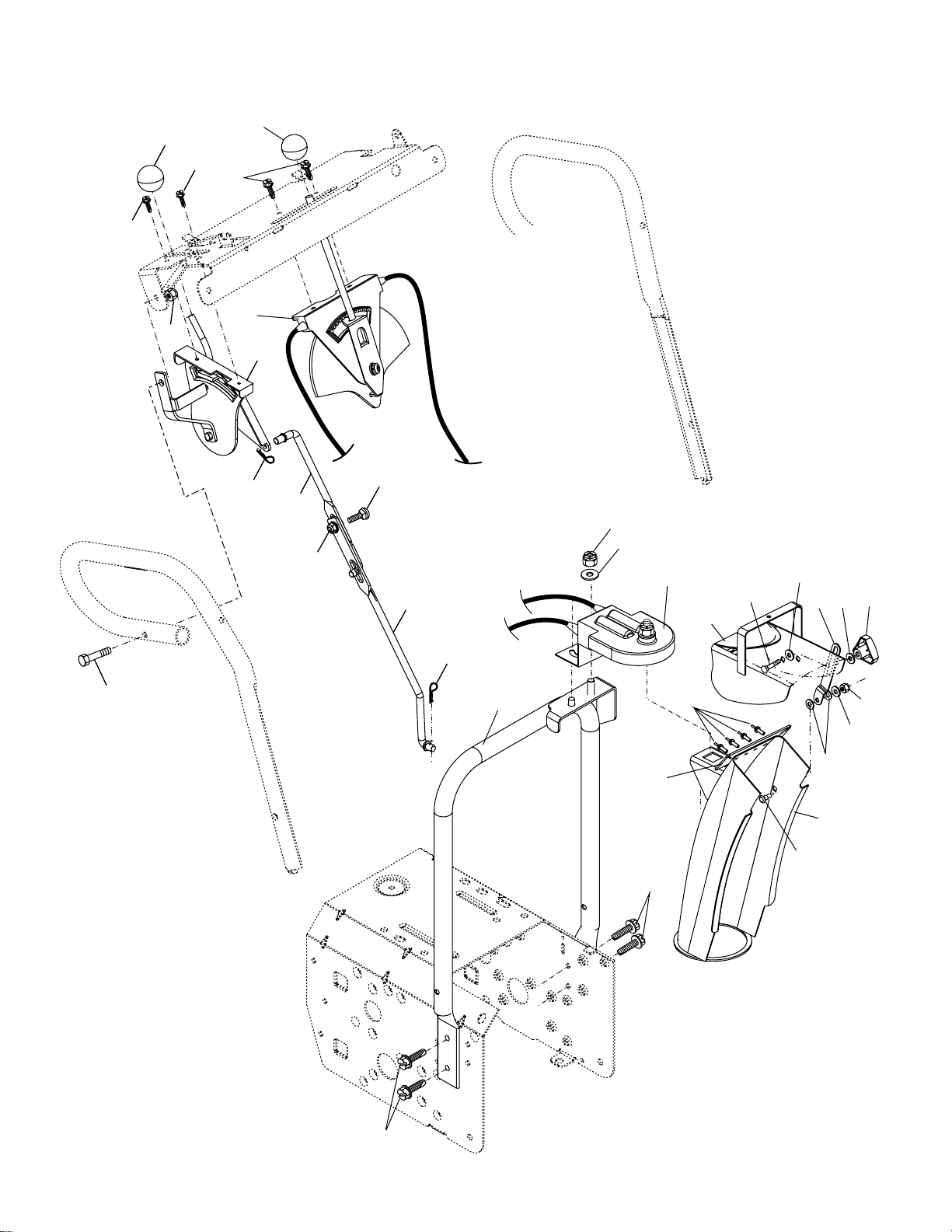

REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE

SNOW THROWER - - MODEL NO. 8527STE (HL8527STEA), PRODUCT NO. 954 22 36-54
2
27
6
1
26
28
25
20
29
4
5
6
13
16
14
21
9
3
19
2
2
30
24
27
7
17
8
18
12
11
14
15
10
8
22
www.mymowerparts.com
Chute-knob
Page 5
REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE
SNOW THROWER - - MODEL NO. 8527STE (HL8527STEA), PRODUCT NO. 954 22 36-54
KEY PART NO. NO. DESCRIPTION
1 532 18 33-34 Knob, Lever 2 817 50 10-10 Screw #10-24 x 5/8 3 532 18 41-14 Strap, Slotted 4 873 80 06-00 Nut, Lock 3/8-16 5 819 13 13-16 Washer, Flat 3/8 6 532 17 86-59 Control Assembly, Chute Rotater 7 532 18 40-89 Support, Pivot 8 532 15 00-78 Screw, Hex Head 5/16-18 x 3/4 9 532 18 04-53 Knob, Defl ector
10 532 18 56-00 Bolt, Shoulder 11 532 05 38-47 Washer, Flat 1/4 12 873 80 04-00 Nut, Lock 1/4-20 13 872 27 05-05 Bolt, Carriage 5/16-18 x 5/8 14 532 17 92-46 Washer, Nylon 15 532 18 41-12 Chute Assembly 16 532 18 41-13 Defl ector Assembly 17 532 17 91-45 Seal, Defl ector 18 532 12 84-15 Rivet, Blind 19 532 18 33-33 Knob, Speed Control Lever 20 872 27 05-06 Bolt, Carriage 5/16-18 x 3/4 21 532 15 54-15 Washer, Flat 5/16 24 874 78 05-28 Screw, Hex Head 5/16-18 x 1-3/4 25 532 15 53-77 Nut, Lock 5/16-18 26 532 17 92-57 Lever Assembly, Speed Control 27 532 16 96-75 Retainer, Hairpin 28 532 18 04-45 Rod, Upper, Speed Control 29 532 18 77-16 Rod, Lower, Speed Control 30 873 80 05-00 Nut, Lock 5/16-18
NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm
23
www.mymowerparts.com
Page 6

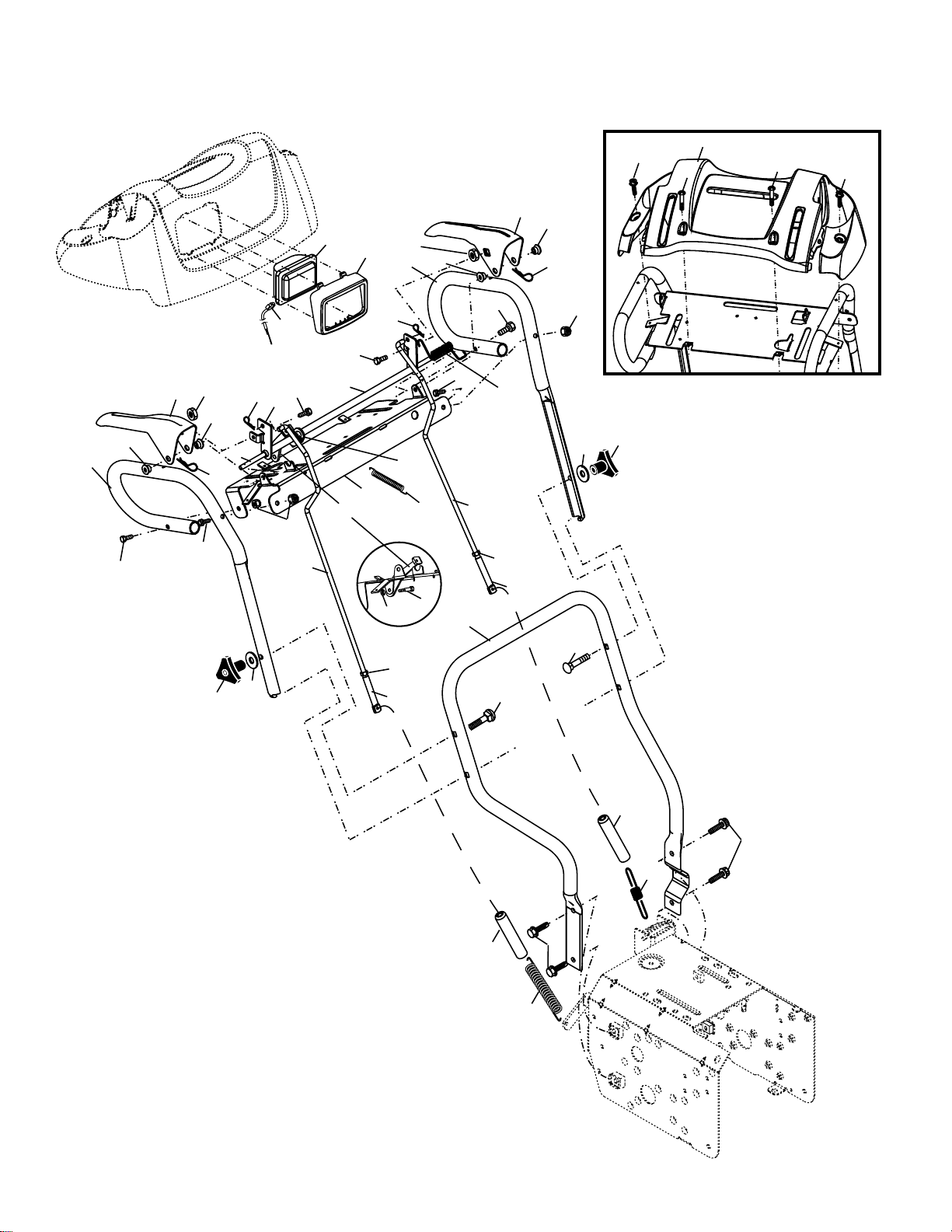

REPAIR PARTS HANDLES

SNOW THROWER - - MODEL NO. 8527STE (HL8527STEA), PRODUCT NO. 954 22 36-54
14
12
31
30
31
32
32
2
36
20
4
5
15
17
16
22
38
39
40
6
9
3
1
4
4
11
17
7
5
16
6
5
8
10
33
15
18
35
5
20
13
21
28
3
4
11
11
37
34
19
21
23
22
24
25
24
27
26
24
www.mymowerparts.com
27
Page 7
REPAIR PARTS HANDLES
SNOW THROWER - - MODEL NO. 8527STE (HL8527STEA), PRODUCT NO. 954 22 36-54
KEY PART NO. NO. DESCRIPTION
1 532 18 41-10 Lever, Auger Control, RH 2 532 18 41-09 Lever, Traction Drive Control, LH 3 532 17 94-39 Nut, Cage 1/4-20 4 532 17 88-88 Bushing, Flange 5 532 16 96-75 Retainer, Hairpin 6 532 18 04-02 Screw, Hex Head 1/4-20 x 3/4 7 532 17 86-52 Rod, Interlock 8 532 18 40-03 Tube Assembly, Interlock, RH 9 532 17 86-51 Tube Assembly, Interlock, LH
10 532 18 41-06 Panel, Control 11 874 78 05-24 Screw, Hex Head 5/16-18 x 1-1/2 12 874 78 05-28 Screw, Hex Head 5/16-18 x 1-3/4 13 532 18 41-07 Handle Tube, LH 14 532 18 41-08 Handle Tube, RH 15 873 80 05-00 Nut, Lock 5/16-18 16 819 13 13-16 Washer, Flat 3/8 17 532 17 88-99 Knob, Handle 18 532 17 90-93 Rod, Auger Control 19 532 17 90-98 Rod, Traction Control 20 532 18 04-28 End, Control Rod 21 873 35 05-00 Nut, Hex, Jam 5/16-18 22 872 12 06-18 Bolt, Carriage 3/8-16 x 2-1/4 23 532 18 40-88 Handle Tube, Lower 24 532 18 04-47 Sleeve, Spring 25 532 18 09-26 Spring, Traction Drive 26 532 17 86-69 Spring, Auger Control 27 871 21 06-16 Screw, Hex Head 3/8-16 x 1 28 532 18 04-94 Clip, Panel 30 532 18 33-46 Console, Panel 31 532 17 52-62 Screw, Hex Head, Tapping #10-24 x 1-1/4 32 532 18 44-71 Screw, Hex Head, Tapping #10-24 x 1/2 33 532 18 41-11 Latch, Interlock 34 532 18 35-18 Bolt, Shoulder 35 532 06 80-38 Nut, Lock 1/4-20 36 532 17 88-31 Spring, Torsion 37 532 17 86-58 Spring, Interlock 38 532 17 86-66 Headlight, Halogen 39 532 17 86-68 Bezel, Headlight 40 532 18 09-64 Harness, Headlight (Halogen)
NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm
25
www.mymowerparts.com
Page 8

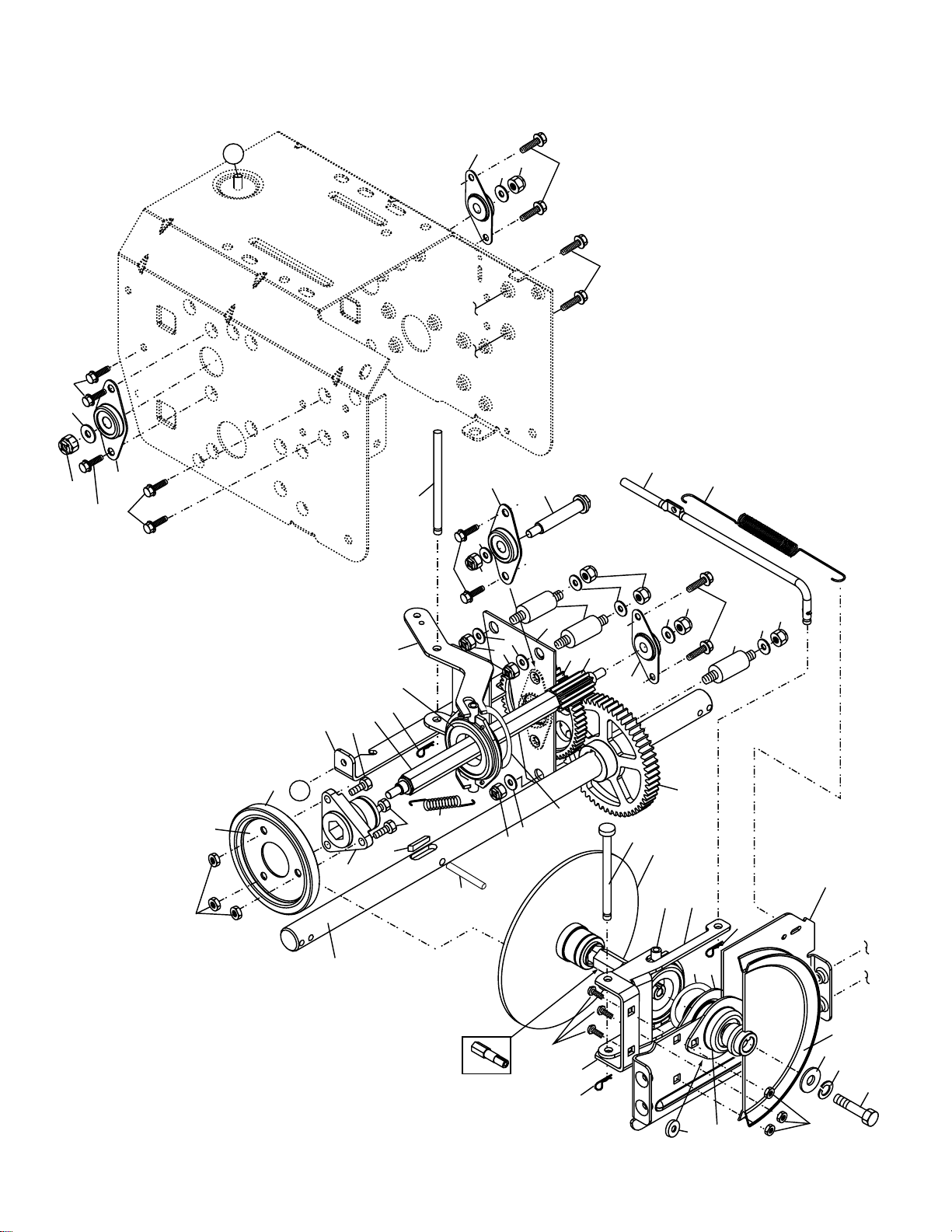

REPAIR PARTS DRIVE

SNOW THROWER - - MODEL NO. 8527STE (HL8527STEA), PRODUCT NO. 954 22 36-54
13
1
3
5
2
4
1
13
14
5
2
3
5
3
1
2
3
2
1
4
11
6
2
3
7
8
10
9
43
4
2
3
2
3
7
19
18
17
15
22
27
20
21
12
32
21
23
44
28
41
3
2
31
30
22
16
1
5
24
25
26
34
29
15
22
41
33
36
38
39
40
35
33
37
26
www.mymowerparts.com
Page 9
REPAIR PARTS DRIVE
SNOW THROWER - - MODEL NO. 8527STE (HL8527STEA), PRODUCT NO. 954 22 36-54
KEY PART NO. NO. DESCRIPTION
1 532 14 63-15 Screw, Hex Head 5/16-18 x 3/4 2 873 80 05-00 Nut, Lock 5/16-18 3 532 15 5415 Washer, Flat 4 817 49 05-08 Screw, Hex Head 5/16-18 x 1/2 5 532 18 00-17 Bearing, Flange 6 532 18 01-34 Shaft, Auxiliary 7 532 17 92-70 Spacer, Plate 8 532 18 40-79 Plate, Auxiliary 9 532 18 00-82 Gear, Intermediate (12/58)
10 532 18 00-65 Gear, Pinion 11 532 18 77-14 Rod, Clutch 12 532 18 00-66 Shaft, Long, Hex 13 532 17 88-07 Pin, Pivot 14 532 18 40-80 Lever, Shifter / Wheel 15 532 17 53-44 Trunnion Bearing Assembly 16 532 18 40-81 Bracket, Pivot, Shift 17 532 17 98-31 Ring, Rubber Wheel 18 532 18 40-78 Plate, Rubber Wheel 19 873 93 05-00 Nut, Lock 5/16-18 20 532 17 86-13 Hub, Rubber Wheel 21 874 76 05-14 Screw, Hex Head 5/16-18 x 7/8 22 532 08 51-79 Retainer, Hairpin 23 532 18 01-35 Spring, Bias 24 532 18 00-81 Gear, Axle (58 Teeth) 25 532 17 86-95 Pin, Pivot Lever 26 532 17 53-41 Plate Assembly, Drive 27 532 17 93-52 Shaft, Axle 28 532 17 53-40 Shaft, Short Hex 29 532 18 40-77 Lever, Shifter Plate 30 532 18 40-76 Bracket, Shifter Support 31 872 27 05-05 Bolt, Carriage 5/16-18 x 5/8 32 532 17 88-79 Key, Square 1/4 x 1/4 x 7/8 33 532 17 53-23 Bearing, Flange 34 532 18 40-75 Plate, Drive Mounting 35 532 18 25-04 Spacer, Bearing 36 532 17 53-48 Pulley, Traction Drive 37 532 15 53-77 Nut, Lock 5/16-18 38 819 11 15-07 Washer, Flat 39 810 04 05-00 Washer, Lock 5/16 40 874 95 05-12 Screw, Hex Head 5/16-18 x 3/4 41 812 00 00-12 Ring, Retaining 43 532 17 90-95 Spring, Return 44 532 18 42-06 Pin, Roll
NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm
27
www.mymowerparts.com
Page 10

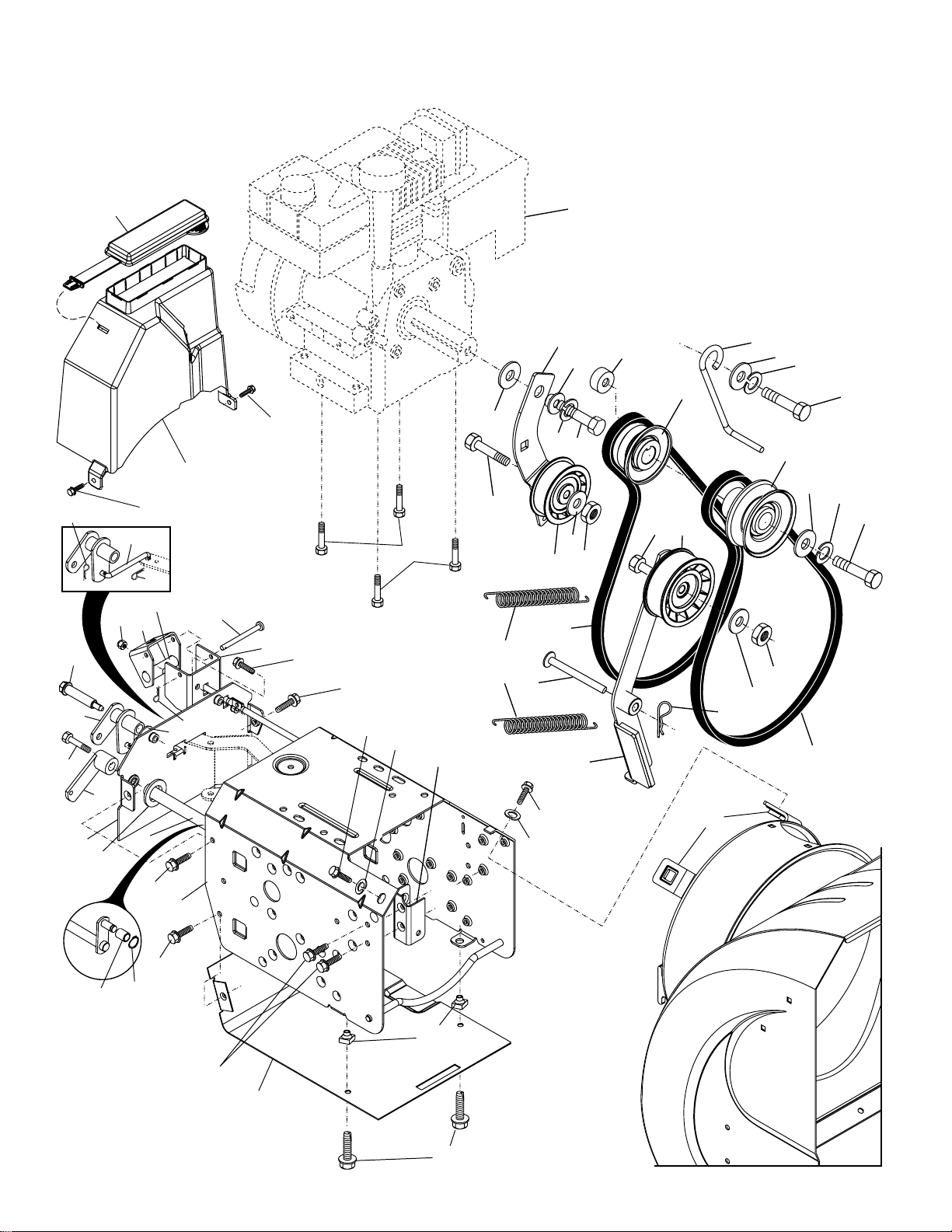

REPAIR PARTS CHASSIS / ENGINE / PULLEYS

SNOW THROWER - - MODEL NO. 8527STE (HL8527STEA), PRODUCT NO. 954 22 36-54
41
32
33
34
30
36
38
37
31
41 39
3
17
19
31
29
16
42
43
5
11
41
6
44
26
45
6
10
21
4
6
2
9
1
14
8
12
22
23
18
20
7
13
6
28
6
10
21
24
25
26
27
7
15
50
52
53
35
51
54
11
11
49
11
46
44
26
48
47
28
www.mymowerparts.com
40
Page 11
REPAIR PARTS CHASSIS / ENGINE / PULLEYS
SNOW THROWER - - MODEL NO. 8527STE (HL8527STEA), PRODUCT NO. 954 22 36-54
KEY PART NO. NO. DESCRIPTION
1 532 18 10-44 Spring, Traction Idler 2 532 18 05-22 Pulley, Idler (2-1/4) 3 - - - Engine, Tecumseh, Model Number HMSK85 (Order parts from Engine manufacturer) 4 874 78 05-20 Screw, Hex Head 5/16-18 x 1-1/4 5 532 15 00-78 Screw, Hex Washer Head 5/16-18 x 3/4 6 532 05 92-89 Washer, Flat 7 873 93 05-00 Nut, Jam, Lock 5/16-18 8 532 17 53-30 Pin, Idler Pivot 9 532 17 90-92 V-Belt, Traction Drive
10 810 04 05-00 Washer, Lock 5/16 11 817 49 05-08 Screw, Hex Head 5/16-18 x 1/2 12 532 17 92-59 Impeller Idler Arm Assembly 13 532 08 51-79 Retainer, Hairpin 14 532 17 88-28 Spring, Brake 15 532 18 35-33 V-Belt, Impeller Drive 16 532 15 04-06 Screw, Hex Head 3/8-16 x 1-1/4 17 532 17 93-54 Arm, Idler 18 874 78 05-24 Screw, Hex Head 5/16-18 x 1-1/2 19 532 17 53-31 Bushing, Idler Pivot 20 532 18 05-23 Pulley, Idler (2-3/4) 21 874 61 05-16 Screw, Hex Head 5/16-18 x 1 22 532 17 93-71 Spacer, Engine Pulley 23 532 18 04-78 Pulley, Engine, Traction Drive 24 532 17 91-57 Pulley, Engine, Impeller Drive 25 532 06 27-35 Washer, Flat 3/8 26 532 85 02-63 Washer, Lock 3/8 27 532 85 10-84 Screw, Hex Head 3/8-24 x 1-3/8 28 532 18 35-61 Guide, Belt 29 532 18 04-65 Cover, Belt 30 532 17 88-30 Cover, Toolbox 31 817 49 04-08 Screw, Hex Head 1/4-20 x 1/2 32 532 17 92-56 Bolt, Shoulder 5/16-18 33 532 18 78-53 Bellcrank Shifter 34 532 18 04-01 Screw, Hex Head 1/4-28 x 3/4 35 532 17 92-40 Arm, Auger Control 36 873 80 05-00 Nut, Lock 5/16-18 37 532 18 40-86 Bellcrank Assembly 38 532 18 71-01 Link, Speed Control 39 532 17 90-64 Trunnion, Clutch 40 532 17 88-90 Nut, Cage 3/8-16 41 532 70 02-79 Hairpin, Cotter 3/32 x 1/2 42 532 17 90-65 Pin, Bellcrank 43 532 18 40-85 Bracket, Bellcrank 44 874 78 06-24 Screw, Hex Head 3/8-16 x 1-1/2 45 532 18 40-74 Pivot Bracket, Impeller Idler Arm 46 532 18 40-84 Pan, Frame Bottom 47 871 02 05-12 Screw, Hex Head 5/16-18 x 3/4 48 532 18 11-56 Nut, Speed 5/16-18 49 532 18 40-73 Frame Assembly 50 532 18 80-02 Plate, Frame End 51 532 18 40-82 Shaft, Auger Control 52 532 05 70-79 Washer, Hardened 53 532 17 90-62 Roller 54 812 00 00-10 Ring, Retaining
- - 532 18 38-54 Power Cord (not shown) NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
29
www.mymowerparts.com
Page 12

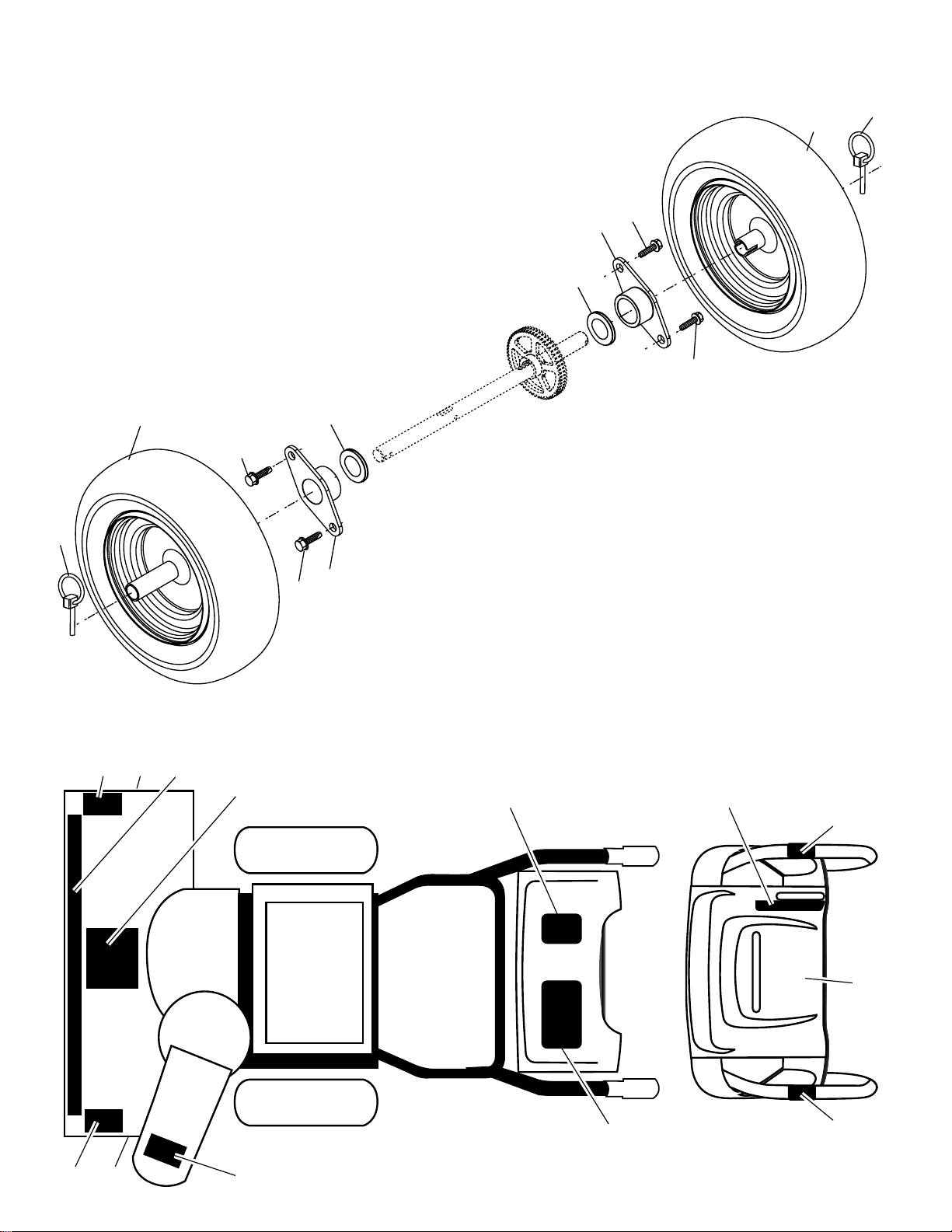

REPAIR PARTS WHEELS / DECALS

SNOW THROWER - - MODEL NO. 8527STE (HL8527STEA), PRODUCT NO. 954 22 36-54
1
4
5
6
4
2
3
4
2
1
10
2
4
6
5
4
911
8
110
6
5
3
30
7
www.mymowerparts.com
Page 13
REPAIR PARTS WHEELS / DECALS
SNOW THROWER - - MODEL NO. 8527STE (HL8527STEA), PRODUCT NO. 954 22 36-54
KEY PART NO. NO. DESCRIPTION
1 532 18 78-33 Wheel Assembly, 16", LH 2 532 15 54-43 Pin, Klik 1/4 3 532 18 78-65 Wheel Assembly, 16", RH 4 532 14 63-15 Screw, Hex Head 5/16-18 x 1/2 5 532 17 98-30 Bearing, Axle 6 532 17 46-97 Washer, Thrust, 1"
NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm
KEY PART NO. NO. DESCRIPTION
1 532 18 10-38 Decal, Danger 2 532 18 79-11 Decal, Husqvarna 3 532 18 10-34 Decal, Danger, Defl ector 4 532 18 10-41 Decal, Danger 5 532 18 75-84 Decal, Husqvarna, 8527STE 6 532 18 10-32 Decal, Instruction 7 532 15 57-98 Decal, Traction Lever 8 532 15 58-00 Decal, Auger Lever 9 532 18 10-36 Decal, Speed Control
10 532 15 57-94 Decal, Husqvarna, Crown
- - 532 18 78-27 Owner’s Manual
NOTE: All component dimensions given in U.S. inches 1 inch = 25.4 mm
31
www.mymowerparts.com
