Husqvarna I0301039 Parts Manuals

Download

Page 1

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

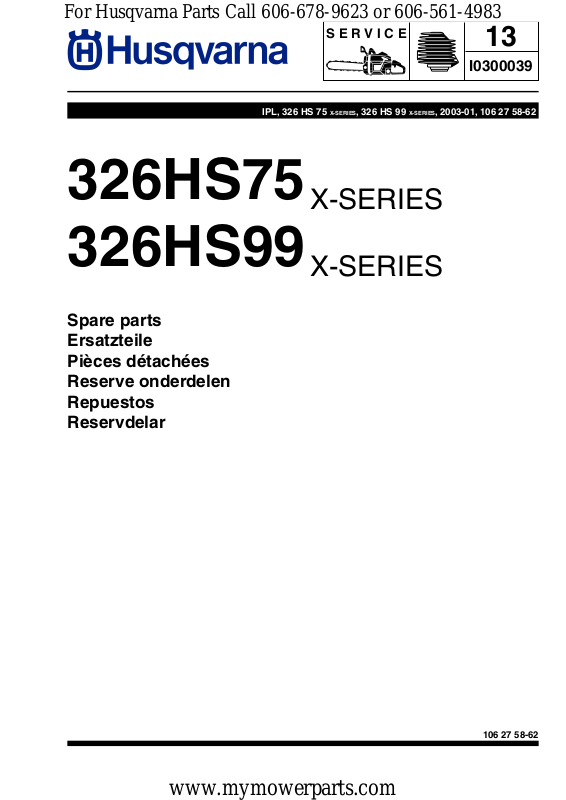

IPL, 326 HS 75 X-SERIES, 326 HS 99 X-SERIES, 2003-01, 106 27 58-62

326HS75 326HS99

SERVICE

I0300039

X-SERIES

Spare parts Ersatzteile Pièces détachées Reserve onderdelen Repuestos Reservdelar

www.mymowerparts.com

106 27 58-62

Page 2

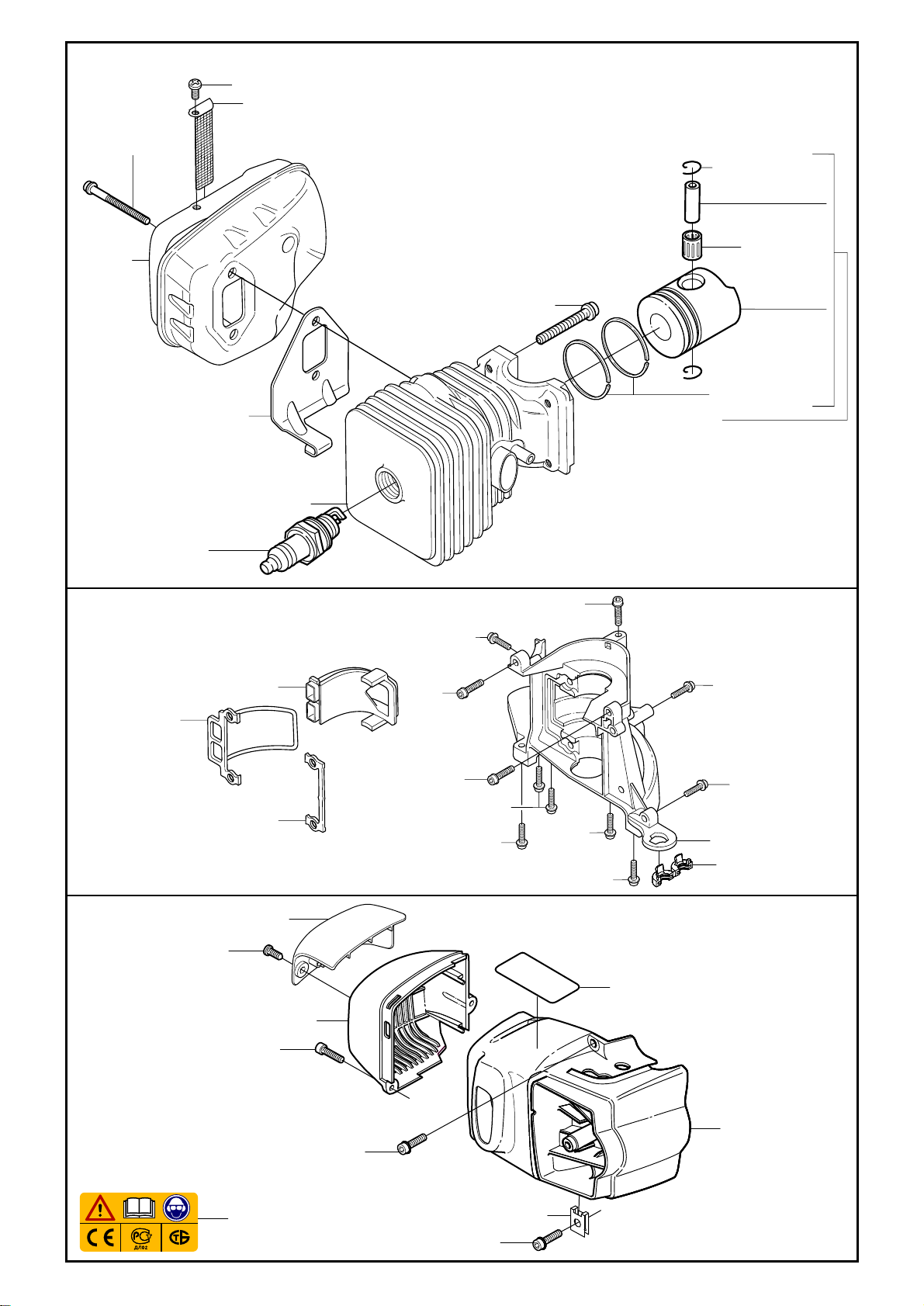

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

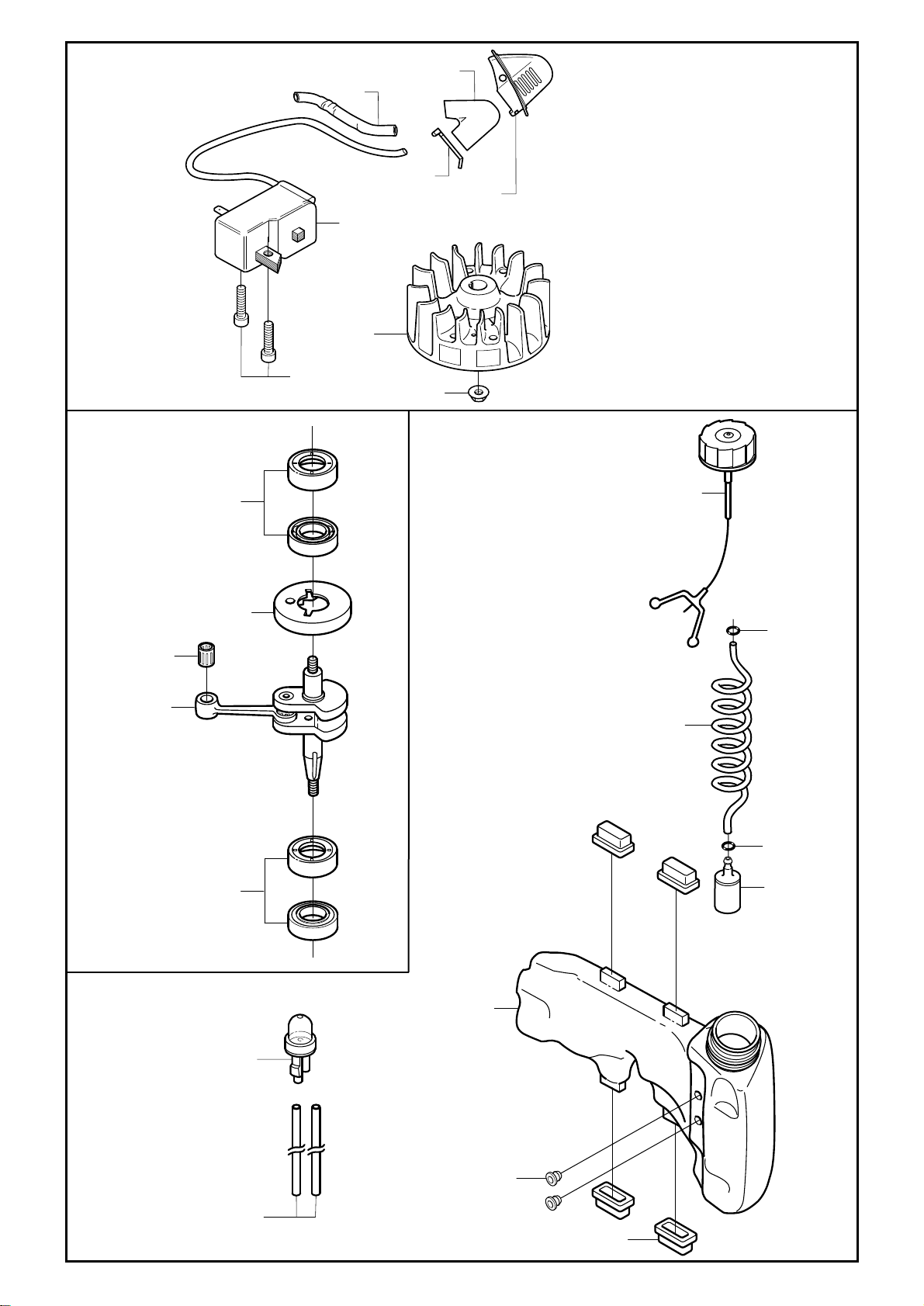

*compl 537 02 53-01

*compl 537 12 81-73

*503 94 02-01

537 09 17-01

537 06 44-03

503 87 28-01

503 21 71-16 (x2)

731 71 16-51

537 09 16-01

*503 71 22-01

*503 94 05-01

*537 12 88-01

503 93 66-01

537 18 49-01

503 57 76-01

537 18 49-01

503 44 32-01

503 98 47-01

537 04 24-01 (x2)

503 73 58-01 (x2)

503 91 10-01 (x4)

www.mymowerparts.com

Page 3

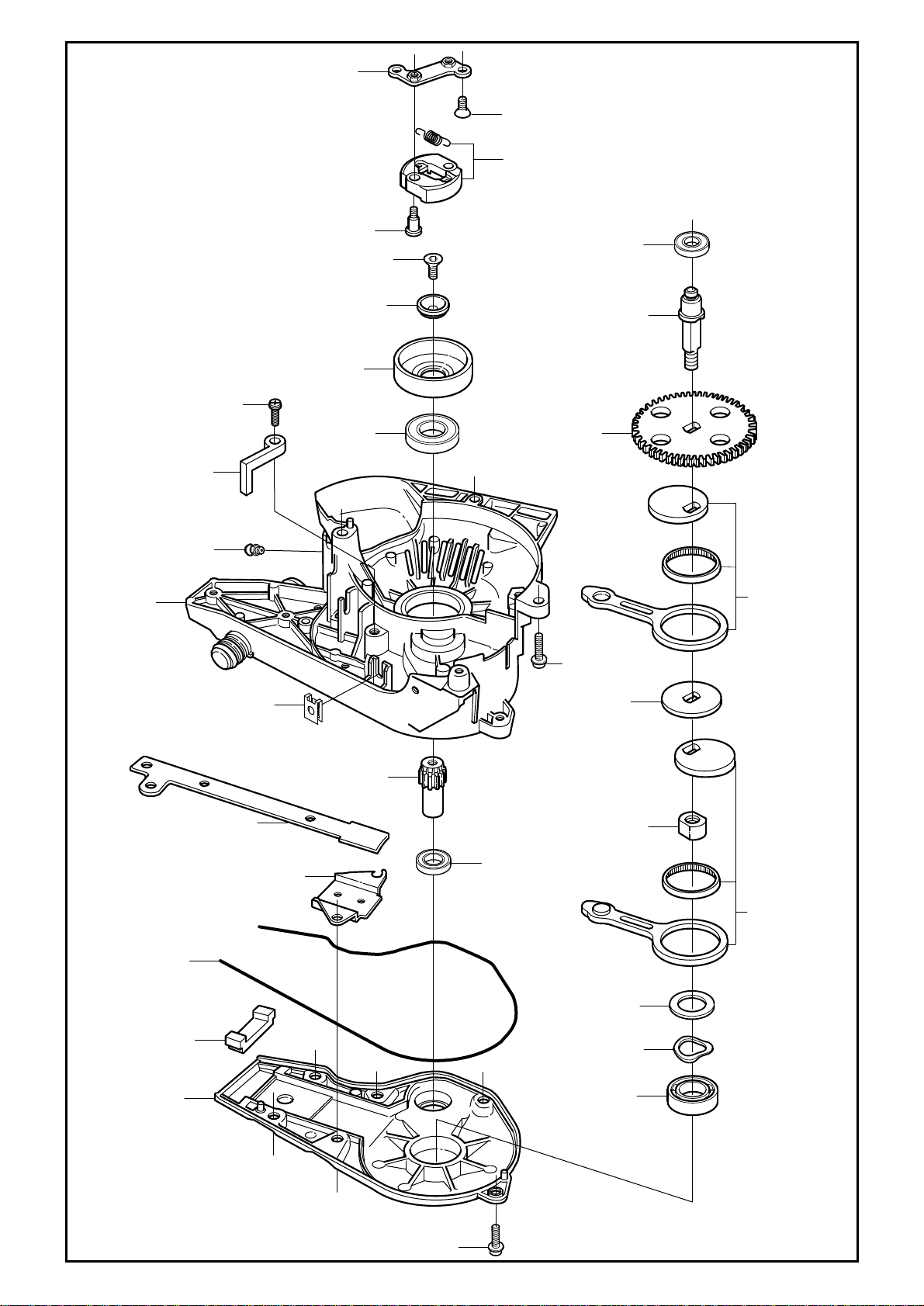

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

*compl 537 15 62-01

503 20 29-56 (x3)

537 17 23-01

**compl 537 08 51-01

724 12 87-59*

537 07 07-01*

737 44 08-00 (x2)

503 71 22-01

503 20 02-35** (x4)

503 28 90-43 (x2)

**537 08 46-71

503 23 51-09

Champion RCJ 6Y

*compl 537 08 52-01

*537 06 69-01

503 21 28-10 (x2)

*537 06 68-01

*537 08 85-01

537 15 31-01

*503 21 62-20 (x7)

*503 21 71-16 (x2)

503 21 66-20*

503 21 77-16*

537 03 44-01

537 10 50-01

537 06 25-01

503 21 62-20 (x2)

503 21 62 -20 (x2)

537 03 44-01

537 14 54-01

503 22 72-01

503 21 44-16

www.mymowerparts.com

Page 4

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

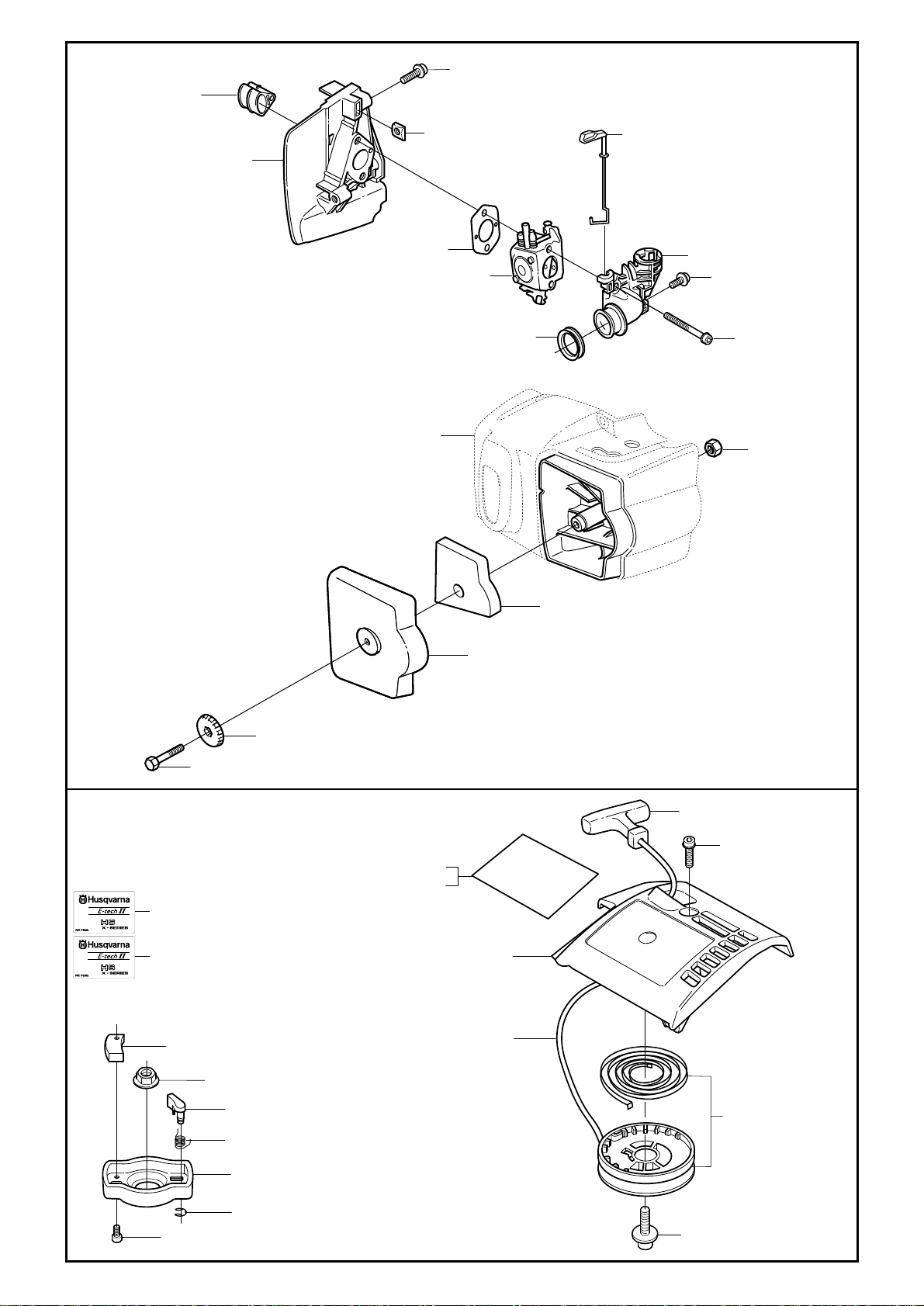

503 94 26-01

503 91 09-01

503 49 71-01

503 28 31-13

537 14 54-01

503 20 14-25 (x2)

503 22 65-04 (x2)

740 68 11-21

537 02 33-01

537 05 78-01

503 21 77-16

503 21 75-50 (x2)

731 23 14-01

502 20 65-03

*compl 503 85 28-02

326

**compl 503 87 33-03

537 17 22-10 326HS75

537 17 22-11 326HS99

537 05 47-01**

537 14 31-01

537 06 63-01

502 20 40-01

537 00 84-01*

503 21 62-20

537 17 22-10 326HS75 537 17 22-11 326HS99

*503 98 49-01

*503 85 89-01

731 71 16-51

503 87 35-02**

503 87 36-01**

735 31 08-20**

725 52 87-56**

503 96 49-01*

503 21 77-16*

www.mymowerparts.com

Page 5

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

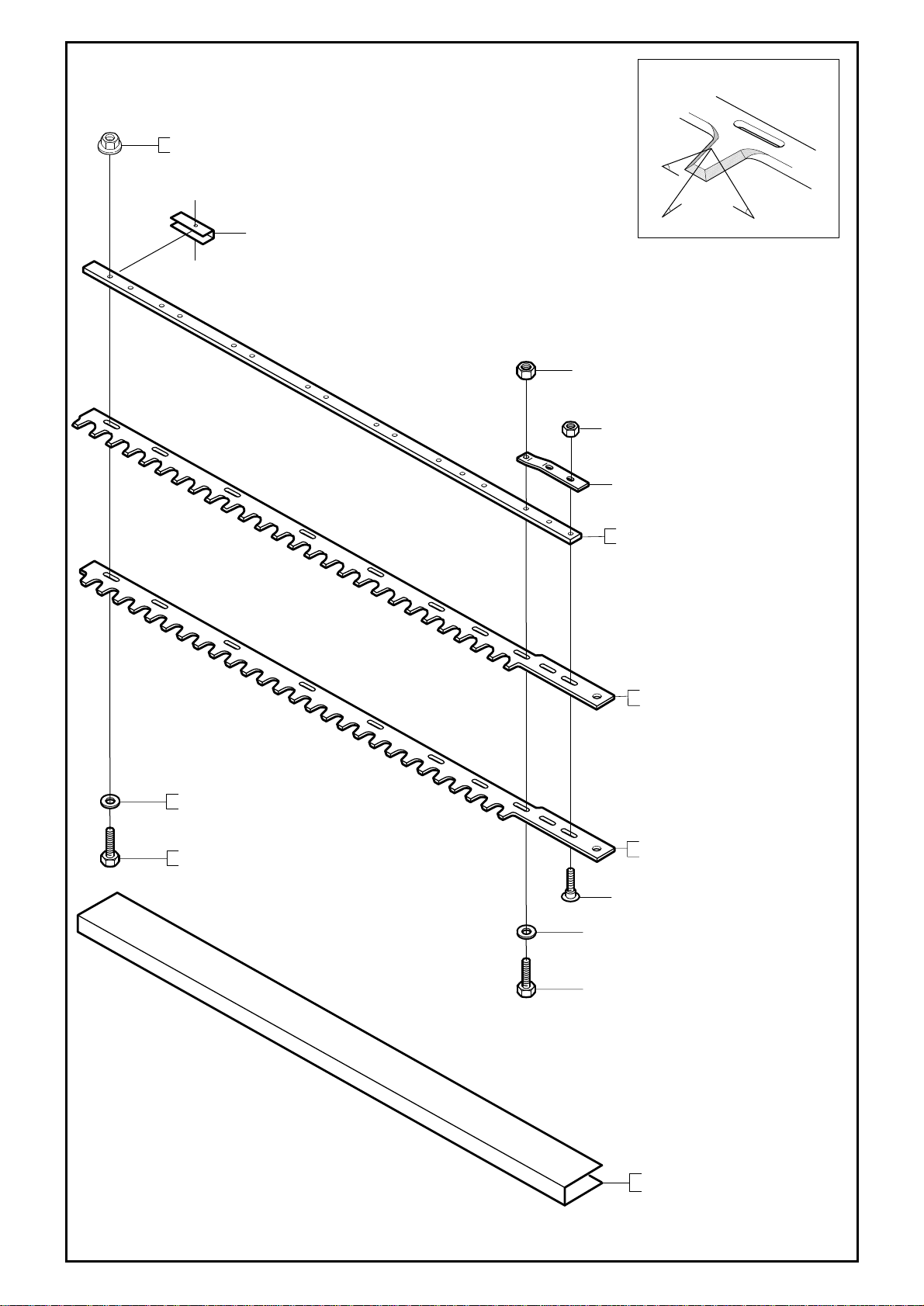

*compl 537 03 77-01 326HS75 *compl 537 03 77-02 326HS99

503 22 75-02* (x5) 326HS75 503 22 75-02* (x7) 326HS99

°

537 08 58-01*

731 23 16-01

503 22 10-13 (x2)

537 05 05-01

537 03 80-01* 326HS75 537 03 80-02* 326HS99

°

503 23 00-24* (x4) 326HS75 503 23 00-24* (x6) 326HS99

503 20 17-22* (x5) 326HS75 503 20 17-22* (x7) 326HS99

537 03 78-01* 326HS75 537 03 78-02* 326HS99

537 03 79-01* 326HS75 537 03 79-02* 326HS99

503 92 28-02 (x2)

503 23 00-24

725 23 72-71

www.mymowerparts.com

537 03 82-01* 325HS75 537 03 82-02* 325HS99

Page 6

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

*compl 537 06 74-73

*503 21 27-13

*537 17 17-01

537 03 99-01

537 00 00-01 (x2)

725 64 49-56

537 09 03-01

537 03 96-01

*738 21 02-04

503 21 48-01 (x2)

537 04 01-01

**compl 503 98 23-02

*738 21 98-04

**503 98 19-01

**503 98 17-01

*738 88 10-01

503 98 36-01

503 26 32-01

*503 22 72-01

537 05 15-01

537 17 35-01**

503 21 62-20 (x3)

**503 98 22-01

537 09 01-01

**503 98 20-01

503 25 05-01***

537 17 35-01**

537 05 33-01

***

***compl 537 06 75-01

503 23 00-14

503 23 03-01

***738 21 88-00

*503 21 68-16 (x6)

www.mymowerparts.com

Page 7

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

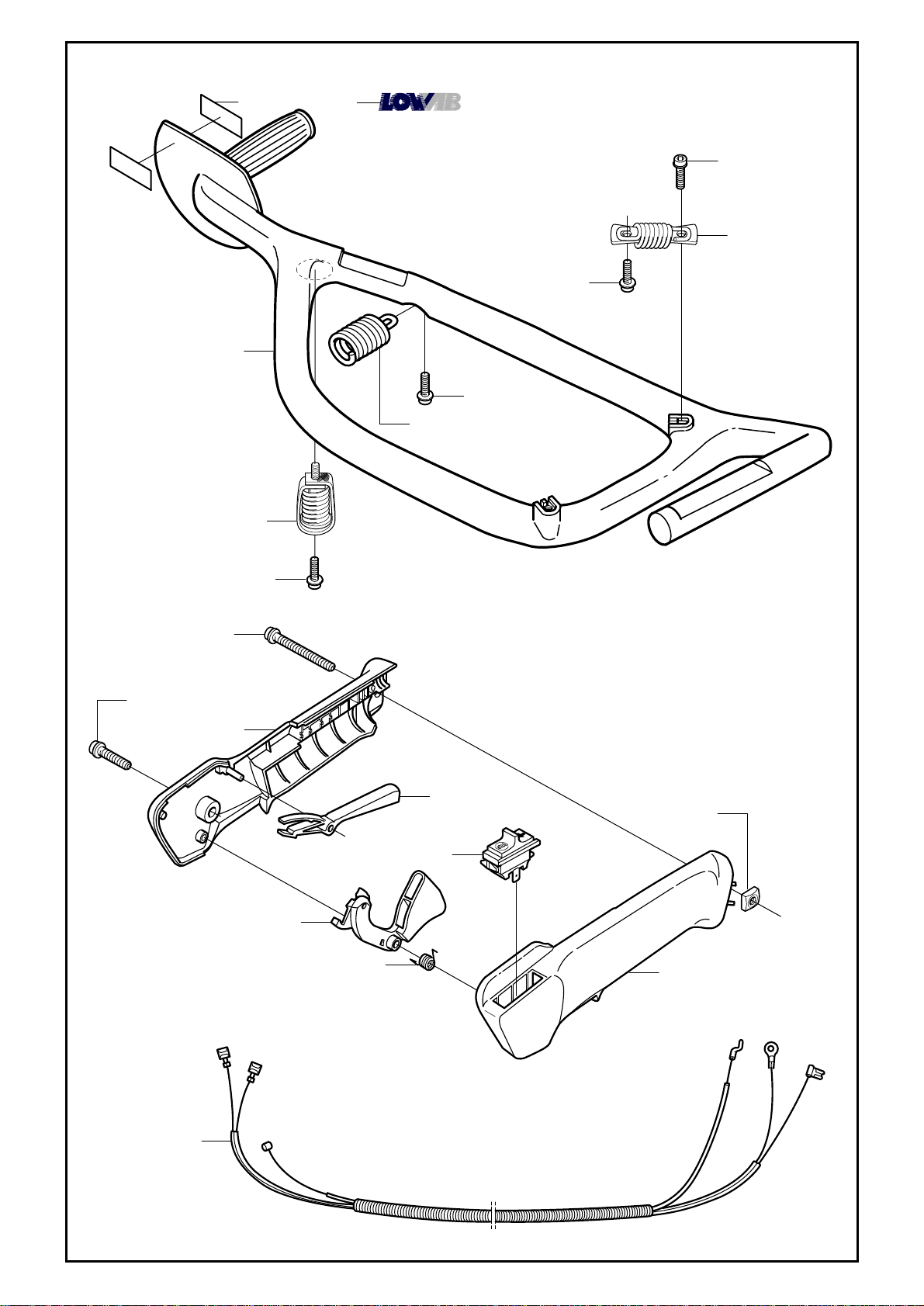

503 73 45-01 (x2)

503 21 68-16 (x2)

537 27 24-01 (x2)

503 21 68-16 (x2)

503 98 41-01

503 21 68-16 (x2)

503 77 07-01 (x2)

503 85 38-03

503 20 07-16

503 20 02-35

503 21 07-22*

*502 20 86-06

*502 19 92-01

*503 71 82-01

*503 79 41-01

*compl 503 98 42-01

502 19 94-01*

503 22 65-04

502 20 85-06*

*537 05 20-01

www.mymowerparts.com

Page 8

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

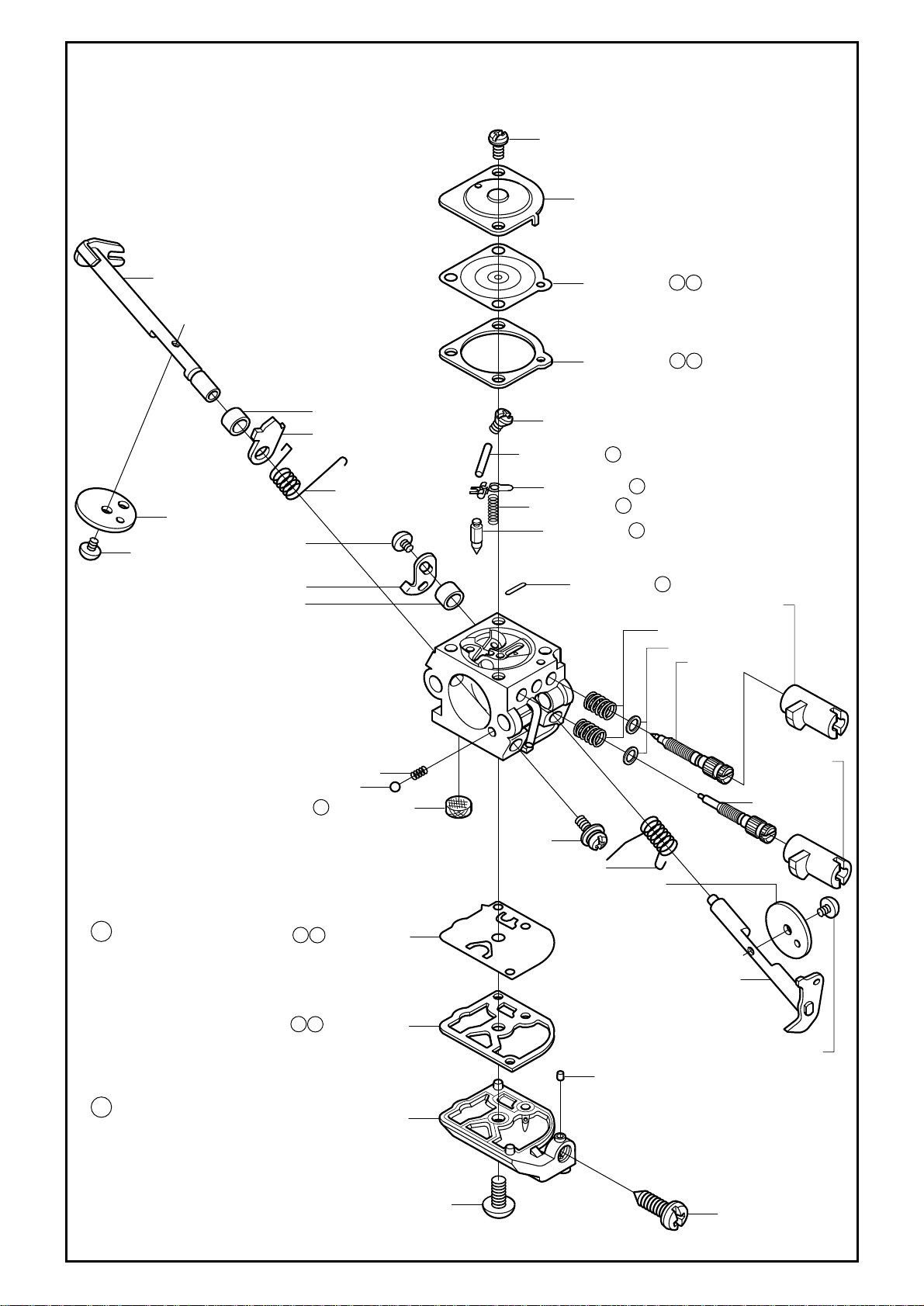

compl 503 28 31-13

537 02 09-01

503 48 18-01

537 02 11-01

503 47 90-01

503 48 19-01 537 14 34-01

537 02 10-01

503 48 05-01 (x2)

503 97 43-01

537 04 89-01

537 02 04-01

503 48 01-01

503 48 00-01

503 66 59-01

537 02 03-01

503 47 97-01

ZAMA C1Q - EL 14

537 01 98-01

503 47 89-01

531 00 45-52

1 Set of gaskets Dichtungssatz Juego de juntas Jeu de joints Packningssats

537 01 26-01

537 01 25-01

503 53 57-01

537 02 00-01

537 02 01-01

503 75 53-01

537 01 97-01

537 02 08-01

537 01 99-01

503 48 11-01

537 02 16-01

503 48 08-01

503 97 40-01

537 12 78-01

537 02 16-01

537 02 06-01

537 01 96-01

503 47 92-01

531 00 45-53

Repairkit Reparatursatz Juego de reparación Kit de réparation Reparationssats

537 02 02-01

503 47 96-01

www.mymowerparts.com

537 02 07-01

Page 9

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

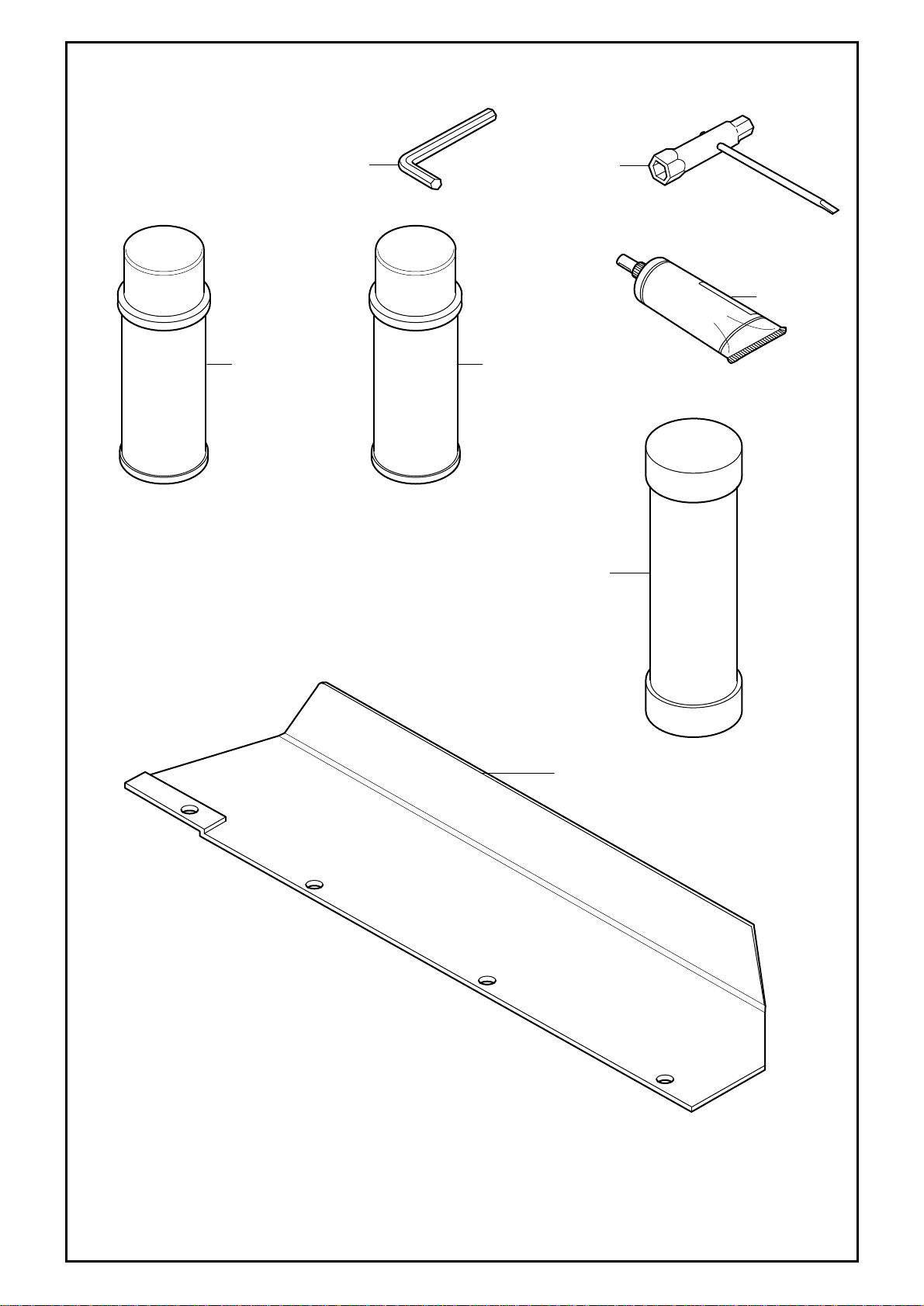

Accessories

Zubehöre Accessoires Acessorios Tillbehör

*compl 502 21 60-09

*502 21 58-01

*501 69 17-01

503 98 96-01*

531 00 75-13 UL22

531 00 75-12 UL21

531 00 92-05

GREASE 400g

537 06 43-01

www.mymowerparts.com

Page 10

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

326HS75, 326HS99

PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE

501 69 17-01 N 502 19 92-01 L 502 19 94-01 L 502 20 40-01 G 502 20 65-03 G 502 20 85-06 L 502 20 86-06 L 502 21 58-01 N 502 21 60-09 N 503 20 02-35 DL

503 20 07-16 L 503 20 14-25 G N 503 20 17-22 J N 503 20 29-56 D 503 21 07-22 L 503 21 27-13 K 503 21 28-10 F 503 21 44-16 F 503 21 48-01 K 503 21 62-20 EFHK

503 21 66-20 E 503 21 68-16 KL 503 21 71-16 AE 503 21 75-50 G 503 21 77-16 EGH 503 22 10-13 J 503 22 65-04 GL 503 22 72-01 FK 503 22 75-02 J N 503 23 00-14 K

503 92 28-02 J 503 93 66-01 C 503 94 02-01 B 503 94 05-01 B 503 94 26-01 G 503 96 49-01 H 503 97 40-01 M 503 97 43-01 M 503 98 17-01 K 503 98 19-01 K

503 98 20-01 K 503 98 22-01 K 503 98 23-02 K 503 98 36-01 K 503 98 41-01 L 503 98 42-01 L 503 98 47-01 C 503 98 49-01 H 503 98 96-01 N 531 00 45-52 M

531 00 45-53 M 531 00 75-12 N 531 00 75-13 N 531 00 92-05 N 537 00 00-01 K 537 00 84-01 H 537 01 25-01 M 537 01 26-01 M 537 01 96-01 M 537 01 97-01 M

537 06 44-03 A 537 06 63-01 G 537 06 68-01 E 537 06 69-01 E 537 06 74-73 K 537 06 75-01 K 537 07 07-01 D 537 08 46-71 D 537 08 51-01 D 537 08 52-01 E

537 08 58-01 J 537 08 85-01 E 537 09 01-01 K 537 09 03-01 K 537 09 16-01 C 537 09 17-01 A 537 10 50-01 E 537 12 78-01 M 537 12 81-73 B 537 12 88-01 B

537 14 31-01 G 537 14 34-01 M 537 14 54-01 FG 537 15 31-01 F 537 15 62-01 D 537 17 17-01 K 537 17 22-10 H 537 17 22-11 H 537 17 23-01 D N 537 17 35-01 K

503 23 00-24 J 503 23 03-01 K 503 23 51-09 D 503 25 05-01 K 503 26 32-01 K 503 28 31-13 GM 503 28 90-43 D 503 44 32-01 C 503 47 89-01 M 503 47 90-01 M

503 47 92-01 M 503 47 96-01 M 503 47 97-01 M 503 48 00-01 M 503 48 01-01 M 503 48 05-01 M 503 48 08-01 M 503 48 11-01 M 503 48 18-01 M 503 48 19-01 M

503 49 71-01 G 503 53 57-01 M 503 57 76-01 C 503 66 59-01 M 503 71 22-01 BD 503 71 82-01 L 503 73 45-01 L 503 73 58-01 C 503 75 53-01 M 503 77 07-01 L

537 01 98-01 M 537 01 99-01 M 537 02 00-01 M 537 02 01-01 M 537 02 02-01 M 537 02 03-01 M 537 02 04-01 M 537 02 06-01 M 537 02 07-01 M 537 02 08-01 M

537 02 09-01 M 537 02 10-01 M 537 02 11-01 M 537 02 16-01 M 537 02 33-01 G 537 02 53-01 A 537 03 44-01 F 537 03 77-01 J 537 03 77-02 J 537 03 78-01 J

537 03 78-02 J 537 03 79-01 J 537 03 79-02 J 537 03 80-01 J 537 03 80-02 J 537 03 82-01 J 537 03 82-02 J 537 03 96-01 K 537 03 99-01 K 537 04 01-01 K

537 18 49-01 C 537 27 24-01 L N 724 12 87-59 D 725 23 72-71 J 725 52 87-56 H 725 64 49-56 K 731 23 14-01 G 731 23 16-01 J 731 71 16-51 AH 735 31 08-20 H

737 44 08-00 D 738 21 02-04 K 738 21 88-00 K 738 21 98-04 K 738 88 10-01 K 740 68 11-21 G

503 79 41-01 L 503 85 28-02 H 503 85 38-03 L 503 85 89-01 H 503 87 28-01 A 503 87 33-03 H 503 87 35-02 H 503 87 36-01 H 503 91 09-01 G 503 91 10-01 C

537 04 24-01 C 537 04 89-01 M 537 05 05-01 J 537 05 15-01 K 537 05 20-01 L 537 05 33-01 K 537 05 47-01 H 537 05 78-01 G 537 06 25-01 F 537 06 43-01 N
