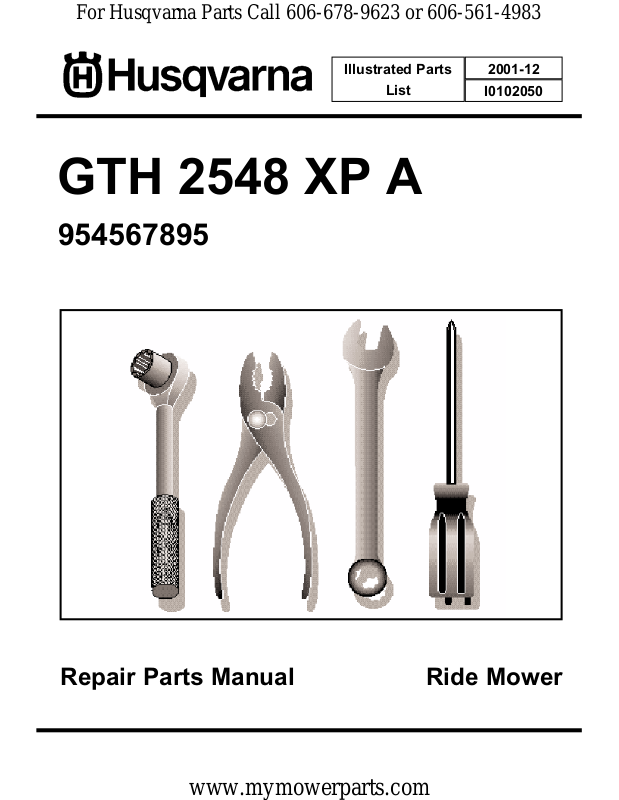

Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Illustrated Parts
List
GTH 2548 XP A
954567895
2001-12
I0102050
Repair Parts Manual Ride Mower
www.mymowerparts.com
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

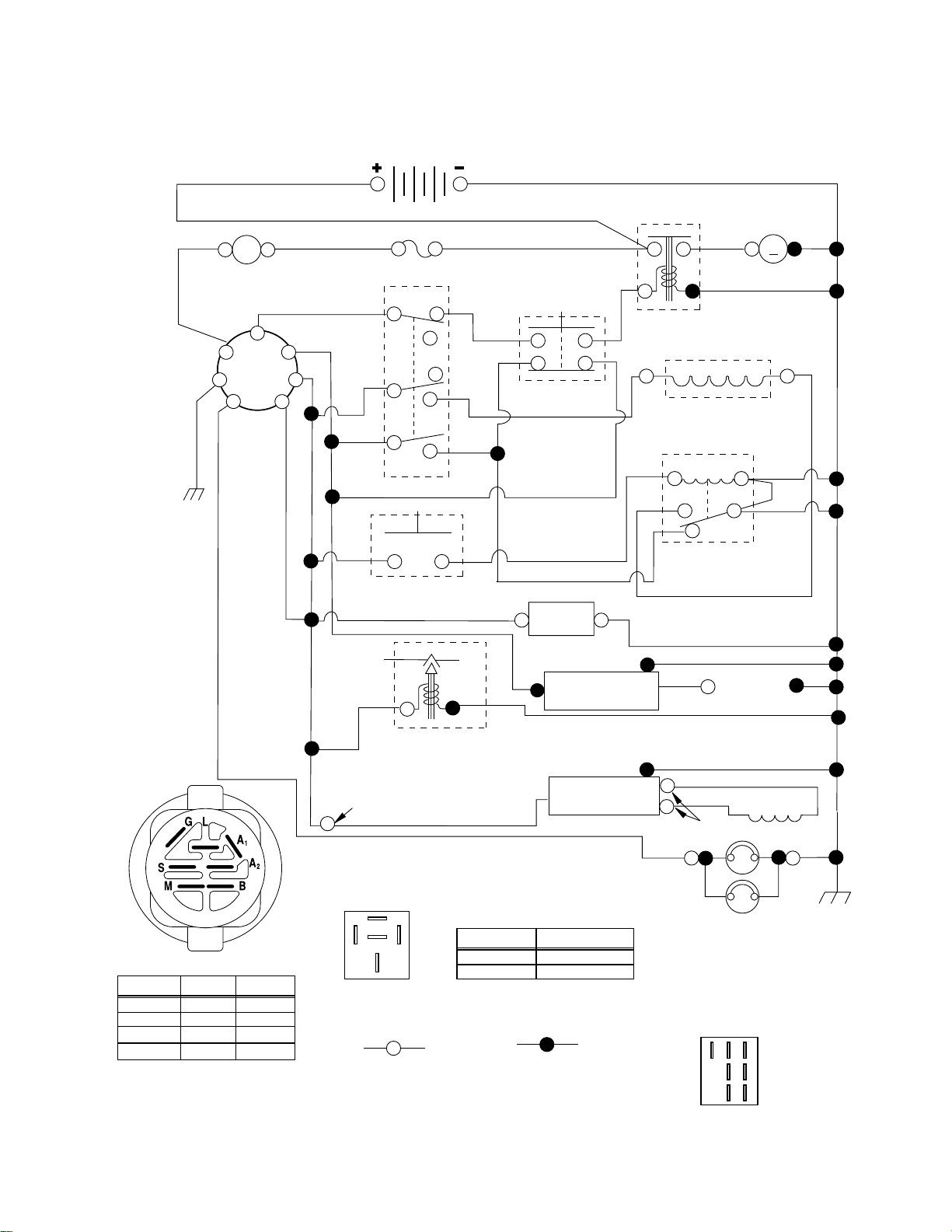

TRACTOR - - MODEL NO. GTH2548XPA
SCHEMATIC
AMMETER
(OPTIONAL)
RED
G
IGNITION
SWITCH
BLACK
BROWN
RED
BATTERY
A
RED
FUSE
WHITE
S
B
BLACK
M
A1
A2L
CG
B
RED
WHITE
F
H
E
A
BLACK
D
ORANGE
PTO (DISENGAGED)
BLACK
CLUTCH / BRAKE
BLACK
(PEDAL UP)
RED
BLACK
RED
WHITE
SOLENOID
ELECTRIC CLUTCH
85 86
87
RED
M
STARTER
BLACK
30
BLACK
BLACK
87A
GREEN
SEAT SWITCH
(NOT OCCUPIED)
FUEL
LINE
BLUE
GREEN
BLACK
HOUR
METER
(OPTIONAL)
IGNITION
UNIT
OPERATOR
PRESENCE
RELAY #1
BLACK
SPARK PLUGS
ON TWIN CYL. ENGINES)
BLACK
GAP
(2 PLUGS
IGNITION SWITCH
OFF
CIRCUITPOSITION
M + G + A1
B + A1ON + LIGHTS
B + A1ON
B + S + A1START
“MAKE”
NONE
L + A2
NONE
NONE
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR
WIRING.
FUEL SHUT-OFF
CHARGING SYSTEM OUTPUT
16 AMP DC @ 3600 RPM
RED
87
87A
8586
30
RELAY
REMOVABLE
CONNECTIONS
SOLENOID
RED
PTO SWITCH
OFF
C + G, B + H
C + F, B + E, A + DON
NON-REMOVABLE
CONNECTIONS
29
REGULATOR
28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)
BROWN
YELLOW
ALTERNATOR
HEADLIGHTS
CIRCUITPOSITION
G
FC
E
H
A
D
BLACK
B
www.mymowerparts.com
Page 3
21
79
22
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

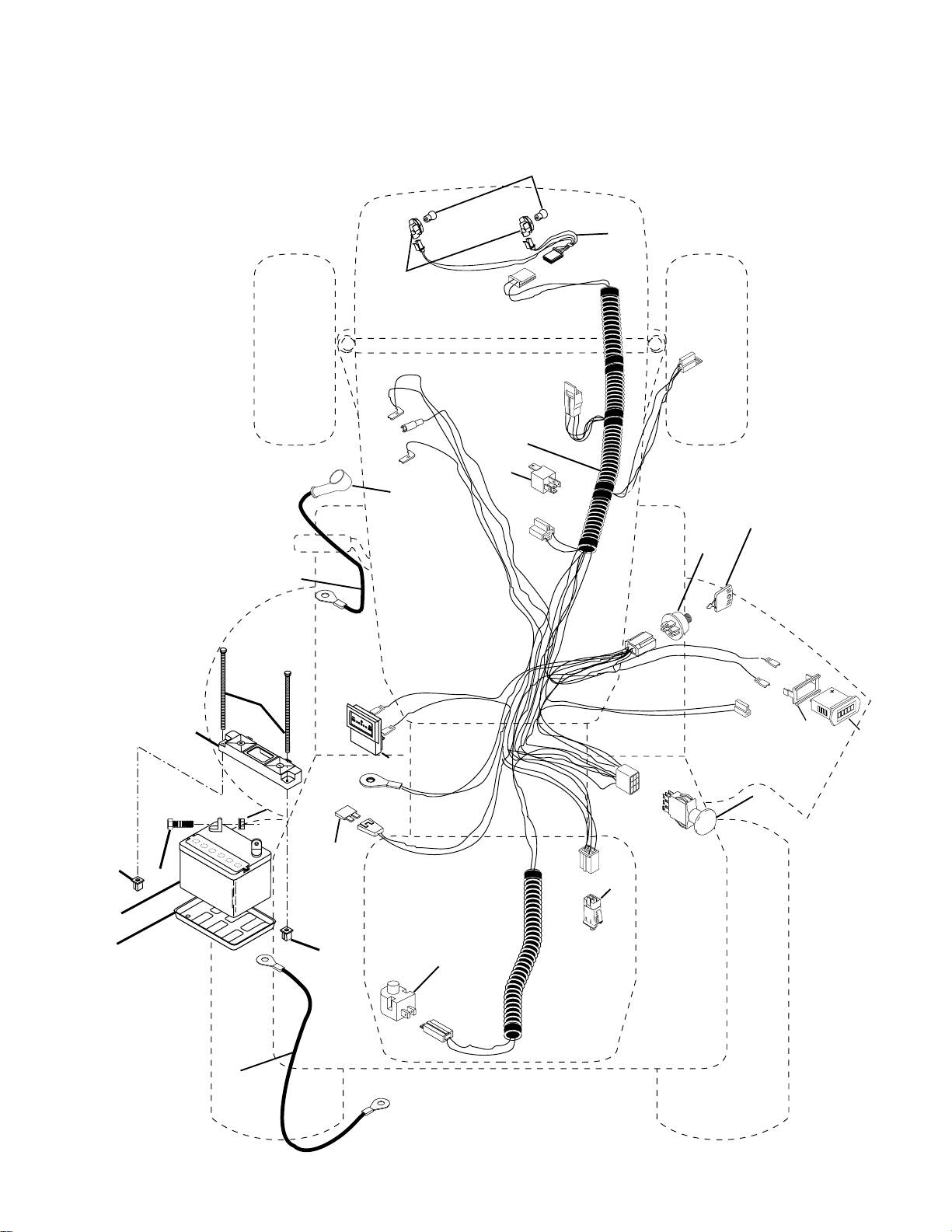

REPAIR PARTS
ELECTRICAL
TRACTOR - - MODEL NO. GTH2548XPA
40
81
42
33
30
12
8
25
10
D
.
C
.
A
M
P
11
E
R
E
S
88
46
45
27
50
26
2
1
12
29
16
28
30
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. GTH2548XPA
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 14 49-27 Battery
2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4
8 532 12 48-86 Tray, Battery
10 532 14 52-11 Bolt, Battery Front 1/4-20 x 7.5 Zinc
11 532 15 01-09 Holddown Battery Front Mount
12 532 14 57-69 Nut, Push Nylon 1.4" Battery Front
16 532 17 61-38 Switch Interlock
21 532 17 56-88 Harness Socket Light w/4152J
22 532 00 41-52 Bulb Light
25 532 17 76-62 Cable, Battery
26 532 10 88-24 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20
28 532 17 06-97 Cable, Ground
29 532 16 07-84 Switch, Plunger Normal Op Olive
30 532 17 55-66 Switch, Ign
33 532 14 04-01 Key
40 532 17 02-38 Harness Ign.
42 532 15 43-36 Cover, Terminal Red
45 532 12 28-22 Ammeter
46 532 16 96-35 Hourmeter Snap-In
50 532 17 46-51 Switch, PTO
79 532 17 52-42 Bulbholder Asm
81 532 10 97-48 Relay Asm.
89 532 16 96-39 Bracket Snap-In Hourmeter
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
31
www.mymowerparts.com
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. GTH2548XPA

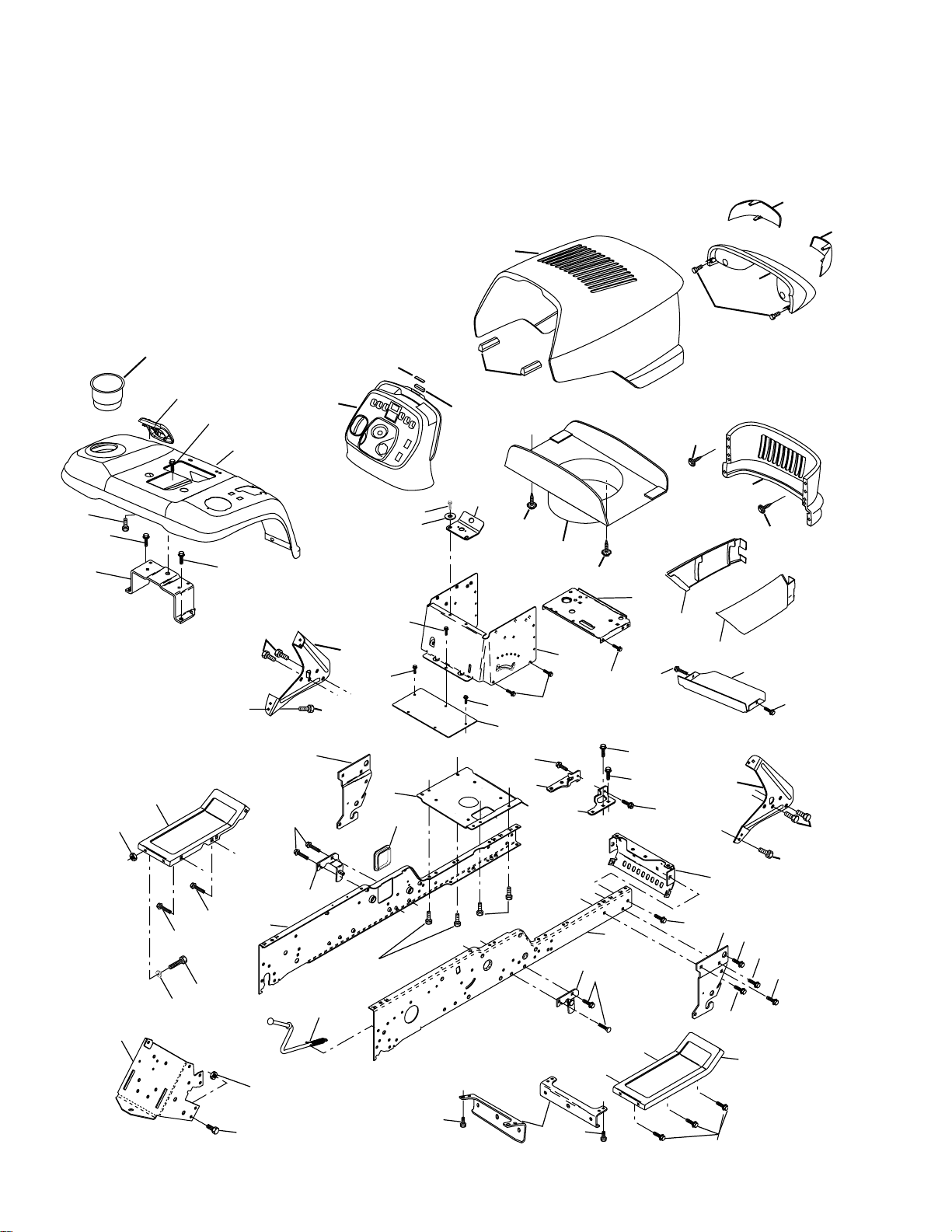

CHASSIS AND ENCLOSURES
15
25
14
153
130
162
58
17
21
138
141
161
158
37
17
17
28
47
17
20
19
2
91
17
5
68
35
7
144
7
130
43
34
16
56
36
99
140
148
31
130
18
122
150
122
8
146
6
36
160
30
36
139
32
17
33
45
17
17
139
1
17
7
143
17
142
50
44
60
130
152
36
17
130
17
60
17
24
86
4
17
39
17
32
www.mymowerparts.com
47
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. GTH2548XPA
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
1 532 18 03-72 Rail, Frame RH
2 532 17 52-82 Drawbar, Gt
4 873 80 07-00 Nut, Lock Hex 7/16 Unc
5 532 17 75-82 Dash, Plastic
6 532 15 78-82 Dash, 1PCS, Lower
7 817 72 04-08 Screw, Thd Cut 1/4-20 x 1/2
8 532 14 51-66 Support, Battery
14 532 17 75-83 Hood Asm., Pnt
15 532 16 18-41 Lens LH
16 532 12 17-94 Cover, Access
17 817 06 06-12 Screw, 3/8-16 x 3/4
18 532 17 75-84 Grille
19 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga.
20 874 76 06-16 Bolt, Fin Hex 3/8-16 x 1
21 873 68 06-00 Nut, Crownlock 3/8-16
24 532 18 10-58 Footrest, RH
25 532 16 18-42 Lens RH
28 532 18 10-57 Footrest, LH
30 532 14 50-52 Saddle
31 532 16 14-19 Bracket Supt 1-pc Vgt Steering
32 532 16 13-27 Bracket, Frame Pivot Lh
33 532 16 13-26 Bracket, Frame Pivot Rh
34 532 17 70-18 Plate Asm Engine Chassis
35 819 11 11-16 Washer 11/32 x 11/16 x 16 Ga.
36 817 06 05-12 Screw 5/16-18 x 3/4
37 532 18 17-20 Fender, Pnt.
39 532 17 52-78 Bracket, Axle Front
43 532 13 69-39 Bracket, Spnsn Front Lh
44 532 13 69-40 Bracket, Spnsn Front Rh
KEY PART
NO. NO. DESCRIPTION
45 532 17 60-18 Bracket Asm., Susp Chassis Rh
47 817 49 06-08 Screw Thdrol 3/8-16 x 1/2
50 532 17 54-76 Bracket, Chassis Front
56 532 17 60-16 Bracket Asm., Susp Chassis Lh
58 532 17 53-15 Bracket Asm., Fender
68 817 49 05-08 Screw, 5/16-18 x 1/2
86 874 76 07-16 Bolt, Fin Hex 7/16-14 Unc x 1
91 532 18 03-66 Rail, Frame Lh
99 532 17 71-43 Rod Asm. Bypass
122 532 16 14-64 Screw Hex WSHD 8-18 x 7/8
130 532 16 48-63 Screw Hw Hd Hi-Lo #13-16 x 3/4
138 532 18 17-98 Cupholder
139 532 17 18-73 Bolt Shoulder 5/16-18
140 532 16 38-06 Magnet Stealth
141 532 16 38-05 Striker Plate
142 532 16 18-97 Bracket Dash Stealth RH
143 532 17 75-86 Skirt Grille RH
144 532 16 19-00 Bracket Dash Stealth LH
146 532 17 75-87 Skirt Grille LH
148 532 16 46-55 Extrusion Bumper
150 532 16 12-37 Duct Heat Hood
152 532 17 79-56 Shield, Browning
153 532 17 97-65 Light Box Asm w/Lens
158 817 67 06-08 Screw 3/8-16 x 1/2
160 817 06 05-08 Screw 5/16-18 x 1/2
161 532 18 17-87 Consol Fuel Window
162 532 14 24-32 Screw Hex Wsh Hi-Lo 1/4-1/2 Unc
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
33
www.mymowerparts.com
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS

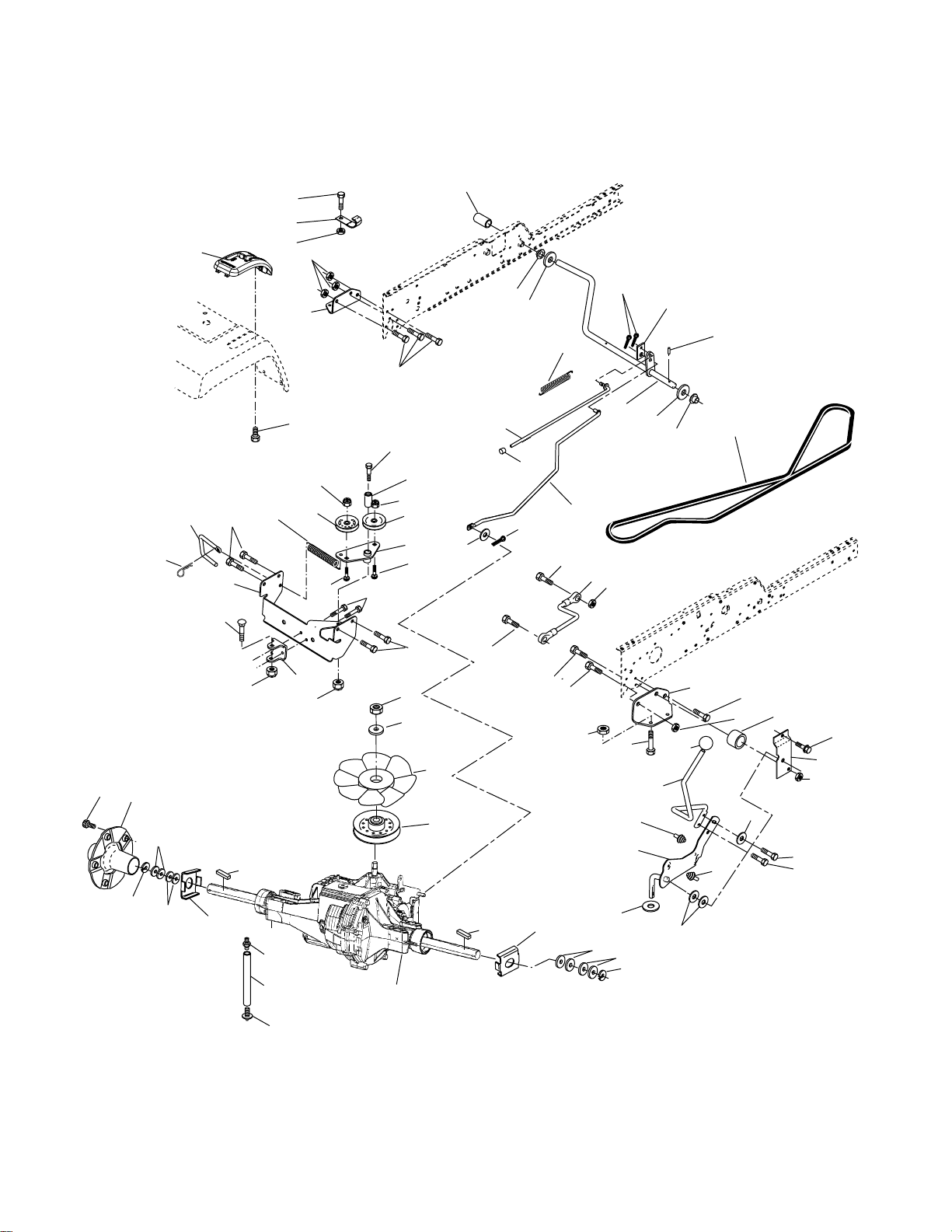

GROUND DRIVE
TRACTOR - - MODEL NO. GTH2548XPA
153
70
127
122
142
120
128
39
40
41
132
74
89
117
50
48
143
77
65
55
117
52
129
48
130
42
35
38
37
34
131
36
151
29
135
137
64
6
46
68
37
38
56
120
114
9
7
69
33
3
145
121
117
2
106
107
108
20
147
146
1
61
152
2
58
145
77
114
133
73
123
138
3
69
33
23
22
94
112
94
89
148
111
120
98
89
126
125
124
34
www.mymowerparts.com
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. GTH2548XPA
GROUND DRIVE
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - - Transaxle Hydro Gear
311-3500 (Order Parts From
Transaxle Manufacturer)
2 532 18 06-42 Key Sq. 1/4 x 1/4 x 2
3 532 00 75-63 Washer
6 876 02 04-12 Pin, Cotter
7 532 14 05-07 Wheel, Hub Assembly
9 532 14 00-80 Bolt, Hub
20 873 94 08-00 Nut
22 532 18 02-35 Lever Asm Shift
23 532 14 08-45 Knob
29 532 17 66-00 Brake, Rod
33 812 00 00-53 Ring E
34 532 07 16-73 Cap, Parking Brake
35 532 13 76-48 Rod, Parking Brake
36 532 14 94-12 Spring, Drive Ground
37 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
38 532 15 00-35 Nyliner
39 874 32 10-16 Screw, Fin. #10-24 x 1
40 532 17 85-75 Actuator, Interlock VGT
41 873 93 10-00 Nut Centerlock 10-24 Unc
42 532 12 47-82 Cover, Pedal
46 532 14 51-70 Retainer, Spring
48 872 11 06-14 Bolt Rdhd 3/8-16 x 1.3/4 Gr. 5
50 532 13 14-94 Pulley, Idler, Flat
52 532 12 77-83 Pulley, Idler, Grooved
55 532 10 57-06 Bearing, Idler
56 532 16 15-97 V-Belt
58 874 76 07-24 Bolt Fin Hex 7/16-14 x 1-1/2
61 532 14 39-95 Pulley, Transaxle
64 532 17 66-01 Shaft, Brake Pedal
65 532 17 96-13 Bolt, Shoulder
68 532 00 51-42 Pin, Roll
69 532 12 38-00 Washer
70 532 18 17-88 Console Automatic YT/GT
73 874 49 05-48 Bolt Hex Flghd 5/16-18 x 3 Gr5
74 532 14 24-32 Screw Hex Wsh. Hi-Lo 1/4-1/2
77 874 76 07-16 Bolt Fin Hex 7/16-14 x 1
KEY PART
NO. NO. DESCRIPTION
89 873 68 07-00 Nut Crownlock 7/16-14 Unc
94 532 13 38-35 Fastener Christmas Tree
98 532 14 10-04 Bracket Shift
106 532 14 29-18 O-Ring Asm Hydro Gear
107 532 15 47-39 Line Fuel Hydro 15” VGT
108 532 14 29-17 Cap Asm Vent Hydro Gear
111 532 15 62-40 Spacer Shift Lever VGTH
112 532 15 61-04 Washer Nylon High Temp
114 873 80 05-00 Nut Lock Hex W/Ins 5/16-18 Unc
117 873 90 06-00 Nut, Lock Flg. 3/8-16
120 817 06 06-12 Screw 3/8-16 x .75
121 532 17 56-11 Bracket Strap Torque
122 872 01 05-20 Bolt RDHDSQ 5/16-18 Unc x 2-1/2
123 532 17 66-02 Rod Shift
124 532 16 54-92 Bolt Shoulder 5/16-18 x .561
125 532 16 68-80 Screw 5/16-18 x 5/8
126 532 16 60-02 Washer SRRTD 5/16 ID x 1.0 x .125
127 532 17 73-62 Link Control Clutch
128 532 17 66-24 Spring Drive GRND
129 532 17 94-73 Bracket Asm Idler Tensioning
130 819 13 10-16 Washer 13/32 x 5/8 x 16 Ga.
131 876 02 03-12 Pin Cotter 3/32 x 3/4
132 532 17 54-67 Bracket Mtg Hydro 3500 LH VGT
133 532 17 54-68 Bracket Mtg Hydro 3500 RH VGT
135 532 17 73-64 Link Asm Control Hydro 3500
137 532 12 49-49 Nut Lock 5/16-18 NC Thd.
138 532 00 13-70 Washer Thrust 5/8 x 1.10 x 1/32
142 532 17 54-69 Strap Torque HG-3500
143 817 06 05-12 Screw Thdrol 5/16-18 x 3/4
145 532 16 31-68 Washer Axle Flange HG-3000
146 532 14 04-62 Fan 7" Hydro
147 532 14 13-22 Washer
148 817 06 06-20 Screw 3/8-16 x 1-1/4
151 874 76 05-14 Bolt Hex 5/16-18 x 7/8
152 532 17 87-05 Bolt Hex 5/16 x 1 W/Patch
153 532 12 47-88 Spring, Retainer
NOTE: All component dimensions given in U. S.
inches 1 inch = 25.4 mm
35
www.mymowerparts.com
Page 9
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS

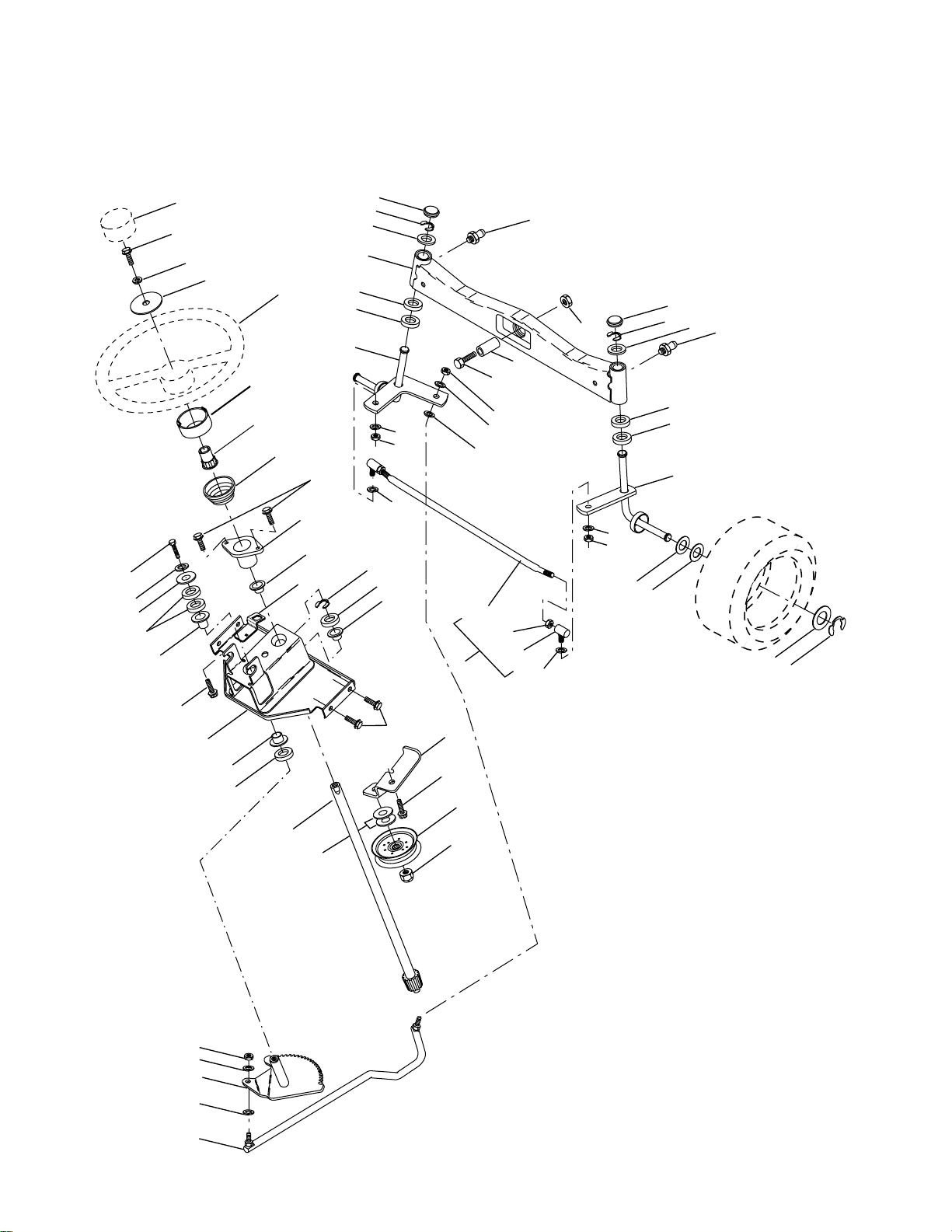

STEERING ASSEMBLY
TRACTOR - - MODEL NO. GTH2548XPA
34
33
32
26
25
14
45
1
44
21
20
23
22
31
41
6
27
9
8
7
2
6
6
4
14
15
14
8
6
29
14
36
37,39
17
10
15
14
38,40
11
14
3
9
8
12
15
14
13
13
7
3
6
6
5
7
8
42
15
14
14
18
35
19
27
28
6
16
46
47
48
49
50
36
www.mymowerparts.com
Page 10
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. GTH2548XPA
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 532 16 66-27 Wheel, Steering
2 532 17 85-57 Axle Asm., Front
3 532 12 48-36 Fitting, Grease
4 532 16 18-49 Spindle Asm, LH
5 532 16 18-48 Spindle Asm., RH
6 532 12 49-31 Bearing, Race Thrust Harden
7 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
8 812 00 00-29 Ring, Klip #T5304-75
9 532 12 12-32 Cap, Spindle
10 874 78 10-44 Bolt, Fin Hex 5/8-11 x 2-3/4
11 532 13 65-18 Spacer Brg Axle Front 1.570
12 873 90 10-00 Nut, Lock Flange 5/8-11 Unc
13 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
14 810 04 06-00 Washer, Lock Hvy Hlcl Spr 3/8
15 532 12 47-01 Nut Lock Center 3/8-24 Unf
16 532 14 51-03 Shaft Asm., Steering
17 532 13 73-47 Rod Asm., Tie Ball J Ball Vgt (Inc. Key No. 36-40)
18 532 17 55-72 Draglink, Ball Joint Solid Vgt
19 532 15 60-11 Support Asm., Steering Vgt
20 532 17 75-92 Boot Steering
21 532 15 99-45 Adapter, Wheel Steering
22 532 15 51-05 Bushing, Strg.
23 532 15 29-27 Screw
25 874 78 06-16 Bolt, Fin Hex 3/8-16 x 1 Gr. 5
26 532 16 66-26 Cap , Wheel Steering
27 532 12 49-37 Bearing, Col. Strg.
28 817 00 06-12 Screw 3/8-16 x 3/4
29 532 10 42-39 Bearing, Flange
31 532 13 81-36 Bushing, Nyliner Snap
32 819 11 16-10 Washer 11/32 x 1 x 10 Ga.
33 810 04 05-00 Washer, Lock Hvy Hlcl Spr 5/16
34 874 78 05-12 Bolt, Hex Hd 5/16-18 x 3/4
35 532 13 80-59 Gear, Sector Steering
36 532 13 71-56 Tie Rod
37 873 36 06-00 Jam Nut RH Thread
38 532 10 98-50 Joint Asm. Ball RH Thread
39 873 70 06-00 Nut Hex Jam 3/8-24 UNF LH
40 532 10 98-51 Joint Asm Ball LH
41 532 15 52-46 Bracket Switch Inerlock VGT97
42 817 49 05-08 Screw 5/16-18 x 1/2
44 532 17 75-93 Extension Steering Premium
45 819 13 24-11 Washer 13/32 x 1-1/20 x 11 Ga.
46 819 13 16-10 Washer FLat 13/32 x 1/10 Ga.
47 532 17 78-63 Bracket Asm. Idler
48 817 06 06-12 Screw 3/8-16 x .75
49 532 17 58-20 Pulley Idler Flat
50 873 90 06-00 Nut Lock Flg 3/8-16 Unc
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
37
www.mymowerparts.com
Page 11
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. GTH2548XPA

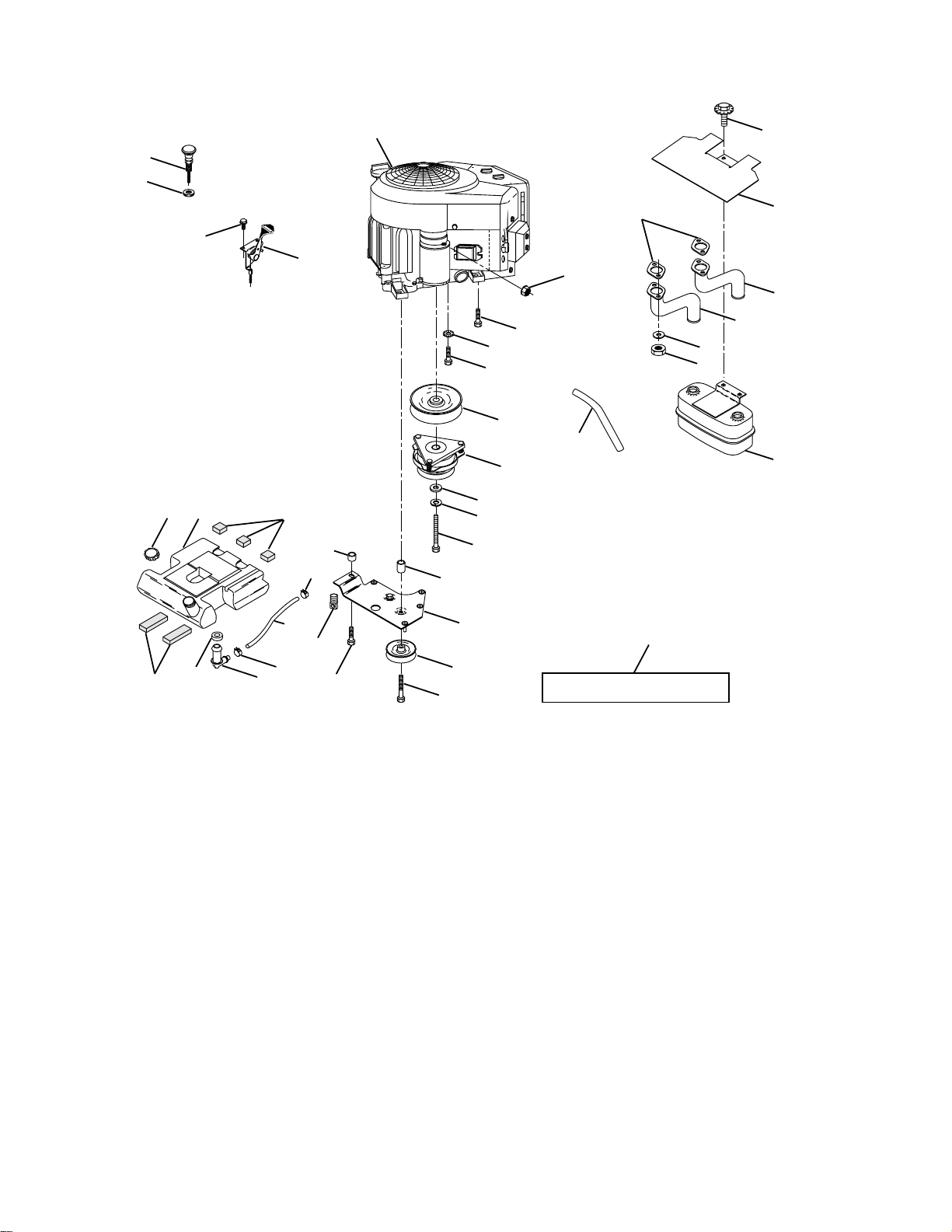

ENGINE
25
22
18
21
15
17
20
37
10
1
69
80
84
24
84
12
81
11
41
42
43
47
35
80
83
62
70
71
2
28
31
16
26
27
37
39
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - - Engine Kawasaki, Model No. FH721V
(Order parts from engine manufacturer)
2 532 14 97-23 Muffler Side
8 532 12 13-61 Pulley V-Idler
9 532 17 77-48 Keeper Asm. Belt Engine VGT
10 532 17 52-87 Bushing
11 532 17 46-05 Clutch Electric
12 532 14 39-96 Pulley Engine VGT Elect Clutch
15 532 17 91-15 Tank Fuel
16 532 10 92-27 Pad Spacer
17 532 10 60-82 Pad Spacer
18 532 18 18-03 Cap Fuel
20 532 17 81-47 Control Throttle
21 532 16 48-63 Screw Hex Thd Cut 1/4 - 20 X 5/8
22 532 17 81-48 Control Choke
24 811 05 06-00 Washer Ext Tooth 3/8
25 873 92 06-00 Nut Keps 3/8-24 Unf
26 532 12 49-52 Bushing
27 532 13 92-77 Stem Tank Fuel
28 532 12 47-03 Fuel Line
40
9
8
29
SPARK ARRESTER KIT
KEY PART
NO. NO. DESCRIPTION
29 532 13 71-80 Spark Arrester Kit
31 532 14 50-06 Clip Push-In Hinged
35 810 01 05-00 Washer
37 532 12 34-87 Clamp Hose
39 817 49 06-36 Screw TT 3/8-16 x 2-1/4 UNC
40 817 49 06-64 Screw TT 3/8-16 x 4 UNC
41 532 12 61-97 Washer 1-1/2 OD X 15/32 ID X .250
42 810 04 07-00 Washer Lock 7/16
43 532 17 99-53 Bolt Hex 7/16-20 X 3.75 Gr. 5
47 532 17 52-88 Bushing
62 532 17 62-52 Shield Heat Muffler
69 - - - - - - - - Gasket (Order from engine mfg.)
70 532 17 57-66 Tube Exhaust LH
71 532 17 57-67 Tube Exhaust RH
80 532 16 33-05 Nut Flange M8-1.25
81 532 14 84-56 Tube Drain Oil Easy
83 532 17 18-77 Bolt 5/16-18unc X 1-3/4 W/Sems
84 817 06 06-24 Screw 3/8-16 x 1-1/2
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
38
www.mymowerparts.com
Page 12
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. GTH2548XPA

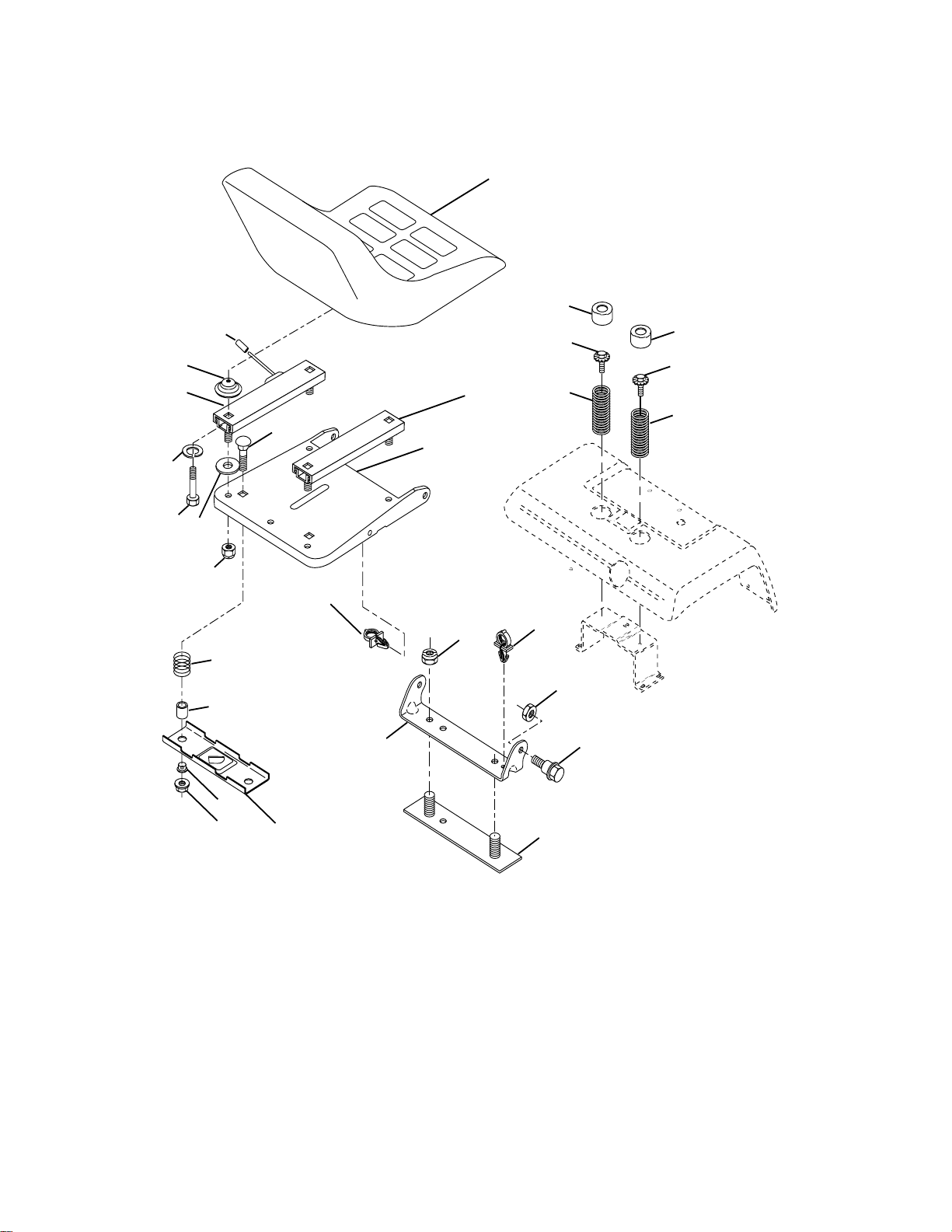

SEAT ASSEMBLY
1
20
20
8
7
28
34
24
35
14
10
25
8
7
33
26
22
5
16
15
2
13
17
KEY PART
NO. NO. DESCRIPTION
1 532 12 41-87 Seat
2 532 14 05-51 Bracket, Pivot Seat
3 532 14 06-75 Strap, Fender
5 532 14 50-06 Clip, Push In Hinged
6 873 80 06-00 Nut, Crownlock 3/8-16
7 532 12 41-81 Spring, Seat Cprsn
8 532 17 18-77 Bolt 5/16-18 UNC X 3/4
10 532 17 48-94 Pan, Seat
12 532 12 12-46 Bracket, Mounting Switch
13 532 12 12-48 Bushing, Snap
14 872 05 04-12 Bolt, Carriage 1/4-20 X 1-1/2
15 532 12 12-49 Spacer, Split
16 532 12 37-40 Spring, Cprsn
12
6
5
22
21
3
KEY PART
NO. NO. DESCRIPTION
17 532 12 39-76 Nut, Lock 1/4 Lge Flg Gr. 5
20 532 12 42-38 Cap, Spring Seat
21 532 17 18-52 Bolt, Shoulder 5/16-18
22 873 80 05-00 Nut, Crownlock 5/16-18
24 532 17 79-46 Track Slide Seat LH Locking
25 532 17 79-47 Track Slide Seat RH Free
26 819 11 10-12 Washer 11/32 x 5/8 x 12 Ga.
28 810 01 05-00 Washer Split
33 874 78 05-16 Bolt Fin Hex 5/16-18 x 1
34 532 12 44-27 Spacer
35 532 17 84-26 Cap Vinyl
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
39
www.mymowerparts.com
Page 13
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS

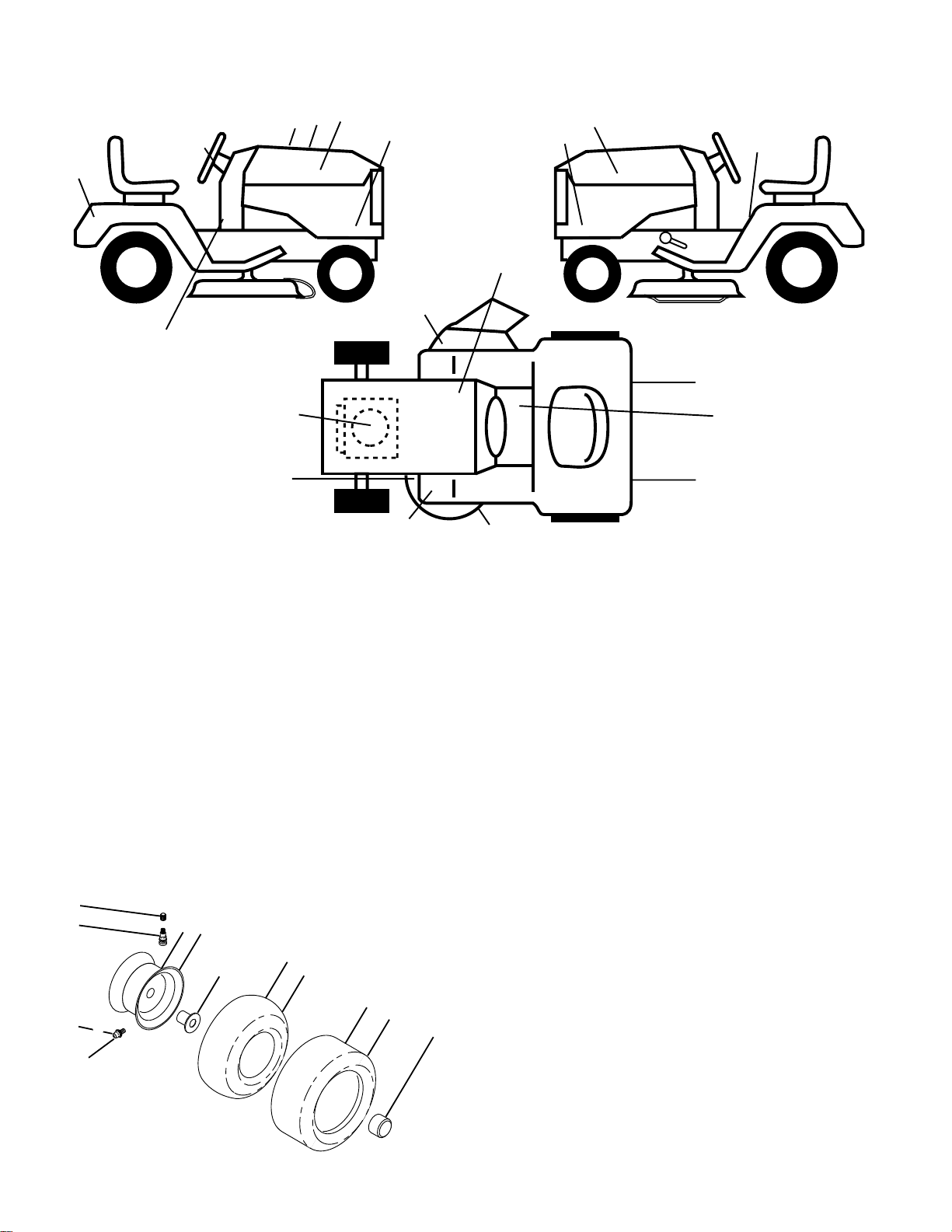

DECALS
15
9
8
TRACTOR - - MODEL NO. GTH2548XPA
3
12
7
5
24
6
4
5
10
23
2
14
KEY PART
NO. NO. DESCRIPTION
2 532 18 00-95 Decal, Engine
3 532 18 16-60 Decal, Hood, RH
4 532 18 16-61 Decal, Hood, LH
5 532 18 00-91 Decal, Side Panel
6 532 17 05-63 Decal, Warning
7
532 18
09-41 Decal, Customer Resp.
8 532 17 68-64 Decal, Dash
9 532 17 68-22 Decal, Fender
10 532 15 71-40 Decal, Danger
11 532 18 12-53 Decal, Foot Rest
11
17
28
13
KEY PART
NO. NO. DESCRIPTION
12 532 18 10-66 Decal, Final
13 532 17 52-91 Decal, V-Belt Sch
14 532 17 85-02 Decal, Caution
15 532 17 05-64 Decal, Ins. Strg Whl
17 532 14 08-37 Decal, Saddle Brake Parking
23 532 17 49-70 Reflector, Taillight RH
24 532 14 50-05 Decal, Btry Dngr/Psn
27 532 16 69-60 Decal, Drawbar
28 532 17 49-69 Reflector, Taillight LH
- - 532 13 83-11 Decal, Handle Lift (Lift Handle)
- - 532 18 13-96 Manual, Owner’s (English)
- - 532 18 13-97 Manual, Owner’s (French)
WHEELS & TIRES
1
2
6
12
11
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap, Valve, Tire
3
4
7
10
5
9
8
2 532 06 51-39 Stem, Valve
3 532 18 18-39 Rim Assembly, Front
4 532 00 81-34 Tube, Front (Service Item Only)
5 532 14 87-41 Tire, Front
6 532 12 49-57 Fitting, Grease
7 532 12 49-59 Bearing, Flange (Front Wheel Only)
8 532 17 50-39 Cap, Hub
9 532 15 16-07 Tire, Rear
10 532 00 71-54 Tube, Rear (Service Item Only)
11 532 18 18-40 Rim Assembly, Rear
12 532 12 48-60 Fitting, Grease
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
40
www.mymowerparts.com
Page 14
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. GTH2548XPA

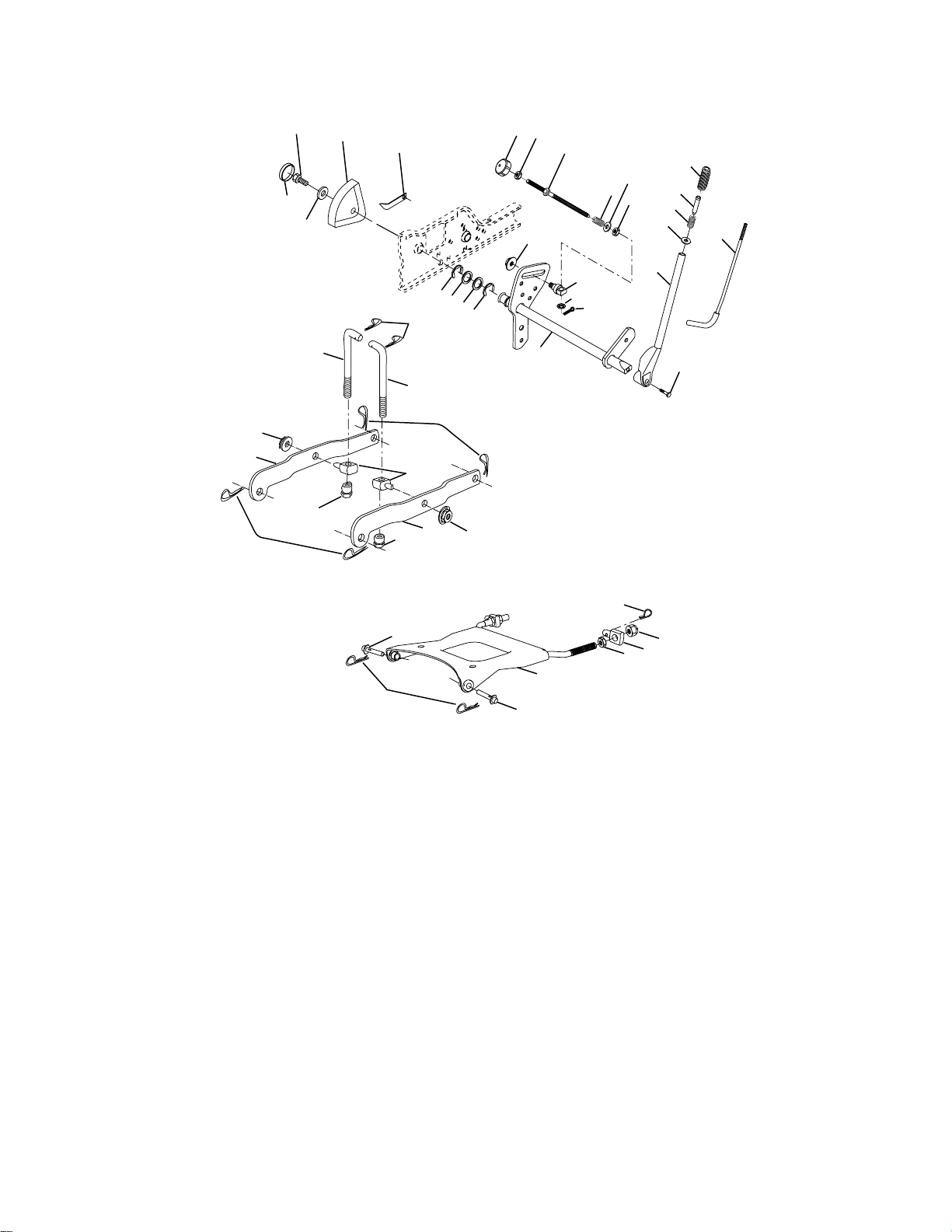

LIFT ASSEMBLY
40
43
39
42
11
70
79
41
23
38
4
5
23
11
77
41
5
23
74
70
35
73
34
31
32
30
70
29
72
4
2
33
7
9
10
80
3
1
6
76
23
KEY PART
NO. NO. DESCRIPTION
1 532 12 10-06 Rod Asm., Lever
2 532 18 00-45 Shaft Asm., Lift Vgt
3 532 15 91-89 Lever Asm., Lift Rh
4 812 00 00-22 E-Ring Truarc #5133-87
5 819 29 20-16 Washer 29/32 x 1-1/4 x 16 Ga.
6 871 11 06-24 Bolt, Fin Hex 3/8-16 x 1-1/2
7 532 12 56-31 Grip, Handle
8 532 12 45-26 Button, Plunger
9 532 12 23-64 Plunger, Lever Lift
10 532 12 48-74 Spring 2-1/8"
11 532 17 53-75 Link Lift
12 532 16 35-52 Retainer, Spring
14 532 16 98-65 Bearing
23 532 12 46-70 Retainer, Spring
24 873 35 08-00 Nut, Jam Hex 1/2-13 Unc
26 873 80 08-00 Nut, Lock W/Wsh 1/2-13 Unc
29 532 15 02-33 Trunnion Infin Height
30 532 11 08-07 Nut, Special
31 819 13 10-16 Washer 13/32 x 5/8 x 16 Ga.
32 532 13 71-50 Spring, Compression Inf Hgt
33 876 02 03-08 Pin, Cotter 3/32 x 1/2
34 532 13 71-67 Rod, Adj Lift
35 532 13 80-57 Knob, Inf 3/8-16 Unc
12
26
78
24
75
76
KEY PART
NO. NO. DESCRIPTION
38 532 15 50-97 Pointer Height Indicator
39 532 12 39-35 Plug, Hole Blk. 1.485/1.515 Dia.
40 817 06 05-16 Screw 5/16-18 x 1
41 532 17 59-94 Nut, Lift Link 7/16-20
42 819 11 24-10 Washer 11/32 x 1-1/2 x 10 Ga.
43 532 12 39-34 Scale, Indicator Height
70 532 14 52-12 Nut Hex Flange Lock
72 532 11 04-52 Nut Push Phos & Oil
73 873 35 06-00 Nut, Hex Jam 3/8-16 Unc
74 532 17 58-02 Arm Suspension Rear RH
75 532 17 58-05 Plate, Asm, Susp, Front
76 532 17 55-60 Pin Flange
77 532 17 62-05 Trunion Susp Arm
78 532 17 56-89 Trunnion, Front, Susp
79 532 17 53-78 Arm, Suspension LH
80 532 12 66-84 Washer 1/4 x 5/8 x .062
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
41
www.mymowerparts.com
Page 15
132
91
94
182
95
183
132
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS

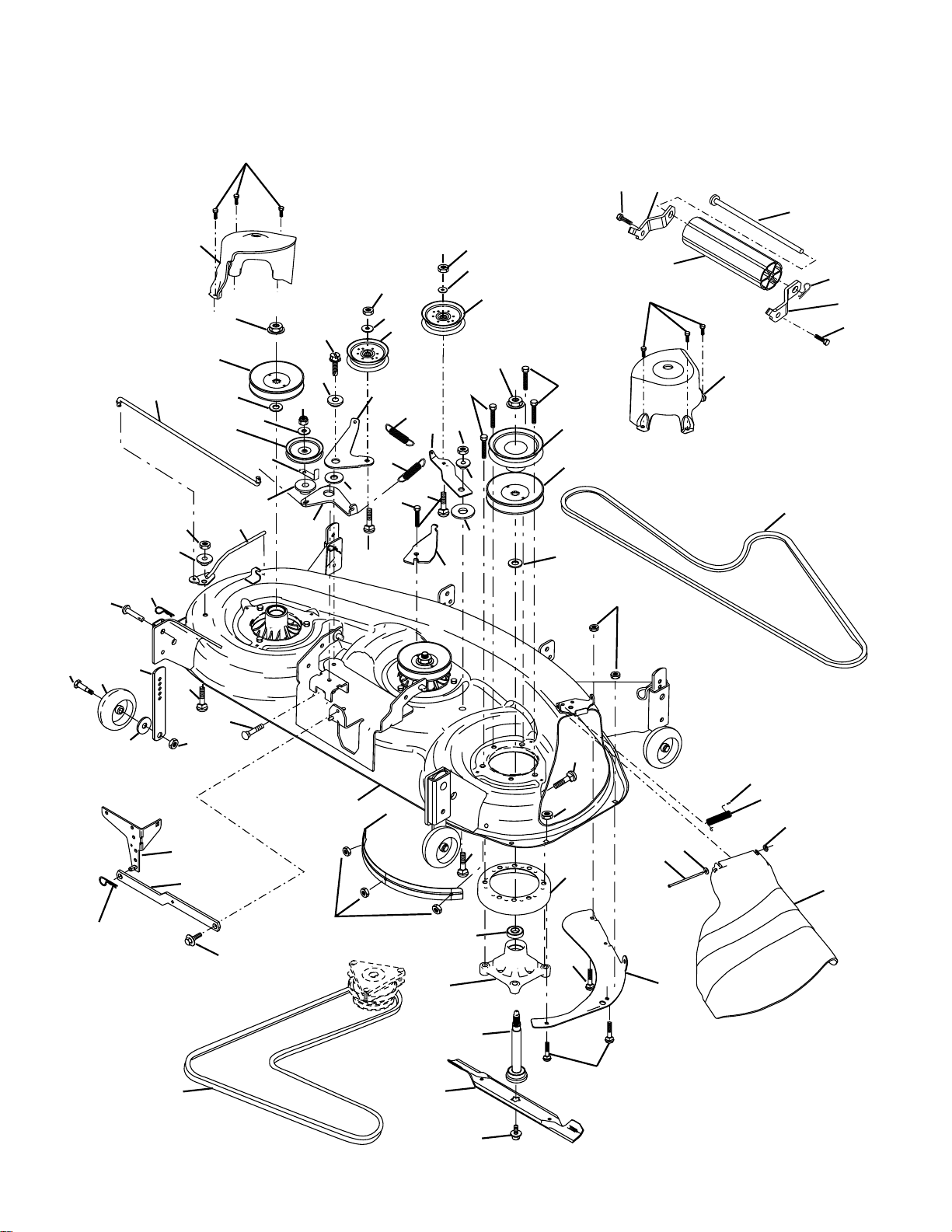

MOWER DECK
46
TRACTOR - - MODEL NO. GTH2548XPA
116
57
117
56
112
5
21
122
113
45
32
33
31
99
114
36
184
42
49
115
130
42
97
50
43
98
49
36
30
52
121
1111
50
126
110
49
30
49
36
42
97
37
33
46
45
30
39
32
47
31
21
100
48
118
3
6
19
109
1 107
11
14
15
17
13
108
24
21
28
16
18
18
8
29
20
25
26
27
119
5
www.mymowerparts.com
42
Page 16
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NO. GTH2548XPA
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
1 532 18 03-58 Deck Weldment Mower 48
3 532 17 89-15 Bracket Asm., Sway Bar
5 532 12 46-70 Retainer Spring
6 532 17 80-24 Bar Sway Deck
8 532 17 43-65 Bolt 7/16 Asm. Blade
11 532 18 00-54 Blade
13 532 17 43-60 Shaft Asm. w/Lower Bearing
14 532 17 43-58 Mandrel Asm.
15 532 11 04-85 Bearing, Ball, Mandrel
16 532 17 44-93 Stripper Mandrel Deck
17 872 11 06-10 Bolt RDHD Sq Neck 3/8-16 x 1.25
18 872 14 05-05 Bolt, Carriage 5/16-18 x 5/8
19 532 13 28-27 Bolt, Hex Hd, Shoulder 5/16-18
20 532 17 43-78 Baffle, Vortex Mower
21 873 68 05-00 Nut, Crownlock 5/16-18 UNC
24 532 10 53-04 Cap, Sleeve
25 532 17 81-02 Spring, Torsion
26 532 11 04-52 Nut, Push
27 532 18 17-07 Deflector Shield
28 819 11 10-16 Washer 11/32 x 5/8 x 16 Ga.
29 532 13 14-91 Rod, Hinge
30 532 17 39-84 Screw, Thdroll Washer Head
31 532 12 99-63 Washer, Spacer Mower Vented
32 532 17 78-65 Pulley, Mandrel
33 532 17 83-42 Nut, Flg. Top Lock Cntr. 9/16
36 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
37 532 17 79-68 Pulley, Idler, Flat
39 532 17 43-75 Pulley, Idler, Driven
42 532 12 20-52 Spacer, Retainer
43 532 17 43-73 Arm, Idler Secondary
45 532 17 43-43 Cover, Mandrel Deck
46 532 13 77-29 Screw, Thdroll. 1/4-20 x 5/8
47 532 17 43-69 V-Belt, Mower, Secondary
48 532 17 43-68 V-Belt, Mower, Primary
49 873 68 06-00 Nut, Crownlock 3/8-16 UNC
50 872 11 06-12 Bolt, Carr. 3/8-16 x 1-1/2 Gr. 5
52 532 17 58-20 Pulley Idler Flat
KEY PART
NO. NO. DESCRIPTION
56 532 15 59-86 Bar Pnt Adj.
57 532 15 69-41 Pin Head Rivet
90 874 76 05-16 Bolt Hex HD 5/16-18 x 1
91 532 18 05-34 Bracket N Roller LH
93 819 17 14-16 Washer 17/32 x7/8 x 16 Ga
94 532 17 60-66 Roller Nose 48"
95 532 18 05-35 Bracket Asm N Roller RH
97 532 13 39-43 Washer Hardened
98 532 17 94-79 Spring Primary Drive
99 532 17 50-80 Pulley Idler"V"
100 872 11 06-16 Bolt RDHD Sqnk 3/8-16 UNC x 2
107 532 17 52-94 Baffle Vac Edge Mower
108 872 14 04-04 Bolt Carr.
109 873 68 04-00 Nut Crownlock 1/4-20
110 532 17 50-16 Arm Spring Secondary
112 532 17 43-87 Link Tension Relief Lever
113 872 11 05-08 Bolt Carr. 5/16-18 x 1
114 532 17 43-84 Tension Asm. Relief Lever
115 532 17 46-09 Arm Spring Tension Relief
116 532 13 76-44 Bolt, Shoulder
117 532 13 39-57 Gauge Wheel
118 873 93 06-00 Nut, Centerlock 3/8-16 UNC
119 819 12 14-14 Washer 3/8 x 7/8 x 14 Ga.
121 532 17 43-71 Spring Secondary Drive
122 532 17 46-06 Bushing Pivot Tension Relief
126 532 17 43-72 Arm, Idler, Primary Deck
130 817 00 06-16 Screw 3/8-16 x 1.0
132 817 06 06-12 Screw 3/8-16 x .75
182 532 17 91-27 Rod Roller Nose Narrow
183 532 16 35-52 Retainer Spring
184 532 17 39-79 Keeper Belt Idler
- - 532 18 15-91 Replacement Mower, Complete
- - 532 17 43-56 Mandrel Asm. Service
(Includes Key Nos. 13-15 and 33)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
43
www.mymowerparts.com
Loading...
