Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Illustrated Parts
6522 CH A
(6522 RF A) 954222725
List
2001-01
I0102006
Repair Parts Manual Walk Mower
www.mymowerparts.com

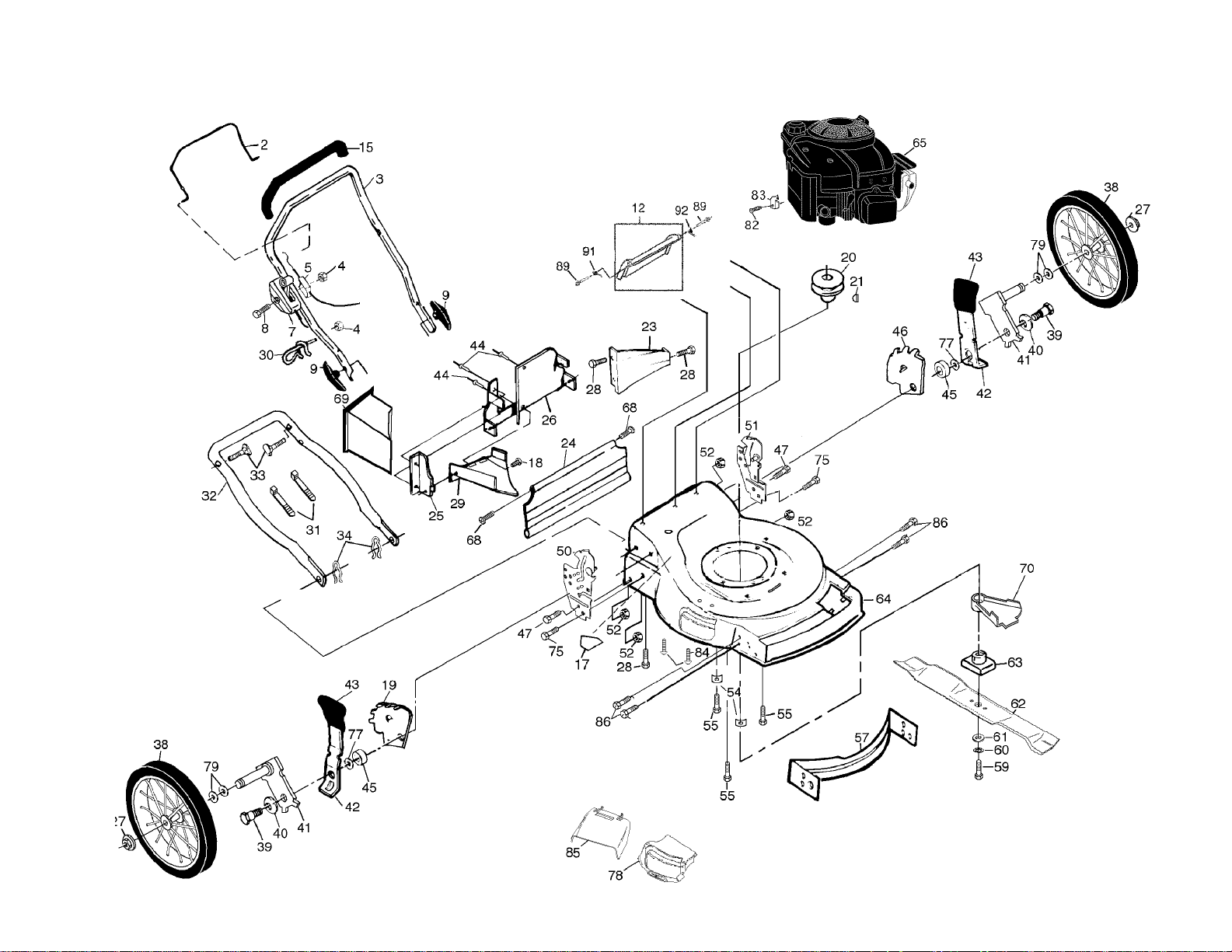

Page 2
REPAIR PARTS
ROTARY LAWN MOWER MODEL NUMBER 6522CH (6522CHA)
www.mymowerparts.com
16
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Page 3
REPAIR PARTS
ROTARY LAWN MOWER MODEL NUMBER 6522CH (6522CHA)
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
KEY PART
NO. NO. DESCRIPTION
2 532176580 Control Bar
www.mymowerparts.com
17
3 532167163 Upper Handle
4 532063601 Locknut
5 532130861 Engine Zone Control Cable
7 532700417 Throttle Control
8 532144929 Hex Washer Head Screw 1/4-20 x 2-1/8
9 532136376 Handle Knob
12 532170947 Rear Door Kit
15 532164265 Handle Grip
17 532107339 Danger Decal
18 532150050 Screw
19 532155047 Wheel Adjusting Bracket
20 532084596 Engine Pulley
21 532087677 Hi Pro Key #505
23 532125348 Rear Baffle
24 532140540 Rear Skirt
25 532138860 Side Baffle
26 532166800 Back Plate
27 532083923 Flanged Locknut
28 532054583 Screw Hex Head 1/4-20 x 1/2
29 532177133 Discharge Baffle
30 532132001 Rope Guide
31 532066426 Wire Tie
32 532153605 Lower Handle
33 532131959 Handle Bolt
34 532051793 Hairpin Cotter
38 532752063 Wheel & Tire Assembly
39 532142748 Shoulder Bolt
40 532061651 Spring Washer
41 532162233 Axle Arm
42 532177132 Selector Spring
43 532175477 Selector Knob
44 532128415 Pop Rivet
45 532146630 Spacer
46 532155047 Wheel Adjusting Bracket
KEY PART
NO. NO. DESCRIPTION
47 532150078 Self-tapping Screw 5/16-18 x 3/4
50 532177130 Handle Bracket (Right)
51 532177131 Handle Bracket (Left)
52 532751592 Locknut 3/8-16
54 532125078 Washer
55 532150406 Hex Head Thread Rolling Screw 3/8-16 x 1-1/8
57 532170557 Front Baffle
59 532851084 Hex Head Machine Screw 3/8-24 x 1-3/8 Gr. 8
60 532850263 Helical Lock Washer
61 532851074 Hardened Washer
62 532141114 Blade 22"
63 532851514 Blade Adapter
64 532176583 Lawn Mower Housing Kit (Includes Key No. 17)
6 5 - - - - - - Engine Briggs & Stratton 120602
68 532088652 Hinge Screw
69 532166649 Mulcher Plug
70 532134612 Debris Shield
75 874760612 Bolt
77 532088348 Flat Washer
78 532150756 Combi-Cut Door Assm.
79 532057143 Wave Washer
82 532083816 Screw
83 532213146 Engine Clamp
84 532063601 Nut
85 532150653 Clip on Guard
86 817600406 Screw
89 532165912 Bolt
91 532170939 Spring RH
92 532170938 Spring LH
- - 532162300 Warning Decal
- - 532177950 Owner's Manual
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
Page 4
REPAIR PARTS
ROTARY LAWN MOWER MODEL NUMBER 6522CH (6522CHA)
www.mymowerparts.com
18
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

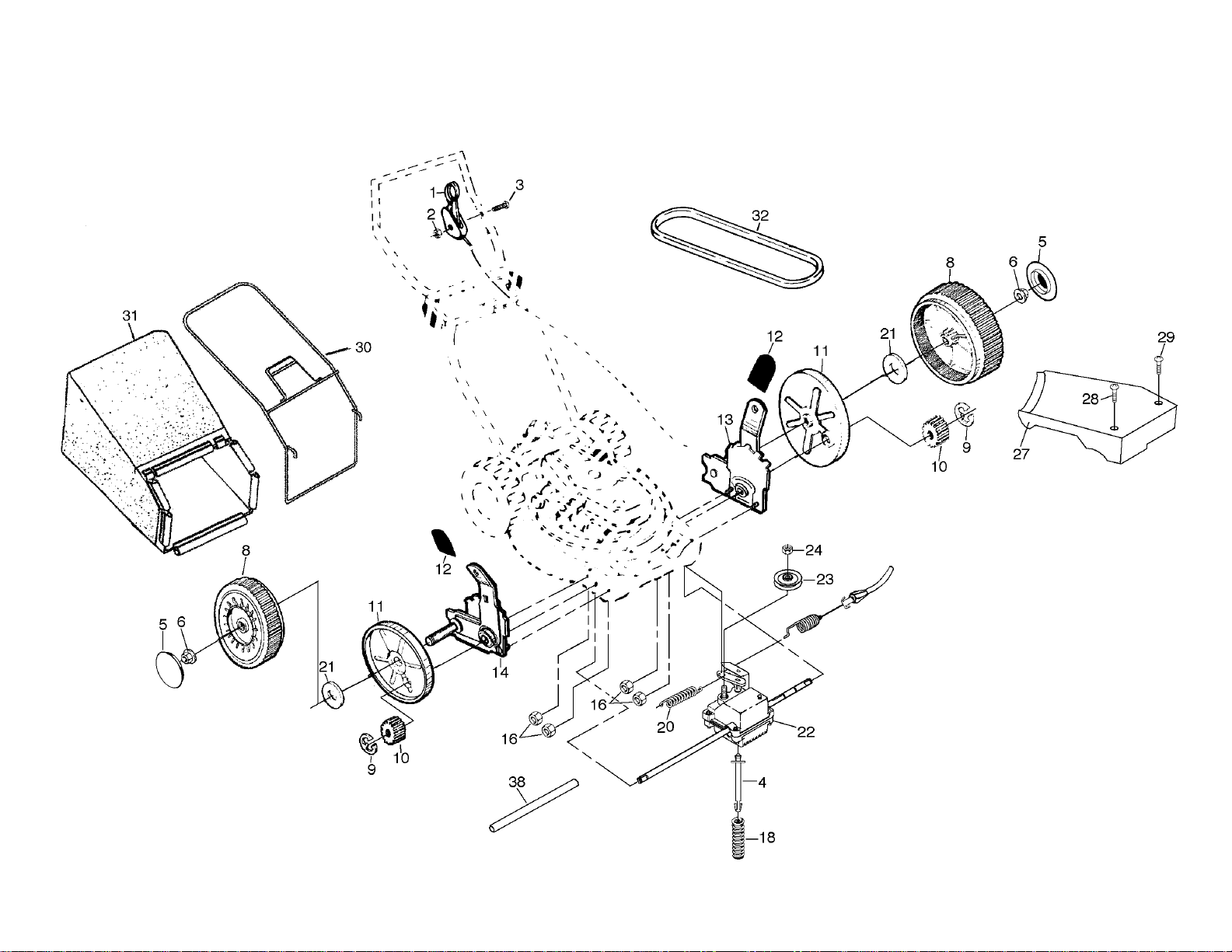

Page 5
REPAIR PARTS
ROTARY LAWN MOWER MODEL NUMBER 6522CH (6522CHA)
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
KEY PART
NO. NO. DESCRIPTION
1 532146323 Drive Control
www.mymowerparts.com
19
2 532751152 Locknut #10-24
3 532158755 Pan Head Machine Screw 1/4-20 x 2-1/8
4 532150495 Spring Retainer
5 532077400 Hubcap
6 532145212 Nut
8 532088558 Wheel & Tire Assembly
9 812000058 E-ring
10 532137054 Pinion
11 532088080 Dust Cover
12 532087877 Selector Knob
13 532151521 Wheel Adjuster Assembly (Left)
14 532151520 Wheel Adjuster Assembly (Right)
16 532063601 Locknut
18 532137090 Spring
KEY PART
NO. NO. DESCRIPTION
20 532075192 Spring
21 532067725 Washer 1/2 x 1-1/2 x .134
22 532702511 Gear Case Assembly
23 532137052 Drive Pulley
24 532132010 Locknut
27 532700479 Drive Cover
28 532146072 Screw
29 532149746 Pan Head Tapping Screw #10-24 x 1-3/4
30 532169931 Catcher Frame
31 532176575 Grass Bag
32 532146527 V-Belt
38 532086012 Drive Shaft Cover
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
ROTARY LAWN MOWER MODEL NUMBER 6522CH (6522CHA)

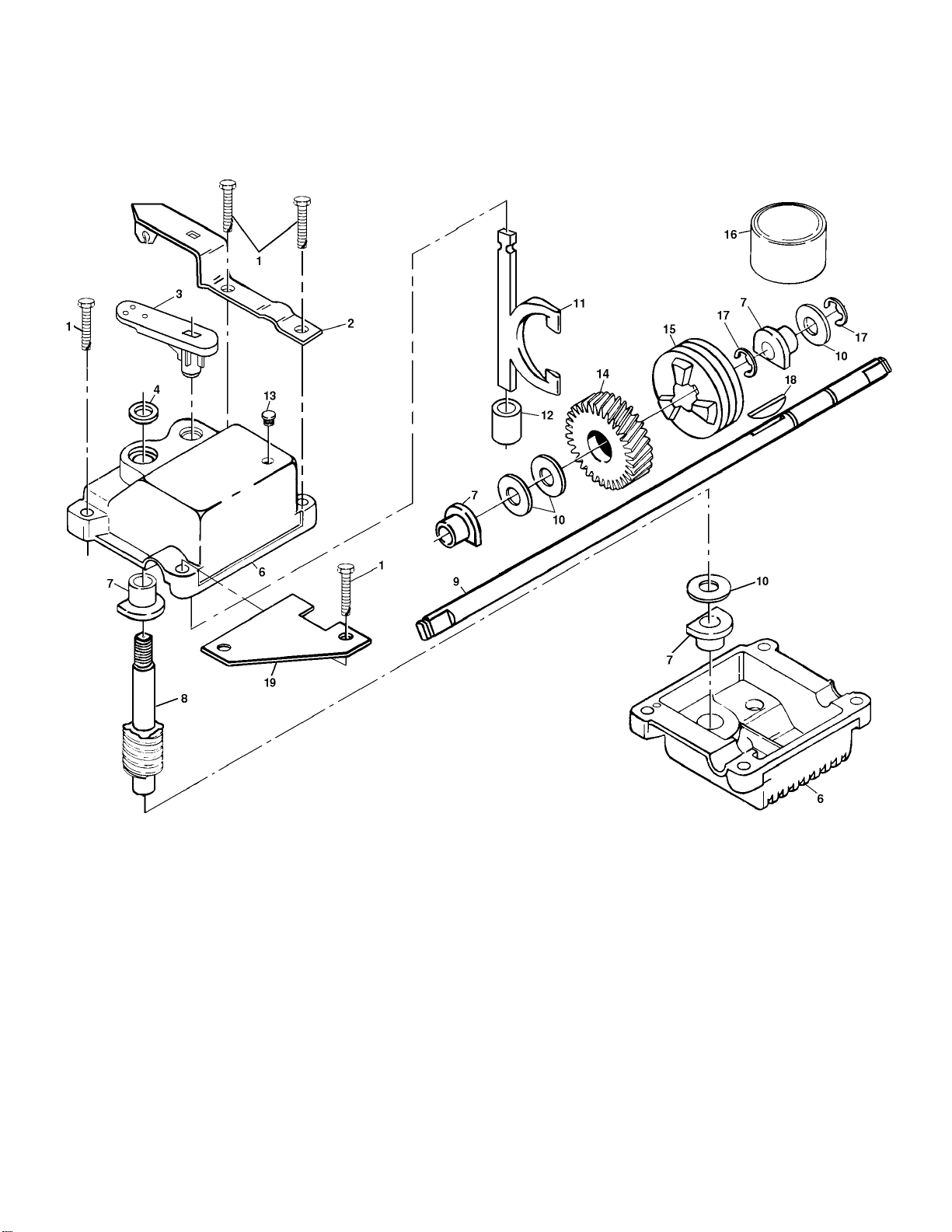

GEAR CASE ASSEMBLY PART NUMBER 532702511
KEY PART
NO. NO. DESCRIPTION
1 817490416 Tapping Screw 1/4-20 x 1-1/4
2 532140269 Engagement Bracket
3 532137053 Shifter
4 532057072 Seal
6 532048373 Gear Case Halves Kit
(Includes Key Nos. 4, and 7)
7 532077881 Bearing
8 532137051 Worm Shaft
9 532137074 Drive Shaft
10 532057079 Hardened Washer
www.mymowerparts.com
KEY PART
NO. NO. DESCRIPTION
11 532131484 Clutch Yoke
12 532700343 Bushing
13 532086447 Plug
14 532137050 Helical Gear
15 532750436 Clutch Jaw
16 532750369 Grease
17 812000003 E-Ring
18 532850848 Hi-Pro Key
19 532125441 Spring Bracket
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
