SERVICE

I0200097

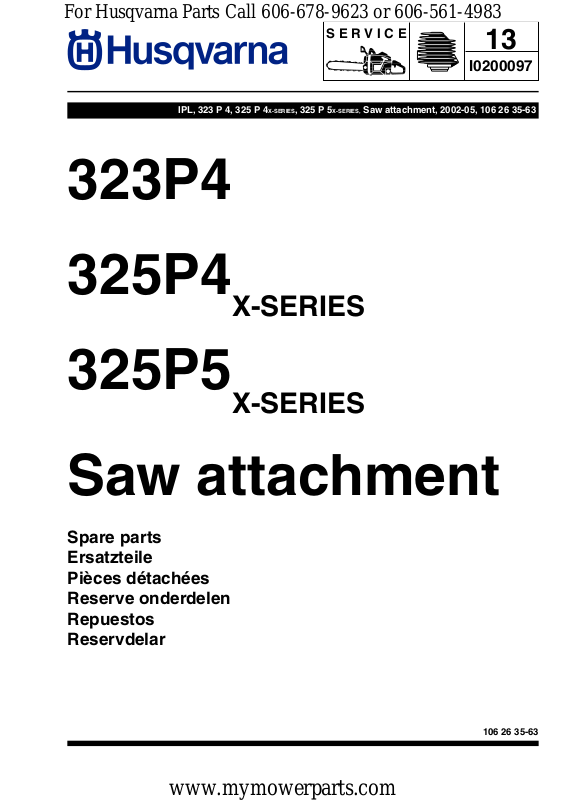

IPL, 323 P 4, 325 P 4X-SERIES, 325 P 5X-SERIES, Saw attachment, 2002-05, 106 26 35-63

323P4

325P4

X-SERIES

325P5

X-SERIES

Saw attachment

Spare parts Ersatzteile Pièces détachées Reserve onderdelen Repuestos Reservdelar

www.mymowerparts.com

106 26 35-63

Page 2

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

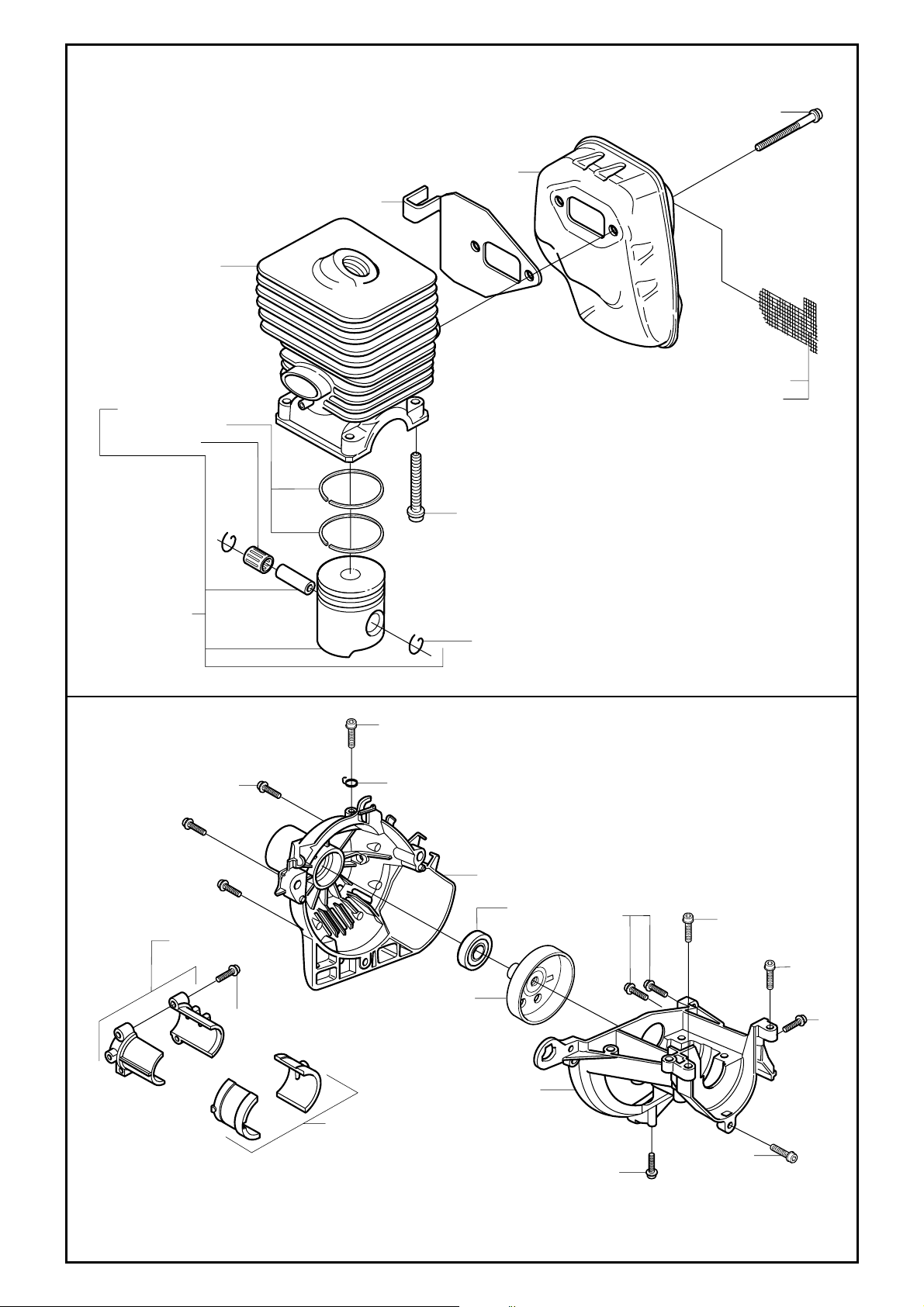

537 11 95-01

537 11 81-01

537 12 07-01

537 12 03-01

537 13 66-01

537 11 78-01

537 11 81-01

537 11 88-01 (x4)

537 11 79-01 (x4)

537 11 82-01

537 11 80-01

537 11 92-01

537 13 65-01

735 58 52-00

537 12 16-01

537 14 67-01

537 12 13-01

537 08 88-01

537 15 49-01

537 11 97-01

537 11 96-01

537 12 15-01

537 12 04-01

537 11 94-01

725 53 25-55

**compl 537 11 98-01

537 14 29-01

537 11 83-01

537 12 52-01

537 11 81-01

734 11 45-71

501 36 49-98

501 36 49-97

537 11 91-01

537 11 87-01

537 12 17-01

537 12 18-01

537 11 84-01

537 11 85-01

537 12 01-01

537 12 46-01

537 12 12-01

537 09 19-01

537 11 30-01*

537 11 31-01

537 12 08-01

537 14 30-01

537 12 09-01

503 23 00-68

503 26 32-02* (x4)

537 11 29-01*

*compl 537 11 28-01

537 13 92-01

www.mymowerparts.com

537 12 06-01

537 09 65-01

Page 3

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

323P4, 325P4x

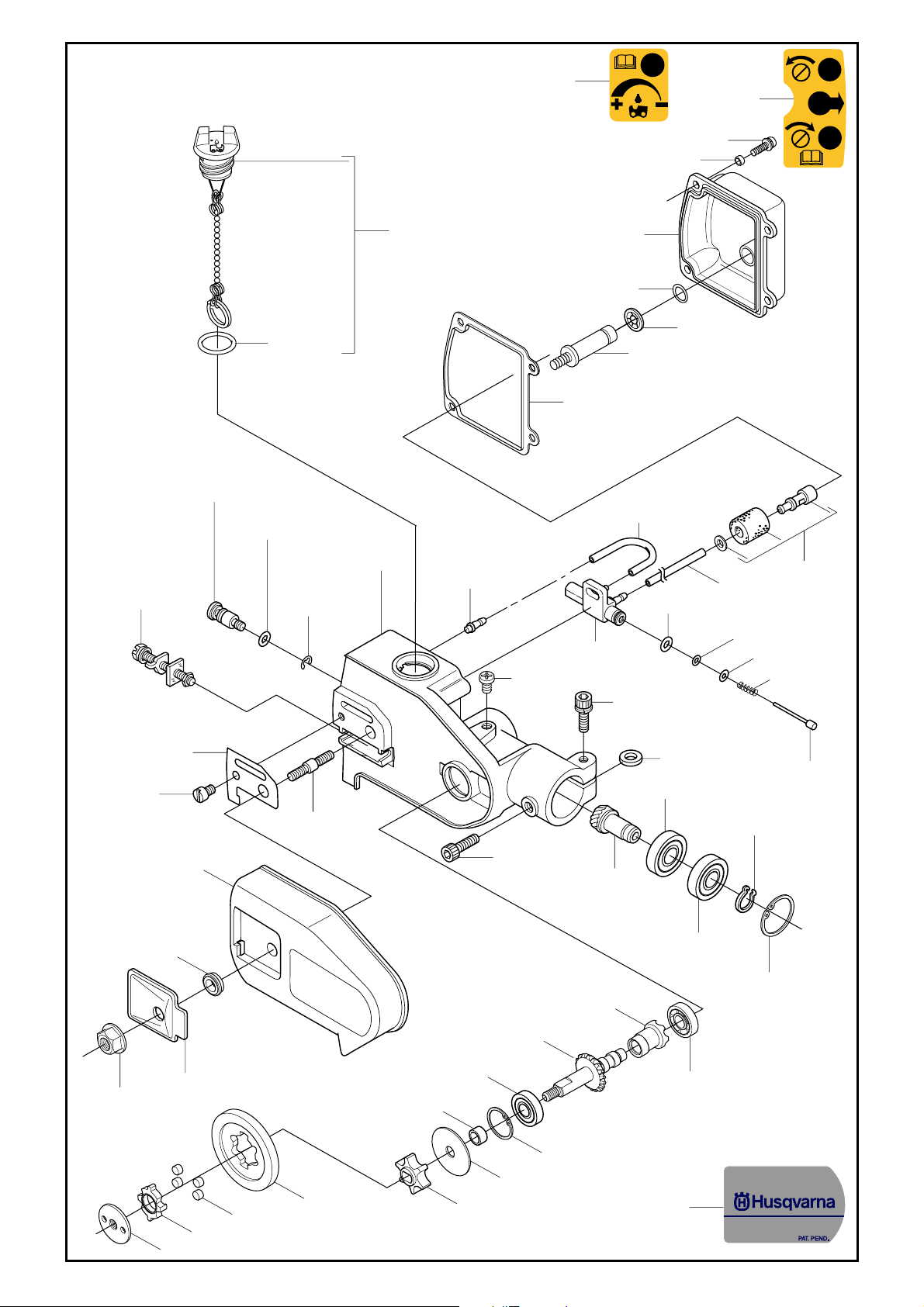

537 07 85-01

537 08 38-01

325P5x

*503 98 54-01

*503 78 52-01

537 07 87-01

725 23 79-51

502 20 38-01

503 70 80-04

503 71 54-01

503 20 07-10

725 23 72-71 (x2)

503 20 07-25 (x2)

537 17 50-01

503 87 26-01

537 24 51-01

734 11 52-01 (x4)

537 24 69-01 (x2)

537 08 55-01

503 20 07-16

503 94 10-01 731 23 14-01

537 08 38-01

732 21 16-01 (x2)

537 24 68-01

*735 58 08-10

*compl 537 17 48-01

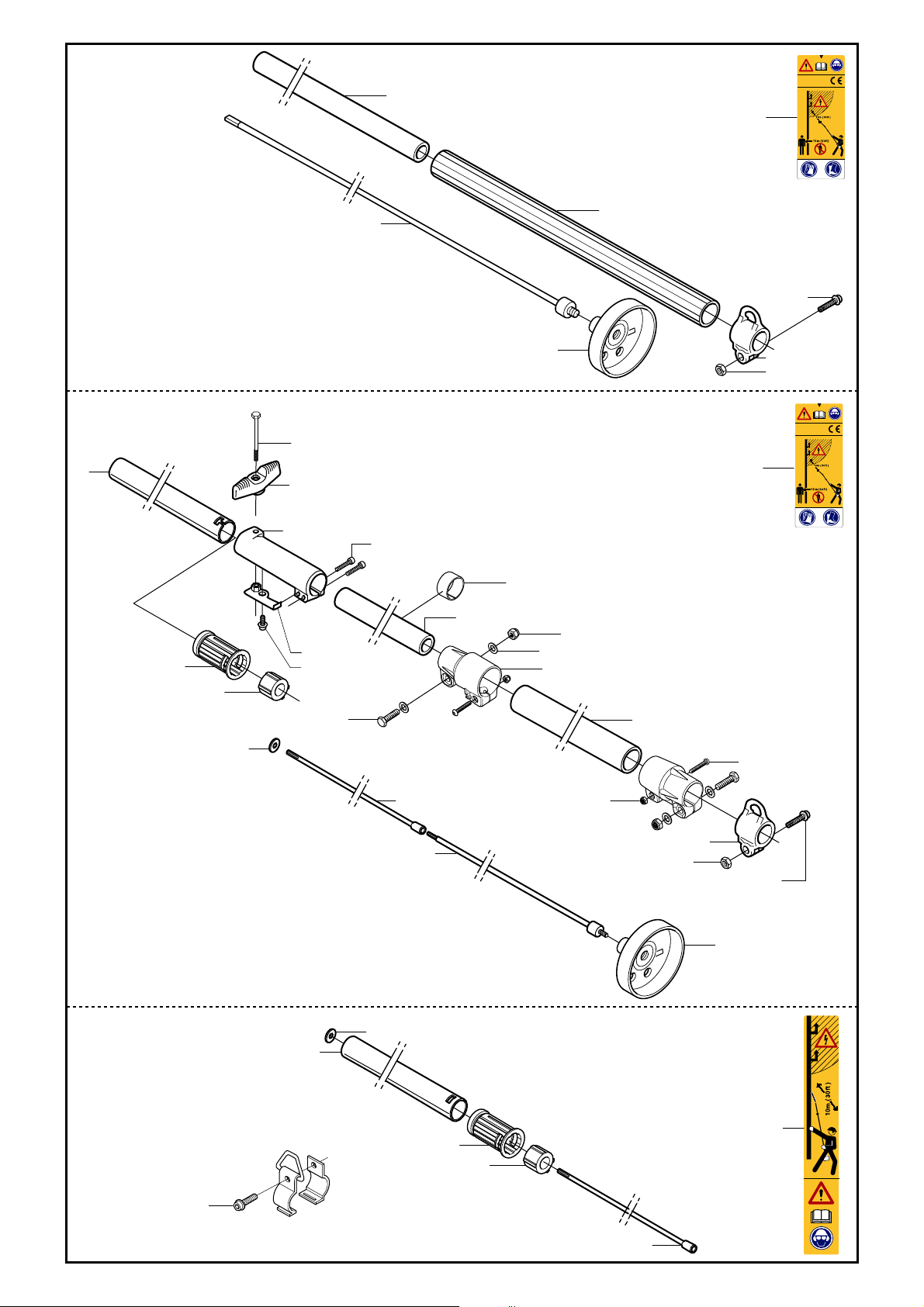

Saw Attachment

*compl 501 78 33-01

537 18 09-01*

537 18 10-01

735 58 08-10**

**503 98 54-01

**503 78 52-01

725 52 97-01 (x2)

732 25 12-01 (x2)

503 94 10-01

731 23 14-01

503 20 07-16

503 87 26-01

**compl 537 17 48-01

537 19 84-01

*503 21 83-16

**537 18 09-01

www.mymowerparts.com

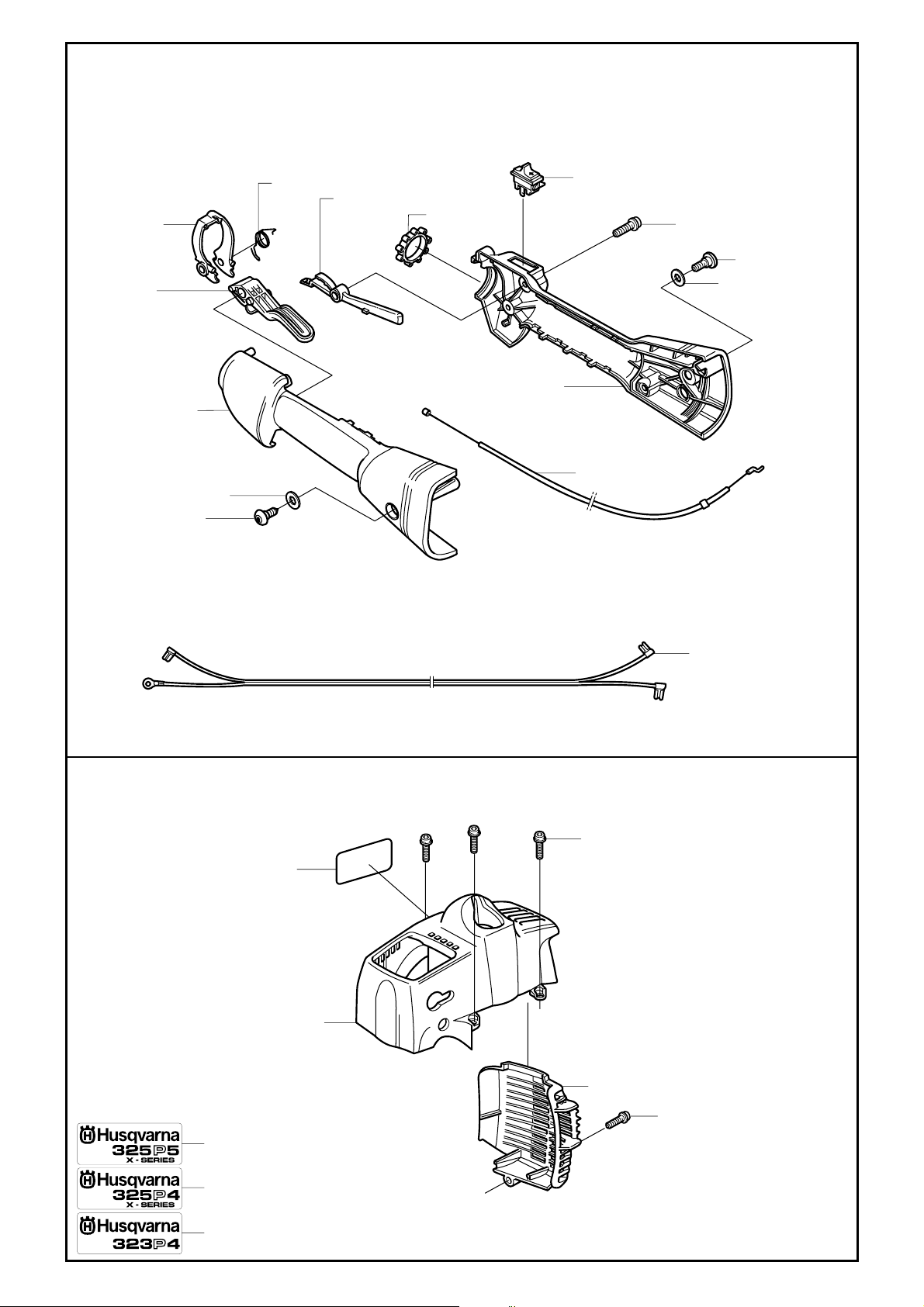

Page 4

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

503 91 81-01

503 87 79-01

503 99 56-01

323P4

503 99 56-02

325P4x, 325P5x

503 96 13-01

740 42 06-00

537 01 13-01

503 87 80-01

503 96 14-01

503 99 55-01

323P4

503 99 55-02

325P4x, 325P5x

503 71 82-01

503 21 66-20 (x5)

503 96 13-01

740 42 06-00

537 05 25-01

503 87 85-01

503 21 68-20 (x3)

503 98 12-39 323P4 503 98 12-34 325P4x 503 98 12-38 325P5x

503 87 18-01

503 87 21-01

503 98 12-38 325P5x

503 98 12-34 325P4x

503 98 12-39 323P4

www.mymowerparts.com

503 21 68-20

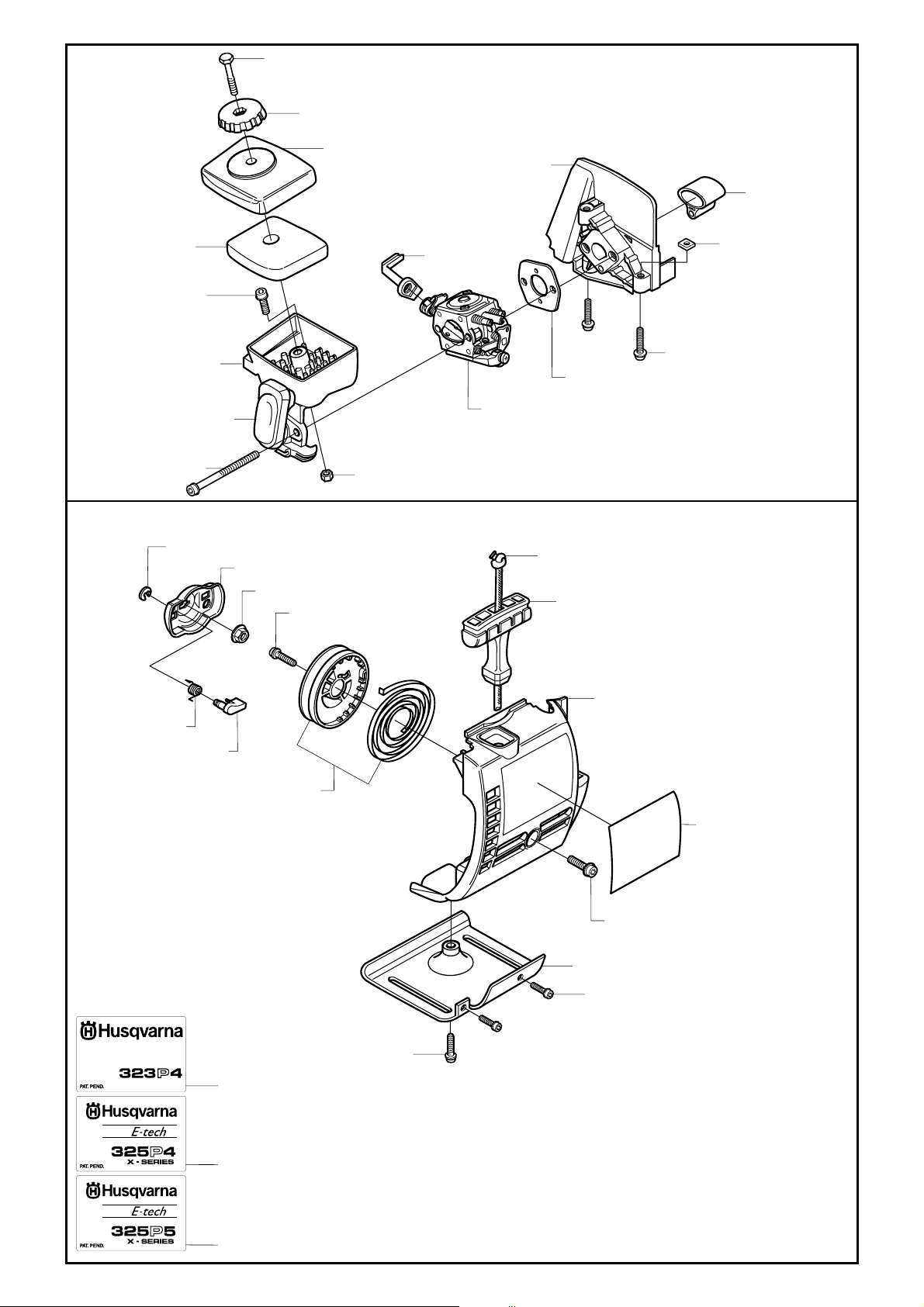

Page 5

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

502 20 65-03

502 20 40-01

503 88 80-01

503 91 09-01

503 94 26-01

537 18 63-01

503 21 75-16

*compl 503 89 03-01

*503 88 79-01

503 21 75-50 (x2)

735 31 08-20**

731 71 16-51

731 23 14-01*

503 21 77-16*

503 96 25-01

503 28 31-11

503 22 65-04 (x2)

503 20 14-25 (x2)

503 49 71-01

*compl 503 85 28-01**compl 503 87 33-02

503 85 89-01*

537 00 84-01*

**503 87 36-01

**503 87 35-02

503 85 87-01*

*503 96 49-01

503 97 98-42 323P4 503 97 98-32 325P4x 503 97 98-41 325P5x

503 21 68-20

537 03 41-01

503 21 66-20 (x2)

503 21 66-20

503 97 98-42 323P4

503 97 98-32 325P4x

503 97 98-41 325P5x

www.mymowerparts.com

Page 6

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

*compl 537 06 86-02

503 91 18-01 323P4

503 93 66-01

*503 73 58-01 (x2)

537 04 24-01

503 91 18-02 325P4x, 325P5x

*537 04 24-01

537 04 58-01

325P4x, 325P5x

*537 18 49-01

*503 57 76-01

503 91 10-01 (x4)

*537 18 49-01

*503 44 32-01

* compl 537 04 23-01

503 84 29-01** (x2)

**503 81 60-01

**503 84 28-01 (x2)

**compl 537 03 22-01

*501 48 54-02

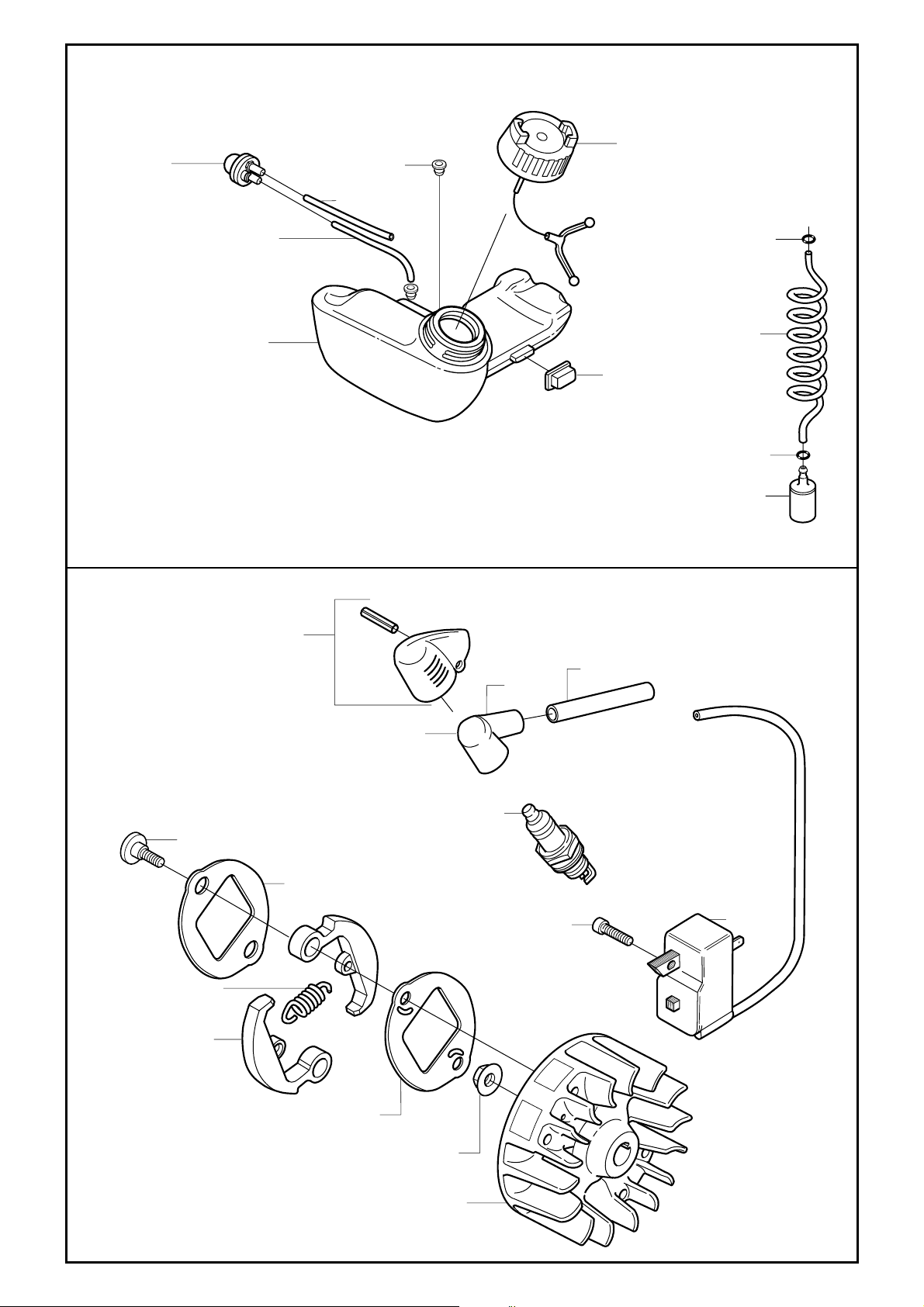

503 23 51-11 NGK BPMR 7A

537 04 67-01**

**537 04 68-01

731 71 16-51

503 21 71-16 (x2)

503 87 28-01

www.mymowerparts.com

Page 7

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

**compl 537 03 20-05

503 28 90-41 (x2) 503 71 22-01

*compl 537 03 94-01 325P4x, 325P5x *compl 537 16 19-01 323P4

*503 20 29-50 (x2)

537 01 41-01

*503 87 17-01 325P4x, 325P5x

*537 15 99-01 323P4

**537 01 32-75

**compl 537 04 12-03

*503 21 68-20 (x3)

537 03 23-01

503 20 02-35** (x4)

503 21 68-20**

537 07 36-01

737 44 08-00 (x2)

*503 21 71-16

503 21 68-20* (x4)

503 21 68-25 (x2)

www.mymowerparts.com

503 87 26-01

537 03 24-01

*503 21 66-20

*compl 537 04 11-01

Page 8

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

*compl 503 85 24-74

503 83 61-01 738 21 01-10

*503 94 05-01

325P4x, 325P5x

503 94 02-01*

503 71 22-01*

Accessories

Zubehöre Accessoires Acessorios Tillbehör

*compl 537 04 07-10

*502 21 58-01

503 98 96-01

*503 94 02-01

501 69 17-01*

531 00 92-05

503 94 05-01*

325P4x, 325P5x

738 21 01-10 503 83 61-01

503 74 16-01 503 74 16-02 (USA)

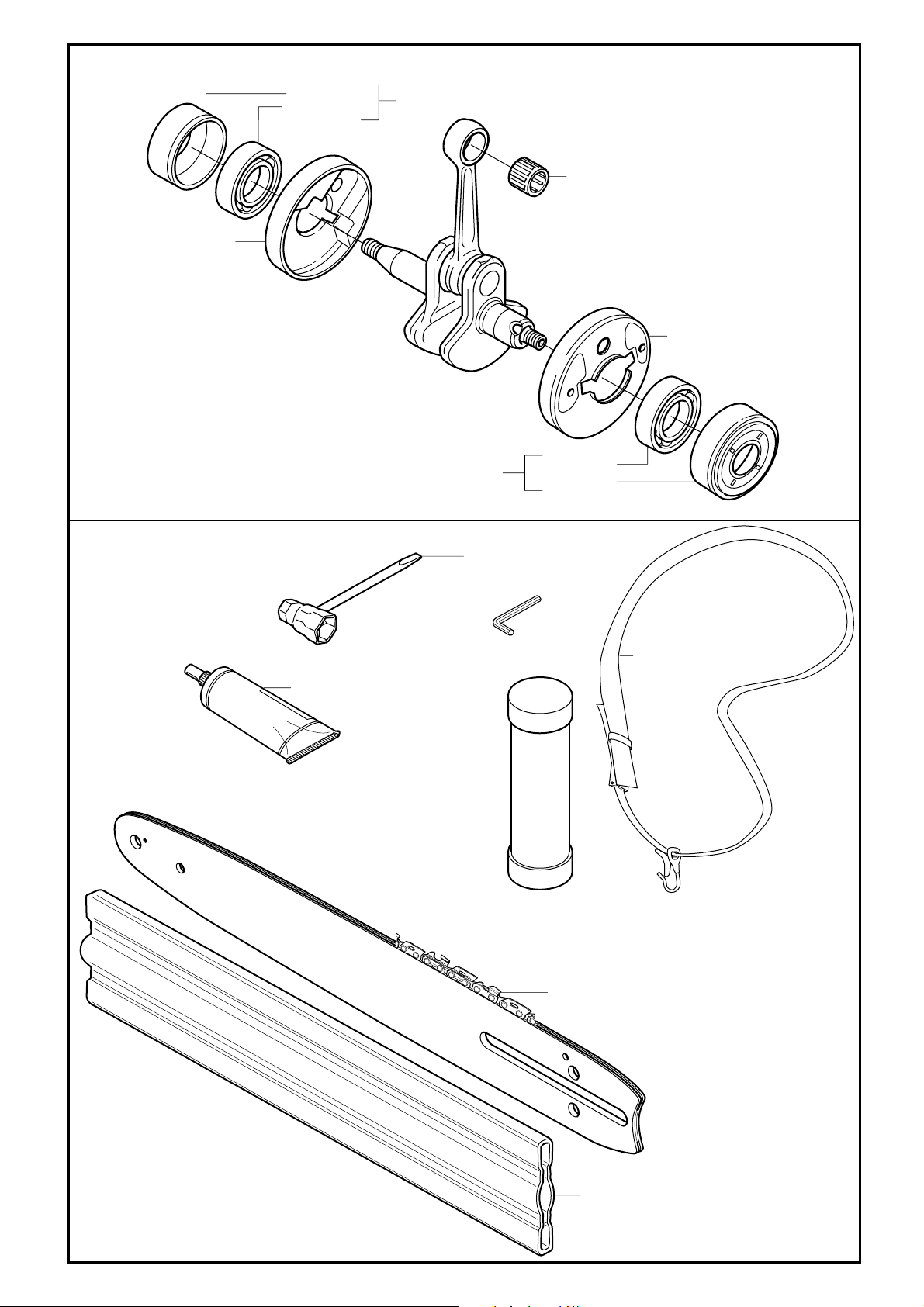

400g

GREASE

501 95 92-45

12" Bar

501 84 21-45

12" Chain

537 12 99-01

www.mymowerparts.com

Page 9

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

compl 503 28 31-11

503 48 18-01

537 02 09-01

537 02 11-01

503 47 90-01

503 48 19-01

537 04 90-01

537 02 10-01

503 48 05-01 (x2)

503 97 43-01

537 04 89-01

537 02 04-01

503 48 01-01

503 48 00-01

503 66 59-01

537 02 03-01

503 47 97-01

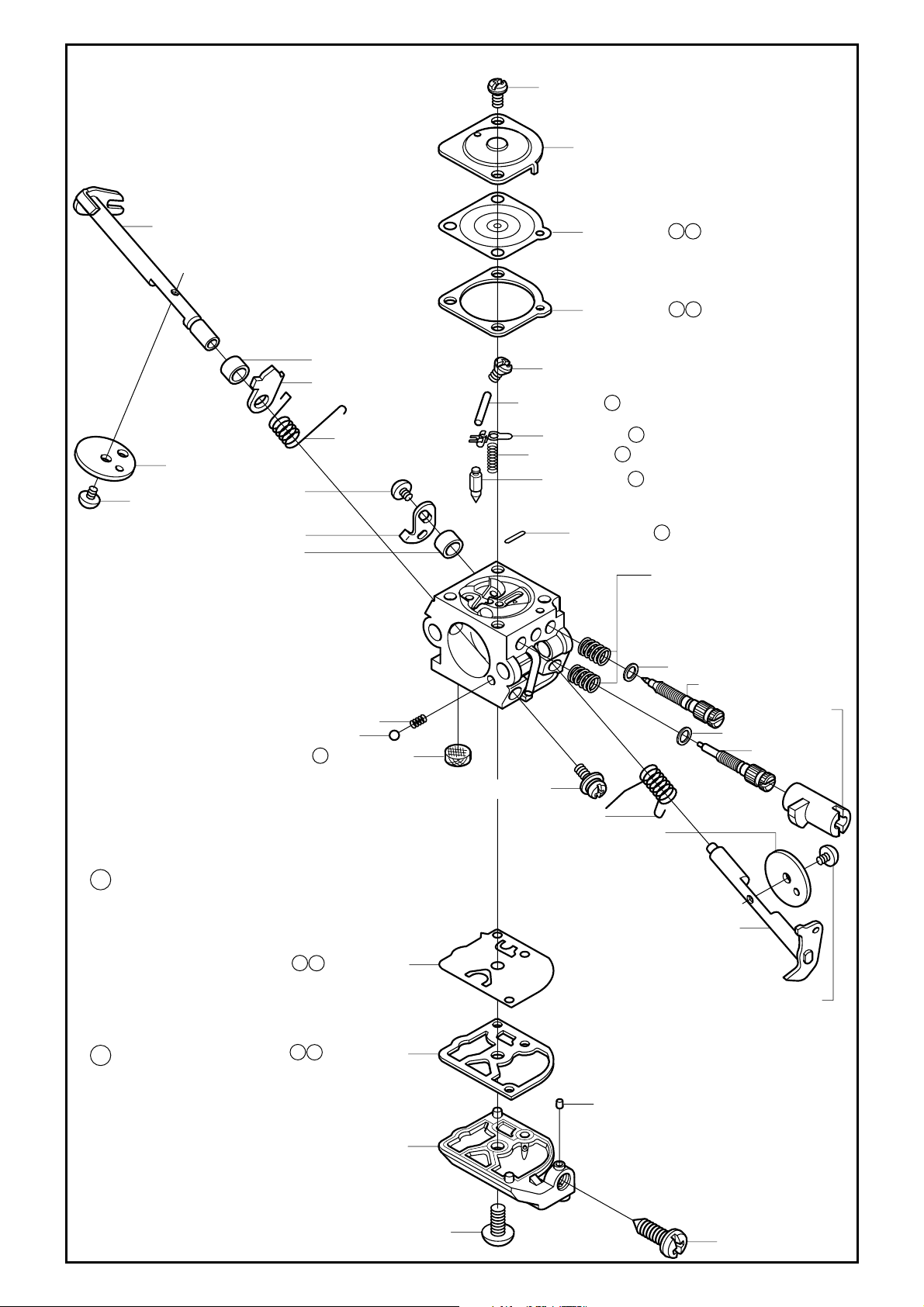

ZAMA C1Q - EL 12

537 01 98-01 503 47 89-01

531 00 45-52

1 Set of gaskets Dichtungssatz Juego de juntas Jeu de joints Packningssats

537 01 26-01

537 01 25-01

503 53 57-01

537 02 00-01

503 75 53-01

537 01 97-01

537 02 08-01

537 01 99-01

503 48 08-01

503 97 40-01

537 12 78-01

537 02 16-01

503 97 40-01

537 02 06-01

537 01 96-01

503 47 92-01

531 00 45-53

Repairkit Reparatursatz Juego de reparación Kit de réparation Reparationssats

537 02 01-01

503 48 11-01

537 02 02-01

503 47 96-01

www.mymowerparts.com

537 02 07-01

Page 10

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

323P4, 325P4X-SERIES, 325P5X-SERIES, Saw attachment

PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE

501 36 49-97 A 501 36 49-98 A 501 48 54-02 H 501 69 17-01 M 501 78 33-01 B 501 84 21-40 M 501 84 21-45 M 501 95 92-40 M 501 95 92-45 M 502 20 40-01 E

502 20 65-03 E 502 21 58-01 M 503 20 02-35 J 503 20 07-10 B N 503 20 07-16 B 503 20 07-25 B N 503 20 14-25 E N 503 20 29-50 J 502 20 38-01 B N 503 21 66-20 CFK

503 21 68-20 DFK 503 21 68-25 K 503 21 71-16 HK 503 21 75-16 DE 503 21 75-50 E 503 21 77-16 F 503 21 83-16 B 503 22 65-04 E 503 23 00-68 A 503 23 51-11 H

503 87 26-01 BL 503 87 28-01 H 503 87 33-02 F 503 87 35-02 F 503 87 36-01 F 503 87 79-01 C 503 87 80-01 C 503 87 85-01 C 503 88 79-01 E 503 88 80-01 E

503 89 03-01 E 503 91 09-01 E 503 91 10-01 G 503 91 18-01 G 503 91 18-02 G 503 91 81-01 C 503 93 66-01 G 503 94 02-01 L 503 94 05-01 L 503 94 10-01 B

503 94 26-01 E 503 96 13-01 C 503 96 14-01 C 503 96 25-01 E 503 96 49-01 F 503 97 40-01 N 503 97 43-01 N 503 97 98-32 F 503 97 98-42 F 503 98 12-34 D

537 04 11-01 K 537 04 12-03 K 537 04 23-01 H 537 04 24-01 G 537 04 58-01 H 537 04 67-01 H 537 04 68-01 H 537 04 89-01 N 537 04 90-01 N 537 05 25-01 C

537 07 36-01 K 537 07 85-01 B 537 07 87-01 B 537 08 38-01 B 537 08 55-01 B 537 08 88-01 A 537 09 19-01 A 537 09 65-01 A 537 11 28-01 A 537 11 29-01 A

537 11 30-01 A 537 11 31-01 A 537 11 78-01 A 537 11 79-01 A 537 11 80-01 A 537 11 81-01 A 537 11 82-01 A 537 11 83-01 A 537 11 84-01 A 537 11 85-01 A

537 18 63-01 E N 537 19 84-01 B 537 24 51-01 B N 537 24 68-01 B N 537 24 69-01 B N 725 23 72-71 B N 725 23 79-51 B N 725 52 97-01 B N 725 53 25-55 A 731 23 14-01 BF

731 71 16-51 FI 732 21 16-01 B N 732 25 12-01 B N 734 11 45-71 A 734 11 52-01 B N 735 31 08-20 F 735 58 08-10 B 735 58 52-00 A N 737 44 08-00 J 738 21 01-10 L

740 42 06-00 C

503 26 32-02 A 503 28 31-11 EN 503 28 90-41 J 503 44 32-01 G 503 47 89-01 N 503 47 90-01 N 503 47 92-01 N 503 47 96-01 N 503 47 97-01 N 503 48 00-01 N

503 48 01-01 N 503 48 05-01 N 503 48 08-01 N 503 48 11-01 N 503 48 18-01 N 503 48 19-01 N 503 49 71-01 E 503 53 57-01 N 503 57 76-01 G 503 66 59-01 N

503 70 80-04 B N 503 71 22-01 JL 503 71 54-01 B N 503 71 82-01 C 503 73 58-01 G 503 74 16-01 M 503 74 16-02 M 503 75 53-01 N 503 78 52-01 B 503 81 60-01 H

503 98 12-38 D N 503 98 12-39 D 503 98 54-01 B 503 98 96-01 M 503 99 55-01 C 503 99 55-02 C 503 99 56-01 C 503 99 56-02 C 531 00 45-52 N 531 00 45-53 N

531 00 92-05 M 537 00 84-01 F 537 01 13-01 C 537 01 25-01 N 537 01 26-01 N 537 01 32-75 J 537 01 41-01 J 537 01 96-01 N 537 01 97-01 N 537 01 98-01 N

537 01 99-01 N 537 02 00-01 N 537 02 01-01 N 537 02 02-01 N 537 02 03-01 N 537 02 04-01 N 537 02 06-01 N 537 02 07-01 N 537 02 08-01 N 537 02 09-01 N

537 11 87-01 A 537 11 88-01 A 537 11 91-01 A 537 11 92-01 A 537 11 94-01 A 537 11 95-01 A 537 11 96-01 A 537 11 97-01 A 537 11 98-01 A 537 12 01-01 A

537 12 03-01 A 537 12 04-01 A 537 12 06-01 A 537 12 07-01 A 537 12 08-01 A 537 12 09-01 A 537 12 12-01 A 537 12 13-01 A 537 12 15-01 A 537 12 16-01 A

537 12 17-01 A 537 12 18-01 A 537 12 46-01 A 537 12 52-01 A 537 12 78-01 N 537 12 99-01 M 537 13 65-01 A 537 13 66-01 A 537 13 92-01 A 537 14 29-01 A

503 83 61-01 L 503 84 28-01 H 503 84 29-01 H 503 85 24-74 L 503 85 28-01 F 503 85 87-01 F 503 85 89-01 F 503 87 17-01 J 503 87 18-01 D 503 87 21-01 D

Set of gaskets, Dichtungssats, Jeu de joints, Juego de juntas, Packningssats

537 02 10-01 N 537 02 11-01 N 537 02 16-01 N 537 03 20-05 J 537 03 22-01 H 537 03 23-01 K 537 03 24-01 K 537 03 41-01 F 537 03 94-01 J 537 04 07-10 M

N = New part, Neues teil,

Nouvelle piece, Nueva pieza Ny detalj

537 14 30-01 A 537 14 67-01 A 537 15 49-01 A 537 15 99-01 J 537 16 19-01 J 537 17 48-01 B 537 17 50-01 B N 537 18 09-01 B 537 18 10-01 B N 537 18 49-01 G
