Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
YTH 1542 E
954567048
Illustrated Parts
List
2001-12
I0102048
Repair Parts Manual Ride Mower
www.mymowerparts.com
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
TRACTOR - MODEL NO. YTH1542 (YTH1542E), PRODUCT NO. 954 56 70-48

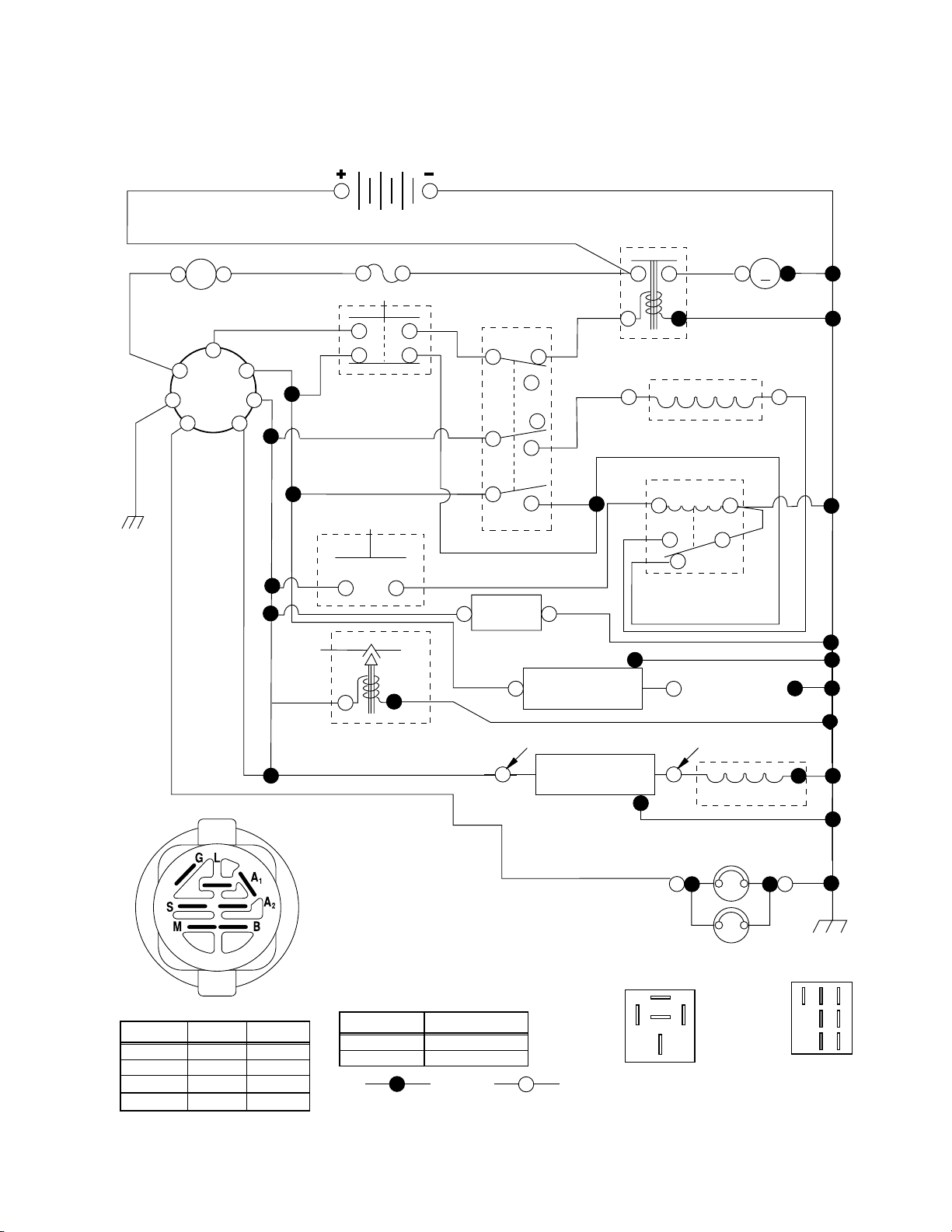

SCHEMATIC
AMMETER
(OPTIONAL)
RED
G
IGNITION
SWITCH
BLACK
RED
BLACK
BATTERY
SOLENOID
A
RED
FUSE
WHITE
WHITE
RED
WHITE
RED
M
STARTER
BLACK
CG
M
A1
BLACK
ORANGE
CLUTCH / BRAKE
(PEDAL UP)
RED
SEAT SWITCH
(NOT OCCUPIED)
BLACK
F
H
B
E
A
D
PTO (DISENGAGED)
RED
ELECTRIC CLUTCH
BLACK
85 86
87
BLACK
30
S
B
L
A2
87A
GREEN GREEN
BLUE
FUEL
HOUR
METER
(OPTIONAL)
BLACK
OPERATOR
PRESENCE
RELAY #1
LINE
SPARK
PLUGS GAP
(2 PLUGS ON
BLUE
BLACK
IGNITION
UNIT
TWIN CYL. ENGINES)
FUEL SHUT-OFF SOLENOID
RED
CHARGING SYSTEM OUTPUT
9 AMP DC @ 3600 RPM
REGULATOR
28 VOLTS AC @ 3600 RPM
(REGULATOR DISCONNECTED)
ALTERNATOR
IGNITION SWITCH
CIRCUITPOSITION
OFF
M+G+A1
B+A1RUN/LIGHT
B+A1RUN
B + S + A1START
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
PTO SWITCH
“MAKE”
NONE
A2+L
NONE
NONE
OFF
ON
NON-REMOVABLE
CONNECTIONS
CIRCUITPOSITION
C + G, B + H
C + F, B + E, A + D
REMOVABLE
CONNECTIONS
27
www.mymowerparts.com
BROWN
87
87A
30
RELAY
HEADLIGHTS
8586
BLACK
G
FC
H
E
B
A
D
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1542 (YTH1542E), PRODUCT NO. 954 56 70-48

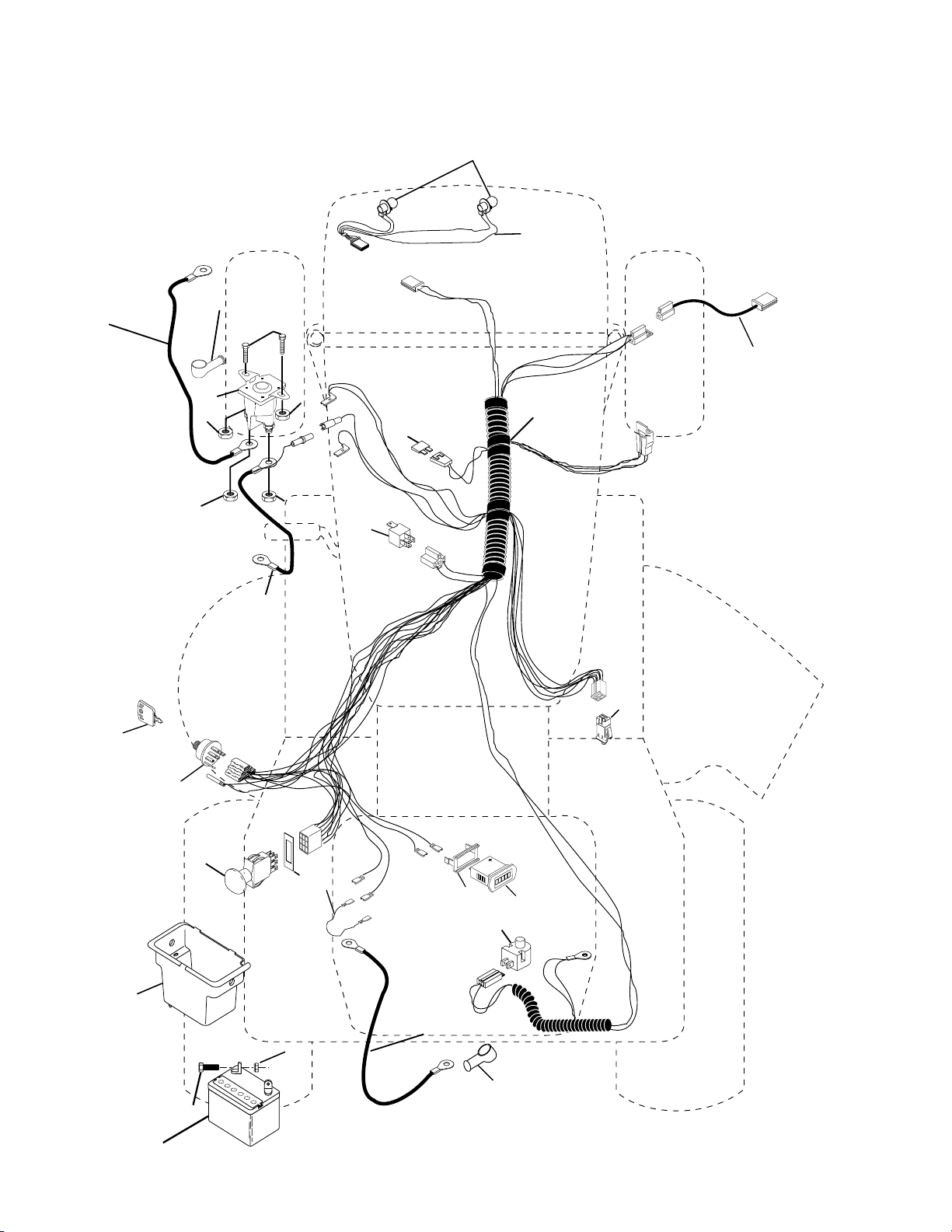

ELECTRICAL
22
21
42
24
41
80
33
30
27
43
27
25
27
27
40
26
81
16
50
51
48
8
27
2
1
28
88
46
29
90
28
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1542 (YTH1542E), PRODUCT NO. 954 56 70-48
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 16 34-65 Battery 12 Volt 28 AMP
2 874 76 04-12 Bolt Hex Hd 1/4-20unc X 3/4
8 532 17 66-89 Battery Box
16 532 17 61-38 Switch Interlock Push-In
21 532 17 56-85 Harness Asm Light W/4152j
22 532 00 41-52 Bulb Light #1156
24 532 12 47-80 Cable Battery 6 Ga 11" red
25 532 14 61-47 Cable Battery 6 Ga 44" red w/16 wire
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 Unc
28 532 12 47-73 Cable Ground 6 Ga 12" black
29 532 16 07-84 Switch Plunger Nc Gray
30 532 17 55-66 Switch Ign
33 532 14 04-01 Key Ign Generic
40 532 17 97-24 Harness Ign.
41 871 11 04-08 Bolt Blk Fin Hex 1/4 - 20 x 1/2
42 532 13 15-63 Cover Terminal Red
43 532 17 88-61 Solenoid
46 532 16 96-35 Meter Hour
48 532 14 08-44 Adapter Ammeter
50 532 17 46-51 Switch PTO
51 532 14 04-05 Ring Retainer PTO
80 532 14 66-85 Harness Clutch Evx
81 532 10 97-48 Relay Asm.
89 532 16 96-39 Bracket Snap-In Hourmeter
90 532 18 04-49 Cover Terminal
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
29
www.mymowerparts.com
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1542 (YTH1542E), PRODUCT NO. 954 56 70-48

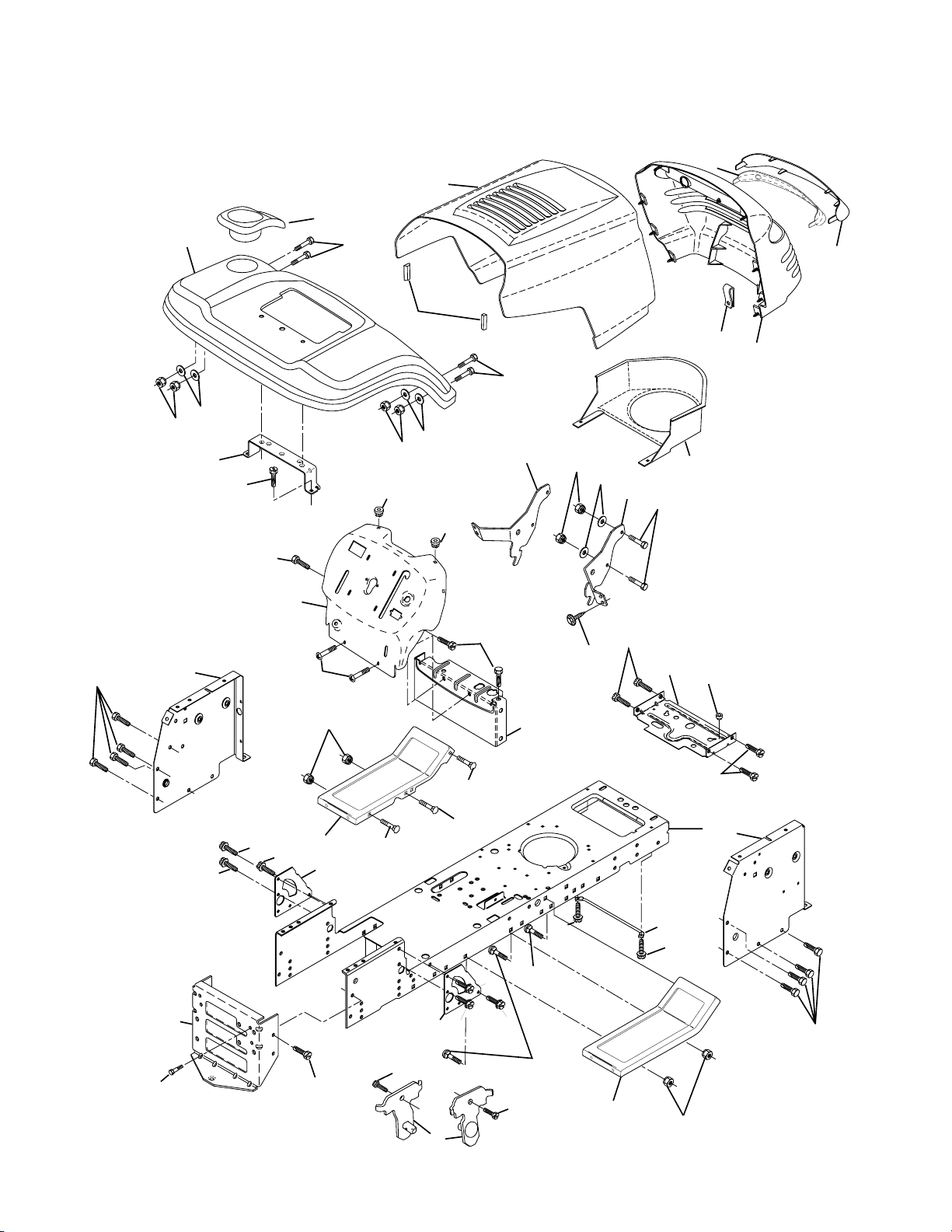

CHASSIS AND ENCLOSURES
212
17
159
26
30
25
31
3
24
18
12
28
24
25
26
5
5
53
51
52
55
58
57
29
208
11
208
9
208
207
26
3
35
3
3
33
3
142
10
64
37
3
3
54
219
20
145
37
23
219
1
13
206
2
3
142
3
14
38
3
35
14
34
26
208
30
www.mymowerparts.com
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1542 (YTH1542E), PRODUCT NO. 954 56 70-48
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
1 532 17 46-19 Chassis stamping
2 532 17 65-54 Drawbar, 12 Ga.
3 817 06 06-12 Screw 3/8-16x3/4
5 532 15 52-72 Bumper Hood/Dash
9 532 17 19-24 Dash Slkscr
10 872 14 06-08 Bolt Carriage 3/8-16 x 1
11 532 17 49-96 Panel Dash Lh
12 532 14 56-60 Clip Tinnerman
13 532 18 17-19 Panel Dash Rh
14 817 49 06-08 Screw Thdrol 3/8-16 x 1/2
17 532 16 22-37 Hood LT/PL
18 532 12 69-38 Bumper Hood
20 532 18 06-79 Plate Mtg Battery Fuel Tank Fr
23 532 12 40-28 Bushing
24 874 78 06-16 Bolt Fin Hex 3/8-16 Unc x 1 Gr. 5
25 819 13 13-12 Washer 13/32 X 13/16 X 12 Ga
26 873 80 06-00 Nut Lock Hex w/Ins. 3/8-16 Unc
28 532 17 98-45 Grille/Lens Asm
29 532 17 66-45 Lens
30 532 17 70-87 Fender
31 532 13 66-19 Bracket Fender
33 532 18 10-57 Footrest Pnt Lh
34 532 18 10-58 Footrest Pnt Rh
35 872 11 06-06 Bolt Rdhd Sht Sqnk 3/8-16 x 3/4
37 817 49 05-08 Screw Thdrol 6/16-18 x 1/2 TYT
38 532 17 57-10 Bracket Asm Pivot Mower Rear
51 873 80 04-00 Nut Lock w/Insert 1/4-20 Unc
52 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.
53 532 14 46-97 Bracket Grille Lh
54 532 16 14-64 Screw Hex Wsh 8-18 x 7/8
55 532 14 46-96 Bracket Grille Rh
57 874 78 04-12 Bolt Hex 1/4-20 x 3/4
58 532 15 01-27 Air Duct Engine P/L
64 532 15 47-98 Dash Lower STLT
142 532 17 57-02 Plate Reinforcement STLT
145 532 15 65-24 Rod Pivot Chassis/Hood
159 532 17 70-88 Cupholder Stlt Grey
206 532 17 01-65 Bolt Shoulder 5/16-18 TT
207 817 67 05-08 Screw Thdrol 5/16-18 x 1/2
208 817 67 06-08 Screw Thdrol 3/8-16 x 1/2
212 532 15 62-29 Insert Lens Reflective
219 817 00 05-12 Screw 5/16-18 x 3/4 Tap
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
31
www.mymowerparts.com
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1542 (YTH1542E), PRODUCT NO. 954 56 70-48

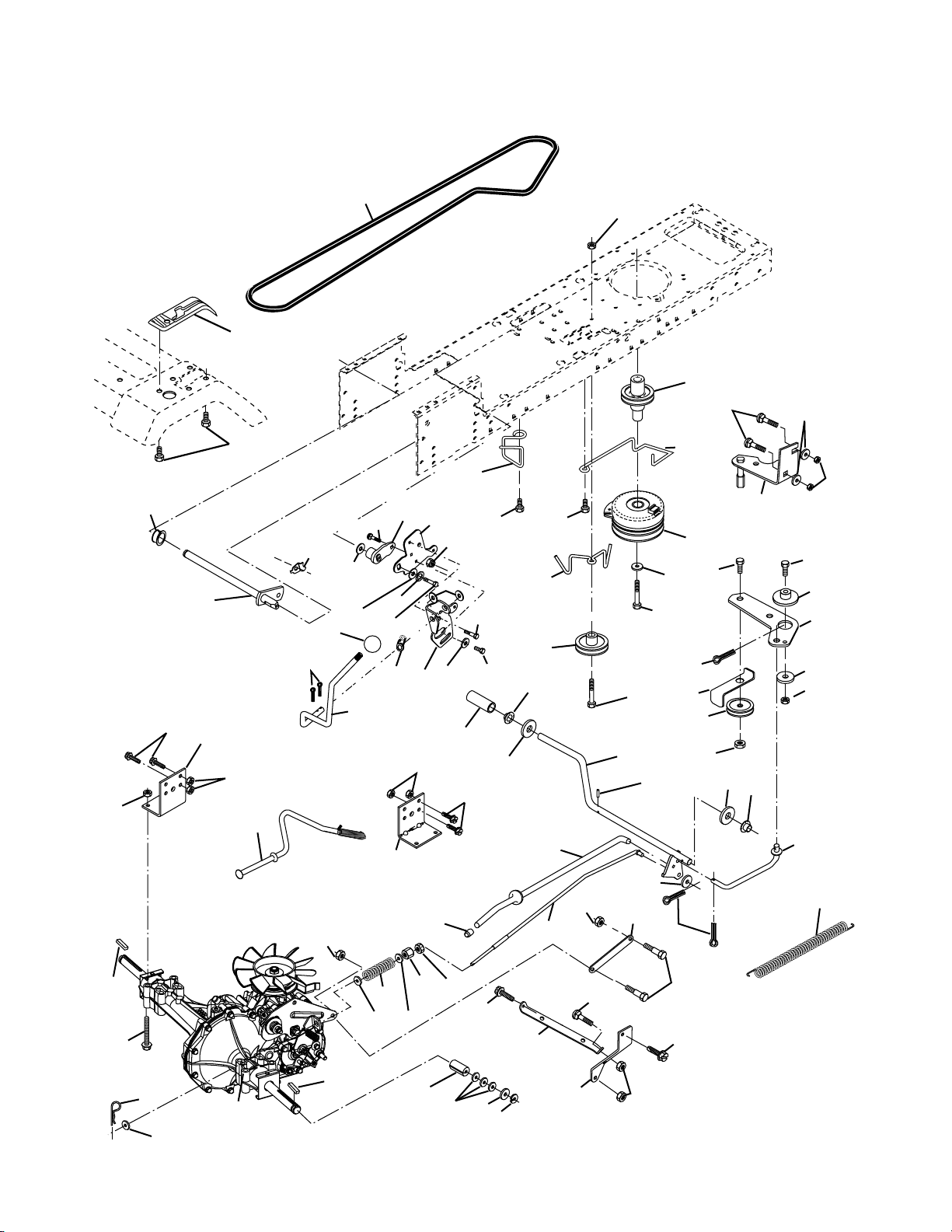

DRIVE
57
51
89
63
33
144
16
197
32
81
30
69
52
95
169
10
16
21
198
164
8
161
14
163
82
30
159
165
52
158
162
29
83
156
62
59
168
32
166
61
36
35
38
41
28
22
56
16
34
39
84
26
37
20
65
27
66
27
49
9
47
120
50
36
52
23
202
150
48
151
51
35
53
55
77
15
96
26
19
26
74
75
24
250
78
200
71
73
76
25
26
77
1
199
250
16
32
www.mymowerparts.com
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1542 (YTH1542E), PRODUCT NO. 954 56 70-48
DRIVE
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - - - Transaxle Hydro Gr. 314-0510
(Order parts from transaxle mfg.)
8 532 16 56-19 Rod Shift Fender Adjust LT
9 532 14 50-28 Clutch Elecric
10 876 02 04-16 Pin Cotter 1/8 x 1 CAD
14 810 04 04-00 Washer Lock Hvy Helical
15 874 49 05-44 Bolt Hex 5/16-18 Gr. 5
16 873 80 05-00 Nut Lock Hex W/Ins. 5/16-18 Unc P
19 873 80 06-00 Nut Lock Hex W/Ins 3/8-16 Unc
20 532 15 02-80 Bolt, Hex 7/16-20 x 4-1/4 Ga. 5
21 532 14 08-45 Knob Deluxe 1/2-13 UNC BLK/BLK
22 532 16 94-98 Rod, Brake Hydro
23 532 17 12-58 Bracket Asm. Anti-Rot EVX
24 873 35 06-00 Nut Hex Jam 3/8-16 UNC
25 532 10 68-88 Spring, Brake Rod
26 819 13 13-16 Washer
27 876 02 04-12 Pin Cotter 1/8 x 3/4 CAD.
28 532 17 57-65 Rod, Parking Brake
29 532 07 16-73 Cap,Parking Brake
30 532 16 95-92 Bracket, Transaxle
32 874 76 05-12 Bolt Hex Hd 5/16-18 Unc x 3/4
33 872 14 05-06 Bolt Carriage 5/16-18 UNC x 3/4
34 532 17 55-78 Shaft, Foot Pedal
35 532 12 01-83 Bearing, Nylon
36 819 21 16-16 Washer
37 532 12 49-63 Pin, Roll
38 532 17 91-14 Pulley, Idler, Composite
39 874 76 06-48 Bolt
41 532 17 55-56 Keeper, Belt Idler
47 532 12 77-83 Pulley, Idler, V-Groove Plastic
48 532 15 44-07 Bellcrank Clutch Grnd Drv Stl
49 532 12 32-05 Retainer, Belt Style Spring
50 874 76 06-24 Bolt Hex Hd 3/8-16 Unc x 1-1/2
51 873 68 06-00 Nut
52 873 68 05-00 Nut Crown Lock 5/16-18
53 532 10 57-10 Link, Clutch
55 532 10 57-09 Spring, Return, Clutch
56 817 06 06-20 Screw 3/8-16 x 1 1/4
57 532 14 02-94 V-Belt, Ground Drive
59 532 16 96-91 Keeper, Center Span
61 817 12 06-14 Screw 3/8-16 x .875
62 532 12 48-72 Cover, Pedal
KEY PART
NO. NO. DESCRIPTION
63 532 17 54-14 Pulley, Engine
65 810 04 07-00 Washer Lock Hvy HLCL Spr 7/16
66 532 15 47-78 Keeper Belt Engine
69 532 14 24-32 Screw Hex Wsh Hi-Lo 1/4-1/2 Unc
71 532 16 91-83 Strap Torque Lh
73 532 16 91-82 Strap Torque Rh
74 532 13 70-57 Spacer, Axle
75 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
76 812 00 00-01 E-Ring
77 532 12 35-83 Key, Square
78 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga
81 532 16 55-96 Shaft Asm Cross Tapered
82 532 12 37-82 Spring Torsion
83 819 17 12-16 Washer 17/32 x 3/4 x 16 Ga.
84 532 16 95-94 Link Transaxle
89 532 17 69-40 Console, Hydro
95 532 17 02-01 Control Asm. Bypass Hydro
96 532 12 47-88 Retainer Spring 1" Zinc/Cad
120 873 90 06-00 Nut Lock Flg. 3/8-16
144 819 11 10-16 Washer 11/32 x 5/8 x 16 Ga.
150 532 17 54-56 Bushing Bellcrank Grd Drive
151 819 13 32-10 Washer 13/32 x 2 x 10 Ga.
156 532 16 60-02 Washer Srrted 5/16 ID X 1 X .125
158 532 16 55-89 Bracket Shift Mount
159 532 16 54-94 Hub Tapered Flange Shift LT
161 872 14 04-06 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5
162 873 68 04-00 Nut Crownlock 1/4-20 Unc
163 874 78 04-16 Bolt Hex Fin 1/4-20 Unc x 1 Gr. 5
164 819 09 10-10 Washer 5/8 x .281 x 10 Ga.
165 532 16 56-23 Bracket Pivot Lever
166 532 16 68-80 Screw 5/16-18 x 5/8
168 532 16 54-92 Bolt Shoulder 5/16-18 x .561
169 532 16 55-80 Plate Fastening LT
197 532 16 96-13 Nyliner Snap-In 5/8" ID
198 532 16 95-93 Washer Nyl 7/8ID x .105 Hyd
199 532 16 96-12 Bolt Shoulder 5/16-18 Unc
200 872 14 05-08 Bolt Rdhd Sqnk 5/16-18 Unc x 1
202 872 11 06-12 Bolt
250 817 06 06-12 Screw 3/8-16 x .75
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
33
www.mymowerparts.com
Page 9
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1542 (YTH1542E), PRODUCT NO. 954 56 70-48

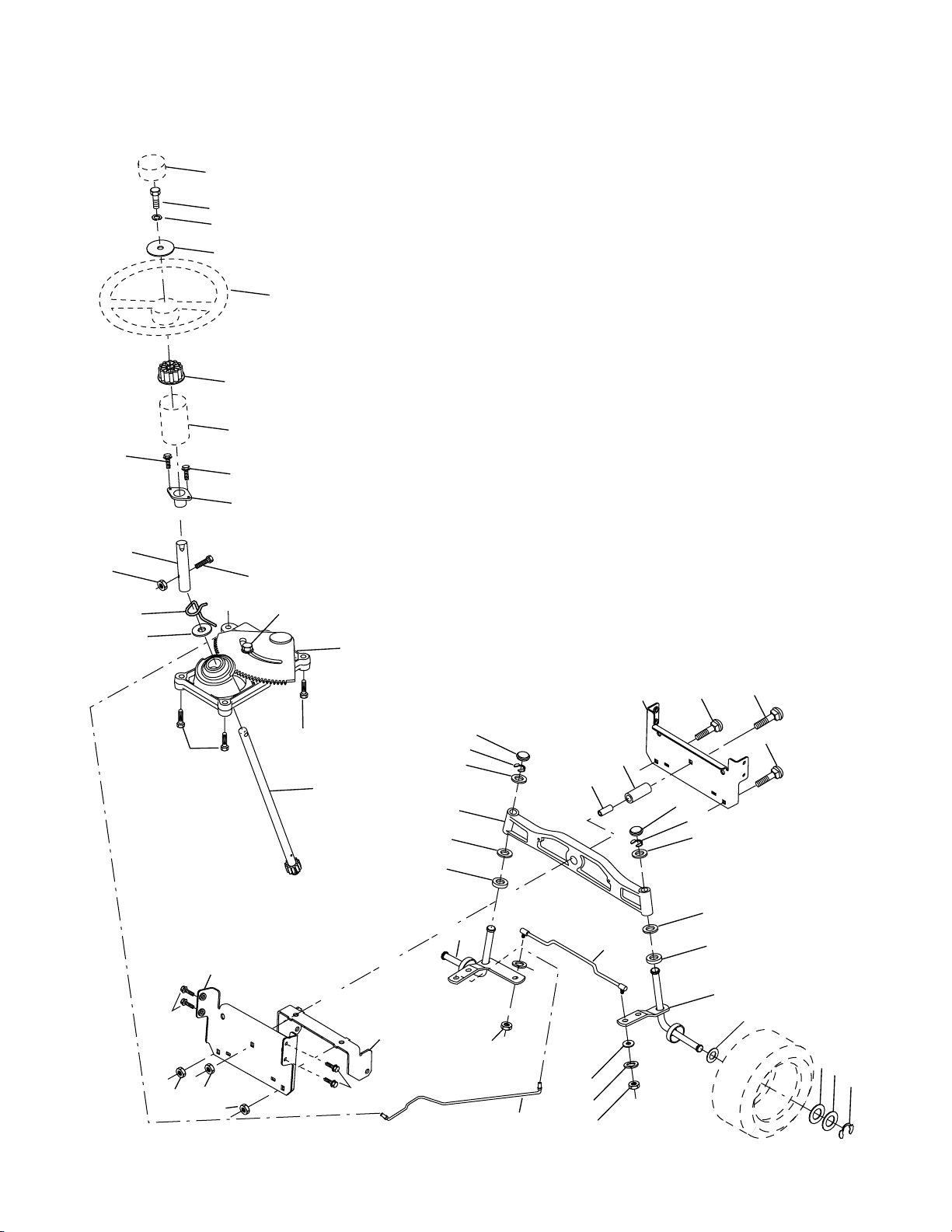

STEERING ASSEMBLY
38
63
11
39
1
41
42
37
37
36
44
51
91
43
29
29
15
15
54
88
71
68
29
17
68
82
29
15
46
8
6
2
87
5
3
11
40
10
13
65
32
33
34
35
67
46
8
6
67
67
87
5
4
43
43
6
8
34
www.mymowerparts.com
Page 10
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1542 (YTH1542E), PRODUCT NO. 954 56 70-48
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 532 12 44-15 Wheel Steering
2 532 17 23-93 Axle Cast LT Machined
3 532 16 98-40 Spindle Asm Cast LH
4 532 16 98-39 Spindle Asm Cast RH
5 532 12 49-31 Bearing Race Thrust Harden
6 532 12 17-48 Washer 25/32 X 1-5/8 X 16 Ga
8 812 00 00-29 Ring Klip #t5304-75
10 532 17 51-21 Link Drag
11 810 04 06-00 Washer Lock Hvy Hlcl Spr 3/8
13 532 13 65-18 Spacer Brg Axle Front
15 532 14 52-12 Nut Hex Flange Lock Yel D
17 532 17 78-76 Shaft Asm Steering
29 817 06 06-12 Screw 3/8-16x3/4
32 532 17 18-88 Rod Tie
33 819 11 12-16 Washer 11/32 x 3/4 x 16 Ga.
34 810 04 05-00 Washer Lock Hvy. Helical 5/16 SD
35 873 54 06-00 Nut Crown Lock 5/16-24
36 532 15 50-99 Bushing Strg
37 532 15 29-27 Screw TT #32.5 x 5 x 3/8 Flange
38 532 12 44-16 Cap Wheel Steer
39 819 13 38-12 Washer 13/32 x 2 3/8 x 12 Ga.
40 532 12 47-01 Nut Lock Center 3/8-24 Unf
41 532 10 07-11 Adaptor Wheel Strg
42 532 16 96-34 Boot Dash Steering
43 532 12 17-49 Washer 25/32 X 1 1/4 X 16 Ga
44 532 15 37-20 Extension Steering Non-adjust
46 532 12 12-32 Cap Spindle Fr Top Blk
51 873 80 05-00 Nut Lock Hex W/Ins 5/16-18 UNC
54 874 78 05-20 Bolt Fin Hex 5/16-18 UNC x 1-1/4
63 874 78 06-16 Bolt Fin Hex 3/8-16 UNC x 1 Gr. 5
65 532 16 03-67 Spacer, Brace Axle
67 872 14 06-18 Bolt Rdhd 3/8-16 x 2-1/4
68 532 16 98-27 Brace, Axle
71 532 17 51-46 Steering Asm.
82 532 16 98-35 Bracket Susp Chassis Front 15"
87 532 17 39-66 Washer Flat .781 x 1-1/2 x .14
88 532 17 51-18 Bolt Shoulder 7/16-20
91 532 17 55-53 Clip, Steering
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
35
www.mymowerparts.com
Page 11
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1542 (YTH1542E), PRODUCT NO. 954 56 70-48

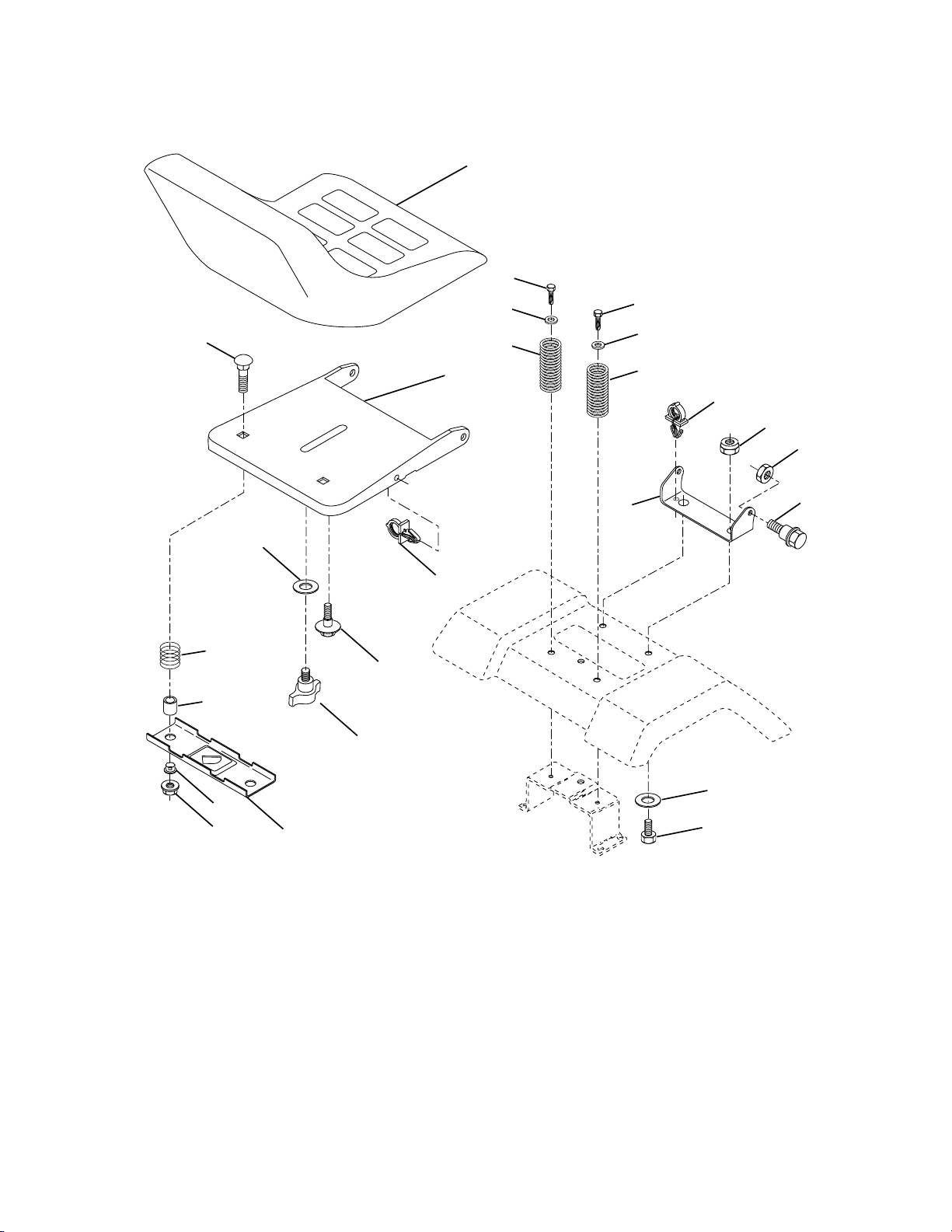

SEAT ASSEMBLY
1
8
8
9
7
5
14
9
7
10
6
22
24
16
25
15
11
13
17
KEY PART
NO. NO. DESCRIPTION
1 532 14 08-38 Seat
2 532 14 05-51 Bracket Pivot Seat 8 720
3 871 11 06-16 Bolt Fin Hex 3/8-16unc X 1
4 819 13 16-10 Washer 13/32 X 1 X 10 Ga
5 532 14 50-06 Clip Push-In
6 873 80 06-00 Nut Hex w/Ins. 3/8-16 Unc
7 532 12 41-81 Spring Seat Cprsn 2 250 Blk Zi
8 817 00 06-16 Screw 3/8-16 X 1
9 819 13 16-14 Washer 13/32 X 1 X 14 Ga.
10 532 17 48-94 Pan Seat
11 532 16 63-69 Knob Seat Adj Wingnut
12 532 12 12-46 Bracket Mounting Switch
12
2
5
4
3
KEY PART
NO. NO. DESCRIPTION
13 532 12 12-48 Bushing Snap Blk Nyl 50 Id
14 872 05 04-12 Bolt Rdhd Sqnk 1/4-20x1-1/2
15 532 13 43-00 Spacer Split 28x 96 Yel Zinc
16 532 12 12-50 Spring Cprsn 1 27 Blk Pnt
17 532 12 39-76 Nut Lock 1/4 Lge Flg Gr 5 Zinc
21 532 17 18-52 Bolt Shoulder 5/16-18 Unc
22 873 80 05-00 Nut Hex Lock W/Ins 5/16-18
24 819 17 19-12 Washer 17/32 X 1-3/16 X 12 Ga.
25 532 12 70-18 Bolt Shoulder 5/16-18 X 62
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
21
36
www.mymowerparts.com
Page 12
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1542 (YTH1542E), PRODUCT NO. 954 56 70-48

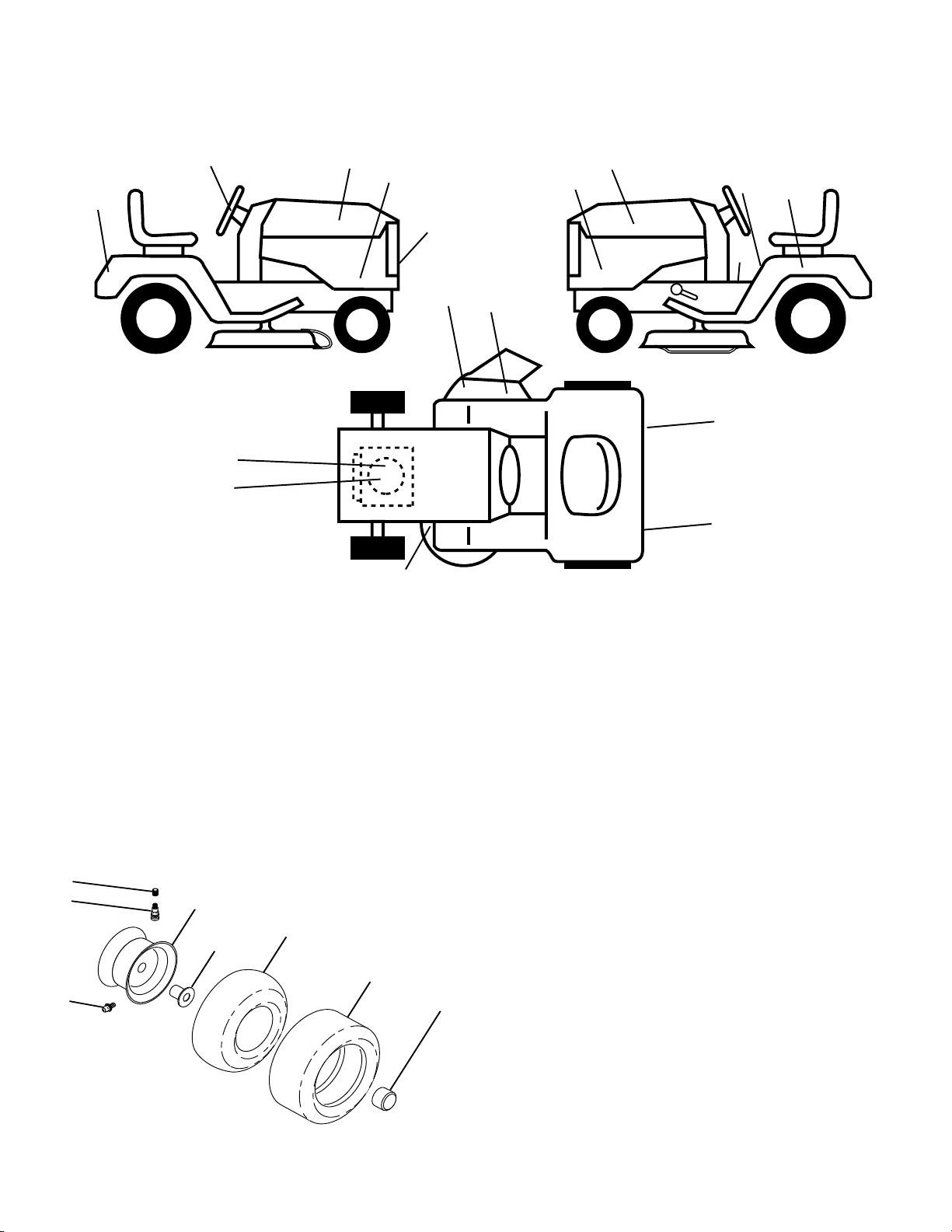

DECALS
7
9
5
11
3
12
6
8
13
14
12
4
10
1
15
15
2
KEY PART
NO. NO. DESCRIPTION
1 532 15 70-32 Decal Oper. Step Thru E/F
2 532 14 50-05 Decal Battery
3 532 18 01-57 Decal Hood RH
4 532 18 01-58 Decal Hood LH
5 532 17 67-79 Decal HP Engine
6 532 15 06-16 Decal Grille
7 532 17 05-64 Decal Wheel Steering
8 532 17 05-63 Decal Warning
9 532 17 68-22 Decal Fender Husq
10 532 15 71-40 Decal Fender Danger E/F
11 532 17 67-75 Decal Engine
WHEELS & TIRES
1
2
6
5,8
4,10
7
3,9
11
KEY PART
NO. NO. DESCRIPTION
12 532 18 17-73 Decal Hood Logo
13 532 17 91-28 Decal Deck "B" 42"
14 532 16 03-96 Decal V-Belt Schematic
15 532 10 62-02 Reflector Tail Light
- - 532 18 10-90 Pad Footrest RH
- - 532 18 10-91 Pad Footrest LH
- - 532 13 83-11 Decal Handle Lft Height Adjust
- - 532 16 92-10 Decal By Pass Lt Hydro
- - 532 18 09-41 Deck Hood Cust Resp
- - 532 18 10-64 Decal Final Under hood
- - 532 18 21-61 Manual Owner's (English)
- - 532 18 21-62 Manual Owner's (French)
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 10 62-22 Tire F Ts 15 X 6 0 - 6 Service
4 532 05 99-04 Tube Front (Service Item Only)
5 532 13 83-36 Rim Asm 6"front Silver Service
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 13 83-37 Rim Asm 8"rear Silver Service
9 532 12 20-82 Tire R Ts 20x10-8 C Service
10 532 12 49-26 Tube Rear (Service Item Only)
11 532 17 50-39 Cap Axle Blk 1 50 X 1 00
- - 532 14 43-34 Sealant, Tire ( 10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
37
www.mymowerparts.com
Page 13
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1542 (YTH1542E), PRODUCT NO. 954 56 70-48

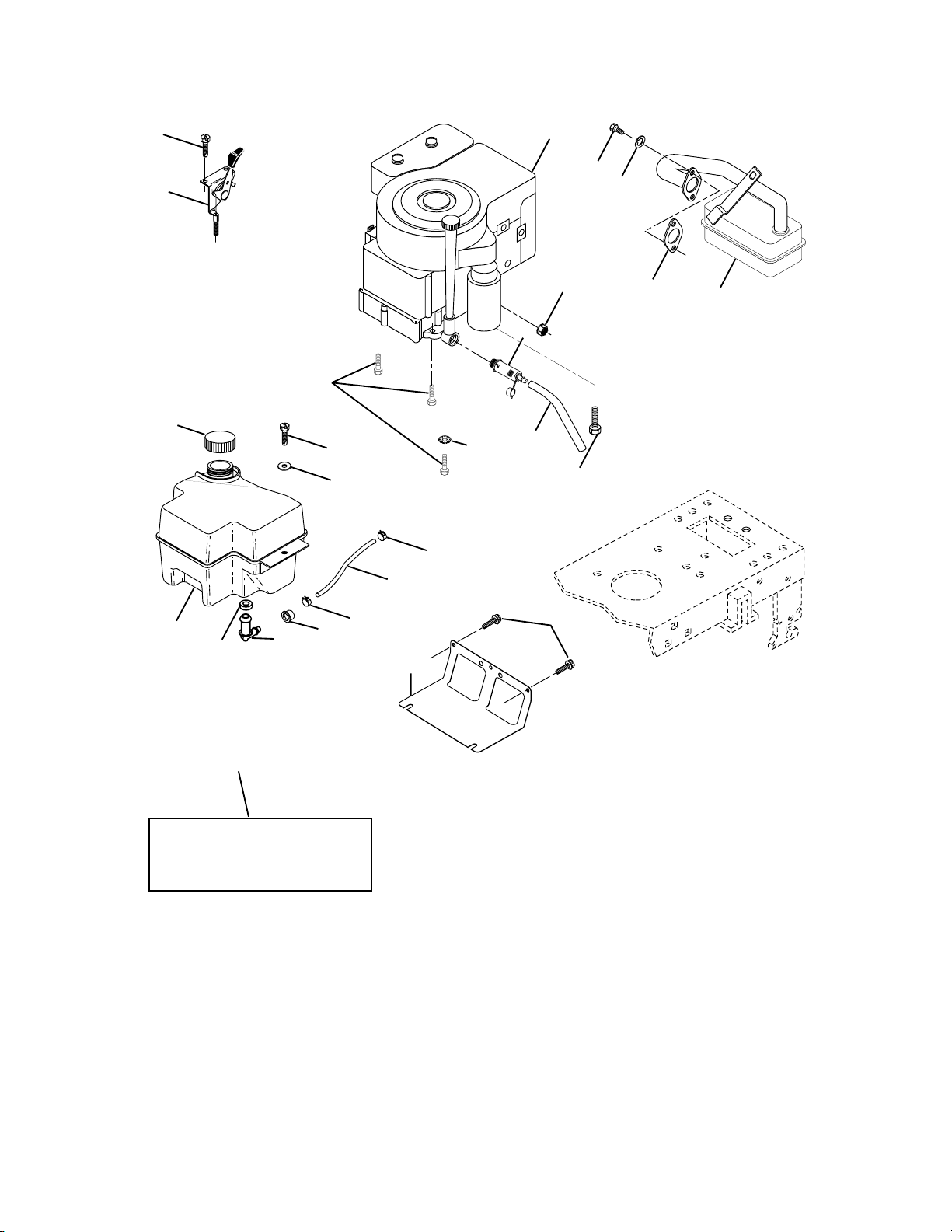

ENGINE
2
1
3
72
62
32
31
112
41
78
40
44
46
33
37
23
33
16
38
14
45
81
78
13
4
29
OPTIONAL EQUIPMENT
Spark Arrester
KEY PART
NO. NO. DESCRIPTION
1 532 17 05-51 Control Th/ch Flag Dom.
2 817 72 04-08 Screw Hex Thd Cut 1/4-20x1/2
3 - - - - - - - - Engine B&S Model 31G777
(Order parts from engine -
manufacturer)
4 532 13 73-52 Muffler
13 532 16 52-91 Gasket
14 532 14 84-56 Tube Drain Oil Easy
16 811 05 06-00 Washer Lock Ext Tooth 3/8
23 532 16 98-37 Shield BRN/DBR Guard
29 532 13 71-80 Kit Spark Arrestor (Flat Scrn)
31 532 18 06-45 Tank Fuel
32 532 14 05-27 Cap Asm Fuel W/sym Vented
33 532 12 34-87 Clamp Hose Black
KEY PART
NO. NO. DESCRIPTION
37 532 13 70-40 Line Fuel
38 532 14 83-15 Plug Drain Oil Easy
40 532 12 40-28 Bushing Snap Nyl Black Fuel Line
41 532 13 92-77 Stem Tank Fuel
44 817 67 04-12 Screw Hex Wsh Thdrol 1/4-20 x 3/4
45 817 00 06-12 Screw Hex Wsh Thdrol 3/8-16 x 3/4
46 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.
62 810 04 05-00 Washer Lock Hvy Hlcl Spr. 5/16
72 871 07 05-12 Screw Hex Hd Cap 5/16-18 x 3/4
78 817 06 06-20 Screw 3/8-16 x 1-1/4
81 873 51 04-00 Nut Keps Hex 1/4-20 Unc
112 532 12 49-52 Bushing
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
38
www.mymowerparts.com
Page 14
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1542 (YTH1542E), PRODUCT NO. 954 56 70-48

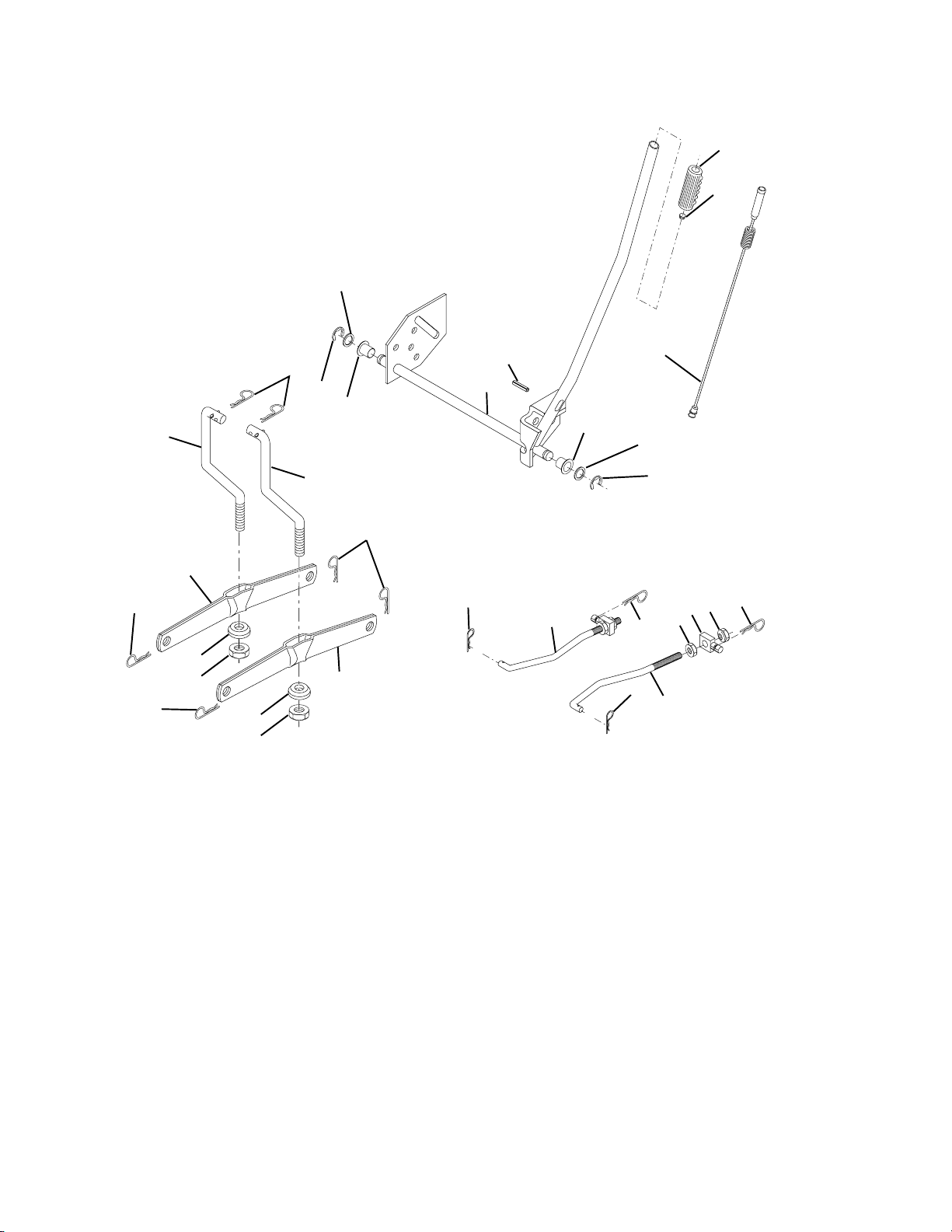

MOWER LIFT
7
8
5
13
13
11
19
31
32
31
32
13
12
20
5
20
1
4
20
18
17
16
15
3
4
6
13
19
2
6
20
15
KEY PART
NO. NO. DESCRIPTION
1 532 15 94-60 Wire Asm Inner W/plunger
2 532 15 94-71 Shaft Asm Lift RH w/Inf
3 532 10 57-67 Pin Groove 1 500 Zinc
4 812 00 00-02 E Ring #5133-62
5 819 21 16-21 Washer 21/32 X 1 X 21 Ga
6 532 12 01-83 Bearing Nylon Blk 629 Id
7 532 12 56-31 Grip Handle Fluted Blk
8 532 12 45-26 Button Plunger Black
11 532 13 98-65 Link Lift LH Fixed Length
12 532 13 98-66 Link Lift RH Fixed Length
13 532 12 46-70 Retainer Spring
www.mymowerparts.com
KEY PART
NO. NO. DESCRIPTION
15 532 17 32-88 Link Front
16 873 35 08-00 Nut Jam Hex 1/2-13 Unc
17 532 17 56-89 Trunnion Blk Zinc
18 873 80 08-00 Nut Lock w/Wsh 1/2-13unc
19 532 13 98-68 Arm Suspension Rear
20 532 16 35-52 Retainer Spring
31 532 16 98-65 Bearing Pvt Lift
32 873 54 06-00 Nut Crownlock 3/8 - 24
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
39
Page 15
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1542 (YTH1542E), PRODUCT NO. 954 56 70-48

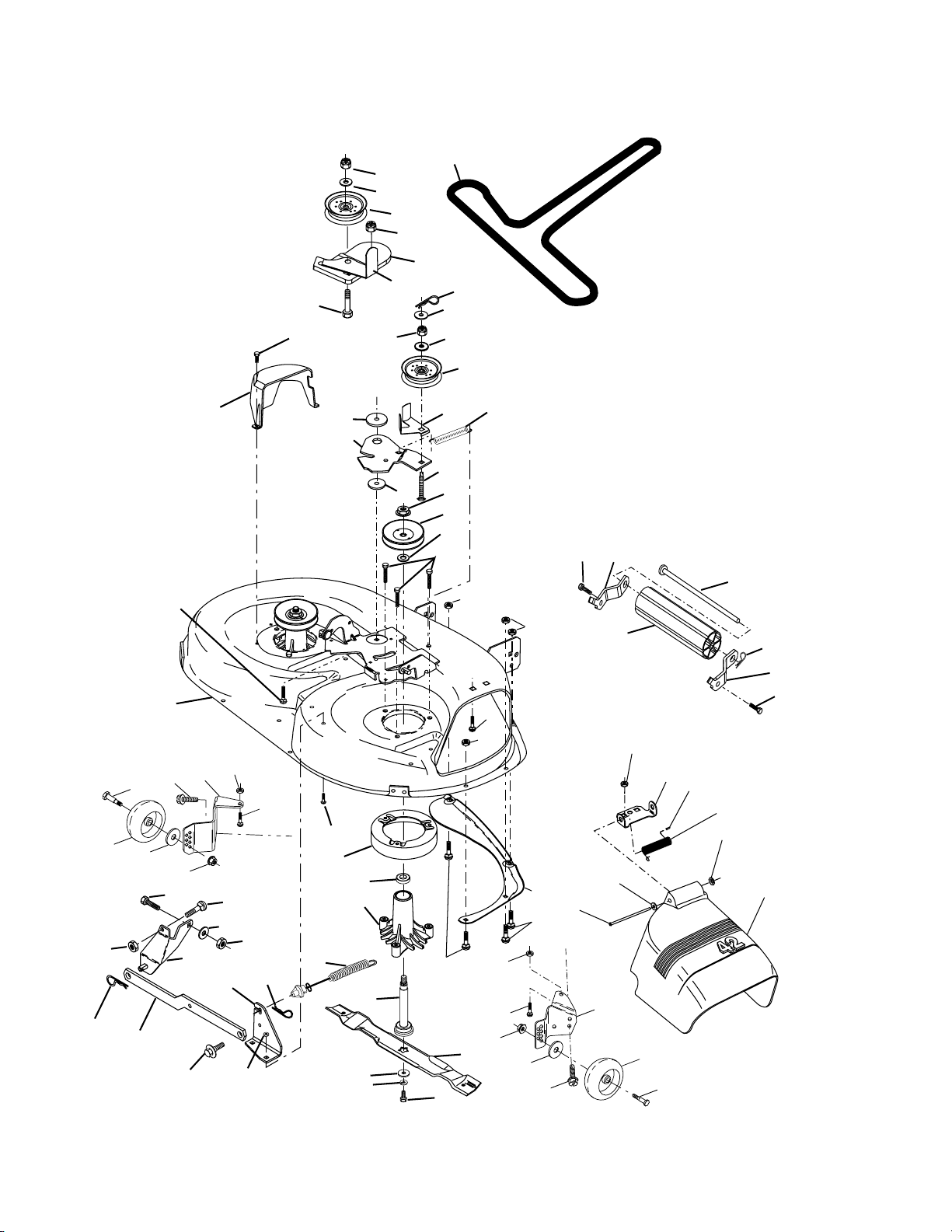

MOWER DECK
68
40
37
36
40
143
117
5
92
116
119
6
34
1
113
118
130
19
150
59
146
32
31
30
37
33
45
145
148
132
91
44
159
46
144
40
56
55
54
182
21
21
94
183
95
132
2
21
114
111
115
2
16
15
61
14
10
13
9
18
8
11
114
115
118
131
129
92
3
149
4
21
119
20
113
29
18
21
23
24
25
26
28
27
112
117
116
40
www.mymowerparts.com
Page 16
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH1542 (YTH1542E), PRODUCT NO. 954 56 70-48
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
1 532 16 58-92 Mower Deck Assembly, 42”
2 872 14 05-06 Bolt
3 532 13 80-17 Bracket Assembly,Sway Bar, Front
4 532 16 54-60 Bracket Sway Bar 38/42” Deck
5 532 12 46-70 Retainer Spring
6 532 17 80-24 Bar Sway Deck
8 532 85 08-57 Bolt, Hex 3/8-24 x 1.25 Gr. 8
9 810 03 06-00 Washer, Lock
10 532 14 02-96 Washer, Hardened
11 532 13 84-98 Blade Mower 42" High Perf.
13 532 13 76-45 Shaft Assembly, Mandrel, Vented
14 532 12 87-74 Housing, Mandrel, Vented
15 532 11 04-85 Bearing, Ball, Mandrel
16 532 17 44-93 Stripper
18 872 14 05-05 Bolt, Carriage 5/16-18 x 5/8
19 532 13 28-27 Bolt, Shoulder
20 532 15 97-70 Baffle, Vortex
21 873 68 05-00 Nut Crownlock 5/16-18 UNC
22 532 13 47-53 Stiffener Bracket
23 532 13 12-67 Bracket, Deflector
24 532 10 53-04 Cap, Sleeve
25 532 12 37-13 Spring, Torsion, Deflector
26 532 11 04-52 Nut, Push
27 532 17 18-59 Shield, Deflector
28 819 11 10-16 Washer 11/32 x 5/8 x 16 Ga.
29 532 13 14-91 Rod, Hinge
30 532 17 39-84 Screw Thdrol Roll Hex
31 532 12 99-63 Washer, Spacer
32 532 17 34-36 Pulley, Mandrel
33 532 17 83-42 Nut, Toplock, Flanged
34 872 11 06-14 Bolt
36 532 17 34-38 Pulley, Idler, Flat
37 819 13 13-16 Washer 13/32 x 13/16 x 16 Gauge
40 873 68 06-00 Nut Crownlock 3/8-16 UNC
44 532 14 00-88 Guard, Mandrel, L.H.
45 532 12 47-88 Retainer
KEY PART
NO. NO. DESCRIPTION
46 532 13 77-29 Screw, Thd. Roll 1/4-20 x 5/8
54 532 13 39-43 Washer, Hardened
55 532 15 50-46 Arm, Idler
56 532 12 20-52 Spacer, Retainer
59 532 17 34-42 Guard, TUV Idler
61 532 17 48-82 Spring Ext Elect Clutch 42” Dck
68 532 17 48-83 V-Belt
91 532 18 05-32 Bracket Asm Noseroller Lh
94 532 13 22-64 Roller Nose 38"-50"
95 532 18 05-33 Bracket Asm Noseroller Rh
111 532 18 13-92 Bracket, Gauge, Wheel L.H.
112 532 18 13-93 Bracket, Gauge, Wheel R.H.
113 817 06 05-10 Screw 3/8-16 x .625
114 873 51 05-00 Nut, Hex, Keps 5/16-18 UNC
115 872 11 05-05 Bolt, Carriage 5/16 -18 x 5/8
116 532 13 76-44 Bolt, Shoulder
117 532 16 57-46 Wheel, Gauge
118 873 93 06-00 Nut, Centerlock 3/8-16
119 819 12 14-14 Washer 3/8 x 7/8 x 14 Gauge
143 532 15 71-09 Bracket Arm Idler 42”
144 532 17 34-41 Keeper Belt 42” Clutch Cable
145 532 17 34-37 Pulley Idler Flat
146 532 17 19-77 Bolt Carriage Idler
148 532 16 90-22 Spring Return Idler
149 532 16 58-98 Retainer Spring Yellow Zinc
150 819 09 12-16 Washer 9/32 x 3/4 x 16 Ga.
159 872 14 06-14 Bolt Rdhd Sqn 3/8-16 UNC x 1- 3/4
182 532 17 91-26 Roller Nose
183 532 16 35-52 Retainer Spring
- - 532 13 07-94 Mandrel Assembly (Includes
Housing, Shaft and Shaft Hardware
Only-Pulley Not Included)
- - 532 17 67-89 Replacement Mower, Complete
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
41
www.mymowerparts.com
Loading...
