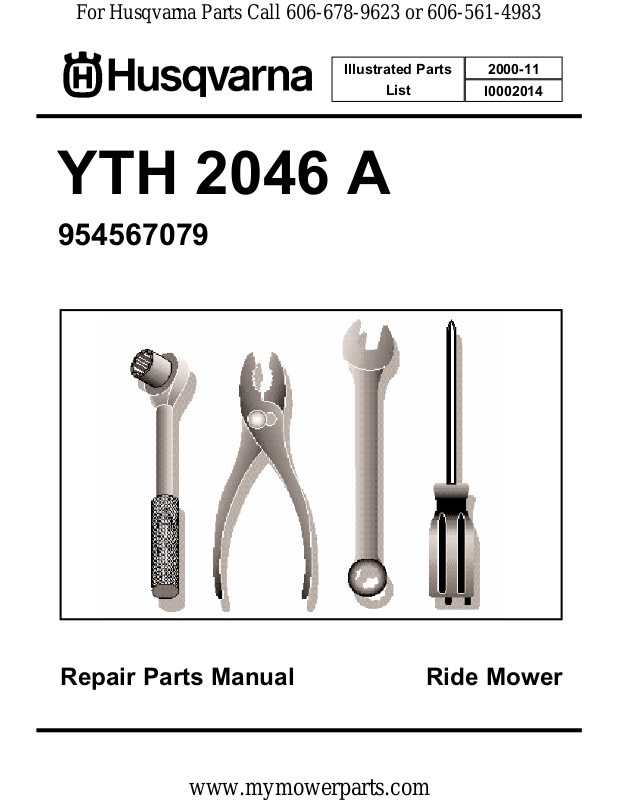

Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Illustrated Parts
YTH 2046 A
954567079
List
2000-11
I0002014
Repair Parts Manual Ride Mower
www.mymowerparts.com
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2046 (YTH2046A), PRODUCT NO. 954 56 70-79

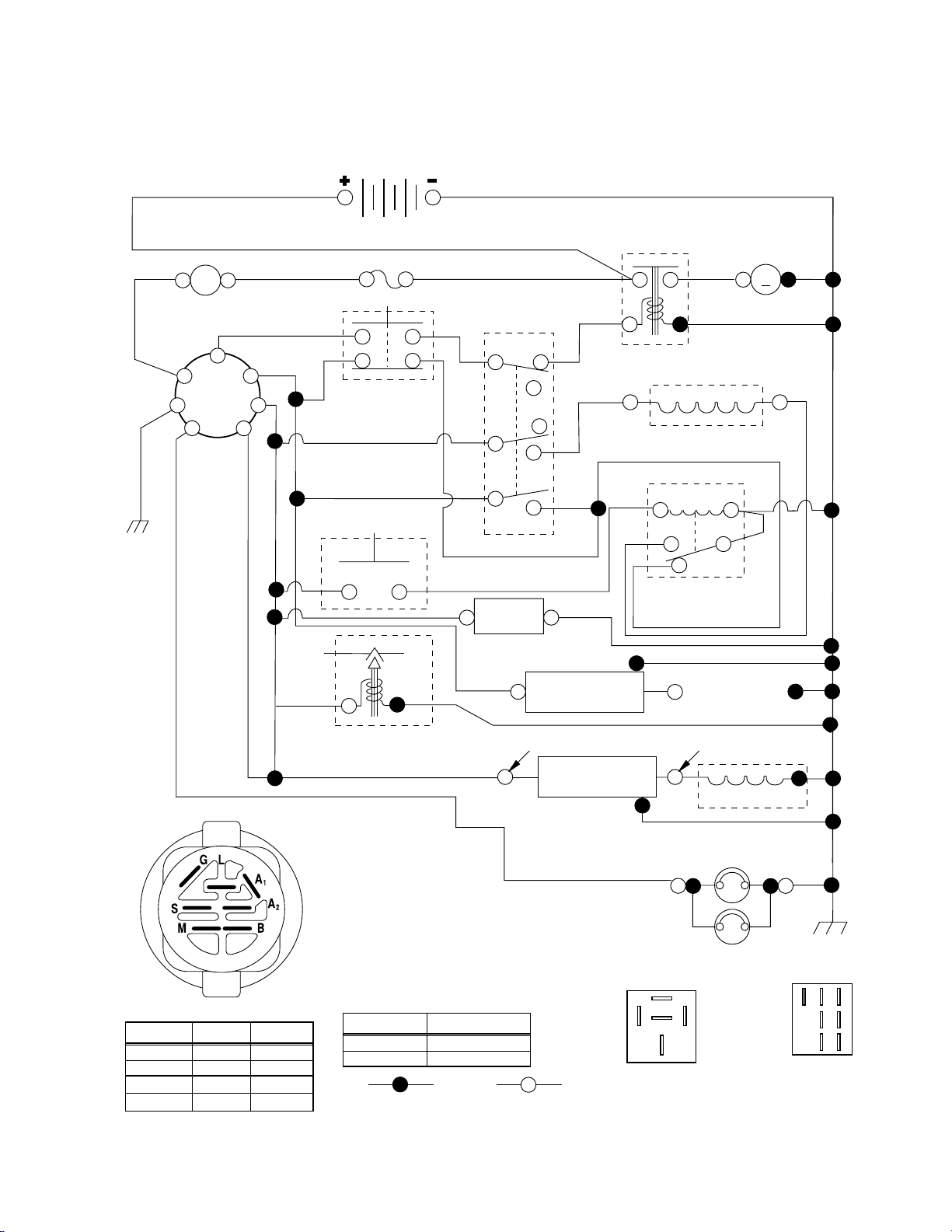

SCHEMATIC
AMMETER
(OPTIONAL)
RED
G
IGNITION
SWITCH
BLACK
RED
BLACK
BATTERY
SOLENOID
A
RED
FUSE
WHITE
WHITE
RED
WHITE
RED
M
STARTER
BLACK
CG
M
A1
BLACK
ORANGE
CLUTCH / BRAKE
(PEDAL UP)
RED
SEAT SWITCH
(NOT OCCUPIED)
BLACK
F
H
B
E
A
D
PTO (DISENGAGED)
RED
ELECTRIC CLUTCH
BLACK
85 86
87
BLACK
30
S
B
L
A2
87A
GREEN GREEN
BLUE
FUEL
HOUR
METER
(OPTIONAL)
BLACK
OPERATOR
PRESENCE
RELAY #1
LINE
SPARK
PLUGS GAP
(2 PLUGS ON
BLUE
BLACK
IGNITION
UNIT
TWIN CYL. ENGINES)
FUEL SHUT-OFF SOLENOID
RED
CHARGING SYSTEM OUTPUT
16 AMP DC @ 3600 RPM
REGULATOR
28 VOLTS AC @ 3600 RPM
(REGULATOR DISCONNECTED)
ALTERNATOR
IGNITION SWITCH
CIRCUITPOSITION
OFF
M+G+A1
B+A1RUN/LIGHT
B+A1RUN
B + S + A1START
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
PTO SWITCH
“MAKE”
NONE
A2+L
NONE
NONE
OFF
NON-REMOVABLE
CONNECTIONS
CIRCUITPOSITION
C + G, B + H
C + F, B + E, A + DON
REMOVABLE
CONNECTIONS
31
www.mymowerparts.com
BROWN
87
87A
30
RELAY
HEADLIGHTS
8586
BLACK
G
FC
H
E
B
A
D
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2046 (YTH2046A), PRODUCT NO. 954 56 70-79

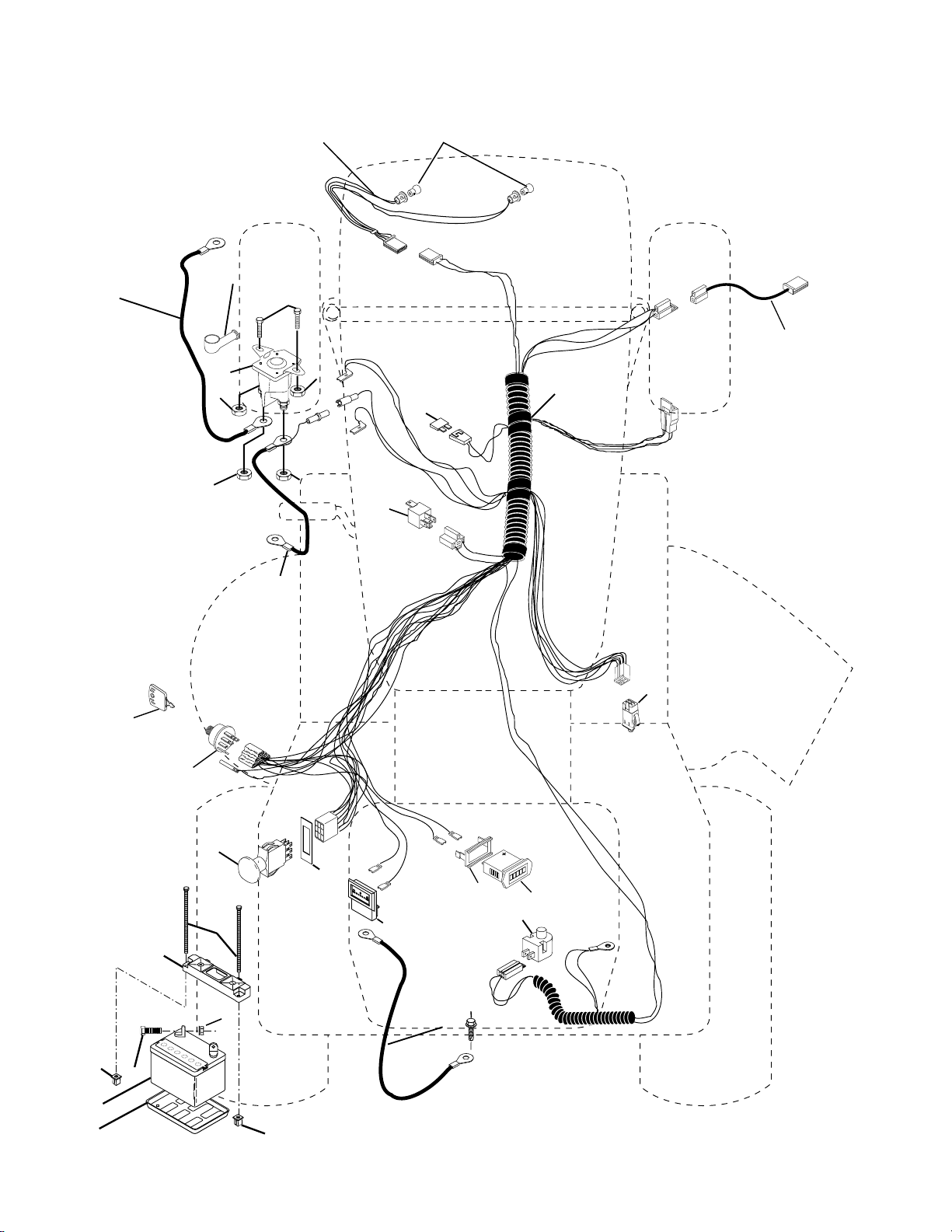

ELECTRICAL
2221
42
24
41
80
33
30
27
43
27
25
27
27
40
26
81
16
12
50
51
28
55
89
29
46
D
.C
. A
M
P
E
R
E
S
10
11
27
2
1
8
12
45
32
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2046 (YTH2046A), PRODUCT NO. 954 56 70-79
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532144927 Battery 12 Volt 35 AMP
2 874760412 Bolt Hex Hd 1/4-20unc X 3/4
8 532124886 Tray Battery
10 532145211 Bolt Brt Frt 1/4-20 x 75 Ainc
11 532150109 Holddown Battery Front Mount
12 532145769 Nut Push Nylon 1/4" Battery Frt
16 532153664 Switch Interlock Push-In
21 532166181 Harness Asm Light W/4152j
22 532004152 Bulb Light #1156
24 532124780 Cable Battery 6 Ga 11" red
25 532146148 Cable Battery 6 Ga 22" red w/16 wire
26 532175158 Fuse
27 873510400 Nut Keps Hex 1/4-20 Unc
28 532145491 Cable Ground 6 Ga 21" black
29 532160784 Switch Plunger Nc Gray
30 532175566 Switch Ign
33 532140401 Key Ign Molded Generic
40 532170221 Harness Ign.
41 871110408 Bolt Blk Fin Hex 1/4 - 20 x 1/2
42 532131563 Cover Terminal Red
43 532175141 Solenoid
45 532122822 Ammeter Rectangular 15 Amp
46 532169635 Meter Hour
50 532174651 Switch PTO
51 532140405 Ring Retainer TTO
55 817490508 Screw Thdrol 5/16-18 x 1-1/2 Tyt
80 532146685 Harness Clutch Evx
81 532109748 Relay Asm.
89 532169639 Bracket Snap-In Hourmeter
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
33
www.mymowerparts.com
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2046 (YTH2046A), PRODUCT NO. 954 56 70-79

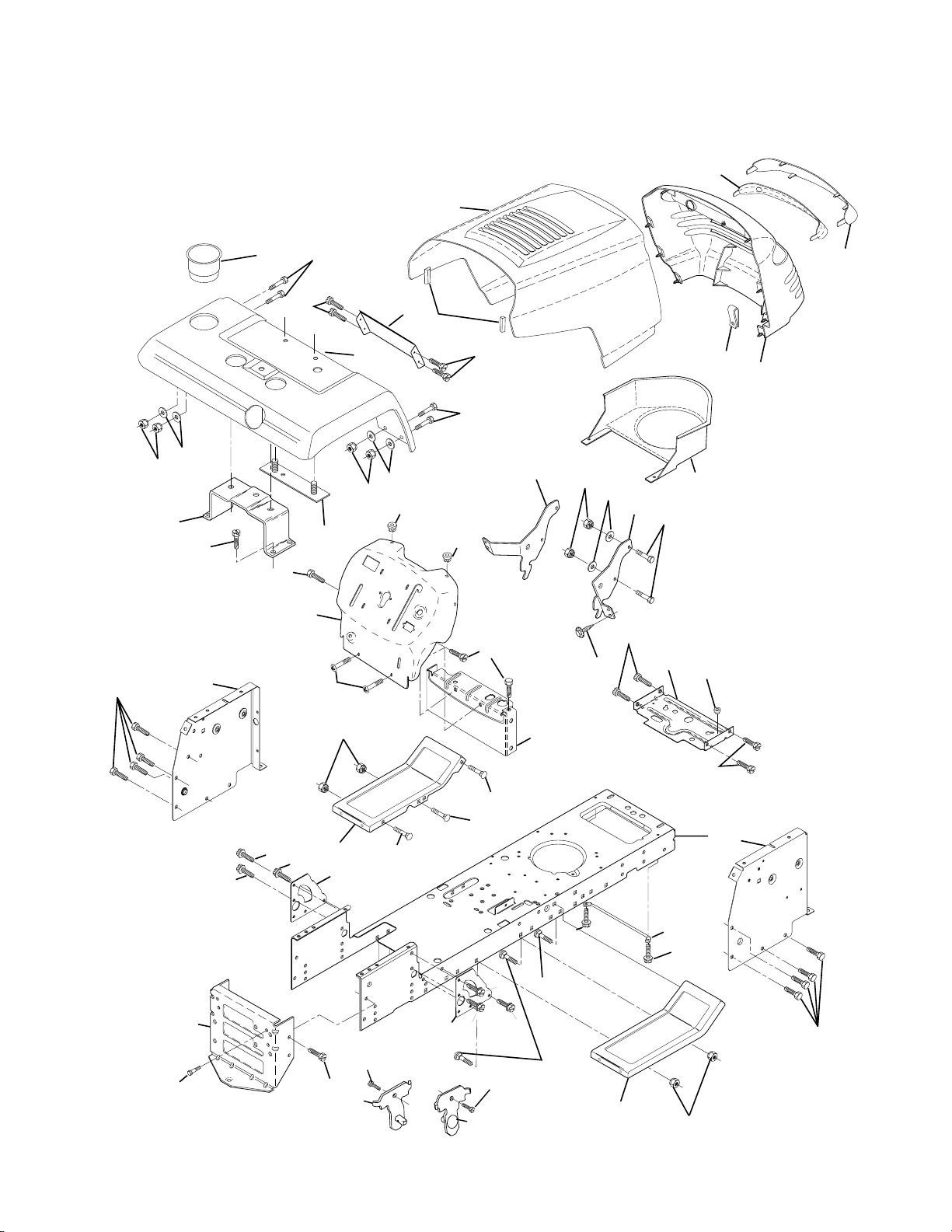

CHASSIS AND ENCLOSURES
212
17
208
26
31
25
11
208
196
24
9
44
207
30
26
25
195
5
18
29
196
24
53
5
208
51
54
52
55
207
57
20
58
23
12
28
159
3
206
26
3
35
3
3
2
33
3
142
3
10
142
3
3
38
38
64
207
1
13
37
3
3
3
3
35
34
145
37
208
26
34
www.mymowerparts.com
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2046 (YTH2046A), PRODUCT NO. 954 56 70-79
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
1 532169830 Chassis Stamping
2 532169061 Drawbar
3 817060612 Screw 3/8-16x3/4
5 532155272 Bumper
9 532171682 Dashboard
10 872140608 Bolt Rdhd Sqnk 3/8-16 Unc x 1
11 532155927 Panel Dash Lh
12 532145660 Clip Tinnerman Grille
13 532172106 Panel Dash Rh
17 532162237 Hood
18 532126938 Bumper
20 532156437 Plate Mtg Battery/Fuel Tank
23 532124028 Bushing
24 874780616 Bolt 3/8-16 Unc x 1 Gr. 5
25 819131312 Washer 13/32 x 13/16 x 12 Ga.
26 873800600 Nut Lock w/Insert 3/8-16 UNC
28 532170475 Grille Lens Asm
29 532176645 Lens
30 532169426 Fender
31 532175315 Bracket
33 532147203 Foot Rest, L.H.
34 532147202 Foot Rest, R.H.
35 872110606 Bolt Rdhd Sht Sqnk 3/8-16 x 3/4
37 817490508 Screw Thdrol 5/16-18 x 1/2
38 532169834 Bracket Asm Pivot Mower Rear
44 532140675 Strap Asm. Fender
51 873800400 Nut Lock w/Insert 1/4-20
52 819091416 Washer 9/32 x 7/8 x 16 Ga.
53 532144697 Bracket Grille Lh
54 532161464 Screw Hex Wshd 8-18 x 7/8
55 532144696 Bracket Grille Rh
57 874780412 Bolt Fin Hex 1/4-20 Unc x 3/4
58 532174930 Duct Air
64 532154798 Dash Lower Stlt
142 532165867 Plate Reinforcement Stlt
145 532156524 Rod Pivot Chassis Hood
159 532166625 Cupholder YTGT Grey
195 532177070 Panel Pnt Fender YT/GT
196 817580408 Screw Tap Tite 1/4-20 x 1/2
206 532170165 Bolt Shoulder 5/16-18 TT
207 817670508 Screw Thdrol 5/16-18 x 1/2 TYTT
208 817670608 Screw Thdrol 3/8-16 x 1/2 Ty-TT
212 532156229 Insert Lens Reflect
NOTE: All component dimensions given in U. S. inches.
1 inch = 25.4 mm
35
www.mymowerparts.com
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2046 (YTH2046A), PRODUCT NO. 954 56 70-79

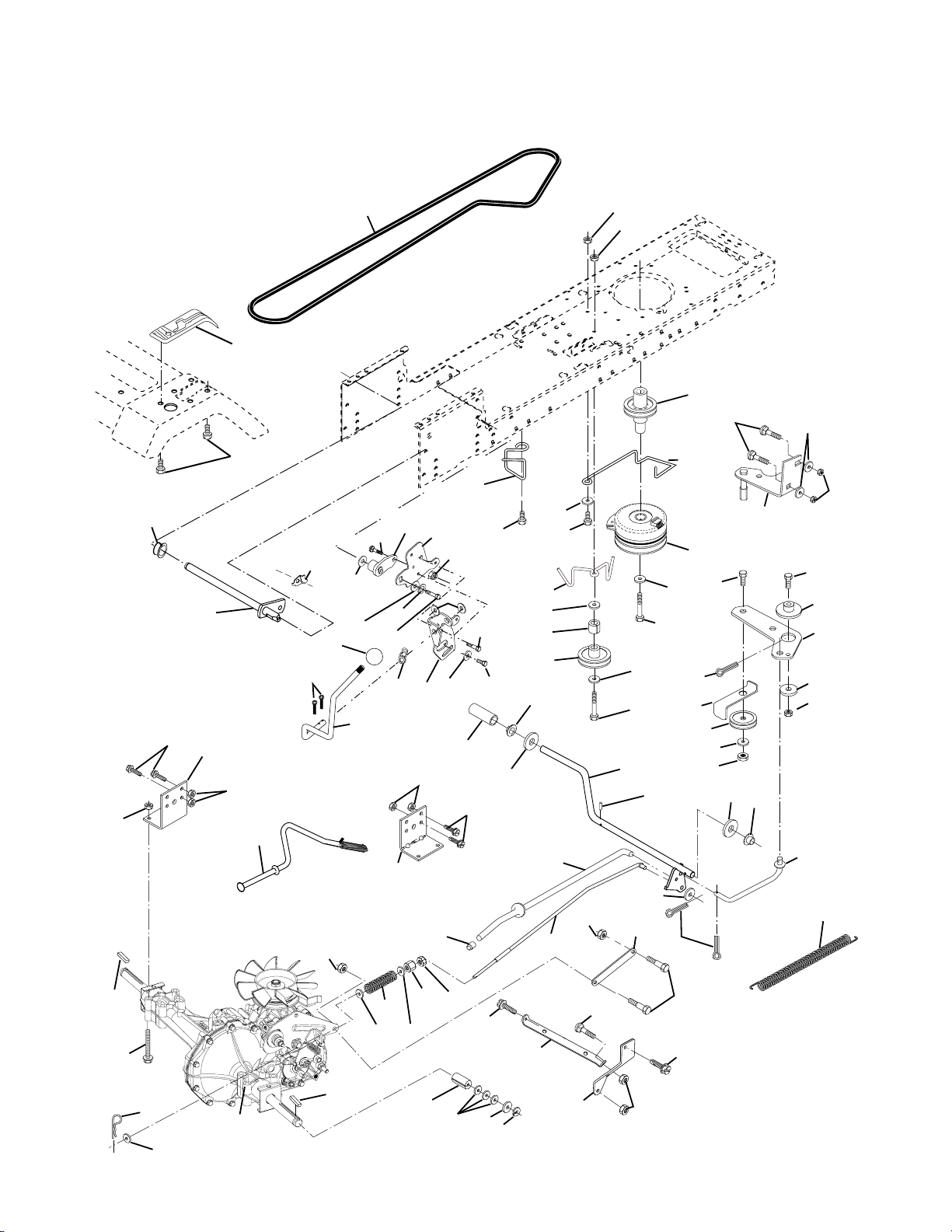

DRIVE
16
197
32
81
30
69
52
89
95
169
10
21
198
57
164
8
161
14
163
82
30
159
165
52
158
162
83
156
62
59
168
32
166
61
36
42
35
41
40
38
28
42
56
51
51
34
42
39
37
20
65
66
27
49
63
9
47
26
51
50
33
36
144
52
23
202
150
48
151
51
35
53
77
15
96
26
26
16
26
19
74
29
75
24
78
61
76
16
25
26
77
1
22
200
71
73
84
27
199
61
16
55
36
www.mymowerparts.com
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2046 (YTH2046A), PRODUCT NO. 954 56 70-79
DRIVE
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - - - Transaxle, Hydro 314-0510
(Order Parts From Transaxle
Manufacturer)
8 532166020 Rod Shift Fender Adjust STLT
9 532160889 Clutch Elecric
10 876020416 Pin Cotter 1/8 x 1 CAD
14 810040400 Washer Lock Hvy Helical
15 874490544 Bolt Hex 5/16-18 Unc Flghd
16 873800500 Nut Lock Hex W/Ins. 5/16-18 Unc P
19 873800600 Nut Lock Hex W/Ins 3/8-16 Unc
20 532150280 Bolt, Hex 7/16-20 x 4-1/4 Ga. 5
21 532140845 Knob Deluxe 1/2-13 UNC BLK/BLK
22 532169498 Rod, Brake Hydro
23 532171258 Bracket Asm Mtg CL
24 873350600 Nut Hex Jam 3/8-16 UNC
25 532106888 Spring, Brake Rod
26 819131316 Washer
27 876020412 Pin Cotter 1/8 x 3/4 CAD.
28 532145204 Rod, Parking Brake
29 532071673 Cap,Parking Brake
30 532169592 Bracket, Transaxle
32 874760512 Bolt Hex Hd 5/16-18 Unc x 3/4
33 872140506 Bolt Carriage 5/16-18 UNC x 3/4
34 532155071 Shaft, Foot Pedal
35 532120183 Bearing, Nylon
36 819211616 Washer
37 532124963 Pin, Roll
38 532131494 Pulley, Idler, Flat
39 874760644 Bolt
40 532124965 Spacer Split
41 532165838 Keeper, Belt Idler
42 819131312 Washer 13/32 x 13/16 x 12 Ga
47 532127783 Pulley, Idler, V-Groove Plastic
48 532154407 Bellcrank Clutch Grnd Drv STL
49 532123205 Retainer, Belt Style Spring
50 874760624 Bolt Hex Hd 3/8-16 Unc x 1-1/2
51 873680600 Nut
52 873680500 Nut Cr own Lock 5/16-18
53 532105710 Link, Clutch
55 532105709 Spring, Return, Clutch
56 874760620 Bolt, Fin Hex 3/8-16 UNC x 1 1/4
57 532140294 V-Belt, Ground Drive
59 532169691 Keeper, Center Span
KEY PART
NO. NO. DESCRIPTION
61 817060612 Screw 3/8-16 x 3/4
62 532124872 Cover, Pedal
63 532145868 Pulley, Engine
65 810040700 Washer Lock Hvy HLCL Spr 7/16
66 532154778 Keeper Belt Engine
69 532142432 Screw Hex Wsh Hi-Lo 1/4-1/2 Unc
71 532169183 Strap Torque Lh Hydro
73 532169182 Strap Torque Rh Hydro
74 532137057 Spacer, Axle
75 532121749 Washer 25/32 x 1-1/4 x 16 Ga.
76 812000001 E-Ring
77 532123583 Key, Square
78 532121748 Washer 25/32 x 1-5/8 x 16 Ga
81 532165596 Shaft Asm Cross Tapered
82 532123782 Spring Torsion T/A
83 819171216 Washer 17/32 x 3/4 x 16 Ga.
84 532169594 Link Transaxle
89 532166624 Console, Shift
95 532170201 Control Asm. Bypass Hydro
96 532124788 Retainer Spring 1" Zinc/Cad
144 819111016 Washer 11/32 x 5/8 x 16 Ga.
150 532165850 Bushing Bellcrank Grd Drive
151 819133210 Washer 13/32 x 2 x 10 Ga.
156 532166002 Washer Srrted 5/16ID x 1.125
158 532165589 Bracket Shift Mount
159 532165494 Hub Tapered Flange Shift Lt
161 872140406 Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr 5
162 873680400 Nut Crownlock 1/4-20 Unc
163 874780416 Bolt Hex Fin 1/4-20 Unc x 1 Gr 5
164 819091010 Washer 5/8 x .281 x 10 Ga
165 532165623 Bracket Pivot Lever
166 532166880 Screw 5/16-18 x 5/8
168 532165492 Bolt Shoulder 5/16-18 x .561
169 532165580 Plate Fastening STLT/CRD
197 532169613 Nyliner Snap 5/8" ID
198 532169593 Washer Nyl 7/8 ID x .105 Hyd
199 532169612 Bolt Shoulder 5/16-18 Unc
200 872140508 Bolt Rdhd Sqnk 5/16-18 Unc x 1
201 817490612 Screw Thdrol 3/8-16 x 3/4
202 872110612 Bolt
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
37
www.mymowerparts.com
Page 9
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2046 (YTH2046A), PRODUCT NO. 954 56 70-79

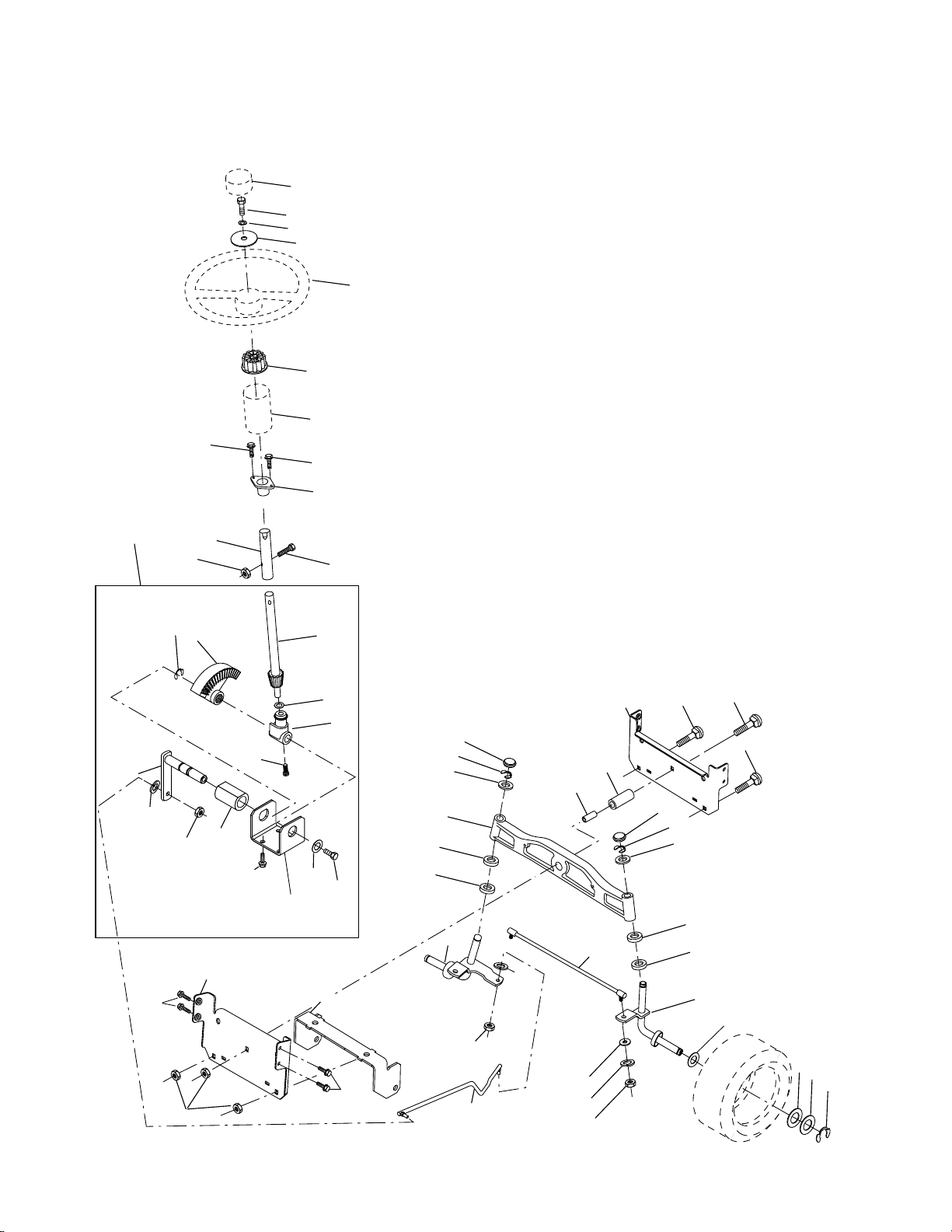

STEERING ASSEMBLY
38
63
11
39
1
41
42
37
37
36
62
23
11
29
44
51
8
27
22
66
40
29
68
15
54
17
18
19
79
80
25
82
29
46
8
6
65
2
87
5
3
11
40
10
68
13
32
33
34
35
67
46
8
6
67
67
87
5
4
43
43
6
8
38
www.mymowerparts.com
Page 10
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2046 (YTH2046A), PRODUCT NO. 954 56 70-79
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 532166627 Wheel Steering
2 532172393 Axle Cast Lt Machined
3 532169840 Spindle Asm LH
4 532169839 Spindle Asm RH
5 532124931 Bearing Race Thrust Harden
6 532121748 Washer 25/32 X 1-5/8 X 16 Ga
8 812000029 Ring Klip #t5304-75
10 532169832 Link Drag
11 810040600 Washer Lock Hvy Hlcl Spr 3/8
13 532136518 Spacer Brg Axle Front
15 532145212 Nut Hex Flange Lock
17 532156546 Shaft Asm Strg
18 532057079 Washer Thrust 515x 750x 033
19 532160395 Support Shaft
22 532165857 Screw Hex Wshhd Torx
23 532165851 Shaft Asm Pittman
25 532154406 Bracket Steering
27 532136874 Gear Sector
29 817060612 Screw 3/8-16x3/4
32 532171888 Rod Tie Ball J
33 819111216 Washer 11/32 x 3/4 x 16 Ga.
34 810040500 Washer Lock Hvy Helical 5/16
35 873540500 Nut Crown Lock 5/16-24Unf
36 532155099 Bushing Strg
37 532152927 Screw
38 532166626 Insert Cap Strg Wh
39 819132411 Washer 13/32 x 1-1/20 x 11 Ga
40 532124701 Lock nut
41 532159945 Adaptor Wheel Strg
42 532169634 Boot Steering Shaft
43 532121749 Washer 25/32 X 1 1/4 X 16 Ga
44 532153720 Extension Steering Shaft LR/LT
46 532121232 Cap Spindle Fr Top Blk
51 873800500 Nut Lock Hex w/Ins 5/16-18
54 874780520 Bolt Fin Hex 5/16-18 Unc x 1-1/4
62 532167902 Kit, Steering Assembly Svc
63 874780616 Bolt Fin Hex 3/8-16unc x 1 Gr. 5
65 532160367 Spacer Brace Axle
66 532154404 Bearing Arm Pittman
67 872140618 Bolt Rdhd Sq 3/8-16 x 2-1/4
68 532169827 Axle, Brace
79 819132012 Washer 13/32 x 1-1/4 x 12 Ga
80 874950612 Bolt Hex Nylon 3/8-16 x 3/4
82 532169835 Bracket Susp Chassis Front
87 532173966 Washer Flat .781 x 1-1/2 x .14
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm.
39
www.mymowerparts.com
Page 11
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2046 (YTH2046A), PRODUCT NO. 954 56 70-79

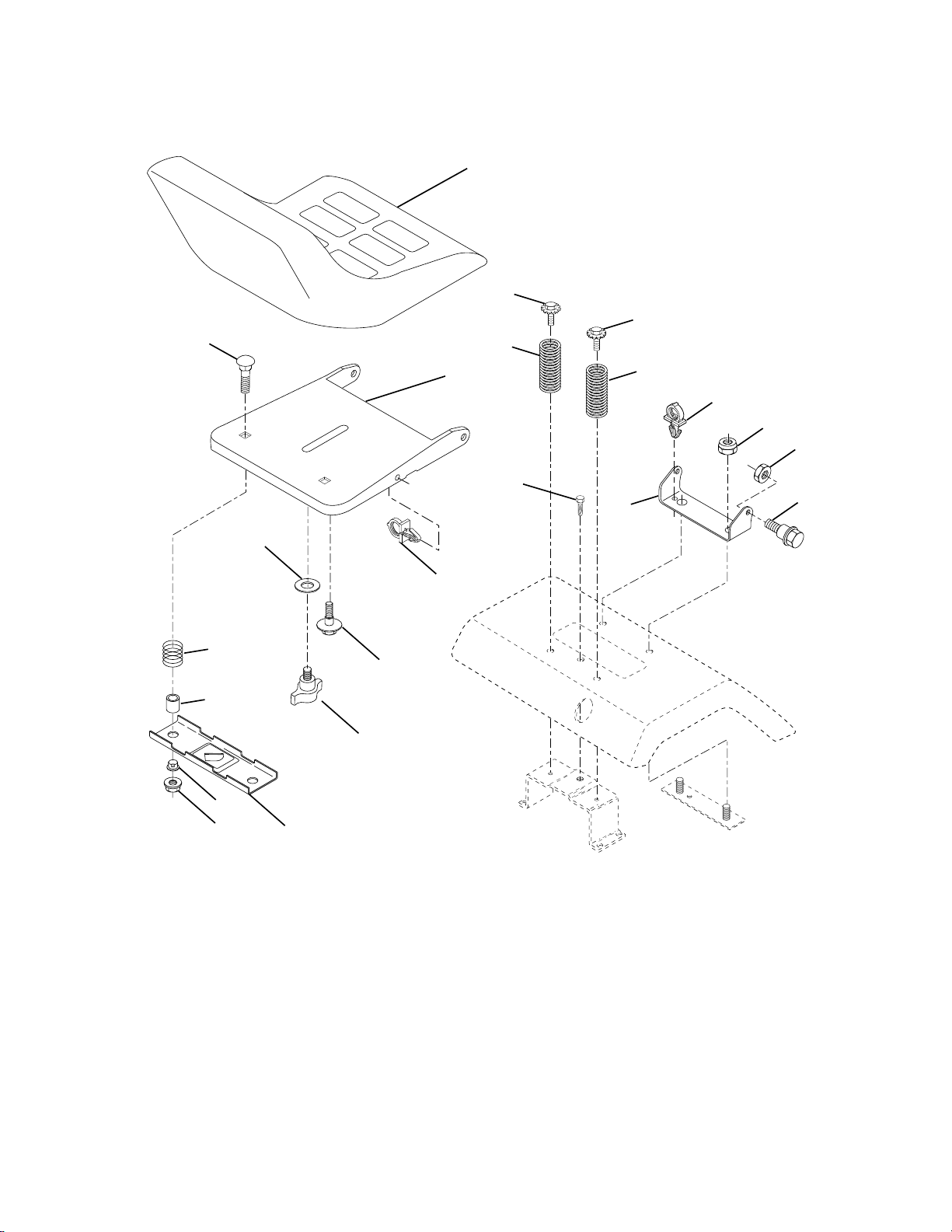

SEAT ASSEMBLY
1
28
28
14
10
7
7
5
6
22
24
16
15
13
17
KEY PART
NO. NO. DESCRIPTION
12
11
25
27
2
5
KEY PART
NO. NO. DESCRIPTION
21
1 532140840 Seat
2 532140551 Bracket Pivot Seat 8 720
3 874760616 Bolt Fin Hex 3/8-16unc X 1
4 819131610 Washer 13/32 X 1 X 10 Ga
5 532145006 Clip Push-In
6 873800600 Nut Hex w/Ins. 3/8-16 Unc
7 532124181 Spring Seat Cprsn 2 250 Blk Zi
8 817060616 Screw Thdrol 3/8-16 X 1-1/2
9 819131614 Washer 13/32 X 1 X 14 Ga.
10 532174894 Pan Seat
11 532166369 Knob Seat Adj Wingnut
12 532121246 Bracket Mounting Switch
13 532121248 Bushing Snap Blk Nyl 50 Id
www.mymowerparts.com
14 872050412 Bolt Rdhd Sqnk 1/4-20x1-1/2
15 532121249 Spacer Split 28 x .88 Zinc
16 532123740 Spring Cprsn Plate
17 532123976 Nut Lock 1/4 Lge Flg Gr 5 Zinc
18 532124238 Cap Spring Seat
21 532171852 Bolt Shoulder 5/16-18 Unc
22 873800500 Nut Hex Lock W/Ins 5/16-18
24 819171912 Washer 17/32 X 1 -3/16 X 12 Ga.
25 532127018 Bolt Shoulder 5/16-18 X 62
27 817490608 Screw Thdrol 3/8-16 x 1/2 Ty-tt
28 532171877 Bolt 5/16-18unc x 3/4 W/Sens
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
40
Page 12
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2046 (YTH2046A), PRODUCT NO. 954 56 70-79

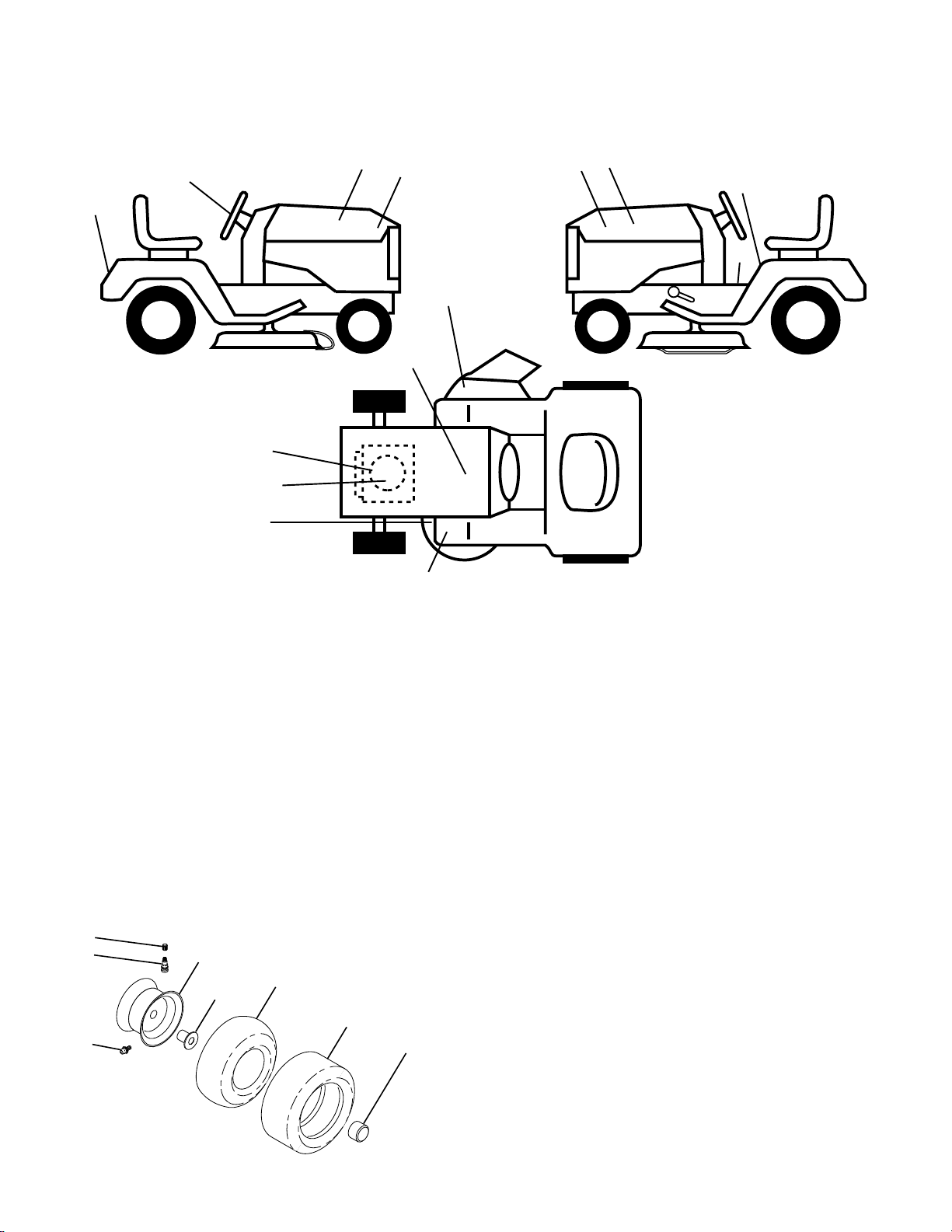

DECALS
4
3
2
9
5
11
8
20
11
10
1
7
14
KEY PART
NO. NO. DESCRIPTION
1 532156693 Decal Oper Inst Hyd E/F
2 532170564 Decal Strg Wheel Logo
3 532176773 Decal Hood RH
4 532176774 Decal Hood LH
5 532176777 Decal Engine
7 532176775 Decal Engine Recoil Cover
8 532170563 D ecal W arnin g
9 532176822 Decal Fender Husq
WHEELS & TIRES
1
2
6
5,8
4,10
7
3,9
11
12
KEY PART
NO. NO. DESCRIPTION
10 532157140 Decal Fender Danger E/F
11 532176776 Decal Hood Sides
12 532101892 Decal Clutch/Brake
14 532160397 Decal V-Belt Schematic
20 532145005 Decal Bat Dan/Psn
- - 532169210 Decal By Pass Lt Hydro
- - 532133671 Pad Footrest
- - 532138311 Decal Handle Lft Height Adjust
- - 532176687 Manual Owner's (English)
- - 532176688 Manual Owner's (French)
KEY PART
NO. NO. DESCRIPTION
1 532059192 Cap Valve Tire
2 532065139 Stem Valve
3 532106222 Tire F Ts 15 X 6 0 - 6 Service
4 532059904 Tube Front (Service Item Only)
5 532138336 Rim Asm 6"front Silver Service
6 532124957 Fitting Grease (Front Wheel Only)
7 532124959 Bearing Flange (Front Wheel Only)
8 532138337 Rim Asm 8"rear Silver Service
9 532122082 Tire R Ts 20x10-8 C Service
10 532124926 Tube Rear (Service Item Only)
11 532175039 Cap Axle Blk 1 50 X 1 00
- - 532144334 Sealant, Tire ( 10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
41
www.mymowerparts.com
Page 13
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2046 (YTH2046A), PRODUCT NO. 954 56 70-79

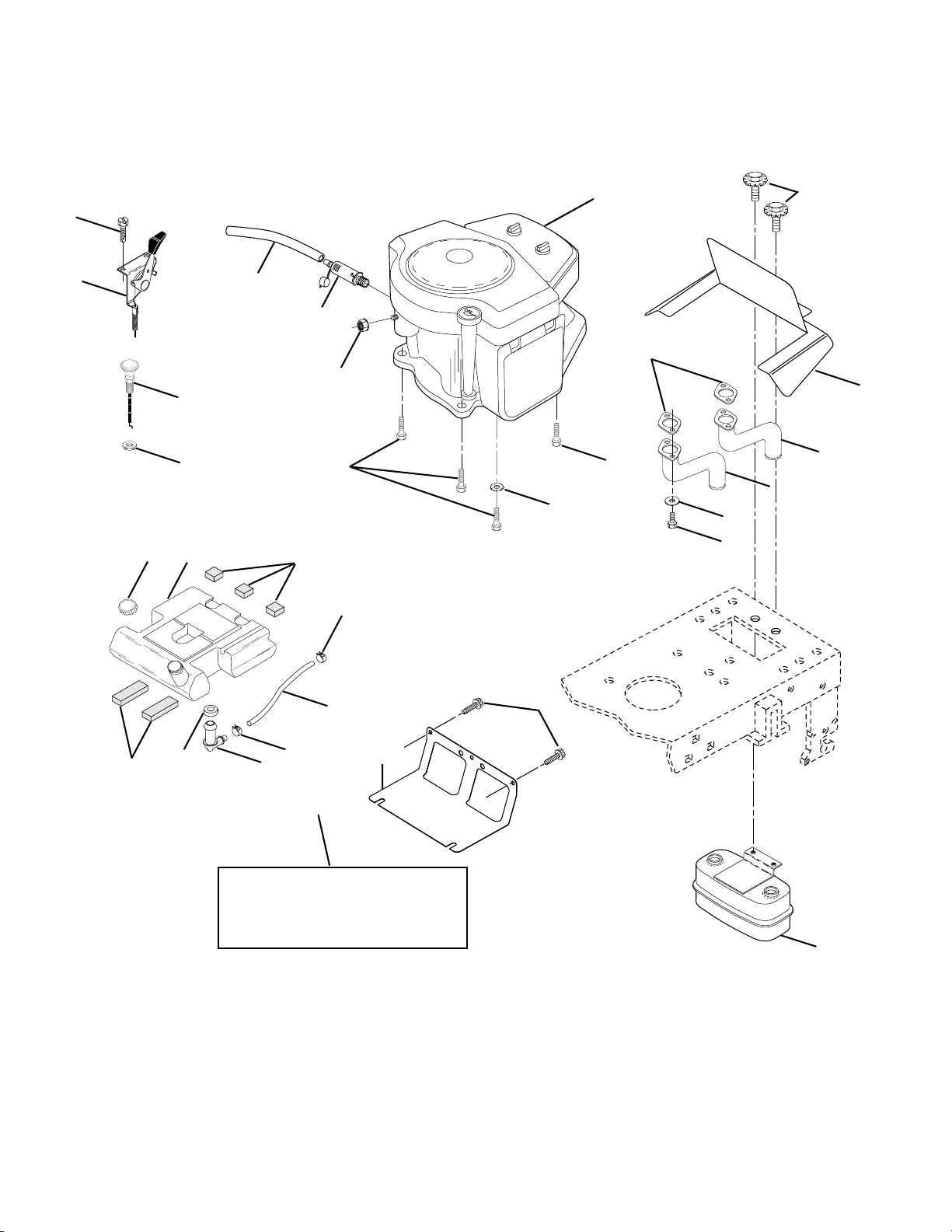

ENGINE
3
2
1
25
26
32
31
14
34
38
81
17
33
16
13
17
62
72
8
10
6
5
39
40
37
41
33
29
23
OPTIONAL EQUIPMENT
Spark Arrester
45
4
42
www.mymowerparts.com
Page 14
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2046 (YTH2046A), PRODUCT NO. 954 56 70-79
ENGINE
KEY PART
NO. NO. DESCRIPTION
1 532170771 Control Throt Flg 180 LH
2 817720410 Screw Hex Thd Cut 1/4-20x5/8 T
3 - - - - - - - - Engine B&S Model 407777
(Order Parts from Engine Manufacturer)
4 532149723 Muffler Asm Twin Lo-Tone
5 532159955 Exhaust Tube LH
6 532160589 Exhaust Tube RH
8 532171877 Bolt 5/16-18unc x 3/4 W/Sems
10 532162797 Shield Browning B&S Intek II
13 532165391 Gasket Muffler
14 532148456 Tube Drain Oil Easy
16 811050600 Washer Lock Ext Tooth 3/8
17 817490624 Screw Thdrol 3/8-16 x 1-1/2
23 532169837 Shield Browning
25 532145996 Choke Control 37"
26 873920600 Nut, Keps 3/8-24 Unf
29 532137180 Kit Spark Arrestor (Flat Scrn)
31 532151346 Tank Fuel 3 50 Rear
32 532140527 Cap Asm Fuel Top N/Lany Vented
33 532123487 Clamp Hose Blk
34 532106082 Pad, Spacer
37 532142158 Line Fuel
38 532148315 Plug Drain Oil Easy
39 532109227 Pad, Idler
40 532124952 Bushing
41 532139277 Stem Tank Fuel
45 817000612 Screw Hexwsh Thdr 3/8-16 x 3/4
62 810040500 Washer Lock Hvy Hlcl Spr 5/16
72 871070512 Screw Hex Hd Cap 5/16-18 x 3/4
81 873510400 Nut Keps Hex 1/4-20 Unc
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
43
www.mymowerparts.com
Page 15
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2046 (YTH2046A), PRODUCT NO. 954 56 70-79

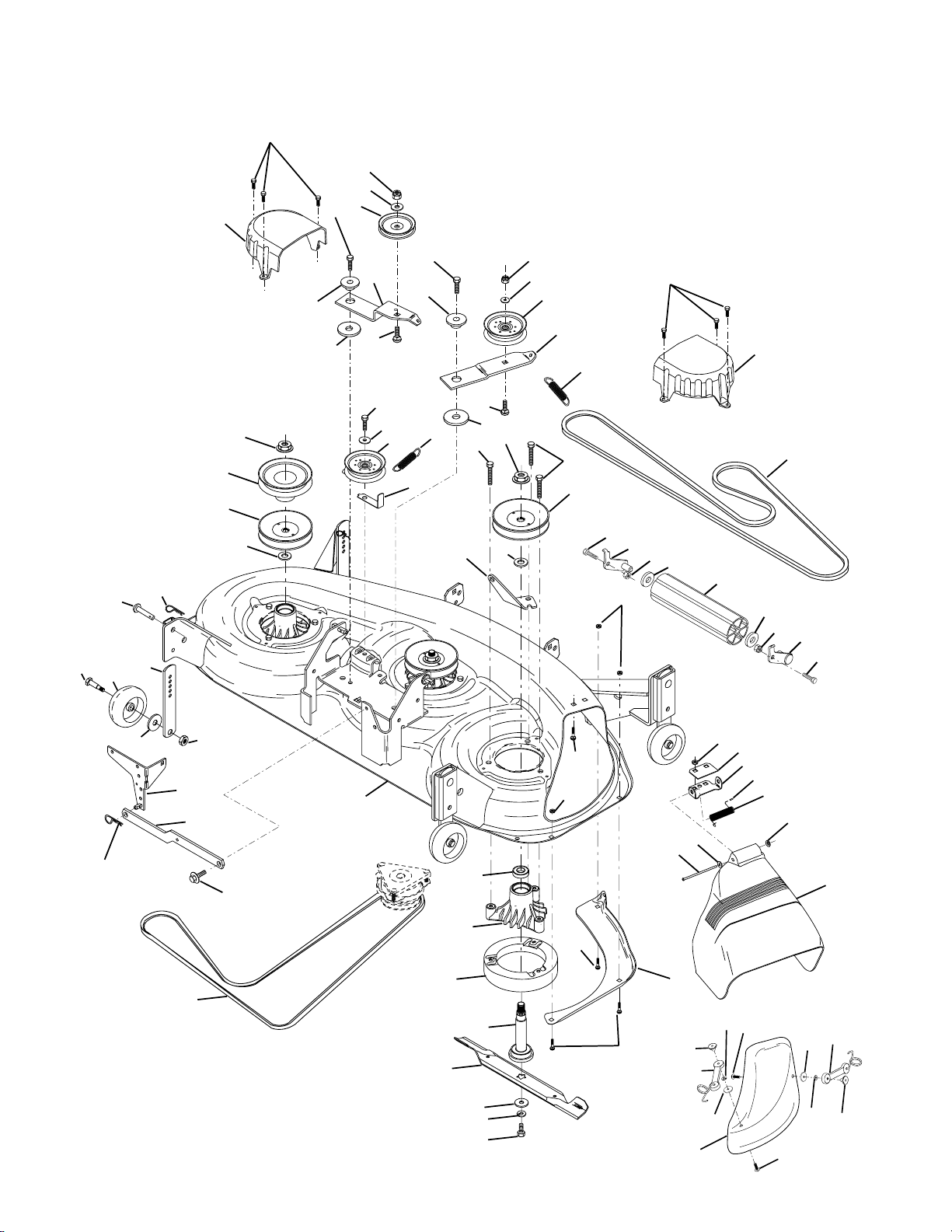

MOWER DECK
46
49
36
127
45
41
116
57
117
56
31
33
49
36
37
43
30
32
40
90
21
91
46
92
93
45
47
94
41
126
42
50
44
33
39
32
31
5
35
72
52
38
42
40
50
44
30
34
93
92
95
90
20
106
105
101
28
104
21
103
22
102
23
24
25
26
102
104
103
27
105
106
48
118
18
3
1
6
15
19
14
16
13
11
10
9
8
21
29
18
18
119
5
44
www.mymowerparts.com
Page 16
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2046 (YTH2046A), PRODUCT NO. 954 56 70-79
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
1 532177083 Deck Weldment Mower HD 46 WAD
3 532138457 Bracket Asm., Sway Bar
5 532124670 Retainer Spring
6 532130832 Arm, Suspension, Rear (Sway Bar)
8 532850857 Bolt, Patched 3/8-24 x 1-1/4 Gr. 8
9 810030600 Washer, Lock Hvy., Unplated 3/8
10 532140296 Washer, Hard Blade, Mower Vented
11 532176084 Blade, 46" High Performance
532152443 Blade, 46" Mulching
13 532137553 Shaft Asm. w/Lower Bearing
(Includes Key No. 12)
14 532137152 Housing, Mandrel
15 532110485 Bearing, Ball, Mandrel
16 532140329 Stripper, Mower Round
18 872140505 Bolt, Carriage 5/16-18 x 5/8
19 532132827 Bolt, Hex Head, Shoulder 5/16-18
20 532145055 Baffle, Vortex Mower 46"
21 873680500 Nut, Crownlock 5/16-18 UNC
22 532176929 Stiffener, Bracket
23 532176927 Bracket, Deflector
24 532105304 Cap, Sleeve
25 532149287 Spring, Torsion, Deflector
26 532110452 Nut, Push
27 532171384 S hield, Deflec tor Mower
28 819111016 Washer 11/32 x 5/8 x 16 Ga.
29 532131491 Rod, Hinge
30 532157722 Screw, Thdroll, Washer Head
31 532129963 Washer, Spacer Mower Vented
32 532173434 Pulley, Mandrel
33 532137266 Nut, Flg. Top Lock Cntr. 9/16
34 532177086 Anchor, Spring Deck 46"
35 817490628 Screw, Thdroll 3/8-16 x 1-3/4 Tytt
36 819131316 Washer 13/32 x 13/16 x 16 Ga.
37 532173438 Pulley, Idler, Flat
38 532173900 Keeper, Belt, Idler
39 532173899 Pulley, Idler, Driven
40 532137273 Spring, Secondary 44/46/50 Vent
41 817060620 Screw, Thdroll 3/8-16 x 1-1/4
42 532122052 Spacer, Retainer
KEY PART
NO. NO. DESCRIPTION
43 532177085 Arm, Idler Secondary
44 532133943 Washer, Hardened
45 532145059 Cover, Mandrel Deck
46 532137729 Screw, Thdroll. 1/4-20 x 5/8
47 532144959 V-Belt, Mower, Secondary
48 532148763 V-Belt, Mower, Primary
49 873680600 Nut, Crownlock 3/8-16 UNC
50 872110612 Bolt, Carriage 3/8-16 x 1-1/2 Gr. 5
52 532173901 Pulley Idler Flat 46 Pri. Drive
56 532155986 Bar Pnt Adjusting Wheel Gauge
57 532156941 Pin Head Rivet
72 819131616 Washer 13/32 x 1 x 16 Ga.
90 874760616 Bolt, Fin, Hex 3/8-16 UNC x 1
91 532132274 Bracket, Asm Noseroller, LH
92 873800600 Nut, Lock, Hex w/Ins 3/8-16UNC
93 819171416 Washer 17/32 x 7/8 x 16 Ga.
94 532132264 Roller, Nose 38 & 42
95 532132273 Bracket, asm Noseroller RH
101 532145579 Cover, Mulching
102 871161010 Screw
103 810071000 Washer, Lock #10
104 819061216 Washer
105 532160793 Latch Asm. Bagger
106 532125004 Nut, Weld
116 532137644 Bolt, Shoulder
117 532133957 Gauge Wheel
118 873930600 Nut, Centerlock 3/8-16 UNC
119 819121414 Washer 3/8 x 7/8 x 14 Ga.
126 532177084 Arm, Idler, Primary Deck 46"
127 532173902 Pulley, Idler, V-Groove Dim. 4.25
- - 532143651 Mandrel Assembly ( Includes Key
Nos. 8-10, 12-15, 31 and 33)
- - 532176549 Mower Serv 46" (Standard Deck
Order nose roller, guage wheels, and
mulching plate components
separately Key Nos. 90-95,116-118,
101-106)
NOTE: All component dimensions given in U.S. inche
1 inch = 25.4 mm
45
www.mymowerparts.com
Page 17
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2046 (YTH2046A), PRODUCT NO. 954 56 70-79

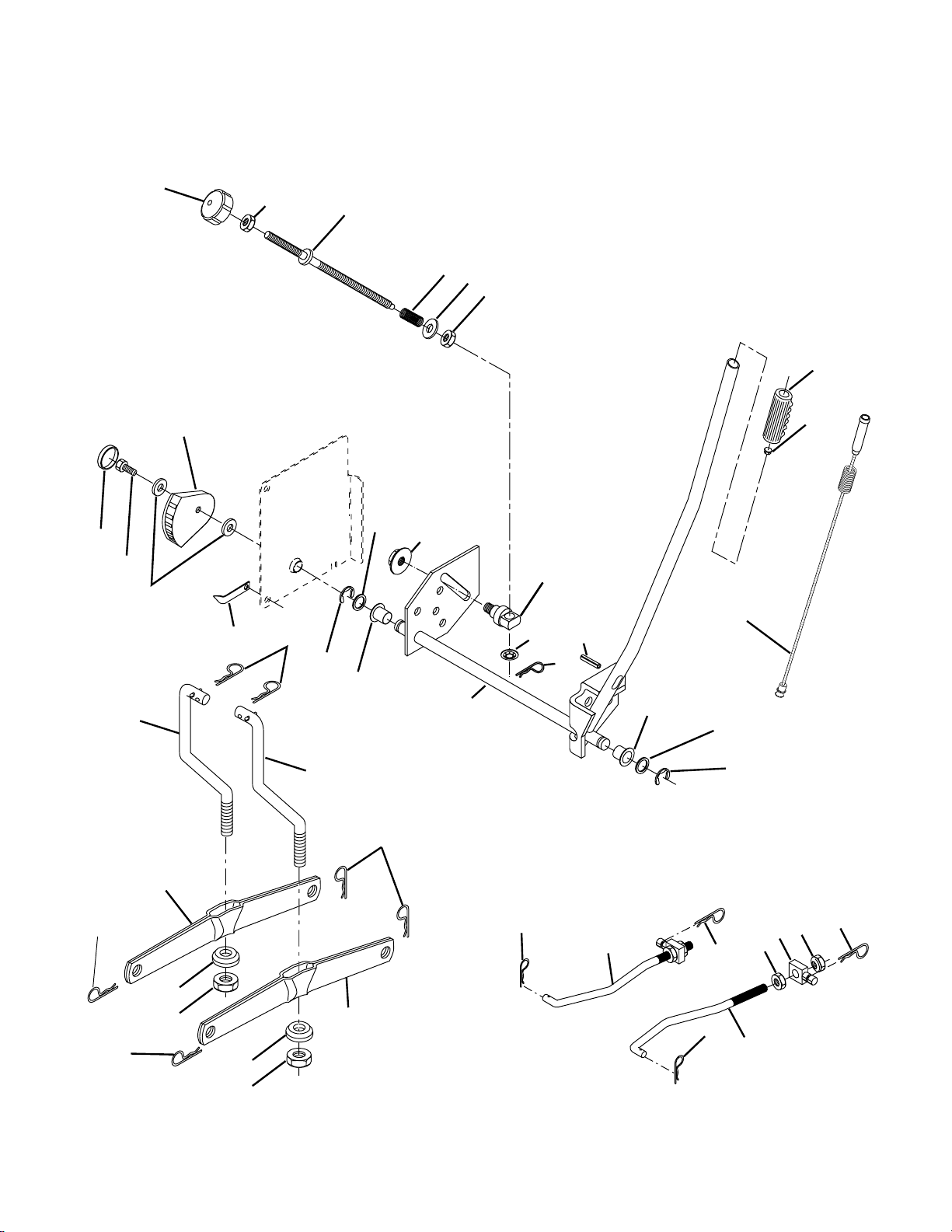

MOWER LIFT
37
38
29
40
41
36
28
13
27
25
24
23
7
8
5
49
30
50
1
3
13
13
11
19
31
32
31
32
4
12
19
26
6
2
13
20
15
6
5
4
20
18
17
16
20
20
15
46
www.mymowerparts.com
Page 18
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. YTH2046 (YTH2046A), PRODUCT NO. 954 56 70-79
MOWER LIFT
KEY PART
NO. NO. DESCRIPTION
1 532159460 Wire Asm Inner/Spring W/Plunger LT
2 532159471 Shaft Asm Lift RH w/Inf
3 532105767 Pin Groove 1 500 Zinc
4 812000002 E Ring #5133-62
5 819211621 Washer 21/32 X 1 X 21 Ga
6 532120183 Bearing Nylon Blk 629 Id
7 532125631 Grip Handle Fluted Blk
8 532124526 Button Plunger Black
11 532139865 Link Lift LH Fixed Length
12 532139866 Link Lift RH Fixed Length
13 532124670 Retainer Spring
15 532173288 Link Front
16 873350800 Nut Jam Hex 1/2-13 Unc
17 532130171 Trunnion Blk Zinc
18 873800800 Nut Lock w/Wsh 1/2-13unc
19 532139868 Arm Suspension Rear
20 532163552 Retainer Spring
23 532110807 Nut Special
24 819131016 Washer 13/32 X 5/8 X 16 Ga
25 532124874 Spring 2-1/8"
26 532169484 Retainer Clip
27 532126971 Rod Adj Lift Zinc 7.49 Wrk Lg
28 873350600 Nut Hex Jam 3/8-16 Unc
29 532138057 Knob Inf 3/8-16 Unc Blk W/sym
30 532150233 Trunnion Infin Height
31 532169865 Bearing Pvt Lift
32 873540600 Nut Crownlock 3/8 - 24
36 532155097 Indicator Height STLT
37 532123935 Plug Hole Blk 1.485/1.515 Dia.
38 817060516 Screw 5/16-18 x 1
40 819112410 Washer 11/32 x 1-1/2 10 Ga.
41 532155098 Scale Ind. Height Blk.
49 532145212 Nut Hex Flange Lock
50 532110452 Nut, Push Phos & Oil
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
47
www.mymowerparts.com
Loading...
