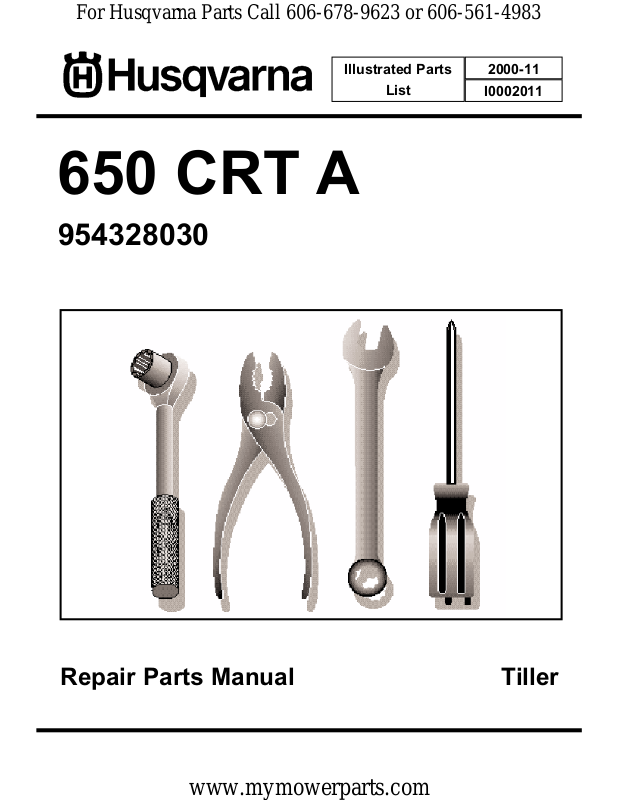

Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
Illustrated Parts
650 CRT A
954328030
List
2000-11
I0002011
Repair Parts Manual Tiller
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TILLER - - MODEL NUMBER 650CRTA, PRODUCT NUMBER 954 32 80-30

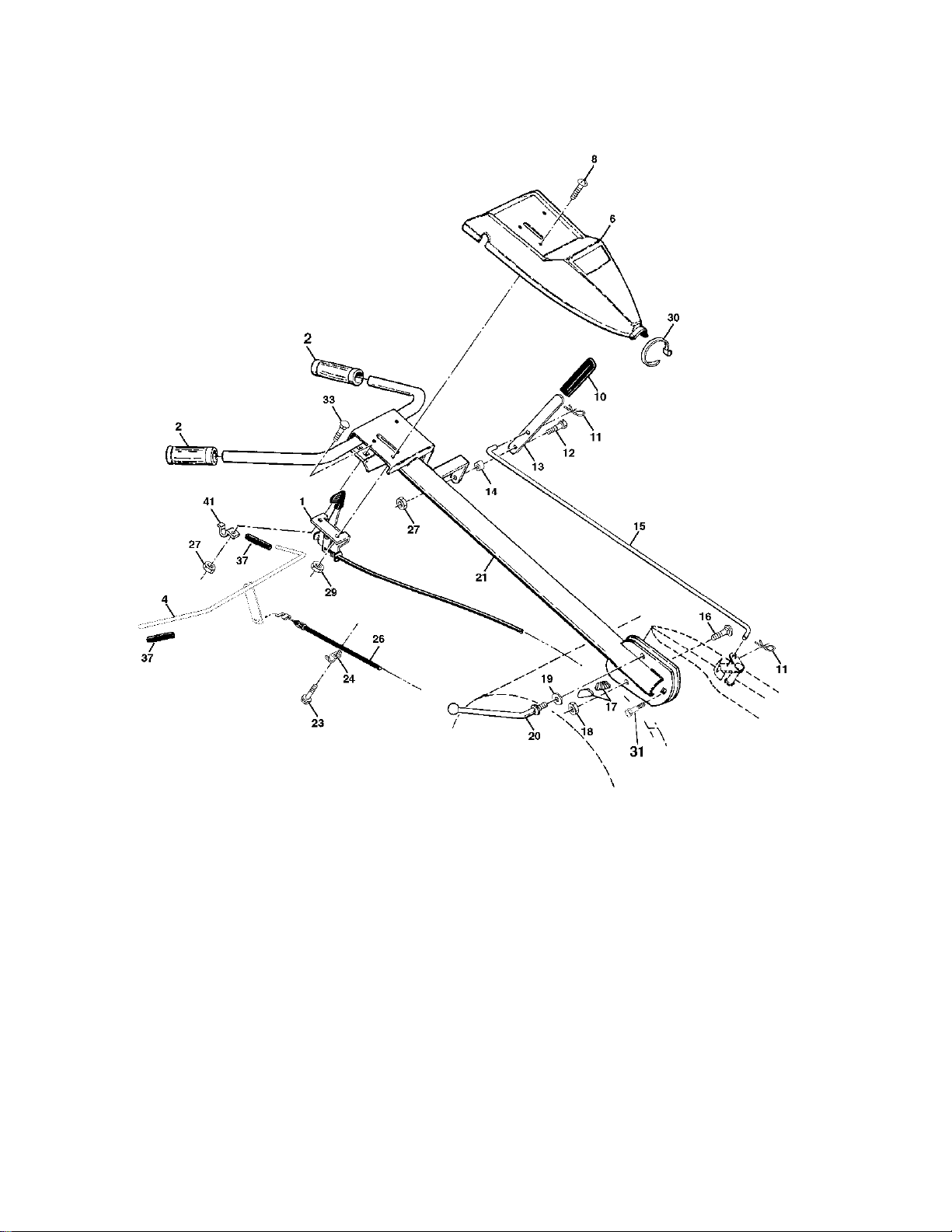

HANDLE ASSEMBLY
KEY PART NO. NO. DESCRIPTION
1 532175250 Control, Throttle 2 532009266 Grip, Handle 4 532159228 Bar Assembly, Control 6 532126956 Panel, Control 8 871191008 Screw, Truss Hd. #10-24 UNC x 1/2 10 532124797 Grip, Handle 11 532124788 Clip, Hairpin 12 532081328 Bolt, Shoulder 13 532109335 Handle, Shift 14 532109313 Grommet, Rubber 15 532109337 Rod, Shift 16 872110608 Bolt, Carriage 3/8-16 x 1 Gr. 5 17 532109229 Lock, Handle 18 873680600 Nut, Crownlock 3/8-16 Unc 19 819131611 Washer 13/32 x 1 x 11 Ga. 20 532109228 Lever, Lock, Handle
KEY PART NO. NO. DESCRIPTION
21 532150256 Handle 23 532086777 Screw, Hex Washer Hd. Slotted
#10-24 x 1/2 24 532009484 Clip 26 532159231 Cable, Clutch 27 873900400 Nut Hex Flange 1/4-20 Unc 29 873731000 Nut, Keps #10-24 UNC 30 532104164 Tie, Cable 31 532150696 Bolt, Pivot 33 872140404 Bolt, Carriage 1/4-20 UNC x 1/2 37 532102604 Grip, Bar, Control 41 532102744 Clamp, Bar, Control
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
19
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TILLER - - MODEL NUMBER 650CRTA, PRODUCT NUMBER 954 32 80-30

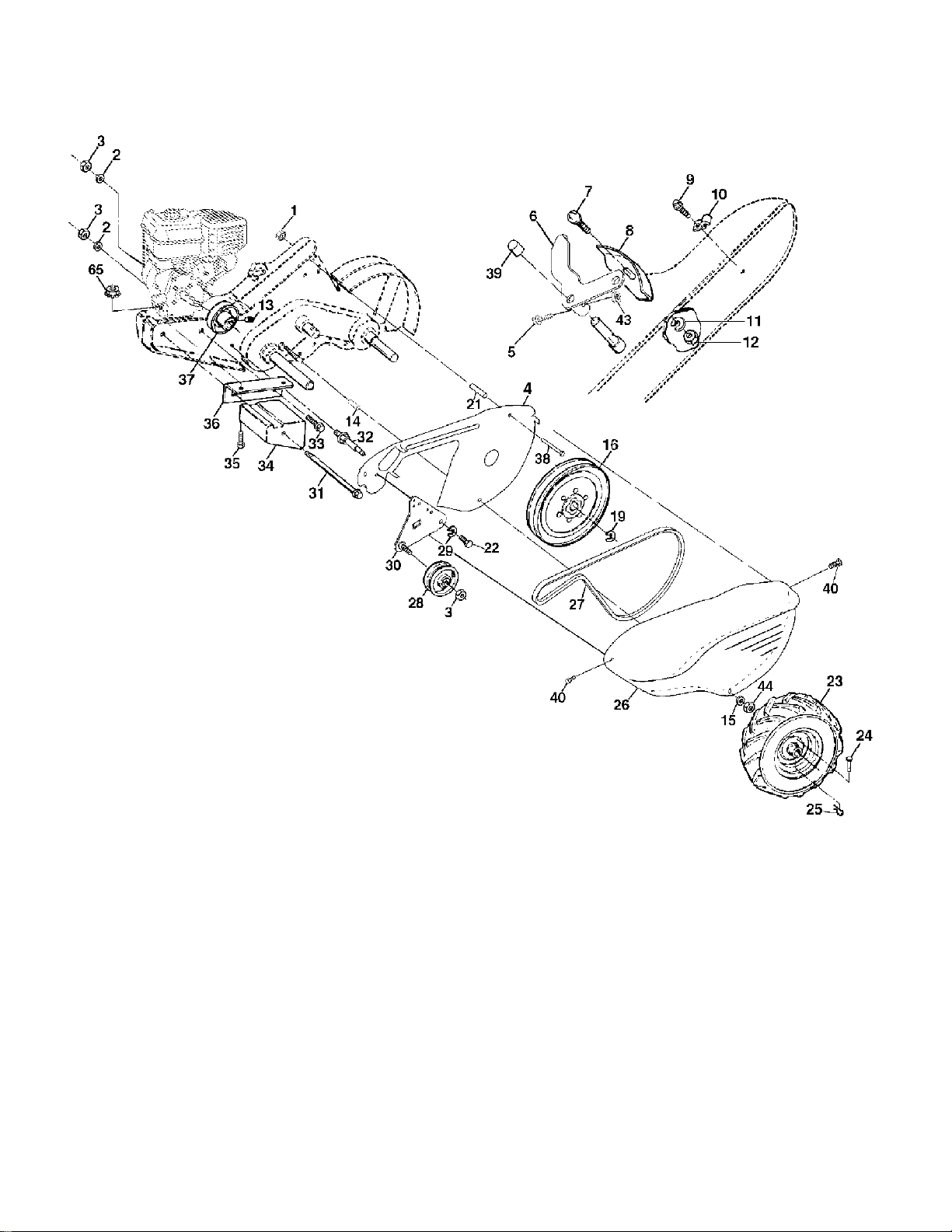

MAINFRAME, LEFT SIDE
KEY PART NO. NO. DESCRIPTION
1 873510500 Nut, Keps 5/16-18 2 810040600 Washer, Lock 3/8 3 873220600 Nut, Hex 3/8-16 4 532170127 Shield, Inner Belt Guard RT 5 532154734 Screw, Shift Lever 6 532110111 Lever, Shift 7 872110404 Bolt, Carriage 1/4-20 x 1/2 Gr. 5 8 532008700 Plate, Shift Indicator 9 532086777 Screw, Hex, Washer Head, Slotted
#10-24 x 1/2 10 532009484 Clip 11 810040400 Washer, Lock 1/4 12 873220400 Nut, Hex 1/4-20 13 823230506 Screw, Set, Hex 5/16-18 x 3/8 14 532110652 Spacer, Split 0.327 x 0.42 x 2.09 15 819111116 Washer 11/32 x 11/16 x 16 Ga. 16 532145102 Sheave, Transmission 19 812000028 Retainer, Ring 21 532156117 Spacer, Split 22 874770508 Bolt, Fin Hex 5/16-24 UNF x 1/2 23 532005015 Tire
532124366 Rim
532124718 Tire Valve 24 532126875 Rivet, Drilled 25 532124788 Clip, Hairpin 26 532166792 Guard, Belt 27 532132801 Belt, V 28 532104679 Pulley, Idler 29 812000032 Ring, Klip
KEY PART NO. NO. DESCRIPTION
30 532159229 Bracket, Idler 31 532102384 Bolt, Hex 5/16-16 x 12 32 532102141 Shaft, Idler Arm 33 874760616 Bolt, Hex 3/8-16 x 1 34 532102383 Counterweight, L. H. 35 874760532 Bolt, Hex 5/16-18 x 2 36 532102331 Bracket, Reinforcement, L. H. 37 532130812 Sheave, Engine 38 874760544 Bolt, Fin Hex 5/16-18 UNC x 2-3/4 39 532140062 Cap, Plunger Blk 40 532170488 Screw Hex Wsh Slt #10-24 x 1/2 43 532069180 Nut, Lock #10-24 44 873800500 Nut Lock Hex w/Ins 5/16-18 Unc PL 65 873970500 Nut Lock Hex Flange
NOTE: All component dimensions given in U.S.
inches. 1 inch = 25.4 mm
20
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TILLER - - MODEL NUMBER 650CRTA, PRODUCT NUMBER 954 32 80-30

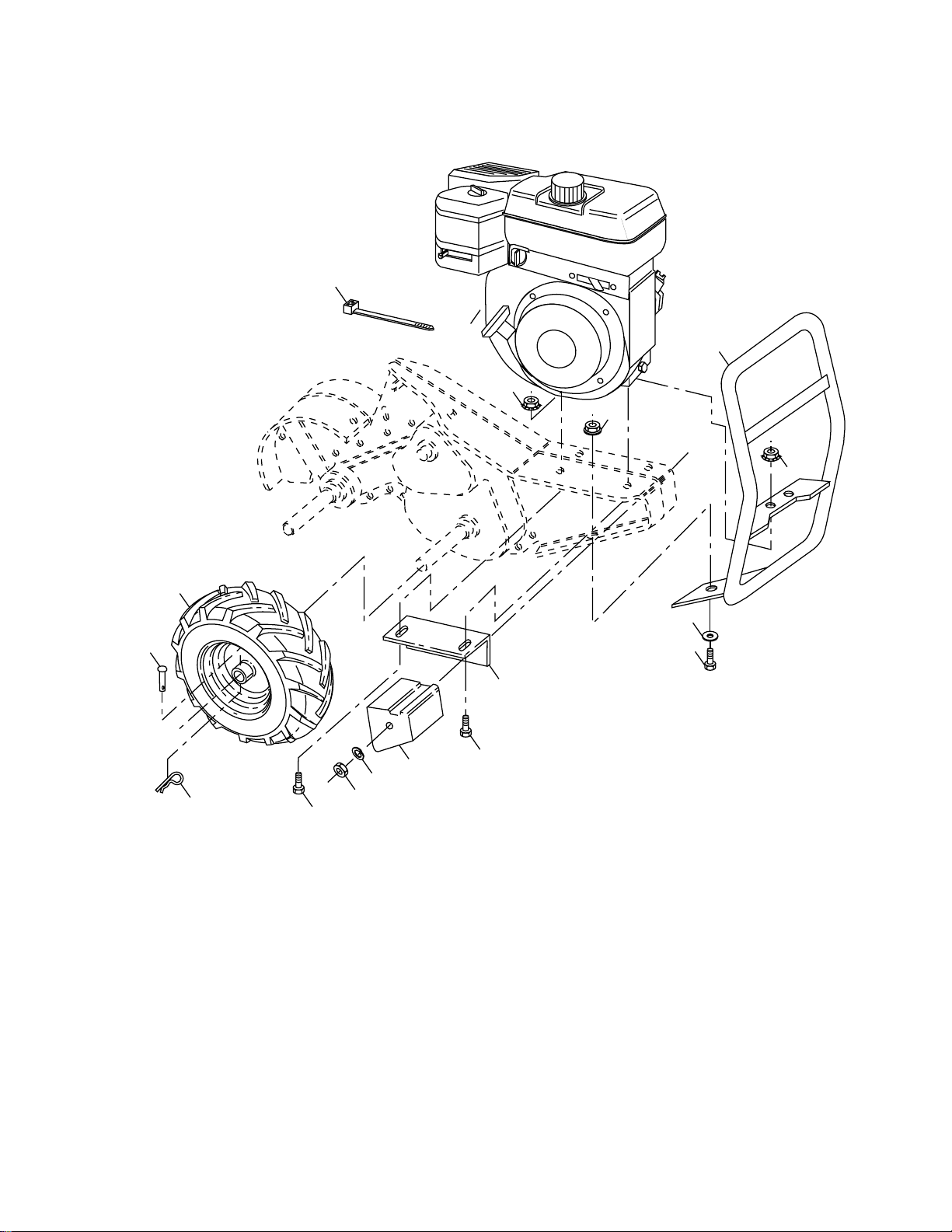

MAINFRAME, RIGHT SIDE
16
12
13
11
10
15
2
2
5
7
8
9
6
1
2
3
4
KEY PART NO. NO. DESCRIPTION
1 532166532 Bumper 2 873970500 Locknut, Hex, Flange 5/16-18 3 819111116 Washer 11/32 x 11/16 x 16 Ga. 4 874760512 Bolt, Hex 5/16-18 x 3/4 5 532102332 Bracket, Reinforcement 6 874760532 Bolt, Hex 5/16-18 x 2 7 532102173 Counter Weight, R.H. 8 810040600 Washer, Lock 3/8 9 873220600 Nut, Hex 3/8-16 10 874760524 Bolt, Hex 5/16-18 x 1-1/2
KEY PART NO. NO. DESCRIPTION
11 532124788 Clip, Hairpin 12 532126875 Rivet, Drilled 13 532005015 Tire
532124366 Rim 532124718 Tire Valve
15 - - - - - - - - Engine, Briggs & Stratton
Model No. 121402
16 532124756 Tie Cable
NOTE: All component dimensions given in U.S.inches.
1 inch = 25.4 mm
21
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TILLER - - MODEL NUMBER 650CRTA, PRODUCT NUMBER 954 32 80-30

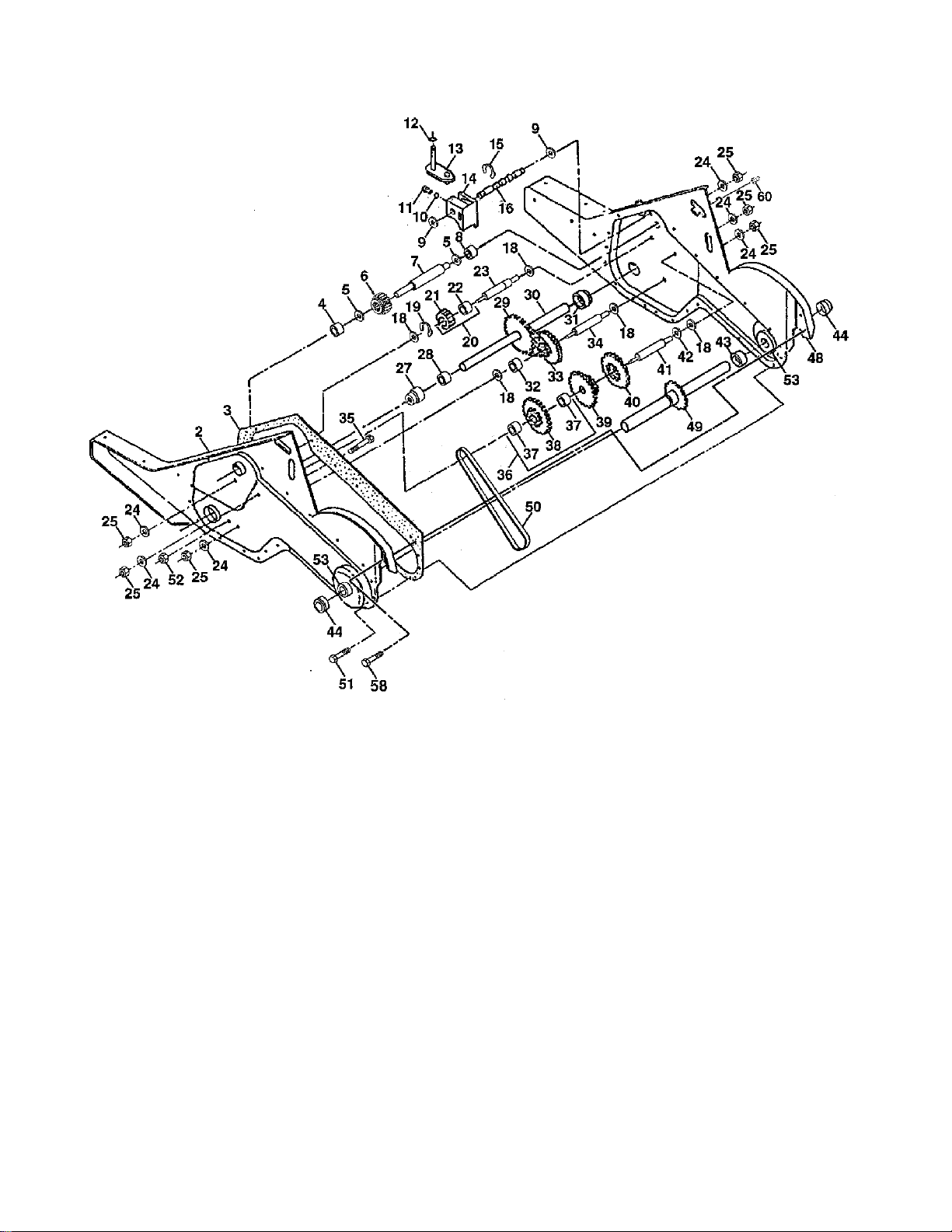

TRANSMISSION

KEY PART NO. NO. DESCRIPTION
1 532170337 Transmission Assembly
(Includes Key Nos. 2-53)
2 532165729 Gearcase, L.H. w/Bearing
(Includes Key No. 4) 3 532161963 Gasket, Gearcase 4 532005020 Bearing, Needle 5 532001370 Washer, Thrust 5/8 x 1.10 x 1/32 6 532137335 Pinion, Input 7 532145101 Shaft, Input 8 532124792 Bearing, Needle 9 532154467 Washer, Seal 10 532124697 Ball, Steel 11 532100371 Spring, Shift, Fork 12 532106160 O-Ring 13 532142145 Arm, Shift 14 532008353 Fork, Shift 15 812000039 Ring, Klip 16 532154466 Shaft, Shift 18 532004358 Washer 19 812000040 Ring, Klip 20 532102114 Gear, Assembly, Reverse Idler
(Includes Key Nos. 21 and 22) 21 532102115 Gear, Reverse Idler 22 532006803 Bearing, Needle 23 532102111 Shaft, Reverse Idler
KEY PART NO. NO. DESCRIPTION
24 810040700 Washer, Lock 7/16 25 873610700 Nut, Hex 7/16-20 27 532143009 Bearing, Shaft, Ground Drive L.H. 28 532106390 Spacer 0.765 x 1.125 x 1.23 29 532102134 Chain #35-50 Pitch 30 532150737 Ground Shaft Assembly 31 532143008 Bearing, Shaft, Ground Drive R.H. 32 532106388 Spacer 0.70 x 1.00 x 1.150 33 532102121 Sprocket and Gear Assembly 34 532102112 Shaft, Reduction (2nd) 35 532102101 Screw, Whiz, Lock 5/16-18 x 3-1/2 36 532154355 Sprocket Assembly w/Bearing
(Includes Key Nos. 37 and 38) 37 532124791 Bearing, Needle 38 532154356 Sprocket, Tine 39 532105345 Gear, Cluster, Red 1st & 2nd 40 532105346 Gear, Reverse 41 532008358 Shaft, Reduction (1st) 42 532004220 Washer, Thrust 43 532106146 Spacer 1.01 x 1.75 x 0.760 44 532155236 Seal Asm, Oil 48 532170338 Gearcase, R.H. w/Bearing
(Includes Key No. 8) 49 532132688 Shaft, Tine 50 532106147 Chain, Roller #50-50 Pitch 51 817720408 Screw 1/4-20 x 1/2 52 873220500 Nut, Hex 5/16-18 53 532165140 Kit, Bearing 58 817720412 Screw Thd Cut 1/4-20 x 3/4 TY23 60 532124836 Fitting Grease
- - 532006066 Grease, Plastilube #1 NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
22
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TILLER - - MODEL NUMBER 650CRTA, PRODUCT NUMBER 954 32 80-30

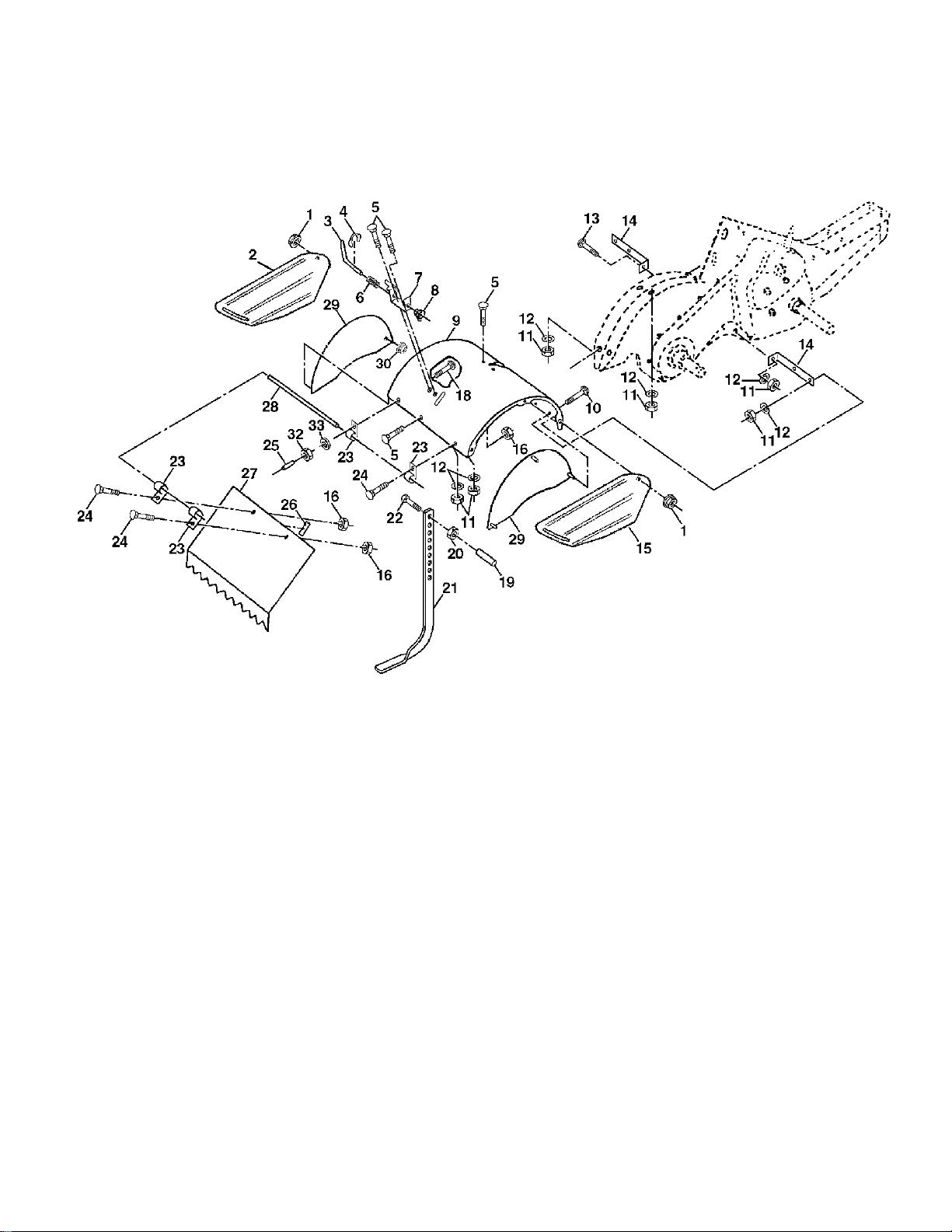

TINE SHIELD

KEY PART NO. NO. DESCRIPTION
1 873900500 Nut, Lock Hex Flange 5/16-18 2 532162952 Shield, Side, Outer L. H. 3 532008393 Pin, Stake, Depth 4 812000036 Ring, Klip 5 872140506 Bolt, Carriage 5/16-18 x 3/4 Gr. 5 6 532008394 Spring 7 532008392 Bracket, Latch 8 532109230 Spring, Depth Stake 9 532142292 Shield, Tine 10 872140508 Bolt, Carriage 5/16-18 UNC x 1 11 873220500 Nut, Hex 5/16-18 12 810040500 Washer, Lock 5/16 13 872110510 Bolt, Carriage 5/16-18 x 1-1/4 14 532124311 Bracket, Shield Tine 15 532162953 Shield, Side, Outer R.H. 16 873900400 Nut, Hex Flange 1/4-20 UNC 18 872040410 Bolt, Carriage 1/4-20 x 1-1/4 Gr.
KEY PART NO. NO. DESCRIPTION
19 532102701 Grip 20 873220600 Nut, Hex 3/8-16 21 532102156 Stake, Depth 22 874930632 Bolt, Hex 3/8-16 x 2 23 532004440 Hinge 24 872140404 Bolt, Carriage 1/4-20 x 1/2 Gr. 5 25 532124717 Cap, Vinyl 26 532109227 Pad, Idler 27 532125016 Shield, Leveling 28 532120588 Pin, Hinge 29 532142293 Shield, Side 30 873970500 Locknut, Flange 5/16-18 32 873220400 Nut Fin Hex 1/4-20 UNC 33 810040400 Washer Lock Hvy Helical 1/4
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
23
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TILLER - - MODEL NUMBER 650CRTA, PRODUCT NUMBER 954 32 80-30

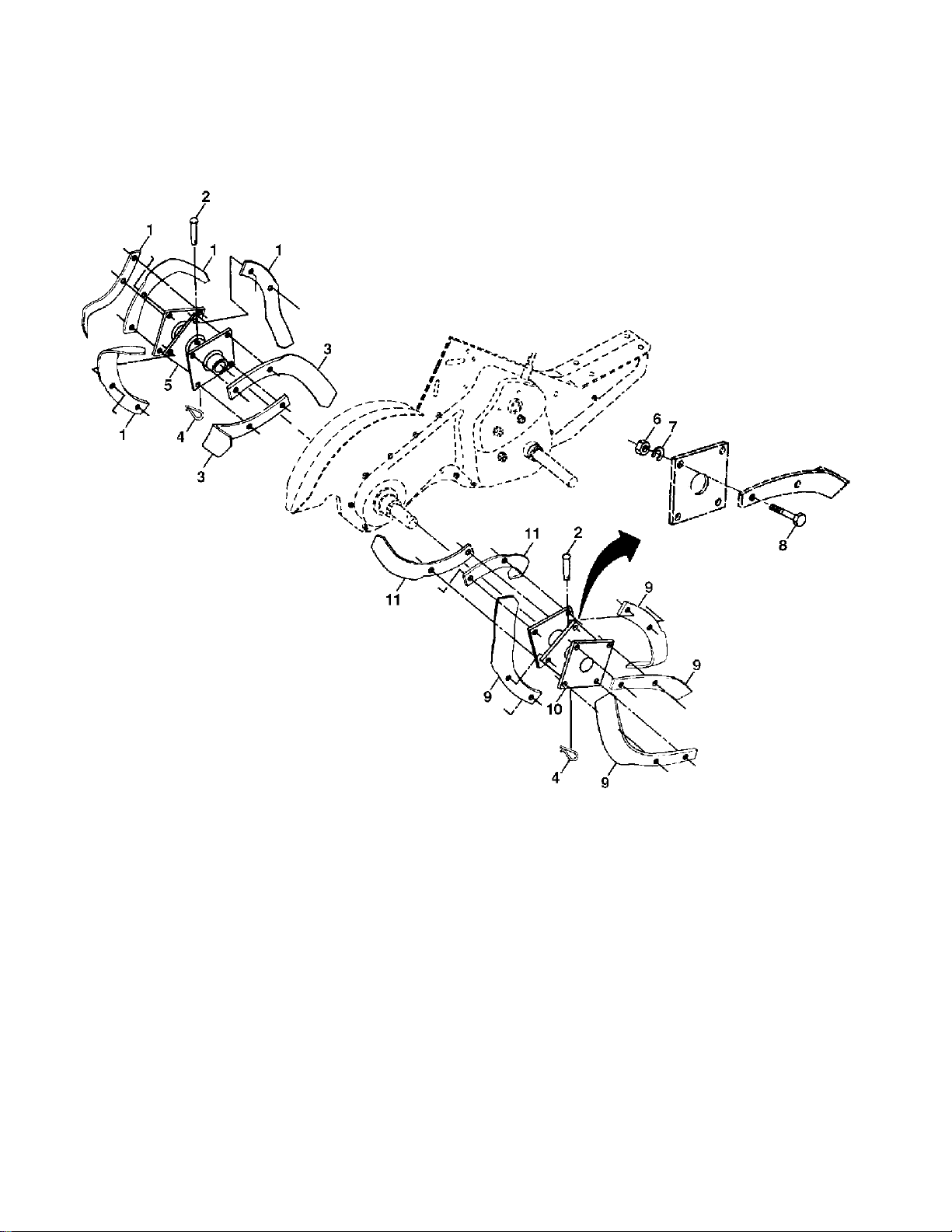

TINE ASSEMBLY
KEY PART NO. NO. DESCRIPTION
1 532004459 Tine, Outer, L.H. 2 532132673 Clevis Pin 3 532006554 Tine, Inner, L.H. 4 532124660 Retainer, Spring Zinc 5 532132727 Assembly, Hub and Plate, L.H. 6 873610600 Nut, Hex 3/8-24 7 810040600 Washer, Lock 3/8
KEY PART NO. NO. DESCRIPTION
8 874610616 Bolt, Hex 3/8-24 x 1 9 532004460 Tine, Outer, R.H. 10 532132728 Assembly, Hub and Plate, R.H. 11 532006555 Tine, Inner, R.H.
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
24
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TILLER - - MODEL NUMBER 650CRTA, PRODUCT NUMBER 954 32 80-30

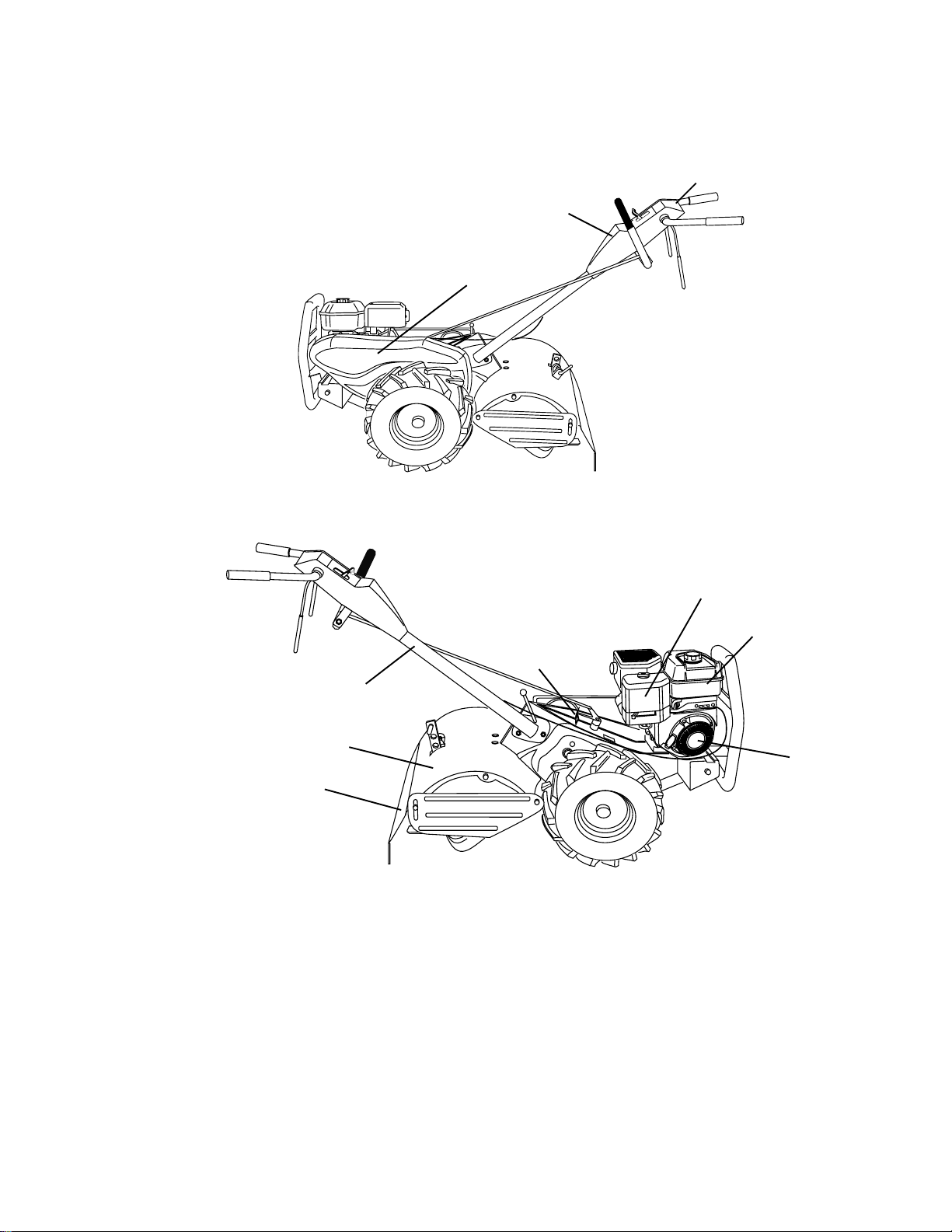

DECALS

3
2
1
6
5
7
9
KEY PART NO. NO. DESCRIPTION
1 532177007 Decal, Blt Grd 2 532175997 Decal, CNTRL PNL 3 532155856 Decal, Logo 5 532110614 Decal, Hand Placement 6 532102180 Decal, Shift Indicator 7 532162384 Decal, Warning 8 532171079 Decal, Engine B&S 6.5 HP 9 532120076 Decal, Warning, Rotating Tines 10 532166869 Decal, Engine Intek REF 11 532171078 Decal, Rewind Intek #274350
- - 532175725 Manual, Owner’s (English)
- - 532175726 Manual, Owner’s (French)
8
10
11
25
