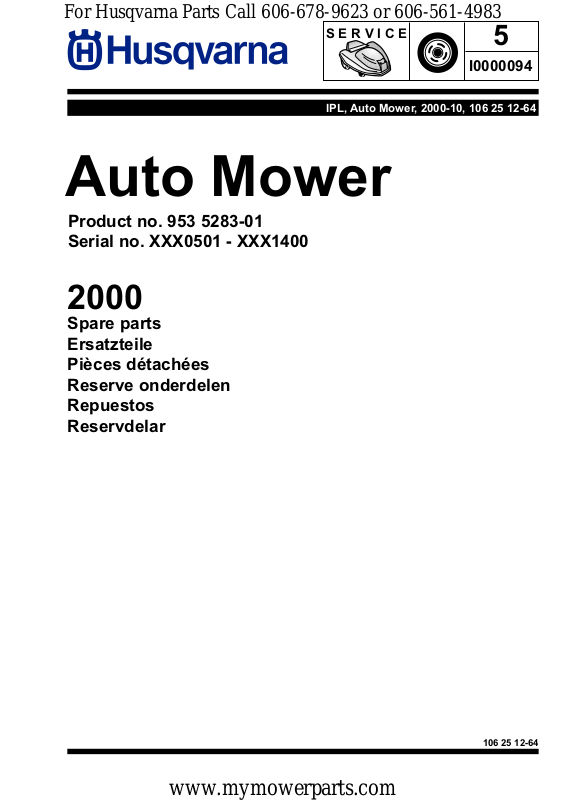

SERVICE

IPL, Auto Mower, 2000-10, 106 25 12-64

Auto Mower

Product no. 953 5283-01 Serial no. XXX0501 - XXX1400

2000

I0000094

Spare parts Ersatzteile Pièces détachées Reserve onderdelen Repuestos Reservdelar

www.mymowerparts.com

106 25 12-64

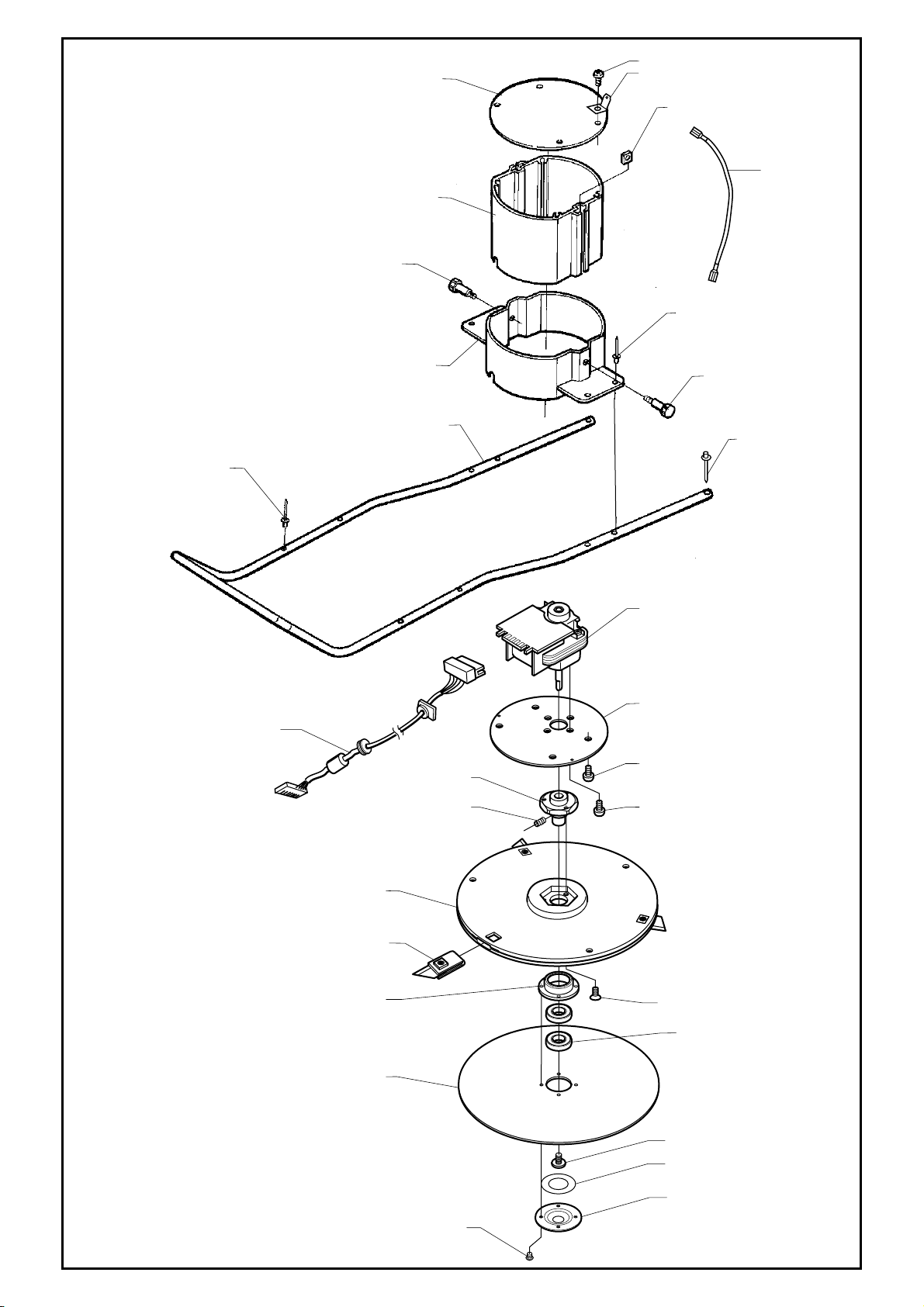

Page 2

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

*compl 535 08 73-01

*compl 535 08 73-02 (US)

* **535 07 08-01

535 07 60-01 (x3)

*535 08 13-01

535 05 47-01*

535 07 13-01* 535 05 82-01*

*compl 535 08 63-01

*compl 535 08 63-02 (US)

535 06 81-01

535 08 56-01

*731 23 14-01

* **

722 78 22-09* 734 11 23-71*

*734 11 46-01 (x2)

725 23 33-71*

*535 06 72-01

535 07 02-01 732 25 14-01

535 06 78-01 (x3) *

535 08 09-01 (x2)*

535 07 72-01*

535 05 47-02*

722 78 22-09* 734 11 23-71*

535 08 51-01

535 04 95-03 535 05 57-01

535 03 28-01

535 05 83-01

535 03 37-01

535 05 87-01

535 03 24-01

732 25 12-01

535 03 27-01

(x2) 535 03 61-01

www.mymowerparts.com

535 03 31-01 535 03 30-01

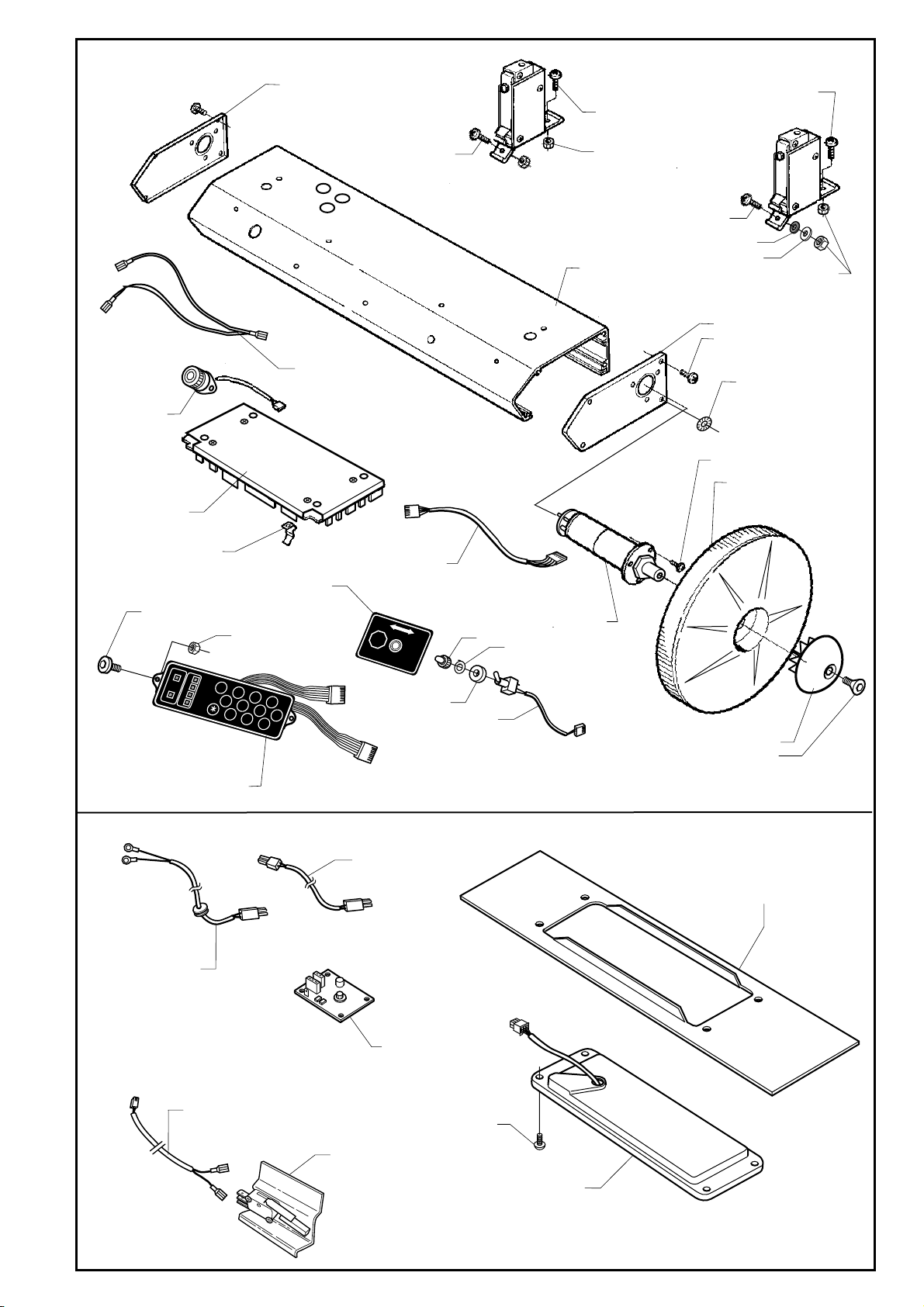

Page 3

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

535 06 45-01

535 09 56-01

535 06 14-04

535 06 74-01

535 04 95-02

732 25 12-01

535 04 95-05

535 05 86-01

535 04 95-02

535 08 74-01

734 11 37-41

732 25 12-01

535 06 14-03 535 03 61-01 (x8)

735 21 36-01 (x2)

535 04 95-02 (x3)

535 04 97-01

535 03 11-01 (x2)

535 04 95-02 (x2)

535 05 44-01

732 25 12-01 (x2)

535 08 37-01

535 06 48-01

535 07 63-01

535 07 71-01

*535 06 44-01

535 09 64-01

535 06 25-01 725 64 49-01

535 05 09-01

535 08 20-01

535 08 87-01

535 09 04-01

535 04 95-02 (x4)

535 09 02-01

535 09 62-01

www.mymowerparts.com

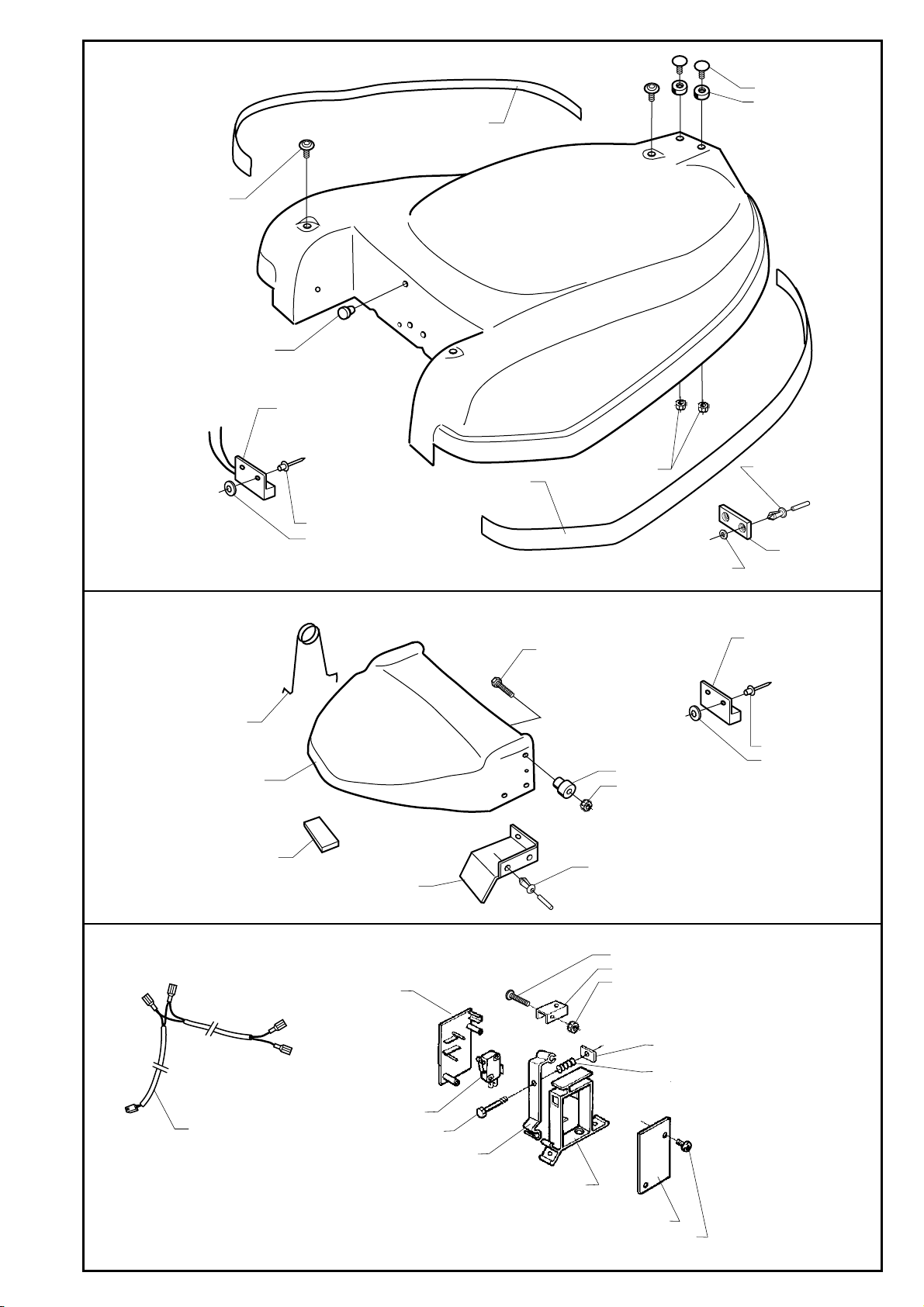

Page 4

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

722 78 33-09 (x4)

535 03 52-01

535 05 50-01

535 03 56-01

535 03 51-01

535 06 46-01

535 03 61-01 (x4) 535 03 95-01

535 04 20-01 (x2)

535 05 55-01

722 79 30-09 (x4)

535 03 56-01

722 78 22-09 (x2)

535 05 60-01

*compl 535 03 58-01

*535 04 88-01 (x3)

535 07 58-01

535 07 55-01 728 82 83-01

535 03 49-01

535 07 53-01

535 03 61-01 (x4)

535 03 50-01 (x4)

724 32 87-51 (x3)

535 07 57-02 (x2)

535 07 59-01

535 04 95-01(x4)

www.mymowerparts.com

535 07 60-01 535 08 25-01

535 08 15-01

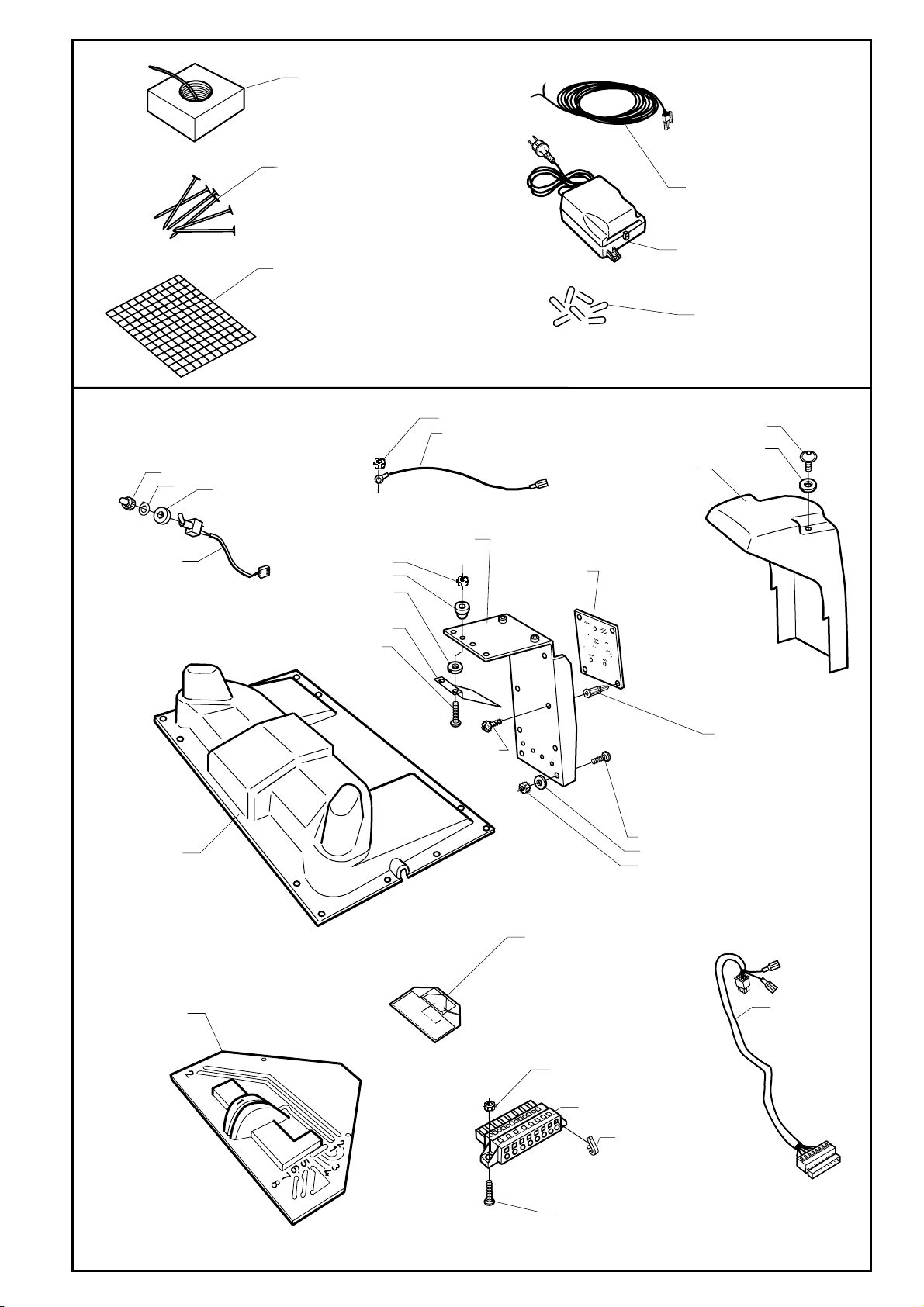

Page 5

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

**compl 535 09 13-01 (US)

**535 08 98-01

**535 08 45-01

535 09 07-01

535 09 16-02**

734 11 37-41

732 25 12-01

535 08 50-01**

535 09 14-01** 535 08 44-01**

535 09 18-01** 535 09 16-01**

535 09 15-01**

**535 04 95-05

535 09 12-01* 535 08 78-01*

738 22 95-55

535 06 50-01

*compl 535 09 24-01

535 09 11-01

*535 08 77-01

*535 08 76-01

535 08 78-01*

738 22 95-55*

535 08 78-01*

535 09 12-01*

535 04 43-01

505 69 99-90

www.mymowerparts.com

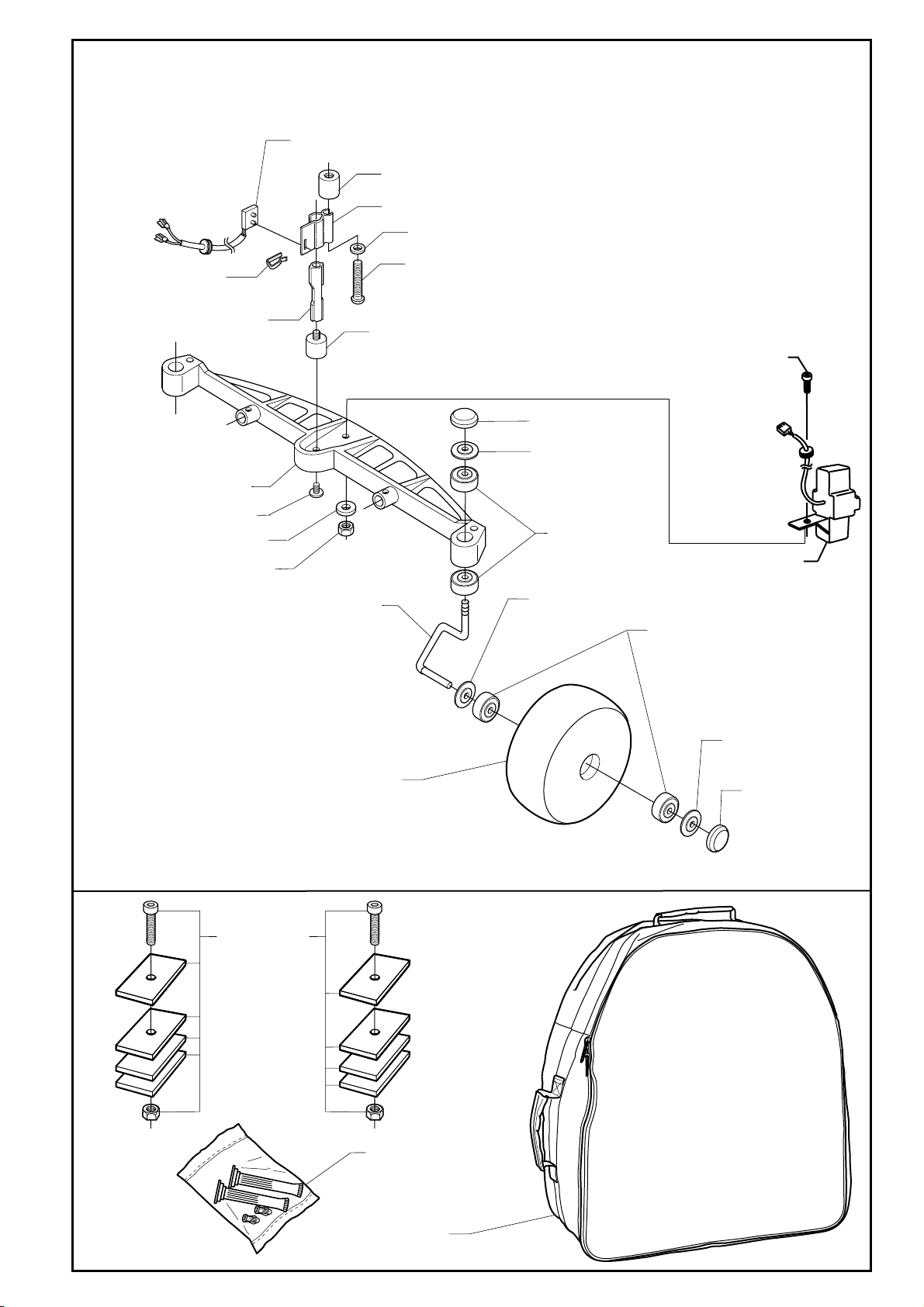

Page 6

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

*compl 535 09 10-01

535 07 71-01

535 04 16-01

535 08 88-01

535 08 79-01

732 25 14-01 535 06 16-01

535 07 89 -01

535 07 88-01 US

535 05 05-01

535 07 60-01

535 08 14-01

535 05 34-01

*535 06 56-01

535 07 83-01

731 23 14-01 506 55 06-01 506 55 07-01

535 05 32-01

535 03 39-02

535 05 33-01

535 08 17-01

535 06 73-01 (x4)

729 57 09-01 (x4)

535 03 39-01 (x4) 734 11 46-01 (x4) 731 23 14-01 (x4)

535 07 84-01

535 07 82-01

535 08 97-01

731 23 09-01 (x2)

535 08 96-01

535 08 12-01 (x8)

724 11 95-01 (x2)

www.mymowerparts.com

Page 7

For Husqvarna Parts Call 606-678-9623 or 606-561-4983

Model Auto Mower

PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE PART NUMBER SQUARE NOTE

505 69 99-90 J N 506 55 06-01 H 506 55 07-01 H 535 03 11-01 D 535 03 24-01 C 535 03 27-01 C 535 03 28-01 C 535 03 30-01 C 535 03 31-01 C 535 03 37-01 C

535 03 39-01 H 535 03 39-02 H 535 03 49-01 F 535 03 50-01 F 535 03 51-01 F 535 03 52-01 F 535 03 56-01 F 535 03 58-01 F 535 03 61-01 CDF 535 03 95-01 F

535 04 16-01 K 535 04 20-01 F 535 04 43-01 J 535 04 88-01 F 535 04 95-01 F 535 04 95-02 DE 535 04 95-03 C 535 04 95-05 DG N 535 04 97-01 D 535 05 05-01 K

535 07 63-01 D 535 07 71-01 DH 535 07 72-01 A 535 07 82-01 H 535 07 83-01 H 535 07 84-01 H 535 07 88-01 K 535 07 89-01 K 535 08 09-01 A 535 08 12-01 H

535 08 13-01 A 535 08 14-01 H 535 08 15-01 F 535 08 17-01 H 535 08 20-01 D 535 08 25-01 F 535 08 37-01 D 535 08 44-01 G N 535 08 45-01 G N 535 08 50-01 G N

535 08 51-01 C N 535 08 56-01 B N 535 08 63-01 B N 535 08 63-02 B N 535 08 73-01 A N 535 08 73-02 A N 535 08 74-01 D N 535 08 76-01 G N 535 08 77-01 G N 535 08 78-01 G N

535 05 09-01 E 535 05 32-01 H 535 05 33-01 H 535 05 34-01 H 535 05 44-01 E 535 05 47-01 A 535 05 47-02 B 535 05 50-01 F 535 05 55-01 F 535 05 57-01 C

535 05 60-01 F 535 05 82-01 A 535 05 83-01 C 535 05 86-01 D 535 05 87-01 C 535 06 14-03 D 535 06 14-04 D 535 06 16-01 H 535 06 25-01 D 535 06 44-01 D

535 06 45-01 D 535 06 46-01 F 535 06 48-01 D 535 06 50-01 G 535 06 56-01 H 535 06 72-01 B 535 06 73-01 H 535 06 74-01 D 535 06 78-01 B 535 06 81-01 B

535 08 79-01 K N 535 08 87-01 E N 535 08 88-01 K N 535 08 96-01 H N 535 08 97-01 H N 535 08 98-01 G N 535 09 02-01 E N 535 09 04-01 E N 535 09 07-01 G N 535 09 10-01 H N

535 09 11-01 J N 535 09 12-01 G N 535 09 13-01 G N 535 09 14-01 G N 535 09 15-01 G N 535 09 16-01 G N 535 09 16-02 G N 535 09 18-01 G N 535 09 24-01 G N 535 09 56-01 D N

535 09 62-01 E N 535 09 64-01 E N 722 78 22-09 ABF 722 78 33-09 F 722 79 30-09 F 724 11 95-01 H 724 32 87-51 F 725 23 33-71 B 725 64 49-01 D 728 82 83-01 F

535 07 02-01 B 535 07 08-01 A 535 07 13-01 A 535 07 53-01 F 535 07 55-01 F 535 07 57-01 F 535 07 57-02 F N 535 07 58-01 F 535 07 59-01 F 535 07 60-01 AFH
