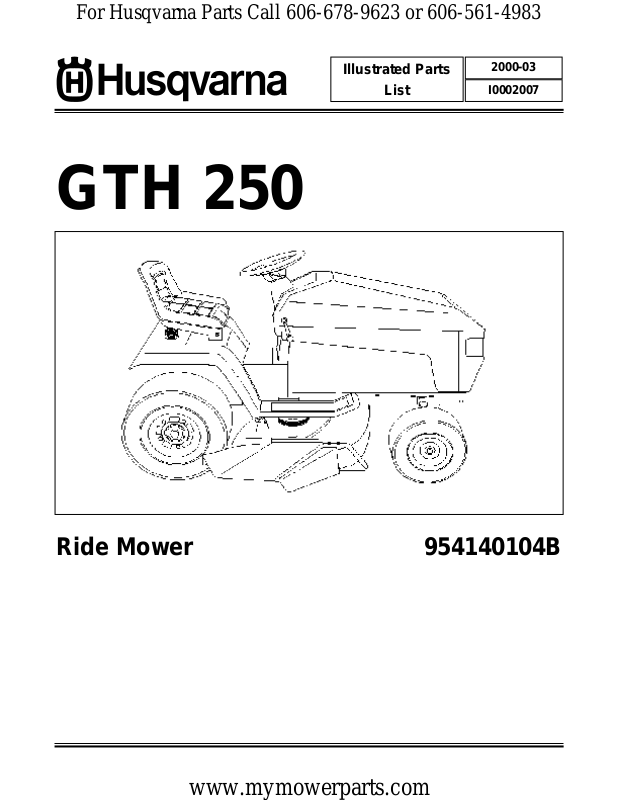

Page 1
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
GTH 250
Illustrated Parts
List
2000-03
I0002007
Ride Mower
954140104B
www.mymowerparts.com
Page 2
)
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

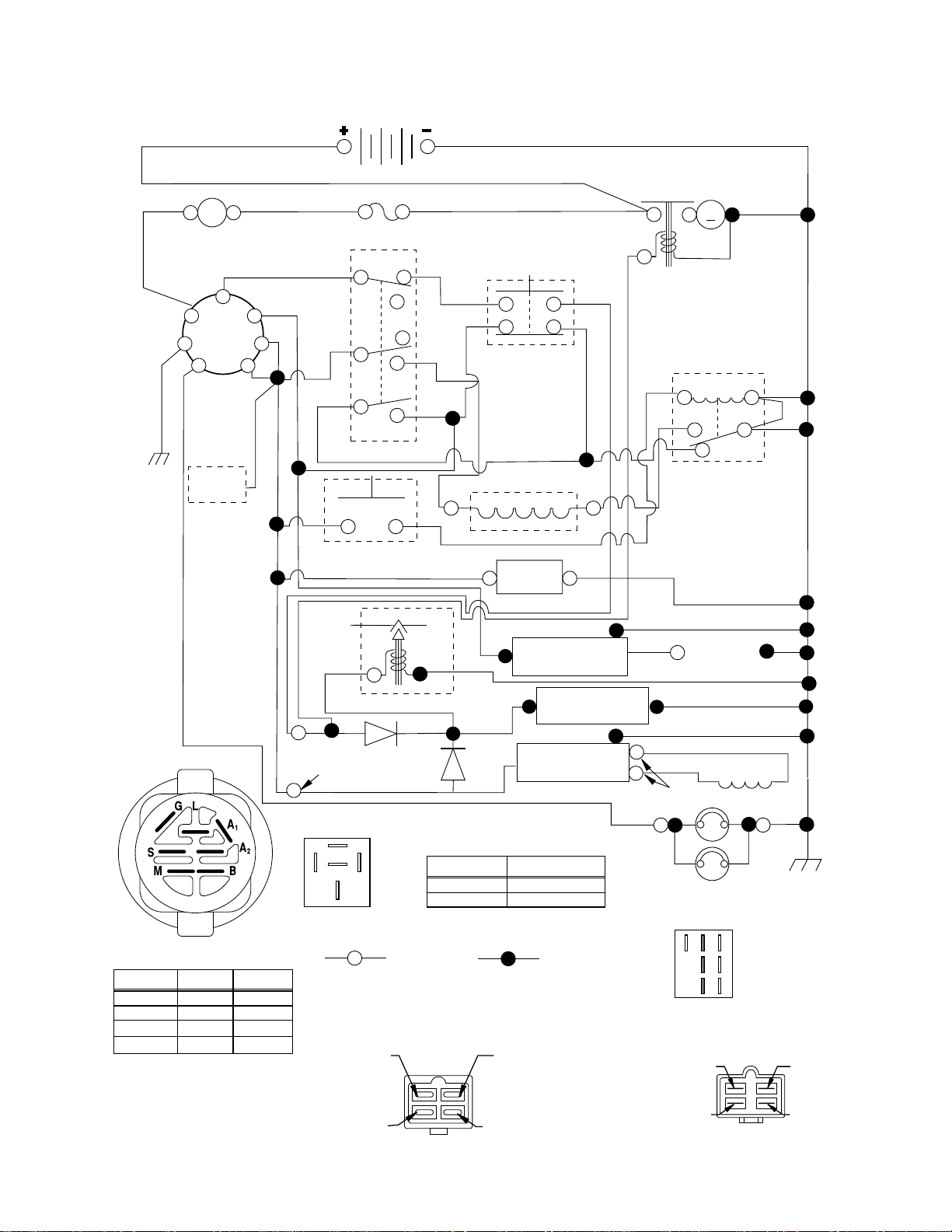

TRACTOR - MODEL NO. GTH250 (954140104B), PRODUCT NO. 954 14 01-04
SCHEMATIC
AMMETER
(OPTIONAL)
RED
IGNITION
SWITCH
BLACK
A
S
B
G
A2L
LIFT KIT
WIRING
RED
BLACK
BATTERY
STARTER
RED
RED
M
BLACK
FUSE
WHITE
BLACK
M
RED
A1
BLUE
RED
CG
F
H
B
RED
E
A
BLACK
D
PTO (DISENGAGED)
SEAT SWITCH
(NOT OCCUPIED)
FUEL
LINE
RED
WHITE
CLUTCH / BRAKE
(PEDAL UP)
ELECTRIC CLUTCH
GREEN
GREEN
METER
(OPTIONAL)
HOUR
BLACK
IGNITION
UNIT
WHITE
85 86
BLACK
87
BLACK
30
BLACK
87A
OPERATOR
PRESENCE
RELAY #1
BLACK
SPARK PLUGS
GAP
(2 PLUGS
ON TWIN CYL. ENGINES)
BLACK
BLACK
IGNITION SWITCH
OFF
CIRCUITPOSITION
M + G + A1
B + A1ON + LIGHTS
B + A1ON
B + S + A1START
“MAKE”
NONE
L + A2
NONE
NONE
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR
WIRING.
FUEL SHUT-OFF SOLENOID
RED
DIODE
CHARGING SYSTEM OUTPUT
15 AMP DC @ 3600 RPM
RED PURPLE
87
87A
8586
30
RELAY
REMOVABLE
CONNECTIONS
ENGINE CONNECTOR
REGULATOR
(PURPLE WIRE,
RED WIRE)
CARBURETOR
SOLENOID
(RED WIRE,
BLUE WIRE)
SMART SPARK
ELECTRONICS
REGULATOR
PTO SWITCH
CIRCUITPOSITION
OFF
ON
C + G, B + H
C + F, B + E, A + D
NON-REMOVABLE
CONNECTIONS
ENGINE
SHORTING
(WHITE WIRE)
OIL SENTRY
(GREEN WIRE)
BLACK
YELLOW
ALTERNATOR
28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)
BROWN
HEADLIGHTS
G
FC
E
H
IGNITION SWITCH
"M" FOR ENGINE
TRACTOR CONNECTOR
SHORTING
(BLACK WIRE)
OIL SENTRY
OPTION
(YELLOW WIRE
TO LIGHT PKG.)
B
A
D
BLACK
BATTERY
CHARGING
(RED WIRE)
SWITCHED
(BLUE WIRE
+12V
31
www.mymowerparts.com
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH250 (954140104B), PRODUCT NO. 954 14 01-04

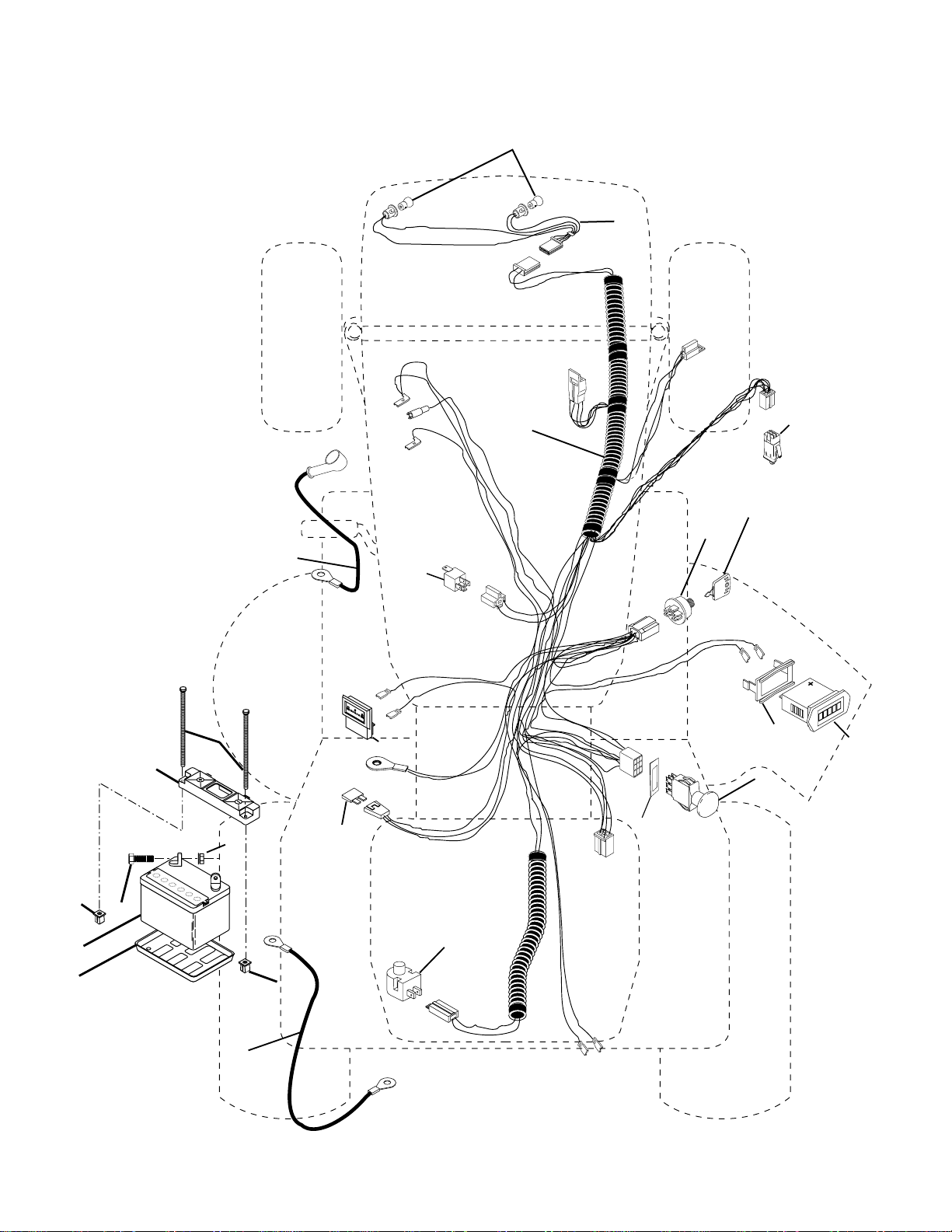

ELECTRICAL
22
21
11
10
27
25
26
D.C. AMPERES
45
81
40
16
33
30
89
46
50
51
12
2
1
8
28
12
29
32
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH250 (954140104B), PRODUCT NO. 954 14 01-04
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532144927 Battery
2 532171017 Bo lt Hex Head 1/4-20 x 3/4
8 532124886 Tray, Battery
10 532171327 Bolt, Btr Frt 1/4-20 x 7-1/2 Zinc
11 532150109 Holddown Battery Front Mount
12 532145769 Nut Push Nylon 1/4" Battery Frt.
16 532153664 Switch Interlock Push-In
21 532166182 Harness Socket Light w/4152J
22 532004152 Bulb Light
25 532154335 Cable/Boot Asm. CV25
26 532108824 Fuse
27 532171018 Nut Keps Hex 1/4-20 Unc
28 532170697 Cable, Ground
29 532160784 Switch, Plunger
30 532163968 Switch, Ign
33 532140401 Key
40 532166178 Harness Ign.
45 532122822 Ammeter, Rectangular 15 Amp
46 532169635 Meter Hour Snap-In
50 532169417 Switch, PTO
51 532140405 Ring Retainer PTO
62 532110143 Bulb, Light Pkg.
81 532109748 Relay Asm.
89 532169639 Bracket Snap-In Hourmeter
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
33
www.mymowerparts.com
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH250 (954140104B), PRODUCT NO. 954 14 01-04

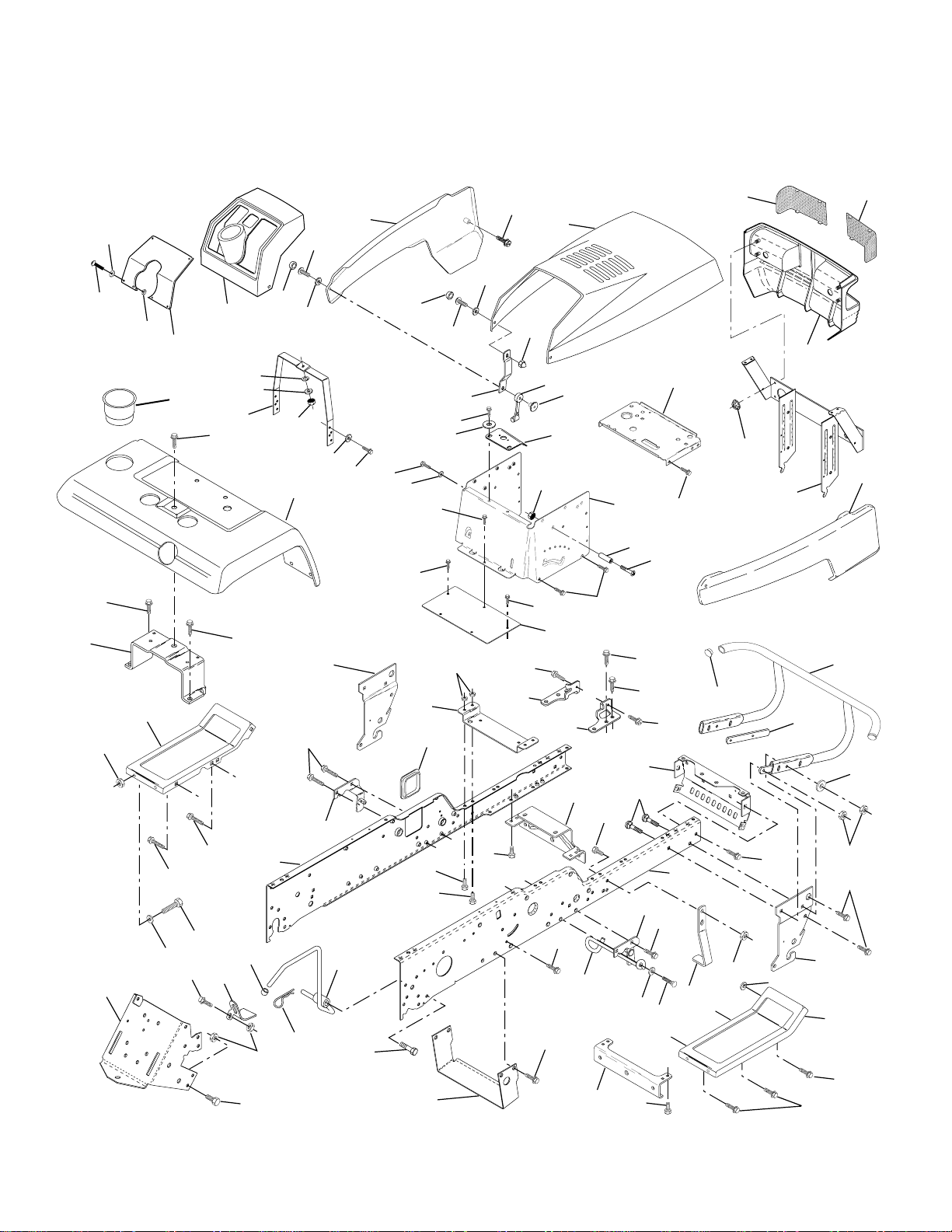

CHASSIS AND ENCLOSURES
58
72
152
153
2
35
28
54
92
152
19
138
68
154
47
47
103
5
29
152
100
38
46
86
4
91
108
27
37
102
109
17
74
43
63
56
136
99
101
25
22
115
118
119
17
44
24
23
117
21
15
18
9
110
116
17
145
47
109
17
130
139
32
112
82
7
152
14
107
31
30
33
106
76
40
70
17
39
20
6
114
50
63
17
80
17
45
8
68
79
17
139
1
17
84
60
3
108
132
131
68
35
17
90
7
7
52
34
16
151
36
98
34
www.mymowerparts.com
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH250 (954140104B), PRODUCT NO. 954 14 01-04
CHASSIS AND ENCLOSURES
KEY PART
NO. NO. DESCRIPTION
1 532150253 Rail, Frame RH
2 532140506 Drawbar, Gt
3 532150478 Panel Asm., Side LH
4 532171331 Nut, Crownlock 7/16-14 Unc
5 532140452 Dash, Plastic Black
6 532157882 Dash 1-PCS, Lower
7 532171323 Screw, Thd Cut 1/4-20 x 1/2
8 532145166 Support, Battery
9 532108067 Nut Pal
14 532150477 Hood Asm., Pnt
15 532168214 Lens, Headlight LH
16 532121794 Cover, Access
17 532171167 Screw 3/8-16 x 3/4
18 532157236 Grille
19 532171151 Washer 13/32 x 13/16 x 12 Ga.
20 532171339 Bolt, Fin Hex 3/8-16 x 1
21 532171168 Nut, Crownlock 3/8-16 Unc
22 532150479 Panel Asm., Side RH
23 532171235 Screw 3/8-16 x 1/2
24 532147202 Footrest, RH
25 532168213 Lens Headlight RH
27 532171343 Nut Fin Hex 1/4-20
28 532147203 Footrest, LH
29 532145205 Bracket, Support Dash
30 532145052 Saddle
31 532161419 Brace, Support Steering
32 532161327 Bracket Asm., Frame Pivot Lh
33 532161326 Bracket Asm., Frame Pivot Rh
34 532142131 Bracket, Engine Support Rear
35 532171349 Washer 11/32 x 11/16 x 16 Ga.
36 532171338 Bolt, Fin Hex 5/16-18 x 3/4
37 532169426 Fender, Pnt.
38 532171185 Washer, Lock 1/4
39 532136961 Bracket, Axle Front
40 532156111 Bracket, Support Axle/Engine
43 532136939 Bracket, Spnsn Front Lh
44 532136940 Bracket, Spnsn Front Rh
45 532154913 Bracket Asm., Susp Chassis Rh
46 532171342 Washer 9/32 x 3/4 x 16 Ga.
47 532171136 Screw Thdrol 3/8-16 x 1/2
50 532152728 Bracket, Chassis Front
52 532171248 Locknut, Hex W/Ins 5/16-18 Unc
54 532171195 Nut 5/16-18
56 532154914 Bracket Asm., Susp Chassis Lh
58 532137113 Bracket Asm., Fender
60 532171173 Screw 3/8-16 x 1-1/4
KEY PART
NO. NO. DESCRIPTION
63 532171236 Washer 13/32 x 1 x 14 Ga.
68 532171196 Screw, Thdrol 5/16-18 x 1/2
70 532137159 Guide, Belt Mid Span
72 532171194 Screw, Mach Trhd 5/16-18 x 3/4
74 874191008 Screw, Machine #10-24
76 532125004 Nut, Weld #10-24
79 532171346 Screw, Machine #10-24 x 1/4
80 532171345 Spacer, Split
82 532171347 Nut #10-24
84 532142992 Stop, Over Center 44" 20/23" T. 94
86 532171330 Bolt, Fin Hex 7/16-14 Unc x 1
90 532171217 Washer, Lock External Tooth 3/8
91 532170755 Rail, Frame Lh
92 532171366 Plate, Silkscreen Dash
98 532140503 Bracket Chassis Skid
99 532171332 Rod Asm. Bypass
100 532071673 Cap Brake Parking Black
101 532171334 Screw Thdrol. 3/8-16 x 1-3/4
102 532171333 Retainer Spring 1"
103 532142273 Bracket Lock Bypass
106 532171341 Screw Thdrol. Hex Hd Zinc Mur
107 532109808 Latch, Chute Blk
108 532110356 Cap, Snap Black
109 532110357 Cap, Washer Snap
110 532150200 Pivot Asm. Grille/Hood Husq. VGT
112 532060867 Nut, Acorn, Hex #10-24
114 532171335 Bolt, Carriage 3/8-16 x 1-1/4
115 532150300 Bumper Asm.
116 532141461 Bracket Extension Bumper
117 532143679 Plug Plastic
118 532171140 Washer 13/32 x 13/16 x 16 Ga.
119 532171141 Nut Crownlock 3/8-16 UNC
130 532171223 Screw HWHD Hi-Lo #13-16 x 3/4
131 532150195 Bracket Support Hood/Panel YP
132 874291006 Screw Truss Hd. #10-24 x 3/8
136 532171154 Screw 3/8-16 x 3/4
138 532166625 Cupholder YTGT Grey
139 532171348 Bolt, Shoulder 5/16-18 TT
145 532171465 Washer Flat 13/32 x 7/8 x 16 Ga.
151 532171340 Screw 5/16-18 x 3/4
152 532171154 Screw 3/8-16 x 3/4
153 532171141 Nut Crownlock 3/8-16 Unc
154 532171375 Bolt Hex Fin 3/8-13 x 1
- - 532125085 Plug, Hole
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
35
www.mymowerparts.com
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH250 (954140104B), PRODUCT NO. 954 14 01-04

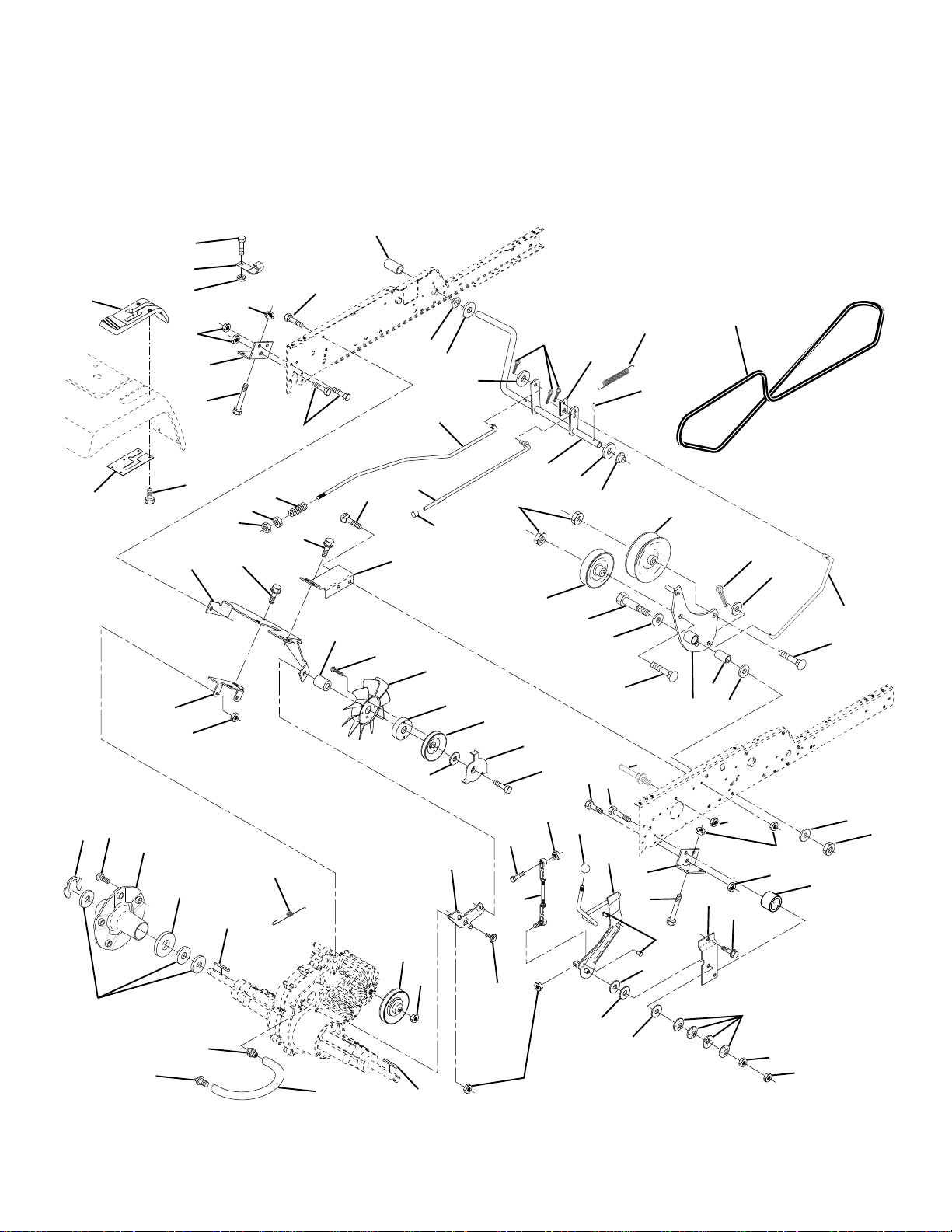

GROUND DRIVE
42
39
70
71
83
41
72
40
89
82
76
73
74
28
81
72
51
17
77
81
81
84
79
85
35
80
67
38
29
86
37
34
87
30
88
117
52
64
90
54
56
6
15
47
48
55
66
6
46
37
38
65
53
91
77
36
68
50
48
115
99
33
69
118
9
7
109
3
2
106
108
107
104
61
20
2
92
93
105
72
23
22
76
73
94
96
112
100
116
72
89
98
99
101
113
89
67
5
111
36
www.mymowerparts.com
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH250 (954140104B), PRODUCT NO. 954 14 01-04
GROUND DRIVE
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - - - Transaxle , Hydro Gear 222-3010
Order parts from transaxle
manufacturer
2 532007070 Ke y 1/ 4 x 2.5
3 532007563 Washer Thrust Axle Harden
5 532171168 Nut Crownlock 3/8-16
6 532171165 Pin Cotter 1/8 x 3/4
7 532140507 Wheel Hub Asm.
9 532171379 Bolt Hub
15 532171168 Washer 13/32 x 13/16 x 16 Ga.
17 532140921 Spring Rod Brake
20 532171128 Nut Hex Jam Toplock 1/2-20
22 532156103 Shaft Arm Asm
23 532140845 Knob
28 532171163 Nut, Hex Jam 3/8-16
29 532171404 Brake Rod
30 532171140 Washer 13/32 x 1 x 16Ga
33 812000053 Ring E
34 532071673 Cap Plunger
35 532171459 Rod Parking Brake
36 532149412 Spring Drive Ground
37 532171038 Washer 25/32 x 1-1/4 x 16 Ga.
38 532150035 Nyliner
39 532171413 Screw Fin #10-24 x 1
40 532005304 Actuator Interlock Switch
41 532171414 Nut Toplock #10-24 UNC
42 532124872 Cover Pedal
46 532145170 Retainer Spring
47 532138228 Clutch Rod
48 532171180 Bolt Carriage 3/8-16 x 1-1/2 Gr. 5
50 532131494 Pulley Idler Flat
51 532171408 Nut Lock Hex 3/8-16
52 532139123 Pulley Idler Grooved
53 532000207 Washer Hartdened
54 532161590 Clutch Arm Asm
55 532105706 Bearing, Idler
56 532140218 V-Belt
61 532171484 Pullery Transaxle
64 532154752 Shaft Asm Brake Parking Clutch
65 532171423 Bolt Shoulder
66 532140296 Washer Hardened
67 532171151 Washer 13/32 x 13/16 x 12 Ga
68 532005142 Pin Roll
69 532171378 Washer
KEY PART
NO. NO. DESCRIPTION
70 532166624 Console Hydro Fender
71 532151179 Plate Console Shift
72 532171026 Nut Crownlock 5/16-18
73 532171400 Bolt Hex FLGHD 5/16-18 x 3 Gr 5
74 532171370 Screw, Hex Wsh Hi-Lo 1/4-1/2
76 532140481 Bracket Transaxle
77 532171330 Bolt Fin Hex 7/16-14 x 1
79 532171401 Bolt Carriage 5/16-18 x 5/8
80 532140484 Bracket Torque RH
81 532171154 Screw 3/8-16 x 3/4
82 532150586 Bracket Mount Torque/Fan
83 532140479 Strap Torque Mid
84 532140490 Spacer
85 532171402 Screw #10-24 x 1-1/4
86 532140462 Fan 7" Hydro
87 532140491 Adapter Fan
88 532161592 Pulley Idler
89 532171331 Nut, Crownlock 7/16-14
90 532140489 Keeper Belt
91 532171403 Screw Thdrol 3/8-16 x 2-3/4
92 532171409 Bolt Fin Hex 5/16-18 x 1.75
93 532140502 Link Shift Asm
94 532133835 Fastner Christmas Tree
96 532141103 Washer Nickel Plated
98 532141004 Bracket Shift
99 532171411 Screw 3/8-16 x 1-1/2
100 532126881 Washer Compression
101 532156106 Washer Bellville
104 532140480 Bracket Idler
105 532171399 Screw Tap 1/4-20 x 1/2
106 532142918 O-Ring Asm. Hydro Gear
107 532154739 Line Fuel Hydro
108 532142917 Cap Vent
109 532140929 Spring Return Brake
111 532156240 Spacer Shift Lever VGTH
112 532156104 Washer Nylon High Temp
113 532171412 Nut Hex ASF 7/16-14 UNC
115 532171428 Keeper Belt Gnd Dr.
116 532171429 Nut Lock Hex Flange 5/16-18
117 532171422 Nut Lock Flg. 3/8-16 UNC
118 532171410 Nut Lock Hex w/Ins. 5/16-18 Unc
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
37
www.mymowerparts.com
Page 9
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH250 (954140104B), PRODUCT NO. 954 14 01-04

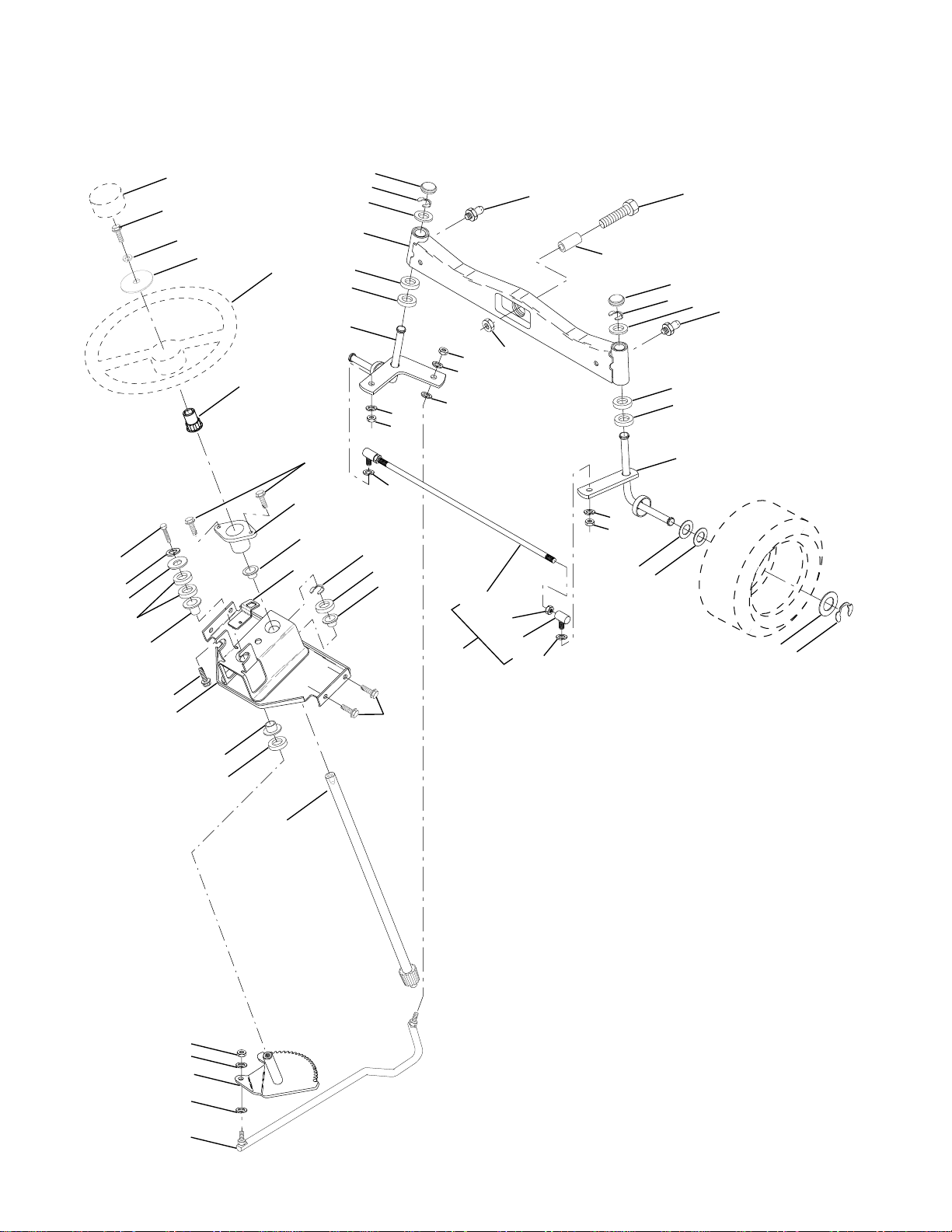

STEERING ASSEMBLY
34
33
32
26
25
14
24
1
21
23
22
31
41
6
27
9
8
7
2
6
6
4
15
14
14
15
14
30
6
29
14
36
37,39
17
12
38,40
14
3
11
14
15
13
13
10
9
8
7
3
6
6
5
7
8
42
19
28
27
6
16
46
14
35
14
18
38
www.mymowerparts.com
Page 10
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH250 (954140104B), PRODUCT NO. 954 14 01-04
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 532166627 Wheel, Steering
2 532137094 Axle Asm., Front
3 532124836 Fitting, Grease
4 532161849 Spindle Asm, LH
5 532161848 Spindle Asm., RH
6 532124931 Bearing, Race Thrust Harden
7 532171039 Washer 25/32 x 1-5/8 x 16 Ga.
8 812000029 Ring, Klip #T5304-75
9 532121232 Cap, Spindle
10 532171415 Bolt, Fin Hex 5/8-11 x 2-3/4
11 532136518 Spacer, Brg. Axle Front
12 532171416 Nut, Lock Flange 5/8-11 Unc
13 532171038 Washer 25/32 x 1-1/4 x 16 Ga.
14 532171029 Washer, Lock Hvy Hlcl Spr 3/8
15 532171175 Nut, Lock Center 3/8-24 Unf
16 532145103 Shaft Asm., Steering
17 532137347 Rod Asm., Tie Ball J Ball Vgt (Inc. Key No. 36-40)
18 532137155 Draglink, Ball Joint Solid Vgt
19 532156011 Support Asm., Steering Vgt
21 532159945 Adapter, Wheel Steering
22 532155105 Bushing, Strg.
23 532171193 Screw
24 532171388 Washer 13/32 x 1-1/20 x 11 Ga.
25 532171427 Bolt, Fin Hex 3/8-16 x 1 Gr. 5
26 532166626 Cap , Wheel Steering
27 532124937 Bearing, Col. Strg.
28 532171154 Screw 3/8-16 x 3/4
29 532104239 Bearing, Flange
30 812000034 Ring, Klip Truarc #5304-75
31 532138136 Bushing, Nyliner Snap
32 532171425 Washer 11/32 x 1 x 10 Ga.
33 532171213 Washer, Lock Hvy Hlcl Spr 5/16
34 532171358 Bolt, Hex Hd 5/16-18 x 3/4
35 532138059 Gear, Sector Steering
36 532137156 Tie Rod
37 873360600 Jam Nut RH Thread
38 532109850 Joint Asm. Ball RH Thread
39 873700600 Jam Nut LH Thread
40 532109851 Joint Asm. Ball LH Thread
41 532155246 Bracket Switch Interloc
42 532171169 Screw Thdrol 5/16-18 x 1/2 Tyt
46 532171426 Nut Lock Center 3/8-24 Unf
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
39
www.mymowerparts.com
Page 11
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH250 (954140104B), PRODUCT NO. 954 14 01-04

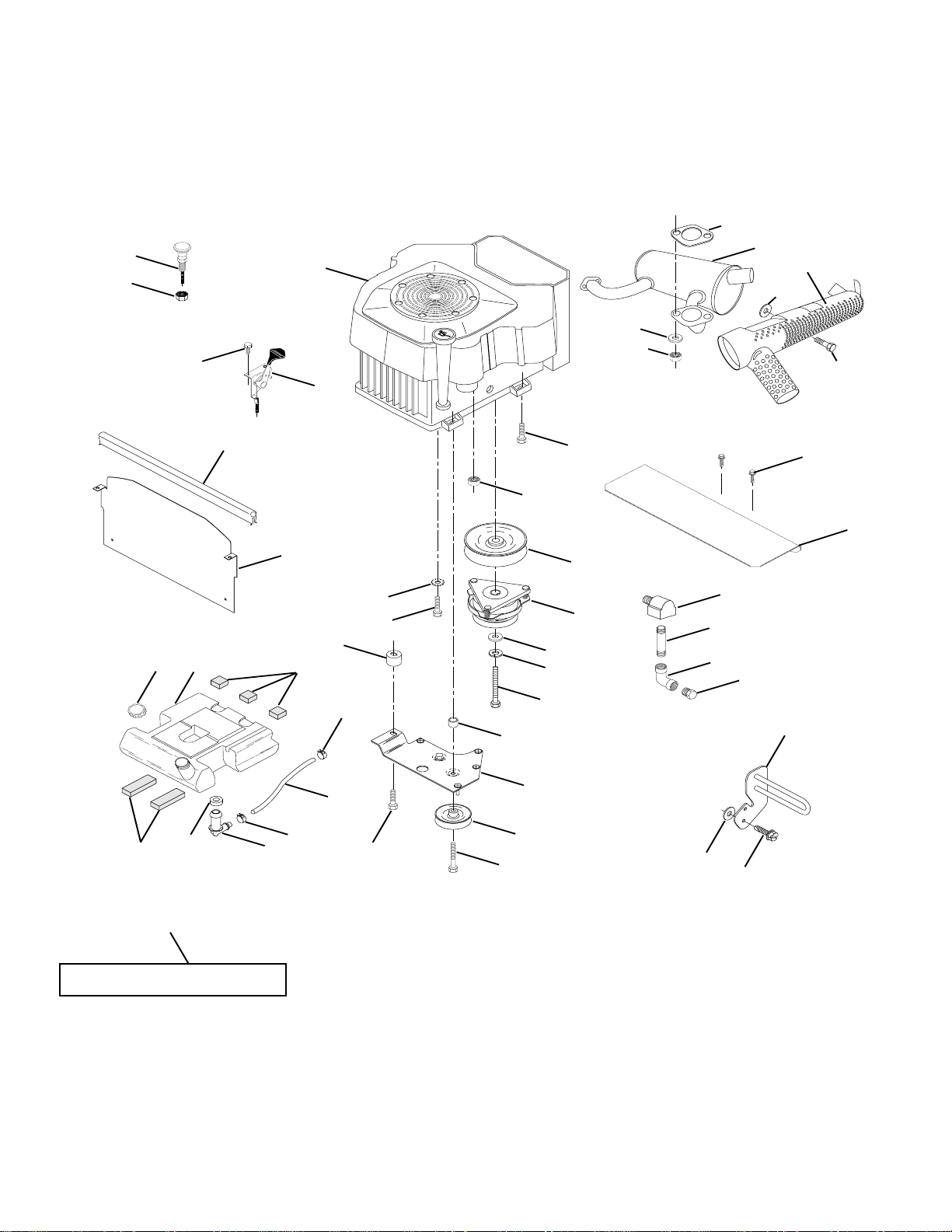

ENGINE
69
22
25
1
35
80
21
20
72
2
65
76
16
18
26
15
30
27
63
37
17
47
28
37
39
24
39
10
40
39
45
12
74
11
41
42
43
9
8
55
5
19
48
38
67
73
7
29
SPARK ARRESTER KIT
40
www.mymowerparts.com
Page 12
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH250 (954140104B), PRODUCT NO. 954 14 01-04
ENGINE
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - - Engine Kohler, Model No. CV25S
2 532150249 Muffler Side
5 532171215 Elbow STD 90 Degree 3/8-18 NPT
7 532151396 Muffler Assembly Guard
8 532121361 Pulley V-Idler
9 532150828 Keeper Asm Belt Engine VGT 96
10 532105432 Bushing
11 532140923 Clutch Electric
12 532143996 Pulley Engine VGT Elect Clutch
15 532151346 Tank Fuel Rear
16 532109227 Pad Spacer
17 532106082 Pad Spacer
18 532140527 Cap Asm Fuel W/Sym Vented
1 9 - - - - - - - - Plug Oil Drain (Order From Engine Manufacturer)
20 532142168 Control Throttle
21 532171192 Screw Hex Thd Cut 1/4-20 X 5/8
22 532145996 Control Choke
24 532171216 Washer Ext Tooth 3/8
25 532171350 Nut Keps 3/8 - 24 UNF
26 532124952 Bushing
27 532139277 Stem Tank Fuel
28 532124703 Fuel Line
29 532132920 Spark Arrester Kit
30 532161547 Extrusion Hood
35 532171467 Washer Split
37 532123487 Clamp Hose
38 532171466 Screw 3/8-16 x 1-1/4
39 532171476 Screw TT 3/8-16 x 2-1/4 UNC
40 532171479 Screw TT 3/8-16 x 4 UNC
41 532171480 Washer 1-1/2 OD X 15/32 ID X .250
42 532171220 Washer Lock 7/16
43 532171219 Bolt Hex 7/16-20 X 4-1/4 Ga 5
45 532171468 Nut Flange M8 1.25
47 532142040 Spacer Engine
48 532171556 Washer 13/32 x 1-1/4 x 7 Ga.
55 532171470 Nipple, Pipe 4-1/2"
63 532145549 Shield, Heat VGT YP/Husq.
65 532171236 Washer 13/32 x 1 x 14 Ga.
67 532171344 Screw 5/16-18 x 3/4
69 532163307 Gasket
72532150250Muffler Pre CV25
73 532153992 Shield Heat Muffler
74 532162295 Elbow Street Brass
76 532171154 Screw 3/8-16 x 3/4
80 532171468 Nut Flange M8 1.25
Order parts from engine manufacturer
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
41
www.mymowerparts.com
Page 13
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH250 (954140104B), PRODUCT NO. 954 14 01-04

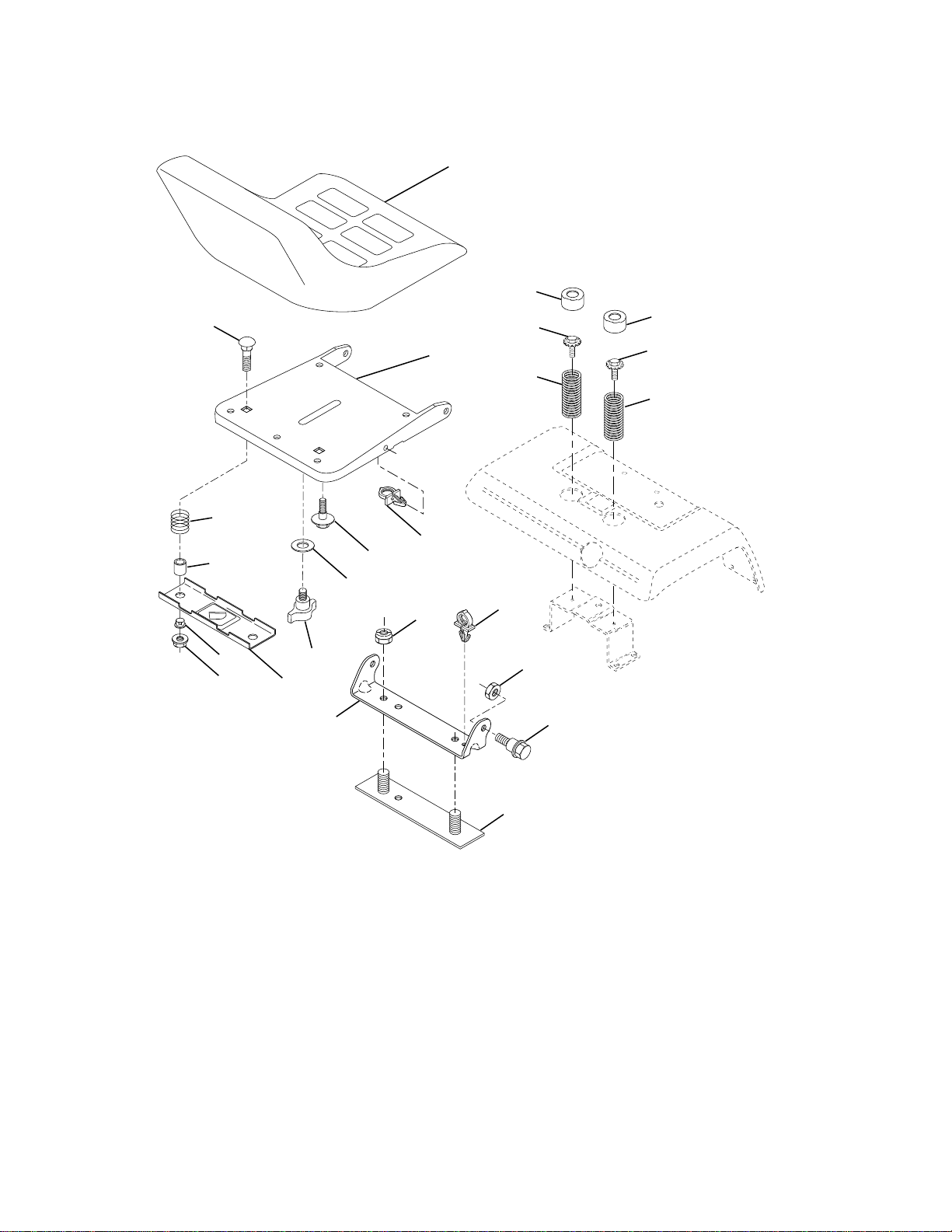

SEAT ASSEMBLY
1
20
14
8
10
7
20
8
7
16
15
13
17
KEY PART
NO. NO. DESCRIPTION
1 532141525 Seat
2 532140551 Bracket, Pivot Seat
3 532140675 Strap, Fender
4 532171260 Bolt, Shoulder 5/16-18 X .62
5 532145006 Clip, Push In Hinged
6 532171141 Nut, Lock Hex W/Ins. 3/8-16 Unc
7 532124181 Spring, Seat Cprsn
8 532171376 Bolt 5/16-18unc x 3/4 W/Sems
10 532155925 Pan, Seat
12 532121246 Bracket, Mounting Switch
13 532121248 Bushing, Snap
19
12
4
18
2
5
6
5
22
21
3
KEY PART
NO. NO. DESCRIPTION
14 532171040 Bolt, Carriage 1/4-20 X 1-1/2
15 532121249 Spacer, Split
16 532123740 Spring, Cprsn
17 532171041 Nut, Lock 1/4 Lge Flg Gr. 5
18 532171261 Washer 17/32 X 1-3/16 X 12 Ga.
19 532166369 Knob, Seat
20 532124238 Cap, Spring Seat
21 532171130 Bolt, Shoulder 5/16-18 Unc-2A
22 532171026 Nut, Crownlock 5/16-18 Unc
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
42
www.mymowerparts.com
Page 14
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH250 (954140104B), PRODUCT NO. 954 14 01-04

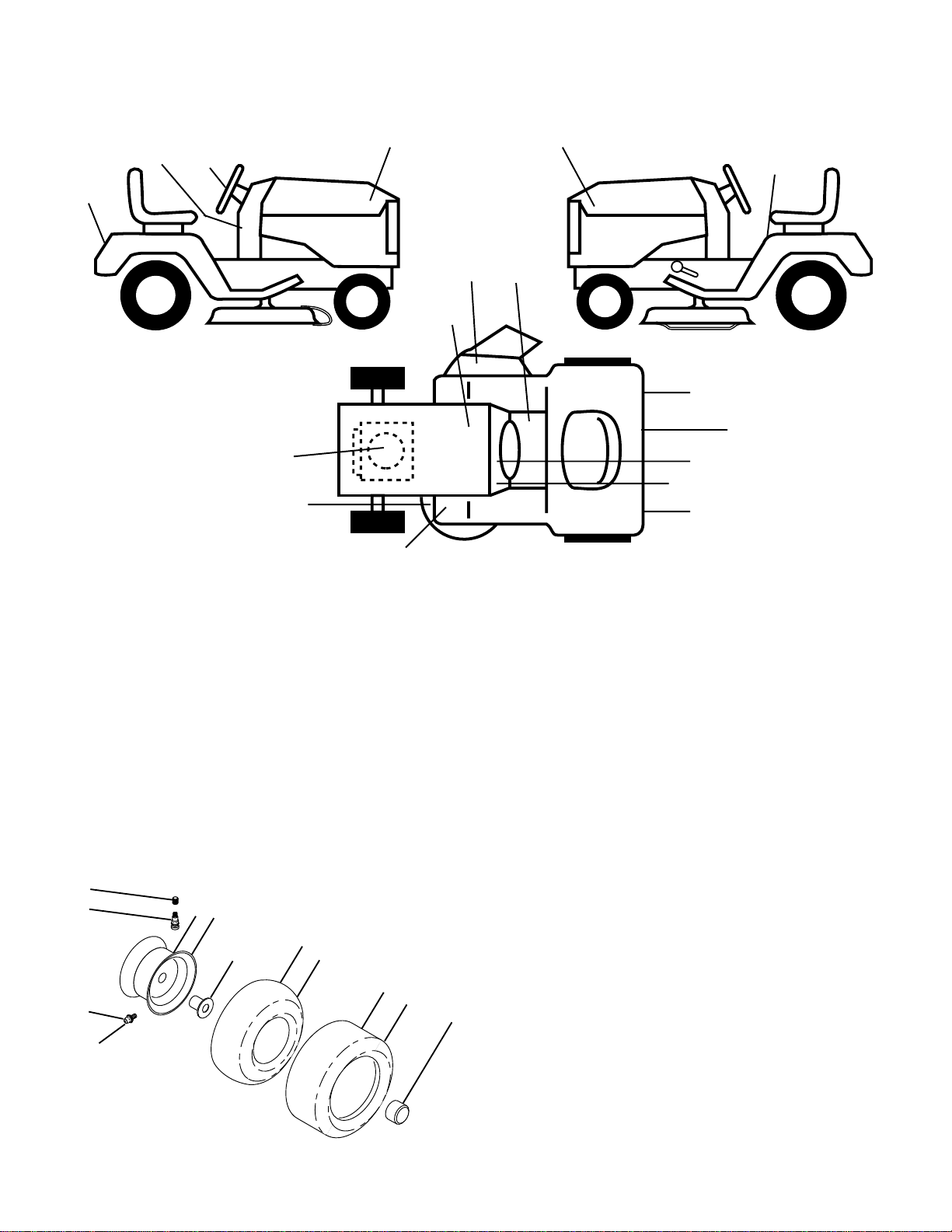

DECALS
2
13
9
6
7
19
5
10
8
23
12
4
14
KEY PART
NO. NO. DESCRIPTION
1 532156964 Decal, Operating Instruction
2 532171458 Decal, Dash Logo
4 532170594 Decal, HP Engine
5 532170570 Decal, Hood LH
6 532170567 Decal, Hood RH
7 532170563 Decal, Warning
8 532140837 Decal, Brake Parking Saddle
9 532150617 Decal, Fender
10 532157140 Decal, Danger
11 532101892 Decal, Clutch/Brake
WHEELS & TIRES
1
2
6
12
11
3
4
7
10
1
3
23
11
KEY PART
NO. NO. DESCRIPTION
12 532142342 Decal, D-Bar Ctrl. Mvt Hyd YT/GT
13 532170564 Decal, Wheel Steering
14 532160397 Decal, V-Belt Schematic
19 532145005 Decal, Battery
23 532106202 Reflector, Taillight
- - 532138311 Decal, Handle Lft Height Adjust
(Lift Handle)
- - 532171237 Pad Ftrest Sq Generic 97
- - 532174478 Manual, Owner’s (English)
- - 532174479 Manual, Owner’s (French)
KEY PART
NO. NO. DESCRIPTION
1 532059192 Cap, Valve, Tire
2 532065139 Stem, Valve
3 532144509 Rim Assembly, Front
4 532008134 Tube, Front (Service Item Only)
5 532106230 Tire, Front
5
9
8
6 532124957 Fitting, Grease
7 532124959 Bearing, Flange (Front Wheel Only)
8 532104757 Cap, Hub, Axle Blk.
9 532105588 Tire, Rear
10 532007154 Tube, Rear (Service Item Only)
11 532144510 Rim Assembly, Rear
12 532124860 Fitting Grease
- - 532144334 Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
43
www.mymowerparts.com
Page 15
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH250 (954140104B), PRODUCT NO. 954 14 01-04

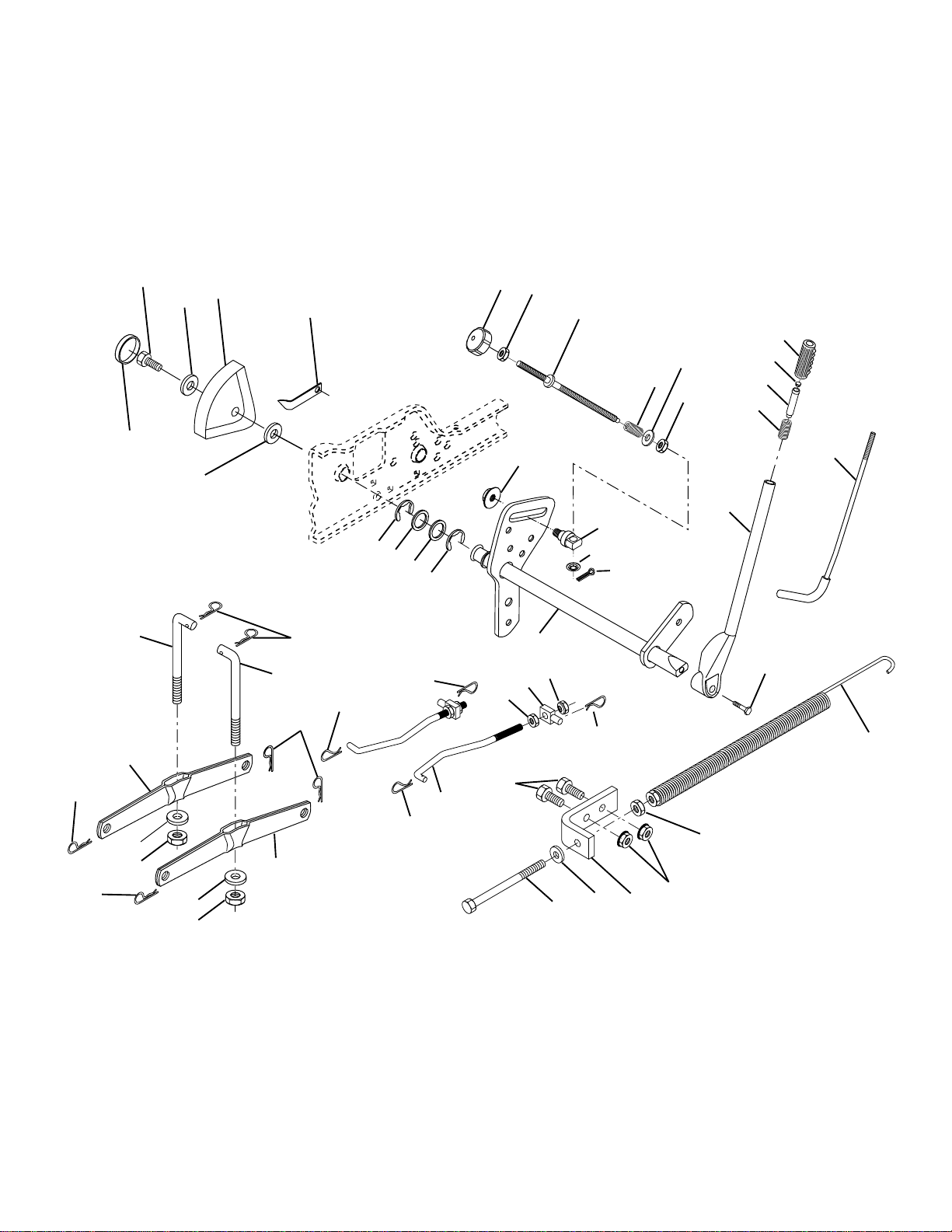

LIFT ASSEMBLY
11
13
39
40
42
42
43
11
23
23
38
12
35
73
34
7
31
32
30
70
29
4
5
5
4
2
26
12
25
24
72
33
12
8
9
10
1
3
6
16
23
23
14
41
14
41
21
22
12
13
19
20
44
www.mymowerparts.com
18
17
15
Page 16
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH250 (954140104B), PRODUCT NO. 954 14 01-04
LIFT ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 532121006 Rod Asm., Lever
2 532159187 Shaft Asm., Lift Vgt
3 532159189 Lever Asm., Lift Rh
4 812000022 E-Ring Truarc #5133-87
5 532171182 Washer 29/32 x 1-1/4 x 16 Ga.
6 532171362 Bolt, Fin Hex 3/8-16 x 1-1/2
7 532125631 Grip, Handle Fluted
8 532124526 Button, Plunger
9 532122364 Plunger, Lever Lift
10 532124874 Spring 2-1/8"
11 532146704 Link Lift
12 532171212 Retainer, Spring
13 532139868 Arm, Suspension Vgt
14 532169865 Bearing
15 532171168 Nut, Crownlock 3/8-16 Unc
16 532124687 Spring Asm., Assist Lift
17 532171357 Nut, Hex Jam 3/8-16 Unc
18 532143363 Bracket, Spring Assist
19 532171140 Washer 13/32 x 13/16 x 16 Ga.
20 532171418 Bolt, Adjust Spring Assist
21 532171339 Bolt, Fin Hex 3/8-16 x 1
22 532127218 Link, Front
23 532171211 Retainer, Spring
24 873350800 Nut, Jam Hex 1/2-13 Unc
25 532130171 Trunnion
26 873680800 Nut, Crownlock 1/2-13 Unc
29 532171203 Trunnion, Infin Height
30 532171355 Nut, Special
31 532171207 Washer 13/32 x 5/8 x 16 Ga.
32 532137150 Spring, Compression Inf Hgt
33 532171359 Pin, Cotter 3/32 x 1/2
34 532171353 Rod, Adj Lift
35 532138057 Knob, Inf 3/8-16 Unc
38 532155097 Pointer, Height Indicator
39 532123935 Plug, Hole
40 532171210 Screw 5/16-18 x 1
41 873540600 Nut, Crownlock 3/8-24
42 532171209 Washer 11/32 x 1-1/2 x 10 Ga.
43 532123934 Scale, Indicator Height
70 532171178 Nut Hex Flange Lock
72 532110452 Nut Push Phos & Oil
73 532171357 Nut Hex Jam 3/8-16 Unc
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
45
www.mymowerparts.com
Page 17
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH250 (954140104B), PRODUCT NO. 954 14 01-04
MOWER DECK
55
48
104
106
115
49
110
53
52
40
33
38
45
50
31
63
45
27
32
45
44
62
108
65
66
45
45
51
37
56
30
31
27
46
39
27
27
45
28
30
114
32
33
45
44
29
43
94
48
95
97
47
98
48
29
97
96
94
59
58
6
103
64
35
109
67
5
6
7
54
1
36
34
105
15
16
14
10
26
99
42
112
45
9
8
18
17
13
12
102
11
23
107
113
2
2
19
20
2
21
22
19
46
www.mymowerparts.com
Page 18
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - MODEL NO. GTH250 (954140104B), PRODUCT NO. 954 14 01-04
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
1 532156990 Deck Asm., Mower 50" Vented
2 532171248 Nut, Crownlock 5/16-18 Unc
5 532138457 Bracket Asm., Sway Bar
6 532171170 Retainer, Spring
7 532130832 Arm Suspension, Rear
8 532850857 Bolt 3/8-24 x 1.25 Gr. 8 Patched
9 532171241 Washer, Lock Hvy 3/8 Unplated
10 532140296 Washer, Hard Blade Mower Vented
11 532137380 Blade (3 Required)
12 532129895 Bearing, Ball #6204 (Mandrel)
13 532137553 Shaft Asm., W/Lower Brg (Includes
Key No. 12)
14 532137152 Housing, Mandrel 50" Vent
15 532110485 Bearing, Ball Mandrel
16 532140329 Stripper, Mower Vented
17 532171594 Rod, Hinge
18 532171222 Washer 11/32 x 5/8 x 16 Ga.
19 532105304 Cap, Sleeve
20 532123713 Spring, Torsion Deflector
21 532137607 Bracket, Deflector
22 532110452 Nut, Push
23 532171593 Shield, Deflector Mower
26 532171576 Bolt Rdhd Sht Sqnk 3/8-16 x 3/4
27 532171140 Washer 13/32 x 13/16 x 16 Ga.
28 532132823 Spacer, Spring Stop Idler
29 532171141 Nut, Lock Hex W/Wsh 3/8-16 Unc
30 532171244 Screw Tdhrolling Washer Head
31 532171246 Nut, Flg Top Lock Cntr 9/16
32 532153535 Pulley, Mandrel
33 532171245 Washer, Spacer Mower Vented
34 532171383 Bolt, Carriage 3/8-16 x 1-1/4
35 532171586 Bolt, Carriage 3/8-16 x 2
36 532171250 Bolt, Carriage 3/8-16 x 1 Gr. 5
37 532137166 Stiffener, Arm Idler
38 532156085 Keeper, Belt Idler
39 532131494 Pulley, Idler Flat
40 532136572 Pulley, Driven
42 532171249 Bolt, Carriage 5/16-18 Unc x 3/4
43 532136460 Arm, Idler Secondary
44 532165723 Spacer, Retainer
45 532171168 Nut, Crownlock 3/8-16 Unc
46 532171585 Bolt, Fin Hex 3/8-16 Unc x 1-3/4
47 532137200 Cover, Mandrel RH
48 532171253 Screw, Thd Roll 1/4-20 x 5/8
KEY PART
NO. NO. DESCRIPTION
49 532136574 Cover, Mandrel LH
50 532137272 Arm, Idler Primary
51 532137273 Spring, Secondary
52 532139245 Pulley, Idler V Groove
53 532137789 Shield, Idler
54 532139573 V-Belt, Mower Primary
55 532144959 V-Belt, Mower Secondary
56 532138687 Spring, Primary
58 532133957 Wheel, Gauge
59 532171254 Bolt, Shoulder
62 532133943 Washer Hardened
63 532171180 Bolt Carriage 3/8-16 x 1-1/2
64 532171256 Washer 3/8 x 7/8 x 14 Ga.
65 532151831 Pulley Idler Flat Mower
66 532156009 Keeper, Belt Idler 44/50" Vent
67 532171255 Nut, Center Lock 3/8-16
94 532171375 Bolt, Fin Hex 3/8-16 UNC x 1
95 532132274 Bracket, Asm. Noseroller LH
96 532132273 Bracket, Asm. Noseroller RH
97 532171389 Washer 17/32 x 7/8 x 16 Ga.
98 532132264 Roller, Nose
99 532171578 Bolt, Carriage 3/8-16 x 1-3/4 Gr. 5
102 532153390 Washer Felt
103 532155986 Bar Pnt Adjusting Wheel Gauge
104 532171386 Pin Head Rivet
105 532156852 Bracket Whl Ga. Asm Rear RH 50"
106 532156853 Bracket Whl Ga. Asm. Rear LH 50"
107 532156854 Bracket Whl Ga. Asm. Front RH 50"
108 532156856 Bracket Whl Ga. Asm Front LH 50"
109 872010505 Bolt Carriage 5/16-18 x 5/8 Blk
110 873980500 Nut Crownlock 5/16-18 Blk
112 532171230 Washer 17/32 x 3/4 x 16 Ga.
113 532171587 Bolt Carriage 5/16-UNC x 1/2
114 532153183 Reinforcement Mandrel Ring
115 532171211 Retainer Spring Blk D
- - 532143651 Mandrel Asm (Includes Key Nos. 810, 12-15, 31 and 33)
- - 532171317 Mower Asm Service (Std. Deck Order separately all Nose Roller and
all Gauge Wheel components)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
47
www.mymowerparts.com
Loading...
