For Husqvarna Parts Call 606-678-9623 or 606-561-4983
LR 122
Illustrated Parts
List
2000-01
I0002004
www.mymowerparts.com
954140105B
Page 2
For Husqvarna Parts Call 606-678-9623 or 606-561-4983

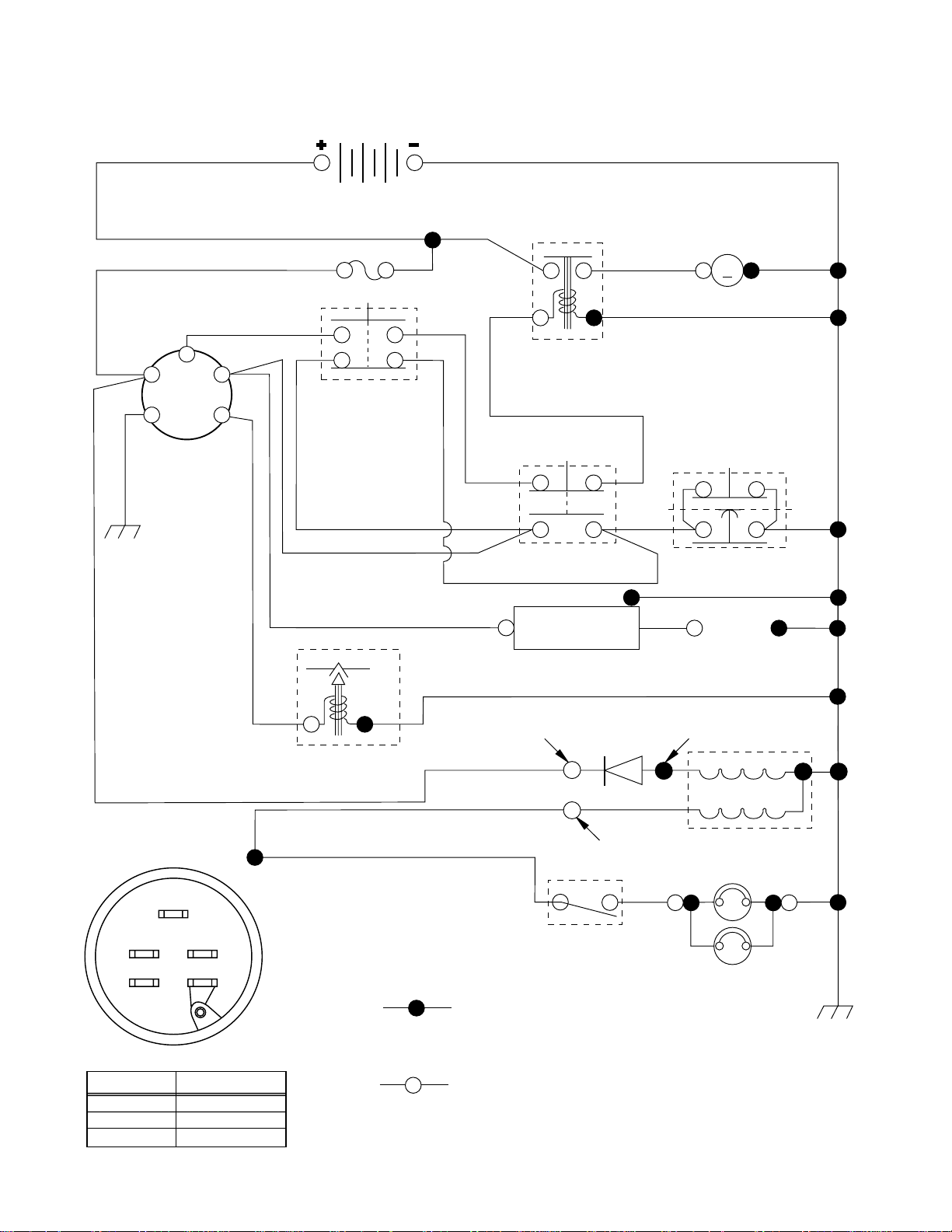

SCHEMATIC
TRACTOR - - MODEL NUMBER LR122 (954140105B)
RED
S
B
G
IGNITION SWITCH
BLACK
RED
BLACK
BATTERY
RED
FUSE
WHITE
RED
M
STARTER
BLACK
SOLENOID
M
L
CLUTCH / BRAKE
(PEDAL UP)
WHITE
SEAT SWITCH
(NOT OCCUPIED)
WHITE
BLACK
BLACK
BLACK
ATT'MENT CLUTCH
(CLUTCH OFF)
BLACK
BLACK
GROUNDING
CONNECTOR
S
M
L
B
G
IGNITION SWITCH
CIRCUITPOSITION
OFF
M + G
B + LON
B + S + LSTART
BLACK
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
(IF SO EQUIPPED)
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
IGNITION
UNIT
CHARGING SYSTEM OUTPUT
3 AMP DC @ 3600 RPM
LIGHTING SYSTEM
OUTPUT
5 AMP AC @ 3600 RPM
HEADLIGHTS (IF SO EQUIPPED)
HEADLIGHT
SWITCH
(OFF)
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
SPARK
PLUG
28 VOLTS AC MIN. @ 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
DIODE
14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)
BROWN
ALTERNATOR
HEADLIGHTS
BLACK
25
www.mymowerparts.com
Page 3
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LR122 (954140105B)

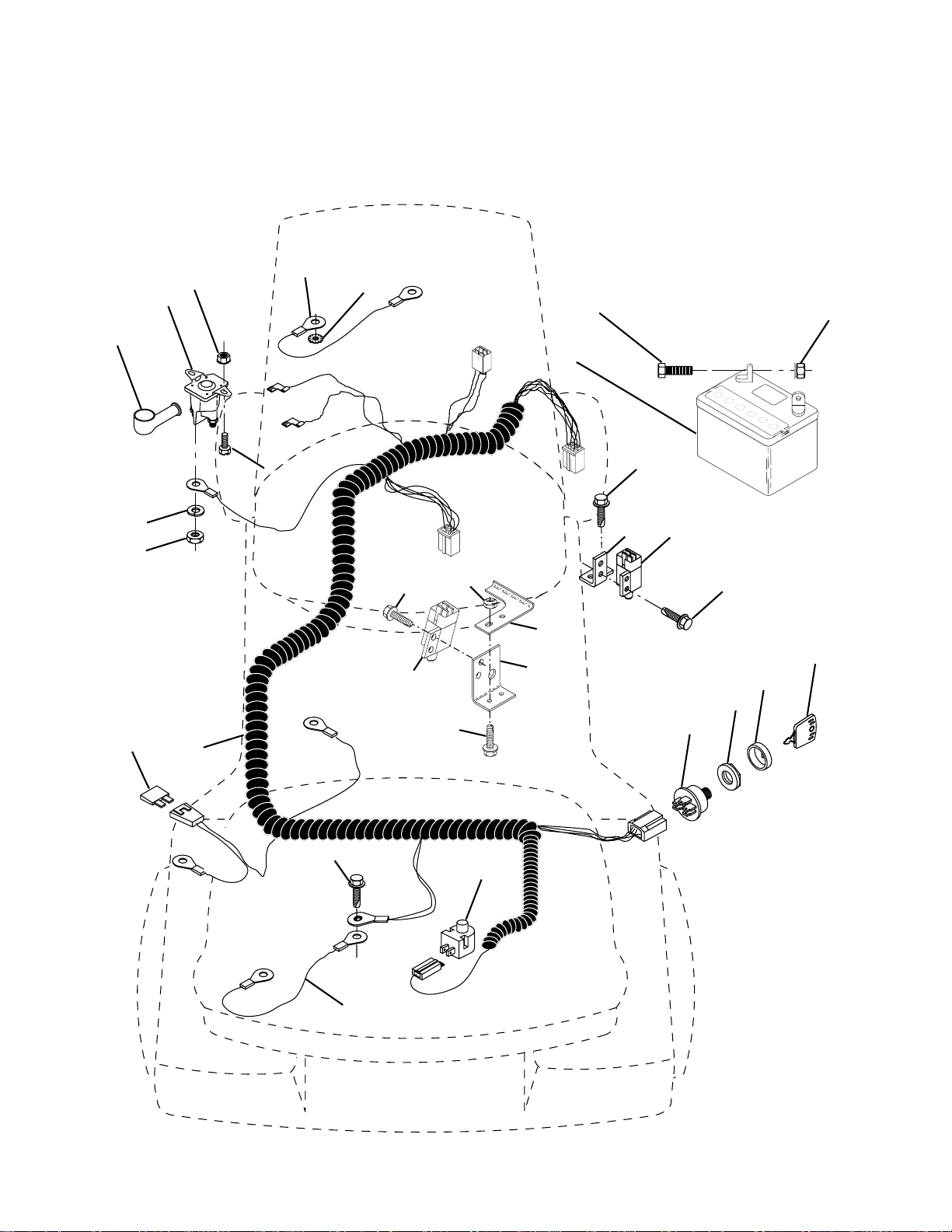

ELECTRICAL
24
21
20
25
22
2
36
26
3
8
5
6
8
6
4
7
39
8
10
11
30
9
1
17
19
55
18
8
15
12
26
www.mymowerparts.com
Page 4
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LR122 (954140105B)
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 873640400 Nut, Hex Keps 1/4-20
2 532108423 Assembly, Cable
3 532144924 Battery
4 532069180 Nut, Lock #10-24 UNC
5 532108236 Br ack et, Switch
6 532109553 Switch, Interlock (4-terminal)
7 532146374 Keeper Actuator
8 817021008 Screw, Hex Hd. Tap #10-24 x 1/2
9 532140402 Key, Steel Delta
10 532141226 Cover, Key Ignition
11 532140400 Nut, Ignition
12 532163088 Switch, Ignition
15 532121305 Switch, Plunger
17 532166180 Fuse
18 532128353 Assembly, Cable
19 532170206 Harness, Ignition
20 873350400 Nut, Hex Jam 1/4-20
21 810090400 Washer, Lock 1/4
22 871110408 Bolt, Fin. Hex 1/4-20 UNC x 1/2 Gr. 5
24 532131563 Cover, Terminal
25 532145673 Solenoid
26 532171017 Bolt, Hex Hd. 1/4-20 UNC x 3/4
30 532171018 Nut, Keps Hex 1/4-20 UNC
36 811150400 Washer, Lock Inter. Tooth 1/4
39 532141735 Bracket, Switch Clutch
55 817490508 Screw Thdrol 5/16-18 x 1/2
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
HARDWARE SHOWN LARGER FOR EASIER IDENTIFICATION
27
www.mymowerparts.com
Page 5
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LR122 (954140105B)
DASH
17
19
20
1
25
2
3
4
3
5
6
7
6
8
9
10
11
12
13
3
14
18
21
KEY PART
NO. NO. DESCRIPTION
1 532142187 Cap, Fuel
2 532138394 Assembly, Dash & Fuel Tank
3 532123487 Clamp, Hose
4 532008544 Line, Fuel
5 532008548 Line, Fuel
6 873640400 Nut, Hex, Keps 1/4-20
7 532124996 Clip, Fuel Line
8 819091216 Washer 9/32 x 3/4 x 16 Ga.
9 874760428 Bolt, Hex, Fin 1/4-20 x 1-3/4
10 819091413 Washer 11/32 x 11/16 x 16 Ga.
11 532121249 Spacer, Split
12 532003720 Spring
HARDWARE SHOWN LARGER FOR EASIER IDENTIFICATION
17
16
15
KEY PART
NO. NO. DESCRIPTION
13 532126450 Clip, Height Adjustment
14 532126115 Knob, Height Stop
15 532122023 Adjustment, Quadrant Height
16 532124346 Nut, Self-Threading 3/16-18
17 872110404 Bolt, Carriage 1/4-20 x 1/2 Gr. 5
18 532130745 Support Assembly, Dash
19 532134744 Brace, Cross
20 817060408 Screw, Self-Tapping 1/4-20 x 1/2
21 532134014 Plug Dome Black
25 817720410 Screw Hex Thd Cut 1/4-20 x 5/8
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
28
www.mymowerparts.com
Page 6
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LR122 (954140105B)

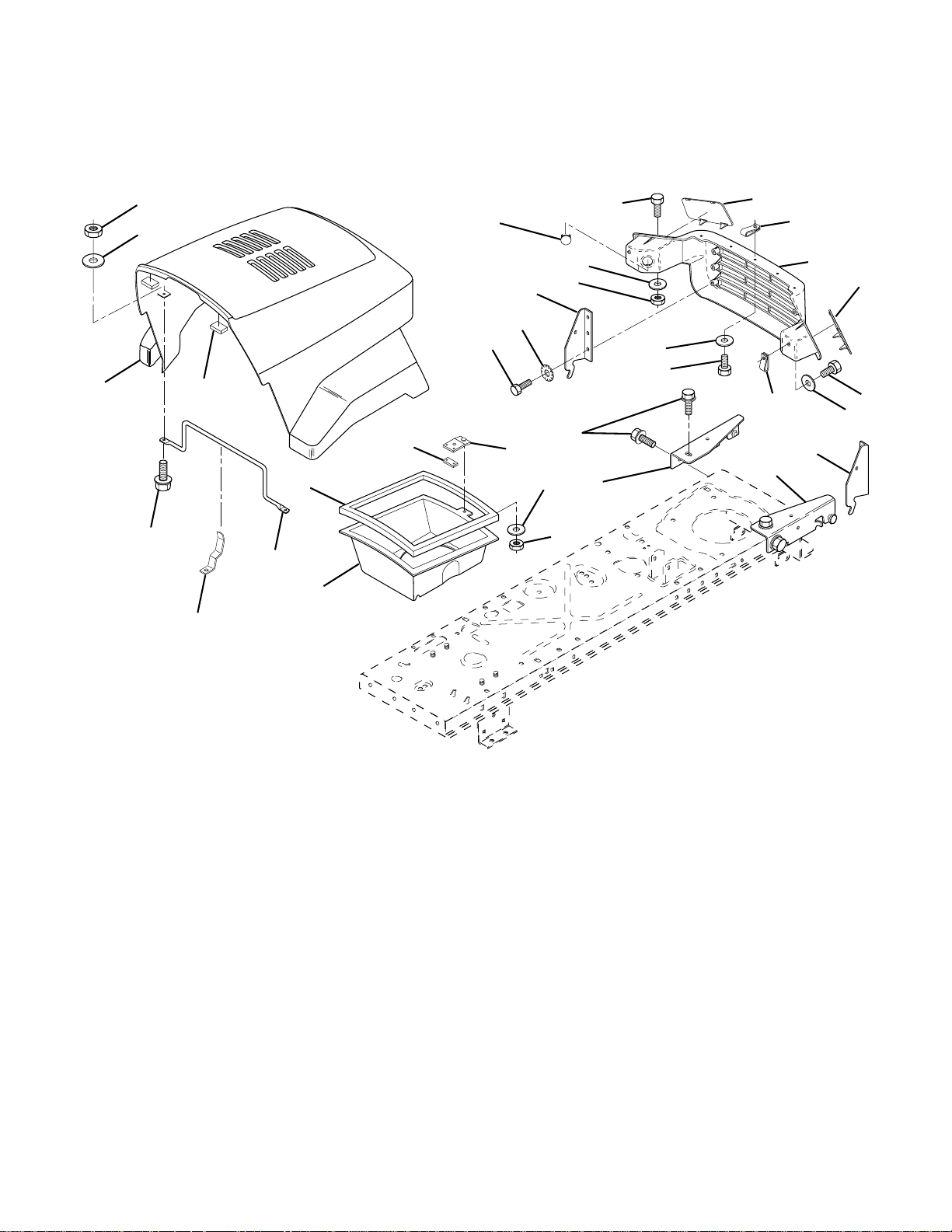

HOOD
11
34
20
17
21
23
10
29
32
27
33
17
36
28
25
20
34
35
34
20
7
17
20
17
12
26
6
26
13
22
17
20
24
KEY PART
NO. NO. DESCRIPTION
6 532140051 Bracket Asm. Pivot Hood RH
7 532140050 Bracket Asm. Pivot Hood LH
10 532130850 Brace Hood
11 532165791 Hood
12 532165794 Lens LH
13 532165792 Grille
17 874780410 Bolt Fin Hex 1/4-20 x 5/8
20 819091016 Washer, Flat 1/4
21 532126938 Bumper Hood
22 532165793 Lens RH
23 532139969 Latch Hood
24 532142873 Bracket Pivot Hood RH
HARDWARE SHOWN LARGER FOR EASIER IDENTIFICATION
www.mymowerparts.com
KEY PART
NO. NO. DESCRIPTION
25 532131028 Clip Tinnerman
26 532052921 Clip Tinnerman
27 532131037 Clip Asm Duct
28 811050400 Washer Lock Ext. Tooth
29 532120537 Strip Foam
32 532123840 Duct, Air Hood
33 532131319 Plug Socket Light
34 873680400 Nut, Crownlock 1/4-20
35 817490512 Screw Thdrol 5/16-28 x 3/4
36 532128445 Bracket Pivot Hood LH
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
29
Page 7
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LR122 (954140105B)

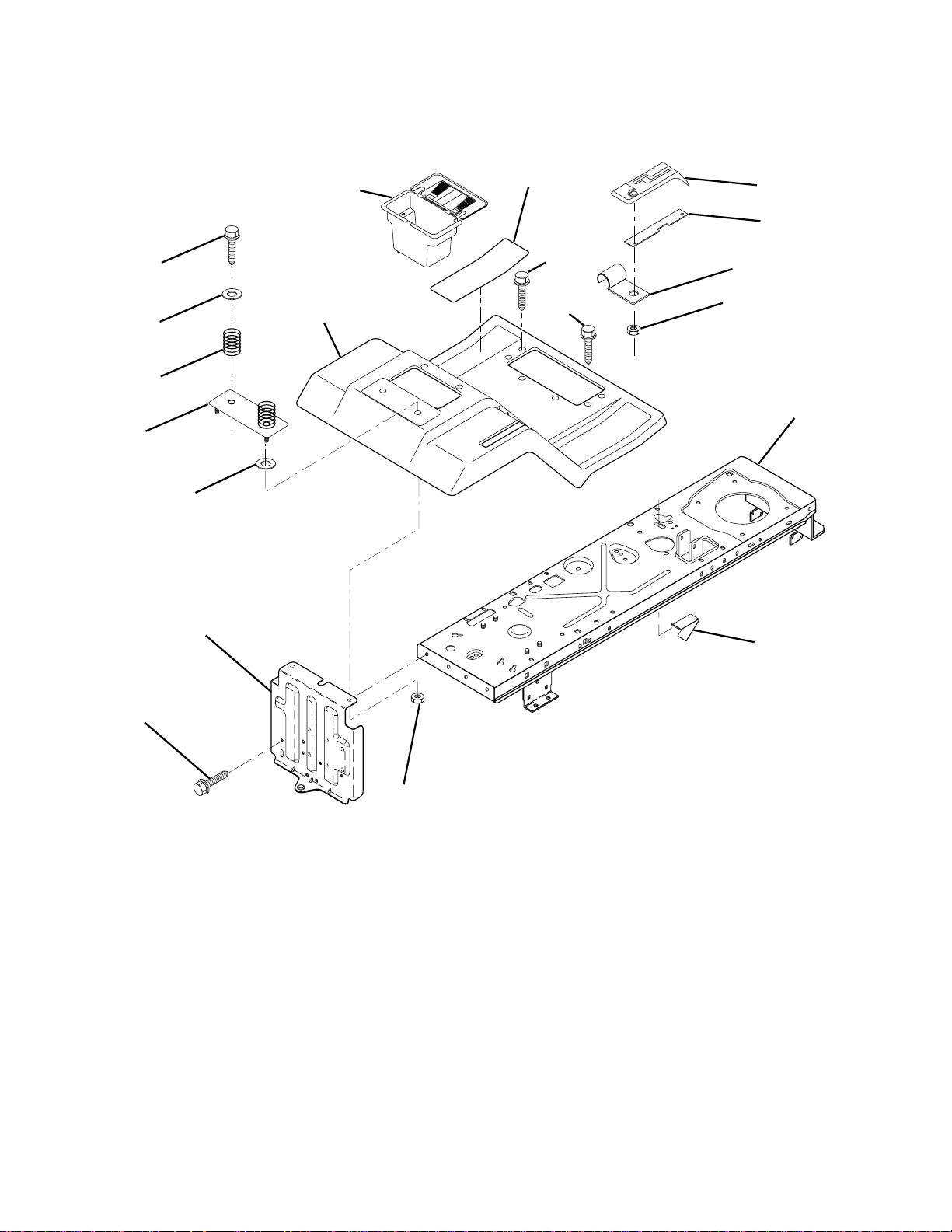

FENDER / CHASSIS
5
2
4
3
20
17
19
1
7
33
25
9
10
18
11
12
16
8
15
KEY PART
NO. NO. DESCRIPTION
1 532156417 Case, Battery
2 819132012 Washer 13/32 x 1-1/4 x 12 Ga.
3 817490612 Screw, Hex Wsh. Thrdrol.
3/8-16 x 3/4
4 532124181 Spring, Compression, Seat
5 532125142 Plate, Asm. Battery
7 532124144 Pad, Footrest
8 817060512 Screw, Hex Wsh Thdrol.
5/16-18 x 3/4
9 532167724 Console, Shift Control
10 532139783 Ba r, S hift Lock
11 532124346 Nut, Self-Thrd., Wsh. Head 3/16
HARDWARE SHOWN LARGER FOR EASIER IDENTIFICATION
KEY PART
NO. NO. DESCRIPTION
12 532145190 Assembly, Frame
15 873640400 Nut, Keps Hex 1/4-20 UNC
16 532141736 Switch Actuato
17 532140782 Drawbar
18 532126470 Clip, Insulated
19 532141393 Fender/Footrest
20 819091413 Washer 9/32 x 7/8 x 13 Ga.
25 817060514 Screw Tapping 5/16-18
33 817190516 Screw Hex Wsh Thdroll 5/16-18 x 1
34 532170165 Bolt Shoulder 5/16-18 TT
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
30
www.mymowerparts.com
Page 8
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LR122 (954140105B)

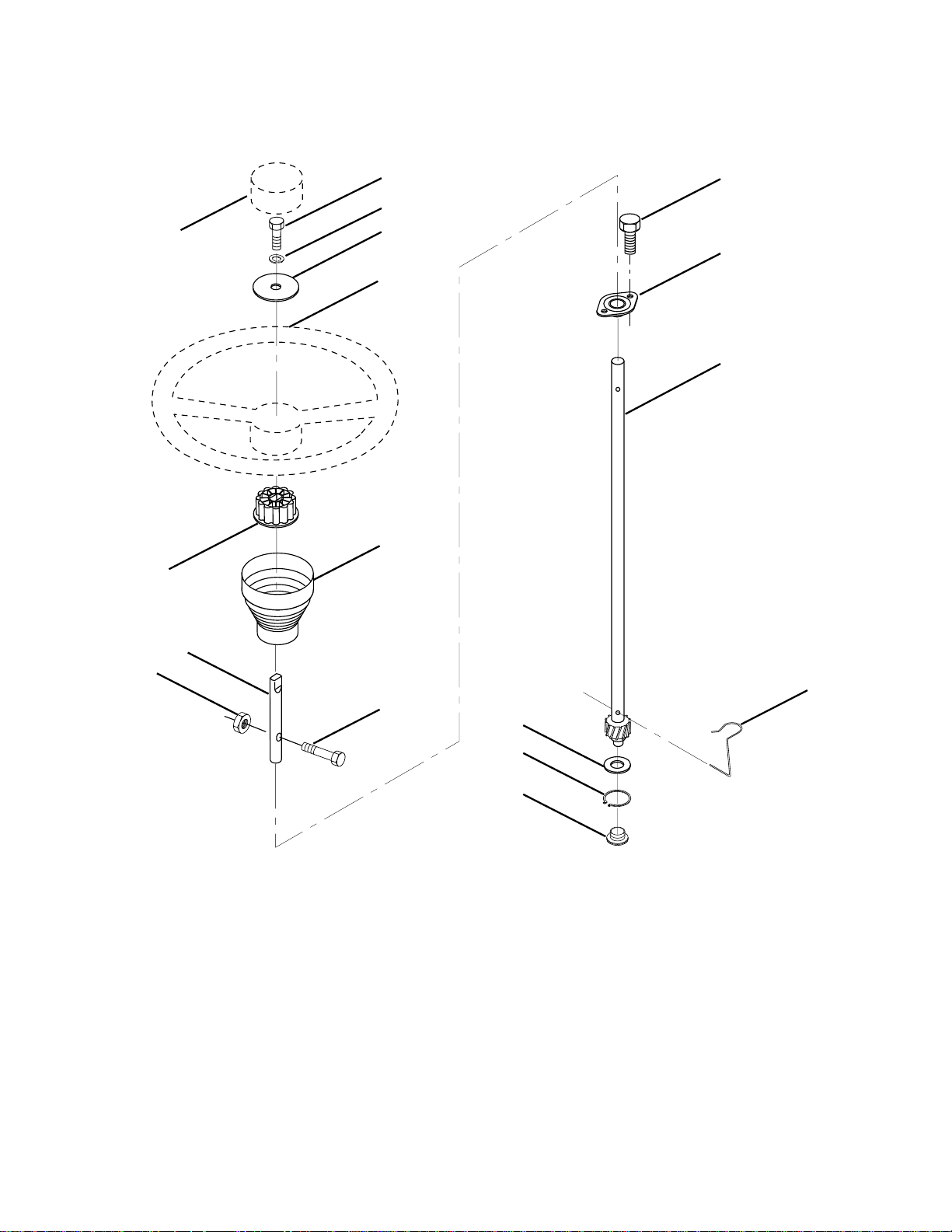

STEERING WHEEL
13
1
17
2
3
4
5
6
7
8
14
16
15
KEY PART
NO. NO. DESCRIPTION
1 532124416 Insert, Wheel, Steering
2 532171029 Washer, Lock hvy HLCL SPR 3/8
3 532171027 Washer 12/32 x 2-3/8 x 8 Ga.
4 532124415 Wheel, Steering
5 532127396 Sleeve, Steering
6 532152927 Screw, TT #10-32.5.3/8 flange
7 532155104 Bushing, Steering
8 532147391 Shaft, Steering
9 532124210 Clip, Steering
10 532123438 Bushing, Lower, Steering
9
12
11
10
KEY PART
NO. NO. DESCRIPTION
11 812000045 Ring, Retaining
12 819211616 Washer 21/32 x 1 x 16 Ga.
13 532100711 Adaptor, Wheel, Steering
14 532171024 Extension shaft steering
15 532171025 Bolt Fin Hex 5/16-18 UNC x 1-1/4
16 532171026 Nut Lock Hex W/Ins. 5/16-18 UNC
17 532171031 Bolt fin Hex 3/8-16 UNC x 1. Gr. 5
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
HARDWARE SHOWN LARGER FOR EASIER IDENTIFICATION
31
www.mymowerparts.com
Page 9
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LR122 (954140105B)

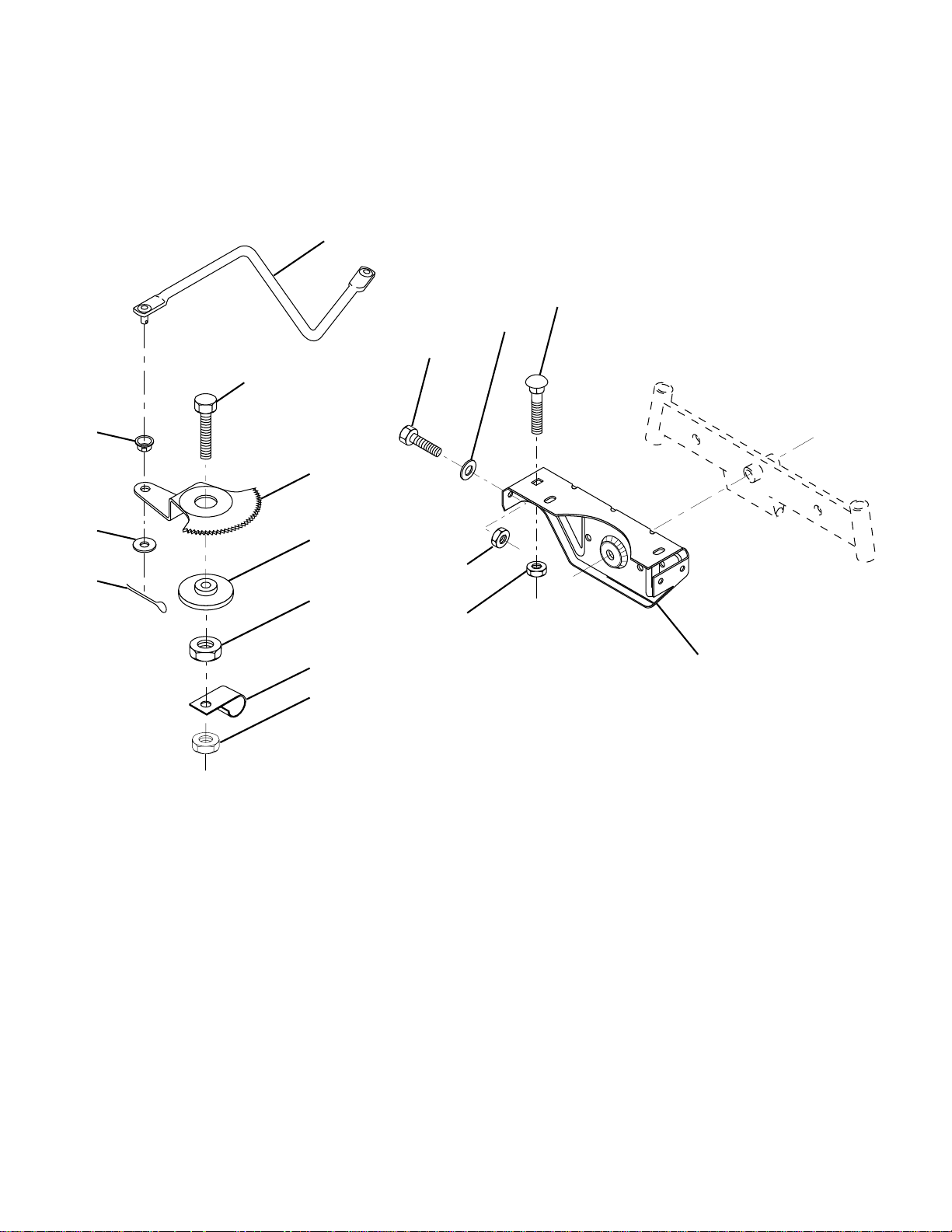

SECTOR GEAR / AXLE SUPPORT
1
2
12
5
15
14
13
11
6
10
7
8
9
KEY PART
NO. NO. DESCRIPTION
1 532132566 Link, Drag
2 874780828 Bolt, Fin Hex 1/2-13 x 1-3/4
3 873680500 Nut, Crownlock 5/16-18
4 873680600 Nut, Crownlock 3/8-16 UNC
5 532121926 Gear, Sector
6 532121927 Bushing
7 873030800 Nut, Heavy Hex Top Lock 1/2-13
8 532126472 Clip, Insulated
UNC
3
4
16
KEY PART
NO. NO. DESCRIPTION
9 873680800 Nut, Crownlock 3/8-16
10 876020412 Pin, Cotter 1/8 x 3/4
11 819131316 Washer, 13/32 x 13/16 x 16 Ga.
12 532126847 Bushing
13 874760512 Bolt, Hex Hd. 5/16-18 UNC x 3/4
14 819111416 Washer 11/32 x 7/8 x 16 Ga.
15 872110606 Bolt, Carriage 3/8-16 UNC x 3/4
16 532137096 Support, Front Axle
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
HARDWARE SHOWN LARGER FOR EASIER IDENTIFICATION
32
www.mymowerparts.com
Page 10
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LR122 (954140105B)

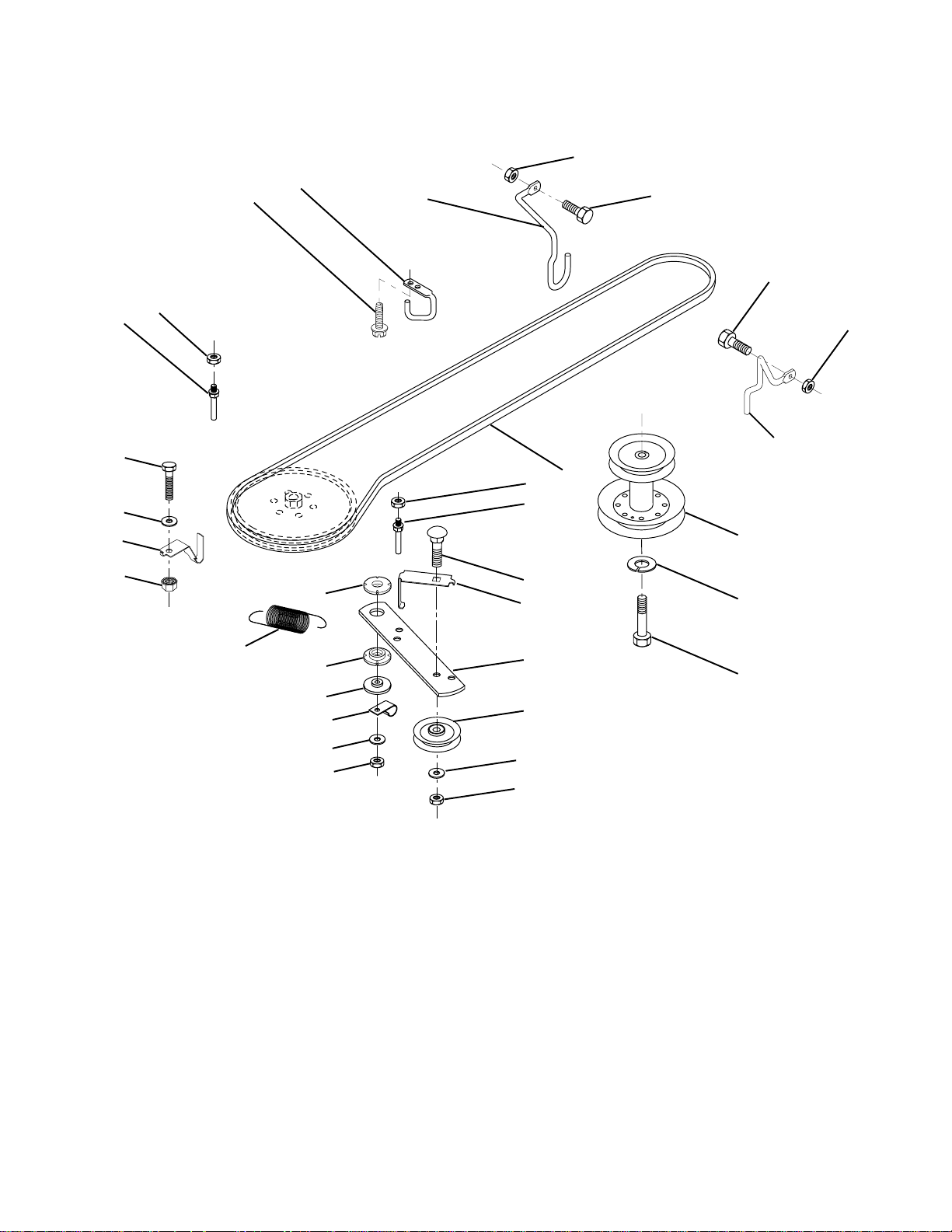

GROUND DRIVE
24
1
8
22
23
1
2
2
1
2
21
20
19
25
18
25
17
16
13
15
KEY PART
NO. NO. DESCRIPTION
1 873680500 Nut, Crownlock 5/16-18
2 874760512 Bolt, Hex Hd 5/16-18 UNC x 3/4
3 532141342 Keeper,Mower Drive, R. H.
4 532138029 Pulley, Engine
5 810040700 Washer, Lock 7/16
6 871170744 Bolt Hex 7/16-20 Gr. 5
7 532126520 Traction, V-Belt Drive
8 532123405 Keeper, T/A Ground Drive Belt
9 872140612 Bolt, Carr. 3/8-16 UNC x 1-1/2
10 532123396 Keeper, Belt Ground Drive Idler
11 532150926 Arm, Ground Drive Clutch
12 532123674 Idler, Flat
13 819131316 Washer 13/32 x 13/16 x 16 Ga.
14 873930600 Nut, Centerlock 3/8-16 UNC
3
7
1
8
4
9
10
5
11
6
12
13
14
KEY PART
NO. NO. DESCRIPTION
15 873680600 Nut, Crownlock 3/8-16 UNC
16 532126471 Clip, Insulated
17 532150932 Spacer, Retainer
18 532131459 Spring Extension
19 873510500 Nut, Keps 5/16-18 UNC
20 532139919 Keeper, T/A Ground Drive Belt
21 819111016 Washer 11/32 x 5/8 x 16 Ga.
22 532123404 Keeper, Frame Ground Drive Belt
23 532140916 Keeper, Mower Drive, L. H.
24 817720408 Screw, Thd. Cut 1/4-20 x 1/2
25 532150935 Bushing Nylon Collered
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
HARDWARE SHOWN LARGER FOR EASIER IDENTIFICATION
33
www.mymowerparts.com
Page 11
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LR122 (954140105B)

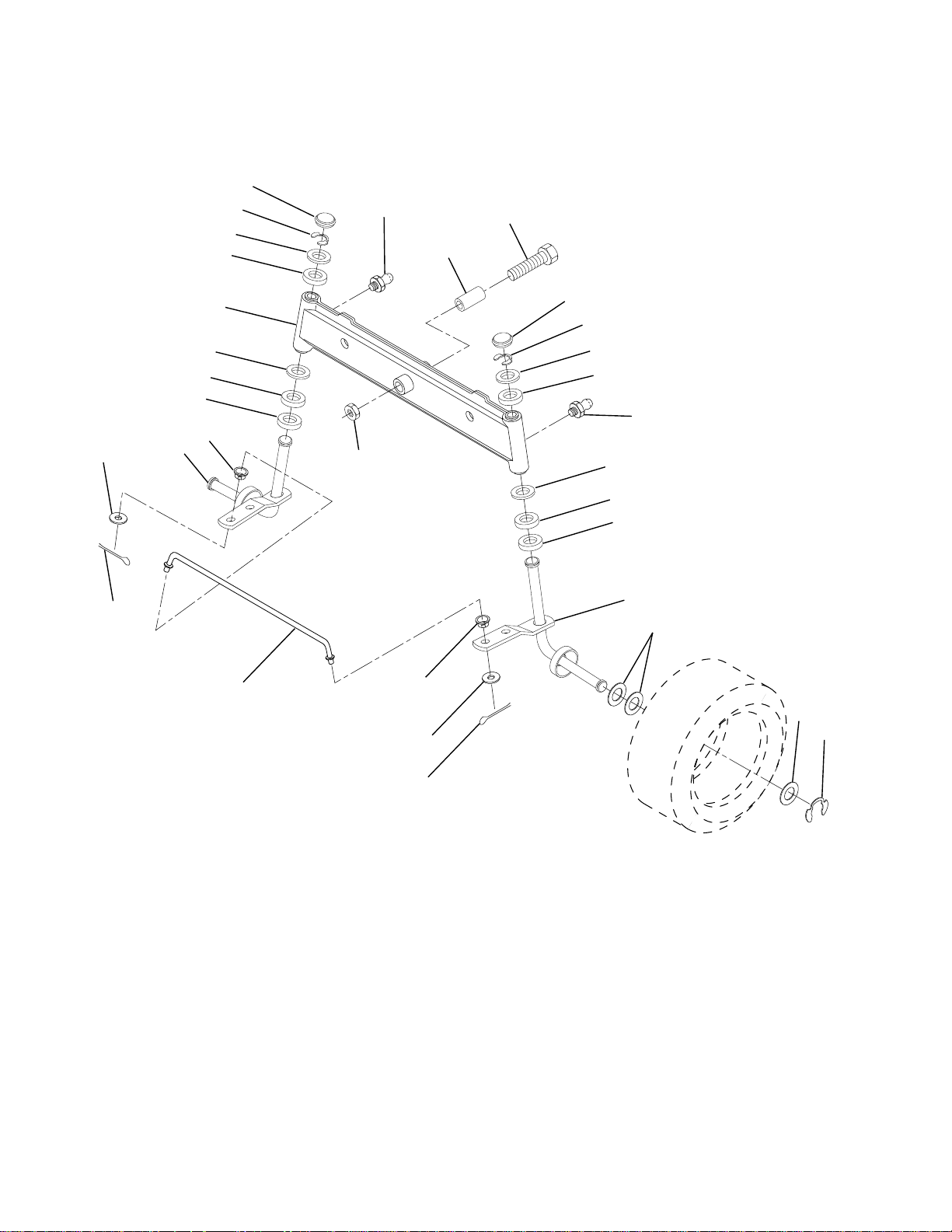

FRONT AXLE
1
2
3
4
17
14
16
10
5
18
4
6
11
13
9
12
15
11
10
1
2
3
4
17
18
4
6
7
8
8
2
KEY PART
NO. NO. DESCRIPTION
1 532121232 Cap, Spindle
2 812000029 Ring, Clip
3 532121748 Washer 25/32 x 1-5/8 x 16 Ga.
4 532124937 Nyliner
5 532142033 Axle, Front
6 532124931 Bearing, Thrust
7 532161826 Spindle, R.H. Asm.
8 532171038 Washer 25/32 x 1-1/4 x 16 Ga.
9 876020412 Pin, Cotter 1/8 x 3/4
10 819131316 Washer 13/32 x 13/16 x 16 Ga.
HARDWARE SHOWN LARGER FOR EASIER IDENTIFICATION
www.mymowerparts.com
9
KEY PART
NO. NO. DESCRIPTION
11 532126847 Bushing
12 532130465 Rod, Tie
13 532161827 Spindle, L.H. Asm.
14 874011056 Bolt Hex 5/1-11 x 3-1/2
15 873901000 Nut, Lock Flange 5/8-11
16 532110438 Spacer, Bearing Axle
17 532124836 Fitting, Grease
18 819272016 Washer 27/32 x 1-1/4 x 16 Ga.
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
34
Page 12
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LR122 (954140105B)

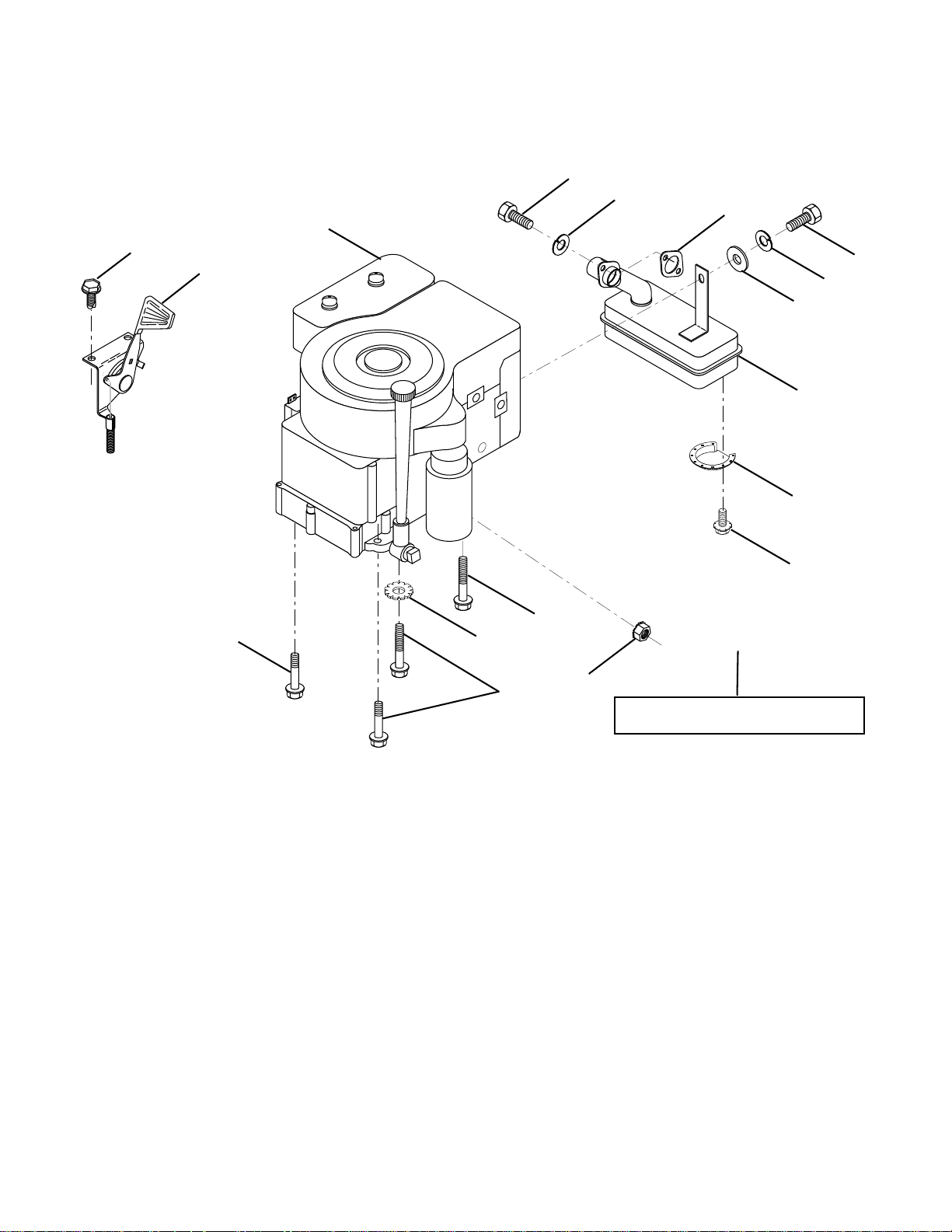

ENGINE
1
2
4
5
6
3
11
10
9
12
17
KEY PART
NO. NO. DESCRIPTION
1 817720410 Screw, Hex Thd. Cut 1/4-20 x 5/8
2 532132752 Control, Throttle
3 - - - - - - - - Engine, Briggs Model 289707
(Order Parts From Engine
Manufacturer)
4 871070512 Screw, Hex, Cap 5/16-18 x 3/4
5 810040500 Washer, Lock Hvy Hcl Spring 5/16
6 532165291 Gasket, Exhaust
7 811050600 Washer Lock Ext. Tooth 3/8
9 819101216 Washer 5/16 x 3/4 x 16
10 810040400 Washer, Lock Hvy Hlcl Spring 1/4
13
14
17
7
17
39
15
SPARK ARRESTER KIT
KEY PART
NO. NO. DESCRIPTION
1 1 - - - - - - - - - Bolt, Hex Fin.
12 532137437 Muffler
13 532101326 Deflector, Muffler
14 817030808 Screw, Spiderlock, Hex Hd 8 x 1/2
15 532137180 Arrester, Spark (Optional
17 817490624 Screw, Hex Washer Head, Thdrol. 3/
39 532128861 Nut, Flange 1/4-20
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
(Order From Eng. Mfg.)
equipment)
8-16 x 1-1/2
HARDWARE SHOWN LARGER FOR EASIER IDENTIFICATION
35
www.mymowerparts.com
Page 13
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LR122 (954140105B)

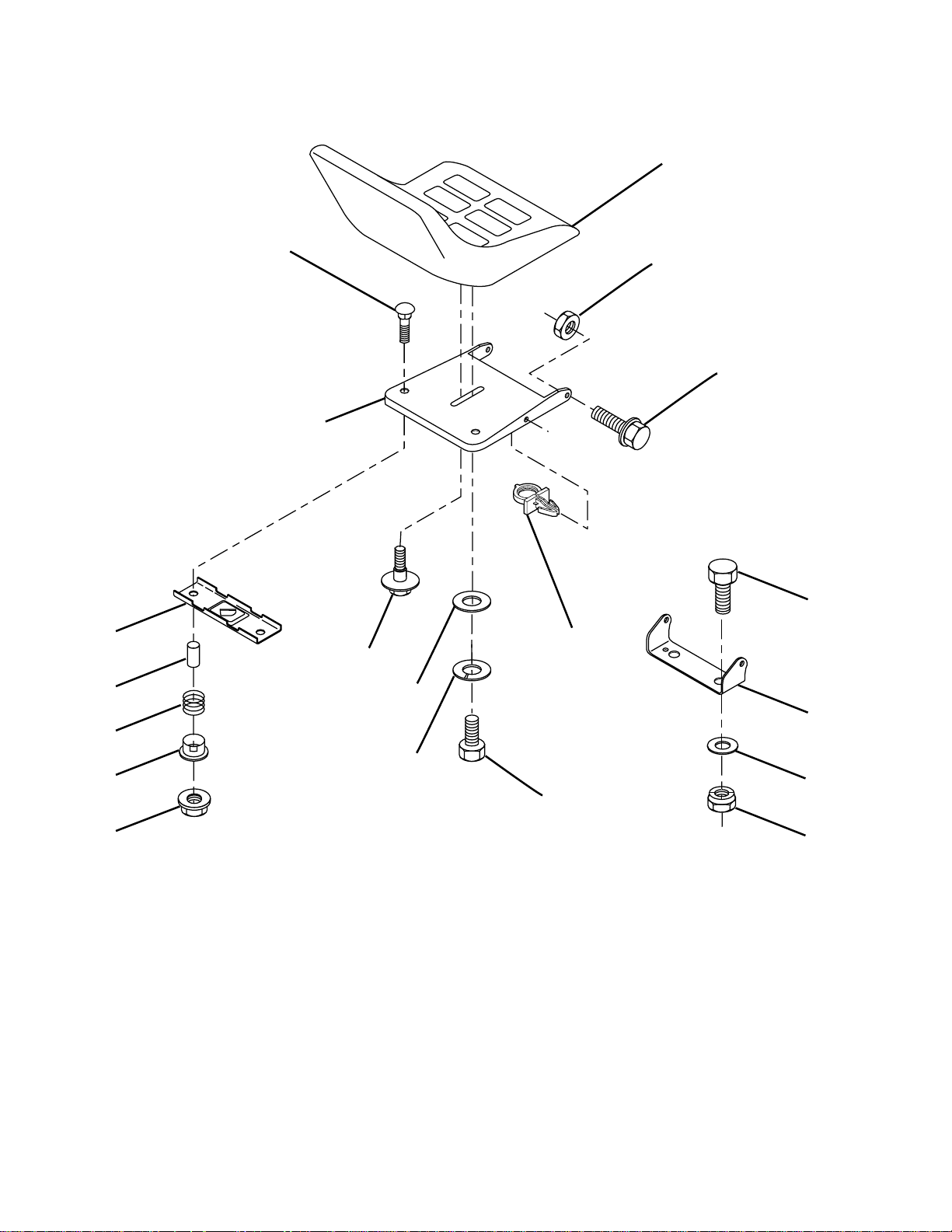

SEAT
2
1
4
5
3
17
16
21
20
19
18
KEY PART
NO. NO. DESCRIPTION
1 532171040 Bolt, Carriage 1/4-20 x 1-1/2
2 532140838 Seat
3 532155925 Pan, Seat
4 873800500 Locknut, Hex w/Ins 5/16-18
5 532153236 Bolt, Shoulder 5/16-18 UNC
6 532145006 Clip, Push-in
8 874760616 Bolt, Fin Hex 3/8-16 UNC x 1
9 532140551 Bracket, Pivot Seat
11 819133210 Washer 12/32 x 2 x 10 Ga.
12 873800600 Nut, Lock Hex w/Wsh 3/8-16
13 874780814 Bolt Hex 1/2-13 x 7/8
15
14
8
6
9
11
13
12
KEY PART
NO. NO. DESCRIPTION
14 810040800 Washer Lock Hvy. Hlicl Spring 1/2
15 819171912 Washer, 17/32 x 1-3/16 x 12 Ga.
16 532127018 Bolt, Shoulder
17 532121246 Bracket, Switch, Mounting
18 532171041 Nut, Hex Large Flange Lock
19 532121248 Bushing, Snap
20 532121250 Spring, Compression
21 532134300 Spacer, Split 28 Id. x .88 Lg.
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
HARDWARE SHOWN LARGER FOR EASIER IDENTIFICATION
36
www.mymowerparts.com
Page 14
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LR122 (954140105B)

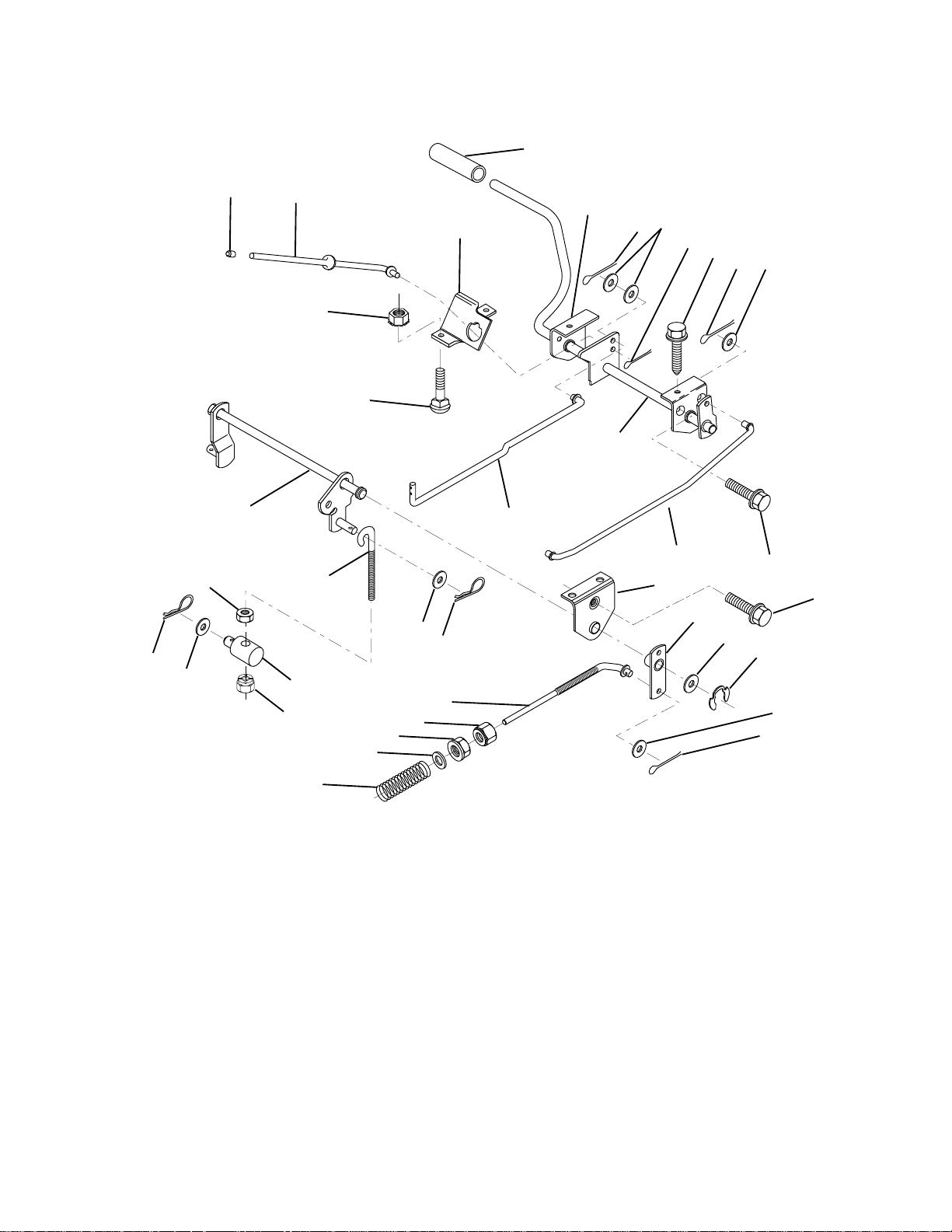

BRAKE / REAR MOWER LIFT ASSEMBLY
4
25
24
26
1
28
2
34
30
22
27
29
10
20
10
19
31
21
5
7
3
6
6
8
9
10
12
13
11
14
8
8
15
16
17
10
9
18
KEY PART
NO. NO. DESCRIPTION
1 532071673 Cap, Plunger
2 532123436 Rod, Parking Brake
3 532123437 Bracket, Parking Brake
4 532008156 Cover, Pedal
5 532122504 Bracket, Clutch/Brake Pedal, L.H.
6 876020312 Pin, Cotter 3/32 x 3/4
7 819131016 Washer 13/32 x 5/8 x 16 Ga.
8 817490508 Screw, Hex, Thd. Roll.
5/16-18 x 1/2
9 876020412 Pin, Cotter 1/8 x 3/4
10 819131316 Washer 13/32 x 13/16 x 16 Ga.
11 532123543 Rod, Brake Front
12 532139933 Assembly, Clutch/Brake Pedal
13 532123394 Rod, Clutch
14 532121978 Bracket, Lift, Shaft
15 532133332 Assembly, Brake, Pivot, Arm
16 819251816 Washer 25/32 x 1-1/8 x 16 Ga.
HARDWARE SHOWN LARGER FOR EASIER IDENTIFICATION
www.mymowerparts.com
KEY PART
NO. NO. DESCRIPTION
17 812000034 Ring, Klip
18 532151332 Spring, Brake Rod
19 873350600 Nut, Hex, Jam 3/8-16 UNC
20 873800600 Nut, Lock, hex. w/Ins. 3/8-16 INC
21 532131460 Rod, Rear Brake
22 532144585 Trunnion, Lift
24 819132012 Washer 13/32 x 1-1/4 x 12 Ga.
25 532124961 Spring, Retainer
26 873930600 Nut, Centerlock 3/8-16 UNC
27 532127369 Link, Threaded
28 532140776 Assembly, Rear Mower Lift
29 872110506 Bolt, Carriage 5/16-18 UNC x 3/4
30 873510500 Nut, Keps 5/16-16 UNC
31 532124660 Retainer Spring
34 873680600 Nut, Crownlock 3/8-16 UNC
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
37
Page 15
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LR122 (954140105B)

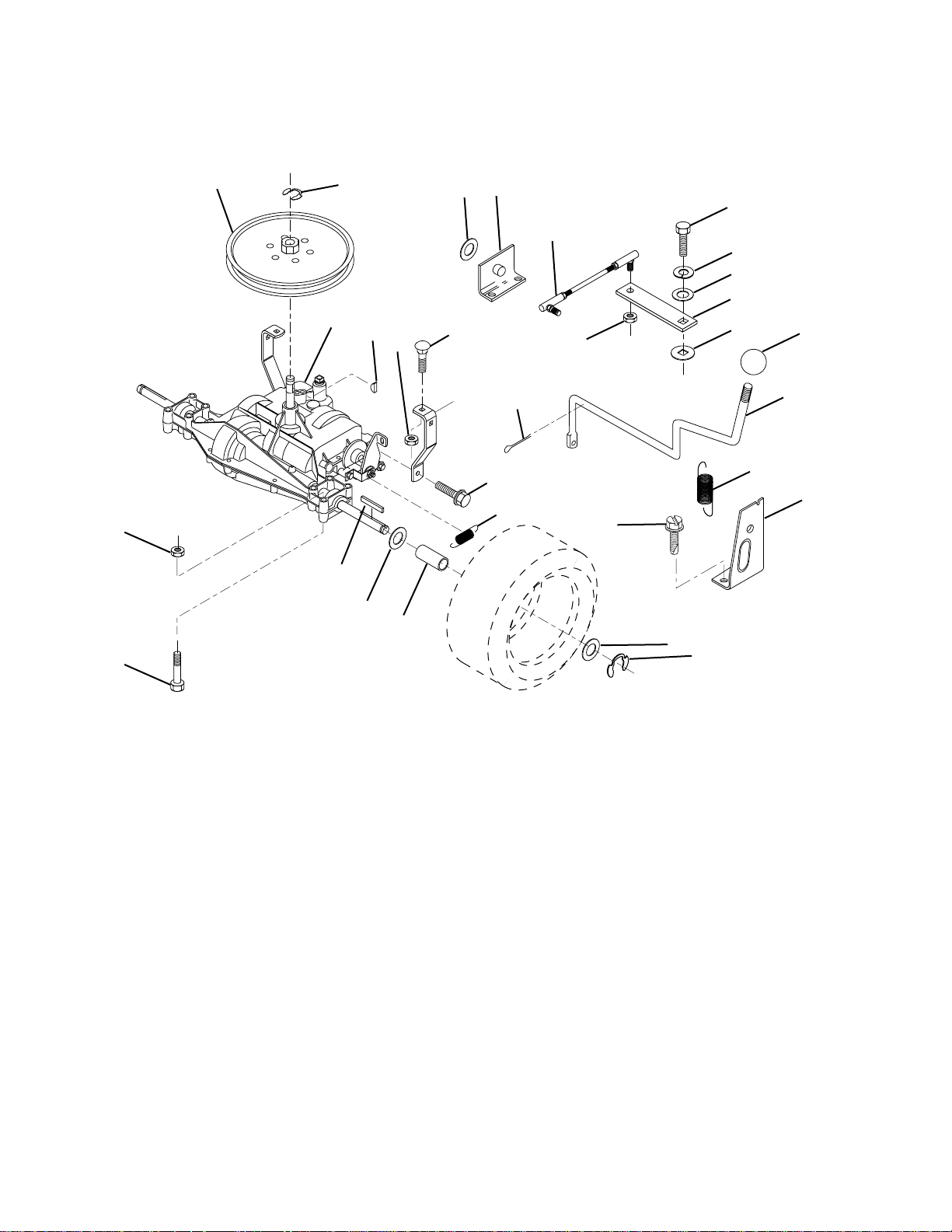

TRANSAXLE
5
38
1
2
15
16
18
17
19
20
21
3
4
5
6
26
7
25
8
22
23
24
28
29
9
36
11
10
31
10
35
KEY PART
NO. NO. DESCRIPTION
1 532123385 Pulley
2 812000028 Ring, Retainer
3 - - - - - - - - - Transaxle, Peerless Model 204-506B
(Order Parts From Transaxle
Manufacturer)
4 532125096 Key, Woodruff #9
5 873680500 Nut, Crownlock 5/16-18
6 872140506 Bolt, Carriage 5/16-18 UNC x 3/4
7 532123378 Strap, Torque
8 817060512 Screw 5/16-18 x 3/4
9 532146682 Spring, Brake
10 532171038 Washer 25/32 x 1-1/4 x 16 Ga.
11 532123583 Key, Square
15 819171616 Washer 17/32 x 1 x 16 Ga.
16 532124600 Support Handle Shift LH
17 532126293 Link, Shift
18 874550412 Bolt, Fin Hex 1/4-28 UNF x 3/4 Gr. 8
HARDWARE SHOWN LARGER FOR EASIER IDENTIFICATION
KEY PART
NO. NO. DESCRIPTION
19 810040400 Washer, Lock 1/4
20 819091210 Washer 9/32 x 3/4 x 10 Ga.
21 532126292 Arm, Shift
22 532105701 Washer, Shift Plate
23 532106933 Knob, Rd 1/2-13
24 532128215 Rod Shift
25 876020416 Pin, Cotter 1/8 x 1
26 873810500 Locknut 5/16-24 UNF
28 532128085 Extension, Spring
29 532128084 Support Handle Shift RH
31 532171042 Spacer Axle
35 812000001 E-Ring
36 817720408 Screw, Thd Cut 1/4-20 x 1/2
38 874490540 Bolt Hex Flghd 5/16-18 x Gr. 5
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
38
www.mymowerparts.com
Page 16
1
2
3
4
5
6
7
8
9
10
11
12
13
43
14
16
31
30
18
17
20
23
24
26
25
11
16
11
4
28
27
29
19
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LR122 (954140105B)

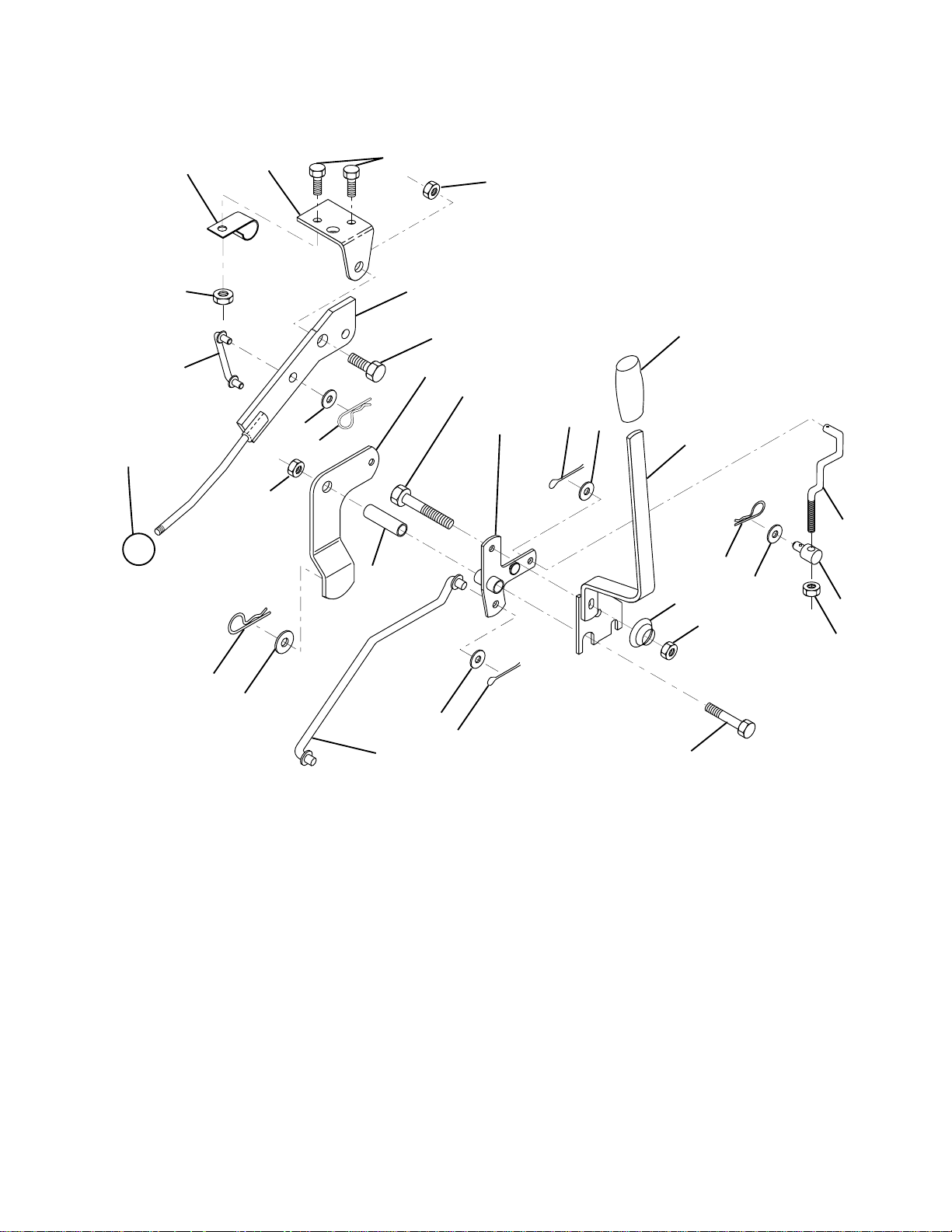

MOWER LIFT LEVER
KEY PART
NO. NO. DESCRIPTION
1 532126470 Clip, Insulated
2 532122018 Bracket, Mower Clutch
3 871110408 Bolt, Fin. Hex
4 873680600 Nut, Crownlock 3/8-16 UNC
5 532145187 Assembly, Clutch Lever
6 532106451 Bolt, Shoulder
7 532135371 Assembly, Mower Clutch Arm
8 874760636 Bolt, Hex 3/8-16 UNC x 2-1/4
9 532121930 Assembly, Bellcrank Lift
10 876020412 Pin, Cotter 1/8 x 3/4
11 819131316 Washer 13/32 x 13/16 x 16 Ga.
12 532131861 Grip, Handle
13 532139352 Assembly, Lift Handle
14 532123496 Spring, Compression
16 532124961 Retainer, Spring
1/4-20 UNC x 1/2 Gr. 5
KEY PART
NO. NO. DESCRIPTION
17 532127359 Link, Front Lift
18 532142028 Trunnion, Threaded 3/8-16
19 873680400 Nut, Crownlock 1/4-20
20 874760644 Bolt, Fin. Hex 3/8-16 UNC x 2-3/4
23 876020416 Pin, Cotter 1/8 x 1
24 819171612 Washer 17/32 x 1 x 12 Ga.
25 532121933 Tube, Spacer
26 532141470 Rod, Mower Lift
27 532106932 Knob
28 532124788 Retainer Spring
29 532131655 Link, Mower Clutch
30 873350600 Nut Hex Jam 3/8-16 x 1.30
31 819132012 Washer 13/32 x 1-1/4 x 12 Ga.
43 873900600 Nut Lock Flg 3/8-16
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
HARDWARE SHOWN LARGER FOR EASIER IDENTIFICATION
39
www.mymowerparts.com
Page 17
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LR122 (954140105B)

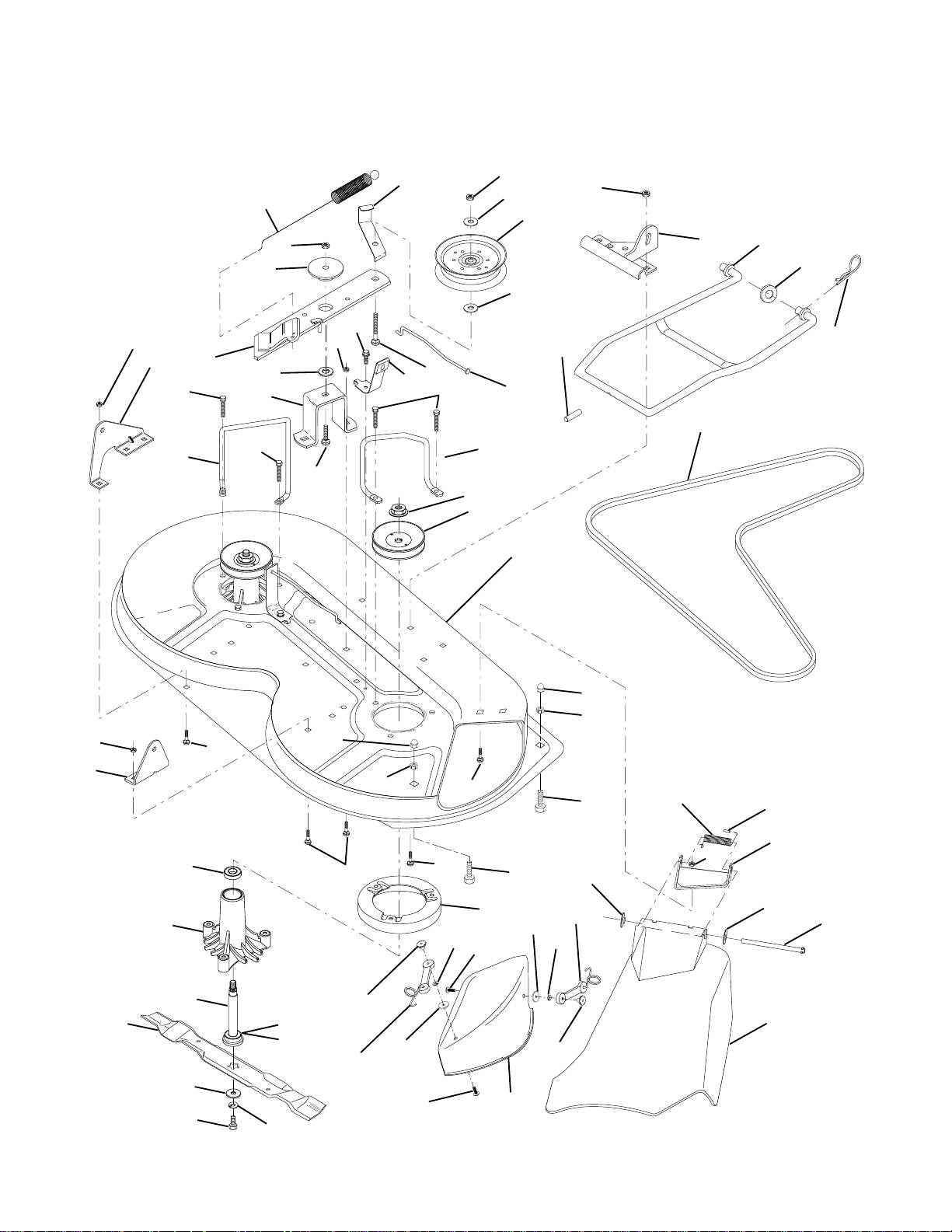

MOWER DECK
14
15
25
44
29
28
16
3
8
11
27
14
6
19
8
18
41
17
42
43
5
1
3
2
31
14
9
49
32
25
10
7
4
25
14
12
20
46
45
48
21
23
13
22
47
62
59
13
35
34
58
61
56
13
55
13
24
56
60
57
61
55
35
34
40
59
58
57
37
38
30
14
39
36
33
40
www.mymowerparts.com
Page 18
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LR122 (954140105B)
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
1 532140064 Spring, Mower Clutch
2 532165723 Spacer, Retainer
3 873680600 Nut, Crownlock 3/8-16
4 532130840 Brake Asm.
5 532131251 Guide, Belt Idler
6 532121316 Pulley, Flat Idler
7 872110616 Bolt, Carr. 3/8-16 x 1-3/4 Gr. 5
8 819131410 Washer 13/21 x 7/8 x 10 Ga.
9 532127744 Arm Asm., Idler Mower
10 872140610 Bolt, Carriage 3/8-16 x 1-1/4
11 532130841 Rod, Brake
12 532127356 Bracket, Lift R. H. Rear
13 872140506 Bolt, Carriage 5/16-18 x 3/4
14 873680500 Nut, Crownlock 5/16-18
15 532127357 Bracket, Lift L. H. Rear
16 532153298 Keeper, R. H.
17 532128508 Link, Asm. Mower Stabilizer
18 532128511 Pin, Drive
19 532127380 Bracket, Asm. Front
20 532140101 Blade Mulching
21 532140296 Washer, Hard
22 810030600 Washer, Lock 3/8
23 532850857 Bolt 3/8-24 x 1-1/4 Gr. 8
24 532140329 Stripper
25 532157722 Screw Thdrol Wsh Hd
27 532156600 Deck Assembly
28 532153531 Pulley, Mandrel
29 532137266 Nut, Flangelock 9/16
30 532136631 Bracket, Asm. Deflector
31 817490508 Screw, Hex Wsh. Thdrol.
5/16-18 x 1/2
32 532122051 Arm, Support Idler Mower
KEY PART
NO. NO. DESCRIPTION
33 532131560 Deflector
34 532160793 Latch Asm, Bagger/Mulch
35 532125004 Nut, Weld
36 532121980 Rod, Hinge
37 532123713 Spring, Torsion Deflector
38 532105304 Cap, Sleeve
39 819111016 Washer 11/32 x 5/8 x 16 Ga.
40 532110452 Pushnut
41 532131264 V-Belt
42 819171616 Washer 11/32 x 5/8 16 Ga.
43 532163552 Retainer, Spring
44 532140608 Keeper, L. H.
45 532110485 Bearing
46 532128774 Housing Mandrel Vented
47 532129895 Bearing
48 532137645 Shaft, Mandrel (Includes Key # 47)
49 532133943 Washer, Hardened
55 810071000 Washer, Lock
56 871161010 Screw
57 874930516 Bolt, Fin Hex 5/16-18 x 1
58 873800500 Nut, Lock Hex w/Ins. 5/16-18
59 532133841 Nut, Acorn Hex 5/16 x 18
60 532140102 Cover, Mulching
61 819061216 Washer
62 532153390 Washer Felt
- - 532130794 Mandrel Asm. (Includes Key No.’s
22-23, 26, 29 and 45-48)
- - 532156866 Deck, Mower Complete (Std. Deck Order separately mulcher plate
components key nos. 50-58)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
HARDWARE SHOWN LARGER FOR EASIER IDENTIFICATION
41
www.mymowerparts.com
Page 19
For Husqvarna Parts Call 606-678-9623 or 606-561-4983
REPAIR PARTS
TRACTOR - - MODEL NUMBER LR122 (954140105B)

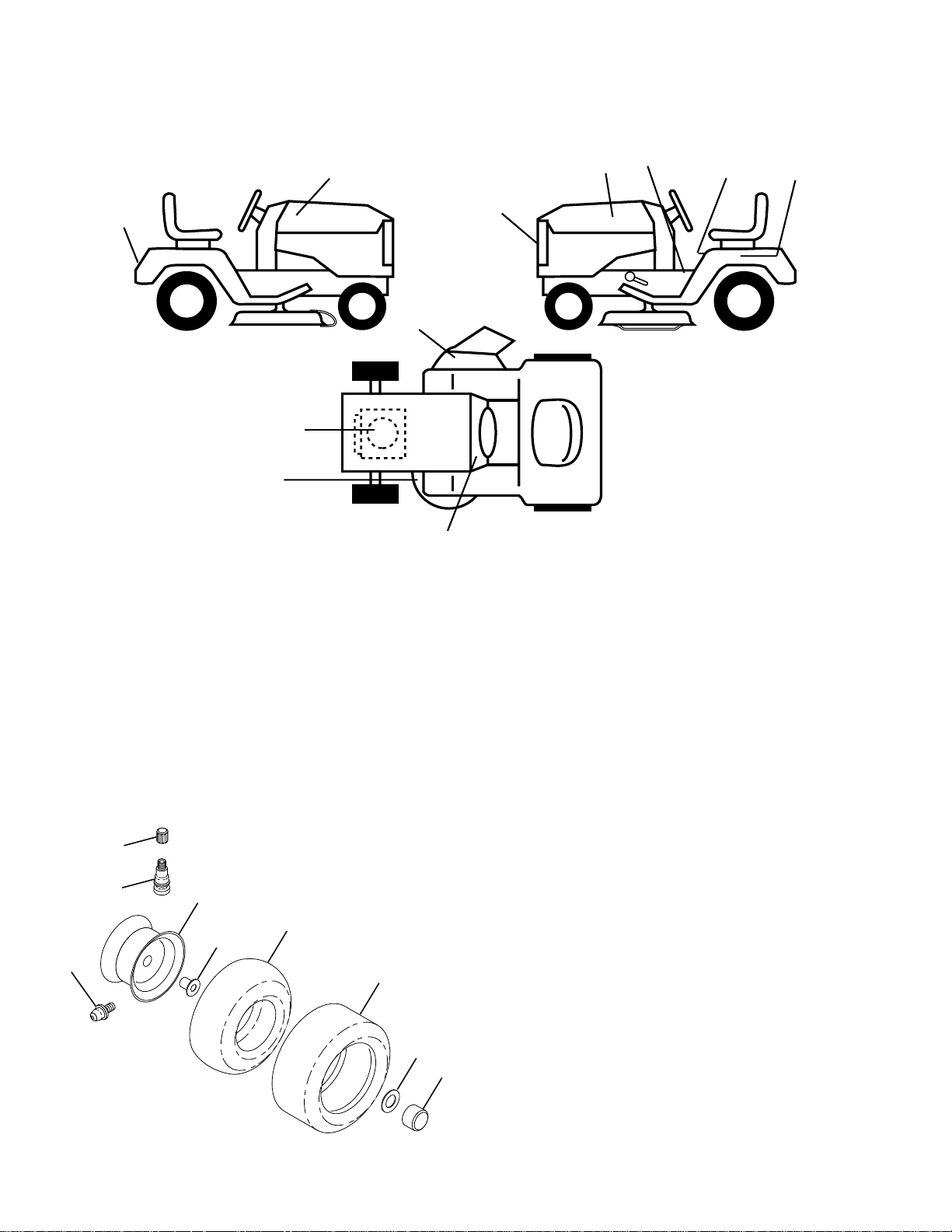

DECALS
17
2
1
10 13
8
5
16
KEY PART
NO. NO. DESCRIPTION
1 532165750 Decal, Hood, L. H.
2 532165749 Decal, Hood, R. H.
3 532150616 Decal, Grille
4 532171458 Decal, Dash
5 532166099 Decal, Engine
7 532170563 Decal, Deck Warning
8 532150617 Decal, Logo, Fender
3
7
4
KEY PART
NO. NO. DESCRIPTION
10 532157198 Decal Caution Fender
13 532145005 Decal, Caution, Battery
16 532136830 Decal, V-Belt Sch.
17 532157110 Decal, Inst. Oper.
- - 532138311 Decal, Handle Lift
- - 532173593 Manual, Owner's (English)
- - 532173594 Manual, Owner's (French)
WHEELS & TIRES
1
2
3
6
KEY PART
NO. NO. DESCRIPTION
1 532059192 Cap, Valve
2 532065139 Stem, Valve
3 532124957 Fitting, Grease
(Front Wheels Only)
4 532123410 Tire, Front
5
8
4
9
7
4 532106230 Tire, Rear
5 532059904 Tube, Front (Optional Service Items
Only)
5 532008134 Tube, Rear (Optional Service Items
Only)
6 532142039 Rim, Front
6 532141652 Rim, Rear
7 532104757 Cap Axle
8 532124959 Bearing Flange
9 532171039 Washer 25/32 x 1-5/8 x 16 Ga.
- - 532144334 Sealant, Tire ( 10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
42
www.mymowerparts.com
Loading...
