Husqvarna 327HDA65x, 327HE3, 327HE User Manual
Oper ator’s manual
327HD A65
327HE3
Please r ead the operator’s manual carefully and make sure you understand the instructions before using the machine.
X-series
327HE4
X-series
X-series
EEEEnnnngggglllliiiisssshh
hh
2
W
Symbols
ARNING! Incorrect or careless
use of a hedge trimmer can turn it
into a dangerous tool that can
cause serious or even fatal injury. It
is extremely important that you
read and understand the contents
of this operator’s manual.
Please read the operator’s manual
carefully and make sure you
understand the instructions before
using the machine.
Always wear:
• Approved hearing protection
• Approved eye protection
Cutting tool. Do not touch the tool
without first switching off the
engine.
KEY T O SYMBOLS
Always wear approved protective
gloves.
Wear sturdy, non-slip boots or shoes.
Other symbols/decals on the
machine refer to special
certification requirements for
certain markets.
The engine is s witched off by moving
the stop switch to the stop position.
CAUTION! The stop switch
automatically returns to the start
position. In order to prevent
unintentional starting, the spark plug
cap must be removed from the spark plug when
assembling, checking and/or performing maintenance.
Always wear approved protective
gloves.
This machine is not electrically
insulated. If the machine
touches or comes close to highvoltage power lines it could lead
to death or serious bodily injury.
Electricity can jump from one
point to another by arcing. The
higher the voltage, the greater
the distance electricity can
jump. Electricity can also travel
through branches and other
objects, especially if they are
wet. Always keep a distance of at least 10 m between the
machine and high-voltage power lines and/or any objects
that are touching them. If have to work within this safe
distance you should always contact the relevant power
company to make sure the power is switched off before
you start work.
This machine can be dangerous! The operator of the
machine must ensure, while working, that no persons or
animals come closer than 15 metres.
Arrows which show limits for handle
positioning.
Keep all parts of your body away from
hot surfaces.
Regular cleaning is required.
Visual check.
Protective goggles or a visor must be
worn.
– English
!
!
!
ST
W
T
Y
W
W
W
CONTENTS
Contents
KEY TO SYMBOLS
Symbols ................................................................ 2
CONTENTS
Contents ............................................................... 3
Note the following before starting: ........................ 3
INTR ODUCTION
Dear customer! ..................................................... 4
WHA T IS WHAT?
What is what? ....................................................... 5
GENERAL SAFETY PRECA UTIONS
Impor tant .............................................................. 6
Personal protective equipment ............................. 6
Machine ′ s safety equipment ................................. 7
ASSEMBL Y

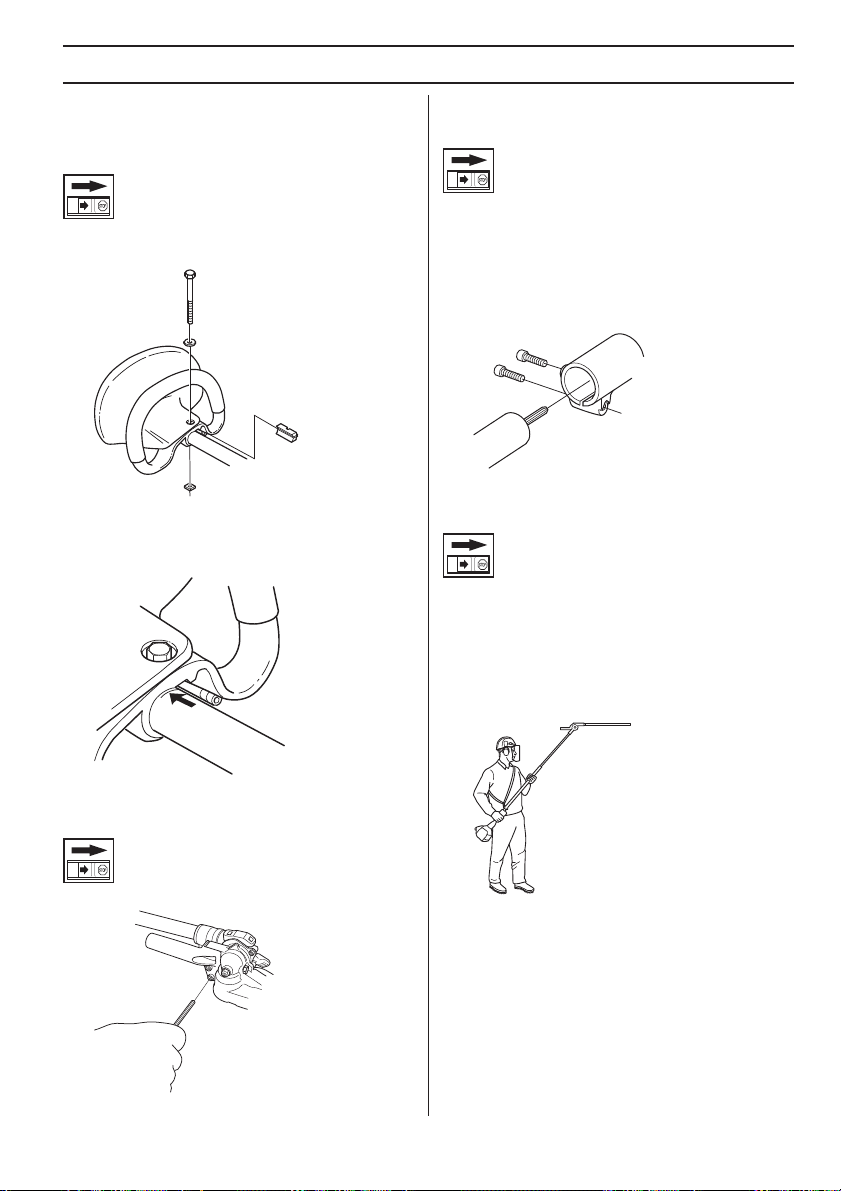

Fitting the hand guard and loop handle ................ 11
Fitting the handle .................................................. 11
Fitting the cutting head ......................................... 11
Adjusting the harness ........................................... 11
Fitting the impact guard ........................................ 12
FUEL HANDLING
Fuel saf ety ............................................................ 13
Fuel ...................................................................... 13
Fueling .................................................................. 14
ARTING AND STOPPING
Chec k before starting ........................................... 15
Starting and stopping ........................................... 15
ORKING TECHNIQUES
Gener al working instructions ................................ 17
Transport position ................................................. 19
MAINTENANCE

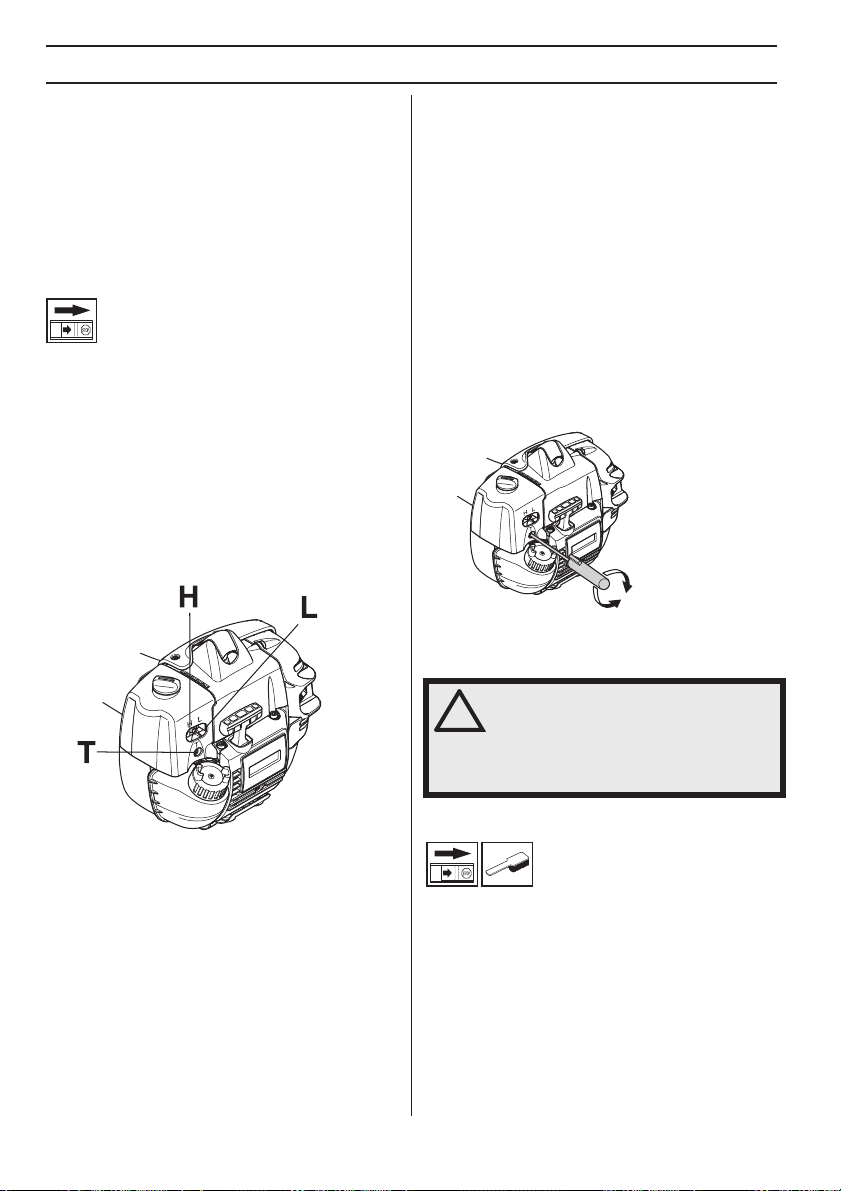

Carb uretor ............................................................ 20
Muffler .................................................................. 20
Cooling system ..................................................... 21
Spark plug ............................................................ 21
Air filter ................................................................. 22
Gear ..................................................................... 22

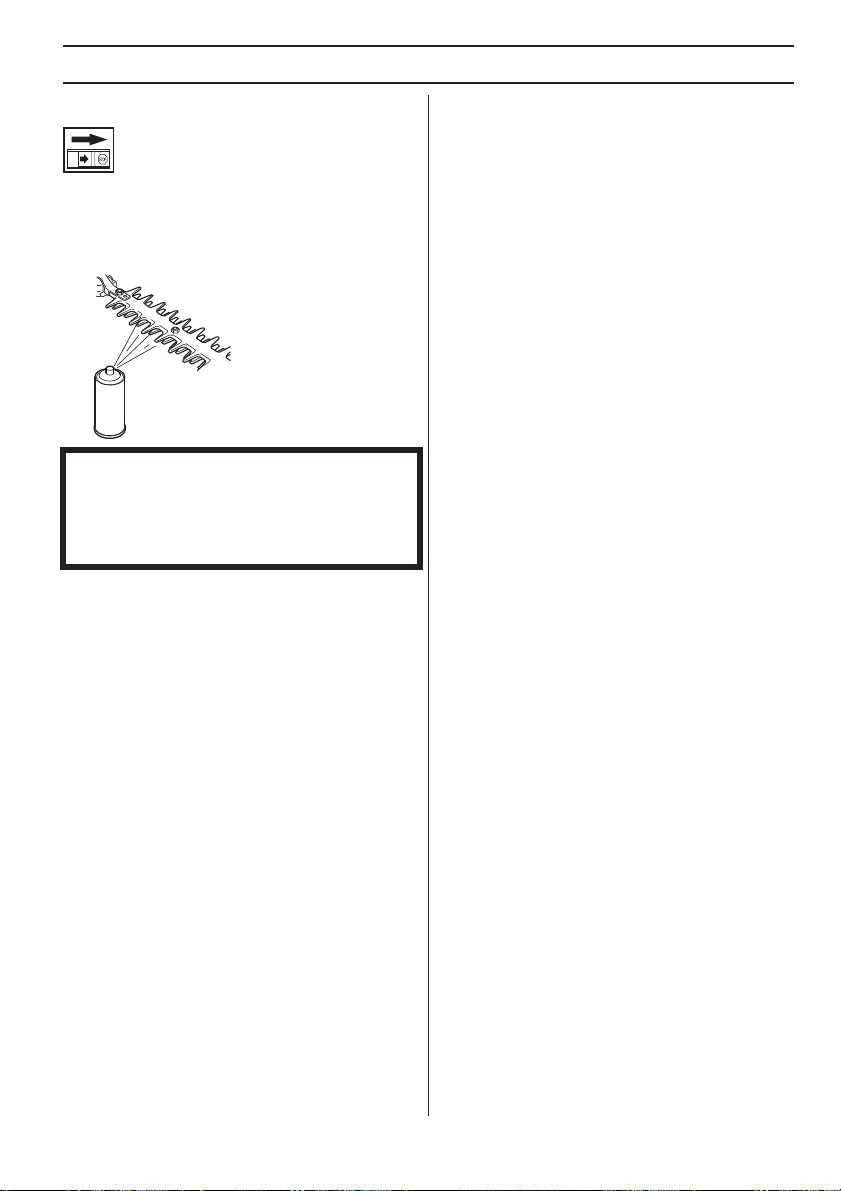

Cleaning and lubrication ....................................... 23
Maintenance schedule ......................................... 24
TECHNICAL D ATA
echnical data ...................................................... 25
FEDERAL AND CALIFORNIA EMISSIONS
CONTROL WARRANTY STATEMENT
OUR WARRANTY RIGHTS AND OBLIGATIONS 26
Note the f ollowing before starting:
Please read the oper ator’s manual carefully.
ARNING! Long-term exposure to noise
can result in permanent hearing
impairment. So always use approved
hearing protection.
ARNING! Under no circumstances may
the design of the machine be modified
without the permission of the
manufacturer. Always use genuine
accessories. Non-authorized
modifications and/or accessories can
result in serious personal injury or the
death of the operator or others.
Your warranty may not cover damage or
liability caused by the use of nonauthorized accessories or replacement
parts.
ARNING! Incorrect or careless use of a
hedge trimmer can turn it into a
dangerous tool that can cause serious or
even fatal injury. It is extremely important
that you read and understand the
contents of this operator’s manual.
The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects or other reproductive harm.
The Emissions Compliance Period referred to on the
Emission Compliance label indicates the number of
operating hours for which the engine has been shown to
meet Federal and Californian emissions requirements.
English
–
3
4
′
′
INTR ODUCTION
Dear customer!
Cong ratulations on your choice to buy a Husqvarna product! Husqvarna is based on a tradition that dates back to 1689,
when the Swedish King Karl XI ordered the construction of a factory on the banks of the Huskvarna River, for production
of muskets. The location was logical, since water power was harnessed from the Huskvarna River to create the waterpowered plant. During over 300 years of continuous operation, the Husqvarna factory has produced a lot of different
products, from wood stoves to modern kitchen appliances, sewing machines, bicycles, motorcycles etc. In 1956, the first
motor driven lawn mowers appeared, followed by chain saws in 1959, and it is within this area Husqvarna is working
today.
Today Husqvarna is one of the leading manufacturers in the world of forest and garden products, with quality as our
highest priority. We develop, manufacture and market high quality motor driven products for forestry and gardening as
well as for building and construction industry.
Your purchase gives you access to professional help with repairs and service whenever this may be necessary. If the
retailer who sells your machine is not one of our authorized dealers, ask for the address of your nearest servicing dealer.
It is our wish that you will be satisfied with your product and that it will be your companion for a long time. Think of this
operator
s manual as a valuable document. By following its ′ content (using, service, maintenance etc) the life span and
the second-hand value of the machine can be extended. If you ever lend or sell this machine, make sure that the
borrower or buyer gets the operator
Thank you for using a Husqvarna product.
Husqvarna AB has a policy of continuous product development and therefore reserves the right to modify the design and
appearance of products without prior notice.
For customer assistance, contact us at our website: www.usa.husqvarna.com
s manual, so they will also know how to properly maintain and use it.
– English
327HE4
WHA T IS WHA T?
327HDA65
1
What is what?
Cutter
2 Grease nipple and plug for filling lubricant.
3 Bevel gear
4 Blade guard (327HDA65)
5 Shaft
6 Front handle (327HDA65, 327HE3)
7 Front handle (327HE4)
8 Throttle control
9 Stop switch
10 Throttle lock
11 Harness support hook (327HE4)
12 Cylinder cover
13 Starter handle
14 Fuel tank
15 Choke control
16 Air purge
17 Air filter cover
18 Clutch cover
19 Hand guard mounting screw (327HDA65, 327HE3)
20 Angle adjustment handle (327HE3, 327HE4)
21 Angle adjustment knob
22 Hand guard (327HDA65, 327HE3)
23 Combination spanner
24 Operator’s manual
25 Transport guard
26 Allen key
27 Harness (327HE4)
28 Impact guard (327HE4)
29 Spark plug cap and spark plug
English – 5
!
6
W
W
W
W
W
GENERAL SAFETY PRECA UTIONS
Impor tant Personal protective equipment
IMPORTANT!
The machine is only designed for cutting branches and
twigs.
Never use a machine that has been modified in any way
from its original specification.
Never use the machine if you are tired, if you have drunk
alcohol, or if you are taking medication that could affect
your vision, your judgement or your co-ordination.
Wear personal protective equipment. See instructions
under the heading ”Personal protective equipment”.
Never use the machine in extreme weather conditions
such as severe cold, very hot and/or humid climates.
Never use a machine that is faulty. Carry out the checks,
maintenance and service instructions described in this
manual. Some maintenance and service measures
must be carried out by trained and qualified specialists.
See instructions under the heading Maintenance.
All covers and guards must be fitted before starting.
Ensure that the spark plug cap and ignition lead are
undamaged to avoid the risk of electric shock.
ARNING! This machine produces an
electromagnetic field during operation.
!
This field may under some
circumstances interfere with active or
passive medical implants. To reduce the
risk of serious or fatal injury, we
recommend persons with medical
implants to consult their physician and
the medical implant manufacturer before
operating this machine.
IMPOR TANT!
Incorrect or careless use of a hedge trimmer can turn it
into a dangerous tool that can cause serious or even
fatal injury. It is extremely important that you read and
understand the contents of this operator’s manual.
You must use approved personal protective equipment
whenever you use the machine. Personal protective
equipment cannot eliminate the risk of injury but it will
reduce the degree of injury if an accident does happen.
Ask your dealer for help in choosing the right equipment.
ARNING! Listen out for warning signals
or shouts when you are wearing hearing
protection. Always remove your hearing
protection as soon as the engine stops.
HEARING PR OTECTION
Wear hearing protection that provides adequate noise
reduction.
EYE PROTECTION
Always wear approved eye protection. If you use a visor
then you must also wear approved protective goggles.
Approved protective goggles must comply with standard
ANSI Z87.1 in the USA or EN 166 in EU countries.
!
!
!
– English
ARNING! Running an engine in a
confined or badly ventilated area can
result in death due to asphyxiation or
carbon monoxide poisoning.
ARNING! Never allow children to use or
be in the vicinity of the machine. As the
machine is equipped with a springloaded stop switch and can be started by
low speed and force on the starter
handle, even small children under some
circumstances can produce the force
necessary to start the machine. This can
mean a risk of serious personal injury.
Therefore remove the spark plug cap
when the machine is not under close
supervision.
ARNING! Faulty blades can increase
the risk of accidents.
GLOVES
Gloves should be worn when necessary, e.g., when fitting
cutting attachments.
BOOTS
Wear sturdy, non-slip boots or shoes.
GENERAL SAFETY PRECA UTIONS
A
B

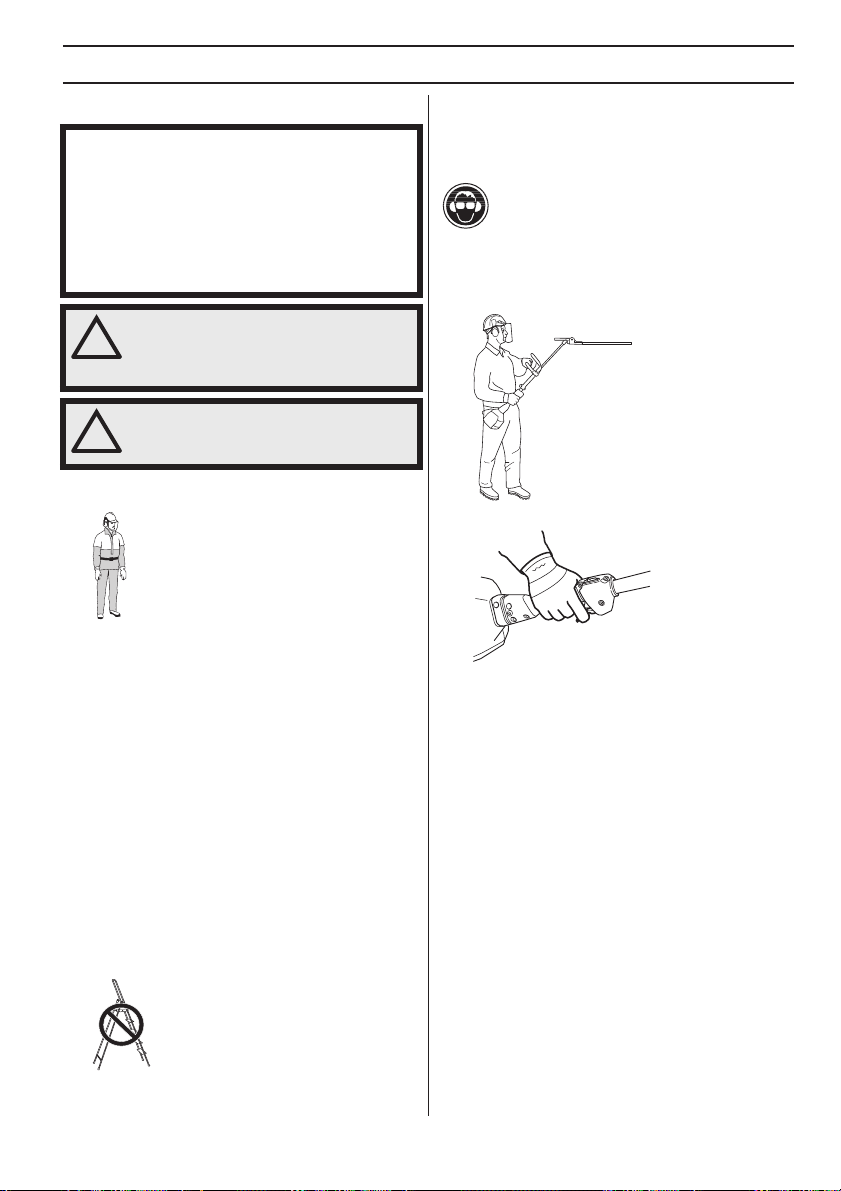

CLO THING
Wear clothes made of a strong fabric and avoid loose
clothing that can catch on twigs and branches. Always
wear heavy, long pants. Do not wear jewellery, shorts
sandals or go barefoot. Secure hair so it is above shoulder
level.
FIRST AID KIT
Always have a first aid kit nearby.
Mac hine ′ s safety equipment
This section descr ibes the machine ′ s safety equipment,
its purpose, and how checks and maintenance should be
carried out to ensure that it operates correctly. See the
”What is what?” section to locate where this equipment is
positioned on your machine.
The life span of the machine can be reduced and the risk
of accidents can increase if machine maintenance is not
carried out correctly and if service and/or repairs are not
carried out professionally. If you need further information
please contact your nearest servicing dealer.
IMPORTANT!
All servicing and repair work on the machine requires
special training. This is especially true of the machine
safety equipment. If your machine fails any of the
checks described below you must contact your service
agent. When you buy any of our products we guarantee
the availability of professional repairs and service. If the
retailer who sells your machine is not a servicing dealer,
ask him for the address of your nearest service agent.
the throttle control is automatically locked at the idle
setting.
Make sure the throttle control is locked at the idle setting
when the throttle lockout is released.
Press the throttle lockout and make sure it returns to its
original position when you release it.
s
7
′
W
ARNING! Never use a machine with
faulty safety equipment. The machine’s
!
safety equipment must be checked and
maintained as described in this section.
If your machine fails any of these checks
contact your service agent to get it
repaired.
Thr ottle lockout
The throttle loc kout is designed to prevent accidental
operation of the throttle control. When you press the lock
(A) (i.e. when you grasp the handle) it releases the throttle
control (B). When you release the handle the throttle
control and the throttle lockout both move back to their
original positions. This movement is controlled by two
independent return springs. This arrangement means that
Check that the throttle control and throttle lockout move
freely and that the return springs work properly.
See instructions under the heading Start. Start the hedge
trimmer and apply full throttle. Release the throttle trigger
and check that the blades stop and remain stationary. If
the blades move when the throttle trigger is in the idle
English
–
GENERAL SAFETY PRECA UTIONS
!
position then the carb urettor idle setting must be adjusted.
See instructions under the heading Maintenance.
Vibration damping system
Your machine is equipped with a vibration damping
system that is designed to reduce vibration and make
operation easier.
8
Stop switch
Use the stop switch to switch off the engine.
Start the engine and make sure the engine stops when
you move the stop switch to the stop setting.
Hand guard
(327HDA65, 327HE3)
The hand guard prevents hands from coming into contact
with the moving blades, for example, if the operator loses
grip on the front handle.
Check that the hand guard is fitted correctly.
Check that the hand guard is undamaged.
The machine′s vibration damping system reduces the
transfer of vibration between the engine unit/cutting
equipment and the machine
Regularly check the vibration damping units for cracks or
deformation. Check that the vibration damping element is
undamaged and securely attached.
WARNING! Overexposure to vibration
can lead to circulatory damage or nerve
damage in people who have impaired
circulation. Contact your doctor if you
experience symptoms of overexposure
to vibration. Such symptoms include
numbness, loss of feeling, tingling,
pricking, pain, loss of strength, changes
in skin colour or condition. These
symptoms normally appear in the
fingers, hands or wrists. The risk
increases at low temperatures.
′s handle unit.
Muffler
The muffler is designed to keep noise levels to a minimum
and to direct exhaust fumes away from the user. A muffler
fitted with a catalytic converter is also designed to reduce
harmful exhaust gases.
– English
GENERAL SAFETY PRECAUTIONS
!
In countries that have a warm and dry climate there is a
significant risk of fire. We therefore fit certain mufflers with
a spark arrestor screen. Check whether the muffler on
your machine is fitted with this kind of screen.
For mufflers it is very important that you follow the
instructions on checking, maintaining and servicing your
machine.
Never use a machine that has a faulty muffler.
Regularly check that the muffler is securely attached to
the machine.
If the muffler on your machine is fitted with a spark
arrestor screen this must be cleaned regularly. A blocked
screen will cause the engine to overheat and may lead to
serious damage.
WARNING! Bear in mind that:
The exhaust fumes from the engine are
hot and may contain sparks which can
start a fire. Never start the machine
indoors or near combustible material!
Blades
To ensure good cutting results it is impor tant that the
contact pressure between the blades is correct. The
contact pressure is adjusted by turning the screws on the
underside of the bar clockwise as far as they will go. Then
turn the screws anticlockwise a 1/4 turn. Lock the screws
using the locking nut on the top of the bar. Check that the
screws are loose enough to allow the washers under the
screw heads to slide sideways.
When the blades are correctly adjusted the play between
the blades should be 0,2–0,4 mm, measured at the
screws.
The edges of the blades are too hard to be filed. Dull
blades should be sharpened using a grinder.
Replace the blades if they are bent or damaged.
Blade guard
(327HDA65)
The blade guard (A) is intended to protect against any
part of the body coming into contact with the blades (B).
WARNING! Mufflers fitted with catalytic
converters get very hot during use and
!
remain so for some time after stopping.
This also applies at idle speed. Contact
can result in burns to the skin.
Remember the risk of fire!
WARNING! The inside of the muffler
contain chemicals that may be
!
carcinogenic. Avoid contact with these
elements in the event of a damaged
muffler.
Check that the blade guard is not damaged or distorted.
Replace the blade guard if it is bent or damaged.
A
B
English – 9
Loading...
