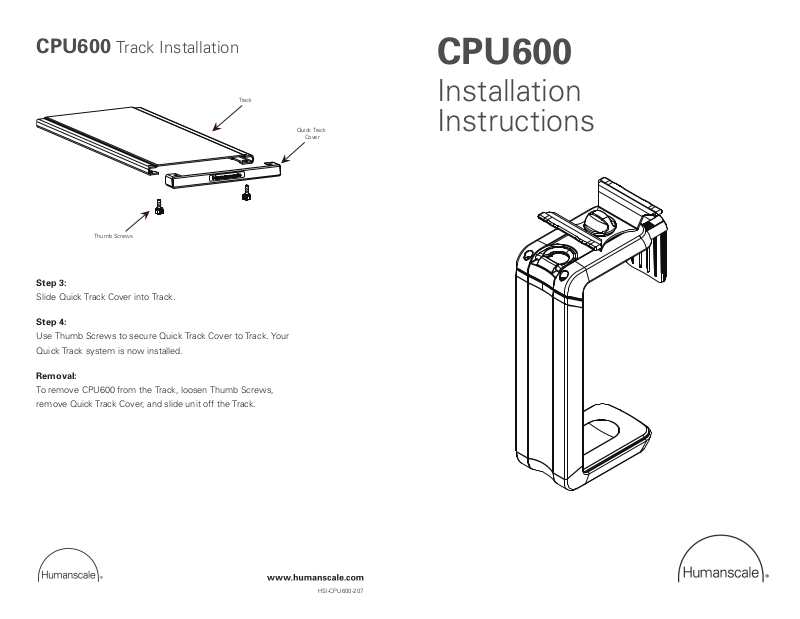

Humanscale CPU600 User Manual

Track

Quick Track

Cover

Thumb Screws

CPU600 Track Installation

Step 3:

Slide Quick Track Cover into Track.

Step 4:

Use Thumb Screws to secure Quick Track Cover to Track. Your

Quick Track system is now installed.

CPU600

Installation
Instructions

Removal:

To remove CPU600 from the Track, loosen Thumb Screws,

remove Quick Track Cover, and slide unit off the Track.

HSI-CPU600-207

CPU600 Installation Instructions

Side Bracket

Base

Width Knob

Height Lock

Mounting Rails

Upper Assembly

Height Lock

Width Knob

5/8" Long
Tapping Screws

Track

Mounting Tape

1/4” back
from desk edge

Tabs

CPU Installation

Step 1:

Loosen Width Knob and slide Side

Bracket outward. Loosen Height Lock and

slide Upper Assembly to highest position.

Center CPU on the Base.

Track Installation

Step 1:

Position track approximately 1/4” from edge of desk

with folded tabs facing away from desk edge. Using

Mounting Tape, affix Track to underside of desk.

Attach Track to desk using Tapping Screws.

Step 2:

Lower Upper Assembly until it lightly touches

top of CPU. Tighten Height Lock. Push Side

Bracket inward until it fits tightly against

CPU. Center Mounting Rails above CPU.

Tighten Width Knob.

Step 2:

Align Mounting Rails of the CPU600 with front edge of

Track and slide unit into Track.

Track Installation, continued on back
