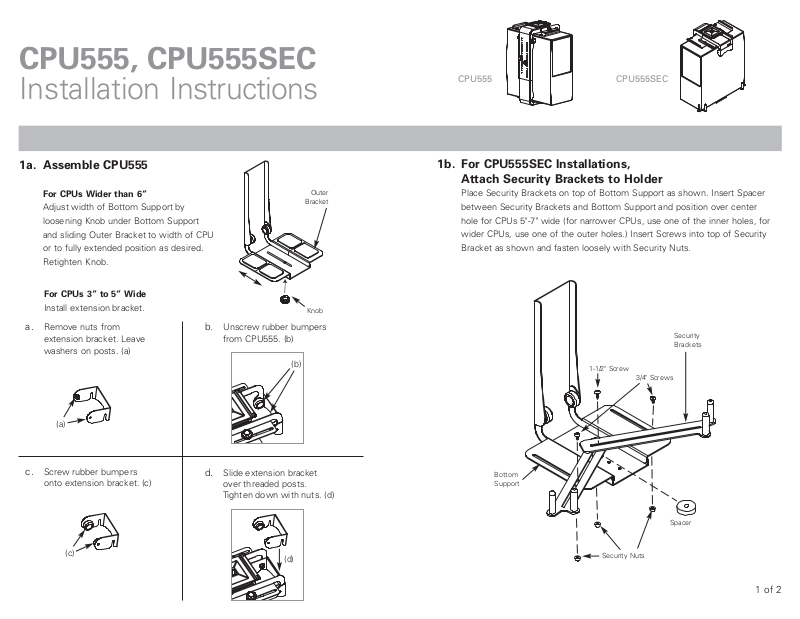

Humanscale CPU555SEC User Manual
CPU555, CPU555SEC
Installation Instructions
CPU555
CPU555SEC
a. Remove nuts from
extension bracket. Leave
washers on posts. (a)
c. Screw rubber bumpers
onto extension bracket. (c)
b. Unscrew rubber bumpers
from CPU555. (b)
d. Slide extension bracket
over threaded posts.
Tighten down with nuts. (d)
1b. For CPU555SEC Installations,
Attach Security Brackets to Holder
Place Security Brackets on top of Bottom Support as shown. Insert Spacer
between Security Brackets and Bottom Support and position over center
hole for CPUs 5"-7" wide (for narrower CPUs, use one of the inner holes, for
wider CPUs, use one of the outer holes.) Insert Screws into top of Security
Bracket as shown and fasten loosely with Security Nuts.
Security
Brackets
Bottom
Support
Spacer
Security Nuts
1-1/2" Screw
3/4" Screws
1a. Assemble CPU555
For CPUs Wider than 6”
Adjust width of Bottom Support by
loosening Knob under Bottom Support
and sliding Outer Bracket to width of CPU
or to fully extended position as desired.
Retighten Knob.
For CPUs 3” to 5” Wide
Install extension bracket.
(a)
(d)
(c)
(b)
Outer
Bracket
Knob
1 of 2
3. Install the Track
Using tape, affix Track to underside of desk. Drill holes. Using screws
provided, attach Track and Rear Rubber Stopper. Making sure plastic glides
are in place, slide CPU Holder onto Track. Attach Front Bumper to Track.
Mounting
Tape
Track
1/2”Back
from Edge
Rear Rubber
Stopper
5/8”Tapping
Screw (1)
5/8”Tapping
Screws (8)
5/8”Tapping
Screws (2)
Front
Bumper
2. Install CPU into Holder
Place CPU on Bottom Support. Loosen Side Support and fit Top Support
tightly over CPU. Fasten with Knobs or Security Nuts as necessary.
Adjust Side Support so that it fits securely against CPU and tighten Knobs
or Security Nuts. For CPU Security installations, position Security Brackets
tightly against corners of CPU (as shown) and tighten Security Nuts
underneath Bottom Support.
Glides
Top Support
Security
Nuts
Side
Support
Bottom
Support
CPU
Security
Nuts
Knobs
Optional
Security Brackets
or
Knobs
or
2 of 2
CPU555
CPU555SEC
CPU555, CPU555SEC
Installation Instructions
