Huawei WE3200 User Manual

HUAWEI WiFi Extender WE3200

华为信息资产

仅供TUV SUD使用

严禁扩散

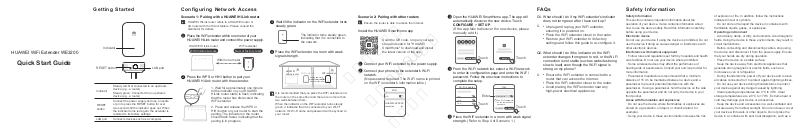

Quick Start Guide

Getting Started

Indicator

RESET button

Steady red: Not connected to an upstream
device (e.g., a router)

Indicator

Steady green: Connected to an upstream
device (e.g., a router)

Connect the power supply and use a needle
or pin to press the RESET button for over

RESET

two seconds till the indicator goes out. When

button

the indicator turns red again, the extender is
restored to its factory settings.

LAN port

Connects devices such as a computer.

LAN port

Configuring Network Access

Scenario 1: Pairing with a HUAWEI HiLink router

HUAWEI HiLink router refers to a HUAWEI router or
4G router with the HiLink feature. Please consult the
distributor for details.

1

Place the WiFi extender within one meter of your
HUAWEI HiLink router and connect the power supply.

HUAWEI HiLink router

With Internet access

Within one meter

Press the WPS or H/Hi button to pair your

2

HUAWEI HiLink router with the extender.

1. Wait for approximately one minute
till the indicator on your HUAWEI
HiLink router starts to flash, indicating
that the router has discovered the
WiFi extender.

2. Press and release the WPS or
H/Hi button on your router to start the
pairing. The indicator on the router
should flash faster, indicating that the
pairing is in progress.

WiFi extender

New or factory reset

Wait till the indicator on the WiFi extender turns

3

steady green.

The indicator turns steady green,
indicating that it is connected to
the network.

4

Place the WiFi extender in a room with weak
signal strength.

HUAWEI
HiLink router

It is recommended that you place the WiFi extender and
the router on the same floor and there are no more than
two walls between them.
When the indicator on the WiFi extender turns steady
green, it indicates that it is connected to your Wi-Fi®
network. It's Wi-Fi name and password will be synced to
your router.

Unplug and move

it into another room

WiFi extenderWiFi extender

Scenario 2: Pairing with other routers

Ensure the router is able to access the Internet.

Install the HUAWEI SmartHome app

Scan the QR code, or open your app
store and search for "HUAWEI
SmartHome" to download and install
the latest version of the app.

1

Connect your WiFi extender to the power supply.

2

Connect your phone to the extender's Wi-Fi
network.

(No password required. The Wi-Fi name is printed
on the WiFi extender's information lable.)

WiFi

WiFi

HUAWEI-XXXXXX

connected

Open the HUAWEI SmartHome app. The app will

3

automatically discover the new device. Touch
CONFIGURE > SET UP.

(If the app fails to discover the new device, please
manually add it.)

Tom

SET UP

CONNECT

Touch

Touch

Touch

CONFIGURE

LATER

From the Wi-Fi network list, select a Wi-Fi network

4

to enter its configuration page and enter the Wi-Fi
password. Follow the onscreen instructions to
complete the setup.

Wi-Fi repeater

Lucy

Jack

Tom

5

Place the WiFi extender in a room with weak signal
strength. (Refer to Step 4 of Scenario 1.)

Enter

Touch

Use Wi-Fi password
as the router admin
password

CANCEL

FAQs

Q1. What should I do if my WiFi extender's indicator
does not turn green after I have set it up?

A:

Unplug and replug your WiFi extender,
ensuring it is powered on.
Place the WiFi extender closer to the router.
Restore your WiFi extender to its factory
settings and follow this guide to re-configure it.

Q2. What should I do if the indicator on the WiFi
extender changes from green to red, or the Wi-Fi
connection is not stable (such as websites being
slow to load) even though the Wi-Fi signal is
strong on my phone?

A:

Ensure the WiFi extender is connected to a
router that can access the Internet.
Place the WiFi extender closer to the router.
Avoid placing the WiFi extender near any
high-power electrical appliances.

Safety Information

Safety Information

This section contains important information about the
operation of your device. It also contains information about
how to use the device safely. Read this information carefully
before using your device.

Electronic device

Do not use your device if using the device is prohibited. Do not
use the device if doing so causes danger or interference with
other electronic devices.

Interference with medical equipment

· Follow rules and regulations set forth by hospitals and health

care facilities. Do not use your device where prohibited.

· Some wireless devices may affect the performance of
hearing aids or pacemakers. Consult your service provider for
more information.

· Pacemaker manufacturers recommend that a minimum
distance of 15 cm be maintained between a device and a
pacemaker to prevent potential interference with the
pacemaker. If using a pacemaker, hold the device on the side
opposite the pacemaker and do not carry the device in your
front pocket.

Areas with flammables and explosives

· Do not use the device where flammables or explosives are

stored (in a gas station, oil depot, or chemical plant, for
example).

· Using your device in these environments increases the risk

of explosion or fire. In addition, follow the instructions
indicated in text or symbols.

· Do not store or transport the device in containers with
flammable liquids, gases, or explosives.

Operating environment

· Avoid dusty, damp, or dirty environments. Avoid magnetic

fields. Using the device in these environments may result in
circuit malfunctions.

· Before connecting and disconnecting cables, stop using
the device and disconnect it from the power supply. Ensure
that your hands are dry during operation.

· Place the device on a stable surface.

· Keep the device away from electronic appliances that

generate strong magnetic or electric fields, such as a
microwave oven or refrigerator.

· During thunderstorms, power off your device and remove
all cables connected to it to protect against lightning strikes.

· Do not use your device during thunderstorms to protect
your device against any danger caused by lightning.

· Ideal operating temperatures are 0°C to 40°C. Ideal
storage temperatures are -40°C to +70°C. Extreme heat or
cold may damage your device or accessories.

· Keep the device and accessories in a well-ventilated and
cool area away from direct sunlight. Do not enclose or cover
your device with towels or other objects. Do not place the
device in a container with poor heat dissipation, such as a

box or bag.

华为信息资产

仅供TUV SUD使用

严禁扩散

· To protect your device or accessories from fire or
electrical shock hazards, avoid rain and moisture.

· Keep the device away from sources of heat and fire, such
as a heater, microwave oven, stove, water heater, radiator,
or candle.

· Do not place any object, such as a candle or a water
container, on the device. If any foreign object or liquid
enters the device, immediately stop using it, power it off,
and remove all cables connected to it. Then, contact an
authorized service center.

· Do not block device openings. Reserve a minimum of 10
cm around the device to dissipate heat.

· Stop using your device or applications for a while if the
device is overheated. If skin is exposed to an overheated
device for an extended period, low temperature burn
symptoms, such as red spots and darker pigmentation, may
occur.

· Do not touch the device's antenna. Otherwise,
communication quality may be reduced.

· Do not allow children or pets to bite or suck the device or
accessories. Doing so may result in damage or explosion.

· Observe local laws and regulations, and respect the
privacy and legal rights of others.

· The device should be installed and operated with a
minimum distance of 20 cm between the radiator and your

96725150_01

body.

· Keep the device in a place with good reception. The
distance between the device and other metal materials (such
as metal brackets or metal doors and windows) should be
greater than 25 cm and the distance between the device
should be greater than 30 cm.

Child's safety

· Comply with all precautions with regard to child's safety.

Letting children play with the device or its accessories may be
dangerous. The device includes detachable parts that may
present a choking hazard. Keep away from children.

· The device and its accessories are not intended for use by
children. Children should only use the device with adult
supervision.

Accessories

· Using an unapproved or incompatible power adapter,

charger or battery may cause fire, explosion or other hazards.

· Choose only accessories approved for use with this model
by the device manufacturer. The use of any other types of
accessories may void the warranty, may violate local
regulations and laws, and may be dangerous. Please contact
your retailer for information about the availability of approved
accessories in your area.

Power adapter safety

· The power plug is intended to serve as a disconnect device.

· For pluggable devices, the socket-outlet shall be installed

near the devices and shall be easily accessible.

· Unplug the power adapter from electrical outlets and the
device when not in use.

· Do not drop or cause an impact to the power adapter. If it is
damaged, take it to an authorized service center for
inspection.

· If the power cable is damaged (for example, the cord is
exposed or broken), or the plug loosens, stop using it at once.
Continued use may lead to electric shocks, short circuits, or
fire.

· Do not touch the power cord with wet hands or pull the
power cord to disconnect the power adapter.

· Do not touch the device or the power adapter with wet
hands. Doing so may lead to short circuits, malfunctions, or
electric shocks.

· If your power adapter has been exposed to water, other
liquids, or excessive moisture, take it to an authorized service
center for inspection.

· Ensure that the power adapter meets the requirements of
Clause 2.5 in IEC60950-1/EN60950-1/UL60950-1 and has
been tested and approved according to national or local
standards.

Cleaning and maintenance

· During storage, transportation, and operation of the device,

keep it dry and protect it from collision.

· Keep the device and accessories dry. Do not attempt to dry
it with an external heat source, such as a microwave oven or
hair dryer.

· Do not expose your device or accessories to extreme heat
or cold. These environments may interfere with proper function
and may lead to fire or explosion.

· Avoid collision, which may lead to device malfunctions,
overheating, fire, or explosion.

· If the device is not going to be used for an extended period
of time, power it off, and remove all cables connected to it.

· If anything unusual occurs (for example, if the device emits
smoke or any unusual sound or smell), immediately stop using
it, power it off, remove all cables connected to it, and contact
an authorized service center.

· Do not trample, pull, or excessively bend any cable. Doing
so may damage the cable, causing the device to malfunction.

· Before you clean or maintain the device, stop using it, stop
all applications, and disconnect all cables connected to it.

· Do not use any chemical detergent, powder, or other
chemical agents (such as alcohol and benzene) to clean the
device or accessories. These substances may cause damage
to parts or present a fire hazard. Use a clean, soft, and dry
cloth to clean the device and accessories.

· Do not place magnetic stripe cards, such as credit cards and
phone cards, near the device for extended periods of time.
Otherwise the magnetic stripe cards may be damaged.

· Do not dismantle or remanufacture the device and its
accessories. This voids the warranty and releases the
manufacturer from liability for damage. In case of damage,
contact an authorized service center for assistance or repair.

Environmental protection

· The device and its accessories (if included), such as the

power adapter, headset, and battery should not be disposed of
with household garbage.

· Disposal of the device and its accessories is subject to local
regulations. Support proper collection and recycling.

FCC Regulatory Compliance
FCC statement

This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.

--Consult the dealer or an experienced radio/TV technician for

help.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
Caution: Any changes or modifications to this device not
expressly approved by Huawei Technologies Co., Ltd. for
compliance could void the user's authority to operate the
equipment.

Legal Notice
Copyright © Huawei Technologies Co., Ltd. 2018. All rights
reserved.

No part of this manual may be reproduced or transmitted in
any form or by any means without prior written consent of
Huawei Technologies Co., Ltd. and its affiliates ("Huawei").
The product described in this manual may include copyrighted
software of Huawei and possible licensors. Customers shall
not in any manner reproduce, distribute, modify, decompile,
disassemble, decrypt, extract, reverse engineer, lease, assign,
or sublicense the said software, unless such restrictions are
prohibited by applicable laws or such actions are approved by
respective copyright holders.

Trademarks and Permissions

, , and are trademarks or registered

trademarks of Huawei Technologies Co., Ltd.

®

Wi-Fi

, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are
trademarks of Wi-Fi Alliance.
Other trademarks, product, service and company names
mentioned may be the property of their respective owners.

Notice

Some features of the product and its accessories described
herein rely on the software installed, capacities and settings of
local network, and therefore may not be activated or may be
limited by local network operators or network service
providers.
Thus, the descriptions herein may not exactly match the
product or its accessories which you purchase.
Huawei reserves the right to change or modify any information
or specifications contained in this manual without prior notice
and without any liability.

DISCLAIMER

ALL CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS".
EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO
WARRANTIES OF ANY KIND, EITHER EXPRESS OR
IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
A PARTICULAR PURPOSE, ARE MADE IN RELATION TO
THE ACCURACY, RELIABILITY OR CONTENTS OF THIS
MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE
LAW, IN NO EVENT SHALL HUAWEI BE LIABLE FOR ANY

SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL
DAMAGES, OR LOSS OF PROFITS, BUSINESS, REVENUE,
DATA, GOODWILL SAVINGS OR ANTICIPATED SAVINGS
REGARDLESS OF WHETHER SUCH LOSSES ARE
FORSEEABLE OR NOT.
THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT
APPLY TO LIABILITY FOR PERSONAL INJURY TO THE
EXTENT APPLICABLE LAW PROHIBITS SUCH A
LIMITATION) OF HUAWEI ARISING FROM THE USE OF THE
PRODUCT DESCRIBED IN THIS MANUAL SHALL BE
LIMITED TO THE AMOUNT PAID BY CUSTOMERS FOR THE
PURCHASE OF THIS PRODUCT.

Import and Export Regulations

Customers shall comply with all applicable export or import
laws and regulations and be responsible to obtain all
necessary governmental permits and licenses in order to
export, re-export or import the product mentioned in this
manual including the software and technical data therein.

Version Update

In order to improve the security of the product and provide you
with a better user experience, we will push version update
information to you on a regular basis when an important
update is released.

Privacy Policy

To better understand how we use and protect your personal
information, please see the privacy policy at
http://consumer.huawei.com/privacy-policy.

End User License Agreement

Please read and agree to the End User License Agreement
(HUAWEI EULA) on the product’s management page
before using the product.

Please visit http://consumer.huawei.com/en/support/hotline
for recently updated hotline and email address in your
country or region.

This guide is for reference only and does not constitute a
warranty of any kind, express or implied.
