Page 1

IPC6332-MIR

V100R001C00

Quick Start Guide

Issue

Date 2014-12-25

HUAWEI TECHNOLOGIES CO., LTD.

Page 2

No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd.

Trademarks and Permissions

and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.

All other trademarks and trade names mentioned in this document are the property of their respective holders.

Notice

The purchased products, services and features are stipulated by the contract made between Huawei and the customer. All or part of the products, services and features described in this document may not be within the purchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied.

The information in this document is subject to change without notice. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute a warranty of any kind, express or implied.

Huawei Technologies Co., Ltd.

Address: Huawei Industrial Base

Bantian, Longgang Shenzhen 518129 People's Republic of China

Website: http://enterprise.huawei.com

Issue 02 (2014-12-25) Huawei Proprietary and Confidential

Page 3

IPC6332-MIR Quick Start Guide About This Document

About This Document

Purpose

This document describes the installation and basic operation of the network cameras.

This document applies to IPC6332-MIR.

Intended Audience

This document is intended for:

l Installation and commissioning engineers

l Technical support engineers

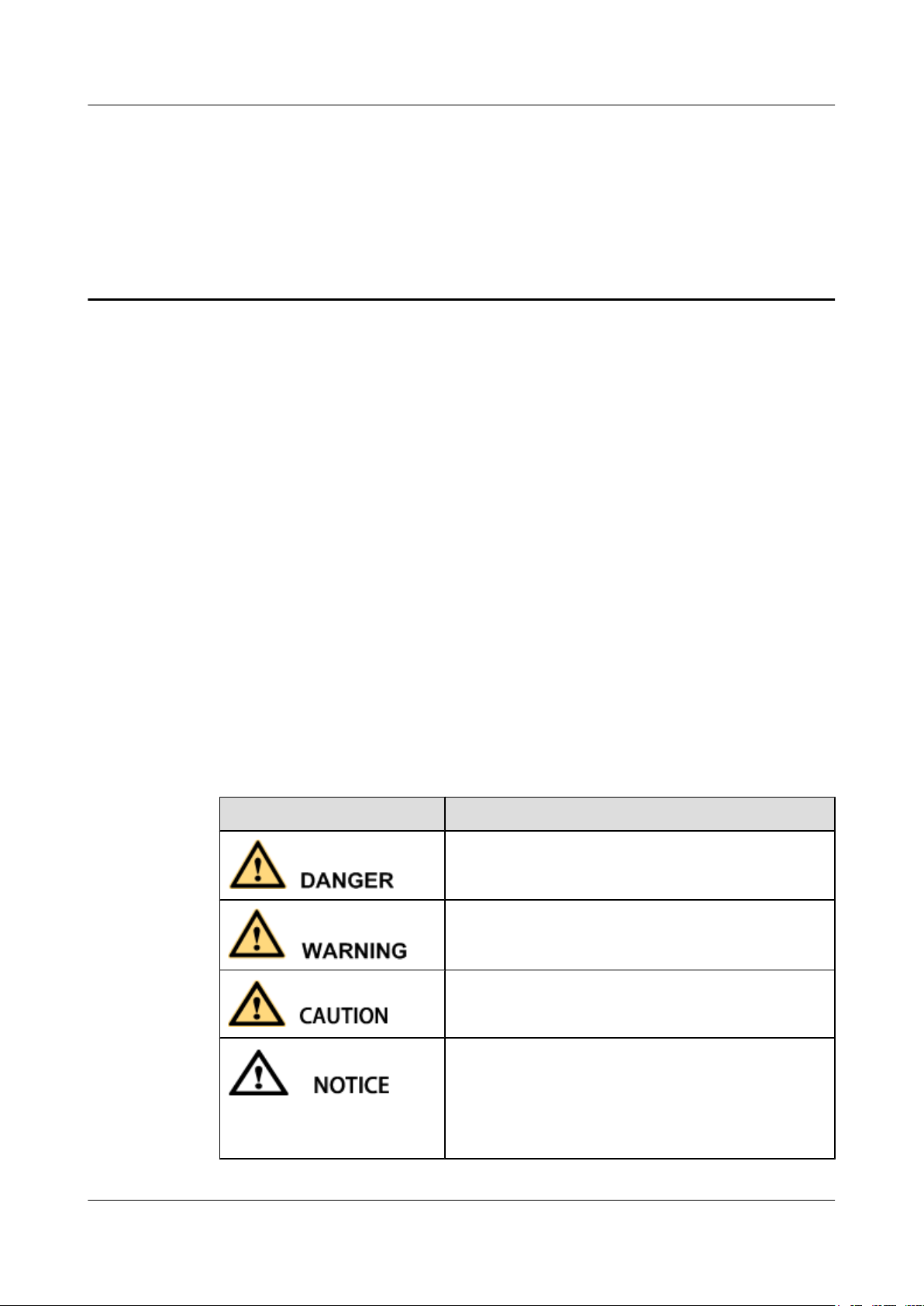

Symbol Conventions

The symbols that may be found in this document are defined as follows.

Symbol Description

Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

Indicates a potentially hazardous situation which, if not avoided, could result in equipment damage, data loss, performance deterioration, or unanticipated results.

NOTICE is used to address practices not related to personal injury.

Issue 02 (2014-12-25) Huawei Proprietary and Confidential

Page 4

IPC6332-MIR Quick Start Guide About This Document

Symbol Description

Calls attention to important information, best practices and tips.

NOTE is used to address information not related to personal injury, equipment damage, and environment deterioration.

Change History

Issue Date Description

02 2014-12-25 This is the first release.

01 2014-05-05 This issue is used for first office application

(FOA).

Issue 02 (2014-12-25) Huawei Proprietary and Confidential

iii

Page 5

IPC6332-MIR Quick Start Guide Contents

About This Document.....................................................................................................................ii

1 Packing List and Certificate.........................................................................................................1

2 Notices and Precautions...............................................................................................................3

3 Installation......................................................................................................................................5

3.1 Overview........................................................................................................................................................................5

3.2 Ceiling Mounting............................................................................................................................................................6

3.3 Pendant Mounting...........................................................................................................................................................9

3.4 Wall Bracket Mounting................................................................................................................................................11

3.5 Installing Water Resistance Cap...................................................................................................................................13

4 Quick Settings..............................................................................................................................15

4.1 Accessing the Camera..................................................................................................................................................15

4.2 Live View via Web Browser........................................................................................................................................16

4.3 Logout...........................................................................................................................................................................18

5 Troubleshooting..........................................................................................................................19

5.1 Image Exception...........................................................................................................................................................19

5.2 Power Supply and Interference.....................................................................................................................................20

5.3 Camera Grounding and Protection...............................................................................................................................20

5.4 Camera Network Problem............................................................................................................................................21

5.5 Other Questions............................................................................................................................................................21

A Toxic and Harmful Substances Declaration..........................................................................22

Issue 02 (2014-12-25) Huawei Proprietary and Confidential

Page 6

IPC6332-MIR Quick Start Guide

1 Packing List and Certificate

Items

Network Camera 1

Quick Start Guide 1

Water-resistant Cap 1

Adjustment Handle 1

Adaptor 1

Wrench 1

Screws 3

Expansion Tube 3

Fix Screws for Adaptor 2

Installation Template Stickers 1

Amount

For details, access http://enterprise.huawei.com, choose Support > Product Support > Unified Communications and Collaboration > Video Surveillance > Cameras > 6300 Series

Issue 02 (2014-12-25) Huawei Proprietary and Confidential

Page 7

IPC6332-MIR Quick Start Guide 1 Packing List and Certificate

Dome Network Camera, and select a specific product model, and select the desired production version in the Product Version drop-down list box, and download the desired documents.

Issue 02 (2014-12-25) Huawei Proprietary and Confidential

Page 8

IPC6332-MIR Quick Start Guide

2 Notices and Precautions

For a correct and safe use of the device, please read the notices and precautions before you start, and strictly follow them.

NOTE

Power Supply

Operation

l The pictures in the manual are only for reference.

l The device is subject to change without notice.

l To get the newly developed firmware or patch, please contact the after-sale service apartment.

l Contact your dealer, with any problem occurred when using the device.

l The user should be responsible for any damage caused by unauthorized operation or operation without

following the construction of the manual.

l Please install lightening conductor in case of lightening stroke. And the camera must be

effectively grounded.

l Please do not connect many cameras to one adaptor; fire may be caused if the adaptor

temperature is too high.

l Before the installation is complete, please do not power on. And before power off the

camera, please do not disconnect the power cable.

l Keep the power connector clean and dry, in case of electrical shock or other damage.

l Check the specification of the products for the installation environment.

l Make sure the power supply is matched with your required voltage to avoid damage.

l If the product does not function properly, please contact your dealer or the nearest service

center. Do not disassemble the camera for repair or maintenance by yourself.

l Make sure that the wall is strong enough to withstand three times the weight of the camera.

Cleaning Camera

l Before you clean the camera, please power off the camera and unplug all the cables

connected.

Issue 02 (2014-12-25) Huawei Proprietary and Confidential

Page 9

IPC6332-MIR Quick Start Guide 2 Notices and Precautions

l Do not touch the lens with your fingers. To dedust it, wipe the lens softly using a soft cloth

with alcohol.

Environment Requirement

l Please keep the camera away from water or any form of liquid. In case there are water drop

into the camera, please disconnect all the cables immediately.

l Please make sure there are enough distance between the camera and the electromagnetic

field to avoid interference.

l The camera shall be installed in ventilated and dry place.

Person

The installation and maintenance of the camera must be done by professionals.

Issue 02 (2014-12-25) Huawei Proprietary and Confidential

Page 10

IPC6332-MIR Quick Start Guide 3 Installation

3 Installation

3.1 Overview

The overview of IPC6332-IR network dome camera is shown below.

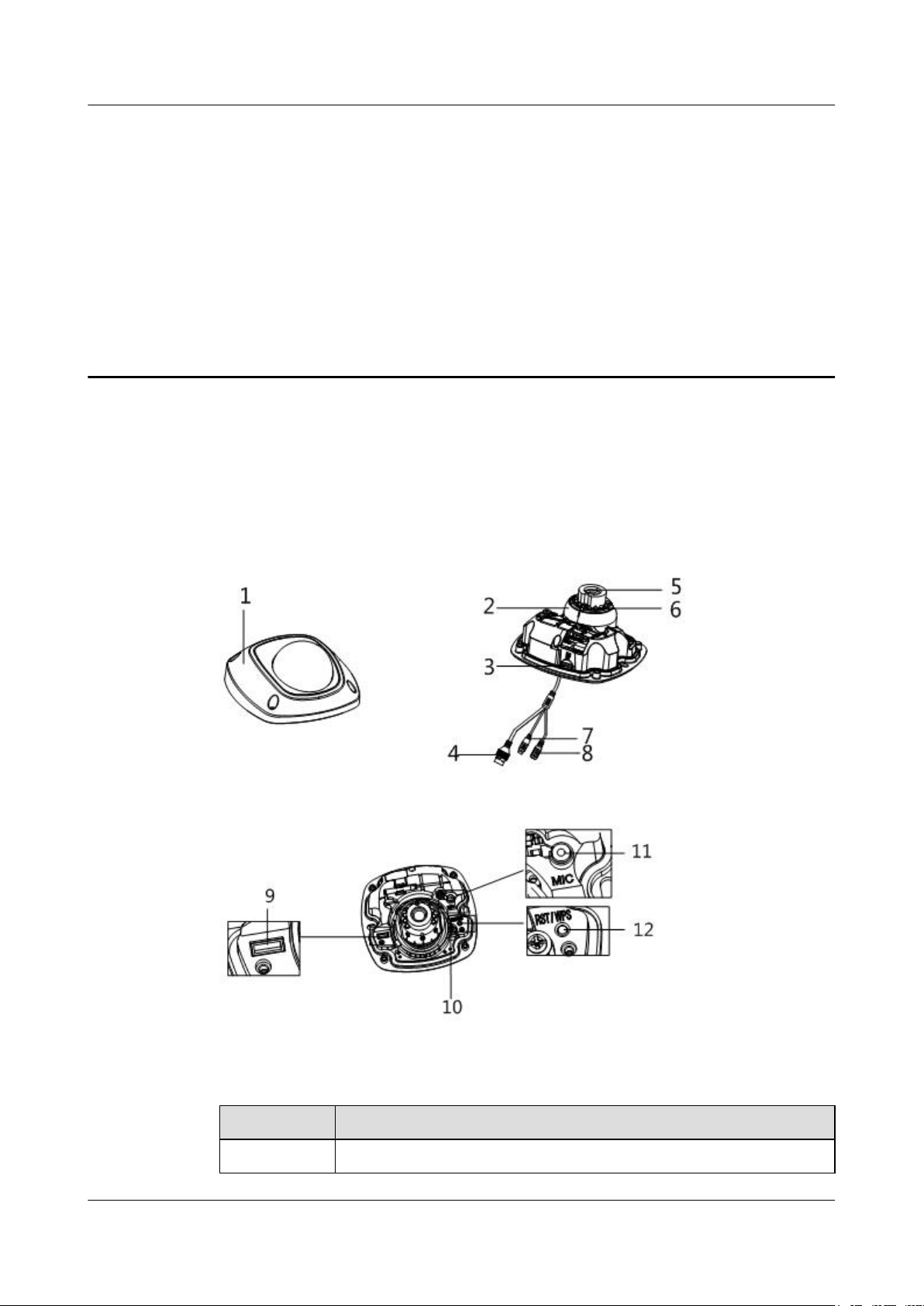

Figure 3-1 Overview

Table 3-1 Description of IPC6332-IR Dome Camera

No. Description

1 Front Cover

Issue 02 (2014-12-25) Huawei Proprietary and Confidential

Page 11

IPC6332-MIR Quick Start Guide 3 Installation

No. Description

2 Dome Drive

3 Micro SD Card Slot

4 Network Cable

5 Lens

6 IR LED

7 Power Cable(DC12V±10%)

8 Audio/Alarm Cables

10 Serial Port Interface

11 Hex Screw

12 MIC

13 RESET/WPS Button

NOTE

l Press RESET about 10s when the camera is powering on or rebooting to restore the default settings,

including the user name, password, IP address, port No., etc.

l No.8 is the audio/alarm cable interface, of which the "I" mark connects to the alarm input, the "o" mark

connects to the alarm output, the "GND" mark connects the grounding, and the "A" mark connects the audio output.

3.2 Ceiling Mounting

Step 1 Drill the screw holes and the cable hole in the ceiling according to the supplied drill template.

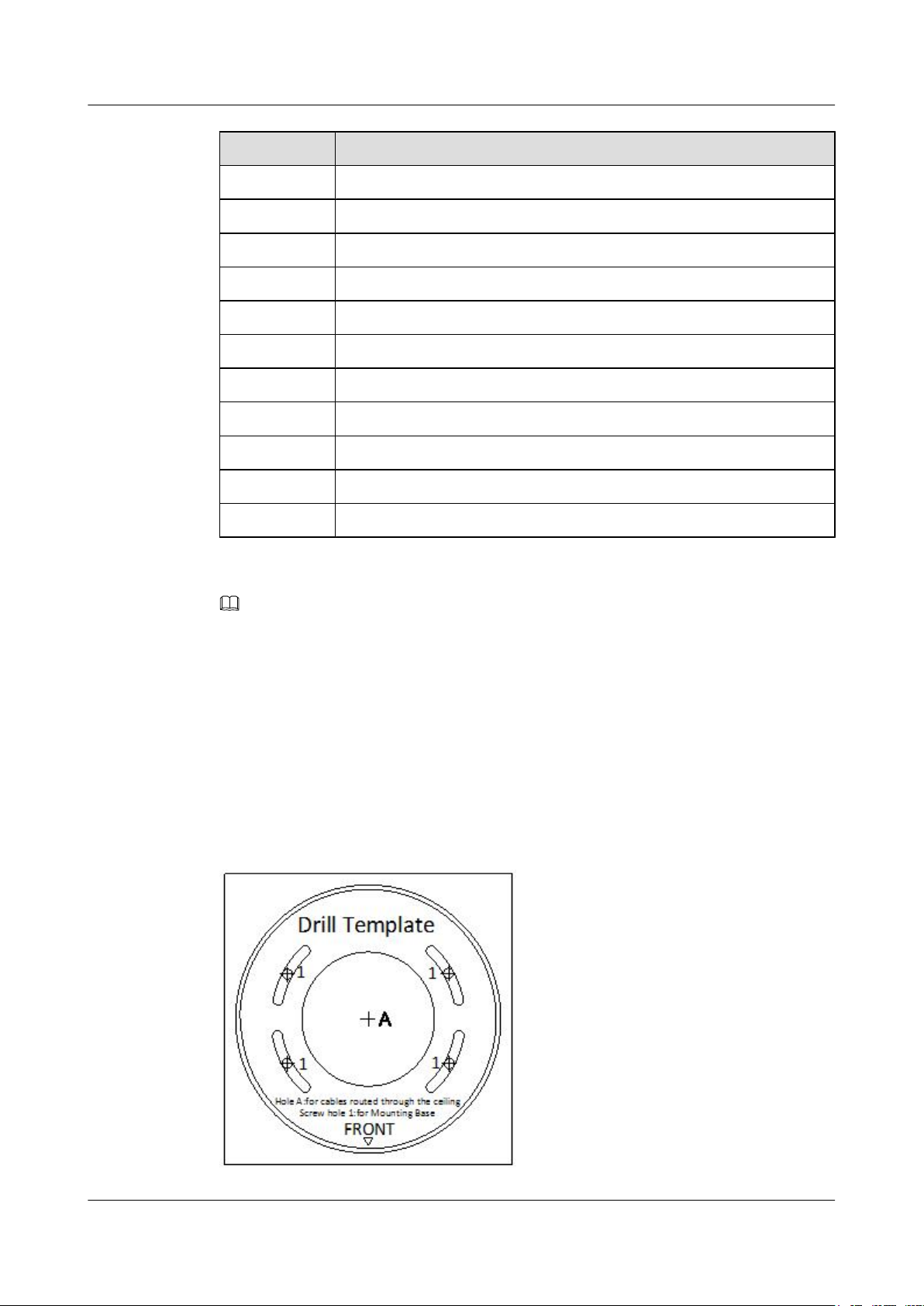

Figure 3-2 Drill Template

Issue 02 (2014-12-25) Huawei Proprietary and Confidential

Page 12

IPC6332-MIR Quick Start Guide 3 Installation

Step 2 Loosen the set screw on the front cover to disassemble the camera with the supplied Allen key.

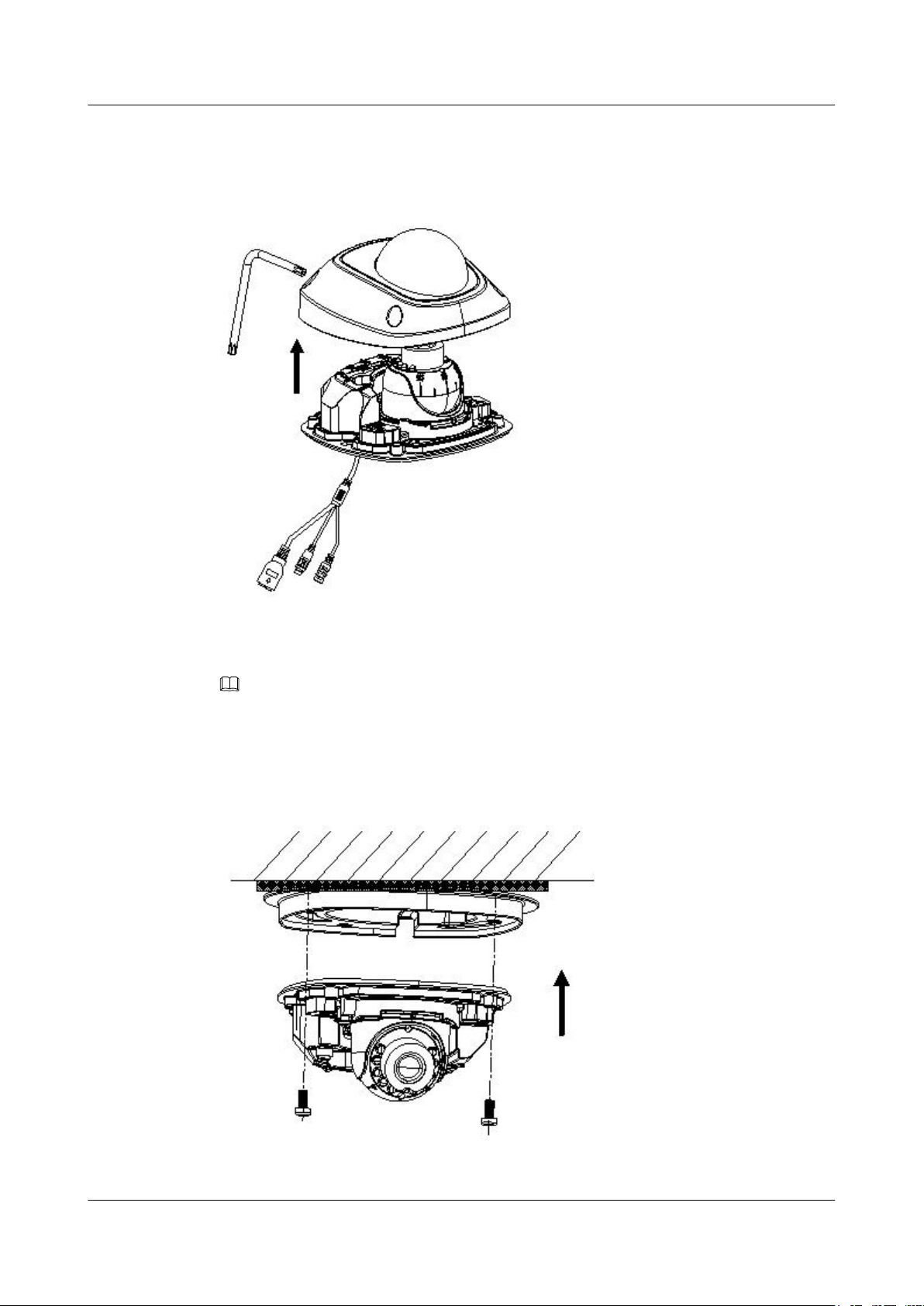

Figure 3-3 Disassemble the Camera

Step 3 Fix the adapter plate to the ceiling with the supplied expansion screws.

NOTE

If the supplied drill template is type II drill template, you can just skip Step3 and go straight to Step4.

Step 4 Fix the dome drive with the supplied screws.

Figure 3-4 Fix the Dome Camera

Issue 02 (2014-12-25) Huawei Proprietary and Confidential

Page 13

IPC6332-MIR Quick Start Guide

Step 5 Connect the power cable, network cable, and the audio/alarm cables.

3 Installation

NOTE

Use a plier to remove the removable part and route the cables via side outlet (as shown in Figure below) if no cable hole is drilled in Step1, and connect the corresponding cables.

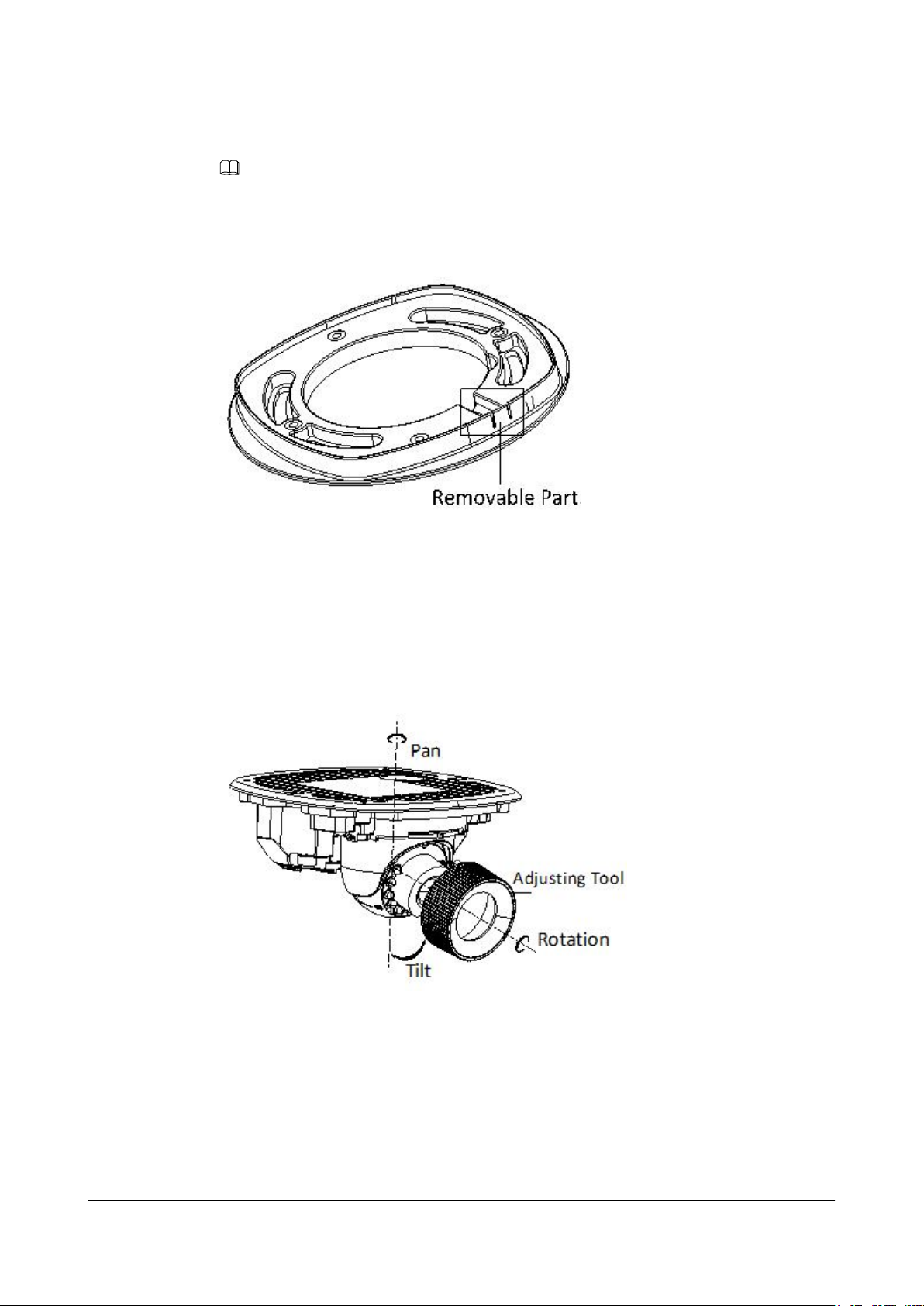

Figure 3-5 Remove the Removable Part

Step 6 View the image via the web browser.

Step 7 Slightly loosen the hex screw beside the WPS/RESET button to adjust the surveillance angle.

Step 8 Use the supplied adjusting tool to adjust the pan [±30°], tilt [0°~80°], and rotation direction [0°

~360°].

Figure 3-6 3-axis Adjustment

Step 9 Tighten the hex screw to fix the well-adjusted surveillance angle.

Step 10 Align the front cover to the dome drive and tighten the set screws on the front cover.

Issue 02 (2014-12-25) Huawei Proprietary and Confidential

Page 14

IPC6332-MIR Quick Start Guide 3 Installation

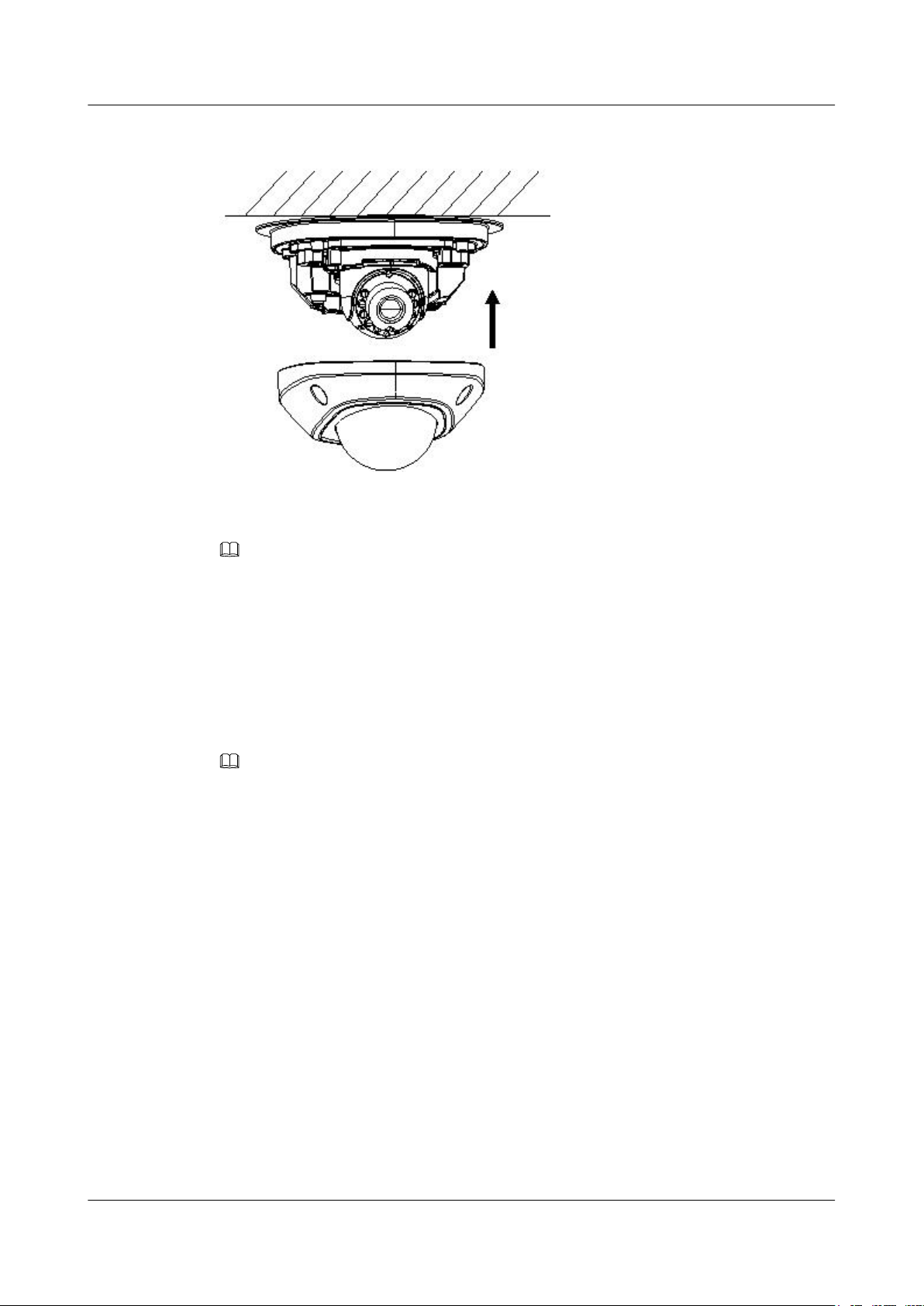

Figure 3-7 Install the Front Cover

Step 11 Tear off the protection film softly to complete the installation.

NOTE

l Do not tear off the protection film until the installation is completed.

l Do not touch the inner face of the bubble with your hands.

----End

3.3 Pendant Mounting

Step 1 Install the bracket to the ceiling with the supplied screws in the ceiling bracket package.

NOTE

Use a plier to remove the removable part and route the cables via side outlet (See pendant installation) if no cable hole is drilled in Step1, and connect the corresponding cables.

Step 2 Fix the adapter plate to the ceiling bracket with the supplied PM4X8 screws.

Issue 02 (2014-12-25) Huawei Proprietary and Confidential

Page 15

IPC6332-MIR Quick Start Guide

3 Installation

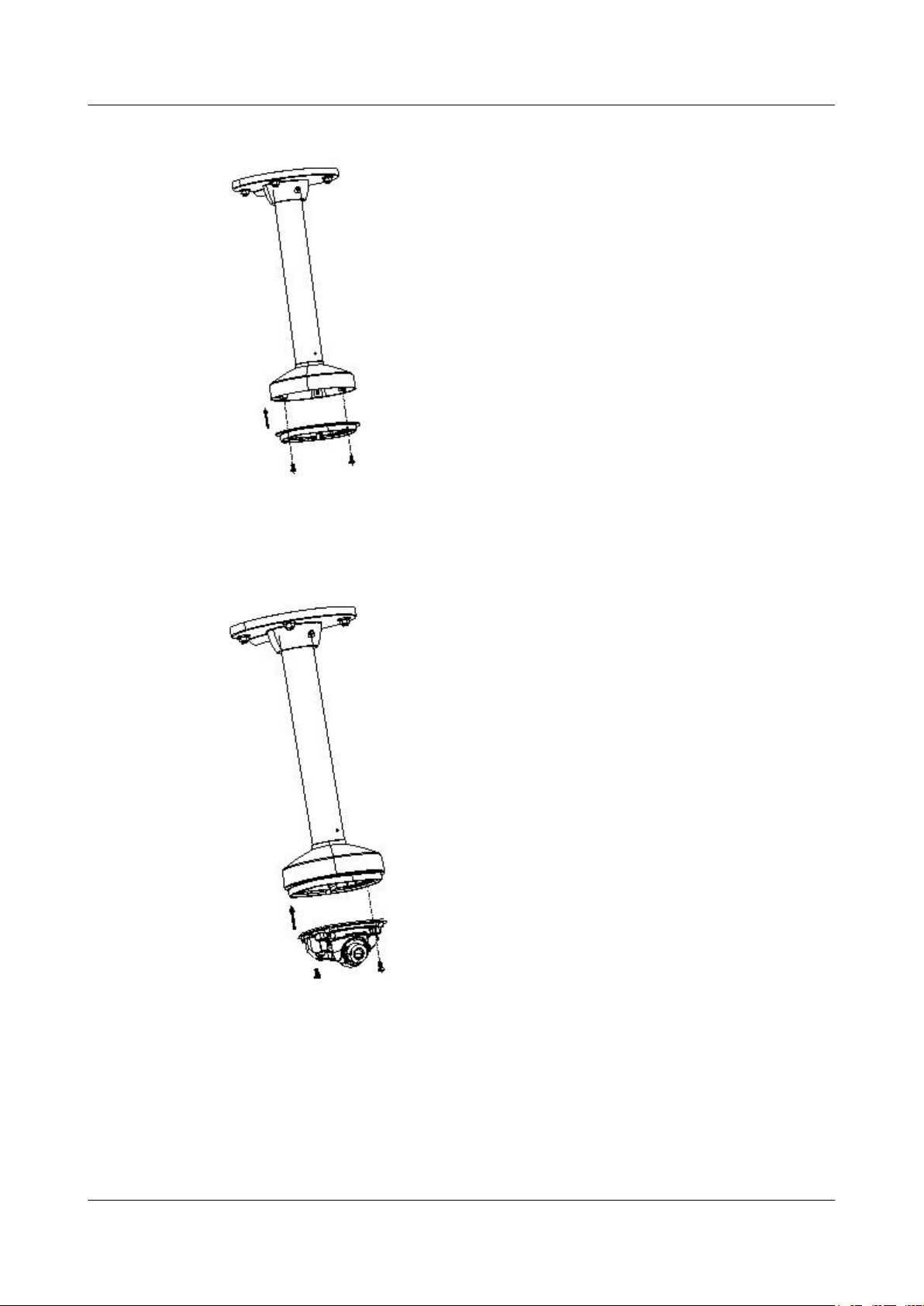

Figure 3-8 Fix the Adapter Plate

Step 3 Install the dome drive to the adapter plate.

Figure 3-9 Fix the Dome Drive

Step 4 Align the front cover to the dome drive and tighten the set screws on the front cover to complete

the installation.

Issue 02 (2014-12-25) Huawei Proprietary and Confidential

Page 16

IPC6332-MIR Quick Start Guide 3 Installation

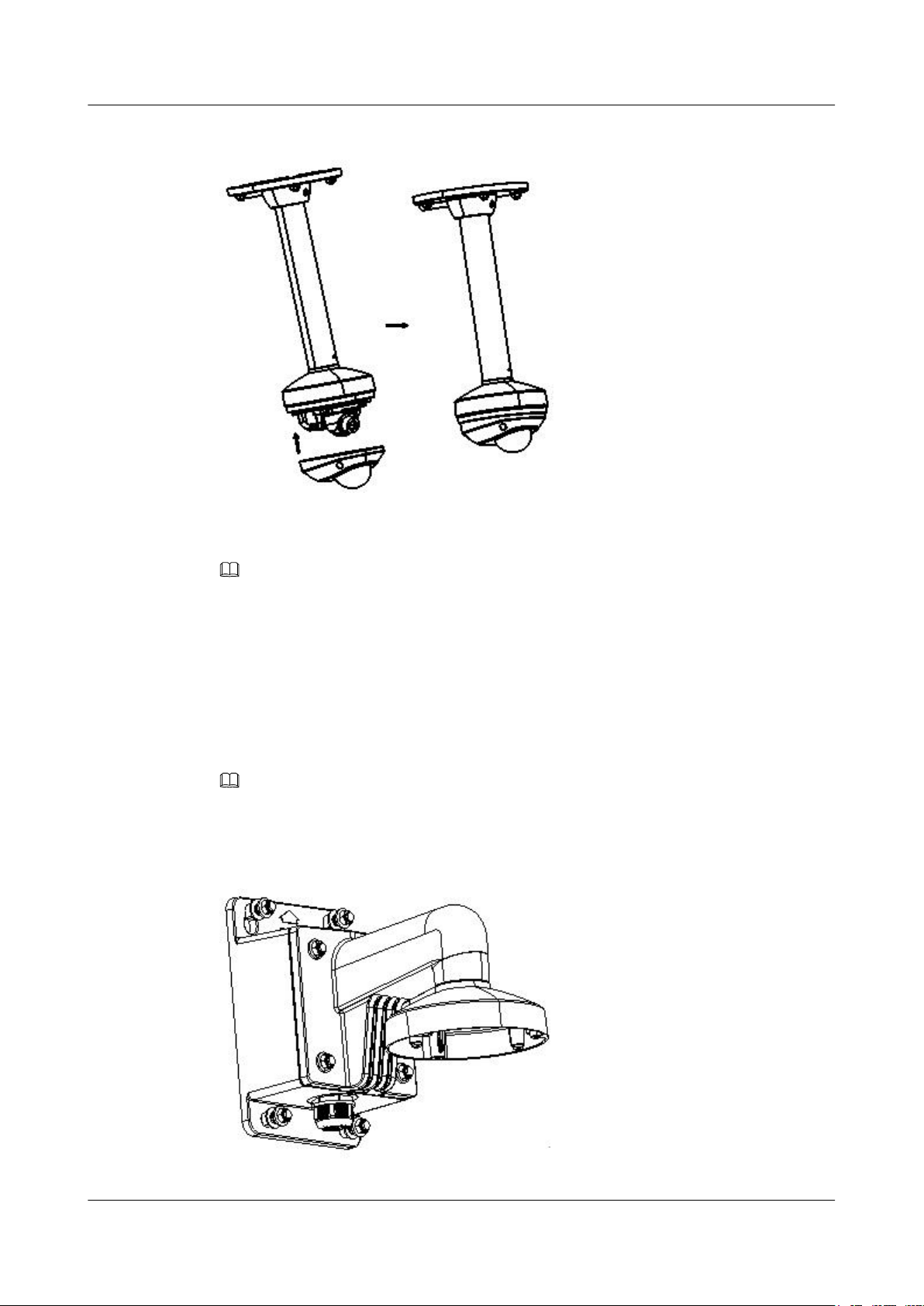

Figure 3-10 Install the Front Cover

Step 5 Tear off the protection film softly to complete the installation.

NOTE

l Do not tear off the protection film until the installation is completed.

l Do not touch the inside face of the bubble with your hands.

----End

3.4 Wall Bracket Mounting

Step 1 Install the bracket to the ceiling with the supplied screws in the ceiling bracket package.

NOTE

The matched ceiling bracket model is IPC6332-MIR, and you need to purchases it separately if wall bracket mounting is adopted.

Figure 3-11 Install Wall Bracket

Issue 02 (2014-12-25) Huawei Proprietary and Confidential

Page 17

IPC6332-MIR Quick Start Guide

Step 2 Fix the adapter plate to the wall bracket.

3 Installation

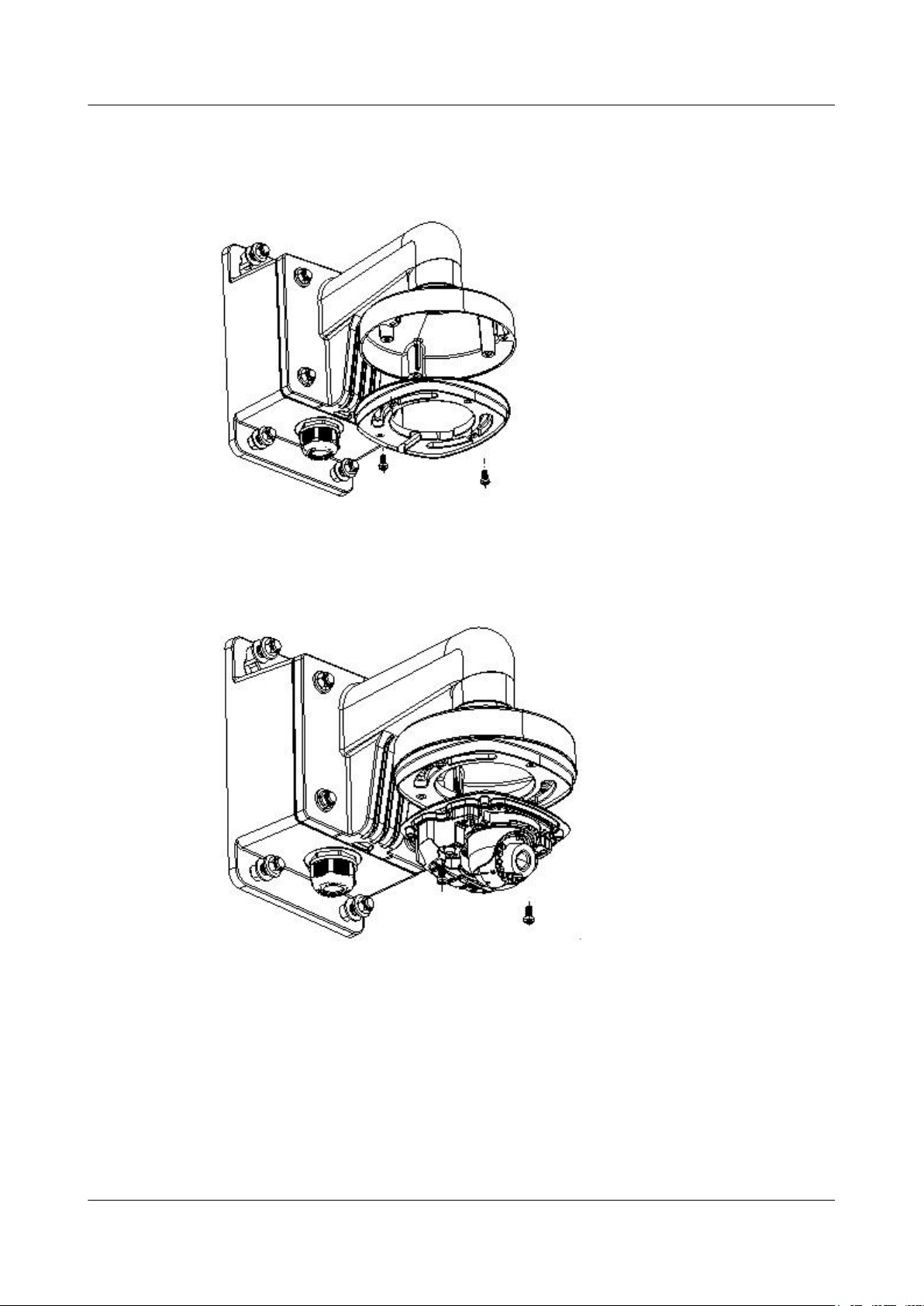

Figure 3-12 Fix the Adapter Plate

Step 3 Fix the dome drive to the wall bracket with the supplied screws.

Figure 3-13 Install the Camera

Step 4 Align the front cover to the dome drive and tighten the set screws on the front cover to complete

the installation.

Issue 02 (2014-12-25) Huawei Proprietary and Confidential

Page 18

IPC6332-MIR Quick Start Guide

Step 5 Tear off the protection film softly to complete the installation.

3 Installation

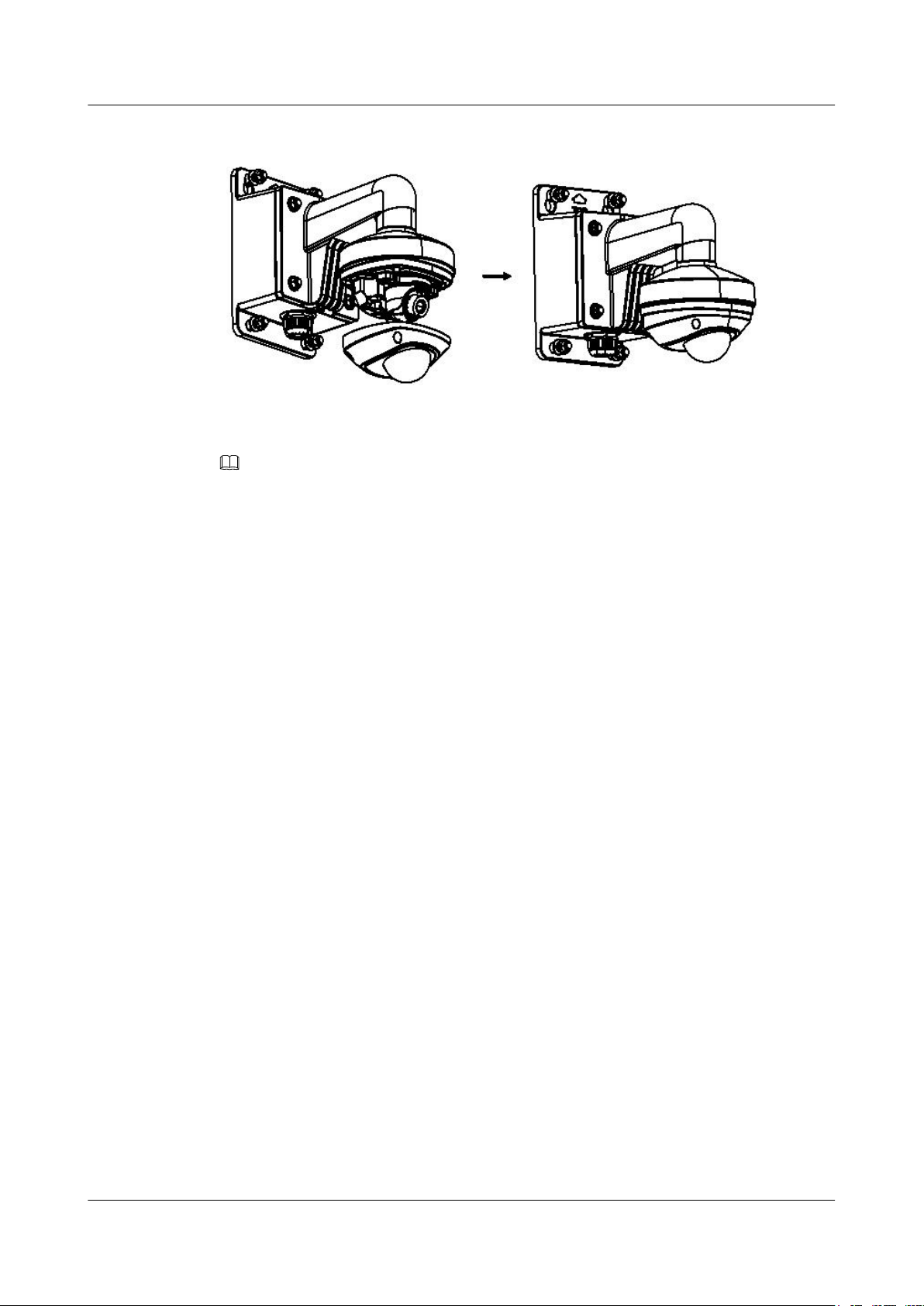

Figure 3-14 Install the Front Cover

NOTE

l Do not tear off the protection film until the installation is completed.

l Do not touch the inside face of the bubble with your hands.

----End

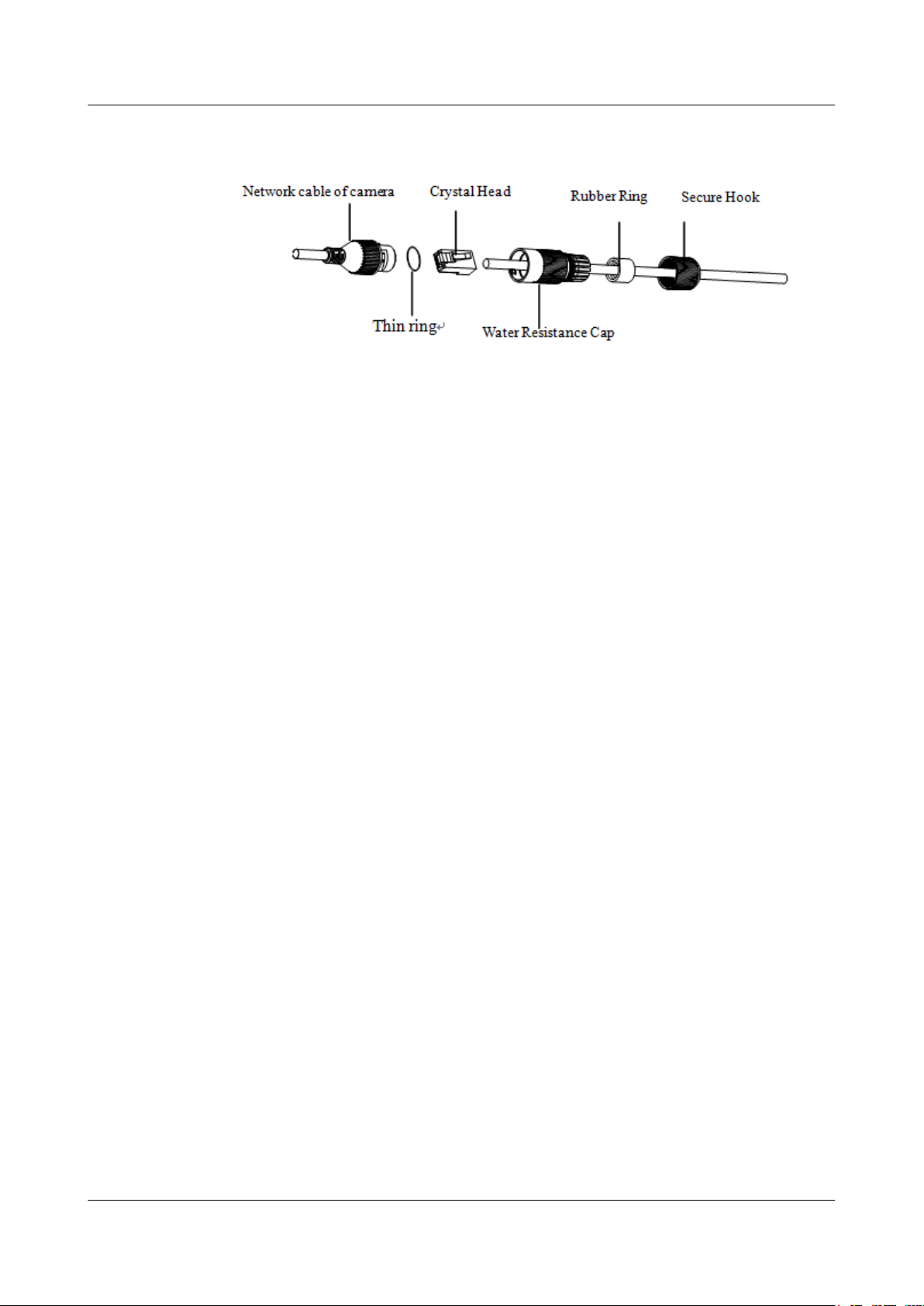

3.5 Installing Water Resistance Cap

Purpose

When using the camera outdoor, using a waterproof cap is recommended to prevent the wire from short circuit.

Procedure

Step 1 Cut the crystal head of a network cable.

Step 2 Route the cable to the secure hook, rubber ring, and the cap.

Step 3 Tuck the rubber ring into the cap.

Step 4 Connect a crystal head for the cable.

Step 5 Put the thin ring on the network cable of the camera side.

Step 6 Connect the network cable and put the water resistance cap on the network interface of the

camera side. Fasten the secure hook.

Issue 02 (2014-12-25) Huawei Proprietary and Confidential

Page 19

IPC6332-MIR Quick Start Guide 3 Installation

Figure 3-15 Install Water Resistance Cap

----End

Issue 02 (2014-12-25) Huawei Proprietary and Confidential

Page 20

IPC6332-MIR Quick Start Guide

4.1 Accessing the Camera

To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet with your PC. Then install related software to search and change the IP of network camera.

4 Quick Settings

Procedure

Step 1 To get the IP address, use Tools for Quickly Configuring Network PUs and show the online

Step 2 Change the camera IP address and subnet mask to the same subnet as of your PC.

Step 3 Enter the IP address of network camera in the address field of the web browser to view the live

The following figure shows the cable connection of a network camera and a PC:

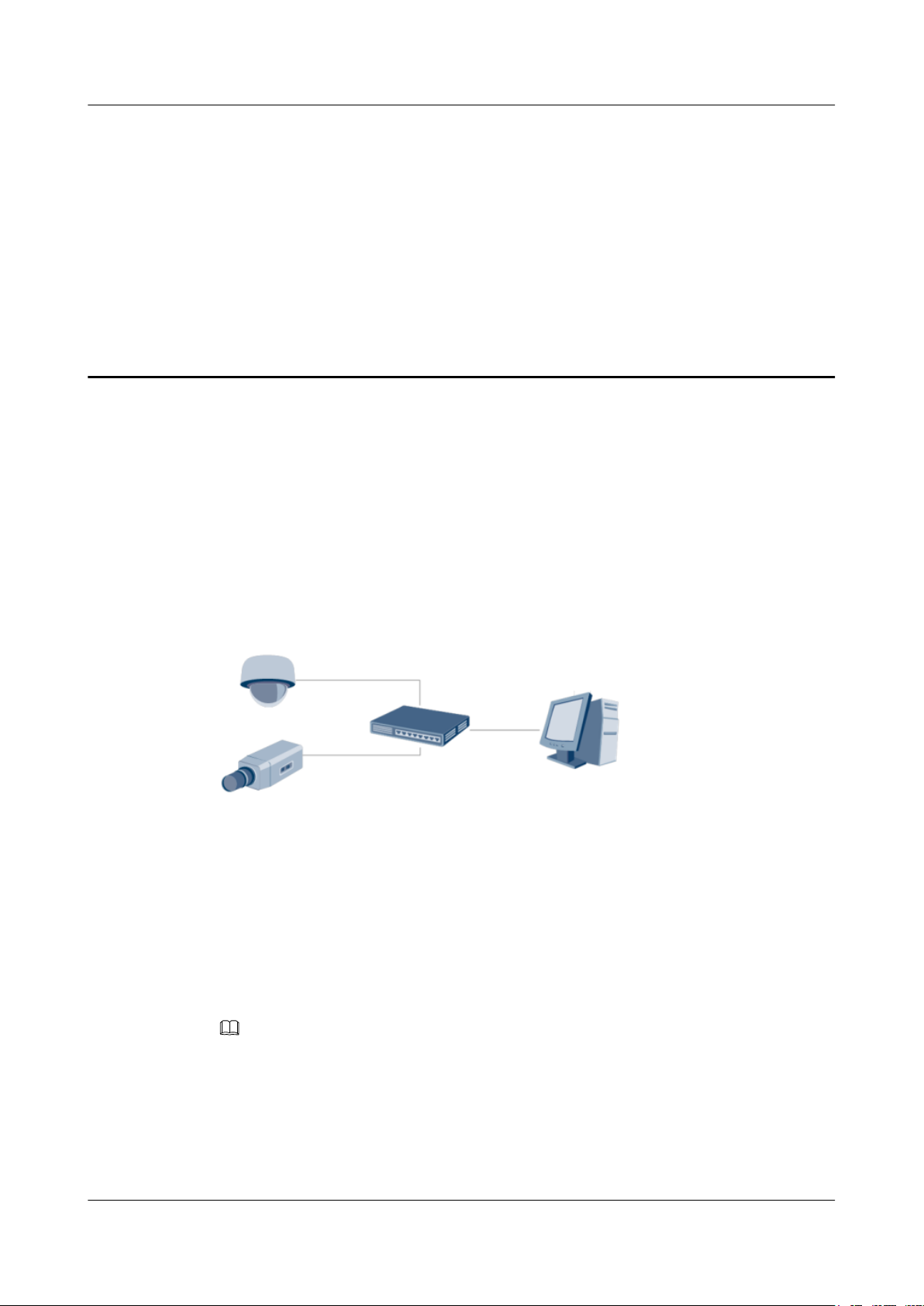

Figure 4-1 Wiring over LAN

devices. Please refer to the user manual of your software for detailed information.

video.

NOTE

l The default value of the IP address is 192.168.0.120 and the port number is 8000. The default user

name is admin, and password is HuaWei123.

l For accessing the network camera from different subnets, please set the gateway for the network camera

after you login.

----End

Issue 02 (2014-12-25) Huawei Proprietary and Confidential

Page 21

IPC6332-MIR Quick Start Guide 4 Quick Settings

4.2 Live View via Web Browser

System Requirement

1. Operating System: Microsoft Windows7/Windows 2008 (32/64-bit) Windows 2003/ Windows XP/Windows 2000 (32-bit)

2. CPU: Intel Pentium IV 3.0 GHz or higher

3. RAM: 1G or higher

4. Display: 1024x768 resolution or higher

5. Web Browser: Internet Explorer 7.0, Internet Explorer 8.0, Internet Explorer 9.0, Apple Safari, Mozilla Firefox and Google Chrome

Produre

Step 1 Open the web browser.

Step 2 In the browser address bar, input the IP address of the network camera. E.g. 192.0.0.64.

Step 3 Click Enter.

Step 4 In the login interface, input the user name and password. The default user name is admin and

password is HuaWei123 as shown in Figure 4-2.

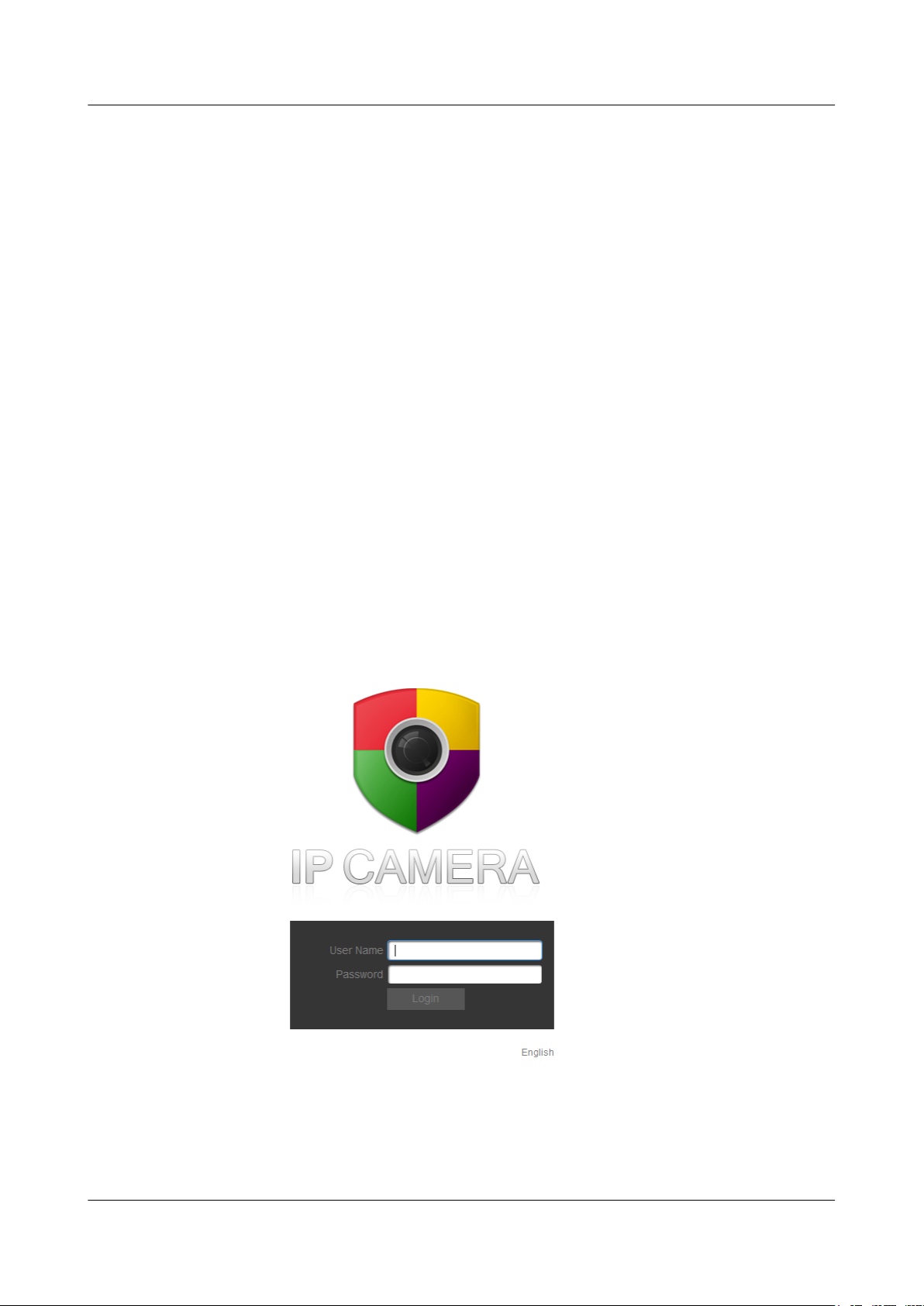

Figure 4-2 Login Interface

Issue 02 (2014-12-25) Huawei Proprietary and Confidential

Page 22

IPC6332-MIR Quick Start Guide 4 Quick Settings

NOTE

l Change and save the password when you log in to the system for the first time to ensure system security.

A password should no less than eight characters which consist of upper-case letters, lower-case letters, and numeric.

l A password cannot be the same as the user name or the reverse of the user name.

l If you enter an incorrect password more than three times consecutively, your account locked. You must

wait for thirty minutes to enter the login information.

l You need to install the plug-in to login, as shown in Figure 4-3. Please click here to download and

install the plug-in. Close the browser when installing the plug-in , and install the .plug-in as prompted.

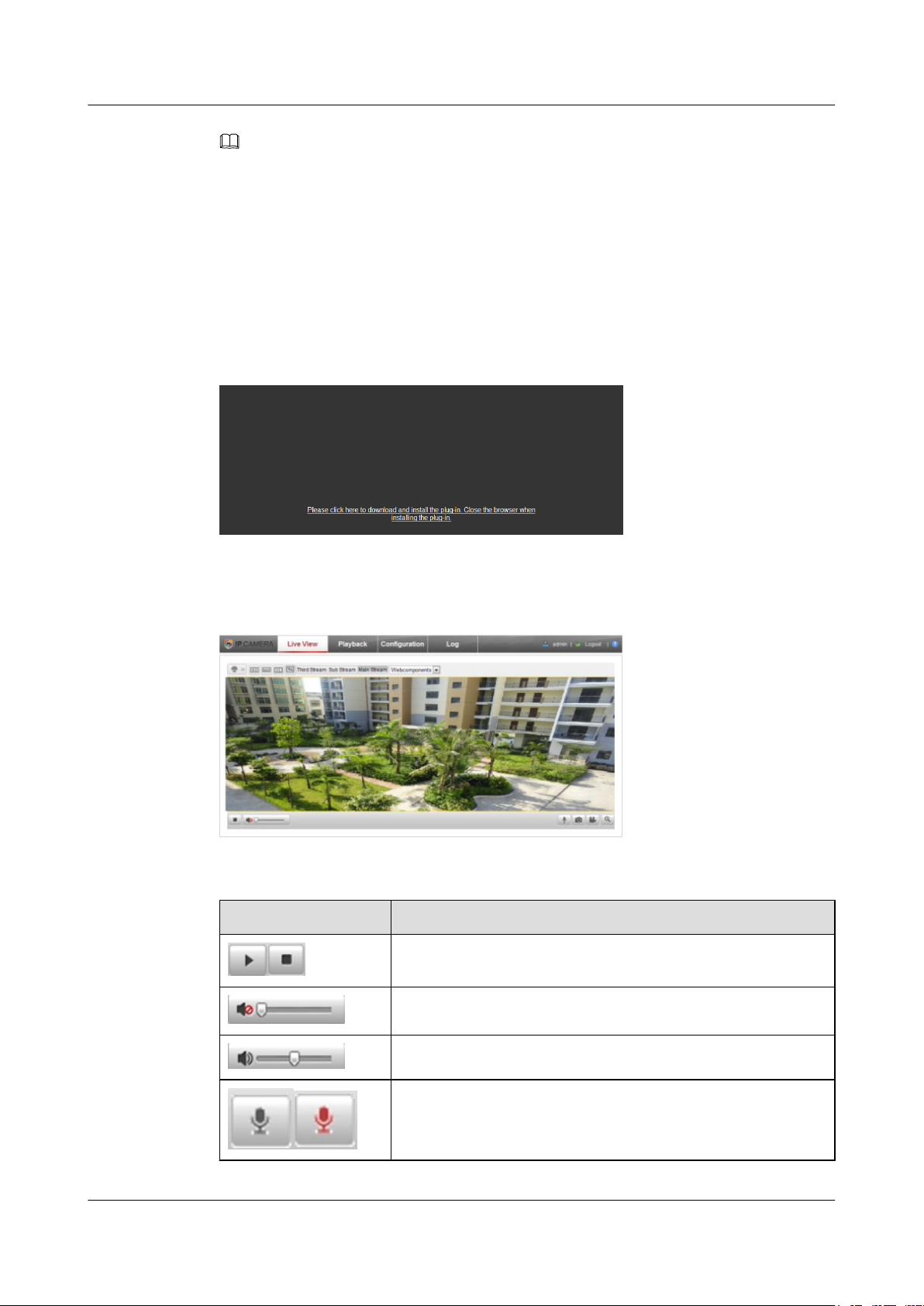

Figure 4-3 Plug-in Downloading and Installing

Step 5 Click Login to enter the live view interface. Refer to Figure 4-4 for viewing live view.

Figure 4-4 Live View Interface

Table 4-1 Description of Live View Icon

Icon Description

Start/Stop Live View

Audio On/Off;

Volume Adjustment

Start/ Stop Two-way Audio

Issue 02 (2014-12-25) Huawei Proprietary and Confidential

Page 23

IPC6332-MIR Quick Start Guide 4 Quick Settings

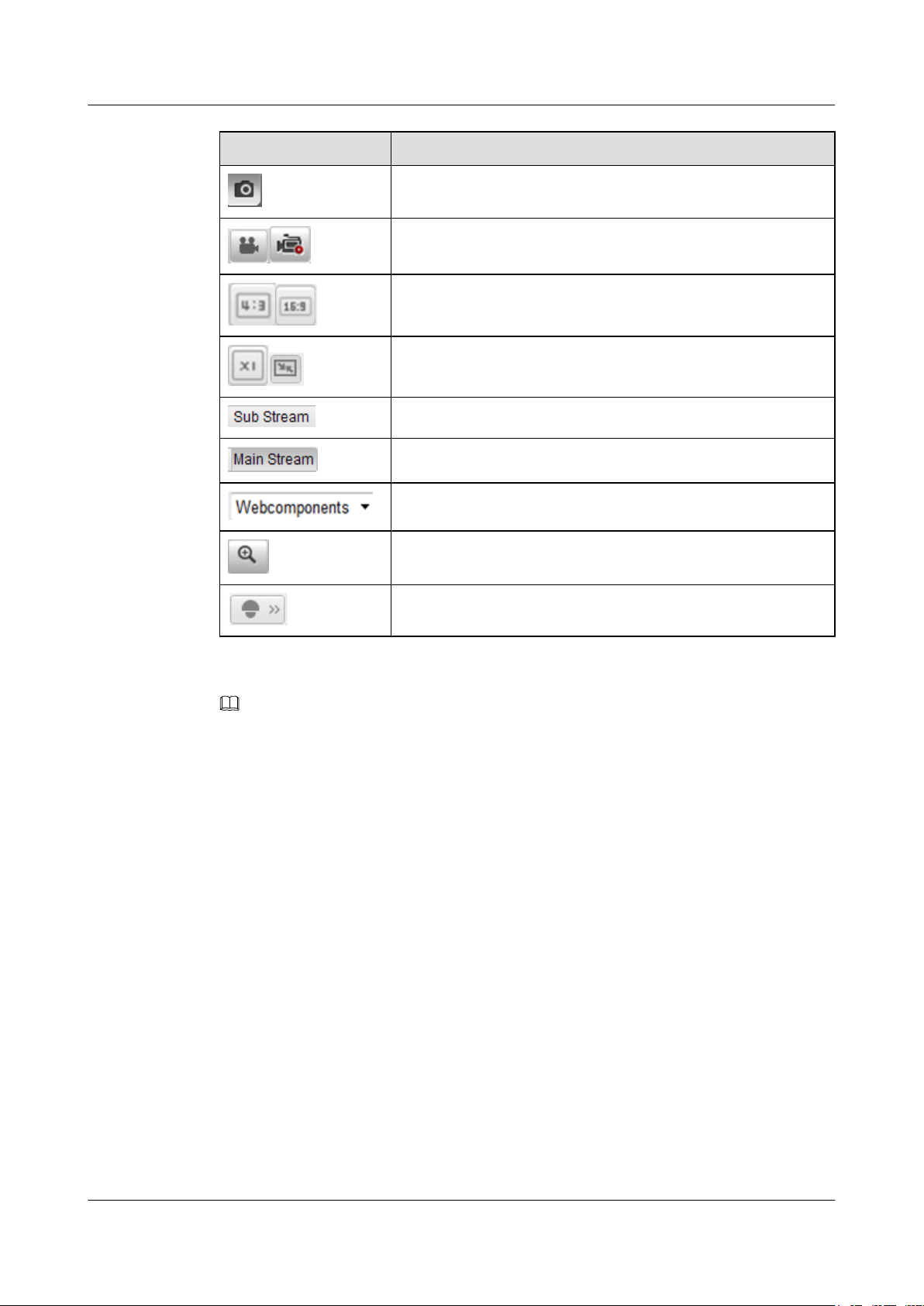

Icon Description

Capture

Start/Stop Recording

Image Size 4:3/16:9

Original Size/Self-adaptive

Live view with sub-stream

Live view with main stream

Web component switch

4.3 Logout

Digital Zoom

PTZ Control

NOTE

For detailed instructions of further configuration, please refer to the user manual of network camera.

----End

On the Web page of the camera, click Logout button on the upper right corner, and click OK to confirm logout.

Issue 02 (2014-12-25) Huawei Proprietary and Confidential

Page 24

IPC6332-MIR Quick Start Guide

5.1 Image Exception

The image of the camera is blurry

5 Troubleshooting

l The lens and the lens interface are not match. Check the interface and see whether it is C

interface or CS interface.

l The camera is not focused. Click the Zoom in, or zoom out, and focus+ and focus- to refocus

the camera.

l The camera shield is not clean. Clean the lens or lens shield.

l Image blur may also be caused if the camera lens is against strong light in auto-iris mode.

Change the iris mode to electronic iris.

l The resolution is too low.

Why the image is clear in the day time, but blurry at night

l In the day time, to get a clear image, the iris size is small, and the focal length of the object

in the camera scene is big. But when at night, the iris size is big and the focal length is small, so the defocus may be caused.

l You are recommended to change the auto-iris into electrical shutter mode. Or adjust focus

in low illumination environment.

Why are there color cast and distortion

l Please choose proper white balance mode to fit the color temperature of the environment.

l Low illumination may cause the big noise point on the image.

l Overexposure may cause the color distortion.

l When the bitrate is set too low, the color cast may also take places.

Issue 02 (2014-12-25) Huawei Proprietary and Confidential

Page 25

IPC6332-MIR Quick Start Guide

5.2 Power Supply and Interference

What should be noticed when choosing camera power

l The power device should be lightening protection and anti-creeping with effective

grounding mechanism.

l Voltage Attenuation: If there are too many cameras connecting to the samr adapter, the

voltage may become unstable. You are recommended to adopt short distance power supply. And for one power adaptor, if you connect too many cameras, the voltage won't be stable. For the long distance power supply (more than 100 meters), you can choose a general power with 220 voltage AC, and use an adaptor to change it to DC current. The nearer the adaptor to the camera, the less the current loss, and the more stable the image.

l When using the power cable outside, you should use a waterproof box.

How can I handle the image signal is interfered

l Check whether there are strong interference source near the camera.

5 Troubleshooting

l The voltage may not be stable.

l The camera may not be effectively grounded.

What problems will be caused if the power supply is insufficient

l ICR camera cannot stop switching.

l Black image.

l Ripple on image.

l Camera restart frequently.

5.3 Camera Grounding and Protection

How to ground the camera

There are two kinds of the grounding of the camera, the video grounding and the power grounding.

l Video Grounding: The video signal is normally grounded via the DVR or matrix. If you

use an optical transeiver to transmit the signal, you are recommended to grounding the camera on the local side.

l Power Grounding: When using the centralized power supply, the direct current and the

alternate current should be grounded together.

l Grounding Standard: The ground cable must be copper core insulation wire, and cross

section must be bigger than 6 square millimeters.

How to prevent the camera from water

l For outdoor camera, you can use a shield and the cables should be enclosed too.

Issue 02 (2014-12-25) Huawei Proprietary and Confidential

Page 26

IPC6332-MIR Quick Start Guide 5 Troubleshooting

l The exposed cables should be places with U-shape, but not straight, in case the water flows

into the shield with the cable.

5.4 Camera Network Problem

To remotely access the camera over WAN, which ports should be mapped

You need to perform the port mapping for the camera.

The 80 for HTTP, 8000 for service port, and 554 port for RTSP.

You can enable the UPnP function on both the camera and the router if the router supports the function.

How do I perform the port mapping

l On the router, you can map the device IP address to 80, 8000 and 554 ports.

l If the router supports the UPnP auto port mapping function, you can enable the UPnP

function on both sides.

5.5 Other Questions

ONVIF protocol explanation

The frame rate value that specified by the ONVIF protocol can be considered as a value range. You can only set discrete value for the frame rate of the speed dome. The system will not return error message for any configuration exception, but fetch an approximate value less than what you have configured. For example, if the frame rate is configured as 21fps, the actual frame rate validated by the device should be 20fps..

Issue 02 (2014-12-25) Huawei Proprietary and Confidential

Page 27

IPC6332-MIR Quick Start Guide A Toxic and Harmful Substances Declaration

A Toxic and Harmful Substances Declaration

According to Electronic product pollution control management measures

Assembly Units

Circuit Board Assembly

Camera Body Materials

Cable Materials

Power Adaptor

Package Assembly

Accessori es

○: means the toxic and harmful substances in the assembly units are within the limit stipulated by the of the SJ/T11363-2006 standard.

Toxic and Harmful Substances Declaration

Pb Hg Cd Cr VI PBB PBDE

○ ○ ○ ○ ○ ○

× : means the toxic and harmful substances in the assembly units exceed the limit stipulated by the SJ/T11363-2006 standard. Using the product properly within the environmental protection use period, the substances will not leak or mutate, and no damage to human body or property will be caused. The toxic and harmful substances must be recycled by the relevant sectors of the government according to the local laws and regulations. And the users are not allowed to handle by themselves.

Issue 02 (2014-12-25) Huawei Proprietary and Confidential
