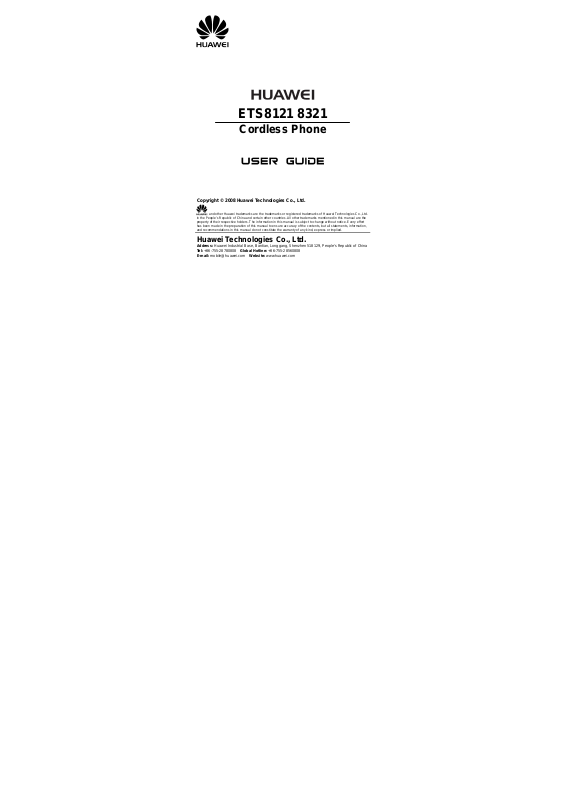

Huawei ETS8321 User Manual
ETS8121 8321
Cordless Phone
Copyright © 2008 Huawei Technologies Co., Ltd.
and other Huawei trademarks are the trademarks or registered trademarks of Huawei Technologies Co., Ltd.
in the People’s Republic of China and certain other countries. All other trademarks mentioned in this manual are the
property of their respective holders. The information in this manual is subject to change without notice. Every effort
has been made in the preparation of this manual to ensure accuracy of the contents, but all statements, information,
and recommendations in this manual do not constitute the warranty of any kind, express or implied.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base, Bantian, Longgang, Shenzhen 518129, People's Republic of China
Tel: +86-755-28780808 Global Hotline: +86-755-28560808
E-mail: mobile@huawei.com Website: www.huawei.com
Your Cordless Phone
Earpiece
Screen
Navigation Key
Left Soft Key
Send Key
Number Keys
Key
Charger Interface
Note
z This is a sketch. Your cordless phone may be different.
It is subject to your actual one.
z To achieve the optimal effect, use the cordless phone
away from the charger stand.
1
Headset Jack
Right Soft Key
End/Power Key
# Key
Microphone
Keys and Functions
Press
…
z
View the dialed calls in the standby mode.
z
Make or answer a call.
z
Power on the cordless phone by pressing and
holding it.
z
Power off the cordless phone by pressing and
holding it in standby mode.
z
End a call or reject an incoming call.
z
Return to the home screen.
Select the option displayed on the lower left corner of
the screen.
Select the option displayed on the lower right corner of
the screen.
z
In the standby mode, press Navigation key to access
the shortcut screen.
z
During a call, press left key or right key to adjust
the volume of the earpiece.
z
Number
Keys
* key
Enter numbers and characters.
z
Speed-dial cordless phone numbers in the standby
mode (by pressing and holding the 1-9 keys).
z
Select a submenu item labeled with the
corresponding number.
z
Perform different operations for different functions
of the cordless phone.
z
Unlock the keypad in the standby mode (by press
Menu and then press * key).
To…
2
Press
…
# key
z
Perform different operations for different functions
of the cordless phone.
z
Lock the keypad in the standby mode (by pressing
and holding it).
To…
Screen Icons
Icon Description Icon Description
Network signal strength
Calling
z
Message received
z
Memory for messages is
full, when the icon is
blinking
Remind by sound /
/
Without sound remind
3
Battery power level
Alarm clock is on
Keypad is locked
Remind by vibration
Menu Tree
Messages Phone Book Call History
1. Write
2. Inbox
3. Outbox
4. Draft
5. VoiceMail
6. Settings
7. Memory Status
1.
Name List
2. Add New
3. Speed Dials
4. Memory Status
Missed Calls
1.
2. Answered
Calls
3. Outgoing Calls
Applications Phone
4. Alarm
Settings
1. Profiles
2. Call settings
3. Time & Data
4. Languages
5. Network
Service
6. Security
7. Version
8. Key Guard
9. Safe Code
4
Installing the SIM Card and Battery
Make sure that the golden area on the SIM card is facing downwards
and the cut-off edge is correctly fit to that of the card holder.
Charging the Battery
1. Connect the cordless phone to the charger stand.
2. Connect one power adapter connector to the charger stand.
3. Connect the charger to an AC power socket. During the charging,
the animation of charging icon is displayed.
4. When the cordless phone is fully charged, disconnect the charger
from the AC power socket first. Then disconnect the charger stand
from the charger.
5. When the charging icon becomes static, the cordless phone is
fully charged.
Using the Function Menu
1. In the standby mode, press to display the Menu interface.
2. Press Up or Down key to scroll in the menu.
3. Press to display the menu.
4. Display the submenu in either of the ways:
5
