Htc ELF, P3450, DOPOD D600 User Manual

90H00xxx-xxM Rev.A

User Ma

n

ual

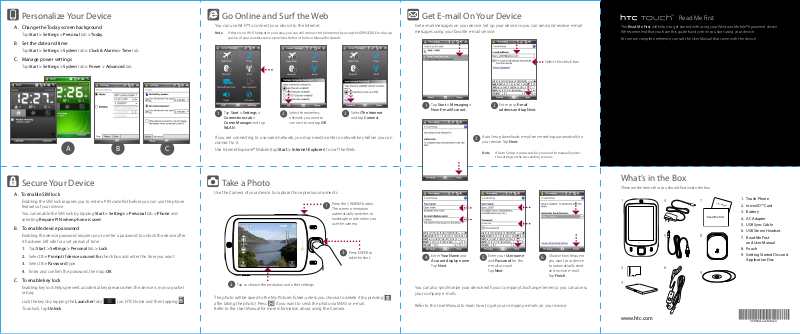

Read Me First

Personalize Your Device

A. Change the Today screen background

Tap Start > Settings > Personal tab > Today.

B. Set the date and time

Tap Start > Settings > System tab > Clock & Alarms > Time tab.

Go Online and Surf the Web

You can use Wi-Fi® to connect your device to the Internet.

Note If there is no Wi-Fi hotspot in your area, you can still connect to the Internet by using the GPRS/EDGE or dial-up

service of your wireless service provider. Refer to the User Manual for details.

Get E-mail On Your Device

Get e-mail messages on your device. Set up your device so you can send and receive e-mail
messages using your favorite e-mail service.

Read Me First

This Read Me First will help you get started with using your Windows Mobile® 6 powered device.
We recommend that you have this guide handy when you start using your device.

For a more complete reference, consult the User Manual that came with the device.

C. Manage power settings

Tap Start > Settings > System tab > Power > Advanced tab.

Secure Your Device

A. To enable SIM lock

Enabling the SIM lock requires you to enter a PIN code first before you can use the phone
features of your device.

You can enable the SIM lock by tapping Start > Settings > Personal tab > Phone and
selecting Require PIN when phone is used.

B. To enable device password

Enabling the device password requires you to enter a password to unlock the device after
it has been left idle for a set period of time.

1. Tap Start > Settings > Personal tab > Lock.

2. Select the Prompt if device unused for check box and enter the time you want.

3. Select the Password type.

4. Enter and confirm the password, then tap OK.

C. To enable key lock

Enabling key lock helps prevent accidental key presses when the device is in your pocket
or bag.

Lock the keys by tapping the Launcher tab ( ) on HTC Home and then tapping .

To unlock, tap Unlock.

A

B

C

Tap Start > Settings >

1

Connections tab >
Comm Manager and tap
WLAN.

If you are connecting to a secured network, you may need to enter a network key before you can
connect to it.

Use Internet Explorer® Mobile (tap Start > Internet Explorer) to surf the Web.

Take a Photo

Use the Camera of your device to capture those precious moments.

Tap to choose the resolution and other settings.

2

The photo will be saved to the My Pictures folder, unless you choose to delete it (by pressing
after taking the photo). Press if you want to send the photo via MMS or e-mail.
Refer to the User Manual for more information about using the Camera.

Select the wireless

2

network you want to
connect to and tap OK.

Press the CAMERA button.

1

The screen orientation
automatically switches to
landscape mode when you
use the camera.

Select The Internet

3

and tap Connect.

Press ENTER to

3

take the shot.

Select this check box.

Tap Start > Messaging >

1

New E-mail Account.

Auto Setup downloads e-mail server settings automatically to

3

your device. Tap Next.

Note If Auto Setup is unsuccessful, you need to manually enter

Enter Your Name and

4

Account display name.

Tap Next.

You can also synchronize your device with your company’s Exchange Server so you can access
your company e-mails.

Refer to the User Manual to learn how to get your company e-mails on your device.

5

Enter your E-mail

2

address and tap Next.

the settings in the succeeding screens.

Enter your User name
and Password for the
e-mail account.
Tap Next.

Choose how frequent

6

you want your device
to automatically send
and receive e-mail.
Tap Finish.

What’s in the Box

These are the items that you should find inside the box.

1

2

3

www.htc.com

4 7

5

6

8

9

1. Touch Phone

2. microSD™ Card

3. Battery

4. AC Adapter

5. USB Sync Cable

6. USB Stereo Headset

7. Read Me First
and User Manual

8. Pouch

9. Getting Started Disc and
Application Disc

Before Using Your Device

A. Remove the back cover

Slide the back cover
upward to remove it.

C. Install the microSD™ card and SIM card

Pry open the cover that houses the SIM and storage card

1

slots. To open the cover easier, pry it open from both ends.

2

Flip your device so that the touch screen faces upward.

Hold open the slot cover with one hand.

3

D. Charge the battery

The battery is not fully charged out of the box. To charge
the battery inside your device, connect the AC adapter
plug to an electrical outlet and connect the USB end to the
Sync connector at the bottom of your device. The battery is
fully charged after about 3 hours of charging.

Quick Setup Wizard

When you power on your device for the first time, a Quick Start Wizard will guide you through
touch screen calibration, provide a quick tutorial on stylus operation and pop-up menus, and
allow you to set the date, time and a device password.

Follow the on-screen instructions to complete the wizard.

Synchronize Your Device and PC

Synchronize your device with your PC to keep information such as Outlook e-mails, contacts,
tasks, and appointments up-to-date on your device.

Set up synchronization software on your PC

Depending on the Operating System of your PC, you will need either Microsoft ActiveSync® 4.5
(or later) or Windows Mobile® Device Center to synchronize your device with your PC.

B. Install the battery

The Touch Phone

Power

Volume
Slider

Touch Screen

Talk

Navigation Control / ENTER

Insert the right side of the
battery first, with the gold
contacts facing to the
right, then gently push
the battery into place.

Earpiece

Stylus

Camera

End

Slot
cover

The upper slot is the microSD

4

slot. Insert the microSD
card into this slot with gold
contacts facing down.

The lower slot is the SIM card

5

slot. Insert the SIM card with
its gold contacts facing down
and its cut-off corner facing
toward the inside of the slot.

Note To remove the SIM card or microSD card, press it to pop it

out of the slot.

Replace the back cover.

6

HTC Home

HTC Home is a Today screen plug-in that gives you up-to-date
local information at a glance, such as time, day and weather
information, and shows new messages and missed calls.

It also has a customizable launcher where you can add your
favorite applications for one-touch access.

E. Power on/off the device

Press and hold the POWER button
for about 3 seconds to power on
your device.

When powering off, a confirmation
message will be displayed. Tap Yes
to power off the device.

TouchFLO™

TouchFLO™ gives you better touch panel experience on your

device. Using TouchFLO, you can easily scroll and pan the screen
by sliding your finger on the touch panel. TouchFLO also has the
Touch Cube where you can add your favorite contacts, access
media, launch programs, and more.

Finger scrolling

While on a Web page, document, or list (such as contacts list, file list, etc.),
slide your finger upward to scroll down; slide your finger downward to
scroll up.

To scroll to the right, slide your finger to the left. To scroll to the left, slide
your finger to the right.

Finger panning

Touch and hold on the touch screen and then drag your finger around
the screen.

Touch Cube

To open the Touch Cube, slide your finger
upward, starting from the bottom of the
touch screen where it shows a logo image.

To close the Touch Cube, slide your finger
downward.

Touch Cube is a three-dimensional, cubic
user interface. To flip the interface from one
side to another, slide your finger left or right
on the touch screen.

Opening the Touch Cube

Make that First Call

Press the TALK button to open the Phone screen.

1

Touch or tap the keys on the Phone screen to enter the first few digits of a phone

2

number or the beginning letters of a contact name.

The Smart Dialing panel will display the matching phone numbers in Call History as

3

well as the matching contacts found on your device and SIM card. Select the number or
contact you want to call then press TALK.

For hands-free phone conversation,

Smart Dialing
Panel

TALK Button

connect the USB stereo headset or a
Bluetooth® headset (not included) to
your device.

To learn how to connect a Bluetooth
headset, refer to the User Manual.

Set up ActiveSync on Windows XP

Install ActiveSync 4.5 on your PC from

1

the Getting Started Disc.

Connect your device to your PC.

2

The Synchronization Setup Wizard
automatically starts and guides you to
create a synchronization partnership. Click
Next to proceed.

To synchronize your device with your PC,

3

clear the Synchronize directly with a
server running Microsoft Exchange check

box and click Next.

Select the information types that you want

4

to synchronize, then click Next.

Choose whether to allow wireless

5

connections while your device is
connected to the PC.

6

Click Finish.

Set up Windows Mobile Device

Center on Windows Vista™

Connect your device to your PC. In

1

Windows Mobile Device Center, click
Set up your device.

Select the information you want to

2

synchronize and click Next.

Type in a name for your device and

3

click Set Up.
