HPE 678275-B21 Product Data Sheet

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Overview

Page 1

HPE ProLiant WS460c Gen8 Graphics Server Blade

1.

Two (2) PCIe 3.0 mezzanine I/O expansion slots

7.

Up to two (2) Intel® Xeon® E5-2600 family processors

2.

FlexibleLOM adapter

8.

Internal USB 2.0 and Trusted Platform Module (TPM)
connectors

3.

MicroSDHC card connector

9.

Two (2) small form factor (SFF) hot-plug drive bays

4.

FlexibleLOM connectors (supporting one (1) FlexibleLOM)

10.

HPE c-Class Blade SUV (Serial, USB, VGA) connector

5.

Sixteen (16) DDR3 DIMM memory slots (8 per processor)

11.

HPE Smart Array P220i/P230i Controller with 512MB FBWC

6.

HPE Smart Array P220i/P230i Controller connector

12.

Access panel

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Figure 1 - HPE ProLiant WS460c Gen8 Graphics Server Blade (single-width type)

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Overview

Page 2

Figure 2 - HPE ProLiant WS460c Gen8 Graphics Server Blade with graphics expansion (double-width type)

1.

HPE Graphics Expansion Blade

4.

HPE ProLiant WS460c Gen8 Graphics Server Blade base
system

2.

Standard full length PCI Express Generation 2 (x16) slot 2

5.

Small form factor (SFF) drive bays

3.

Standard full length PCI Express Generation 2 (x16) slot 1

6.

Local I/O Connector (shown with cover removed)

What's New

• Support for AMD FirePro S4000X MXM mezzanine graphics

• Support for HPE OneView Software License

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

• Support for HPE Fibre Channel HBA mezzanine cards

• Support for HPE FlexFabric 20Gb 2-port 630FLB adapter

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Standard Features

Page 3

This document covers the HPE ProLiant WS460c Gen8 Graphics Server Blade and its specific options. For more information on HPE

HPE ProLiant WS460c Gen8 Graphics Server Blade and optional HPE WS460c Gen8 graphics expansion blade includes:

One of the following

E5-2600 v2 series Processors

Intel® Xeon® E5-2697 v2 (2.7GHz/12-core/30MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo2­3/3/3/3/3/3/3/4/5/6/7/8)

Intel® Xeon® E5-2695 v2 (2.4GHz/12-core/30MB/8.0GT-s QPI/115W, DDR3-1866, HT, Turbo2­4/4/4/4/4/4/4/4/5/6/7/8)

Intel® Xeon® E5-2690 v2 (3.0GHz/10-core/25MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo2­3/3/3/3/3/3/3/4/5/6)

Intel® Xeon® E5-2680 v2 (2.8GHz/10-core/25MB/8.0GT-s QPI/115W, DDR3-1866, HT, Turbo2­3/3/3/3/3/4/5/6/7/8)

Intel® Xeon® E5-2670 v2 (2.5GHz/10-core/25MB/8.0GT-s QPI/115W, DDR3-1866, HT, Turbo2­4/4/4/4/4/4/5/6/7/8)

Intel® Xeon® E5-2660 v2 (2.2GHz/10-core/25MB/8.0GT-s QPI/95W, DDR3-1866, HT, Turbo2­4/4/4/4/4/4/5/6/7/8)

Intel® Xeon® E5-2643 v2 (3.5GHz/6-core/25MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo2- 1/1/1/1/2/3)

Intel® Xeon® E5-2650L v2 (1.7GHz/10-core/25MB/8.0GT-s QPI/70W, DDR3-1600, HT, Turbo2­2/2/2/2/2/2/2/2/3/4)

Intel® Xeon® E5-2667 v2 (3.3GHz/8-core/25MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo2- 3/3/3/3/4/5/6/7)

Intel® Xeon® E5-2643 v2 (3.5GHz/6-core/25MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo2- 1/1/1/1/2/3)

Intel® Xeon® E5-2637 v2 (3.5GHz/4-core/15MB/8.0GT-s QPI/130W, DDR3-1866, HT, Turbo2- 1/1/2/3)

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

BladeSystem c-Class Enclosures and HPE BladeSystem c-Class Interconnect and Mezzanine Components, please see the following:

• HPE BladeSystem c-Class Enclosures QuickSpecs:

− HPE BladeSystem c3000 Enclosure QuickSpecs:

http://h18000.www1.hp.com/products/QuickSpecs/12790_div/12790_div.html

NOTE: The c3000 HPE c-Class enclosures have full backwards and forwards compatibility, existing server

blades are supported in the new enclosures and any future server blades will be supported in the existing
enclosures.

− HPE BladeSystem c7000 Enclosure QuickSpecs:

http://h18000.www1.hp.com/products/QuickSpecs/12810_div/12810_div.html

NOTE: The c7000 HPE c-Class enclosures have full backwards and forwards compatibility, existing server

blades are supported in the new enclosures and any future server blades will be supported in the existing
enclosures.

NOTE: For optimal cooling and system performance the WS460c Gen8 requires the c7000 enclosure to be

configured with 10 fans and the c3000 enclosure to be configured with 6 fans.

− HPE BladeSystem c-Class Interconnect and Mezzanine Components:

http://h18004.www1.hp.com/products/blades/components/c-class-interconnects.html
http://h18004.www1.hp.com/products/blades/components/c-class-adapters.html

The HPE ProLiant WS460c Gen8 provides greater 2P x86 server blade density without compromise and maximum power-efficiency
with flexibility and choice.

NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information -

Factory Integrated Models" section.

HPE Processor

depending on Model

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Standard Fe

Page 4

Intel® Xeon® E5-2640 v2 (2.0GHz/8-core/20MB/7.2GT-s QPI/95W, DDR3-1600, HT, Turbo2- 3/3/3/3/3/3/4/5)

Intel® Xeon® E5-2630 v2 (2.6GHz/6-core/15MB/7.2GT-s QPI/80W, DDR3-1600, HT, Turbo2- 3/3/3/3/4/5)

Intel® Xeon® E5-2630L v2 (2.4GHz/6-core/15MB/7.2GT-s QPI/60W, DDR3-1600, HT, Turbo2- 2/2/2/2/3/4)

Intel® Xeon® E5-2620 v2 (2.1GHz/6-core/15MB/7.2GT-s QPI/80W, DDR3-1600, HT, Turbo2- 3/3/3/3/4/5)

Intel® Xeon® E5-2609 v2 (2.5GHz/4-core/10MB/6.4GT-s QPI/80W)

Intel® Xeon® E5-2603 v2 (1.8GHz/4-core/10MB/6.4GT-s QPI/80W)

E5-2600 series Processors

Intel® Xeon® E5-2690 (2.9GHz/8-core/20MB/8.0GT-s QPI/135W, DDR3-1600, HT, Turbo2- 4/4/4/5/5/7/7/9)

Intel® Xeon® E5-2680 (2.7GHz/8-core/20MB/8.0GT-s QPI/130W, DDR3-1600, HT, Turbo2- 4/4/5/5/5/7/8/8)

Intel® Xeon® E5-2670 (2.6GHz/8-core/20MB/8.0GT-s QPI/115W, DDR3-1600, HT, Turbo2- 4/4/5/5/6/6/7/7

Intel® Xeon® E5-2667 (2.9GHz/6-core/15MB/8.0GT-s QPI/130W, DDR3-1600, HT, Turbo2- 3/3/3/4/5/6)

Intel® Xeon® E5-2665 (2.4GHz/8-core/20MB/8.0GT-s QPI/115W, DDR3-1600, HT, Turbo2- 4/4/5/5/6/6/7/7)

Intel® Xeon® E5-2660 (2.2GHz/8-core/20MB/8.0GT-s QPI/95W, DDR3-1600, HT, Turbo2- 5/5/6/6/7/7/8/8)

Intel® Xeon® E5-2650 (2.0GHz/8-core/20MB/8.0GT-s QPI/95W, DDR3-1600, HT, Turbo2- 4/4/5/5/5/7/8/8)

Intel® Xeon® E5-2650L (1.8GHz/8-core/20MB/8.0GT-s QPI/70W, DDR3-1600, HT, Turbo2- 2/2/3/3/4/4/5/5)

Intel® Xeon® E5-2643 (3.3GHz/4-core/10MB/130W) Processor Kit

Intel® Xeon® E5-2640 (2.5GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)

Intel® Xeon® E5-2637 (3.0GHz/2-core/5MB/8.0GT-s QPI/80W, DDR3-1600, HT, Turbo2- 5/5)

Intel® Xeon® E5-2630 (2.3GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)

Intel® Xeon® E5-2630L (2.0GHz/6-core/15MB/8.0GT-s QPI/60W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)

Intel® Xeon® E5-2620 (2.0GHz/6-core/15MB/7.2GT-s QPI/95W, DDR3-1333, HT, Turbo2- 3/3/4/4/5/5)

Intel® Xeon® E5-2609 (2.4GHz/4-core/10MB/6.4GT-s QPI/80W)

Intel® Xeon® E5-2603 (1.8GHz/4-core/10MB/6.4GT-s QPI/80W)

NOTE: All processors within the server must be identical.

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

atures

NOTE: The Intel Xeon E5-2600 v2 Processor Family can only be configured with the new 1866MHz HPE

Smart Memory or the new 1600MHz Low Voltage (1.35v) HPE Smart Memory. The previously shipping
Intel Xeon E5-2600 Processor Family cannot be configured with the new 1866MHz HPE Smart Memory
or the new 1600MHz Low Voltage (1.35v) HPE Smart Memory.

NOTE: DIMM slots 4 and 5 are not accessible when either the E5-2690, the E5-2643, the E5-2643 v2, or

the E5-2637 v2, or the E5-2667 v2 is used. In a 2 processor configuration, there are twelve (12) total
available DIMM slots.

NOTE: For the maximum supported memory speeds for each processor listed above, please reference

the 'Memory Speed by Processor Model' table in the Memory section of the QuickSpecs.

NOTE: HT indicates that the processor model supports Intel® Hyper-Threading Technology.

NOTE: Turbo indicates the maximum potential frequency increment when using Intel® Turbo Boost

Technology, with 8, 7, 6, 5, 4, 3, 2 or 1 core(s) active.

NOTE: DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend

on the quantity and type of DIMMs installed.

NOTE: Up to 2 processors supported. Mixing different processor models is not supported.
NOTE: For the Intel® C600 Chipset E5-2600 Series, the letter preceding the model number indicates the

Product Line (E3, E5, E7); 2600x, 2 = number of CPUs in a Node, 6 is socket/segment designation, 00 =
Processor SKU, and x = L for low power SKUs.

NOTE: The WS460c Gen8 supports one or two processors.
NOTE: The WS460c Gen8 includes two I/O mezzanine expansion slots. A processor must be installed in

processor slot 1 for access to the first mezzanine expansion slot (expansion slot 1). A processor must be
installed in processor slot 2 for access to the second mezzanine expansion slot (expansion slot 2).

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Standard Fe

Page 5

2637 v2,

One of the following

30MB (1x30MB) L3 cache

25MB (1x25MB) L3 cache

NOTE: For Six, Eight or Ten-core processors.

20MB(1x20MB) shared L3 cache

15MB(1x15MB) shared L3 cache

NOTE: For Quad or Six-core processors.

10MB(1x10MB) shared L3 cache

5MB (1x5MB) Level 3 cache

Chipset

Intel® C600 series

Upgradeable to two (2) processors

HPE iLO (Firmware: HPE iLO 4)

Memory Protection

Advanced ECC mode

Memory Online Spare Mode (Rank Spare Mode)

Lockstep Mode

Memory

Type

HPE SmartMemory

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

atures

NOTE: All processors support Intel® Hyper-Threading and Intel® Turbo Boost Technologies except the

E5-2603 and E5-2609.

NOTE: The letter "L" following the model number indicates denotes lower wattage.
NOTE: The processor model as well as the memory configuration determines the maximum speed

memory can operate. Please see the see the "Memory" section later in this document.

NOTE: The Intel Xeon E5-2620 processor does not support DIMMs at 1.35V. Using the HPE RBSU, 1.35V

DIMMs can be changed to operate at 1.5V.

NOTE: When HPE 24GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low

Voltage FIO Memory Kits are used with any processors except the E5-2690, the E5-2643, the E5­the E5-2643 v2, or the E5-2667 v2 all 16 DIMM slots on the WS460c Gen8 must be fully populated with
these 24GB DIMMs. When HPE 24GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333) Registered
CAS-9 Low Voltage FIO Memory Kits are used with either the E5-2690, the E5-2643, the E5-2637 v2, the
E5-2643 v2, or the E5-2667 v2, all 12 available DIMM slots on the WS460c Gen8 must be fully populated
with these 24GB DIMMs.

Cache Memory

depending on Model

Upgradeability

NOTE: For Twelve-core processors.

NOTE: For Eight-core processors.

NOTE: For Quad-core processors.

NOTE: For Dual-core processors.

Intel® E5-2600 and 2600v2 Processor Families

NOTE: For more information regarding Intel chipsets, see

http://www.intel.com/products/server/chipsets/

On System
Management

NOTE: For more information, visit: http://www.hp.com/go/ilo

Processor

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Standard Fe

Page 6

DDR3 Load Reduced (LRDIMM), Registered (RDIMM), or Unbuffered ECC
(UDIMM)

DIMM Slots Available

Sixteen (16) DIMM slots

Standard (Pre-

32GB (4 x 8GB) DDR3 1600MHz RDIMMs at 1.5V

Maximum (LRDIMM)

512GB (16 x 32GB) up to 1333MHz at 1.35V

Maximum (RDIMM)

256GB (16 x 16GB) up to 1600MHz at 1.5V
384GB (16 x 24GB) up to 1333MHz at 1.35V

Maximum (UDIMM)

128GB (16 x 8GB) up to 1600MHz at 1.5V

M, RDIMM and UDIMMs are all distinct memory technologies and cannot be mixed within a

2637 v2,

One of the following

FlexFabric supported only with server OS and/or in a virtualized environment using hypervisors.

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

atures

configured Models)

One of the following
depending on Model

NOTE: HPE memory from previous generation servers are not qualified or warranted with this server.

HPE SmartMemory is required to realize the memory performance improvements and enhanced
functionality listed in this document for Gen8. For additional information, please see the HPE
SmartMemory QuickSpecs at:

http://h18000.www1.hp.com/products/QuickSpecs/14225_div/14225_div.html

NOTE: LRDIM

server. The majority of ProLiant Gen8 servers support RDIMM, UDIMM and LRDIMM.

NOTE: The internal USB 2.0 Port is not available when the HPE 24GB (1x24GB) Three Rank x4 PC3L-

10600R (DDR3-1333) Registered CAS-9 Low Voltage FIO Memory Kits (700404-B21) are used.

NOTE: When HPE 24GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low

Voltage FIO Memory Kits are used with any processors except the E5-2690, the E5-2643, the E5­the E5-2643 v2, or the E5-2667 v2 all 16 DIMM slots on the WS460c Gen8 must be fully populated with
these 24GB DIMMs. When HPE 24GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333) Registered
CAS-9 Low Voltage FIO Memory Kits are used with either the E5-2690, the E5-2643, the E5-2637 v2, the
E5-2643 v2, or the E5-2667 v2, all 12 available DIMM slots on the WS460c Gen8 must be fully populated
with these 24GB DIMMs.

NOTE: The Intel Xeon E5-2600 Processor Family cannot be configured with the new 1866MHz HPE

Smart Memory or the new 1600MHz Low Voltage (1.35v) HPE Smart Memory.

NOTE: Depending on the memory configuration and processor model, the memory speed may run at

1866MHz, 1600MHz, 1333MHz, or 1066MHz. Please see Memory Population Table or the Online Memory
Configuration Tool at:

http://www.hp.com/go/ddr3memory-configurator.

Network Controller

Pre-configured Models

One (1) HPE Flex-10 10Gb 2-port 530 FlexLOM

depending on Model

Configurable Models
One FlexibleLOM from below.
One (1) HPE Flex-10 10Gb 2-port 530 FlexLOM or
One (1) HPE FlexFabric 10Gb 2-port 534FLB FlexibleLOM or HPE FlexFabric 10Gb 2-port 554FLB
FlexibleLOM, HPE FlexFabric 20Gb 2-port 630FLB

NOTE: Windows 7, directly presiding on system (i.e. "OS on bare-metal"), is supported only with HPE

Flex-10 10Gb 2-port 530FLB or HPE FlexFabric 10Gb 2-port 534FLB FlexibleLOM with basic network
functions only. All other adapters supported with use on server OS or hypervisor environment only.

NOTE:
NOTE: Supports FCoE, Flex-10, TCP/IP offload engine, hardware-based accelerated iSCSI, iSCSI boot,

and autosensing 10Gb/1Gb Ethernet.

NOTE: Each port is autosensing 1Gb/10Gb, and can interoperate with 1Gb HPE BladeSystem c-Class

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Standard Fe

Page 7

Expansion Slots

Two (2) I/O expansion mezzanine slots: (One occupied and second not available when “2nd slot enablement

HPE ROM (read only memory) is now digitally signed using HPE’s Corporate Signing Service. This signature

progress via an attached monitor. If configuration or hardware errors are discovered during this early phase of

• System memory, memory map, and memory initialization

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

atures

interconnect components. Both ports will operate at the same speed.

NOTE: FlexFabric capabilities require the use of an HPE Virtual Connect FlexFabric module. Fibre

Channel over Ethernet (FCoE) is supported with the HPE 10GbE Pass-Thru Module, HPE 6120XG Blade
Switch with the CEE license installed, HPE Cisco B22HPE Fabric Extender and HPE Cisco B22HPE Fabric
Extender with 16 FET for BladeSystem c-Class. Learn more at:

http://www.hp.com/go/bladesystem/interconnects

NOTE: FlexibleLOMs are not compatible with prior generation c-Class server blades

Standard iLO Network Controller:
One (1) 10/100 Mbps port for the HPE iLO 4 to Onboard Administrator link. The Onboard Administrator (with
10/100/1000 Mbps) to BladeSystem link is 1Gbps.

kit” is installed with expansion blade)

• x16 PCIe 3.0 Type A (supports Type A mezzanine cards) (expansion slot 1).

NOTE: This expansion slot supports AMD FirePro S4000X.

• x16 PCIe 3.0 Type B (supports Type A and Type B mezzanine cards (expansion slot 2).

NOTE: This expansion slot supports NVIDIA Quadro K3100M or AMD FirePro S4000X.
NOTE: A second processor must be installed (in processor slot 2) to have access to the second

expansion slot (expansion slot 2).

NOTE: When NVIDIA Quadro K3100M card is ordered for Mezz slot 2, no other cards may be

ordered for Mezz slot 1.

NOTE: Supports both single and dual Mezz Graphics configuration with AMD FirePro S4000X

mezzanine graphics.

• Two (2) Full-size PCIe expansion slots (available with expansion blade only).

− x16 PCIe 2.0 full-size, full-length PCIe card expansion slot

NOTE: Supported only with qualified select HPE PCIe cards listed in this document.

• Mezzanine card options include:

− Dual-port 8Gb or 16Gb Fibre Channel HBA for SAN connectivity.

− QDR and FDR InfiniBand for low latency and high bandwidth server interconnectivity.

HPE Server ROM

is verified before the flash process starts, reducing accidental programming and preventing malicious efforts
to corrupt system ROM.

HPE ROM provides for essential initialization and validation of hardware components before control is passed
to the customer-installed operating system. The ROM also provides the capability of booting from various
fixed media (HDD, CD-ROM) and removable media (USB), to continue operation to the operating system.

HPE ROM performs very early configuration of the video controller, to allow monitoring of initialization

hardware initialization, suitable messages are now displayed on the connected monitor. Additionally, these
configuration or hardware errors are logged to the Integrated Management Log (IML) to assist in diagnosis.

HPE’s ProLiant ROM is used to configure the following:

• Processor and chipset status registers

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Standard Fe

Page 8

• System hardware configuration (integrated PCI devices and optional PCIe cards).

All Models

One (1) HPE Smart Array P220i/P230i Controller with 512MB of flash backed write
cache (FBWC), RAID 0 and 1 support, and upgradeable firmware with recovery ROM

NOTE:

(SFF) hot plug drive bays.

NOTE:

options.

Hot Plug SFF SAS

4.0TB

2 x 2.0TB drives

Hot Plug SFF SATA

4.0TB

2 x 2.0TB drives

Hot Plug SFF SAS SSD

3.2TB

2 x 1.6TB drives

Hot Plug SFF SATA SSD

3.2TB

2x1.6TB drives

Micro SDHC Slot

One (1) internal Micro Secure Digital High Capacity (Micro SDHC) card slot

USB 2.0 Port

One (1) internal USB 2.0 connector for USB flash media drive keys

ACPI 2.0

ProLiant

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

atures

• Customer-specific BIOS configuration using the HPE ROM-Based Setup Utility (RBSU).

NOTE: For further information, please refer to HPE’s RBSU (ROM based setup utility) user guide:

http://www.hp.com/support/rbsu

Storage Controller

Maximum Internal
Storage

One of the following
depending on Model

The HPE Smart Array P220i/P230i supports two (2) small form factor

The server supports up to a combined total of two (2) FBWC battery

NOTE: The ProLiant WS460c Gen8 server includes the new HPE hot plug small form factor (SFF)

SmartDrive carrier for enhanced management and reduced maintenance errors. HPE drives from
previous generation servers are not compatible with the WS460c Gen8 drive bays.

Interfaces

NOTE: The above options are for integrated hypervisor virtualization environments needing a low cost

boot solution with the highest performance and reliability.

NOTE: The internal USB 2.0 Port is not available when the HPE 24GB (1x24GB) Three Rank x4 PC3L-

10600R (DDR3-1333) Registered CAS-9 Low Voltage FIO Memory Kits (700404-B21) are used.

Industry Standard
Compliance

Microsoft® Logo certifications
USB 2.0 Support
IMPI 2.0
Secure Digital 2.0
TMP 1.2 Support
IEEE (specific IEEE standards dependant on Ethernet adapter card(s) installed)
Advanced Encryption Standard (AES)
Triple Data Encryption Standard (3DES)
SNMP
SSL 2.0
DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP)
Active Directory v1.0
PCIe 3.0

Operating Systems
Support for HPE

Client Operating Systems:

Microsoft ® Windows 7® Professional (64-bit)
Server Operating Systems:

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Standard Fe

Page 9

Red Hat Enterprise Linux (RHEL)

Hewlett Packard Enterprise offers two different c-Class workstation blade enclosures to meet your individual

ades, server blades, storage blades, interconnect modules, power supplies, fans, and redundant

Mezzanine Support

• Two (2) I/O expansion or graphics adapter mezzanine slots

Integrated Matrox G200 video standard

HPE ProLiant WS460c Gen8 and WS460c Gen8 Graphics Expansion Blade are both half-height server blades

HPE iLO Management

• HPE iLO Management Engine is a comprehensive set of embedded

management features supporting the complete lifecycle of the server, from

HPE iLO

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

atures

Workstations

Citrix XenServer

VMware Horizon View 5.2, vSphere 5.1 or later

Microsoft Windows Server

NOTE: For more information on HPE’s Certified and Supported ProLiant Servers for OS and

Virtualization Software and latest listing of software drivers available for your server, please visit our
Support Matrix at: www.hp.com/info/ossupport

http://www.hp.com/support/WS460cGen8

Enclosures

needs:
The HPE BladeSystem c7000 rack enclosure is 10U high and holds up to sixteen (16) ProLiant WS460c Gen8
workstations plugged vertically or (8) HPE ProLiant WS460c Gen8 Workstation Blades paired with (8) HPE
WS460c Gen8 Graphics Expansion Blades plugged vertically.

The HPE BladeSystem c3000 rack enclosure is 6U high and holds up to eight (8) HPE ProLiant WS460c
Gen8 workstations plugged horizontally or (4) HPE ProLiant WS460c Gen8 Workstation Blades paired with
(4) HPE WS460c Gen8 Graphics Expansion Blades plugged horizontally.

Workstation bl
Onboard Administrator modules are all designed to fit into the c3000 and c7000 enclosures.
For additional enclosure information, please see:

http://h18004.www1.hp.com/products/blades/components/enclosures/c-class/index.html

and our driver download page

• Supports up to (2) mezzanine cards

Graphics

• 1280 x 1024 (32 bpp)

• 1920 x 1200 (16 bpp)

HPE iLO 4 On System Management Memory

• 16 MB Flash

• 256 MB DDR 3 with ECC (112 MB after ECC and video)

Form factor

that plug into the HPE BladeSystem c3000 and c7000 enclosures. HPE WS460c Gen8 is a single-width blade
while the Graphics Expansion Blade model is double-width.

On System
Management

Engine

initial deployment, through ongoing management, to service alerting and
remote support.
HPE iLO Management Engine comes standard on all HPE ProLiant Gen8
servers.

The HPE iLO Management Engine portfolio includes:

−

: The HPE iLO management processor is the core

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Standard Fe

Page 10

foundation for other capabilities within HPE iLO Management

NOTE:

Management Engine technologies whitepaper.

HPE Service Pack for

HPE Service Pack for ProLiant (SPP) and HPE Smart Update Manager (HPE SUM)
provide a comprehensive approach to firmware and system software maintenance.
Together they provide better operating stability an
SPP will be updated at a predictable cadence, typically coinciding with new
server hardware launches. By enabling firmware to be updated online and
integrating firmware and system software updates in one operation,
the SPP offer faster updates of individual servers and dramatically faster updates of
entire BladeSystem enclosures. Further improving system uptime and stability is the
fact that
Servic

The user experience around
ways, starting with the web download. A single web page provides access to a
single download containing both the latest version of
Optional smaller subsets with only specific types of servers or specific operating
systems are offered to save on download time. The
a straightforward, intuitive user interface that guides the user through the steps of

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

atures

Engine.

− HPE Agentless Management Provides built in server health

monitoring and alerting capability without OS agents, that starts
working the moment a power cord and an Ethernet cable are
connected.

− HPE Active Health System: Always on, continuous monitoring

for increased stability and shorter downtimes; 100% configuration
history; Health and service alerts and easy export and upload to
Service and Support.

− HPE Intelligent Provisioning: Lets customers provision and

configure a single server without any separate media. No more
SmartStart CDs or Smart Update Firmware DVD are needed

 To start Intelligent Provisioning:

• Press the F10 key during the ProLiant Gen8

server boot process (also known as power on
self test or POST).

− HPE iLO Mobile App: Enables the ability to access, deploy, and

manage your server anytime from anywhere from select
smartphones and mobile devices. For additional information
please visit: http://www.hp.com/go/ilo/mobileapp

For more information, visit: http://www.hp.com/go/ilo or HPE iLO

• Please go to the Intelligent Provisioning website

at

http://www.hp.com/go/intelligentprovisionin
g for additional information and to view usage

videos.

• Use the Service Pack for ProLiant (SPP) at

http://www.hp.com/go/spp

to get firmware

and software updates.

HPE Insight
Management

ProLiant (SPP)

Hewlett Packard Enterprise provides 12 months of support for each

e Pack for ProLiant release.

d ensure maximum uptime. The

HPE

HPE SUM and

HPE SUM and the SPP has been improved in several

HPE SUM and the latest SPP.

HPE SUM application provides

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Standard Fe

Page 11

discovery, analyses and update, providing comprehensive information on available
updates, criticality and interdependencies. This information is also available in
reports. By providing the option of multiple local or shared repositories which can
be easil
and consistency throughout the company. While
recommend the combinations of firmware and system software that
Packard Enterprise has
customers the flexibility to set their own specific baseline.

The Service Pack for ProLiant has been rigorously tested with specific attention for
interaction between firmware, drivers and agents both within the server as well as in
interaction with the BladeSystem enclosure components (Onboard Administrator
and Virtual Connect). This testing ensures the highest quality as well as providing
the input for
when d

NOTE:

downloaded from

. More information can
b
and

• Power-on password

Memory Lockstep mode is used to correct a single x8 DRAM device failure on a DIMM. The DIMMs in

• Integrated HPE Smart Array P220i Controller with 512MB FBWC, RAID 0 and 1 support, and

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

atures

y updated from hp.com, HPE SUM provides the tools to optimize stability

HPE SUM and the SPP

Hewlett

found to be the best practice, the application gives

HPE SUM to deploy updates taking into account all interdepencies,

etermining the correct updates and order of update deployment.

The Service Pack for ProLiant (which includes HPE SUM) can be

http://www.hp.com/go/spp/download

e found: http://www.hp.com/go/SmartUpdate, http://www.hp.com/go/spp

http://www.hp.com/go/hpsum

Security

• Administrator's password

• HPE iLO 4 On System Management Chipset with:

− SSL encryption

− Secure Shell version 2

− Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on

browser, CLP and XML scripting interface

− AES and RC4 encryption of video

• External USB port enable/disable

• Network server mode

• Serial interface control

• TPM (Trusted Platform Module) 1.2 option

• Advanced Encryption Standard (AES)

• Intel® Advanced Encryption Standard-New Instructions (AES-NI)

Availability

Memory

• Advanced ECC uses single device data correction (SDDC) to detect and correct single and all multi-

bit error that occurs within a single DRAM chip. Both x4 and x8 SDDC are supported (x8 requires
lockstep mode).

• Memory online spare mode (also known as rank spare mode) detects a rank that is degrading and

switches operation to the spare rank.

•

each paired memory channel must have identical HPE part numbers.

• Memory demand and patrol scrubbing to prevent accumulation of correctable errors and reducing

the likelihood of unplanned downtime.

• Failed DIMM isolation improves the service time thus improving the overall system availability.

• Address parity protection available on RDIMMs and LRDIMMs detects address bit errors to improve

service time and overall system availability.

Storage

• Two (2) Small Form Factor hot-plug SAS/SATA/SSD drive bays.

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Standard Fe

Page 12

upgradeable firmware with recovery ROM capability.

Warranty

• This product is covered by a global limited warranty and supported by HPE Services and a

s. Hardware diagnostic

support and repair is available for three years from date of purchase. Support for software and initial

http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

atures

• Optional HPE D2200sb Storage Blade for direct attachment of up to 12 drives to an adjacent blade

within the c-Class enclosure. (Available with single-width WS460c only)

• Optional dual-port Fibre Channel mezzanine card for redundant SAN connections. (With

configurations where mezzanine slot is available)

Processor/Chipset

• Processor internal sensors & thermal control protection against over-temperature conditions.

• Cache parity/ECC protects cache data from accidental data corruption.

• Machine Check Architecture (MCA) detects and captures hardware errors such as system bus,

memory ECC, parity, and cache, and improves service time.

• Intel® QPI Protocol Protection allows detection of data errors using a checksum of 8-bits.

• Core Disable for FRB (fault resilient boot) allows a system to power-on despite a failing core-pair. It

uses BIST (built-in self test) results to detect a failure and disables the target core-pair upon
subsequent boot.

Blade Enclosure Infrastructure

• Pooled power for true N+N power redundancy through up to six (6) hot-plug, high-efficiency,

common slot enclosure-based power supplies (configuration dependent).

• Up to ten (10) redundant enclosure-based hot-plug HPE Active Cool fans that scale to meet future

demands and optimize airflow, reduce power draw, and improve acoustic performance.

• Dual grid power providing redundant rack enclosure power feeds to the server blade enclosure.

• HPE Dynamic Power Saver Mode the total enclosure power consumption is monitored in real time

and automatically adjusted with changes in demand for improved efficiency and reliability.

• HPE Dynamic Power Capping safely limits power usage without impacting performance by capping

peak usage instead of average power usage, removes risk to electrical infrastructure with a fast­acting, hardware-based capping algorithm, and reclaims more power by dynamically controlling
power limits based on workload demand.

• Up to eight interconnect modules per server blade enclosure providing four simultaneous redundant

fabrics for FlexFabric, Virtual Connect Ethernet, Fibre Channel, InfiniBand, Pass Thru Ethernet, etc.

• Enclosure crosslinks between adjacent enclosures to provide interconnect module-to-module

connections or as Virtual Connect module stacking links.

• Optional enclosure redundant Onboard Administrator system management module.

worldwide network of Hewlett Packard Enterprise Authorized Channel Partner

setup is available for 90 days from date of purchase. Enhancements to warranty services are
available through HPE Pointnext operational services or customized service agreements. Certain
restrictions and exclusions apply. Hard drives have either a one year or three year warranty; refer to
the specific hard drive QuickSpecs for details.

NOTE: Server/Workstation warranty includes 3 year Parts, 3 year Labor, 3-year on-site support.

Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts.
These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement.
A travel and labor charge will result when customers decline to replace a Mandatory CSR part;

2) Optional CSR parts are also designed for easy replacement but may involve added
complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR
parts at no charge. Additional information regarding worldwide limited warranty and technical
support is available at:

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Optional Features

Page 13

• AMD FirePro S4000X graphics (Single or dual cards configuration capable)

 Citrix XenDesktop 5.6 Enterprise/Platinum, XenServer 6 Enterprise / Platinum

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Graphics Adapter

− For professional 2D & 3D graphics with hardware acceleration via graphics subsystem

− 2GB (GDDR5) memory

− Supports up to six displays

• NVIDIA Quadro K3100M graphics (Single card configuration only)

− Mezzanine card can occupy either mezzanine slot 1 and/or 2

− Windows 7 Pro (64-bit) OS directly presiding on system (i.e. "OS on bare-metal") support

only

− Workstation class performance for ultra high end professional 3D graphics

− 4GB (GDDR5) memory

− Supports up to two displays by default firmware. Up to four displays can be supported by

using firmware edition 80.04.F1.00.01 and driver 331.82b or later.

− Mezzanine card which occupies mezzanine slot 2

− GPU Pass-through with

 Citrix XenDesktop 5.6 FP1 Enterprise/Platinum, XenServer 6 Enterprise / Platinum

edition

 VMware Horizon View 5.2 and vSphere5.1

Full-size PCI Express Adapters For WS460c Graphics Expansion Blade:

• NVIDIA GRID K1GPU adapter

− For VDI acceleration delivering true PC graphics experience

− Four entry class GPU

− 4GB (DDR3) memory per GPU, total of 16GB

− Supports shared graphics, pass-through and hardware GPU virtualization

− PCIe Gen3, x16 double-width card (One per Graphics Expansion Blade)

− Available only with Intel® Xeon® E5-2600 v2 series processor configuration

• NVIDIA GRID K2 GPU adapter

− For VDI acceleration delivering true PC graphics experience

− Two high-end GPU

− 4GB (GDDR5) memory per GPU, total of 8GB

− Supports shared graphics, pass-through and hardware GPU virtualization

− o PCIe Gen3, x16 double-width card (One per Graphics Expansion Blade)

− Available only with Intel® Xeon® E5-2600 v2 series processor configuration

• NVIDIA Quadro K4000 (Single-width PCIe x16 in graphics expansion blade)

− For professional high end 3D graphics and VDI acceleration

− 3GB (GDDR5) memory

− Supports up to four displays per card

− PCIe Gen2, x16 single-width card (Two per Graphics Expansion Blade can be supported.)

− GPU Pass-through with

 Citrix XenDesktop 5.6 Enterprise/Platinum, XenServer 6 Enterprise / Platinum

editions

 VMware View Horizon 5.2, vSphere 5.1

• NVIDIA Quadro K5000 (Double-width PCIe x16 in graphics expansion blade)

− For professional ultra high-end 3D graphics and VDI acceleration

− 4GB (GDDR5) memory

− Supports up to four displays

− PCIe Gen2, x16 double-width card (One per Graphics Expansion Blade)

− GPU Pass-through with

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Optional Features

Page 14

editions

Fibre Channel

When vacant mezzanine slot is available on WS460c, one optional Fibre Channel mezzanine HBA is

ProLiant WS460c Gen8 with server OS or hypervisors. Windows client OS (Windows 7)

HPE ProLiant WS460c Gen8 graphics server blades are optimized for HPE MSA, EVA and XP.

HPE Virtual

HPE Virtual Connect is an interconnect option for BladeSystem c-Class that simplifies server connectivity to

FlexFabric modules extend those capabilities to allocate one function per port to storage connections. HPE

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

 VMware View Horizon 5.2, vSphere 5.1

• NVIDIA Quadro K6000 (Double-width PCIe x16 in graphics expansion blade)

− For ultra high-end 3D graphics requiring large-scale visualization and VDI acceleration

− 12GB (GDDR5) memory

− Supports up to four displays

− PCIe Gen3, x16 double-width card (One per Graphics Expansion Blade)

− GPU Pass-through with

 Citrix XenDesktop 5.6 Enterprise/Platinum, XenServer 6 Enterprise / Platinum

editions

 VMware View Horizon 5.2, vSphere 5.1

• HPE MultiGPU with six NVIDIA Quadro K3100M

− Three NVIDIA Quadro K3100M per HPE Multi GPU carrier adapter. Required to use in a set

of two HPE Multi GPU cards for total six NVIDIA Quadro K3100M GPUs

− For VDI acceleration in pass-through mode with Citrix XenServer and VMware vSphere

− PCIe-x16, Gen2

− GPU Pass-through with

 Citrix XenDesktop 5.6 Enterprise/Platinum, XenServer 6 Enterprise / Platinum

− Available only with Intel® Xeon® E5-2600 v2 series processor configuration

• NVIDIA Tesla K20 5GB Computational Accelerator

− For High Performance Computing (GPGPU acceleration)

− 2496 CUDA cores

− 1.17 Tflops of double-precision peak performance

− 3.52 Tflops of single-precision peak performance

− PCIe Gen2

• NVIDIA Tesla K20X 6GB Computational Accelerator (Qualified. Factory integration not available)

− For High Performance Computing (GPGPU acceleration)

− 2688 CUDA cores

− PCIe Gen2

− 1.32 Tflops of double-precision peak performance

− PCIe Gen2

editions

 VMware View Horizon 5.2, vSphere 5.1

 3.95 Tflops of single-precision peak performance

Support

supported on the HPE
not supported.

Compatible SAN

HPE ProLiant WS460c Gen8 graphics server blades are compatible with select 3rd party SANs. Please see
blade storage page for more details at:

http://h18004.www1.hp.com/products/blades/components/c-class-sans.html

Connect

data and storage networks, and reduces costs. Unique HPE Flex-10 technology makes maximum use of
network bandwidths, provide dynamic tuning and enable extreme flexibility to meet individual server and
infrastructure requirements by allocating up to 4 network connections per server port. Virtual Connect

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Optional Features

Page 15

Virtual Connect Enterprise Manager (VCEM) provides server management software with a central console to

HPE Insight Control

HPE Insight Control, a product option, delivers essential infrastructure management
that can help save time and money by making it easy to deploy, migrate, mo
remote control, and optimize your IT infrastructure through a single, simple
management console. For more information, see

http://www.hp.com/go/insightcontrol

HPE
and Update Service ensuring rapid access to
staff
service, see

HPE Matrix Operating

The HPE Matrix Operating Environment (Matrix OE) for ProLiant and Integrity
servers is an integrated command center that helps you instantly adjust to dynamic
business dema
reduce the cost of common data center tasks by up to 40 percent while keeping
pace with your changing business.

The
recove
for private cloud and Infrastructure as a Service (IaaS). For more information, see

http://www.hp.com/go/matrixoe

HPE iLO Advanced

HPE iLO management processors for HPE ProLiant Gen8 servers helps simplify
server setup, engage health monitoring and power and thermal control, and
promote remote administration.
additional software installation and functions regardless of the servers' state of
operation. The
works hand
Operatin
platform and deliver the highest possible quality of IT service to the business.

Advanced functionality, such as graphical remote console, multi
and video record/playb

iLO Advanced or
HPE iLO Advanced for BladeSystem licenses. The Advanced licensed features offer
sophisticated remote administration of servers in dynamic data center and remote
locations and can help significantly
and unplanned downtime.

NOTE:

The HPE OneView architecture combines server, storage, and networking with control of datacenter

Converged Infrastructure.

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

administer network connections and workloads for thousands of servers. For more information on Virtual
Connect Enterprise Manager, see
Ethernet, Fibre Channel, Converged Network and management options, see
http://www.hp.com/go/virtualconnect.

HPE Insight
Management

http://www.hp.com/go/vcem. For more information on Virtual Connect

nitor,

.

Insight Control includes one year of 24 x 7 HPE Software Technical Support

Hewlett Packard Enterprise support

and proactive delivery of software updates. For more information about this

http://www.hp.com/services/insight.

Environment

nds. This advanced infrastructure management software lets you

HPE Matrix OE includes the automated provisioning, optimization, and

ry management capabilities for HPE CloudSystem Matrix, the ideal platform

.

License for ProLiant
BladeSystem Servers

HPE iLO functions out-of-the-box without

HPE iLO can be accessed from any location via a web browser and

-in-hand with HPE Systems Insight Manager, Insight Control, and Matrix

g Environment, helping customers unleash the value of the ProLiant

ack can be activated with the optional HPE

For more information, visit http://www.hp.com/go/ilo.

reduce cost associated with IT-related travel

HPE OneView

environmentals into a single, integrated management platform. Architected to deliver lifecycle management
for the complete Converged Infrastructure, it facilitates collaboration, removes friction, collapses cycle times,
eliminates error-prone work, and accelerates time to value. HPE OneView v1.1 combines management of
servers and virtual connect with open integration to automate and customize existing tools and processes.
With OneView, you'll work smarter-with greater visibility and control-and fully capitalize on the benefits of a

-user collaboration,

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Optional Features

Page 16

HPE Cluster Platforms

HPE Cluster Platforms are specifically engineered, factory-integrated large-scale
ProLiant clusters optimized for High Performance Computing, with a choice of
servers, networks and software. Operating system options include specially priced
offerings for Red Hat Enterprise Linux and SUSE Linux Enterprise Server, as well as
Microsoft Windows HPC Server. A Cluster Platform Configurator simplifies ordering.

http://www.hp.com/go/clusters

HPE HPC Interconnects

High Performance Computing (HPC) interconnect technologies are available for
this server as part of the
InfiniBand and Gigabit interconnects are fully supported by
Enterprise
be defined with the help of configuration tools.

http://www.hp.com/techservers/clusters/ucp/index.html

HPE Insight Cluster

HPE Insight Cluster Management Utility (CMU) is an HPE-licensed and HPE­supported suite of tools that are used for lifecycle management of hyperscale
clusters of Linux ProLiant systems. CMU includes software for the centralized
provisioning, management and monitoring of nodes. CMU makes the administration
of clusters user friendly, efficient, and effective.

HPE Insight Online is a new addition to the HPE Support Center for one stop, secure access to product and

Supports one (1) optional storage, tape, or PCI expansion blade.

Factory Express

Servers and Storage

HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett

HPE Simple

SCE is a guided self service tool to help sales and non technical people provide customers with initial

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

For more information on HPE OneView management, see: http://www.hp.com/go/oneview.

High Performance
Clusters

HPE Cluster Platform portfolio. These high-speed

Hewlett Packard

when integrated within an HPE cluster. Flexible, validated solutions can

Management Utility

http://www.hp.com/go/cmu

HPE Insight Online

HPE support information personalized to your IT environment. Insight Online can automatically display
devices remotely monitored by HPE Insight Remote Support. With Insight Online's easy navigation you can
efficiently track your IT support contracts and device status from anywhere and at anytime.
http://www.hp.com/go/insightonline

Expansion Blade
Support

Portfolio for

Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built,
tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration
and design services as well as individual factory services, such as image loading, asset tagging, and custom
packaging. Hewlett Packard Enterprise products supported through Factory Express include a wide array of
servers and storage: HPE Integrity, HPE ProLiant, HPE ProLiant Server Blades, HPE BladeSystem, HPE 9000
servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.
For more information on Factory Express services on your specific server model please contact your sales
representative or go to:

http://www.hp.com/go/factory-express.

Configurator

configurations in 3 to 5 minutes. You may then send the configuration on for configuration help, or use in your
existing ordering processes. If you require "custom" rack configuration or configuration for products not
available in SCE, please contact Hewlett Packard Enterprise’s Customer Business Center or an Authorized
Partner for assistance.

http://www.hp.com/products/configurator

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Service and Sup

Page 17

to

Related Services

HPE ProLiant Server Hardware Installation

Protect your data through better media management. HPE Data privacy services help manage and protect

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

port

Service and Support HPE Technology Services for Industry Standard Servers

HPE Technology Services delivers confidence, reduces risk and helps customers realize agility and stability.
Connect to Hewlett Packard Enterprise to help prevent problems and solve issues faster. Our support
technology lets you to tap into the knowledge of millions of devices and thousands of experts to stay
informed and in control, anywhere, any time.

Protect your business beyond warranty with HPE Pointnext operational services

HPE Pointnext operational services enable you to order the right service level, length of coverage and
response time as you purchase your new server, giving you full entitlement for the term you select.

Recommended HPE Pointnext operational services for your HPE product

Optimized Care

Standard Care

HPE Proactive Care Advanced - 24x7 coverage, three year Care Pack Service

Achieve a higher return on your product investment with the personal attention from a locally assigned
Account Support Manager who delivers recommendations designed to improve availability and performance.
Leverage your system’s ability to connect to Hewlett Packard Enterprise for automated problem detection
and rapid critical event management to increase stability and reduce unplanned downtime. This
recommendation provides 24x7 coverage with four-hour response for hardware and two-hour callback for
supported software. Collaborative call management comes with Proactive Care Advanced or you may choose
full support from Hewlett Packard Enterprise where we own all cases through to resolution. Hewlett Packard
Enterprise is a leading provider of support services for most operating systems used on HPE BladeSystem
with long, successful partnerships with vendors such as Microsoft, Red Hat, VMware, SUSE and others.
Purchasing software support from Hewlett Packard Enterprise simplifies troubleshooting and shortens time
resolution with one call for hardware or software questions.

https://www.hpe.com/h20195/V2/GetDocument.aspx?docname=4AA5-3259ENW&cc=us&lc=en

HPE Proactive Care with 24x7 coverage, three year Care Pack Service

HPE Proactive Care helps prevent problems and stabilize IT by utilizing secure, real-time, predictive analytics
and proactive consultations when your products are connected to Hewlett Packard Enterprise. This Care
Pack Service combines three years’ proactive reporting and advice with our 24x7 coverage and enhanced
escalation management, four hour hardware response time and two hour call back for software questions on
leading industry standard software running on your HPE ProLiant server.

https://www.hpe.com/h20195/v2/getpdf.aspx/4aa3-8855enw.pdf

Provides for the basic hardware installation of Hewlett Packard Enterprise branded servers, storage devices
and networking options to assist you in bringing your new hardware into operation in a timely and
professional manner.
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-9356EN.pdf

Factory Express for Servers and storage

HPE Factory Express offers configuration, customization, integration and deployment services for Hewlett
Packard Enterprise servers and storage products. Customers can choose how their factory solutions are built,
tested, integrated, shipped and deployed. For more information on Factory Express services for your specific
server model please contact your sales representative or go to: http://www.hp.com/go/factory-express

Data Privacy Services

.

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Service and Support

Page 18

sensitive data to reduce the risk of unauthorized access to private information and help meet compliance

Get connected to

Connecting products to Hewlett Packard Enterprise will help prevent problems with 24x7monitoring,

rts, automatic call logging, and parts dispatch, plus current data will be available for the proactive

HPE Support Center

Personalized online support portal with access to information, tools and experts to support Hewlett Packard

s Support Center Mobile App allows you to resolve issues yourself or quickly connect to an agent for live

Parts and Materials

Hewlett Packard Enterprise will provide HPE-supported replacement parts and materials necessary to

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced
by Hewlett Packard Enterprise due to malfunction.

For more

To learn more on HPE ProLiant servers and HPE BladeSystem servers, please contact your Hewlett Packard

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

requirements. Our retention services allow you to keep drives and other devices upon failure, our removal
services provide convenient data sanitization and our recovery services allow you to safely retire IT assets
and capture any remaining value from the hardware.

Additional HPE Pointnext operational services can be found at: http://www.hp.com/go/cpc.

http://www.hp.com/services/dataprivacy

Hewlett Packard
Enterprise to
improve your
support experience

prefailure ale
reports that are part of Proactive Care Services. With Connected products, you can have a dashboard to
manage your IT anywhere, anytime, from any device.

Enterprise business products. Submit support cases online, chat with Hewlett Packard Enterprise experts,
access support resources or collaborate with peers. Learn more

http://www.hp.com/go/hpsc

HPE’
support. Now, you can get access to personalized IT support anywhere, anytime.

HPE Insight Remote Support and HPE Support Center are available at no additional cost with a Hewlett
Packard Enterprise warranty, HPE Care Pack or Hewlett Packard Enterprise contractual support agreement.

NOTE: HPE Support Center Mobile App is subject to local availability.

maintain the covered hardware product in operating condition, including parts and materials for available and
recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage
limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product
data sheet will not be provided, repaired, or replaced as part of these services.

information

Enterprise sales representative or Hewlett Packard Enterprise Authorized Channel Partner. Or visit:

http://www.hp.com/services/bladesystem

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Configuration Inform

Page 19

HP ProLiant WS460c Gen8 E5-v2 Configure-to-order Workstation

739347-B21

Configurable Model ships with:

One (1) FlexibleLOM connector providing a choice for one (1) of the supported 10Gb or

HPE iLO Management Engine (standard)

with the HPE ProLiant WS460c Gen8 Configure-to-order Blade Server (678276-B21).

Configurable Model ships with:

One (1) FlexibleLOM connector providing a choice for one (1) of the supported 10Gb or

HP WS460c Gen8 E5-v2 Graphics Expansion Configure-to-order Blade

739348-B21

Configurable Model ships with:

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

ation - Factory Integrated Models

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid

configurations are ordered, Hewlett Packard Enterprise recommends the use of an Hewlett Packard Enterprise approved
configurator. Contact your local sales representative for information on CTO product offerings and requirements.

NOTE: Configure-to-order server blades must start with a CTO Blade Server.
NOTE: FIO indicates that this option is only available as a factory installable option.
NOTE: All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard

drives ordered with the server.

Step 1: Base Server Blade Configuration (Select a configurable Blade)

HPE Models

NOTE: Single-width, half-height bade with two mezzanine card slots available.
NOTE: HPE Smart Array P220i Controller FIO Kit (690164-B21) or HPE Smart Array

P230i Controller FIO Kit (735062-B21) must be added separately as part of the Server
Blade Configuration Process. Choose one of the controllers in Step 3.

20Gb FlexibleLOMs (see Step 2)
Two (2) HPE small form factor hot-plug SAS/SATA/SSD hard drive bays
Two (2) x16 PCIe I/O expansion slots (one Type A, one Type A/B)
One (1) integrated USB connector and one (1) MicroSDHC connector
One (1) TPM connector

NOTE: Single-width, half-height bade with two mezzanine card slots available.
NOTE: The HPE Smart Array P220i Controller FIO Kit (690164-B21) comes included

20Gb FlexibleLOMs (see Step 2)
One (1) HPE Smart Array P220i Controller with 512MB FBWC and RAID 0 and 1 support
Two (2) HPE small form factor hot-plug SAS/SATA/SSD hard drive bays
Two (2) x16 PCIe I/O expansion slots (one Type A, one Type A/B)
One (1) integrated USB connector and one (1) MicroSDHC connector
One (1) TPM connector
HPE iLO Management Engine (standard)

NOTE: Double-width half-height blade with two, full-length, PCIe x16 slots. No

mezzanine card slots on base blade are currently available.

NOTE: HPE Smart Array P220i Controller FIO Kit (690164-B21) or HPE Smart Array

P230i Controller FIO Kit (735062-B21) must be added separately as part of the Server
Blade Configuration Process. Choose one of the controllers in Step 3.

NOTE: Base unit comes only with Slot1 of the expansion blade enabled. To enable

Slot2, optional Slot2 Enablement FIO Kit (PN 721120-B21) is required. This kit is
available at time of initial purchase only.

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Configuration Information

Page 20

One (1) FlexibleLOM connector providing a choice for one (1) of the supported 10Gb or

HPE iLO Management Engine (standard)

available at time of initial purchase only.

Configurable Model ships with:

One (1) FlexibleLOM connector providing a choice for one (1) of the supported 10Gb or

E5-2600 v2 series Processors

HP BL460c Gen8 Intel Xeon E5-2697v2 (2.7GHz/12-core/30MB/130W) FIO Processor Kit

718045-L21

HP BL460c Gen8 Intel Xeon E5-2695v2 (2.4GHz/12-core/30MB/115W) FIO Processor Kit

718054-L21

HP BL460c Gen8 Intel® Xeon® E5-2690v2 (3.0GHz/10-core/25MB/130W) FIO Processor
Kit

718055-L21

HP BL460c Gen8 Intel Xeon E5-2680v2 (2.8GHz/10-core/25MB/115W) FIO Processor Kit

718056-L21

HP BL460c Gen8 Intel Xeon E5-2670v2 (2.5GHz/10-core/25MB/115W) FIO Processor Kit

718057-L21

HP BL460c Gen8 Intel Xeon E5-2667v2 (3.3GHz/8-core/25MB/130W) FIO Processor Kit

718366-L21

HP BL460c Gen8 Intel Xeon E5-2660v2 (2.2GHz/10-core/25MB/95W) FIO Processor Kit

718058-L21

HP BL460c Gen8 Intel® Xeon® E5-2650v2 (2.6GHz/8-core/20MB/95W) FIO Processor Kit

718358-L21

HP BL460c Gen8 Intel Xeon E5-2650Lv2 (1.7GHz/10-core/25MB/70W) FIO Processor Kit

718364-L21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

- Factory Integrated Models

20Gb FlexibleLOMs (see Step 2)
Two (2) HPE small form factor hot-plug SAS/SATA/SSD hard drive bays
Two (2) x16 PCIe I/O expansion slots (one Type A, one Type A/B)
One (1) integrated USB connector and one (1) MicroSDHC connector
One (1) TPM connector

NOTE: Double-width half-height blade with two, full-length, PCIe x16 slots. No

mezzanine card slots on base blade are currently available.

NOTE: The HPE Smart Array P220i Controller FIO Kit (690164-B21) comes included

with the HPE ProLiant WS460c Gen8 Graphics Expansion Configure-to-order Blade
Server (684690-B21)

NOTE: Base unit comes only with Slot1 of the expansion blade enabled. To enable

Slot2, optional Slot2 Enablement FIO Kit (PN 721120-B21) is required. This kit is

20Gb FlexibleLOMs (see Step 2)
One (1) HPE Smart Array P220i Controller with 512MB FBWC and RAID 0 and 1 support
Two (2) HPE small form factor hot-plug SAS/SATA/SSD hard drive bays
Two (2) x16 PCIe I/O expansion slots (one Type A, one Type A/B)
Reserved for Expansion Blade mezzanine connectors and unavailable)
One (1) HPE Graphics Expansion Blade Slot1 enablement connector
One (1) integrated USB connector and one (1) MicroSDHC connector
One (1) TPM connector
HPE iLO Management Engine (standard)

Step 2: Choose Required Options (one of the following from each list unless otherwise noted)

HPE Processors

NOTE: All configure-to-order processor kits (i.e. xxxxxx-L21) contain one (1) processor.
NOTE: If two processors are desired, select one xxxxxx-L21 here in Step 2 and one

xxxxxx-B21 in Step 3.

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Configuration Information

Page 21

HP BL460c Gen8 Intel Xeon E5-2643v2 (3.5GHz/6-core/25MB/130W) FIO Processor Kit

718367-L21

HP BL460c Gen8 Intel Xeon E5-2640v2 (2.0GHz/8-core/20MB/95W) FIO Processor Kit

718359-L21

HP BL460c Gen8 Intel Xeon E5-2637v2 (3.5GHz/4-core/15MB/130W) FIO Processor Kit

718368-L21

HP BL460c Gen8 Intel Xeon E5-2630v2 (2.6GHz/6-core/15MB/80W) FIO Processor Kit

718360-L21

HP BL460c Gen8 Intel Xeon E5-2630Lv2 (2.4GHz/6-core/15MB/60W) FIO Processor Kit

718365-L21

HP BL460c Gen8 Intel Xeon E5-2620v2 (2.1GHz/6-core/15MB/80W) FIO Processor Kit

718361-L21

HP BL460c Gen8 Intel® Xeon® E5-2609v2 (2.5GHz/4-core/10MB/80W) FIO Processor Kit

718362-L21

HP BL460c Gen8 Intel Xeon E5-2603v2 (1.8GHz/4-core/10MB/80W) FIO Processor Kit

718363-L21

E5-2600 series Processors

HP BL460c Gen8 Intel Xeon E5-2620 (2.0GHz/6-core/15MB/95W) FIO Processor Kit

662069-L21

rbo indicates the maximum potential frequency increment when using Intel®

NOTE: The processor model as well as the memory configuration determines the

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

- Factory Integrated Models

NOTE: The Intel Xeon E5-2600 v2 Processor Family can only be configured with the

new 1866MHz HPE Smart Memory or the new 1600MHz Low Voltage (1.35v) HPE
Smart Memory. The previously shipping Intel Xeon E5-2600 Processor Family cannot
be configured with the new 1866MHz HPE Smart Memory or the new 1600MHz Low
Voltage (1.35v) HPE Smart Memory.

NOTE: The Intel Xeon E5-2620 processor does not support DIMMs at 1.35V. Using the

HPE RBSU, 1.35V DIMMs can be changed to operate at 1.5V.

NOTE: DIMM slots 4 and 5 are not accessible when either the E5-2690, the E5-2643,

the E5-2643 v2, or the E5-2637 v2, or the E5-2667 v2 is used. In a 2 processor
configuration, there are twelve (12) total available DIMM slots.

NOTE: For the maximum supported memory speeds for each processor listed above,

please reference the 'Memory Speed by Processor Model' table in the Memory section
of the QuickSpecs.

NOTE: HT indicates that the processor model supports Intel® Hyper-Threading

Technology.

NOTE: Tu

Turbo Boost Technology, with 8, 7, 6, 5, 4, 3, 2 or 1 core(s) active.

NOTE: DDR3 speed is the maximum memory speed of the processor. Actual memory

speed may depend on the quantity and type of DIMMs installed.

NOTE: Up to 2 processors supported. Mixing different processor models is not

supported.

NOTE: For the Intel® C600 Chipset E5-2600 Series, the letter preceding the model

number indicates the Product Line (E3, E5, E7); 2600x, 2 = number of CPUs in a Node,
6 is socket/segment designation, 00 = Processor SKU, and x = L for low power SKUs.

NOTE: All processors within the server must be identical.
NOTE: All processors support Intel® Hyper-Threading and Intel® Turbo Boost

Technologies except the E5-2603 and E5-2609.

NOTE: The letter "L" following the model number indicates denotes lower wattage.

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Configuration Information

Page 22

ction later in

ProLiant WS460c Gen8 shares same processor modules with BL460c Gen8

LRDIMM, RDIMM and UDIMMs are all distinct memory technologies and cannot

HPE SmartMemory

Registered DIMMs (RDIMMs) - E5-2xxx v2 series Processors

HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low

713981-B21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

- Factory Integrated Models

maximum speed memory can operate. Please see the see the "Memory" se
this document.

NOTE: When HPE 24GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333)

Registered CAS-9 Low Voltage FIO Memory Kits are used with any processors except
the E5-2690, the E5-2643, the E5-2637 v2, the E5-2643 v2, or the E5-2667 v2 all 16
DIMM slots on the WS460c Gen8 must be fully populated with these 24GB DIMMs.
When HPE 24GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333) Registered CAS­9 Low Voltage FIO Memory Kits are used with either the E5-2690, the E5-2643, the E5­2637 v2, the E5-2643 v2, or the E5-2667 v2, all 12 available DIMM slots on the WS460c
Gen8 must be fully populated with these 24GB DIMMs.

NOTE: HPE

server. If two processors are desired, select one xxxxxx-L21 and one xxxxxx-B21.

NOTE: The WS460c Gen8 supports one or two processors.
NOTE: All configure-to-order processor kits (i.e. xxxxxx-L21) contain one (1) processor.
NOTE: If two processors are desired, select one xxxxxx-L21 here in Step 2 and one

xxxxxx-B21 in Step 3.

NOTE: The WS460c Gen8 includes two I/O mezzanine expansion slots. A processor

must be installed in processor slot 1 for access to the first mezzanine expansion slot
(expansion slot 1). A processor must be installed in processor slot 2 for access to the
second mezzanine expansion slot (expansion slot 2).

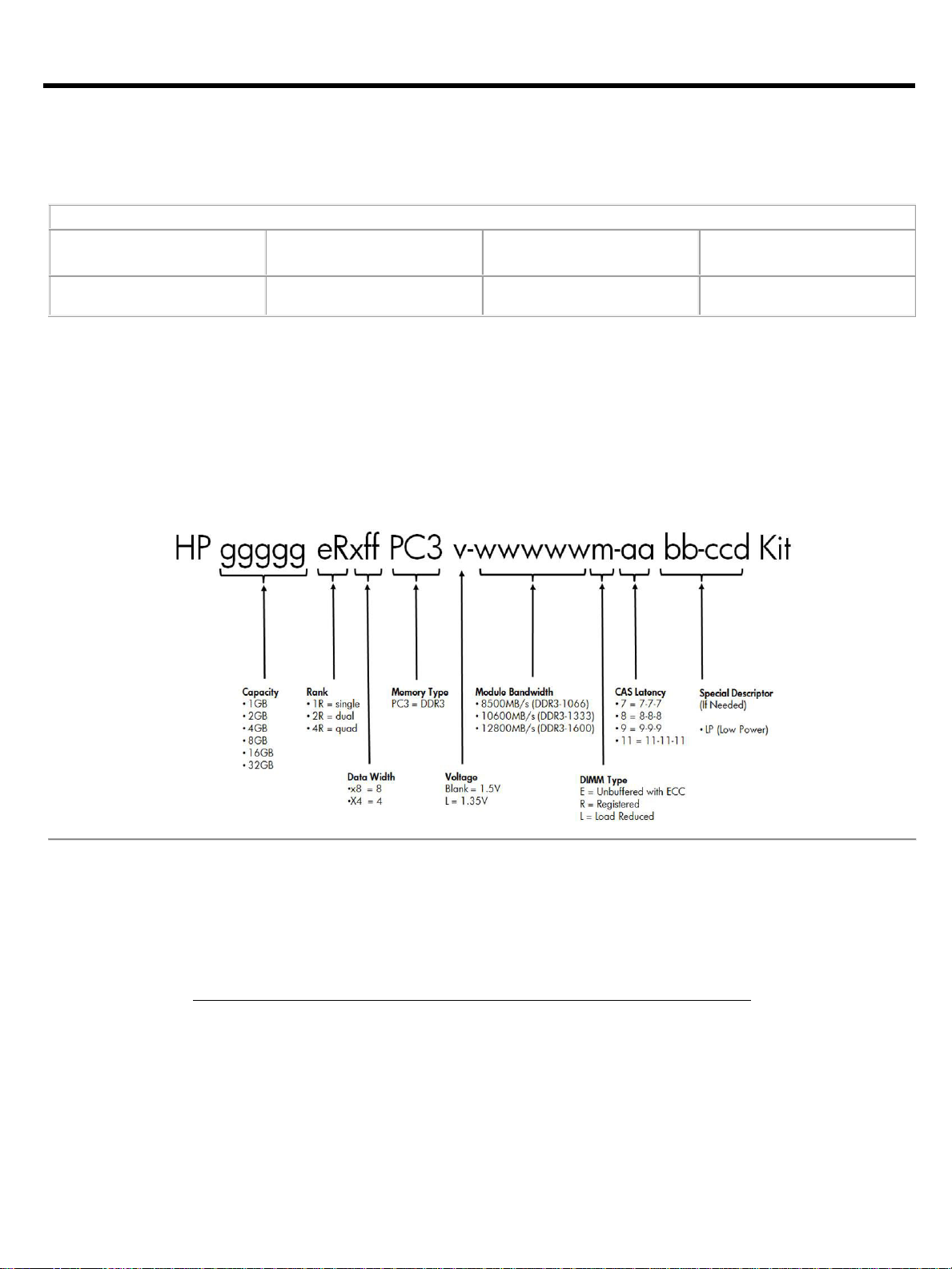

HPE Memory

NOTE: HPE memory from previous generation servers are not qualified or warranted

with this HPE ProLiant WS460c Server. HPE SmartMemory is required to realize the
memory performance improvements and enhanced functionality listed in this
document for Gen8. For additional information, please see the HPE SmartMemory
QuickSpecs at:

http://h18000.www1.hp.com/products/QuickSpecs/14225_div/14225_div.html

NOTE:

be mixed within a server. The majority of ProLiant Gen8 servers support RDIMM,
UDIMM and LRDIMM.

NOTE: A minimum of one DIMM is required per server.
NOTE: For additional memory rules and guidelines, see the "Memory" section later in

this document.

NOTE: When HPE 24GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333)

Registered CAS-9 Low Voltage FIO Memory Kits are used with any processors except
the E5-2690, the E5-2643, the E5-2637 v2, the E5-2643 v2, or the E5-2667 v2 all 16
DIMM slots on the WS460c Gen8 must be fully populated with these 24GB DIMMs.
When HPE 24GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333) Registered CAS­9 Low Voltage FIO Memory Kits are used with either the E5-2690, the E5-2643, the E5­2637 v2, the E5-2643 v2, or the E5-2667 v2, all 12 available DIMM slots on the WS460c
Gen8 must be fully populated with these 24GB DIMMs.

NOTE: The internal USB 2.0 Port is not available when the HPE 24GB (1x24GB) Three

Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage FIO Memory Kits
(700404-B21) are used.

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Configuration Information

Page 23

Voltage Memory Kit

HP 4GB (1x4GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit

708637-B21

HPE 8GB (1x8GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low

713983-B21

HPE 8GB (1x8GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low

731765-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit

708639-B21

HPE 8GB (1x8GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory

731761-B21

HPE 16GB (1x16GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low

713985-B21

HPE 16GB (1x16GB) Dual Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory

708641-B21

Registered DIMMs (RDIMMs) - E5-2xxx series Processors

HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Voltage

647893-B21

HPE 4GB (1x4GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit

647895-B21

HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP Memory

647897-B21

HPE 8GB (1x8GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit

647899-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

690802-B21

HPE 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP

647901-B21

HPE 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory

672631-B21

HP 24GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 LV

761501-B21

Unbuffered with ECC DIMMs (UDIMMs) - E5-2xxx v2 series Processors

HP 2GB (1x2GB) Single Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit

713975-B21

HP 2GB (1x2GB) Single Rank x8 PC3-14900E (DDR3-1866) Unbuffered CAS-13 Memory Kit

708631-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit

713977-B21

HP 4GB (1x4GB) Dual Rank x8 PC3-14900E (DDR3-1866) Unbuffered CAS-13 Memory Kit

708633-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit

713979-B21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

- Factory Integrated Models

Voltage Memory Kit

Voltage Memory Kit

Kit

Voltage Memory Kit

Kit

Memory Kit

Kit

Memory Kit

Kit

Memory Kit

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Configuration Information

Page 24

HP 8GB (1x8GB) Dual Rank x8 PC3-14900E (DDR3-1866) Unbuffered CAS-13 Memory Kit

708635-B21

Unbuffered with ECC DIMMs (UDIMMs) - E5-2xxx series Processors

HPE 2GB(1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory

669320-B21

HP 2GB (1x2GB) Single Rank x8 PC3L-10600(DDR3-1333) Unbuffered CAS-9 LP Memory

647905-B21

HPE 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory

669322-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-10600(DDR3-1333) Unbuffered CAS-9 LP Memory

647907-B21

HPE 8GB (1x8GB) Dual Rank x8 PC3- 12800E (DDR3-1600) Unbuffered CAS-11 Memory

669324-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-10600(DDR3-1333) Unbuffered CAS-9 LP Memory

647909-B21

Load Reduced DIMMs (LRDIMMs) - E5-2600 v2 series Processors

HPE 32GB (1x32GB) Quad Rank x4 PC3-14900L (DDR3-1866) Load Reduced CAS-13

708643-B21

Load Reduced DIMMs (LRDIMMs) - E5-2600 series Processors

HP 32GB (1x32GB) Quad Rank x4 PC3L-10600 (DDR3-1333) LRDIMM CAS-9 LP Memory

647903-B21

All DDR3 memory option kits consist of one DIMM per kit. For detailed memory

ProLiant Energy Efficient Features, see Error! Hyperlink reference not valid..

HPE Networking

FlexibleLOM Adapters

NOTE: The server requires one (1) FlexibleLOM that is installed in the

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

- Factory Integrated Models

Kit

Kit

Kit

Kit

Kit

Memory Kit

Kit
NOTE:NOTE: The HPE Q3000 Gen8 Mezz Graphics Kit (679855-B21) is installed in Mezz
slot 2 and hence requires a two processor configuration which will provide a processor
installed in the second CPU socket.

NOTE:

configuration rules and guidelines, please use the Online DDR3 Memory Configuration
Tool:

http://www.hp.com/go/ddr3memory-configurator.

NOTE: Kits described as LP include Low Power DIMMs. For more information on

NOTE: Depending on the memory configuration and processor model the memory

speed may run at 1333MHz, 1066MHz or 800MHz. Please see the Online Memory
Configuration Tool for details: http://www.hp.com/go/ddr3memory-configurator

NOTE: For additional memory rules and guidelines, see the "Memory" section later in

this document.

NOTE: For more information on ProLiant Energy Efficient Features, see:

http://www.hp.com/go/proliant-energy-efficient

NOTE: PC3L is a low voltage memory.

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Configuration Information

Page 25

10Gb or 20Gb FlexibleLOM Adapters

HP Flex-10 10Gb 2-port 530FLB FIO Adapter

684211-B21

HP FlexFabric 10Gb 2-port 554FLB FIO Adapter

684212-B21

HP FlexFabric 10Gb 2-port 534FLB FIO Adapter

700742-B21

HPE FlexFabric 20Gb 2-port 630FLB FIO Adapter

700066-B21

For use with Client OS such as Windows 7, directly presiding on system (i.e. "OS

NOTE:

using hypervisors.

HPE Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle Single Server

C6N36A

order

HPE OneView for Blade Server including 3yr 24x7 Support FIO Bundle Physical 1-server

F6Q89A

HPE Special Request/Equipment Logistic Service

690164-B21

HP Secure Encryption per Svr Entitlement

C9A82AAE

NOTE:

http://www.hp.com/go/hpsecureencryption.

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

- Factory Integrated Models

FlexibleLOM connectors. All FlexibleLOMs are dual port: One port is routed to
interconnect module bay 1 and the other to bay 2 of the enclosure.

NOTE:

on bare-metal"), is supported only with the HPE Flex-10 10Gb 2-port 530FLB or HPE
FlexFabric 10Gb 2-port 534FLB FlexibleLOM with basic network functions only. All
other adapters are supported with use on supported server OS environment.

FlexFabric supported only with server OS and/or in a virtualized environment

NOTE: Please see the QuickSpecs for Technical Specifications and additional

information: http://www.hp.com/go/ProLiantNICs

Step 3: Choose Additional Factory Integration Options

HPE Insight
Software

Converged
Infrastructure
Management
Software

HP HPE Storage
Controllers

FIO LTU

HPE OneView with iLO Advanced - Server hardware required on same purchase

LTU

NOTE: The HPE Smart Array P220i Controller FIO Kit (690164-B21) comes included

with the HPE ProLiant WS460c Gen8 10Gb FlexibleLOM Configure-to-order Blade
Server (678276-B21 and 684690-B21). However when choosing the HPE ProLiant
WS460c Gen8 E5-v2 10Gb FlexibleLOM Configure-to-order Blade Server (739347-B21
or 739348-B21), the HPE Smart Array P220i Controller FIO Kit (690164-B21) or HPE
Smart Array P230i Controller FIO Kit (735062-B21) must be added separately as part
of the Server Blade Configuration Process.

HPE Secure
Encryption

NOTE: HPE Secure Encryption is supported on the HPE Smart Array P230i as an

option. HPE Secure Encryption licensing is based on the number of physical drives
requiring encryption.

For more information about HPE Secure Encryption, go to

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Configuration Information

Page 26

NVIDIA Quadro K3100M Mezzanine FIO Graphics Kit

750969-B21

AMD FirePro S4000X MXM Mezzanine FIO Graphics Kit

NOTE: Windows 7 OS support only

752424-B21

double-width HPE ProLiant WS460c Gen8 (P/N 739348-B21 or 684690-B21).

HPE BL e-Class Special Enclosure

730876-B21

NVIDIA GRID K2 Dual GPU PCIe Graphics Accelerator

NOTE: Available only with Intel® Xeon® E5-2600 v2 series processor configuration

729851-B21

NVIDIA Quadro K4000 PCI-E Graphics Adapter

ansion blade. Slot 2 Enablement FIO Kit

(PN 721120-B21) required for two cards configuration

730870-B21

NVIDIA Quadro K5000 PCI-E Graphics Adapter

730872-B21

NVIDIA Quadro K6000 PCI-E Graphics Adapter

730874-B21

HP MultiGPU Carrier with 3 NVIDIA K3100M FIO Graphics Kit

752423-B21

NVIDIA Tesla K20X 6GB Computational Accelerator

C7S15A

HP Gen8 Expansion Blade Slot 2 FIO Enablement Kit

K4000 graphics.

721120-B21

HPE WS460c Gen8 GPU Enablement Kit

734206-B21

HPE BladeSystem c3000 Enclosure QuickSpecs:

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

- Factory Integrated Models

HPE Graphics
Options

NOTE: Choose from following graphics mezzanine cards for use with the single-width

HPE ProLiant WS460c Gen8 mode

NOTE: When NVIDIA Quadro K3100M card is ordered for Mezz slot 2, no other cards

may be ordered for Mezz slot 1.

NOTE: Choose one of the following standard PCIe graphics card for use with the

NOTE:NOTE: Available only with Intel® Xeon® E5-2600 v2 series processor configuration

NOTE: GRID K2 requires GPU Enablement Kit (PN 734206-B21)

NOTE: Up to two cards may be installed in exp

NOTE: This part number includes one HPE MultiGPU Carrier Card with three Quadro

K3100M graphics loaded. Required to use in two carrier cards configuration (Total of
six Quadro K3100M).

NOTE: Requires Expansion Blade Slot2 Enablement FIO Kit (PN 721120-B21).
NOTE: Available only with Intel® Xeon® E5-2600 v2 series processor configuration

NOTE:NOTE: Tesla K20X requires GPU Enablement Kit (PN 734206-B21).

NOTE: This optional kit is available at time of initial system purchase only. This kit is

required when supporting two HPE MultiGPU Carrier cards or two NVIDIA Quadro

NOTE:NOTE: Required when selecting NVIDIA GRID K2 or Tesla K20/K20X for factory
integration. Contains bulkhead I/O plate.

Step 4: Choose Additional Options for Factory Integration

NOTE: For additional options, please refer to the "Core Options" and "Additional Options" section below. For additional

options, including server blade enclosures interconnect and mezzanine options and power subsystem options; please see the
Core Options and Additional sections below; or the following:

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Configuration Information

Page 27

http://h18000.www1.hp.com/products/QuickSpecs/12790_div/12790_div.html

http://h18004.www1.hp.com/products/blades/components/c-class-adapters.html.

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

- Factory Integrated Models

NOTE: The c3000 HPE c-Class enclosures have full backwards and forwards compatibility, existing server blades are

supported in the new enclosures and any future server blades will be supported in the existing enclosures.
HPE BladeSystem c7000 Enclosure QuickSpecs:

http://h18000.www1.hp.com/products/QuickSpecs/12810_div/12810_div.html

NOTE: The c7000 HPE c-Class enclosures have full backwards and forwards compatibility, existing server blades are

supported in the new enclosures and any future server blades will be supported in the existing enclosures.

NOTE: For optimal cooling and system performance the WS460c Gen8 requires the c7000 enclosure to be configured with 10

fans and the c3000 enclosure to be configured with 6 fans.

HPE BladeSystem c-Class Interconnect and Mezzanine Components:
http://h18004.www1.hp.com/products/blades/components/c-class-interconnects.html

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Core Options

Page 28

HPE Networking

NOTE:

HPE Flex-10 10Gb 2-port 530FLB Adapter

fications and additional information

656590-B21

HP FlexFabric 10Gb 2-port 534FLB Adapter

at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111370

700741-B21

HPE FlexFabric 10Gb 2-port 554FLB Adapter

OTE: Please see QuickSpecs for technical specifications and additional information

647586-B21

HPE FlexFabric 20Gb 2-port 630FLB Adapter

700065-B21

both ports are active.

HP InfiniBand QDR/EN 10Gb Dual Port 544M Adapter

644160-B21

HP InfiniBand FDR/EN 10/40Gb Dual Port 544M Adapter

644161-B22

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard

Enterprise recommends the use of an Hewlett Packard Enterprise approved configurator. Contact your local sales
representative for additional information.

NOTE: For additional options, please refer to the "Core Options" and "Additional Options" sections below.

Each 10 Gigabit Ethernet adapter requires a minimum of 2GB of server

memory.

NOTE: A 10 Gigabit Ethernet adapter supports linking at 1Gbps or 10Gbps when

connected to an interconnect module with 10Gb Ethernet downlinks.

NOTE: A 10 Gigabit Ethernet adapter supports linking at only 1Gbps when connected

to an interconnect module with 1Gb Ethernet downlinks.

NOTE: The 10 Gigabit Ethernet adapters on each server blade connect to a 10Gb

interconnect in bays 3-6 (HPE BladeSystem c7000 Enclosure) or bays 2-4 (HPE
BladeSystem c3000 Enclosure).

FlexibleLOM Adapters

NOTE: The server supports one (1) FlexibleLOM that is installed in the

FlexibleLOM connectors and is already included in the pre-configured models.
However, it must be added in Step 2 for Configure-to-Order Models. The
FlexibleLOM options below are used to change these original FlexibleLOMs.

10 or 20 Gigabit Ethernet FlexibleLOM

NOTE:NOTE: Please see QuickSpecs for technical speci
at https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111539.
NOTE:NOTE: Client OS on bare metal is supported only with this BLOM.

NOTE: Please see QuickSpecs for technical specifications and additional information

NOTE:N
at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111537

HPE Infiniband Mezzanine Adapters

NOTE: InfiniBand mezzanine HCAs are supported on the HPE ProLiant WS460c Gen8

with server OS or hypervisors. Windows client OS (Windows 7) not supported.

NOTE: When an InfiniBand adapter is installed in mezzanine slot 1, only one port is

active (regardless of operating mode). When installed in any other mezzanine slot,

NOTE:NOTE: The QDR InfiniBand adapter may be installed in upper mezzanine slot of the
WS460c when vacant

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Core Options

Page 29

NOTE:NOTE: The FDR InfiniBand adapter may be installed in upper mezzanine slot of the

HP InfiniBand FDR 2-port 545M Adapter

ProLiant WS460c

metal not supported.

HPE LPe1605 16Gb Fibre Channel Host Bus Adapter for BladeSystem c-Class

718203-B21

at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04315132

HPE LPe1205A 8Gb Fibre Channel Host Bus Adapter for BladeSystem c-Class

659818-B21

HP QMH2672 16Gb Fibre Channel Host Bus Adapter

https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04126962

HPE QMH2572 8Gb Fibre Channel Host Bus Adapter

651281-B21

NOTE:

E5-2600 v2 series Processors

HP BL460c Gen8 Intel Xeon E5-2697v2 (2.7GHz/12-core/30MB/130W) Processor Kit

718045-B21

HP BL460c Gen8 Intel Xeon E5-2695v2 (2.4GHz/12-core/30MB/115W) Processor Kit

718054-B21

HP BL460c Gen8 Intel Xeon E5-2690v2 (3.0GHz/10-core/25MB/130W) Processor Kit

718055-B21

HP BL460c Gen8 Intel Xeon E5-2680v2 (2.8GHz/10-core/25MB/115W) Processor Kit

718056-B21

HP BL460c Gen8 Intel Xeon E5-2670v2 (2.5GHz/10-core/25MB/115W) Processor Kit

718057-B21

HP BL460c Gen8 Intel Xeon E5-2667v2 (3.3GHz/8-core/25MB/130W) Processor Kit

718366-B21

HP BL460c Gen8 Intel Xeon E5-2660v2 (2.2GHz/10-core/25MB/95W) Processor Kit

718058-B21

HP BL460c Gen8 Intel Xeon E5-2650v2 (2.6GHz/8-core/20MB/95W) Processor Kit

718358-B21

HP BL460c Gen8 Intel Xeon E5-2650Lv2 (1.7GHz/10-core/25MB/70W) Processor Kit

718364-B21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

WS460c when vacant

NOTE: InfiniBand QDR and FDR speeds are only supported on the HPE BladeSystem

c7000 Enclosure. For additional information, please see the HPE BladeSystem c7000
Enclosure and InfiniBand QuickSpecs at:

https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04126044
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154440

HPE Fibre Channel NOTE: All Fibre Channel mezzanine HBAs are supported on the HPE

Gen8 with server OS or hypervisors only. Windows client OS (Windows 7) on bare-

HPE Processors

NOTE: Please see QuickSpecs for technical specifications and additional information

NOTE: Please see QuickSpecs for technical specifications and additional information

at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04163733

NOTE: Please see QuickSpecs for technical specifications and additional information

at:

Please see QuickSpecs for technical specifications and additional information

at:

https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04126962

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Core Options

Page 30

HP BL460c Gen8 Intel Xeon E5-2643v2 (3.5GHz/6-core/25MB/130W) Processor Kit

718367-B21

HP BL460c Gen8 Intel Xeon E5-2640v2 (2.0GHz/8-core/20MB/95W) Processor Kit

718359-B21

HP BL460c Gen8 Intel Xeon E5-2637v2 (3.5GHz/4-core/15MB/130W) Processor Kit

718368-B21

HP BL460c Gen8 Intel Xeon E5-2630v2 (2.6GHz/6-core/15MB/80W) Processor Kit

718360-B21

HP BL460c Gen8 Intel Xeon E5-2630Lv2 (2.4GHz/6-core/15MB/60W) Processor Kit

718365-B21

HP BL460c Gen8 Intel Xeon E5-2620v2 (2.1GHz/6-core/15MB/80W) Processor Kit

718361-B21

HP BL460c Gen8 Intel Xeon E5-2609v2 (2.5GHz/4-core/10MB/80W) Processor Kit

718362-B21

HP BL460c Gen8 Intel Xeon E5-2603v2 (1.8GHz/4-core/10MB/80W) Processor Kit

718363-B21

E5-2600 series Processors

HP BL460c Gen8 Intel Xeon E5-2690 (2.9GHz/8-core/20MB/135W) Processor Kit

662076-B21

HP BL460c Gen8 Intel Xeon E5-2680 (2.7GHz/8-core/20MB/130W) Processor Kit

662063-B21

HP BL460c Gen8 Intel Xeon E5-2670 (2.6GHz/8-core/20MB/115W) Processor Kit

662064-B21

HP BL460c Gen8 Intel Xeon E5-2667 (2.9GHz/6-core/15MB/130W) Processor Kit

667804-B21

HP BL460c Gen8 Intel Xeon E5-2665 (2.4GHz/8-core/20MB/115W) Processor Kit

667803-B21

HP BL460c Gen8 Intel Xeon E5-2660 (2.2GHz/8-core/20MB/95W) Processor Kit

662065-B21

HP BL460c Gen8 Intel Xeon E5-2650 (2.0GHz/8-core/20MB/95W) Processor Kit

662066-B21

HP BL460c Gen8 Intel Xeon E5-2650L (1.8GHz/8-core/20MB/70W) Processor Kit

662078-B21

HP BL460c Gen8 Intel Xeon E5-2643 (3.3GHz/4-core/10MB/130W) Processor Kit

662072-B21

HP BL460c Gen8 Intel Xeon E5-2640 (2.5GHz/6-core/15MB/95W) Processor Kit

662067-B21

HP BL460c Gen8 Intel Xeon E5-2637 (3.0GHz/2-core/5MB/80W) Processor Kit

662077-B21

HP BL460c Gen8 Intel Xeon E5-2630 (2.3GHz/6-core/15MB/95W) Processor Kit

662068-B21

HP BL460c Gen8 Intel Xeon E5-2630L (2.0GHz/6-core/15MB/60W) Processor Kit

662079-B21

HP BL460c Gen8 Intel Xeon E5-2620 (2.0GHz/6-core/15MB/95W) Processor Kit

662069-B21

HP BL460c Gen8 Intel Xeon E5-2609 (2.4GHz/4-core/10MB/80W) Processor Kit

662070-B21

HP BL460c Gen8 Intel Xeon E5-2603 (1.8GHz/4-core/10MB/80W) Processor Kit

667805-B21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Core Options

Page 31

maximum speed memory can operate. Please see the see the "Memory" section later in

Turbo indicates the maximum potential frequency increment when using Intel®

9 Low Voltage FIO Memory Kits are used with any processors except

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

NOTE: The WS460c Gen8 supports one or two processors.
NOTE: The WS460c Gen8 includes two I/O mezzanine expansion slots. A processor

must be installed in processor slot 1 for access to the first mezzanine expansion slot
(expansion slot 1). A processor must be installed in processor slot 2 for access to the
second mezzanine expansion slot (expansion slot 2).

NOTE: All processors within the server must be identical.
NOTE: The letter "L" preceding the model number indicates denotes lower wattage.
NOTE: The processor model as well as the memory configuration determines the

this document

NOTE: The Intel Xeon E5-2620 processor does not support DIMMs at 1.35V. Using the

HPE RBSU, 1.35V DIMMs can be changed to operate at 1.5V.

NOTE: The Intel Xeon E5-2600 v2 Processor Family can only be configured with the

new 1866MHz HPE Smart Memory or the new 1600MHz Low Voltage (1.35v) HPE
Smart Memory. The previously shipping Intel Xeon E5-2600 Processor Family cannot
be configured with the new 1866MHz HPE Smart Memory or the new 1600MHz Low
Voltage (1.35v) HPE Smart Memory.

NOTE: DIMM slots 4 and 5 are not accessible when either the E5-2690, the E5-2643,

the E5-2643 v2, or the E5-2637 v2, or the E5-2667 v2 is used. In a 2 processor
configuration, there are twelve (12) total available DIMM slots.

NOTE: For the maximum supported memory speeds for each processor listed above,

please reference the 'Memory Speed by Processor Model' table in the Memory section
of the QuickSpecs.

NOTE: HT indicates that the processor model supports Intel® Hyper-Threading

Technology.

NOTE:

Turbo Boost Technology, with 8, 7, 6, 5, 4, 3, 2 or 1 core(s) active.

NOTE: DDR3 speed is the maximum memory speed of the processor. Actual memory

speed may depend on the quantity and type of DIMMs installed.

NOTE: Up to 2 processors supported. Mixing different processor models is not

supported.

NOTE: For the Intel® C600 Chipset E5-2600 Series, the letter preceding the model

number indicates the Product Line (E3, E5, E7); 2600x, 2 = number of CPUs in a Node,
6 is socket/segment designation, 00 = Processor SKU, and x = L for low power SKUs.

NOTE: All processors support Intel® Hyper-Threading and Intel® Turbo Boost

Technologies except the E5-2603 and E5-2609.

NOTE: When HPE 24GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333)

Registered CAS­the E5-2690, the E5-2643, the E5-2637 v2, the E5-2643 v2, or the E5-2667 v2 all 16
DIMM slots on the WS460c Gen8 must be fully populated with these 24GB DIMMs.
When HPE 24GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333) Registered CAS­9 Low Voltage FIO Memory Kits are used with either the E5-2690, the E5-2643, the E5­2637 v2, the E5-2643 v2, or the E5-2667 v2, all 12 available DIMM slots on the WS460c
Gen8 must be fully populated with these 24GB DIMMs.

HPE Memory

NOTE: HPE memory from previous generation servers are not qualified or warranted

with this HPE ProLiant WS460c Server. HPE SmartMemory is required to realize the

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Core Options

Page 32

LRDIMM, RDIMM and UDIMMs are all distinct memory technologies and cannot

9 Low Voltage FIO Memory Kits are used with any processors except

HPE SmartMemory

Registered DIMMs (RDIMMs) - E5-2xxx v2 series Processors

HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low

713981-B21

HP 4GB (1x4GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit

708637-B21

HPE 8GB (1x8GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low

713983-B21

HPE 8GB (1x8GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low

731765-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit

708639-B21

HPE 8GB (1x8GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory

731761-B21

HPE 16GB (1x16GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low

713985-B21

HPE 16GB (1x16GB) Dual Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory

708641-B21

Registered DIMMs (RDIMMs) - E5-2xxx series Processors

HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Voltage

647893-B21

HPE 4GB (1x4GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit

647895-B21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

memory performance improvements and enhanced functionality listed in this
document for Gen8. For additional information, please see the HPE SmartMemory
QuickSpecs at:

http://h18000.www1.hp.com/products/QuickSpecs/14225_div/14225_div.html

NOTE:

be mixed within a server. The majority of ProLiant Gen8 servers support RDIMM,
UDIMM and LRDIMM.

NOTE: A minimum of one DIMM is required per server.
NOTE: For additional memory rules and guidelines, see the "Memory" section later in

this document.

NOTE: When HPE 24GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333)

Registered CAS­the E5-2690, the E5-2643, the E5-2637 v2, the E5-2643 v2, or the E5-2667 v2 all 16
DIMM slots on the WS460c Gen8 must be fully populated with these 24GB DIMMs.
When HPE 24GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333) Registered CAS­9 Low Voltage FIO Memory Kits are used with either the E5-2690, the E5-2643, the E5­2637 v2, the E5-2643 v2, or the E5-2667 v2, all 12 available DIMM slots on the WS460c
Gen8 must be fully populated with these 24GB DIMMs.

NOTE: The internal USB 2.0 Port is not available when the HPE 24GB (1x24GB) Three

Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage FIO Memory Kits
(700404-B21) are used.

Voltage Memory Kit

Voltage Memory Kit

Voltage Memory Kit

Kit

Voltage Memory Kit

Kit

Memory Kit

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Core Options

Page 33

HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP Memory

647897-B21

HPE 8GB (1x8GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit

647899-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

690802-B21

HPE 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP

647901-B21

HPE 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory

672631-B21

HP 24GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 LV

761501-B21

Unbuffered with ECC DIMMs (UDIMMs) - E5-2xxx v2 series Processors

HP 2GB (1x2GB) Single Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit

713975-B21

HP 2GB (1x2GB) Single Rank x8 PC3-14900E (DDR3-1866) Unbuffered CAS-13 Memory Kit

708631-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit

713977-B21

HP 4GB (1x4GB) Dual Rank x8 PC3-14900E (DDR3-1866) Unbuffered CAS-13 Memory Kit

708633-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit

713979-B21

HP 8GB (1x8GB) Dual Rank x8 PC3-14900E (DDR3-1866) Unbuffered CAS-13 Memory Kit

708635-B21

Unbuffered with ECC DIMMs (UDIMMs) - E5-2xxx series Processors

HPE 2GB(1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory

669320-B21

HP 2GB (1x2GB) Single Rank x8 PC3L-10600(DDR3-1333) Unbuffered CAS-9 LP Memory

647905-B21

HPE 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory

669322-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-10600(DDR3-1333) Unbuffered CAS-9 LP Memory

647907-B21

HPE 8GB (1x8GB) Dual Rank x8 PC3- 12800E (DDR3-1600) Unbuffered CAS-11 Memory

669324-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-10600(DDR3-1333) Unbuffered CAS-9 LP Memory

647909-B21

Load Reduced DIMMs (LRDIMMs) - E5-2600 v2 series Processors

HPE 32GB (1x32GB) Quad Rank x4 PC3-14900L (DDR3-1866) Load Reduced CAS-13
Memory Kit

708643-B21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Kit

Memory Kit

Kit

Memory Kit

Kit

Kit

Kit

Kit

Kit

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Core Options

Page 34

Load Reduced DIMMs (LRDIMMs) - E5-2600 series Processors

HP 32GB (1x32GB) Quad Rank x4 PC3L-10600 (DDR3-1333) LRDIMM CAS-9 LP Memory

647903-B21

NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory

configuration rules and guidelines, please use the Online DDR3 Memory Configuration
efficient.

HPE Hard Drives

SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives

HPE 1TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed Firmware HDD

655710-B21

HPE 500GB 6G SATA 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

655708-B21

6G SAS Hot Plug with Smart Drive SFF (2.5-inch) Enterprise Drives

HP 900GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652589-B21

HP 600GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652583-B21

HP 450GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652572-B21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Kit
NOTE:NOTE: The HPE Q3000 Gen8 Mezz Graphics Kit (679855-B21) is installed in Mezz
slot 2 and hence requires a two processor configuration which will provide a processor
installed in the second CPU socket.

Tool: http://www.hp.com/go/ddr3memory-configurator.

NOTE: Kits described as LP include Low Power DIMMs. For more information on

ProLiant Energy Efficient Features, see: http://www.hp.com/go/proliant-energy-

NOTE: Depending on the memory configuration and processor model the memory

speed may run at 1333MHz, 1066MHz or 800MHz. Please see the Online Memory
Configuration Tool for details: www.hp.com/go/ddr3memory-configurator

NOTE: For additional memory rules and guidelines, see the "Memory" section later in

this document.

NOTE: For more information on ProLiant Energy Efficient Features, see:

http://www.hp.com/go/proliant-energy-efficient

NOTE: PC3L is a low voltage memory.

NOTE: The ProLiant WS460c Gen8 server includes the new HPE hot-plug small form

factor (SFF) SmartDrive carrier for enhanced management and reduced maintenance
errors. HPE drives from previous generation servers are not compatible with the
WS460c Gen8 drive bays.

NOTE: The mixing of standard SAS drives with SAS SSD is supported within the

server, but limits the RAID configuration to two separate RAID 0 volumes. Mixing of
other drives types is not supported.

NOTE: HPE hard drives have either a one year or three year warranty; refer to the

specific hard drive QuickSpecs for details.

NOTE: The hard drive options are not required when configuring a drive-less model.

NOTE:NOTE: Please see QuickSpecs for Technical Specifications and additional
information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111725(Worldwide)

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Core Options

Page 35

HP 300GB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652564-B21

HP 300GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652611-B21

HP 146GB 6G SAS 15K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive

652605-B21

HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Dual Port Enterprise 3yr Warranty Hard Drive

718162-B21

6G SAS Hot Plug Smart Drive SFF (2.5-inch) Midline Drives

HPE 1TB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

652749-B21

HPE 500GB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive

652745-B21

12G SAS (2.5-inch) 512e SC HDD

HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty 512e HDD

748387-B21

HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD

765464-B21

HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed Firmware HDD

832514-B21

HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e HDD

791034-B21

HPE 2TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e HDD

765466-B21

12G SAS SFF (2.5in) RI-3 SC SSD

HPE 3.84TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD

816576-B21

HPE 1.92TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD

816572-B21

HPE 960GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD

816568-B21

HPE 480GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD

816562-B21

12G SAS SFF (2.5in) MU-3 SC SSD

HPE 3.2TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty SSD

822567-B21

HPE 1.6TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty SSD

822563-B21

HPE 800GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty SSD

822559-B21

HPE 400GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty SSD

822555-B21

6G SATA 2.5in SFF RI-3 SC SSD

HPE 3.84TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

816929-B21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

NOTE:NOTE: Please see QuickSpecs for Technical Specifications and additional
information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111744 (Worldwide)

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Core Options

Page 36

HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

816919-B21

HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

816909-B21

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

816899-B21

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

816889-B21

HPE 120GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

816879-B21

6G SATA 2.5in SFF MU-3 SC SSD

HPE 1.92TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

817011-B21

HPE 960GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

816995-B21

HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

816985-B21

HPE 240GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

816975-B21

HPE 120GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

816965-B21

6G SATA (2.5-inch) 512e SC HDD

HPE 1TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD

765453-B21

HPE 2TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware

765455-B21

HPE 1.2TB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty SSD

804677-B21

HPE 800GB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty SSD

804671-B21

HPE 400GB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty SSD

804665-B21

HPE 200GB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty SSD

804639-B21

6G SATA 2.5in MU-PLP SC SSD

HPE 1.6TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

804631-B21

HPE 800GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

804625-B21

HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

832414-B21

HPE 200GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty SSD

804613-B21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

HDD

6G SATA 2.5in WI-PLP SC SSD

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Core Options

Page 37

HPE 1.6TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

804605-B21

HPE 800GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

804599-B21

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

804593-B21

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

804587-B21

HPE 120GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

804581-B21

HPE 80GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

804575-B21

6G SATA Read Intensive (2.5-inch) SC G2 Solid State Drive

HP 480GB 6G SATA Read Intensive SFF 2.5-in SC 3yr Wty Solid State Drive

789145-B21

12G SAS Hot Plug SFF (2.5-inch) SC ENT HDD

HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty HDD

781518-B21

HPE 900GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty HDD

785069-B21

HPE 600GB SAS 12G Enterprise 10K SFF (2.5in ) SC 3yr Wty HDD

781516-B21

HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty HDD

785067-B21

12G SAS Hot Plug Value Endurance SFF (2.5-inch) SC Enterprise Value SSD

HP 1.6TB 12G SAS Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State
Drive

762263-B21

HPE 800GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD

762261-B21

12G SAS Hot Plug SFF (2.5-inch) SC Enterprise SSD

HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty HDD

759212-B21

HPE 450GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty HDD

759210-B21

HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty HDD

759208-B21

H2 Solid State Drives

HPE 200GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD

779164-B21

HPE 400GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD

779168-B21

HPE 800GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD

779172-B21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

6G SATA 2.5in RI-PLP SC SSD

12G SAS Mainstream Enterprise Hot Plug SFF (2.5-inch) SC Enterprise Mainstream

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Core Options

Page 38

HPE 1.6TB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD

779176-B21

12G SAS Write Intensive SFF (2.5-inch) SC 3yr Wty H2 Solid State Drive

HPE 200GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD

802578-B21

HPE 400GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD

802582-B21

HPE 800GB SAS 12G Write Intensive SFF (2.5in) SC 3yr Wty SSD

802586-B21

HPE 1.92TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty SSD

802891-B21

6G SATA Mainstram Hot Plug SFF (2.5-inch) Enterprise Performance Solid State
Drives

HP 800GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

691868-B21

HP 400GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty

691866-B21

HP 200GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty
Solid State Drive

691864-B21

HP 100GB 6G SATA Mainstream Endurance SFF 2.5-in SC Enterprise Mainstream 3yr Wty

691862-B21

6G SATA Value Endurance Hot Plug SFF(2.5-inch) SC Enterprise Value M1 Solid
State Drives

HPE 120GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

764923-B21

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

764925-B21

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

764927-B21

HPE 800GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty SSD

764929-B21

State Drives

HP 480GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty G1 Solid
State Drive

756657-B21

HP 240GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty G1 Solid
State Drive

756636-B21

HP 120GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty G1 Solid

756621-B21
HP 960GB 6G SATA Light Endurance SFF 2.5-in SC Enterprise Light 3yr Wty G1 Solid
State Drive

756601-B21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Solid State Drive

Solid State Drive

6G SATA Value Endurance Hot Plug SFF(2.5-inch) SC Enterprise Value G1 Solid

State Drive

6G SATA Light Enterprise Hot Plug SFF(2.5-inch) SC Enterprise Light G1 Solid State
Drives

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Core Options

Page 39

Drives

HP 1.6TB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State
Drive

757339-B21

HP 800GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State
Drive

717973-B21

HP 600GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State
Drive

739898-B21

HP 480GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State
Drive

717971-B21

HP 300GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State
Drive

739888-B21

HP 240GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Value 3yr Wty Solid State
Drive

717969-B21

HP 120GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State
Drive

717965-B21

HP 80GB 6G SATA Value Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State
Drive

734360-B21

NOTE:

HPE BL e-Class Special Enclosure

730876-B21

NOTE: Available only with Intel® Xeon® E5-2600 v2 series processor configuration

NVIDIA GRID K2 Dual GPU PCIe Graphics Accelerator

NOTE:

729851-B21
NVIDIA Tesla K20X 6GB Computational Accelerator

C7S15A

NVIDIA Quadro K4000 PCI-E Graphics Adapter

730870-B21

NVIDIA Quadro K5000 PCI-E Graphics Adapter

730872-B21

NVIDIA Quadro K6000 PCI-E Graphics Adapter

730874-B21

HPE WS460c Gen8 GPU Enablement Kit

21) or Tesla K20 or

734206-B21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

6G SATA Value Endurance Hot Plug SFF(2.5-inch) Enterprise Value Solid State

HPE Graphic
Options

NOTE: Please see the QuickSpecs for Technical Specifications and additional

information:

https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154378

(Worldwide)

Hard drives have either a one year or three year warranty; refer to the specific

hard drive QuickSpecs for details.

NOTE: The hard drive options are not required when configuring a Drive-less Model.

NOTE: GRID K2 requires GPU Enablement Kit (PN 734206-B21).

Available only with Intel® Xeon® E5-2600 v2 series processor configuration

NOTE:NOTE: Requires GPU Enablement Kit (PN 734206-B21)

NOTE:NOTE: Required when using NVIDIA GRID K2 GPU (PN 729851-B
K20X.

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Additional Options

Page 40

HPE Insight Control including 1yr 24x7 Technical Support and Updates 1-server LTU

C6N27A

HPE Insight Control including 1yr 24x7 TSU E-LTU

C6N28ABE

HPE Insight Control including 1yr 24x7 Support ProLiant ML/DL/BL-bundle FIO E-LTU

C6N36ABE

HP Insight Control Server Provisioning Media Kit

BD883A

HPE Insight Management Media Kit

C6N31A

installer to perform quick and accurate software installation and updates.

NOTE:

license entitlement certificate, which must be redeemed

ordered separately, or can be downloaded at http://www.hp.com/go/insightupdates.

HPE iLO Advanced for BladeSystem including 3yr 24x7 Tech Support and Updates 1-

BD502A

HPE iLO Advanced for BladeSystem including 3yr 24x7 Technical Support and Updates E-

E6U63ABE

HPE iLO Advanced for BladeSystem including 1yr 24x7 Technical Support and Updates E-

E6U60ABE

HPE iLO Advanced for BladeSystem including 1yr 24x7 Support 1-server LTU

512488-B21

NOTE:

ll receive a license entitlement certificate, which must be redeemed

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

NOTE: For additional options, please refer to the "Core Options" and "Additional Options" sections below.
NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard

Enterprise recommends the use of an Hewlett Packard Enterprise approved configurator. Contact your local sales
representative for additional information.

HPE Insight
software

HPE Insight Control

HPE iLO Advanced
Licenses

NOTE: HPE Insight Management Media Kit contains DVDs without licenses. Contains

HPE Systems Insight Manager, HPE Insight Control, HPE Matrix Operating
Environment, and Virtual Connect Enterprise Manager software. Uses an integrated

NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple

licenses with a single activation key.

Customer will receive a
online or via fax in order to obtain the license activation key(s). Includes one year of
24 x 7 HPE Software Technical Support Service.

NOTE: Licenses ship without media. The HPE Insight Management Media Kit can be

NOTE: For additional license kits, please see the QuickSpecs at:

https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04123391

server LTU

LTU

LTU

NOTE:NOTE: Electronic licenses can be used to purchase multiple licenses with a single
activation key, and is available in all countries except China and Japan. Customers in China
and Japan should order the physical equivalent.

Customer wi
online or via fax in order to obtain the license activation key(s). Includes one year of
24 x 7 HPE Software Technical Support Service.

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Additional Options

Page 41

Converged

HPE OneView

HPE OneView with iLO Advanced

HPE OneView including 3yr 24x7 Support Physical 1-server LTU

E5Y34A

HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU

E5Y35AAE

HPE OneView Physical Media Kit LTU

E5Y37A

HPE OneView w/o iLO including 3yr 24x7 Support 1-server LTU

P8B24A

HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU

P8B26AAE

HPE OneView w/o iLO including 3yr 24x7 Support 1-server FIO LTU

P8B31A

HPE Insight Cluster Management Utility 1yr 24x7 Flexible LTU

QL803B

HPE Insight Cluster Management Utility 3yr 24x7 Flexible LTU

BD476A

HPE Insight Cluster Management Utility Media

BD477A

HPE Trusted Platform Module Option

488069-B21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

NOTE: For additional license kits, please see the QuickSpecs at:

https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154343

Infrastructure
Management
Software

NOTE: For additional license kits please see the QuickSpecs at:

https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111367

High Performance
Clusters

NOTE:NOTE: This part number can be used to purchase one certificate for multiple
licenses with a single activation key. Each license is for one node (server). Customer will
receive a printed end user license agreement and license entitlement certificate via
physical shipment. The license entitlement certificate must be redeemed online in order to
obtain a license key.
NOTE:NOTE: For additional license kits please see the QuickSpecs at:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111735
(Worldwide)

NOTE:NOTE: These part numbers can be used to purchase one certificate for multiple
licenses and support with a single activation key. Each license is for one node (server).
Customer will receive a printed end user license agreement and license entitlement
certificate via physical shipment. The license entitlement certificate must be redeemed
online in order to obtain a license key. Customer also will receive a support agreement.

NOTE:NOTE: Order a minimum of one license per cluster to purchase media including
software and documentation, which will be delivered to the customer, and also licenses
CMU management. No license key is delivered or required.
NOTE:NOTE: For additional license kits please see the QuickSpecs at:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04111735
(Worldwide)

.

HPE Security

NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Additional Options

Page 42

ProLiant WS460c

HPE LPe1605 16Gb Fibre Channel Host Bus Adapter for BladeSystem c-Class
NOTE:NOTE: Please see QuickSpecs for technical specifications and additional information

718203-B21

HPE LPe1205A 8Gb Fibre Channel Host Bus Adapter for BladeSystem c-Class
NOTE:NOTE: Please see QuickSpecs for technical specifications and additional information

659818-B21

HPE QMH2672 16Gb Fibre Channel Host Bus Adapter
NOTE:NOTE: Please see QuickSpecs for technical specifications and additional information

710608-B21

HPE QMH2572 8Gb Fibre Channel Host Bus Adapter

651281-B21

HPE InfiniBand

HP InfiniBand QDR/EN 10Gb Dual Port 544M Adapter
NOTE:NOTE: The QDR InfiniBand adapter may be installed in any vacant mezzanine slot

644160-B21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

store artifacts used to authenticate the server platform. These artifacts can include
passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption
(BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker
leverages the enhanced security capabilities of a Trusted Platform Module (TPM)
version 1.2. The TPM works with BitLocker to help protect user data and to ensure
that a server running Windows Server 2008 has not been tampered with while the
system was offline.

NOTE: For more information about TPM, including a white paper, go to

http://www.hp.com/go/TPM

NOTE: ProLiant OS pre-installed units will come with the partition required for TPM

deployment.

NOTE: The TPM key is unique to every TPM deployed server and must be retained.

Misplacing or losing the key could result in data loss.

.

HPE Fibre Channel
Mezzanines

NOTE: All Fibre Channel mezzanine HBAs are supported on the HPE

Gen8 with server OS or hypervisors only. Windows client OS (Windows 7) on bare­metal not supported.

at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04315132

at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04163733

at: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04126962

NOTE:NOTE: For the above Fibre Channel Host Bus Adapter, please see the QuickSpecs
for technical specifications and additional information at:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04126040

NOTE: InfiniBand mezzanine HCAs are supported on the HPE ProLiant WS460c Gen8

Mezzanines

with server OS or hypervisors. Windows client OS (Windows 7) not supported.

NOTE: When an InfiniBand adapter is installed in mezzanine slot 1, only one port is

active (regardless of operating mode). When installed in any other mezzanine slot,
both ports are active.

NOTE: InfiniBand QDR and FDR speeds are only supported on the HPE BladeSystem

c7000 Enclosure. For additional information, please see the HPE BladeSystem c7000
Enclosure and InfiniBand QuickSpecs at:

https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04126044
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154440

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Additional Options

Page 43

of the server.

HP InfiniBand FDR/EN 10/40Gb Dual Port 544M Adapter

644161-B22

HP InfiniBand FDR 2-port 545M Adapter

702213-B21

HP StoreEver LTO-5 Ultrium SB3000c Tape Blade

NOTE:

BS580B

HPE BLc PCI Expansion Blade

NOTE:NOTE: This Expansion Blade does not support any PCIe graphics adapters. For such

448018-B21

HPE Enterprise Mainstream Flash Media Kits for Memory Cards

HPE 8GB USB Enterprise Mainstream Flash Media Drive Key Kit

737953-B21

HPE 8GB microSD Enterprise Mainstream Flash Media Kit

726116-B21

HPE 32GB microSD Mainstream Flash Media Kit

700139-B21

HPE Pointnext

NOTE:

Proactive Care Services

HPE 3 year Proactive Care 24x7 with DMR ProLiant WS460c Service

U3C21E

HPE 3 year Proactive Care 24x7 ProLiant WS460c Service

U3C18E

HPE 3 year Proactive Care Call to Repair ProLiant WS460c Service

U3C24E

HPE 3 year Proactive Care Call to Repair 24x7 with DMR ProLiant WS460c Service

U3C27E

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

NOTE:NOTE: The FDR InfiniBand adapter must be installed in mezzanine slot 1 for FDR
mode and may be installed in any mezzanine slot if operated in any other mode.

HPE Ultrium Tape
Blades

LTO-5 Ultrium tape technology.

NOTE: For the above Ultrium tape drives, please see the QuickSpecs for technical

specifications and additional information at:

https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154444

HPE Expansion
Blade

HPE Flash Media
Kits for USB Drives

operational services

NOTE:NOTE: Ships with one pre-installed PCI-X connect board. Also includes one PCIe
connect board which requires installation.

use, HPE WS460c Gen8 Graphics Expansion (PN 684690-B21) must be used.
NOTE:NOTE: Please see the QuickSpecs for Technical Specifications and additional
information: https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04123380
(Worldwide)

NOTE:NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04123175

The HPE Care Pack service part numbers below for ProLiant BL c-Class
workstation blades, cover the workstation blade and all Hewlett Packard Enterprise
branded hardware options qualified for the workstation, purchased at the same time
or afterwards, internal to the workstation with the exception of options requiring
separate coverage as defined in the applicable HPE services data sheet.

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Additional Options

Page 44

Installation Services

HPE Installation Non Standard Hours WS460c Workstation Blade Service

UR363E

HPE Installation WS460c Workstation Blade Service

UR362E

Additional HPE Pointnext operational services can be found at:

http://www.hp.com/go/cpc

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Memory

Page 45

For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:

http://www.hp.com/go/ddr3memory

Memory Subsystem Architecture

Each Intel® Xeon® E5

ach for a total of eight
(8) DIMM per installed processor or a grand total of sixteen (16) DIMMs for the server. Up to 32GB capacity DIMMs are supported for
512GB of memory (16 DIMM slots x 32GB per DIMM).

Memory Population Rules and Guidelines

http://www.hp.com/support.

NOTE:

DIMM
Type

Registered DIMMS (RDIMMs)

Load Reduced

(LRDIMMs)

DIMM
Rank

Single Rank (1R)

Dual Rank (2R)

Three

Rank

(3R)

Quad

(4R)

Quad

(4R)

DIMM
Capacity

4GB

4GB

4GB

4GB

8GB

8GB

8GB

8GB

8GB

8GB

8GB

16GB

16GB

16GB

16GB

24GB

32GB

32GB

DIMM
Native
Speed
(MHz)

1333

1600

1600

1866

1600

1600

1866

1333

1600

1600

1866

1333

1600

1600

1866

1333

1333

1866

Voltage*

LV

Std

LV

Std

Std

LV

Std

LV

Std

LV

Std

LV

Std

LV

Std

LV

LV

Std

*LV= low voltage at 1.35V; Std = standard voltage at 1.5V.

16 slot
servers

16

16

16

16

16

16

16

16

16

16

16

16

16

16

16

16

16

16

MAXIMUM CAPACITY (GB)

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

-configurator

-2600 family processor socket contains four memory channels that support two DIMMs e

:

• A minimum of one DIMM is required per processor.

• Install DIMMs only if the corresponding processor is installed.

• If only one processor is installed in a two processor system, only half of the DIMM slots are available.

• DIMM sizes can be mixed in channel. To maximize performance, it is recommended to balance the total memory capacity

between all installed processors and to load the channels similarly whenever possible.

• RDIMMs operating at either 1.35V or 1.5V may be mixed in any order, but the system will power them at the higher voltage.

• LRDIMM, RDIMM and UDIMMs are all distinct memory technologies and cannot be mixed within a server. The majority of

ProLiant Gen8 servers support RDIMM, UDIMM and LRDIMM.

• The Intel Xeon E5-2620 processor does not support DIMMs at 1.35V.

• DIMMs of different speeds may be mixed in any order; the server will select a common optimal speed.

• The maximum memory speed is a function of the memory type, memory configuration, and processor model.

• The maximum memory capacity is a function of the memory type and number of installed processors.

• HPE memory from previous generation servers is not compatible with the WS460c Gen8 Server Blade.

• To realize the performance memory capabilities listed in this document, HPE SmartMemory is required. For additional

information, please see the HPE SmartMemory QuickSpecs at:

http://h18000.www1.hp.com/products/QuickSpecs/14225_div/14225_div.html

• For memory population rules and additional memory guidelines, please see the WS460c Gen8 user guide at

.

Memory configurations listed do not apply to "Factory Integrated Models".

WS460c Gen8 Supported Memory Bandwidth

Rank

Rank

SLOTS THAT CAN BE POPULATED

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Memory

Page 46

Capacity

64

64

64

64

128

128

128

128

128

128

128

256

256

256

256

384

512

512

1 DIMM
Per
Channel

1333

1600

1600

1866

1600

1600

1866

1333

1600

1600

1866

1333

1600

1600

1866

n/a

1866

2 DIMM
Per
Channel
(2DPC)

1333

1600

1600

1866

1600

1600

1866

1333

1600

1600

1866

1333

1600

1600

1866

1333

1866

* Maximum capacity will vary based on individual server platform q
** LRDIMM enables 3 DIMMs per channel.
memory may only support 3DPC @DDR3

WS460c Gen8 Supported Memory Bandwidth

DIMM Type

Unbuffered with ECC DIMMs (UDIMMs)

DIMM Rank

Single Rank (1R)

Dual Rank (2R)

DIMM Capacity

2GB

2GB

4GB

4GB

4GB

4GB

8GB

8GB

8GB

8GB

DIMM Native Speed (MHz)

1333

1600

1333

1600

1600

1866

1600

1333

1600

1866

Voltage

LV

Std

LV

Std

LV

Std

Std

LV

LV

Std

SLOTS THAT CAN BE POPULATED

16 slot servers

16

16

16

16

16

16

16

16

16

16

MAXIMUM CAPACITY (GB)

Capacity

32

32

64

64

64

64

128

128

128

128

POPULATED DIMM SPEED (MHz)

1 DIMM Per Channel

1333

1600

1333

1600

1600

1866

1600

1333

1600

1866

2 DIMM Per Channel (2DPC)

1600

1600

1600

1866

1600

1600

1866

*** Using
up to 1066MHz.

NOTE:

Processor Model".

NOTE:

are used with any processors except the E5
slots on the WS460c Gen8 must be fully populated with these 24GB DIMMs. When
10600R (DDR3
2637 v2, the E5
these 24GB DIMMs.

NOTE:

Registered CAS

Memory Speed by Processor Model

Processor Model

Supported Memory Speeds

E5-2680, E5-2670, E5-2667, E5-2665, E5-2660, E5-2650, E5­2650L, E5-2637

1600/1333/1066MHz

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

POPULATED DIMM SPEED (MHz)

1333**

1333**

ualification schedule

HPE SmartMemory will support up to 3DPC@DDR3-1066 at 1.35V. Third party

-1066 at 1.5V.

*

1333***

1333***

HPE SmartMemory, UDIMMs at 2DPC are supported up to 1333MHz. Third party UDIMMs at 2DPC may only support

Maximum memory speed is a function of the processor QPI bus speed; see the table below "Memory Speed by

When HPE 24GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage FIO Memory Kits

-2690, the E5-2643, the E5-2637 v2, the E5-2643 v2, or the E5-2667 v2 all 16 DIMM

-1333) Registered CAS-9 Low Voltage FIO Memory Kits are used with either the E5-2690, the E5-2643, the E5-

The internal USB 2.0 Port is not available when the HPE 24GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333)

-2643 v2, or the E5-2667 v2, all 12 available DIMM slots on the WS460c Gen8 must be fully populated with

-9 Low Voltage FIO Memory Kits (700404-B21) are used.

1333***

HPE 24GB (1x24GB) Three Rank x4 PC3L-

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Memory

Page 47

E5-2640, E5-2630, E5-2630L, E5-2620

1333/1066MHz

E5-2609, E5-2603

1066MHz

Standard and Maximum Memory Capacity (Pre-configured Models)

Optional Memory

with Optional Memory

Intel Xeon E5-2637

32GB

(8x 4GB)

160GB

(8x 4GB + 8x 16GB)

512GB

(16x 32GB)

Following are memory options available from HP:

HPE Memory

LRDIMM, RDIMM and UDIMMs are all distinct memory technologies and cannot

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Pre Configured Models Standard Memory Maximum Memory Plus

NOTE: Capacity references are rounded to the common gigabyte (GB) values.

• 2GB = 2,048MB

• 4GB = 4,096MB

• 8GB = 8,192MB

• 16GB = 16,384MB

• 32GB = 32,768MB

Memory options part number decoder

Standard Memory Replaced

NOTE: HPE memory from previous generation servers are not qualified or warranted

with this HPE ProLiant WS460c Server. HPE SmartMemory is required to realize the
memory performance improvements and enhanced functionality listed in this
document for Gen8. For additional information, please see the HPE SmartMemory
QuickSpecs at:

http://h18000.www1.hp.com/products/QuickSpecs/14225_div/14225_div.html

NOTE:

be mixed within a server. The majority of ProLiant Gen8 servers support RDIMM,
UDIMM and LRDIMM.

NOTE: A minimum of one DIMM is required per server.
NOTE: For additional memory rules and guidelines, see the "Memory" section later in

this document.

NOTE: When HPE 24GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333)

Registered CAS-9 Low Voltage FIO Memory Kits are used with any processors except
the E5-2690, the E5-2643, the E5-2637 v2, the E5-2643 v2, or the E5-2667 v2 all 16

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Memory

Page 48

Registered DIMMs (RDIMMs) - E5-2xxx v2 series Processors

HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low
Voltage Memory Kit

713981-B21

HP 4GB (1x4GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit

708637-B21

HPE 8GB (1x8GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low

713983-B21

HPE 8GB (1x8GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low

731765-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory Kit

708639-B21

HPE 8GB (1x8GB) Single Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory

731761-B21

HPE 16GB (1x16GB) Dual Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low

713985-B21

HPE 16GB (1x16GB) Dual Rank x4 PC3-14900R (DDR3-1866) Registered CAS-13 Memory

708641-B21

Registered DIMMs (RDIMMs) - E5-2xxx series Processors

HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low Voltage

647893-B21

HPE 4GB (1x4GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit

647895-B21

HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP Memory

647897-B21

HPE 8GB (1x8GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit

647899-B21

HP 8GB (1x8GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory Kit

690802-B21

HPE 16GB (1x16GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 LP

647901-B21

HPE 16GB (1x16GB) Dual Rank x4 PC3-12800R (DDR3-1600) Registered CAS-11 Memory

672631-B21

HP 24GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 LV

761501-B21

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

DIMM slots on the WS460c Gen8 must be fully populated with these 24GB DIMMs.
When HPE 24GB (1x24GB) Three Rank x4 PC3L-10600R (DDR3-1333) Registered CAS­9 Low Voltage FIO Memory Kits are used with either the E5-2690, the E5-2643, the E5­2637 v2, the E5-2643 v2, or the E5-2667 v2, all 12 available DIMM slots on the WS460c
Gen8 must be fully populated with these 24GB DIMMs.

NOTE: The internal USB 2.0 Port is not available when the HPE 24GB (1x24GB) Three

Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage FIO Memory Kits
(700404-B21) are used.

HPE SmartMemory

Voltage Memory Kit

Voltage Memory Kit

Kit

Voltage Memory Kit

Kit

Memory Kit

Kit

Memory Kit

Kit

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Memory

Page 49

Memory Kit

Unbuffered with ECC DIMMs (UDIMMs) - E5-2xxx v2 series Processors

HP 2GB (1x2GB) Single Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit

713975-B21

HP 2GB (1x2GB) Single Rank x8 PC3-14900E (DDR3-1866) Unbuffered CAS-13 Memory Kit

708631-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit

713977-B21

HP 4GB (1x4GB) Dual Rank x8 PC3-14900E (DDR3-1866) Unbuffered CAS-13 Memory Kit

708633-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-12800E (DDR3-1600) Unbuffered CAS-11 Low
Voltage Memory Kit

713979-B21

HP 8GB (1x8GB) Dual Rank x8 PC3-14900E (DDR3-1866) Unbuffered CAS-13 Memory Kit

708635-B21

Unbuffered with ECC DIMMs (UDIMMs) - E5-2xxx series Processors

HPE 2GB(1x2GB) Single Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory

669320-B21

HP 2GB (1x2GB) Single Rank x8 PC3L-10600(DDR3-1333) Unbuffered CAS-9 LP Memory

647905-B21

HPE 4GB (1x4GB) Dual Rank x8 PC3-12800E (DDR3-1600) Unbuffered CAS-11 Memory

669322-B21

HP 4GB (1x4GB) Dual Rank x8 PC3L-10600(DDR3-1333) Unbuffered CAS-9 LP Memory

647907-B21

HPE 8GB (1x8GB) Dual Rank x8 PC3- 12800E (DDR3-1600) Unbuffered CAS-11 Memory

669324-B21

HP 8GB (1x8GB) Dual Rank x8 PC3L-10600(DDR3-1333) Unbuffered CAS-9 LP Memory

647909-B21

Load Reduced DIMMs (LRDIMMs) - E5-2600 v2 series Processors

HPE 32GB (1x32GB) Quad Rank x4 PC3-14900L (DDR3-1866) Load Reduced CAS-13

708643-B21

Load Reduced DIMMs (LRDIMMs) - E5-2600 series Processors

HP 32GB (1x32GB) Quad Rank x4 PC3L-10600 (DDR3-1333) LRDIMM CAS-9 LP Memory

647903-B21

configuration rules and guidelines, please use the Online DDR3 Memory Configuration
Tool: http://www.hp.com/go/ddr3memory-configurator.

efficient.

NOTE:

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Kit

Kit

Kit

Kit

Kit

Memory Kit

Kit

NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory

NOTE: Kits described as LP include Low Power DIMMs. For more information on

ProLiant Energy Efficient Features, see:

http://www.hp.com/go/proliant-energy-

Depending on the memory configuration and processor model the memory

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Memory

Page 50

NOTE: PC3L is a low voltage memory.

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

speed may run at 1333MHz, 1066MHz or 800MHz. Please see the Online Memory
Configuration Tool for details: http://www.hp.com/go/ddr3memory-configurator

NOTE: For additional memory rules and guidelines, see the "Memory" section later in

this document.

NOTE: For more information on ProLiant Energy Efficient Features, see:

http://www.hp.com/go/proliant-energy-efficient

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Storage

Page 51

1-2

2 x SFF hot-plug SAS, SATA, SAS SDD, and SATA SSD

Maximum Internal Storage Capacity

Hot Plug SFF SAS

2.4TB

2 x 1.2TB drives

Hot Plug SFF SATA

2.0TB

2 x 1.0TB drives

Hot Plug SFF SAS SSD

1.6TB

2 x 800GB drives

Hot Plug SFF SATA SSD

1.6TB

2x800GB drives

Teradici PCoIP®

Teradici PCoIP® Hardware Accelerator (APEX 2800) for HPE ProLiant Gen 8 Server Blades

the United States and/or other countries.

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

hard drives

Additional Third Party Option

Hardware
Accelerator

NOTE: This is a third party product marketed, sold and supported by the solution's vendor. For more

information, check vendor's website at: http://www.teradici.com/hardware-accelerator

NOTE: This solution must be purchased separately and is available from solution vendor's authorized

resellers. Hewlett Packard Enterprise does not resell or factory integrate the solution

NOTE: This solution is supported by the vendor on servers:

• HPE ProLiant BL460c Gen8 Server Blade

• HPE ProLiant WS460c Gen8 Graphics Expansion Blade

NOTE: Teradici, PCoIP and PC-over-IP are trademarks of Teradici Corporation and may be registered in

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Technical Specifications

Page 52

Single-width: 7.11 x 2.18 x 20.37 in (18.07 x 5.54 x 51.76 cm)

Double-width: 7.11 x 4.46 x 20.37 in (18.07 x 11.08 x 51.76 cm)

(Single-width type)

Maximum: all processors,
16 DIMMs, hard drives,
mezzanine cards, and two
flash cache batteries
installed)

14.00 lb (6.33 kg)

Minimum: one processor
and 2 DIMMs installed

10.50 lb (4.75 kg)

(Double-width type)

Maximum: all processors,
16 DIMMs, hard drives,
mezzanine cards, and two
flash cache batteries
installed), dual MultiGPU
Carrier with e

22.25 lb (10.09 kg)
Minimum: one processor
and 2 DIMMs installed,
expansion blade slot 1,2
enabled, both slots vacant

15.69 lb (7.12 kg)

Power Specifications

For power specifications including input requirements, BTU rating, and power
sup

NOTE: For optimal cooling and system performance the WS460c Gen8 requires

the c7000 enclosure to
be configured with 6 fans.

To review typical system power ratings use the
available via the online tool located at:

http://www.hp.com/go/bladesystem/powercalculator

Operating

10° to 35°C (50° to 95°F) at sea level with an altitude

System performance may be reduced if operating with a

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

System Unit

Dimensions (H x W x D)

(with bezel)

Weight
(approximate)

ight Q1000M

ply output, please see the:

• HPE BladeSystem c3000 Enclosure QuickSpecs:

http://h18000.www1.hp.com/products/QuickSpecs/12790_div/
12790_div.html

• HPE BladeSystem c7000 Enclosure QuickSpecs:

http://h18000.www1.hp.com/products/QuickSpecs/12810_div/
12810_div.html

be configured with 10 fans and the c3000 enclosure to

System Inlet
Temperature
(Single-width type)

HPE Power Advisor which is

derating of 1.0°C per every 305 m (1.8°F per every 1000
ft) above sea level to a maximum of 3050 m (10,000 ft),
no direct sustained sunlight.
Maximum rate of change is 10°C/hr (18°F/hr). The
upper limit may be limited by the type and number of
options installed.

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Technical Specifications

Page 53

fan fault or above 30°C (86°F).

Non-operating

-30° to 60°C (-22° to 140°F). Maximum rate of change is

Operating

10° to 35°C (50° to 95°F) at sea level with an altitude

d if operating with a

system may initiate a protection shutdown sequence.

Non-operating

-30° to 60°C (-22° to 140°F). Maximum rate of change is

Relative Humidity

Operating

10 to 90% relative humidity (Rh), 28°C (82.4°F)
maximum wet bulb temperature, non-condensing.

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F)
Operating

10 to 90% relative humidity (Rh), 28°C (82.4°F)
maximum wet bulb temperature, non-condensing.

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F)

Operating

3050 m (10,000 ft). This value may be limited by the

ft/min).

Non-operating

9144 m (30,000 ft). Maximum allowable altitude change

Operating

3050 m (10,000 ft). This value may be limited by the

ft/min).

Non-operating

9144 m (30,000 ft). Maximum allowable altitude change

Acoustic Noise

For acoustic noise specifications, please see the HPE BladeSystem c-Class
Enclosures
HPE

http://h18000.www1.hp.com/pro
12790_div.html

HPE

http://h18000.www1.hp.com/products/
12810_div.html

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

20°C/hr (36°F/hr).

System Inlet
Temperature
(Double-width type)

derating of 1.0°C per every 305 m (1.8°F per every 1000
ft) above sea level to a maximum of 3050 m (10,000 ft),
no direct sustained sunlight.
Maximum rate of change is 10°C/hr (18°F/hr). The
upper limit may be limited by the type and number of
options installed.
System performance may be reduce
fan fault or above 30°C (86°F).
If ambient temperature over 30°C (86°F), and GPU
power load is consistently and significantly high, GPU
frequency will throttle down, and in extreme cases,

(Single-width type)
(non-condensing)

Relative Humidity
(Double-width type)
(non-condensing)

Altitude
(Single-width type)

Altitude
(Double-width type)

20°C/hr (36°F/hr).

maximum wet bulb temperature, non-condensing.

maximum wet bulb temperature, non-condensing.

type and number of options installed. Maximum
allowable altitude change rate is 457 m/min (1500

rate is 457 m/min (1500 ft/min).

type and number of options installed. Maximum
allowable altitude change rate is 457 m/min (1500

QuickSpecs located at URL:

BladeSystem c3000 Enclosure QuickSpecs:

BladeSystem c7000 Enclosure QuickSpecs:

rate is 457 m/min (1500 ft/min).

ducts/QuickSpecs/12790_div/

QuickSpecs/12810_div/

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Technical Specifications

Page 54

Disk Drive Interface

6Gb/s SAS (Serial Attached SCSI)

Server Interface

x4 PCI Express host interface

Cache Memory

512MB flash backed write cache (FBWC) cache standard

Logical Drive Capacity

64 (with included 512MB cache)

Host Memory
Addressing

64-bit, supporting servers memory space greater than 4GB

RAID Support

RAID 1 (mirroring) and RAID 0 (striping)

Other

Upgradeable firmware with recovery ROM
Online drive flash (with SAS drives)
HPE

HPE MultiGPU

I/O Interface

PCIe Gen3 x16

Size

Full-size, full-length PCIe card

Four MXM v.3.0 connectors (follows MXM specifications)

• Accepts three (3) MXM-B or four (4) MXM-A cards

MXM Interface

PCIe Gen3 x8

Supported MXM
adapters

NVIDIA Quadro K3100M/3000M (three per carrier card) or
NVIDIA Quadro 1000M (four per carrier card)

1.60 lb (0.724 kg) - Single, vacant with no MXM graphics

Memory size

2GB

Memory type

GDDR-5

128-bit

Card type

MXM-v.3.0, Type-A

I/O interface

PCIe (x16) Gen3

45W

API

DirectX 11, Shader Model 5.0; OpenGL4.3; OpenCL 1.2, AMD Mantle

Upgradeable Firmware

Upgradeable Firmware. Up to six displays can be supported by single card.

Microsoft ® Windows 7® Professional (64-bit)

Memory size

4GB

Memory type

GDDR-5

256-bit

Card type

MXM-v.3.0

I/O interface

PCIe (x16) Gen3;

consumption

75W

API

DirectX 11, Shader Model 5.0; OpenGL4.3

Upgradeable Firmware

Upgradeable Firmware. Up to four displays can be supported by using firmware

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

HPE Smart Array
P220i / P230i
Controller

Secure Encryption is supported on P230i as an option

Carrier card
(single, carrier only)

AMD FirePro
S4000X server
module

MXM Connector

Weight

Memory interface

Max power
consumption

Operating Systems

NVIDIA Quadro
K3100M graphics
adapter

Memory interface

Max power

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Technical Specifications

Page 55

edition 80.04.F1.00.01 and driver 331.82b or later. Prior edition firmware supports up
to two displays.

Microsoft ® Windows 7® Professional (64-bit)
Microsoft® Windows Server 2008 R2 SP1 (64
DataCenter editions
Red Hat Enterprise Linux (RHE
Citrix XenServer 6 Enterprise and Platinum Edition
VMware vSphere5.1 or later

Memory size

3.0 GB

GDDR-5

Memory interface

192-bit

I/O interface

PCIe (x16) Gen 2

80W

API

DirectX 11, Shader Model 5.0; OpenGL4.3

Microsoft ® Windows 7® Professional (64-bit)
Microsoft® Windows Server 2008 R2 SP1 (64
DataCenter editions, Windows Server 2012
Red Hat E
Citrix XenServer 6 Enterprise and Platinum Edition
VMware vSphere5.1 or later

NVIDIA Quadro

Memory size

4.0 GB

Memory type

GDDR-5

Memory interface

256-bit

I/O interface

PCIe (x16) Gen 2

Max power
consumption

122W

API

DirectX 11, Shader Model 5.0; OpenGL4.3

Microsoft ® Windows 7® Professional (64-bit)
Microsoft® Windows Server 2008 R2 SP1 (64
DataCenter editions, Windows S
Red Hat Enterprise Linux (RHEL) 5.8 and 6.2 (64
Citrix XenServer 6 Enterprise and Platinum Edition
VMware vSphere5.1 or later

Memory size

12.0 GB

Memory type

GDDR-5

384-bit

I/O interface

PCIe (x16) Gen 3

consumption

225W
DirectX 11, Shader Model 5.0; OpenGL4.3

Operating Systems

Microsoft ® Windows 7® Professional (64-bit)

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Operating Systems

-bit) Standard, Enterprise and

L) 5.8 and 6.2 (64-bit only)

NVIDIA Quadro
K4000 graphics
adapter

Memory type

Max power
consumption

K5000 graphics
adapter

Operating Systems

-bit) Standard, Enterprise and

nterprise Linux (RHEL) 5.8 and 6.2 (64-bit only)

Operating Systems

-bit) Standard, Enterprise and

erver 2012

-bit only)

NVIDIA Quadro
K6000 graphics
adapter

Memory interface

Max power

API

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Technical Specifications

Page 56

Microsoft® Windows Server 2008 R2 SP1 (64-bit) Standard, Enterprise and
DataCente
Red Hat Enterprise Linux (RHEL) 5.8 and 6.2 (64
Citrix XenServer 6 Enterprise and Platinum Edition
VMware vSphere5.1 or later

NVIDIA GRID

Number of GPU

4 entry Kepler GPUs

Memory size

4.0 GB per GPU (16GB total)

Memory type

DDR-3

PCIe (x16) Gen 3 (Gen 2 compatible)

Max power
consumption

130W
DirectX 11, Shader Model 5.0; OpenGL4.3 (Varies by virtualization mode)

GRID virtual GPU support (XenServer only)

Microsoft ® Windows Server 2012
Citrix XenServer 6 Enterprise and Platinum Edition
VMware vSphere5.1 or later

NVIDIA GRID

Number of GPU

2 High-end Kepler GPUs

Memory size

4.0 GB per GPU (8GB total)

Memory type

GDDR-5

PCIe (x16) Gen 3 (Gen 2 compatible)

Max power
consumption

225W
DirectX 11, Shader Model 5.0; OpenGL4.3 (Varies by virtualization mode)

GRID virtual GPU support (XenServer only)

Microsoft® Windows Server 2012
Citrix XenSe
VMware vSphere5.1 or later

NVIDIA Tesla

GPU

1 Kepler GK110

CUDA cores

2496

Memory size

5.0 GB

GDDR-5

Memory bandwidth

208 GB/sec

I/O interface

PCIe (x16) Gen 2

consumption

225W

GPU

1 Kepler GK110

2688

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

r editions, Windows Server 2012

-bit only)

K1 GPU
adapter

I/O interface

API

K2 GPU
adapter

K20 GPU
Computational
Accelerator

Operating Systems

I/O interface

API

Operating Systems

rver 6 Enterprise and Platinum Edition

Memory type

Max power

NOTE: For additional information please see QuickSpecs at:

https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154396

NVIDIA Tesla
K20X GPU

CUDA cores

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Technical Specifications

Page 57

Memory size

6.0 GB

GDDR-5

Memory bandwidth

250 GB/sec

I/O interface

PCIe (x16) Gen 2

235W

Hewlett Packard Enterprise offers end-of-life Hewlett Packard Enterprise product
return
information, please go to:

https://pr
.
https://promotions.ext.hpe.com/WMCF.Web/us/en/page/GlobalLandingPage/

or contact your nearest
to
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatm
information for each product type for use by treatment facilities. This information
(product disassembly instructions) is posted on the
web site at:
https://promotions.ext.hpe.com/WMCF.Web/us/en/page/GlobalLandingPage/.
These instructions may be used by recyclers and other WEEE treatment facilities as
well as
Hewlett Packard Enterprise equipment.

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

Computational
Accelerator

Memory type

Max power
consumption

NOTE: For additional information please see QuickSpecs at:

https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154396

Environment­friendly Products
and Approach

End-of-life
Management and
Recycling

, trade-in, and recycling programs in many geographic areas. For trade-in

omotions.ext.hpe.com/WMCF.Web/us/en/page/GlobalLandingPage/

To recycle your product, please go to:

Hewlett Packard Enterprise sales office. Products returned

Hewlett Packard Enterprise will be recycled, recovered or disposed of in a

ent

Hewlett Packard Enterprise

Hewlett Packard Enterprise OEM customers who integrate and re-sell

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Summary of Changes

Page 58

Date

Version History

Action

Description of Change

23-Oct-2017

From Version 31 to 32

Changed

Care Pack naming and Service and Support- Parts and Materials
updated.

16-Feb-2016

From Version 30 to 31

Changed

Information updated in different sections.

Added

SKU added in Core Options section:
832514-B21

Removed

Obsolete SKU deleted in CoreOptions section:
789135-B21

11-Dec-2015

Fro Version 29 to 30

Changed

Configuration Information - Factory Integrated Models, Core Options,
Additional Options, and Memory sections were updated.

Added:

SKUs added in Core Options section:

Removed

Obsolete SKUs were deleted:

28-Sep-2015

From Version 28 to 29

Changed

Additional Options and Core Options sections were updated.

Added

SKUs added:
P8B24A. P8B26AAE. P8B31A

Removed

Obsolete skus were deleted:

D8S85AAE, D8S84A, C7S14A, E5Y38A, E5Y39AAE, AP880A

17-Aug-2015

From Version 27 to 28

Added

SKUs added in Additional Options and Core Options sections:

804599-B21, 804593-B21, 804587-B21, 804581-B21, 804575-B21

Removed

Obsolete SKUs deleted:
AQ697B, U6W98E

01-Jun-2015

From Version 26 to 27

Changed

Information updated in Additional options section.

Added

SKUs were added in Core Options section:
748387-B21, 791034-B21

Removed

Obsolete SKUs were removed in Core Options section:

662079-L21, 662070-L21, 667805-L21, 741151-B21, 741159-B21

30-Mar-2015

From Version 25 to 26

Changed

Standard Features, Configuration Information-Factory Integrated
Models and Models sections were updated

Added

SKUs Added:

785067-B21, 802578-B21, 802582-B21, 802586-B21, 802891-B21

Removed

Obsolete SKUs Removed:

09-Feb-2015

From Version 24 to 25

Changed

Optional Features, Service and Support and Core Options sections
were updated.

Added

SKUs Added on HPE Hard Drives:

764925-B21, 764927-B21, 764929-B21

01-Dec-2014

From Version 23 to 24

Changed

Core Options and Additional Options sections were updated.

to HPE ProLiant WS460c Gen8 Graphics Server Blade

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

816576-B21, 816572-B21, 816568-B21, 816562-B21, 822567-B21,
822563-B21, 822559-B21, 822555-B21, 816929-B21, 816919-B21,
816909-B21, 816899-B21, 816889-B21, 816879-B21, 817011-B21,
816995-B21, 816985-B21, 816975-B21, 816965-B21.

662064-L21, 662065-L21, 735062-B21, 735062-B21, 789155-B21,
C7S14A, E5Y38A,

E5Y39AAE, D8S85AAE, D8S84A, AP880A.

E5Y43AAE, F6Q89AAE. 741155-B21, 678276-B21, 684690-B21,

C9A82AAE, 804677-B21, 804671-B21, 804665-B21, 804639-B21,
804631-B21, 804625-B21, 832414-B21, 804613-B21, 804605-B21,

662076-L21, 662063-L21, 667804-L21, 667803-L21, 662066-L21,
662078-L21, 662072-L21, 662067-L21, 662077-L21, 662068-L21,

765464-B21, 765466-B21, 765453-B21, 765455-B21, 789135-B21,
789145-B21, 789155-B21, 781518-B21, 785069-B21, 781516-B21,

741146-B21, 741138-B21, 741142-B21

779164-B21, 779168-B21, 779172-B21, 779176-B21, 764923-B21,

Name changed from HPE ProLiant WS460c Gen8 Workstation Blade

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Summary of Changes

Page 59

Added

SKU Added on Hard Drives:
757339-B21

Removed

Obsolete skus deleted:
764929-B21, 764927-B21, 764925-B21, 764923-B21

01-Nov-2014

From Version 22 to 23

Changed

Service and Support section was updated

29-Sep-2014

From Version 21 to 22

Added

SKUs added on Core Options:

756636-B21, 756621-B21

Removed

Obsolete sku removed:
608447-B21

09-Sep-2014

From Version 20 to 21

Changed

Standard Features sections was updated

Added

SKUs added to Core Options section:

B21

Removed

Pre-Configured Models section was deleted

679858-B21, 679860-B21, 667761-B21

10-Jun-2014

From Version 18 to 20

Changed

Memory, Graphics Options, Hard Drives, Mezzanine Options, and
Security were revised.

31-Mar-2014

From Version 17 to 18

Changed

Changes made throughout

18-Feb-2014

From Version 16 to 17

Changed

Changes made throughout the QuickSpecs. The What's New section

Support for HPE InfiniBand mezzanine HCA adapters

13-Dec-2013

From Version 15 to 16

Changed

HPE 24GB Three Rank x4 PC3L-10600R Registered CAS-9 Low

removed from HPE USB and SD Options

01-Nov-2013

From Version 14 to 15

Changed

Revisions made to Notes in the processor and memory sections.

08-Oct-2013

From Version 13 to 14

Changed

Revisions made to processor and memory descriptions.

30-Sep-2013

From Version 12 to 13

Changed

Processors, Memory, Graphics Adapter, Fibre Channel Support,

Advanced Licenses were revised.

10-Sep-2013

From Version 11 to 12

Changed

HPE Insight Management, Memory, Graphics Adapters, HPE iLO

revised.

20-Aug-2013

From Version 10 to 11

Changed

Correction made to version information.

19-Aug-2013

From Version 9 to 10

Changed

Graphics Adapter was moved from Standard Features and Optional

Steps 2 and 3 were revised in Configuration Information - Factory

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

764923-B21, 764925-B21, 764927-B21, 764929-B21, 756657-B21,

762263-B21, 762261-B21, 759212-B21, 759210-B21, 759208-B21,
741146-B21, 741142-B21, 741138-B21, 741159-B21, 741155-B21, 741151-

SKUs Removed:

was updated to the following:
Support for NVIDIA Quadro K3100M mezzanine graphics
Support for HPE MultiGPU Carrier with six NVIDIA Quadro K3100M
graphics
Support for NVIDIA Quadro K6000 PCIe graphics
Support for NVIDIA K20X/K20 GPU accelerator
Support for HPE Smart Array P230i controller as optional selection

Voltage FIO Memory Kit and Load Reduced DIMMs (LRDIMMS) E5­2600 v2 Series Processors were added to Memory
HPE 1.2TB 6G SAS 10k rpm SFF SC Dual Port Enterprise 3yr
Warranty Hard Drive, HPE 300GB and 600GB 6G SATA Value
Endurance SFF 2.5-in SC Enterprise Boot 3yr Wty Solid State Drives
were added to Hard Drives
Teradici PCoIP Hardware Accelerator was added to Storage
NVIDIA Quadro 6000 6GB PCI-E Adapter was removed from
Graphics Options
HPE 4GB microSD Enterprise Performance Flash Media Kit was

Networking, Storage Controllers, HPE Insight Software, and HPE iLO

Advanced Features, and HPE Fibre Channel Mezzanine Options were

Features
HPE Insight Manager, Security, and Availability were revised in
Standard Features

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Summary of Changes

Page 60

Integrated Models

Networking in Core Options

10-Jun-2013

From Version 8 to 9

Changed

Changes were made to the following sections:

Memory

26-Apr-2013

From Version 7 to 8

Changed

Changes were made to the following sections:

Storage

25-Mar-2013

From Version 6 to 7

Changed

Changes were made to remove references to Platinum in the

Specifications sections.

15-Mar-2013

From Version 5 to 6

Removed

Changes were made to remove part numbers 582765-B21,
T9074BAE, 452148-B22, TC2748AAE, and 436222-B21.

05-Dec-2012

From Version 4 to 5

Changed

Changes were made to add the 2nd Overview image.

04-Dec-2012

From Version 3 to 4

Changed

Changes were made throughout the QuickSpecs.

24-Sep-2012

From Version 2 to 3

Changed

Changes made in Optional Features section.

17-Aug-2012

From Version 1 to 2

Changed

Changes made throughout the QuickSpecs.

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

HPE 80GB 6G SATA Value Endurance SFF Solid State Drive was
added and 3G SATA MLC Hot Plug SFF Mainstream Solid State
Drives were removed from Hard Drives in Core Options
Intel Xeon E5-2690 and Intel Xeon E5-2643 Processor Kits were
added to Processors
Citrix XenDesktop 5.6fp1 and VMware Horizon View 5.2 vSphere 5.1
or later were added to Operating Systems Support for HPE ProLiant
Workstations
Fibre Channel Support and Compatible SAN were added to Optional
Features
HPE FlexFabric 10Gb 2-port 553FLB Adapter was removed from HPE

What's New was changed to:
Support for HPE 120GB 6G SATA Value Endurance SFF 2.5-in SC
Enterprise Boot Solid State Drive
Support for HPE 800GB, 480GB and 240GB 6G SATA Value
Endurance SFF 2.5-in SC Enterprise Value Solid State Drives
Standard Features: HPE Processor, Cache Memory
Configuration Information: Step 2, 3
Core Options: HPE Processors, HPE Hard Drives
Additional Options: HPE Insight software, HPE Storage Blades, HPE
USB and SD Options

Callout # 4 of the 1st image.
What's New
Standard Features - Network Controller, Maximum Internal Storage,
Operating Systems Support for HPE ProLiant Workstations,
Mezzanine Support, Form factor
Configuration Information
Core Options - HPE Networking
Additional Options - HPE Expansion Blade
Memory

Standard Features, Configuration Information and Technical

QuickSpecs

HPE ProLiant WS460c Gen8 Graphics Server Blade

Summary of Changes

Page 61

Sign up for updates

Rate this document

© Copyright 2017 Hewlett Packard Enterprise Development LP. The information contained herein is
subject to change wit
services are set forth in the express warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional warranty.
shall

Microsoft and Windows NT are US registered trademarks of Microsoft Corporation.

Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel
countries.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.

c04123202

RETIRED: Retired products sold prior to the November 1, 2015 separation of Hewlett-Packard Company into Hewlett Packard Enterprise Company and HP Inc. may

have older product names and model numbers that differ from current models.

hout notice. The only warranties for Hewlett Packard Enterprise products and

not be liable for technical or editorial errors or omissions contained herein.

- 14409 - Worldwide - V32 - 23-October-2017

Corporation in the U.S. and other

Hewlett Packard Enterprise
