HP ProOne 600 G5, ZHAN 66 Pro G2, ProOne 400 G4 Disassembly Instructions Manual

Product Category: Personal Computers

Marketing Name / Model
[List multiple models if applicabl e.]

HP ProOne 600 G5 21.5-in All-in-One

1.0 Items Requiring Selective Treatment

Quantity

in product

Printed Circuit Boards (PCB) or Printed Circuit
Assemblies (PCA)

With a surface greater than 10 sq cm
PCA

3

Batteries

All types including standard alkaline and lithium coin
or button style batteries RTC

1

Mercury-containing components

For example, mercury in lamps, display backlights,
scanner lamps, switches, batteries N/A

0

Liquid Crystal Displays (LCD) with a surface greater
than 100 sq cm

Includes background illum inate d dis plays with gas
discharge lamps LED

1
Cathode Ray Tubes (CRT)

N/A

0

Capacitors / condensers (Containing PCB/PCT)

N/A

0

Electrolytic Capacitors / Condensers measuring
greater than 2.5 cm in diameter or height

N/A

0
External electrical cables and cords

N/A

0

Gas Discharge Lamps

N/A

0

Plastics containing Brominated Flame Retardants
already listed as a separate item above)

N/A

0
Components and parts containing toner and ink,
including liquids, semi-liquids (gel/paste) and toner

Include the cartridges, print heads, tubes, vent
chambers, and service stations. N/A

0
Components and waste containing asbestos

N/A

0

Components, parts and materials containing
refractory ceramic fibers

N/A

0

Components, parts and materials containing
radioactive substances

N/A

0

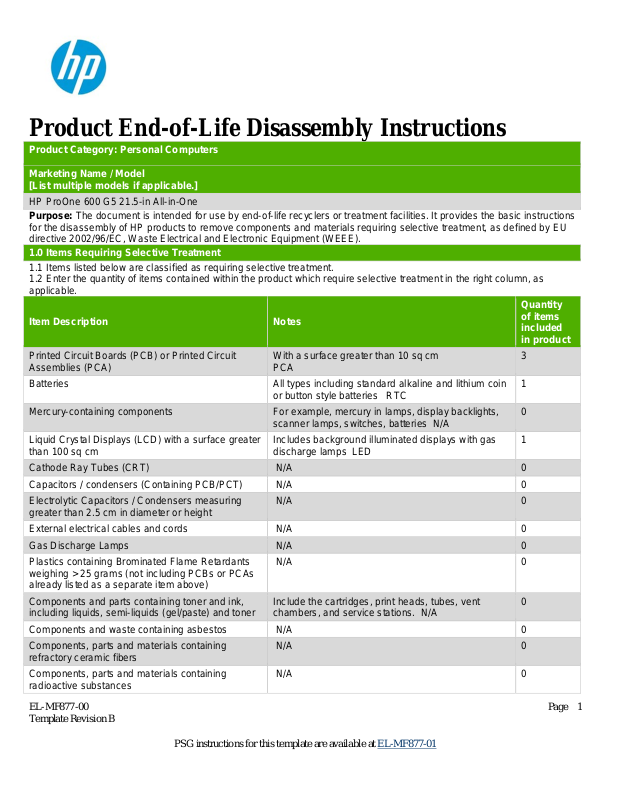

Product End-of-Life Disassembly Instructions

Purpose: The document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic instructions
for the disassembly of HP products to remove components and materials requiring selective treatment, as defined by EU
directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).

1.1 Items listed below are classified as requiring selective treatment.

1.2 Enter the quantity of items contained within the product which require selective treatment in the right column, as
applicable.

Item Description Notes

weighing > 25 grams (not including PCBs or PCAs

of items
included

EL-MF877-00 Page 1
Template Revision B

PSG instructions for this template are available at EL-MF877-01

2.0 Tools Required

List the type and size of the tools that would typically be used to disassemble the product to a point where components

Tool Description

Tool Size (if
applicable)

#1 2.5~3.0
kg-cm

#1 2.5~3.0
kg-cm

#1 2.5~3.0
kg-cm

#1 2.5~3.0
kg-cm

Pick

0.3~0.4mm

3.0 Product Disassembly Proc ess

and materials requiring selective treatment can be removed.

Description #1 Phillips screwdriver (for 12 PCS on bottom case )

Description #2 Phillips screwdriver (for 9 PCS on motherboard)

Description #3 Phillips screwdriver (for 2 PCS on HDD Bracket & 4 PCS on Battery)

Description #4 Phillips screwdriver (for 10 PCS on base side hinge brack et)

Description #5 Use jig disassembly Lcd Bezel with Lcd cover

3.1 List the basic steps that should typically be followed to remove components and materials requiring selective treatment:

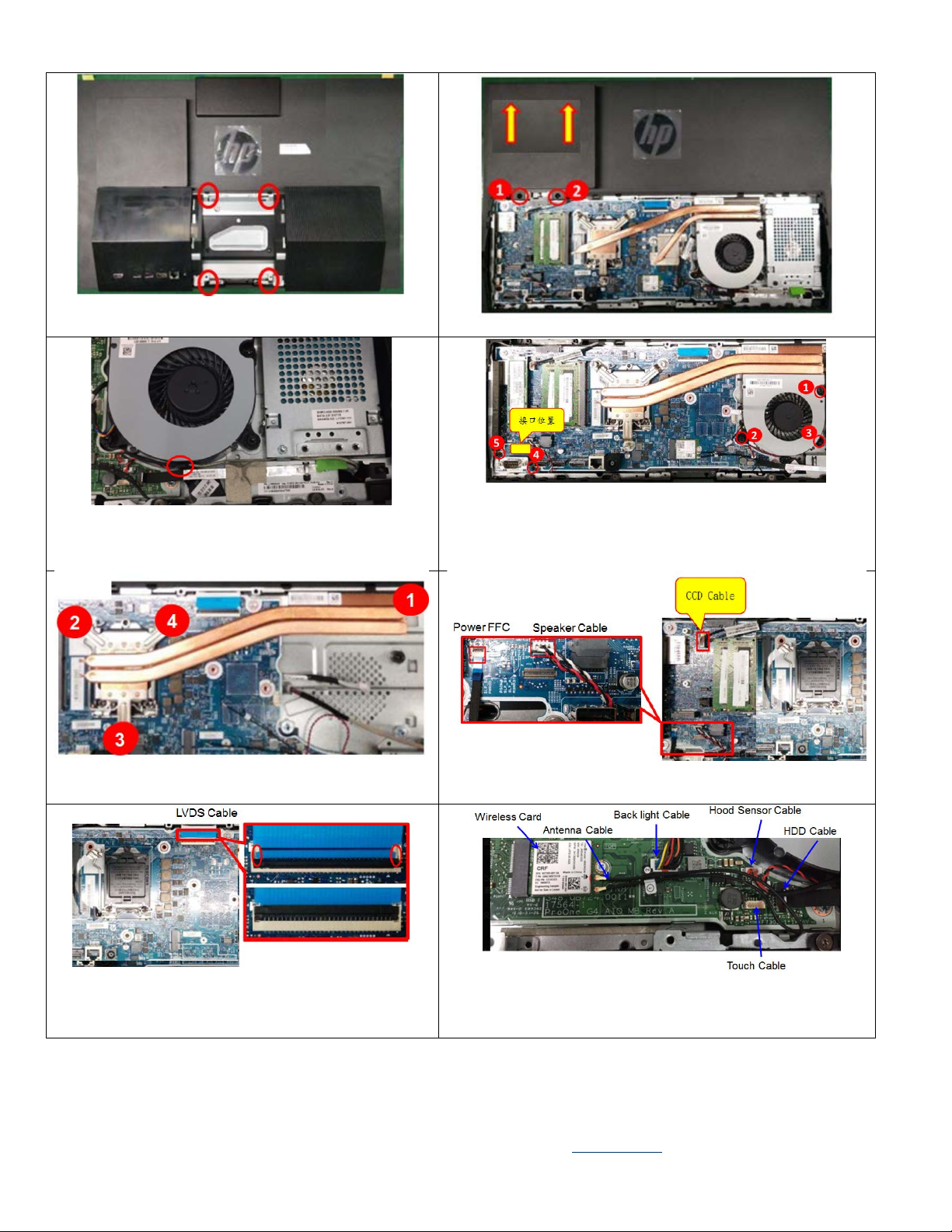

1. Release 4 Phillips #2 screws then remove roof cover by hands from top side refer figure 1

2. Release 2 Phillips #2 screws then push out ODD kits. refer figure 2

3. Check hood sensor cable would be remove from hook of FAN. refer figure 3

4. Release 3 T15 screws then remove FAN from system.

5. Release 4 T15 screws then remove heat sink refer figure 4

6. Unplug Power FFC, Speaker cable and CCD cable refer figure 5

7. Unplug LVDS FFC cable refer figure 6

8. Unplug Antenna cable, Back light cable, Hood sensor cable, HDD FFC cable, Touch cable., Touch cable. Don’t unplug
RTC battery

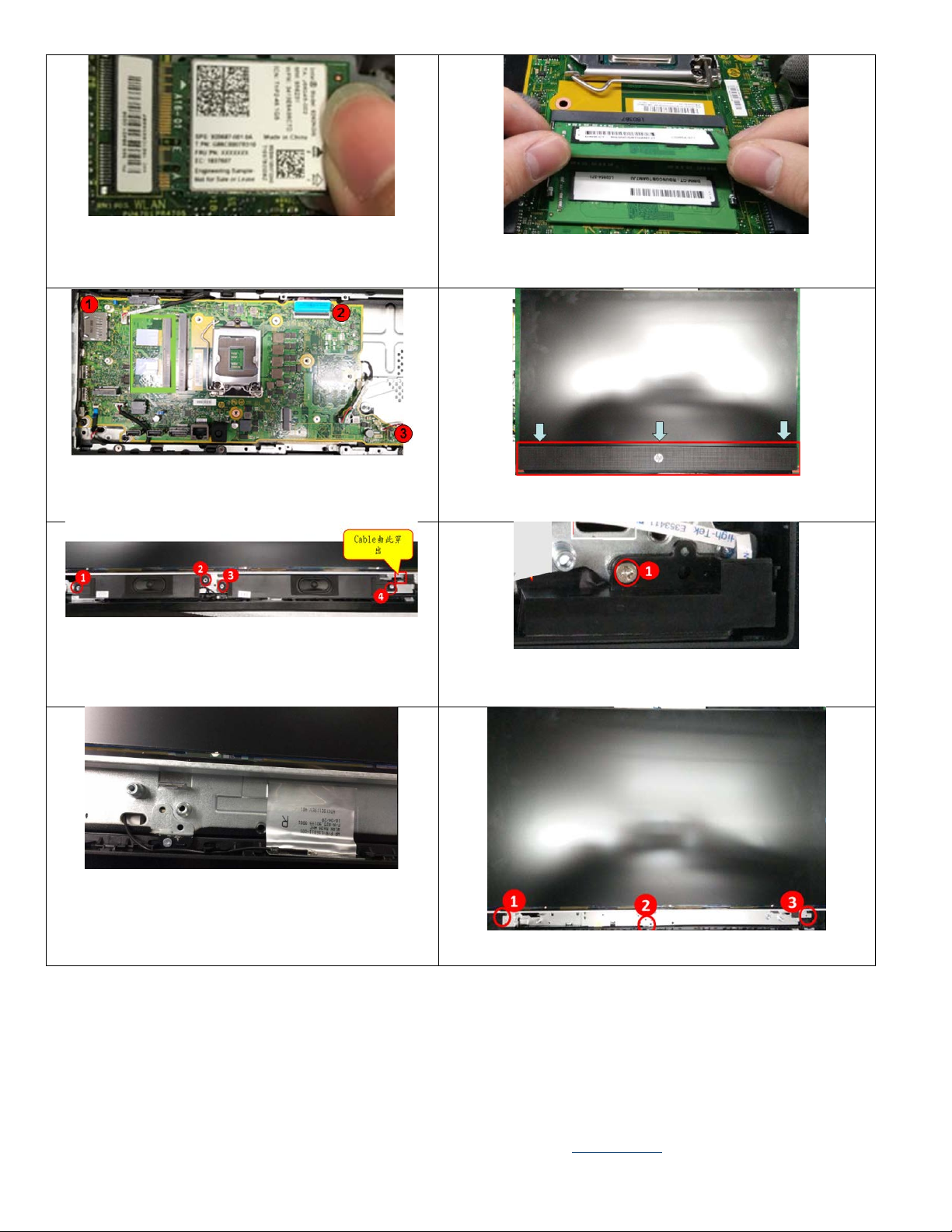

9. Release 1 Phillips #1 screw then remove Wireless card refer figure 9

10. Move outward the latch on both side of the DIMM.Then take out DIMM refer figure 10

11. Release 3 T15 screws to take out MB refer figure 11

12. make the system turn the other side.Remove the speaker grill by hands refer figure 12

13. Release 4 T15 screws then remove speaker refer figure 13.

14. Remove Power holder with releasing 1 Phillips #1 screw refer figure 14.

15. Remove 2 antenna from plastic refer figure 15

16. Release 3 Phillips #1 screw then make system turn to other side refer figure 16

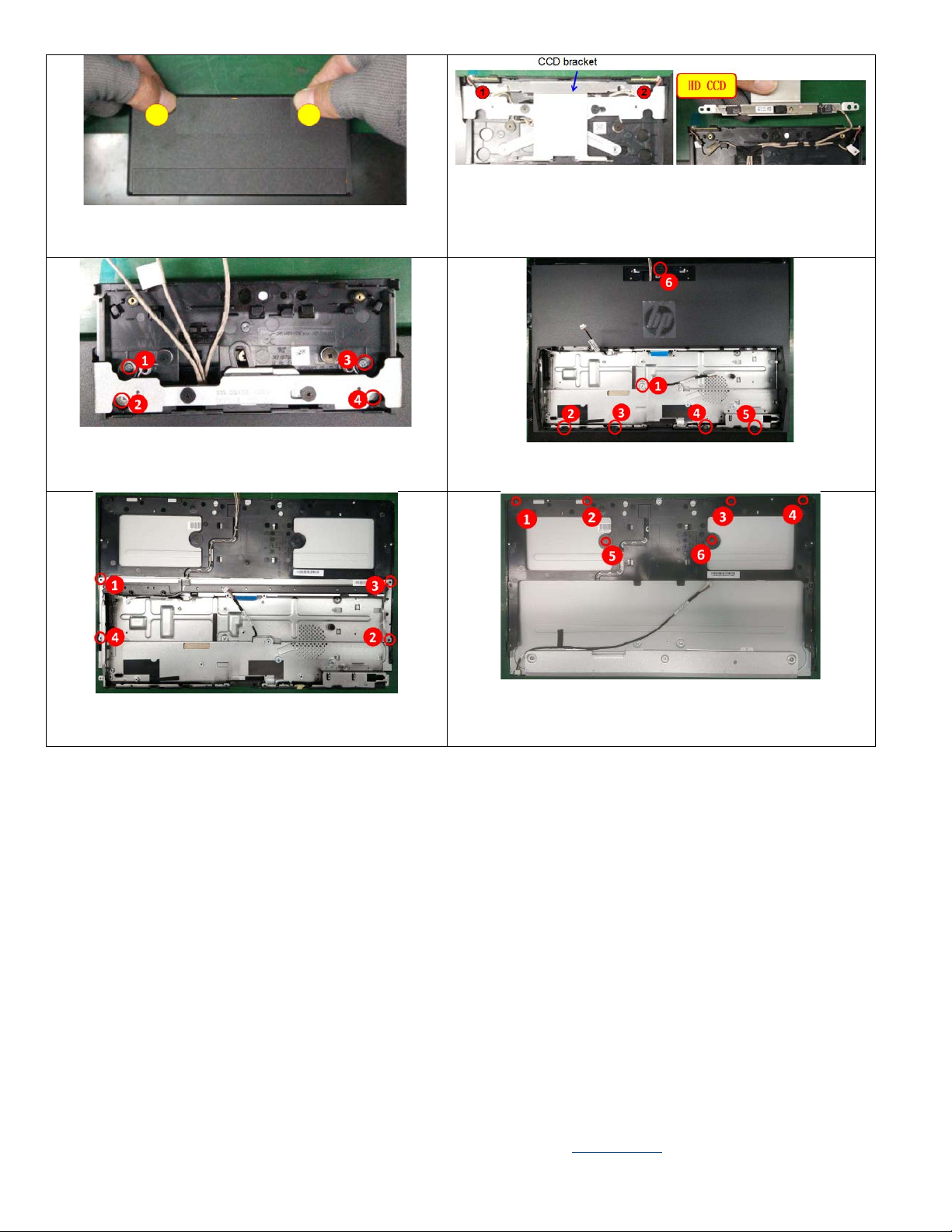

17. Remove webcam housing cover by hands refer figure 17

18. Release 2 Phillips screws then remove CCD bracket.Unplug the webcam cable.refer figure 18

19. Release 4 Phillips screws then take out the pop up webcam structure refer figure 19

20. Release 2 Phillips screws then remove CCD bracket. Unplug the webcam cable. refer figure 20

21. Release 4 Phillips #1 screws then remove basepan bracket. You will see LVDS and back light cable refer figure 21

22. Remove 6 Phillips #1 screws can make the LCD and panel frame to be separated refer figure 22

thickness

3.2 Optional Graphic. If the disassembly process is complex, insert a graphic illustration below to identify the items

contained in the product that require selective treatment (with descriptions and arrows identifying locations).
