HP tx2500 User Manual

HP Pavilion tx2500 Entertainment PC

Maintenance and Service Guide

© Copyright 2008, 2012 Hewlett-Packard
Development Company, L.P.

AMD, Athlon, Turion, and combinations
thereof, are trademarks of Advanced Micro
Devices, Inc. Bluetooth is a trademark
owned by its proprietor and used by
Hewlett-Packard Company under license.
Microsoft, Windows, and Windows Vista are
either trademarks or registered trademarks
of Microsoft Corporation in the United
States and/or other countries. SD Logo is a
trademark of its proprietor.

The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.

This guide is a troubleshooting reference
used for maintaining and servicing the
computer. It provides comprehensive
information on identifying computer
features, components, and spare parts; on
troubleshooting computer problems; and on
performing computer disassembly
procedures.

Third Edition: February 2012

First Edition: May 2008

Document Part Number: 488788-003

Safety warning notice

WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not

place the computer directly on your lap or obstruct the computer air vents. Use the computer only on
a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to
contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer
and the AC adapter comply with the user-accessible surface temperature limits defined by the
International Standard for Safety of Information Technology Equipment (IEC 60950).

iii

iv Safety warning notice

Table of contents

1 Product description ........................................................................................................................................ 1

2 External component identification ................................................................................................................ 5

Top components ................................................................................................................................... 5

Display components ............................................................................................................ 5

Keys ..................................................................................................................................... 7

Pointing devices ................................................................................................................... 8

Front components ................................................................................................................................ 9

Left-side components ......................................................................................................................... 10

Right-side components ....................................................................................................................... 11

Rear components ............................................................................................................................... 12

Bottom components ........................................................................................................................... 13

3 Illustrated parts catalog ............................................................................................................................... 14

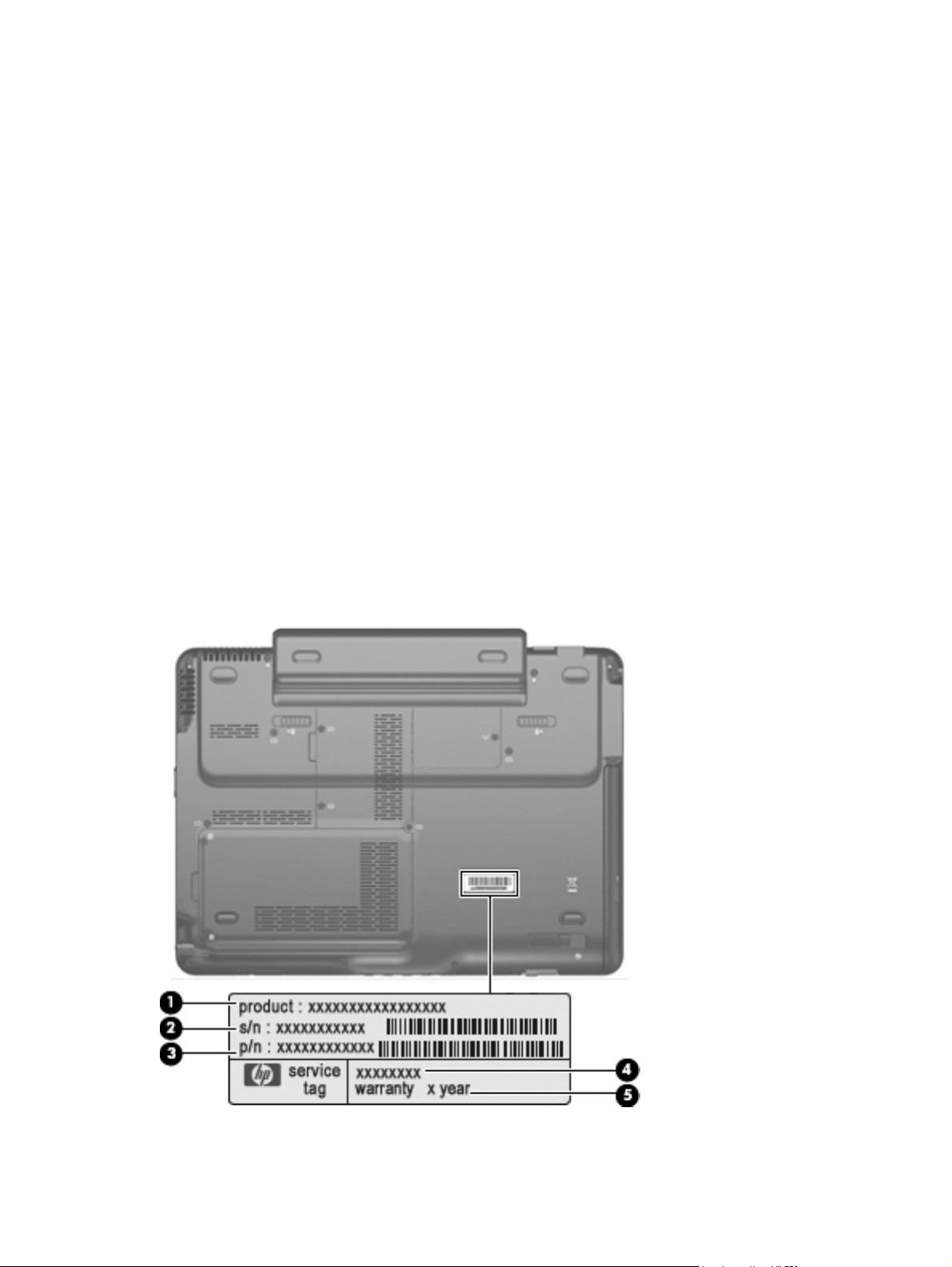

Service tag location ............................................................................................................................ 14

Computer major components ............................................................................................................. 16

Plastics Kit .......................................................................................................................................... 22

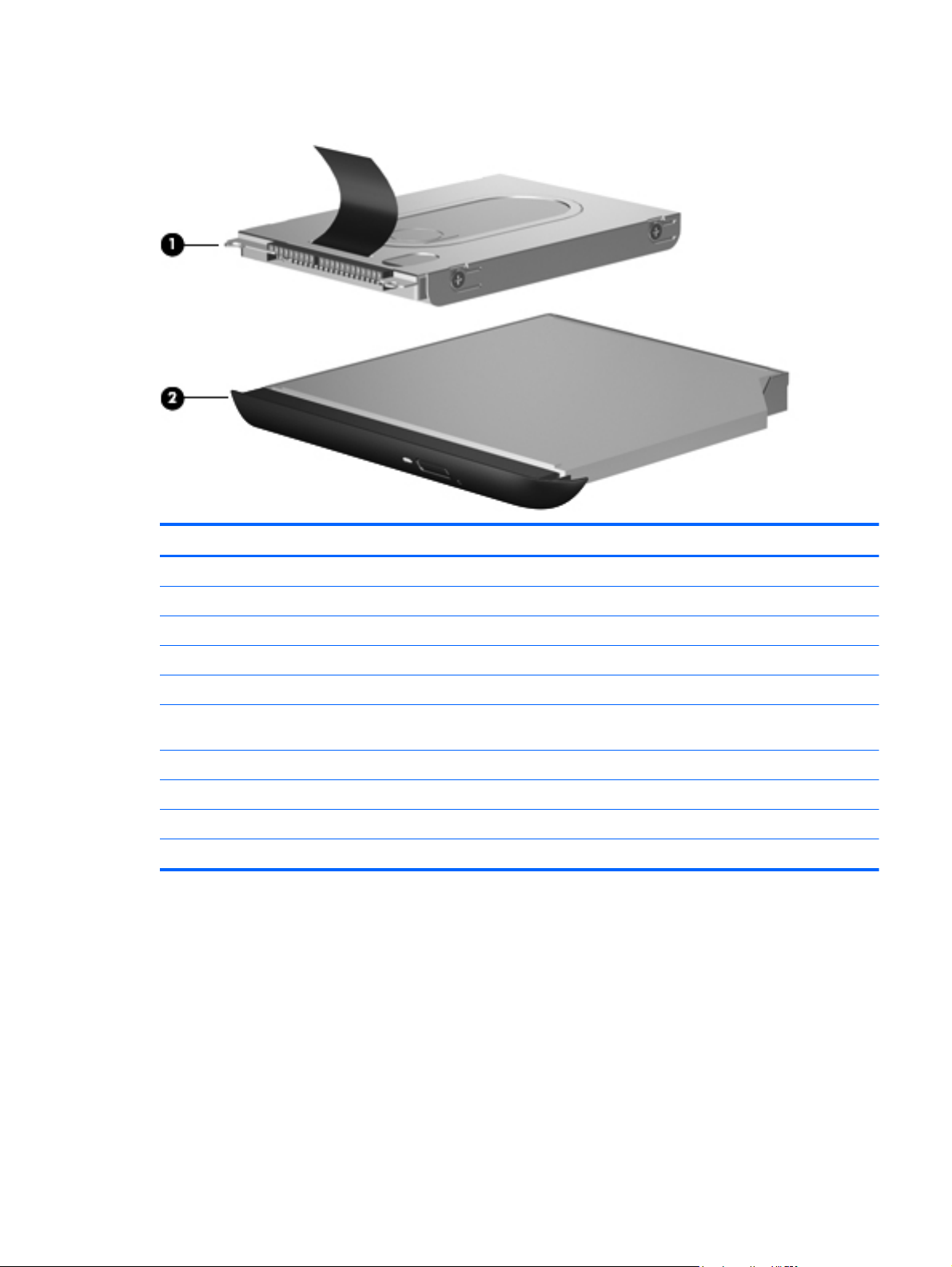

Mass storage devices ......................................................................................................................... 23

Miscellaneous parts ............................................................................................................................ 24

Sequential part number listing ............................................................................................................ 25

4 Removal and replacement procedures ....................................................................................................... 31

Preliminary replacement requirements ............................................................................................... 31

Tools required .................................................................................................................... 31

Service considerations ....................................................................................................... 31

Plastic parts ....................................................................................................... 31

Cables and connectors ..................................................................................... 32

Drive handling ................................................................................................... 32

Grounding guidelines ......................................................................................................... 33

Electrostatic discharge damage ........................................................................ 33

Packaging and transporting guidelines ............................................. 34

v

Workstation guidelines ..................................................................... 34

Equipment guidelines ....................................................................... 35

Unknown user password ................................................................................................... 36

Component replacement procedures ................................................................................................. 37

Service tag location ........................................................................................................... 37

Computer feet .................................................................................................................... 38

Battery ............................................................................................................................... 39

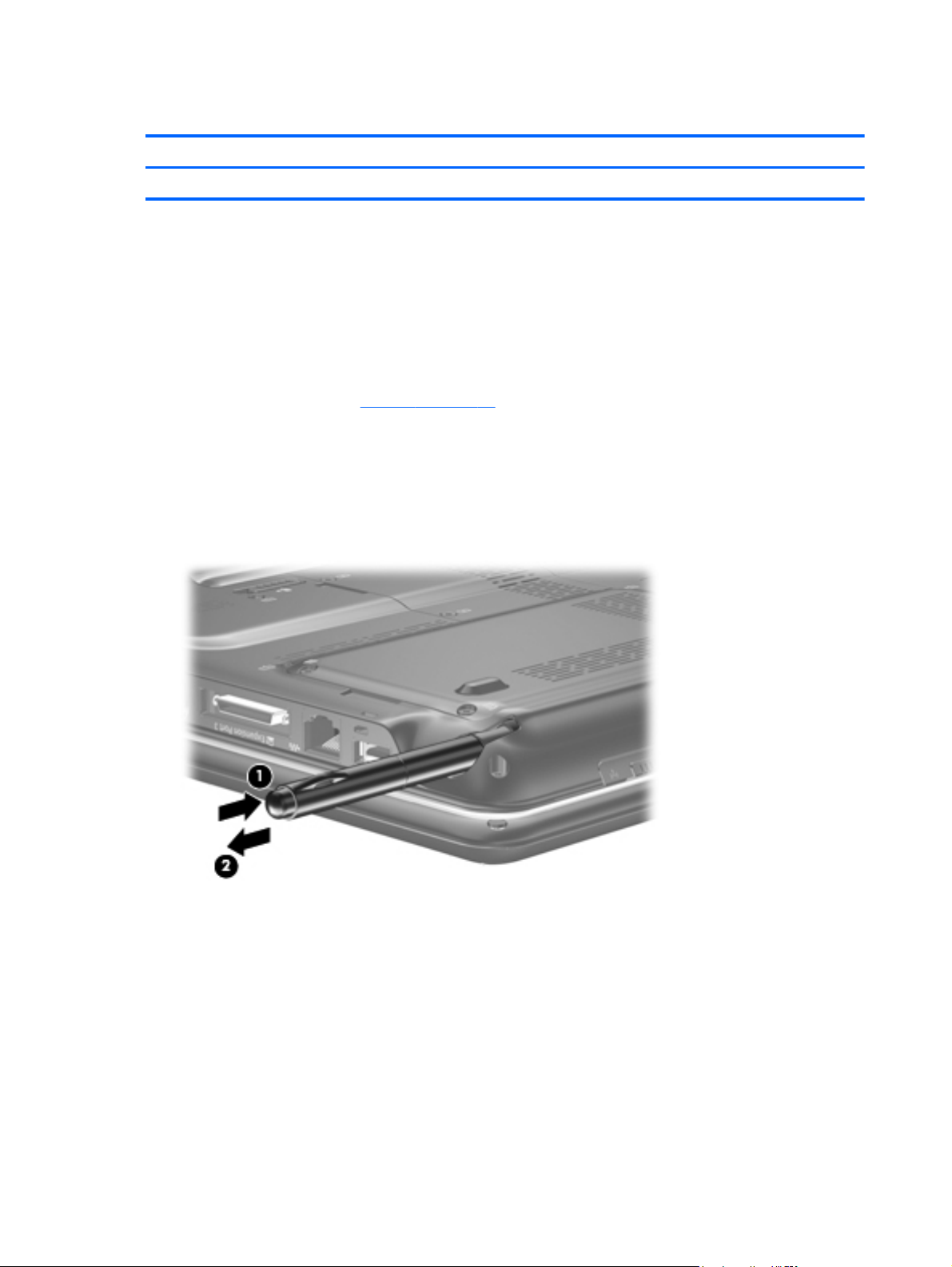

Pen .................................................................................................................................... 40

Hard drive .......................................................................................................................... 41

Optical drive ....................................................................................................................... 43

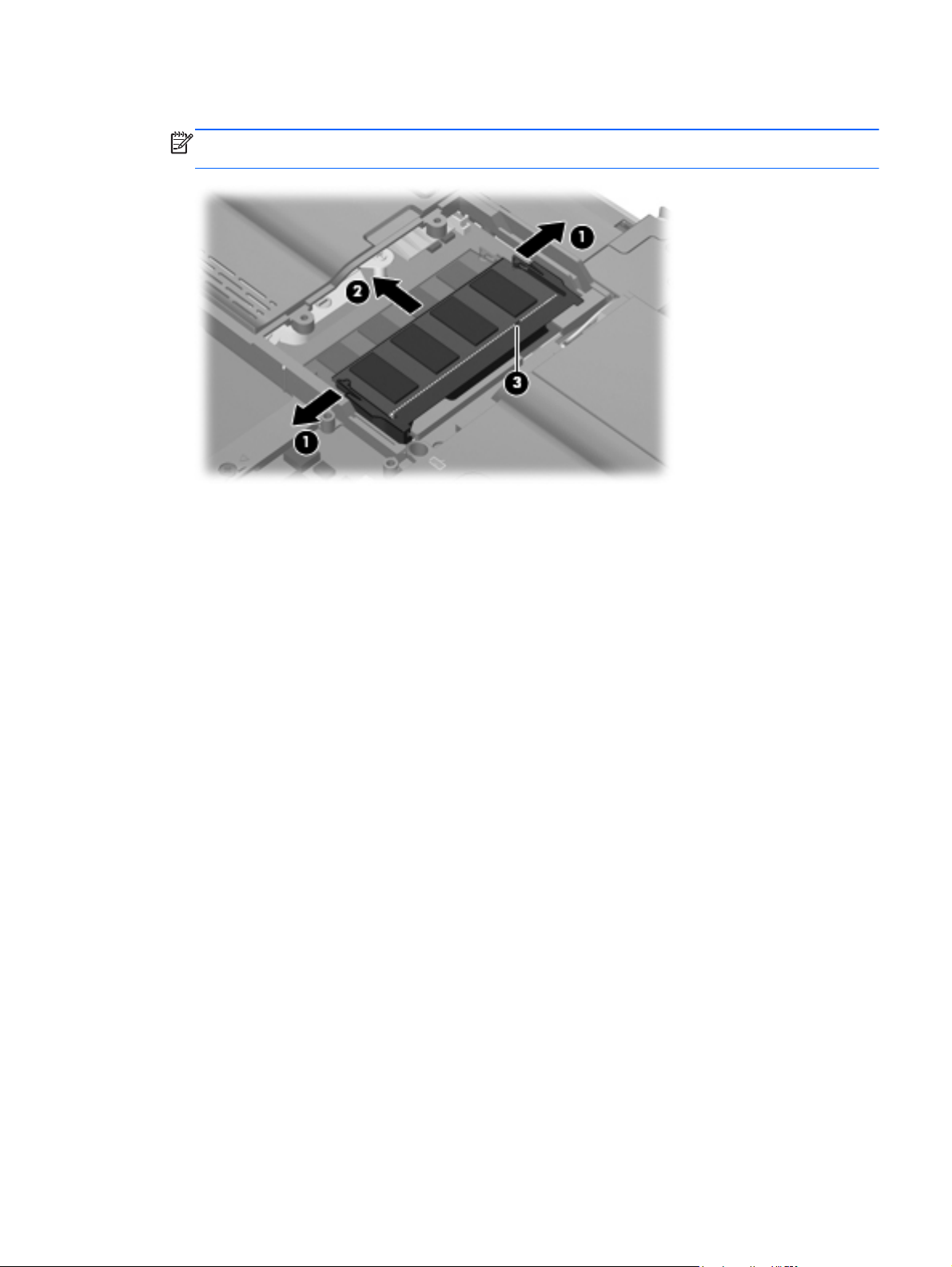

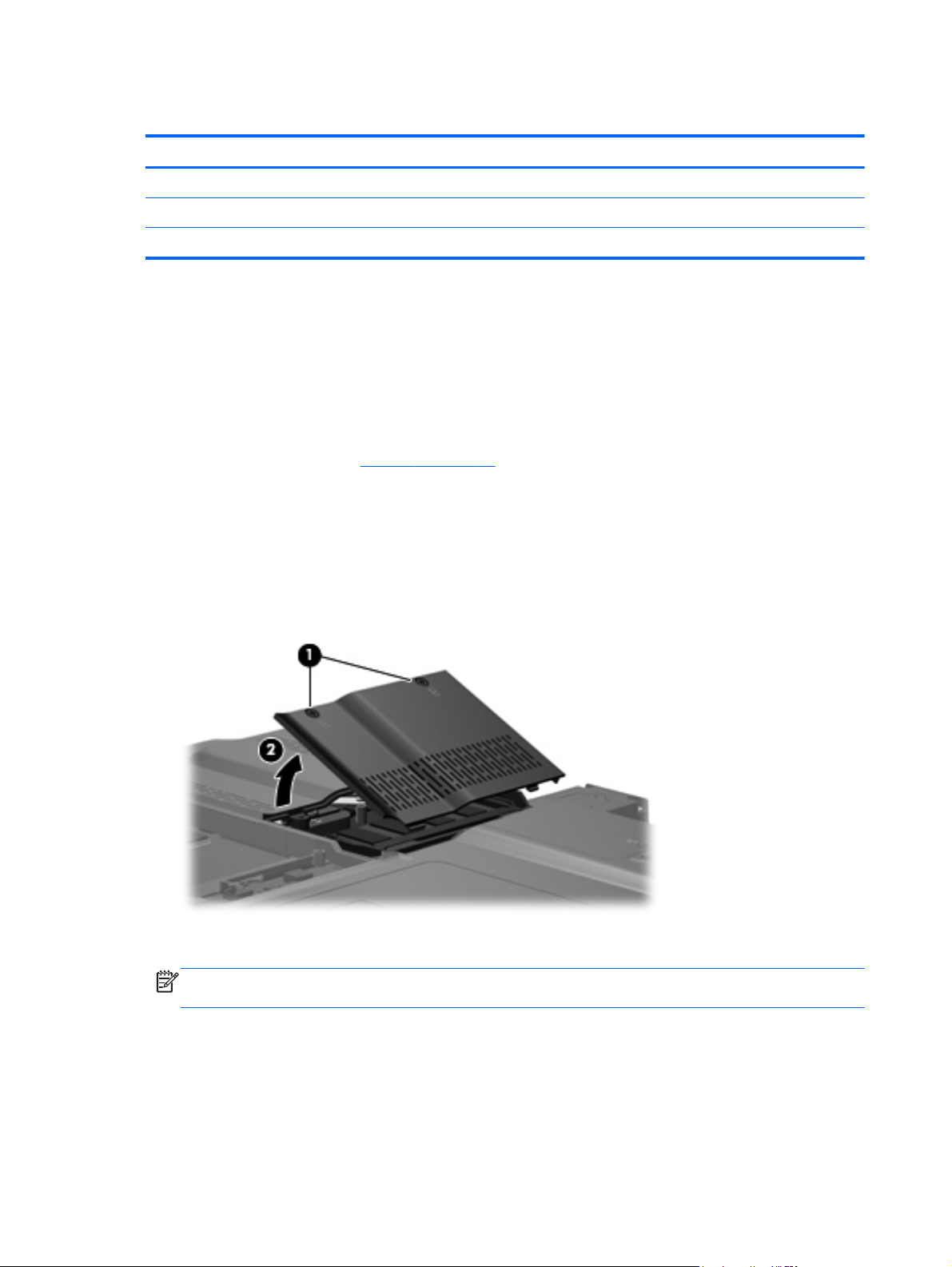

Memory module ................................................................................................................. 44

WLAN module .................................................................................................................... 46

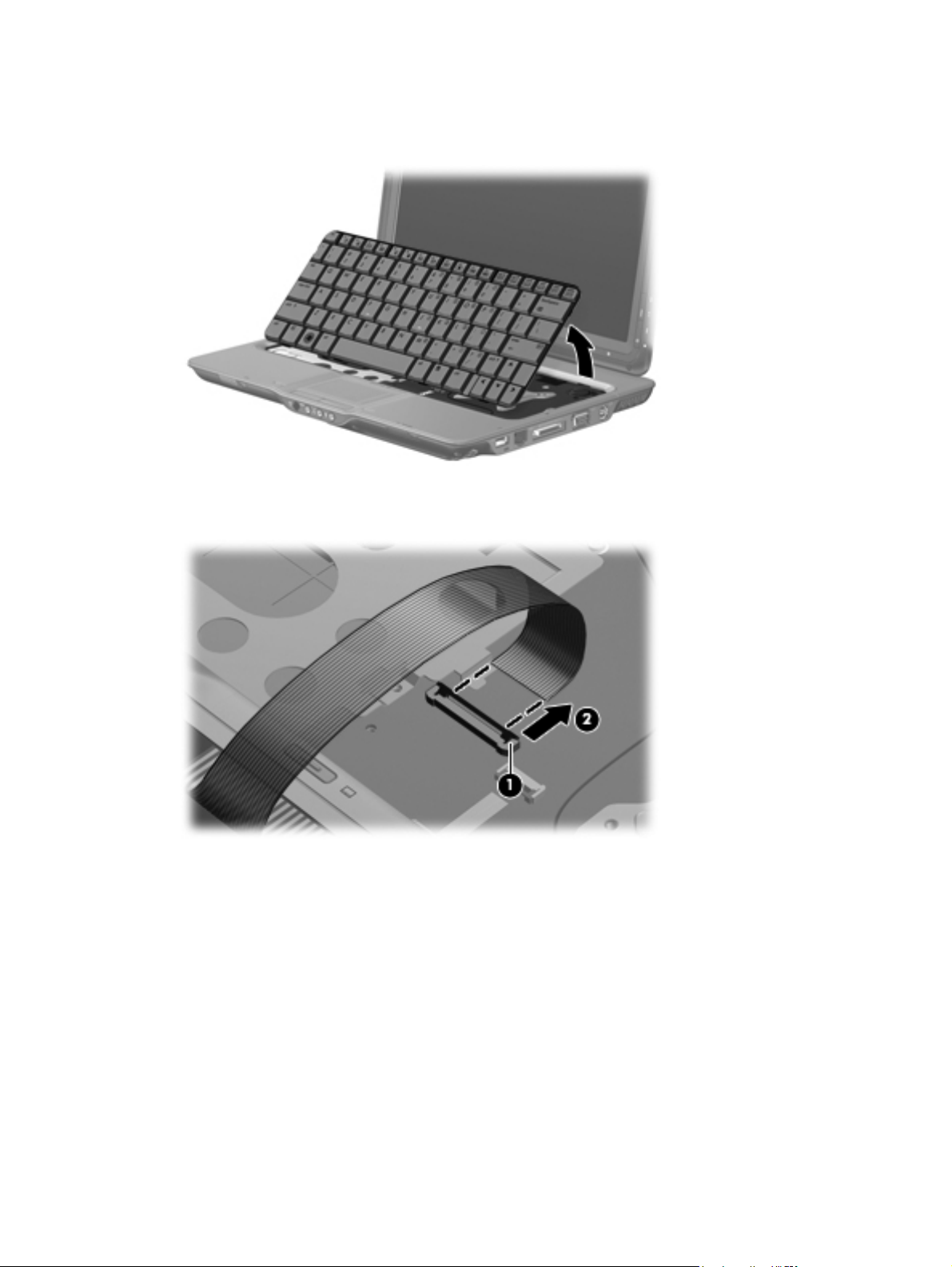

Keyboard ........................................................................................................................... 49

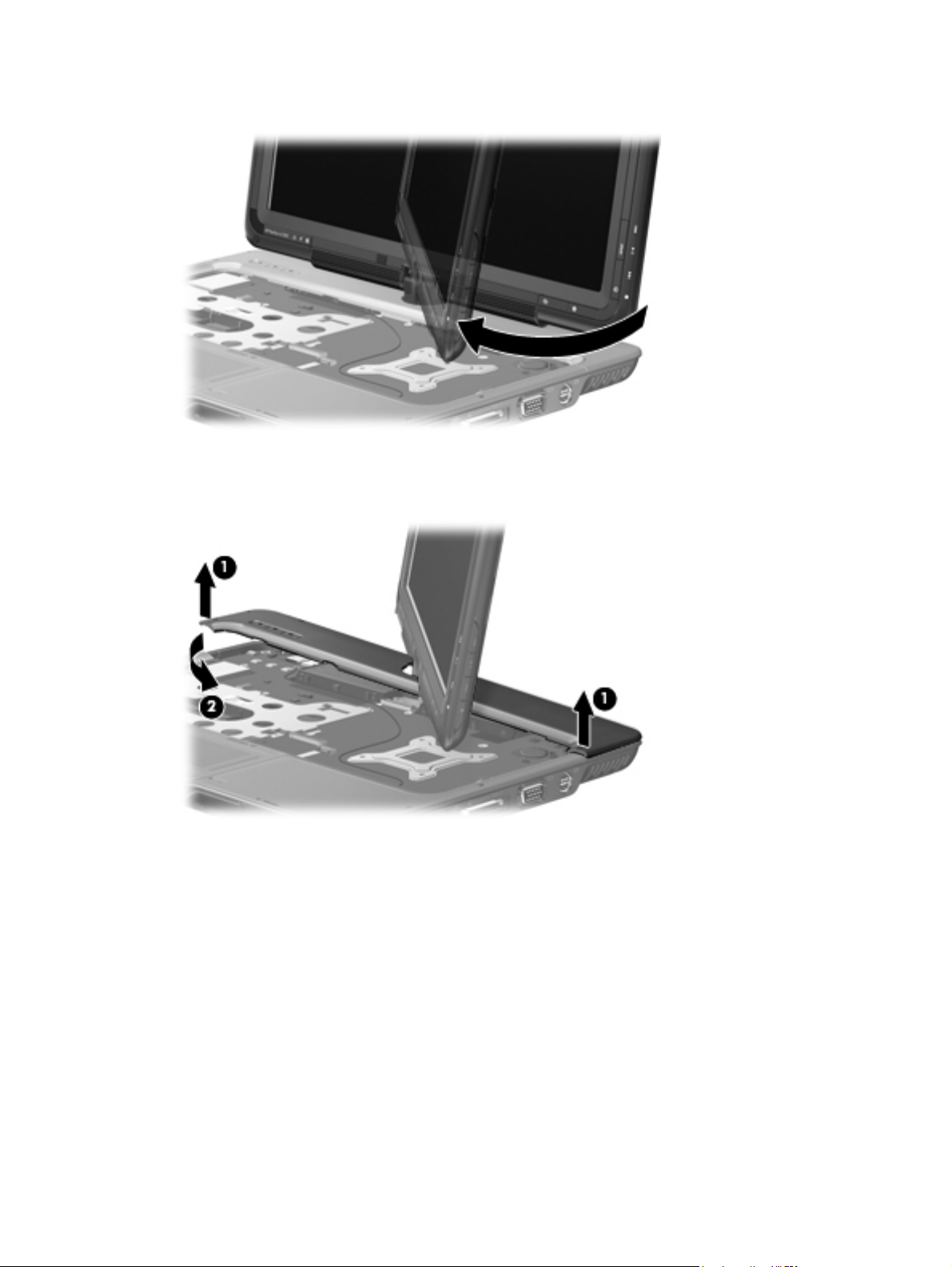

Switch cover ...................................................................................................................... 51

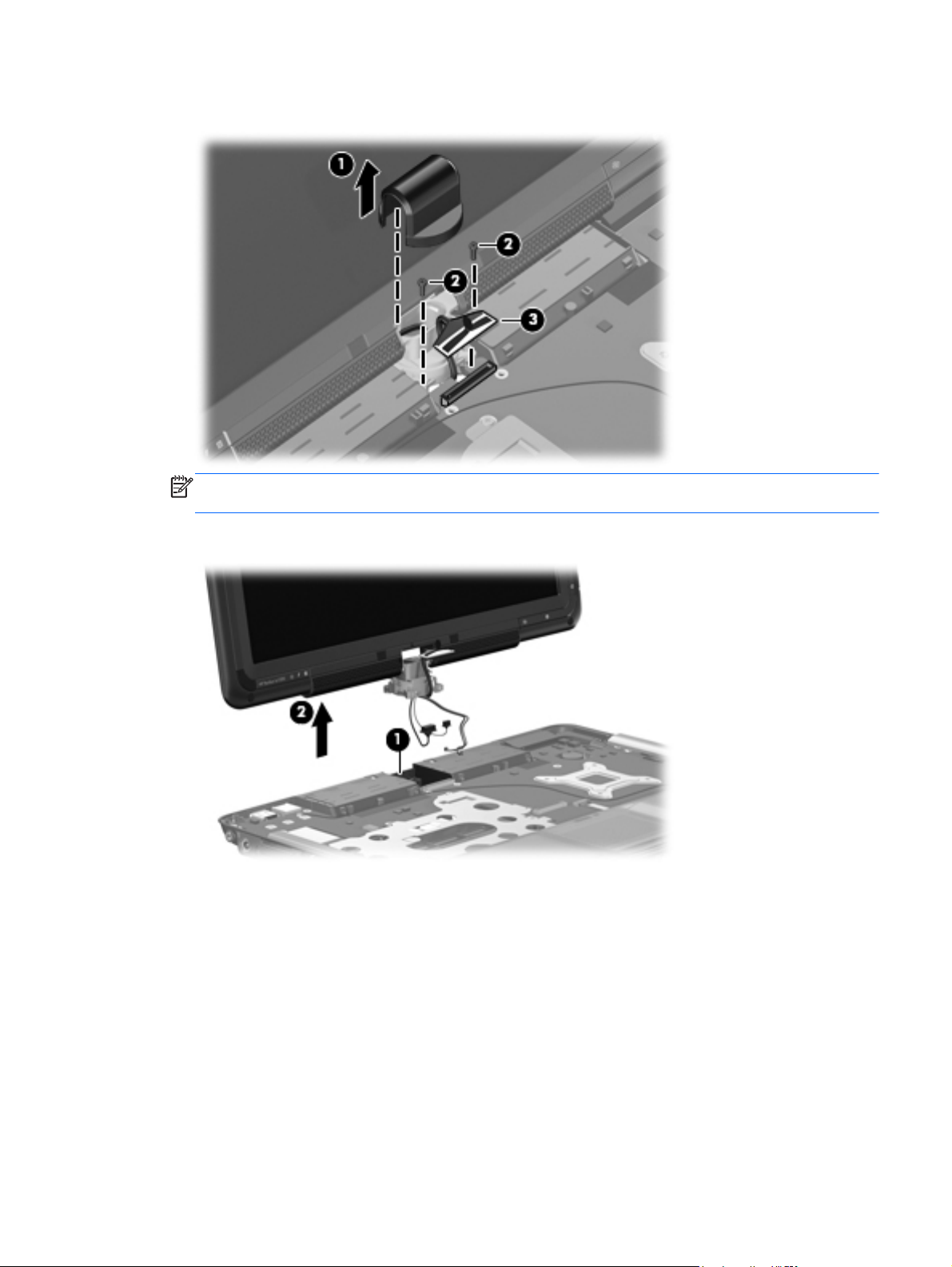

Display assembly ............................................................................................................... 53

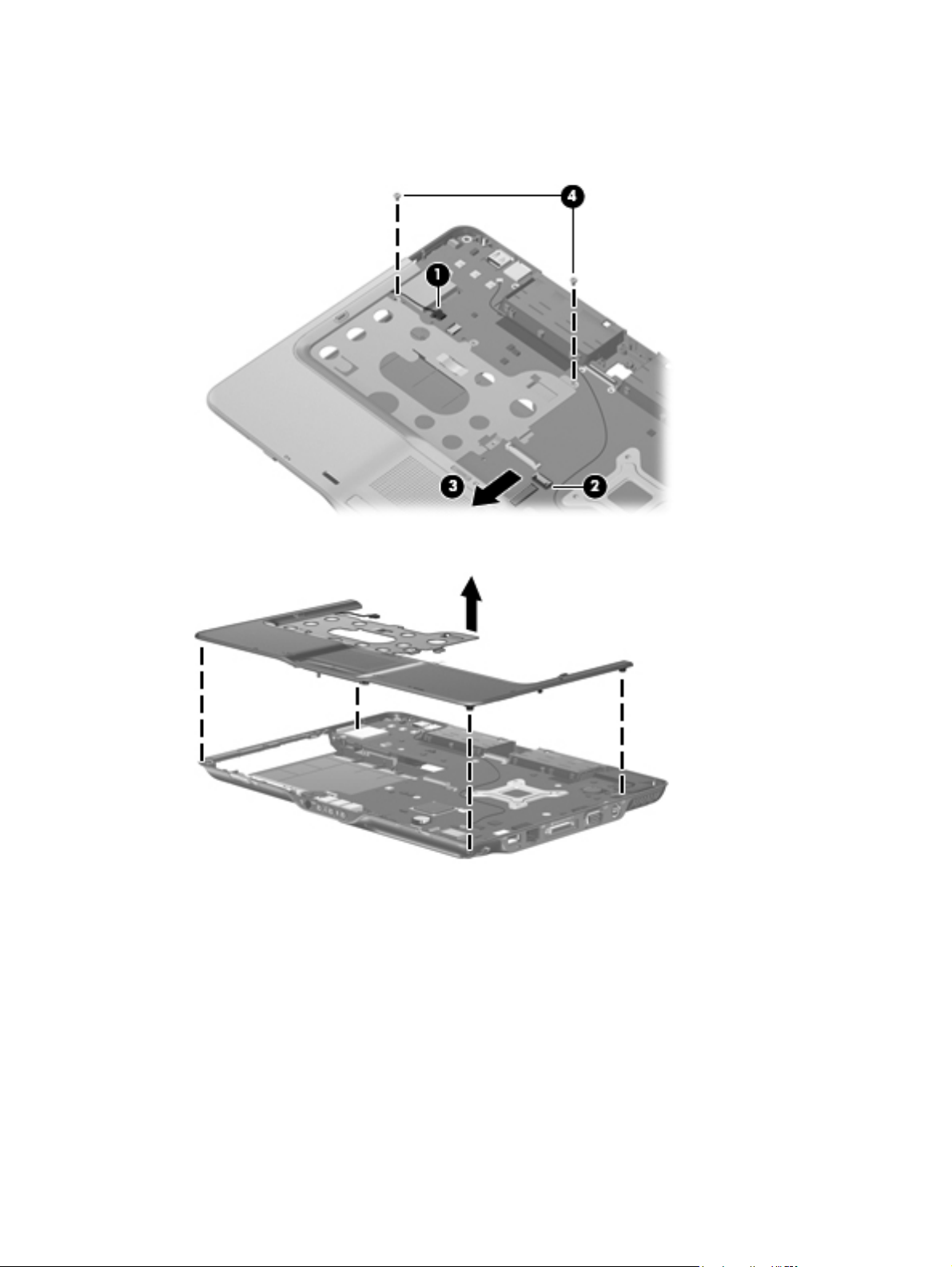

Top cover ........................................................................................................................... 56

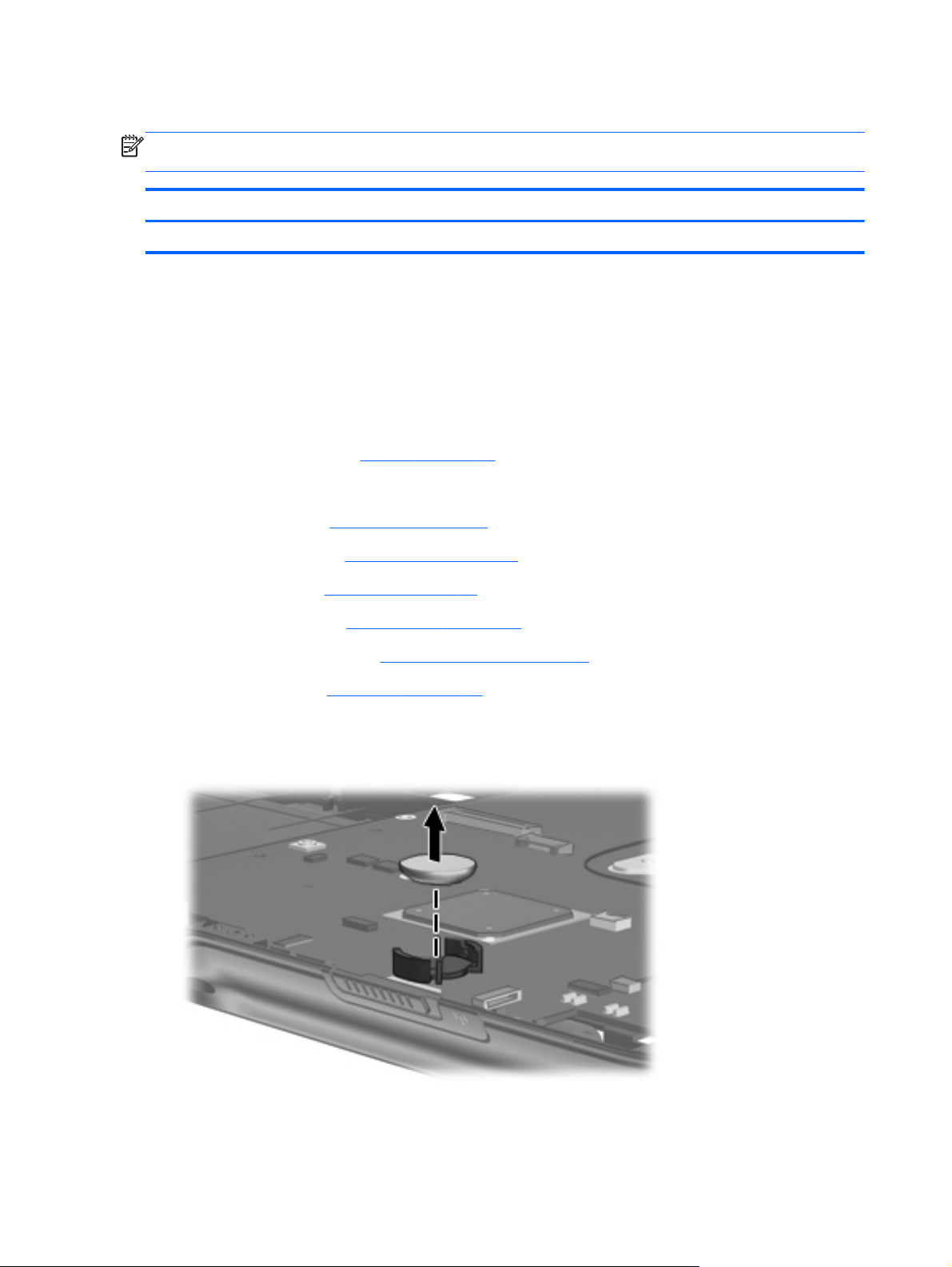

RTC battery ....................................................................................................................... 58

Power switch assembly ..................................................................................................... 59

Bluetooth module ............................................................................................................... 61

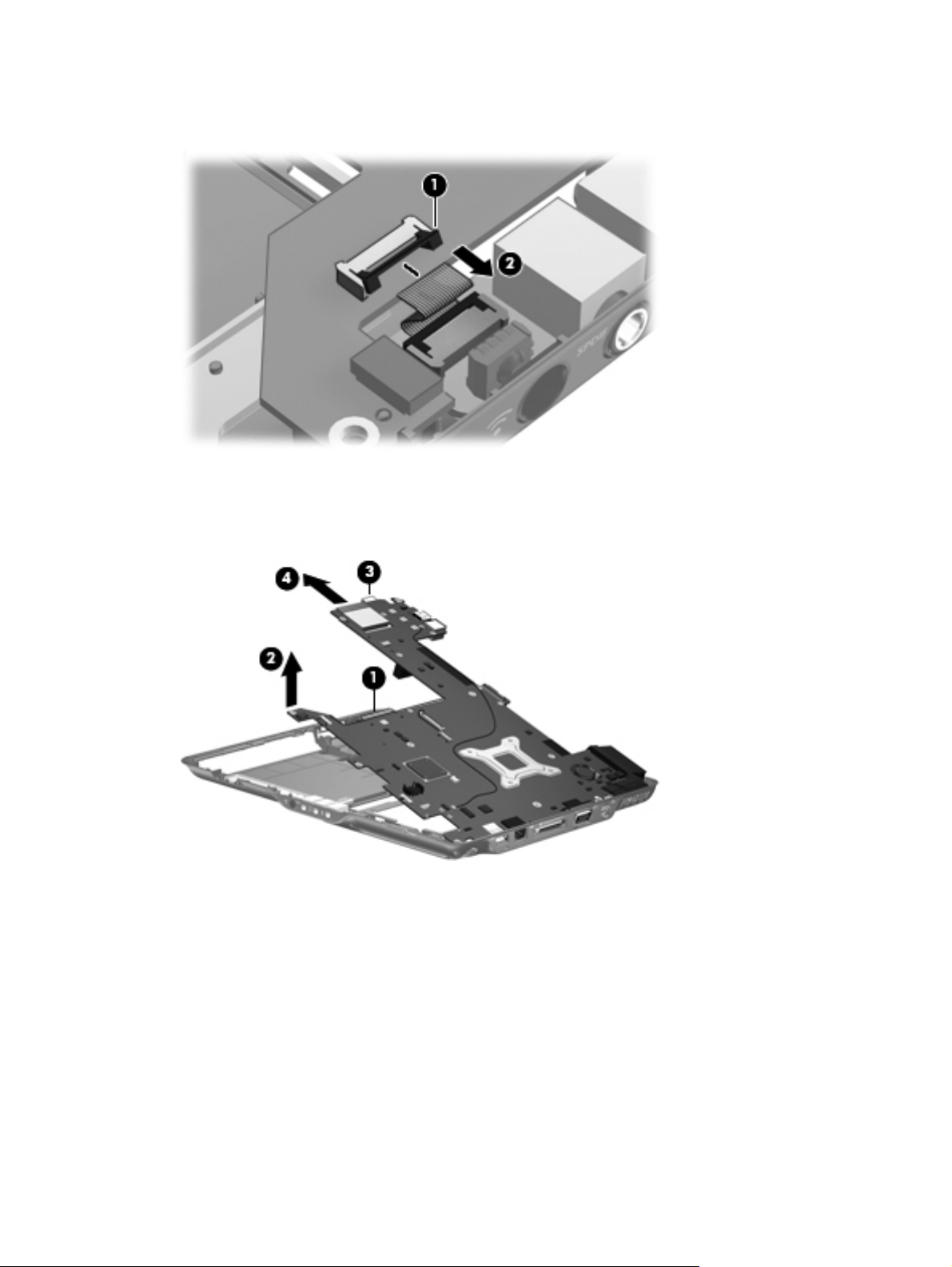

System board ..................................................................................................................... 62

Pen holder and pen eject assembly ................................................................................... 65

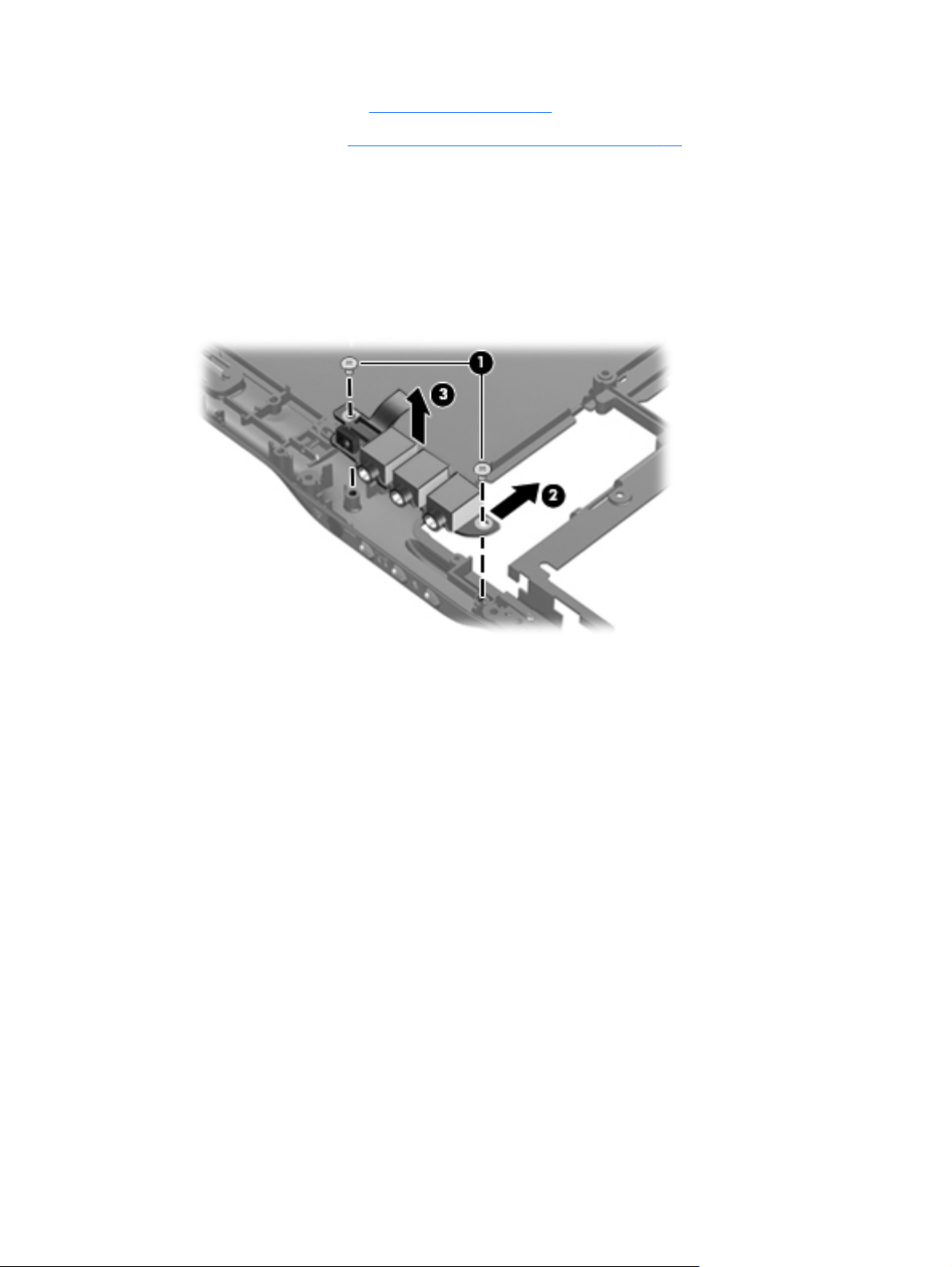

Audio/infrared board .......................................................................................................... 66

Fan/heat sink assembly ..................................................................................................... 68

Processor ........................................................................................................................... 70

5 Setup Utility ................................................................................................................................................... 72

Starting the Setup Utility ..................................................................................................................... 72

Changing the language of the Setup Utility ........................................................................................ 73

Navigating and selecting in the Setup Utility ...................................................................................... 73

Displaying system information ............................................................................................................ 73

Restoring default settings in the Setup Utility ..................................................................................... 74

Using advanced Setup Utility features ............................................................................................... 74

Closing the Setup Utility ..................................................................................................................... 75

Setup Utility menus ............................................................................................................................ 75

Main menu ......................................................................................................................... 75

Security menu .................................................................................................................... 75

System Configuration menu .............................................................................................. 76

Diagnostics menu .............................................................................................................. 76

6 Specifications ................................................................................................................................................ 77

Computer specifications .......................................................................................................

vi

.............. 77

12.1-inch, WXGA BrightView display specifications ........................................................................... 78

Hard drive specifications .................................................................................................................... 79

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive specifications .................................. 80

System DMA specifications ................................................................................................................ 81

System interrupt specifications ........................................................................................................... 82

System I/O address specifications ..................................................................................................... 83

System memory map specifications ................................................................................................... 85

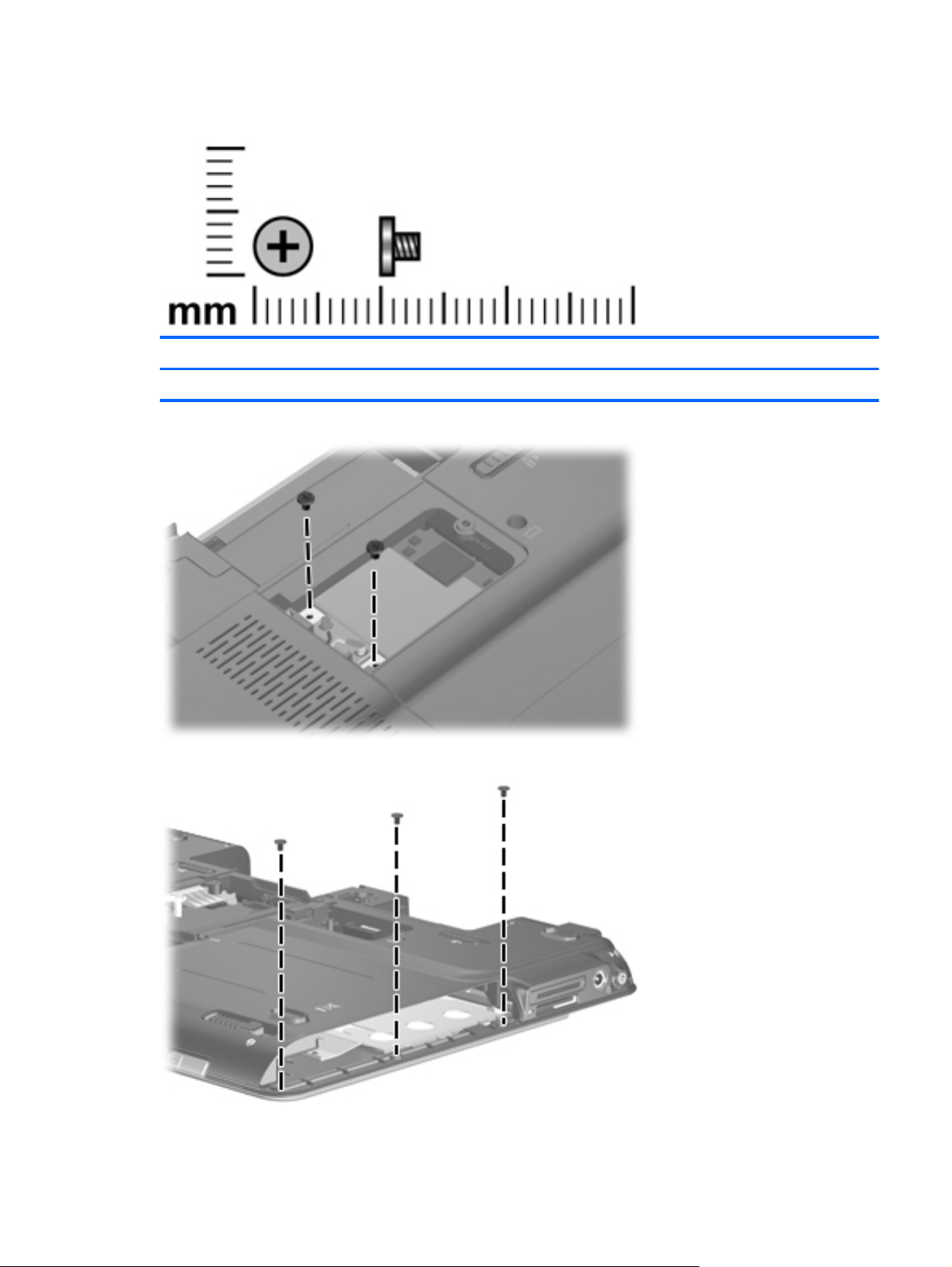

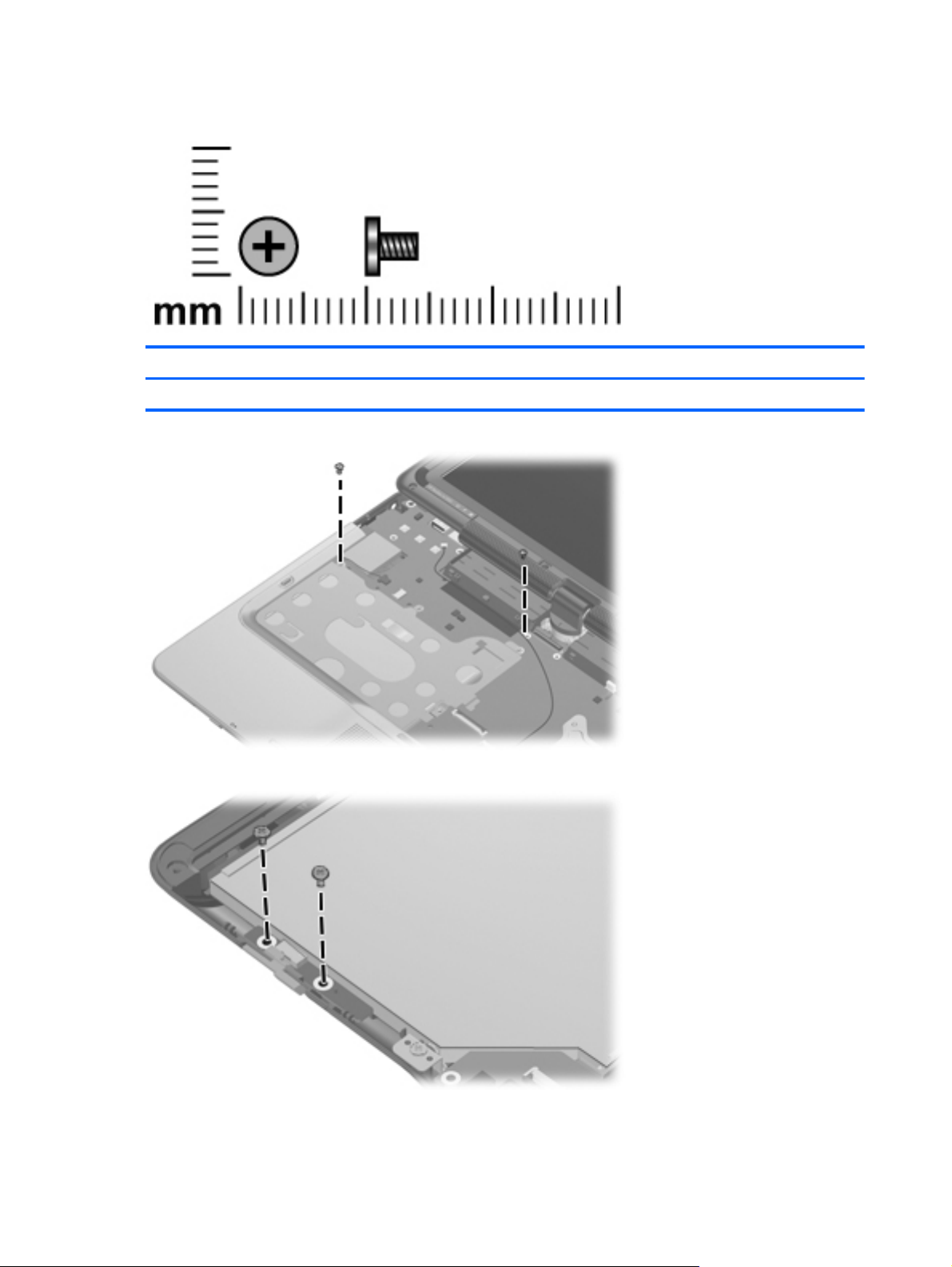

7 Screw listing .................................................................................................................................................. 86

Phillips PM3.0×3.0 screw ................................................................................................................... 86

Phillips PM2.0×7.0 screw ................................................................................................................... 87

Phillips PM2.0×4.0 screw ................................................................................................................... 88

Phillips PM2.0×5.0 captive screw ....................................................................................................... 90

Black Phillips PM2.0×3.0 screw ......................................................................................................... 91

Phillips PM2.0×11.0 screw ................................................................................................................. 92

Phillips PM2.5×6.0 screw ................................................................................................................... 93

Silver Phillips PM2.0×3.0 screw ......................................................................................................... 94

8 Backup and recovery .................................................................................................................................... 95

Recovering system information .......................................................................................................... 95

Creating recovery discs ..................................................................................................... 95

Backing up your information .............................................................................................. 96

When to back up ............................................................................................... 96

Backup suggestions .......................................................................................... 97

Using system restore points .............................................................................................. 97

When to create restore points ........................................................................... 97

Create a system restore point ........................................................................... 97

Restore to a previous date and time ................................................................. 98

Performing a recovery ....................................................................................................... 98

Recovering from the recovery discs .................................................................. 98

Recovering from the partition on the hard drive ................................................ 98

9 Connector pin assignments ....................................................................................................................... 100

Audio-out (headphone) ..................................................................................................................... 100

Audio-in (microphone) ...................................................................................................................... 100

External monitor ............................................................................................................................... 101

RJ-11 (modem) ................................................................................................................................ 102

RJ-45 (network) ................................................................................................................................ 102

S-Video-out ...................................................................................................................................... 103

Universal Serial Bus ......................................................................................................................... 103

vii

10 Power cord set requirements .................................................................................................................. 104

Requirements for all countries or regions ......................................................................................... 104

Requirements for specific countries or regions ................................................................................ 105

11 Recycling ................................................................................................................................................... 106

Battery .............................................................................................................................................. 106

Display .............................................................................................................................................. 106

Index ................................................................................................................................................................. 112

viii

1 Product description

Category Description

Product Name HP Pavilion tx2500 Entertainment PC

Processors AMD Turion™ 64 Mobile Technology Ultra-Dual Core ZM-86 processor, 2.4-GHz,

2-MB L2 cache, 800-MHz front side bus (FSB)

AMD Turion 64 Mobile Technology Ultra-Dual Core ZM-82 processor, 2.2-GHz, 2-

MB L2 cache, 800-MHz FSB

AMD Turion 64 Mobile Technology Ultra-Dual Core ZM-80 processor, 2.0-GHz, 2-

MB L2 cache, 800-MHz FSB

AMD Turion 64 Mobile Technology Dual Core RM-70 processor, 2.0-GHz, 1-MB

L2 cache, 800-MHz FSB

AMD Mobile Athlon™ Dual Core QL-62 processor, 2.0-GHz, 1-MB L2 cache, 667-

MHz FSB

AMD Mobile Athlon Dual Core QL-60 processor, 1.9-GHz, 1-MB L2 cache, 667-

MHz FSB

Chipset ATI Northbridge: AMD M780G

ATI Southbridge: SB700

Graphics Unified memory architecture (UMA) graphics subsystem memory integrated with

Graphics subsystem memory size is dynamic change

Panels 12.1-inch, WXGA (1280 × 800, 16:10 wide aspect ratio) BrightView with touch-

Typical brightness: 200 nits

Memory ● Two SODIMM slots

4096-MB total system memory (2048 MB × 2, dual-channel)

system memory:

Up to 271-MB on computer models with 1024-MB to 2048-MB system

●

memory

● Up to 527-MB on computer models with 2048-MB or more of system memory

screen + Wacom digitizer

Customer accessible/upgradable

●

Dual-channel support

●

DDRII PC2-5300 (667 and 800 MHz)

●

2048-MB total system memory (2048 MB × 1, 1024 MB × 2, dual-channel)

1

Category Description

1024-MB total system memory (1024 MB × 1, 512 MB × 2, dual-channel)

Hard drives

500-GB, 7200-rpm

320-GB, 7200-rpm

320-GB, 5400-rpm

250-GB, 5400-rpm

160-GB, 5400-rpm

Optical drives

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive

Web camera Low-light VGA camera, fixed (no tilt), with activity light, 24 frames per second

Diskette drive Supports external USB drive only

Audio

Supports all 9.5-mm, 2.5-inch hard drives

●

● Serial ATA

12.7-mm tray load

●

● Parallel ATA

HD audio - Azalia techology

●

● Supports Microsoft Gold requirements

● Two omni-directional, dual-array microphones

● Beam-forming, echo-cancellation, noise-suppression software

Pavilion-branded Altec Lansing speakers

●

Modem

Ethernet

Wireless Integrated wireless local area network (WLAN) options by way of wireless

Broadcom 4321AGN 802.11a/b/g/n + Bluetooth

Broadcom 4321AGN 802.11a/b/g/n

Broadcom 4311AG 802.11a/b/g + Bluetooth

Broadcom 4311AG 802.11a/b/g

Broadcom 4311G 802.11b/g + Bluetooth

Broadcom 4311G 802.11b/g

Broadcom BCM4312 802.11b/g + Bluetooth

Broadcom BCM4312 802.11b/g

Motorola 56K V.92 data/fax modem

●

● Supports all world wide certification requirements

● Modem cable is not included

Integrated Realtek 10/100/1000 (Gigabit Ethernet)

●

● Ethernet cable included

module (includes two 2.4-GHz antennae in display assembly):

2 Chapter 1 Product description

Category Description

External media card

Ports Audio-in (stereo microphone)

Audio-out (stereo headphone)

Audio-out (stereo headphone with S/PDIF)

Consumer infrared (one in computer base, one in display assembly)

eSATA

High-definition multimedia interface (HDMI) v1.3 supporting 1080p with high-

RJ-11 (modem)

RJ-45 (Ethernet), includes link and activity lights

S-Video-out (include component video support)

USB (3)

VGA (Dsub 15 pin) supporting 1600 × 1200 external resolution @ 75 Hz. Disabled

1394a

One ExpressCard/34 slot, requires slot bezel

●

● 5-in-1 Digital Media Slot, supports SD, MMC, MS, MSpro, xD. With adapter

(not included), supports mini versions of SD, MMC, and MS Duo.

bandwidth digital content protection (HDCP) key

when connected to devices through the expansion port 3. Hot plug, unplug, and
auto detect for correct output to wide-aspect and standard aspect video.

2-pin 65-W AC power

Docking Docking support through the expansion port 3. Supports the HP xb3000 Notebook

Keyboard/pointing devices 12.1-inch keyboard with embedded numeric keypad

Taps enabled as default

TouchPad with 2 buttons and two-way scroll

Wacom 9.0-mm touch-screen pen

Power requirements 8-cell, 73-Wh, 2.55-Ah Li-ion battery

65-W AC adapter with localized cable plug support (2-wire plug with ground pin,

Security Security cable slot

Fingerprint reader

Operating system Preinstalled:

Windows Vista® Business (32-bit)

Windows Vista Premium (32- and 64-bit)

Expansion Base and the HP Notebook QuickDock.

6-cell, 55-Wh, 2.55-Ah Li-ion battery

4-cell, 37-Wh, 2.55-Ah Li-ion battery

supports 2-pin DC connector)

Windows Vista Ultimate (64-bit)

Serviceability End-user replaceable parts:

3

Category Description

AC adapter

Battery (system)

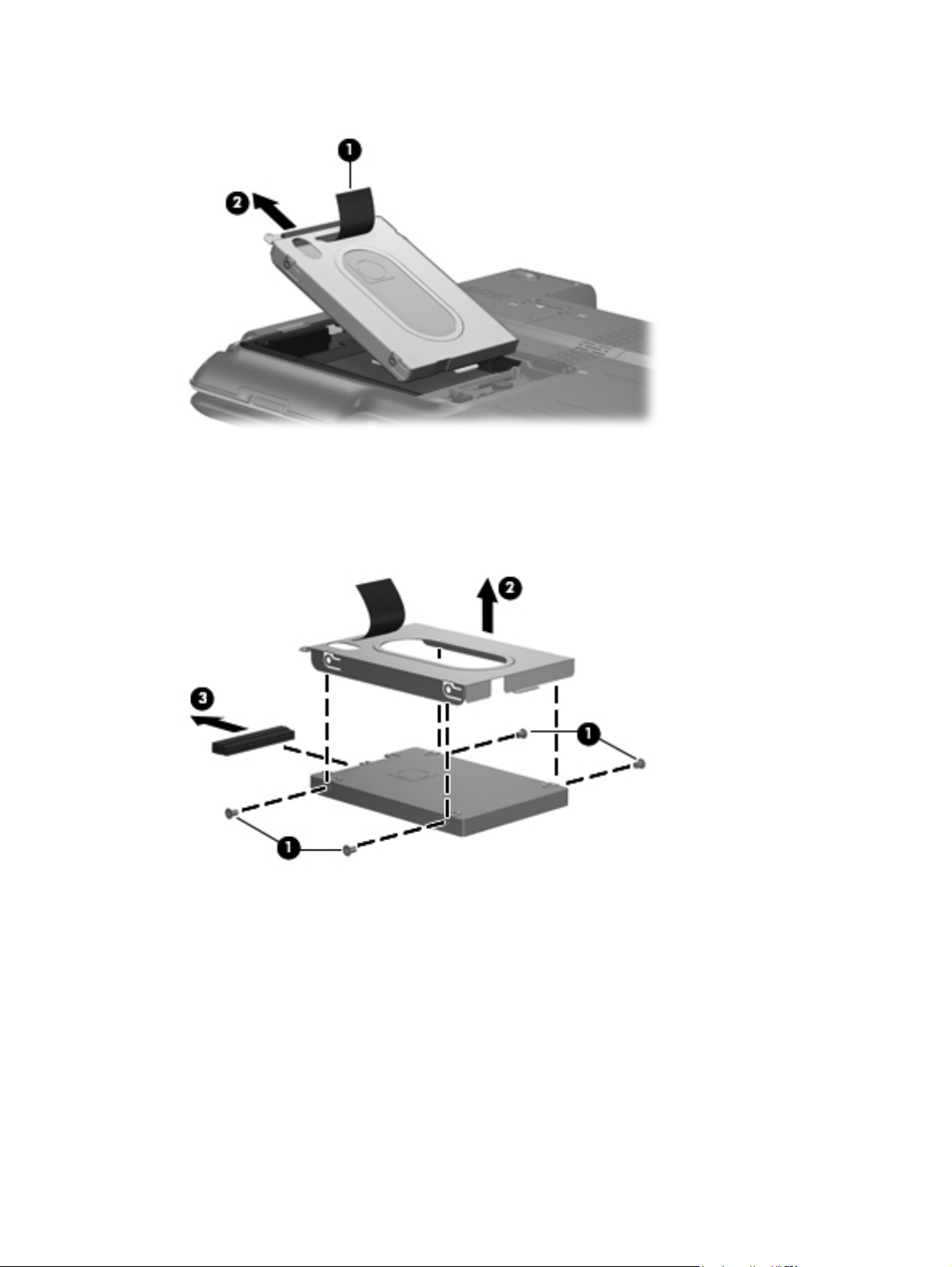

Hard drive

Memory module

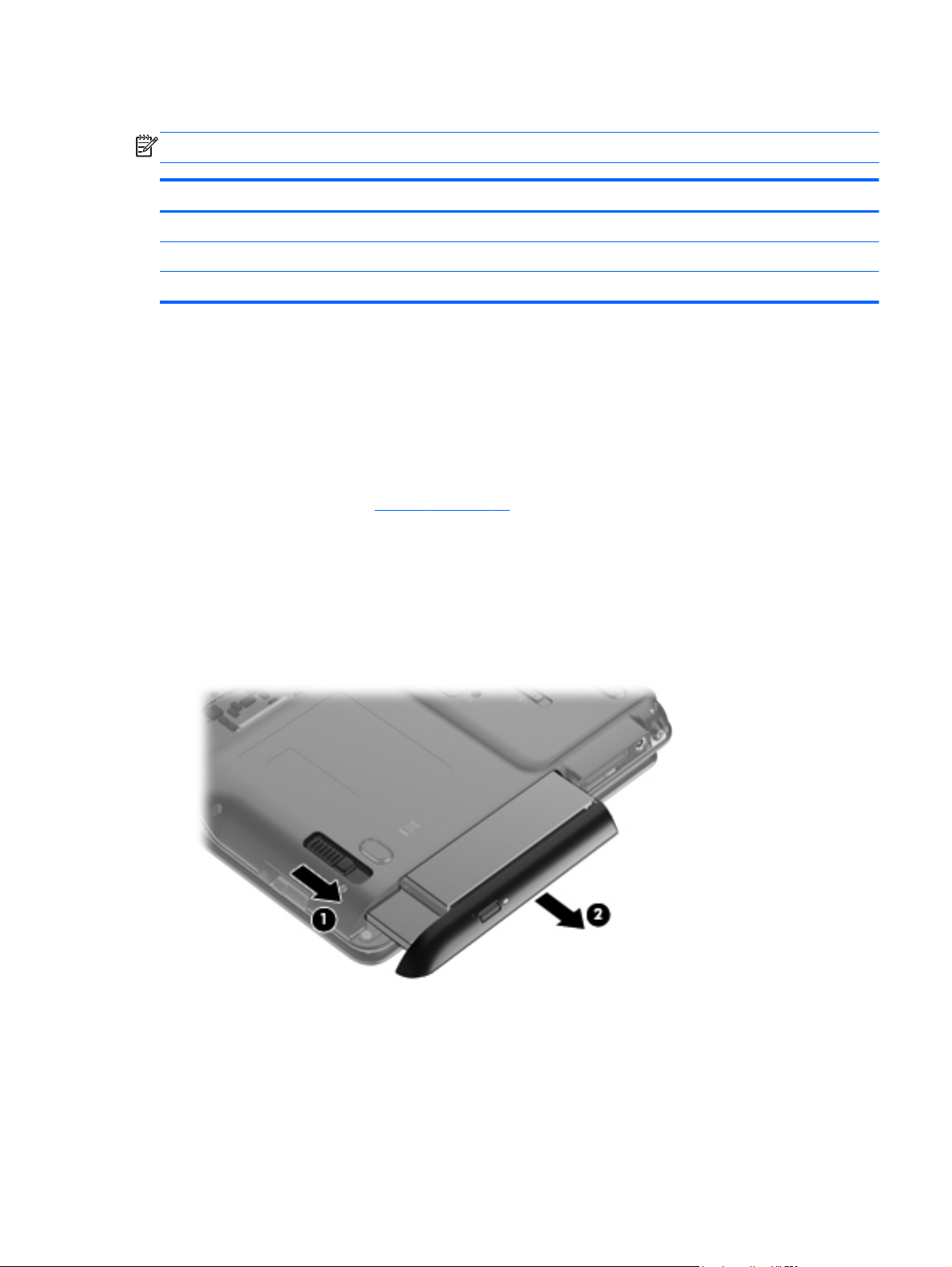

Optical drive

WLAN module

4 Chapter 1 Product description

2 External component identification

Top components

Display components

Item Component Function

(1) Internal microphones (2) Record sound.

(2) Display release latch Opens the computer.

(3) Integrated camera (select models only) Records video and captures still photographs.

(4) DVD button Launches the DVD playback feature of the QuickPlay

(5) Media button Launches the QuickPlay program.

(6) Mobility Center button Opens Mobility Center.

(7) Rotate button Rotates the screen image clockwise into 4

(8) Speakers (2) Produce sound.

program.

orientations: landscape primary, landscape secondary,
portrait primary, and portrait secondary.

Top components 5

Item Component Function

(9) Convertible hinge Swivels the display and converts the computer from

(10) Drive light Blinking: The hard drive or optical drive is being

(11) Battery light

(12) Power light

(13) Consumer infrared lens Receives a signal from the HP Remote Control.

traditional notebook mode into slate mode or vice
versa. In slate mode, the display is rotated and folded
flat, so that you can view content while carrying the
computer.

accessed.

On: A battery is charging.

●

● Blinking: A battery that is the only available

power source has reached a low battery level.
When the battery reaches a critical battery level,
the battery light begins blinking rapidly.

● Off: If the computer is plugged into an external

power source, the light is turned off when all
batteries in the computer are fully charged. If the
computer is not plugged into an external power
source, the light stays off until the battery
reaches a low battery level.

On: The computer is on.

●

● Blinking: The computer is in the Sleep state.

Off: The computer is off or in Hibernation.

●

(14) Internal display switch Turns off the display and initiates Sleep if the display

(15) Fingerprint reader (select models only) Allows a fingerprint logon to Windows instead of a

(16) Wireless antennae (select models only) Send and receive signals from one or more wireless

is closed while the power is on.

password logon.

devices. These antennae are not visible from the
outside of the computer.

6 Chapter 2 External component identification

Keys

Item Component Function

(1) esc key Displays system information when pressed in

(2) fn key Executes frequently used system functions when

(3) Windows logo key Displays the Windows® Start menu.

(4) Windows applications key Displays a shortcut menu for items beneath the

(5) Embedded numeric keypad keys Can be used like the keys on an external numeric

(6) Function keys Execute frequently used system functions when

combination with the fn key.

pressed in combination with a function key or the esc
key.

pointer.

keypad.

pressed in combination with the fn key.

Top components 7

Pointing devices

Item Component Function

(1) TouchPad on/off button Enables/disables the TouchPad.

(2) TouchPad* Moves the pointer and selects or activates items on

(3) Left TouchPad button* Functions like the left button on an external mouse.

(4) TouchPad light

(5) TouchPad vertical scroll zone Scrolls up or down.

(6) Right TouchPad button* Functions like the right button on an external mouse.

*This table describes factory settings. To view and change pointing device preferences, select Start > Control Panel >
Hardware and Sound > Mouse.

the screen.

Blue: TouchPad is enabled.

●

● Amber: TouchPad is disabled.

8 Chapter 2 External component identification

Front components

Item Component Function

(1) Display release latch Opens the computer.

(2) Power switch*

(3) Power light ● On: The computer is on.

When the computer is off, slide the power switch

●

to the right to turn on the computer.

When the computer is on, slide the power switch

●

to the right to initiate Sleep.

● When the computer is in the Sleep state, slide

the power switch to the right briefly to exit Sleep.

When the computer is in Hibernation, slide the

●

power switch to the right briefly to exit
Hibernation.

If the computer has stopped responding and Windows
shutdown procedures are not effective, slide the
power switch to the right and hold for at least 5
seconds to turn off the computer.

To learn more about your power settings, select Start

> Control Panel > System and Maintenance >
Power Options.

To learn more about Sleep or Hibernation, refer to the
Power Management guide.

Blinking: The computer is in the Sleep state.

●

Off: The computer is off or in Hibernation.

●

(4) Consumer infrared lens Receives a signal from the HP Remote Control.

(5) Audio-out (headphone) S/PDIF jack Provides enhanced audio performance, including

(6) Audio-out (headphone) jack Produces sound when connected to optional powered

(7) Audio-in (microphone) jack Connects an optional computer headset microphone,

(8) Wireless switch Turns the wireless feature on or off, but does not

surround sound and other high-end audio output.

stereo speakers, headphones, ear buds, a headset, or
television audio.

stereo array microphone, or monaural microphone.

create a wireless connection.

NOTE: A wireless network must be set up in order to

establish a wireless connection.

Front components 9

Item Component Function

(9) Wireless light

*This table describes factory settings. For information about changing factory settings, refer to the user guides located in
Help and Support.

Left-side components

Item Component Function

(1) Power connector Connects an AC adapter.

(2) ExpressCard slot Supports optional ExpressCard/34 cards.

Blue: An integrated wireless device, such as a

●

WLAN device and/or a Bluetooth® device, is
turned on.

Amber: All wireless devices are turned off.

●

(3) Digital Media Slot Supports the following optional digital card formats:

(4) Digital Media Slot light On: A digital card is being accessed.

(5) Optical drive Reads optical discs and, on select models, also writes

(6) Optical light Blinking: The optical drive is being accessed.

Secure Digital (SD) Memory Card, MultiMediaCard
(MMC), Memory Stick (MS), Memory Stick Pro (MSP),
xD-Picture Card (XD), xD-Picture Card (XD) Type M.

to optical discs.

10 Chapter 2 External component identification

Right-side components

Item Component Function

(1) Previous/rewind button

(2) Play/pause button Plays or pauses media.

(3) Next/fast forward button ● Plays the next track or chapter when the button is

(4) Stop button Stops playback.

(5) Pen holder Stores the pen.

(6) USB port Connects an optional USB device.

(7) Pen tether hole Connects the pen tether.

(8) RJ-45 (network) jack Connects a network cable.

(9) Expansion port 3 Connects the computer to an optional docking device

Plays the previous track or chapter when the

●

button is pressed once.

Rewinds media when the button is pressed

●

simultaneously with the fn key.

pressed once.

Fast forwards media when pressed

●

simultaneously with the fn key.

or an optional expansion product.

NOTE: The computer has only one expansion port.

The term expansion port 3 describes the type of
expansion port.

(10) External monitor port Connects an external VGA monitor or projector.

(11) S-Video-out jack Connects an optional S-Video device such as a

(12) Vent Enables airflow to cool internal components.

television, VCR, camcorder, overhead projector, or
video capture card.

NOTE: The computer fan starts up automatically to

cool internal components and prevent overheating. It
is normal for the internal fan to cycle on and off during
routine operation.

Right-side components 11

Rear components

Item Component Function

(1) Vent Enables airflow to cool internal components.

(2) RJ-11 (modem) jack Connects a modem cable.

(3) USB ports (2) Connect optional USB devices.

(4) Security cable slot Attaches an optional security cable to the computer.

NOTE: The computer fan starts up automatically to

cool internal components and prevent overheating. It
is normal for the internal fan to cycle on and off during
routine operation.

NOTE: The security cable is designed to act as a

deterrent, but it may not prevent the computer from
being mishandled or stolen.

12 Chapter 2 External component identification

Bottom components

Item Component Function

(1) Vents (6) Enable airflow to cool internal components.

NOTE: The computer fan starts up automatically to

cool internal components and prevent overheating. It
is normal for the internal fan to cycle on and off during
routine operation.

(2) Battery release latches (2) Releases the battery from the battery bay.

(3) Hard drive bay Holds the hard drive.

(4) Optical drive release latch Releases the optical drive from the drive bay.

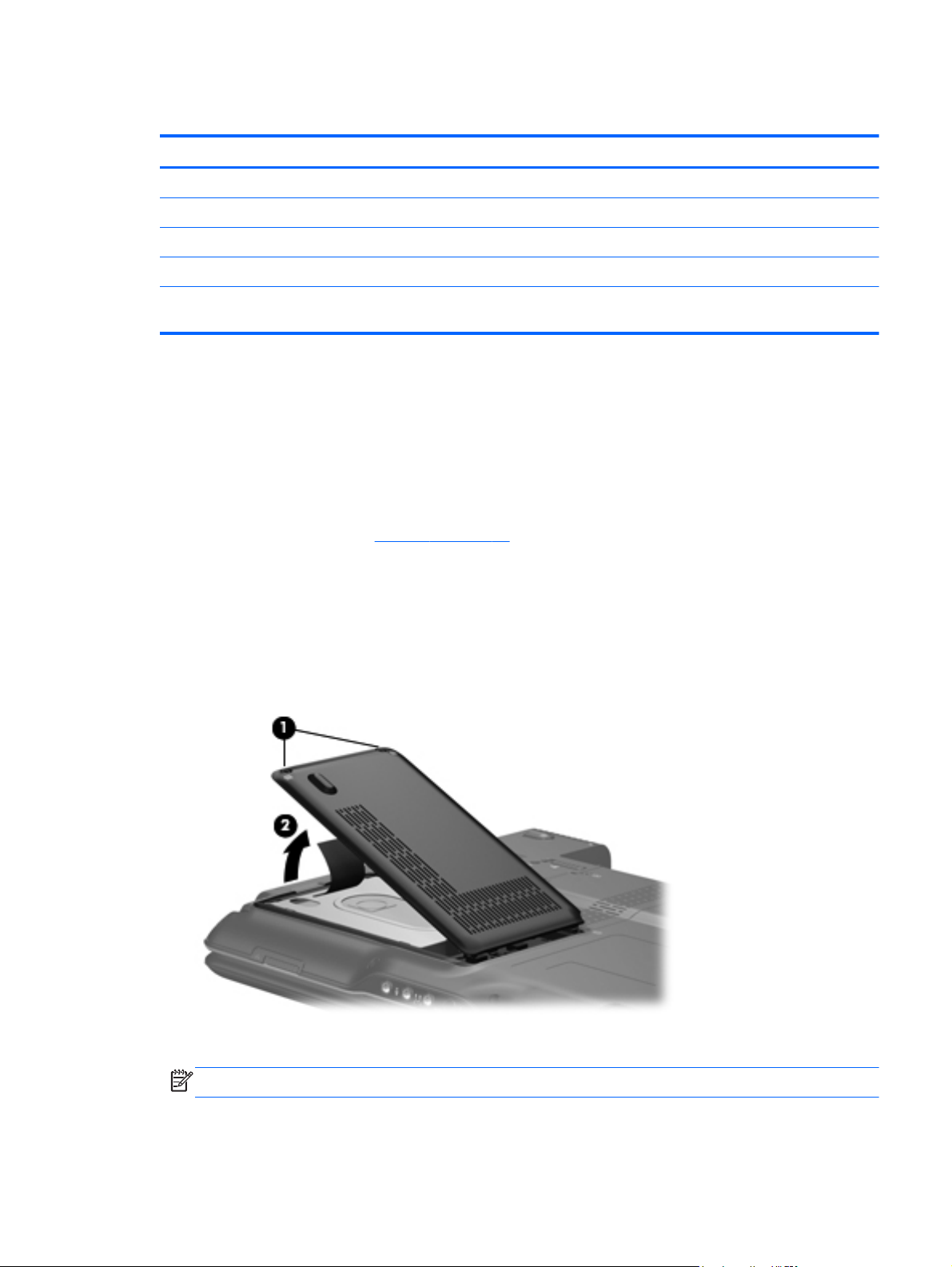

(5) Memory module compartment Contains the memory module slots.

(6) WLAN module compartment Holds a WLAN module (select models only).

NOTE: To prevent an unresponsive system, replace

the wireless module only with a wireless module
authorized for use in the computer by the
governmental agency that regulates wireless devices
in your country or region. If you replace the module
and then receive a warning message, remove the
module to restore computer functionality, and then
contact technical support through Help and Support.

(7) Battery bay Holds the battery.

Bottom components 13

3 Illustrated parts catalog

Service tag location

The service tag, affixed to the bottom of the computer, provides information that may be needed
when troubleshooting system problems. The service tag provides the following information:

(1) Product name: This is the product name affixed to the front of the computer.

(2) Serial number (s/n): This is an alphanumeric identifier that is unique to each product.

(3) Part number/Product number (p/n): This number provides specific information about the product's

hardware components. The part number helps a service technician to determine what components
and parts are needed.

(4) Model description: This is the number used to locate documents, drivers, and support for
the computer.

(5) Warranty period: This number describes the duration of the warranty period for the computer.
When ordering parts or requesting information, provide the computer serial number and model
description provided on the service tag. When ordering parts or requesting information, provide the
computer serial number and model number located on the bottom of the computer.

14 Chapter 3 Illustrated parts catalog

Service tag location 15

Computer major components

Item Description Spare part number

(1a) Display assembly

12.1-inch, WXGA, BrightView touch-screen display assembly with Web camera,
fingerprint reader, microphones, and WLAN antenna cables

16 Chapter 3 Illustrated parts catalog

484751-001

Item Description Spare part number

12.1-inch, WXGA, BrightView touch-screen display assembly with Web camera,
microphones, and WLAN antenna cables

(1b) Display convertible hinge cover (included with display assembly)

Display Rubber Kit (not illustrated, includes 8 display bezel rubber screw covers) 464824-001

(2a) Switch cover 464115-001

(2b) Switch cover trim (included with switch cover)

(3) Keyboard

Belgium 484748-A41

Brazil 484748-201

Canada 484748-121

Denmark, Norway, and Sweden 484748-DH1

France 484748-051

Germany 484748-041

Israel 484748-BB1

Italy 484748-061

Japan 484748-291

Latin America 484748-161

484750-001

The Netherlands 484748-B31

Portugal 484748-131

Russia 484748-251

Saudi Arabia 484748-171

South Korea 484748-AD1

Spain 484748-071

Taiwan 484748-AB1

Thailand 484748-281

Turkey 484748-141

The United Kingdom 484748-031

The United States and Canada 484748-001

(4) Top cover (includes TouchPad and TouchPad cable, caps lock light board and

cable, and top cover bumper pads)

(5) RTC battery 449729-001

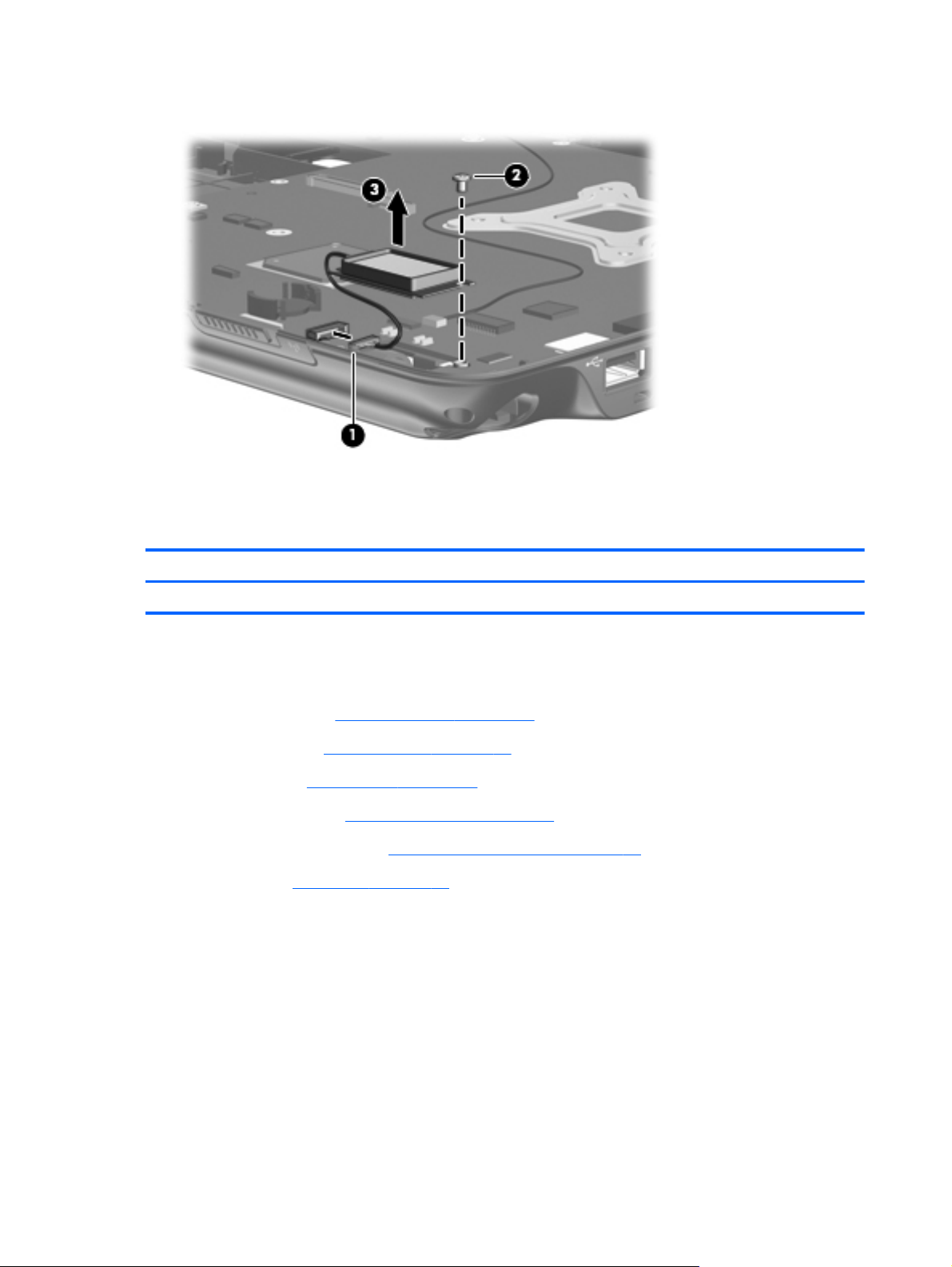

(6) Bluetooth module 483113-001

Bluetooth module cable (not illustrated) 487697-001

Plastics Kit 487926-001

464111-001

(7a) ExpressCard slot bezel

Computer major components 17

Item Description Spare part number

(7b) Memory module compartment cover (includes 2 captive screws, secured by C-clips)

(7c) WLAN module compartment cover (includes 1 captive screw, secured by a C-clip)

(7d) Hard drive cover (includes one rubber foot and 2 captive screws, secured by C-clips)

(7e) Display connector cover (includes 1 captive screw, secured by a C-clip)

(8a) Power switch assembly (includes power switch board cable and power switch

board actuator)

(8b) Power switch board actuator

(9a) Pen eject assembly (includes pen holder) 464113-001

(9b) Pen holder

(10) System board (includes replacement thermal material) 480850-001

(11) Processor (includes replacement thermal paste)

AMD Turion 64 Mobile Technology ZM-86 (2.4-GHz, 1-MB L2 cache, 800-MHz

FSB)

AMD Turion 64 Mobile Technology ZM-84 (2.3-GHz, 1-MB L2 cache, 800-MHz

FSB)

AMD Turion 64 Mobile Technology ZM-82 (2.2-GHz, 1-MB L2 cache, 800-MHz

FSB)

AMD Turion 64 Mobile Technology ZM-80 (2.1-GHz, 1-MB L2 cache, 800-MHz

FSB)

AMD Turion 64 Mobile Technology RM-72 (2.1-GHz, 1-MB L2 cache, 800-MHz

FSB)

AMD Turion 64 Mobile Technology RM-70 (2.0-GHz, 1-MB L2 cache, 800-MHz

FSB)

441142-001

507974-001

507957-001

507973-001

507972-001

507978-001

507977-001

AMD Athlon QL-62 (2.0-GHz, 512-KB L2 cache, 667-MHz FSB) 506052-001

AMD Athlon QL-60 (1.9-GHz, 512-KB L2 cache, 667-MHz FSB) 507982-001

(12) Audio/infrared board (includes audio/infrared board cable) 441144-001

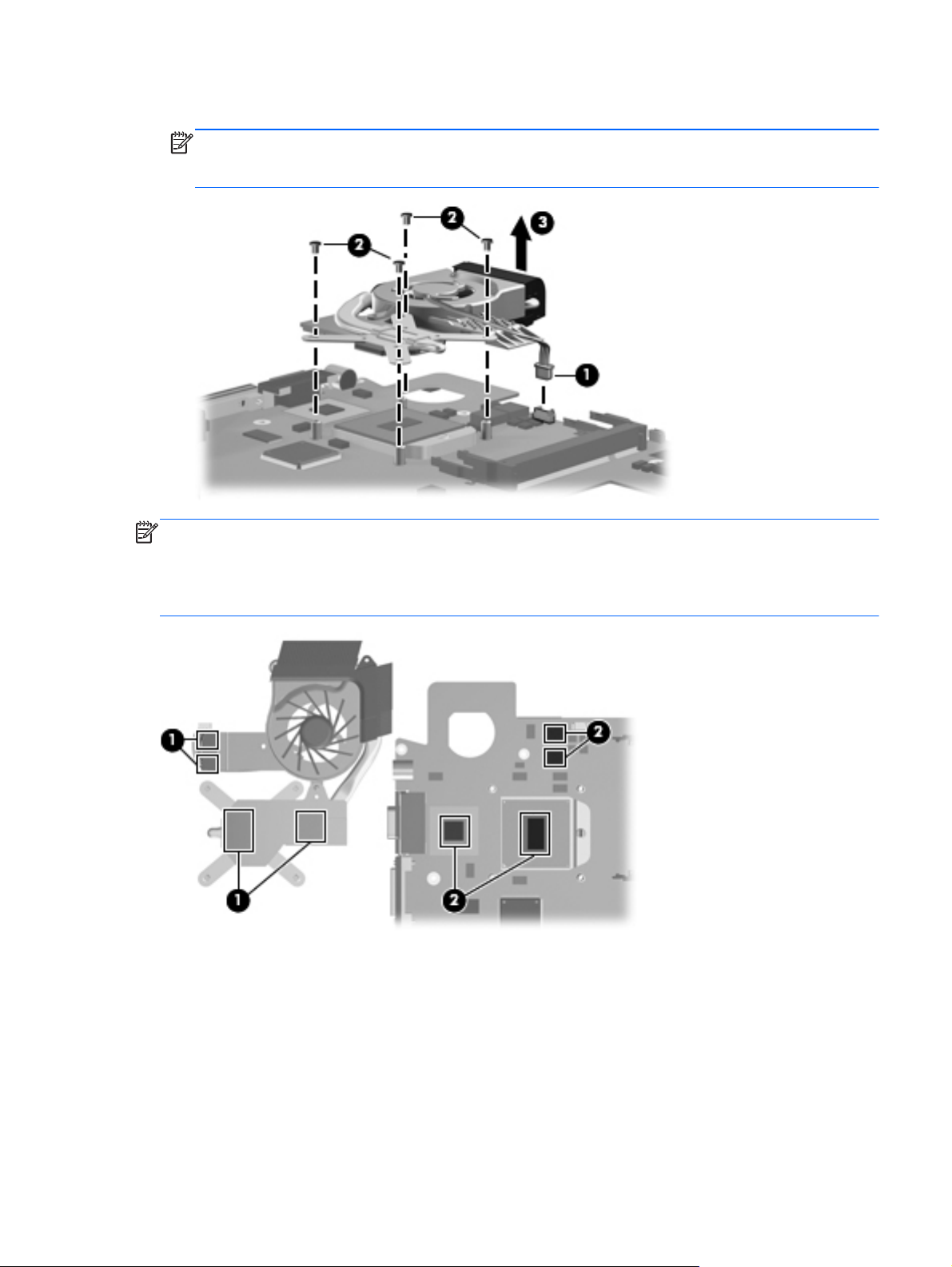

(13) Fan/heat sink assembly (includes replacement thermal paste and thermal pads) 487925-001

(14) Pen 593028-001

(15) Optical drive (includes bezel)

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe 480864-001

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive 480865-001

(16) Base enclosure (includes optical drive release assembly, 2 battery release

latches, and 4 rubber feet)

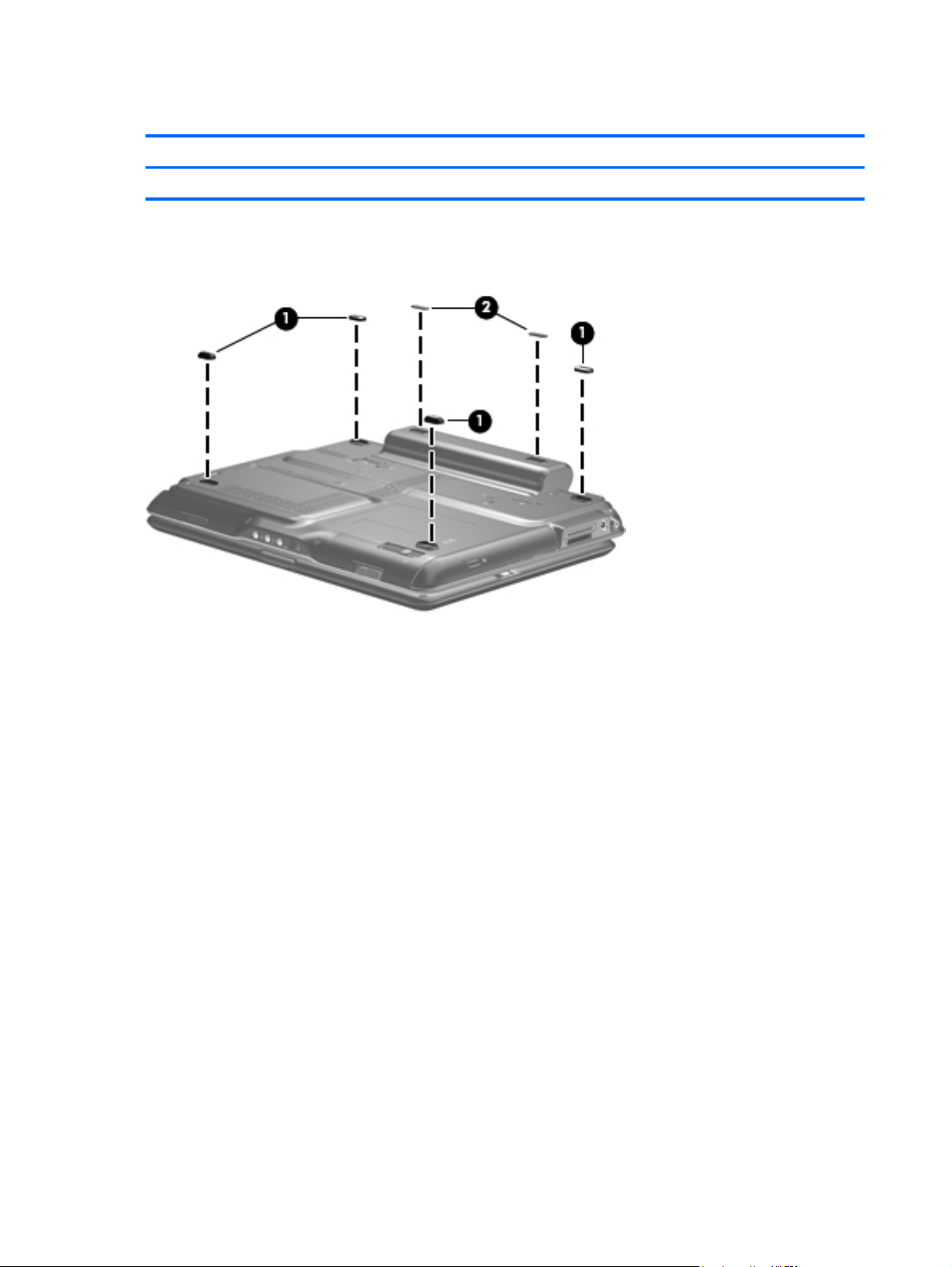

Rubber Feet Kit (not illustrated, includes base enclosure rubber feet) 464821-001

(17) Memory module (1-DIMM, PC2-6400, 667-MHz, 800 DDR)

2048-MB 598858-001

1024-MB 598861-001

512-MB 598833-001

466437-001

18 Chapter 3 Illustrated parts catalog

Item Description Spare part number

(18) WLAN module

Broadcom 4321AGN 802.11a/b/g/n WLAN module

● For use in Canada, the Cayman Islands, Guam, Puerto Rico,

the U.S. Virgin Islands, and the United States

● For use in Afghanistan, Albania, Algeria, Andorra,

Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria,
Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belgium, Belize,
Benin, Bermuda, Bolivia, Bosnia and Herzegovina, Botswana, Brazil,
the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi,
Cameroon, Cape Verde, the Cayman Islands, the Central African Republic,
Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus,
the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic,
East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia,
Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia,
Germany, Ghana, Gibraltar, Greece, Guadeloupe, Guam, Guatemala,
Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary,
Iceland, India, Ireland, Italy, the Ivory Coast, Jamaica, Jordan, Kenya,
Kiribati, Kyrgyzstan, Laos, Latvia, Lesotho, Liberia, Liechtenstein, Lithuania,
Luxembourg, Macedonia, Madagascar, Malawi, the Maldives, Mali, Malta,
the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia,
Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru,
Nepal, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway,
Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay,
the People's Republic of China, Peru, the Philippines, Poland, Portugal,
Puerto Rico, the Republic of Moldova, Romania, Russia, Rwanda, Samoa,
San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia,
the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia,
the Solomon Islands, Somalia, South Africa, Spain, Sri Lanka,
St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname,
Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo,
Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu,
Uganda, the United Arab Emirates, the United Kingdom, Uruguay,
Uzbekistan, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

453730-001

453730-002

● For use in Japan 453730-291

Broadcom 4311G 802.1b/g WLAN module

For use in Canada, the Cayman Islands, Guam, Puerto Rico,

●

the U.S. Virgin Islands, and the United States

Computer major components 19

Item Description Spare part number

For use in Afghanistan, Albania, Algeria, Andorra,

●

Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria,
Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belgium, Belize,
Benin, Bermuda, Bolivia, Bosnia and Herzegovina, Botswana, Brazil,
the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi,
Cameroon, Cape Verde, the Cayman Islands, the Central African Republic,
Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus,
the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic,
East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia,
Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia,
Germany, Ghana, Gibraltar, Greece, Guadeloupe, Guam, Guatemala,
Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary,
Iceland, India, Ireland, Italy, the Ivory Coast, Jamaica, Jordan, Kenya,
Kiribati, Kyrgyzstan, Laos, Latvia, Lesotho, Liberia, Liechtenstein, Lithuania,
Luxembourg, Macedonia, Madagascar, Malawi, the Maldives, Mali, Malta,
the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia,
Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru,
Nepal, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway,
Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay,
the People's Republic of China, Peru, the Philippines, Poland, Portugal,
Puerto Rico, the Republic of Moldova, Romania, Russia, Rwanda, Samoa,
San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia,
the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia,
the Solomon Islands, Somalia, South Africa, Spain, Sri Lanka,
St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname,
Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo,
Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu,
Uganda, the United Arab Emirates, the United Kingdom, Uruguay,
Uzbekistan, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

Broadcom BCM4312 802.11b/g WLAN module

For use in Canada, the Cayman Islands, Guam, Puerto Rico,

●

the U.S. Virgin Islands, and the United States

459263-001

20 Chapter 3 Illustrated parts catalog

Item Description Spare part number

For use in Afghanistan, Albania, Algeria, Andorra,

●

Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria,
Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belgium, Belize,
Benin, Bermuda, Bolivia, Bosnia and Herzegovina, Botswana, Brazil,
the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi,
Cameroon, Cape Verde, the Cayman Islands, the Central African Republic,
Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus,
the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic,
East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia,
Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia,
Germany, Ghana, Gibraltar, Greece, Guadeloupe, Guam, Guatemala,
Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary,
Iceland, India, Ireland, Italy, the Ivory Coast, Jamaica, Jordan, Kenya,
Kiribati, Kyrgyzstan, Laos, Latvia, Lesotho, Liberia, Liechtenstein, Lithuania,
Luxembourg, Macedonia, Madagascar, Malawi, the Maldives, Mali, Malta,
the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia,
Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru,
Nepal, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway,
Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay,
the People's Republic of China, Peru, the Philippines, Poland, Portugal,
Puerto Rico, the Republic of Moldova, Romania, Russia, Rwanda, Samoa,
San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia,
the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia,
the Solomon Islands, Somalia, South Africa, Spain, Sri Lanka,
St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname,
Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo,
Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu,
Uganda, the United Arab Emirates, the United Kingdom, Uruguay,
Uzbekistan, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

459263-002

(19) Hard drive (includes hard drive bracket and hard drive connector)

500-GB, 7200-rpm 634924-001

320-GB, 7200-rpm 603783-001

320-GB, 5400-rpm 622643-001

160-GB, 7200-rpm 579045-001

Hard Drive Hardware Kit (not illustrated; includes hard drive bracket, hard drive

connector, and hard drive screws)

(20) Battery

8-cell, 73-Ah, 2.55-Ah 463650-003

6-cell, 55-Ah, 2.55-Ah 441132-003

6-cell, 2.55-Ah, for use in Japan 534133-291

4-cell, 37-Ah, 2.55-Ah 441131-003

497744-001

Computer major components 21

Plastics Kit

Item Description Spare part number

Plastics Kit 487926-001

(1) ExpressCard slot bezel

(2) Hard drive cover (includes 1 rubber foot and 2 captive screws, secured by C-clips)

(3) Display connector cover (includes 1 captive screw, secured by a C-clip)

(4) WLAN module compartment cover (includes 1 captive screw, secured by a C-clip)

(5) Memory module compartment cover (includes 2 captive screws, secured by C-clips)

22 Chapter 3 Illustrated parts catalog

Mass storage devices

Item Description Spare part number

(1) Hard drives (include frame and hard drive connector

500-GB, 7200-rpm 634924-001

320-GB, 7200-rpm 603783-001

320-GB, 5400-rpm 622643-001

160-GB, 7200-rpm 579045-001

Hard Drive Hardware Kit (includes hard drive bracket, hard drive connector, and

hard drive screws)

(2) Optical drive (includes bezel and bracket)

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe 480864-001

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive 480865-001

Optical drive weight saving blank (not illustrated) 518183-001

497744-001

Mass storage devices 23

Miscellaneous parts

Description Spare part number

65-watt AC adapter 613149-001

ATSC/NTSC TV tuner antenna 455457-001

ATSC/NTSC TV tuner 455456-001

Audio/video cable 455459-001

Cat5E cable 454619-001

DVB-T TV tuner 412175-002

DVB-T TV tuner antenna 412176-003

DVB-T TV tuner antenna adapter 412176-001

HP backpack 405527-001

HP carrying case 418162-001

HP notebook protective sleeve 480105-001

Remote control (fits into ExpressCard slot) 465539-001

Infrared emitter with cable 439129-001

Optical wired mouse 436238-001

Power cord

Argentina 490371-D01

Australia 490371-011

Brazil 490371-201

Denmark 490371-081

Europe 490371-021

India 490371-D61

Israel 490371-BB1

Italy 490371-061

Japan 490371-291

North America 490371-001

The People's Republic of China 490371-AA1

South Africa 490371-AR1

South Korea 490371-AD1

Switzerland 490371-111

Taiwan 490371-AB1

The United Kingdom 490371-031

24 Chapter 3 Illustrated parts catalog

Description Spare part number

Screw Kit

● Phillips PM3.0×3.0 screw

Phillips PM2.5×6.0 screw

●

Phillips PM2.0×11.0 screw

●

● Black Phillips PM2.0×7.0 captive screw

Silver Phillips PM2.0×7.0 screw

●

Phillips PM2.0×5.0 captive screw

●

● Phillips PM2.0×5.0 screw

Phillips PM2.0×4.0 captive screw

●

Phillips PM2.0×4.0 screw

●

Phillips PM2.0×3.0 screw

●

Tablet stand 466337-001

USB extension cable 455458-001

USB travel mouse 435836-001

Vista remote control 439254-001

Wired headset with volume control 371693-003

464116-001

Wireless laser mouse 508501-001

Sequential part number listing

Spare part
number

371693-003 Wired headset with volume control

405527-001 HP backpack

412175-002 DVB-T TV tuner

412176-001 DVB-T TV tuner antenna adapter

412176-003 DVB-T TV tuner antenna

418162-001 HP carrying case

435836-001 USB travel mouse

436238-001 Optical wired mouse

441131-003 4-cell, 37-Ah, 2.55-Ah battery

441132-003 6-cell, 55-Ah, 2.55-Ah battery

441142-001 Power switch assembly (includes power switch board cable and power switch board actuator)

Description

441144-001 Audio/infrared board (includes audio/infrared board cable)

Sequential part number listing 25

Spare part
number

449729-001 RTC battery

Description

453730-001 Broadcom 4321AGN 802.11a/b/g/n WLAN module for use in Canada, the Cayman Islands, Guam,

453730-002 Broadcom 4321AGN 802.11a/b/g/n WLAN module for use in Afghanistan, Albania, Algeria, Andorra,

453730-291 Broadcom 4321AGN 802.11a/b/g/n WLAN module for use in Japan

454619-001 Cat5E cable (3.6-mm)

Puerto Rico, the U.S. Virgin Islands, and the United States

Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas,
Bahrain, Bangladesh, Barbados, Belgium, Belize, Benin, Bermuda, Bolivia, Bosnia and Herzegovina,
Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon,
Cape Verde, the Cayman Islands, the Central African Republic, Chad, Chile, Colombia, Comoros,
the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica,
the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia,
Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar,
Greece, Guadeloupe, Guam, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong,
Hungary, Iceland, India, Ireland, Italy, the Ivory Coast, Jamaica, Jordan, Kenya, Kiribati, Kyrgyzstan, Laos,
Latvia, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi,
the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia,
Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Netherlands,
New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea,
Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Puerto Rico,
the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe,
Saudi Arabia, Senegal, Serbia, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia,
the Solomon Islands, Somalia, South Africa, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia,
St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania,
Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda,
the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Venezuela, Vietnam, Yemen, Zaire,
Zambia, and Zimbabwe

455456-001 ATSC/NTSC TV tuner

455457-001 ATSC/NTSC TV tuner antenna

455458-001 USB extension cable

455459-001 Audio/video cable

459263-001 Broadcom BCM4312 802.11b/g WLAN module for use in Canada, the Cayman Islands, Guam,

Puerto Rico, the U.S. Virgin Islands, and the United States

26 Chapter 3 Illustrated parts catalog

Spare part
number

Description

459263-002 Broadcom BCM4312 802.11b/g WLAN module for use in Afghanistan, Albania, Algeria, Andorra,

463650-003 8-cell, 73-Wh, 2.55-Ah battery

464111-001 Top cover (includes TouchPad and TouchPad cable, caps lock light board and cable, and top cover

464113-001 Pen holder and pen eject assembly

Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas,
Bahrain, Bangladesh, Barbados, Belgium, Belize, Benin, Bermuda, Bolivia, Bosnia and Herzegovina,
Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon,
Cape Verde, the Cayman Islands, the Central African Republic, Chad, Chile, Colombia, Comoros,
the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica,
the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia,
Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar,
Greece, Guadeloupe, Guam, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong,
Hungary, Iceland, India, Ireland, Italy, the Ivory Coast, Jamaica, Jordan, Kenya, Kiribati, Kyrgyzstan, Laos,
Latvia, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi,
the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia,
Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Netherlands,
New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea,
Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Puerto Rico,
the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe,
Saudi Arabia, Senegal, Serbia, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia,
the Solomon Islands, Somalia, South Africa, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia,
St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania,
Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda,
the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Venezuela, Vietnam, Yemen, Zaire,
Zambia, and Zimbabwe

bumper pads)

464115-001 Switch cover (includes switch cover trim)

464116-001 Screw Kit

464821-001 Rubber Feet Kit (includes base enclosure rubber feet)

464824-001 Display Rubber Kit (includes 8 display bezel rubber screw covers)

465539-001 Remote control (fits into ExpressCard slot)

466337-001 Tablet stand

466437-001 Base enclosure (includes optical drive release assembly, 2 battery release latches, and 4 rubber feet)

480105-001 HP notebook protective sleeve

480850-001 System board (includes replacement thermal material)

480864-001 DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe

480865-001 DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive

483113-001 Bluetooth module

484748-001 Keyboard for use in the United States

484748-031 Keyboard for use in the United Kingdom

484748-041 Keyboard for use in Germany

484748-051 Keyboard for use in France

484748-061 Keyboard for use in Italy

484748-071 Keyboard for use in Spain

Sequential part number listing 27

Spare part
number

484748-121 Keyboard for use in French Canada

484748-131 Keyboard for use in Portugal

484748-141 Keyboard for use in Turkey

484748-161 Keyboard for use in Latin America

484748-171 Keyboard for use in Saudi Arabia

484748-201 Keyboard for use in Brazil

484748-251 Keyboard for use in Russia

484748-281 Keyboard for use in Thailand

484748-291 Keyboard for use in Japan

484748-A41 Keyboard for use in Belgium

484748-AB1 Keyboard for use in Taiwan

484748-AD1 Keyboard for use in South Korea

484748-B31 Keyboard for use in the Netherlands

484748-BB1 Keyboard for use in Israel

484748-DH1 Keyboard for use in Denmark, Finland, and Norway

Description

484750-001 12.1-inch, WXGA, BrightView touch-screen display assembly with Web camera, microphones, and WLAN

484751-001 12.1-inch, WXGA, BrightView touch-screen display assembly with Web camera, microphones, fingerprint

487330-001 Broadcom 4322 802.11a/b/g/n WLAN module for use in Canada, the Cayman Islands, Guam, Puerto Rico,

487330-002 Broadcom 4322 802.11a/b/g/n WLAN module for use in Afghanistan, Albania, Algeria, Andorra,

antenna cables

reader, and WLAN antenna cables

the U.S. Virgin Islands, and the United States

Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas,
Bahrain, Bangladesh, Barbados, Belgium, Belize, Benin, Bermuda, Bolivia, Bosnia and Herzegovina,
Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon,
Cape Verde, the Cayman Islands, the Central African Republic, Chad, Chile, Colombia, Comoros,
the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica,
the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia,
Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar,
Greece, Guadeloupe, Guam, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong,
Hungary, Iceland, India, Ireland, Italy, the Ivory Coast, Jamaica, Jordan, Kenya, Kiribati, Kyrgyzstan, Laos,
Latvia, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi,
the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia,
Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Netherlands,
New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea,
Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Puerto Rico,
the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe,
Saudi Arabia, Senegal, Serbia, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia,
the Solomon Islands, Somalia, South Africa, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia,
St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania,
Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda,
the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Venezuela, Vietnam, Yemen, Zaire,
Zambia, and Zimbabwe

487697-001 Bluetooth module cable

487925-001 Fan/heat sink assembly (includes replacement thermal paste and thermal pads)

28 Chapter 3 Illustrated parts catalog

Spare part
number

Description

487926-001 Plastics Kit (see

490371-001 Power cord for use in the United States

490371-011 Power cord for use in Australia

490371-021 Power cord for use in Europe

490371-031 Power cord for use in the United Kingdom and Singapore

490371-061 Power cord for use in Italy

490371-081 Power cord for use in Denmark

490371-111 Power cord for use in Switzerland

490371-201 Power cord for use in Brazil

490371-291 Power cord for use in Japan

490371-AA1 Power cord for use in the People's Republic of China

490371-AB1 Power cord for use in Taiwan

490371-AD1 Power cord for use in South Korea

490371-AR1 Power cord for use in South Africa

490371-BB1 Power cord for use in Israel

490371-D01 Power cord for use in Argentina

Plastics Kit on page 22 for Plastics Kit spare part information)

490371-D61 Power cord for use in India

497744-001 Hard Drive Hardware Kit (includes hard drive bracket, hard drive connector, and hard drive screws)

506052-001 AMD Athlon QL-62 2.0-GHz processor (512-KB L2 cache, 667-MHz FSB, includes replacement thermal

507972-001 AMD Turion 64 Mobile Technology ZM-80 2.1-GHz processor (1-MB L2 cache, 800-MHz FSB, includes

507973-001 AMD Turion 64 Mobile Technology ZM-82 2.2-GHz processor (1-MB L2 cache, 800-MHz FSB, includes

507974-001 AMD Turion 64 Mobile Technology ZM-86 2.4-GHz processor (1-MB L2 cache, 800-MHz FSB, includes

507975-001 AMD Turion 64 Mobile Technology ZM-84 2.3-GHz processor (1-MB L2 cache, 800-MHz FSB, includes

507977-001 AMD Turion 64 Mobile Technology RM-70 (2.0-GHz, 1-MB L2 cache, 800-MHz FSB)

507978-001 AMD Turion 64 Mobile Technology RM-72 processor (2.1-GHz, 1-MB L2 cache, 800-MHz FSB)

507982-001 AMD Athlon QL-60 1.9-GHz processor (512-KB L2 cache, 667-MHz FSB, includes replacement thermal

508501-001 Wireless laser mouse

518183-001 Optical drive weight saving blank

534133-291 6-cell,, 2.55-Ah battery for use in Japan

material)

replacement thermal material)

replacement thermal material)

replacement thermal material)

replacement thermal material)

material)

579045-001 160-GB, 7200-rpm hard drive

Sequential part number listing 29

Spare part
number

593028-001 Pen

598833-001 512-MB memory module (1-DIMM, PC2-6400, 667-MHz, 800 DDR)

598858-001 2048-MB memory module (1-DIMM, PC2-6400, 667-MHz, 800 DDR)

598861-001 1024-MB memory module (1-DIMM, PC2-6400, 667-MHz, 800 DDR)

603783-001 320-GB, 7200-rpm hard drive

613149-001 65-watt AC adapter

622643-001 320-GB, 5400-rpm hard drive

634256-001 Thermal pad kit

634924-001 500-GB, 7200-rpm hard drive

Description

30 Chapter 3 Illustrated parts catalog

4 Removal and replacement procedures

Preliminary replacement requirements

Tools required

You will need the following tools to complete the removal and replacement procedures:

● Magnetic screwdriver

● Phillips P0 and P1 screwdrivers

Flat-bladed screwdriver

●

Service considerations

The following sections include some of the considerations that you should keep in mind during
disassembly and assembly procedures.

NOTE: As you remove each subassembly from the computer, place the subassembly (and all

accompanying screws) away from the work area to prevent damage.

Plastic parts

CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts.

Use care when handling the plastic parts. Apply pressure only at the points designated in the
maintenance instructions.

Preliminary replacement requirements 31

Cables and connectors

CAUTION: When servicing the computer, be sure that cables are placed in their proper locations

during the reassembly process. Improper cable placement can damage the computer.

Cables must be handled with extreme care to avoid damage. Apply only the tension required to
unseat or seat the cables during removal and insertion. Handle cables by the connector whenever
possible. In all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in
such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex
cables with extreme care; these cables tear easily.

Drive handling

CAUTION: Drives are fragile components that must be handled with care. To prevent damage to

the computer, damage to a drive, or loss of information, observe these precautions:

Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the
computer is off or in Hibernation, turn the computer on, and then shut it down through the operating
system.

Before handling a drive, be sure that you are discharged of static electricity. While handling a drive,
avoid touching the connector.

Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and
be sure that the optical drive tray is closed.

Handle drives on surfaces covered with at least one inch of shock-proof foam.

Avoid dropping drives from any height onto any surface.

After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.

Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.

Avoid exposing a drive to temperature extremes or liquids.

If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective
packaging and label the package “FRAGILE.”

32 Chapter 4 Removal and replacement procedures

Grounding guidelines

Electrostatic discharge damage

Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure
determine the degree of sensitivity. Networks built into many integrated circuits provide some
protection, but in many cases, ESD contains enough power to alter device parameters or melt
silicon junctions.

A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or
microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.

An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a
normal cycle. Or the device may function normally for a while, then degrade in the internal layers,
reducing its life expectancy.

CAUTION: To prevent damage to the computer when you are removing or installing internal

components, observe these precautions:

Keep components in their electrostatic-safe containers until you are ready to install them.

Use nonmagnetic tools.

Before touching an electronic component, discharge static electricity by using the guidelines
described in this section.

Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.

If you remove a component, place it in an electrostatic-safe container.

The following table shows how humidity affects the electrostatic voltage levels generated by different
activities.

CAUTION: A product can be degraded by as little as 700 V.

Typical electrostatic voltage levels

Relative humidity

Event 10% 40% 55%

Walking across carpet 35,000 V 15,000 V 7,500 V

Walking across vinyl floor 12,000 V 5,000 V 3,000 V

Motions of bench worker 6,000 v 800 V 400 V

Removing DIPS from plastic tube 2,000 V 700 V 400 V

Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V

Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V

Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V

Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V

Preliminary replacement requirements 33

Packaging and transporting guidelines

Follow these grounding guidelines when packaging and transporting equipment:

● To avoid hand contact, transport products in static-safe tubes, bags, or boxes.

Protect ESD-sensitive parts and assemblies with conductive or approved containers or

●

packaging.

● Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.

Place items on a grounded surface before removing items from their containers.

●

Always be properly grounded when touching a component or assembly.

●

Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive

●

foam.

Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that

●

mechanized equipment used for moving materials is wired to ground and that proper materials
are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate
electric charges.

Workstation guidelines

Follow these grounding workstation guidelines:

● Cover the workstation with approved static-shielding material.

Use a wrist strap connected to a properly grounded work surface and use properly grounded

●

tools and equipment.

● Use conductive field service tools, such as cutters, screwdrivers, and vacuums.

When fixtures must directly contact dissipative surfaces, use fixtures made only of static-safe

●

materials.

● Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and

Styrofoam.

● Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle

these items only at static-free workstations.

Avoid contact with pins, leads, or circuitry.

●

● Turn off power and input signals before inserting or removing connectors or test equipment.

34 Chapter 4 Removal and replacement procedures

Equipment guidelines

Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.

● When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible

straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper
ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug
connectors, use alligator clips to connect a wrist strap.

When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps)

●

can be used at standing workstations and are compatible with most types of shoes or boots. On
conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one
megohm resistance between the operator and ground. To be effective, the conductive strips
must be worn in contact with the skin.

The following grounding equipment is recommended to prevent electrostatic damage:

Antistatic tape

●

Antistatic smocks, aprons, and sleeve protectors

●

Conductive bins and other assembly or soldering aids

●

Nonconductive foam

●

● Conductive tabletop workstations with ground cords of one megohm resistance

● Static-dissipative tables or floor mats with hard ties to the ground

Field service kits

●

Static awareness labels

●

Material-handling packages

●

Nonconductive plastic bags, tubes, or boxes

●

● Metal tote boxes

● Electrostatic voltage levels and protective materials

The following table lists the shielding protection provided by antistatic bags and floor mats.

Material Use Voltage protection level

Antistatic plastic Bags 1,500 V

Carbon-loaded plastic Floor mats 7,500 V

Metallized laminate Floor mats 5,000 V

Preliminary replacement requirements 35

Unknown user password

If the computer you are servicing has an unknown user password, follow these steps to clear the
password.

NOTE: These steps also clear CMOS.

Before disassembling the computer, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power cord.

4. Remove the battery (see

5. Remove the real-time clock (RTC) battery (see

6. Wait approximately 5 minutes.

7. Replace the RTC battery and reassemble the computer.

8. Connect AC power to the computer. Do not reinsert any batteries at this time.

9. Turn on the computer.

All passwords and all CMOS settings have been cleared.

Battery on page 39).

RTC battery on page 58).

36 Chapter 4 Removal and replacement procedures

Component replacement procedures

This chapter provides removal and replacement procedures.

There are as many as 47 screws, in 8 different sizes, that must be removed, replaced, or loosened
when servicing the computer. Make special note of each screw size and location during removal and
replacement.

Service tag location

The service tag, affixed to the bottom of the computer, provides information that may be needed
when troubleshooting system problems. The service tag provides the following information:

(1) Product name: This is the product name affixed to the front of the computer.

(2) Serial number (s/n): This is an alphanumeric identifier that is unique to each product.

(3) Part number/Product number (p/n): This number provides specific information about the product's

hardware components. The part number helps a service technician to determine what components
and parts are needed.

(4) Model description: This is the number used to locate documents, drivers, and support for
the computer.

(5) Warranty period: This number describes the duration of the warranty period for the computer.
When ordering parts or requesting information, provide the computer serial number and model
description provided on the service tag. When ordering parts or requesting information, provide the
computer serial number and model number located on the bottom of the computer.

Component replacement procedures 37

Computer feet

Description Spare part number

Rubber Feet Kit (includes 4 base enclosure rubber feet and pen cover) 464821-001

The computer feet are adhesive-backed rubber pads. There are four computer feet (1) that adhere to
the computer base enclosure, and two computer feet (2) that adhere to the high-capacity battery.

38 Chapter 4 Removal and replacement procedures

Battery

Description Spare part number

8-cell, 73-Wh, 2.55-Ah battery 463650-003

6-cell, 55-Wh, 2.55-Ah battery 441132-003

6-cell, 2.55-Ah battery for use in Japan 534133-291

4-cell, 37-Wh, 2.55-Ah battery 441131-003

Before disassembling the computer, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power cord.

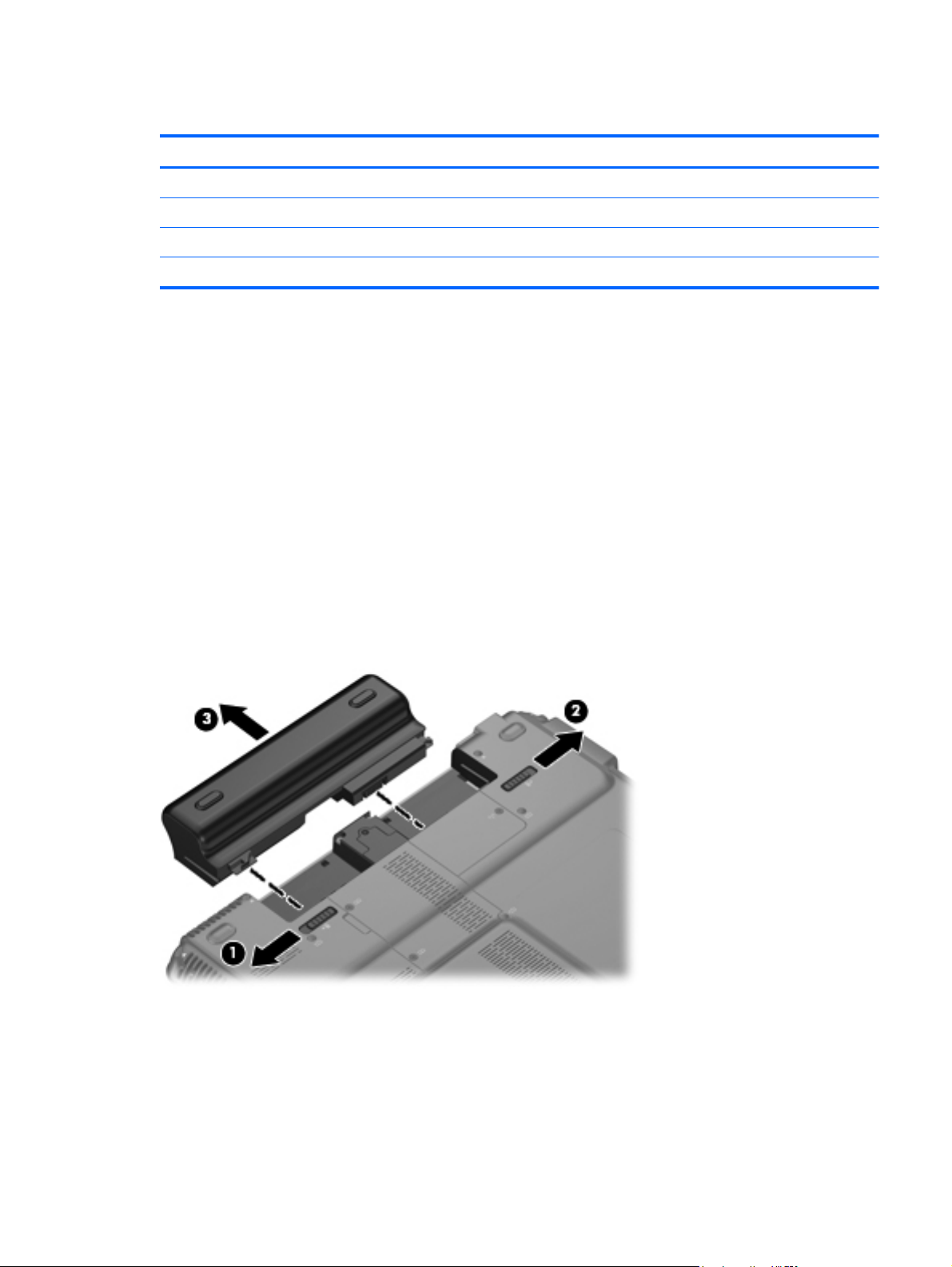

Remove the battery:

1. Turn the computer upside down, with the rear panel toward you.

2. Slide the battery lock latch (1) to the right, and then release it. (The battery disengages from the

computer.)

3. Slide the battery release latch (2) to the left, and then release it.

4. Remove the battery (3) by sliding it straight back.

To install a battery, slide the battery into the battery bay until you hear a click.

Component replacement procedures 39

Pen

Description Spare part number

Pen 593028-001

Before removing the pen, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power cord.

4. Remove the battery (see

Battery on page 39).

Remove the pen:

1. Position the computer with the left side toward you.

2. Press in on the pen (1) to release it from the pen holder.

3. Remove the pen (2) from the pen holder.

Reverse this procedure to install the pen.

40 Chapter 4 Removal and replacement procedures

Hard drive

Description Spare part number

500-GB, 7200-rpm 634924-001

320-GB, 7200-rpm 603783-001

320-GB, 5400-rpm 622643-001

160-GB, 7200-rpm 579045-001

Hard Drive Hardware Kit (includes hard drive bracket, hard drive connector, and hard drive
screws)

497744-001

Before removing the hard drive, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power cord.

4. Remove the battery (see

Battery on page 39).

Remove the hard drive:

1. Position the computer with the front toward you.

2. Loosen the two Phillips PM2.0×5.0 captive screws (1) that secure the hard drive cover to the

computer.

3. Lift the left side of the hard drive cover (2) and swing it to right.

4. Remove the hard drive cover.

NOTE: The hard drive cover is included in the Plastics Kit, spare part number 487926-001.

5. Grasp the Mylar tab (1) on the hard drive and lift the hard drive to disconnect it from the system

board.

Component replacement procedures 41

6. Remove the hard drive (2) from the hard drive bay.

7. If it is necessary to remove the hard drive bracket and connector, remove the four Phillips

PM3.0×3.0 hard drive bracket screws (1) from each side of the hard drive.

8. Lift the bracket (2) straight up to remove it from the hard drive.

9. Remove the connector (3) from of the hard drive.

Reverse this procedure to reassemble and install the hard drive.

42 Chapter 4 Removal and replacement procedures

Optical drive

NOTE: All optical drive spare part kits include an optical drive bezel.

Description Spare part number

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe 480864-001

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive 480865-001

Optical drive weight saving blank 518183-001

Before removing the optical drive, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power cord.

4. Remove the battery (see

Battery on page 39).

Remove the optical drive:

1. Position the computer with right side toward you.

2. Slide the optical drive release latch (1) toward you. (The optical drive is partially ejected from the

optical drive bay.)

3. Remove the optical drive (2) from of the computer.

To install an optical drive, slide the optical drive into the optical drive bay until you hear a click.

Component replacement procedures 43

Memory module

Description Spare part number

2048-MB (1-DIMM, PC2-5300, 667 MHz) 598858-001

1024-MB (1-DIMM, PC2-5300, 667 MHz) 598861-001

512-MB (1-DIMM, PC2-5300, 667 MHz) 598833-001

Before removing the memory module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power cord.

4. Remove the battery (see

Battery on page 39).

Remove the memory module:

1. Position the computer with the front toward you.

2. Loosen the two Phillips PM2.0×5.0 captive screws (1) that secure the memory module

compartment cover to the computer.

3. Lift the left side of the cover (2) and swing it to the right.

4. Remove the memory module compartment cover.

NOTE: The memory module compartment cover is included in the Plastics Kit, spare part

number 487926-001.

5. Spread the retaining tabs (1) on each side of the memory module slot to release the memory

module. (The edge of the module opposite the slot rises away from the computer.)

44 Chapter 4 Removal and replacement procedures

6. Pull the module (2) away from the slot at an angle and remove it.

NOTE: Memory modules are designed with a notch (3) to prevent incorrect installation into the

memory module slot.

Reverse this procedure to install a memory module.

Component replacement procedures 45

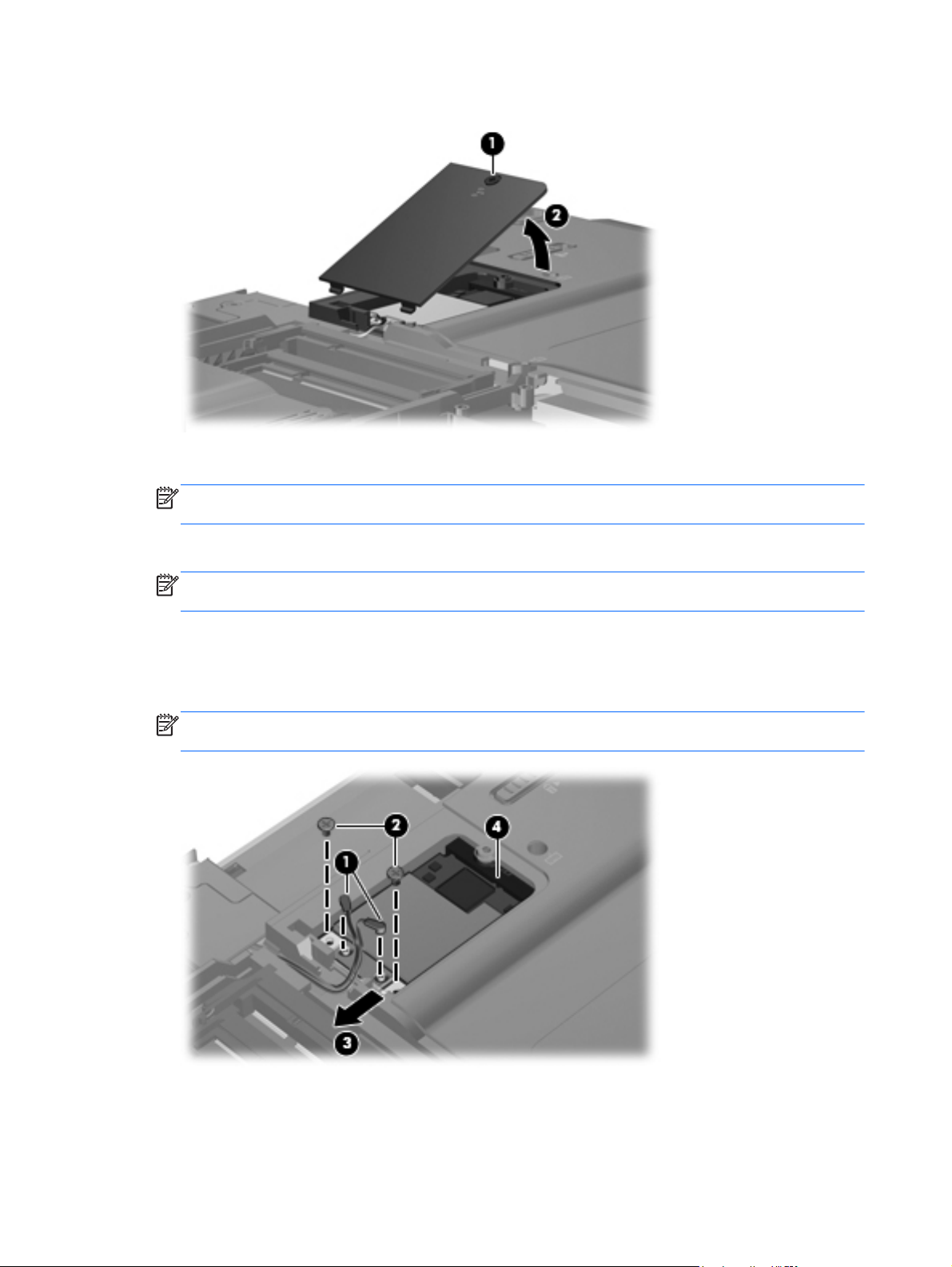

WLAN module

Description Spare part number

Broadcom 4322 802.11a/b/g/n WLAN modules:

For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands,

●

and the United States

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda,

●

Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain,
Bangladesh, Barbados, Belgium, Belize, Benin, Bermuda, Bolivia,
Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cameroon, Cape Verde, the Cayman Islands,
the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica,
Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica,
the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea,
Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia,
Germany, Ghana, Gibraltar, Greece, Guadeloupe, Guam, Guatemala, Guinea, Guinea­Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Italy,
the Ivory Coast, Jamaica, Jordan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lesotho,
Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi,
the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico,
Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru,
Nepal, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman,
Pakistan, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China,
Peru, the Philippines, Poland, Portugal, Puerto Rico, the Republic of Moldova, Romania,
Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal,
Serbia, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands,
Somalia, South Africa, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia,
St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan,
Tuvalu, Uganda, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan,
Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

Broadcom 4321AGN 802.11a/b/g/n WLAN modules:

487330-001

487330-002

● For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands,

and the United States

● For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda,

Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain,
Bangladesh, Barbados, Belgium, Belize, Benin, Bermuda, Bolivia,
Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cameroon, Cape Verde, the Cayman Islands,
the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica,
Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica,
the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea,
Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia,
Germany, Ghana, Gibraltar, Greece, Guadeloupe, Guam, Guatemala, Guinea, Guinea­Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Italy,
the Ivory Coast, Jamaica, Jordan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lesotho,
Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi,
the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico,
Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru,
Nepal, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman,
Pakistan, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China,
Peru, the Philippines, Poland, Portugal, Puerto Rico, the Republic of Moldova, Romania,
Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal,
Serbia, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands,
Somalia, South Africa, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia,
St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan,
Tuvalu, Uganda, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan,
Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

453730-001

453730-002

46 Chapter 4 Removal and replacement procedures

Description Spare part number

For use in Japan 453730-291

●

Broadcom BCM4312 802.11b/g WLAN modules:

● For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands,

and the United States

● For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda,

Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain,
Bangladesh, Barbados, Belgium, Belize, Benin, Bermuda, Bolivia,
Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cameroon, Cape Verde, the Cayman Islands,
the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica,
Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica,
the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea,
Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia,
Germany, Ghana, Gibraltar, Greece, Guadeloupe, Guam, Guatemala, Guinea, Guinea­Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Italy,
the Ivory Coast, Jamaica, Jordan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lesotho,
Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi,
the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico,
Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru,
Nepal, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman,
Pakistan, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China,
Peru, the Philippines, Poland, Portugal, Puerto Rico, the Republic of Moldova, Romania,
Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal,
Serbia, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands,
Somalia, South Africa, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia,
St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan,
Tuvalu, Uganda, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan,
Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

459263-001

459263-002

Before removing the WLAN module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power cord.

4. Remove the battery (see

Battery on page 39).

Remove the WLAN module:

1. Position the computer with the front toward you.

2. Loosen the Phillips PM2.0×5.0 captive screw (1) that secures the WLAN module compartment

cover to the computer.

Component replacement procedures 47

3. Lift the right side of the WLAN module compartment cover (2) and swing it to the left.

4. Remove the WLAN module compartment cover.

NOTE: The WLAN module compartment cover is included in the Plastics Kit, spare part

number 487926-001.

5. Disconnect the WLAN antenna cables (1) from the WLAN module.

NOTE: The black WLAN antenna cable is connected to the WLAN module “Main” terminal.

The white WLAN antenna cable is connected to the WLAN module “Aux” terminal.

6. Remove the two Phillips PM2.0×3.0 screws (2) that secure the WLAN module to the computer.

(The edge of the module opposite the slot rises away from the computer.)

7. Pull the WLAN module (3) away from the slot at an angle and remove it.

NOTE: WLAN modules are designed with a notch (4) to prevent incorrect installation into the

WLAN module slot.

Reverse this procedure to install a WLAN module.

48 Chapter 4 Removal and replacement procedures

Keyboard

Description

Country or region Spare part number Country or region Spare part number

Belgium 484748-A41 Portugal 484748-131

Brazil 484748-201 Russia 484748-251

Canada 484748-121 Saudi Arabia 484748-171

Denmark, Finland, and Norway 484748-DH1 South Korea 484748-AD1

France 484748-051 Spain 484748-071

Germany 484748-041 Taiwan 484748-AB1

Israel 484748-BB1 Thailand 484748-281

Italy 484748-061 Turkey 484748-141

Japan 484748-291 The United Kingdom 484748-031

Latin America 484748-161 The United States 484748-001

The Netherlands 484748-B31

Before removing the keyboard, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power cord.

4. Remove the battery (see

Battery on page 39).

Remove the keyboard:

1. Position the computer with the front toward you.

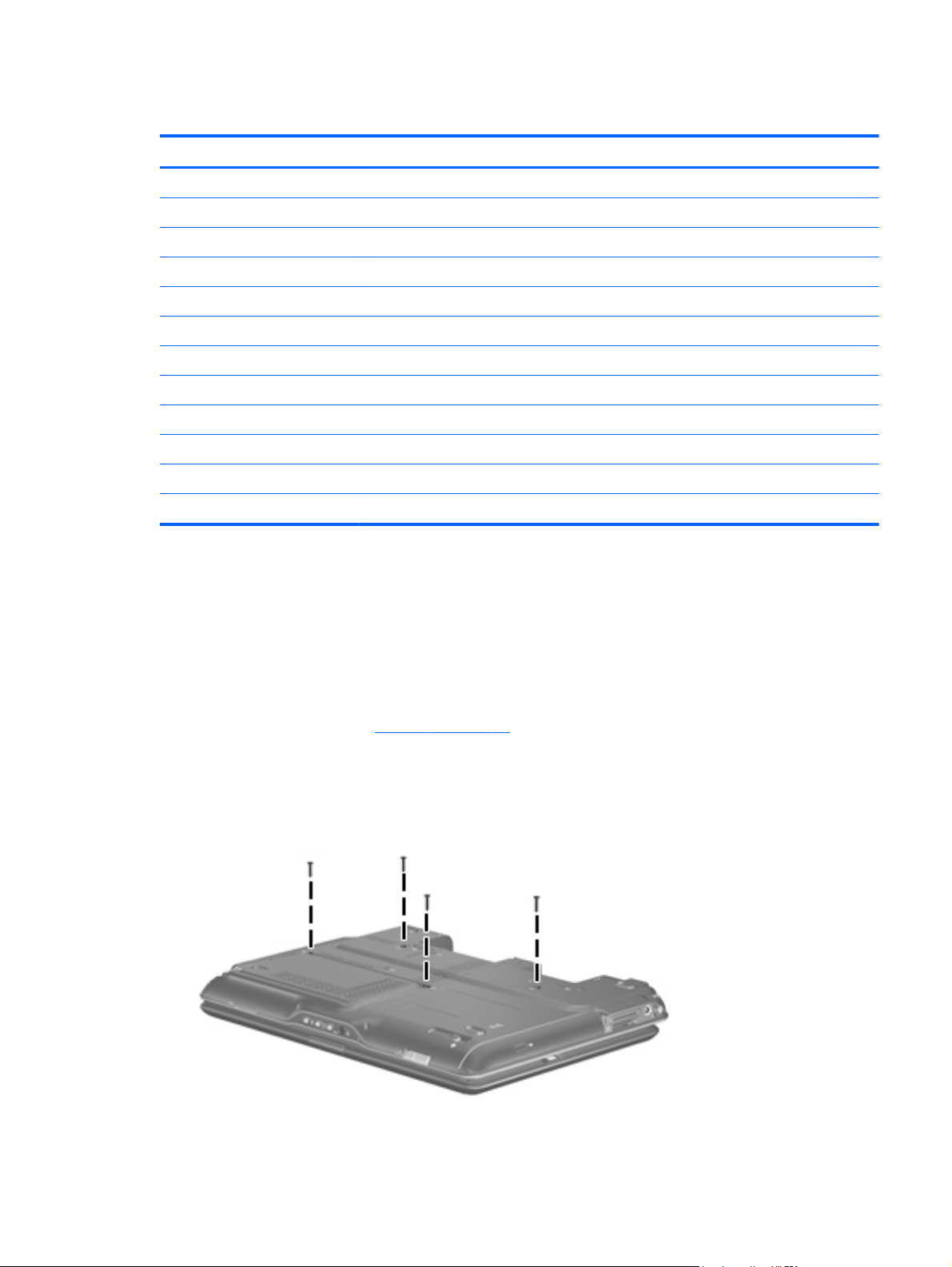

2. Remove the four Phillips PM2.0×11.0 screws that secure the keyboard to the computer.

3. Turn the computer display-side up, with the front toward you.

Component replacement procedures 49

4. Open the computer.

5. Lift the rear edge of the keyboard and swing it toward you until it rests on the palm rest.

6. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached and

disconnect the keyboard cable (2).

7. Remove the keyboard.

Reverse this procedure to install the keyboard.

50 Chapter 4 Removal and replacement procedures

Switch cover

Description Spare part number

Switch cover (includes display convertible hinge base cover) 464115-001

Before removing the switch cover, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power cord.

4. Remove the battery (see

5. Remove the keyboard (see

Battery on page 39).

Keyboard on page 49).

Remove the switch cover:

1. Turn the computer upside down, with the front toward you.

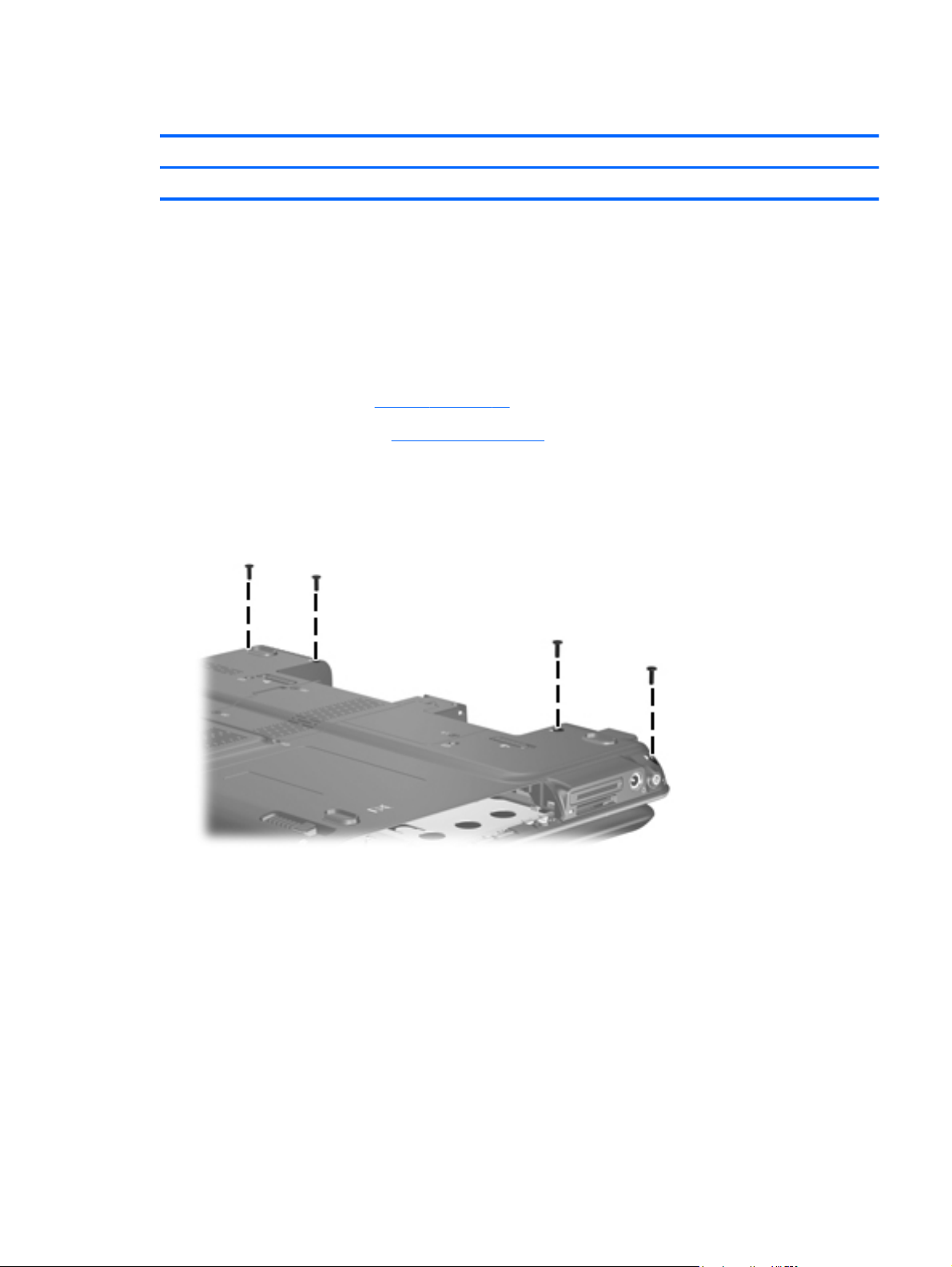

2. Remove the four Phillips PM2.0×7.0 screws that secure the switch cover to the computer.

3. Turn the computer display-side up, with the front toward you.

4. Open the computer.

Component replacement procedures 51

5. Rotate the display clockwise approximately 45 degrees.

6. Lift the left and right front corners of the switch cover (1) until it disengages from the computer.

7. Rotate the switch cover (2) counterclockwise and remove it from the computer.

Reverse this procedure to install the switch cover.

52 Chapter 4 Removal and replacement procedures

Display assembly

Description Spare part number

12.1-inch, WXGA, BrightView touch-screen display assembly with Web camera, fingerprint
reader, microphones, and WLAN antenna cables

12.1-inch, WXGA, BrightView touch-screen display assembly with Web camera, microphones,
and WLAN antenna cables

484751-001

484750-001

Before removing the display assembly, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power cord.

4. Remove the battery (see

5. Remove the memory module compartment cover (see

Battery on page 39).

Memory module on page 44).

6. Remove the WLAN module compartment cover and disconnect the wireless antenna cables

from the WLAN module (see

7. Remove the keyboard (see

8. Remove the switch cover (see

WLAN module on page 46).

Keyboard on page 49).

Switch cover on page 51).

Remove the display assembly:

1. Close the computer and turn it upside down, with the front toward you.

2. Loosen the Phillips PM2.0×5.0 captive screw (1) that secures the display connector cover to the

computer.

3. Lift the rear edge of the display connector cover (2) and swing it toward you.

4. Remove the display connector cover.

NOTE: The display connector cover is included in the Plastics Kit, spare part number

487926-001.

Component replacement procedures 53

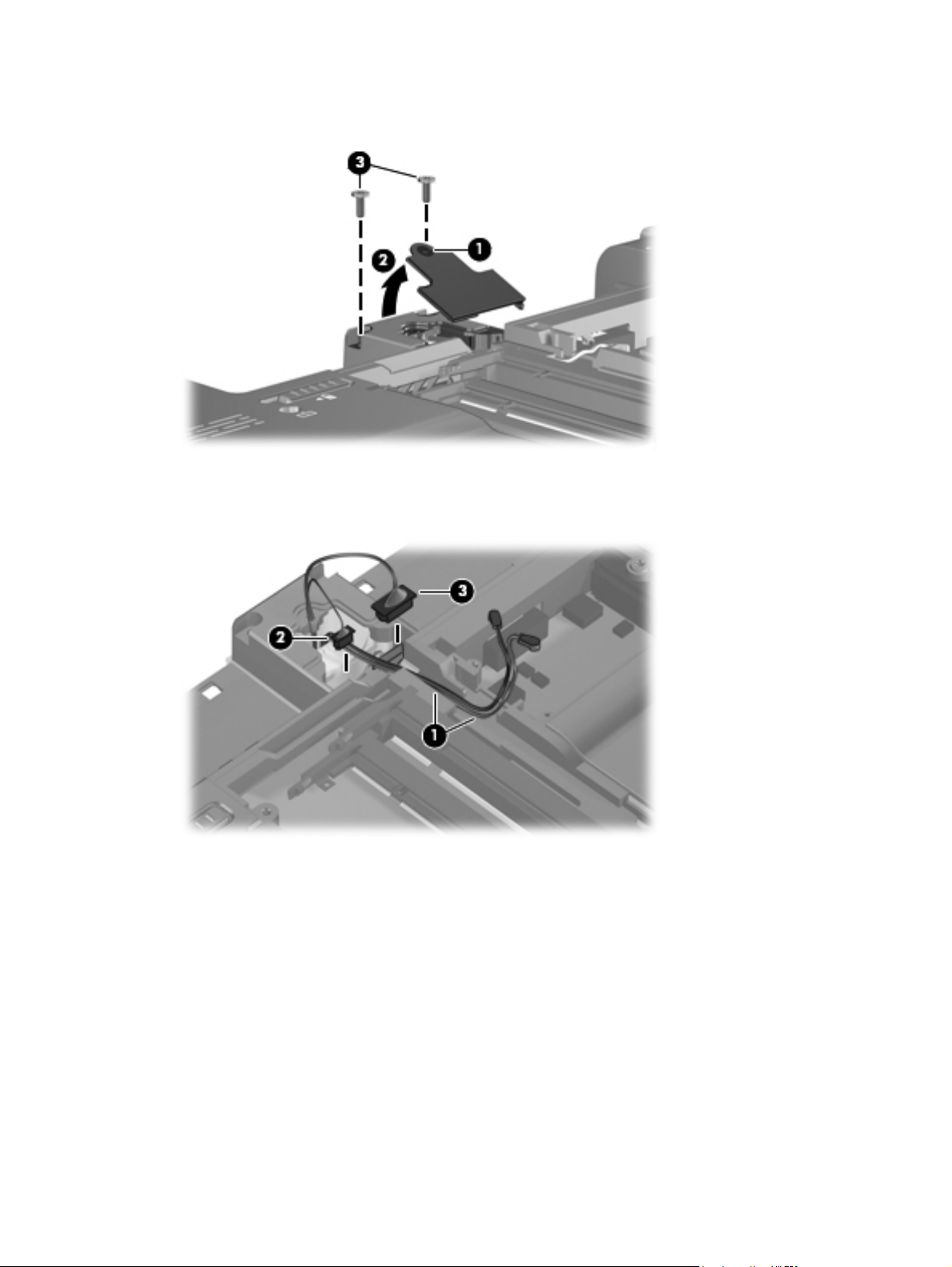

5. Remove the two Phillips PM2.5×6.0 screws (3) that secure the display assembly to the

computer.

6. Remove the wireless antenna cables (1) from the routing channel built into the base enclosure.

7. Disconnect the camera cable (2) and the microphone cable (3) from the system board.

8. Turn the computer display-side up, with the front toward you.

9. Open the computer.

10. Remove the display convertible hinge cover (1).

11. Remove the two Phillips PM2.5×6.0 screws (2) that secure the display assembly to the

computer.

54 Chapter 4 Removal and replacement procedures

12. Disconnect the display panel cable (3) from the system board.

NOTE: As you remove the display assembly, be sure that the display cables and wireless

antenna cables move cleanly through the opening (1) in the computer.

13. Lift the display (2) straight up and remove it.

Reverse this procedure to install the display assembly.

Component replacement procedures 55

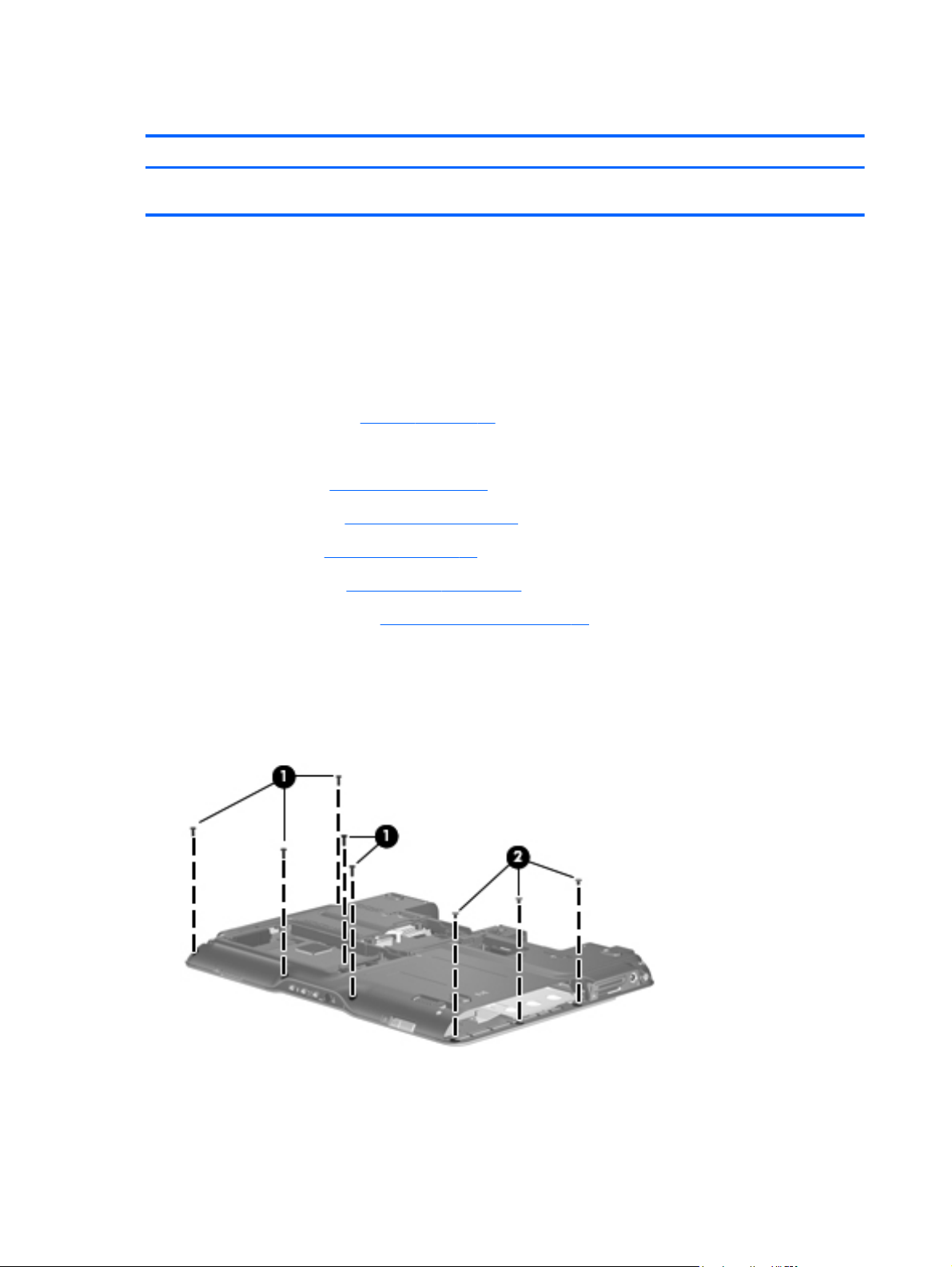

Top cover

Description Spare part number

Top cover (includes TouchPad and TouchPad cable, caps lock light board and cable, and top
cover bumper pads)

464111-001

Before removing the top cover, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power cord.

4. Remove the battery (see

Battery on page 39).

5. Remove the following components:

a. Hard drive (see

b. Optical drive (see

c. Keyboard (see

d. Switch cover (see

e. Display assembly (see

Hard drive on page 41)

Optical drive on page 43)

Keyboard on page 49)

Switch cover on page 51)

Display assembly on page 53)

Remove the top cover:

1. Turn the computer upside down, with the front toward you.

2. Remove the five Phillips PM2.0×7.0 screws (1) and the three Phillips PM2.0×4.0 screws (2) that

secure the top cover to the computer.

3. Turn the computer right-side up, with the front toward you.

4. Disconnect the display lid switch board cable (1) from the system board.

56 Chapter 4 Removal and replacement procedures

5. Release the ZIF connector (2) to which the TouchPad cable is connected and disconnect the

TouchPad cable (3).

6. Remove the two Phillips PM2.0×4.0 screws (4) that secure the top cover to the base enclosure.

7. Lift the top cover straight up and remove it.

Reverse this procedure to install the top cover.

Component replacement procedures 57

RTC battery

NOTE: Removing the RTC battery and leaving it uninstalled for 5 or more minutes causes all

passwords and CMOS settings to be cleared.

Description Spare part number

RTC battery 449729-001

Before removing the RTC battery, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power cord.

4. Remove the battery (see

Battery on page 39).

5. Remove the following components:

a. Hard drive (see

b. Optical drive (see

c. Keyboard (see

d. Switch cover (see

e. Display assembly (see

f. Top cover (see

Hard drive on page 41)

Optical drive on page 43)

Keyboard on page 49)

Switch cover on page 51)

Display assembly on page 53)

Top cover on page 56)

Remove the RTC battery:

Use a non-conductive, flat-bladed tool to pry the RTC battery out of the socket.

▲

Reverse this procedure to install the RTC battery. Be sure the RTC battery is installed with the “+”
sign facing up.

58 Chapter 4 Removal and replacement procedures

Power switch assembly

Description Spare part number

Power switch assembly (includes power switch board cable and actuator switch) 441142-001

Before removing the power switch assembly, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power cord.

4. Remove the battery (see

Battery on page 39).

5. Remove the following components:

a. Hard drive (see

b. Optical drive (see

c. Keyboard (see

d. Switch cover (see

e. Display assembly (see

f. Top cover (see

Hard drive on page 41)

Optical drive on page 43)

Keyboard on page 49)

Switch cover on page 51)

Display assembly on page 53)

Top cover on page 56)

Remove the power switch assembly:

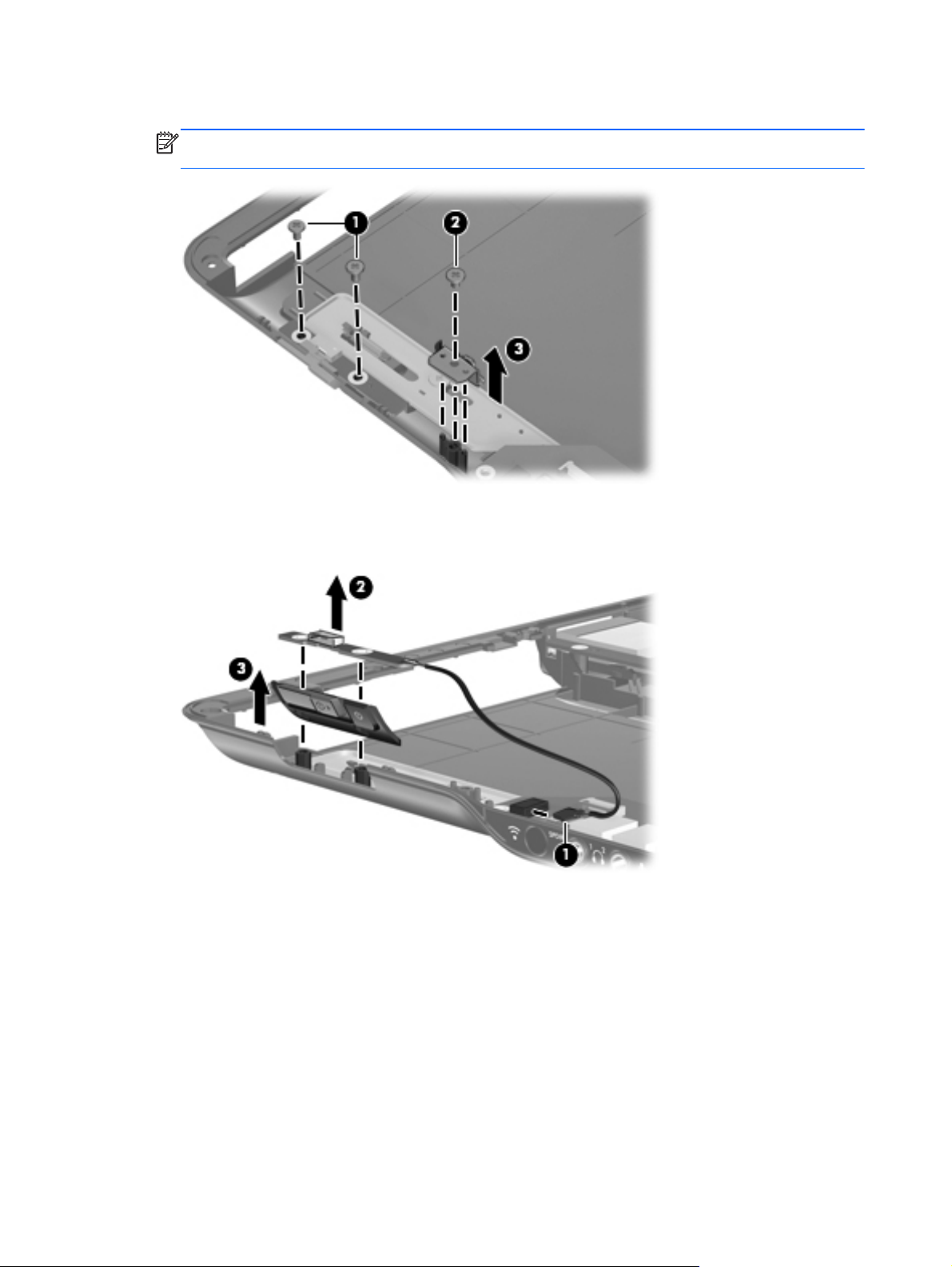

1. Remove the two Phillips PM2.0×4.0 screws (1) that secure the power switch board to the base

enclosure.

2. Remove the Phillips PM2.0×3.0 screw (2) that secures the display release hook assembly to the

base enclosure.

Component replacement procedures 59

3. Remove the display release hook assembly (3).

NOTE: The display release hook assemblies are included with the base enclosure spare part

kits.

4. Disconnect the power switch board cable (1) from the system board.

5. Remove the power switch board (2) and power switch actuator (3) from the base enclosure.

Reverse this procedure to install the power switch assembly.

60 Chapter 4 Removal and replacement procedures

Bluetooth module

Description Spare part number

Bluetooth module 483113-001

Bluetooth module cable 487697-001

Before removing the Bluetooth module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power cord.

4. Remove the battery (see

Battery on page 39).

5. Remove the following components:

a. Hard drive (see

b. Optical drive (see

c. Keyboard (see

d. Switch cover (see

e. Display assembly (see

f. Top cover (see

Hard drive on page 41)

Optical drive on page 43)

Keyboard on page 49)

Switch cover on page 51)

Display assembly on page 53)

Top cover on page 56)

Remove the Bluetooth module:

1. Disconnect the Bluetooth module cable (1) from the system board.

2. Remove the Phillips PM2.0×3.0 screw (2) that secures the Bluetooth module to the system

board.

Component replacement procedures 61

3. Remove the Bluetooth module (3).

Reverse this procedure to install the Bluetooth module.

System board

Description Spare part number

System board (includes replacement thermal material) 480850-001

When replacing the system board, be sure that the following components are removed from the
defective system board and installed on the replacement system board:

Memory module (see

●

● WLAN module (see

● RTC battery (see

Bluetooth module (see

●

Fan/heat sink assembly (see

●

Processor (see

●

Memory module on page 44)

WLAN module on page 46)

RTC battery on page 58)

Bluetooth module on page 61)

Fan/heat sink assembly on page 68)

Processor on page 70)

Before removing the system board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power cord.

62 Chapter 4 Removal and replacement procedures

4. Remove the battery (see Battery on page 39).

5. Remove the following components:

a. Hard drive (see

b. Memory module compartment cover (see

c. Optical drive (see

d. Keyboard (see

e. Switch cover (see

f. Display assembly (see

g. Top cover (see

h. Power switch assembly (see

Hard drive on page 41)

Memory module on page 44)

Optical drive on page 43)

Keyboard on page 49)

Switch cover on page 51)

Display assembly on page 53)

Top cover on page 56)

Power switch assembly on page 59)

Remove the system board:

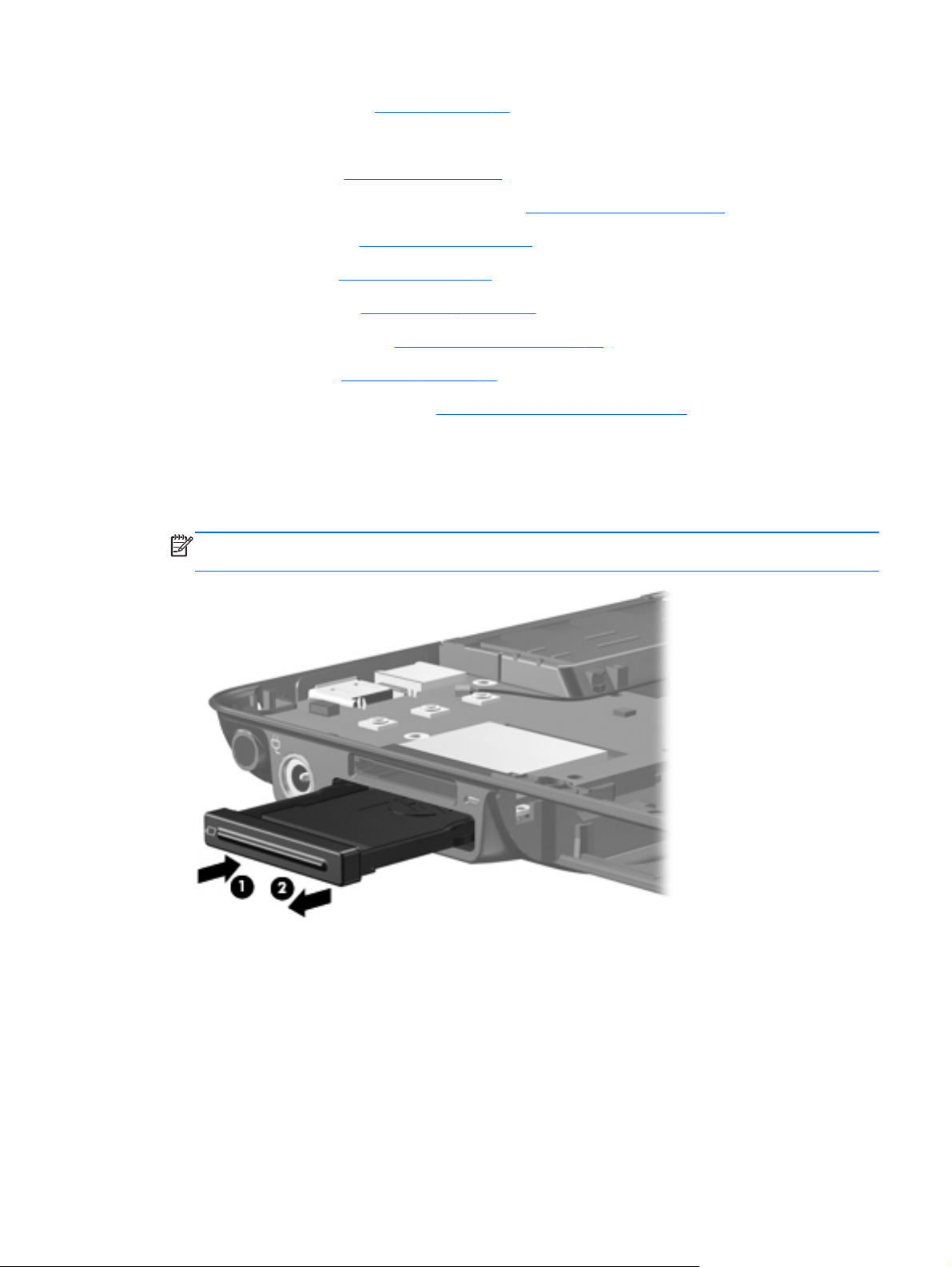

1. Press in on the ExpressCard slot bezel (1) to release the bezel from the ExpressCard slot.

2. Remove the ExpressCard slot bezel (2) from the ExpressCard slot.

NOTE: The ExpressCard slot bezel is included in the Plastics Kit, spare part number

487926-001.

Component replacement procedures 63

3. Release the ZIF connector (1) to which the audio/infrared board cable is connected and

disconnect the audio/infrared board cable (2) from the system board.

4. Use the optical drive connector (1) to lift the left side of the system board (2) until the power

connector (3) is clear of the base enclosure.

5. Pull the system board (4) away from the top cover at an angle and remove it.

Reverse this procedure to install the system board.

64 Chapter 4 Removal and replacement procedures

Pen holder and pen eject assembly

Description Spare part number

Pen holder and pen eject assembly 464113-001

Before removing the pen holder and pen eject assembly, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power cord.

4. Remove the battery (see

Battery on page 39).

5. Remove the following components:

a. Pen (see

b. Hard drive (see

c. Memory module compartment cover (see

d. Optical drive (see

e. Keyboard (see

f. Switch cover (see

g. Display assembly (see

h. Top cover (see

i. Power switch assembly (see

j. System board (see

Pen on page 40)

Hard drive on page 41)

Memory module on page 44)

Optical drive on page 43)

Keyboard on page 49)

Switch cover on page 51)

Display assembly on page 53)

Top cover on page 56)

Power switch assembly on page 59)

System board on page 62)

Remove the pen holderand pen eject assembly:

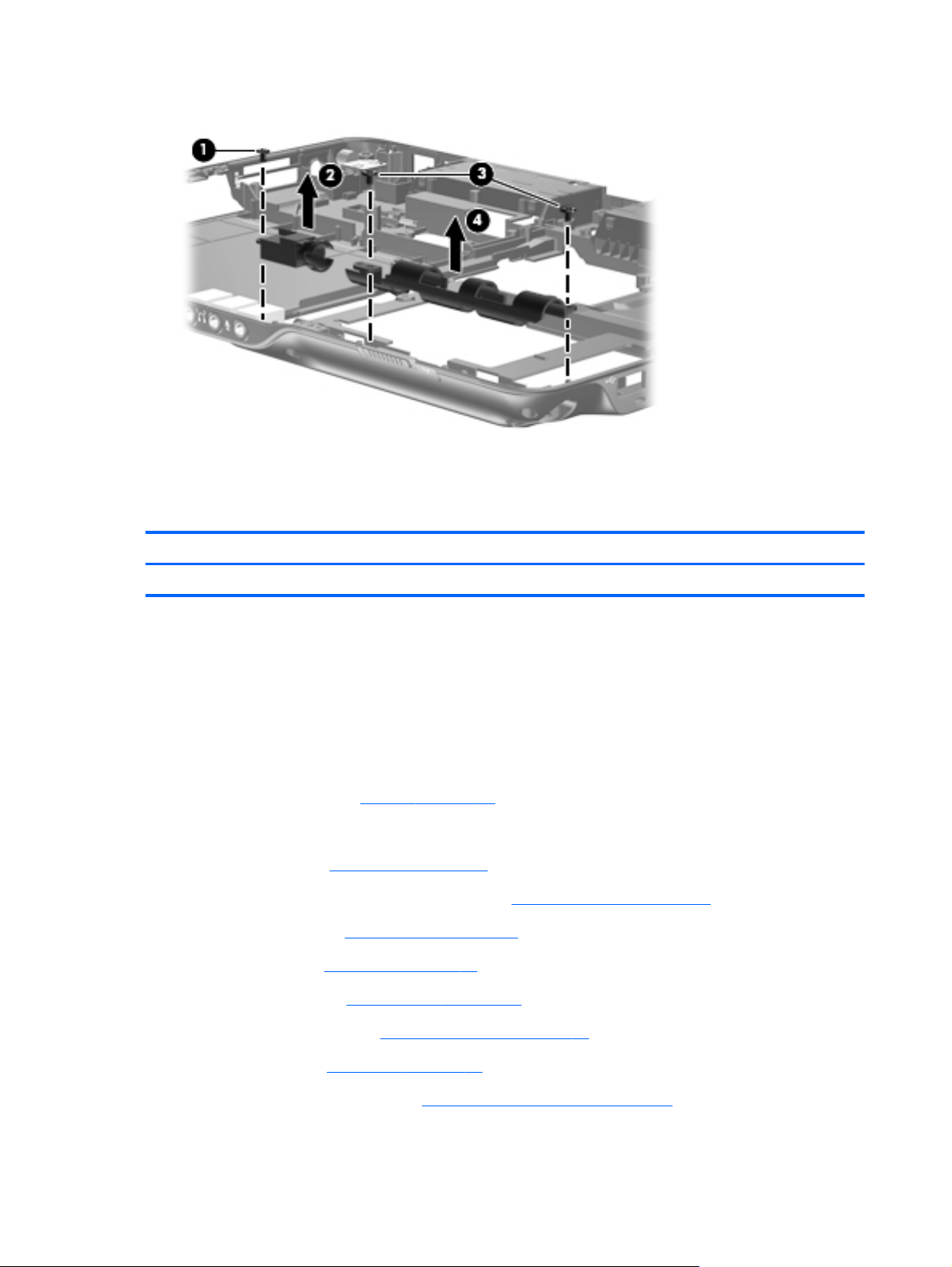

1. Remove the Phillips PM2.0×3.0 screw (1) that secures the pen eject assembly to the base

enclosure.

2. Remove the pen eject assembly (2).

3. Remove the two Phillips PM2.0×3.0 screws (3) that secure the pen holder to the base enclosure.

Component replacement procedures 65

4. Remove the pen holder (4).

Reverse this procedure to install the pen holder and pen eject assembly.

Audio/infrared board

Description Spare part number

Audio/infrared board (includes audio/infrared board cable) 441144-001

Before removing the audio/infrared board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power cord.

4. Remove the battery (see

Battery on page 39).

5. Remove the following components:

a. Hard drive (see

b. Memory module compartment cover (see

c. Optical drive (see

d. Keyboard (see

e. Switch cover (see

f. Display assembly (see

Hard drive on page 41)

Memory module on page 44)

Optical drive on page 43)

Keyboard on page 49)

Switch cover on page 51)

Display assembly on page 53)

g. Top cover (see

h. Power switch assembly (see

Top cover on page 56)

Power switch assembly on page 59)

66 Chapter 4 Removal and replacement procedures

i. System board (see System board on page 62)

j. Pen holder (see

Pen holder and pen eject assembly on page 65)

Remove the audio/infrared board:

1. Remove the two Phillips PM2.0×3.0 screws (1) that secure the audio/infrared board to the

system board.

2. Release the audio/infrared board (2) by sliding it away from you until the connectors on the front

of the board disengage from the openings in the base enclosure.

3. Remove the audio/infrared board (3).

Reverse this procedure to install the audio/infrared board.

Component replacement procedures 67

Fan/heat sink assembly

Description Spare part number

Fan/heat sink assembly (includes thermal paste and thermal pads) 487925-001

NOTE: To properly ventilate the computer, allow at least a 7.6-cm (3-inch) clearance on the right

side and rear panel of the computer.

The computer uses an electric fan for ventilation. The fan is controlled by a temperature sensor and is
designed to turn on automatically when high temperature conditions exist. These conditions are
affected by high external temperatures, system power consumption, power management/battery
conservation configurations, battery fast charging, and software requirements. Exhaust air is
displaced through the ventilation grill located on the left side of the computer.

Before removing the fan/heat sink assembly, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power cord.

4. Remove the battery (see

Battery on page 39).

5. Remove the following components:

a. Hard drive (see

b. Memory module compartment cover (see

c. Optical drive (see

d. Keyboard (see

e. Switch cover (see

f. Display assembly (see

g. Top cover (see

h. Power switch assembly (see

i. System board (see

Hard drive on page 41)

Memory module on page 44)

Optical drive on page 43)

Keyboard on page 49)

Switch cover on page 51)

Display assembly on page 53)

Top cover on page 56)

Power switch assembly on page 59)

System board on page 62)

Remove the fan/heat assembly:

1. Disconnect the fan cable (1) from the system board.

2. Remove the four Phillips PM2.0×4.0 screws (2) that secure the fan/heat sink assembly to the

system board.

68 Chapter 4 Removal and replacement procedures

3. Remove the fan/heat sink assembly (3).

NOTE: Due to the adhesive quality of the thermal paste and thermal pads located between the

fan/heat sink assembly and system board components, it may be necessary to move the fan/
heat sink assembly from side to side to detach the assembly.

NOTE: The thermal paste and thermal pads should be thoroughly cleaned from the surfaces of the

fan/heat sink assembly (1) and the system board components (2) each time the fan/heat sink
assembly is removed. Thermal paste and thermal pads are included with all system board, fan/heat
sink assembly, and processor spare part kits. A separate thermal pad kit is available using spare part
number 634256-001.

Reverse this procedure to install the fan/heat sink assembly.

Component replacement procedures 69

Processor

NOTE: All processor spare part kits include thermal paste.

Desription Spare part number

AMD Turion 64 Mobile Technology ZM-86 processor (2.4-GHz, 1-MB L2 cache, 800-MHz FSB) 507974-001

AMD Turion 64 Mobile Technology ZM-84 processor (2.3-GHz, 1-MB L2 cache, 800-MHz FSB) 507957-001

AMD Turion 64 Mobile Technology ZM-82 processor (2.2-GHz, 1-MB L2 cache, 800-MHz FSB) 507973-001

AMD Turion 64 Mobile Technology ZM-80 processor (2.1-GHz, 1-MB L2 cache, 800-MHz FSB) 507972-001

AMD Turion 64 Mobile Technology RM-72 processor (2.1-GHz, 1-MB L2 cache, 800-MHz FSB) 507978-001

AMD Turion 64 Mobile Technology RM-70 processor (2.0-GHz, 1-MB L2 cache, 800-MHz FSB) 507977-001

AMD Athlon QL-62 processor (2.0-GHz, 512-KB L2 cache, 667-MHz FSB) 506052-001

AMD Athlon QL-60 processor (1.9-GHz, 512-KB L2 cache, 667-MHz FSB) 507982-001

Before removing the processor, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn

the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power cord.

4. Remove the battery (see

Battery on page 39).

5. Remove the following components:

a. Hard drive (see

b. Memory module compartment cover (see

c. Optical drive (see

d. Keyboard (see

e. Switch cover (see

f. Display assembly (see

g. Top cover (see

h. Power switch assembly (see

i. System board (see

Hard drive on page 41)

Memory module on page 44)

Optical drive on page 43)

Keyboard on page 49)

Switch cover on page 51)

Display assembly on page 53)

Top cover on page 56)

Power switch assembly on page 59)

System board on page 62)

Remove the processor:

1. Use a flat-bladed screwdriver to turn the processor locking screw (1) one-half turn

counterclockwise until you hear a click.

70 Chapter 4 Removal and replacement procedures

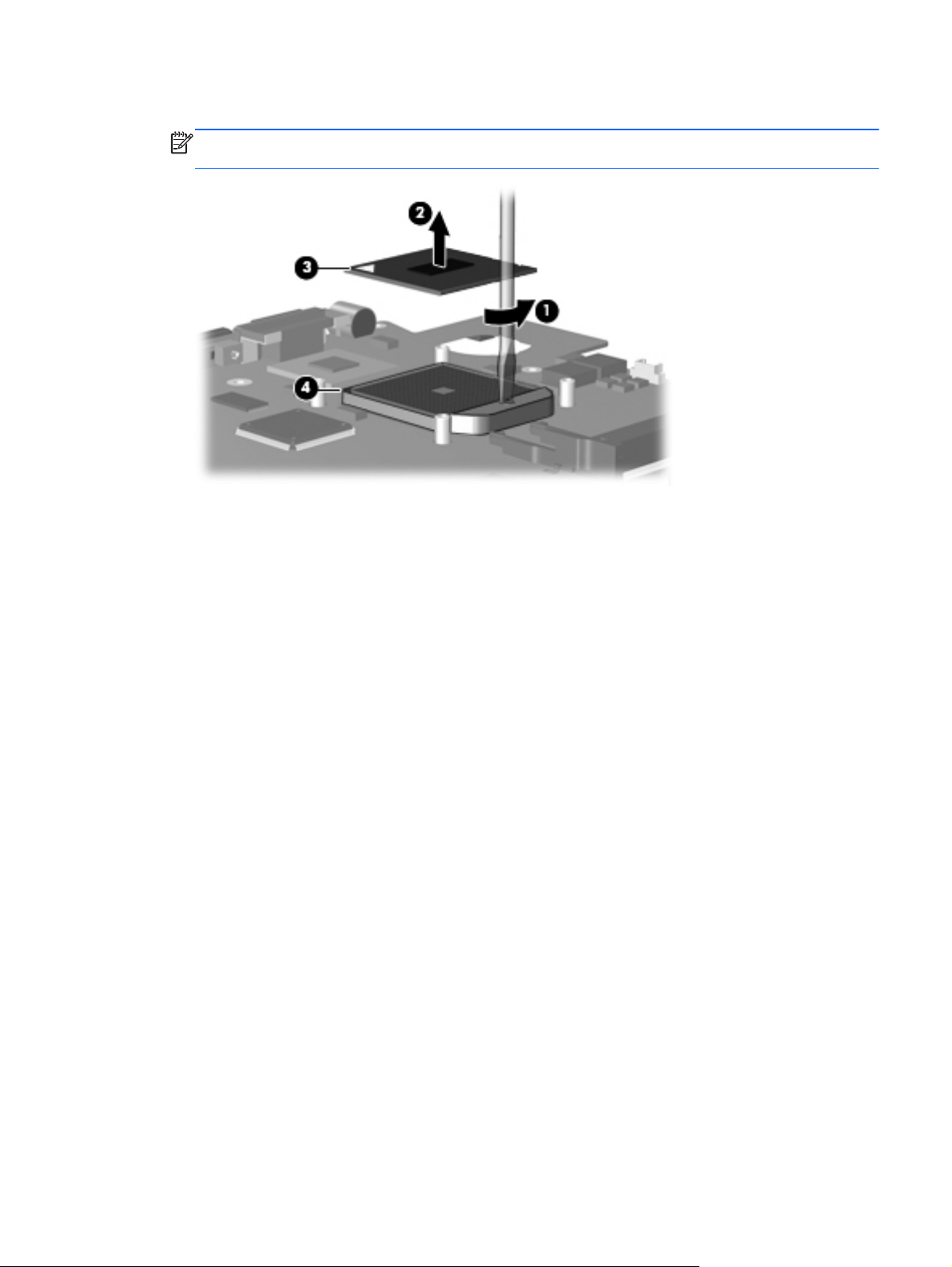

2. Lift the processor (2) straight up and remove it.

NOTE: The gold triangle (3) on the processor should be aligned with the triangle (4) embossed

on the processor socket when you install the processor.

Reverse this procedure to install the processor.

Component replacement procedures 71

5 Setup Utility

WARNING! Only authorized technicians trained by HP should repair this equipment. All

troubleshooting and repair procedures are detailed to allow repair at only the subassembly or module
level. Because of the complexity of the individual boards and subassemblies, do not attempt to make
repairs at the component level or modify any printed wiring board. Improper repairs can create a
safety hazard. Any indication of component replacement or printed wiring board modification may
void any warranty or exchange allowances.

Starting the Setup Utility

The Setup Utility is a ROM-based information and customization utility that can be used even when
your Windows operating system is not working or will not load.

NOTE: The fingerprint reader (select models only) does not work when accessing the Setup Utility.

The utility reports information about the computer and provides settings for startup, security, and
other preferences.

To start the Setup Utility:

1. Turn on or restart the computer.

2. Before Windows opens and while “Press <F10> to enter setup” is displayed in the lower-left

corner of the screen, press f10.

72 Chapter 5 Setup Utility

Changing the language of the Setup Utility

The following procedure explains how to change the language of the Setup Utility. If the Setup Utility
is not already running, begin at step 1. If the Setup Utility is already running, begin at step 2.

1. To start the Setup Utility, turn on or restart the computer, and then press f10 while “Press <F10>

to enter setup” is displayed in the lower-left corner of the screen.

2. Use the arrow keys to select System Configuration > Language, and then press enter.

3. Press f5 or f6 (or use the arrow keys) to select a language, and then press enter to select a

language.

4. When a confirmation prompt with your preference selected is displayed, press enter to save your

preference.

5. To set your preferences and exit the Setup Utility, press f10 and then follow the instructions on

the screen.

Your preferences go into effect when the computer restarts in Windows.

Navigating and selecting in the Setup Utility

Because the Setup Utility is not Windows-based, it does not support the TouchPad. Navigation and
selection are by keystroke.

To choose a menu or a menu item, use the arrow keys.

●

To choose an item in a drop-down list or to toggle a field, for example an Enable/Disable field,

●

use either the arrow keys or f5 or f6.

To select an item, press enter.

●

To close a text box or return to the menu display, press esc.

●

To display additional navigation and selection information while the Setup Utility is open, press

●

f1.

Displaying system information

The following procedure explains how to display system information in the Setup Utility. If the Setup
Utility is not open, begin at step 1. If the Setup Utility is open, begin at step 2.

1. To start the Setup Utility, turn on or restart the computer, and then press f10 while “Press <F10>

to enter setup” is displayed in the lower-left corner of the screen.

2. Access the system information by using the Main menu.

3. To exit the Setup Utility without changing any settings, use the arrow keys to select Exit > Exit

Discarding Changes, and then press enter. (The computer restarts in Windows.)

Changing the language of the Setup Utility 73

Restoring default settings in the Setup Utility

The following procedure explains how to restore the Setup Utility default settings. If the Setup Utility is
not already running, begin at step 1. If the Setup Utility is already running, begin at step 2.

1. To start the Setup Utility, turn on or restart the computer, and then press f10 while “Press <F10>

to enter setup” is displayed in the lower-left corner of the screen.

2. Select Exit > Load Setup Defaults, and then press enter.

3. When the Setup Confirmation is displayed, press enter to save your preferences.

4. To set your preferences and exit the Setup Utility, press f10, and then follow the instructions on

the screen.

The Setup Utility default settings are set when you exit the Setup Utility and go into effect when the
computer restarts.

NOTE: Your password, security, and language settings are not changed when you restore the

factory default settings.

Using advanced Setup Utility features

This section describes the Setup Utility features recommended for all users. For more information
about the Setup Utility features recommended for advanced users only, refer to Help and Support,
which is accessible only when the computer is in Windows.

The Setup Utility features available for advanced users include a hard drive self-test, a Network
Service Boot, and settings for boot order preferences.

The “<F12> to boot from LAN” message that is displayed in the lower-left corner of the screen each
time the computer is started or restarted in Windows is the prompt for a Network Service Boot.

The “Press <F9> to change boot order” message that is displayed in the lower-left corner of the
screen each time the computer is started or restarted in Windows is the prompt to change the boot
order.

74 Chapter 5 Setup Utility

Closing the Setup Utility

You can close the Setup Utility with or without saving changes.

To close the Setup Utility and save your changes from the current session, use either of the

●

following procedures:

Press f10, and then follow the instructions on the screen.

◦

— or —

If the Setup Utility menus are not visible, press esc to return to the menu display. Then use

◦

the arrow keys to select Exit > Exit Saving Changes, and then press enter.

When you use the f10 procedure, you are offered an option to return to the Setup Utility.
When you use the Exit Saving Changes procedure, the Setup Utility closes when you press

enter.

To close the Setup Utility without saving your changes from the current session:

●

If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the
arrow keys to select Exit > Exit Discarding Changes, and then press enter.

After the Setup Utility closes, the computer restarts in Windows.

Setup Utility menus

The menu tables in this section provide an overview of Setup Utility options.

NOTE: Some of the Setup Utility menu items listed in this section may not be supported by your

computer.

Main menu

Select To do this

System information

Security menu

Select To do this

Administrator password Enter, change, or delete an administrator password.

Power-On Password Enter, change, or delete a power-on password.

View and change the system time and date.

●

● View identification information about the computer.

● View specification information about the processor,

memory size, system BIOS, and keyboard controller
version (select models only).

Closing the Setup Utility 75

System Configuration menu

Select To do this

Language Support Change the Setup Utility language.

Enhanced SATA support (select models only) Enable/disable enhanced SATA mode.

Boot Options Set the following boot options:

● f10 and f12 Delay (sec.)―Set the delay for the f10 and

f12 functions of the Setup Utility in intervals of 5

seconds each (0, 5, 10, 15, 20).

CD-ROM boot―Enable/disable boot from CD-ROM.

●

Floppy boot―Enable/disable boot from Floppy.

●

Internal Network Adapter boot―Enable/disable boot

●

from Internal Network Adapter.

Boot Order―Set the boot order for:

●

USB Floppy

◦

◦ ATAPI CD/DVD ROM Drive

◦ Hard drive

◦ USB Diskette on Key

Button Sound (select models only) Enable/disable the Quick Launch Button tapping sound.

Video memory up to (select models only) Select the amount of video memory.

Diagnostics menu

Select To do this

Hard Disk Self Test Run a comprehensive self-test on the hard drive.

Secondary Hard Disk Self Test (select models only) Run a comprehensive self-test on a secondary hard drive.

Memory Test Run a diagnostic test on the system memory.

USB Hard drive

◦

Network adapter

◦

NOTE: On models with two hard drives, this menu option is

called the Primary Hard Disk Self Test.

76 Chapter 5 Setup Utility

6 Specifications

Computer specifications

Metric U.S.

Dimensions

Height (front to back) 3.1 to 3.9 cm 1.22 to 1.54 in

Width 30.6 cm 12.05 in

Depth 22.4 cm 8.82 in

Weight (with optical drive, hard drive,
and battery)

Input power

Operating voltage 18.5 V dc @ 3.5 A - 65 W

Operating current 3.5 A

Temperature

Operating (not writing to optical disc) 0°C to 35°C 32°F to 95°F

Operating (writing to optical disc) 5°C to 35°C 41°F to 95°F

Nonoperating -20°C to 60°C -4°F to 140°F

Relative humidity

Operating 10% to 90%

Nonoperating 5% to 95%

Maximum altitude (unpressurized)

Operating -15 m to 3,048 m -50 ft to 10,000 ft

Nonoperating -15 m to 12,192 m -50 ft to 40,000 ft

Shock

Operating 125 g, 2 ms, half-sine

1.95 kg 4.29 lbs

Nonoperating 200 g, 2 ms, half-sine

Random vibration

Operating 0.75 g zero-to-peak, 10 Hz to 500 Hz, 0.25 oct/min sweep rate

Computer specifications 77

Metric U.S.

Nonoperating 1.50 g zero-to-peak, 10 Hz to 500 Hz, 0.5 oct/min sweep rate

NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The computer operates well within

this range of temperatures.

12.1-inch, WXGA BrightView display specifications

Metric U.S.

Dimensions

Height 16.2 cm 6.4 in

Width 26.0 cm 10.2 in

Diagonal 30.6 cm 12.1 in

Number of colors Up to 16.8 million

Contrast ratio 300:1 (typical)

Brightness 200 nits (typical)

Pixel resolution

Pitch 0.300 × 0.300 mm

Format 1280 × 800

Configuration RGB stripe

Backlight CCFL

Refresh rate 60 Hz

PPI 107

Viewing angle +/-45° horizontal, +/-25° vertical (typical)

78 Chapter 6 Specifications

Hard drive specifications

320-GB* 250-GB* 160-GB* 120-GB*

Dimensions

Height 9.5 mm 9.5 mm 9.5 mm 9.5 mm

Width 70 mm 70 mm 70 mm 70 mm

Weight 101 g 101 g 101 g 101 g

Interface type ATA-7 ATA-7 ATA-7 ATA-7

Transfer rate

Synchronous (maximum) 100 MB/sec 100 MB/sec 100 MB/sec 100 MB/sec

Security ATA security ATA security ATA security ATA security

Seek times (typical read, including setting)

Single track 3 ms 3 ms 3 ms 3 ms

Average 13 ms 13 ms 13 ms 13 ms

Maximum 24 ms 24 ms 24 ms 24 ms

Logical blocks 645,124,831 500,585,144 312,560,480 234,420,360

Disc rotational speed 5400-rpm 5400-rpm 5400-rpm 5400-rpm

Operating temperature 5°C to 55°C (41°F to 131°F)

*1 GB = 1 billion bytes when referring to hard drive storage capacity. Actual accessible capacity is less.

†

Actual drive specifications may differ slightly.

NOTE: Certain restrictions and exclusions apply. Contact technical support for details.

Hard drive specifications 79

DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive specifications

Applicable disc Read:

CD-DA, CD+(E)G, CD-MIDI, CD-TEXT,
CD-ROM, CD-ROM XA, MIXED MODE
CD, CD-I, CD-I Bridge (Photo-CD,
Video CD), Multisession CD (Photo­CD, CD-EXTRA, Portfolio, CD-R, CD­RW), CD-R, CD-RW, DVD-ROM
(DVD-5, DVD-9, DVD-10, DVD-18),
DVD-R, DVD-RW, DVD+R, DVD+RW,
DVD-RAM

Access time CD DVD

Random < 175 ms < 230 ms

Cache buffer 2 MB

Data transfer rate

24X CD-ROM 3,600 KB/sec

8X DVD 10,800 KB/sec

24X CD-R 3,600 KB/sec

16X CD-RW 2,400 KB/sec

8X DVD+R 10,800 KB/sec

4X DVD+RW 5,400 KB/sec

Write:

CD-R and CD-RW

DVD+R, DVD+RW, DVD-R, DVD-RW,
DVD-RAM

8X DVD-R 10,800 KB/sec

4X DVD-RW 5,400 KB/sec

2.4X DVD+R(9) 2,700 KB/sec

5X DVD-RAM 6,750 KB/sec

Transfer mode Multiword DMA Mode

80 Chapter 6 Specifications

System DMA specifications

Hardware DMA System function

DMA0 Not applicable

DMA1* Not applicable

DMA2* Not applicable

DMA3 Not applicable

DMA4 Direct memory access controller

DMA5* Available for PC Card

DMA6 Not assigned

DMA7 Not assigned

*PC Card controller can use DMA 1, 2, or 5.

System DMA specifications 81

System interrupt specifications

Hardware IRQ System function

IRQ0 System timer

IRQ1 Standard 101-/102-Key or Microsoft® Natural Keyboard

IRQ2 Cascaded

IRQ3 USB2 Enhanced Host Controller—24CD

IRQ4 COM1

IRQ5* Conexant AC—SMBus Controller—24C3 Data Fax Modem with SmartCP

IRQ6 Diskette drive

IRQ7* Parallel port

IRQ8 System CMOS/real-time clock

IRQ9* Microsoft ACPI-compliant system

IRQ10* USB UHCI controller—24C2

Graphic Controller

Realtek RTL8139 Family PCI Fast Ethernet Controller

IRQ11 USB EHCI controller—24CD

USB UHCI controller—24C4

USB UHCI controller—24C7

Pro/Wireless 2200BG

TI OHCI 1394 host controller

TI PCI1410 CardBus controller

IRQ12 Synaptics PS/2 TouchPad

IRQ13 Numeric data processor

IRQ14 Primary IDE channel

IRQ15 Secondary IDE channel

*Default configuration; audio possible configurations are IRQ5, IRQ7, IRQ9, IRQ10, or none.

NOTE: PC Cards may assert IRQ3, IRQ4, IRQ5, IRQ7, IRQ9, IRQ10, IRQ11, or IRQ15. Either the infrared or the serial

port may assert IRQ3 or IRQ4.

82 Chapter 6 Specifications

System I/O address specifications

I/O address (hex) System function (shipping configuration)

000 - 00F DMA controller no. 1

010 - 01F Unused

020 - 021 Interrupt controller no. 1

022 - 024 Opti chipset configuration registers

025 - 03F Unused

02E - 02F 87334 “Super I/O” configuration for CPU

040 - 05F Counter/timer registers

044 - 05F Unused

060 Keyboard controller

061 Port B

062 - 063 Unused

064 Keyboard controller

065 - 06F Unused

070 - 071 NMI enable/RTC

072 - 07F Unused

080 - 08F DMA page registers

090 - 091 Unused

092 Port A

093 - 09F Unused

0A0 - 0A1 Interrupt controller no. 2

I/O Address (hex) System Function (shipping configuration)

0A2 - 0BF Unused

0C0 - 0DF DMA controller no. 2

0E0 - 0EF Unused

0F0 - 0F1 Coprocessor busy clear/reset

0F2 - 0FF Unused

100 - 16F Unused

170 - 177 Secondary fixed disk controller

178 - 1EF Unused

1F0 - 1F7 Primary fixed disk controller

1F8 - 200 Unused

201 JoyStick (decoded in ESS1688)

202 - 21F Unused

System I/O address specifications 83

I/O address (hex) System function (shipping configuration)

220 - 22F Entertainment audio

230 - 26D Unused

26E - 26 Unused

278 - 27F Unused

280 - 2AB Unused

2A0 - 2A7 Unused

2A8 - 2E7 Unused

2E8 - 2EF Reserved serial port

2F0 - 2F7 Unused

2F8 - 2FF Infrared port

300 - 31F Unused

320 - 36F Unused

370 - 377 Secondary diskette drive controller

378 - 37F Parallel port (LPT1/default)

380 - 387 Unused

388 - 38B FM synthesizer—OPL3

38C - 3AF Unused

3B0 - 3BB VGA

3BC - 3BF Reserved (parallel port/no EPP support)

3C0 - 3DF VGA

3E0 - 3E1 PC Card controller in CPU

3E2 - 3E3 Unused

3E8 - 3EF Internal modem

3F0 - 3F7 “A” diskette controller

3F8 - 3FF Serial port (COM1/default)

CF8 - CFB PCI configuration index register (PCIDIVO-1)

CFC - CFF PCI configuration data register (PCIDIVO-1)

84 Chapter 6 Specifications

System memory map specifications

Size Memory address System function

640 KB 00000000-0009FFFF Base memory

128 KB 000A0000-000BFFFF Video memory

48 KB 000C0000-000CBFFF Video BIOS

160 KB 000C8000-000E7FFF Unused

64 KB 000E8000-000FFFFF System BIOS

15 MB 00100000-00FFFFFF Extended memory

58 MB 04800000-07FFFFFF Super extended memory

58 MB 04800000-07FFFFFF Unused

2 MB 08000000-080FFFFF Video memory (direct access)

4 GB 08200000-FFFEFFFF Unused

64 KB FFFF0000-FFFFFFFF System BIOS

System memory map specifications 85

7 Screw listing

This section provides specification and reference information for the screws and screw locks used in
the computer. All screws and screw locks listed in this section are available in the Screw Kit, spare
part number 464116-001.

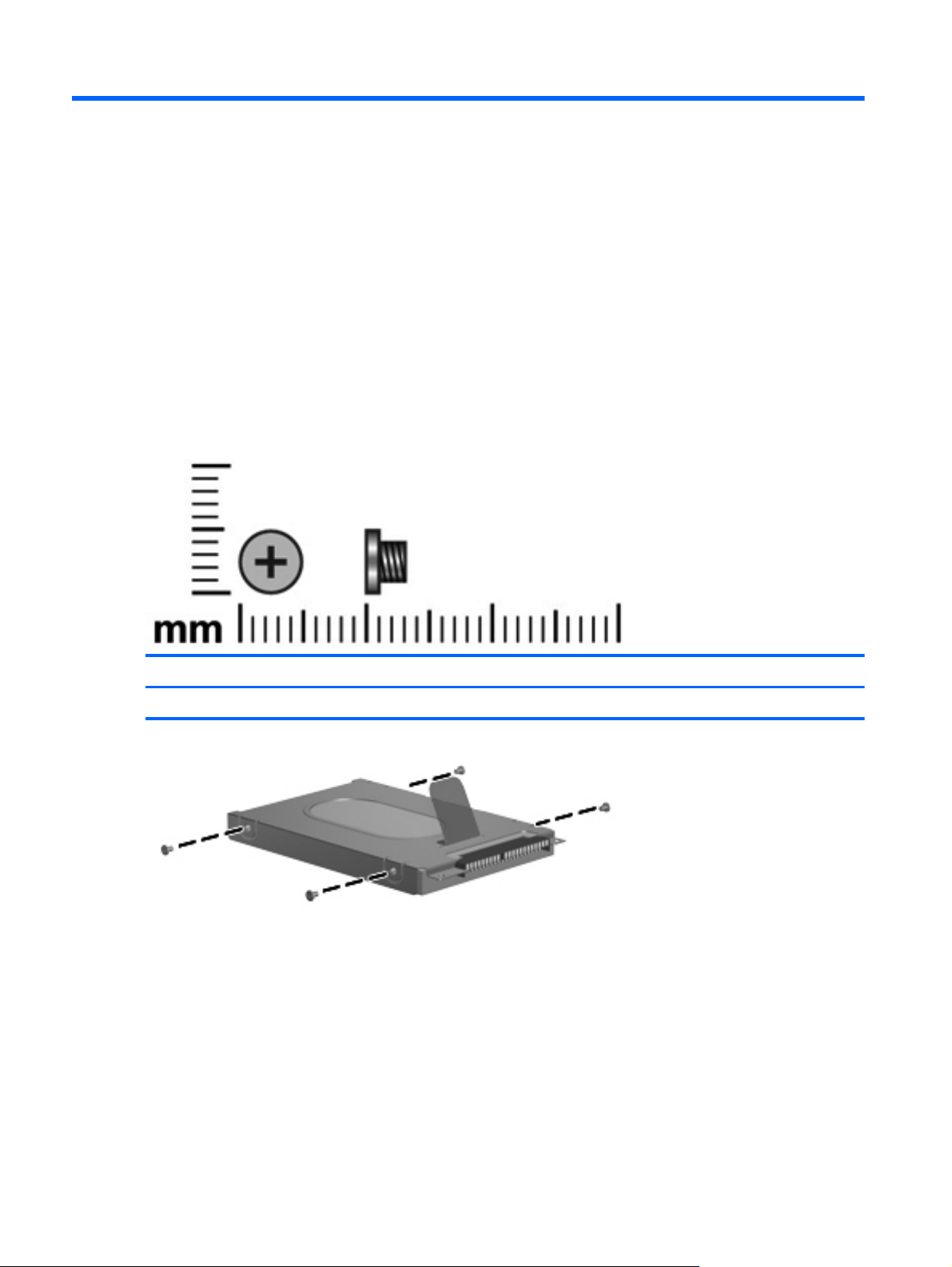

Phillips PM3.0×3.0 screw

Color Quantity Length Thread Head width

Silver 4 3.0 mm 3.0 mm 5.0 mm

Where used: 4 screws that secure the hard drive bracket to the hard drive

86 Chapter 7 Screw listing

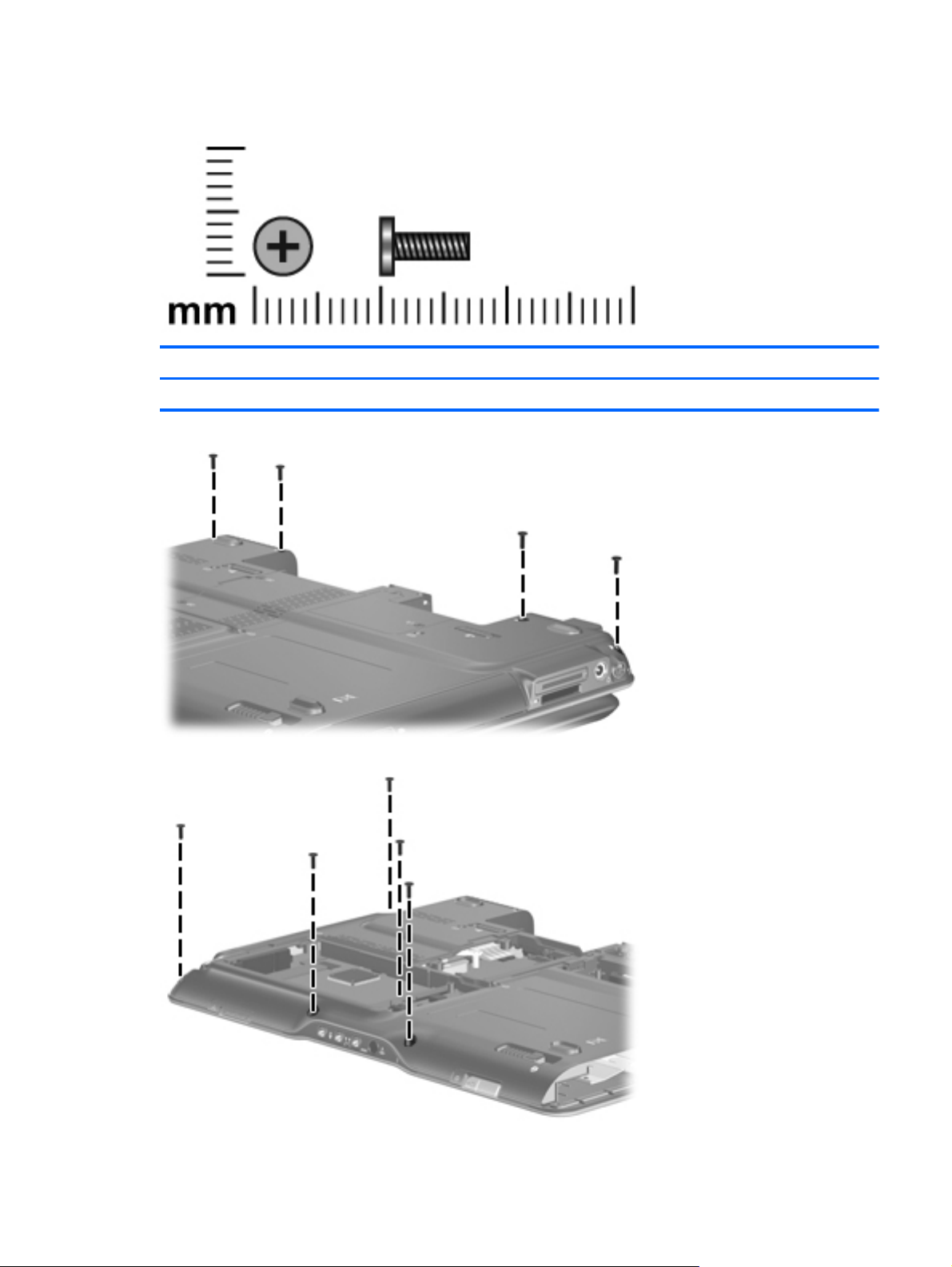

Phillips PM2.0×7.0 screw

Color Quantity Length Thread Head width

Black 9 7.0 mm 2.0 mm 4.5 mm

Where used: 4 screws that secure the switch cover to the computer

Where used: 5 screws that secure top cover to the computer

Phillips PM2.0×7.0 screw 87

Phillips PM2.0×4.0 screw

Color Quantity Length Thread Head width

Silver 10 4.0 mm 2.0 mm 4.5 mm

Where used: 2 screws that secure the top cover to the computer

Where used: 2 screws that secure the power switch board to the base enclosure

88 Chapter 7 Screw listing

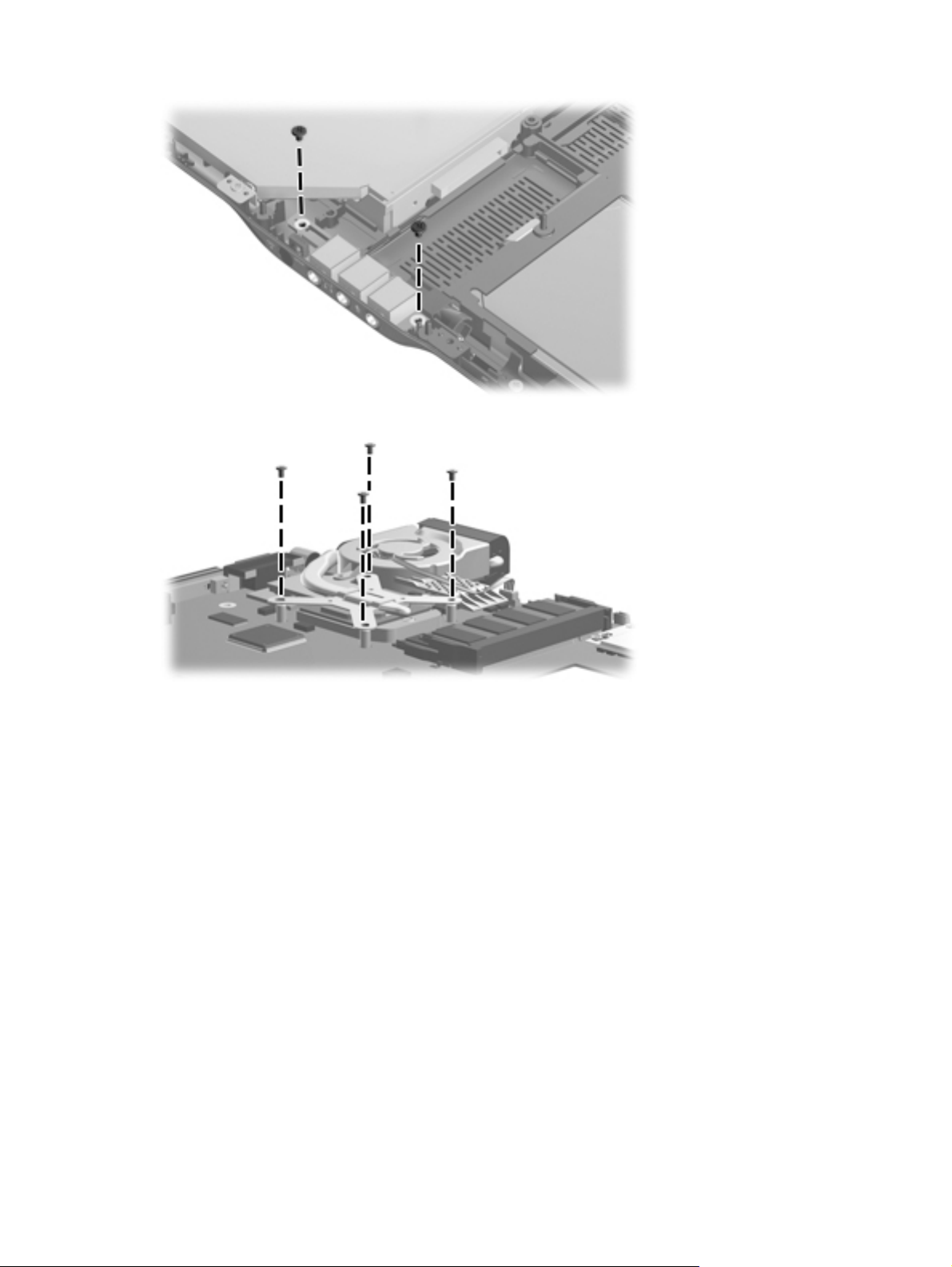

Where used: 2 screws that secure the audio/infrared board to the base enclosure

Where used: 4 screws that secure the fan/heat sink assembly to the system board

Phillips PM2.0×4.0 screw 89

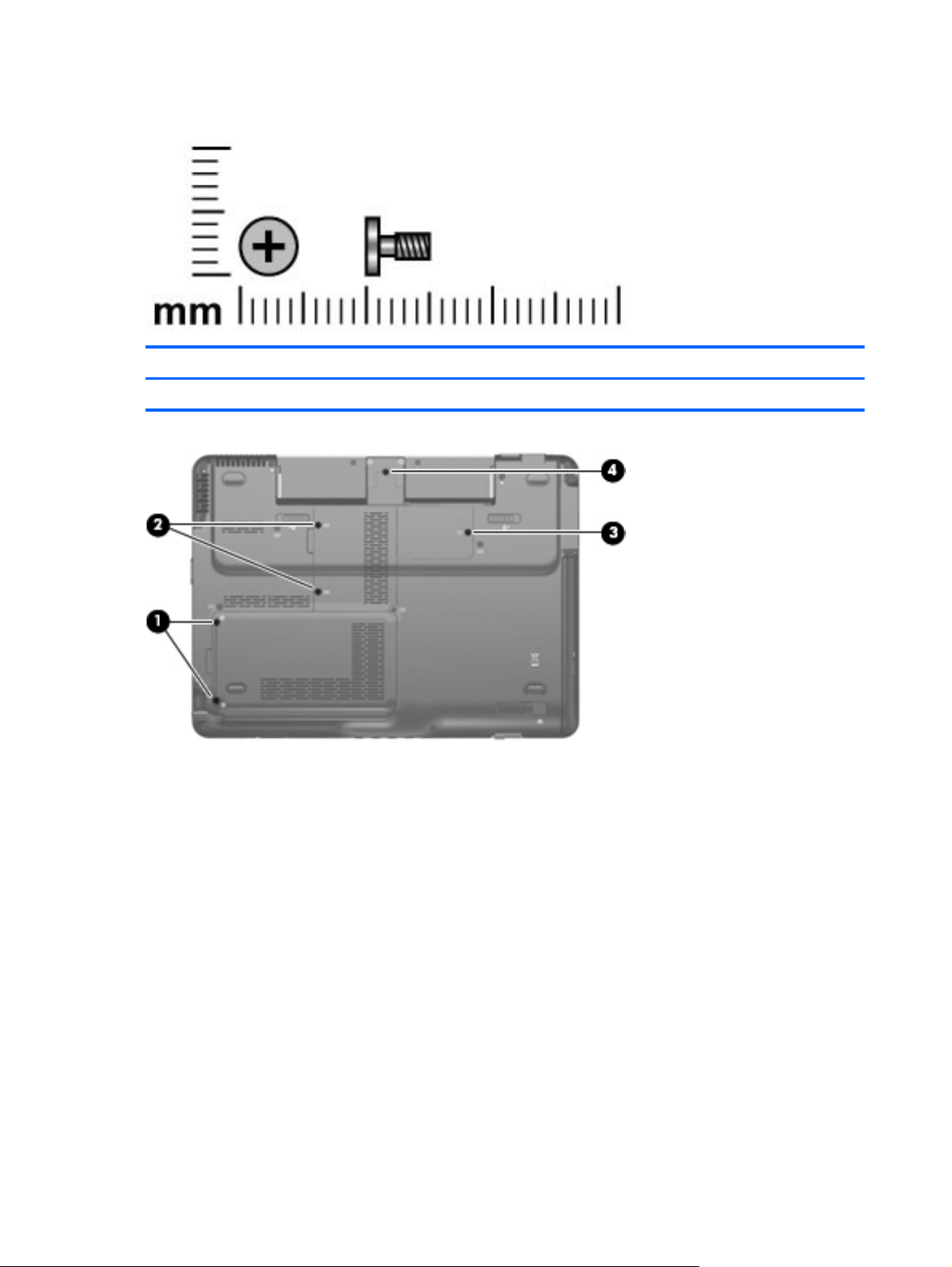

Phillips PM2.0×5.0 captive screw

Color Quantity Length Thread Head width

Black 6 5.0 mm 2.0 mm 4.5 mm

Where used:

(1) Two captive screws (secured by C-clips) that secure the hard drive cover to the computer

(2) Two captive screws (secured by C-clips) that secure the memory module compartment cover to

the computer

(3) One captive screw (secured by a C-clip) that secures the WLAN module compartment cover to the
computer

(4) One captive screw (secured by a C-clip) that secures the display cable cover to the computer

90 Chapter 7 Screw listing

Black Phillips PM2.0×3.0 screw

Color Quantity Length Thread Head width

Black 5 3.0 mm 2.0 mm 4.5 mm

Where used: 2 screws that secure the WLAN module to the computer

Where used: 3 screws that secure the top cover to the base enclosure

Black Phillips PM2.0×3.0 screw 91

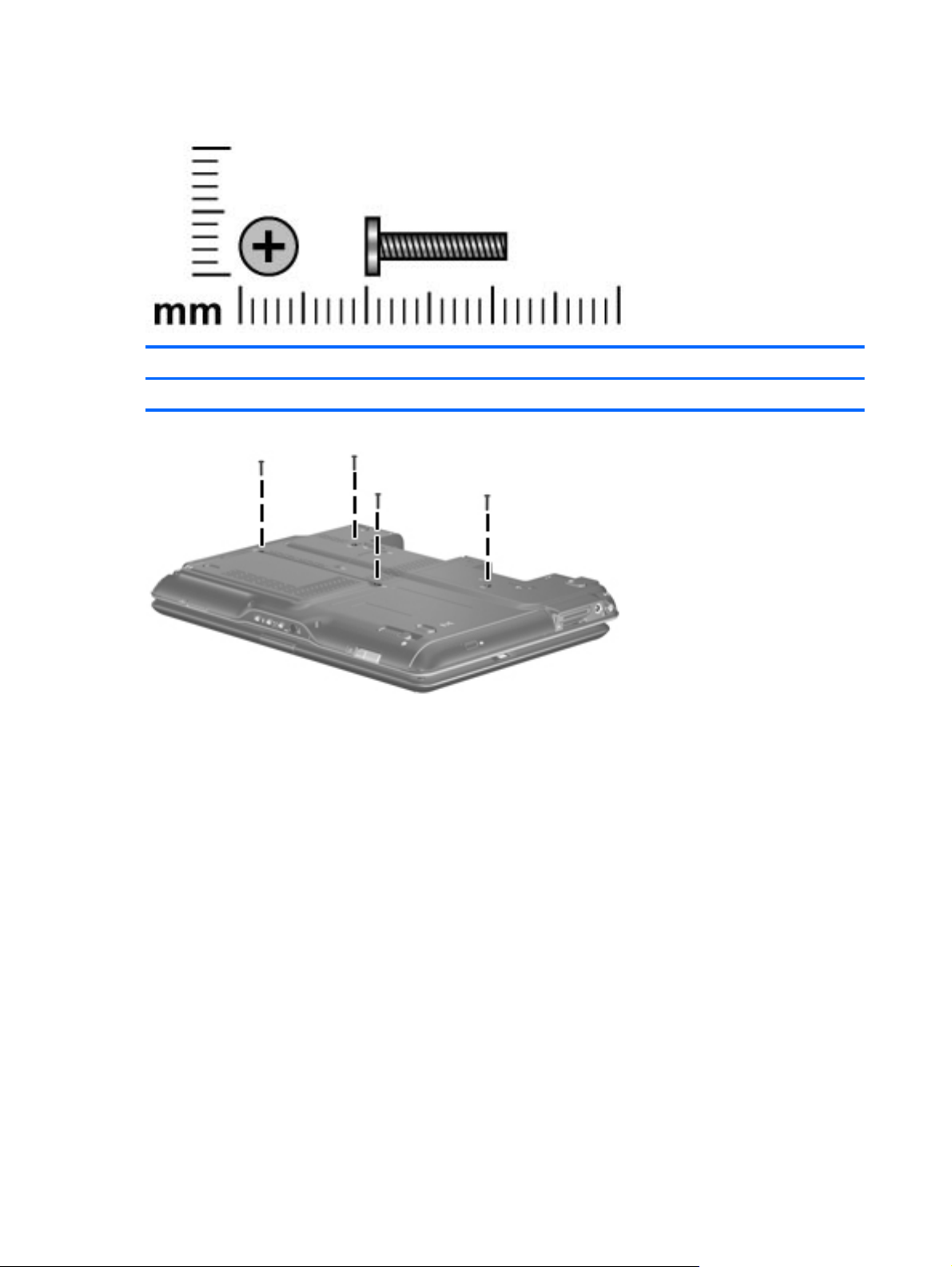

Phillips PM2.0×11.0 screw

Color Quantity Length Thread Head width

Black 4 11.0 mm 2.0 mm 4.5 mm

Where used: 4 screws that secure the keyboard to the computer

92 Chapter 7 Screw listing
