HP ThinkPad T510I User guide

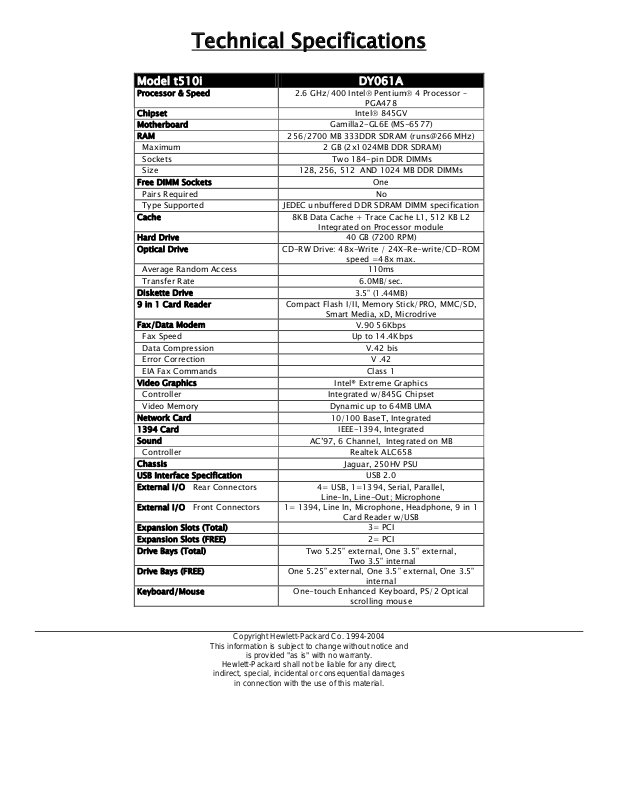

Technical Specifications

Model t510i DY061A

Processor & Speed

Chipset Motherboard Gamilla2-GL6E (MS-6577) RAM 256/2700 MB 333DDR SDRAM (runs@266 MHz) Maximum 2 GB (2x1024MB DDR SDRAM) Sockets Two 184-pin DDR DIMMs Size 128, 256, 512 AND 1024 MB DDR DIMMs Free DIMM Sockets One Pairs Required No Type Supported JEDEC unbuffered DDR SDRAM DIMM specification Cache 8KB Data Cache + Trace Cache L1, 512 KB L2

Hard Drive 40 GB (7200 RPM) Optical Drive CD-RW Drive: 48x-Write / 24X-Re-write/CD-ROM

Average Random Access 110ms Transfer Rate 6.0MB/sec. Diskette Drive 3.5” (1.44MB) 9 in 1 Card Reader Compact Flash I/II, Memory Stick/PRO, MMC/SD,

Fax/Data Modem V.90 56Kbps Fax Speed Up to 14.4Kbps Data Compression V.42 bis Error Correction V .42 EIA Fax Commands Class 1 Video Graphics Intel® Extreme Graphics Controller Integrated w/845G Chipset Video Memory Dynamic up to 64MB UMA Network Card 10/100 BaseT, Integrated 1394 Card IEEE-1394, Integrated Sound AC’97, 6 Channel, Integrated on MB Controller Realtek ALC658 Chassis Jaguar, 250HV PSU USB Interface Specification USB 2.0 External I/O Rear Connectors 4= USB, 1=1394, Serial, Parallel,

External I/O Front Connectors 1= 1394, Line In, Microphone, Headphone, 9 in 1

Expansion Slots (Total) 3= PCI Expansion Slots (FREE) 2= PCI Drive Bays (Total) Two 5.25” external, One 3.5” external,

Drive Bays (FREE) One 5.25” external, One 3.5” external, One 3.5”

Keyboard/Mouse One-touch Enhanced Keyboard, PS/2 Optical

This information is subject to change without notice and

is provided "as is" with no warranty.

Hewlett-Packard shall not be liable for any direct,

indirect, special, incidental or consequential damages

in connection with the use of this material.

2.6 GHz/400 Intel® Pentium® 4 Processor – PGA478

Intel® 845GV

Integrated on Processor module

speed =48x max.

Smart Media, xD, Microdrive

Line-In, Line-Out; Microphone

Card Reader w/USB

Two 3.5” internal

internal

scrolling mouse
