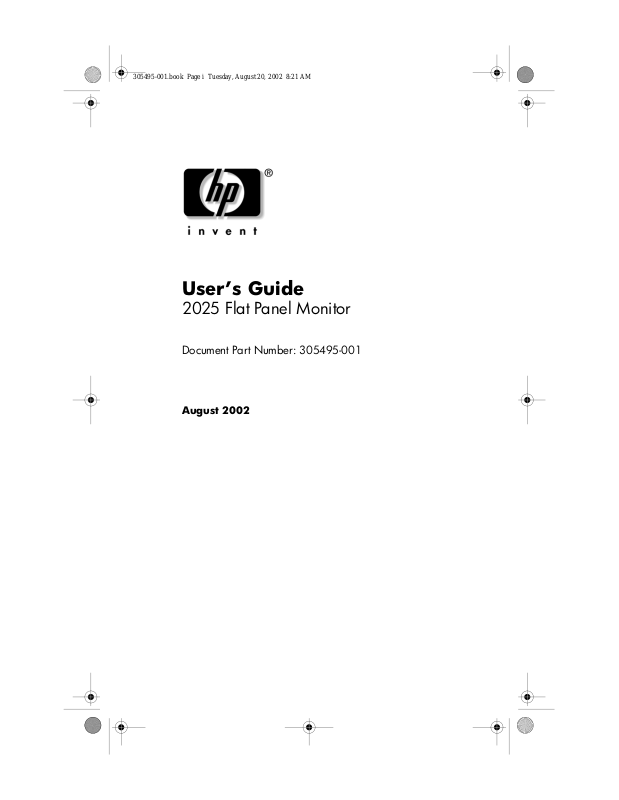

HP TFT 2025 User Manual

User’s Guide

2025 Flat Panel Monitor

Document Part Number: 305495-001

August 2002

© 2002 Hewlett-Packard Company
All other product names mentioned herein may be trademarks of their

respective companies.
Hewlett-Packard Company shall not be liable for technical or editorial

errors or omissions contained herein or for incidental or consequential
damages in connection with the furnishing, performance, or use of this
material. The information in this document is provided “as is” without
warranty of any kind, including, but not limited to, the implied warranties
of merchantability and fitness for a particular purpose, and is subject to
change without notice. The warranties for HP products are set forth in the
express limited warranty statements accompanying such products. Nothing
herein should be construed as constituting an additional warranty.

This document contains proprietary information that is protected by
copyright. No part of this document may be photocopied, reproduced, or
translated to another language without the prior written consent of
Hewlett-Packard Company.

WARNING: Text set off in this manner indicates that failure to

Å

follow directions could result in bodily harm or loss of life.

CAUTION: Text set off in this manner indicates that failure to follow

Ä

directions could result in damage to equipment or loss of information.

User’s Guide
2025 Flat Panel Monitor
First Edition August 2002

Document Part Number: 305495-001

Contents

2025 Flat Panel Display

Product Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1

Information Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

Setting Up the Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . 1–3

Selecting the Signal Connectors and Cables . . . . . . . 1–6

Removing the Monitor Base . . . . . . . . . . . . . . . . . . . 1–7

Mounting the Monitor . . . . . . . . . . . . . . . . . . . . . . . . 1–9

Operating the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . 1–10

On-Screen Display Settings. . . . . . . . . . . . . . . . . . . 1–12

Adjusting Monitor Settings . . . . . . . . . . . . . . . . . . . 1–14

Identifying Special OSD Messages. . . . . . . . . . . . . 1–14

Adjusting Screen Quality. . . . . . . . . . . . . . . . . . . . . 1–15

Optimizing Digital Conversion . . . . . . . . . . . . . . . . 1–15

Recognizing Preset Display Resolutions. . . . . . . . . 1–16

Entering User Modes. . . . . . . . . . . . . . . . . . . . . . . . 1–17

Energy Saver Feature. . . . . . . . . . . . . . . . . . . . . . . . 1–17

Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 1–18

Protecting the Monitor. . . . . . . . . . . . . . . . . . . . . . . 1–18

Cleaning the Monitor. . . . . . . . . . . . . . . . . . . . . . . . 1–19

Shipping the Monitor. . . . . . . . . . . . . . . . . . . . . . . . 1–20

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–21

Agency Regulatory Notices

Federal Communications Commission Notice. . . . . . . . A–23

Modifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–24

Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–24

User’s Guide iii

Declaration of Conformity for Products Marked with FCC

Logo, United States Only. . . . . . . . . . . . . . . . . . . . . . . . A–24

Canadian Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . A–25

Avis Canadien . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–25

European Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . A–25

Japanese Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–26

EPA Energy Star Compliance . . . . . . . . . . . . . . . . . A–26

TCO ‘99 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–26

Congratulations! . . . . . . . . . . . . . . . . . . . . . . . . . . . A–26

Why do we have environmentally labelled

computers?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A–27

What does labelling involve? . . . . . . . . . . . . . . . . . A–27

Environmental requirements . . . . . . . . . . . . . . . . . . A–29

Power Cord Set Requirements. . . . . . . . . . . . . . . . . . . . A–31

iv User’s Guide

2025 Flat Panel Display

Product Features

The 2025 Flat Panel Display has an active matrix, thin-film
transistor (TFT), liquid crystal display (LCD). The monitor
features include:

■ Large 20.1-inch (51 cm) viewable area display.

■ 1600 × 1200 resolution, plus full-screen support for lower

resolutions.

■ Wide viewing angle to allow viewing from a sitting or

standing position, or moving side-to-side.

■ Tilt and swivel adjustment capabilities.

■ Removable base for flexible mounting solutions.

■ Multiple video inputs supported:
❏ VGA Analog
❏ DVI-I supports either Analog or Digital signal input
❏ Super Video
❏ Composite Video

■ Video input includes PiP (Picture in Picture) option for

windowed video display over data display.

■ VGA analog and DVI-Digital signal cables included.

■ Plug and play capability if supported by your system.

■ On-Screen Display (OSD) adjustments in English, French,

German, Italian, Spanish, and Simplified Chinese for ease of
set-up and screen optimization.

User’s Guide 1

2025 Flat Panel Display

■ Software and Reference Library CD includes an information

file (INF), Image Color Matching file (ICM), and product
documentation.

■ Energy Saver feature for Energy Star compliance.

■ AssetControl

■ Compliant with the following regulated specifications:
❏ EPA ENERGY STAR
❏ European Union CE Directives
❏ Swedish MPR II 1990
❏ Swedish TCO '99

Information Files

The CD-ROM included with this monitor contains two
information files to be installed onto your computer; an .INF file
and an .ICM file.

■ The .INF file defines monitor resources and provides

specifications used by most operating systems to install
support software for certain hardware devices. The .INF file
ensures monitor compatibility and optimization with your
computer’s graphics adapter. INF files are downloadable by
clicking on:
desired monitor.

www.hp.com/go/support and selecting the

■ The .ICM file provides color matching consistency from

monitor screen to printer and is activated from within
graphics programs that have this feature.

To install these files on your computer, insert the Software and
Reference Library CD in your computer CD-ROM drive. When
the CD menu launches, select Install INF and ICM Files and
follow the on-screen instructions.

2 User’s Guide

Setting Up the Monitor

To set up the monitor, ensure that the power is turned off to the
monitor, computer system, and other attached devices, then
follow these steps:

1. Place the monitor in a convenient, well-ventilated location
near your computer.

2. Connect the monitor signal cable to the video connector on
the rear panel of the computer.

The DVI-D cable supplied with this monitor is for

✎

digital-to-digital connection only. Your computer must have a
DVI-compatible graphics card installed for use with this cable.
When connecting the DVI-D signal cable to the DVI connector
on the monitor, you must connect the other end of the DVI-D
cable to the DVI connector on the computer.

3. Connect the monitor signal cable to the back of the monitor.

4. Connect the power cable to the back of the monitor.

2025 Flat Panel Display

5. Connect the power cable to an electrical wall outlet.

User’s Guide 3

2025 Flat Panel Display

6. Adjust the monitor as needed for your comfort using the
monitor’s tilt, swivel, and height adjustment capabilities.

4 User’s Guide

2025 Flat Panel Display

User’s Guide 5

2025 Flat Panel Display

WARNING: To reduce the risk of electric shock or damage to your

Å

equipment: Do not disable the power cord grounding plug. The
grounding plug is an important safety feature.

Plug the power cord into a grounded (earthed) electrical outlet that is
easily accessible at all times.

Disconnect power from the monitor by unplugging the power cord
from the electrical outlet.

Do not place anything on power cords or cables. Arrange them so
that no one may accidentally step on or trip over them. Do not pull on
a cord or cable. When unplugging from the electrical outlet, grasp
the cord by the plug.

CAUTION: Burn-in image damage may occur on monitors that

Ä

display the same static image on screen for a prolonged period of
time. To avoid burn-in image damage on your monitor screen, you
should always activate a screen saver application or turn off the
monitor when it is not in use for a prolonged period of time.

Selecting the Signal Connectors and Cables

There are four signal input connectors: one VGA connector, one
DVI-I connector, one super video connector, and one composite
video connector. The monitor will automatically determine which
inputs have v alid video signals. The inputs can be selected via the
On-Screen Display (OSD) feature or by pressing the Signal Input
Selection control on the monitor front bezel.

The video mode supported by the DVI-I connector is determined
by the video cable used. For digital operation, use the DVI-D to
DVI-D signal cable provided. For analog operation, a DVI-I to
VGA signal cable must be attached to the DVI-I input (not
provided with the monitor).

6 User’s Guide

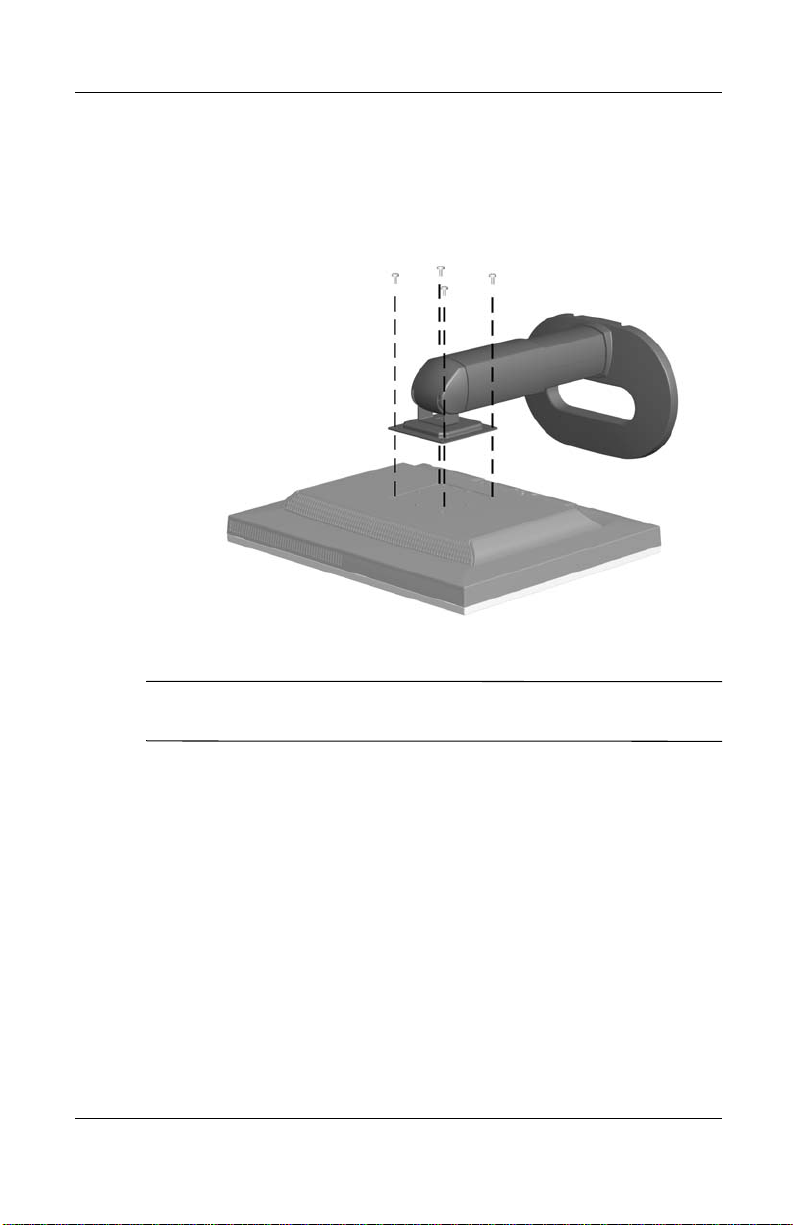

Removing the Monitor Base

Before you can mount the monitor onto a swing arm or other
mounting fixture, you must remove the monitor from the base.

CAUTION: Before beginning to disassemble the monitor, be sure

Ä

the monitor is turned off and the power and signal cables are both
disconnected.

To remove the monitor from the base:

CAUTION: Lay the front bezel down on a soft area to prevent it from

Ä

getting scratched, defaced, or broken.

WARNING: Before removing the monitor from the base, ensure that

Å

the monitor is lying flat, front bezel down, and that the base is set to
the maximum base extension. Attempting to remove the monitor from
the base while upright in the minimum base extension may result in
injury to the user.

1. Disconnect and remove the signal and power cables from the
back of the monitor.

2025 Flat Panel Display

User’s Guide 7
