Introduction

HP Compaq thin clients with Microsoft Windows CE are easy to
deploy, manage, and secure, and include powerful features for
mainstream business use.

■ Easy to deploy

❏ Setup Wizard for easy configuration

❏ Familiar explorer shell that resembles Windows desktop

❏ Altiris Deployment Server

■ Easy to manage

❏ Registry import tool

❏ Can update to the latest image directly from HP

❏ Can return to factory settings by pressing F9

■ Easy to secure

1

❏ Can disable USB mass storage

❏ Can lockdown user interface with Connection Administrator

❏ Secure default Guest account

❏ More secure operating system

HP provides this client “ready to go” out of the box to meet most
common customer requirements. You may want to add/remove
features, lock down the user interface, etc. This guide will introduce
you to the many features of this client and show you how to
customize the client to your needs.

This guide provides the network administrator with instructions for
local and remote configuration of the CE-based terminal. Typically, a
terminal is configured locally then used as a template for other
terminals, which are then configured using remote administration
tools.

Administrator’s Guide www.hp.com 1-1

Introduction

Image Updates

HP provides periodic updates to the image for thin clients. Check the
HP support site for important documentation that provides specific
information for your image version. You can find support
documentation at:

http://welcome.hp.com/country/us/en/support.html.

For the latest version of the HP thin client Microsoft Windows CE
image, visit:

http://h18004.www1.hp.com/support/files/thinclients/us/index.html

Setup Wizard

HP’s Microsoft Windows CE images include a Setup Wizard, which
provides a simplified, easy-to-follow method to configure a thin
client. The Setup Wizard launches after you unbundle the image.

There is a 20-second delay after the Setup Wizard launches. If you do

✎

not click Next before the timer expires, the thin clients loads the
default settings.

1-2 www.hp.com Administrator’s Guide

Updates for image refresh version 5.0

■ ICA seamless windows.

■ RDP 5.5 Add-on.

■ VNC Server Add-on.

■ Auto DHCP Update Feature enabled by default.

■ TxtPad Add-on.

■ Support for the EHCI USB controller driver (i.e. USB 2.0) on

select models.

■ Dynamic DNS. Secure updates are supported with Kerberos

encryption, which is only supported with Windows 2000 and
2003 Servers.

■ DMA flash enabled.

■ Messenger 5.0 Add-on.

PC Session Allocation Manager (PC SAM)

Introduction

HP’s PC Session Allocation Manager (PC SAM) software provides
dynamic allocation for assignment of virtual desktop sessions. In a
Consolidated Client Infrastructure (CCI) desktop virtualization
environment, PC SAM enables a higher level of virtualization in your
company by managing all the remote desktop connections from
users’ access devices to their computing resources thus helping you
get the most out of IT deployments.

For more information about PC SAM, go to

http://welcome.hp.com/country/us/en/solutions/leb.html

and perform a search on PC SAM.

Administrator’s Guide www.hp.com 1-3

Introduction

1-4 www.hp.com Administrator’s Guide

The Desktop

The t5000 series thin client with Microsoft Windows CE uses an
explorer shell (desktop) that resembles the typical Windows desktop
to make it look familiar and easy to use. The desktop includes a
taskbar, Start menu, shortcut icons, and a background image.

The taskbar and the Start menu are hidden by default.

✎

2

Administrator’s Guide www.hp.com 2-1

The Desktop

Display

Taskbar

To change the display settings, right-click on the desktop and select
Properties. You can change the following:

■ background image

■ appearance

■ resolution and color quality settings

■ screen saver

You must reboot for changes to the display settings to take effect. If

✎

you do not know if your monitor supports a setting, click the Test
button on the Display Properties Settings tab.

For more information about display settings, see Chapter 4, in

section “Display.”

Move the pointer to the bottom of the screen to display the taskbar.
The taskbar is hidden by default to provide a clean ICA connection
experience.

The taskbar provides access to system software. The taskbar includes:

■ Start button

■ active task buttons - currently running programs

■ notification area - the system tray

To configure the thin client to show the taskbar:

1. Right-click on the taskbar.

2. Select Properties.

3. Clear the Auto hide check box.

2-2 www.hp.com Administrator’s Guide

Start menu

Icons

The Desktop

To open the Start menu, click the Start button on the taskbar. The
Start menu provides access to software and settings, allows you to run
commands, and allows you to shut down the system.

The icons on the desktop provide shortcuts to software and
connections. To launch a program from the desktop, double-click the
respective icon.

You can add icons for connections by right-clicking on the
connection icon in the HP Connection for Citrix software and
selecting Send to Desktop. For more information, see Chapter 5, in

section “HP Connections for Citrix Software.”.

Windows CE architecture does not allow you to change the properties

✎

of programs from desktop shortcuts. You can only change property
values for the shortcut itself from the desktop.

Administrator’s Guide www.hp.com 2-3

The Desktop

2-4 www.hp.com Administrator’s Guide

3

HP Connection Administrator

The HP Connection Administrator allows you to:

■ Manage user accounts.

■ Add, edit, and delete connections.

❏ Citrix ICA connections

❏ Microsoft RDP connections

❏ Terminal emulation

❏ PC SAM

❏ Internet Explorer

■ Assign connections to users.

The main HP Connection Administrator window allows you to
perform actions for only the current user. To assign connections to
other users, use the HP Connection Administrator Advanced window.
For more information about the Advanced window, see “Advanced

window” on page 3.

Administrator’s Guide www.hp.com 3-1

HP Connection Administrator

✎

You can access HP Connection Administrator through the Start menu
by clicking Start > Programs > HP Connection Administrator.

The HP Connection Administrator window includes the following
features:

You must close all active connections to use the following buttons:
Add, Delete, Edit, Advanced, Exit.

■ Connection display area: Lists all connections assigned to the

user currently logged on to the terminal. For each connection, the
display shows the name, type, and status of the connection.

■ Connect: Click to activate a selected connection.

■ Exit: Click to exit HP Connection Administrator. The OK button

performs the same function.

■ Control Panel: Click to access the Control Panel. This feature

requires appropriate permissions.

■ Add: Click to create a new connection and add it to the list of

connections assigned to the user currently logged on to the
terminal. You can assign the new connection to other users in the
Advanced window. For more information, see “Adding

connections” on page 9.

■ Delete: Click to delete a selected connection. The connection is

deleted from the list of connections available to all users, not just
the user currently logged on to the terminal. For more
information, see “Deleting connections” on page 10.

3-2 www.hp.com Administrator’s Guide

■ Edit: Click to edit the selected connection. For more information,

see “Editing connections” on page 10.

■ Advanced: Click to access the Advanced window, where you can

configure and assign connections and configure the terminal user
interface. For more information, see “Advanced window” on

page 3.

■ Help: Click to access help.

Advanced window

You can access the Advanced window by clicking the Advanced
button in HP Connection Administrator. You must log in with
Administrator permissions or with the “User may add, edit, or delete
connections” permission to access the Advanced window. The
Advanced window allows you to configure and assign connections,
set up user security accounts, and configure the user interface for the
terminal.

Click either OK button to save changes and close the Advanced

Ä

window. Click the X button or Cancel to exit without saving changes.

HP Connection Administrator

Administrator’s Guide www.hp.com 3-3

HP Connection Administrator

Creating user accounts

You can set up terminal operator user accounts in the Security
window, which you can access either from the Connection
Administrator Advanced window or from Control Panel.

The system comes with three default accounts:

■ Administrator

■ Guest

■ User

You can use the default accounts as templates for new accounts. You
can modify the default Guest and User accounts.

The Users tab lists all operator accounts and shows which accounts
are set up with Administrator security permissions and which
accounts are enabled.

To create a new user account:

1. In the HP Connection Administrator, click Advanced.

2. On the Assign Connections tab of the Advanced window, click
Security. This takes you to the Control Panel Security window.

3-4 www.hp.com Administrator’s Guide

HP Connection Administrator

3. Select the Users tab, and then click Add to create a new user
account.

Administrator’s Guide www.hp.com 3-5

HP Connection Administrator

4. On the General tab, type a name for the new user account in the
Name field. Valid characters for the Name field include: A - Z, a

- z, 0 - 9. (.)&^%$#!~‘’{}_-. Maximum length is 20 characters.

5. Type a password for the new user in the Password field.

6. Retype the password in the Confirm Password field.

7. To enable the user account, clear the Account is disabled check
box.

3-6 www.hp.com Administrator’s Guide

HP Connection Administrator

8. To assign the same permissions to the new account that are
assigned to an existing account, click Set from Template.

a. In the Based on box, select the account to use as a template.

b. Click OK to save your settings and return to the Add New

User window.

c. To add another user, click Add another user. This option

allows you to quickly add new users.

Administrator’s Guide www.hp.com 3-7

HP Connection Administrator

9. To select permissions for the new account, select the Permissions
tab on the Add New User window.

a. Select the items in the permissions list that you want to allow

the user to access. If the user is an Administrator, select User

is Administrator to provide full access. If you select User is
Administrator, you cannot select or clear items in the list.

b. To save your settings and add another user, click Add

another user.

or

Click OK to save your settings.

10. Click OK when you are finished adding users.

11. If you want to modify or delete user accounts, select the account,
and then click Modify or Delete.

12. Click OK at the top of the window when you are done adding or
modify user accounts.

3-8 www.hp.com Administrator’s Guide

Connections

You can add, edit, or delete connections in the HP Connection
Administrator and in the Advanced window. Add connections as
follows:

■ Use the HP Connection Administrator to create and assign

connections to the user currently logged on to the terminal.

■ Use the Advanced window to assign the connection to other

users.

Adding connections

To add a connection in HP Connection Administrator:

1. In the HP Connection Administrator, click Add.

HP Connection Administrator

2. In the Choose type dialog box, select the type of connection you
want to create and click OK. A Wizard or setup dialog for the
connection type displays.

3. Follow the on-screen instructions in the Wizard or setup dialog to
add the connection to the user’s connections list and to the list of
available connections that you can assign to other users in the
Advanced window.

If you create a connection in HP Connections for Citrix Software, the

✎

connection also displays in HP Connection Administrator. Similarily,
connections created in HP Connection Administrator also display in
HP Connections for Citrix Software.

Administrator’s Guide www.hp.com 3-9

HP Connection Administrator

Editing connections

To edit a connection in HP Connection Administrator:

» Select the connection, and then click Edit. Make the appropriate

changes in the Wizard or setup dialog.

Renaming a connection effectively deletes it from all user accounts.

✎

Deleting connections

To delete a connection in HP Connection Administrator:

» Select the connection, and then click Delete. The connection is

deleted from all user connection lists.

3-10 www.hp.com Administrator’s Guide

Assigning connections to users

Assign and configure connections for users in the Advanced window
of Connection Administrator.

Assign Connections tab

The Assign Connections tab allows you to assign connections to
users. This tab contains the following features:

HP Connection Administrator

■ User: This list includes all users accounts associated with the

system. To configure connections for a user, select the user from
the list.

■ Security: Allows you to access the Security window, where you

can create and configure user accounts. This button opens the
same window as selecting Security from Control Panel.

■ Available connections: On the left side of the window, this panel

displays all available connections that you can assign to users.
The columns in this panel include:

❏ Name: Displays the name of the connection assigned when

the connection was created.

❏ Type: Displays the type of connection.

■ Add: Click to create a new connection and add it to the Available

connections list. Clicking this button displays a connection type
list. When you select a connection type to add and click OK, a
wizard opens that allows you to configure connections.

Administrator’s Guide www.hp.com 3-11

HP Connection Administrator

■ Delete: Select a connection in the Available connections list,

and then click this button to delete the connection. Deleting a
connection here also deletes the connection from the list of
connections assigned to all users.

■ Edit: Select a connection in the Available connections list, and

then click this button to edit the connection.

■ Connections for [user]: On the right side of the window, this

panel displays the connections assigned to the user displayed in
the User box.

❏ Name: Displays the name of the connection assigned to the

user.

❏ Type: Displays the type of connection.

❏ Primary: Designates a connection as either primary or

secondary. Ye s indicates a primary connection. Click on the
column value to change the setting. You cannot change the
first connection in the list to secondary.

❏ Auto: Determines whether the system automatically connects

when HP Connection Administrator starts up. Ye s indicates
the system will automatically connect. Click on the column
value to change the setting. NOTE: You must configure HP
Connection Administrator to auto start for this setting to
function properly. To configure Connection Administrator to
automatically start up, see “Auto starting Connection

Administrator”.

❏ Persistent: Determines whether the system will attempt to

reconnect when a connection fails. Ye s indicates the system
will automatically attempt to reconnect. Click on the column
value to change the setting.

■ OK: Click to save changes and exit the Advanced window.

■ Cancel: Click to cancel unsaved changes and exit the Advanced

window.

■ Apply: Click to save changes.

3-12 www.hp.com Administrator’s Guide

Assigning connections

Once you have created a connection, you can assign it to users in the
Advanced window.

1. In the HP Connection Administrator, click Advanced.

2. On the Assign Connections tab, select the appropriate user from
the User list.

HP Connection Administrator

3. Double-click the connection in the Available connections list, or
select the connection and click the right arrow. The connection is
copied to the Connections for [user] list.

4. Click Apply to save the updated list of connections for the user.

Designating connections as primary or secondary

You can designate connections as primary or secondary in the
Advanced window. A primary connection is the first attempted in a
group of connections. If a primary connection fails, the system
attempts failover secondary connections in the order they are listed.
You can configure more than one primary connection, each of which
can have several secondary connections associated with it. Secondary
connections are optional.

To designate a connection as primary or secondary:

1. In the HP Connection Administrator window, click Advanced.

Administrator’s Guide www.hp.com 3-13

HP Connection Administrator

✎

2. On the Assign Connections tab, select the appropriate user from
the User list.

3. Select the connection from the user’s connection list that you
want to make primary.

4. In the Primary column, click on the column value to change it.
Ye s means the connection is a primary connection. The first entry
in the list must be primary.

5. If you want to assign a secondary connection, select the
connection and change the value in the Primary column to No.
The connection becomes secondary to the first primary
connection directly above it in the list.

6. To arrange the order of connections, select a connection and click
the up and down arrows. Secondary connections are associated
with the first primary connection above them in the list.

7. Click Apply.

Every secondary connection must have a primary connection listed
above it.

Enabling automatic connection and reconnection

In the Advanced window, you can set up primary connections
assigned to users to automatically connect at boot up and to reconnect
if disconnected. Automatic connection requires that you configure the
Connection Adminstrator to start automatically. For more
information, see “Auto starting Connection Administrator”.

To enable automatic connection and reconnection:

1. In the HP Connection Administrator window, click Advanced.

2. On the Assign Connections tab, select the appropriate user from
the User list.

3-14 www.hp.com Administrator’s Guide

HP Connection Administrator

3. Select the primary connection in the user’s connection list that
you want to automatically connect.

4. In the Auto column, if the entry for the selected connection is No,
click on No to change it to Ye s.

5. Select the connection in the user’s connection list that you want
to make automatically reconnect.

You can set only primary connections to automatically reconnect.

✎

6. In the Persistent column, if the entry for the selected connection
is No, click on No to change it to Ye s .

7. To arrange the order of connections, select a connection and click
the up and down arrows. Secondary connections are associated
with the first primary connection above them in the list.

8. Click Apply to save your changes.

You can set only primary connections to automatically connect when

✎

HP Connection Administrator is launched.

Administrator’s Guide www.hp.com 3-15

HP Connection Administrator

Configuring the user interface

The Global UI tab on the Advanced window allows you to configure
the Connection Adminstrator to start automatically and allows you to
set up Kiosk mode.

Auto starting Connection Administrator

You can enable automatic log on, which causes Connection
Administrator to start automatically when the user logs in to
Windows.

To auto start Connection Administrator:

1. In the HP Connection Administrator window, click Advanced.

2. Click the Global UI tab.

3. Select Auto start Connection Administrator when logging

into Windows.

4. Click Apply to save changes.

3-16 www.hp.com Administrator’s Guide

Setting the terminal to Kiosk mode

Kiosk mode limits the terminal’s functionality by hiding the desktop
icons and limiting the Start menu to Shut Down only. There are also
Kiosk mode options for hiding the task bar and hiding HP Connection
Administrator.

Before setting a terminal to run in Kiosk mode, you must define a

✎

user and create a connection. For more information, refer to “Creating

user accounts” and “Connections”.

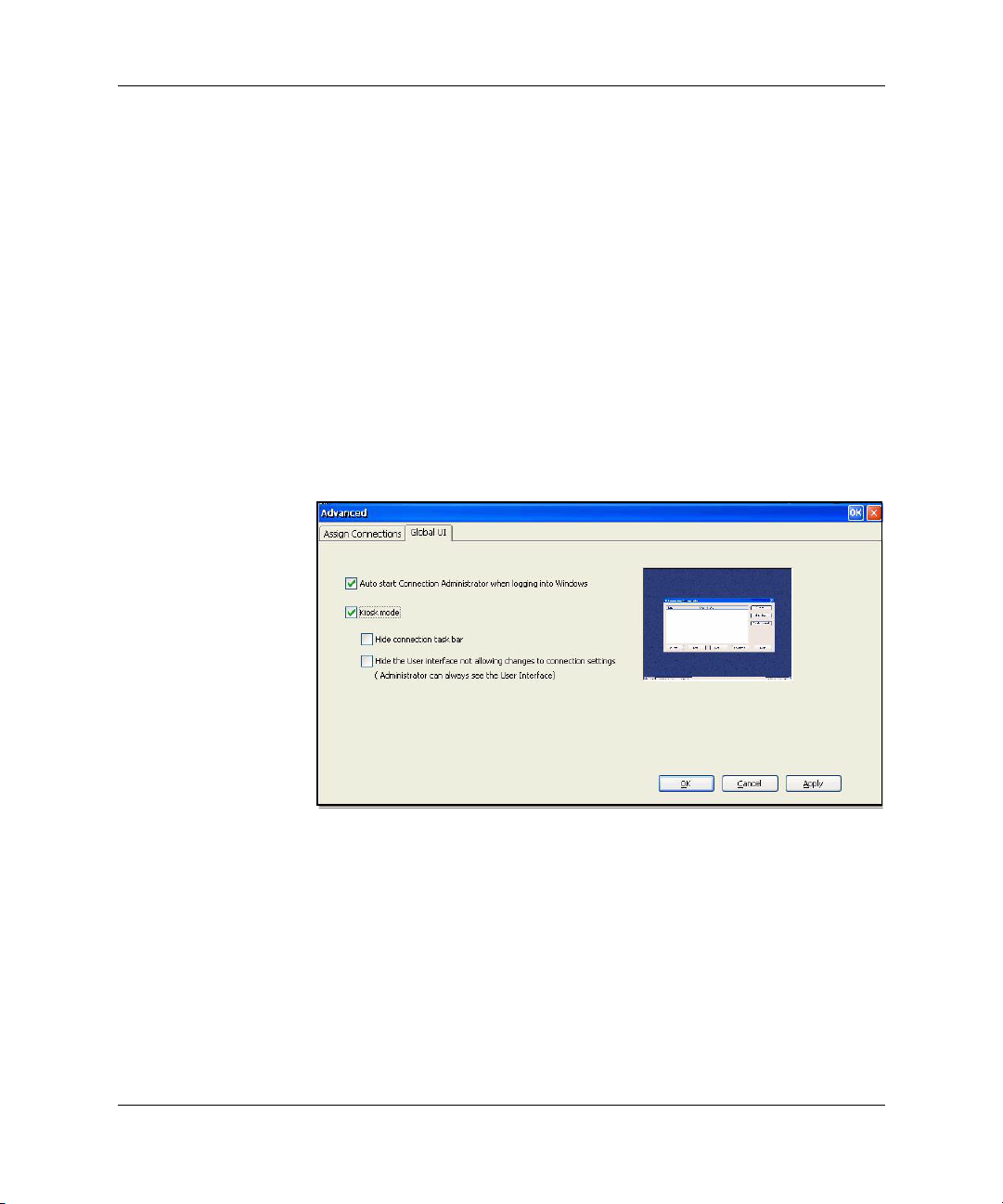

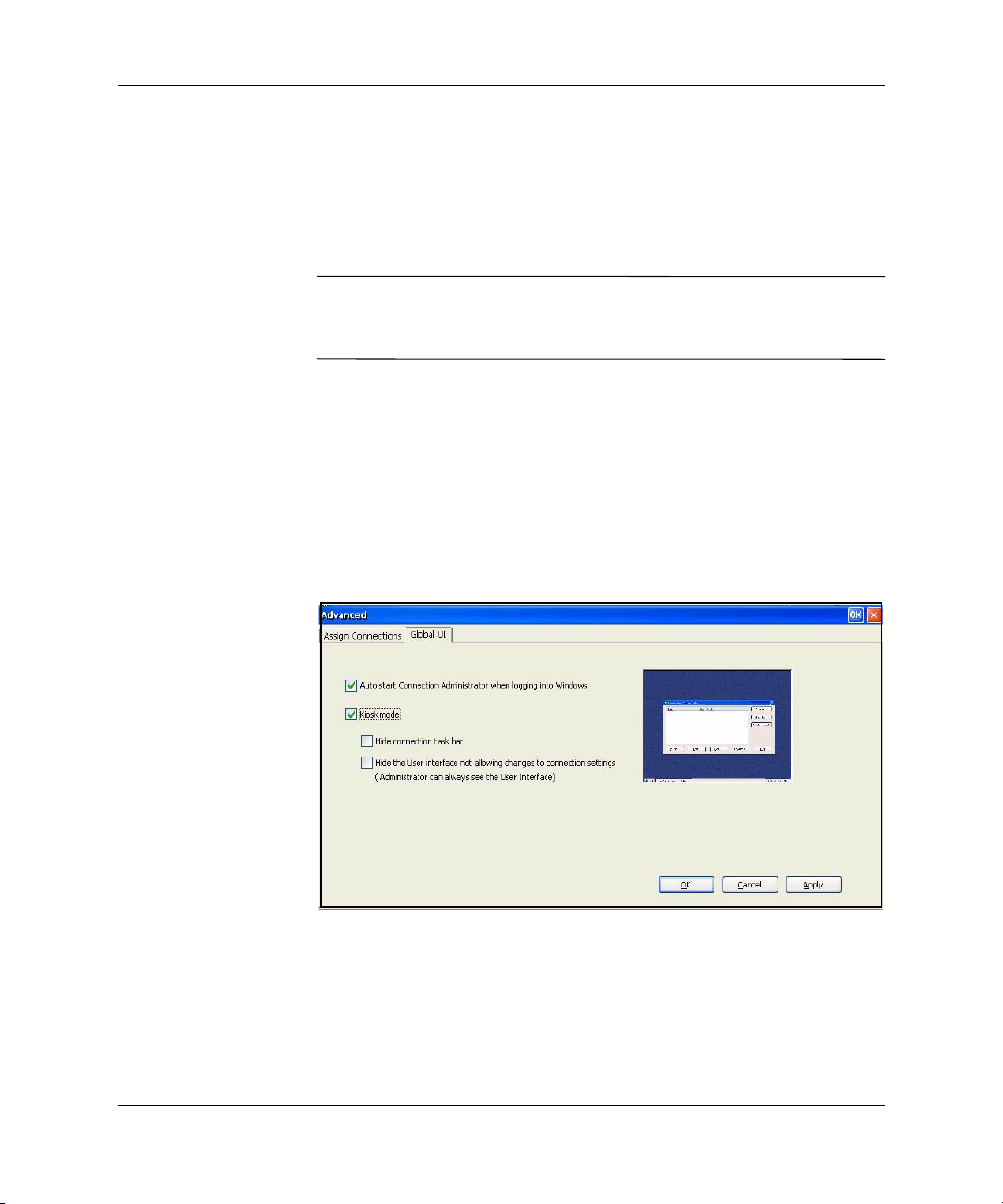

The preview display on the right side of the screen shows you how
the user interface will appear when you select the various check
boxes on the left side of the tab.

To set the terminal to run in Kiosk mode:

1. Create the necessary connection.

2. On the HP Connection Administrator window, click Advanced.

3. Click the Global UI tab.

HP Connection Administrator

4. Select Auto start Connection Administrator check box when
logging into Windows check box. This makes the Kiosk mode

option available.

5. Select Kiosk mode. Two more check boxes become available as
options.

Administrator’s Guide www.hp.com 3-17

HP Connection Administrator

6. To further lock down the terminal in Kiosk mode by hiding the
task bar at the bottom of the desktop, select the Hide connection
task bar check box. You must select the automatic logon feature
to gain access to this feature.

7. To further lock down the terminal in Kiosk mode by hiding the
user interface to connection settings, select Hide the User
interface not allowing changes to connection settings. You
must select the automatic logon feature to gain access to this
feature.

8. Click Apply to save your changes, or click OK to save your
changes and exit the Advanced window.

9. Log off the user for all changes to take effect.

Enabling automatic log on and keyboard functions

The Security window in Control Panel allows you to enable
automatic log on which bypasses a user’s password requirement
when logging on to the system.

To enable automatic log on:

1. On the HP Connection Administrator window, click Advanced.

3-18 www.hp.com Administrator’s Guide

HP Connection Administrator

2. Click Security. The System Statistics area displays information
about system users and connections.

3. On the System tab, select Automatic Log On so the user does
not have to enter a password to log in to the local machine. You
can set up automatic log on for one user per terminal. The default
is no password. You must select Automatic Log On to gain
access to the Single Button Log On check box and the Account
list.

4. If you want to lock the terminal when pressing
select Lock screen when pressing Ctrl+Alt+Delete

Ctrl+Alt+Delete,

. This

feature allows users to quickly lock their terminal and prevent
unauthorized access. When the terminal is locked, press

Ctrl+Alt+Delete again to type your password to regain access to

the terminal.

Administrator’s Guide www.hp.com 3-19

HP Connection Administrator

5. If you want to activate the single button connect feature, select
Single Button Log On. This feature invokes a dialog box that
requires the terminal operator to press Enter or click the Logon
button on the dialog box to log in. If someone other than the auto
logon user wants to log onto the terminal, press

6. From the Account list, select the account that the system will use
to log on the terminal operator.

7. Select Enable Reset Hotkey to allow the terminal to be reset to
factory defaults (registry and shortcuts) by pressing and holding

F9 key during boot.

CAUTION: If you disable the F9 reset function and then change
monitors or change display settings resulting in your monitor
becoming unable to display, the only way to recover the client
will be to reflash it.

8. Click OK at the top of the window to save your changes.

Switching to a different user

To switch to a different user when booting:

Esc or Alt-F4.

1. Press the power button to start the system.

2. Press

Esc or Alt-F4 before the automatic logon countdown

completes.

3. Log on as the user of your choice.

3-20 www.hp.com Administrator’s Guide

Control Panel

This chapter provides an overview of the programs in the Control
Panel and provides step-by-step instructions to perform certain tasks.
You can use many of the programs for local administration, while you
use others, such as DHCP Options and SNMP, for remote
administration.

To open the Control Panel:

■ From the desktop, select Start > Settings > Control Panel.

or

■ From the HP Connection Administrator window, click the

Control Panel button.

The LPD Control program is available only on terminals equipped

✎

with a serial port.

4

Administrator’s Guide www.hp.com 4-1

Control Panel

Accessibility

The Accessibility dialog box allows you to configure the terminal
with 508 Accessibility features. Accessibility options are available
for the keyboard, sound, display, and mouse.

■ Keyboard: Allows you to enable StickyKeys, which lets you use

Shift, Ctrl, and Alt keys pressing one key at a time rather than

the
holding them all down simultaneously. You can also enable
ToggleKeys to hear tones when pressing the

Lock

, and Scroll Lock keys.

■ Sound: Allows you to enable SoundSentry, which causes

Caps Lock, Num

Windows to generate visual warnings when the system makes a
sound.

■ Display: Allows you to enable High Contrast, which causes

Windows to use colors and fonts designed for easy reading.

■ Mouse: Allows you to enable MouseKeys, which lets you

control the pointer with the numeric keypad on the keyboard.

■ General: Allows you to automatically turn off accessibility

features after a set amount of idle time. You can also enable the
notification feature, which causes Windows to make a sound
when you turn a feature on or off.

4-2 www.hp.com Administrator’s Guide

Certificates

Control Panel

The Certificates dialog box allows you to import, store, and view
security certificates. Certificates and certificate authorities ensure that
an SSL connection is made to the intended secure server. Certificate
information is exchanged between the terminal browser and the
secure server when establishing a connection. If a trusted certificate
authority can authenticate the certificate, the secure page
automatically displays. A private key is also used to encrypt data over
an SSL connection.

To import a certificate or private key:

1. Select the type of certificate you would like to import from the
drop-down list.

❏ Trusted Authorities are digital certificates issued by

certification authorities. The Windows CE browser comes
with a pre-defined list of trusted certification authorities that
include Equifax, Thwarte, Entrust, GlobalSign, GTE, and
others.

❏ My Certificates are your personal digital certificates.

❏ Other Authorities are intermediate certificate authorities.

No intermediate authorities are loaded by default.

2. Click Import, select the location source of the certificate or key,
and then click OK.

❏ From a File allows you to import a certificate or key from

any mapped drive. Browse to the certificate or key and select
it, or select the Type and type the name of the certificate or
key in the Name field.

Administrator’s Guide www.hp.com 4-3

Control Panel

Date/Time

❏ From a Smart Card allows you to import a certificate from

a Smart Card. Make sure the Smart Card is inserted and select
a Reader from the list. The radio button is active only if a
smart card is inserted.

❏ Friendly name allows you to rename a certificate that you

import.

3. Click OK.

The Date/Time Properties dialog box allows you to set the date and
current time, select the appropriate time zone, and enable automatic
clock adjustment for daylight savings time for the terminal.

» Select the appropriate date and time information, and then click

Apply.

4-4 www.hp.com Administrator’s Guide

DHCP Options

The DHCP Options page allows you to configure the thin client with
the port locations for various information that the client retrieves
from the FTP server. For information about resetting thin client
settings to factory defaults, see the “System” section later in this
chapter.

Control Panel

To change port values:

1. Double-click on the name of the option to change. A dialog box
displays with a list of all valid options.

2. Select the appropriate value from the list, and then click OK.

Administrator’s Guide www.hp.com 4-5

Control Panel

Dialing

The Dialing Properties dialog box allows you to:

■ Add or select a dialing location

■ Configure dial-up settings for the selected location. Local settings

include the area code, county/region code, and tone or pulse
dialing.

■ Disable call waiting.

■ Set up dialing patterns for local, long distance, and international

calls.

To add a dialing location:

1. Select or add a When dialing from location and type the local
settings for the location.

2. Click OK after entering the information.

4-6 www.hp.com Administrator’s Guide

To configure the system to use an area code for local calls:

1. Click Dialing Patterns.

Control Panel

Display

2. In the For Local calls dial box, add an
example,

The Display Properties dialog box allows you to configure the
background image, appearance scheme, screen resolution, color
quality, refresh frequency, and screen saver.

You can also access the Display Properties dialog box by

✎

right-clicking on the desktop and selecting Properties.

F,G will dial the area code, then 7-digit phone number.

F before the G. For

Reboot the terminal for display property changes to take effect.

Administrator’s Guide www.hp.com 4-7

Control Panel

The Background tab allows you to set the background image that
appears on your monitor. You can use a background image that is any
of the following formats:

■ bmp

■ gif

■ jpeg

Save background image files in the Hard Drive folder to assure the
client can find them after a reboot.

The Appearance tab allows you to set the Windows CE color scheme.

The Settings tab includes a Test button that you can use to test the
resolution and refresh settings. If you select settings your monitor
does not support and you do not test updated settings, the next time
you reboot, your display will not work and you must press F9 to reset
to defaults. For more information about screen settings, see “Screen

Settings”.

In the Screen Saver tab you can set up password protection as well as
configure the following screen saver options:

■ no screen saver

■ turn off monitor

■ floating image

■ tiled image

The following table lists the available screen resolutions, color
quality settings, and refresh frequencies. The default is 800x600x16
@ 60Hz.

4-8 www.hp.com Administrator’s Guide

Control Panel

Screen Settings

Resolution/Color 60Hz 70Hz 72Hz 75Hz 85Hz

640x480x8 XXXXX

640x480x16 XXXXX

640x480x32 XXXXX

800x600x8 XXXXX

800x600x16 XXXXX

800x600x32 XXXXX

1024x768x8 XXXXX

1024x768x16 XXXXX

1024x768x32 XXXXX

*1152x864x16 XX XX

*1152 x 8 6 4 x 3 2 X X X

1280x1024x8 XXXXX

1280x1024x16 XXXXX

12 8 0x 1 02 4 x 32 X

*1600x1200x8 XXXX

*1600x1200x16 XXXX

*These resolutions are not supported on all thin client models.

*All refresh rates are not supported by all monitors.

If you set the display settings out of range, you must reset the terminal

✎

to factory defaults by rebooting the terminal and holding down the

F9

key until you see a window that says “Loading...” at the bottom.
Resetting the terminal to factory defaults erases all configuration
settings and connections.

Administrator’s Guide www.hp.com 4-9

Control Panel

Global ICA Client Settings

The Global ICA Client Settings dialog box allows you to configure
ICA default client settings.

The Global ICA Client Settings dialog box contains the following:

Keyboard Shortcuts

The Keyboard Shortcuts tab allows you to configure hotkey
combinations that you can use during active ICA sessions. You can
assign the hotkeys used to perform a function by selecting the hotkey
combinations from the list next to each function.

■ Connection Status invokes a message about the status of the

connection.

■ Close Session disconnects the terminal from the server but does

not actually close the session on the server. The session will
continue to run on the server until the terminal operator logs off.

■ Esc performs the same function as the Esc key.

■ CTRL-ALT-DEL invokes the terminal Security dialog box.

■ CTRL-ESC displays the Remote Task list on WinFrame servers,

or displays the Start menu on MetaFrame servers.

■ ALT-E SC cycles the focus through the minimized icons.

■ ALT-TA B cycles through open applications in sequential order.

■ ALT-BAC KTA B also cycles through open applications

sequentially, but in the opposite direction.

4-10 www.hp.com Administrator’s Guide

Preferences

Control Panel

The Preferences tab allows you to set color preferences during an
ICA session.

The Preferences tab contains the following:

■ Serial Number: Type the serial number of the ICA Client

software exactly as it appears on the serial number card. This is
necessary when using the ICA Windows CE Client with certain
products, such as WinFrame Host/Terminal. It is not necessary
for MetaFrame servers.

■ Default Window Colors: Select the color option for the ICA

client. If the ICA server does not support the selected color
option, then it defaults to 16-bit color.

■ PNAgent: Select to enable PNAgent.

❏ Settings: Click to display a dialog box that allows you to type

the URL of the PNAgent server. You can use this server to
remotely configure PNAgent settings. You can configure
ICA seamless settings is these screens.

❏ Force PNAgent on Reboot: Select to cause PNAgent to

prompt you to log in every time you reboot.

■ Apply Windows key combinations: Select the option in which

you want key combinations to function.

❏ In full screen desktops only and On the remote desktop

apply to the ICA session.

❏ On the local desktop applies to the local client.

Administrator’s Guide www.hp.com 4-11

Control Panel

Server Location

The Server Location tab allows you to view/add Citrix servers on the
network that have ICA connections configured.

The Server Location tab contains the following:

■ Server Group: Select whether the servers in the server address

list belong to your Primary, Backup 1, or Backup 2 group.

■ Server address list: Lists the entered server locations.

■ Add: Click to add a server address.

■ Delete: Click to delete a server address.

■ Rename Group: Click to rename the selected server group.

■ Default List: Click to recall the previous server address list.

4-12 www.hp.com Administrator’s Guide

Firewall Settings

The Firewall Settings tab allows you to set up a firewall by placing a
proxy server between a server and a client.

In the Proxy section, select a protocol from the list, and then type the
proxy address and port.

In the SSL/TLS Relay section, type the relay address and port for the
Socket Security Layer (SSL) or Transport Layer Security (TLS)
protocol.

Control Panel

If the firewall uses address remapping, you must configure the client
to use the alternate address returned by the data collector by selecting
Use alternate address through firewalls. This is necessary whether
or not you are using a SOCKS or secure proxy server.

Administrator’s Guide www.hp.com 4-13

Control Panel

Internet Options

The Internet Settings dialog box allows you to configure Internet
browser settings on the terminal.

The Internet Settings dialog box includes the following tabs:

■ General: Allows you to enter start and search pages, identify the

Web browser type to determine how Web pages are displayed, set
the cache size, and clear cache and history.

■ Connection: Allows you to select LAN or autodial connections

and to configure proxy server settings.

■ Security: Allows you to specify Web sites that are trusted,

restricted, and so on. Also allows you configure ActiveX,
scripting, and other advanced-type internet options.

■ Privacy: Allows you to configure how the browser handles

cookies.

■ Advanced: Allows you to configure multiple internet options,

including options for accessibility, browsing, multimedia, and
security.

■ Popups: Allows you to configure how the browser handles

popups, including blocking, notification when popups are
blocked, and exceptions that allow popups from specific sites.

■ Other Options: Allows you to enable browser window resizing,

enable favorites, and set the font size.

Due to CE architecture, proxy exceptions are not available.

✎

4-14 www.hp.com Administrator’s Guide

JETCET PRINT 4.0

The JETCET PRINT Professional dialog box allows you to set up the
terminal for local printing from Txtpad and Internet Explorer.

Windows CE is best suited for printing small documents.

✎

Printer port designations are as follows:

✎

- LPT1 = parallel

- LPT2 = USB

Control Panel

To set up a printer:

1. In the Default Printer box, select a default printer.

2. In the Manufacturer Model box, select the printer model.

3. If printing using a serial connection, in the Serial Handshaking
box select either Hardware or Software for serial handshaking
between the terminal and printer.

4. Set the appropriate print spooler options. You must select Use
Spooler for other options to become available.

5. Click the Properties button to configure printer settings. Define
printer settings as appropriate.

Administrator’s Guide www.hp.com 4-15

Control Panel

6. If you want to configure Internet Printing (IPP) to allow you to
print to network printers:

a. Click the Internet Printing tab.

b. Click Add Port.

c. Type the IP address of the network printer to which you want

to print.

d. Select the port from which to send print jobs in the Virtual

Port box.
NOTE: To avoid port conflicts, HP recommends selecting

COM2 as the virtual port.

e. Click OK.

f. Click OK to exit the JETCET dialog box.

For more information, refer to the JETCET user guide at

✎

http://www.westtek.com/support/pocketpc/jetcet.html.

Internet Explorer uses LPT1 as its default printer port. If you want to

✎

print using a different port, in Internet Explorer, select File > Page
Setup and select the port to which to print.

4-16 www.hp.com Administrator’s Guide

Keyboard

Control Panel

The Keyboard Properties dialog box allows you to configure your
keyboard.

Repeat delay determines how long you must hold down a key before
its character starts repeating.

Repeat rate determines how quickly a character repeatedly displays
on screen when the key is held down.

If you are a legacy user, see “Regional Settings” to change keyboard
settings.

Select Disable local Windows key combinations (e.g. ALT+TAB)
to disable the passing of hotkeys to the terminal service server.

Administrator’s Guide www.hp.com 4-17

Control Panel

LPD Control

✎

The LPD Control dialog box allows you to set the terminal up as a
line printer (print server).

HP Compaq t5300 thin client models do not have legacy ports.
Therefore, the LPD Control program will not appear in the Control
Panel for those systems.

To set the terminal up as a print server:

1. Select Enable Printer.

2. Type the Printer Name and Network Port.

3. Select the appropriate printer port from the list. If you select a
COM port, you have the option of configuring the serial port by
clicking Configure and typing the appropriate parameters.

4. Select Send Form Feed if form feeds are necessary. Form feeds
are primarily used with older printer technology.

Verify the terminal serial port is enabled in BIOS and in the Control

✎

Panel Port Lock window. You must also set up the application server
for LPD printing.

4-18 www.hp.com Administrator’s Guide

Modems

Control Panel

The Modem Settings dialog box allows you to access and modify
settings for external modems.

Refer to the device instructions that shipped with the modem, or
located on the manufacturer Web site, for listings of modem “AT”
commands available for the modem.

Administrator’s Guide www.hp.com 4-19

Control Panel

Mouse

The Mouse Properties dialog box allows you to set the mouse
double-click sensitivity for speed and physical distance between
clicks.

■ Use the Double-Click tab to set the double-click sensitivity by

double-clicking the grid icon, then test the setting by
double-clicking the test icon.

■ Use the Button Configuration tab to configure for left-handed

use.

■ Use the Pointer Speed tab to configure how fast the mouse

pointer moves on the screen based on how the users moves the
mouse.

Network and Dial-up Connections

The Network and Dial-up Connections window allows you to
configure connectivity between the terminal and the Internet, a
network, or a computer.

4-20 www.hp.com Administrator’s Guide

To make a new connection, double-click the Make New Connection
icon, select the type of connection you want to make, and then
configure the connection.

Choose from the following connection types:

■ Dial-up connection

■ Direct connection

■ VPN (PPTP)

■ VPN (L2TP)

■ Ethernet (PPPoE)

Dial-up connection

You can use a dial-up modem with the thin client to access a dial-up
server. This method provides two ways to access the enterprise
intranet:

■ An enterprise dial-up server connects directly to the enterprise

intranet.

Control Panel

■ An Internet Service Provider (ISP) dial-up server provides access

to the Internet, from which the thin client must access an
enterprise Point-to-Point Tunneling Protocol (PPTP) Virtual
Private Network (VPN) server that connects to the enterprise
intranet.

The dial-up server must be a Microsoft Remote Access Server or

✎

another server that supports industry-standard protocols.

Direct connection

This type of connection allows you to connect directly to another
computer through the serial port on the terminal.

This option is available only to thin clients with serial ports.

✎

Administrator’s Guide www.hp.com 4-21

Control Panel

Virtual Private Network (PPTP) connection

Point-to-Point Tunneling Protocol (PPTP) is a network protocol that
enables the secure transfer of data between a remote client (in this
case the thin client) and an enterprise server environment by creating
a VPN across TCP/IP-based data networks such as the Internet. It
provides a password-protected path through the enterprise firewall to
the enterprise server environment in which the network and session
services required by the thin client reside.

Access to the internet requires an Internet Service Provider (ISP).
You may use any of the standard means of connecting to the ISP,
such as a dial-up modem, cable modem, or DSL modem.

You must first establish the connection to the ISP, before contacting
the enterprise PPTP VPN server. This includes dial-up access as well
as direct access through the cable modem and DSL modem paths.

Virtual Private Network (L2TP) connection

Layer Two Tunneling Protocol (L2TP) merges Microsoft’s PPTP
protocol with Cisco’s Layer Two Forwarding (L2F) protocol. L2TP is
basically the same as PPTP; the primary difference is that L2TP
supports encryption.

PPP Over Ethernet (PPPoE) connection

This is a connection from the thin client Ethernet port directly to the
enterprise intranet. No additional hardware is required.

In this configuration all network services may be used, including the
enterprise DHCP server. A DHCP server on the network may provide
not only the terminal’s IP address, but also the location of the file
server containing the software updates.

4-22 www.hp.com Administrator’s Guide

Port Lock

The Port Lock dialog box allows you to enable or disable COM 1
ports, LPT ports, and USB mass storage devices.

To enable a port, select the appropriate check box(es), and then click
OK.

RDP/ICA Printers

Control Panel

The RDP/ICA Printers dialog box allows you to add local RDP/ICA
printer configurations and modify existing RDP/ICA printer
configurations. This enables the terminal to print from an RDP/ICA
server session to a local printer.

Windows CE is best suited for printing smaller documents.

✎

Administrator’s Guide www.hp.com 4-23

Control Panel

The RDP/ICA Printers dialog box contains an Add Printer icon and
an icon for each configured printer.

You can use Internet Printing Protocol (IPP) to print to network
printers. IPP defines a standard protocol for printing as well as
managing print jobs.

To avoid port conflicts, HP recommends using COM2 for IPP

✎

printing.

Adding a printer

To add a printer configuration from the Printers dialog box:

1. Double-click the Add Printer icon to invoke the Printer Wizard,
which allows you to configure a new printer.

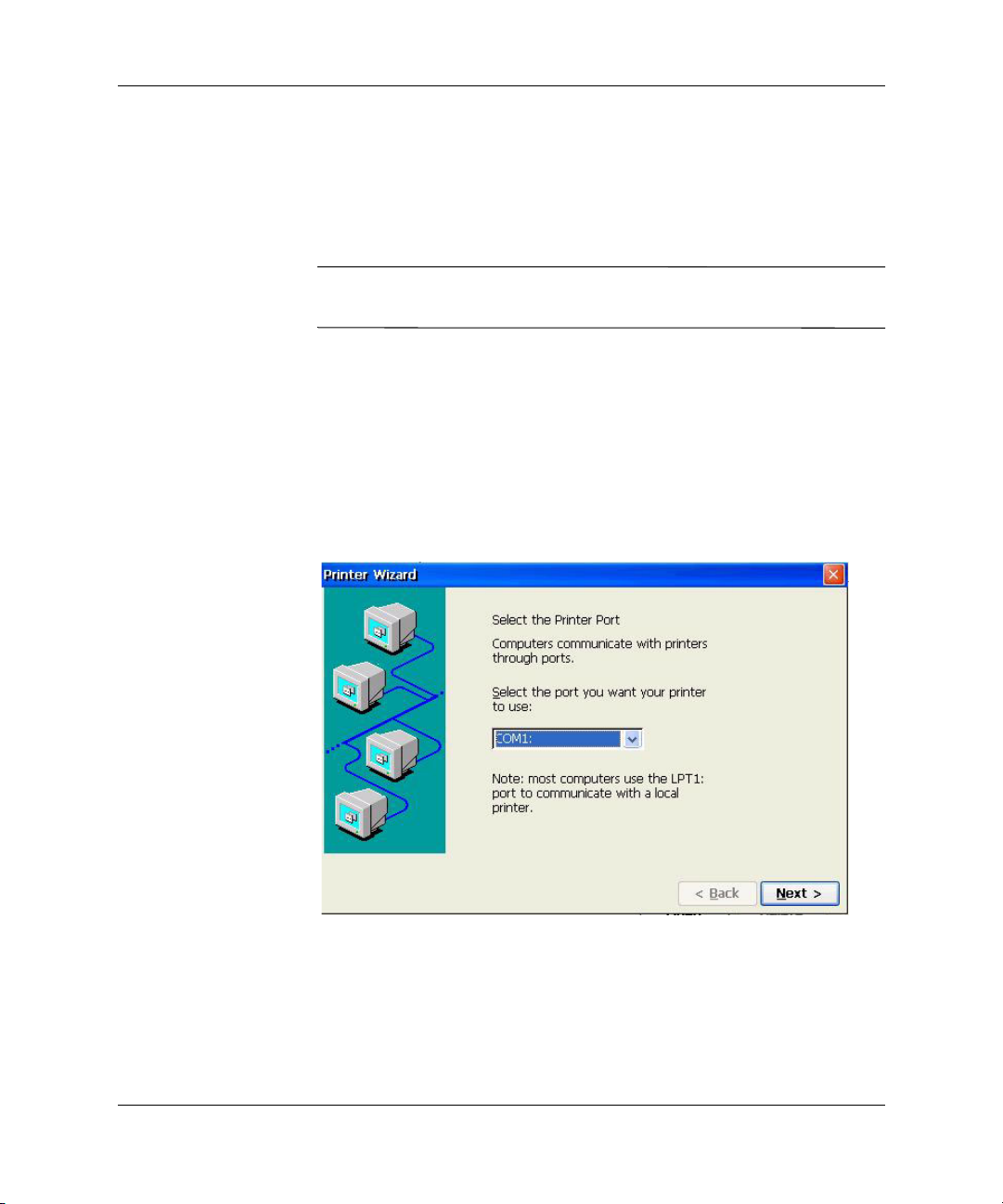

2. In the first panel of the wizard, select the appropriate port that
you want the printer to use, and then click Next.

3. In the next wizard panel, select the printer manufacturer and
model. If the desired printer is not listed, select User Defined,
and then click Next.

4-24 www.hp.com Administrator’s Guide

CAUTION: It is critical that the model name entered in step 3 matches

Ä

EXACTLY with the model name of the driver installed on the terminal
server. Otherwise, printing will fail.

4. The following panel appears only if you selected Network in step

2. In this panel, type the network path for the printer. If you
selected User Defined in the previous wizard panel, type the
manufacturer and model of the printer.

5. In the next wizard panel, type a name for the printer, and then
click Next.

Control Panel

6. In the next wizard panel, select whether you want to configure
another printer, and then click Next.

7. After completing all printer configuration selections, click
Finish.

8. Connect to an RDP session, add the printer, and verify that it is
working properly.

Administrator’s Guide www.hp.com 4-25

Control Panel

Modifying an existing printer configuration

To modify an existing printer configuration in the Printers dialog box:

1. Double-click the desired printer icon or select the icon and click
Properties. The Printer Properties dialog box displays.

2. Make any necessary modifications, and then click OK to save.

Regional Settings

The Regional and Language Settings dialog box allows you to
customize regional settings for the terminal. You can change the way
Windows CE displays numbers, currency amounts, times, and dates.

The Regional Settings Properties dialog box includes the following
tabs:

■ Regional Settings: Allows you to select an input locale, which

determines how some programs format numbers, currency, time,
and dates. The options available on the other tabs are determined
by the selected region.

Click Customize to configure the way Windows displays the
following:

❏ Numbers

❏ Currency

❏ Time

❏ Date

4-26 www.hp.com Administrator’s Guide

Security

Control Panel

■ User Interface Language: Allows you to determine the

language used for the menus, dialogs and alerts. Only English is
supported.

■ Input Language: Allows you to select the keyboard language.

You can select multiple languages. You can toggle between
languages by clicking on the language system tray icon.

The Security dialog box allows you to control various terminal
functions related to security and terminal operator accounts.

Administrator’s Guide www.hp.com 4-27

Control Panel

Enabling security

System security is enabled by default, which forces users to log in if
the automatic login feature is not enabled.

■ Select Lock screen when pressing Ctrl+Alt+Delete to allow

■ Select Automatic Log On to bypass the need for the user to enter

Select Enable Reset Hotkey if you want to allow users to reset the
terminal to factory defaults (registry and shortcuts) by pressing and
holding the

users to lock the terminal through the
command.

a password to log in. This also activates the Single Button Log
On check box and Account list.

❏ Select Single Button Log On to enable the single button

connect feature, which invokes a dialog box that requires the
terminal operator to press a keyboard key or click the Logon
button on the dialog box to log in.

❏ In the Account list, select the account that the terminal will

use to log in user. For information about creating a new
account, see “Creating a user account,”

F9 key during boot.

Ctrl+Alt+Delete keyboard

Creating a user account

To create a new security account for a terminal operator, select the
Users tab on the Security dialog box. This tab lists all the operator
accounts and shows which accounts are set up with Administrator
security privileges and which accounts are enabled.

For more information about creating user accounts, see Chapter 3, in

section “Creating user accounts.”

SNMP

You can manage the terminal through standard third-party simple
network management protocol (SNMP) tools. The SNMP Network
Administration dialog box allows you to enter parameters required
for SNMP management.

4-28 www.hp.com Administrator’s Guide

Control Panel

SNMP agents run in network elements and respond to Network
Management Station (NMS) queries (GETs). SNMP provides a
means to query all terminals assigned to a specific community. Each
community should have a unique name, and all members of a
community have the same access privileges. You can assign a single
terminal to multiple communities.

Agents send unsolicited reports (traps) back to a specified IP address
when a particular network activity occurs. The following traps are
supported: cold start, warm start, authentication failure, link down,
and link up.

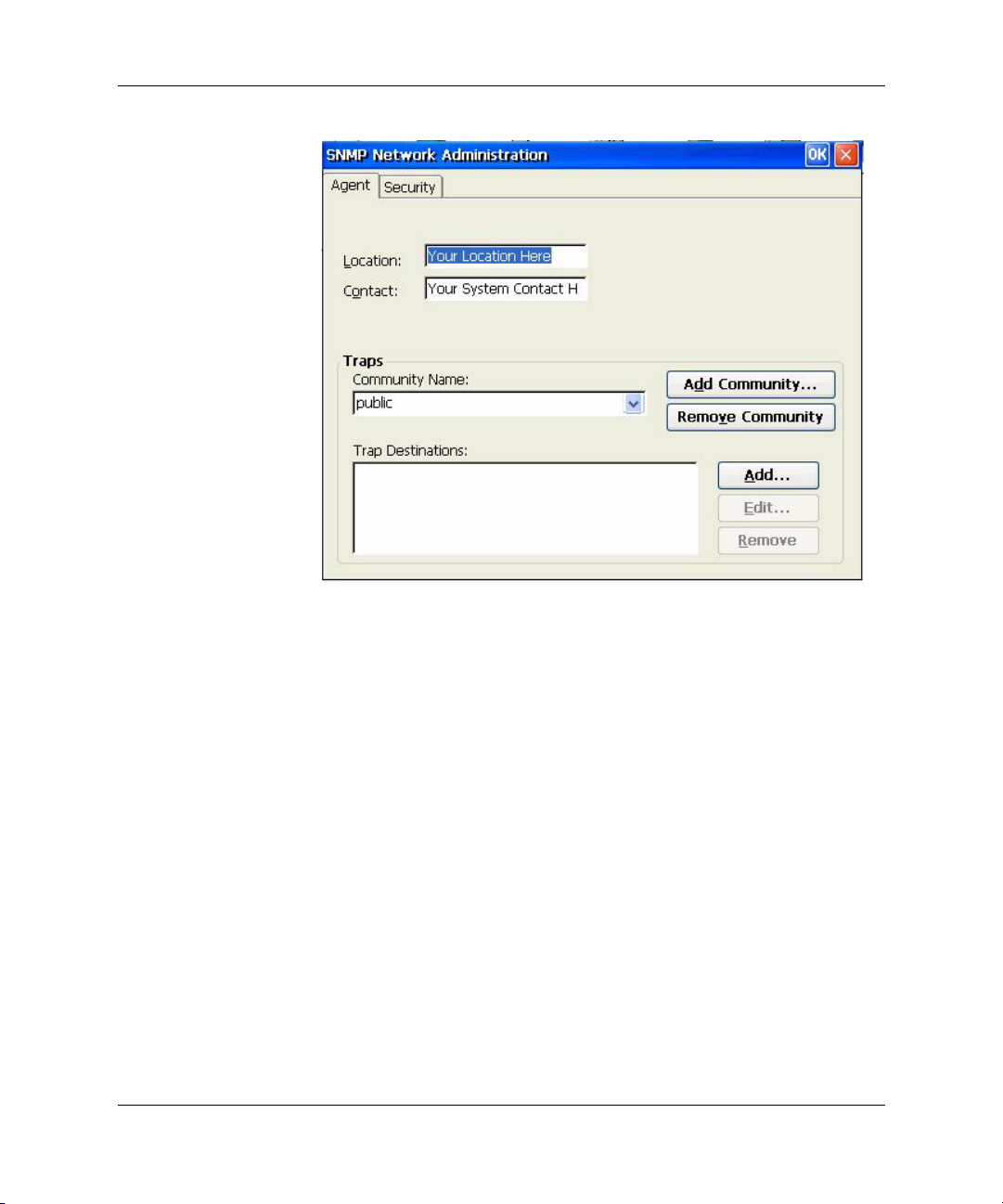

To add a new community:

1. Click the Agent tab.

2. In the Traps section, click Add Community.

3. Type the new community name, and then click OK.

Administrator’s Guide www.hp.com 4-29

Control Panel

To add and assign rights to an accepted community:

1. Click the Security tab.

2. Click Add in the Accepted Community Names section. The
Community Configuration dialog is displayed.

3. Type the name of the community in the Community Name box.

4. Select the rights to the community in the Rights list, and then
click OK.

To add SNMP packets:

1. Click the Security tab.

2. Select Accept SNMP Packets from these hosts.

3. Click Add in the SNMP packets section. The SNMP
Configuration dialog displays.

4. Type the host name or IP address, and then click OK.

5. Repeat steps 1 and 2 to add more hosts.

4-30 www.hp.com Administrator’s Guide

Control Panel

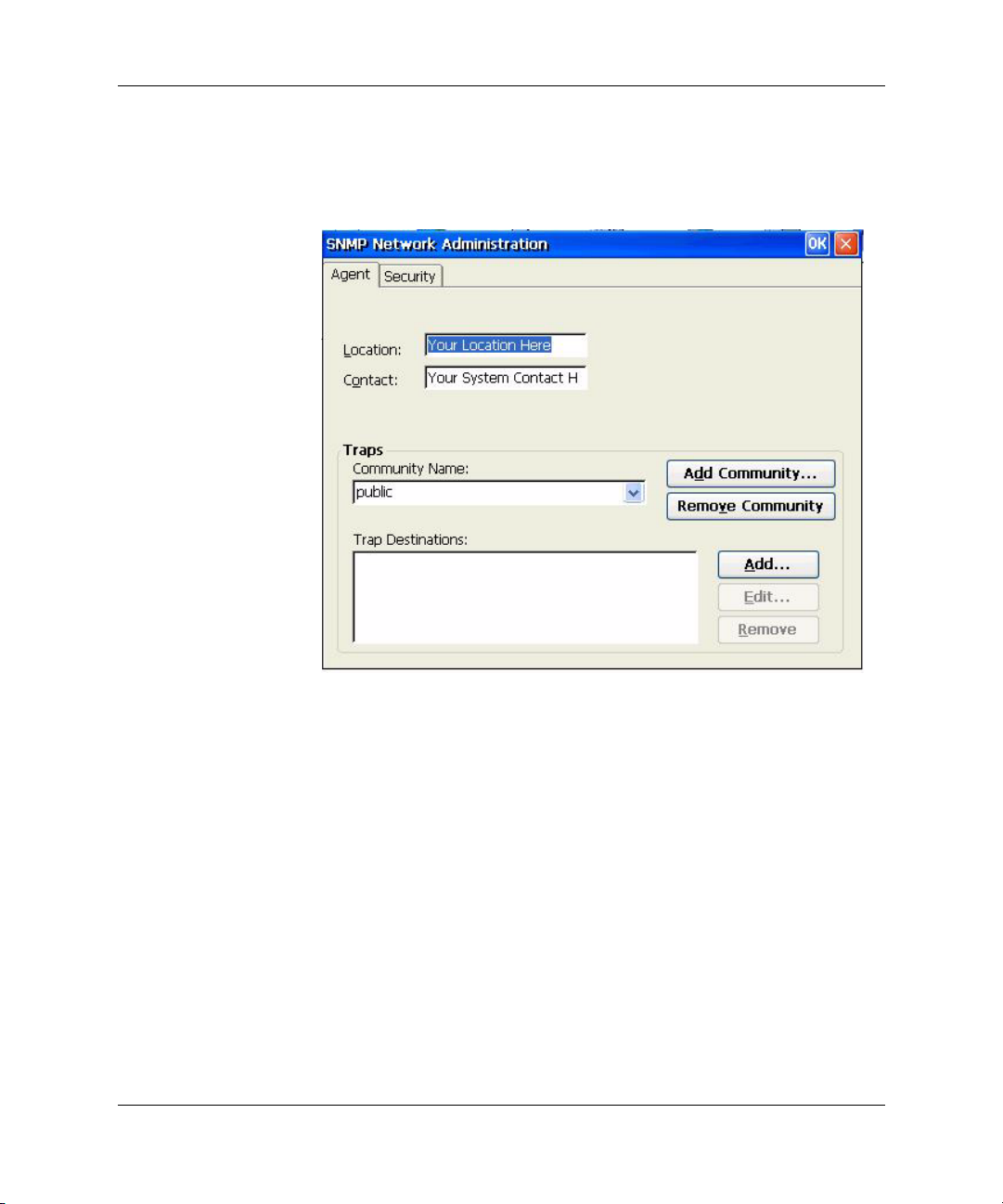

To configure SNMP:

1. On the Agent tab, type the physical location of the terminal in the
Location box.

2. Type the name of the contact person responsible for the terminal
in the Contact box.

3. Assign the terminal to a community by selecting a community
from the Community Name list.

4. To add a trap destination:

a. In the Trap Destinations section, click Add. The SNMP

Configuration dialog is displayed.

b. Type the host name or IP address of the NMS trap server, and

then click OK.

Administrator’s Guide www.hp.com 4-31

Control Panel

5. If you want to add or change SNMP security settings, click the
Security tab.

6. To enable an authentication failure trap, select Enable
Authentication Failure Trap.

7. Select the hosts from which SNMP packets may be accepted.
Choose either Accept SNMP packets from any host or Accept
SNMP packets from these hosts.

8. Click OK after entering all the necessary SNMP information.

4-32 www.hp.com Administrator’s Guide

SNTP Client

Control Panel

The SNTP dialog box allows administrators to synchronize the clocks
on all thin clients. Administrators can set thin clients to automatically
synchronize with an Internet time server or with a boot server.

Synchronization can occur only when your computer is connected to
the Internet.

This feature can generate significant network traffic.

✎

Administrator’s Guide www.hp.com 4-33

Control Panel

System

The System Properties dialog box allows you to view manufacturer
and product information, network settings, and copyright
information. You can also reset the terminal to default factory
settings, adjust the memory allocated for storage and running
programs, assign a device name for network identification purposes,
and configure the network card.

The System Properties dialog box includes the following tabs:

■ General: Displays manufacturer and product information for the

terminal. Includes a Reset button that you can use to reset the
terminal to factory default property settings. It also includes
Export and Import buttons for easy registry import/export For
more information, see “Copying registry settings”.

■ Memory: Allows you to adjust memory allocation between

memory for storage room and memory needed to run programs.

4-34 www.hp.com Administrator’s Guide

■ Network: Allows you to designate a device name and description

that identifies the terminal across the network. You can type a
name or accept the name provided by the DHCP server. The
default device name is “HP” followed by the MAC address. If the
device is reset to factory defaults, the device name reverts to the
factory default name.

This tab also displays network settings and provides a Configure
Network Card button that allows you to adjust the speed/duplex
for the card.

The Renew button renews the terminal IP address.

■ Copyrights: Displays copyright information for the terminal.

Resetting settings to factory defaults

To reset all thin client settings to factory defaults:

1. Click the General tab.

2. In the Terminal Settings section, click Reset.

3. Click Ye s to reset the terminal to factory settings. The terminal
restarts.

Control Panel

❏ The default for File Server is 161.

❏ The default for Path and Filename is 162.

Copying registry settings

You can copy and transfer the registry settings from one thin client to
another. Also known as “ARP”, this feature allows you to configure a
thin client and then transfer that configuration to multiple other thin
clients. To clone an entire thin client image, you must first update the
image, and then transfer the registry files.

You can transfer registry settings on only “like-to-like” clients,
meaning that the thin client you transfer to must have the same of the
following list as the thin client you transfer from.

■ model number

■ build number

■ add-ons

Administrator’s Guide www.hp.com 4-35

Control Panel

To transfer registry settings to one thin client:

1. Configure a thin client to your specifications.

2. In Control Panel > System > General tab, in the Terminal
Settings section, click Export.

3. Navigate to where you want to save the settings file. You can
save the file to the hard drive, a network drive, a disk-on key, etc.
After you give the file and name and click OK to save the file, it
can take up to five minutes for the file to save.

4. After exporting the registry settings file, from the thin client to
update, go to Control Panel > System > General tab, and in the
Terminal Settings section, click Import.

5. Navigate to where you exported the settings file, select the file,
and then click OK. You must restart the client for the new
settings to take effect.

The registry settings file does not include desktop shortcuts.

✎

You can use Altiris or FTP to transfer registry settings to multiple

✎

thin clients.

For more information about exporting registry settings, see Chapter 6,

“Registry Import/Export.”

System Update

The System Update dialog box allows you to define the means by
which you update the terminal image. The feature updates only the
operating system, The BIOS is not updated. You can update the
image:

■ Directly from HP by manually entering HP FTP file server

information for the server that contains the update.

■ By allowing the DHCP server to locate the FTP file server that

contains the update.

4-36 www.hp.com Administrator’s Guide

Control Panel

You may want to update your image because of the following:

» You receive a new client, perform updates to the client image,

and decide you want to revert to the “good, known” image.

» An image gets corrupted and the client requires re-imaging.

» Your client image is old and you want the newest available stable

image.

The System Update dialog box contains two tabs:

■ Direct from HP

■ FTP

CAUTION: Turning off the power before the update is complete may

Ä

corrupt the flash memory on the terminal.

For information about automatically updating your client, see the
related white paper at:

http://h20000.www2.hp.com/bc/docs/support/SupportManual/c0
0448549/c00448549.pdf

Administrator’s Guide www.hp.com 4-37

.

Control Panel

Direct from HP

FTP

✎

Use this tab to update the terminal with the latest available image
directly from Hewlett-Packard or restore the image currently installed
on the terminal.

To update or restore the image, select the appropriate button, and then
click Continue.

This tab allows you to automatically update the image by having the
DHCP server provide the location of the file server on which the
upgrade files are located. This feature provides an alternative to
Altiris for image deployment.

For more information on setting DHCP values, refer to the “DHCP

Options” section in this chapter.

To update the image using the DHCP server:

1. Select Use Values from DHCP Server.

2. In the Server Name/IP box, type the FTP Server Name/IP.

4-38 www.hp.com Administrator’s Guide

3. In the Path and Filename box, type the Path and File name of
the image.

4. In the Server Port box, type the FTP server port.

5. In the User ID and Password boxes, type the user ID and
password required by the FTP file server.

6. To automatically update the image each time the terminal is
restarted, select Automatically check for updates on startup.
This features allows you to place a single, updated image on an
FTP site and have clients automatically check that site at bootup
and update with the new image.

7. Click Update to begin the update process.

The DHCP Options dialog allows you to set the DHCP tags that
identify the FTP location of the update image.

To change the FTP option IDs, type over the entry in the Server Port
box, and then click OK. The value must match what is set up on the
DHCP server.

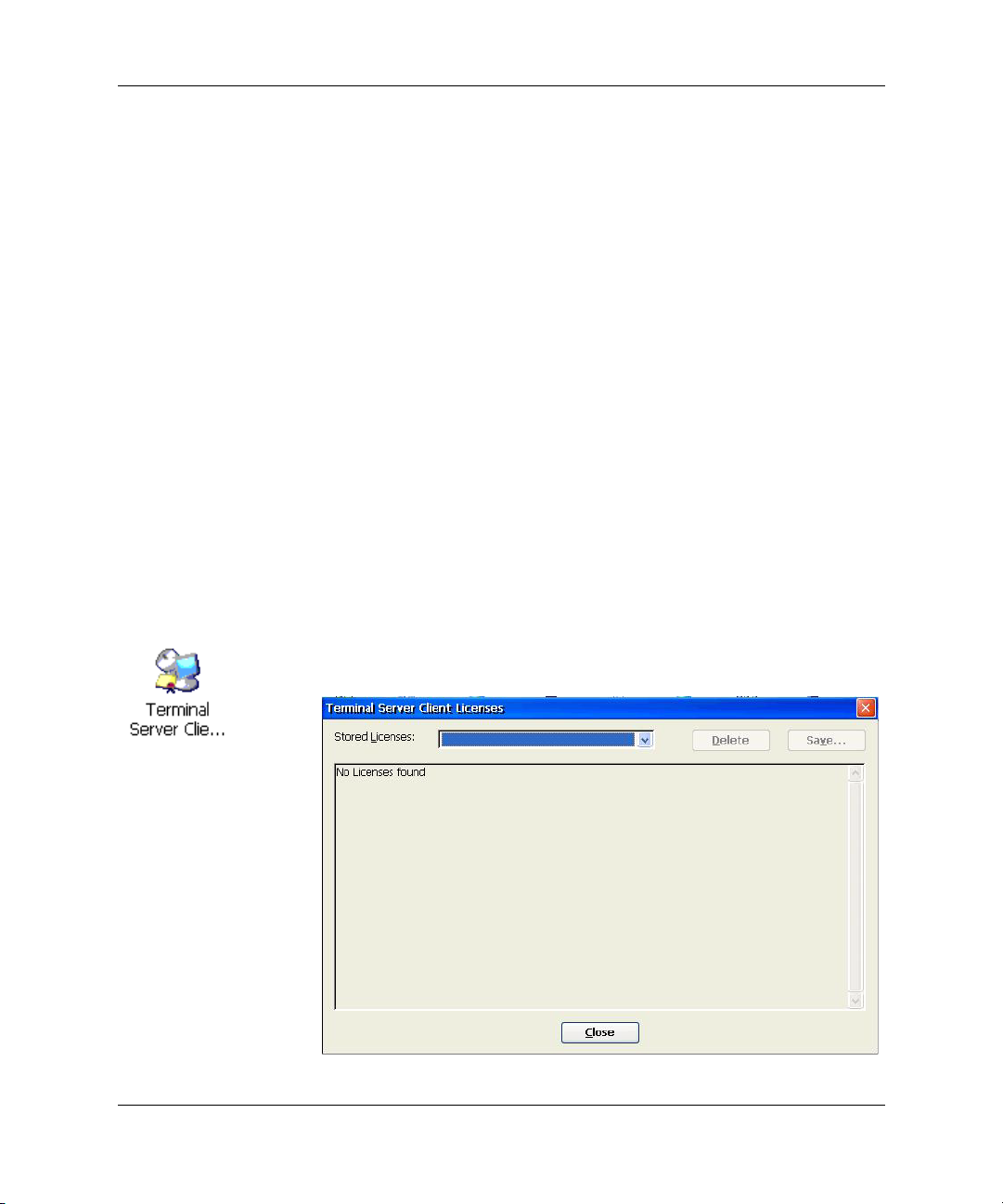

Terminal Server Client Licenses

Control Panel

The Terminal Server Client Licenses dialog box allows you to view
stored licenses. You can use this window to delete or save licenses.

Administrator’s Guide www.hp.com 4-39

Control Panel

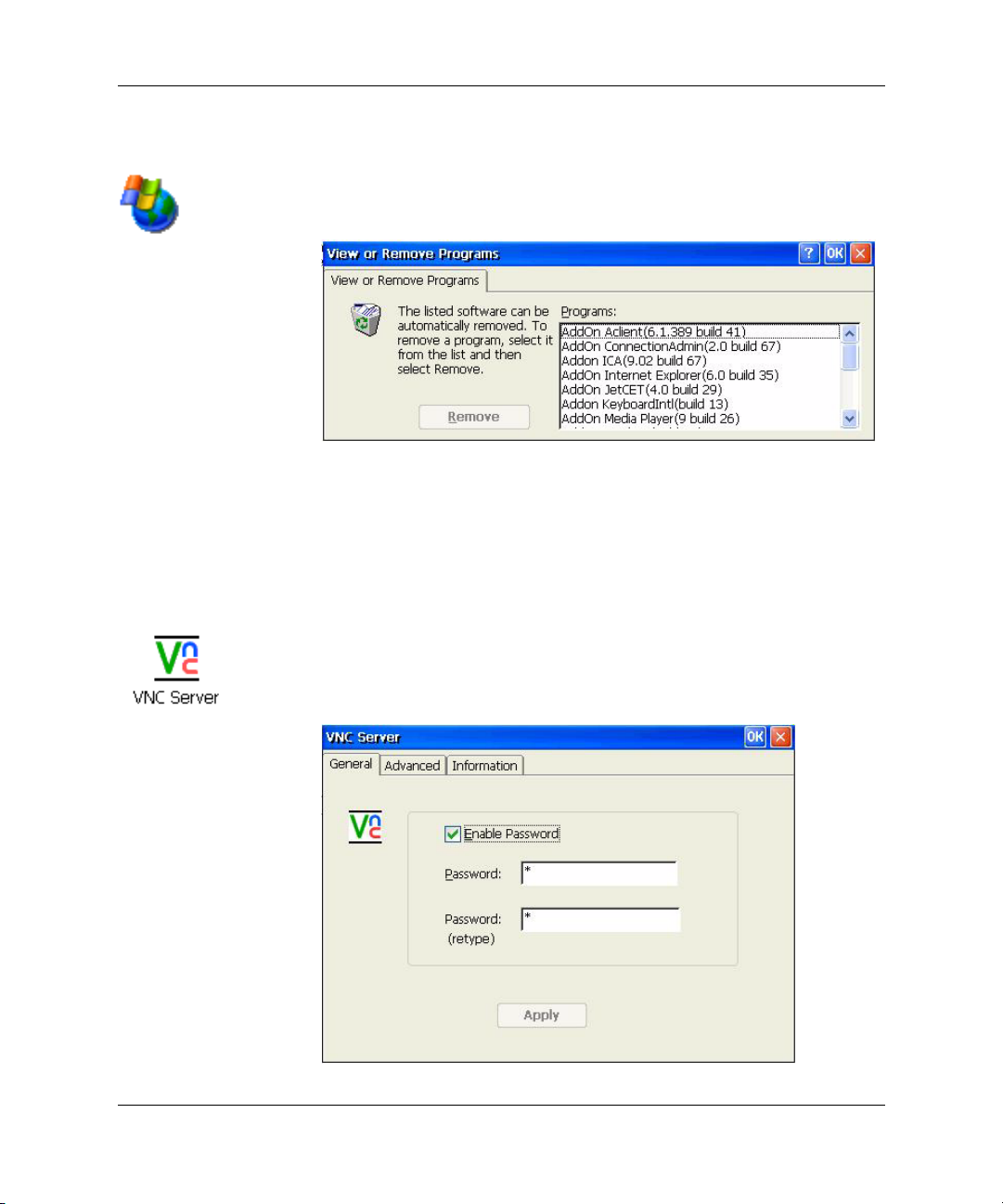

View or Remove Programs

The View or Remove Programs dialog box allows you to view or
remove software programs currently installed on the terminal.

To remove a program, select the program from the list and click
Remove.

VNC Server

Virtual Network Computing (VNC) is a remote control program that
allows you to view and interact with one computer (the “server”)
using a simple program (the “viewer”) on another computer anywhere
on the Internet. The VNC Server runs as a service and therefore is
available even when the user is logged off the thin client.

4-40 www.hp.com Administrator’s Guide

Settings for VNC Server

Configure VNC Server on your thin client by selecting the following:

Check Box Explanation

Control Panel

Prompt local user to
accept incoming
connections

Enable Viewer Cursor This setting allows the viewer to show its

Accept input events
from clients

Autoport Select This setting will be devalued, leaving only the

Accept connections on
port

The default should be ENABLED and Auto
Accept should be ENABLED

cursor on the screen while moving the mouse.
The viewer shows a small dot that points to the
actual location of the “hot spot” of the remote
cursor location. Enabling this setting will show
the local cursor of the viewer; however, the
remote dot will lag behind the local viewer
cursor as it tries to synchronize the local
viewer cursor.

Enabling this setting will allow the viewer to
control the keyboard and mouse of the unit
remotely.

“Accept connections on port” and “Allow
HTTP connections on port”.

Defaults to the standard VNC port of 5900.

Allow HTTP
connections on port

Defaults to the standard VNC port of 5800 for
JVM (Java)-enabled Web Browser Viewers.

Windows CE does not support Java.

✎

You can find additional information about VNC Server features at:

http://www.realvnc.com/documentation.html

Administrator’s Guide www.hp.com 4-41

Control Panel

Volumes & Sounds

The Volumes & Sounds Properties dialog box allows you to adjust
the volume setting and enable sounds for various events and
conditions. You can also create custom sound schemes for various
events.

To open the Volumes and Sounds Properties dialog box, double-click
the Volumes & Sounds icon in the Control Panel.

4-42 www.hp.com Administrator’s Guide

5

Programs and Add-ons

This chapter provides detailed information about programs and
add-on programs for the CE 5.0 image. You can download add-ons
from the HP Support Web site.

Add-ons are programs that you can add and remove from a thin client.
Add-ons consist of both programs that come with the default thin
client image, and programs that you can add.

The following table provides a list of Add-ons and whether they are
included in the image:

Add-On In Factory Image

Aclient Y

BioTouch

ClearVue Office Viewers

ConAdm 2.0 Y

Edgeport

Elotouch for 5.00

ICA 8.x

ICA 9.0 Y

Internet Explorer 6.0 Y

JetCet 3.1

JetCet 4.0 Y

Keyboard Intl Y

Media Player 9.0 Y

Messenger 4.0

Administrator’s Guide www.hp.com 5-1

Programs and Add-ons

Add-On In Factory Image

Messenger 5.0

PCSAM Y

RDP 5.1

RDP 5.5 Y

Setup Wizard for 5.0 Y

SNTP Client 5.0 Y

TEC 5.0 Y

TxtPad Y

USB Mass Storage 5.0 Y

USB Modem Y

USB Parallel Port Y

VNC Server Y

Win Explorer Y

SCM SC Reader for 5.0 Y

USB Wireless

XLan 220

Programs

HP Connections for Citrix Software

The HP Connections for Citrix Software window provides a quick
and easy means of creating new ICA connections. You can also delete
and edit connections, as well as create desktop shortcuts for
connections.

Any ICA connection created will appear in both the HP Connection

✎

Administrator window and the HP Connections for Citrix Software
window. For more information about HP Connection Administrator,
see Chapter 3, “HP Connection Administrator.”

5-2 www.hp.com Administrator’s Guide

You can access the HP Connections for Citrix Software window
from:

■ Start > Programs > HP Connections for Citrix Software.

■ The shortcut icon on the desktop.

Creating a New ICA connection

The upper section of the window contains the ICA connection.

To create a new connection:

■ Double-click the icon in the top section.

or

■ From the File menu, highlight New Connection and select the

type of connection you want to make. Follow the instructions in
the Wizard or dialog.

Deleting a connection

To delete an established connection:

1. Right-click on the connection and select Delete Connection.

Programs and Add-ons

or

Select the connection and press the

2. Click Ye s to delete the connection.

Deleting a connection through HP Connections for Citrix Software

✎

also deletes the connection from HP Connection Adminstrator.

Delete key.

Editing a connection

To edit an established connection:

1. Right-click on the connection and select Edit Connection.

2. Modify the connection.

Administrator’s Guide www.hp.com 5-3

Programs and Add-ons

Creating a desktop shortcut to a connection

You can create a shortcut to a connection on the desktop through HP
Connections for Citrix Software. You cannot create shortcuts through
HP Connection Administrator.

To create a shortcut, right-click on the connection and select Send to
Desktop.

RDP 5.5

Remote Desktop Protocol (RDP) 5.5 replaces RDP 5.1 and provides
the following functionality:

■ Unicode compatibility, which enables you to send Unicode

values of characters as virtual key codes to the keyboard input.

■ RDP supports operation in any environment that allows network

localization, automatic disconnect, and remote configuration.

■ Variable bandwidth allocation through client-side bitmap caching

and optional compression for low-bandwidth connections,
significantly improving performance over low-bandwidth
connections.

■ Multichannel-capable protocol that permits separate virtual

channels for carrying presentation data, serial-device
communication, licensing information, and heavily encrypted
data.

■ Remote control which lets the support staff view and control a

Terminal Services session. Sharing input and display graphics
between two Terminal Services sessions lets support staff
diagnose and resolve problems remotely.

■ Network Load Balancing (NLB), available in Windows 2000

Advanced Server and Datacenter Server.

■ High color 8-bit, 16-bit, and 24-bit graphics are supported if they

are also supported in the graphics driver.

■ Clipboard sharing, also known as clipboard redirection. The local

clipboard becomes a part of the clipboard viewer chain in the
remote session, allowing the user to copy and paste between
applications running in both the remote session and on the local
client.

5-4 www.hp.com Administrator’s Guide

Programs and Add-ons

■ Local-printer redirection so server applications can print locally

to the client device.

■ Local audio playback so server applications can direct audio to

the client device or play at the Terminal Server.

■ Local-port redirection so server applications can use parallel and

COM ports of the client device.

■ Local drive redirection so server applications can use the file

system (including ATA) of the client device.

■ File redirection filter that permits exposing only specific

directories. If you specify that only external storage, such as
Compact Flash or USB storage, be exposed through the
redirected drive, information is saved only to the redirected drive.

■ TS CAL maintenance tool. This control panel window is

available in any OS design that supports Control Panel programs,
such as the Enterprise Web Pad. It requires that RDP client be in
the run-time image.

RDP now runs in Graphics, Windowing, and Events Subsystem
(GWES) rather than in its own process space. This provides faster
display updates by reducing the protected server library (PSL) and
kernel overhead. RDP running in GWES can improve performance
up to 30%.

If you configured RDP to run in GWES, you cannot run RDP inside a

✎

Web browser. Optionally, you can configure RDP to run in Microsoft
ActiveX Control.

Terminal Emulation Connection

Terminal Emulation Connection (TEC) allows you to create a
terminal emulation session for a terminal. You can create two
different types of TECs, a one-time connection, or a connection
associated with a user account.

Administrator’s Guide www.hp.com 5-5

Programs and Add-ons

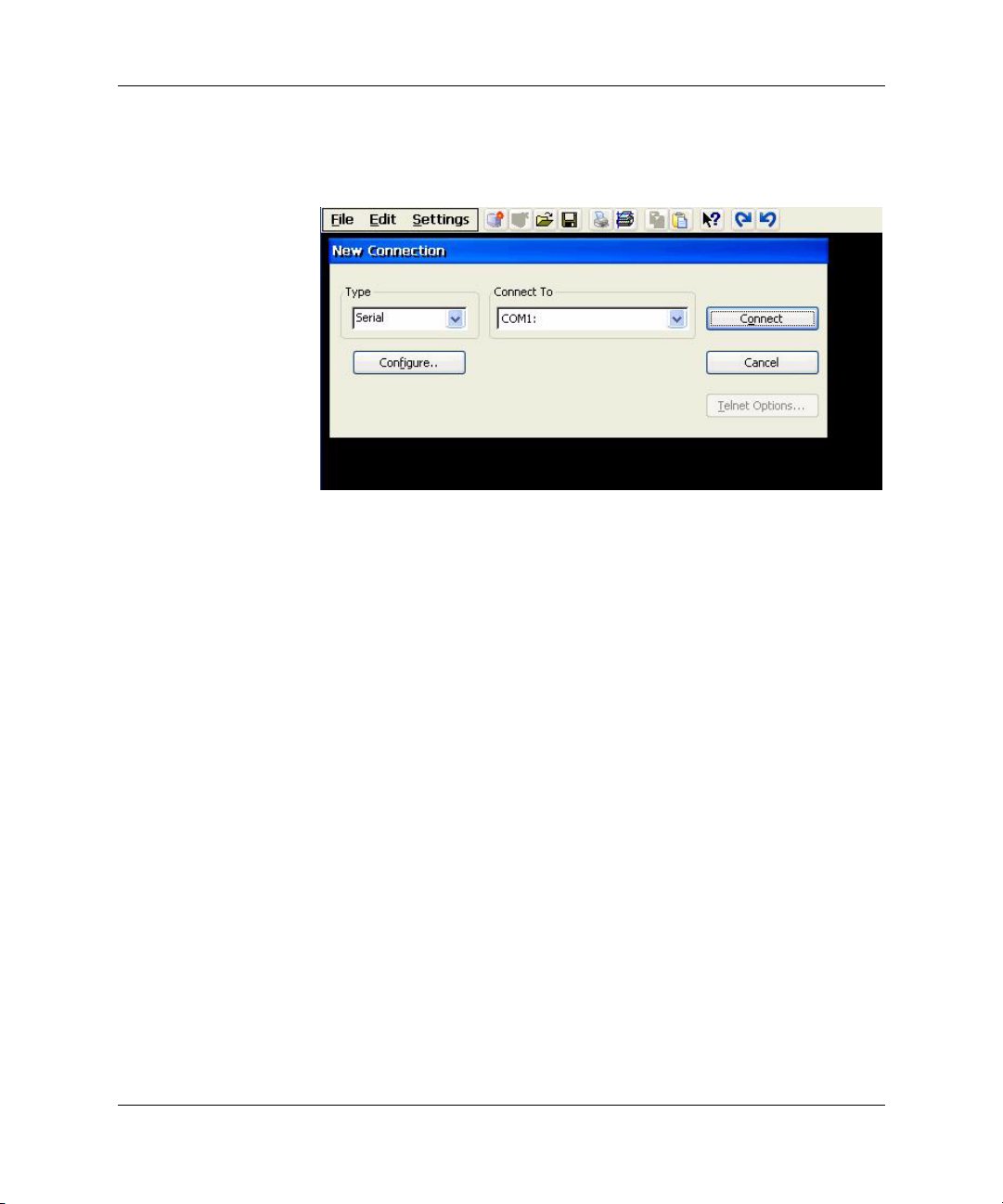

To create a one-time connection:

1. Click Start > Programs > Terminal Emulation.

2. In the Type box select the connection type.

3. Click Configure to configure settings for the connection type you
selected.

4. If you selected TCP/IP in the Connect box, click Te ln et
Options to further configure the connection.

5. In the Connect To box select the port to which to connect.

6. Click Connect to establish the connection. The Connect button
is not available until the connection is properly configured.

To associate a TEC with a user account:

1. Start > Programs > Connection Administrator.

2. Click Add.

5-6 www.hp.com Administrator’s Guide

3. Select Terminal Emulation, and then click OK.

I

4. Follow the wizard to configure the connection.

Programs and Add-ons

TxtPad

TxtPad is a simple text editor in the Windows CE the image. TxtPad
associates with the following file extensions: .txt, .ini, .log, and .arp.

The maximum character limit is 5-MB of ASCII data.

✎

TxtPad is available from a shortcut in the Start > Programs menu.

Administrator’s Guide www.hp.com 5-7

Programs and Add-ons

Add-ons

The following section provides information about add-ons that can be
added to your CE-based thin client image.

ELO Touch Screen

The ELO Touch Screen applet allows you to enable or disable the
touch screen. You can also calibrate the touch screen by clicking the
Align button.

Messenger 5.0

The Windows Messenger 5.0 add-on adds the following
functionality:

■ Support for categorizing contacts into groups and for dragging

■ User Interface (UI) improvements, including system tray

and dropping contacts.

notifications (known as alerts) for incoming messages, and
ToolTip support.

■ An updated .NET Messenger Service.

■ Microsoft Windows Messenger for Windows CE real-time

communications software combines real-time voice and text
communications with file transfer capability. The .NET
Messenger Service is one of two Windows Messenger client
application server types. It enables a user to communicate with
contacts using a .NET Passport account.

5-8 www.hp.com Administrator’s Guide

USB Wireless

Programs and Add-ons

The wireless add-on allows you to set up wireless connections.

To set up a wireless connection:

1. Load the driver on the unit.

2. Plug in the driver. The following screen displays.

Administrator’s Guide www.hp.com 5-9

Programs and Add-ons

3. Select your wireless device from the list. The device
configuration screen displays.

4. Configure the wireless network key and IEEE information, as
required.

5. Click OK. The icon in the taskbar indicates an active
wireless connection.

5-10 www.hp.com Administrator’s Guide

6

Registry Import/Export

This chapter explains how to import/export a thin client registry using
Altiris Deployment Server. For more information about Altiris, see

http://www.altiris.com/.

For information about installing an Altiris BootWorks partition, see

http://h20000.www2.hp.com/bc/docs/support/SupportManual/c0
0215445/c00215445.pdf

The Registry Import/Export tool is an HP-engineered software
technology that makes it significantly easier and more cost efficient
to manage HP thin clients. Registry Import/Export allows thin client
devices to inherit properties of other thin client devices. Extracting
the settings of one device and redeploying the same settings to other
devices reduces network congestion. Registry settings can be 100 to
10,000 times smaller than the entire image.

Please note the following about the Registry Import/Export tool:

■ The tools requires extensive knowledge of Altiris Deployment

Server.

.

■ The source and target machine must have the same image with

the same quantity of software add-ons, and the software add-ons
must be of the same revision. The Registry Import/Export Tool
cannot upgrade or downgrade application versions.

■ The import/export process may take approximately two minutes

to complete.

CAUTION: Currently, Registry Import/Export between the HP Compaq

Ä

t5510 thin client and the HP Compaq t53x0 and t5500 thin clients is not
supported.

Administrator’s Guide www.hp.com 6-1

Registry Import/Export

Clearing the destination registry

Before importing a new registry to a thin client, you must clear the
destination machine registry. To clear the registry, drag and drop
CE_RegReset from the Job window to the Destination Computer.
Completion of this process takes two to three minutes.

Exporting and importing a registry

To export a registry:

1. Open the Deployment Server Console.

2. Select CE_RegExport from the Job window and drag and drop
the Job to the source unit under the Computers window. This
copies the source computer’s registry and prepares it for import.

3. Select CE_RegImport from the Job window and drag and drop
the job to the destination computer under the Computers window.
This imports the settings from the source computer to the
destination computer.

Completion of this process takes two to three minutes.

Importing a registry to multiple units

You can import a single registry to multiple units. To import a
registry to multiple units:

1. Select CE_RegExport from the Job window and drag and drop
the Job to the source unit under the Computers window. This
copies the source computer’s registry and prepares it for import.

2. Select CE_RegImport from the Job window and drag and drop
the job to “All Computers” under the Computers window. This
imports the settings from the source computer to the network.

6-2 www.hp.com Administrator’s Guide

Exporting registries from multiple units

While it is possible to export registries from multiple thin clients, it is
important to ensure the registry files have different names. The export
process saves a time stamp as part of the name for the saved file (for
example, 051306840.reg, which is May 30, 2006 at 8:40). If you
export multiple units at the same time, the registry file names will be
identical. To create distinct file names for each registry, HP
recommends that you capture each registry a minute apart.

Registry Import/Export

Administrator’s Guide www.hp.com 6-3

Registry Import/Export

6-4 www.hp.com Administrator’s Guide

Index

Index

508 Accessibility features 4–2

A

Accessibility 4–2
accounts

default
user

adding

connections
permissions
printers
shortcut
SNMP packets

user accounts
add-ons
Advanced window
Altiris Deployment Server
appearance scheme
area code
ARP
Assign Connections tab
assigning connections to users
associating TEC with user account
Auto column
auto starting Connection Administrator
automatic log on

3–4

3–4

3–2, 3–9
3–8

4–15, 4–23

5–4

4–30

3–4

5–1

3–3

6–1

4–7

4–6

4–35

3–11

3–11

5–6

3–12

3–18

B

background image 4–7
Based on field
bypass auto logon

3–7

3–20

3–16

C

call waiting 4–6

5–2

4–20

4–31

2–2

3–9

3–10

4–21

4–21

3–10

deleting
editing

5–3

new

3–12

4–3

6–2

4–7

4–7

4–7

3–16

3–3

3–16

3–9

3–11, 3–13

3–14

5–3

5–3

Certificates
changing display settings
Citrix
clearing the registry
color quality
configuring

dialing patterns
display properties
mouse
SNMP
taskbar
user interface

Connection Administrator

Advanced window
auto starting

connections

adding
assigning
automatic
deleting
dial-up
direct
editing
ICA

primary

2–2

3–1

Administrator’s Guide www.hp.com Index-1

Index

primary or secondary 3–13
Control Panel
copying registry settings
country code
creating

desktop shortcut

new ICA connection

new user account

one-time TEC

user account

4–1

4–35

4–6

5–4

5–3

3–4

5–6

3–4, 4–28

D

Date/Time 4–4
default accounts
deleting

connections

ICA connection

user accounts
designating connections
desktop
desktop icons
device name
DHCP Options
Dialing
dialing patterns
dial-up connection
direct connection
Display
display settings
documentation

2–1

4–6

4–7

3–4

3–10

5–3

3–8

3–13

2–3

4–35

4–5

4–7

4–21

4–21

2–2, 4–7

1–2

E

editing

connections

ICA connection
ELO Touch Screen
Enable Reset Hotkey check box
enabling

automatic connection

automatic log on

3–10

5–3
5–8

3–14

3–18

3–20

security

exporting a registry

4–28

6–2

F

factory defaults 4–35
features
firewall settings, ICA
form feeds
frequency
FTP
FTP server

1–1

4–13

4–18

4–8

4–38

4–5

G

GETs 4–29
Global ICA Client Settings
GWES

5–5

4–10

H

hidden

Start menu

taskbar
High Contrast display
HP Connections for Citrix Software

2–1

2–1

4–2

I

ICA

connection

firewall settings

keyboard shortcuts

preferences

seamless

serial number

server location

2–3

icons

1–2, 4–36

importing a registry
Internet Options
Internet printing
Internet Protocol Printing

4–16, 4–24

IPP

5–3

4–13

4–10

4–11

4–11

4–11

4–12

6–2
4–14
4–16

4–24

5–2

Administrator’s Guide www.hp.com Index-2

Index

J

Java 4–41
JETCET PRINT

4–15

K

Keyboard 4–17
keyboard shortcuts, ICA
Kiosk mode

3–17

4–10

L

L2TP 4–22
local printing
LPD Control
LPT1 & 2

4–15

4–1, 4–18

4–15

M

memory allocation 4–34
Messenger 5.0
Modems
modifying

printers
user accounts

4–20

Mouse
MouseKeys
My Certificates

5–8

4–19

4–23, 4–26

3–8

4–2

4–3

N

name 4–35
Network and Dial-up Connections
network device name
Network Management Station query
new user account

4–29

NMS

4–35

3–4

4–20

O

Other Authorities 4–3

P

PC SAM 1–3
permissions
Persistent column
PNAgent

3–8

3–12

4–11

4–29

Port Lock
ports
PPPoE
PPTP
preferences, ICA
primary connections
printer

printing
pulse dialing

4–23

4–15

4–22

4–22

4–24

adding
modifying
ports

4–26

4–15

4–15, 4–18, 4–23

4–6

4–11

3–13

R

RDP (5.5) 5–4
RDP/ICA Printers
reconnection
refresh frequency
region code
Regional Settings
registry

clearing
importing and exporting

settings
Registry Import/Export tool
Remote Desktop Protocol
repeat delay
repeat rate
resetting settings
resolution

6–2

4–35

4–17

4–7, 4–8

4–23

3–14

4–7

4–6

4–26

5–4

4–17

4–35

S

screen resolution 4–7
screen saver
screen settings
seamless
secondary connections
security
serial number
Session Allocation Manager

4–7, 4–8

4–8

4–11

3–13

4–28

4–11

6–2

6–1

1–3

Administrator’s Guide www.hp.com Index-3

Index

Set from Template button 3–7
setting

Kiosk mode
permissions

settings

Setup Wizard
shortcuts
Single Button Log On check box
SNMP
SNTP Client
sounds
SoundSentry
SSL
SSL/TLS Relay
Start menu
StickyKeys
support documentation
switching users
System
System Update

4–35

VNC server

4–28

4–42

4–3

4–34

3–17

3–8

4–41

1–2

2–3, 5–4

4–33

4–2

4–13

2–1, 2–3

4–2

1–2

3–20

4–36

T

taskbar 2–1, 2–2

5–5

TEC
templates
Terminal Emulation Connection
Terminal Server Client Licenses
time
tone dialing
touch screen
traps
Trusted Authorities

3–4

4–4

4–6

5–8

4–29

4–3

3–20

5–5

4–39

TxtPad

5–7

U

updates for version (5.0) 1–3
updating your system
USB wireless
user accounts

max name length
user interface
users

assigning connections to

switching
Users tab

5–9

3–4, 4–28

3–16

3–20

3–4

4–36

3–6, 7–1

3–11

V

View or Remove Programs 4–40
Virtual Network Computing
Vitrual Private Network
VNC Server
Volume and Sounds

4–22

VPN

4–40

4–42

4–40

4–22

W

Web sites

6–1

Altiris

JETCET

latest image

PC SAM

support documentation

VNC

white paper for Altiris BootWorks

partition

white paper for auto updating clients
wireless

4–16

1–2

1–3

1–2

4–41

6–1

5–9

4–37

Index-4 www.hp.com Administrator’s Guide
